TechPlay RT-95 Instruction Manual

Download

Page 1

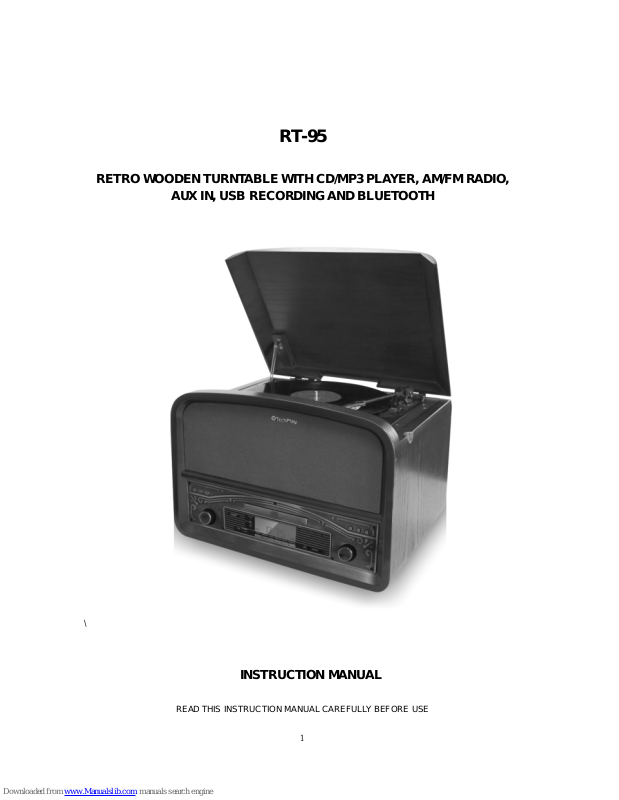

RT-95

RETRO WOODEN TURNTABLE WITH CD/MP3 PLAYER, AM/FM RADIO,

AUX IN, USB RECORDING AND BLUETO OTH

INSTRUCTION MANUAL

READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE

Page 2

PRODUCT FEATURES

- 33/45/78 RPM SELECTABLE TURNTABLE

- AUTOMATIC / MANUAL STOP TURNTABLE

- BELT DRIVEN SYSTEM

- BLUETOOTH WIRELESS MUSIC STREAMING WITH NFC FUNCTION

- PRORAMMABLE CD/MP3 PLAYER

- DIRECT USB ENCODING FOR CD, TURNTABLE, FM RADIO & AUX IN

- AUX IN FOR CONNECTION OF OTHER DEVICE (EG. CD & MP3 PLAYER)

- USB SLOT FOR MP3 PLAYBACK

- PLL RADIO WITH PRESET 20 AM & 30 FM STATIONS

- CLOCK ALARM

- TIMER TO SWITCH ON AND OFF

- ‘CD DISPLAY WITH BLUE BACKLIGHT

- RCA LINE-OUT

- STEREO BUILT-IN SPEAKER

- 45RPM ADAPTOR, EXTERNAL POWER

- ADAPTOR & REMOTE CONTROL

LOCATION OF CONTROL

1) PLAY / PAUSE

2) STOP

3) MODE / CLK

4) STANDBY / BT INDICATOR

5) CD PLAYER

6) LCD DISPLAY

7) TUNING / SKIP DOWN

8) TUNING / SKIP UP

9) OPEN/CLOSE

10) POWER / VOLUME KNOB

11) USB SLOT

12) REMOTE CONTROL RECEIVER

13) CD / USB

14) PHONO / AUX

15) X-BASS

16) TIMER / SLEEP

17) REC / DEL

18) TUNER / BAND

19) EARPHONE JACK

20) AUX IN JACK

21) ALBUM / PRESET UP & DOWN

22) FM WIRE ANTENNA

23) EXTERNAL POWER ADAPTOR JACK

24) RCA LINE-OUT JACK

25) RCA LINE-OUT JACK

26) 45 RPM ADAPTOR

27) LIFT LEVER (FOR RECORD PLAY / PUASE)

28) AUTO STOP ON/OFF BUTTON

29) 33/45/78 RPM SPEED SELECT OR

30) TONE ARM

Page 3

CAUTION:

USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULTE IN HAZARDOUS RADIATION EXPOSURE. THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL.

WARNING:

- THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

- BATTERIES (BATTERY PACK OR BATTERIES INSTALLED) SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.

- THE MAINS PLUGS OR AN APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, AND THE DISCONNECT DEVISE SHALL REMAIN READILY OPERABLE.

PRECAUTIONS FOR USE

INSTALLATION

 UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.  DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND BEFORE

ALL OTHER CONNECTIONS HAVE BEEN MADE.

 DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL CENTIMETERS

AROUND THE UNIT FOR VENTILATION.

CONNECTION

1. CONNECT EXTERNAL POWER ADAPTOR TO EXTERNAL POWER ADAPTOR JACK

2. PUSH THE POWER KNOB TO SWITCH ON THE UNIT, STANDBY INDICATOR (RED COLOR) WILL BE OFF. IF THE BACKLIGHT ON THE LCD DISPLAY LIGHTS UP, IT MEANS THE POWER SUPPLY IS NORMAL, NOW YOUR SYSTEM IS READY FOR USE.

SETTING THE CLOCK

1 WHEN THE STANDBY INDICATOR (RED COLOR) LIGHT UP, UNIT IS IN THE STANDBY MODE. 2 DURING STANDBY MODE, SELECT BETWEEN 12H OR 24H MODE: PRESS AND HOLD MODE BUTTON

FOR 3-5 SECONDSS, 12H / 24H WILL BE FLASHING. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT 12H / 24H MODE. PRESS MODE BUTTON AGAIN TO CONFIRM.

3 SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT HOUR, THEN

PRESS MODE BUTTON AGAIN TO CONFIRM.

4 SETTING MINUTE: AFTER STEP 3 IS COMPLETED, TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT

THE CORRECT MINUTE, THEN PRESS MODE BUTTON AGAIN TO CONFIRM.

SETTING ALARM

1. DURING STANDBY MODE, HOLD TIMER BUTTON FOR 3-5 SECONDS. SETTING ALARM SEQUENCE IS “ALARM ON TIME > ALARM OFF TIME > ALARM MODE > ALARM VOLUME”.

2. SETTING ALARM ON TIME: “ON” IS LIGHTING ON THE DISPLAY

i. SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT

HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.

ii. SETTING MINUTE: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT

MINUTE, THEN PRESS TIMER BUTTON AGAIN T O CONFIRM.

3. SETTING ALARM OFF TIME: “OFF” IS LIGHTING ON THE DISPLAY:

i. SETTING HOUR: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT

HOUR, THEN PRESS TIMER BUTTON AGAIN TO CONFIRM.

ii. SETTING MINUTE: TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE CORRECT

MINUTE, THEN PRESS TIMER BUTTON AGAIN T O CONFIRM.

4. SETTING ALARM MODE: “TUNE” IS LIGHTING UP ON THE DISPLAY:

i. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE ALARM MODE.

ii. SEQUENCE IS TUNER > CD > USB, PRESS TIMER BUTTON AGAIN TO CONFIRM.

5. SETTING ALARM VOLUME: “V - ” IS LIGHTING UP ON THE DISPLA Y:

i. TURNING SKIP UP OR SKIP DOWN KNOB TO SELECT THE ALARM VOLUME, PRESS TIMER

BUTTON AGAIN TO CONFIRM.

SETTING ALARM IS COMPLETED, THE DISPLAY WILL SHOW THE SETTING AGAIN FOR USER’S

CHECKING

Page 4

7. “CLOCK” ICON IS FLASHING WHEN ALARM IS IN ACTIVE. “CLOCK” ICON LIGHTS UP WHEN ALARM IS SETTING IS STORED BUT NOT IN ACTIVE YET.

8. CANCEL ALARM: DURING STANDBY MODE, WHEN “CLOCK” ICON IS ON, PRESS TIMER BUTTON, “CLOCK” ICON WILL BE OFF.

SNOOZE FUNCTION

PRESS “SNOOZE” BUTTON ON THE REMOTE CONTROL WHEN ALARM IN ACTIVE, ALARM WILL BE SLIENT FOR 10 MINUTES. AFTER 9-10 MINUTUE SNOOZE INTERVAL, ALARM WILL BE ACTIVE AGAIN. SNOOZE CAN BE USED FOR REPEATEDLY WITHIN THE 1-HOUR ALARM ACTIVE INTERVAL.

TIMER FUNCTION

1. PUSH THE POWER KNOB TILL THE STANDBY INDICATOR (RED COLOR) LIGHT OFF. UNIT IS TURNING FROM STANDBY MODE TO OPERATION MODE.

2. WHEN THE UNIT IS TURNED ON, PRESS SLEEP BUTTON REPEATEDLY TO CHOOSE THE SLEEP TIME MINUTES FROM 90>80>70…..>10 OFF.

3. SLEEP TIME SETTING IS STORED WHEN THE “SLEEP” ICON LIGHTS UP ON THE DISPLAY.

4. WHEN THE SLEEP TIME MINUTES IS OVER, UNIT WILL BE SWITCHED TO STANDBY MODE AUTOMATICALLY.

LISTENING TO RADIO

RADIO TUNING

1. PRESS TUNER BUTTON TO ACTIVATE “TUNER” MODE.

2. SELECT THE DESIRED BAND BY RADIO TUNRER BUTTON (AM OR FM) AGAIN.

3. TUNE TO THE REQUIRED STATION BY PRESSING TUNING DOWN

& SKIP UP BUTTON FOR 1-2

SECONDS, AND THEN RELEASE.

4. THE UNIT WILL START SEEKING AUTOMATICALLY AND STOP WHEN A RADIO STATION IS FOUND.

MANUAL PRESET RADIO STATIONS

1. WHEN THE DESIRED RADIO STATION IS FOUND, PRESS MODE BUTTON, PROGRAM NUMBER WILL BE FLASHING.

2. PRESS PRESET UP OR PRESET DOWN TO CHOOSE THE PROGRAM NUMBER FOR STORING THE DESIRED RADIO STATION.

3. PRESS MODE BUTTON AGAIN TO CONFIRM, PROGRAM NUMBER WILL STOP TO FLASH.

4. REPEAT STEP 2 & 3 UNTIL ALL DESIRED RADIO STAT IONS IS BEING FOUND AND STORED

5. TURN PRESET UP OR PRESET DOWN KNOBTO CHOOSE THE PRESET RADIO STATIONS.

6. THE NUMBER OF STATIONS CAN BE FOUND AND STORED IS DEPENDED ON THE RECEPTION OF DIFFERENT AREA AND COUNTRIES.

AUTO PRESET RADIO STATIONS

1. DURING RADIO MODE, PRESS THE PLAY BUTTON, THE UNIT WILL AUTOMATICLLY SCAN THE RADIO FREQUENCY. WHEN THE CLEAR SIGNAL IS FOUND, IT WILL AUTOMATICALLY STORE THE RADIO STATION, STARTING FROM PROGRAM NUMBER 1.

2. THE NUMBER OF STATIONS CAN BE FOUND AND STORED IS DEPENDED ON THE RECEPTION OF DIFFERENT AREA AND COUNTRIES.

FM & FM-STEREO RECEPTION

PRESS “FM ST.” BUTTON ON THE REMOTE CONTROL TO SELTECT FM MONO OR FM STEREO MODE. WHEN STEREO SIGNAL ARE WEAK. IT IS PREFERABLE TO RECEIVE THE PROGRAM IN MONO.

HINTS FOR BETTER RECEPTION

1. AM: THERE IS A BUILT-IN AM BAR ANTENNA. IF AM RECECPTION IS WEAK, SLIGHTLY ROTATING OR RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.

2. FM : THE RECEIVER HAS A BUILT-IN FM WIRE ANTENNA HANGING AT THE REAR CABINET. THIS WIRE SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR BEST RECEPTION.

FM & FM-STEREO RADIO ENCODING

1. PRESS TUNER BUTTON TO ACTIVATE “TUNER” MODE AND SELECT THE DESIRED BAND BY RADIO BAND BUTTON (AM OR FM).

2. INSERT MEMORY DEVICE (USB DRIVE)

3. PRESS THE REC BUTTON, IT WILL TAKE 3-5 SECONDS TO READ MEMORY DEVICE. THEN USB ICON WILL BE FLASHING.

4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.

Page 5

5. TO FINISH ENCODING, PRESS

STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO

“ TUNER” MODE.

REMARK:-

- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLAYING TIME OF FM OR FM-ST RADIO

- THE RECORDING FORMAT IS PRESET AT – MP3

BIT RATE : 128 KBPS

- DURING FM & FM-STEREO RADIO ENCODING, RADIO FREQEUNCY IS FXIED AND CANNOT BE TUNED

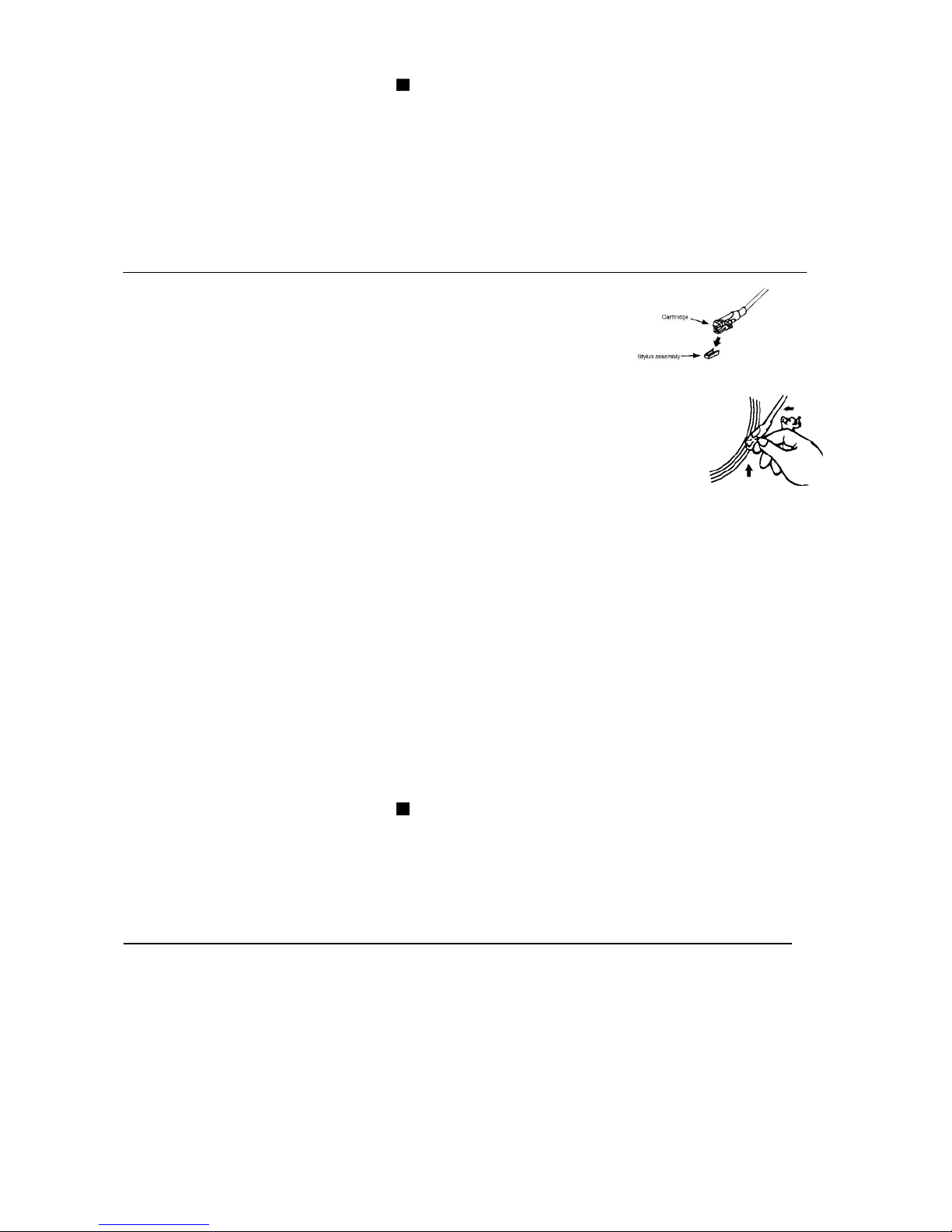

PHONO & ENCODING

NOTED:

- REMOVE THE STYLUS PROTECTOR.

- BE SURE THAT THE TONE ARM IS BEING DETACHED FROM THE TONE ARM

REST BEFORE OPERATING AND RE-SECURED AGAIN AFTERWARDS.

1. PRESS FUNCTION BUTTON TO SELECT “PHON” ON DISPLAY.

2. SET THE SPEED SELECTOR TO THE PROPER POSITION DEPENDING ON THE RECORD TO BE PLAYED.

3. PLACE THE RECORD ON THE PLATTER, USE THE 45 RPM ADAPTOR IF REQUIRED.

4. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM PARK, AND THEN SLOWLY MOVE IT TO THE RECORD SIDE. THE PLATTER WILL START TO ROTATE.

5. PUT DOWN THE LIFT LEVER TO DROP THE TONE ARM AND TOUCH THE RECORD GENTLY. PHONO PLAYING STARTS NOW.

6. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM FROM THE ARM PARK, NOW PLATTE R WILL STILL BE ROTATING BUT PHONO PLAYING WILL ST OP. TO CONTINUE THE PLAYING, THE USER NEEDS TO PUT DOWN THE LIFT LEVER.

7. ADJUST THE VOLUME TO THE DESIRED LEVEL.

8. AT THE END OF RECORD, THE PLATTER WILL AUTOM ATICALLY STOP ROTATING. PUSH THE LIFT LEVER UPWARD TO RAISE THE TONE ARM AND MOVE IT TO THE ARM PARK, AND THEN PUT DOWN THE LIFT LEVER.

9. TO STOP MANUALLY, LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE ARM PARK.

REMARK : AS SOME KIND OF RECORD THE AUTO-STOP AREA WAS OUT OF THE UNIT SETTING, SO IT WILL STOP BEFORE THE LAST TRACK FINISHES. IN THIS CASE, SELECT THE AUTO-STOP SWITCH TO “ OFF “ POSITION, THEN IT WILL RUN TO THE END OF THE RECORD BUT WILL NOT STOP AUTOMATICALLY (TURN OFF THE UNIT BY POWER BUTTON OR SWITCH BACK THE AUTO -STOP SWIT CH TO “ ON “ POSITION TO STOP THE PLATTER ROTATE). THEN PUT BACK THE TONE ARM TO THE ARM PARK.

PHONO ENCODING

1. PRESS PHONO BUTTON TO ACTIVATE “PHONO” ON DISPLAY AND THEN INSERT USB MEMORY DEVICE.

2. INSERT MEMORY DEVICE (USB DRIVE)

3. PRESS THE REC BUTTON, IT WILL TAKE AROUND 5-10 SECONDS TO READ MEMORY DEVICE. THEN USB ICON WILL BE FLASHING.

4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.

5. TO FINISH ENCODING, PRESS

STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO

PHONO MODE.

REMARK:-

- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE PHONO

- THE RECORDING FORMAT IS PRESET AT – MP3 BIT RATE : 128 KBPS

AUX IN JACK & ENCODING

PRESS AUX BUTTON TO ACTIVATE “AUX” ON DISPLAY, THEN CONNECT THE EXTERNAL AUDIO DEVICE (SUCH AS CD PLAYER) THROUGH THE AUX IN JACK. AUDIO SIGNAL FROM THE EXTERNAL AUDIO DEVICE CAN BE PLAYED THROUGH THE SYSTEM.

AUX IN ENCODING

1. PRESS AUX BUTTON TO SELECT “AUX” ON DISPLAY, THEN INSERT MEMORY DEVICE (USB DRIVE)

2. INSERT MEMORY DEVICE (USB DRIVE)

Page 6

3. PRESS THE REC BUTTON, IT WILL TAKE AROUND 5-10 SECONDS TO READ MEMORY DEVICE. THEN USB ICON WILL BE FLASHING.

4. THE USB ICON WILL BE FLASHING ON THE DISPLAY DURNIG ENCODING.

5. TO FINISH ENCODING, PRESS

STOP BUTTON AND DISPLAY WILL SHOW “END” AND RETURN TO

“AUX” MODE.

REMARK:-

- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE EXTERNAL AUDIO DEVICE.

- THE RECORDING FORMAT IS PRESET AT – MP3

BIT RATE : 128 KBPS

PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA

CONNECTING

THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 / WMA FILE WHICH STORED IN THE MEMORY MEDIA WITH USB CONNECTING PORT.

1. PLUG-IN THE USB PLUG WITH THE FACE UP & MAKE SURE IT GOING INTO COMPLETELY, INSERT

STRAIGHT WITHOUT BENDING.

2. CONNECTING THE USB UPSIDE DOWN OR BACKWARDS COULD DAMAGE THE AUDIO SYSTEM OR THE

STORAGE MEDIA (USB DRIVE). CHECK TO BE SURE THE DIRECTION IS CORRECT BEFORE CONNECTION.

3. PRESS USB BUTTON TO SELECT “USB” MODE, THEN INSERT USB MEMORY DEVICE.

4. THE SYSTEM WILL START READING THE STORAGE MEDIA AUTOMATICALLY, AND DISPLAY WILL SHOW

THE TOTAL NUMBER OF MP3/WMA FILES (EG. 016).

5. THEN THE SYSTEM WILL START AUDIO PLAYBACK FROM USB DEVICE AUTOMATICALLY.

 PLAY / PAUSE BUTTON

- PRESS THE “PLAY/PAUSE” BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO

CONTINUE.

 STOP BUTTON

PRESS STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW THE

TOTAL NUMBER OF MP3/WMA FILES. AND THEN USER CAN PRESS “SKIP UP” OR “SKIP DOWN”

BUTTON TO SELECT FILE FORWARD OR BACKWARD.

 SKIP UP

/ SKIP DOWN BUTTON

- DURING MP3/WMA PLAYBACK, PRESS SKIP UP BUTTON ONCE TO PLAY THE NEXT FILE.

PRESS AND HOLD SKIP UP

BUTTON CONTINUOUSLY TO SPEED UP SELECTING

FORWARD.

- DURING MP3/WMA PLAYBACK, PRESS

SKIP DOWN BUTTON ONCE TO PLAY THE PREVIOUS

FILE. PRESS AND HOLD

SKIP DOWN BUTTON CONTINUOUSLY TO SPEED UP

SELECTING BACKWARD.

 FOLDER SEARCHING

TURN ALBUM DOWN & UP KNOB LEFT OR RIGHT TO SEARCH FOLDER BACKWARD OR FORWARD.

 REPEAT ONE / REPEAT ALBUM / REPEAT ALL / RANDOM / INTRO PLAYBACK FUNCTION

DURING AUDIO PLAYBACK, PRESS MODE BUTTON TO SELECT REPEAT ONE / REPEAT ALBUM /

REPEAT ALL / RANDOM / INTRO MUSIC PLAYBACK FROM USB DEVICE

REMARK

- IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN MP3 ENCODING FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB SOCKET. THIS IS NOT A MALFUNCTION OF THE SYSTEM.

- THERE ARE NUMEROUS USB DEVICE PRODUCERS ARE. SOLUTION AND FORMAT ARE VARIABLE BETEEN EACH OTHER. THEREFORE, WE DO NOT GARANTTEE THIS UNIT CAN SUPPORT ALL USB DEVICE FROM EVERY BRAND.

TRACKS PROGRAMMING

UP TO 99 TRACKS CAN BE PROGRAMMED FOR MP3/WMA FILE AND PLAY IN ANY ORDER. BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:

Page 7

1. SET AT “USB” MODE, THEN PRESS STOP BUTTON.

2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.

3. SELECT A DESIRED FOLDER BY PRESSING

SKIP UP OR SKIP DOWN BUTTON, THEN

PRESS MODE BUTTON TO CONFIRM.

4. THEN SELECT A DESIRED TRACK BY PRESSING

SKIP UP OR SKIP DOWN BUTTON, THEN

PRESS MODE BUTTON TO CONFIRM.

5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.

6. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE”

BUTTON

TO PLAY THE TRACKS IN ASSIGNED ORDER.

7. PRESS STOP

BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP BUTTON

AGAIN TO CANCEL PROGRAMMING.

FILE DELETE FROM USB DEVICE

THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB DRIVE BY FOLLOWING:-

I) DELETE 1 TRACK

1. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS DURING THE PLA YBACK OF THE DESIRED TRACK,

THEN “ONE” WILL BE FLASHING ON THE DISPLAY. PRESS DEL BUTTON AGAIN TO CONFIRM.

2. “DELETE” WILL BE SHOWN ON THE DISPLAY.

3. “DELETE” WILL DISAPPEAR ON THE DISPLAY, IT MEANS THE TRACK IS DELETED.

II) DELETE 1 FOLDER

1. INSERT THE USB DRIVE, SET IN “USB” MODE & SET AT STOP MODE AFTER UNIT READING.

2. TURN ALBUM DOWN OR ALBUM UP KNOB TO SEARCH DESIRED FOLDER FOR DELETING.

3. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, “DEL” WILL SHOW ON THE DISPLAY. PRESS SKIP

/ SKIP DOWN BUTTON TO SELECT “DIR” ON THE DISPLAY. PRESS DEL BUTTON AGAIN TO

CONFIRM.

4. “DELETE” WILL BE SHOWN ON THE DISPLAY. AFTER “DELETE” DISAPPEARS IT MEANS THE DESIRED FOLDER IS DELETED.

II) DELETE ALL TRACK

1. INSERT THE DRIVE, SET IN “USB” MODE & SET AT STOP MODE AFTER UNIT READING.

2. PRESS AND HOLD DEL BUTTON FOR 3-5 SECONDS, THEN “ONE” WLL BE FLASHING ON THE DISPLAY. PRESS SKIP UP / SKIP DOWN BUTTON TO SELECT “ALL” ON THE DISPLAY. PRESS DEL

BUTTON AGAIN TO CONFIRM.

3. USB ICON WILL BE FLASHING ON THE DISPLAY. DELETING IS PERFORMING NOW.

4. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT ALL TRACK COPYING IS COMPLETED.

REMARK : ALL THE FILES INSIDE THE USB DRIVE WILL BE DELETED COMPLETELY AFTER CONFIRMING TO

“DEL” BUTTON.

COMPACT DISC (CD) PLAYBACK & ENCODING

1. PRESS CD BUTTON TO SELECT “CD” ON DISPLAY.

2. PRESS OPEN / CLOSE BUTTON, CD DOOR WILL BE OPENED, PUT THE CD IN THE TRAY AND PR ESS OPEN

/ CLOSE BUTTON AGAIN, CD DOOR WILL BE CLOSED.

3.THE SYSTEM WILL START READING THE CD:

 PLAY / PAUSE BUTTON

- PRESS THE PLAY/PAUSE BUTTON ONCE TO HALT PLAYING, PRESS IT AGAIN TO CONTINUE.

 STOP BUTTON

- PRESS THE STOP BUTTON TO END UP AUDIO PLAYBACK, THEN DISPLAY WILL SHOW THE TOTAL

NUMBER OF TRACKS. AND THEN USER CAN TURN SKIP UP / SKIP DOWN KNOB TO SELECT TRACKS.

 SKIP UP

/ SKIP DOWN BUTTON

- DURING CD PLAYBACK, TURN SKIP UP KNOB DOWNWARDS ONCE TO PLAY THE NEXT

FILE. TURN AND HOLD SKIP UP BUTTON DOWNWARDS CONTINUOUSLY TO SPEED UP SELECTING FORWARD

- DURING CD PLAYBACK, TURN SKIP DOWN KNOB UPWARDS ONCE TO PLAY THE

PREVIOUS FILE. TURN

AND HOLD SKIP DOWN KNOB UPWARDS CONTINUOUSLY TO

SPEED UP SELECTING BACKWARD.

Page 8

 FOLDER SEARCHING

- TURN ALBUM DOWN & UP KNOB LEFT OR RIGHT TO SEARCH FOLDER BACKWARD OR FORWARD.

 REPEAT ONE / REPEAT ALBUM / REPEAT ALL / RANDOM / INTRO PLAYBACK FUNCTION

- DURING AUDIO PLAYBACK, PRESS MODE BUTTON TO SELECT REPEAT ONE / REPEAT ALBUM /

REPEAT ALL / RANDOM / INTRO MUSIC PLAYBACK FROM USB DEVICE

TRACKS PROGRAMMING

UP TO 99 MP3 TRACKS & 20 CD AUDIO FORMAT TRACK CAN BE PROGRAMMED AND PLAYED IN ANY ORDER. BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:

1. SET AT “USB” MODE, THEN PRESS STOP BUTTON.

2. PRESS MODE BUTTON, “MEM” WILL BE FLASHING ON LCD DISPLAY. MOREOVER, IT WILL INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.

3. SELECT A DESIRED FOLDER (FOR MP3/WMA DISC ONLY) BY PRESSING

SKIP UP OR SKIP DOWN

BUTTON, THEN PRESS MODE BUTTON TO CONFIRM.

4. THEN SELECT A DESIRED TRACK BY PRESSING

SKIP UP OR SKIP DOWN BUTTON, THEN

PRESS MODE BUTTON TO CONFIRM.

5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.

6. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS “PLAY/PAUSE”

BUTTON

TO PLAY THE TRACKS IN ASSIGNED ORDER.

7. PRESS STOP

BUTTON TO STOP PLAYING OF PROGRAMMED TRACKES, PRESS STOP BUTTON

AGAIN TO CANCEL PROGRAMMING.

COPYING OF CD

THE SYSTEM ALLOWS YOU TO COPY THE TRACK FROM CD TO USB BY 1 TRACK, 1 FOLDER OR ALL FILES.

I) COPY 1 TRACK

1.INSERT THE USB STORAGE MEDIA, PRESS CD BUTTON TO “CD” MODE.

2.PRESS

REC BUTTON DURING THE PLAYBACK OF THE COPYING TRACK FROM CD, THEN “ONE” WILL BE

FLASHING ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.

3.THE USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.

4.AFTER COMPLETING OF COPY, UNIT WILL STOP PLAYBACK AUTOMATICALLY.

5.DISPLAY WILL SHOW “END” AND BACK TO CD MODE.

II) COPY 1 FOLDER (FOR MP3/WMA DISC ONLY)

1.INSERT THE USB STORAGE MEDIA, SET IN CD & STOP MODE AFTER UNIT READING.

2. TURN ALBUM DOWN OR ALBUM UP BUTTON KNOBTO SEARCH FOLDER FOR COPYING.

3. PRESS REC BUTTON, THEN “ONE” WILL BE FLASHING ON THE DISPLAY. TURN SKIP UP

/ SKIP DOWN

BUTTON TO SELECT “DIR” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.

4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.

5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT THE FOLDER COPYING IS COMPLETED.

III) COPY ALL TRACK

1.INSERT THE USB STORAGE MEDIA, PRESS CD BUTTON TO “CD” MODE.

2. PRESS REC BUTTON, THEN “ONE” WLL BE FLASHING ON THE DISPLAY. PRESS SKIP UP

/ SKIP DOWN

KNOB TO SELECT “ALL” ON THE DISPLAY. PRESS REC BUTTON AGAIN TO CONFIRM.

4. USB ICON WILL BE FLASHING ON THE DISPLAY. COPYING IS PERFORMING NOW.

5. WHEN THE USB ICON STOPS FLASHING, IT MEANS THAT ALL TRACK COPYING IS COMPLETED.

SPLIT TRACK FUNCTION FOR USB RECORDING FOR TURNTABLE/AUX IN

1) MANUAL SPLIT OPERATION PROCEDURE: DURING USB RECORDING, THE USB ICON WILL FLASH ON

THE DISPLAY. IF A NEW TRACK IS REQUIRED, PRESS MODE BUTTON ON THE UNIT OR REMOTE CONTROL, DISPLAY WILL SHOW “TS”, THEN THE UNIT WILL STOP RECORDING MOMENTARILY AND RESUME AGAIN. A NEW FILE WILL HAVE BEEN CREATED ON THE USB DEVICE REPRESNTING A NEW TRACK.

2) AUTO SPLIT OPERATION PROCEDURE:

- BEFORE USB RECORDING, SELECT AUDIO SOURCE, THEN PRESS MODE BUTTON ON THE UNIT OR

REMOTE CONTROL, DISPLAY WILL SHOW “T-ON”, WHICH MEANS THE AUTO SPLIT FUNCTION HAS ACTIVATED. THEN START USB RECORDING, THE UNIT CAN AUTOMATICALLY DETECT THE SILENT PART BETWEEN EACH TRACK, AND CREATE A NEW FILE TO MOVE ON TO START RECORDING THE NEXT TRACK.

- IF NOT REQUIRED: PRESS MODE BUTTON ON THE UNIT OR REMOTE CONTROL BEFORE USB

RECORDING, DISPLAY WILL SHOW “T-OF”, WHICH MEANS AUTO SPLIT HAS BEEN DEACTIVATED.

- PLEASE NOTE FOR AUTO SPLIT: SEVERAL SECONDS OF THE BEGINNING OF THE NEXT TRACK MAY

Page 9

NOT BE RECORDED, AS THE UNIT MAY TAKE A FEW SECONDS TO CREATE A NEW FILE ON THE USB; AND IT CAN ADDITIONALLY BE THE CASE THAT SOME MUSIC PRODUCERS INTENTIONALL Y ADD SILENT SECTIONS WITHIN ONE TRACK. AS A RESULT, THIS WILL VERY LIKELY MAKE THE UNIT CONSIDER THIS SILENT PART THE BREAK BETWEEN TRACKS AND CREATE A NEW TRACK ON THE RECORDING.

- NOTE FOR AUTO SPLIT: DURING USB RECORDING FROM TURNTABLE, WHEN THE UNIT HAS

DETECTED ANY PARTICULAR SILENT PART, THE TURNTABLE WILL STOP MOMENTARILY. THE TURNTABLE WILL RESUME OPERATION ONCE THE USB DEVICE HAS BEGUN CREATING A NEW FILE TO BE RECORDED.

BLUETOOTOOTH CONNECTION

- PRESS AND HOLD CD/USB BUTTON TILL LCD SHOWS “BT”, THEN THE UNIT IS READY FOR

CONNECTION WITH YOUR BLUETOOH DEVICE (SUCH AS MOBILE PHONE).

- SWITCH ON THE BLUETOOTH FUNCTION OF YOUR BLUETOOH DEVICE, AND SELECT

“TCP9560” BLUETOOTH EQUIPMENT FOR C ONNECTION.

- AFTER YOUR BLUETOOH DEVICE IS CONNECTED WITH THE UNIT VIA BLUETOOTH, START

TO PLAYBACK YOUR DEVICE.

- THIS UNIT HAS NFC FUNCTION WHICH CAN ALLOW YOUR BLUETOOH DEVICE (SUCH AS

MOBILE PHONE) CONNECTING WITH THE UNIT AUTOMATICALL Y.

- SWITCH ON THE BLUETOOTH AND NFC FUNCTION OF YOUR DEVICE, THEN PUT IT NEAR

THE LOGO WITHIN 5MM ON THE FRONT PANEL. YOUR DEVICE CAN AUTOMATICALLY SEACH AND CONNECT WITH THE UNI T.

- TO DISCONNECT WITH THE UNIT, PUT YOUR DEVICE NEAR THE “BT/N” LOGO WITHIN 5MM

ON THE FRONT PANEL AGAIN.

X-BASS

PRESS X-BASS BUTTON, LCD SHOWS “BASS ON”, BASS LEVEL WILL BE ENHANCED DURING MUSIC PLAYBACK. PRESS X-BASS BUTTON AGAIN, LCD SHOWS “BASS OFF”, BASS BACK TO NORMAL LEVEL.

ID3 DISPLAYX-BASS

DURING MP3 MUSIC PLAYBACK, PRESS ID3 button ON TH REMOTE CONTROL, IT CAN SWITCH ON OR OFF ID3 DISPLAY. IF ID3 DISPLAY IS ON, IT CAN SHOW THE MP3 DETAILS INCLUDING TILE NAME, ARTIST NAME AND ALBUM NAME DURING MP3 PL YBACK.

EARPHONE JACK & LINE OUT SOCKET

- THIS SYSTEM CAN BE CONNECTED WITH HEADPHONE OR EXTERNAL AMPLIFIER /

SPEAKER BY 3.5MM EARPHONE JACK.

- THIS SYSTEM CAN BE CONNECTED WITH EXTERNAL DEVICE (EG. AMPLIFIER AND

SPEAKER) BY LINE-OUT SOCKET A T REAR CABINET .

POWER SAVING FEATURE:

To save energy, if there is no audio signal from CD / Turntable / AUX IN / USB / for a period of over 10 minutes, then the unit will automatically switch to Standby Mode.

Page 10

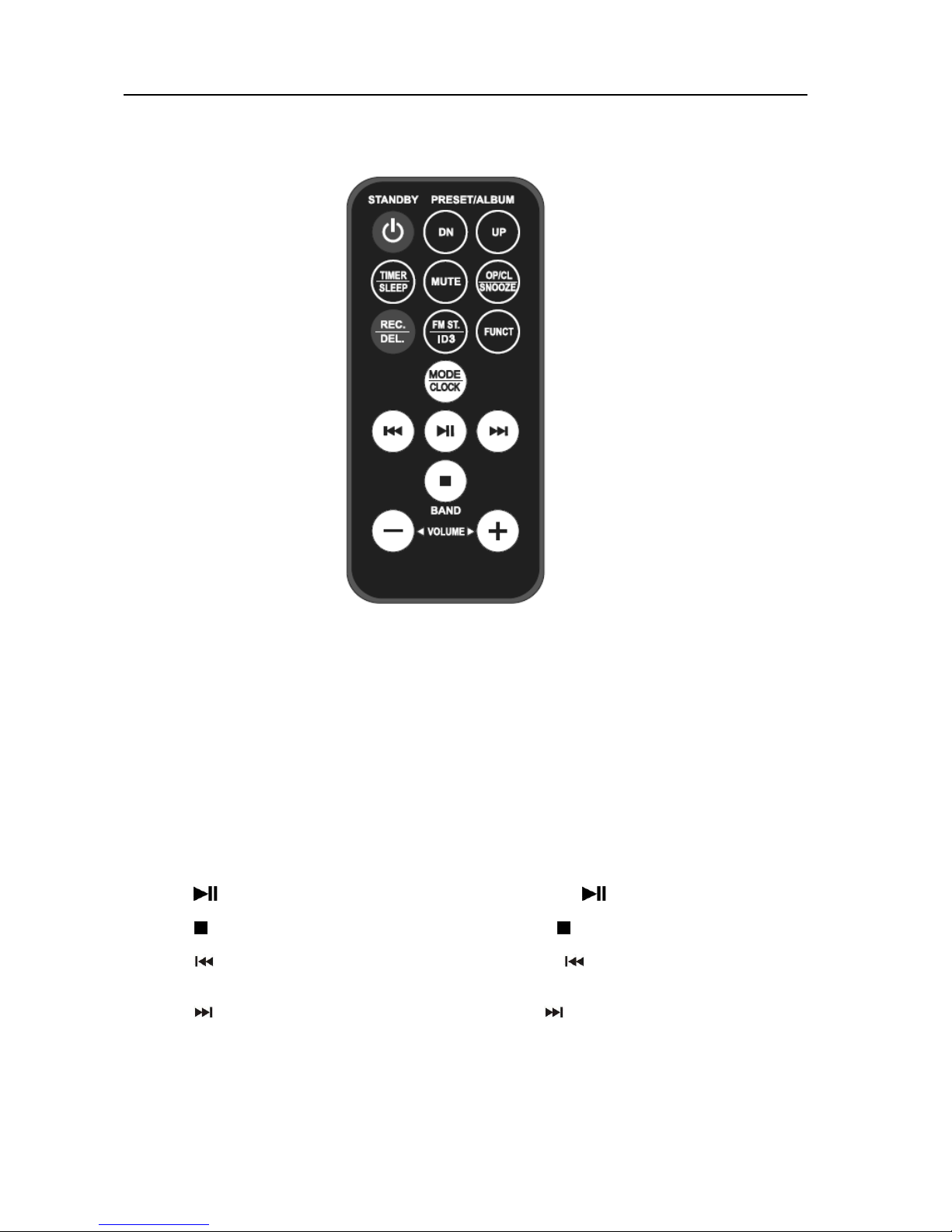

REMOTE CONTROL

BATTERY INSTALLATION

THE INFRA-RED TRANSMITTER REQUIRES 1 PC CR2025 LITHUM BATTERY FOR OPERATION

BUTTON DESCRIPTION

1 STANDBY: TRIGGER BETWEEN STANDBY MODE AND OPERATION MODE. 2 PRESET/ALBUM DN: PERFORM SAME FUNCTION AS “ALBUM DOWN / PRESET DOWN”

KNOB ON THE UNIT.

3 PRESET/ALBUM UP: PERFORM SAME FUNCTION AS “ALBUM UP / PRESET UP” KNOB

ON THE UNIT. 4 TIMER / SLEEP: PERFORM SAME FUNCTION AS “SLEEP / TIMER” BUTTON ON THE UNI T. 5 MUTE: TO MUTE AUDIO PLAYBACK. 6 OP/CL & SNOOZE: OPEN AND CLOSE THE CD DOOR; SNOOZE FUNCTION FOR ALARM.

7 REC/DEL: PERFORM SAME FUNCTION AS “REC/DEL” BUTTON ON THE UNIT. 8 FM ST./ID3: SELECT BETWEEN FM STEREO AND MONO RADIO; SWITCH ON OR OFF

THE ID3 DISPLAY. 9 FUNCT: SELECT FUNCTION BETWEEN CD/USB/PHONO/AUX/TUNER (TO ACTIVIATE

BLUETOOTH FUNCTION, PRESS AND HOLD FUNCT BUTT ON ON THE REMOTE CONTROL

TILL DISPLAY SHOWS “BT”) 10 MODE/CLOCK: PERFORM SAME FUNCTION AS “MODE/CLK” BUTTON ON THE UNIT. 11

(PLAY/PAUSE): PERFORM SAME FUNCTION AS “ PLAY/PAUSE” BUTTON ON

THE UNIT. 12

(STOP)/BAND: PERFORM SAME FUNCTION AS “ STOP / BAND” BUTTON ON THE

UNIT. 13

(SKIP DOWN ): PERFORM SAME FUNCTION AS “ SKIP DOWN” BUTTON ON THE UNIT. BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER MODE.

(SKIP UP ): PERFORM SAME FUNCTION AS “ SKIP UP” BUTTON ON THE UNIT. BESIDES, IT CAN BE USED FOR RADIO FREQUENCY SEARCHING DURING TUNER MODE.

15 VOLUME +/- : CONTROL VOLUME LEVEL.

Page 11

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
