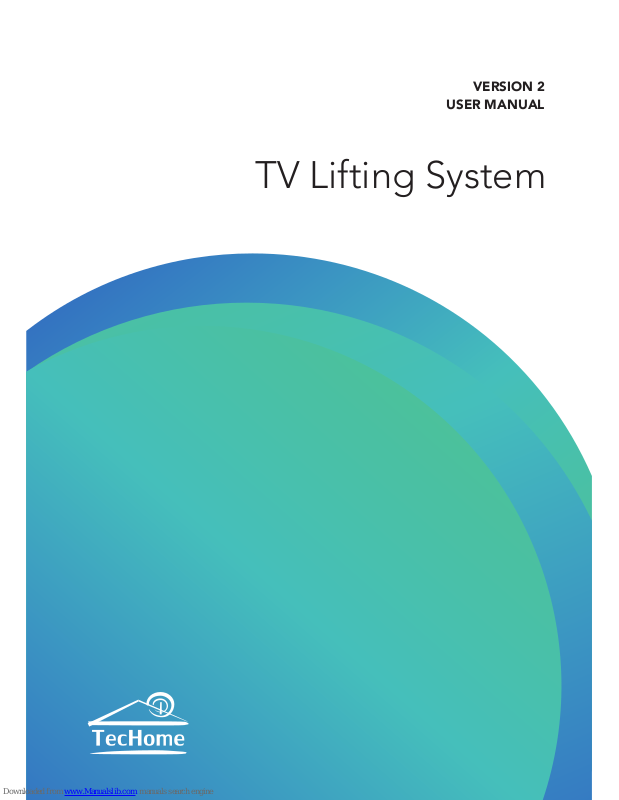

Techome TVL3, TJB2, TH3 User Manual
VERSION 2
USER MANUAL
TV Lifting System
Version 2．October 2015
1 of 16
TV Lift System User Manual
Contents
Contents 1
1. Overview 2
2. System Introduction 3
2.1 Package Contents 3
2.2 Appearance 4
2.3 Specification 5
2.3.1 2D drawing of the TVL3 lifting column 5
2.4 Installation guide 9
2.5 Getting started 11
2.5.1 Concealed Switch Box : Setting the desired maximum height 11
2.5.2 IR Control: Setting the lift height 13
2.5.3 RF Control-
TH3: Setting the lift height 14
2.5.4 Operation 16
2.6 Safety (for end users) 16
Version 2 October 2015
2 of 16
TV Lift System User Manual
1.Overview
Column: TVL3
Control Box: TC11
Controls: TH3 and IR Control
Accessories: TJB2 Junction Box
TSS Safety Switch
(optional), and Concealed Switch Box
The TVL3 series columns are primarily designed for use as TV lifts, but can be used in other
applications that require vertical movement using a remote control. Our steel constructed TVL3 is
available in three sizes depending on the requirements of the application. An extended height position
can be programmed using our remote control.
Concealed
Switch Box
IR Receiver
IR Control
TC11
TJB2
(with RF receiver)
TSS
(optional)
TH3
TVL3
Version 2．October 2015
2.System Introduction
N
o. Description Model Name Q’ty
1 Lift Column TVL3 1pc
2 Control Box TC11 1 pc
3 Control TH3 1 pc
4 Control IR Control 1 pc
5 Accessory TJB2 1 pc
6 Accessory Concealed switch box 1 pc
7 Accessory Power cord 1 pc
8 Accessory (optional) TSS
9 Component Package Refer to the following chart for more details
TecHome
Version 2．October 2015
3 of 16
TV Lift System User Manual
2.System Introduction
2.1 Package Contents
Chart A: List of the package content
N
o. Description Model Name Q’ty
1 Lift Column TVL3 1pc
2 Control Box TC11 1 pc
3 Control TH3 1 pc
4 Control IR Control 1 pc
5 Accessory TJB2 1 pc
6 Accessory Concealed switch box 1 pc
7 Accessory Power cord 1 pc
8 Accessory (optional) TSS
9 Component Package Refer to the following chart for more details
(page 9~10)
1 set
Version 2．October 2015
4 of 16
TV Lift System User Manual
2.2 Appearance
Version 2．October 2015
Medium 685 780 545 40”~55”
Note: It is based on the current primary plasma TV screen size.
Version 2．October 2015
5 of 16
TV Lift System User Manual
2.3 Specifications
2.3.1 2D drawing of the TVL3 lifting column
TVL3 Specifications
S
ize Retracted
Length
(mm)
Stroke
(mm)
Fixing Hole
Distance
(mm)
Max. Load
(N)
Speed (mm/sec) Recommended
TV Size (inch)
(Note)
Large 795 914 650 600 35 mm/s at
no load
20 mm/s at
full load
50”~70”
Medium 685 780 545 40”~55”
Small 570 650 430 32”~43”
Note: It is based on the current primary plasma TV screen size.
70 70
65
L: 795 / M: 685 / S: 570
65
L: 1709 / M: 1470 / S: 1220
186
156
120
186
156
120
