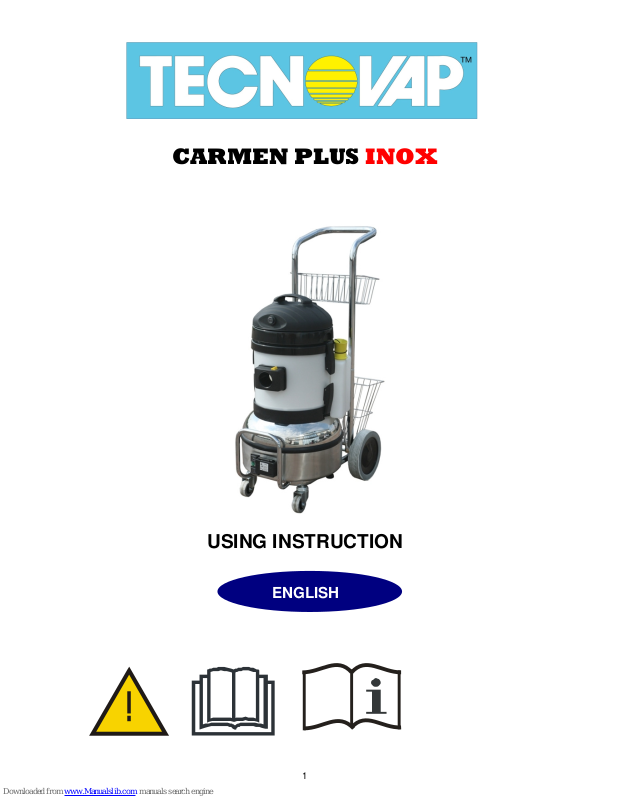

CARMEN PLUS INOX

USING INSTRUCTION

1

ALL THE PACKINGS ARE RECYCLABLE, PACKINGS DO NOT HAVE TO BE

OWN RETAILER.

Interpretation of the symbols placed on the unit

BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL.

IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO THE

FOLLOWING OWNERS.

PLEASE READ THE SAFETY INSTRUCTIONS ON THIS HANDBOOK BEFORE PROCEEDING ON THE FIRST USE.

EVENTUAL DAMAGES DUED TO THE CARRIAGE MUST BE COMUNICATED AS SOON AS POSSIBLE TO YOUR

ATTENTION!!

STEAM…. BURNING DANGER

ATTENTION !

READ THE OPERATING MANUAL

OPRATING MANUAL;

ISTRUZIONI PER IL FUNZIONAMENTO

ENVIRONMENT PROTECTION

THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE DELIVERED

TO THE CENTERS SPECIALIZED FOR THE DISPOSING OF THE WASTE.

ALL DEVICES NOT USED ANYMORE CONTAIN PRECIOUS RECICLABLE

MATERIALS THAT SHOULD BE DELIVERED TO THE CENTERS SUITABLE FOR THE

DISPOSING OF THE WASTE. ELECTRIC AND ELECTRONIC EQUIPMENT,

BATTERIES, OIL AND SIMILAR SUBSTANCES MUST BE RECICLED IN THE

PROPER RECICLING CENTERS AND MUST NOT BE LEFT IN THE ENVIRONMENT.

SUBSTANCES SUCH AS OIL FOR MOTORS, DIESEL OIL, PETROL MUST NOT BE

LEFT IN THE ENVIRONMENT AND MUST BE RECICLED IN THE PROPER

RECICLING CENTERS ACCORDING TO THE ENVIRONMENTAL REGULATIONS.

2

1. SUMMARY

1. SUMMARY 4

2. SECURITY REGULATIONS 4

3. TECHNICAL CHARACTERISTICS 5

4. PREFACE 5

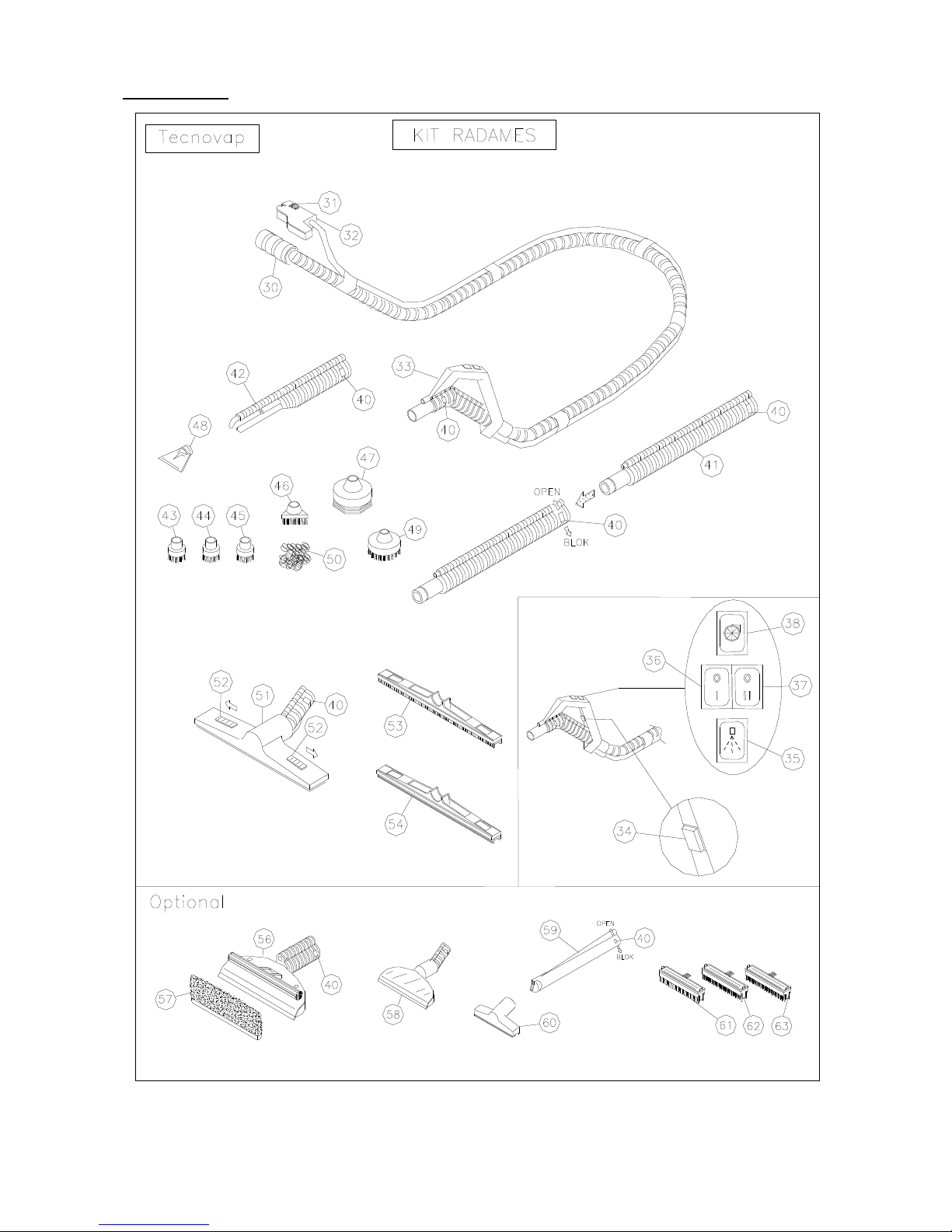

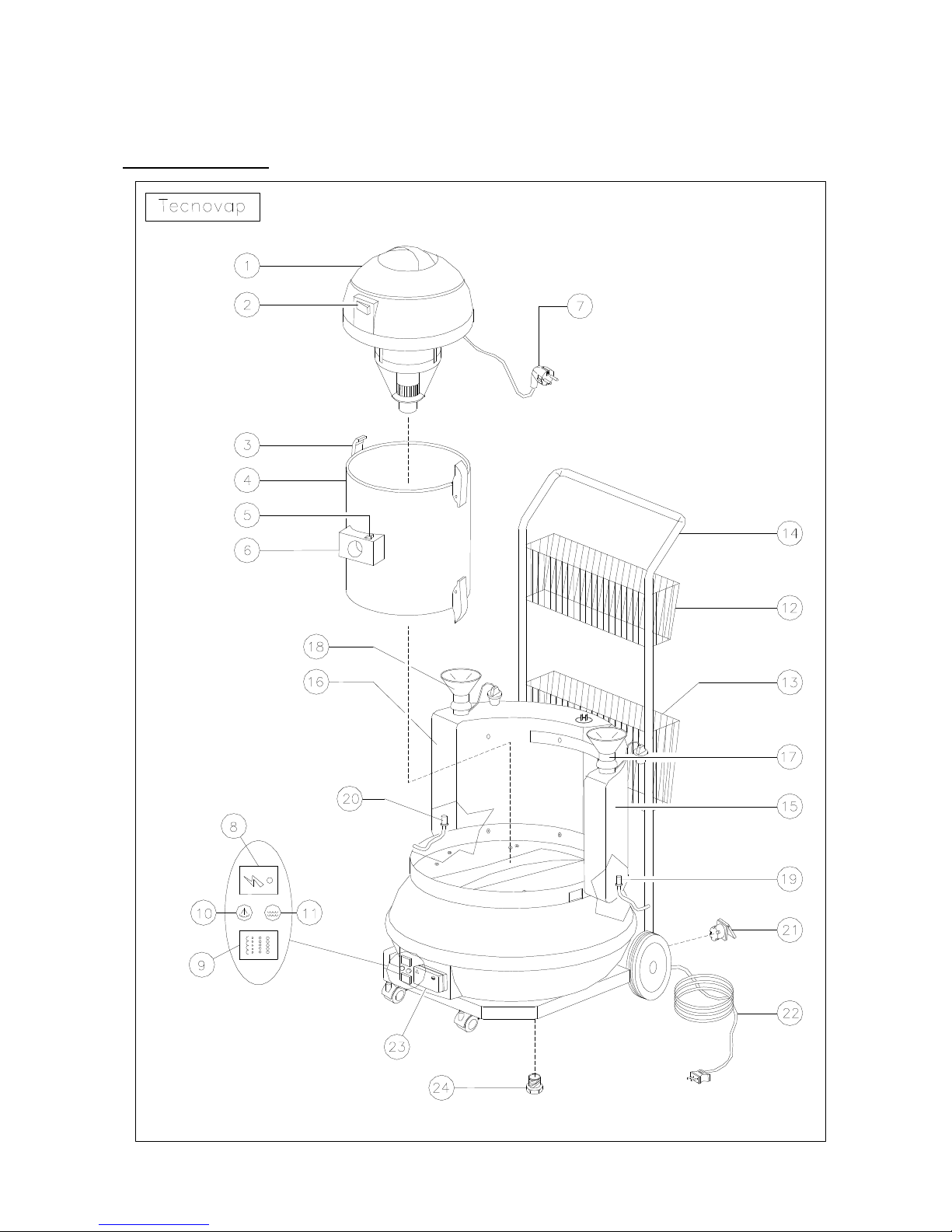

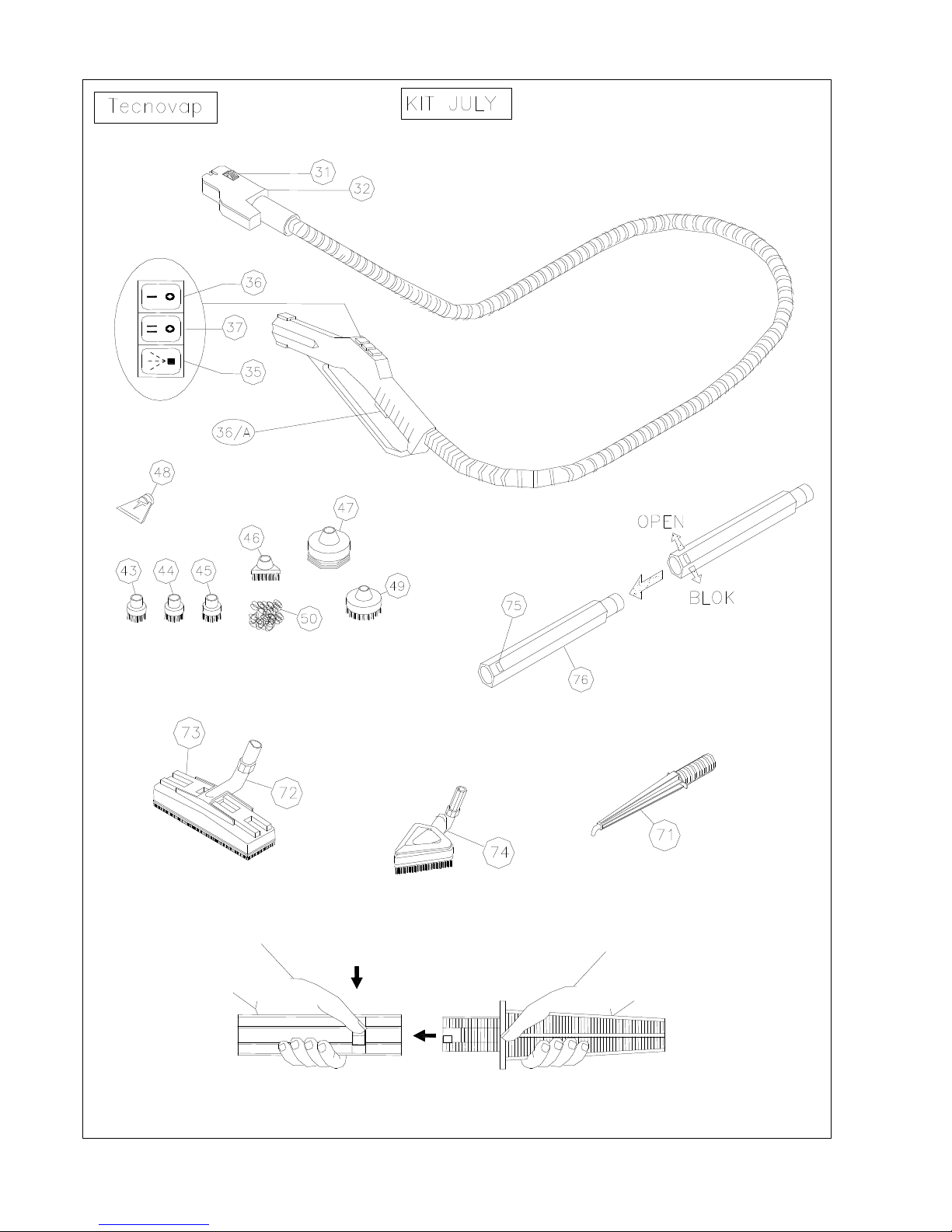

5. TECHNICAL DRAWINGS 6

6. NOMENCLATURE 9

7. OPERATING INSTRUCTIONS 9

8. MAINTENANCE 11

9. BEFORE REFERRING TO THE TECHNICAL SERVICE 12

10. DECLARATION OF CONFORMITY 13

2. SAFETY REGULATIONS

 The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1.

 It is recommended that the electric supply to this machine should include either a residual current

device that will interrupt the supply if the leakage current to earth exceeds 30ma for 30ms or a device,

which will prove the earth circuit.

SAFETY VALVE



machine itself in case other primary control devices are inefficient (due to a failure). Due to the extreme

importance of these components and as not to compromise the safety of the machine, it is

recommended to provide to check them and to substitute them through an authorized service center

every 2 years starting from the purchasing date.

PRESSURE SWITCH



the pressure under certain preset limits (ref. “rated pressure” on the technical label underneath the

machine). In case there would be a steam leakage on the lower side of the machine, it means that the

functioning of this device has been compromised and the safety valve has been involved as to limit the

boiler’s internal pressure.

machine from the power feeding and call the service center.

 MUD DRAIN FROM THE BOILER If you are not acquainted with the hardness level of the used water,

it is recommended to proceed with the boiler cleaning (according to the procedure indicated in the

proper section) after 24 hours of usage. On the contrary, if you know the hardness level and it is

between 0 and 4 french degrees , the boiler cleaning can be carried out after 100 hours of usage.

This machine is equipped with two safety valves, able to ensure the safety of the

This machine is equipped with a pressure switch able to check and to maintain

It is recommended not to use the machine, immediately unplug the

 ATTENTION. Do not use the appliance within the range of persons unless they wear protective clothing.

ATTENTION.



directed against persons, electrical devices under tension or the unit itself.

 Do not direct the jet against yourself or others in order to clean clothes or footwear.

 Disconnect the power supply before proceeding with the maintenance effected by the user.

 This device is not intended to be used by persons (including children) with a reduced physical, mental or

sensorial ability or with insufficient experience and/or competence, unless they are not supervised by a

person responsible for their safety and they are not instructed by that person on how to use the device.

 Monitor the children so they cannot play with the machine.

 To ensure the machine’s safety, use only original spare parts from the manufacturer or spare parts

approved by the manufacturer.

The high pressure jets can be dangerous if not used properly. The jet does not have to be

3

ATTENTION.



only hoses, fitting and couplings recommended by the manufacturer.

 Do not use the machine if the power cord or other important parts of the machine are damaged, i.e.

safety devices, pressure hoses and trigger gun.

Pressure hoses, fitting and couplings are important for the safety of the machine. Use

 If an extension cord is used, the plug and socket must be of a watertight construction.

ATTENTION.



 The user must not leave the iron (optional) unattended when it is connected to the power supply.

 The hand-arm vibration data, referred to this device, are not mentioned as they are below 2.5 m / s ².

ATTENTION.



recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect

the safety of the appliance. If using detergent (which has not to be foamy) please follow the specific

instructions: 1 liter detergent for every 10 liters water (about 10% is the detergent percentage), making

sure to fill in first the detergent to obtain a better mixing.

used, as some in commerce, if heated above 100°C , taken to the gaseous state, could emanate

highly toxic steams. Be aware to control the technical schedule and to consult the supplier.

Inadequate extension cords can be dangerous.

This appliance has been designed for a use with cleaning agents supplied or

Please be careful with the detergent to be

3. TECHNICAL CHARACTERISTICS

 To verify the technical data of your model, consult the plate under the appliance.

4. PREFACE

Dear Client,

We would like to congratulate you on your choice.

With the goal of improving and continually updating production by always offering innovative products,

TECNOVAP has studied, designed and created the

cleaning which brings together the power of steam and the force of vacuuming.

This product, with its stainless steel body, is custom-built and equipped with a dependable stainless steel

boiler with automatic refilling system which allows it to produce a powerful and continuous supply of steam

(24/24 hours). The

enables the injection of a detergent with hot water at 90-125°C.

With the power of steam, meaning ecological cleaning power, Tecnovap has combined a powerful vacuum

able to pick up solids and liquids.

CARMEN PLUS INOX

The

accessories available, it cleans, disinfects, and removes dirt eliminating completely even the bacterial flora

hidden in those areas most difficult to reach.

Pay careful attention to the following instructions which will be helpful in operating your

INOX

.

THE MANUFACTURER RESERVES THE RIGHT TO BRING ANY MODIFICATION OR IMPROVEMENT,

CARMEN PLUS INOX

is the ideal solution when it comes to cleaning and disinfecting. With the various

TECHNICAL OR STRUCTURAL, WITHOUT PRIOR NOTICE

models is also equipped with a separate detergent tank which

CARMEN PLUS INOX model,

a combined machine for

CARMEN PLUS

4
