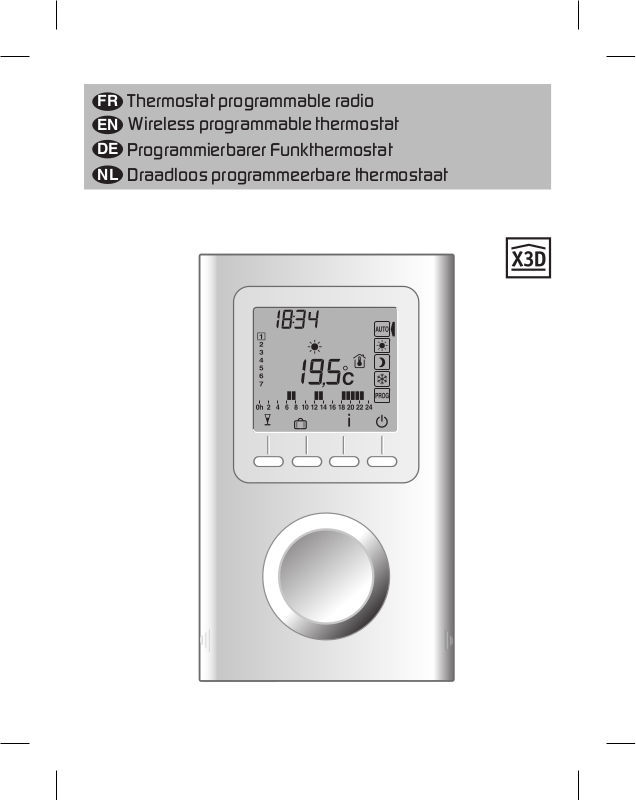

Technotherm TPF-EcoRF User Manual

FR

Thermostat programmable radio

EN

Wireless programmable thermostat

DE

Programmierbarer Funkthermostat

NL

Draadloos programmeerbare thermostaat

EN

Contents

1. Installation ............................................................................. 33

2. Description ............................................................................ 34

3. Wireless association ............................................................ 35

4. Configuration ........................................................................ 36

CF01 - Correcting the temperature measured ............................36

CF02 - Temperature displayed in AUTO mode ........................... 37

CF04 - Control type .................................................................... 37

CF05 - Energy saving mode ....................................................... 37

CF06 - ON/OFF button display in standby mode ........................38

CF07 - Backlighting .................................................................... 38

CF08 - Opening detection function ............................................. 38

CF09 - Presence detection function ........................................... 39

CF10 - Value of the max. comfort setting .................................... 39

CF11 - Programming format ....................................................... 39

CF12 - Time display format ........................................................40

CF13 - Automatic change to summer/winter time ......................40

CF15 - Display of the symbol
CF16 - Display of the
CF17 - Display of the symbol

CF18 - Display of the consumption ............................................41

CF28 - Anticipation function ..................................................... 42

CF29 - Anticipation sensitivity settings ....................................... 42

CF30 - Display of room temperature in shutdown mode ...........42

5. Setting the clock ...................................................................43

symbol (heating request) ..................... 40

............................................... 40

............................................. 41

- 31 -- 31 -

Contents

6. Setting the temperatures (settings) .................................... 44

6.1 Defining the comfort setting .................................................. 44

6.2 Defining the Economy setting ............................................... 44

6.3 Defining the Frost protection setting ..................................... 44

6.4 Behavioural indicator ............................................................ 45

7. Programming ........................................................................46

8. AUTO mode ........................................................................... 48

9. "Party" mode ......................................................................... 49

10. Absence mode .................................................................... 50

11. External override ................................................................51

12. Anticipation ......................................................................... 51

13. Information button ..............................................................52

14. Locking access to the settings .........................................53

15. Off mode .............................................................................. 53

16. Return to initial settings.....................................................54

16.1 Automatic reset of parameters to factory setting ................ 54

16.2 Initialisation of all the parameters ....................................... 55

17. Remove the wireless association...................................... 56

18. Changing the batteries ....................................................... 57

19. Troubleshooting .................................................................. 57

20. Technical characteristics ...................................................58

- 32 -- 32 -

1. Installation

1

Mini 20 cm

EN

2

OR

3

3

4

Place the thermostat:

- in the main room (e.g. living room/dining
room) or in the centre of your home,

- wall-mounted or placed on a piece of
accessible furniture at a height of 1.50 m

- away from heat sources (fi replaces,
sunlight) and draughts (windows, doors)

IMPORTANT: Do not install the thermostat on a wall in contact
with the outdoors or with an unheated room (e.g. garage, etc.).

- 33 -- 33 -

5

2. Description

1
2
3
4
5

❶ AUTO mode
❷ Comfort mode
❸ Economy mode
❹ Frost protection

mode

Temperature
setting

❺ Date and time setting/

Programming

1

5

4

❶ Time
❷ Day
❸ Temperature measured

2

or setting

❹ Active setting
❺ Wireless transmission

3

❻ "Party" mode
❼ Absence mode
❽ Information

8 96 7

❾ Shutdown mode

Standby mode:
The product switches to standby mode after a certain time
without any activity. Activate the product by pressing a button
or turning the selector knob

- 34 -- 34 -

EN

3. Wireless association

1

>3s

... ... ...

2

>5s

❶ Set the receiver(s) to association

mode (refer to receiver guide),

❷ The thermostat must be in

shutdown mode.

Press and hold the 2nd button from
the left for 5 seconds.

The screen displays the thermostat version.

❸ Press and hold the 2nd button from

the left for 5 seconds again.

The screen displays the rF01 menu.

❹ Press OK.

The thermostat searches for the receivers
to associate.
The number of receivers found and
associated is displayed in the centre of
the screen.

- 35 -- 35 -

3

>5s

4

Number of receivers

4. Configuration

1 2

>5s

The thermostat must be in shutdown mode.

❶ Press and hold the 2nd button from the left for 5 seconds.

The screen displays the thermostat version.

❷ Press OK.

The screen displays the CF01 menu.

❸ Choose your selection or setting with + and -.

Press OK to validate and go to the next setting.

To exit the mode, turn the selector knob

Note: the greyed out sections of the tables match the default
values

- 5°C -> + 5°C

3

CF01 - Correcting the temperature measured

Can be set from -5°C to +5°C.
Example: the temperature displayed by the unit is 19°C and the
actual temperature (thermometer) is 20°C, set +1°C.

- 36 -- 36 -

4

EN

EXIT

CF02 - Temperature displayed in AUTO mode

0
1

Temperature setting

Temperature measured

CF04 - Control type

0
1 ON/OFF control

Chrono-proportional (PI) control

CF05 - Energy saving mode

Display switches off after 10 seconds if nothing is pressed

0
1 Display switches off between midnight and 5am
2 Display always on

- 37 -- 37 -

4. Configuration

CF06 - ON/OFF button display in standby mode

0
1

CF07 - Backlighting

0
1 Enabled (switches off after timer)

CF08 - Opening detection function

0
1 Enabled

If a door/window magnetic contact (e.g. window) is associated with
the receiver, the heating will switch to Frost protection when the
window is opened.

Symbol not displayed in standby mode

Symbol

displayed in standby mode

Disabled

Disabled

- 38 -- 38 -

EN

CF09 - Presence detection function

0
1 Enabled

If a motion detector is associated with the receiver, the
temperature will be lowered automatically in the event of an
extended absence:

• 1.5 h -> Active setting -1.5°C

• 3.5 h -> Active setting -3.5°C

• 48 h -> Frost protection setting

Disabled

CF10 - Value of the max. comfort setting

Can be set from 22°C to 30°C.
Default value: 28°C

CF11 - Programming format

0
1 Programming in 1/2 h steps

Programming in 1 h steps

- 39 -- 39 -

4. Configuration

CF12 - Time display format

0
1 24

CF13 - Automatic change to summer/winter time

0
1 Enabled

If CF13 = 0, the date setting will not be proposed.

CF15 - Display of the symbol

Symbol always steady even for a presence detection

0

1 Symbol flashes if there is a presence detection event

If CF08 = 1:

CF16 - Display of the symbol (heating request)

0
1 Symbol displayed

12 (AM/PM)

Disabled

event

Symbol not displayed

- 40 -- 40 -

EN

CF17 - Display of the symbol

Symbol steady if there is a presence detection event

0
1 Symbol flashes if there is a presence detection event

CF18 - Display of the consumption

0

Disabled

1 Enabled

If the display of the consumption is enabled, specify the power of
the heating elements

2 4

❶ Select the heating element
❷ Confirm with OK.

❸ Specify its power in Watts.
❹ Confirm with OK.

- 41 -- 41 -

4. Configuration

CF28 - Anticipation function

The anticipation function enables the required Comfort tempera­ture to be obtained at the programmed time.

0 Deactivated
1 Activated

Press + or - to activate or deactivate.
Press OK to confirm. Change to the CF29 menu.

CF29 - Anticipation sensitivity settings

The slope setting depends on the heating system.
It is set between 1°C to 6°C (in increments of 0.1°C).
Default value: 3°C.
If the temperature is reached too early, reduce the value.
If the temperature is reached too late, increase the value.
Press + or - to set.
Press OK to confirm. Change to the CF30 menu.

CF30 - Display of room temperature in shutdown
mode

0 Deactivated
1 Activated

Press + or - to activate or deactivate.
Press OK to confirm and leave the setting mode.

- 42 -- 42 -

EN

5. Setting the clock

❶ Turn the selector knob to PROG.

1

2300 5900

2

3

311

4

❷ Enter the hour
and confirm with
OK.

121

5

❺ Enter the month
and confirm with OK.

❸ Enter the min-
utes and confirm
with OK.

2015...

6

❻ Enter the year
and confirm with OK.

The date setting cannot be
proposed (see CF13 configuration).

- 43 -- 43 -

❹ Enter the day
and confirm with
OK.

7

❼ Turn the
selector knob
to AUTO to exit
the mode

6. Setting the temperatures (settings)

If you remain in one of these modes, the thermostat will operate
permanently in relation to this setting (no programming)

6.1 Defining the comfort setting

❶ Turn the selector knob to .
❷ Set the Comfort temperature

(5°C to max. Comfort).
Configuration CF10
❸ Confirm with OK.

1

6.2 Defining the Economy setting

❶ Turn the selector knob to .
❷ Set the Economy temperature

(5°C to max. Comfort).
❸ Confirm with OK.

2

5°C -> Confort max.

3

6.3 Defining the

Frost protection setting

❶ Turn the selector knob to .
❷ Set the Frost protection

temperature (5°C to max. Comfort).
❸ Confirm with OK.

- 44 -- 44 -

1

1

2

5°C -> + 19°C

2

5°C -> + 10°C

3

3

EN

6.4 Behavioural indicator

When the settings are adjusted, depending on the thermostat
model, the colour of the screen changes or an indicator is dis­played according to the selected temperature.

OR

Green up to 19°C (reduced consumption)

Orange from19.5°C to 24°C (average consumption)

Red from 24.5°C to max. comfort (High consumption)

To benefit from this function, according to the thermostat
model, activate the backlighting function (CF05).

- 45 -- 45 -

7. Programming

5 6

1

❶ Turn the selector knob to PROG.

Upon activation, the programming for each day is a comfort period
from 6am to 11pm.
You can create your different Economy and Comfort periods using
the and buttons.

Example: Comfort from 6am to 8am and 5pm to 11pm

6h0h 24h23h8h 17h

2 3 4

❷ Press up
to 06:00

❸ Press
08:00

up to

❹ Press
to 17:00

Programming can be made by steps of 1 hour or 1/2 hour
(configuration menu CF11).

- 46 -- 46 -

up

EN

1

Programmable

Day

period

Setting assigned to
the period

5 6

❺ Press
up to 23:00

❻ Press
to 00:00

❼ Pressing OK for 3
seconds confirms the pro­gram and copies it over
to the next day (COPY
function).

up

Start again for each day of the week.

- 47 -- 47 -

7

❼ Press OK to
validate and go to the
next day.

7

8. AUTO mode

In AUTO mode, the thermostat follows
the programme of the day.
The

symbol indicate a heating
request (configuration CF16).
The automatic programme can be
temporarily suspended by:

- a "Party Mode" override (

),

- an Absence mode (

- a window magnetic contact (symbol

if the function is activated (configuration CF08).
The heating then goes to Frost Protection.

- an absence detection (symbol

activated (configuration CF08).
The heating then goes to "lower":

• Absence 1.5 -> Active setting -1.5°C

• Absence 3.5 -> Active setting -3.5°C

• Absence 48 h -> Frost-protection

: Heating request

: Party mode

: Absence mode

: Temperature measured

: Outdoor temperature

: Door/window magnetic
contact active

),

),

off), if the function is

: Presence detection

in progress

: External override

: Spent battery

: Radio transmission

- 48 -- 48 -

EN

9. "Party" mode

The "Party" mode can temporarily suspend the
automatic programme by applying a temperature setting chosen
for a programmed duration (from 30 minutes to 12 hours).

1 2

❶ From the AUTO mode

and press the button.

4

0h30-> 12h

❸ Set the required duration.

3

Confirm with OK.

5°C-> Confort max.

❷ Set the required tempera-

ture. Confirm with OK.

❹ The countdown starts.

Return to AUTO mode and
its settings at the end of the
countdown by by pressing
C.

- 49 -- 49 -

10. Absence mode

This mode protects your home from frost if you are absent for
several days.
Example: Leave on Friday 10 - Scheduled return on Sunday 19,
programme 9 days absence.

VEN 10 DIM 19

1 2

❶ Turn the selector knob on

AUTO and press on .

5->28°C

❸ Set the absence temper-

3

ature. Confirm with OK.

1-> 365

❷ Set the number of days of

absence. Confirm with OK.

4

❹ The countdown starts.

Return to AUTO mode and
its settings at the end of the
countdown by by pressing C.

- 50 -- 50 -

EN

11. External override

The external override is used to
suspend the automatic operation of
the thermostat from another wireless
transmitter
allowing this function.

For an external override, the symbol

and the new override value are
displayed.
Thermostat follows the parameters
demanded by the external transmitter.

During the external override, if the symbol does not
appear on the thermostat screen, press the i button or turn the
selection knob to refresh the display.

12. Anticipation

You have programmed your Comfort and
Economy periods.
Anticipation (configuration menus CF28
and CF29) enables you to obtain the
required Comfort temperature directly at the
programmed time.
Example: you programmed Comfort for 6pm, but the anticipation
function starts to raise the temperature beforehand (e.g. 4.30pm).

In AUTO mode, the current anticipation is shown by the flashing

symbol.

- 51 -- 51 -

13. Information button

The Information button (
be known:

- actual temperature setting or temperature

measured (according to configuration),

- outside temperature (if the receiver

is associated with an outdoor sensor),

- the total consumption of the associated

heating elements (configuration CF18).

Repeatedly press the i button
to display this information.

To reset the reading counter,
press the C button 3 times.

i) enables the following the information to

- 52 -- 52 -

EN

14. Locking access to the settings

From the AUTO, , , modes.

Press and hold the i button for 5 seconds.

The

symbol appears.

In locked mode, only the
On/Off ( ) and Information (i)

buttons are accessible.

To enable the beeps again, press
the i button for 5 seconds.

The symbol appears.

15. Off mode

Press

The thermostat emits a series of 3 beeps.

In this mode, heating is shut down.

To exit the shutdown mode, press
again on the button.

The thermostat emits a beep.

.

In this mode, heating is shut down.
Only the i button can be accessed.

- 53 -- 53 -

>5s

16. Return to initial settings

16.1 Automatic reset of parameters to factory
setting

From the shutdown mode ( ).

❶ Press the left button and the

i button simultaneously for 10 seconds

until "Init" is displayed.

❷ Press and hold the OK button for 3 seconds.

The "Init" information flashes.

List of settings initialised:

- Temperature settings

(Comfort 19°C, Economy 15.5°C,
Frost protection 7°C),

- Opening detection function (CF08=1),

- Presence detection function (CF09=0),

- 54 -- 54 -

>10s

>3s

EN

16.2 Initialisation of all the parameters

This mode resets all the configuration parameters, settings,
and programming. Only the date and time are kept.

From the shutdown mode ( ).

❶ Press the left button and the

i button simultaneously for 20 seconds.

After 10 seconds, the screen displays "Init",
keep pressing until "ALL" is displays.

❷ Press and hold the OK button for 3 seconds.

The "Init" and "ALL" information flashes.
The values and settings are initialised.

- 55 -- 55 -

>20s

>3s

17. Remove the wireless association.

>5s >5s

1 2

3

4

>5s

❶ The thermostat must be in

shutdown mode.

Press and hold the 2nd button from
the left for 5 seconds.

The screen displays the thermostat version.

❷ Press and hold the 2nd button from

the left for 5 seconds again.

The screen displays the rF01 menu.

❸ Press + to display rF03,

then press OK.

The number of receivers found and
associated is displayed in the centre of
the screen.

❹ Press OK for 5 seconds.

The thermostat removes the wireless
associations until "00" is displayed.

- 56 -- 56 -

18. Changing the batteries

2

1

From the moment the symbol is displayed on the screen, you have
3 months to change the batteries (see technical characteristics).

19. Troubleshooting

• The screen displays the symbol.

The batteries are spent. Replace the batteries

• A receiver does not receive information from the thermostat.

The radio range may be insuffi cient.

1) Disconnect all your receivers, apart from the one causing the

problem.

2) The thermostat must be in shutdown mode.

3) Press and hold the 2nd button from the left for
5 seconds. The screen displays the thermostat version.

4) Press and hold the 2nd button from the left for 5 seconds
again. The screen displays the rF01 menu.

5) Press + to display rF02.

The screen displays a number from 0 to 4 (4 being the maximum
range). If the number is too low, modify the installation.

- 57 -- 57 -

EN

20. Technical characteristics

• Power according to model:

- Two 1.5 V LR03/AAA alkaline batteries (supplied),
5-year life under normal use (CF05=0),

- Two 1.5 V, 1.5 Ah LR03/AAA lithium batteries (supplied),
10-year life under normal use (CF05=0),

• Class III insulation

• X3D Transmission frequency: 868.7 MHz to 869.2 MHz

• Maximum radio power < 10 mW

• Receiver category II

• Wireless remote control device

• Wireless range from 100 to 300 metres outside, varies

depending on the associated equipment (the range can vary
depending on the installation conditions and the electromagnetic
environment).

• Dimensions: 81 x 135 x 22 mm

• Protection index: IP 30

• Wall-mounted on on base

• Installation in an environment with normal pollution levels

• Storage temperature: -10°C to +70°C

• Operating temperature: 0°C to +40°C

- 58 -- 58 -
