Technotherm KBS 6/25, KBS 8/35, KBS 10/45, KBS 12/55, KBS 14/65 Assembly And Operating Instructions Manual

KBS 6/25

KBS 8/35
KBS 10/45
KBS 12/55

KBS 14/65

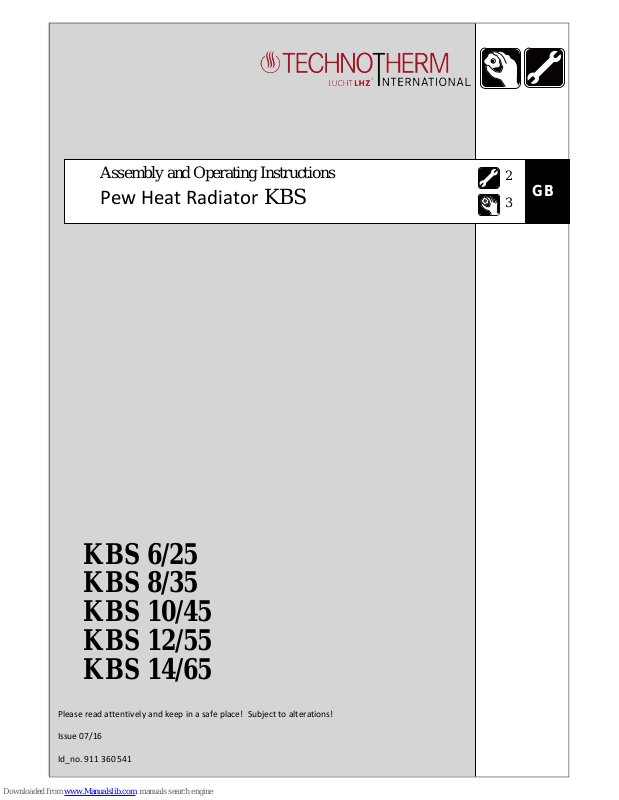

Assembly and Operating Instructions

Pew Heat Radiator KBS

GB

2

3

Please read attentively and keep in a safe place! Subject to alterations!

Issue 07/16

Id_no. 911 360 541

2 Updated

: June 16

Assembly Instruction for the KBS P e w Heat-Radiator

1. General information about our heaters

This heater can be used by children aged from 8 years and above and by physically, sensory or
mentally restricted persons if they are supervised or given instructions on safe use and
understand the hazards involved as it does not require any experience or knowledge.

This is not a toy for children to play with. Cleaning and user maintenance shall not be
carried out by children without supervision.

The use of heat radiators is to be given a particular duty of care by supervisors.
Children under the age of 3 are to be kept away unless they are continually supervised.

Children between the age of 3 and 8 are only allowed to switch the heater on or off if they are
supervised or given instructions on safe use and understand the hazards involved, provided that
it has been placed or installed in its intended normal operating position. Children between the
age of 3 and 8 shall not plug in, regulate and clean the heater or perform user maintenance.

Caution: Some parts of the product can become very hot and cause burns. Pay particular
attention when children and vulnerable people are present.

Type

Dimensions

W x L x H [mm]

Connected load

[W]

KBS 6/25

600 x 100 x 90

250

KBS 8/35

800 x 100 x 90

350

KBS 10/45

1000 x 100 x 90

450

KBS 12/55

1200 x 100 x 90

550

KBS 14/65

1400 x 100 x 90

650

GB

3 Updated

: June 16

Assembly Instruction for the KBS P e w Heat-Radiator

Technical data:

Nominal voltage: 230V
Protection class: I = protective earth terminal
Installation: stationary
Protective system: without special protection against water
Area of application: In churches, acc. to DIN 4701, max. room temperature is 15°C

Test mark:

Surface: powder-coated, similar to RAL 1090

Distances:

Minimum distance to combustible material
80 mm from the front grid

50 mm on the front side between two heaters and distance to bac k res t
50 mm between the front edge of the bench and t he h eater
50 mm between the rear edge of the bench and the heater

The safety distances must be kept!
