WARNING:
Use provided
transformer only.
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS IIIa LASER PRODUCT
Diode Laser
Max : Output < 5mW
Wavelength 532nm~660nm

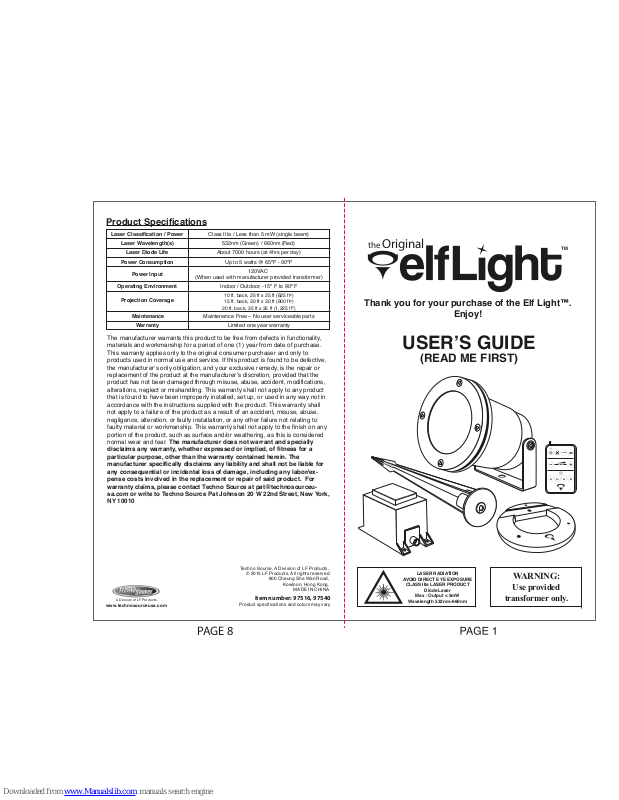

USER’S GUIDE
(READ ME FIRST)
SPEED
2h4h6h8
h
TIMER
RESET
FLASH
Thank you for your purchase of the Elf Light™.
Enjoy!
TM
the
Original
www.technosourceusa.com
A Division of L F Products
The manufacturer warrants this product to be free from defects in functionality,
materials and workmanship for a period of one (1) year from date of purchase.
This warranty applies only to the original consumer purchaser and only to
products used in normal use and service. If this product is found to be defective,
the manufacturer’s only obligation, and your exclusive remedy, is the repair or
replacement of the product at the manufacturer’s discretion, provided that the
product has not been damaged through misuse, abuse, accident, modifications,
alterations, neglect or mishandling. This warranty shall not apply to any product
that is found to have been improperly installed, set up, or used in any way not in
accordance with the instructions supplied with the product. This warranty shall
not apply to a failure of the product as a result of an accident, misuse, abuse,
negligence, alteration, or faulty installation, or any other failure not relating to
faulty material or workmanship. This warranty shall not apply to the finish on any
portion of the product, such as surface and/or weathering, as this is considered
normal wear and tear. The manufacturer does not warrant and specially
disclaims any warranty, whether expressed or implied, of fitness for a
particular purpose, other than the warranty contained herein. The
manufacturer specifically disclaims any liability and shall not be liable for
any consequential or incidental loss of damage, including any labor/expense costs involved in the replacement or repair of said product. For
warranty claims, please contact Techno Source at pat@technosourceusa.com or write to Techno Source Pat Johnson 20 W 22nd Street, New York,
NY 10010
Product Specifications
Laser Classification / Power
Laser Wavelength(s)
Laser Diode Life
Power Consumption
Power Input
Operating Environment
Projection Coverage
Maintenance
Warranty
Limited one year warranty
Maintenance Free – No user serviceable parts
Indoor / Outdoor; -15º F to 90º F
120VAC
(When used with manufacturer provided transformer)
Up to 5 watts @ 65ºF - 90ºF
About 7000 hours (at 4hrs per day)
532nm (Green) / 660nm (Red)
Class IIIa / Less than 5 mW (single beam)
Techno Source, A Division of L F Products,
© 2015 LF Product s, All rights reserved.
800 Cheun g Sha Wan Road,
Kowloon, Hong Kong.
MADE IN CHINA
Product specifications and colors may vary
Item number: 97516, 97540
10 ft. back, 25 ft x 25 ft (625 ft2)
15 ft. back, 30 ft x 30 ft (900 ft
2
)
20 ft. back, 35 ft x 35 ft (1,225 ft2)
PAGE 8
Please check your state and local laws for outdoor laser usage. Although
the Elf Light is generally safe when used responsibly, please exercise the
following precautions:
Precautions For Laser Usage
• Do not aim or shine at people, animals or traffic from land, sea, or air.
• Use with caution within 5 nautical miles of an airport.
• The Elf Light should always be stationary; do not hold in hand when operating.
• Position the Elf Light so that the lights are within the confines of the target object.
• Do not use near infants/cribs and keep away from children.
IMPORTANT SAFETY INSTRUCTIONS
THIS PRODUCT HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE
OTHER) AS A FEATURE TO REDUCE THE RISK OF ELECTRIC SHOCK.
THIS PLUG WILL FIT IN A POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG
DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG.
IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. NEVER
USE WITH AN EXTENSION CORD UNLESS PLUG CAN BE FULLY INSERTED.
DO NOT ALTER THE PLUG.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the manufacturer or an experienced radio/TV technician for help.
NOTE: This is a standard cautionary statement from the FCC, which is used to
alert the user to troubleshoot in various ways if problems are found.
Read All Instructions
WARNING: When using outdoors, use portable luminaires. Basic safety
precautions should always be followed to reduce the risk of fire, electric shock,
and personal injury, including the following:
a) Use only three-wire outdoor extension cords that have three-prong grounding
plugs and grounding receptacles that accept the appliance’s plug.
b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the
circuit(s) or outlet(s) to be used for the wet location portable luminaire.
Receptacles are available having built-in GFCI protection and are able to be used
for this measure of safety.
c) Use only with an extension cord for outdoor use, such as an extension cord of
cord type SW, SW-A, SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW,
SJW-A, SJOW, SJOW-A, SJTW, SJTW-A, or SJTOW, SJTOW-A.
SAVE THESE INSTRUCTIONS
(3)(6)
Remote Control Pairing
3. Flash mode – Pressing this button will cycle between steady
or flashing lights. For multi-color versions, it will cycle from
simultaneous flashing, alternating flashing, single color
flashing back to default.
• Simultaneous flashing – Both laser colors (if applicable)
will flash simultaneously.
• Alternating flashing – Both laser colors will alternately flash
(multi-color only). Press again and it
will default back to simultaneous color
(no flashing).
4. Flash speed – Press this to adjust the flash speed
(slow, medium, fast)
5. Timer presets (2, 4, 6, or 8 hours) – Pressing this will turn
the unit ON and go into standby Mode after # hours.
For example, If you want your Elf Light to display from 6pm to
midnight daily: At desired time, in this case, 6pm, press the
“6h” button. The lights will turn off after 6hrs (midnight) and
will cycle again to turn on at 6pm the next day and so on.
Timer settings will be saved until “timer reset” button is pushed
or if the projector unit is unplugged. A triple-flash indication
from the projector will confirm your timer setting.
6. Timer reset – Press this to reset and turn off the timer.
Note: Using the timer function is recommended
to minimize energy use and maximize product life.
7. LED indicator on remote – This will confirm the remote
battery/buttons are working.
8. Retractable Antenna – Extend for maximum range (Up to 30 ft.
depending on surroundings).
Your Elf Light remote supports pairings to multiple Elf Lights (maximum of 4 sets) of the same version (single or multi-color versions)
so you can conveniently control their operation with one remote.
Each Elf Light is paired with its accompanying remote at the factory.
To pair with another Elf Light, simply unplug (if plugged in) and then
plug in the Elf Light. Then quickly press the power button within 5
seconds on the desired remote to be paired. The projector will
“learn” that this will be the remote to pair with. To Unpair, simply
unplug and pair another remote in its place.
PAGE 6
CAUTION! – Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
This laser product is certified as a Class IIIa laser product to the
requirements of the US Federal Laser Product Performance Standard (FLPPS)
contained in the regulations in 21 CFR Subchapter J. Class IIIa laser products
can be hazardous when directly viewed.
Avoid direct viewing of Class IIIa laser energy. For reference the FLPPS
requirements for demonstration laser products like laser pointers are limited to
Class IIIa levels of laser energy. This product uses diffractive optics to scatter the
beam energy. This scattering effect causes the energy concentration to drop
below the exposure limits for momentary or accidental viewing at a relatively short
distance from the laser aperture. As similar with all bright light sources, when you
operate this device in unsupervised general public areas, it is recommended that
up-close access to the Elf Light be restricted or prevented.
This laser display device incorporates a Class IIIa laser system which, by itself,
may be hazardous. However, this laser display device incorporates a protective
housing and diffractive holographic optics in the machine’s design such that there
is no exposure or human access to the laser radiation during operation or
maintenance above the Class IIIa limits. Each individual laser beam’s power is
less than 5mW, which is about an average laser pointer.
UNDER NO CIRCUMSTANCE shall attempts be made to open the protective
housing or operate the device if the aperture windows are damaged. All service
to this laser display device requiring the protective housing to be opened and/or
removed shall be performed by a Elf Light service personnel or their authorized
agents. No user-serviceable parts - opening the Elf Light protective housing voids
the warranty.
Safety First!
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the product.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device complies with Industry Canada Incense-exempt RSS-210. Operation
is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Techno Source, A Division of LF Products, Pte Ltd, A Li & Fung Company
20 West 22nd St., Suite 1101, New York, NY 10010
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
(2) (7)
Troubleshooting Guide
No light coming
from unit
Dim or flickering
light
One color
appears dimmer
than the other
(if more than
one color)
1. Remote control not
working or timer is on
2. Electrical connection
3. Outlet not working
4. Not within operating
temperature range
Remote not
working or
operating
erratically
Problem Possible Cause Remedy
1. Unplug the light and plug back in (the
Elf Light will reset to default and should
turn ON when plugged in).
2. Check entire length of electrical cord for
breaks in the wire and connections on
both the projector and transformer.
3. Check to make sure there is power to
the electrical outlet supplying 120VAC at
60Hz. Use included transformer only.
4. Operate unit within -15° F to 90° F.
If below -15° F, leave unit on for at least
30 minutes until it warms up to operating
temperature.
1. Operate unit within -15° F to 90° F.
If below -15° F, leave unit on for at least
30 minutes until it warms up to operating
temperature.
2. Do not use with a dimmer.
3. Check to make sure there is power to
the electrical outlet supplying 120VAC at
60Hz. Use included transformer only.
4. Clear aperture glass of any debris.
1. The human eye is most sensitive to
green light and less sensitive to other
colors. This is normal.
2. Position the projector to another surface
for better effect. Brighter colored
surfaces work best. Objects such as
green foliage may absorb red light.
1. Open back and remove protective
shrink wrap. Place back in Remote.
2. Check LED indication on the remote by
pressing any button. If the LED is not
working, then replace the batteries with
a fresh 23A cell aligning the “+” side of
the battery with the “+” side of the
remote control.
3. Extend the antenna on the remote for
maximum range or move closer to the
projector. Please note that overhead
power lines, microwaves, wireless
routers, cordless phones and other
devices may impact the communication
between the remote and projector.
4. Unplug desired Elf Light to unpair and
follow pairing procedures on page 6.
1. Not within operating
temperature range
2. Unit is connected to a
dimmer
3. Improper power
4. Debris on aperture
glass
1. The green light is
much brighter than
the red
2. Some surfaces may
absorb certain colors
of light causing it to
appear dim or
non-existent
1. Battery is sealed in
in protective plastic.
2. Remote batteries
exhausted or
positioned improperly
3. Remote out of range
of communication
interference
4. Remote is not paired
with projector
PAGE 7
(4) (5)
Before You Begin
Carefully unpack contents and check to make sure all parts are present. Some
assembly may be required.
(1) Ground Stake with
Attachment Screw
(1) Power Supply
Transformer
(1) Allen Wrench
(1) Remote
(1) 23A Battery
(3) Screws &
Anchors for optional
wall mounting
(1) Light Projector
(1) Wall Mount/Stand
SPEED
2h4h6h8
h
TIMER
RESET
FLASH
Assembly
1. Remove battery cover from remote and install 23A battery (included).
• Please note the correct position of the battery.
• Please note that the remote control is for indoor-use only
and is not weatherproof.
2. Attach light to stake or wall mount/stand.
To attach stake (Fig.1)
a. Remove the hex screw and washer from the
stake with the included tool.
b. Use the same hex screw and washer to attach
the stake to the pivot bracket.
c. Stake to ground.
To attach wall mount/stand (Fig.2)
a. Remove the hex screw and washer from the stake
with the included tool.
b. Use the same hex screw and washer to attach the
wall mount/ stand to the pivot bracket.
c. (optional) use included screws and anchors to
mount to wall if desired.
3. Position the projector by loosening and tightening the
angle adjustment screws. (Fig.1). Stake to ground. A distance of
16-20 ft from the wall will yield about 900 sq ft.
4. Attach projector to transformer by fully inserting the two-pronged plug
and tighten the wire cap. (Fig.3)
5. Plug unit into a 120VAC/60Hz power outlet (Caution: The Elf Light will
turn on once it is plugged in. Up to 30 minutes warm-up time may be
necessary for conditions below -15°F. Following precautions for laser
usage on page 3, re-aim if necessary).
Operation
Power On/Off
Flash Mode
Timer/Reset
Flash
Speed
SPEED
2h4h6h8
h
TIMER
RESET
FLASH
Retractable Antenna
LED Indicator
Timer
1. Power ON/OFF – The Elf Light will default to turn on when
plugged in. Pressing the power button will turn the lights OFF
and will be in standby mode. Timer settings are retained in
standby mode until the device is unplugged. To turn the lights
back on, simply press the power button.
2. Color select (multi-color versions only) – Pressing this button
will cycle between the colors (for multi-color versions only).
Pressing this will select one color to turn on.
Press again for the other color to turn on. Press again to have
both colors work. Note: Certain surfaces reflect colors better
than others. For instance, a green laser reflects off of leaves
better than red lasers.
Remote Guide
Color Select
Fig.2 Fig.3Fig.1
Angle
adjustment
screw
Stake screw
Stake screw
Angle
adjustment
screw
Angle
adjustment
screw
Angle
adjustment
screw
Battery Installation
on back of remote
PAGE 5
Loading...
