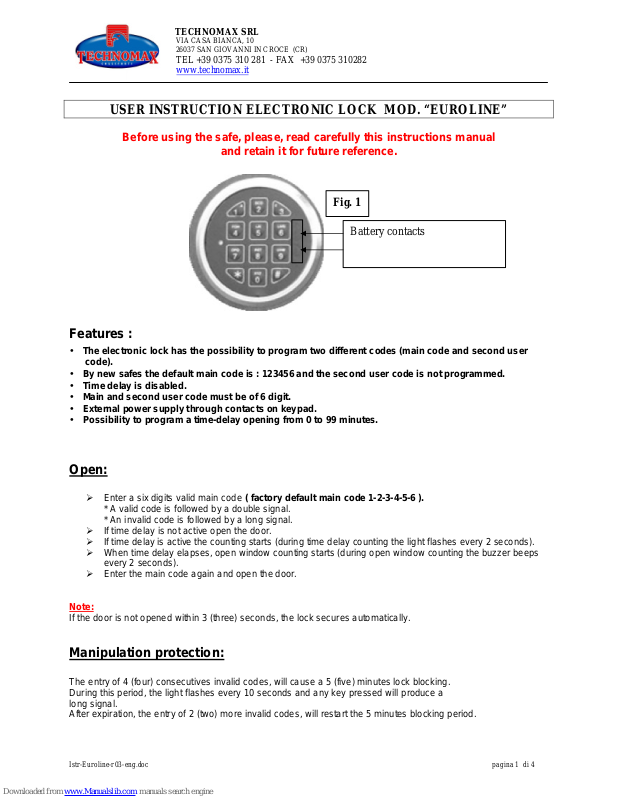

USER INSTRUCTION ELECTRONIC LOCK MOD. “EUROLINE”

Before using the safe, please, read carefully this instructions manual

and retain it for future reference.

Features :

• The electronic lock has the possibility to program two different codes (main code and second user

code).

• By new safes the default main code is : 123456 and the second user code is not programmed.

• Time delay is disabled.

• Main and second user code must be of 6 digit.

• External power supply through contacts on keypad.

• Possibility to program a time-delay opening from 0 to 99 minutes.

Open:

Ø Enter a six digits valid main code ( factory default main code 1-2-3-4-5-6 ).

* A valid code is followed by a double signal.

* An invalid code is followed by a long signal.

Ø If time delay is not active open the door.
Ø If time delay is active the counting starts (during time delay counting the light flashes every 2 seconds).
Ø When time delay elapses, open window counting starts (during open window counting the buzzer beeps

every 2 seconds).

Ø Enter the main code again and open the door.

Note:

If the door is not opened within 3 (three) seconds, the lock secures automatically.

Manipulation protection:

The entry of 4 (four) consecutives invalid codes, will cause a 5 (five) minutes lock blocking.
During this period, the light flashes every 10 seconds and any key pressed will produce a
long signal.
After expiration, the entry of 2 (two) more invalid codes, will restart the 5 minutes blocking period.

Battery contacts

Fig. 1

TECHNOMAX SRL

VIA CASA BIANCA, 10
26037 SAN GIOVANNI IN CROCE (CR)

TEL [phone] - FAX [phone]
www.technomax.it

Istr-Euroline-r03-eng.doc pagina 2 di 4

Change main code:

Ø Press and hold key “0” until double signal.
Ø Enter the main code in use (double signal).

Factory default is 123456

Ø Enter the new main code (double signal).
Ø Repeat the new main code (double signal).

Note:

In case of errors ( long signal ) the main code in use remains valid.

Always perform this operation with the door opened.
Test lock operation several times before closing the door.

WARNING:

forget the main code involves the forced opening of the safe with inevitable damage.

Add the second user code:

Ø Press and hold key “1” until double signal;

the light remains switched on during the following actions.

Ø Enter the main code.
Ø Enter the new second user code (double signal).
Ø Confirm the new second user code (double signal).

.

Delete the second user code:

Ø Press and hold key “3” until double signal;

the light remains switched on during the following actions.

Ø Enter the main code.
Ø The second user code is now deleted.

Membrane check-up:

Ø Press and hold key “5” until double signal.
Ø Enter the following sequence of numbers:

1-2-3-4-5-6-7-8-9-0.
* Double signal = key correctly working.

* Long signal = key not working.
