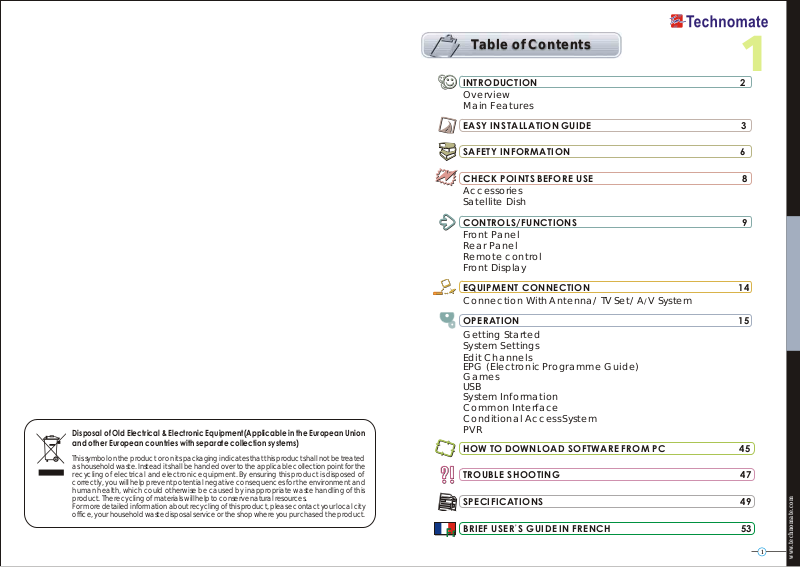

Table of Contents

INTRODUCTION 2

Overview Main Features

EASY INSTALLATION GUIDE 3

SAFETY INFORMATION 6

CHECK POINTS BEFORE USE 8

Accessories Satellite Dish

CONTROLS/FUNCTIONS 9

Front Panel Rear Panel Remote control Front Display

EQUIPMENT CONNECTION 14

Connection With Antenna/ TV Set/ A/V System

OPERATION 15

Getting Started System Settings Edit Channels

EPG (Electronic Programme Guide) Games USB System Information

Common Interface Conditional Access System PVR

HOW TO DOWNLOAD SOFTWARE FROM PC 45

TROUBLE SHOOTING 47

SPECIFICATIONS 49

BRIEF USER S GUIDE IN FRENCH 53

www.technomate.com

Page 2

Your Digital Partner for Life

INTRODUCTION

OVERVIEW

This satellite receiver is designed for using both free-to-air and encrypted channel reception. Enjoy the rich choice of more than 10,000 different channels, broadcasting a large range of culture, sports, cinema, news, events, etc. This receiver is a technical masterpiece, assembled with the highest qualified electronic parts.

MAIN FEATURES

DVB-S, DVB-S2 & DVB-T Compliant. (MPEG-II/ MPEG-IV/ H.264)

DVB-S, DVB-S2 & DVB-T Compliant. (MPEG-II/ MPEG-IV/ H.264) 2 Tuners combo (DVB-Satellite & DVB-Terrestrial)

2 Tuners combo (DVB-Satellite & DVB-Terrestrial) Output resolution: 576p & 576i (PAL), 480p & 480i (NTSC), 720p & 1080i

Output resolution: 576p & 576i (PAL), 480p & 480i (NTSC), 720p & 1080i 2 Common Interfaces and 1 Smart Card Reader

2 Common Interfaces and 1 Smart Card Reader HDMI & Component output (YPbPr)

HDMI & Component output (YPbPr) Sensitive Tuner with Blind Search

Sensitive Tuner with Blind Search Less than 1 second channel change

Less than 1 second channel change Dolby Digital Optical S/PDIF & Coaxial S/PDIF

Dolby Digital Optical S/PDIF & Coaxial S/PDIF Auto Navigation system select as many satellites as you want to search

Auto Navigation system select as many satellites as you want to search On-screen display with true full color resolution

On-screen display with true full color resolution DiSEqC 1.0, 1.1, 1.2 & 1.3 (USALS) compatible

DiSEqC 1.0, 1.1, 1.2 & 1.3 (USALS) compatible Enhanced 16 Favorite channel groups

Enhanced 16 Favorite channel groups Channel control by: Favorites, Lock, Skip, Move & Delete

Channel control by: Favorites, Lock, Skip, Move & Delete Channel sort by: All, Alphabet, Transponder & CAS

Channel sort by: All, Alphabet, Transponder & CAS Multilingual OSD Menu: English, Spanish, Portuguese, French, German, Italian,

Multilingual OSD Menu: English, Spanish, Portuguese, French, German, Italian, Turkish, Arabic, Persian, Russian

Turkish, Arabic, Persian, Russian Extended EPG and program reservation on EPG

Extended EPG and program reservation on EPG Teletext & Subtitle by OSD and VBI

Teletext & Subtitle by OSD and VBI Last channel memory function

Last channel memory function 10,000 TV & Radio channels programmable

10,000 TV & Radio channels programmable Factory default channel list

Factory default channel list Various games

Various games Software & channel list upgrade via RS-232C: PC to STB, STB to PC, STB-STB

Software & channel list upgrade via RS-232C: PC to STB, STB to PC, STB-STB and USB

and USB Parental, Installation & Receiver Lock

Parental, Installation & Receiver Lock Zoom function on Pause & Live channel

Zoom function on Pause & Live channel Multipicture display

Multipicture display MP3 player and JPEG viewer by USB memory (flash drive)

MP3 player and JPEG viewer by USB memory (flash drive) Fully Featured VFD display

Fully Featured VFD display PVR ready via external HDD (Timeshift, Record & Playback function)

PVR ready via external HDD (Timeshift, Record & Playback function) Support for multiple language broadcasts

Support for multiple language broadcasts SCPC & MCPC receivable from C/Ku band satellites LNBs supported: Universal,

SCPC & MCPC receivable from C/Ku band satellites LNBs supported: Universal, Single, Single S & C band wideband LNBs

Single, Single S & C band wideband LNBs Multi TV Standards supported: PAL G, I, K, M & NTSC M with 4:3 & 16:9 Screen

Multi TV Standards supported: PAL G, I, K, M & NTSC M with 4:3 & 16:9 Screen Formats

Formats RF Modulator (CH 21-69 PAL G, I, K, M)

RF Modulator (CH 21-69 PAL G, I, K, M) 90-250V AC 50/60 Hz

90-250V AC 50/60 Hz LNB Short Circuit protection onboard

LNB Short Circuit protection onboard 2 Scarts, (RGB, CVBS) & S-Video

2 Scarts, (RGB, CVBS) & S-Video Manufactured under license from Dolby Laboratories.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D Symbol are trademarks of

"Dolby" and the double-D Symbol are trademarks of Dolby Laboratories.

Dolby Laboratories. DiseqC is a trademark of EUTELSAT

DiseqC is a trademark of EUTELSAT

EASY INSTALLATION GUIDE

PART 1PART 1

The receiver is preinstalled with 25 S atellites an d 1500 default Channels and is fully configured. No settings need to be changed.

After turning ON the receiver, select a la nguage. You will be taken to the Viewing mode. Press the SAT button on the Remote and select a Satellite. To bring up the Channel List, press the OK button on the remote .

To delete unwanted Satellites- press the MENU button on the remote and go to Installation. Press OK and OK on Satellite Setup. Press OK again and a Satellite List will appear. To delete a Satellite, p ress the BLUE ( )button on the remote.

How to Motorise 25 Satellites & 1500 Channels with USALS in 60secs

The receiver is preinstalled w ith 25 Sa tellites and 1 500 default C hannels, and is a lso fully configured. No settings need to be changed.

Press the MENU button o n the re mote. Press OK on Installation. Go to Motorised Setting and press OK. Go to the Third line (DiSEqC Motor) and use the Left/Right arrow b uttons on the remote to select USALS. Then go to Position Setting and press OK. Then go to Longitude and Latitude and e nter the c oordinates o f where y ou live (London's Longitude

is 000.1 West; South of UK's L atitude is 51.5 N orth). Press the EXIT button o n th e remote. Go to GOTO and press OK. Wait un til the Si gnal Quality is m ore than 40% in t he p rogress

bar. When a Satellite is found, the n al l the selected 25 Satellites are fully configured for a Motorised system.

If the Signal Quality is below 40%, then the settings are incorrect and the Longitude needs to be adjusted, for ex ample: 000.2, 000.3, 000.4,5/6/7/8/9 West or East. The Latitude may also need to be adjusted. If you s till have not got a si gnal, then t he external in stallation

(dish, etc) needs to b e adjusted.

How to Setup a DiSEqC 1.2 Motorised System

Press the MENU button on the remote and go to Installation and press OK. Go to Motorised Setting and press OK. Press OK again to open the satellite list. Select a satellite from the list and press OK. Go to the Third line (DiSEqC Motor) and use the Left/Right buttons on the remote to select DiSEqC 1.2. Go to Move and press and hold the Left/Right buttons on the remote until you get a Signal Quality of more than 40%. Go to Save and press OK. Press the RED ( )button on the remote to Scan. To scan extra satellites, repeat the above.

PART 2PART 2

How to do a Factory Reset to Delete the Preinstalled Satellites and Channels

If you want to start the receiver without the preinstalled Satellites and Channels, press the MENU button on the remote and go to System Settings and press the OK button. Go to Factory Reset, press OK and enter 0000. Then select Factory Reset. Press OK and select Yes.

Using the Preinstalled Satellite & Channel List

New Installation from start (NO Satellites/Channels)

www.technomate.com

Page 3

How to Install a New Sa tellite (Fixed No n-Motorised System)

Press the MENU button on the remote and press the OK button on Installation. Press OK on Satellite Setup and OK again to display a Satellite List. To add a Satellite, press the YELLOW ( )button on the remote. Press the EXIT button on the remote to exit the list.

When the Quality Bar is at its highest level, press the RED ( )button on the remote to Scan the Satellite. To view a channel, press the OK button in the Viewing Mode (clear screen) and select any channel. To view $ (Scrambled) channels, a CAM (Decoder) and a viewing card are required.

How to Setup a Monoblock o r DiSEqC Switch (up to 4 LNBs / Dishes)

Press the MENU button on the remote and press the OK button on Installation. Press OK on Satellite Setup and OK again to display a Satellite List. Select a Satellite (e.g. Hotbird 13E and Astra 19.2E) and press the YELLOW button on the remote for each Satellite to Save. Press the EXIT button on the remote to exit the list.

Go to DiSEqC Switching and select a Satellite (e.g. Hotbird 13E as Number 1 and Astra 19.2E as Number 2). When the Quality Bar is at its highest level for each Satellite, press the RED ( )button on the remote to Scan. To view a channel, press the OK button in the Viewing Mode (clear screen) and select any channel. To view $ (Scrambled) channels, a CAM (Decoder) and a viewing card are required.

If the above installation was not successful, change the DiSEqc Switching number, e.g. Hotbird 13E as Number 2 and Astra19E as Number 1.

How to Setup a DiSEqC 1.2 Moto rised System

How to Setup a DiSEqC 1.2 Motor ised System

Press the EXIT button again. Press OK on Motorised Setting. Press OK again to display a Satellite List. Select a Satellite and press OK. Go to the Third line (DiSEqC Motor) and use the Left/Right buttons on the remote to select DiSEqC 1.2. Go to Move and press and hold the Left/Right buttons on the remote until you get a Signal Quality of more than 40%. Go to Save and press OK. Press the RED button on the remote to Scan. Repeat the above for more satellites.

How to Setup a USALS Motorised System

Press the MENU button on the remote and press the OK button on Installation. Press OK on Satellite Setup and OK again to display a Satellite List. Select a Satellite (e.g.

Hotbird 13E and Astra 19.2E) and press the YELLOW ( )button on the remote for each Satellite to Save. Press the EXIT button on the remote to exit the list. Press the EXIT button agai n. Go to M otorised Sett ing and p ress OK. Go to the Third line (DiSEqC Motor) and use the Left/Right arrow buttons on the remote to select USALS. Then go to Position Setting and p ress OK. Then go to Longitu de and Latit ude and enter the c oordinates of wh ere y ou liv e (Lo ndon's Longitude is 00 0.1 W est; South of UK's Latitude is 51.5 North). Press the EXIT button on the remote. Go to GOTO and press OK. Wait until the Signal Qua lity is more than 40% in the pr ogress bar. Press the RED ( )button on the remote to Scan.

If the Signal Quality is below 40%, then the settings are incorrec t and the Longitude needs to be adjusted, for example: 000.2, 000.3, 000.4, 5/6/7/8/9 West or East. The Latitude may also need to b e adjusted. If you still have not g ot a signa l, then the external installation (dish, etc) needs to be adjusted.

How to restore default channels

Press MENU button on the remote. Go to Factory Reset, then go to Restore default channels. Press OK button on the remote, and input p assword and wait. It will retrieve default channels.

Active Transponders

For Technomate Motorized Systems

No. Satellite Name Degree Frequency Symbol Rate Polarity

1 PAS 45 IR 2

TELESTAR 11 3 4 5 6 7 8 9

11 12 13 14 15 16 17 18 19 20

21 22 23 24 25

HISPASAT NSS803-K INTEL 901

TELESTAR 12

ATLANTIC B1

EXPRESS 3A

TELECOM 2D

NILESAT 101

ATLANTICBIRD 3

THOR 707 -2/3

SIRIUS 2 EUTEL W3 EUTEL W1

HOTBIRD

EUTEL W2

ASTRA 1

ASTRA 3A

ARABSAT 2A

ASTRA 2

EUTEL W4

HALLAS SAT TURKSAT 1C

EUROSTAR 1

45.0 W

37.5 W

30.0 W

21.5 W

18.0 W

15.0 W

12.5 W

11.0 W

8.0 W

7.0 W

5.0 W

1.0 W

5.0 E

7.0 E

10.0 E

13.0 E

16.0 E

19.2 E

23.5 E

26.0 E

28.2 E

36.0 E

39.0 E

42.0 E

45.0 E

11510 11494 11811 11605 11673 11124 11132 11464 12747 11747 12543 11229 11766 11263 11526 10892 11304 12692 11634 11958 11469 12698 12524 12652 11500

26694 19500 27500 40000 28571 18386 03255 04340 02894 27500 27500 24500 27500 27500 30000 27500 30000 22000 27500 27500 27500 04340 29000 22500 04340

H H H H H H H V H V H H H H V H V H H H H H H H V

Your Digital Partner for Life

www.technomate.com

Page 4

SAFETY INFORMATION

Place the unit horizontally. An uneven placement may cause the unit to be damaged.

Do not put heavy items such as a TV on the unit. This may damage the unit.

Be sure to read the user's manual before starting the operation of the unit.

Never open the cover. It is very dangerous to touch the inside of the unit due to the possibility of an electric shock.

When you do not use this unit for a long time, make sure that the power cord is pulled out from the outlet. Also do not use a damaged power cord as it may cause fire or electric shock.

Do not touch the power cord with wet hands as it may cause electric shock.

Place the unit in a well ventilated and no-heat environment.

A professional installation is required. If reception is interrupted, contact your local service centre.

Do not leave the unit near water.

Do not install the unit :

Where it is subject to vibrations. Where it is exposed to direct sunlight. Where there is humidity. Where the temperature is too high or too low. Where there is no ventilation.

Do not put water containing items such as vase on the unit.

Moving the unit to a hot a rea from a cold one will cause condensation. Do not operate the unit for one or two hours or until it has dried completely.

Your Digital Partner for Life

The mains plug is used as the disconnect device.

The disconnect device shall remain readily operable.

www.technomate.com

Page 5

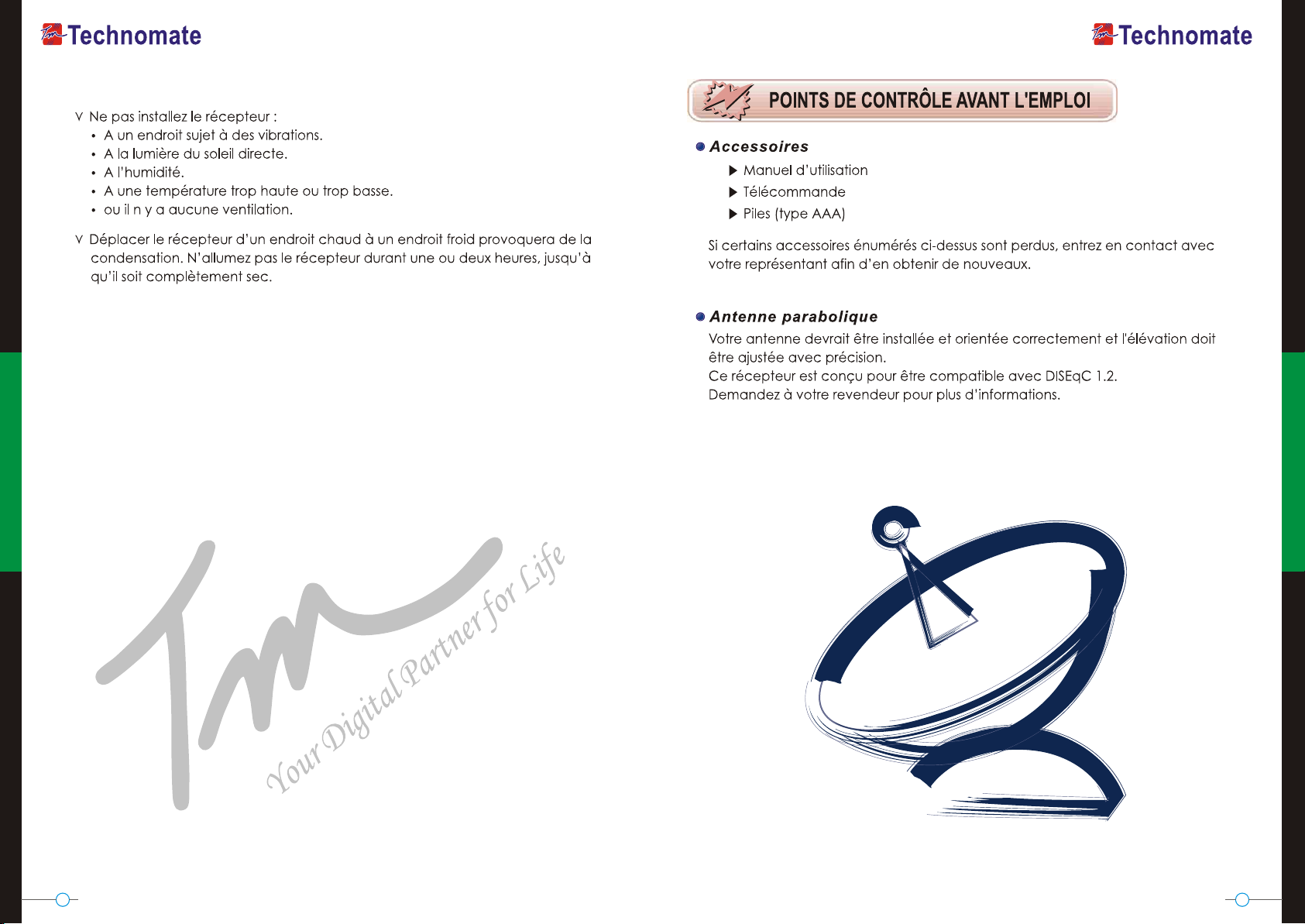

CHECK POINTS BEFORE USE

CONTROLS/ FUNCTIONS

ACCESSORIES

User's manual : 1

Batteries (AAA type) : 2

Remote control : 1

Power cord : 1

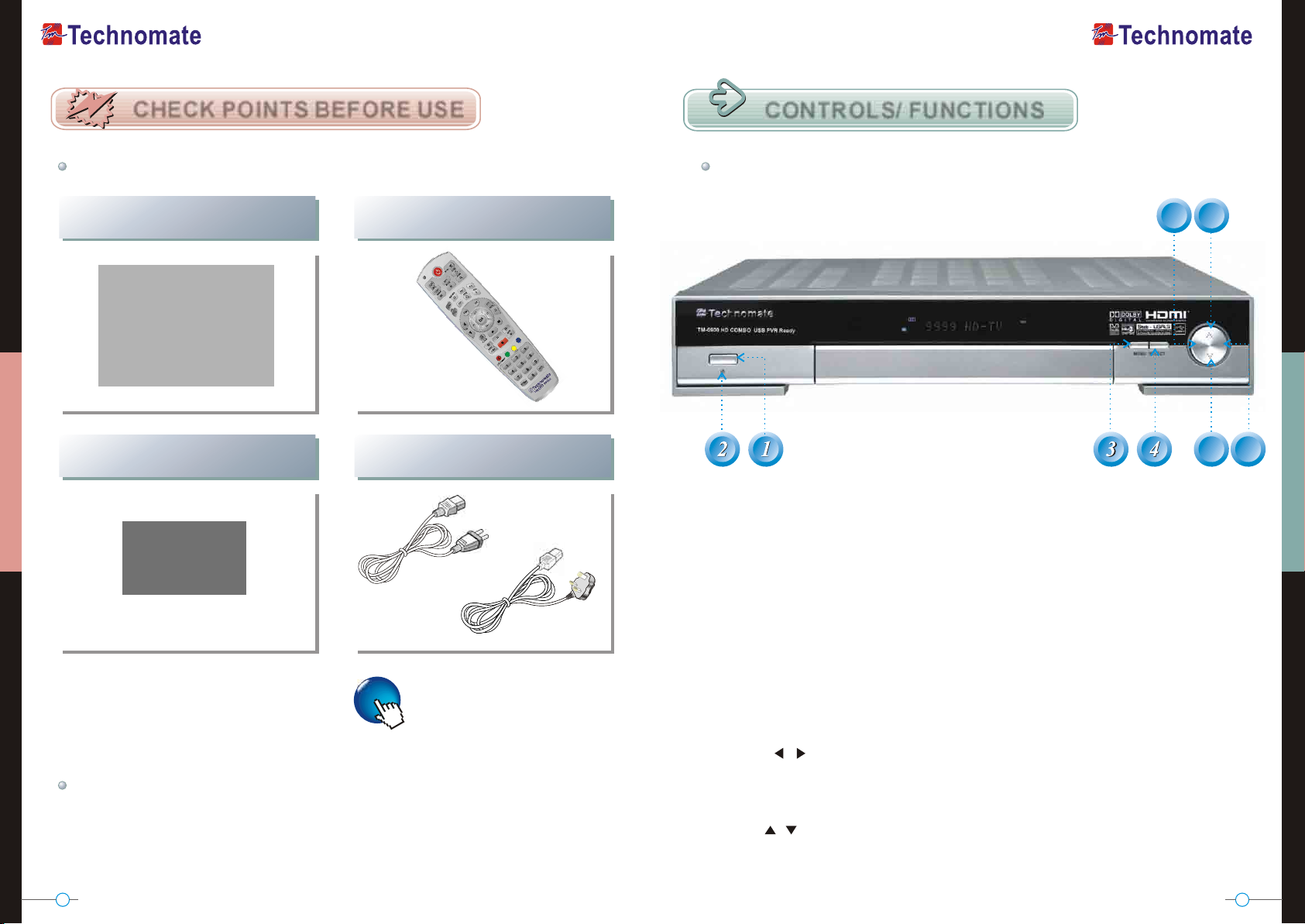

FRONT PANEL

557

1. Power :

To switch the receiver between "Standby" and "Power ON" modes.

2. Standby/Power Indicators :

Red in Standby mode and no light in Power-On mode.

Your Digital Partner for Life

If any accessories listed above are

missing, contact the sales

representative where you

purchased this unit.

SATELLITE DISH

Your dish should be properly installed and azimuth and elevation must be precisely set up.

This unit is working with DiSEqC 1.2 on a compatible antenna positioner.

Ask your dealer for more information.

3. Menu : To enter or exit the Main Menu.

4. Select : To open the Channel List in non-menu mode and to select/confirm an item in menu mode.

5 6. VOL( / ) :

To change the volume level in non-menu mode and to modify a setting in

menu mode.

7 8. CH( / ) :

To change channels or to move Up/Down in the menus/application.

www.technomate.com

Page 6

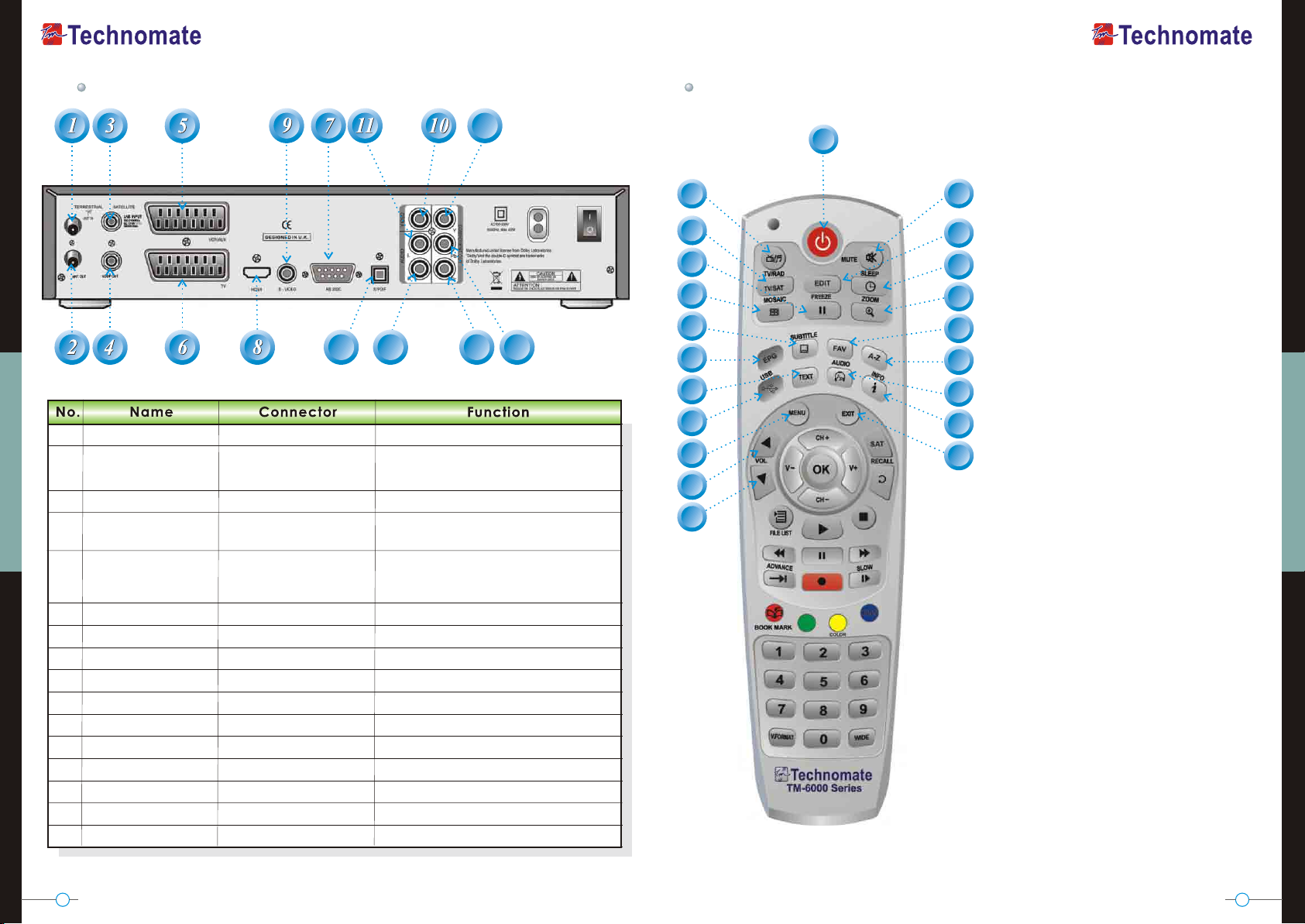

REAR PANEL

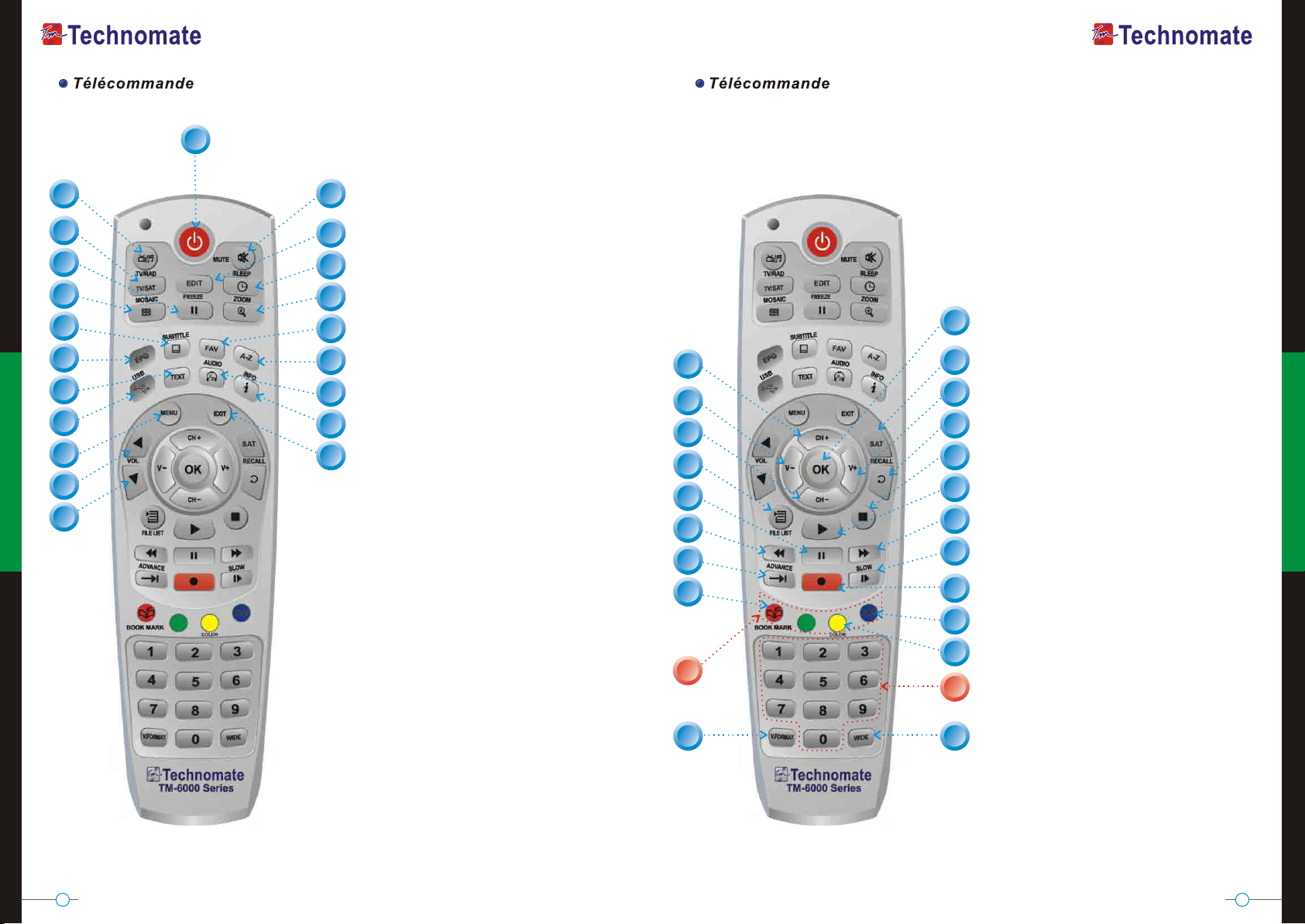

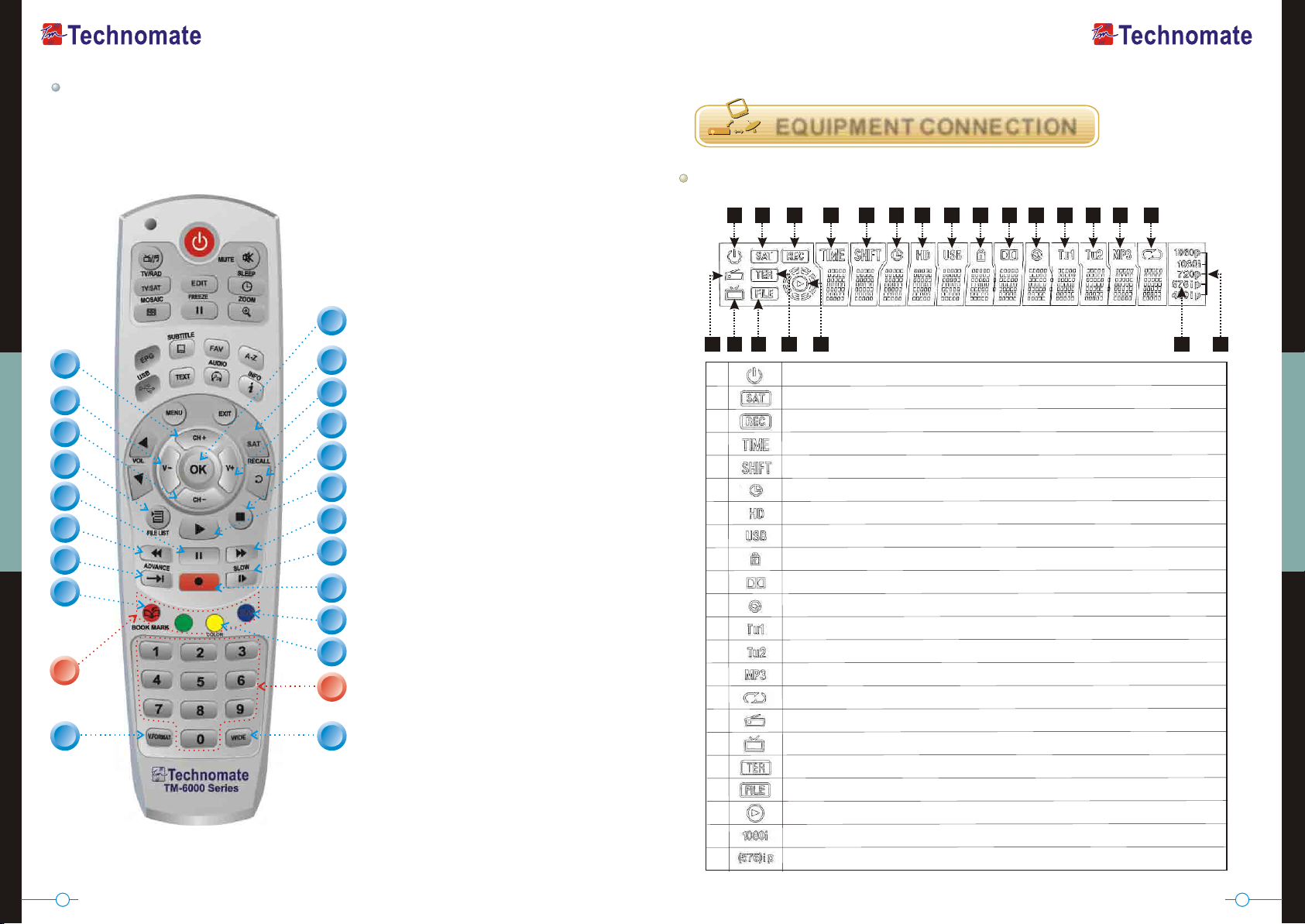

REMOTE CONTROL

1. POWER : To turn the receiver On/Off.

2. TV/RADIO : To switch between TV and

Radio modes

3. MUTE : To turn the sound On/Off.

3 4

6 7 8 9

11 12 13

14 15 16

ANT IN IEC 169-2 FEMALE

ANT OUT

LNB INPUT

LNB OUTPUT

VCR/AUX SCART SCART

TV SCART SCART

RS-232C DB-9

HDMI HDMI

S-VIDEO

VIDEO

AUDIO L

AUDIO R

S/PDIF

IEC 169-2 MALE Loop-through output from digital

IEC 169-24 FEMALE IEC 169-24 FEMALE

MINI-DIN RCA cinch RCA cinch RCA cinch RCA cinch

RCA cinch RCA cinch

Fiber Optic

Input from terrestrial antenna

tuner and Output to TV IF input from LNB to digital tuner

IF loop-through output from digital tuner

CVBS Video Output CVBS, RGB Video Input Audio Output

CVBS Video Output, Audio Output

Low speed serial port

Digital Video/Audio Output

S-VHS Output

Composite video output

Left audio output

Right audio output

Component video output(Y)

Component video output(Pb)

Component video output(Pr)

Digital audio output (Optical)

4. TV/SAT : To switch the TV output source

between the satellite input and the UHF/VHF antenna input.

5. EDIT : To go to Edit Channels Menu

6. SLEEP : To adjust the Sleep TImer.

7. MOSAIC : To display multiple pictures.

8. FREEZE : To pause the video. Press

again to resume the video.

9. ZOOM : To zoom In/Out.

10. EPG : To show the TV/Radio program

guide.

11. SUBTITLE : To show the subtitle contents if subtitle is transmitted.

12. FAV : To show favorite list in the favorite group or to move to the next page.

13. A-Z : To sort channel list.

14. USB : To show the usb menu

15. TEXT : To show the teletext contents if

teletext is transmitted. Used for special functions in menu mode.

16. AUDIO : To show the Multi-language audio track, the stereo-mono mode and subtitle information. Used for special functions in menu mode.

17. INFO : To show information about the current program. Press twice to show detailed information.

18. MENU : To enter or exit the main menu.

19. EXIT : To exit from the present menu and

to go to the previous menu 20-21. VOL UP & DOWN : To change the

volume level in non-menu mode.

Your Digital Partner for Life

www.technomate.com

Page 7

REMOTE CONTROL

22-23. UP & DOWN : To change channels in non-menu mode and move the cursor up/ down in menu mode.

24-25. LEFT & RIGHT: To change the volume level in non-menu mode.

26. OK : To show the Channel List in non menu mode and select an item or confirm in menu mode.

27. SAT : To show Satellite list

28. RECALL : To go to the previous channel

menu. Used for special functions in menu mode.

29. FILELIST : To display the filelist.

30. PLAY : Play Content.

31. STOP : Stop Playback.

32. RWD : Rewind a file / Arrow UP : To move to the previous page when many pages

are available.(It is worked when in Menu List)

33. PAUSE : Pause playback.

34. FWD : Forward a file / Arrow Down : To

move to the next page when many pages are available.(It is worked when in Menu List)

35. ADVANCE : Go to live channel.

36. REC : Start recording.

37. SLOW : Playback in slow mode.

38. BOOKMARK : Set the bookmark position.

39. Color : To control brightness, contrast color of a picture (when in CVBS mode)

40. POS : To show the Diseqc motor view control.

41. Color Key : To use special functions in the menu.

42. Numeric Keys (0-9) : To enter numerical settings (such as channel numbers) directly.

43 .V.FORMAT : To change video output's resolution

44. Wide : To select a TV aspect ratio with Pan Scan or Letter-Box(4:3) (Full screen or Pillar box(16:9).

EQUIPMENT CONNECTION

FRONT DISPLAY

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 19 18 20 22 21

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22

Power On/Off mode. It is displayed when a Satellite signal is present. It is displayed when a channel is recording. It is displayed when Time-Shift mode is enabled. It is displayed when Time-Shift mode is enabled. It is displayed when a Timer is set (in Standby mode). It is displayed when the channel is HD. It is displayed when a USB device is connected. It is displayed when a channel is locked. It is displayed when a channel is broadcasted in Dolby Digital Audio It is displayed when the audio is muted. Feature not supported Feature not supported It is displayed when the MP3 player is enabled. It is displayed when Loop mode is selected in the MP3 player It is displayed when you are in Radio mode It is displayed when you are in TV mode It is displayed when a Terrestrial signal is present It is displayed when in Playback mode in File List. It is displayed during Playback. Displays the video output's resolution. It is displayed if the resolution Progressive or Interlaced.

Your Digital Partner for Life

www.technomate.com

Page 8

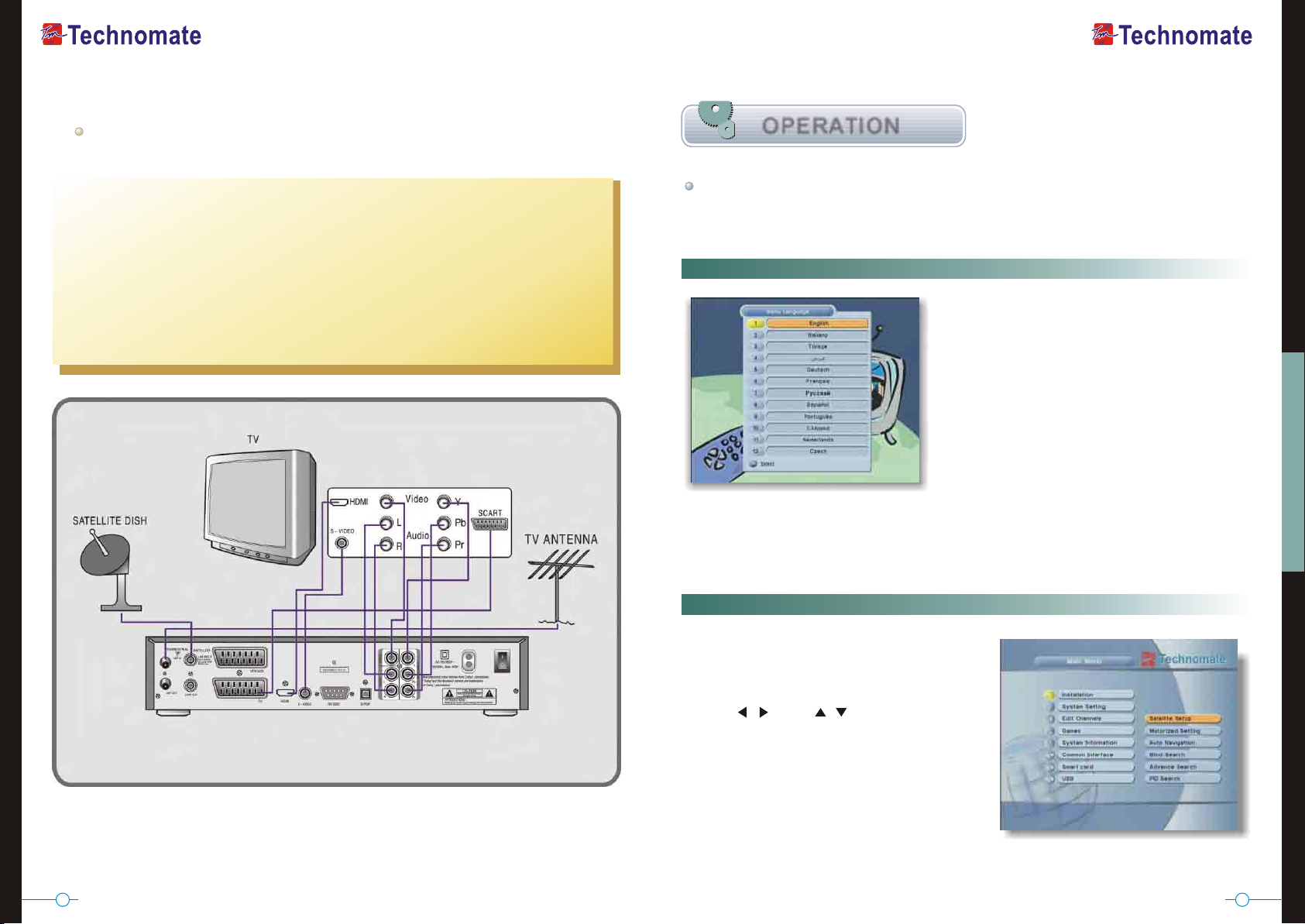

CONNECTION WITH ANTENNA/ TV SET/ A/V SYSTEM

1. Connect the TV antenna to TV ANT IN.

2. Connect the RF-IN of TV to RF-OUT.

8 9

OPERA TION

GETTING STARTED

Turn your receiver power on and proceed with system setup as follows:

3. Connect the Video and Audio of TV to the Video and Audio. Connect Red and White connector to Audio R and Audio L, and Yellow into Video port respectively.

4. Connect the Component Video of your TV to Component Video for best quality. Connect the Y, Pb and Pr of your TV to Y, Pb and Pr respectively.

5. Connect your satellite dish.

Menu Language Setting

1. Turn on your TV and receiver.

2. The language selection menu will be displayed, select a language and press the OK button on.

Satellite Setup

1. Press the MENU button on the remote to display the main menu.

* Note : In some receivers TV scart is at the top or bottom of the rear of the receiver please follow the Writing of the TV then connect your scart cable for viewing.

Your Digital Partner for Life

2. Use / and / button on the remote to move in the menu.

3. Select Satellite Setup, the Satellite Setup menu will appear.

www.technomate.com

Page 9

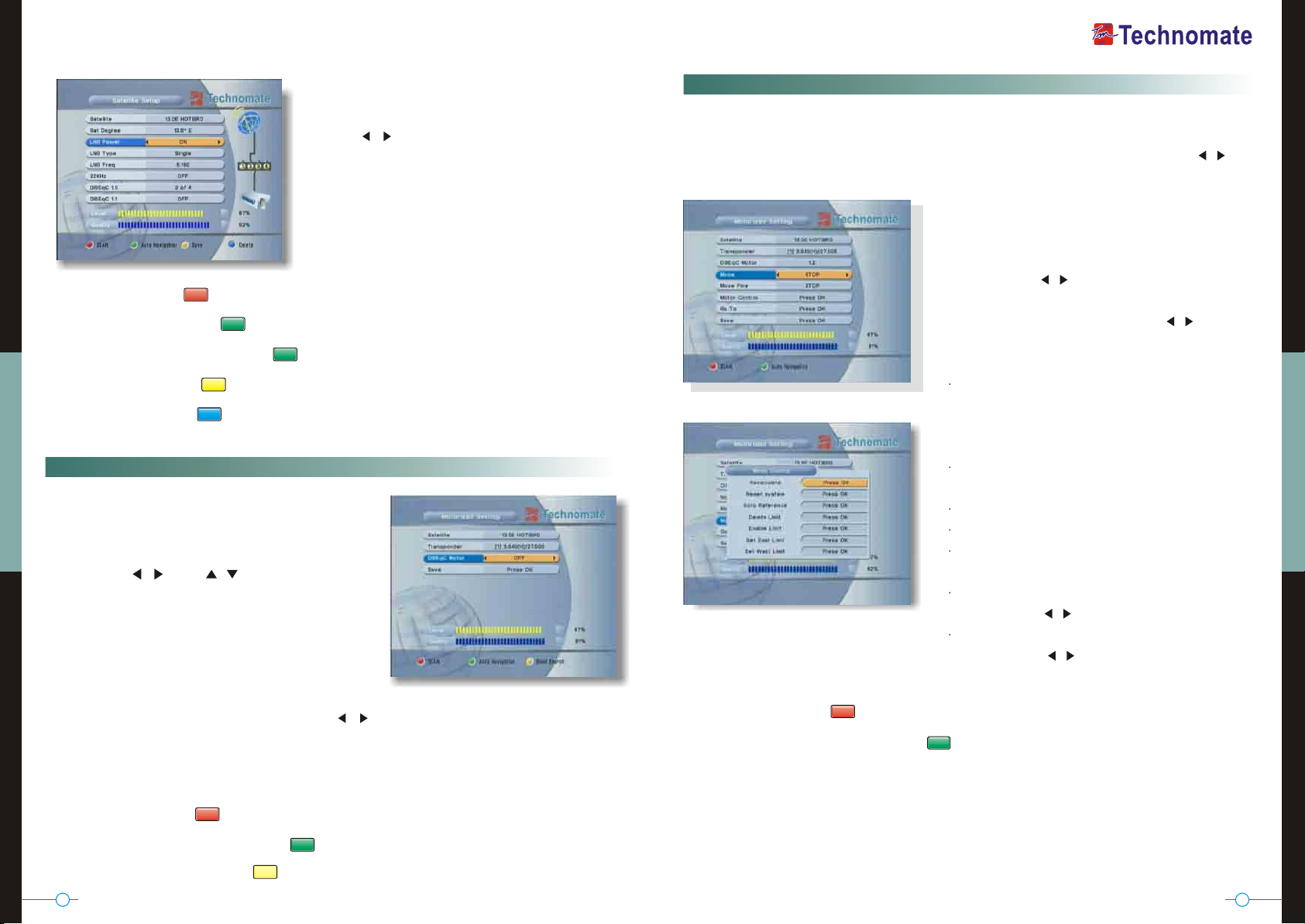

4. Select each menu you want to edit/ change

- Satellite: Select any satellite by pressing / buttons on the remote.

- Sat Degree: Edit satellite degree

- LNB Power: Select LNB power ON/OFF/13V/18V

- LNB Type: Select your LNB Type Single / Universal /OCS

- LNB Freq: Select LNB oscillator frequency.

- 22KHz: Select ON/ OFF of 0/22 KHz

- DiSEqC 1.0 : Select DiSEqC 1.0 Port

- DiSEqC 1.1 : Select DiSEqC 1.1 Port

5. Scan: Press Red ( )button on the remote to begin satellite search.

6. Rename: Press Green ( )button on the remote to rename the selected satellite.

7. Auto Navigation: Press Green ( )button on the remote to begin auto navigation.

8. Save: Press Yellow ( )button on the remote to save the selected satellite.

9. Delete: Press Blue ( )button on the remote to de select the selected satellite.

Motorized Setting

1. Press the MENU button on the remote to display the main menu.

2. Use the / and / buttons on the remote to move in the menu.

3. Select Motorized Setting, the Motorized Setting menu will appear.

4. Select each menu you want to edit / change.

- Satellite: Select any satellite by pressing / buttons on the remote.

- Transponder: Displays the current TP value of the selected satellite.

- DiSEqC Motor: Select DiSEqC Motor type OFF/1.2/USALS.

- Save: Press OK button on the remote to save.

DiSEqC 1.2 Setup

1. Select DiSEqC 1.2 on DiSEqC Motor, the the DiSEqC 1.2 m enu will appear.

- Satellite: Select a ny satellite by pressing /

buttons.

- Transponder: Displays the current TP value of the selected satellite.

- DiSEqC Motor: Select DiSEqC 1.2

- Move: Move the dish position to west/east by

pressing / buttons.

- Move Fine: Move the dish position 1 step at a time to west/ east by pressing / buttons.

- Motor Control : Control motor by press OK button on the remote. Recalculate : Re calculate the position of all other saved satellites relative to the known position.

Reset System : Reset the position of all saved satellites. Goto Reference: Move the dish to the 0 position. Delete Limit: Delete east and west limit. Enable Limit : Enable the saved east and west limit. Set East Limit: Edit & S ave east limit by pressing / or OK buttons. Set West Limit: Edit & S ave west limit by pressing / or OK buttons.

- Go To : Go to the position of the saved sa tellite.

2. Scan: Press Red ( )button on the remote to begin satellite search.

3. Auto Navigation: Press Green ( )button on the remote to begin auto navigation.

- Save: Save the current setting of DiSEqC 1.2 system.

5. Scan: Press Red ( )button on the remote to begin satellite search.

6. Auto Navigation:

7. Blind Scan:

Your Digital Partner for Life

Press Green ( )button the remote t o begin auto navigation.

Press Yellow ( )button the remote t o begin Blind Scan.

www.technomate.com

Page 10

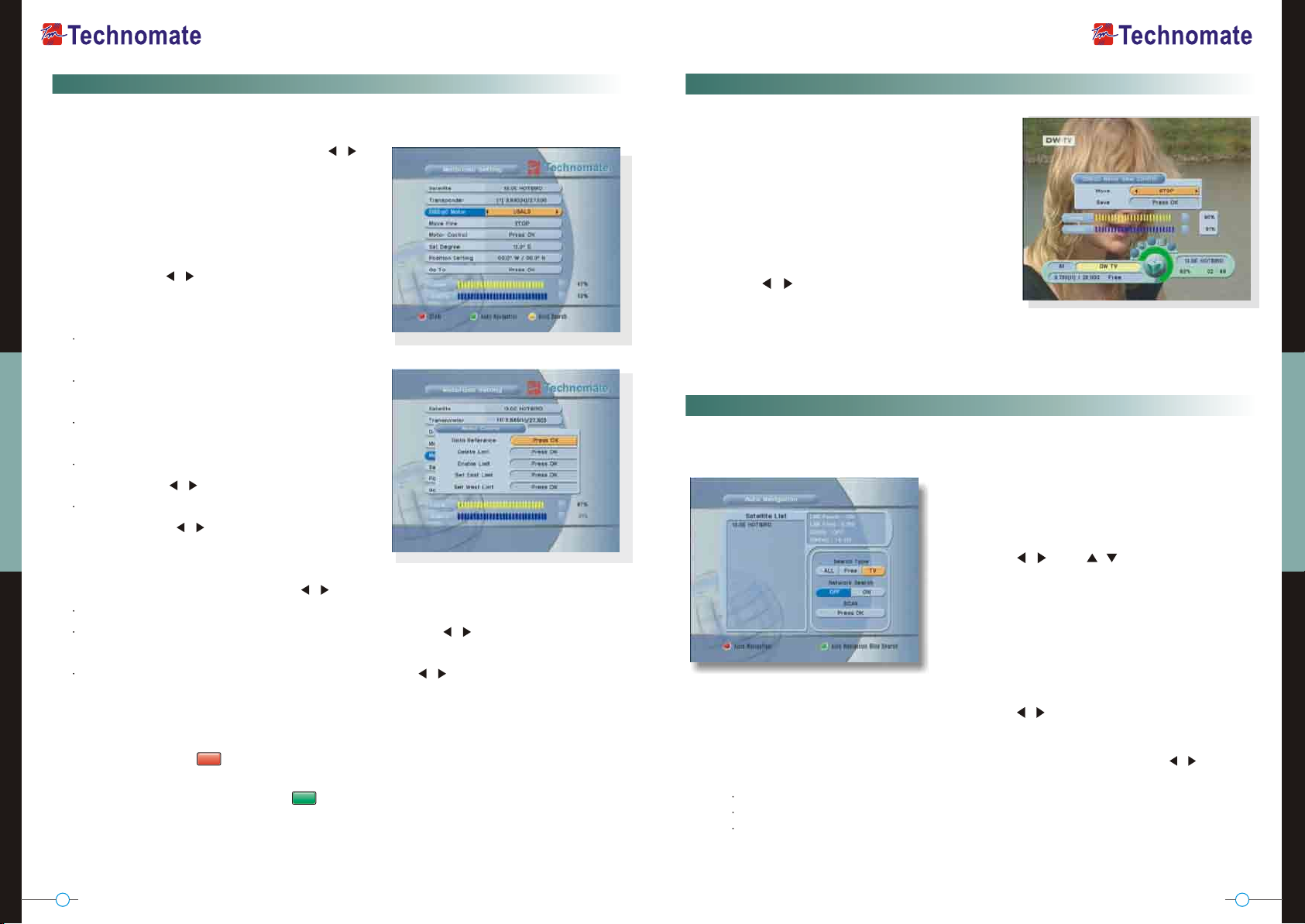

USALS System Setup

1. Select USALS on DiSEqC Motor, the USALS menu will appear.

- Satellite: Select any satellite by pressing /

buttons.

- Transponder: Displays the current TP value of the selected satellite.

- DiSEqC Motor: Select DiSEqC Motor USALS.

- Move: Move the dish position to West/East by

pressing / buttons.

- Motor Control : Control motor by press OK button on the remote. Goto Reference: Goto reference by pressing OK button. Delete Limit: Delete limit by pressing OK button. Enable Limit : Enable the saved east and west limit. Set East Limit: Edit & Save east limit by pressing / or OK buttons. Set West Limit: Edit & Save west limit by pressing / or OK buttons.

- Sat Degree: Displays the current degree of the selected satellite. Edit degree by pressing / buttons and numeric buttons. Goto Reference: Move the dish to the 0 position. Antenna Longitude: Edit antenna longitude by pressing / buttons and numer ic buttons. Antenna Latitude: Edit antenna latitude by pressing / buttons and numeric buttons.

- Go To : Save the current setting of USALS Syste m.

2. Scan: Press Red ( )button on the remote to begin satellite search.

3. Auto Navigation: Press Green ( )button the remote to begin auto navigation

* Note: When you change each parameter, you need to know exact parameter of the LNB to modify L.O(local oscillator) frequency.

DiSEqC Motor View Control

1. Select DiSEqC 1.2 or USALS in the Motorized Setting menu.

2. In the viewing mode, Press POS button on the remote to display DiSEqC Motor

View Control.

3. Press / buttons on the remote to move DiSEqC Motor to get the best signal.

Auto Navigation

All the available channels/satellites can be searched in this menu. Select the satellite and save before Auto Search.

1. Press the MENU button on the remote to display the main menu.

2. Use the / and / buttons to move in the menu.

3. Select Auto Navigation, Auto Navigation menu will appear.

4. Select the satellites you want to se arch by pressing the OK button on the remote. You can select more satellites by pressing the / button and OK button on the remote.

- Search Type: Select the type of channel search you want by pressing / buttons on the remote.

All: To search all the Free To Air and scrambled channels, TV & Radio channels. Free: To search Free To Air channels only. TV: To search TV channels only.

- Network Search: Select Network Search ON/ OFF to find more transponders through NIT Search.

Your Digital Partner for Life

www.technomate.com

Page 11

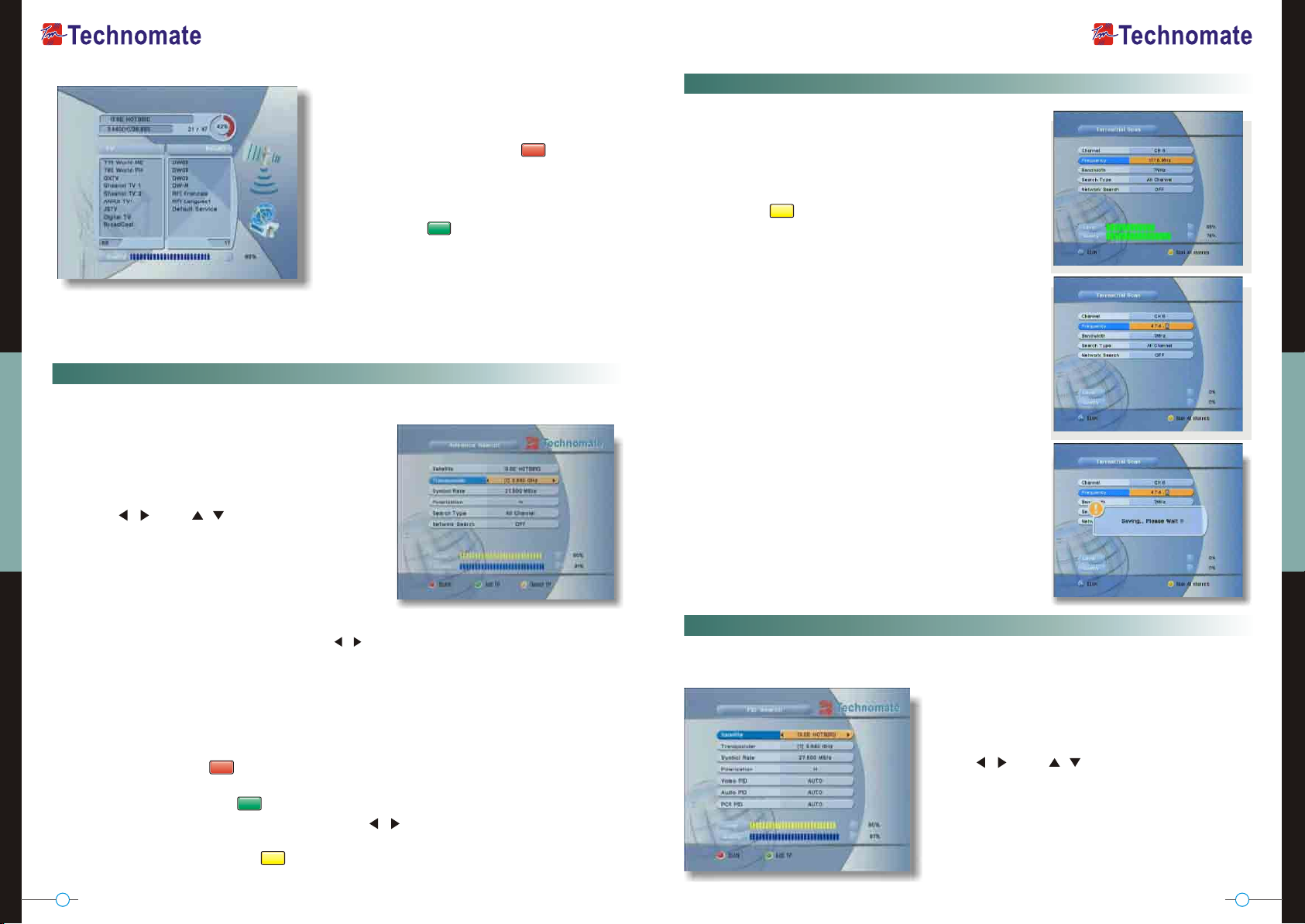

- Scan: Begin channel search of the selected satellite.

5. Auto Navigation: Press Red ( )button on the remote.

6. Auto Navigation Blind Search:

Press Green ( )button on the remote to begin channel search of a ll of the satellite in the satellite list.

* Note: Make sure that the signal level of the selected satellites is high by the signal quality bar. If the signal quality is lower than 50%, go back to Satellite Setup and check LNB, DiSEqC Switching, etc.

Terrestrial Scan

Through this function, the receiver searches for all the available channels and saves them in memory.

-Auto Scan

1. When the Quality is at its highest level, press the

YELLOW button on the remote control to start scanning for channels

-Manual Scan

1. Select the channel number or frequency that you want to search by using the UP/DOWN buttons on the remote control, or manually enter a frequency.

( )

Advance Search

Te edit and search channels on newly launched satellites or not preprogrammed satellites in the list.

1. Press the MENU button to display the main menu.

2. Use / and / buttons to move in the menu.

3. Select Advance Search, the

Advance Search menu will appear.

4. Select each menu you want to edit/ change.

- Satellite: Select a satellite by pressing / buttons on the remote.

- Transponder: Displays the current Transponder list of the selected satellite.

- Symbol Rate: Displays the current symbol rate list of the selected transponder.

- Polarization: Select Horizontal/ Vertical.

- Search Type: Select All Channel/ FTA Only/ TV Only.

- Network Search: Select Network Search ON/ OFF.

5. Scan: Press Red ( )button on the remote to begin satellite search.

6. Add TP: Press Green ( )button on the remote to add new transponders by

using numeric buttons 0~9 and / buttons on the remote.

7. Delete TP: Press Yellow ( )button on the remote to delete transponders.

2. For Bandwidth, choose either 7 MHz or 8 MHz For Search Type, choose from: All Channel, FTA

Only or TV Only

3. For Network Search, select ON to find the most

channels available. The Strength and Quality of the signal from the selected channel is shown by the Level and Quality indicators at the bottom of the screen.

4. Press the OK button to start scanning.

PID Search

Edit the information of the current transponder PID / Audio PID/ PC R PID and search the satellite.

1. Press the MENU button on the remote to display the main menu.

2. Use / and / buttons on the remote to move in the menu.

3. Select PID Search, then the PID Search menu will be displayed.

Your Digital Partner for Life

www.technomate.com

Page 12

- Satellite: Select a transponder which you want to search.

- Transponder: Displays the Transponders of the selected satellite.

- Symbol Rate: Displays the current symbol rate list of the selected transponder.

- Polarization: Select Vertical/ Horizontal.

- Video PID/ Audio PID/ PCR PID: Select and edit by using numeric buttons 0~9 and

/ buttons on the remote.

4. Scan: Press Red ( )button on the remote to begin PID Search.

5. Add TP: Press Green ( ) button on the remote to edit transponder by using numeric buttons 0~9 and / buttons on the remote.

Other Functions of the Remote Control

Volume Control

1. While you are watching a program me, p ress / buttons on the remote to control volume.

2. Press the MUTE button to turn off t he sound of the program me.

Press MUTE button again to turn the sound On.

Channel Information

Displays the information of a program me by pressing INFO button on the remote.

6. Delete TP:

Press Yellow ( )button on the remote to delete t he selected transponder.

* Note: Setup is now completed. If you cannot see the programme after finishing these procedures, please contact your local dealer.

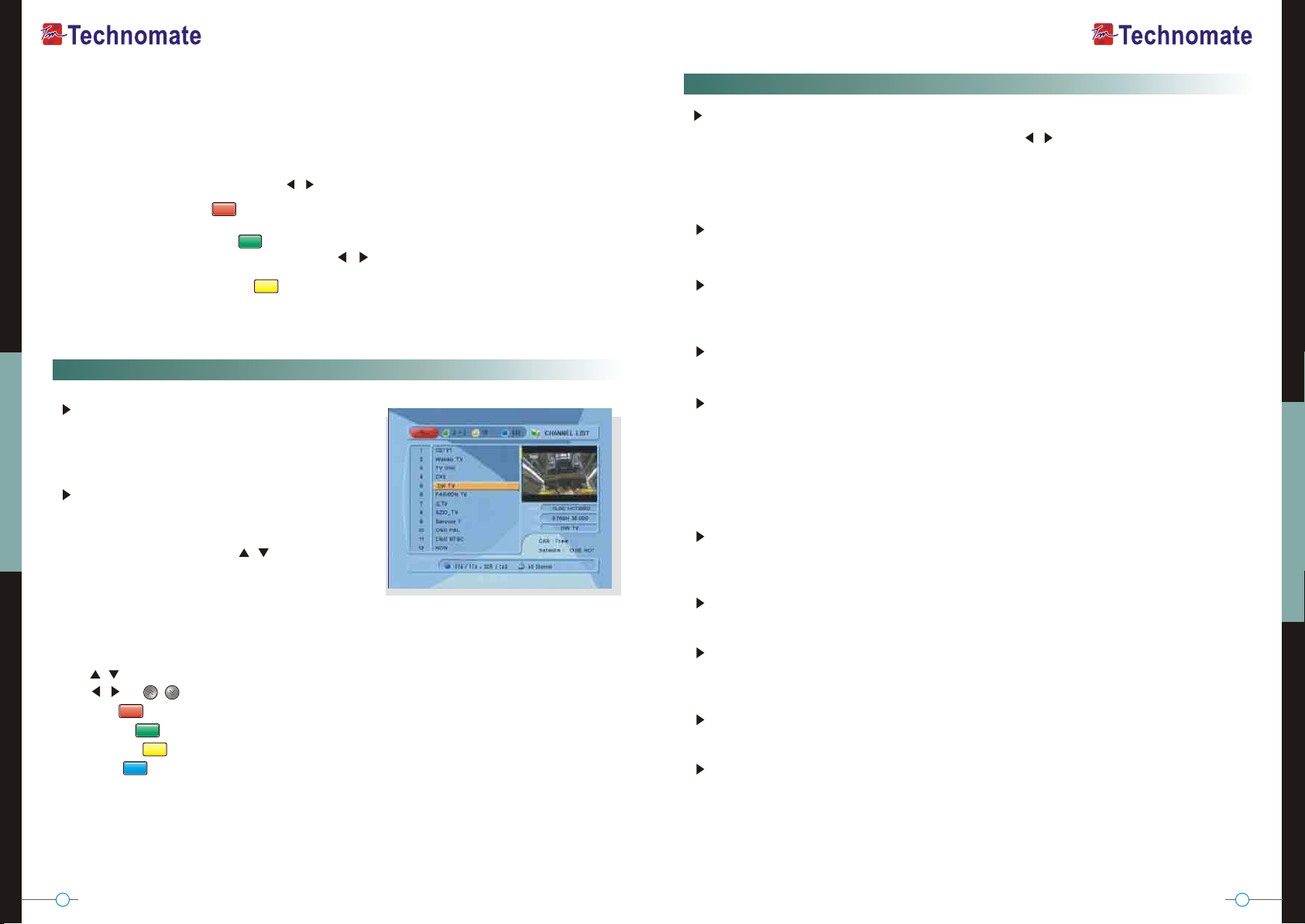

Channel Selection

If you know the channel number, enter the

channel number by using numeric buttons on the remote and wait 2 seconds until the channel changes.

If you know the channel name, press OK

button on the remote, then the channel list will be displayed. Select the channel you want to watch by using / , OK buttons on the remote.

1. In the right side of screen, detailed information of the selected channel is

displayed. (Satellite Name, TP and Channel Name)

2. You can navigate between channels with these buttons.

- / : Moves up/ down

- / or / : Moves page up / page down.

- RED( ): Displays all channels in current satellite.

- GREEN( ): Displays channels sorted by alphabetical order.

- YELLOW( ): Displays channels sorted by transponder.

- BLUE( ): Displays channels sorted by FTA/ FTA + Scrambled/ CAS.

3. When the selection bar is positioned on the channel you want to see, press OK on the remote.

TV/ RADIO switching You can press this key to change from a TV channel to a Radio channel or vice versa.

RECALL Press to return to the previous channel.

Audio Press to adjust the subtitle and/or audio status of the current channel:

- Audio Mode : Select between, Stereo -> Mono-Left -> Mono-Right

- Audio Track : Select between tracks available in this program

- Audio Level : Select between, High -> Medium -> Low

* Note : These subtitle and audio parameters are workable only when the desired

channel supports these functions.

TEXT The Teletext service is a text data service sometimes available from the Service Provider.

SAT

Press the SAT button on the remote and select a satellite in the Satellite List. FAV

Press FAV button on the remote to display a favorite channel list int the favorite group

FREEZE

You can press this key to freeze the video. Press it again to resume the video.

GROUP

When watching TV or listening to Radio, you can press this button to view the list of satellites and/or favorite channel groups. Only registered satellites and favorite groups are displayed.

Your Digital Partner for Life

www.technomate.com

Page 13

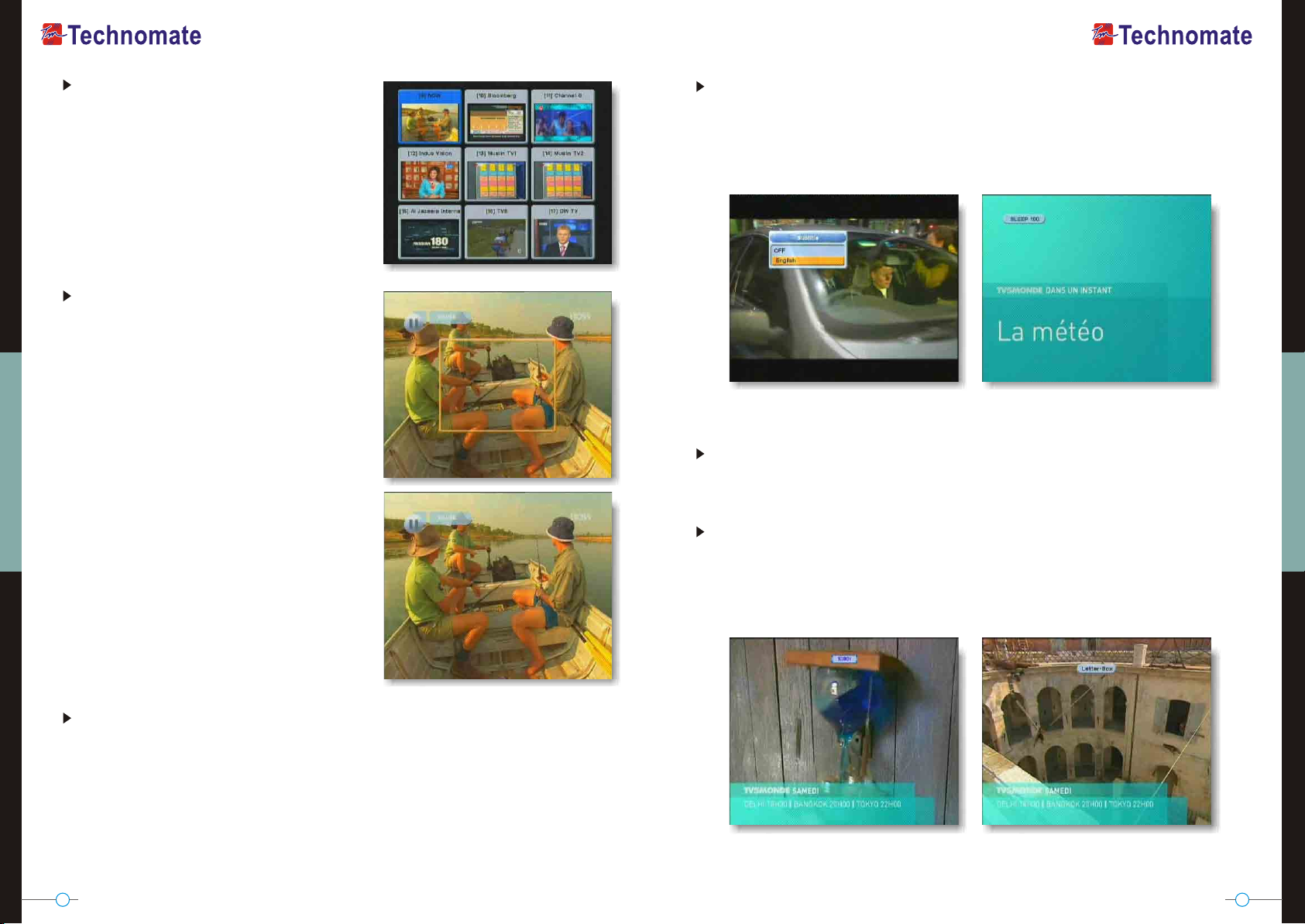

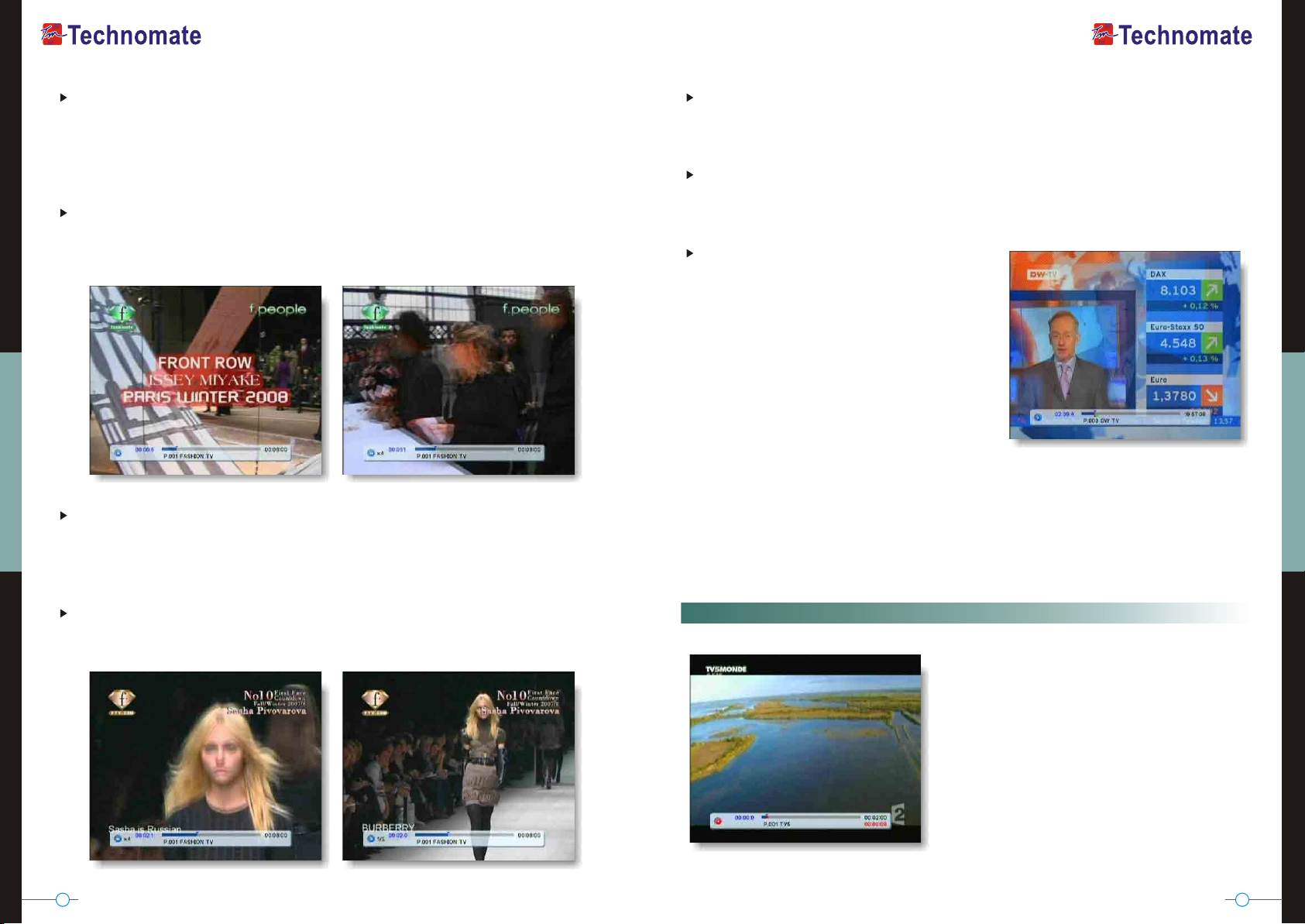

Multi Picture Display

Press the MOSAIC button on the remote to display multi-picture mode. You can select the numbers of multipictures. eg. 1x2, 2x2, 2x3, 3x3

ZOOM

You can press to zoom in the video.

1.Press the PAUSE button and press

You can zoom in sections

ZOOM button

of Freezed Video

2. While watching a program, press .

You can zoom in sections of playing video.

3. To cancel the freeze status, please

release the zoom status.

SLEEP

You can set the receiver to turn off after a few minutes. Press the SLEEP button to set a Sleep Timer.

- To cancel a Sleep Timer, press the SLEEP button until you set the time as "0 min".(Disable, 10, 20, 30, 60, 100, 120 Minutes)

V.FORMAT

Press the V.FORMAT button to change the video resolution: 1080i > 720p > 576p

WIDE

Press the WIDE button to change the TV's Aspect Ratio:

- 4:3 : Pan-Scan or Letter-Box

-16:9 : Full-Screen or Pillar-Box

Your Digital Partner for Life

SUBTITLE

You can press to select the subtitle language of current channel.

www.technomate.com

Page 14

COLOR Adjustment

Press the COLOR button on the remote to select Color Adjustment menu. By using the / buttons on the remote, you can adjust the brightness, contrast and the color of picture.

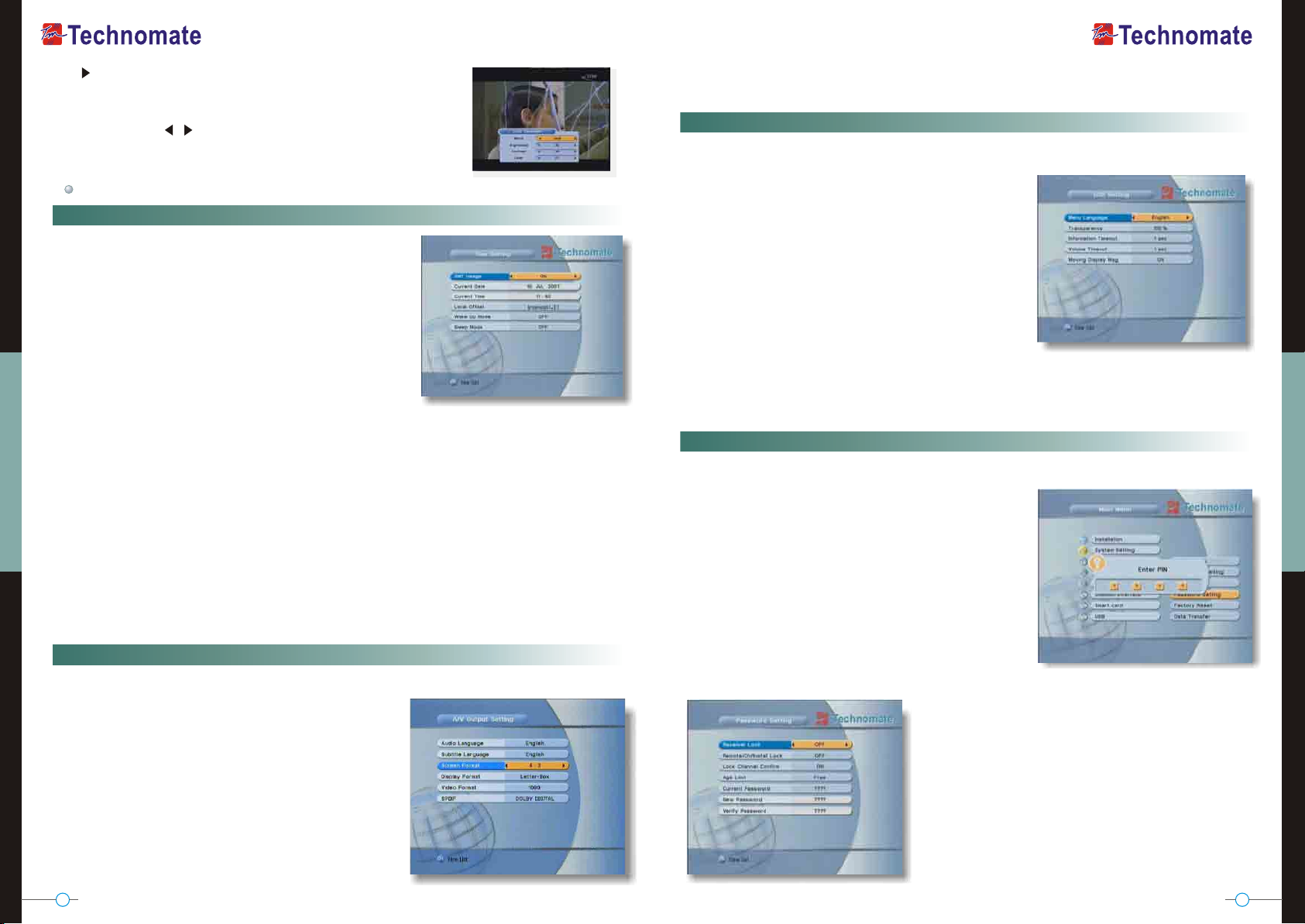

SYSTEM SETTINGS

Time Setting

This sub-menu allows you to set your local time, wake up time, wake up channel and sleep time.

-GMT Usage: If you turn it ON, local time is determined by adjusting the differences from GMT

(Greenwich Meantime), according to

your location.

- Current Date: If GMT Usage is ON, this date is determined by GMT.If GMT Usage is OFF, you can modify

this by pressing the OK button on the remote. If you set OFF, the receiver doesn't refer to GMT. Local time is determined by

adjusting current date and current time.

- Current Time: If GMT Usage is ON, this time is determined by GMT.

If GMT Usage is OFF, you can modify this by pressing any NUMERIC button.

- Local Offset: If GMT Usage is ON, the Local time is GMT time + Local Offset.

- Wake Up Mode: You can set the cycle of the wake up mode Off/Once/Daily.

- Wake Up Time: You can set wake up time by pressing any NUMERIC button.

- Wake Up Channel: You can set wake up channel by pressing the OK button on the remote.

- Sleep Mode: You can set the cycle of the sleep mode: Off/Once/Daily.

- Sleep Time: You can set a sleep time by pressing any NUMERIC button.

OSD Setting

This sub-menu allows you to set the menu language, OSD transparency, Information and volume timeout.

- Menu Language: Select the desired language of the menu.

- Transparency: Select OSD transparency of the menu. (1% ~ 100%)

- Information Timeout: Select the display duration of

the information banner 1 sec/ 2 sec / 3 sec / 5 sec / 10 sec.

- Volume Timeout: Select the display duration of the volume box 1 sec / 2 sec / 3 sec / 5 sec / 10 sec.

- Moving Display Message: Turn the DiSEqC moving message ON/ OFF.

Password Setting

This sub-menu allows you to change the password option to access or lock menu entry and to change password.

- Receiver Lock: If you turn it ON, you will be asked to

enter PIN code when power on.

- Remote/ Ch/ Install Lock : If you turn it ON, you will be

asked to enter PIN code when you go to Installation/ Edit Channels and When you use Function keys on the remote.

A/V Output Setting

This submenu allows you to specify the audio/video output setting.

- Audio Language : Set the default audio language

when selecting a channel.

- Subtitle Language : Set the default subtitle language.

- Screen Format : Select the screen format. (16:9 / 4:3)

- Display Format : Select the TV aspect ratio(Letter Box/

Pan Scan, Full Screen/Pillar Box)

- Video Format : Select the Scanning type(Interaced, Progressive)

- SPDIF : Select the Audio output type (Dolby/PCM)

Your Digital Partner for Life

- Lock Channel Confirm: If you turn it ON, you will be

asked to enter PIN code when you switch to a l ocked channel.

- Age Limit: Prevents children or unautho rized people from

watching the specific programs.

(Free / 8 above / 12 above / 15 above / 18 above)

- Current Password: Enter current password to change

password.

- New Password: Enter the new password you want to

- Verify Password: Enter new password to confirm.

* Note : The default password is 0000.

change.

www.technomate.com

Page 15

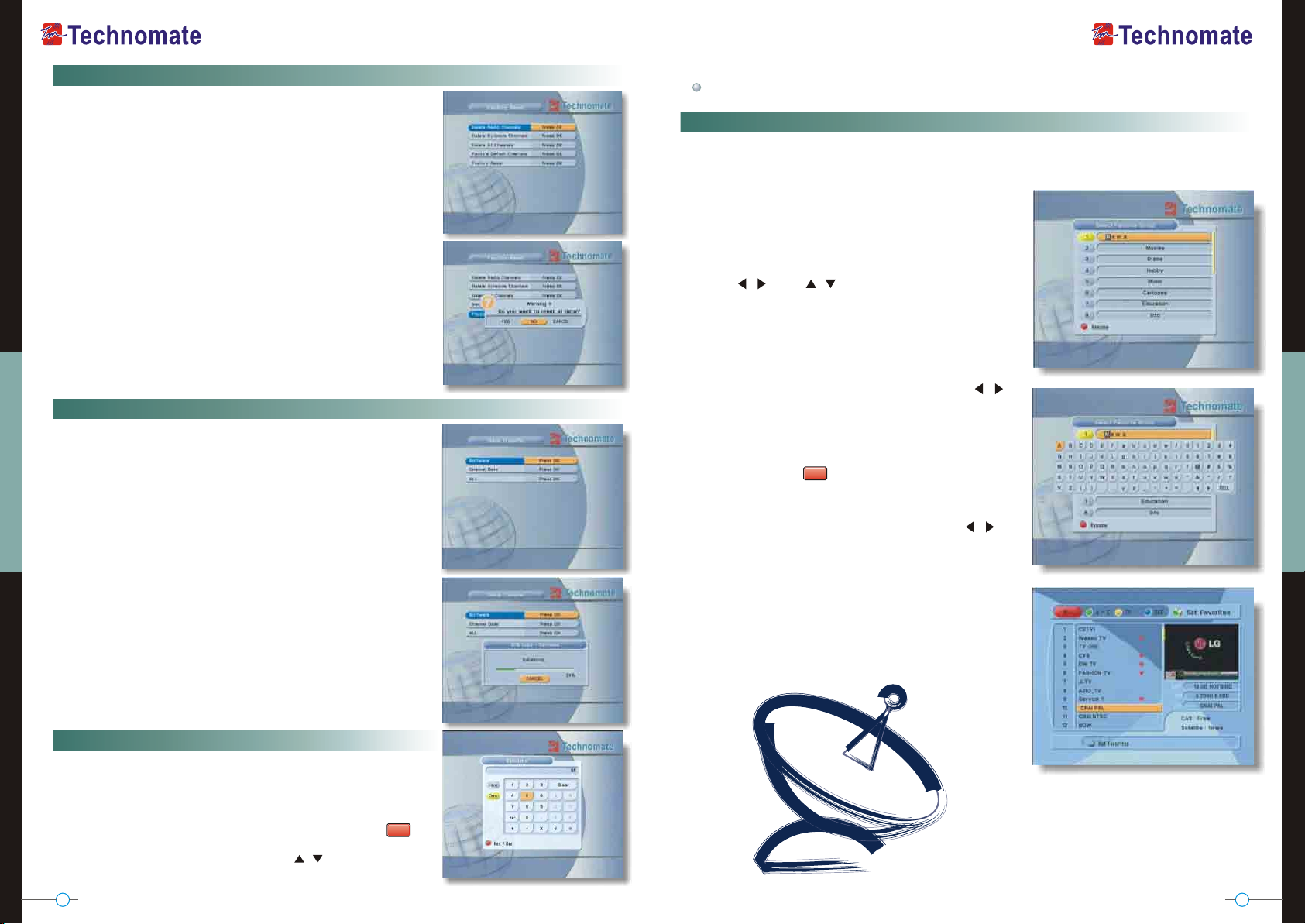

Factory Reset

This sub-menu allows you to restore the factory setting if the users encounters a problem after changing any settings.

- Delete Radio Channels : Erase all radio channels.

- Delete Scramble Channels: Erase all scramble channels.

- Delete All Channels: Erase all channels and restore default setting.

- Factory Reset: Erase all channels and restore factory default setting.

- Restore Default Channels:

Restores 25 satellites and approx 1500 channels

pre-tuned.

Data Transfer

This sub-menu allows you to transfer the software of a receiver to another receiver.

- Firmware:

Transfer the firmware of a receiver to another receiver.

- Channel Data: Transfer the channel data of a receiver to another receiver.

- Games: Transfer the game data of a receiver to another receiver.

- All: Transfer all data (Firmware + Channel Data + Games)

to another receiver.

EDIT CHANNELS

Set Favorites

This sub-menu allows you to set up favorite name and favorite lists. You can choose TV or Radio channels by pressing the TV/RADIO

button. Supports is for 16 favorite groups.

1. Press the MENU button on the remote to display the main menu.

2. Use / and / button on the remote to move in the menu.

3. Select Set Favorites, Select Favorite Group will

appear.

4. Select a favorite group by pressing the /

and OK buttons on the remote. The TV/ Radio channel list will appear. If you want to edit the favorite group name, press the RED ( )button on the remote. A virtual keyboard will appear.

5. Set favorite channels by pressing the /

and OK buttons on the remote. The selected channels will have a heart symbol on the right. Press the OK button on the remote again to remove the channel from a favorite group.

6. Press the EXIT button on the remote to return to

the previous menu.

Calculator

This submenu allows you to use a calculator on the screen.

- You can switch between Hex (Hexadecimal) and Dec (Decimal) basis for arithmetic with the RED( ) button of the remote control unit.

- Use the Numerical and the ./. and / buttons on the remote control unit.

Your Digital Partner for Life

www.technomate.com

Page 16

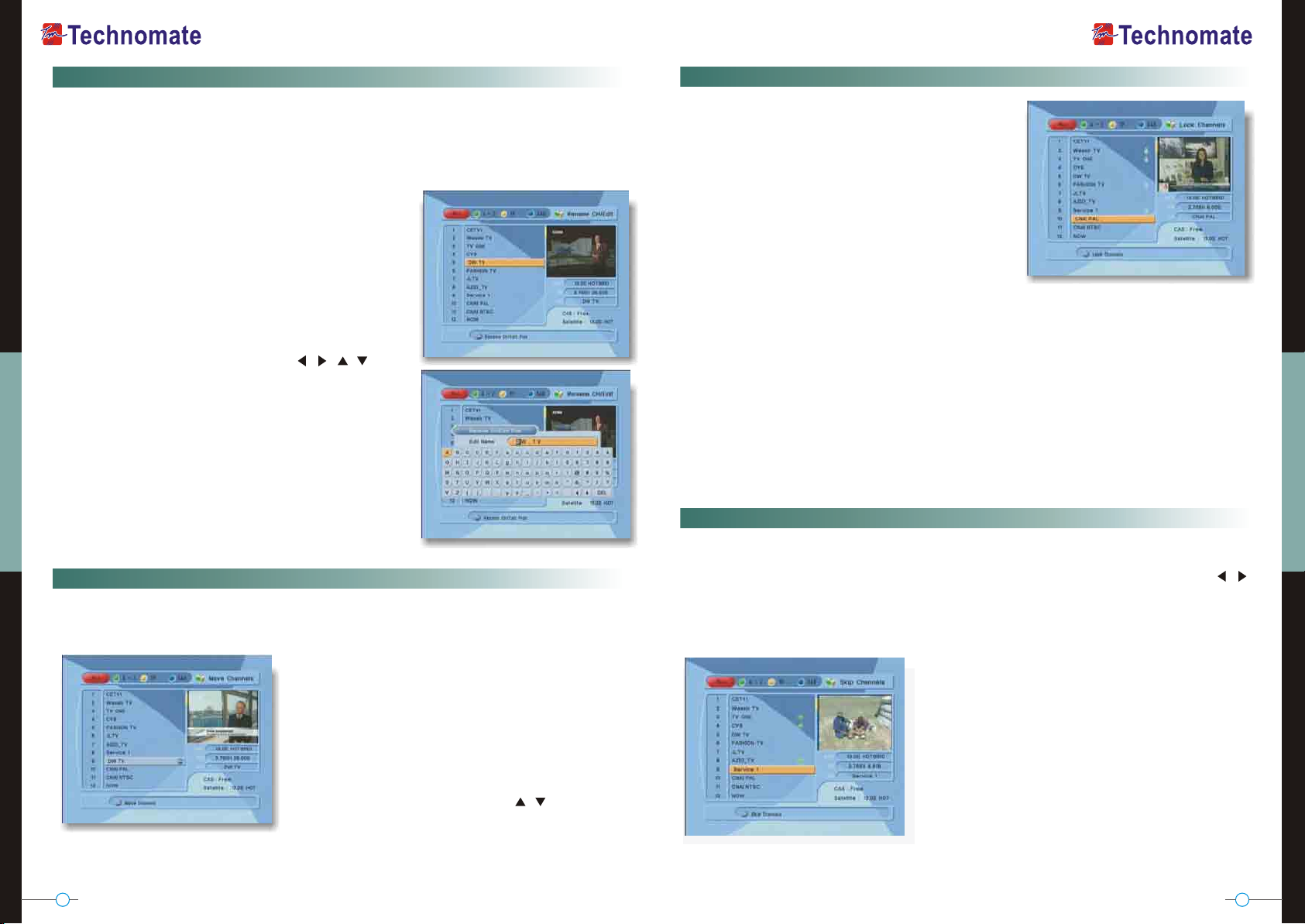

Rename CH/ Edit PIDs

Lock Channels

This sub-menu allows you to rename the channels and input user PID. You can switch between TV or Radio channels by pressing the TV/RADIO button on the remote.

1. Select Rename CH/ Edit Pids, the Rename CH/ Edit PIDs menu will appear.

2. Press the OK button on the channel that you want to edit.

3. Press the OK button on Edit Name to rename a channel. A virtual keyboard will appear.

Rename a channel by using the / , / , and OK buttons on the remote. Press the EXIT button on the remote to exit.

4. You can edit a PID by using NUMERIC buttons on the remote.

*Note: The VIDEO PID, AUDIO PID and PCR PID are very important for optimal satellite signal reception.

Move Channels

This sub-menu allows you to move a channel in the list. You can switch between TV or Radio channels by p ressing the TV/RADIO button.

This sub-menu allows you to lock channels. Once the channel is locked, every time you want to watch the channel, you will have to enter the password.

* Note: If you set Lock Channel Confirm OFF, you will not be asked to enter a password even if a channel is locked.

Press the OK button on Lock Channels, the Lock Channels menu will appear.

2. Press the OK button to select the channel that you want to lock. A lock symbol will appear next to the channel's name.

3. Press the OK button again to unlock a channel. The lock symbol will disappear.

4. Press the EXIT button on the remote to return to the previous menu.

Skip Channels

This sub-menu allows you to skip channels. Once a channel is skipped, every time you try to change the channel using / in the viewing mode, this channel will be skipped.

* Note: If you try to change the channel using NUMERIC button in viewing mode, you can watch this channel.

Your Digital Partner for Life

1. Press the OK button on Move Channels, the Move Channels menu will appear.

1. Press the OK button on Skip Channels, the Skip Channels menu will appear.

2. Press the OK button on the remote to select

2. Press the OK button to select the channel that you want to move, then arrow buttons will appear.

3. Use any NUMERIC buttons on the remote to move the selected channel or press / , OK buttons

the channel that you want to skip. A skip symbol will appear.

3. Press the OK button on the remote again to cancel skip. The skip symbol will disappear.

to move a channel.

4. Press the EXIT button on the remote to return to

the previous menu.

www.technomate.com

Page 17

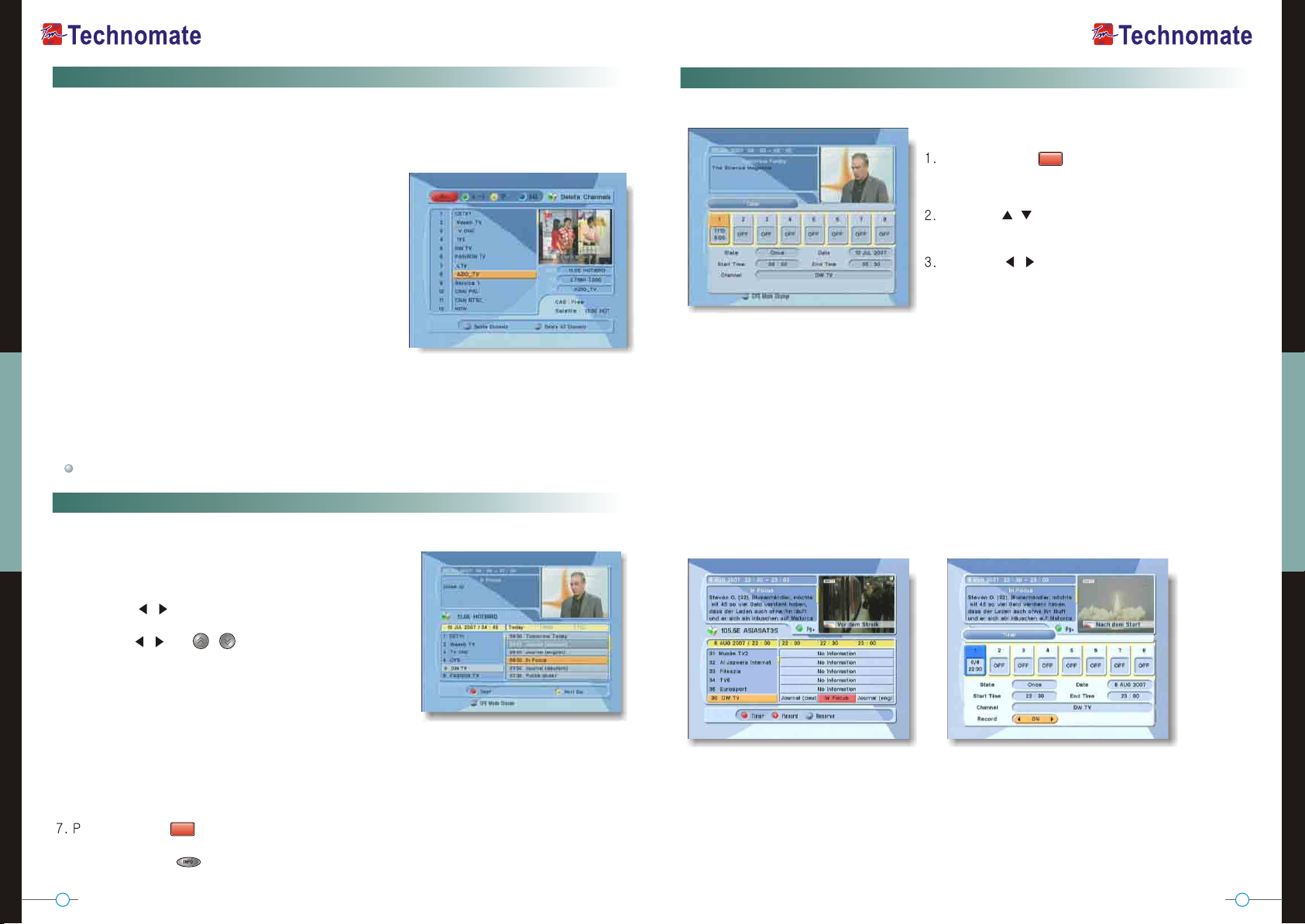

Delete Channels

Timer

This sub-menu allows you to delete channels.

* Note: If you delete a channel, you cannot watch this channel until you do a channel search again.

1. Press the OK button on Delete Channels, the Delete Channels menu will appear.

2. Press the OK button to select the channel that you want to delete. A symbol will appear.

3. Press the OK button again to cancel delete. The delete symbol will disappear.

4. Press the INFO button to delete all channels in the current list. You will be asked to enter a password.

5. Press the EXIT button to return to the previous menu.

EPG (ELECTRONIC PROGRAMME GUIDE)

EPG (Electronic Programme Guide)

This sub-menu allows you to view the electronic programme guide (if available).

This sub-menu allows you to set the on/off time of your receiver.

Press the RED ( )button in the EPG menu,

the Timer menu will appear.

Press the / buttons to move to other menus.

Press the / buttons to change the selection.

- Timer No. 1-8: Select the timer that you want to modify.

- State: Select the timer: Off/Once/Daily/Weekly.

- Date: Press the OK button to select the date. A virtual calendar will appear.

- Start Time: Enter the time by using the NUMERIC buttons on the remote for your receiver to turn On.

- End Time: Enter the time by using the NUMERIC buttons on the remote for your receiver to turn OFF.

- Channel: To view the channel list, press OK button on the remote.

- If you want to record a program in the righ t side of the screen, you can select a program by using OK button. The selected program will be reserved and the evnet color text will change to red.

- You can also see change the timer menu.

*It is worked when a USB device is connected.

1. Press the EPG button on the remote, the EPG menu will appear.

2. Press the / to go to the previous/next EPG.

3. Press the / or / buttons to change the

channel.

4. Press the OK button on right side of screen (Program

List) and the selected programme will be reserved in the Timer menu. Repeat for more programmes.

5. Press the TV/ Radio button on the remote to view TV/RADIO channel list.

6. Press the SAT/FAV button on the remote ti view the SAT/FAV list.

ress the RED ( )button on the remote, the Timer menu will appear.

8.Press the INFO ( )button on the remote to EPG mode switching.

Your Digital Partner for Life

www.technomate.com

Page 18

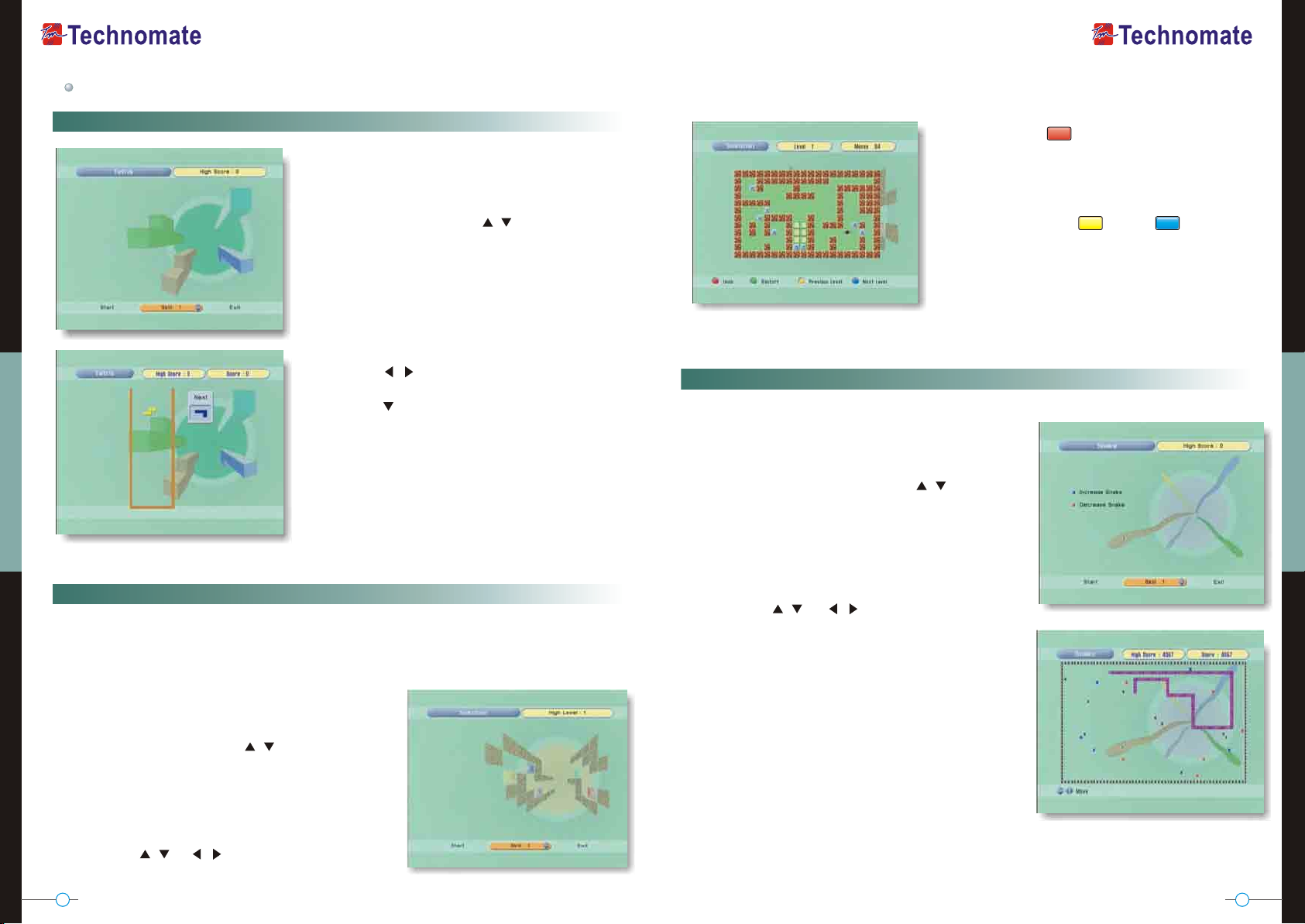

GAMES

Tetris

1. Press the OK button on Tetris, the game will load.

2. Select a skill by using the / buttons on the remote.

3. Press the OK button to start a game or press

the EXIT button to return to the previous menu.

4. Press the OK button to rotate the block.

5. Press the / button to move the block.

6. Press the button to drop the block.

7. In the top right window, you can see the

next block.

8. Press the EXIT button to quit a game.

Sokoban

To play Sokoban, you have to push the balls into their correct positions. The balls can only be pushed, not pulled. You have to be careful not to push them into a corner where you cannot get them out again. You can only push one ball at a time.

5. Press the RED ( )button to undo previous move.

You can only undo a step once at a time.

6. Press the GREEN button to restart the game.

7. Press the YELLOW( )/BLUE( ) buttons to jump to the previous/ next level. You can jump between completed levels.

8. Press the EXIT button to quit a game.

Snake

1. Press the OK button on Snake, the game will

load.

2. You can select a skill using the / buttons on the remote.

3. Press the OK button to start a game or press the

EXIT button the remote to return to the previous

menu.

4. Press the / or / buttons to move.

5. If the snake takes BLUE blocks on the screen,

the length will increase.

1. Press the OK button on Sokoban, the

Game will load.

2. Select a skill by using the / buttons on the remote.

3. Press the OK button to start a game or press

the EXIT button to return to the previous menu.

4. Press the / or / buttons to move.

Your Digital Partner for Life

6. If the snake takes RED blocks on the screen, the length will decrease.

7. If the snake takes BLACK blocks, the game will end.

8. Press the EXIT button to quit a game.

www.technomate.com

Page 19

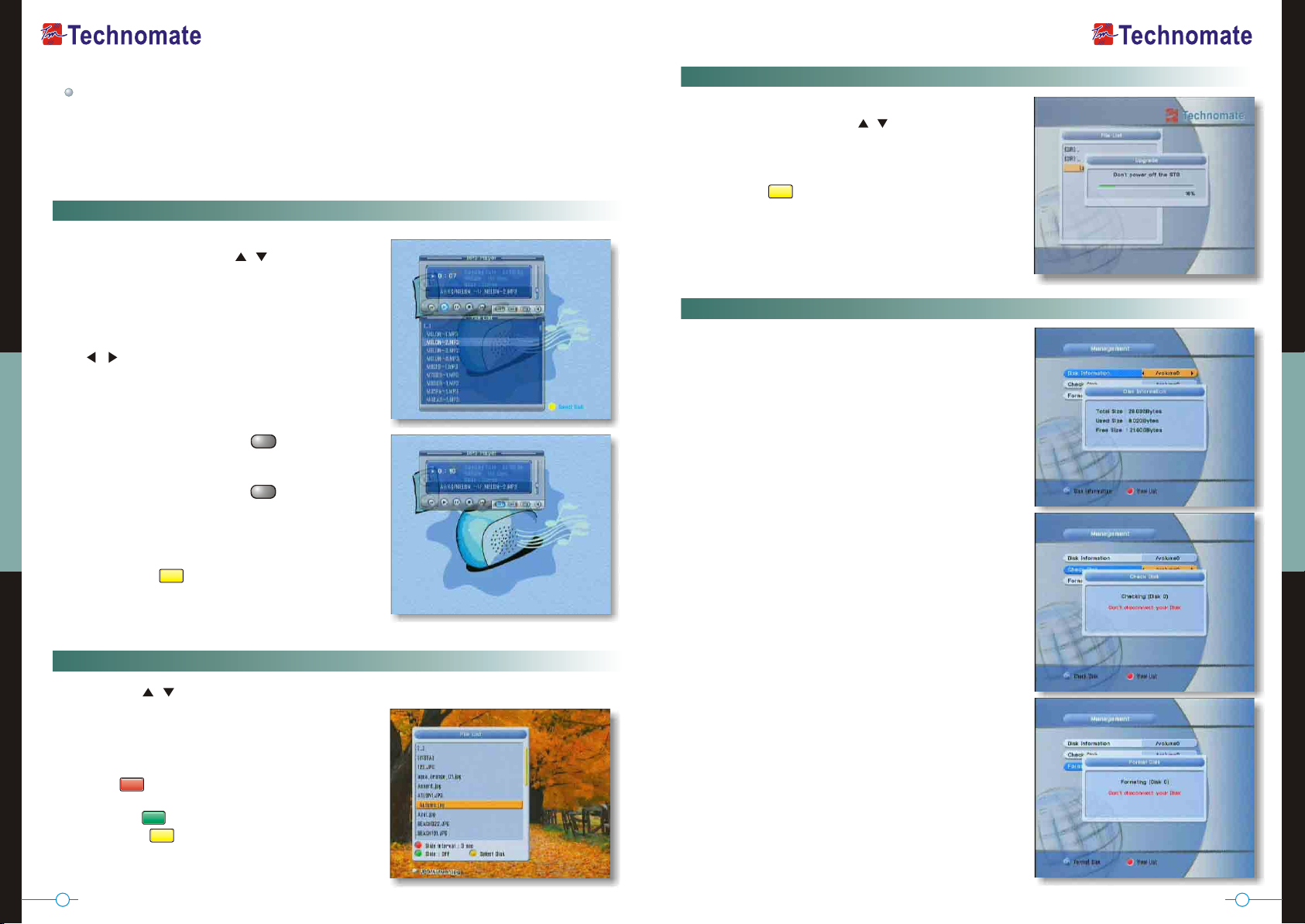

USB Menu

This sub-menu allows you to playback MP3 (music) and JPEG (picture) files and to download software and channel lists by connecting your USB memory stick (USB flash drive) to the USB port in the receiver.

MP3 Menu

1. Select the MP3 file that you want to listen to by using the / , OK buttons in the file list. Press the OK button select a file.

2. Press the EXIT button to hide the file list. You can then select an option using /, OK buttons.

3. Use the VOL+/VOL- buttons to adjust the volume

15 16

Data Transfer Menu

1. Select the software or channel list you want to download by using the / buttons in the list

2. Press the OK button to start the software download

- YELLOW( ): Choose: Hard Disk or USB device

- FILELIST : Open/Close the JPEG file list *Warning: Do not turn off your receiver whilst downloading

Management

- Disk Information : Choose: Hard Disk or USB device. You can view the information of the USB device (used size, total size, free size).

4. Press the OK button on . The MP3 file list will be displayed.

5. Press the OK button on . The MP3 file information will be displayed.

- FILELIST : Open/Close the MP3 file list

- INFO: Displays MP3 file information

- YELLOW( ): Choose: Hard Disk or USB device

LIST

INFO

JPEG Menu

1. Use the / buttons to select a picture

2. Press the OK button to display the picture

- RED( ):Set the time interval between slides (slideshow)

- GREEN( ): Slideshow

- YELLOW( ): Choose: Hard Disk or USB

device

- FILELIST : Open/Close the JPEG file list

- Chek Disk : Choose: Hard Disk or USB device.

You can check the USB device.

- Format Disk : Formats the USB device

Your Digital Partner for Life

www.technomate.com

Page 20

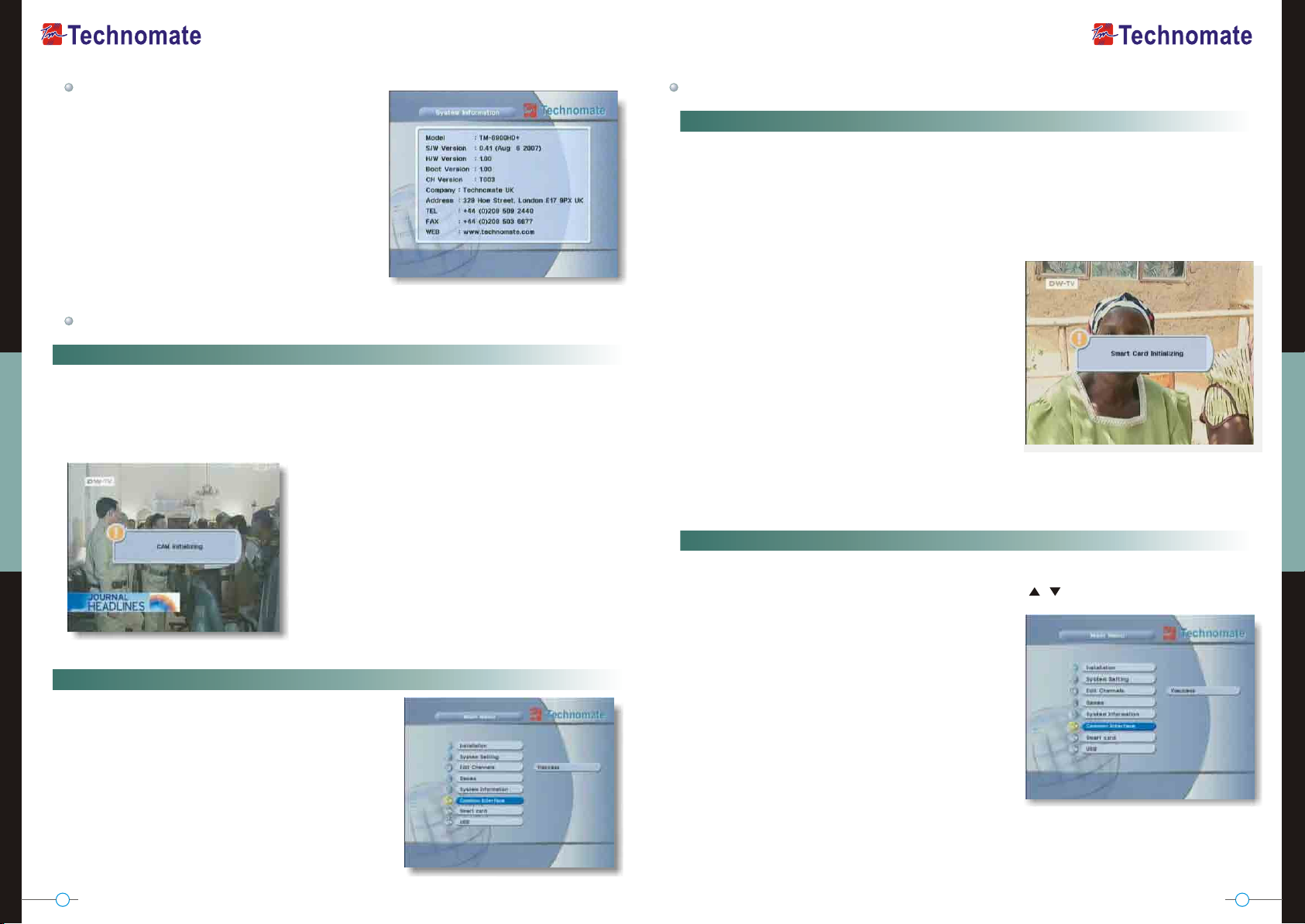

SYSTEM INFORMATION

CONDITIONAL ACCESS SYSTEM

You can check the current information about your receiver, such as the receiver model name, software version, hardware version, manufacturing date, etc.

* Note: This information is necessary when you want to download a new software or you need to repair the receiver.

COMMON INTERFACE MODELS ONLY

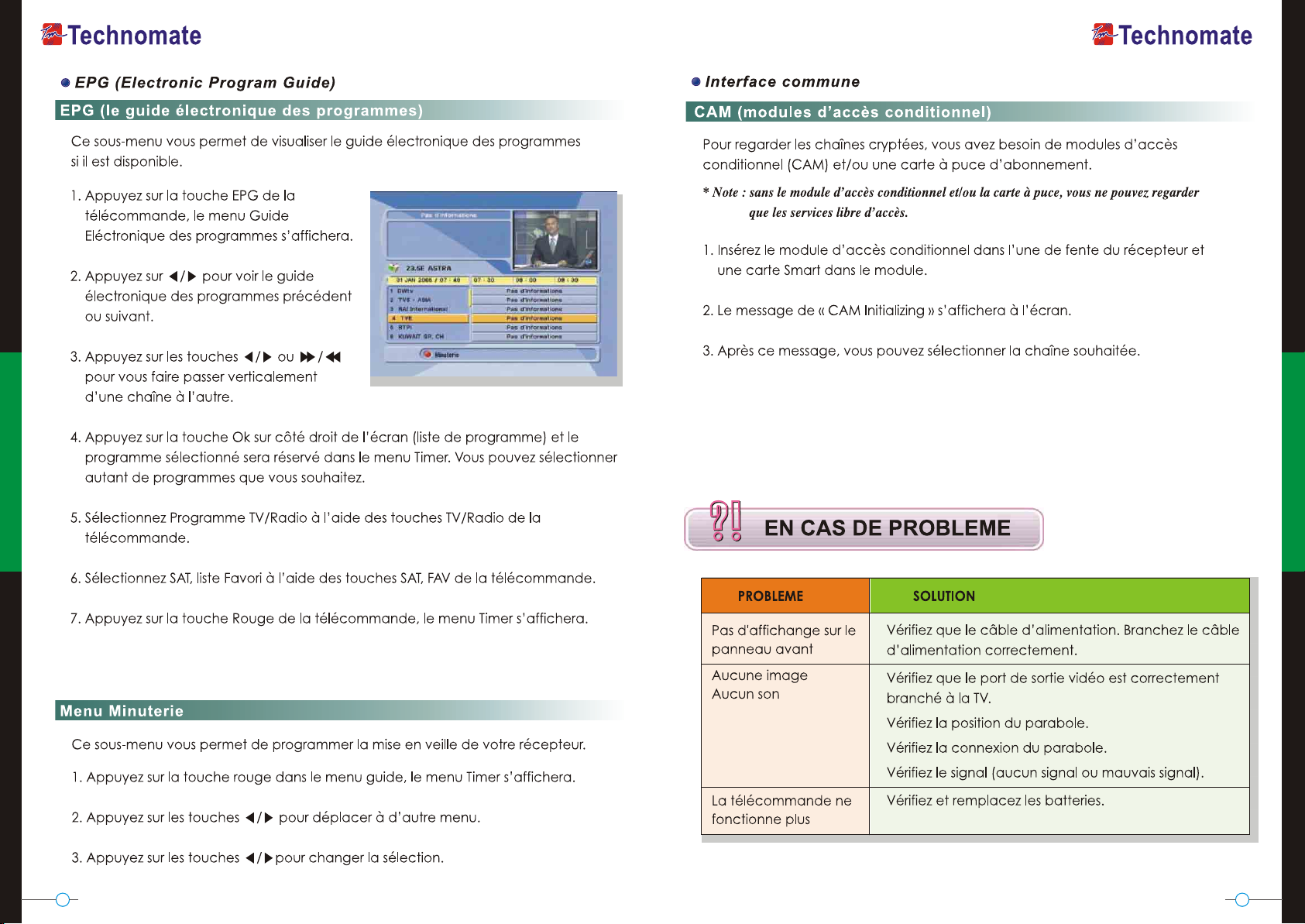

CAM Initializing

To watch scrambled channels, you will need a Conditional Access Module (CAM) and a Smart card which is specific t o t hat C AM from the service p rovider (b roadcaster).

* Note: Without a CAM and a smart card, you can watch only Free-to-Air programmes.

1. Insert a CAM into a CAM slot in the receiver and a Smart card into the CAM.

2. The message: CAM Initializing will appear.

Card Initializing

To Enjoy CONAX CAS7 scrambled channels, you will need a Smart Card from the service provider (program distributor). If you are subscribing to services from more than one service provider, you will need a Smart Card from each one. Since a Smart Card is connected to a single service provider, a limited range of channels will be available via it.

* Note : Without the Smart Card, you can watch only Free-To-Air programs.

1. Insert the Smart Card into the receiver's slot designed for it.

2. The message 'Smart Card Initializing' will appear on the screen.

3. After the message 'Smart Card Initializing' has disappeared, you will be able to watch the channels offered by the service provider.

The Status of the Smart Card

Status of the CAM

1. Go to Common Interface. Press OK on th e C AM to see further information of the CAM.

2. Proceed with further instructions displayed on the screen, then you can check further details depending on the CAM in use.

* Note: Further detailed information is not mentioned in this manual since the information depends on the type of CAM.

Your Digital Partner for Life

1. You can access detailed information about the Smart Card using the / keys in the Main Menu to select 'CA' and pressing /

2.Proceed with further instructions displayed on the screen to check more detailed information depending on the Smart Card in use.

* Note : Further detailed information is not mentioned in this manual since the information depends on the Smart Card in use.

www.technomate.com

Page 21

PVR

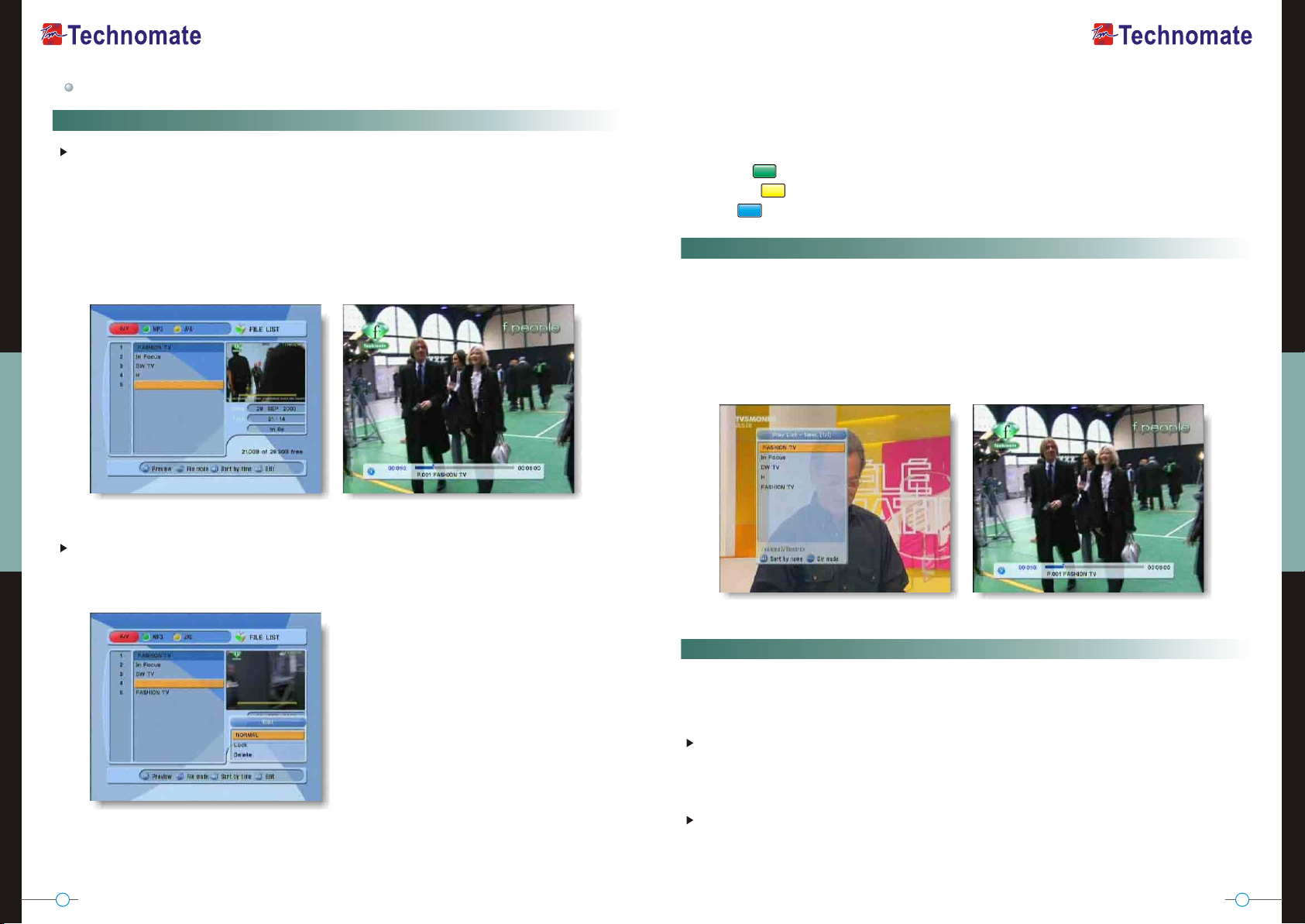

File List

File Playback

1. Press the FILELIST button to open the file list. Select the file you want to

playback by using UP/DOWN & OK buttons.

2. Press the OK button. On the left side of screen, detailed information about the selected file will be displayed. (Recorded Date/Time, Used size, Total Size)

- For Full Screen, press the OK button once more and then the following time-bar will appear.

17 18

4. You can use the following buttons to navigate between USB sub-menus (Feature not yet supported).

- GREEN Go to the Mp3 player menu

- YELLOW Go to the Jpeg viewer menu

- BLUE Go to the Data Transfer menu

( ):

Play List

1. While watching a program, press the PLAY button to open the play list.

2. While recording a program, press the OK button to open the play list.

3. Select the file you want to watch by using the UP/DOWN & OK buttons and then the following time-banner will appear.

- GROUP : Choose from: File Mode <-> Dir Mode

- ADVANCE : Displays all sorted files. Choose from: Sort by name <-> Sort by time

Your Digital Partner for Life

Edit Menu

Enter the password. Press the MENU button. A popup menu will appear. Select the file that you want to edit, and set its parameters as desired.

1. Normal Mode : Press the OK button on the file that you want to see a preview

2. Lock Mode : Press the OK button on the file that you want to lock/unlock

3. Delete Mode : Press the OK button on the file that you want to delete

- GROUP : Choose from: File Mode <-> Dir Mode

- ADVANCE : Displays all sorted files. Choose from: Sort by name <-> Sort by time

* If you set 'Channel Lock' to OFF (refer to <Figure 6.2.4>security setting), you will not be asked to enter a password, even if the channel is locked.

Trick Mode

You can operate the Trick Mode while you are playing the files. This function is available in Playback mode and Time-Shift mode.

PLAYBACK This button will display a time- banner. If you want to open the playlist while playing the file, press the PLAY button on the remote.

PAUSE This button will pause the file until you playback again (press the PLAY button or PAUSE button to resume watching).

www.technomate.com

Page 22

ADVANCE

- If Time-Shift mode is enabled, press the ADVANCE button to go to the real time live broadcast.

- If Playback mode is enabled, press the ADVANCE button to stop the file being played and to return to the live broadcast.

FF(Fast Forward)

When playing the file, press the FF button to forward the program (adjust the playing speed).

- Choose from: x2, x4 and x8

RWD(Rewind)

When playing the file, press the RWD button to rewind the program (adjust the playing speed).

- Choose from: x2, x4 and x8

19 20

Jump

- Go to a desired position of the file by using the LEFT/RIGHT buttons

- If you press this key continuously, you can go to the desired position faster

Skip

- You can skip and forward 15 seconds using the PAGEUP button

- You can skip and rewind 15 seconds using the PAGEDOWN button

Bookmark

To create a bookmark/chapter at a specific time/place of the file.

- RED : Press the RED button and a red triangle will appear at that position. If you want to delete the bookmarked position, press the RED button once more and the red triangle will disappear.

- GREEN : Press the GREEN button to go/ jump to the next bookmark position. Playback will start from this point.

- YELLOW : Press the YELLOW button to return to the previous bookmark position. Playback will start from this point.

* Note : The maximum number of bookmarks is 20 for each file

Your Digital Partner for Life

Slow(1/2x, 1/4x)

When playing the file, press the SLOW button to slow the speed of the playback (adjust the playing speed).

Instant Recording

1. You can record the current channel you are watching instantly by using REC button. If you then press the PLAY button, a time- banner will be displayed.

www.technomate.com

Page 23

2. Press the REC button once more. The following picture shows that you can select an item when you record the current channel.

- Channel : Displays the current channel

- Name : Displays the current recording

name

- Duration : You can change the duration of a recording's time by using the LEFT/RIGHT button. Current recorded time will appear.

- Stop : Press the STOP button to stop the recording

* Note : While recording a program, you can't change to another channel

21 22

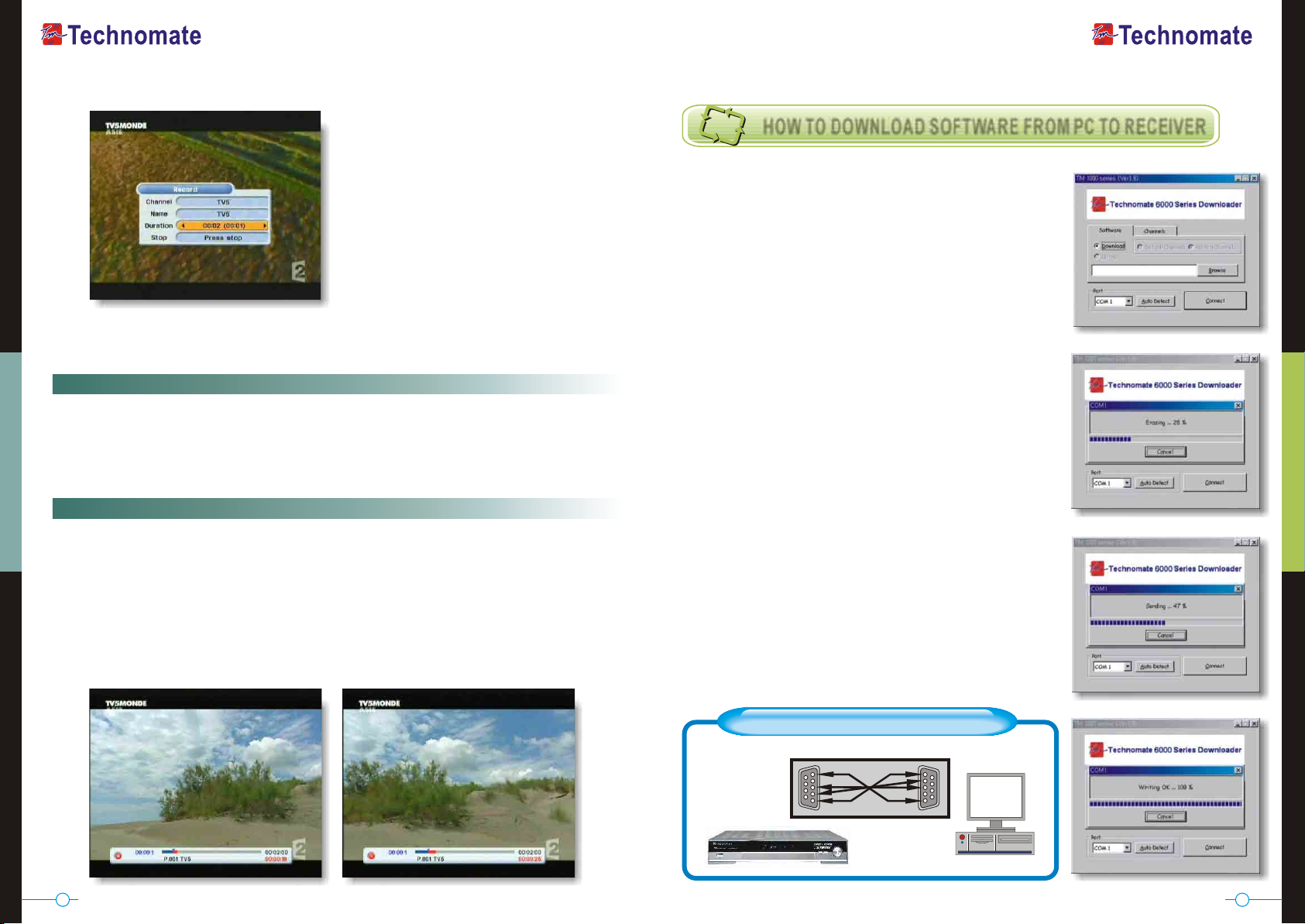

HOW TO DOWNLOAD SOFTWARE FROM PC TO RECEIVER

1. Connect the null model cable to the RS-232C conn ection on the back of the receiver and to your PC

2. Download the latest version of the TM Loader from the Technomate web site (www.technomate.com)

3. Download the latest software (.STB) of your receiver Ensure that the model number of the software is the same as the receiver you have.

4. Click on Browse in the TM Loader.

Timer Recording

This function is available when a USB device is connected. You can choose a channel to record from the EPG Guide by using the REC button. (Refer to 6.4 EPG, 2)Timer)

Time Shift

1. To pause and resume live TV channel, press the PAUSE button. The default time for Time-Shift is 30 minutes.

2. To resume live TV channel, press the PLAY button.

3. The trick-mode operations are available. To return to the live broadcast, press the ADVANCE button.

5. Select the file from where you saved it when you downloaded it from the Technomate website.

6. Turn ON the satellite receiver.

7. Click on Connect on TM Loader and then click Start to begin the software download

8. The downloading status is displayed.

9. Once it displays 100% Finished (wait until it has

completed erasing), the software download has

finished.

10. When it completes the writing of the new software, disconnect the cable between the receiver and the PC. A Factory Reset is required.

11. Go to System Information on the main menu and make sure that you have correct software version.

Null Modem Cable Diagram

Settop Box

RS-232C Cable

5 4 3 2 1

1 2 3 4 5

Your Digital Partner for Life

www.technomate.com

Page 24

Note. How to download/ upload Channels

If you want to download/ upload Channels, Click on Channels in the TM loader, then select Download/ Upload

* Downloading Channels PC to TM-6000 Series

1. Click on Download, and then Click on Browse in the TM Loader.

2. Select the file from where you saved it.

3. Turn on the satellite receiver.

4. Click on Connect in the TM Loader and then click on Start to begin downloading

Channels PC to TM-6000 Series.

5. Once it displays 100% finished, the Channel downloading has finished.

* Downloading Channels TM-6000 Series to PC

1. Click on Upload, and then Click on Browse in the TM Loader.

2. Select the file and folder where you want to save in your PC.

3. Turn on the satellite receiver.

4. Click on Connect in the TM Loader and then click on Start to begin uploading Channels TM-6000 Series to PC.

5. Once it displays 100% finished, the Channel uploading has finished..

TROUBLE SHOOTING

There may be various reasons for the abnormal operation of a set-top box. If it does not work properly, check it according to the procedures shown in the table below.

Problem

LED on front panel does not turn ON

No picture or sound

Possible Causes

A/C power cord disconnected.

Wrong connection of the video/audio output to TV input terminal.

Wrong connection of satellite dish/antenna cable.

Satellite dish/natenna is aimed a the wrong direction.

Suggested Remedy

Connect power cord properly into the power socket.

Connect the dish/antenna cable correctly.

Check the cable connections, LNB and other equipment connected between the LNB and the receiver or adjust the dish/antenna.

* You can upload/ download default channels maximum 1,500 TV & Radio channels. If you want to add more than 1500 channels, you will have to do a channel search/scan.

Your Digital Partner for Life

Black-and-white screen or V-Hold

Remote controller does not work

No signal or weak signal.

Wrong setting of channel information in MENU screen.

Your TV mode is different from satellite broadcasting mode.

Battery exhausted.

Fluorescent light interfering with the remote controller.

Remote controller is incorrectly aimed.

Remote type is not properly selected.

As above. Type the setting value correctly.

Use TV of the same mode.

Use the NITSC/PAL converter connected to a receiver and a TV.

Change the batteries.

Switch off the light.

Aim the remote control at the receiver.

Go to password and press 0000 then go to the bottom of page and change the remote type to type 1 or type 2.

www.technomate.com

Page 25

Questions & Answers

The receiver is on but I cannot get any Menu on the screen?

SPECIFICA TIONS

1) Check if the scart or the RF lead is connected,

2) Check the A/V settings on your television is correct,

3) Scart cable or RF cable could be faulty therefore replace if in doubt.

The receiver is on but I cannot get any Menu on the screen?

1) Check if the scart or the RF lead is connected,

2) Check the A/V settings on your television is correct,

3) Scart cable or RF cable could be faulty therefore replace if in doubt.

How do I tune the RF output of the receiver to my television?

Your receiver's RF output has been Defaulted to PAL I and channel frequency 40, Apply the tuning setup application of your television.

I get the message 'no signal' displayed?

1)Check if the LNB cable is inserted into the IF INPUT,

2)Check if the LNB setup menu is correctly set.

3)Your satellite Dish may be out of alignment or your LNB may be is faulty.

4)Go to Easy intallatin guide and start fresh,

5) contact your dealer / installer.

I cannot access a particular channel I require?

You need to check the following :

1)Check if you a correct transponder. Go to advance search ,Turn on the Network Search, press red button to tune.

2)Make sure you have correct PID numbers. b) if above dose not help go to

www .lyngsat.com

www.kingofsat.net/en/prefs.php

Please contact your Supplier for further assistance.

How can I find out what software version I have?

Press Menu on the remote,Go to sytem information press ok ,

Full information is displayed

I have lost my personal Lock Code setting, what do I do?

For security reason, please contact your dealer.

System capabilities

satellite

LNB/Tuner input

Demodulator

TERRESTRIAL

System capabilities

Tuner

& Channel Decoder

System resource

Video decoder

Teletext

Fully DVB compliant

Connector

Frequency range

Signal level

LNB supply

LNB switch control

DiSEqC

Front end

Symbol rate

SCPC and MCPC Capable

Spectral inversion

Input connector

Loop-through out

Frequency range

Input impedance

Signal level

IF Bandwidth

Waveform

Carrier Mode

Code Rate

Guard Interval

Processor

DDR SDRAM

FLASH

EEPROM

MPEG 2

Data Rate

Resolution

Video format

Aspec Ratio

DVB compliant

IEC 169-24, female

950MHz ~ 2150MHz

-65dBm ~ -25dBm

DC 13/18V, max 400mA

22KHz

Ver 1.0/1.1/1.2/USALS Compatible

DVB-S/S2 QPSK, 8PSK

DVB-S : 2~45Msps

DVB-S2 : 10~30Msps(QPSK) 10~31Msps(8PSK)

Auto conversion

IEC 169-2, Female

IEC 169-2, Male

170 ~ 230 MHz, 470 ~ 862MHz

75 Ohms Nominal

7,8MHz(-78dBm~-25dBm) switchable by software

7,8MHz(-3dB) switchable by software

OFDM

2k and 8k hierarchical/non-hierarchical

1/2, 2/3, 3/4, 5/6, 7/8

1/4, 1/8, 1/16, 1/32

32bit processor (266MHz)

32Mbyte X 4

8Mbyte

256Kbit

MPEG-2, MPEG-4, H.264

up to 15M bits/s

1920 X 1080i, 1280 X 720P

PAL

4:3,16:9

Your Digital Partner for Life

www.technomate.com

Page 26

MPEG Audio

Serial data interface

Remote control

USB

Power supply

Rear Panel

connectors

MPEG 1 layer 1 &2

Type

Sampling rates

Connector

Code

Operating condition

USB Supply

Power consumption

Supply voltage

Supply frequency

TV SCART

VCR SCART

Video

Audio L/R

Component(Y/Pb/Pr)

Serial data

Digital tuner input

Loop-through Digital tuner

Terrestrial ant input

Terrestrial ant output

S/PDIF

Mono, Stereo, Joint Stereo

32, 44.1 and 48 KHz

9pin D-sub male, Max 115K bps

NEC-IR

up to 7 Meter

DC 5V Max 500mA

max 40W

100V ~ 250V

50Hz ~ 60Hz

CVBS Video output,

Loop-through RGB output

Audio Output

Video Output(CVBS)

Video Input(CVBS)

Audio Output(L, R)

1 X RCA cinch

2 X RCA cinch

3 X RCA cinch

9pin D-sub

IEC 169 - 24

IEC 169 - 2

Fiber Optic

Your Digital Partner for Life

Physical

Specification

Size (W X H X D)

Weight (Net)

Disposal of Old Electrical & Electronic Equipment(Applicable in the European Union and other European Countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipnent. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropirate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

390x73x283(mm)

3 Kg

Page 27

Your Digital Partner for Life

www.technomate.com

Page 28

Your Digital Partner for Life

www.technomate.com

Page 29

26 27

557

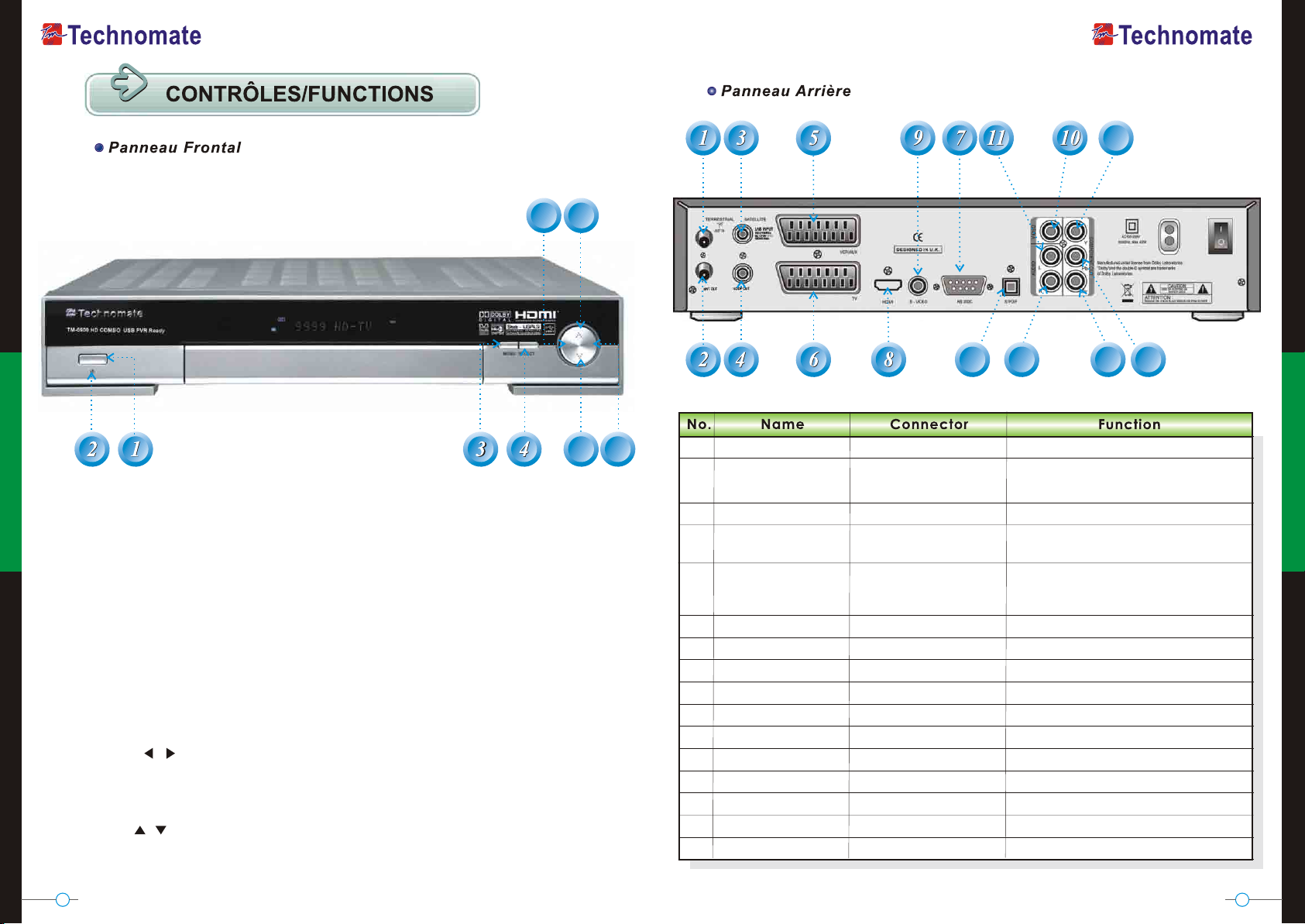

1. Power :

To switch the receiver between "Standby" and "Power ON" modes.

2. Standby/Power Indicators :

Red in Standby mode and no light in Power-On mode.

3. Menu : To enter or exit the Main Menu.

4. Select : To open the Channel List in non-menu mode and to select/confirm an item in menu mode.

5 6. VOL( / ) :

To change the volume level in non-menu mode and to modify a setting in

menu mode.

7 8. CH( / ) :

To change channels or to move Up/Down in the menus/application.

3 4

6 7 8 9

11 12 13

14 15 16

ANT IN IEC 169-2 FEMALE

ANT OUT

LNB INPUT

LNB OUTPUT

VCR/AUX SCART SCART

TV SCART SCART

RS-232C DB-9

HDMI HDMI

S-VIDEO

VIDEO

AUDIO L

AUDIO R

S/PDIF

Input from terrestrial antenna

IEC 169-2 MALE Loop-through output from digital

IEC 169-24 FEMALE IEC 169-24 FEMALE

MINI-DIN RCA cinch RCA cinch RCA cinch RCA cinch

RCA cinch RCA cinch

Fiber Optic

tuner and Output to TV

IF input from LNB to digital tuner

IF loop-through output from digital tuner

CVBS Video Output CVBS, RGB Video Input Audio Output

CVBS Video Output, Audio Output

Low speed serial port

Digital Video/Audio Output

S-VHS Output

Composite video output

Left audio output

Right audio output

Component video output(Y)

Component video output(Pb)

Component video output(Pr)

Digital audio output (Optical)

Your Digital Partner for Life

www.technomate.com

Page 30

28 29

1. POWER : To turn the receiver On/Off.

2. TV/RADIO : To switch between TV and

Radio modes

3. MUTE : To turn the sound On/Off.

4. TV/SAT : To switch the TV output source

between the satellite input and the UHF/VHF antenna input.

5. EDIT : To go to Edit Channels Menu

6. SLEEP : To adjust the Sleep TImer.

7. MOSAIC : To display multiple pictures.

8. FREEZE : To pause the video. Press

again to resume the video.

9. ZOOM : To zoom In/Out.

10. EPG : To show the TV/Radio program

guide.

11. SUBTITLE : To show the subtitle contents if subtitle is transmitted.

12. FAV : To show favorite list in the favorite group or to move to the next page.

13. A-Z : To sort channel list.

14. USB : To show the usb menu

15. TEXT : To show the teletext contents if

teletext is transmitted. Used for special functions in menu mode.

16. AUDIO : To show the Multi-language audio track, the stereo-mono mode and subtitle information. Used for special functions in menu mode.

17. INFO : To show information about the current program. Press twice to show detailed information.

18. MENU : To enter or exit the main menu.

19. EXIT : To exit from the present menu and

to go to the previous menu 20-21. VOL UP & DOWN : To change the

volume level in non-menu mode.

22-23. UP & DOWN : To change channels in non-menu mode and move the cursor up/ down in menu mode.

24-25. LEFT & RIGHT: To change the volume level in non-menu mode.

26. OK : To show the Channel List in non menu mode and select an item or confirm in menu mode.

27. SAT : To show Satellite list

28. RECALL : To go to the previous channel

menu. Used for special functions in menu mode.

29. FILELIST : To display the filelist.

30. PLAY : Play Content.

31. STOP : Stop Playback.

32. RWD : Rewind a file / Arrow UP : To move to the previous page when many pages

are available.(It is worked when in Menu List)

33. PAUSE : Pause playback.

34. FWD : Forward a file / Arrow Down : To

move to the next page when many pages are available.(It is worked when in Menu List)

35. ADVANCE : Go to live channel.

36. REC : Start recording.

37. SLOW : Playback in slow mode.

38. BOOKMARK : Set the bookmark position.

39. Color : To control brightness, contrast color of a picture (when in CVBS mode)

40. POS : To show the Diseqc motor view control.

41. Color Key : To use special functions in the menu.

42. Numeric Keys (0-9) : To enter numerical settings (such as channel numbers) directly.

43 .V.FORMAT : To change video output's resolution

44. Wide : To select a TV aspect ratio with Pan Scan or Letter-Box(4:3) (Full screen or Pillar box(16:9).

Your Digital Partner for Life

www.technomate.com

Page 31

Your Digital Partner for Life

www.technomate.com

Page 32

Your Digital Partner for Life

www.technomate.com

Page 33

Your Digital Partner for Life64Your Digital Partner for Life

www.technomate.com

Page 34

www.technomate.com

Page 35

Your Digital Partner for Life68Your Digital Partner for Life

www.technomate.com

Page 36

www.technomate.com

Page 37

30 31

Page 38
