Easy Educator EZ-900/902
Quick Start Guide
E-Collar Technologies, Inc.
Welcome
Welcome
Thank you for trusting us with your purchase of the 900/ 902 Easy Educator
Remote Education Collar. We have made every attempt to provide you
with the most technologically advanced product using the most
stringent quality and manufacturing standards.
We are confident you will be pleased with the results you will attain with
the 900/ 902 Easy Educator. Please remember you will get better results with
the use of low level stimulation combined with consistent training techniques. The use of high levels of stimulation should only be used as a last
resort and in life-threatening situations.
Good luck with your training and please feel free to contact us should you
have any questions
* This guide will familiarize you with the basic functions, programming
features and the contents of the 900/ 902 Easy Educator.
Additional information and help is available on www.ecollar.com and
e-mail by e-mailing customerservice@ecollar.com. To talk to a live
team member please contact our customer service department,
8 AM to 8 PM E.S.T., 1-855-326-5527 or (260) 357-0051. Your total
satisfaction is our only concern.
- 900/902 Easy Educator -
TABLE OF CONTENTS
Table of Contents
● Characteristics ........................................................................................ 3
● Package Contents .................................................................................. 4
● Turning ON/OFF the EZ-900/902 System / Charging Instructions ......... 5
● EZ-900/902 Functions ............................................................................ 6
● LCD Display 1 Dog Mode ....................................................................... 7
● Button Description and Stimulation Button Assignment in One Dog Mode .. 8
● I Mode / Lock and Unlock Stimulation Level ......................................... 10
● Booster Level Setup / Lost Transmitter Activation ................................ 12
● EZ-900/902 One Dog Default Settings ................................................. 13
● Pairing/Syncing ..................................................................................... 14
● Expand to Two Dog .............................................................................. 15
● Button Description and Stimulation Button Assignment in Two Dog Mode .. 16
● EZ-902 Two Dog Default Settings ........................................................ 18
● Booster Level Setup ............................................................................. 19
● Lock and Unlock Stimulation Level ....................................................... 20
● Warranty and Registration .................................................................... 21
- 900/902 Easy Educator -
CHARACTERISTICS
3
Characteristics
● 1/2 mile Range
● Employs Quick Charge Li-Polymer Batteries
● Convenient Intensity Dial for Quick Adjustment
● Stimulation Levels Adjustable from 0 to 100
● Collar Receiver Light for Night Tracking
● “Lock and Set” Stimulation Safety Feature
● User Adjustable Boosting Levels
● Patented “I” Mode Provides Instant Stimulation
● Waterproof and Shock Resistant Collar Receiver
● Easily Expandable to 2 Dogs
● Water Resistant Handheld Transmitter
- 900/902 Easy Educator -

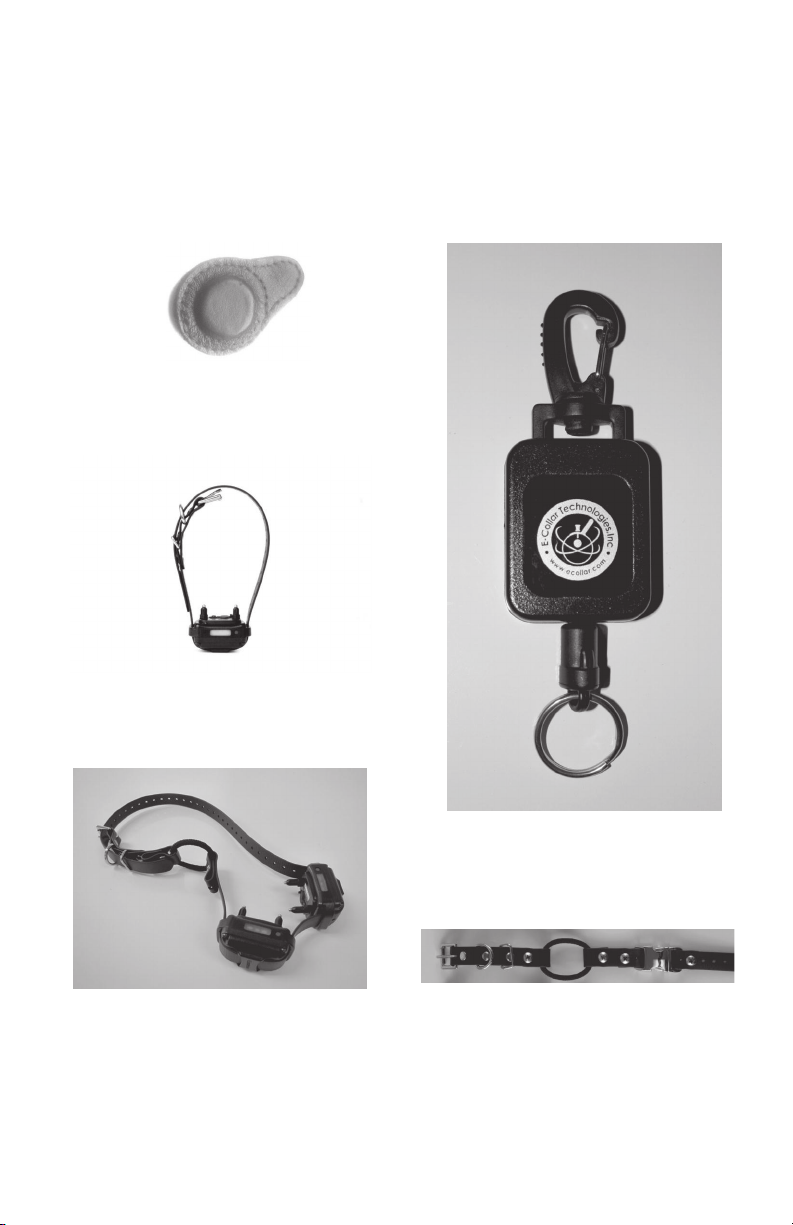

PACKAGE CONTENTS
Quick Start Owner’s
Package Contents
4
Ergonomic Transmitter
- Remote-Sender
Collar Receiver with
Strap (902 package
includes 2 Receivers
Guide
and straps)
Easy Educator EZ-900
Quick Start Guide
E-Collar Technologies, Inc.
Test Light 5/8” and ¾” Contact
Contact Point Tool
Points
Lanyard Battery Charger
(902 package contains splitter cable)
- 900/902 Easy Educator -
Turning ON/OFF the EZ-900/902 System
5
Turning ON/OFF the EZ-900/902 System
Turn ON/OFF the transmitter by pressing the lower right
button for 1 second.
Turn ON/OFF the
collar receiver by
placing the red dot on
the transmitter on the
red dot on the collar
receiver for 1 second.
Charging Instructions
Please charge the units on or before the low battery indication. It is best not
to wait to charge until the batteries are fully discharged to avoid irreversible
damage. To charge the transmitter, insert the micro USB into the transmitter
and the charger plug into the collar receiver as pictured.
Transmitter Indicator Light
One bar remaining on the LCD display
indicates charging is needed.
Solid “Red” when stimulation/tone/vibration
is applied.
Collar Receiver Indicator Light
Blinking “Green” under normal operation.
Solid “Red” when stimulation/tone/vibration
is applied.
Blinking “Amber” when battery life is getting low.
Blinking “Red” when recharging is required.
Do not allow the batteries to get hot or be fully discharged, store at room
temperature and 50% capacity charge.
- 900/902 Easy Educator -
EZ-900/902 Functions
Charging Instructions cont.
* The indicator light will turn solid red during charge cycles and turn green
when it is fully charged. (approximately 2 hours)
Special Note About Battery Care: Your e-collar is outtted with Li Polymer
batteries which requires specic care to assure longevity. It is best not to
let the battery be fully discharged and if it does recharge immediately or
irreversible damage may occur. Keep the units away from extreme heat and
cold temperatures.
We suggest charging when you see the blinking “amber” color, typically
between 24-48 hours of use to maximize the longevity of your battery life.
EZ-900/902 Functions
Easy Educator 900 provides 5 types of stimulation sensations, tone, and
vibration.
Stimulation
6
Icon
M
M+
C
C+
I
Momentary Boost Stimulation
Continuous Boost Stimulation
Function
Momentary Stimulation Send momentary stimulation (volume level)
Continuous Stimulation
Instant Mode
Icon Function
V
T
Vibration
Tone
Description
Send momentary boosting stimulation
(volume + boost Level)
Send continuous stimulation
(max 10 sec, volume level)
Sends continuous boosting stimulation
(max 10 sec, volume + boost level)
Without pressing any button, it will send continuous
stimulation by rotating volume dial. (max 45 sec)
Others
Sends vibration (max 30 sec)
Sends tone (max 30 sec)
- 900/902 Easy Educator -
7
LCD Display
1 DOG Mode
Icon
M
M+
C
C+
I
V
T
Number
Description
Momentary Stimulation Short Pulse of Stimulation
Momentary Boost Stimulation
Continuous Stimulation Up To 10 Seconds of Stimulationㅤ
Continuous Boost Stimulation Up to 10 Seconds of Boosted Stimulation
Instant Stimulation Mode
Vibration
Tone Audible Tone
Stimulation Level 0 to 100(HI) level
Short Pulse of Boosted Stimulation
Stimulation Level Displayed on the LCD,
Non Stimulation Sensation Similar to a
Remarks
Must Start From “0”
Vibrating Cell Phoneㅤ
- 900/902 Easy Educator -
Buttons Descriptions and
Stimulation Button Assignments
8
Button Description and Stimulation
Button Assignment in One Dog Mode
The 900/902 Easy Educator has 4 control buttons which are assigned to
stimulation, vibration and tone. It also has 2 program buttons for changing
modes (P) and turning the unit ON and OFF. The convenient dial
provides for easy and sight free control of the stimulation level.
Easy Educator EZ-900/902
