INTRODUCTION

1 INTRODUCTION

1.1 About this Manual

This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well.

1.2 Product Overview

The TS-7300 Single Board Computer runs on a 200 MHz ARM9 processor with power under 2 Watt. Low board complexity, low component count, and low power/heat makes for an extremely reliable embedded engine. The TS-7300 SBC's are available in thousands of configurations, many of which are Commercial off the Shelf (COTS) and available to ship today.

The EP9302 processor from Cirrus is the highly integrated 200Mhz ARM9 processor that the TS-7300 SBC's are built around and includes an on-chip 10/100 ethernet, USB, serial, and Flash/SDRAM controller. A supplemental PLD provides glue logic, watchdog timer, Compact Flash IDE, and 8 bit PC/104 support. Integer CPU performance is about 20% faster than our 133 Mhz x86 offerings.

Even with the standard power consumption of 2 Watts, the TS-7300 SBC’s run without fans or heat sinks in the temperature range of -20° to +70°C. Extended Temperature -40° to +85°C is also standard, but CPU clock must be decreased to about 166MHz for higher temperatures. Digital Signal Processing (DSP) is enabled through a standard 5 channel, 12bit A/D converter (Optional 8 channel, 12 bit A/D converter), 20 DIO lines and 2 standard serial ports.

The 8/16 bit PC/104 interface enables additional functionality through Technologic Systems’ broad product line of PC/104 peripheral daughter boards. The TS-7KV adds video, CAN, Com Ports, and A/D conversion. The TS-ETH10 allows the addition of Ethernet ports. The TS-CAN adds CAN connectivity. The TS-Modem boards add both wired and cell phone capabilities.

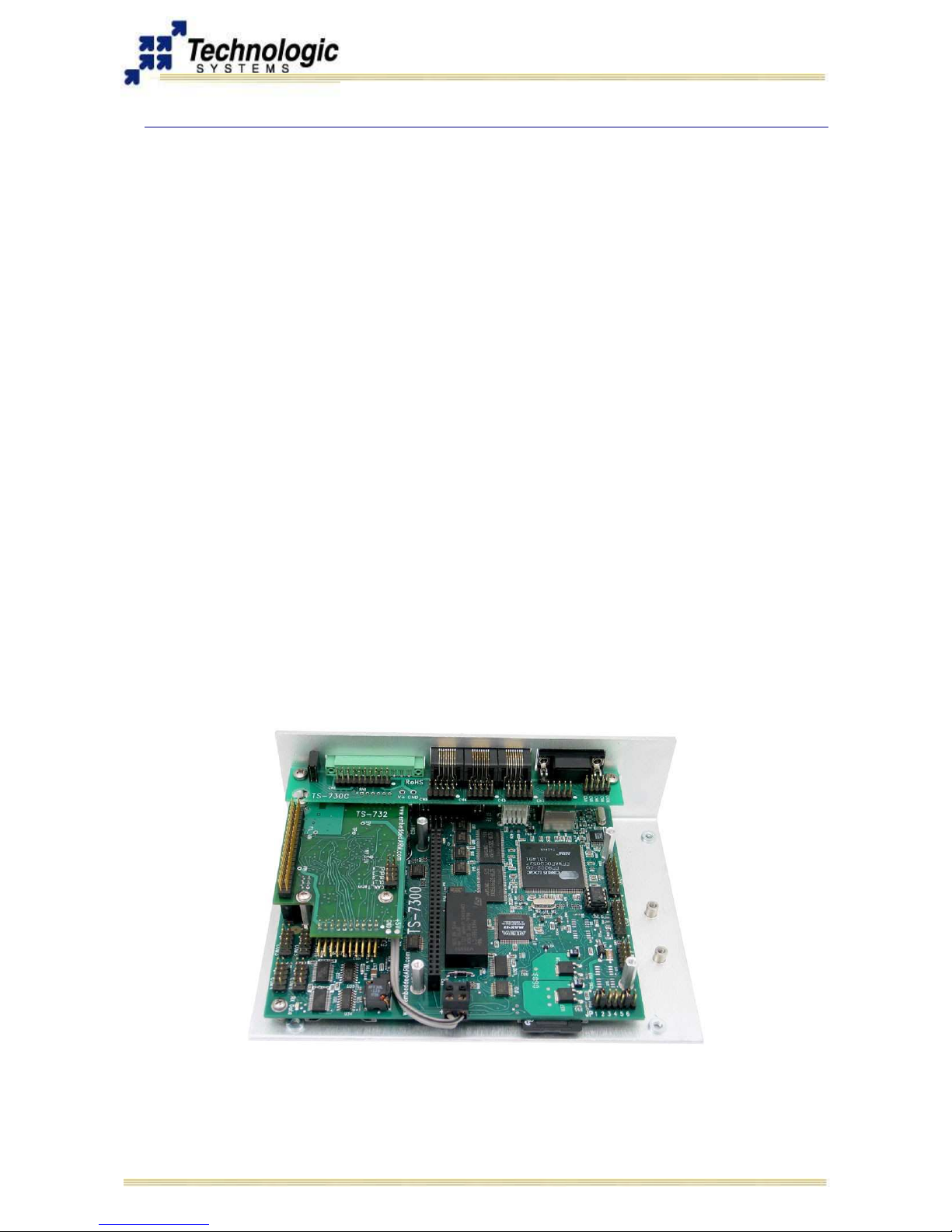

The TS-7300 is a compact, full-featured Single Board Computer (SBC) based upon the Cirrus EP9302 ARM9 CPU. The EP9302 features an advanced 200 MHz ARM920T processor design with a memory management unit (MMU) that allows support for high level operating systems such as Linux, Windows CE, and other. As a general-purpose processor, it provides a standard set of peripherals on board and a full set of Technologic Systems featured peripherals via the standard PC/104 Bus.

The TS-7300 is a multipurpose board designed specifically for customers needing extreme design security, flexibility and reliability in applications such as gaming machines, building security equipment, or critical network infrastructure services such as network gateways or firewalls. Included on the board is a 8256 LUT Cyclone II FPGA that is reprogrammable on-the-fly by the 200Mhz ARM9 CPU running Debian Linux when an additional real-time soft-coprocessor(s), DSP, or specific additional peripheral logic is needed.

1.3 Benefits

Out-of-the-Box Productivity

Technologic Systems Linux products get you to your application quickly. Our Single Board Computers boot directly to Linux as shipped. There is no complicated CMOS setup or configuring of a Linux derivative Operating System to source, define, and load. Technologic Systems has pre-configured each SBC in flash memory.

TS-7300 MANUAL

INTRODUCTION

The TS-7300's user can power up the board and immediately begin application development. Of course, should you wish to configure your own version of Linux or use a different operating system, this is easy too. Technologic Systems provides the solution to fast application development without tedious OS configuration.

Impressive Performance

The ARM920T's 32-bit architecture, with a five-stage pipeline, delivers very impressive performance at very low power. The EP9302 CPU has a 16 KB instruction cache and a 16 KB data cache to provide zero-cycle latency to the current program and data, or they can be locked to guarantee no-latency access to critical sections of instructions and data. For applications with instruction-memory size restrictions, the ARM920T’s compressed Thumb instruction set can be used to provide higher code density and lower Flash storage requirements.

As a benchmark, the TS-7300's CPU integer performance, at a supplied 200 MHz, is about twice as fast as the Technologic Systems 133MHz 586-based products.

Linux FPGA

The inclusion of an Altera FPGA and a dedicated high-speed bus between the CPU and FPGA provides unique design possibilities in the hands of creative embedded designers. The FPGA has its own dedicated 8MB SDRAM and customers can load their own bitstream or use the default TS built bitstream that provides the hardware logic for the 8 serial ports, second 10/100 ethernet port, second SD card slot, VGA video and up to 35 DIO lines connected straight to the FPGA. These DIO lines can also be used as a FPGA connected expansion bus instead of the CPU connected regular PC104 expansion bus.

SD Card High-Security and Reliability

Unique security features on the TS-7300 include the ability for the board hardware to first checksum the boot SD flash card in its entirety before executing a single instruction of code from it. One may also use the security features of a SD card to hardware lock and password protect the boot flash card so that the card is only bootable and readable on a specific TS-7300 device. Any SD flash card can also be made read-only permanently and irreversibly once your product is finalized for additional design security.

The board also includes many features for high reliability computing and control. SD flash technology is already extremely reliable compared to hard drives, but with 2 hotswappable flash card sockets running full-blown operating systems such as Linux, you have the option to use RAID on your flash devices to protect against potential individual flash write wearout failures. Also, every component on the board is rated for 70 or 80 degrees Celsius ambient temperatures without heat sinks or fans. Unlike typical "embedded" PC or laptop motherboards which can barely sustain thermal balance at room temperature with large heatsinks, the TS-7300 operates with relatively huge margins in similar conditions which increases hardware lifetime and reliability.

1.4 Features

The TS-7300 comes standard with these features:

✔ 200Mhz ARM9 with MMU and 32 MB SDRAM

✔ User-programmable Altera 2C8 Cyclone II FPGA

✔ 2 SD Card flash sockets

✔ TS-VIDCORE VGA video-out w/8MB dedicated video RAM

✔ 2 USB 2.0 Compatible OHCI ports (12 Mbit/s Max)

✔ 2 10/100 ethernet ports

✔ 10 RS232 serial ports

TS-7300 MANUAL

INTRODUCTION

✔ 55 DIO ports (up to 35 TS-XDIO capable on FPGA)

✔ 1.8 watts power (CPU/SDRAM full speed, ethernets on but unplugged, all serial ports

on, and with default FPGA bitstream)

✔ Fast boot to Linux prompt-shell in 1.69 seconds, Linux-based bootloader

✔ Watchdog timer

✔ PC/104 expansion bus

✔ SPI bus interface

✔ Matrix keypad and text mode LCD support

✔ Operating Temperature Range: Fanless from -20° to +70°C

✔ Extended Temperature -40° to +85°C standard at lower CPU clock speeds

1.5 Configurability

The TS-7300 can be configured for your application using the following available on-board options and external accessories:

On-board Options

✔ TS-7300-yyy: TS-7300 with up to 128 MB of on-board SDRAM. For example, TS-7300-

64 selects model TS-7300 with 64 MB of SDRAM.

✔ OP-BBRTC: on-board sealed-battery backed RTC

✔ OP-TMPSENSE: High-precision temperature sensor

✔ OP-485-FD: RS-485 full duplex interface on COM2

✔ OP-485-HD: RS-485 half duplex interface on COM2

✔ OP-ROHS: RoHS directive compliant built board

Note

The TS-7300 SBC can be built compliant with the RoHS (Restriction of Hazardous Substances ) Directive. Contact Technologic Systems for RoHS support.

External Accessories

✔ SD-512: 512 MB SD Flash Card with full ARM tool chain installed and Debian

✔ USB Flash Drive: 256 MB with full ARM tool chain installed and Debian

✔ WIFI-G-USB: Linux-supported USB 802.11g WiFi transceiver for wireless networking

✔ OP-LCD-LED: Alphanumeric 2x24 LCD with back light and cable

✔ OP-KPAD: Matrix keypad with cable

✔ PS-5VDC-REG: Regulated 5VDC Power Supply, 110 VAC Input

✔ TS-ENC730: Metal Enclosure with Power Converter and additional features

✔ RC-DB9: COM2 adapter cable to DB-9

In addition, a complete set of interfacing cables, connectors, and enclosures is available.

Note

Check our website at www.embeddedARM.com for an updated list of options and external accessories

TS-7300 MANUAL

INTRODUCTION

1.6 PC/104 Peripherals

Technologic Systems offers many add-on peripherals to complete the requirements of your application. These products directly interface with the TS-7300 using the PC/104 bus, adding a wide variety of functionalities at very reasonable prices. Some of these functionalities includes:

✔ NVRAM - adds 32K, 128K, 1MB or 2MB bytes of battery-backed SRAM. Battery

backed SRAM provides non-volatile memory with very fast write times and unlimited write cycles, unlike Flash memory. This can be very important if the data is constantly being updated several times per minute, since Flash devices can wear-out after a few million write cycles. It also eliminates the latency that Flash memory has during write cycles. This resource is a byte-wide memory device using a lithium battery that will last a minimum of 10 years with or without power applied.

✔ Analog VIDEO interface – When a video monitor is needed.

✔ CAN Bus – Useful for automotive applications.

✔ Modems – Phone Line or GSM Cellular modems.

✔ Additional Ethernet ports.

✔ Additional DIO interface with either 24 or 64 new lines..

✔ Additional 12 bit ADC and DAC: useful for industrial automation applications.

✔ Additional COM and Parallel ports – Make more communication channels available.

✔ Power-over-Ethernet

✔ Radios – Long-range wireless radios, Xbee modules

Note

New PC/104 boards are always in development. Contact Technologic Systems or visit the PC/104 peripherals page at our website for a complete and updated list of additional functionalities that can be added to the TS-7300 using the PC/104 bus. You can also contact Technologic Systems about your custom project

design.

TS-7300 MANUAL

INTRODUCTION

1.7 TS-ARM Development Kit

The TS-ARM Development Kit for the TS-7300 Single Board Computer includes all equipment necessary to boot into the operating system of choice and start working. The development kit is highly recommended for a quick start on application development.

The TS-ARM Development Kit contains a 256 or 512 MB Flash drive (SD Card) which includes:

✔ a self-hosting ARM installation of the Debian Linux 3.0 distribution compiled for ARM

✔ gcc 2.95.4 and gcc 3.0 compiler with full tool-chain

✔ Hardware test routines source code and other example source code

✔ Debian package system: apt-get, tasksel, dselect

The development kit additionally includes:

✔ SD Card reader

✔ 5 VDC regulated power supply (international versions available)

✔ NULL modem cable

✔ Adapter cable from 10-pin header to DB9

✔ Various cables for connection DIO, LCD, Keypad, etc.

✔ Development CD with complete TS-Kernel source, manuals, example code, etc.

✔ Printed supporting documentation for TS-7300 Hardware, Linux for ARM and

Development Kit.

Note

Single Board Computer is not included on the Development Kit (sold separately).

TS-7300 MANUAL

INTRODUCTION

1.8 TS-ENC730 Enclosure

The TS-ENC730 metal enclosure is made to house the TS-7300 Single Board Computer and up to two PC/104 peripheral boards. The internal power regulator efficiently converts unregulated 7-28 VDC input into regulated +5 VDC required by the SBC. Sleep mode allows current drain of 200 microAmps with programmable sleep period.

The TS-ENC730 brings out some features implemented on the TS-7300 FPGA, such as the SJA1000 CAN core, PWM for the DAC lines, 800x600 VGA Video, second ethernet port, additional serial ports, etc.

Furthermore, the TS-ENC730 includes the TS-732 daughter board for the TS-7300 onboard FPGA. The AVR microcontroller on the TS-732 implements ADC/GPIO/LEDs extra functionalities. Also, the physical layer for the CAN bus is provided by the TS-732. Additional features include:

✔ 8-28 VDC power input

✔ User programmable low power sleep mode (300 uA)

✔ Surge suppression on power input

✔ Terminal strip with 8 I/O

✔ 4 channel 10 bit ADC 0V - 5V (12-16 bits effective*)

✔ 2 channel 12 bit high power DAC 0V - 10V (sync/source 300mA)

✔ 4 high current GPIO pins (sync/source 400 mA)

✔ 5-8 COM ports

✔ Two software controlled LEDs

✔ Status LEDs for both Ethernet ports

✔ Optional CAN bus port with Linux driver available

✔ Linux Application available for ADC/DAC/GPIO/LEDs control

✔ Sturdy metal design reduces noise

TS-7300 MANUAL

INTRODUCTION

1.9 Software and Support

Technologic Systems provides:

✔ Free system software and documentation updates available on our web site

✔ Free technical support by phone, fax, or email

✔ 30-day, money back guarantee on evaluation units

✔ One-year, full warranty

Linux OS Support

The ARM processor (the EP9302) comes from Cirrus and the platform is very similar to the Cirrus EDB9302 evaluation board. Cirrus has strongly promoted running Linux on this chip and has done most of the legwork in creating a patch set to the Linux 2.4 kernels, but we have also had to modify the Linux Kernel (TS-Kernel) so it can support NAND nad NOR Flash chips (via mtd drivers), a compact flash IDE driver, A/D converters, SD Card through the TS-SDCORE, video, additional ethernet ports and more. If you want to use Linux and aren't tied to the x86 architecture, the TS-7300 can be very cost-effective.

The TS-7300 SBC's proprietary boot firmware makes it possible for the board to boot directly from the SD Card on the first socket, therefore the TS-7300's are shipped standard with the full-featured Debian Linux installed on the first SD Card. Debian can also be used with an NFS root file system or USB flash drives. The TS-Kernel used is based upon the version

2.4.26, patched and compiled for the Cirrus EP9302 ARM920T processor, and is real-time capable through RTAI.

The root file system used by the Linux OS can be any of the following:

✔ EXT2 file system image in the SD card

✔ JFFS/YAFFS file system image in the on-board Flash (on-board flash is a non-

standard option on the TS-7300, please contact Technologic Systems)

✔ NFS root, via Ethernet port (after fast bootup, one need to mount a NFS root and

chroot to it)

Note

The TS-Kernel supports the Real-Time Application Interface (RTAI project), making the embedded operating system capable of handling applications with hard real-time restrictions.

Other OS Support

The TS-7300 can be loaded with other operating systems such as Windows CE, NetBSD, etc. Technologic Systems will provide support for these, and possibly other operating systems, in the future. Currently, only Linux and NetBSD are supported on the TS-7300.

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

2 GETTING STARTED & SOFTWARE

2.1 Installation Procedure

Before performing any set up or placement procedures, take the precautions outlined in this section.

Handling the Board Safely

Be sure to take appropriate Electrostatic Discharge (ESD) precautions. Disconnect the power source before moving, cabling, or performing any set up procedures.

Warning

Inappropriate handling may cause damage to the board.

Setup and Installation Instructions

Follow these guidelines for safety and maximum product performance:

✔ Observe local health and safety requirements and guidelines for manual material

handling

Setup Tools

Depending on placement and cabling, you may need the following tools:

✔ Small flat-blade screwdriver

✔ Small Phillips screwdriver

Setup Procedure

After locating, setting up, grounding, and cabling the TS-7300:

✔ Apply power

✔ Monitor the TS-7300 using a terminal emulator to verify that the board is operating

properly

Note

Your board might include a screw power connector on the power input. Notice this connector is removible. Please pull this connectior off before applying power.

Disconnecting AC Power

✔ Unplug from the power source.

✔ Disconnect other cables as required.

2.2 Console and Power Up

Although the TS-7300 presents a VGA video output, the COM1 port is typically used as a console port to interface the TS-7300 to a standard terminal emulation program on a Host PC via a serial cable.

An ANSI terminal or a PC running a terminal emulator is required to communicate with

your Embedded PC. Simply connect an ANSI terminal (or emulator) to COM1 (DB9

female connector) using a null modem cable (this is included in the TS-ARM Development Kit), using serial parameters of 115,200 baud, 8 data bits, no parity, no flow control, 1 stop

bit, and make sure jumper JP2 is installed. If you are running Linux, the minicom program

works well, Windows users can run the Hyperterm application. Technologic Systems offers a null modem cable with both 25 pin and 9 pin connectors at each end as part number CB7-05. Some systems also require the 10-pin header to 9-pin Sub-D adapter

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

which is P/N: RC-DB9.

The console can be changed to COM2 by installing JP4 (with JP2 also installed). If your application does not require a console or both COM ports are required, then removing the jumper JP2 easily disables all console output and redirects it to VGA output.

Connect a regulated 5VDC, (1A minimum) power source using the included 2 screw terminal strip/connector. Please note the polarity printed on the board. The boot messages, by default, are all displayed on COM1 at 115200 baud.

Alternatively, one can also use a USB keyboard attached to the USB host port on the TS7300 and a VGA monitor attached to the VGA video out on the TS-7300 in order to interface with the SBC. A Technologic Systems logo splash and a shell prompt to the root file system will be shown on the VGA display a few seconds after Ts-7300's power cycle. The console on COM1 will still be active though.

2.3 General Boot Sequence

The TS-7300 differs from the previous TS-72XX boards in the way it implements its bootloader. The TS-7300 does not make use of Redboot or any other traditional bootloader. Instead, the TS-7300 uses a proprietary firmware that enables fast boot to Liniux from the SD Card on the first socket.

Technologic Systems has written a binary Linux driver module and a set of generic, OSindependent read/write routines for accessing the SD flash inside of an ARM object (.o) file. The system boots to an initrd to load the SD driver as a module, since a pre-compiled kernel with the driver built-in could not be provided.

The on-board EEPROM contains code to talk to SD and the board actually boots directly to SD. The hand off from the bootrom to the SD card is very similar to x86 bootup. The first 512 bytes of the SD card (the MBR) is loaded into ram and jumped into. The code inside the MBR calls the BOOTROM routines to read more blocks from the SD card (similar to x86 DOS int 13h) and bootstrap itself.

Currently, our MBR code (Only 446 bytes available after partition table) loads in a kernel and an initrd from dedicated partitions on the SD card and starts Linux. The initrd contains the FPGA bitstream and the Linux driver modules for SD. These are loaded (along with modules for the ethernet and serial ports) and then the initrd does a pivot_root to the SD EXT2 file system and then frees the initrd. There is no on-board flash on the TS-7300, only SD.

The following is a complete description of the TS-7300 bootup process:

1) Power-on. For approx. 200ms, both LEDs will be illuminated indicating the processor is receiving voltage but is being kept in reset waiting for power to stabilize. On-board MAX2 CPLD arms watchdog for 8 second expiry.

2) CPU begins executing mask-ROM bootup code. This code looks for the magic string "CRUS" in the SPI EEPROM chip. Red LED is now turned off.

3) CPU mask-ROM finds CRUS in SPI EEPROM and loads 2 kilobytes of EEPROM into on-chip SRAM. Processor then jumps into on-chip SRAM which now contains the TSSDBOOT mini-loader. If the magic string "CRUS" is not found in the EEPROM (due to missing or malfunctioning SPI EEPROM chip) the processor locks up while fast blinking the green LED. 8 seconds later the CPLD watchdog will reset the board and try the whole process again.

4) TS-SDBOOT initializes SDRAM, bus timing, MAC addresses and performs self tests. If a major failure is detected, board disarms watchdog and turns off the green LED, turns on the red LED, and blinks off 3 times every 2 seconds.

5) TS-SDBOOT examines the 36 byte security block at the last 36 bytes of the EEPROM. Based on its contents, the board may:

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

✔ checksum and verify a predetermined number of sectors of SD flash

✔ verify a password typed to the console within 8 seconds of bootup

✔ verify a specific SD card serial number

✔ force booting only to a locked SD card

✔ unlock a locked SD card

✔ verify the CPU unique ID

✔ use the CPU unique ID to decrypt the SD unlock key

✔ use the typed password to decrypt the SD unlock key

6) After security processing, TS-SDBOOT loads the first 512 bytes of the SD card to physical SDRAM at address 0x1000. Control is transferred in ARM Thumb mode and two parameters are passed. In register r0 is the address to the TS-SDBOOT routine for reading blocks from the SD card and in register r1 a routine to print messages to the serial port is passed. The C stack pointer still is in on-chip SRAM. The C prototypes of these functions are as follows:

✔ void sdread(unsigned int start_sector, char *buffer, int num_sectors)

✔ void ser_puts(char *buffer)

If the SD boot sector contains bad code, the SD card is not present, or in the case of another unforseen problem with either the system, SD card, or the boot program that keeps the board from booting Linux, the watchdog will expire and reset the board in approx. 7.5 seconds.

7) The first 446 bytes of sector 0 contain Thumb program code that loads the first partition with id 0xda as a kernel image at RAM location 0x218000 and the next with id 0xda as a Linux initrd at 0x1000000. Linux ATAGs are composed and the kernel image is jumped into.

8) The kernel decompresses itself and initializes. The 8 second watchdog is now disabled. The compressed initrd is found, decompressed, and mounted as the root filesystem.

9) The kernel invokes the program /linuxrc on the initrd, which loads the TS-7300 FPGA and kernel modules for FPGA components. (serial driver, ethernet driver, SD card driver, and video driver) A splash screen is displayed on the VGA out.

10) As a last step, the /linuxrc code mounts /dev/sdcard0/disc0/part3 and pivots to this as the root filesystem and calls /sbin/init on the SD card filesystem. This starts either the Debian or the TS-Linux initialization sequence.

Technologic Systems provides binary dd images of a bootable SD card for download and also provide a utility to install just the MBR code on an arbitrary (pre-partitioned) SD card.

2.4 Fast Bootup Firmware

Through software optimizations, the TS-7300 ARM SBC is able to bootup to a Linux prompt just 1.69 seconds after power-up. Technologic Systems provides a SD Card image that includes kernel tweaks, initrd tweaks and a few tweaks inside the Debian filesystem itself on partition 3. In addition, fast boot optimizations have also been applied to the TS-SDBOOT bootup firmware that resides in ROM memory.

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

The new SD image will look at the state of jumper 6. If jumper 6 is on, the full Debian bootup will be bypassed and the system will instead drop straight to a shell prompt. 1.69 seconds after power-on the serial console prompt is active and 2.41 seconds after poweron the video console is displayed. Video takes a bit longer to start up due to the fact that the FPGA must be initialized, a splash screen is displayed, and USB keyboard kernel modules must be loaded. To initiate a full Debian startup, simply type "exit" at either the shell prompt on the serial port or the shell prompt on the VGA monitor (using keyboard).

The time it takes for bootup is also displayed right before the SH prompt is printed. On new Rev C CPLD TS-7300's, the CPLD has a 32-bit counter that starts at 0 at poweron and is used to measure the bootup time extremely accurately. On other boards, the EP9302 983Khz debug4 timer is used since it starts out as 0 also, but is slightly less accurate than the 32-bit 14.7Mhz counter implemented in the new CPLD rev.

If you want something other than a shell prompt running as soon as possible on bootup, it is possible by editing the /linuxrc2 shell script on the initrd. When you do the fast boot, you are actually booting to an initrd with the Debian parts of filesystem mounted read-only. After modifying the /linuxrc2 shell script on the initrd, run the "save" command to save the initrd back to the SD card, otherwise your changes won't "stick".

The TS-7300 bootup firmware was designed to be much faster than a x86 PC/SBC BIOS. So even better bootup times can be achieved with an RTOS, such as eCos, instead of Linux. Of that 1.69s bootup time, about 1.4 represents Linux bootstrap, while about 0.3 of it is the hardware initialization.

Installation

If you board doesn't have the Fast Bootup firmware installed from factory, proceed as follow in order to have your TS-7300 upgraded.

The new SD Card image that enables the fast bootup option is available on our FTP site. Visit our website, TS-7300 page, for further information.

It requires at least a 256MB SD Card. To install it, follow the instructions below:

1. Extract the new SD Card image file, for example:

$ bunzip2 fastboot-7300-sdcard-7-6-2006.dd.bz2

2. Using an SD Card reader and the "dd" utility, copy the image to the disc device of the 256MB SD Card:

$ dd if=fastboot-7300-sdcard-7-6-2006.dd of=/dev/sda

Or, using the second SD Card slot of your TS-7300:

$ dd if=fastboot-7300-sdcard-7-6-2006.dd of=/dev/sdcard1/disc0/disc

Warning

This will completely overwrite the contents of your SD Card, so make sure you do the appropriate backups before updating.

3. To use the image on a larger card (512MB, for example), just "dd" to the larger card, use fdisk to increase the size of part3 to the remaining space (taking care to keep the same start sector), and then use the "ext2resize" command on that partition:

$ fdisk /dev/sdcard1/disc0/disc

$ ext2resize /dev/sdcard1/disc0/part3

4. To update to the new TS-SDBOOT, download and run (as root) the TS-SDBOOT update utility binary executable on your TS-7300 board. This utility is found at our webiste.

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

2.5 Loading or Transferring Files

Three methods are available for transferring files between a desktop PC and your TS7300: Ethernet downloads, flash memory devices, and Zmodem downloads. Full

descriptions of each are detailed below. Other programs that use serial ports to transfer should work as well.

Transferring Files via the Ethernet Port

The default JFFS Linux root file system includes a small FTP server that can be used for uploading/downloading of files across an Ethernet network. Simply point your preferred FTP client to your TS-7300 IP address (default is 192.168.0.50). You can login as root or any valid user previously created from the useradd utility. By default, the JFFS image will not accept anonymous FTP.

Transferring Files via Flash Memory Device

The TS-7300 removable Compact Flash card, an SD card or an USB flash memory card can be used to easily move files from a host system. We suggest using a low-cost SanDisk USB Compact Flash card or SD card interface for your host system. USB memory devices need no extra accessory to connect to the host PC. The flash memory devices can then be hot swapped (inserted or removed without rebooting the host PC).

Zmodem Downloads

Using the Zmodem protocol to send files to and from the TS-7300 SBC is simple and straightforward. The only requirement is a terminal emulation program that supports Zmodem, and virtually all do. If you are using Windows 95 or later for your development work, the HyperTerminal accessory works well.

To download a file to the TS-7300 from your host PC, execute lrz at the Linux command line on the TS-7300 (while using console-redirection from within your terminal emulator) and begin the transfer with your terminal emulator. In HyperTerminal, this is 'Send File...' from the 'Transfer' menu.

To upload a file from the TS-7300 to your host PC, execute lsz <FILENAME> at the Linux command line on the TS-7300 and start the transfer in your terminal emulator. Many emulators, HyperTerminal among them, will automatically begin the transfer themselves.

Occasionally there may be errors in transmission due to background operations. This is not a problem -- Zmodem uses very accurate CRC checks to detect errors and simply resends bad data. Once the file transfer is complete the file is completely error free. For best results when using HyperTerminal, the hardware handshaking must be enabled in HyperTerminal.

2.6 SD Card High-Security Features

Technologic Systems has developed a Linux application named "sdlock" which can be used to manipulate SD card hardware-enforced password locks and set the card's permanent write-protect feature. Using a password protected SD card is a great way to ensure software security and/or to make sure your TS-7300 SBC based product cannot be used in an unintended matter once deployed. This solution is only available for the products configured with the TS-SDBOOT firmware. Some of the possibilities include:

✔ Password protecting SD Cards

✔ Set the SBC to boot only locked SD Cards

✔ Set the SD Card readable only on a specific SBC

✔ Checksum verification of bootable SD Cards

✔ Make an SD Card permanently write-protected

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

How to use it

Usage and command line help for this command follows:

$ sdlock –help Usage: sdlock [OPTION] ... Controls SD card lock and permanent write-protect features.

General options:

-p, --password=PASS Use PASS as password

-c, --clear Remove password lock

-s, --set Set password lock

-u, --unlock Unlock temporarily

-e, --erase Erase entire device (clears password)

-w, --wprot Enable permanent write protect

-h, --help This help

The "sdlock" Linux utility is available for download at our FTP server. Visit the TS-7300 page for the latest download links.

When the TS-7300 SBC is configured with the TS-SDBOOT bootup firmware, the SD unlock password can be stored in onboard EEPROM for automatic unlocking and booting of password protected SD cards. By default, TS-SDBOOT will still boot unlocked cards, but this behavior can be changed with the "--verifylock" option to the "tsbootrom-update" command described above-- with the "--verifylock" option the TS-7300 SBC will only boot locked SD cards.

TS-SDBOOT firmware contains several features for high security. One feature is the ability to store a checksum of the SD card on the board to verify before bootup. If the checksum fails, the bootup firmware will refuse to boot the inserted SD card. TS-SDBOOT can also verify an arbitrary number of sectors of the SD flash card before allowing bootup. If the stored CRC does not match the actual CRC, the board will refuse to boot and blink the red LED continuously.

Another feature is the ability to boot a password protected SD card. With this, it is possible to make an SD unreadable to any device except the TS-7300 SBC to which it is assigned. Although not directly a function of TS-SDBOOT, an SD card can also be made permanently write-protected through a software command. The combination of these features allows product designers several options on the security of their software and of their deployed TS-7300 SBC based devices.

The various SD commands that manipulate the password lock are marked as "optional" in the SD card specification. This means that not all SD card vendors may implement them in their devices. If they are not implemented, you will not be able to set the SD lock with the "sdlock" command.

For further information, contact a Technologic Systems' engineer.

2.7 Debian Linux OS

The TS-7300 SBC is shipped with full Debian distribution installed on the SD Card and boots Debian Linux by default. The Debian is a full-featured and powerful Linux distribution mostly based upon GNU tools. It includes everything necessary to easily run Linux and develop Linux applications. In addition, various original Linux utilities and installation tools are available to make system utilization and packages updating easy. The Debian Linux is ported to ARM processors and runs with TS-7300 SBCs. With Debian Linux, experienced Linux users have a complete Linux system to take full advantage of their knowledge, and new users have an easy environment to get started with the Linux world.

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

Technologic Systems makes use of Debian Linux as a development distribution. For example, the 256 MB SD Card card is pre-installed with Debian. Along with the basic core utilities, some developer tools have been installed, including a native arm gcc toolchain, for C/C++ application development. In addition, the Perl interpreter and a wide variety of network services are available, such as FTP, Telnet, SSH and Apache HTTP servers. One can also use the Debian Linux distribution via an NFS root file system or an USB flash memory device.

apt-get

When using the Debian Linux file system, adding new packages and removing undesired ones is done all through Debian's package management. “apt“, “dpkg“, all behave as expected. With Debian, one can easily install and remove software packages. For a quick demonstration of how easy it is to remove and install programs with Debian, try the following commands:

apt-get install hexedit

hexedit /etc/passwd

^C (hit CTRL+C to safely exit)

apt-get remove hexedit

apt-get install installs a package name, while apt-get remove removes the named package. Visit the Debian home-page for further information, since a full in-depth discussion on Debian is outside the scope of this document.

✔ http://www.debian.org

Logging In and Basic Commands

After the desired Linux Kernel is loaded and executed through RedBoot, the file system loads and networking, logging, Apache web server, etc. are all started. When the login prompt is displayed, type “root” to login, with no password. A Bash login prompt will then appear. At this point, you are ready to enjoy your TS-7300 SBC running Linux. Some very basic commands for one beginner user to start using Linux are:

✔ pwd: informs the current directory

✔ ls: lists current directory contents

✔ cd: changes directory

✔ man: accesses the system's manual pages of a given command

✔ cat: displays the entire content of a given file

✔ vi: Linux most common file editor (reading further documentation is recommended)

The most common file handling commands are “cp”, “mv”, “rm”, “mkdir”. Help information is provided by supplying “--help” to any given command, for example “cp –help”

Shutdown

Use the “shutdown –h now“ command to halt the Linux system when running from Compact Flash, SD or USB memory card to avoid a potentially lengthy file system check

on the next boot, since the file system running is EXT2 formatted.

On the other hand, the JFFS/YAFFS file systems are highly tolerant of power cycles while the file systems are mounted. Therefore, the “shutdown” command is not required when the root file system is JFFS/YAFFS, but is still recommended.

TS-7300 MANUAL

GETTING STARTED & SOFTWARE

Initialization Scripts

The initialization process reads the file “/etc/inittab”. The inittab file will call “/etc/rc.d/rcS.sysinit” as part of the system initialization. The run level then defaults to 3, which will run the “/etc/rcS” script and call all the scripts linked in the “/etc/rc3.d/” directory in numerical order. For example, the following are the initialization scripts for run level 3 found at TS-Linux:

/etc/rc.d/rc3.d# ls

S10Network S11portmap S20inetd S30telnetd S40apache

Changing the run level or re-invoking the initialization scripts is possible through the “init” command. A “halt” or “reboot” command will change the run level to 0 or 6 and execute the “/etc/rc0.d” scripts or “etc/rc6.d” scripts respectively.

Network Setup

The main utilities for network configuration under Linux are:

✔ ifconfig: prints network settings and configures ethernet interfaces

✔ ifup: turns given network interface up

✔ ifdown: turns given network interface down

Entering “ifconfig” shows the current ethernet settings. These utilities require a network device as parameter. On Linux, the ethernet devices are generally named eth0, eth1, etc. Therefore, the command “ifup eth0” or “ifconfig eth0 up” brings up the on-board ethernet interface on TS-7300 SBCs.

Setting Up the networking with Debian

To configure the network interfaces when booting into Debian Linux, edit the file “/etc/network/interfaces”. A typical interfaces file would contain the following:

auto lo eth0

# The loopback interface

iface lo inet loopback

# The first network card

auto eth0

#iface eth0 inet dhcp

iface eth0 inet static

address 192.168.0.50

netmask 255.255.255.0

gateway 192.168.0.1

Those lines starting with a # symbol are comments. The line “auto lo eth0” means both the loopback interface and the first ethernet interface will be started automatically by the Debian networking scripts. The above example shows that eth0 would be assigned the static address of 192.168.0.50, using 192.168.0.1 as the default gateway. If one was to comment out those lines, and then uncomment the line iface eth0 inet dhcp, then eth0 would use a dhcp client to obtain it's IP and other relevant network information.

Note

For further information regarding the software solutions available for the TS-7300 and instructions about Debian Linux, please refer to the Linux for TS-ARM User's

Guide. This can be found for download at Technologic Systems website.

TS-7300 MANUAL

HARDWARE COMPONENTS

3 HARDWARE COMPONENTS

The following picture shows where the main headers, connectors and most important hardware components are located on the TS-7300. Understanding this picture will help you to follow the header-connector oriented organization of this manual. The blue marked objects on the picture are the on-board chips and components, while the red ones are the various on-board headers and connectors for peripherals.

Picture: TS-7300 Hardware Components

3.1 Processor

Cirrus EP9302

The EP9302 features an advanced 200 MHz ARM920T processor design with a memory management unit (MMU) that allows support for high-level operating systems such as Linux, Windows CE, and other embedded operating systems. The ARM core operates from a 1.8 V supply, while the I/O operates at 3.3 V with power usage between 100 mW and 750 mW (dependent on speed). As a general-purpose processor, it provides a standard set of peripherals on board and a full set of Technologic Systems add-on peripherals via the standard PC/104 Bus.

The ARM920T's 32-bit architecture, with a five-stage pipeline, consisting of fetch, decode, execute, memory, and write stages, delivers very impressive performance at very low power. The EP9302 CPU has a 16 KB instruction cache and a 16 KB data cache to provide zero-cycle latency to the current program and data, or they can be locked to guarantee no-latency access to critical sections of instructions and data. For applications with instruction-memory size restrictions, the ARM920T’s compressed Thumb instruction set can be used to provide higher code density and lower Flash storage requirements.

TS-7300 MANUAL

HARDWARE COMPONENTS

Picture: Cirrus EP9202 Block Diagram

EP9302 key features include:

✔ ARM (32-bit) and Thumb (16-bit compressed) instruction sets

✔ 32-bit Advanced Micro-Controller Bus Architecture (AMBA)

✔ 16 kbyte Instruction Cache with lockdown

✔ 16 kbyte Data Cache (programmable write-through or write-back) with lockdown

✔ MMU for Linux®, Microsoft® Windows® CE and other operating systems

✔ Translation Look Aside Buffers with 64 Data and 64 Instruction Entries

✔ Programmable Page Sizes of 1 Mbyte, 64 kbyte, 4 kbyte, and 1 kbyte

✔ Independent lockdown of TLB Entries

For further information about the EP9302 features, refer to the EP9301 User's Guide.

Note

The EP9302 is identical silicon to the EP9301 except it is rated to run at 200 Mhz, instead of 166 Mhz. The available EP9301 User's Guide can still be used as the main reference manual.

MMU

The EP9031 features a Memory Management Unit, enabling high level operating systems such as Embedded Linux and Windows CE to run on the TS-7300. In the same way, the Linux TS-Kernel takes advantage of the MMU functionality.

The MMU is controlled by page tables stored in system memory and is responsible for virtual address to physical address translation, memory protection through access permissions and domains, MMU cache and write buffer access. In doing so, software applications can access larger "virtual" memory space than the available physical memory size, allowing multiple programs to run and use the system memory simultaneously.

For further information about the MMU functionalities, refer to the EP9301 User's Guide.

Interrupts

The EP9302 interrupt controller allows up to 54 interrupts to generate an Interrupt Request (IRQ) or Fast Interrupt Request (FIQ) signal to the processor core. Thirty-two hardware priority assignments are provided for assisting IRQ vectoring, and two levels are provided for FIQ vectoring. This allows time critical interrupts to be processed in the shortest time possible.

TS-7300 MANUAL

HARDWARE COMPONENTS

Internal interrupts may be programmed as active high or active low level sensitive inputs. GPIO pins programmed as interrupts may be programmed as active high level sensitive, active low level sensitive, rising edge triggered, falling edge triggered, or combined rising/falling edge triggered.

The EP9302 interrupt controller also includes the following features:

✔ Supports 54 interrupts from a variety of sources (such as UARTs, GPIO and ADC)

✔ Routes interrupt sources to either the ARM920T’s IRQ or FIQ (Fast IRQ) inputs

✔ Three dedicated off-chip interrupt lines operate as active high level sensitive interrupts

✔ Any of the 19 GPIO lines maybe configured to generate interrupts

✔ Software supported priority mask for all FIQs and IRQs

Note

For peripheral driver development purpose, notice that the external IRQ lines 5,6 and 7, which are ISA/X86 architecture based, are mapped to EP9302 external interrupt lines 22, 33 and 40, respectively. For further information about interrupts, including the EP9302 interrupt controller and map, refer to the EP9301 User's

Guide, chapter 5.

Warning

Since the TS-7300s FPGA uses IRQ7, any PC/104 daughter board that uses IRQ7 must be open drain in order to allow IRQ sharing, otherwise there will be an IRQ conflict. For instance, the TS-SER4 is not compatible with the TS-7300 when configured to use IRQ7 because the TS-SER4 actively drives the IRQ high/low.

3.2 Memory

TS-7300 uses three type of memory. The SDRAM is the fast access volatile memory used

to run applications by the processor and the on-board flash is the non-volatile memory used for storage purpose. Flash memory may also be added using USB memory drivers.

On-Board SDRAM

The TS-7300 uses 32 MB SDRAM technology to provide 32 or 64 MB of high-speed volatile memory. The memory is soldered directly to the board, making the TS-7300 more reliable in high-vibration environments.

The TS-7300's RAM is not contiguous in the physical memory map of the EP9302. But the MMU is programmed to remap the blocks of RAM to appear as a contiguous block of memory at the very beginning of the virtual memory map. In the case of a 256 Megabit SDRAM chip (32 MB), it is located at 0 through 32 MB in the virtual memory map.

Refer to the MMU section of this manual to understand how the physical memory is mapped and the virtual memory is translated.

Note

It is possible to use larger sizes of the SDRAM chip than the standard 32 MB one. The TS-7300 is designed to accommodate both 32 MB and 64 MB chips, providing up to 128 MB of RAM memory. Contact Technologic Systems for larger SDRAM sizes.

TS-7300 MANUAL

HARDWARE COMPONENTS

Battery Backed SRAM

There is a peripheral board available for the TS-7300 named TS-NVRAM that adds 32K bytes or 128 Kbytes or 512K bytes of battery-backed SRAM. Battery backed SRAM provides non-volatile memory with very fast write times and unlimited write cycles, unlike Flash memory. This can be very important if the data is constantly being updated several times per minute, since Flash devices can wear-out after a few million write cycles. It also eliminates the latency that Flash memory has during write cycles, since Flash technology write cycles are about 10-100 times slower than read cycles.

The TS-NVRAM peripheral board is located at the PC/104 memory space base address of 0x11AA_0000. This resource is a byte-wide memory device using a lithium battery that is guaranteed to last a minimum of 10 years with or without power applied.

On-Board NAND Flash

Warning

The TS-7300 was designed to accommodate NAND flash chips. However, it is not a standard feature and the NAND chip is not soldered on the board by default. To include NAND support on the TS-7300, contact Technologic Systems.

The TS-7300 uses a NAND Flash chip for its on-board Flash resource. The physical address of the Flash chip is 0x6000_0000. The first 16KB is reserved for the TSBOOTROM code. The TS-BOOTROM code initializes various internal configuration registers for proper operation, and initializes and tests the SDRAM. The last 3 MB are reserved for the RedBoot ROM monitor, RedBoot FIS (Flash Image System) and RedBoot FCONFIG (Flash configuration).

The Linux kernel shipped by default is pre-loaded in the FIS and the default boot script and Ethernet MAC address are contained in the FCONFIG. You may also use the RedBoot FIS to store and load images that contain eCos applications or other OS/RTOS boot loaders.

The rest of the on-board flash is used for the Linux YAFFS2 file system. This is a journaling file system that is aware of the wear-out mechanism of the NAND flash and incorporates ECC algorithms at the file system level to maximize Flash lifetime. It is also extremely tolerant of power failures during file write sequences.

The entire Flash chip can be write-protected by removing Jumper 3. When JP3 is not installed, the Flash chip becomes a read-only resource.

Note

It is possible to use larger sizes of the NAND Flash than the standard 32 MB chip. The TS-7300 is designed to accommodate both 32 MB and 128 MB chips, providing up to 256 MB of on-board flash. Contact Technologic Systems for larger Flash sizes.

Note

The YAFFS1 file system runs on the TS-7300 boards that feature NAND chips with 512 byte page size, enabling up to 128 MB of on-board flash. The YAFFS2 file system supports the new NAND technology, with 2k page size, hence it will be installed on TS-7300 boards that are configured with 128-256 MB of flash.

TS-7300 MANUAL

HARDWARE COMPONENTS

USB Flash Drive or Compact Flash Card

Additional non-volatile storage may be added with a USB flash drive or a Compact Flash card. These devices supply additional non-volatile storage either for data or for a complete operation system distribution, such as Debian. A tar-file of Debian is available on the Technologic Systems website. Alternatively, the developer's kit includes a USB flash thumb-drive or Compact Flash card pre-loaded with Debian.

Flash memory provided by these devices behaves much as a hard drive does with sizes ranging from 32MB to 1GB. These products are inherently more rugged than a hard drive since they are completely solid-state with no moving parts. However, they have the added advantage of being removable media

Use of a Compact Flash card with TS-7300 SBC or higher requires a USB Compact flash adapter, which will also be included in the TS-ARM Development Kit if requested. The USB flash drive has the advantage over a CF card in that the USB drive can be hot swapped.

Note

Drivers are available in the TS-Kernel to support USB flash drives. One can load Debian OS with two scripts provided by the on-board flash TS-Linux file system or available for download at our website. First, invoke /usr/bin/loadUSBModules.sh, then run the script /usr/bin/loadUSB.sh to chroot into the Debian OS.

SD Memory Card

Technologic Systems has a full license for using the additional SD features which are reserved for members of the SD Card Association. This has allowed us to design both the hardware logic core and software specifically tuned to the capabilities of the TS-7300 CPU using the official SD specification documents. Since both a Linux driver module and an ARM9 object file containing OS-independent access routines are provided to customers purchasing the board hardware, customers do not have to seek SD licensing themselves.

SD Memory Card technology provides large capacity and fast access combined with a compact and slim profile, making it very appealing for a wide range of next generation products and applications. In addition, SD Cards feature content protection, planned capacity growth, high-speed data transfer, and a write protect switch. These devices supply additional non-volatile storage either for data or for a complete operation system distribution, such as Debian, to be used with the TS-7300 SBC.

The Technologic System SD Card core is a very small implementation and can be integrated on the TS-7300 CPLD and/or the TS-7300 FPGA. Four 8-bit registers are available for the software layer to control the SD Card hardware:

Table: SD Card core registers

I/O Addr Name Description

BASE + 0 SDCMD SD Command register BASE + 2 SDDAT SD Data register BASE + 4 SDSTATE SD State register BASE + 6 SDCTRL SD Control register

FPGA SDRAM

The FPGA has its own dedicated 8MB SDRAM that might be used, for instance, as video memory for the TS-VIDCORE VGA core. The physical address of the FPGA SDRAM chip is 0x7220_0000.

TS-7300 MANUAL

HARDWARE COMPONENTS

3.3 Glue Logic CPLD

The TS-7300 ARM SBC's include a MAXII CPLD which is responsible for taking control over the internal components communication through glue logic implementation. For instance, the CPLD is used to control the NAND flash through internal registers configuration.

The CPLD handles control signals on the PC104 bus, has a watchdog timer, enables jumper settings reading, handles the reset button, interfaces to the real-time clock and controls the EEPROM chip select. It also implements peripheral features that, together with EP9302 modules, makes available an advanced set of communication ports, DIO pins, ADC converters, and others.

The inclusion of a CPLD on the SBC allows customized programming for customers with special needs, without having to do a more expensive board redesign. For example, the MAXII CPLD on the TS-7260 can be configured with three different cores:

✔ 2TTLCOM option: 2 extra TTL-only serial ports with TX enable signals and that

includes a very simple GPIO core (data direction register and data register only).

✔ TS-XDIO option: uber-GPIO that can do quadrature, PWM, freq-counter, pulse timing,

IRQ and DRQ, etc

✔ SDSOCKET option: a special core for a SD interface that requires a special Linux

driver module to be of use.

The CPLD can be programmed using the JTAG header and special software/hardware supporting tools. Contact Technologic Systems for support on CPLD programming software and tools.

3.4 Cyclone II FPGA

The inclusion of an Altera FPGA on the TS-7300 and a dedicated high-speed bus between the CPU and FPGA provides unique design possibilities in the hands of creative embedded designers. The FPGA has its own dedicated 8MB SDRAM and customers can load their own bitstream or use the default TS built bitstream. The FPGA is reprogrammable on-the-fly by the 200Mhz ARM9 CPU running Debian Linux when an additional real-time soft-coprocessor(s), DSP, or specific additional peripheral logic is needed. In addition, there are up to 35 DIO lines connected straight to the FPGA. These DIO lines can also be used as a FPGA connected expansion bus instead of the CPU connected regular PC104 expansion bus.

The default full-featured FPGA bitstream from Technologic Systems (TS-BITSTREAM) provides the hardware logic for the TS-SDCORE second SD card core, 8 TS-UART serial ports, second 10/100 ethernet port, TS-VIDCORE VGA video framebuffer and accelerator, and 2 PWM/Timer/Counter TS-XDIO cores for the various GPIO pins.

The FPGA can be programmed through two registers found at base 0x13C0_0000 and 0x13C0_0001. This hardware functionality is implemented on the CPLD and can be accessed via software. To load the bitstream to the FPGA on the TS-7300, Technologic Systems provides a Linux program "load_ts7300" that takes the ts7300_top.rbf file generated by Altera's Quartus II on the Linux flash filesystem (yaffs, ext2, jffs2, etc) and loads the FPGA. Loading the FPGA takes approx 0.2 seconds this way and can be done (and re-done) at any time during power-up without any special JTAG/ISP cables.

The FPGA is located at the word address space from 0x72A0_0000 to 0x72FF_FFFCof the EP9302 memory map. The EP9302 IRQ #40 (ISA IRQ 7) is used by the FPGA to interrupt the processor. In Linux, be sure to use request_irq() with the SA_SHIRQ flag, enabling sharing interrupts among other Linux device drivers.

The TS-BITSTREAM binary comes with board. Contact Technologic Systems for custom FPGA development on the TS-7300 or for non-GPL licensing of this or any of the above TS-cores and OS drivers.

TS-7300 MANUAL

HARDWARE COMPONENTS

3.5 Real-Time Clock

The TS-7300 optionally supports a Non-volatile Battery-backed real-time clock (RTC) which is soldered onto the board. This option uses an ST Micro M48T86PC1 module for the real-time clock function. This module contains the lithium battery, 32.768 kHz crystal, and a RTC chip with 114 bytes of battery-backed CMOS RAM. It will maintain clock operation for a minimum of 10 years in the absence of power.

The 114 bytes of non-volatile RAM, physically located in the RTC chip, are available to the user. Contact Technologic Systems for driver support.

The RTC is accessed using two registers. The write-only index register is located at physical address location 0x1080_0000 and the RTC data register is location at physical address location 0x1170_0000. These are byte-wide registers with the Index Register property of write only. The Data Register has a read/write property. Valid Index Register values are between 0 and 127, decimal. The first 14 index locations are used for accessing the RTC Time and Date registers. The next 114 locations are non-volatile RAM locations.

This option is NOT compatible with the TS-5620, a peripheral board that also uses an ST Micro RTC module for real-time clock functionality. While the two options are mutually exclusive, it is possible to use the TS-5620 peripheral board on a TS-7300 that does not have the on-board RTC option installed. Any source code that utilizes the RTC is compatible with both optional installations. The TS-Kernel shipped with the boards includes support for the TS-5620 peripheral board.

3.6 Watchdog Timer

The TS-7300 incorporates a Watchdog Timer (WDT) unit. The WDT can be used to prevent a system “hanging” due to a software failure. The WDT causes a full system reset when the WDT times out, allowing a guaranteed recovery time from a software error. To prevent a WDT timeout, the application must periodically “feed” the WDT by writing a specific value to a specific memory location.

Table: Watchdog Control Registers

WDT Control register 0x2380_0000 Read/Write WDT Feed register 0x23C0_0000 Write Only

The WDT Control register must be initialized with the timeout period desired. This may be as short as 250 mS or may be as long as 8 seconds. After the WDT has been enabled, the WDT counter begins. The application software can reset this counter at any time by “feeding” the WDT. If the WDT counter reaches the timeout period, then a full system reset occurs.

Table: Watchdog Timeout Register

Value MSB MID LSB Timeout Period

0x00 0 0 0 Watchdog Disabled 0x01 0 0 1 250 mS 0x02 0 1 0 500 mS 0x03 0 1 1 1 second 0x04 1 0 0 -- Reserved 0x05 1 0 1 2 seconds 0x06 1 1 0 4 seconds 0x07 1 1 1 8 seconds

TS-7300 MANUAL

HARDWARE COMPONENTS

In order to load the WDT Control register, the WDT must first be “fed”, and then within 30uS, the WDT control register must be written. Writes to this register without first doing a “WDT feed”, have no affect. In order to clear the WDT counter (feeding the watchdog), a value of Hex 05 must be written to the WDT Feed register.

By default, a user process does not have the physical address space (access) of the watchdog registers mapped. When using the Linux OS, the watchdog can be reached from user C code by using the mmap() system call on the /dev/mem special file to map the areas of physical address space into process user address space.

Warning

Use only the Watchdog Timer implemented by Technologic Systems in the CPLD. The Watchdog Timer included in the EP9302 has serious problems.

TS-7300 MANUAL

COMMON INTERFACES GENERAL INFORMATION

4 COMMON INTERFACES GENERAL INFORMATION

The purpose of this section is to provide general information about the common interfaces, such as Serial Ports and Digital Input/Output, which appear in more than one header or connector of the TS-7300. For further information on these features, refer to the Connectors and Headers section of this manual.

4.1 Serial Ports

The TS-7300 have two asynchronous serial ports (COM1 and COM2) which provide a means to communicate with external serial devices. Each is independently configured as a 16C550- type COM port that is functionally similar to a standard PC COM port. These ports have 16-byte FIFOs in both the receive and the transmit UART channels. Both COM ports can support all standard baud rates up through 230.4Kbaud. Both COM ports may be configured to use a DMA channel (useful when very high baud rates are being used).

COM1 and COM2 UARTs can generate:

✔ Four individually maskable interrupts from the receive, transmit, and modem status

logic blocks

✔ A single, combined interrupt that is asserted if any of the individual interrupts are

asserted and unmasked

The COM1 port can also support the HDLC protocol. Refer to the Cirrus EP9301 User's Guide for more details. The COM2 port can optionally support RS-485 half or full duplex levels.

The TS-7300 has either six or ten total asynchronous serial ports and the capability to add more on-board via the PC/104 Expansion Bus.

Two serial ports are standard on-board and are available through the COM1 (DB9 and 10pin header) and COM2 (10-pin header) interfaces. They use RS232 signal level and 16 bytes FIFO. The minimum and maximum baud rate are 110bps and 230.4Kbps, respectively. In addition, COM2 is RS-485 capable.

Four RS-232 COM ports are integrated on the FPGA and are available through the COM3, COM4, COM5 and COM6 10-pin headers by default. Extra four COM ports from the FPGA may be provided using the same headers. Each is independently configured and is functionally similar to a PC COM port. ALL FPGA COM ports can operate in 8-bit mode or 9-bit mode. The minimum and maximum baud rate are 2400bps and 115.2Kbps, respectively.

4.2 Digital I/O

There are 55 total Digital Input/Output (DIO) lines available on the TS-7300 . These are available on three headers labeled “DIO”, “LCD” and “DIO2”. The header labeled LCD can be used as 11 DIO lines or as an alphanumeric LCD interface. The header labeled DIO has 8 DIO pins available. In addition to the DIO signals, each header also has a power pin and Ground available. The LCD header has 5V power available while the DIO header has

3.3V power.

The DIO2 header (FPGA DIO) is controlled by the on-board FPGA. It is a 40-pin header divided in two sub-headers of 20 pins each. On the first header, by default, there are 17 video signals that can be changed into digital I/O, while the second, labeled DIO2, has 18 digital I/O lines which implement two XDIO ports. Thus, there are 35 total DIO lines connected directly to the on-board FPGA on the TS-7300 available through the 40-pin header. The first header has 5V power available and the second (DIO2) has 3.3V power.

TS-7300 MANUAL

COMMON INTERFACES GENERAL INFORMATION

Three pins on the DIO header are used to bring out the EP9302 SPI bus. By using some of the DIO pins as peripheral Chip Select signals, a complete interface is available for SPI peripherals. It is also possible to bring out a fourth SPI bus function [SPI_Frame] by adding a 10 ohm resistor in the position labeled R1 on TS-7300 boards. This signal is not required for many SPI peripherals but it may prove useful in some applications.

All of the DIO lines are programmable as either inputs or outputs and the direction of each I/O pin can be individually programmed. All DIO control registers are 8-bits wide and aligned on word (32-bit) boundaries. For all registers, the upper 24 bits are not modified when written and are always read back as zeros. Every DIO pin has two registers used to access it, an 8-bit data register and an 8-bit data direction register (DDR). The DDR controls whether each DIO pin is an input or an output (”1” = output). Writing to the data register only affects pins that are configured as outputs. Reading the data register always returns the state of the DIO pin.

Many of the DIO pins (DIO_0 thru DIO_8 and LCD_0 thru LCD_7) can also be programmed to cause interrupts. The interrupt properties of these pins are individually configurable. Each interrupt can be either high or low level sensitive or either rising or falling edge triggered. It is also possible to enable debouncing on any of these interrupts. Debouncing is implemented using a 2-bit shift register clocked by a 128 Hz clock. Refer to the EP9301 User's Guide and see Chapter 21 for details

The 5V power output pin on the LCD Header is current limited to 1000mA to prevent excessive current. The 3.3V power on the DIO1 Header is current limited to approximately 1 Amp by a 3.3V regulator.

4.3 A/D Converters

The EP9302 A/D converter is standard on all TS-7300 boards. The Cirrus EP9302 features a 5 channel, 12-bit Analog to Digital Converter with an analog multiplexer, with an input range of 0 to 3.3 V.

The TS-7300 uses 4 of the 5 EP9302 A/D channels for on-board measurements, therefore only the ADC4 channel is available for the user on the DIO1 header.

TS-7300 MANUAL

CONNECTORS AND HEADERS

5 CONNECTORS AND HEADERS

5.1 10/100 Base-T Ethernet Connector

The EP9302 Ethernet LAN controller incorporates all the logic needed to interface directly to any MII compatible Ethernet PHY chip. A low-power Micrel KS8721 chip is used to implement the Ethernet PHY function and an integrated RJ-45 connector with built-in 10/100 transformer and LED indicators completes the Ethernet sub-system.

The TS-7300 has both a LINK/ACTIVITY LED and a 10/100 speed LED built into each RJ45 connector that indicates the current Ethernet status. The LINK LED (left side of connector, green) is active when a valid Ethernet link is detected. This LED should be ON whenever the TS-7300 is powered and properly connected to a 10/100BaseT Ethernet network. The LINK/ACTIVITY LED will blink to indicate network activity for either inbound or outbound data. The SPEED LED (right side of connector, amber) will be on when a 100Mb network is detected and off for a 10Mb network. Both of these LEDs are controlled by the KS8721 and do not require any overhead by the processor.

The Ethernet PHY chip can be powered down, under software control, to save approximately 90 mA of current consumption. This is controlled by the EP9302 Digital output on Port H, bit 2. A logic zero will power down the KS8721 PHY interface.

Note

TS-Kernel provides all the software support to use the EP9302 10/100 Ethernet core. For more details, find the TCP/IP configuration instructions on the Linux documentation.

5.2 Second 10/100 Base-T Ethernet Connector

The default TS-BITSTREAM core for the TS-7300 on-board FPGA implements an adaptation of the OpenMAC core from OpenCores.org. This makes available a second 10/100 base-t ethernet port on the TS-7300. As the default EP9302 ethernet LAN controller, a low-power Micrel KS8721 chip is used to implement the Ethernet PHY function and an integrated RJ-45 connector with built-in 10/100 transformer and LED indicators completes the Ethernet sub-system.

The second ethernet is about 15%-20% slower than the default high-speed MAC core inside the EP9302 system-on-chip. The physical memory location of the OpenMAC core is 0x7210_0000. The following is a basic memory map for the OpenMAC, which uses 32-bit registers:

Table: OpenMAC Memory Map

I/O Address Length Description

0x7210_0000 0x2000 RAM for Ethernet Packets 0x7210_2000 0x400 OpenMAC core 32-bit registers 0x7210_2400 0x400 Ethernet Buffer Descriptors memory

Note

The TS-Kernel provides all the software support to use the OpenMAC 10/100 Ethernet core. The driver is named open_eth. For further information on the OpenMAC core such as the registers description, find the specific documentation at www.opencores.org website.

TS-7300 MANUAL

CONNECTORS AND HEADERS

5.3 Video Out Connector

A standard DB15 VGA connector is available on the TS-7300 for video interface. The video hardware core, named TS-VIDCORE, stored on the FPGA is a proprietary Technologic Systems implementation totally optimized for high-performance along with the TS-7300 hardware. TS-VIDCORE features include:

✔ 16-bit color, 640X480 resolution, 800x600 available

✔ 8MB dedicated video memory running @ 95Mhz

✔ Simple and fast video accelerator

The TS-VIDCORE included on the TS-7300 FPGA is a unique video core specifically designed in-tandem with the Linux framebuffer driver. Hardware accelerations were implemented and designed to mesh well with the capabilities of the Linux 2.4 frame buffer device driver API. The FPGA has dedicated video memory which allows CPU throughput and real-time response to remain fast and predictable, a clear advantage over devices which share system memory.

The physical address of the framebuffer SDRAM memory is 0x7220_0000. The five specific 16-bit registers for the TS-VIDCORE framebuffer are located at physical address

0x7200_0030.

Table: 16-bit register map for TS-VIDCORE control

I/O Addr Description Data Bits and such

BASE + 0 BLTCTRL: Bit blit

control register - R/W

Bits 15-13: upper 3 bits of box pixel width Bit 12: bit blit source mode (0 – rectangle, 1 – linear) Bits 11-6: upper 6 bits of destination address of bit

blit operation Bits 5-0: upper 6 bits of start address of bit blit operation

BASE + 2 BLTSZ: Bit blit width

height register – R/W

Bits 15-9: box pixel width (lower 7 bits) Bits 8-0: box pixel height (0-512)

BASE + 4 SRCBLT: Bit blit

source - R/W

Bits 16-0: lower 16 bits of source address or pixel fill color

BASE + 6 DSTBLT: Bit blit

destination - R/W

Bits 16-0: lower 16 bits of destination address

BASE + 8 VIDCTRL: Video

control register - R/W

Bit 11: raster page committed Bit 10: bit blit operation in progress Bit 9: horizontal sync enabled Bit 8: vertical sync enabled Bit 7: bit blit direction

0 – top to bottom: SRCBLT and DSTBLT are

topleft corner addr 1 – bottom to top: SRCBLT and DSTBLT are bottomleft corner addr Bit 6: pixel fill enable (SRCBLT is pixel color instead of addr)

Bits 5-3: raster page select (0-7) Bits 2-0: bus page select (0-7)

Note

Technologic Systems provides Linux drivers, pre-compiled graphical libraries and demo applications for the TS-VIDCORE video interface with framebuffer. Also, an USB keyboard and an USB mouse can be used with the video interface to come up a Linux console/terminal on the TS-7300 by default. Refer to the Linux for TSARM User's Guide or contact us for further information.

TS-7300 MANUAL

CONNECTORS AND HEADERS

5.4 USB Connector

The USB Connector on the TS-7300 provide two USB interfaces for the user. These are directly connected to the EP9302 processor, which integrates an USB dual-port Open Host Controller Interface (Open HCI), providing full-speed serial communications ports at a baud rate of 12 Mbits/sec. Up to 127 USB devices (printer, mouse, camera, keyboard, etc.) and USB hubs can be connected to the USB host in the USB “tiered-star” topology. This includes the following features:

✔ USB 2.0 compatible

✔ Open HCI Rev 1.0 compliant

✔ USB device connections support at both low-speed (1.5 Mbps) and full-speed (12

Mbps)

✔ Root HUB integrated with 2 downstream USB ports

✔ Transceiver buffers integrated, over-current protection on ports

✔ Supports power management

✔ Operates as a master on the bus

Note

TS-Kernel implements all the necessary driver support to enable the USB OHCI. Also, a wide variety of USB drivers for devices such as mouse, keyboard and flash memory are available. Refer to the Linux for TS-ARM User's Guide or contact us for further information on how to integrate an USB device and an USB Linux driver with your TS-7300.

5.5 SD Card Connector – CPLD

The SD Card socket (ALPS connector) at the back side of the TS-7300 enables SD Cards to be plugged to the SBC. The hardware core implemented by Technologic Systems is integrated inside the on-board CPLD. Technologic Systems has written a binary Linux driver module and a set of generic, OS-independent read/write routines for accessing the SD flash inside of an ARM object (.o) file. The format of the SD card must be in EXT2 format for proper operation with Linux as a root file system.

5.6 SD Card Connector – FPGA

There is an second SD Card socket (ALPS connector) on the TS-7300. This is not bootable and can be used as additional storage memory or for backup applications such as RAID functions.

The hardware core that controls the operation of the second SD card is integrated on the FPGA, therefore it will be only available if the appropriate FPGA core bitstream is loaded. The default TS-BITSTREAM for TS-7300 includes support for the second SD Card. In addition, Technologic Systems provides Linux drivers which enable reading and writing operations.

The SD Card core on the FPGA is located at physical address is 0x7200_0020.

TS-7300 MANUAL

CONNECTORS AND HEADERS

5.7 COM1 Connector

The COM1 RS-232 port uses a DB-9 male connector on the TS-7300.

Table: COM1 DB9 Pin-Outs

DB9 Pin Signal Description

1 DCD Data Carrier Detect 2 RXD Receive Data 3 TXD Transmit Data 4 DTR Data Terminal Ready 5 GND Ground 6 DSR Data Set Ready 7 RTS Request to Send 8 CTS Clear to Send 9 -- --

The base address of COM1 appears in the physical address space at 0x808C_0000. Technologic Systems provides software drivers to access this port. This full complement of RS-232 signals (all except Ring Detect) allows COM1 to interface to almost any serial RS-232 device.

5.8 COM2 Header

The base address of COM2 appears in the physical address space at 0x808D_0000. Technologic Systems provides software drivers to access this port. COM2 has RS-232 support only for the TXD and RXD signals. This is sufficient to interface with serial devices that only require transmit and receive data lines. COM2 is accessible on a 10-pin header labeled COM2.

Table: TS-7300 COM2 Serial Port Header Pin Out

TX- NC NC RX- NC

6 7 8 9 10 1 2 3 4 5

TX+ RXD TXD RX+ GND

Note

The COM2 serial port header uses a non-standard numbering scheme. This was done so the header pins would have the same numbering as the corresponding DB-9 pin; i.e. pin 3 (TXD) on the header connects to pin 3 on the DB-9.

TS-7300 MANUAL

CONNECTORS AND HEADERS

Table: COM2 Serial Port Pin Configuration of Connectors

COM2

Header

DB9

Connector

RS-232 Half Duplex

RS-485

Full Duplex

RS-485

1 1 TX+ / RX+ TX+ 2 2 RXD 3 3 TXD 4 7 RX+ 5 5 GND GND GND 6 6 TX- / RX- TX- 7 7 8 8 9 9 RX-

10 - - - -

Adapter cables are available to convert COM2 to a standard 9-pin SubD male connector. In addition, COM2 has optional support for full or half-duplex RS-485

Note

The COM2 serial port 10-pin header has both RS-232 and RS-485 signals. Only one set may be used for a given application – it is not possible to use both at the same time.

Optional RS-485 Support

The COM2 Port supports RS-485 half duplex or full duplex operation. RS-485 drivers allow communications between multiple nodes up to 4000 feet (1200 meters) via twisted pair cable. Half-duplex RS-485 requires one twisted pair plus a Ground connection, while full duplex requires two twisted pair plus a Ground. For half-duplex operation, a single twisted pair is used for transmitting and receiving.

The ioctl Linux system call is used to initialize the automatic RS-485 control logic. For fullduplex operation, two twisted pairs are used and the transmit driver is typically enabled all the time. Fail-safe bias resistors are used to bias the TX+, TX- and RX+, RX- lines to the correct state when these lines are not being actively driven. In a typical RS-485 installation, the RS-485 drivers are frequently “tri-stated.” If fail-safe bias resistors are not present, the RS-485 bus may “float” and small amounts of noise can cause spurious characters at the receivers. 4.7K Ohm resistors are used to pull the TX+ and RX+ signals to 5V and also to bias the TX- and RX- signals to ground.

Termination resistors in many installations are not required when cable lengths are less than 50 meters and the baud rate is 9600 or less. Termination resistors may be required for reliable operation when running longer distances or at higher baud rates. Termination resistors (typically 100-150 ohms) should only be installed at each end of an RS-485 transmission line. In a multi-drop application where there are several drivers and/or receivers attached, only the devices at each end of the transmission line pair should have termination resistors.

A read at I/O location 0x2240_0000 bit 1 will return a "1" when the RS-485 option is installed.

Note

A special ioctl command has been added to the TS-Kernel's serial code to turn off and on the automatic RS-485 feature. Refer to the Linux for TS-ARM User's Guide for additional software information on RS-485 support.

TS-7300 MANUAL

CONNECTORS AND HEADERS

RS-485 Quick-Start Procedure

Perform the following steps:

5. Check that the RS-485 option is installed in the TS-7300 (required).

6. Attach the RS-485 cable to the 10-pin header. (Adapter cables to SubDB9 connector are available from Technologic Systems).

7. Set the COM2 UART serial parameters (baud rate, data, parity, and stop bits, interrupts, etc) in your source code.

8. Use the TIOC_SBC's485 ioctl() to enable the automatic RS-485 feature.

9. Simply read() and write() data to the COM2 UART – the automatic RS-485 logic controls TX enable.

Automatic RS-485 TX Enable

The TS-7300 supports fully automatic TX enable control under hardware control. This simplifies the design of half-duplex systems since turning off the transmitter and enabling the receiver in software is typically difficult to implement. If this is implemented in software, then the COM2 UART transmit holding register and the transmit shift register both must be polled until empty before deasserting the TX enable signal to the RS-485 driver. The design gets more complicated when using the TX FIFO or when using a multi-tasking OS such as Linux.

The implementation on the TS-7300 uses hardware to automatically control when the RS485 drivers and receivers are selected. The automatic RS-485 logic eliminates the need for any software polling and supervision. This circuit automatically turns on/off the RS-485 transceiver and receiver at the correct times. This only requires the COM2 Mode registers to be initialized once based on baud rate and data format.

Table: COM2 Mode Register

Value MSB MID LSB Mode

0x00 0 0 0 RS-232 0x01 0 0 1 Full-Duplex RS-485 0x02 0 1 0 -- Reserved 0x03 0 1 1 -- Reserved 0x04 1 0 0 Half-Duplex 9600 baud 0x05 1 0 1 Half-Duplex 19.2Kbaud 0x06 1 1 0 Half-Duplex 57.6Kbaud 0x07 1 1 1 Half-Duplex 115.2Kbaud

COM2 will default to RS-232 mode at reset (COM2 mode register = Hex 00). In order to switch COM2 into Full duplex RS-485 mode, the COM2 Mode register at 0x22C0_0000 must be set to Hex 01. In this mode, the TX drivers are always asserted.

In order to switch COM2 into half-duplex RS-485, then the COM2 mode register at 0x22C0_0000 must be set to Hex 04, 05, 06 or 07 depending upon the baud rate required. A second COM2 Mode register at 0x2300_0000 must be set to Hex 01 if the COM2 is in half-duplex mode and the data format is using 8 data bits with parity or 8 data bits with 2 stop bits.

Note

COM2 in half-duplex RS-485 supports baud rates of 9600, 19.2K, 57.6K and

115.2K. If you need to operate at any other baud rate, then please contact Technologic Systems

TS-7300 MANUAL

CONNECTORS AND HEADERS

5.9 COM3-COM4-COM5-COM6 Headers

The TS-7300 has four 10-pin headers named COM3, COM4, COM5 and COM6. These enable the four COM ports which are integrated on the FPGA. The FPGA must be loaded with the TS-BITSTREAM provided by default. These 4 FPGA COM ports support TXD, RXD, GND and the handshake lines RTS and CTS.

Table: TS-7300 COM3-4-5-6 Header Pin Out

NC RTS CTS NC NC

6 7 8 9 10 1 2 3 4 5

NC RXD TXD NC GND

By changing a specific register, the RTS signal will change into TXD2 and the CTS signal will change to RXD2. Therefore, each COM port in the FPGA can become 2 ports, totalizing 8 COM interfaces with none RTS and CTS handshake lines. Each COM port can be switched independently for maximum flexibility. This allows 6, 7, 8, 9, or 10 COM ports total on the TS-7300 , all controlled via software.

The physical base address for the COM ports on the FPGA is 0x7200_0000. Each COM port is controlled by two 16-bit registers, therefore 32 bytes of memory is used for the eight COM ports.

Table: FPGA COM ports addresses on TS-7300

COM port I/O Addr COM port I/O Addr

COM3 BASE + 00 COM7 BASE + 10 COM4 BASE + 04 COM8 BASE + 14 COM5 BASE + 08 COM9 BASE + 18 COM6 BASE + 0C COM10 BASE + 1C

All the FPGA COM ports can operate in both 8-bit mode or 9-bit mode. Technologic Systems provides 8-bit mode and 9-bit mode RS-232 driver, named “tsuart73”, for all the FPGA COM ports. Refer to the Linux for TS-ARM User's Guide for more information on Linux driver support.

5.10 DIO1 Header

The DIO1 Header provides +3.3V, GND, and 9 digital I/O lines that may be used to interface the TS-7300 with a wide range of external devices. DIO lines DIO_0 thru DIO_7 are a byte-wide port using Port B on the EP9302 and are accessed via the data register at address location 0x8084_0004. The DDR for this port is at address location

0x8084_0014.

TS-7300 MANUAL

CONNECTORS AND HEADERS

Table: DIO1 Header Pin Configuration

DIO1 Pin Default Signal TS-7300

1 DIO_0 2 GND 3 DIO_1 4 Port_C0 EXT_RESET 5 DIO_2 DIO_8 6 SPI_Frame 7 DIO_3 8 DIO_8 ADC4

9 DIO_4 10 SPI_MISO 11 DIO_5 12 SPI_MOSI 13 DIO_6 14 SPI_CLK 15 DIO_7 16 +3.3 V

DIO_8 is accessed via bit 1 of Port F in the EP9302. The Port F data register is at address location 0x8084_0030. The DDR address for this port is location 0x8084_0034.

The Pin 4 of the DIO1 Header, in the default configuration, is accessed via bit 0 of Port C in the EP9302. The address location 0x8084_0008 is Port C Data Register and 0x8084_0018 is Port C Directon Register.

When accessing these registers, it is important not to change the other bit positions in these Port F registers. Other DIO1 Port functionality, used for dedicated TS-7300 functions, utilize these same control registers. All accesses to these registers should use read-modify-write cycles.

Warning

All pins on the DIO header use 0-3.3V logic levels. Do not drive these lines to 5V.

When the DIO pins are configured as outputs, they can “source” 4 mA or “sink” 8 mA and have logic swings between GND and 3.3V. When configured as inputs, they have standard TTL level thresholds and must not be driven below 0 Volts or above 3.3 Volts. DIO lines DIO_0 thru DIO_3 have 4.7K Ohm “pull-up” resistors to 3.3V biasing these signals to a logic”1”. The other DIO pins have 100K Ohm bias resistors biasing these inputs to a logic “1”.

Note

On the TS-7300 some of the pins on the DIO1 header (Pin 1/DIO_0, Pin 3/DIO_1, Pin 7/DIO_3, Pin 9/DIO_4) are used for DMA operations during bootup by the SD card driver and therefore they will be driven as outputs. In order to use these pins as GPIO pins DMA will need to be disabled programming the following registers:

*(sysconbase + 0xC0) = 0xAA; //SFTWR_LCK register *(sysconbase + 0x80) = 0x08140d00; //DEVICE_CFG register

Refer to the EP9301 User's Guide for further information on SYSCON registers.

TS-7300 MANUAL

CONNECTORS AND HEADERS

SPI Interface

The EP9302 Synchronous Serial Port is available on the DIO1 header. This port can implement either a master or slave interface to peripheral devices that have either Motorola SPI, or National Semiconductor Microwire serial interfaces.

The transmit and receive data paths are buffered with internal FIFO memories allowing up to eight 16-bit values to be stored for both transmit and receive modes. The clock rate is programmable up to 3.7 MHz and has programmable phase and polarity. The data frame size is programmable from 4 to 16 bits.

By using some of the DIO1 Header pins as peripheral Chip Select signals, a complete interface is available for addressing up to 9 SPI peripherals. The SPI bus pins are defined in the table below:

Table: DIO1 Header Pin-Outs for SPI

DIO1 Pin Name Function

10 SPI_MISO Master In/Slave Out 12 SPI_MOSI Master Out/Slave In 14 SPI_CLK Clock

6 SPI_Frame SPI Frame pin

A fourth SPI bus function [SPI_Frame] is available by adding a 10 ohm resistor in the position labeled R1 on TS-7300. This signal is not required for many SPI peripherals but it may prove useful in some applications.

Warning

The SPI bus pins use 0-3.3V logic levels. Do not drive these lines to 5V.

Refer to the EP9301 User's Guide and see Chapter 19 for more details on using SPI bus.

Matrix Keypad

DIO signals DIO_0 thru DIO_7 are physically arranged to allow a 16-pin (2x8) ribbon cable to directly connect a 4x4 matrix keypad. Sample code is available for the Matrix Keypad. Contact Technologic Systems for further information.

A/D Converter - Cirrus EP9302

The Cirrus EP9302 features a 5 channel, 12-bit Analog to Digital Converter with an analog multiplexer, having an input range of 0 to 3.3 V. The Cirrus A/D converter can do a maximum of 925 samples per second, and requires a settling time of 2 milliseconds between channel switches.

On the TS-7300, the DIO Port pin 8 is connected to one of the EP9302 12-bit A/D converter inputs (ADC4). The A/D lines on the DIO1 header can be used to measure analog signals in the range of 0 to 3.3V.

Table: ADC Switch Values (EP9302)

Input to Measure ADC Switch Value

ADC4 0x0000_0610

To maintain 12-bit accuracy, the analog signal being measured must have a low source impedance (less than 10 ohms). Otherwise, an operational amplifier may need to be added to buffer the A/D input. For detailed information, please see the Cirrus EP9301

User's Guide, page 518.

TS-7300 MANUAL

CONNECTORS AND HEADERS

The following steps outline the software execution to use the Cirrus A/D converter:

1. Unlock the software lock before setting the TSEN bit in the ADCClk register by writing 0xAA to the ADCSWLock register (0x8090_00C0). “OR” in the TSEN bit (bit 31) to the ADCClkDiv register (0x8093_0090)

2. Unlock the software lock (again) before OR'ing in the ADCEN (ADC clock enable, bit

31) to 0x8093_0080

3. Clear bit 2, the ADCPD (ADC Power Down) bit, at 0x8093_0080. This bit MUST be set to 0 (see page 91 of the EP9301 User's Guide)

4. After unlocking the software lock, write the channel's magic value (see Cirrus EP9301 User's Guide, table 20-2) to the ADCSwitch register (0x8090_0018) to select that channel for the next data acquisition

5. Poll the ADCResult register (0x8090_0008) until bit 31 is not set

6. Using a 32 bit read operation, read the result from 0x8090_0008, masking off the upper 16 bits

Interpreting Cirrus A/D Converter

The Cirrus on-chip A/D converter is a successive approximation A/D converter. Each A/D channel is calibrated on the TS-7300 and these 16-bit values are stored in non-volatile EEPROM. These calibration values minimize the offset errors and gain errors in the EP9302 A/D. It is important for the user program to use these values as per our sample code, which can be found either on our website or in the CD included in the Developer's Kit. Two reference points, 0 and 2.5 Volts, with the corresponding reference values stored in EEPROM. Bytes 0x07EB through 0x07FE of the EEPROM hold a two dimensional array:

[channel number][0V ref. point, 2.5V ref. Point]

The reference points are stored as a 16 bit value, and should be used to correlate the values returned by the Cirrus A/D converter to voltage.

5.11 DIO2 Header

The TS-7300 provides up to 35 DIO lines connected straight to the FPGA through the FPGA DIO header. The FPGA DIO is a 40-pin header divided in 2 sub-headers of 20 pins each. The first header is unamed on the board, while the second is called DIO2. The 40 total FPGA DIO lines can also be used as a FPGA connected expansion bus instead of the CPU connected regular PC104 expansion bus.

The default TS-BITSTREAM provided with TS-7300 enables hardware functionality for VGA video. This default bitstream maps the VGA video signals to the first 20-pin FPGA DIO header (unamed one). The 17 total video signals can be changed to XDIO lines if the video is disabled on the FPGA bitstream. The following is the numbering scheme for this header:

Table: FPGA DIO Pin-out (first header)

GND RED0 RED1 RED2 RED3 RED4 HSYN VSYN OEV +5V

2 4 6 8 10 12 14 16 18 20 1 3 5 7 9 11 13 15 17 19

BLU0 BLU1 BLU2 BLU3 BLU4 GRN0 GRN1 GRN2 GRN3 GRN4

Pin #20 of this header is fused +5V (polyfuse), and pin #2 is ground. Pin #18 can be externally driven high to disable DB15 VGA connector DACs.

TS-7300 MANUAL

CONNECTORS AND HEADERS

In the same way, the default TS-BITSTREAM maps the 18 total XDIO signals to the second 20-pin FPGA DIO header, named DIO2 on the board:

Table: FPGA DIO Pin-out (second header - DIO2)

GND

XD2_2 DIO10

XD2_3

DIO11

XD2_4

DIO12

XD2_5

DIO13

XD2_6

DIO14

XD2_7

DIO15

RX_LD

DIO16

TX_LD

DIO17 +3.3V

2 4 6 8 10 12 14 16 18 20 1 3 5 7 9 11 13 15 17 19

DIO0

XD1_0

DIO1

XD1_1

DIO2

XD1_2

DIO3

XD1_3

DIO4

XD1_4

DIO5

XD1_5

DIO6

XD1_6

DIO7

XD1_7

DIO8

XD2_0

DIO9

XD2_1

Pin #20 of the DIO2 header is regulated 3.3V, and pin #2 is ground. Pin #16 and #18 also go to the red and green LEDs (active low). Pin #19 is a dedicated clock input and cannot be programmed for output

The on-board FPGA can be loaded with any user bitstream. This enables the 40-pin header to be used for any specific function. To check how the 35 total DIO pins are connected from the header to the FPGA, refer to the TS-7300 schematic provided by Technologic Systems.

Warning

DO NOT DRIVE THE FPGA DIO SIGNALS OVER 3.3V. The DIO lines of the 40-pin header are connected straight into the FPGA pads unbuffered. Make sure to use signal conditioning or any other protection technique required by your FPGA design.

TS-XDIO

The following is a description of the TS-XDIO port on the TS-7300. This core is designed to implement common controller tasks that are difficult, costly (CPU intensive), or impossible to accomplish in software with regular DIO / GPIO hardware and the facilities of the 200Mhz ARM processor.

The default TS-BITSTREAM for the TS-7300 FPGA implements two XDIO ports which appear at physical locations 0x72000040- 0x72000043 and 0x72000044-0x72000047. The first XDIO core uses signals DIO0 to DIO7 on the FPGA DIO2 header, while the second XDIO core uses signals DIO8 to DIO15. DIO16 and DIO17 signals are used for Rx and Tx LEDs. The 2 available clock sources are the 75Mhz-13ns fast clock and the

37.5Khz-26667ns slow clock (as opposed to 14.7456Mhz and 32.768Khz on the TS-7260)

The IRQ connected is ARM IRQ 40 (ISA IRQ 7). TS-XDIO port features includes:

✔ 8-pins, individually programmable as schmitt-trigger inputs, outputs, or special

functions (3.3V levels)

✔ glitch-detector (all pins) to catch edges/pulses as short as one fast clock period without

continuous software polling

✔ edge-counter/frequency meter (pin 7) max incoming clock period of one-half the core

clock frequency

✔ quadrature counter (pins 6,7) with max increment / decrement rate of one-half the

maximum edge-counter frequency

✔ Pin 5 can optionally be used as an index pulse for reseting the edge counter or

quadrature counter to 0

✔ PWM (pulse width modulation) output on pin 4 with period between two fast clock

periods and 8190 slow clock periods, with 0.02% duty cycle precision

✔ One-shot programmable high or low output pulse (pin 5) of duration between one fast

clock period and 4095 slow clock periods

TS-7300 MANUAL

CONNECTORS AND HEADERS

✔ pulse / period timer (any pin) can measure high/low pulse time or full period lengths at

fast clock period resolution

The TS-XDIO functionality can be controlled through 4 control/status registers that appear at physical memory. The register 0 is used to set the XDIO mode and general configuration:

Table: TS-XDIO Register #0

Bits Function Binary Values and Description

Bits 7-6 MODE

(selects what registers 1-3 are)

00 - pin direction, data register, IRQ/DRQ control 01 - edge / quadrature counter and glitch monitor 10 - input pulse timer and pin select 11 - PWM / pulse high / low-time set

Bits 5-4 Pulse timer mode

and polarity

00 - negedge to posedge (low pulse time) 01 - posedge to negedge (high pulse time) 10 - negedge to negedge (period time)

11 - posedge to posedge (period time) Bit 3 pulse timer reset (W) or waiting for trailing edge (R) Bit 2 Quadrature/Edge quadrature enable / edge counter disable Bit 1 PWM PWM enable / pulse start Bit 0 Clock select clock select (0 – fast clock, 1 – slow clock)

Registers 1-3 are dependent upon the mode set on Bits 7-6 of Register 0. The table below describes the remaining XDIO registers:

Table: TS-XDIO Registers 1-3 with MODE 0

Reg #1 DIO direction register (1 output, 0

input)

Reg #2 DIO data register Reg #3 bit 0 irq/drq on quadrature change direction

bit 1 irq/drq on quadrature / edge overflow /

underflow

bit 2 irq/drq on pin glitch (pins 0-3) bit 3 irq/drq on pin glitch (pins 4-7) bit 4 irq/drq on pulse timer trailing edge bit 5 irq/drq on quadrature / edge counter

index pulse (if enabled)

bit 6 reserved (may be used in customer

specific TS-XDIO cores)

bit 7 drq select (1 drq, 0 irq)

Table: TS-XDIO Registers 1-3 with MODE 1

Reg #1 Glitch monitor, read or write

resets all to 0

bit 7 enable index pulse on pin 5 bits 6-0 1 - glitch detected on pin

0 - inactive since last read

Reg #2 bits 7-0 bits 7-0 of edge / quadrature

counter

Reg #3 bits 7-0 bits 15-8 of edge / quadrature

counter

TS-7300 MANUAL

CONNECTORS AND HEADERS

Table: TS-XDIO Registers 1-3 with MODE 2

Reg #1 Pin select / timer

bit 7 pulse time accumulate - keeps on

running adding pulse times

bits 6-4 input pin number (0-7)

bits 3-0 bits 19-16 of pulse timer Reg #2 bits 7-0 bits 7-0 of pulse timer Reg #3 bits 7-0 bits 15-8 of pulse timer

Table: TS-XDIO Registers 1-3 with MODE 3

Reg #1 bits 7-4 bits 11-8 of high time

bits 3-0 bits 11-8 of low time Reg #2 bits 7-0 bits 7-0 of high time Reg #3 bits 7-0 bits 7-0 of low time, one-shot

mode enabled if all zeros

TS-XDIO Programming Considerations

✔ If quadrature index pulse is enabled, counter is reset on positive edge of index pulse if

DIO Data Register, bit 5 is set to 0, negative edge if set to 1.

✔ Pulse width modulation (PWM) time is 2 + high / low time clock periods of 14.7456 MHz

or 32 KHz.

✔ If using Pulse Width Modulation (PWM) in “One shot” mode (single pulse), Type is high

pulse (low-high-low) if DIO Data Register, bit 4 is set to 0, low pulse (high-low-high) if set to 1.

✔ One could use the 20-bit Pulse Timer as a free-running timer by setting the Accumulate

bit and setting pin select to PWM output (pin 5). 14.7456 MHz counter can be enabled by “watching periods,” slower free-running counters can be had by clever use of hightime and low-time PWM and accumulating pulse times. (e.g. high-time 1, low-time 224 creates a 65.536Khz free-running timer that overflows once every 16 seconds).

✔ Edge counter counts both edges of a waveform; divide by 2 for number of periods /

frequency. To count X edges and then interrupt, pre-load counter value with 2^16 - X and enable IRQ on overflow.

✔ Max/min quadrature can be counted by enabling IRQ / DRQ on quadrature change of

direction. Max / Min is value +/- 1 as long as IRQ / DRQ latency is less than 1 quadrature cycle time.

✔ The XDIO Core does not reset -- registers and state remain if board undergoes a reset.

✔ Upon power-up, DIO Data Direction Register is all 0's (inputs), but other register

contents are undefined

Note

Technologic Systems provides C API, source code and examples for TS-XDIO programming. Visit the TS-XDIO webpage for more details.

5.12 LCD Header

The LCD Port can be used to interface to a standard alphanumeric LCD display or as 11 additional digital I/O lines. The header has been arranged to allow a 14-pin ribbon cable to directly connect to industry standard LCD displays.

TS-7300 MANUAL

CONNECTORS AND HEADERS

Table: LCD Header Pin Configuration

GND Bias LCD_WR LCD_0 LCD_2 LCD_4 LCD_6

2 4 6 8 10 12 14 1 3 5 7 9 11 13

5V LCD_RS LCD_EN LCD_1 LCD_3 LCD_5 LCD_7

Technologic Systems has a 2x24 LCD display available with software drivers for rapid development.

DIO lines LCD_0 thru LCD_7 are a byte-wide port using Port A on the EP9302 and are accessed via the data register at physical address location 0x8084_0000. The DDR for this port is at 0x8084_0010. Because this port is interfacing to a 5V LCD, 1.0K Ohm resistors have been added in series between the EP9302 and the LCD_0 thru LCD_7 pins. This is required since the LCD data bus could be driving these lines above 3.3V. The series resistors prevent the LCD from overdriving the EP9302 Port A pins.

Note

On the TS-7300 only, the LCD_7 (eight data bit) is accessed on bit 0 of Port C (address location 0x8084_0008 is Port C Data Register and 0x8084_0018 is Port C Directon Register).

If using these pins for general purpose DIO, the current sourcing and sinking capability of these DIO pins is limited by the 1.0K Ohm resistors.

LCD_EN, LCD_RS, and LCD_WR are DIO pins using EP9302 Port H bits 3 through 5 respectively and are accessed via the data register at physical address location 0x8084_0040. The DDR for this port is at 0x8084_0044. When these DIO pins are configured as outputs, they can source 4 mA or sink 8 mA and have logic swings between

3.3V and ground. When configured as inputs, they have standard TTL level thresholds and must not be driven below 0 Volts or above 3.3 Volts. These DIO pins have 100K Ohm bias resistors biasing these inputs to a logic “1”. It is important not to change the other bit positions in these Port H registers since the other DIO pins are being used on the TS-

7300. All accesses to these registers should use read-modify-write cycles.

Pin 4 on this header (labeled Bias) is a 620 Ohm resistor to ground for LCD contrast biasing. The 5V power on the LCD header has a 750 mA Poly-Fuse to limit the current.

Warning

LCD pins 3, 5, and 6 use 0-3.3V logic levels. Do not drive these lines to 5V.

LCD Interface

A 14-pin LCD connector is provided for interfacing with standard alphanumeric LCD displays. These displays use a common controller, the Hitachi HD44780 or equivalent. While software written for the HD44780 works with all displays using the controller, the cable needed is dependent on the display used.

For most displays, a straight-through type ribbon cable can be used. The connector on the LCD display is typically mounted on the backside of the display.

TS-7300 MANUAL

CONNECTORS AND HEADERS

Table: LCD Header Signals

PIN Function Comments

1 LCD 5V LCD Power 2 LCD_GND 3 LCD_RS Register select 4 Bias 620 Ohm to GND 5 LCD_EN Active high enable 6 LCD_WR# Active low write 7 LCD_D1 8 LCD_D0

9 LCD_D3 10 LCD_D2 11 LCD_D5 12 LCD_D4 13 LCD_D7 14 LCD_D6

D0 - D7: Buffered bi-directional data bus

Note that the pin-outs in the above table are not the standard given for LCD displays. However, these pin-outs allow a standard ribbon cable to be used when the ribbon cable is attached to the backside of the LCD.

Warning

Using an incorrect cable or mounting the LCD connector on the front-side can result in a reverse power polarity and can damage the LCD display. Please refer to your LCD data sheets for in-depth information.

Sample code is available for the LCD. Contact Technologic Systems for more information.

5.13 JTAG Header

The JTAG header can be used to program the on-board CPLD using special software and hardware support tools. However, it is not available for application debug purposes since it has no connection to the EP9302 JTAG interface. The following table shows which pins of the JTAG header are used for the JTAG interface signals:

Table: JTAG signals at JTAG Header

PIN Signal Description

9 TCK Test Clock 11 TDI Test Data In 13 TMS Test Mode Select 14 TDO Test Data Out

1, 3, 5 3.3 VCC Power Supply 10, 12 GND Ground

The JTAG header is also utilized for jumper configuration. See the Jumpers section of this manual for more details.

Technologic Systems has made the design choice to save on board real-estate and not bring out the JTAG header. If you need access to the JTAG pins, a skilled technician can solder wires to the pins.

TS-7300 MANUAL

CONNECTORS AND HEADERS

5.14 Power Supply Header

The TS-7300 requires regulated 5VDC at 450 mA @ 200 MHz(maximum). It is possible to lower this power significantly by lowering the CPU clock rate or by powering-down the Ethernet PHY chip. For example, by shutting down the Ethernet PHY chip and scaling down the CPU clock rate to 20 MHz, one can obtain power consumptions less than 150 mA. If you really need a low-power board, consider the TS-7260, which is optimized for low power applications.

A quick release screw-down terminal block for the 5V power and power GND connections is provided for easy connection to an external power supply.

Warning

Supply voltages over 6 VDC may damage the TS-7300.

Be sure to use a regulated 5 VDC power supply, preferably with current limiting to 1 to 3 Amps. A current limited supply is very forgiving of common errors during development. A PC power supply that may be capable of supplying 20 Amps or more is not recommended. It is possible to do irreversible damage to the TS-7300 if the polarity on the power leads is reversed.

TS-7300 MANUAL

PC/104 BUS EXPANSION

6 PC/104 BUS EXPANSION

The PC/104 is a compact implementation of the PC/AT ISA bus ideal for embedded applications. Designers benefit from an established industry standard bus that already has well-developed documentation and many compatible peripherals available in the market place. The presence of a compact form-factor PC compatible standard has encouraged the development of a broad array of off-the-shelf products, allowing a very quick time to market for new products.

The electrical specification for the PC/104 expansion bus is identical to the PC ISA bus. The mechanical specification allows for the very compact implementation of the ISA bus tailor made for embedded systems. The full PC/104 specification is available from the IEEE Standards Office, No. IEEE P996.1.

This bus allows multiple peripheral boards to be added in a self-stacking bus. Since the electrical specs are identical (except for drive levels) to a standard PC ISA bus, standard peripherals such as COM ports, Digital I/O, Ethernet ports, and LCD drivers may be easily added.

Note

The TS-7300 implements a sub-set of the full PC/104 bus. This allows the support of many common I/O peripheral boards. Some of the PC/104 signals are not supported; for example, the DMA signals. These pins are used on the TS-7300 to support data lines D8- D15. This means that a full 16-bit data bus implementation of the PC/104 bus is possible by only using the 64-pin connector. The supplemental 40-pin connector is not an available option for the TS-7300 – any new design can implement a full 16-bit data bus with only the 64-pin connector.

PC/104 peripherals will appear in the TS-7300's physical address space in one of four address regions depending upon whether it is emulating an x86 Memory cycle or I/O cycle and whether it needs to be a 8-bit cycle or a 16-bit cycle. Each region is a full 1MB in size, even though the I/O region will typically only use a 1 Kbyte region for legacy products.

Table: PC/104 Memory Map

Physical Address Region Emulates x86 cycle

11E0_0000 thru 11E0_03FF 8-bit I/O cycles 21E0_0000 thru 21E0_03FE 16-bit I/O cycles 11A0_0000 thru 11AF_FFFF 8-bit Memory cycles 21A0_0000 thru 21AF_FFFE 16-bit Memory cycles

I/O cycles on the PC/104 expansion bus strobe either IOR# or IOW#, while Memory cycles strobe the MEMR# or MEMW# signals. For example, a TS-SER1 peripheral board can be jumper-selected as COM3, which would correspond to a PC I/O base address of 0x3E8. Since this is an 8-bit peripheral, this COM port must be accessed at the physical base address of 0x11E0_03E8.

TS-7300 MANUAL

PC/104 BUS EXPANSION

Table: Signals on the 8-Bit Bus

Pin Signal Pin Signal

A1 BHE#* B1 GND A2 Data 7 B2 RESET A3 Data 6 B3 +5 V A4 Data 5 B4 Data 8* A5 Data 4 B5 Reserved A6 Data 3 B6 RTC_CS* A7 Data 2 B7 Reserved A8 Data 1 B8 RTC_ALE*

A9 Data 0 B9 Reserved A10 IOCHRDY B10 GND A11 Address 20* B11 MEMW# A12 Address 19 B12 MEMR# A13 Address 18 B13 IOW# A14 Address 17 B14 IOR# A15 Address 16 B15 Reserved A16 Address 15 B16 Reserved A17 Address 14 B17 Data 9* A18 Address 13 B18 Data 10* A19 Address 12 B19 Address 21* A20 Address 11 B20 Data 12* A21 Address 10 B21 IRQ7 A22 Address 09 B22 IRQ6 A23 Address 08 B23 IRQ5 A24 Address 07 B24 GND* A25 Address 06 B25 Data 11* A26 Address 05 B26 Data 13* A27 Address 04 B27 Data 14* A28 Address 03 B28 Data 15* A29 Address 02 B29 + 5 V A30 Address 01 B30 Osc (14.3 MHz)) A31 Address 00 B31 GND A32 GND B32 GND

* These signals have a non-standard usage.

6.1 Adding Serial Ports

If your project requires more than the included TS-7300's serial ports, additional ports may be added via the PC/104 expansion bus. Technologic Systems offers three different

peripheral boards (TS-SER1, TS-SER2, and TS-SER4) that add 1, 2, or 4 extra COM

ports respectively. These can be configured using PC designations COM1, COM2, or higher.

These ports will appear in the PC/104 8-bit IO address space (0x11E0_0000 base address). For example, a TS-SER1 peripheral board can be jumper selected as COM4, which would correspond to a PC I/O base address of 0x2E8. On the TS-7300, this COM port will appear at the physical base address of 0x11E0_02E8. The PC/104 Expansion Bus has IRQ5, IRQ6, and IRQ7 available for additional serial port interrupts.

Typically each serial port has a dedicated interrupt, but the TS-SER4 peripheral board allows all four extra serial ports to share a single interrupt. This is very helpful in systems with a large number of serial ports since there are a limited number of IRQ lines available.

Drivers are available in the TS-Kernel to support these extra COM ports.

TS-7300 MANUAL

PC/104 BUS EXPANSION

6.2 Adding Ethernet Ports

Additional ethernet ports can be added to the TS-7300 using appropriate PC/104 hardware provided by Technologic Systems, allowing the implementation of hardware and software applications such as network firewalls, gateways or routers.

The TS-ETH10 is a 10Mb ethernet PC/104 card based on the CS8900 ethernet chip that is perfectly suited for a WAN uplink. Up to 4 TS-ETH10 cards can be stacked on the PC/104 connector since the add-on board has 4 separate address decodes. TS-ETH0 driver is available for TS-Kernel. Documentation and support is provided by us as well.

6.3 Adding CAN Bus

Controller Area Network (CAN) is a serial network primarily used in embedded systems that was originally designed for the automotive industry, but has also become a popular bus in industrial automation and other applications. The addition of a CAN bus to the TS- 7300 is easily accomplished by the optional TS-CAN1 board through the PC/104 bus.

The TS-CAN1 provides one single channel CAN interface and enables a PC/104 embedded systems to be connected to CAN1.1 and CAN2.0a networks. It uses a Philips SJA1000 CAN controller which is opto-isolated from the physical CAN network, increasing the system security. Up to four boards can be installed in any single system. The Philips SJA1000 CAN controller can also be found at Technologic Systems TS-7KV multifunction video board.

Technologic Systems provides complete SJA1000 Linux driver support for TS-CAN1 and TS-7KV, including CANOpen high level protocol. Documentation and support for CAN application development are also provided.

6.4 Adding Video Support

The TS-7KV multi-function PC/104 peripheral board can be added to the TS-7300 if your application needs a video solution, . The TS-7KV implements the TS-VIDCORE using an FPGA solution to deliver 16-bit color, 640X480 resolution video, 8MB dedicated video memory running at 95Mhz, and a simple fast video accelerator. The TS-7KV includes a standard DB15 VGA connector and a 10 pin header. Regarding software support, an accelerated Linux framebuffer driver is available for TS-Kernel. In addition, the QT/Embedded graphical library can be used with the video solution and compiled packages can be found at Technologic Systems website.

The TS-VIDCORE included on the FPGA is a unique video core specifically designed in tandem with the Linux framebuffer driver. Hardware accelerations were implemented and designed to mesh well with the capabilities of the Linux 2.4 frame buffer device driver API. Technologic Systems engineers carefully chose which functionality was implemented in hardware, which functionality was left out for software and which functionality was hardcoded in the bitstream. The result is a higher speed design that is technically elegant and simple in good embedded systems fashion. The TS-7KV has dedicated video memory which allows CPU throughput and real-time response to remain fast and predictable, a clear advantage over devices which share system memory.

The TS-7300 SBC has on-board VGA video functionally integrated on the FPGA, using the same TS-VIDCORE used on TS-7KV.

Note

When running Linux and using a TS-7KV video board, a USB mouse and a USB keyboard, it is possible to use the TS-7300 embedded system as a desktop-like system, independent of the host machine. TS-Kernel provides the complete solution for automatic configuration during boot time and console output at the plugged monitor. Contact Technologic Systems for further information.

TS-7300 MANUAL

LEDS, JUMPERS AND BUTTONS

7 LEDS, JUMPERS AND BUTTONS

7.1 Status LEDs

The TS-7300 has two LEDs (one Red and one Green) available for user software. These LEDs may be used for diagnostics, status messages, and simple output. When power is first supplied to the TS-7300, both LEDs are immediately turned on under hardware control. Once the processor begins execution, the LEDs are turned off, and then flashed on and off again briefly. After booting is complete, these LEDs can be used for user applications.

The RED and Green LEDs can be controlled at physical address location 0x8084_0020. Bit 1 is the RED LED and bit 0 is the Green LED. A Logic “1” turns the LED on.

7.2 Jumpers

The TS-7300 contains six default jumpers for specific board configuration:

Table: TS-7300 Jumpers Description

Jumper Description

JP1 Boot to Serial Port COM1. This is a recovery

mechanism that allows the TS-7300 to boot using COM1 instead of the on-board Flash chip.

JP2 Enable Serial Console. COM1 is used as the Console.

(If JP4 is not installed). When removed VGA output is the default console.

JP3 Write Enable Flash. Remove this jumper to write protect

the Flash drive.

JP4 Console swapped to COM2 (Requires JP2 installed to

enable console).

JP5 User Jumper. JP6 Fastboot Jumper. If JP6 is present then the TS-7300

will fast boot to a shell prompt in the initial ramdisk (busybox filesystem) with the Debian Linux filesystem (partition 3) mounted read only on /mnt/root/.

Jumpers 2, 3, 4, and 5 can be read at physical address location 0x1080_0000. The status of all jumpers is available to software through the physical memory as describes the table below:

Table: Memory Map of Jumpers

Address JP and Bit On/Off

0x1080_0000 JP2 is bit 0 Logic “1” = Jumper ON 0x1080_0000 JP3 is bit 1 Logic “1” = Jumper ON 0x1080_0000 JP4 is bit 3 Logic “0” = Jumper ON 0x1080_0000 JP5 is bit 4 Logic “0” = Jumper ON 0x2280_0000 JP6 is bit 0 Logic "1" = Jumper ON

7.3 Buttons

On the TS-7300 model, the reset push-button is replaced by pins 4 and 2 of the DIO1 Header. Refer to the DIO1 Header section to further information about the reset and shutdown process.

TS-7300 MANUAL

SPECIFICATIONS

8 SPECIFICATIONS

To ensure optimum product operation you must maintain the operational environmental specifications listed in the table below.

Table: Environmental Specification for TS-7300

Environmental

Specification

Standard Temp Extended Temp

Ambient

Temperature

-20° to +70° C The internal temperature must not exceed +70° C.

-40° to +85° C Extended temperature range is also standard in our TS-7300 product

Note:

Extended Temp requires lower CPU speed (<=166Mhz) at higher temperatures

Note: Refer to your product manual, or contact Technologic Systems if the environmental temperature of the location is in doubt.

Relative

Humidity

0 to 90% relative humidity. Not to exceed 90% non-condensing.

Not to exceed 90% noncondensing.

TS-7300 MANUAL

FURTHER REFERENCES

9 FURTHER REFERENCES

✔ Getting Started with TS-Linux

(http://www.embeddedarm.com/documentation/software/arm-tslinux-ts72xx.pdf)

✔ Linux for TS-ARM User's Guide

(http://www.embeddedarm.com/documentation/software/arm-linux-ts72xx.pdf)

✔ TS-7300 Data Sheet (http://www.embeddedarm.com/documentation/ts-7300-datasheet.pdf)

✔ EP9301 User's Guide

(http://www.embeddedarm.com/documentation/third-party/ts-7000_ep9301-ug.pdf)

✔ EP9301 Data Sheet

(http://www.embeddedarm.com/documentation/third-party/ts-7000_ep9302-ds.pdf)

✔ TS-7000 Yahoo Users' Group (http://groups.yahoo.com/group/TS-7000/)

TS-7300 MANUAL

APPENDIX A: DOCUMENT HISTORY

Date of

Issue/Revision

Revision

Number

Comments

March 03, 2006 Preliminary

Draft

Preliminary release for first customer

ship – not complete May 18, 2006 1.1 Empty sections completed Jul 20, 2006 1.2 COM ports pin-out fixed + further info

about FPGA provided + minor

corrections and improvements Jun 26, 2007 1.3 Minor corrections and improvements,

include of software content on the getting

started section, series renamed to TS-

72XX Nov 21, 2007 1.4 Minor corrections July 2, 2008 1.5 Fixed broken web links June 1, 2009 1.6 Updated mailing address January 27, 2010 1.7 Changed JP5 description, minor spelling

corrections April 1, 2010 1.8 Corrected section 7.3, reset pins were

incorrect

TS-7300 MANUAL

APPENDIX B: MEMORY AND REGISTER MAP

Address Region Function

0xF000_0000 - 0xFFFF_FFFF nCS0 (not used) 0xE000_0000 - 0xEFFF_FFFF SDRAM (TS-7250) 0xD000_0000 - 0xDFFF_FFFF SDRAM (not used) 0xC000_0000 - 0xCFFF_FFFF SDRAM (not used) 0x8084_0000 - 0x8084_00C8 GPIO control registers 0x8000_0000 - 0x800F_FFFF AHB mapped registers 0x71C0_0000 - 0x71FF_FFFF CS7 PC/104 8/16 bit I/O (user selectable timing) 0x7180_0000 - 0x71BF_FFFF CS7 PC/104 8/16 bit Memory (selectable timing) 0x7000_0000 - 0x70FF_FFFF TS-9420 Flash 0x7000_0000 - 0x7FFF_FFFF CS7 (bit bus cycles) 0x6000_0000 - 0x60FF_FFFF on-board Flash (TS-7200) 0x6000_0000 - 0x6FFF_FFFF CS6 (Flash) 0x3000_0000 - 0x3FFF_FFFF CS3 (not used) 0x21C0_0000 - 0x21FF_FFFE PC/104 16-bit I/O 0x2180_0000 - 0x21BF_FFFF PC/104 16-bit Memory 0x2000_0000 - 0x2FFF_FFFF CS2 (16-bit bus cycles) 0x11C0_0000 - 0x11FF_FFFF PC/104 8-bit I/O 0x1180_0000 - 0x11BF_FFFF PC/104 8-bit Memory 0x1000_0000 - 0x1FFF_FFFF CS1 (8-bit bus cycles) 0x0001_0000 - 0x0000_FFFF SDRAM region

0x8090_0020 Cirrus A/D lock register 0x8090_0018 Cirrus A/D channel select register 0x8090_0008 Cirrus A/D result register (RO) 0x808D_0000 - 0x808D_FFFF UART2 control registers 0x808C_0000 - 0x808C_FFFF UART1 control registers 0x808A_0000 - 0x808A_FFFF SPI control registers 0x8084_0044 LCD_EN, LCD_RS, LCD_WR direction reg.(bits3-5) 0x8084_0040 LCD_EN, LCD_RS, LCD_WR data reg.(bits3-5) 0x8084_0034 DIO_8 direction register (bit 1) 0x8084_0030 DIO_8 data register (bit 1) 0x8084_0020 On-board LEDs register (bits 0, 1) 0x8084_0018 Port C direction register

(TS-7300) LCD_7 direction register (bit 7) 0x8084_0014 DIO_0 thru DIO_7 direction register (R/W) 0x8084_0010 LCD_0 thru LCD_7 direction register (R/W) 0x8084_0008 Port C data register

(TS-7250) 1000 mA driver output on DIO (bit 0)

(TS-7300) LCD_7 data register (bit 7) 0x8084_0004 DIO_0 thru DIO_7 data register (R/W) 0x8084_0000 LCD_0 thru LCD_7 data register (R/W) 0x8081_0000 - 0x8081_FFFF Timer Control registers 0x8080_0000 - 0x8FFF_FFFF APB mapped registers 0x800B_0000 - 0x800B_FFFF VIC 0 registers 0x8006_0000 - 0x8006_FFFF SDRAM control registers 0x8002_0000 - 0x8002_FFFF USB registers 0x8001_0000 - 0x8001_FFFF Ethernet MAC registers 0x7220_0000 - 0x729F_FFFF (TS-7300) FPGA SDRAM region 0x7210_0000 - 0x7200_FFFF (TS-7300) FPGA MAC core 32-bit registers

TS-7300 MANUAL

APPENDIX B: MEMORY AND REGISTER MAP

0x7200_0044 - 0x7200_0047 (TS-7300) FPGA DIO2 TS-XDIO #2 registers 0x7200_0040 - 0x7200_0043 (TS-7300) FPGA DIO2 TS-XDIO #1 registers 0x7200_0030 - 0x7200_003A (TS-7300) FPGA Video core 16-bit registers 0x7200_0020 - 0x7200_0027 (TS-7300) FPGA SD Card core 16-bit registers 0x7200_0000 - 0x7200_001F (TS-7300) FPGA COM3-4-5-6-7-8 16-bit registers 0x6000_0000 (TS-7250) NAND Flash data register 0x6040_0000 (TS-7250) NAND Flash control register (bits 0-2) 0x6080_0000 (TS-7250) NAND Flash Busy status (bit 5) 0x23C0_0000 WDT Feed register (bits 0-2) 0x2380_0000 WDT Control register (bits 0-2) 0x2340_0000 PLD version (bits 0-2) 0x2300_0000 COM2 RS-485 control register 0x22C0_0000 COM2 RS-485 control register (bits 0-2) 0x2280_0000 JP6 (bit 0) 0x2280_0000 Booting from TS-9420 (bit 1) 0x2280_0000 TS-9420 present (bit 2) 0x2240_0000 MAX197 A/D option present (bit 0) 0x2240_0000 COM2 RS-485 option present (bit 1) 0x2200_0000 Model Number (bits 0-2) 0x21E0_0000 - 0x21E0_03FE PC/104 16-bit I/O (legacy support) 0x2100_0000 CF IDE 16-bit register 0x13C0_0000 - 0x13C0_0001 (TS-7300) FPGA loader registers 0x1340_0000 - 0x1340_0002 (TS-7260) Additional COM5 registers 0x1300_0000 - 0x1300_0002 (TS-7260) Additional COM4 registers 0x12C0_0000 - 0x12C0_0003 (TS-7260) DIO2 Header TS-XDIO registers 0x12C0_0000 - 0x12C0_0001 (TS-7260) DIO2 Header Basic DIO registers 0x1240_0000 - 0x1240_0002 (TS-7260) COM3 serial port registers 0x1200_0000 (TS-7260) Power Management register 0x11E0_0000 - 0x11E0_03FF PC/104 8-bit I/O (legacy support) 0x11A0_0000 - 0x11AF_FFFF PC/104 8-bit Memory (legacy support) 0x1170_0000 RTC R/W data register 0x1100_0001 - 0x1100_0007 CF IDE 8-bit registers 0x10F0_0000 - 0x10F0_0001 MAX197 A/D registers 0x1080_0000 MAX197 A/D busy bit (bit 7) (RO) 0x1080_0000 JP2-JP5 (bits 0,1,3,4) (RO) 0x1080_0000 COM1 DCD (bit 6) (RO) 0x1080_0000 Write Only index register 0x1040_0006 - 0x1040_0007 CF AUX IDE 8-bit registers

TS-7300 MANUAL

APPENDIX C: DOWNLOADS - SCHEMATICS AND MECHANICAL DRAWING

✔ TS-7300 schematic

(http://www.embeddedarm.com/documentation/ts-7300-schematic.pdf)

✔ TS-7300 mechanical drawing

(http://www.embeddedarm.com/documentation/ts-7300-mechanical.pdf)

✔ TS-7300's download section

(http://www.embeddedarm.com/epc/ts7300-spec-d.htm)

TS-7300 MANUAL

APPENDIX D: TS-ARM SBC FEATURE MATRIX

Product TS-7200 TS-7250 TS-7260 TS-7300 TS-7400

CPU 200 Mhz

AMR920T

200 Mhz

AMR920T

200 Mhz

AMR920T

200 Mhz

AMR920T

200 Mhz

AMR920T

PC/104 connector Yes Yes Yes Yes No On-board FPGA No No No Yes No RAM 32 MB 32 MB 32 MB 32 MB 32 MB Optional RAM 64 MB 64 MB

128 MB

64 MB

128 MB

64 MB

128 MB

64 MB

128 MB

On-board Flash 8 MB 32 MB 32 MB No 32 MB Optional on-board Flash

16 MB 64 MB

128 MB 256 MB

64 MB 128 MB 256 MB

Possible

64 MB 128 MB 256 MB

Standard A/D Yes - 2 ch Yes Yes - 2 ch Yes - 1 ch Yes - 4 ch Optional A/D 8 ch 8 ch No No No Ethernet 1x 10/100 1x 10/100 1x 10/100 2x 10/100 1x 10/100 USB1.1 ports Yes - 2x Yes - 2x Yes - 2x Yes - 2x Yes - 2x VGA Video Out No No No Yes Yes IDE Compact Flash Yes No No No No SD Card Interface No No Yes -

1x on RevB

Yes - 2x Yes - 1x

Digital I/O 20 20 30 55 20 TS-XDIO No No Yes - 1 Yes - 2 No RS-485 Opt.

full/half

Opt.

full/half

Opt.

full/half

Opt.

full/half

Opt.

full/half

Standard COM Ports 2 2 3 10 3 TTL Optional COM Ports No No 2 Yes No RS-232 Console Yes Yes Yes Yes No RTC Opt. Opt. Opt Opt. Opt. LCD Interface Yes Yes Yes Yes No Keypad Interface Yes Yes Yes Yes No Linux2.4 Yes Yes Yes Yes Yes Bootloader Redboot Redboot Redboot Linux Linux Real-Time RTAI Yes Yes Yes Yes Yes Java Yes Yes Yes Yes Yes USB WiFi Support Opt. Opt. Opt. Opt. Opt. USB Flash Support Opt. Opt. Opt. Opt. Opt. Extended Temperature

Yes Yes Yes Yes Yes

Switching-Mode Power Supply

No No Yes No Opt.

Quantity 1 Pricing $149.00 $149.00 $179.00 $219.00 $129.00 Quantity 100 Pricing $119.00 $119.00 $149.00 $189.00 $99.00

TS-7300 MANUAL

APPENDIX E: CONTACT TECHNOLOGIC SYSTEMS

16525 East Laser Drive

Fountain Hills, AZ 85268

TEL 1.480.837.5200 FAX 1.480.837.5300

www.embeddedARM.com

support@embeddedARM.com

Call us Monday-Friday, from 9 am to 5 pm, Arizona-USA time;

or email us at any time.

Our engineers answer tech support calls and are more than happy to talk to you

about your needs and help you find the best solution for your project.

Technologic Systems TS-7300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
