Technoline WS 9118 Instruction Manual

INSTRUCTION MANUAL OF WS 9118

Wireless Indoor and Outdoor Thermometer-Clock

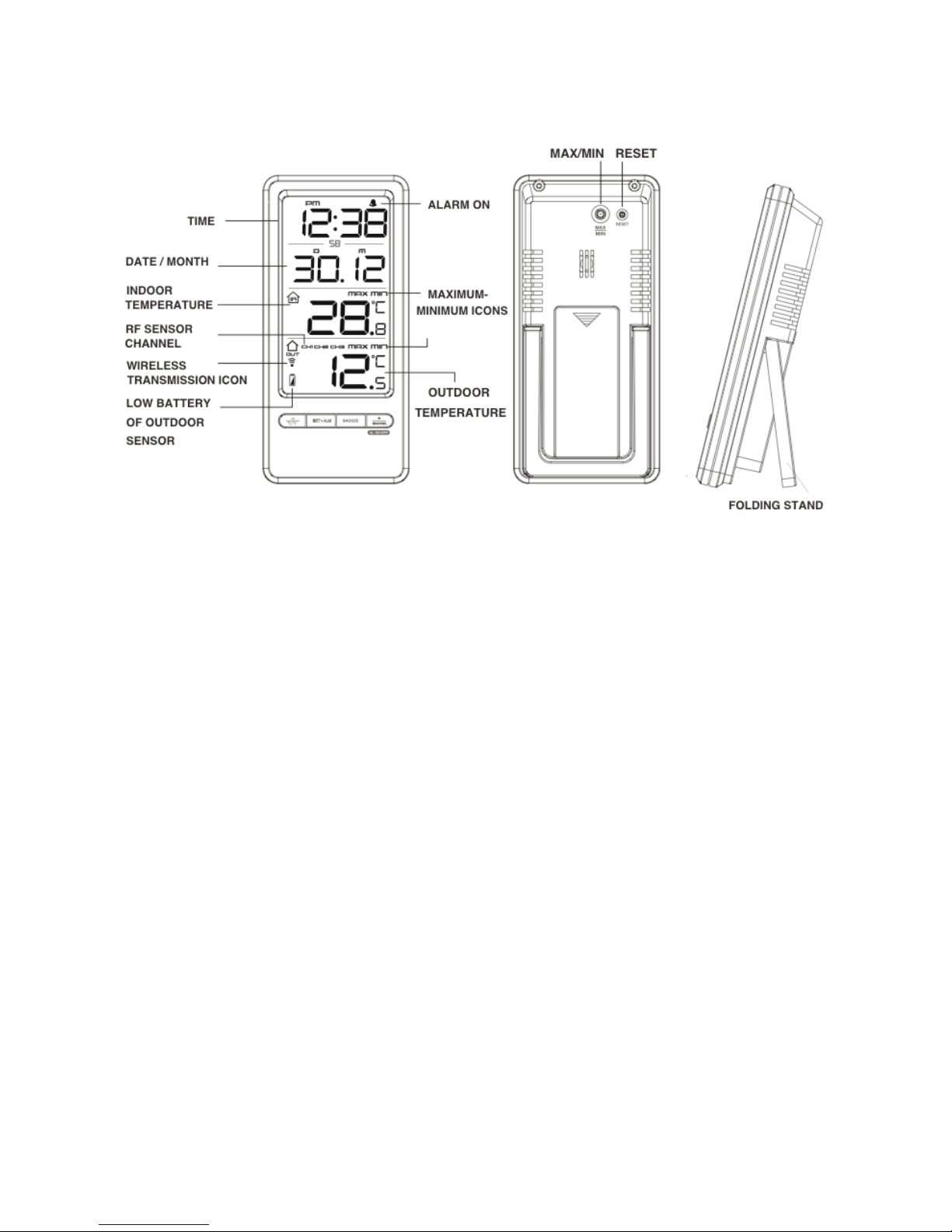

BUTTONS

- (C/F)
SET / ALARM
SNOOZE
+ / CHANNEL / ALM ON-OFF
MAX-MIN
RESET

QUICK START

1. Slide open the battery cover at the back of your wireless thermometer-clock.

2. Insert 2 x AAA batteries into the battery compartment by observing the correct + / - polarity
signs inside the battery compartment.

3. Replace the battery cover. In few seconds the LCD shows the default time, calendar and
the current indoor temperature and it starts to search for outdoor temperature signal.

4. Then insert 2 x AA batteries into the outdoor sensor. The outdoor temperature will be
displayed with “CH1” shown on the lower line of the LCD. Your Thermometer­ clock will be synchronized with outdoor sensor at Channel 1, the outdoor temperature will be
display.

TO SET CALENDAR, 12/24 TIME AND TIME

1. Press and hold SET / ALM SET for 2 seconds, time digits change to year “2008 YR” and
flash. Press + / - to set year.

2. Then press SET / ALM SET once again, month digits flash. Press +/- button to set month.

3. Then press SET / ALM SET once again, date digits flash. Press +/- button to set date.

4. Press SET / ALM SET once again, time digits change “24 Hr”, press +/- to select
“12 Hr” time format or “24 Hr” time format. When “12 Hr” is selected, AM / PM icon will be
displayed.

5. Then press SET / ALM SET once again, time digits changes to “00”, press +/- to select your
time zone.

6. Then press SET / ALM SET once again, time digits “0:00” show up and the hour digits flash.
Press +/- to set the hours.

7. Then press SET / ALM SET once again, minute digits flash. Press +/- button to set the
minutes.

8. Press SET / ALM SET to return to normal mode, or it will return to normal mode in around 30
seconds if no press of any other buttons.

TO SET ALARM TIME

Press SET / ALM SET once, time digits change to alarm time digits “AM 7:00 AL”. Then press
and hold SET / ALM SET for 2 seconds, the hour digits flash. Press +/- to set your desired hours
of alarm time.

Press SET / ALM SET again, alarm minute digits flash. Press +/- to set alarm minutes.
Press SET / ALM SET again, time digits change to “05” and flash. Press +/- to set the snooze

duration from 1 to 20 minutes.
Press SET / ALM SET to return to normal mode, or it will return to normal mode in around 30

seconds if no further press of any other buttons.

TO TURN ON OR OFF YOUR ALARM

Press SET / ALM SET once to display the alarm time. When alarm time is displayed, press + to
turn on / off the daily alarm. When the alarm function is turned on, the “Bell” icon appears
between the hour and minute digits.

TO USE SNOOZE ALARM

When time reaches your set alarm time, your clock will give beep sound to wake you up. The
“Bell” icon will flash.

1) Press SNOOZE once to stop the alarm temporarily, the “Bell” icon keeps flashing. The alarm
will beep again in 5 minutes.

2) To stop the alarm, press + / CHANNEL (ALM On-Off) once, the alarm beep will stop and the
“Bell” icon become static, alarm will beep again same time next day.

Alarm Duration : 2 minutes

TO DISPLAY TEMPERATURE IN DEGREE C OR F

Simply press – (C/F) to display temperature in degree C or degree F.

To Read the Maximum-Minimum Temperature Records

Press MAX/MIN at the back once to view the indoor-outdoor maximum or minimum
temperatures.

When the maximum indoor-outdoor temperatures are displayed, press and hold the MAX will
clear the maximums and the unit will start to record and display fresh data again.
