Technolight SRL-6078S LED PAR User Manual

SRL-6078S LED PAR

USER MANUAL

TABLE OF CONTENT

Introduction---------------------------------------------------------------3

Feature---------------------------------------------------------------------------------------------3
Mode------------------------------------------------------------------------------------------------3

Configuration--------------------------------------------------------------------------------------3

Safety instruction--------------------------------------------------------3

Operation-------------------------------------------------------------4

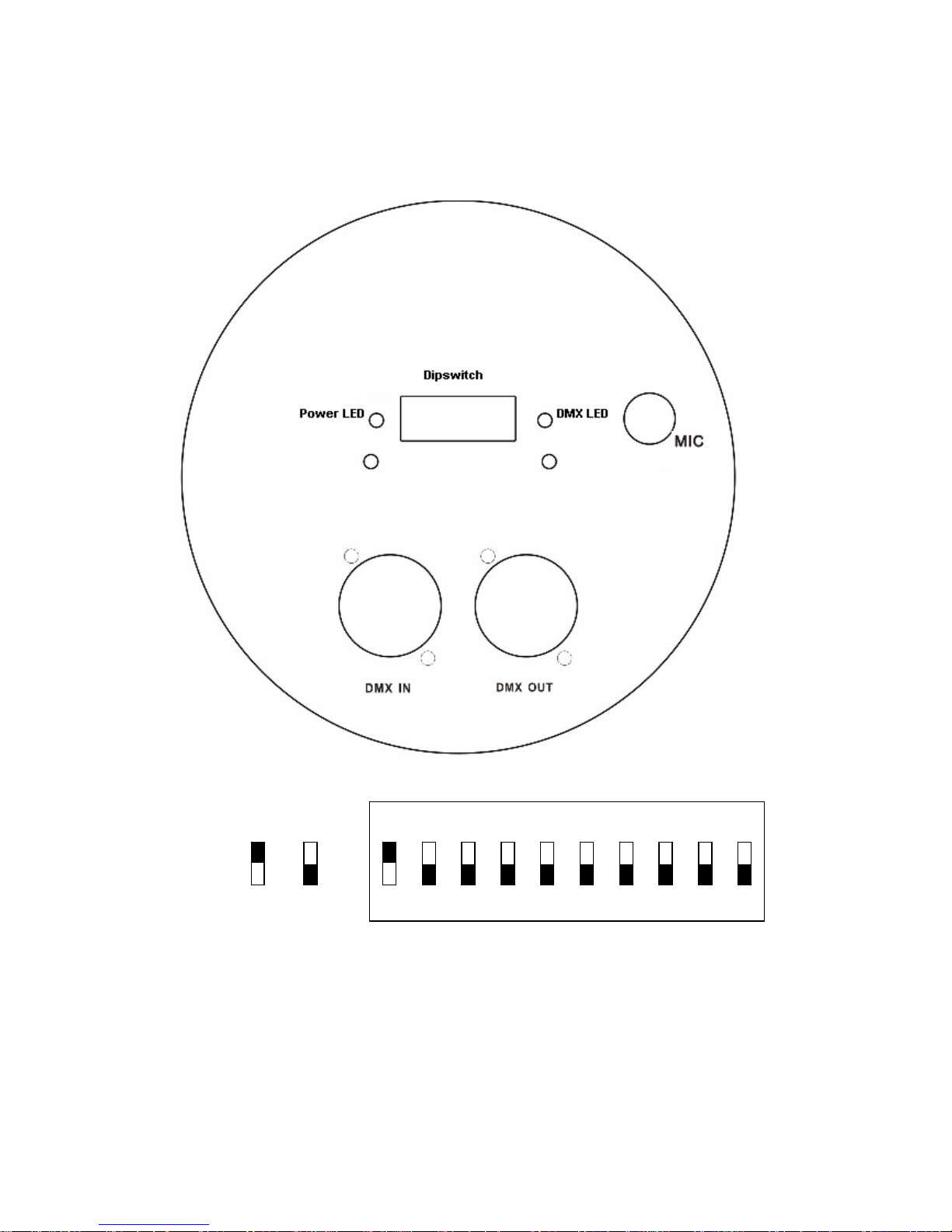

Explanation for Dipswitch----------------------------------------------- -----------------------4

Function--------------------------------------------------------------------------------------------5

Function Explanation- -----------------------------------------------------------------5

Sound Active--------------------------------------------------------------------5
Master/Slave--------------------------------------------------------------------5

DMX mode----------------------------------------------------------------------5

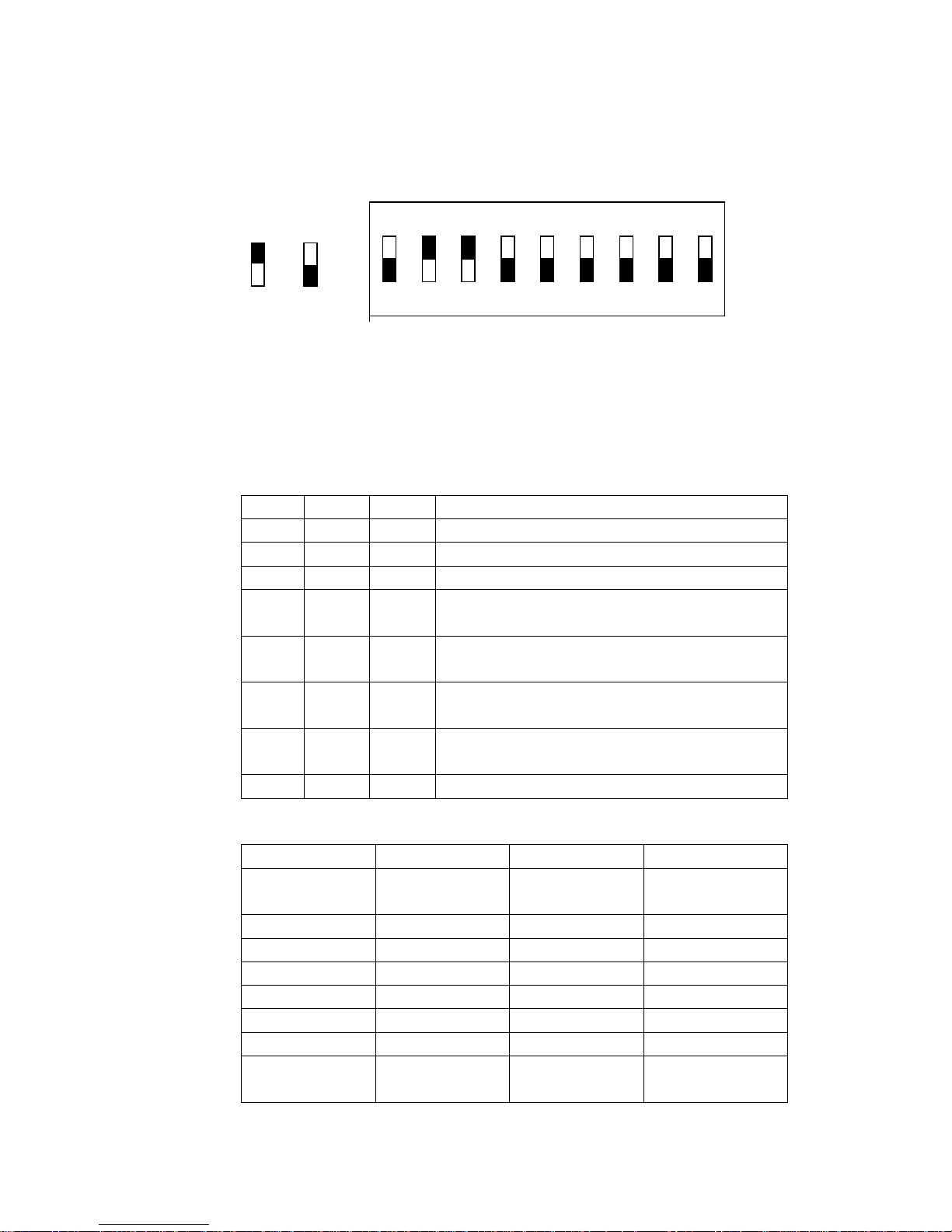

Example for DMX setting----------------------------------------------- -----6
Program Selection Chart----------------------------------------------------6
Speed Selection Chart-------------------------------------------------------6

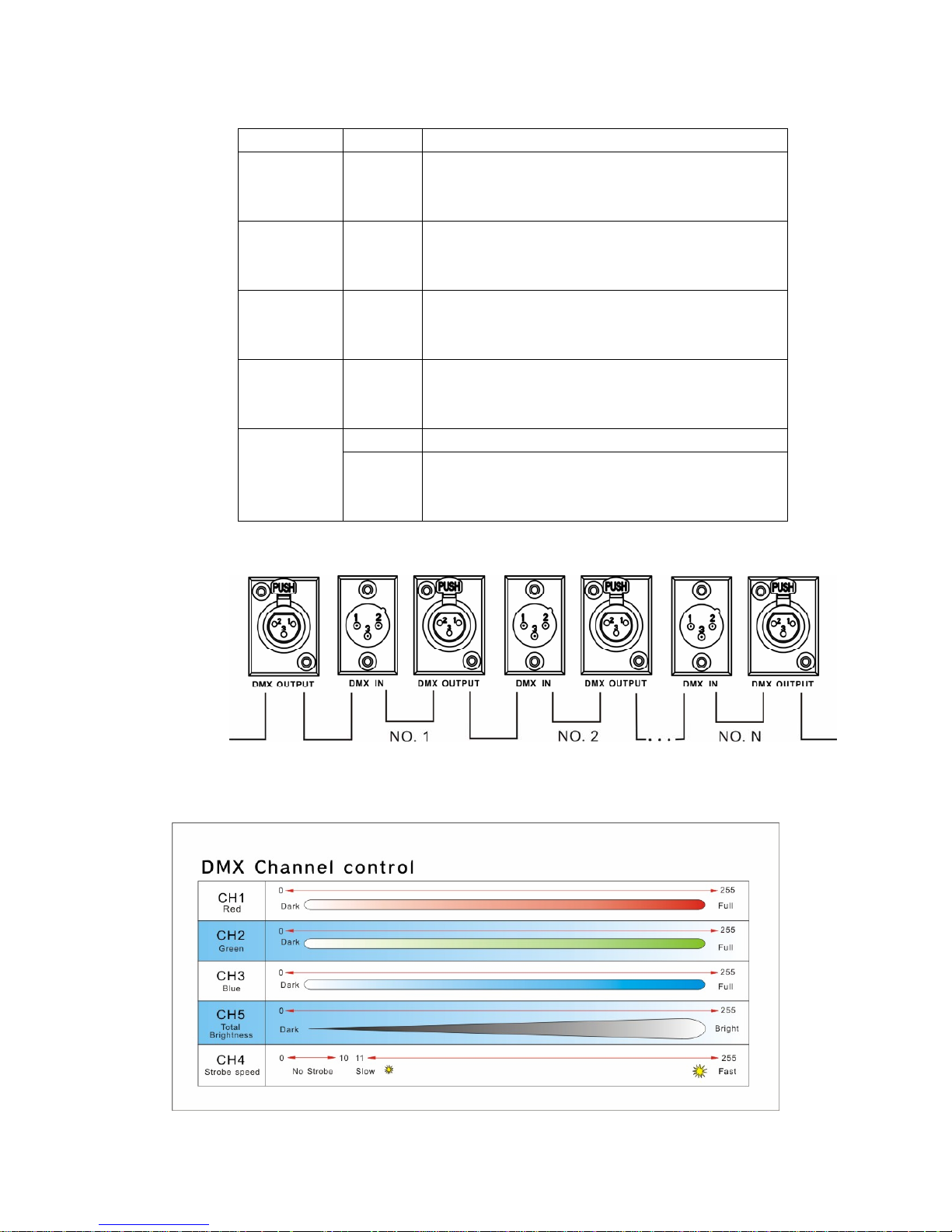

DMX Channel Function------------------------------------------------------7

DMX Connection--------------------------------------------------------------7

3-Pin Connection--------------------------------------------------------------7

Maintenance and Cleansing-----------------------------------------8

Troubleshooting---------------------------------------------------------------------------------8
Cleansing-----------------------------------------------------------------------------------------8

Specification--------------------------------------------------------9

Attachment (DMX Address Chart)---------------------------10

2

Introduction

Thank you for purchasing SRL-6078S LED PAR. This product is featured with balanced
mix of RGB LED, and operated via DMX, AUTO, Sound Active and Master/Slave. It will
provide you splendid vision enjoyment.

z Features

＊ Adjust the color temperature to the best by mixing the RGB LED
＊ Linear brightness adjustable
＊ Dynamic Strobe and Fade pattern
＊ Desired Strobe and Fade adjustable
＊ Strobe Speed: 0.4 times/s ~16 times/s
＊ Color preset, and “rainbow” color available.
＊ 8 built-in programs
＊ DMX 512 Control, 5 DMX Channels ( R, G, B, Fade, Strobe)

z

Mode

＊ DMX-512 control
＊ Auto through the internal program
＊ Sound Active
＊ Master/Slave

z Configuration

＊ 50 0.044W Red LED，39 0.064W Green LED,27 0.064W Blue LED

Safety Information

Read this manual before powering or installing the fixture. Follow the safety information
listed below and observe all warnings in this manual. If you have any question about how
to operate the fixture safely, please contact the dealer or Neo-Neon after service.
z Always ground earth electrically. And use only the power supply compliance with

electrical code.

z For indoor use only. Always keep in dry and ventilated place and away from the rain

and moisture.

z Do not block the air vent.
z Do not operate if the ambient temperature exceed 40℃.
z Replace the fuse and the bulbs with the same specified type.
z No spare parts are available. If needed, please contact the factory.

If any problem, please contact the professionals or the technicians.

3
