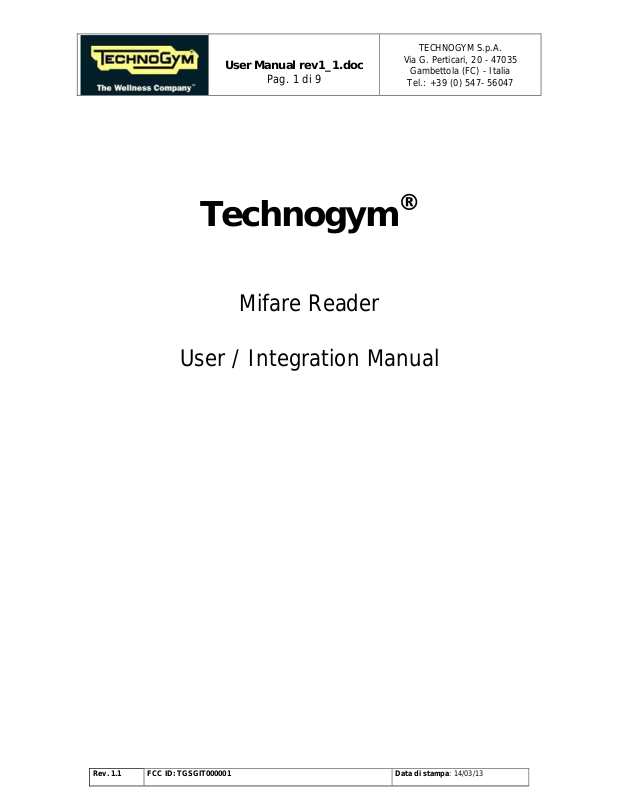

TECHNOGYM S p A GIT000001 User Manual

User Manual rev1_1.doc

Pag. 1 di 9

TECHNOGYM S.p.A.

Via G. Perticari, 20 - 47035

Gambettola (FC) - Italia

Tel.: [phone]

®

Technogym

Mifare Reader

User / Integration Manual

Rev. 1.1 FCC ID: TGSGIT000001 Data di stampa: 14/03/13

User Manual rev1_1.doc

Pag. 2 di 9

TECHNOGYM S.p.A.

Via G. Perticari, 20 - 47035

Gambettola (FC) - Italia

Tel.: [phone]

Revision History

Release Date Description Author

1.0 20/12/2011 Initial release Alessandro Cevoli

Table of contents

1 General overview .............................................. .. ... ... ..... .. ... .. ... ..... ... .. ... .. ..... ... .. ... 3

2 Description .......................................................................................................... 3

3 Communication and connector .............................................................................. 4

4 Operational functionality ............................ ..... ... .. ... .. ...... .. ... .. ... .. ..... ... ... .. ... ..... .. ... 4

5 Developing tools ................................................................................................... 7

6 Installation .......................................................................................................... 8

7 FCC / Industry Canada (IC) Statements .................................................................. 9

Rev. 1.1 FCC ID: TGSGIT000001 Data di stampa: 14/03/13

User Manual rev1_1.doc

Pag. 3 di 9

TECHNOGYM S.p.A.

Via G. Perticari, 20 - 47035

Gambettola (FC) - Italia

Tel.: [phone]

1 General overview

The TGS Mifare Reader is an accessory of Technogym Equipments that let them to
identify, read and write an RFID transponder, named Technogym Wellness System Keys,
in a contactless way.
Technogym Wellness System Keys are Mifare transponders customized with a private
password to access data inside it.
By means of the system made by “TGS Mifare Reader” + “Technogym Wellness System
Keys” each equipment may identify the user, propose its specific training and save a log of
the training executed on the equipment.

2 Description

The TGS Mifare Reader is made by 2 boards inside a plastic housing that may change
depending of the equipment where the TGS Mifare Reader must fit.
The TGS Mifare Reader may be connected to the host by means of a cable that allows:

- Device powering;

- Data communication (the host SW drives the TGS Mifare Reader managing the
reading of the RFID transponder).

The module antenna is a PCB antenna type and is embedded into the module itself.
2 LEDs communicate powering and read/write communication.

Main board

Second board

LEDs

Cable
versus host
system
