Technical
information
700 version
software
700 IFI version
software
TOP
User manual
Contents
Manufacturer and equipment identification ............................................... 3
Description of the equipment ..................................................................... 5
Technical data .......................................................................................... 13
Accessories .............................................................................................. 15
Safety labels and devices ......................................................................... 16
Place of installation .................................................................................. 18
Unpacking ................................................................................................ 19
Moving the equipment ............................................................................. 20
Levelling ................................................................................................... 21
Electrical connection (700 version) ........................................................... 22
Connection to another device .................................................................. 24
Adjusting the levers play .......................................................................... 26
Routine maintenance ............................................................................... 27
Changing the fuses (700 version) ............................................................. 28
Recharging the battery (700 SP version) .................................................. 29
Troubleshooting ....................................................................................... 30
Technical assistance ................................................................................ 32
Storage ..................................................................................................... 33
Disposing of the equipment ..................................................................... 33
Switching on and off ................................................................................ 34
Monitoring the heart rate .......................................................................... 36
Using the equipment ................................................................................ 39
Top
2
Manufacturer and equipment identification
C
D
07081001
A - Manufacturer’s name and address
B - Description of product
C - Electrical specifications and type of fuses
(700 version)
D - Equipment classification
B IA
C
H
FE F
E - CE Mark
F - Tells you to consult the User manual
G - Serial number and date of manufacture
H - Certification mark for the USA and Canada
I - Product code
G
The values stated in the illustration are purely indicative; refer to the label attached to the equipment or the data in Technical
data section for the correct information.
Top
cont.
3
Manufacturer and equipment identification
Equipment with codes DA77M... are intended for medical use and have been designed and built for use in outpatient clinics,
hospitals, clinics and sport centres, for muscular therapy and rehabilitation.
Equipment with codes DA77M... can be used by or close to children, invalids, disabled persons or people with evident physical
problems only under close supervision of a doctor or a qualified professional.
Top
4
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
07081002
Control panel: controls all available functions, from setting up workout programs to viewing messages and related workout
information.
Top
5
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
Handgrips: they must be gripped to perform the exercise.
Top
07081003
6
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
IFI Version
07081004
Seat: adjustable longitudinally and can easily be removed in order to use the equipment standing up or with a wheelchair for
disabled persons.
Top
7
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
Front platforms: the user places his feet here whilst exercising.
Top
07081005
8
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
IFI Version
Rear platforms: the wheels of a disabled person’s wheelchair are placed here; the user stands here to also perform the
exercise standing up.
The IFI version is fitted with access ramps for a wheelchair.
Top
07081006
9
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
Reading stand: for standing magazines or books on.
Top
10
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
Tray: for standing the water bottle or other useful items on during the workout.
Top
07081008
11
Description of the equipment
Control panel
Handgrips
Seat
Front platforms
Rear platforms
Reading stand
Tray
TGS key reader
TGS key reader: for the TGS key (optional).
Top
12
Technical data
Top 700 Europe-Asia USA-Canada
Power supply 100÷240 Vac ±10% 50/60 Hz 100÷240 Vac ±10% 50/60 Hz
Braking power 25÷1000 W ±10
(*)
25÷1000 W ±10
(*)
Mains power input
100 VA max
(160 VA max with Visio)
(160 VA max with Visio)
100 VA max
Fuses 2 x 3.15A (F) 2 x 3.15A (F)
Maximum user weight 180 kg 397 lb
Time 0÷999 min ± 1% 0÷999 min ± 1%
Distance 0÷99.99 km ± 5% 0÷99.99 mls ± 5%
Protection grade IP 20 IP 20
Electric isolation class Class I
Marks and Certificates CE UL
(**)
Top 700 SP Europe-Asia USA-Canada
Braking power 25÷1000 W ±10
Maximum user weight 180 kg
Time 0÷999 min ± 1%
Distance 0÷99.99 km ± 5%
(*)
25÷1000 W ±10
397 lb
0÷999 min ± 1%
0÷99.99 mls ± 5%
(*)
Protection grade IP 20
IP 20
Electric isolation class Class II
Marks and Certificates
(*)
Achievable with the constant power exercise. In the other exercises the maximum braking power is 600 W.
(**)
Only if the symbol is present on the equipment identification label.
CE UL
(**)
Top
cont.
13
Technical data
1544 mm
(60")
1491 mm
(59")
706 mm
(28")
1881 mm
(74")
780 mm
(30")
1491 mm
(59")
105 kg (232 lb)
130 kg (287 lb)
Top
150 kg (331 lb)
07081010
14

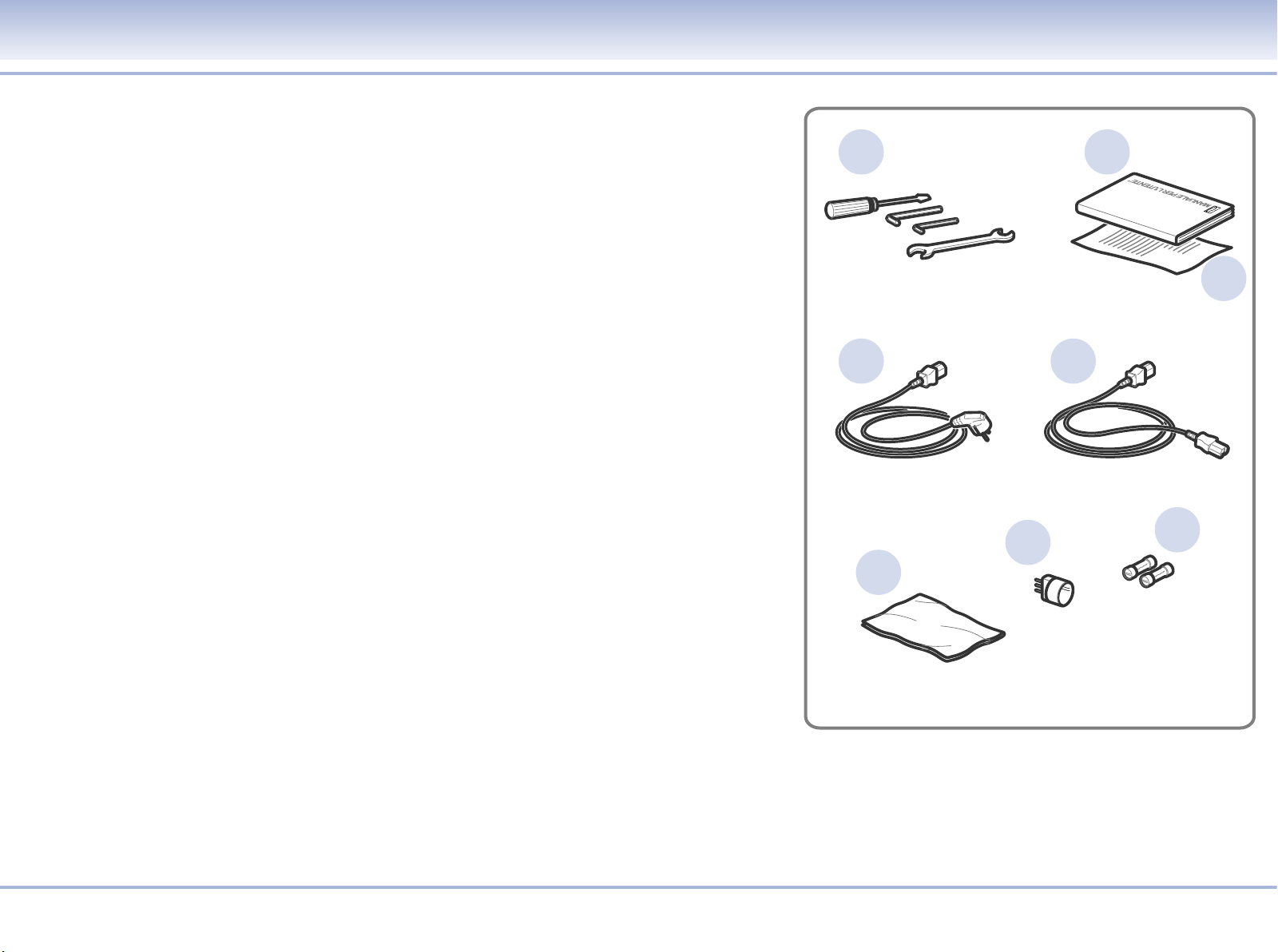

Accessories
The equipment’s standard outfit comprises:
A Set of wrenches
B User manual
C Warranty certificate
D CEE Power Supply cable with SH socket (700 version)
E CEE Power Supply cable (extension) (700 version)
F Cloth for cleaning
G 10A German-type adapter (700 version)
H Two replacement fuses (2 x 3.15A (F) (700 version)
A B
D E
G
F
C
H
Top
07081011
15
Safety labels and devices
B
C D
A
A Fixed guard: guards against access to the inside of the equipment.
07081012
B Beep: warns the user when the equipment is switched on, when the exercise starts or if the heart rate is high.
C Main switch: turns the equipment’s power on and off (700 version).
D Fuses: they protect the equipment’s electrical parts (700 version). When the current reaches an excessive value, the fuses
blow thus protecting the internal electronics.
Top
cont.
16
Safety labels and devices
CAUTION: do not connect a device with load
exceeding 7 A
CAUTION: do not connect to a circuit operating
at more than 150V to ground
CAUTION: risk of electric shock. Do not
disconnect under load
Warning
Please read the adhesive labels on the equipment, which provide information about possible risks and
hazards.
In the 700 version:
E The label affixed to the frame above the front platform states the electrical
specifications.
F The label, which can be affixed close to the main switch, states safety
indications.
G The label which can be affixed to the power supply cable states the electrical
specifications for the cable.
E
Top
F
G
17
Place of installation
To ensure that exercising with the equipment is easy, safe and effective, the place where it is used should comply with certain
specific requirements; in particular, before choosing the place where the equipment will be installed, please ensure that the
following conditions are satisfied:
- the
- enough air is circulating to keep
- the lighting is good enough to make the area safe and relaxing place to exercise in;
- plenty of
- that the floor is flat, stable and vibration-free, and strong enough to bear the weight of the equipment plus user.
The place of installation must comply with all the suitability requirements laid down in current legislation on this matter.
Equipment not suitable for use in the presence of anaesthetic mixtures inflammable in air, oxygen or nitrous oxide.
In order to guarantee the performance indicated by the manufacturer, you are advised against using the equipment in zones
with high short-wave presence or similar.
temperature is between +10°C and +25°C;
humidity during exercise to between 20% and 90%;
free space around each item of equipment;
Top
18
Unpacking
The equipment comes fully assembled in a pack, either wrapped in a transparent plastic sheet or in a cardboard pack attached
to a pallet.
The packed material can be lifted and carried with normal lifting equipment. The instructions are printed directly on the
pack.
In order to ensure the safety of persons and property, you should think carefully about what lifting and transport equipment
to use, in relation to the equipment’s place of destination.
As stated in the instructions on the pack, to unpack equipment delivered in a cardboard pack, remove the staples that attach
the external packaging to the pallet, and then lift up the pack.
Check the pack visually to make sure it is in a good, complete state.
Remove the fasteners and place the contents of the pack on the ground.
Warning
Observe the legally stated urban waste disposal procedures when disposing of the packaging material.
Top
19
Moving the equipment
To move the equipment from the packing pallet to the floor, lift as shown in
the picture and then slide it on to the floor. This must be done by at least two
people.
Warning
Lift the equipment by holding onto the frame and not the levers
or the control panel.
Take great care when moving the equipment and positioning it
on the ground, as it may overbalance.
The equipment has two fixed front wheels. To move the equipment, lift it up
slightly, as shown in the illustration, and push it forwards and backwards.
Given the weight of the equipment, we recommend that more than one person
be involved in moving it.
07081014
If wheels cannot be used on the floor, move the equipment with normal lifting
and transport methods.
Warning
Lift the equipment by holding onto the frame and not the levers
or the control panel.
Move the equipment with great care to avoid it tipping over.
Top
20
Levelling
The equipment is levelled by adjusting the two front feet:
- screw the foot (A) in or out until the frame is in a stable position;
- tighten up the lock nut (B) after adjusting.
B
Top
A
A
07081016
21
Electrical connection (700 version)
Before connecting the equipment to the mains power supply, ensure that the electrical system specifications comply to binding
regulations. Check the mains power supply specifications on the equipment identification label.
Danger
The wall socket must be located in a place where the plugging and unplugging can be done easily and
safely.
When plugging in, the switch on the equipment must be in the 0 position (i.e. the equipment must be switched off).
Plug the power cable first into the equipment socket and then into the wall socket.
Warning
Check the state of the power supply cable periodically.
Top
07081017
cont.
22
Electrical connection (700 version)
Danger
The power supply socket must be grounded . If not, a ground connection must be installed by a qualified
electrician before connecting the equipment to the electricity mains.
The product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. The product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
Danger
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check
with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product; if it will not fit in the outlet, have a proper outlet installed
by a qualified electrician.
Top
23

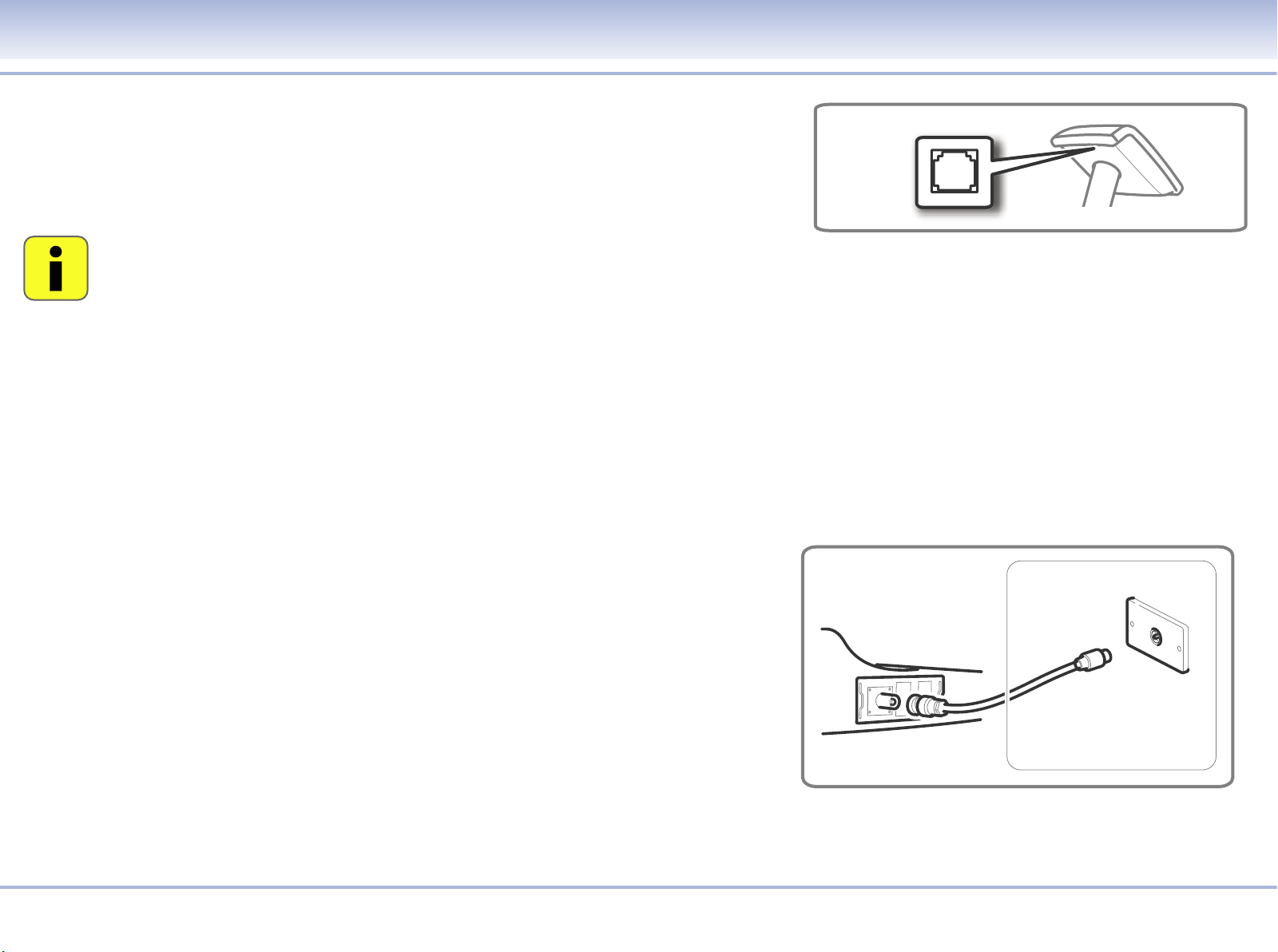

Connection to another device
The equipment can be connected to an audio/video reception device such as
the Cardio Theater. Besides, if the equipment has not TV, it can be connected
to a network of devices conforming to the CSAFE protocol.
Warning
The devices connected must comply with international standards.
Equipment with codes DA77M... can be connected to devices conforming to the CSAFE protocol only for setting and
maintenance functions. Additional devices connected to the digital interface must conform to the respective IEC standards
(that is IEC 60950 for information technology equipment and IEC 60601-1 for medical electrical equipment). Whoever connects
additional equipment to the input or output signal ports, configures a medical system and therefore is responsible for the
system’s conformity to the IEC 60601-1 standard about systems. Consult the technical support department or your local
representative if you have any doubts.
If the equipment has the TV, connect the aerial cable to the equipment and to
the wall socket. Use an RF coaxial cable for the connection with an F type of
connector for the equipment.
The wall socket of the aerial cable must be positioned so that the plug can be
easily inserted and removed.
A network socket can be found next to the aerial socket for the Ethernet connection.
Top
cont.
24
Connection to another device
Each TV can be connected to many compatible audio/video equipment (e.g.
DVD, Playstation, VCR and earphones):
A RCA audio inputs (red connector for the right input and white connector
for the left input)
B RCA video input (yellow connector)
C earphones jack.
Warning
Never connect more than one equipment in input at the same
time.
During the exercise we recommend securing the earphones’ wires
in the special slot.
A B
Top
C
07081031
25
Adjusting the levers play
To adjust the handgrips levers play:
- remove the cap (A);
- use a wrench to adjust the screw (B);
- once the adjustment is complete return the cap (A) in its seating.
Top
B
A
07081018
26
Routine maintenance
The equipment should always be kept clean and free of dust, in accordance with normal hygiene and sanitary rules.
To clean the control panel, proceed as follows:
- turn the equipment off by switching the switch to the 0 position (700 version);
- unplug the equipment power cable from the wall socket (700 version);
- clean the control panel with a damp, but not wet, cloth.
Every week, clean the equipment completely:
- with the equipment turned off, clean the external parts with a damp sponge;
- move the equipment to one side so that you can vacuum clean underneath it.
Do not use chemical products or solvents.
Warning
Do not rub too hard on the control panel and diagrams, or on the written instructions on the stickers.
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for
any signs of damage and/or wear.
The routine maintenance, adjustment and lubrication jobs must be performed by the Technogym Technical
Support Service.
For maintenance actions not described in this manual, call in the Technogym Technical Support Service.
Top
27
Changing the fuses (700 version)
Warning
The fuses must be changed by the Technogym Technical Support
Service.
Danger
Before changing the fuses, switch the equipment off by switching
the switch to 0 and unplug the power cable plug from the wall
socket.
Remove the fuse holder, to the right of the switch, by pushing the lever.
Replace the blown fuse with a new one as supplied (3.15A (F).
Fit the fuse holder back into its housing, making sure it clicks in properly.
07081019
Danger
If no more of the supplied fuses are available, use a certified fuse with identical electrical specifications (i.e.
3.15A (F) for the replacement.
Top
28
Recharging the battery (700 SP version)
The 700 SP version has to be kept moving to keep it turned on. If, when you
stop moving, the control panel switches off without warning, the battery will
have to be recharged.
Warning
Do not use the equipment while the battery is recharging.
Charger electrical specifications:
Input 100÷240 Vac 0,8 A 50/60 Hz
Output 15 V dc 24W
Class II
Warning
Only use devices that comply with applicable standards.
Top
29
Troubleshooting
Below is a list of problems that may arise during normal use of the equipment. If the described remedies do not solve the
problem, contact the Technical Support Service.
Problem Cause
Remedy
Equipment doesn’t switch onMains power failure (700 version).
Check the power supply at the wall socket used by the equipment by plugging in an appliance
that definitely works.
Power supply cable damaged (700 version).
Contact the Technogym Technical Support Service.
Installation problems with the power supply cable (700 version).
Check the connection.
Burnt-out fuses (700 version).
To replace the blown fuse with a spare (3.15A (F) contact Technogym Technical Support
Service.
Top
The control panel connector has been accidentally disconnected.
Contact the Technogym Technical Support Service.
cont.
30
Troubleshooting
Problem Cause
Remedy
Data incorrect or unreliable
with equipment running
Problems in monitoring heart
rate with the chest band
Blocked key on keypad.
If the problem persists, contact the Technogym Technical Support Service.
Equipment next to source of radio interference (e.g. electrical domestic appliances).
Move the equipment to another place or move the domestic appliances.
An internal connector has become accidentally disconnected.
Contact the Technogym Technical Support Service.
Internal contact in control panel.
Contact the Technogym Technical Support Service.
Other transmitters situated nearby.
Move the equipment far enough away to stop signal interference (minimum distance between
two units 80 cm).
Strong interference sources nearby.
Find the interference source (e.g. an electrical domestic appliance) and move it away, or move
the equipment.
Worn heart rate monitor chest band.
Change the chest band.
Top
Chest band transmitter not making proper skin contact.
Dampen the inside of the chest band with water.
Control panel not working properly.
Contact the Technogym Technical Support Service.
Damaged transmitter.
Change the chest band.
31
Technical assistance
The Technogym Technical Support Service provides:
Technogym Technical
- telephone consultation
- information about which services are covered by the warranty and which
must be paid for
- on-site servicing
- supply of original spare parts.
When you contact the Technogym Technical Support Service you must give the following information:
- model,
- date of purchase,
- serial number,
- precise description of the problem.
47035 Gambettola (Forlì) ITALY
email: service@technogym.com
Support Service
via G. Perticari, 20
tel: 0547 650650
fax: 0547 650150
Warning
Work on the equipment by persons unauthorised by Technogym invalidates the warranty.
Technogym supplies the electrical and wiring diagrams to companies with technical support.
Top
32
Storage
If a long period of non-use is expected, you are advised to store the equipment in the following way:
- in a clean dry place, with a dust cover;
- at a room temperature between -10°C and 70°C and relative humidity between 20% and 90%.
For better storage, use the original packing materials.
Disposing of the equipment
Always ensure that the equipment poses no danger to people and do not let children play with it. As a precaution, when the
equipment is unused for a long time or when you want to dispose of it, unplug it from the mains.
Disposing of the equipment on open ground, in public areas, or in private areas used by the public is prohibited.
The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the
manner prescribed by the urban refuse collection regulations in force, by specialist environmental firms.
Disposing of the battery
The battery is made of non-recyclable materials: do not discard it in the environment.
Contact a company specialized in urban and environmental sanitation.
Disposing of the chest band
The chest band, which transmits heart rate data, is not made of recyclable materials and therefore must not be disposed of
on open ground.
Contact a company specialized in urban and environmental sanitation.
Top
33
Switching on and off
To turn the 700 version of the equipment on, switch the switch to the “I”
position (on).
To turn the 700 SP version on, begin moving.
When switched on, a beep sounds and all the control panel LEDs light up.
After a quick system check (reset), the equipment is ready for use.
07081021
The message does not appear if the keys are disabled (see the Configuration Menu section in the software part) so that
exercises can be started only with the TGS key
The message does not appear if the TGS key reader is not installed or if the use of the TGS key is disabled (see the Configuration
Menu section in the software part) so that exercises can be started only with the control panel keys.
In this mode, the following functions are enabled:
- calculation of heart rate, if measured;
- reading of access codes for configuration menu (see the Configuration Menu section in the software part).
Top
cont.
34
Switching on and off
To turn the 700 version of the equipment off, switch the main switch to the
“0” position (off).
If the equipment isn’t going to be used for a long time, as well as turning it off
you should also pull the plug out of the wall socket.
Warning
The switch is for turning the equipment on and off but does not
isolate it completely from the mains voltage, even in the “0”
position (off). For complete isolation you must unplug the power
supply plug.
07081022
To turn the 700 SP version off, simply stop moving.
The equipment must be switched off only at the end of the exercise, when in standby.
Top
35
Monitoring the heart rate
The equipment is able to measure heart rate trends with a chest band with a
heart rate transmitter (Polar T31).
There must be no more than one transmitter in the reception range: otherwise
the receiver may receive different signals at the same time and give incorrect
heart readings. If there are several equipment units with heart rate receivers
in the same area, the recommended minimum distance between them is 80
cm.
Heart rate readings will not be accurate near electromagnetic radiation sources (TVs, cellphones, etc.).
0507028
Should you have any doubts about the accuracy of the readings, contact the Technical Support Service.
Top
cont.
36
Monitoring the heart rate
The following table shows the optimum heart rate levels in relation to age and the goal to be achieved. Theoretical maximum
heart rate (100%) is calculated on the basis of age using the formula: 220 - age.
05072036
Heart rate per minute
Area reserved for competitive athlete’s workouts (requiring
a doctor’s certificate)
Aerobic zone with a primarily cardio-circulatory component
(keep heart rate between 70% and 90%)
Top
Age
Aerobic zone primarily using fats as energy source (keep
heart rate between 60% and 70%)
Zone of little training interest
cont.
37
Monitoring the heart rate
To read the graph, simply find your age on the horizontal axis and scan up the vertical until you reach the 60%, 70% and
90% values.
Aerobic exercise performed at a heart rate between 60% and 70% mainly burns fat as an energy source.
When doing aerobic exercise at a heart rate of 70% to 90% the cardiocirculatory component prevails.
For example, if someone aged 30 wants to burn off fat, the heart rate during exercise should be kept to between 114 (60%)
and 133 (70%); if he or she wants to improve cardio-respiratory capacity, the heart rate should be kept to between 133 (70%)
and 171 (90%).
Danger
During a workout it is very important that your heart rate never goes above 90% of your maximum rate (unless
you are an athlete engaged in competitive sport).
Warning
The sole function of the heart rate monitor is to display the heart rate during exercise and cannot be used for
medical cardiac diagnoses of any kind. The heart rate shown on the display is purely indicative and cannot be
considered absolutely certain.
For information on displaying the heart rate percentage on the control panel see the Heart rate LEDs section in the software
part.
Top
38
Using the equipment
The exercise can be performed standing up on the rear platforms; or sitting
down, with your feet resting on one of the front platforms.
Disabled persons can remove the seat and bring the wheelchair on the rear
platform.
The levers let you perform the exercise with alternate and with parallel arms.
Warning
Any distractions in the area around the equipment may cause the
user to lose his/her balance.
Top is to be used solely for its intended purpose, i.e. as an equipment
to exercise shoulders and arms. Any other use of the equipment
is to be considered improper and therefore dangerous.
07081026
Top
cont.
07081027
07081028
39
OK
OK
OK
Using the equipment
Danger
Before sitting down make sure the seat is properly locked.
Do not sit down in the seat, if it is not properly locked.
IFI Version
Top
cont.
40
Using the equipment
To adjust the length of the handgrips levers push the knob (A) upwards, adjust the lever, then push the knob (A) downwards
again to block the lever.
To adjust the height of the handgrips lift or lower the block (B) with the lever (C).
B
Top
C
A
07081025
cont.
41
Using the equipment
To adjust the seat, pull the lever under the seat and move the seat forward or
backwards.
07081023
To remove the seat, pull the lever under the seat and move the seat backwards
until it comes out of its seating. In this way the exercise can be performed
standing up or a wheelchair can be inserted.
Top
cont.
07081024
42
Using the equipment
IFI Version
To adjust the seat, use the lever under the seat and move the seat forward or
backwards.
To remove the seat, pull the lever under the seat and move the seat backwards
until it comes out of its seating. In this way the exercise can be performed
standing up or a wheelchair can be inserted.
Top
43
Loading...
