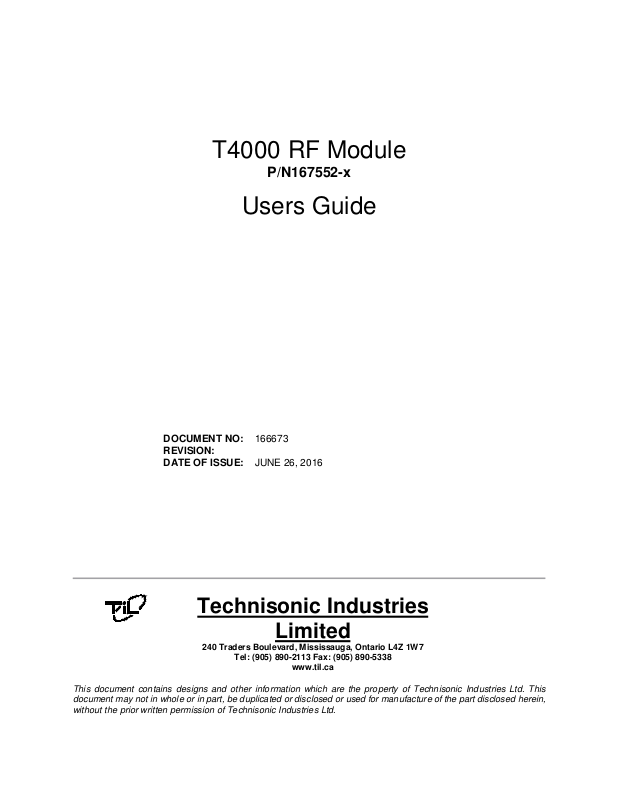

Technisonic T4000 User Manual

T4000 RF Module

P/N167552-x

Users Guide

DOCUMENT NO: 166673
REVISION:
DATE OF ISSUE: JUNE 26, 2016

Technisonic Industries

Limited

240 Traders Boulevard, Mississauga, Ontario L4Z 1W7

This document contains designs and other information which are the property of Technisonic Industries Ltd. This
document may not in whole or in part, be duplicated or disclosed or used for manufacture of the part disclosed herein,
without the prior written permission of Technisonic Industries Ltd.

Tel: [phone] Fax: [phone]

www.til.ca

INTRODUCTION

The T4000 RF module is a Tri Band transceiver assembly that operates in 136 – 174, 380 – 520, and
764-870 MHz ranges. The T4000 RF module is a modified Motorola APX 8000 Tri Band portable radio.

The outer casing, top controls, front display and keypad are removed. The RF chassis is slightly
machined but all electronic circuits are unmodified from the original APX 8000 radio.

The transceiver is designed to be installed and operated in a Technisonic Multiband Airborne Radio
TDFM 9000 platform. All external power and antenna connections are provided by the TDFM 9000 as
well as controls are via the front panel and display from the TDFM 9000.

The RF module is capable of operating on Analog FM, Wide and Narrow and Project 25 Phase 1
conventional and P25 Trunked Phase 1 and 2 systems.

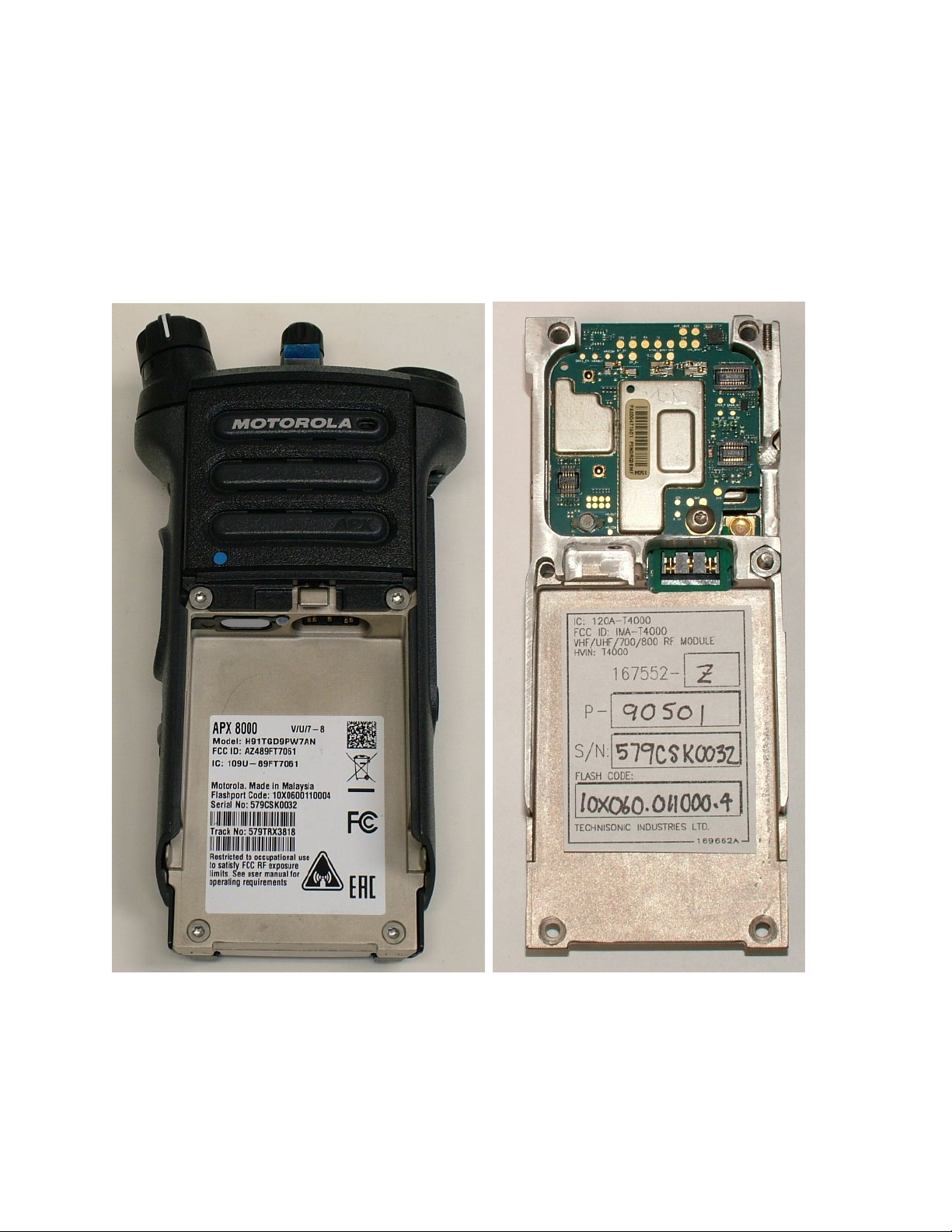

FIGURE 1: Overall view of the T4000 RF Module

NOTES

ESD CAUTION

This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves
when handling printed circuit boards.

FCC COMPLIANCE INFORMATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.

WARNING: For compliance with FCC RF Exposure Requirements the mobile transmitter
antenna installation shall comply with the following two conditions:

1. The transmitter antenna gain shall not exceed 3 dBi.

2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 90 cm
or more between the transmitter antenna of this device and persons during operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
