ASTRO

XTS™ 5000

VHF UHF Range 1 700 — 800 MHz Digital Portable Radios

Detailed Service Manual

Title P a ge

ASTRO® XTS™ 5000

VHF/UHF Range 1/700–800 MHz

Digital Portable Radios

Detailed Service Manual

Motorola, Inc. 8000 West Sunrise Boulevard Fort Lauderdale, Florida 33322

6881094C31-C

Foreword

The information contained in this manual relates to all ASTRO® XTS™ 5000 digital portable radios, unless otherwise specified. This manual provides sufficient information to enable qualified service shop technicians to troubleshoot and repair an ASTRO XTS5000 digital portable radio to the component level.

For details on th e operation of the radio or level 1 or 2 maintenance proced ures , re fer to t he applicable manuals, whi ch are available separately. A list of related publications is provided in the section, “Rela ted Publications,” on page xii.

Product Safety and RF Exposure Compliance

Before using this product, read the operating instructions

C a u t i o n

This radio is restricted to occupational use only to satisfy FCC RF energy exposure requirements. Before using this product, read the RF energy awa reness information a nd operating instruction s in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola Publication part number 6881095C98) to ensure compliance with RF energy exposure limits.

For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web site which lists approved accessories: <http://www.motorola.com/cgiss/index.shtml>

for safe usage contained in the Product Safety and RF Exposure booklet enclosed with your radio.

ATTENTION!

Manual Revisions

Changes which occur af te r this man ual is pri nte d are de sc ribe d in FM R s (Fl orid a Ma nua l Revi sions). These FMRs provide complete replacemen t page s for all adde d, chang ed, and dele ted items, in cludi ng pertine nt par t s list dat a, sc hematics , and component layout diagrams. To obtain FMRs, contact the Customer Care and Services Division (refer to “Appendix A Replacement Parts Ordering”).

Computer Software Copyrights

The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighte d compu ter program s, includi ng, but not limited to, the exclus ive rig ht to copy or reprodu ce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this m an ual m ay no t b e copied, reproduced, mod ifi ed, rev ers e-e ngi nee red , or di stributed in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product.

Document Copyrights

No duplication or distrib ution of this document or any portion thereof sha ll take pl ace witho ut the express w ritten permis sion of Motorola. No part of this manual may be reproduced, distributed, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Motorola.

Disclaimer

The information in thi s d ocu ment is carefully examined , an d i s b eli ev ed to be entirely reliable. How e ve r, no responsi bi lity is assumed for inaccuracies. Furthermore, Motorola reserves the right to make changes to any products herein to improve readability, function, or design. Motorola does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights nor the rights of others.

Trademarks

MOTOROLA, the Stylized M logo, and ASTRO are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners.

Foreword.........................................................................................................ii

Product Safety and RF Exposure Compliance............................................................................................ii

Manual Revisions ............... ....... ...... ....... ...... ....... ............................................. ...... ....... ..... .........................ii

Computer Software Copyrights ...................................................................................................................ii

Document Copyrights..................................................................................................................................ii

Disclaimer....................................................................................................................................................ii

Trademarks .................................................................................................................................................ii

List of Figures ..............................................................................................vii

List of Tables.................................................................................................xi

Commercial Warranty .................................................................................xiii

Limited Warranty ...................................................................................................................................... xiii

MOTOROLA COMMUNICATION PRODUCTS..............................................................................xiii

I. What This Warranty Covers And For How Long ................................................................... xiii

II. General Provisions............................................................................................................... xiii

III. State Law Rights .................................................................................................................xiv

IV. How To Get Warranty Service............................................................................................xiv

V. What This Warranty Does Not Cover...................................................................................xiv

VI. Patent And Software Provisions ..........................................................................................xv

VII. Governing Law.................................................................... ....... ...... ....... ...... ....... ...............xv

Model Numbering, Cha rts, and Specificat ions............ .. ... .. ................... ..xvii

Portable Radio Model Numbering System .............................................................................................. xvii

ASTRO XTS 5000 VHF Model Chart ..................................................................................................... xviii

ASTRO XTS 5000 R (Ruggedized) VHF Model Chart.............................................................................xix

ASTRO XTS 5000 UHF Range 1 Model Chart..........................................................................................xx

ASTRO XTS 5000 R (Ruggedized) UHF Range 1 Model Chart ..............................................................xxi

ASTRO XTS 5000 700–800 MHz Model Chart.......................................................................................xxii

ASTRO XTS 5000 R (Ruggedized) 700–800 MHz Model Chart............................................................ xxiii

Specifications for VHF Radios................................................................................................................ xxiv

Specifications for UHF Range 1 Radios..................................................................................................xxv

Specifications for 700–800 MHz Radios.................................................................................................xxvi

Chapter 1 Introduction ......................................................................... 1-1

1.1 General..........................................................................................................................................1-1

1.2 Notations Used in This Manual...................................................................................................... 1-2

Chapter 2 Radio Power ........................................................................ 2-1

iv Table of Contents

2.1 General..........................................................................................................................................2-1

2.2 DC Power Routing—Transceiver Board ........................................................................................2-3

2.3 DC Power Routing—VOCON Board..............................................................................................2-3

Chapter 3 Theory of Operation............................................................ 3-1

3.1 Transceiver Board..........................................................................................................................3-2

3.1.1 Interconnections................................................................................................................3-3

3.1.1.1 Battery Connector J3........................................ .............................................. ...... ...3-3

3.1.1.2 VOCON Connector P1.............................................................................................3-3

3.1.1.3 Antenna Port J2.......................................................................................................3-5

3.1.1.4 Serial EEPROM.................................... ...... ...... .............................................. ...... ...3-5

3.1.1.5 Power Conditioning Components ............................................................................3-5

3.1.2 Receiver............................................................................................................................3-5

3.1.2.1 Receiver Front End..................................................................................................3-6

3.1.2.2 Receiver Back End ..................................................................................................3-7

3.1.3 Transmitter........................................................................................................................3-8

3.1.3.1 Power Distribution....................................................................................................3-9

3.1.3.2 Driver Amplifier ........................................................................................................3-9

3.1.3.3 Power Amplifier Transistor Q107...........................................................................3-10

3.1.3.4 Directional Coupler ................................................................................................3-10

3.1.3.5 Antenna Switch......................................................................................................3-10

3.1.3.6 Harmonic Filter.......................................................................................................3-10

3.1.3.7 RF Detectors D101 and D102................................................................................3-11

3.1.3.8 Summing Amplifier U106 .......................................................................................3-11

3.1.3.9 Power-Control IC (PCIC) U104..............................................................................3-11

3.1.4 Frequency Generation Unit (FGU)..................................................................................3-13

3.1.4.1 Reference Oscillator Y200.....................................................................................3-13

3.1.4.2 Fractional-N Frequency Synthesizer (FracN) IC U202 ..........................................3-14

3.1.4.3 Loop Filter..............................................................................................................3-15

3.1.4.4 VCO Buffer IC (VCOBIC).......................................................................................3-15

3.2 VOCON Board .............................................................................................................................3-16

3.2.1 Interconnections..............................................................................................................3-16

3.2.1.1 Universal Connector J101......................................................................................3-17

3.2.1.2 Encryption Connector J701....................................................................................3-17

3.2.1.3 Keypad Module Connector P107...........................................................................3-17

3.2.1.4 RF Interface Connector P201................................................................................3-17

3.2.1.5 Display Module Connector P301 ...........................................................................3-17

3.2.2 Controller and Memory .............. ............................................. ....... ...... ....... ...... ....... .......3-17

3.2.2.1 Patriot IC U401 ......................................................................................................3-18

3.2.2.2 Static RAM (SRAM) U403......................................................................................3-20

3.2.2.3 FLASH Memory U402............................................................................................3-21

3.2.3 Audio and Power..... ...... ....... ...... ....... ...... ....... ............................................. ...... ....... .......3-22

3.2.3.1 GCAP II IC U501....................................................................................................3-22

3.2.3.2 5 V Regulator U505 ...............................................................................................3-23

3.2.3.3 1.55 V Regulator....................................................................................................3-23

3.2.3.4 Audio Pre-Amplifier U502 ................................. ....... ............................................. .3-24

3.2.3.5 Audio Power Amplifier U503..................................................................................3-24

3.2.3.6 EEPOT U509.........................................................................................................3-24

3.2.4 Interface Support ............................................................................................................3-24

3.2.4.1 Flipper IC U301......................................................................................................3-25

3.2.4.2 ESD Protection Circuitry ........................................................................................3-27

3.2.4.3 Universal Connector Interface Circuitry .................................................................3-28

October 14, 2003 6881094C31-C

Table of Contents v

3.2.4.4 Display Module.......................... ....... ...... ...... ....... ............................................. ..... 3-29

3.2.4.5 Keypad Module...................................................................................................... 3-30

3.2.4.6 Controls and Control Top Flex............................................................................... 3-30

3.2.4.7 System Clocks.......................................................................................................3-31

3.2.5 VOCON Audio Paths ...................................................................................................... 3-32

3.2.5.1 Transmit Audio Path .............................................................................................. 3-32

3.2.5.2 Receive Audio Path ............................................................................................... 3-33

3.2.6 Radio Power-Up/Power-Down Sequence....................................................................... 3-33

3.3 Encryption Module.......................................................................................................................3-34

Chapter 4 Troubleshooting Procedures............................................. 4-1

4.1 Handling Precautions.....................................................................................................................4-1

4.2 Recommended Service Tools........................................................................................................ 4-2

4.3 Voltage Measurement and Signal Tracing.....................................................................................4-3

4.4 Standard Bias Table ...................................................................................................................... 4-4

4.5 Power-Up Self-Check Errors ......................................................................................................... 4-5

4.6 Power-Up Self-Check Diagnostics and Repair (Not for Field Use)................................................4-6

Chapter 5 Troubleshooting Charts ..................................................... 5-1

5.1 List of Troubleshooting Charts....................................................................................................... 5-1

5.2 Main Troubleshooting Flowchart.................................................................................................... 5-2

5.3 Power-Up Failure........................................................................................................................... 5-3

5.4 DC Supply Failure..........................................................................................................................5-5

5.5 Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits)......................................... 5-8

5.6 Display Failure (NTN9564) ..................................... ...... ...... ....... ...... ....... ...... ....... ........................ 5-11

5.7 Volume Set Error ......................................................................................................................... 5-14

5.8 Channel/Zone Select Error ..................................... ...... ...... ....... ...... ....... ...... ....... ...... ....... ...........5-15

5.9 Button Test .................................................................................................................................. 5-16

5.10 Top/Side Button Test...................................................................................................................5-17

5.11 VCO TX/RX Unlock ..................................................................................................................... 5-18

5.12 VOCON TX Audio........................................................................................................................ 5-19

5.13 VOCON RX Audio ....................................................................................................................... 5-21

5.14 RX RF..........................................................................................................................................5-23

5.15 TX RF (VHF)................................................................................................................................ 5-28

5.16 TX RF (UHF R1/700-800 MHz) ...................................................................................................5-31

5.17 Keyload Failure............................................................................................................................ 5-34

5.18 Secure Hardware Failure.............................................................................................................5-35

Chapter 6 Troubleshooting Waveforms ............................................. 6-1

6.1 List of Waveforms.......................................................................................................................... 6-1

6.2 13 MHz Clock ................................................................................................................................ 6-2

6.3 16.8 MHz Buffer Input and Output.................................................................................................6-3

6.4 32.768 kHz Clock Outputs.............................................................................................................6-4

6.5 SPI B Data..................................................................................................................................... 6-5

6.6 Receive Serial Audio Port (SAP) ...................................................................................................6-6

6.7 Receive Baseband Interface Port (RX BBP) ................................................................................. 6-7

6.8 Transmit Baseband Interface Port (TX BBP)................................................................................. 6-8

6881094C31-C October 14, 2003

vi Table of Contents

Chapter 7 Troubleshooting Tables ..................................................... 7-1

7.1 List of Board and IC Signals ..........................................................................................................7-1

Chapter 8 Schematics, Board Overlays, and Parts Lists.................. 8-1

8.1 List of Transceiver Schematics and Board Overlays.....................................................................8-1

8.2 List of VOCON Schematics and Board Overlays...........................................................................8-1

8.3 Transceiver (RF) Boards................................................................................................................8-3

8.4 VOCON Boards ...........................................................................................................................8-79

Appendix A Replacement Parts Ordering..............................................A-1

A.1 Basic Ordering Information............................................................................................................A-1

A.2 Transceiver Board and VOCON Board Ordering Information........................................................A-1

A.3 Motorola Online............. ....... ...... ....... ...... ....... ...... ............................................. ....... ......................A-1

A.4 Mail Orders ....................................................................................................................................A-1

A.5 Telephone Orders..........................................................................................................................A-2

A.6 Fax Orders.....................................................................................................................................A-2

A.7 Parts Identification .........................................................................................................................A-2

A.8 Product Customer Service.............................................................................................................A-2

Glossary.........................................................................................Glossary-1

Index.....................................................................................................Index-1

October 14, 2003 6881094C31-C

List of Figures vii

List of Figures

Figure 2-1. DC Power Distribution—UHF Range 1 and 700–800 MHz Radios ...................................... 2-2

Figure 2-2. DC Power Distribution—VHF Radios....................................................................................2-2

Figure 3-1. XTS 5000 Overall Block Diagram......................................................................................... 3-1

Figure 3-2. Transceiver (VHF) Block Diagram (Power and Control Omitted) ......................................... 3-2

Figure 3-3. Transceiver (UHF Range 1 and 700–800 MHz) Block Diagram

(Power and Control Omitted)................................................................................................3-3

Figure 3-4. Receiver Block Diagram ....................................................................................................... 3-5

Figure 3-5. Abacus III (AD9874) Functional Block Diagram (from data sheet).......................................3-7

Figure 3-6. Transmitter Block Diagram ...................................................................................................3-9

Figure 3-7. VOCON Board Interconnections.........................................................................................3-16

Figure 3-8. Patriot EIM and Memory Block Diagram........................................................... ....... ...... ..... 3-21

Figure 3-9. Universal (Side) Connector.................................................................................................3-28

Figure 3-10. VOCON Board Connector—J101....................................................................................... 3-28

Figure 3-11. Control Top Flex.................................................................................................................. 3-31

Figure 3-12. VOCON Transmit Audio Path .............................................................................................3-32

Figure 3-13. VOCON Receive Audio Path .............................................................................................. 3-33

Figure 6-1. 13 MHz Clock Waveform ......................................................................................................6-2

Figure 6-2. 16.8 MHz Buffer Input and Output Waveforms..................................................................... 6-3

Figure 6-3. 32.768 kHz Clock Outputs Waveforms................................................................................. 6-4

Figure 6-4. SPI B Data Waveforms......................................................................................................... 6-5

Figure 6-5. Receive Serial Audio Port (SAP) Waveforms ....................................................................... 6-6

Figure 6-6. Receive Baseband Interface Port (RX BBP) Waveforms .....................................................6-7

Figure 6-7. Transmit Baseband Interface Port (TX BBP) Waveforms.....................................................6-8

Figure 8-1. NUF3577 700–800 MHz Transceiver (RF) Board Overall Circuit Schematic .......................8-3

Figure 8-2. NUF3577 700–800 MHz Antenna Switch and Harmonic Filter Circuits................................8-4

Figure 8-3. NUF3577 700–800 MHz Receiver Front End Circuit............................................................ 8-5

Figure 8-4. NUF3577 700–800 MHz Receiver Back End Circuit ............................................................ 8-6

Figure 8-5. NUF3577 700–800 MHz Transmitter and Automatic Level Control Circuits.........................8-7

Figure 8-6. NUF3577 700–800 MHz Frequency Generation Unit (Synthesizer) Circuit—1 of 2............. 8-8

Figure 8-7. NUF3577 700–800 MHz Frequency Generation Unit (VCO) Circuit—2 of 2........................ 8-9

Figure 8-8. NUF3577 700–800 MHz Transceiver (RF) Board Layout—Side 1..................................... 8-10

Figure 8-9. NUF3577 700–800 MHz Transceiver (RF) Board Layout—Side 2..................................... 8-11

Figure 8-10. NUF3577C 700–800 MHz Transceiver (RF) Board Overall Circuit Schematic...................8-17

Figure 8-11. NUF3577C 700–800 MHz Antenna Switch and Harmonic Filter Circuits...........................8-18

Figure 8-12. NUF3577C 700–800 MHz Receiver Front End Circuit ....................................................... 8-19

Figure 8-13. NUF3577C 700–800 MHz Receiver Back End Circuit........................................................ 8-20

Figure 8-14. NUF3577C 700–800 MHz Transmitter and Automatic Level Control Circuits.................... 8-21

Figure 8-15. NUF3577C 700–800 MHz Frequency Generation Unit (Synthesizer) Circuit.....................8-22

Figure 8-16. NUF3577C 700–800 MHz Frequency Generation Unit (VCO) Circuit................................8-23

Figure 8-17. NUF3577C 700–800 MHz Transceiver (RF) Board Layout—Side 1 .................................. 8-24

Figure 8-18. NUF3577C 700–800 MHz Transceiver (RF) Board Layout—Side 2 .................................. 8-25

Figure 8-19. NLD8910B VHF Transceiver (RF) Board Overall Circuit Schematic.................................. 8-31

Figure 8-20. NLD8910B VHF DC Power Circuits.................................................................................... 8-32

Figure 8-21. NLD8910B VHF Antenna Switch and Harmonic Filter Circuits........................................... 8-33

Figure 8-22. NLD8910B VHF Receiver Front End Circuit.......................................................................8-34

Figure 8-23. NLD8910B VHF Receiver Amplifier and Filter Circuit......................................................... 8-35

Figure 8-24. NLD8910B VHF Mixer and IF Filter Circuits....................................................................... 8-36

Figure 8-25. NLD8910B VHF Receiver Back End Circuit ....................................................................... 8-37

6881094C31-C October 14, 2003

viii List of Figures

Figure 8-26. NLD8910B VHF Transmitter and Automatic Level Control Circuits ...................................8-38

Figure 8-27. NLD8910B VHF Frequency Generation Unit (Synthesizer) Circuit.....................................8-39

Figure 8-28. NLD8910B VHF Frequency Generation Unit (VCO) Circuit................................................8-40

Figure 8-29. NLD8910B VHF Transceiver (RF) Board Layout—Side 1..................................................8-41

Figure 8-30. NLD8910B VHF Transceiver (RF) Board Layout—Side 2..................................................8-42

Figure 8-31. NLE4272A UHF Range 1 Transceiver (RF) Board Overall Circuit Schematic....................8-48

Figure 8-32. NLE4272A UHF Range 1 Antenna Switch and Harmonic Filter Circuits ............................8-49

Figure 8-33. NLE4272A UHF Range 1 Receiver Front End (RX_FE) Circuit..........................................8-50

Figure 8-34. NLE4272A UHF Range 1 Receiver Back End (RX_BE) Circuit..........................................8-51

Figure 8-35. NLE4272A UHF Range 1 Transmitter Power Amplifier and Automatic Level Control (TX_ALC)

Circuit..................................................................................................................................8-52

Figure 8-36. NLE4272A UHF Range 1 Frequency Generation Unit (Synthesizer) Circuit......................8-53

Figure 8-37. NLE4272A UHF Range 1 Frequency Generation Unit (VCO) Circuit ................................8-54

Figure 8-38. NLE4272A UHF Range 1 Transceiver (RF) Board Layout—Side 1....................................8-55

Figure 8-39. NLE4272A UHF Range 1 Transceiver (RF) Board Layout—Side 2....................................8-56

Figure 8-40. NLE4278A UHF Range 1 Transceiver (RF) Board Overall Circuit Schematic....................8-64

Figure 8-41. NLE4278A UHF Range 1 Antenna Switch and Harmonic Filter Circuits ............................8-65

Figure 8-42. NLE4278A UHF Range 1 Receiver Front End Circuit.........................................................8-66

Figure 8-43. NLE4278A UHF Range 1 Receiver Back End Circuit.........................................................8-67

Figure 8-44. NLE4278A UHF Range 1 Transmitter Power Amplifier and Automatic Level Control

Circuit..................................................................................................................................8-68

Figure 8-45. NLE4278A UHF Range 1 Frequency Unit (Synthesizer) Circuit.........................................8-69

Figure 8-46. NLE4278A UHF Range 1 Frequency Generation Unit (VCO) Circuit .................................8-70

Figure 8-47. NLE4278A UHF Range 1 Transceiver (RF) Board Layout—Side 1....................................8-71

Figure 8-48. NLE4278A UHF Range 1 Transceiver (RF) Board Layout—Side 2....................................8-72

Figure 8-49. NTN9564B VOCON Board Overall Schematic—1 of 2.......................................................8-79

Figure 8-50. NTN9564B VOCON Board Overall Schematic—2 of 2.......................................................8-80

Figure 8-51. NTN9564B VOCON Universal Connector Circuit ...............................................................8-81

Figure 8-52. NTN9564B VOCON Flipper Circuit.....................................................................................8-82

Figure 8-53. NTN9564B VOCON Controller and Memory Circuits—1 of 2.............................................8-83

Figure 8-54. NTN9564B VOCON Controller and Memory Circuits—2 of 2.............................................8-84

Figure 8-55. NTN9564B VOCON Audio and DC Circuits........................................................................8-85

Figure 8-56. NTN9564B VOCON Board Layout—Side 1........................................................................8-86

Figure 8-57. NTN9564B VOCON Board Layout—Side 2........................................................................8-87

Figure 8-58. NTN9564C VOCON Board Overall Schematic—1 of 2.......................................................8-93

Figure 8-59. NTN9564C VOCON Board Overall Schematic—2 of 2.......................................................8-94

Figure 8-60. NTN9564C VOCON Universal Connector Circuit...............................................................8-95

Figure 8-61. NTN9564C VOCON Flipper Circuit.....................................................................................8-96

Figure 8-62. NTN9564C VOCON Controller and Memory Circuits—1 of 2.............................................8-97

Figure 8-63. NTN9564C VOCON Controller and Memory Circuits—2 of 2.............................................8-98

Figure 8-64. NTN9564C VOCON Audio and DC Circuits........................................................................8-99

Figure 8-65. NTN9564C VOCON Board Layout—Side 1......................................................................8-100

Figure 8-66. NTN9564C VOCON Board Layout—Side 2......................................................................8-101

Figure 8-67. NNTN4563A/B VOCON Board Overall Schematic—1 of 2...............................................8-107

Figure 8-68. NNTN4563A/B VOCON Board Overall Schematic—2 of 2...............................................8-108

Figure 8-69. NNTN4563A/B VOCON Universal Connector Circuit .......................................................8-109

Figure 8-70. NNTN4563A/B VOCON Flipper Circuit.............................................................................8-110

Figure 8-71. NNTN4563A/B VOCON Controller and Memory Circuits—1 of 2.....................................8-111

Figure 8-72. NNTN4563A/B VOCON Controller and Memory Circuits—2 of 2.....................................8-112

Figure 8-73. NNTN4563A/B VOCON Audio and DC Circuits................................................................8-113

Figure 8-74. NNTN4563A/B VOCON Board Layout—Side 1................................................................8-114

Figure 8-75. NNTN4563A/B VOCON Board Layout—Side 2................................................................8-115

Figure 8-76. NNTN4819A VOCON Board Overall Schematic—Sheet 1 of 2........................................8-122

Figure 8-77. NNTN4819A VOCON Board Overall Schematic—Sheet 2 of 2........................................8-123

October 14, 2003 6881094C31-C

List of Figures ix

Figure 8-78. NNTN4819A VOCON Universal Connector and ESD Circuits .........................................8-124

Figure 8-79. NNTN4819A VOCON Flipper Circuit ................................................................................ 8-125

Figure 8-80. NNTN4819A VOCON Controller and Memory Circuits—Sheet 1 of 2.............................. 8-126

Figure 8-81. NNTN4819A VOCON Controller and Memory Circuits—Sheet 2 of 2.............................. 8-127

Figure 8-82. NNTN4819A VOCON Audio/DC Circuits.......................................................................... 8-128

Figure 8-83. NNTN4819A VOCON Board Layout—Side 1................................................................... 8-129

Figure 8-84. NNTN4819A VOCON Board Layout—Side 2................................................................... 8-130

Figure 8-85. NNTN4717D VOCON Board Overall Schematic—Sheet 1 of 2 .......................................8-136

Figure 8-86. NNTN4717D VOCON Board Overall Schematic—Sheet 2 of 2 .......................................8-137

Figure 8-87. NNTN4717D VOCON Board Universal Connector Circuit Schematic..............................8-138

Figure 8-88. NNTN4717D VOCON Board Flipper Circuit ..................................................................... 8-139

Figure 8-89. NNTN4717D VOCON Board Controller and Memory Circuits—Sheet 1 of 2...................8-140

Figure 8-90. NNTN4717D VOCON Board Controller and Memory Circuits—Sheet 2 of 2...................8-141

Figure 8-91. NNTN4717D VOCON Board Audio/DC Circuits............................................................... 8-142

Figure 8-92. NNTN4717D VOCON Board Layout—Side 1...................................................................8-143

Figure 8-93. NNTN4717D VOCON Board Layout—Side 2...................................................................8-144

6881094C31-C October 14, 2003

x List of Figures

October 14, 2003 6881094C31-C

List of Tables xi

List of Tables

Table 2-1. Conventional Batteries.......................................................................................................... 2-1

Table 2-2. Smart Batteries..................................................................................................................... 2-1

Table 2-3. Transceiver Voltage Regulators............................................................................................2-3

Table 2-4. VOCON Board DC Power Distribution.................................................................................. 2-4

Table 3-1. Battery Connector J3............................................................................................................ 3-3

Table 3-2. VOCON Connector P1.......................................................................................................... 3-4

Table 3-3. Power Control IC (U104) Pin Descriptions.......................................................................... 3-11

Table 3-4. Audio PA Status.................................................................................................................. 3-24

Table 3-5. Option-Select Functions ..................................................................................................... 3-29

Table 3-6. Encryption Module Software Kits and Algorithms...............................................................3-34

Table 4-1. Recommended Service Tools............................................................................................... 4-2

Table 4-2. Standard Operating Bias.......................................................................................................4-4

Table 4-3. Power-Up Self-Check Error Codes.......................................................................................4-5

Table 4-4. Power-Up Self-Check Diagnostic Actions.............................................................................4-6

Table 5-1. Troubleshooting Charts List..................................................................................................5-1

Table 6-1. List of Waveforms.................................................................................................................6-1

Table 7-1. List of Tables of Board and IC Signals.................................................................................. 7-1

Table 7-2. J101 VOCON Board to Controls Flex Assembly................................................................... 7-1

Table 7-3. J107 VOCON Board to Keypad Module ............................................................................... 7-3

Table 7-4. J701 VOCON Board to Encryption Module........................................................................... 7-3

Table 7-5. U402 FLASH Pinouts............................................................................................................ 7-5

Table 7-6. U403 SRAM Pinouts.............................................................................................................7-7

Table 7-7. U401 Patriot MCU/DSP IC Pinouts.......................................................................................7-9

Table 7-8. U301 Flipper IC Pinouts...................................................................................................... 7-18

Table 7-9. U501 GCAP II IC Pinouts....................................................................................................7-20

Table 8-1. List of Transceiver Schematics and Board Overlays ............................................................8-1

Table 8-2. List of VOCON Schematics and Board Overlays.................................................................. 8-1

6881094C31-C October 14, 2003

xii List of Tables

Related Publications

ASTRO XTS 5000 Digital Portable Radio Model I User Guide ................................................. 6881094C25

ASTRO XTS 5000 Digital Portable Radio Model II User Guide ................................................6881094C26

ASTRO XTS 5000 Digital Portable Radio Model III User Guide ...............................................6881094C27

ASTRO XTS 5000 VHF/UHF Range 1/700–800 MHz Digital Portable Radios

Basic Service Manual ......................................................................................................... 6881094C28

Factory Mutual Approval XTS 5000 Product Listing Manual Supplement................................. 6881094C78

October 14, 2003 6881094C31-C

Commercial Warranty

Limited Warranty

MOTOROLA COMMUNICATION PRODUCTS

I. What This Warranty Covers And For How Long

MOTOROLA INC. (“MOTOROLA”) warrants the MOTOROLA manufactured Communication Products listed below (“Product”) against defects in material and workmanship under normal use and service for a period of time from the date of purchase as scheduled below:

ASTRO XTS 5000 Digital Portable Units One (1) Year Product Accessories One (1) Year

Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty. Replaced parts or boards are warranted for the balance of the original applicable warranty period. All replaced parts of Product shall become the property of MOTOROLA.

This express limited warranty is extended by MOTOROLA to the original end user purchaser only and is not assignable or transferable to any other party. This is the complete warranty for the Product manufactured by MOTOROLA. MOTOROLA assumes no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of MOTOROLA. Unless made in a separate agreement between MOTOROLA and the original end user purchaser, MOTOROLA does not warrant the installation, maintenance or service of the Product.

MOTOROLA cannot be responsible in any way for any ancillary equipment not furnished by MOTOROLA which is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, MOTOROLA disclaims liability for range, coverage, or operation of the system as a whole under this warranty.

II. General Provisions

This warranty sets forth the full extent of MOTOROLA’s responsibilities regarding the Product. Repair, replacement or refund of the purchase price, at MOTOROLA’s option, is the exclusive remedy. THIS W ARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.

xiv Commercial Warranty

III. St a te Law Rig hts

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.

This warranty gives specific legal rights, and there may be other rights which may vary from state to state.

IV. How To Get Warranty Service

You must provide proof of purchase (bearing the date of purchase and Product item serial number) in order to receive warranty service and, also, deliver or send the Product item, transportation and insurance prepaid, to an authorized warranty service location. Warranty service will be provided by Motorola through one of its authorized warranty service locations. If you first contact the company which sold you the Product, it can facilitate your obtaining warranty service. You can also call Motorola at 1-888-567-7347 US/Canada.

V. What This Warranty Does Not Cover

A. Defects or damage resulting from use of the Product in other than its normal and customary

manner. B. Defects or damage from misuse, accident, water, or neglect. C. Defects or damage from improper testing, operation, maintenance, installation, alteration,

modification, or adjustment. D. Breakage or damage to antennas unless caused directly by defects in material workmanship. E. A Product subjected to unauthorized Product modifications, disassemblies or repairs

(including, without limitation, the addition to the Product of non-Motorola supplied equipment)

which adversely affect performance of the Product or interfere with Motorola’s normal

warranty inspection and testing of the Product to verify any warranty claim. F. Product which has had the serial number removed or made illegible. G. Rechargeable batteries if:

• any of the seals on the battery enclosure of cells are broken or show evidence of tampering.

• the damage or defect is caused by charging or using the battery in equipment or service other than the Product for which it is specified.

H. Freight costs to the repair depot. I. A Product which, due to illegal or unauthorized alteration of the software/firmware in the

Product, does not function in accordance with MOTOROLA’s published specifications or the FCC type acceptance labeling in effect for the Product at the time the Product was initially distributed from MOTOROLA.

J. Scratches or other cosmetic damage to Product surfaces that does not affect the operation of

the Product.

K. Normal and customary wear and tear.

October 14, 2003 6881094C31-C

Commercial Warranty xv

VI. Patent And Software Provisions

MOTOROLA will defend, at its own expense, any suit brought against the end user purchaser to the extent that it is based on a claim that the Product or parts infringe a United States patent, and MOTOROLA will pay those costs and damages finally awarded against the end user purchaser in any such suit which are attributable to any such claim, but such defense and payments are conditioned on the following:

A. that MOTOROLA will be notified promptly in writing by such purchaser of any notice of such

claim;

B. that MOTOROLA will have sole control of the defense of such suit and all negotiations for its

settlement or compromise; and

C. should the Product or parts become, or in MOTOROLA’s opinion be likely to become, the

subject of a claim of infringement of a United States patent, that such purchaser will permit MOTOROLA, at its option and expense, either to procure for such purchaser the right to continue using the Product or parts or to replace or modify the same so that it becomes noninfringing or to grant such purchaser a credit for the Product or parts as depreciated and accept its return. The depreciation will be an equal amount per year over the lifetime of the Product or parts as established by MOTOROLA.

MOTOROLA will have no liability with respect to any claim of patent infringement which is based upon the combination of the Product or parts furnished hereunder with software, apparatus or devices not furnished by MOTOROLA, nor will MOTOROLA have any liability for the use of ancillary equipment or software not furnished by MOTOROLA which is attached to or used in connection with the Product. The foregoing states the entire liability of MOTOROLA with respect to infringement of patents by the Product or any parts thereof.

Laws in the United States and other countries preserve for MOTOROLA certain exclusive rights for copyrighted MOTOROLA software such as the exclusive rights to reproduce in copies and distribute copies of such Motorola software. MOTOROLA software may be used in only the Product in which the software was originally embodied and such software in such Product may not be replaced, copied, distributed, modified in any way, or used to produce any derivative thereof. No other use including, without limitation, alteration, modification, reproduction, distribution, or reverse engineering of such MOTOROLA software or exercise of rights in such MOTOROLA software is permitted. No license is granted by implication, estoppel or otherwise under MOTOROLA patent rights or copyrights.

VII. Governing Law

This Warranty is governed by the laws of the State of Illinois, USA.

6881094C31-C October 14, 2003

xvi Commercial Warranty

Notes

October 14, 2003 6881094C31-C

Portable Radio Model Numbering System xvii

Model Numbering, Charts, and Specifications

Portable Radio Model Numbering System

Typical Model Number:

Position:

H18U CF 9 P W 7 A N S P 0 1

123 4 56 7 8 910111213141516

Position 1 - Type of Unit

H = Hand-Held Portable

Positions 2 & 3 - Model Series

18 = XTS 5000

Position 4 - Frequency Band

Less than 29.7MHz

29.7 to 35.99MHz

36 to 41.99MHz

42 to 50MHz

66 to 80MHz

74 to 90MHz

Product Specific

136 to 162MHz

146 to 178MHz

174 to 210MHz

190 to 235MHz

Values given represent range only; they are

not absolute.

Position 5 - Power Level

0 to 0.7 Watts

0.7 to 0.9 Watts

1.0 to 3.9 Watts

4.0 to 5.0 Watts

5.1 to 6.0 Watts

6.1 to 10 Watts

Position 6 - Physical Packages

RF Modem Operation

Receiver Only

Standard Control; No Display

Standard Control; With Display

Limited Keypad; No Display

Limited Keypad; With Display

Full Keypad; No Display

Full Keypad; With Display

Limited Controls; No Display

Limited Controls; Basic Display

Limited Controls; Limited Display

Rotary Controls; Standard Display

Enhanced Controls; Enhanced Display

Low Profile; No Display

Low Profile; Basic Display

Low Profile; Basic Display, Full Keypad

Position 7 - Channel Spacing

1 = 5kHz 2 = 6.25kHz 3 = 10kHz 4 = 12.5kHz

336 to 410MHz

380 to 470MHz

438 to 482MHz

470 to 520MHz

Product Specific

764 to 870MHz

825 to 870MHz

896 to 941MHz

1.0 to 1.6GHz

1.5 to 2.0GHz

5 = 15kHz 6 = 20/25kHz 7 = 30kHz 9 = Variable/Programmable

Positions 13 - 16

SP Model Suffix

Position 12 -

Unique Model Variations

C = Cenelec N = Standard Package

Position 11 - Version

Version Letter (Alpha) - Major Change

Position 10 - Feature Level

1 = Basic 2 = Limited Package 3 = Limited Plus 4 = Intermediate 5 = Standard Package

Position 9 - Primary System Type

Conventional

Privacy Plus

Clear SMARTNET

Advanced Conventional Stat-Alert

Enhanced Privacy Plus

Nauganet 888 Series

Japan Specialized Mobile Radio (JSMR)

Multi-Channel Access (MCA)

CoveragePLUS

MPT1327* - Public

MPT1327* - Private

Radiocom

Tone Signalling

Binary Signalling

Phonenet

Programmable

Secure Conventional

Secure SMARTNET

6 = Standard Plus 7 = Expanded Package 8 = Expanded Plus 9 = Full Feature/ Programmable

* MPT = Ministry of Posts and Telecommunications

Position 8 - Primary Operation

Conventional/Simplex

Conventional/Duplex

Trunked Twin Type

Dual Mode Trunked

Dual Mode Trunked/Duplex

Trunked Type I

Trunked Type II

FDMA* Digital Dual Mode

TDMA** Digital Dual Mode

Single Sideband

Global Positioning Satellite Capable

Amplitude Companded Sideband (ACSB)

Programmable

* FDMA = Frequency Division Multiple Access

** TDMA = Time Division Multiple Access

MAEPF-27620-O

6881094C31-C October 14, 2003

xviii Portable Radio Model Numbering System

ASTRO XTS 5000 VHF Model Chart

MODEL NUMBER DESCRIPTION

H18KEC9PW5AN VHF 1-6 Watts ASTRO XTS 5000 Model I

H18KEF9PW6AN VHF 1-6 Watts ASTRO XTS 5000 Model II

H18KEH9PW7AN VHF 1-6 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXX NLD8910_ Board, Transceiver (VHF) XXX NNTN4563_ or,

NNTN4717_

XXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXX — Battery (Refer to Table 2-1 and Table 2-2 on page 2-1) X NTN9682_ Kit, Front Cover, Model I

X NTN9681_ Kit, Front Cover, Model II

X NTN9680_ Kit, Front Cover, Model III XXX — Antenna, VHF (Refer to the Basic Service Manual accessories appendix) XXX 0985973B02 Assembly, B+ Connector XXX 1505579Z01 Cover, Accessory Connector X 2685567D01 Assembly, VOCON Shield, Model I

X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

X 2685567D03 Assembly, VOCON Shield-Keypad, Model III XXX 2685220D08 Shield, RF (Transceiver) Board XXX 2785219D01 Assembly, Casting XXX 2885866A01 Connector, Compression, 26-Pin XXX 3285900E01 Gasket, Antenna O-Ring XXX 3205349Z03 Seal, Main XXX 3205351Z02 Seal, B+ XXX 3285877B02 Seal, Port XXX 3385873B01 Label, Port

XX 7285726C02 Module, LCD Display

XX 7585189D01 Pad, Display Locator XXX 7585936D02 Pad, RF XXX 7585139E01 Pad, Battery holder

X 7585104D02 Keypad, Model II

X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

Notes: X =Item Inclu ded * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

October 14, 2003 6881094C31-C

Portable Radio Model Numbering System xix

ASTRO XTS 5000 R (Ruggedized) VHF Model Chart

MODEL NUMBER DESCRIPTION

H18KEC9PW5AN w/Q155FE Opt Ruggedized VHF 1-6 Watts ASTRO XTS 5000 Model I

H18KEF9PW6AN w/Q155FF Opt Ruggedized VHF 1-6 Watts ASTRO XTS 5000 Model II

H18KEH9PW7AN w/Q155FG Opt Ruggedized VHF 1-6 Watts ASTRO XTS 5000 Model III

H18KEC9PW5AN w/Q155FS Opt Ruggedized Yellow VHF 1-6 Watts ASTRO XTS 5000 Model I

H18KEF9PW6AN w/Q155FT Opt Ruggedized Yellow VHF 1-6 Watts ASTRO XTS 5000 Model II

H18KEH9PW7AN w/Q155FU Opt Ruggedized Yellow VHF 1-6 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXXXXX NLD8910_ Board, Transceiver (VHF) XXXXXX NNTN4563_ or,

NNTN4717_

XXXXXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXXXXX — Battery (Refer to Table 2-1 and Table2-2 on page 2-1) X NNTN4059_ Kit, Front Cover, Model I, Ruggedized

X NNTN4060_ Kit, Front Cover, Model II, Ruggedized

X NNTN4061_ Kit, Front Cover, Model III, Ruggedized

X NTN9685_ Kit, Yellow Front Cover, Model I, Ruggedized

X NTN9684_ Kit, Yellow Front Cover, Model II, Ruggedized

X NTN9683_ Kit, Yellow Front Cover, Model III, Ruggedized XXXXXX — Antenna, VHF (Refer to the Basic Service Manual accessories appendix) XXXXXX 0985973B02 Assembly, B+ Connector XXXXXX 1505579Z01 Cover, Accessory Connector X X 2685567D01 Assembly, VOCON Shield, Model I

X X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

X X 2685567D03 Assembly, VOCON Shield-Keypad, Model III XXXXXX 2685220D08 Shield, RF (Transceiver) Board XXXXXX 2785219D04 Assembly, Ruggedized Casting XXXXXX 2885866A01 Connector, Compression, 26-Pin XXXXXX 3285900E01 Gasket, Antenna O-Ring XXXXXX 3205349Z03 Seal, Main XXXXXX 3205351Z02 Seal, B+ XXXXXX 3285877B02 Seal, Port XXXXXX 3385873B01 Label, Port

XX XX 7285726C02 Module, LCD Display

XX XX 7585189D01 Pad, Display Locator XXXXXX 7585936D02 Pad, RF XXXXXX 7585139E01 Pad, Battery holder XXXXXX 3285688D01 Plug, Vacuum test port

X X 7585104D02 Keypad, Model II

X X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

Notes: X =Item Included * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

6881094C31-C October 14, 2003

xx Portable Radio Model Numbering System

ASTRO XTS 5000 UHF Range 1 Model Chart

MODEL NUMBER DESCRIPTION

H18QDC9PW5AN UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model I

H18QDF9PW6AN UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model II

H18QDH9PW7AN UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model III

H18QCC9PW5AN UHF Range 1, Low Power, 20 mW - 2 Watts ASTRO XTS 5000 Model I

H18QCF9PW6AN UHF Range 1, Low Power, 20 mW - 2 Watts ASTRO XTS 5000 Model II

H18QCH9PW7AN UHF Range 1, Low Power, 20 mW - 2 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXX NLE4272_ Board, Transceiver (UHF)

XXX NLE4278_ Board, Transceiver (UHF) Low Power

XXXXXX NNTN4819_ or,

NNTN4717_

XXXXXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXXXXX — Battery (Refer to Table 2-1 and Table 2-2 on page 2-1) X X NTN9682_ Kit, Front Cover, Model I

X X NTN9681_ Kit, Front Cover, Model II

X X NTN9680_ Kit, Front Cover, Model III XXXXXX — Antenna, UHF (Refer to the Basic Service Manual accessories appendix) XXXXXX 0985973B02 Assembly, B+ Connector XXXXXX 1505579Z01 Cover, Accessory Connector X X 2685567D01 Assembly, VOCON Shield, Model I

X X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

X X 2685567D03 Assembly, VOCON Shield-Keypad, Model III XXXXXX 2685220D08 Shield, RF (Transceiver) Board XXXXXX 2785219D01 Assembly, Casting XXXXXX 2885866A01 Connector, Compression, 26-Pin XXXXXX 3285900E01 Gas ket, Antenna O-Ring XXXXXX 3205349Z03 Seal, Main XXXXXX 3205351Z02 Seal, B+ XXXXXX 3285877B02 Seal, Port XXXXXX 3385873B01 Label, Port

XX XX 7285726C03 Module, LCD Display

XX XX 7585189D01 Pad, Display Locator XXXXXX 7585936D04 Pad, RF XXXXXX 7585139E01 Pad, Batte ry holder

X X 7585104D02 Keypad, Model II

X X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

Notes: X =Item Inclu ded * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

October 14, 2003 6881094C31-C

Portable Radio Model Numbering System xxi

ASTRO XTS 5000 R (Ruggedized) UHF Range 1 Model Chart

MODEL NUMBER DESCRIPTION

H18QDC9PW5AN w/Q155FE Opt Ruggedized UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model I

H18QDF9PW6AN w/Q155FF Opt Ruggedized UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model II

H18QDH9PW7AN w/Q155FG Opt Ruggedized UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model III

H18QDC9PW5AN w/Q155FS Opt Ruggedized Yellow UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model I

H18QDF9PW6AN w/Q155FT Opt Ruggedized Yellow UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model II

H18QDH9PW7AN w/Q155FU Opt Ruggedized Yellow UHF Range 1, 1-5 Watts ASTRO XTS 5000 Model III

H18QCC9PW5AN wQ155HW Opt Ruggedized UHF R1, Low Pwr, 20 mW-2 Watts ASTRO XTS 5000 Model I

H18QCF9PW6AN wQ155HX Opt Ruggedized UHF R1, Low Pwr, 20 mW-2 Watts ASTRO XTS 5000 Model II

H18QCH9PW7AN wQ155HY Opt Ruggedized UHF R1, Low Pwr, 20 mW-2 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXXXXXXXX NLE 4272_ Board, Transceiver (UHF) XXXXXXXXX NLE4278_ Board, Transceiver (UHF) Low Power XXXXXXXXX NNTN4819_ or,

NNTN4717_

XXXXXXXXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXXXXXXXX — Battery (Refer to Table 2-1 and Ta ble 2-2 on page 2-1) X X NNTN4059_ Kit, Front Cover, Model I, Ruggedized

X X NNTN4060_ Kit, Front Cover, Model II, Ruggedized

X X NNTN4061_ Kit, Front Cover, Model III, Ruggedized

X NTN9685_ Kit, Yellow Front Cover, Model I, Ruggedized

X NTN9684_ Kit, Yellow Front Cover, Model II, Ruggedized

X NTN9683_ Kit, Yellow Front Cover, Model III, Ruggedized XXXXXXXXX — Antenna, UHF (Refer to the Basic Service Manual accessories appendix) XXXXXXXXX 0985973B02 Assembly, B+ Connector XXXXXXXXX 1505579Z01 Cover, Accessory Connector X X X 2685567D01 Assembly, VOCON Shield, Model I

X X X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

X X X 2685567D03 Assembly, VOCON Shield-Keypad, Model III XXXXXXXXX 2685220D08 Shield, RF (Transceiver) Board XXXXXXXXX 2785219D04 Assembly, Ruggedized Casting XXXXXXXXX 2885866A01 Connector, Compression, 26-Pin XXXXXXXXX 3285900E01 Gasket, Antenna O-Ring XXXXXXXXX 3205349Z03 Seal, Main XXXXXXXXX 3205351Z02 Seal, B+ XXXXXXXXX 3285877B02 Seal, Port XXXXXXXXX 3385873B01 Label, Port

XX XX XX 7285726C03 Module, LCD Display

XX XX XX 7585189D01 Pad, Display Locator XXXXXXXXX 7585936D04 Pad, RF XXXXXXXXX 7585139E01 Pad, Battery holder XXXXXXXXX 3285688D01 Plug, Vacuum test port

X X X 7585104D02 Keypad, Model II

X X X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

Notes: X =Item Include d * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

6881094C31-C October 14, 2003

xxii Portable Radio Model Numbering System

ASTRO XTS 5000 700–800 MHz Model Chart

MODEL NUMBER DESCRIPTION

H18UCC9PW5AN 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model I

H18UCF9PW6AN 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model II

H18UCH9PW7AN 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXX NUF3577_ Board, Transceiver (700/800 MHz) XXX NTN9564_ or,

NNTN4717_

XXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXX — Battery (Refer to Table 2-1 and Table 2-2 on page 2-1) X NTN9682_ Kit, Front Cover, Model I

X NTN9681_ Kit, Front Cover, Model II

X NTN9680_ Kit, Front Cover, Model III XXX — Antenna, 700/800 MHz (Refer to the Basic Service Manual accessories appendix) XXX 0985973B02 Assembly, B+ Connector XXX 1505579Z01 Cover, Accessory Connector X 2685567D01 Assembly, VOCON Shield, Model I

X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

XX 7285726C01 or,

7285726C02

XX 7585189D01 Pad, Display Locator XXX 7585936D04 Pad, RF XXX 7585139E01 Pad, Battery holder

X 7585104D02 Keypad, Model II

X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

Module, LCD Display (for use only with the NTN9564_VOCON board) Module, LCD Display (for use only with the NNTN4717_VOCON board)

Notes: X =Item Inclu ded * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

October 14, 2003 6881094C31-C

Portable Radio Model Numbering System xxiii

ASTRO XTS 5000 R (Ruggedized) 700–800 MHz Model Chart

MODEL NUMBER DESCRIPTION

H18UCC9PW5AN w/Q155FP Opt Ruggedized 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model I

H18UCF9PW6AN w/Q155FQ Opt Ruggedized 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model II

H18UCH9PW7AN w/Q155FR Opt Ruggedized 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model III

H18UCC9PW5AN w/Q155GB Opt Ruggedized Yellow 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model I

H18UCF9PW6AN w/Q155GC Opt Ruggedized Yellow 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model II

H18UCH9PW7AN w/Q155GD Opt Ruggedized Yellow 700/800 MHz 1-3 Watts ASTRO XTS 5000 Model III

ITEM NUMBER DESCRIPTION

XXXXXX NUF3577_ Board, Transceiver (700/800 MHz) XXXXXX NTN9564_ or,

NNTN4717_

XXXXXX — Belt Clip Kit (Refer to the Basic Service Manual accessories appendix) XXXXXX — Battery (Refer to Table 2-1 and Table2-2 on page 2-1) X NNTN4059_ Kit, Front Cover, Model I, Ruggedized

X NNTN4060_ Kit, Front Cover, Model II, Ruggedized

X NNTN4061_ Kit, Front Cover, Model III, Ruggedized

X NTN9685_ Kit, Yellow Front Cover, Model I, Ruggedized

X NTN9684_ Kit, Yellow Front Cover, Model II, Ruggedized

X NTN9683_ Kit, Yellow Front Cover, Model III, Ruggedized

XXXXXX — Antenna, 700/800 MHz (Refer to the Basic Service Manual accessories

XXXXXX 0985973B02 Assembly, B+ Connector XXXXXX 1505579Z01 Cover, Accessory Connector X X 2685567D01 Assembly, VOCON Shield, Model I

X X 2685567D02 Assembly, VOCON Shield-Keypad, Model II

XX XX 7285726C01 or,

7285726C02

XX XX 7585189D01 Pad, Display Locator XXXXXX 7585936D04 Pad, RF XXXXXX 7585139E01 Pad, Battery holder XXXXXX 3285688D01 Plug, Vacuum test port

X X 7585104D02 Keypad, Model II

X X 7585104D01 Keypad, Model III

Board, VOCON* Board, VOCON*

appendix)

Module, LCD Display (for use only with the NTN9564_VOCON board) Module, LCD Display (for use only with the NNTN4717_VOCON board)

Notes: X =Item Included * =The radio’s model number, FLASHcode, Host code, and DSP code are required when placing an order for the VOCON Board.

• The model number and (sometimes) the FLASHcode can be found on the FCC label on the back of the radio.

• The model number, Host code, DSP code, and (sometimes) the FLASHcode can be found by putting a Model II or III

radio into the Test Mode.

• The model number, Host code, DSP code, and FLASHcode can be found by using the Programming Cable (RKN4105_ or RKN4106_) and the CPS to read a Model I, II, or III radio.

6881094C31-C October 14, 2003

xxiv Portable Radio Model Numbering System

Specifications for VHF Radios

All specifications are per Telecommunications Industries Association TIA-603 unless otherwise noted.

GENERAL RECEIVER TRANSMITTER

FCC Designation: AZ489FT3804 Temperature Range:

Operating: –30°C to +60°C Storage: –40°C to +85°C

Power Supply: Nickel-Cadmium Battery (NiCd)

or Nickel-Metal-Hydride Battery (NiMH)

or Lithium-Ion Battery (Li-Ion )

Battery Voltage:

Nominal: 7.5 Vdc Range: 6 to 9 Vdc

Transmit Current Drain (Typical): 2100 mA Receive Current Drain (R at ed Audio ): 240 mA Standby Current Drain: 80 mA

Recommended Battery:

Smart NiMH: NNTN4435_

or Ultra-HIgh-Capacity NiCd: NTN8294_ or Extended-Capacity NiMH: NTN8293_ or Li-Ion: NTN8610_ or Ultra–High-Capacity NiCd FM: NTN8295_* or Ultra–High-Capacity NiMH FM: NTN8299_*

Optional FM (Factory Mutual) Battery:

* FM Intrinsically Safe: Class I, II, III, Division 1,

Groups C, D,E, F, and G. FM Non-incendive: Class 1, Division 2, Groups A, B, C, and D.

Frequency Range: 136-174 MHz

Bandwidth: 38 MHz

Usable Sensitivity (typical)

(12 dB SINAD): 0.20 µV

Intermodulation (typical): –75 dB

Selectivity (typical):

(25/30 kHz Channel): –75 dB (12.5 kHz Channel): –63 dB

Spurious Rejection (typical): –75 dB

Frequency Stability

(–30+60°C; 25°C refere nce): ±0.0002%

Rated Audio: 500 mW

FM Hum and Noise (typical):

25 kHz –55 dB

12.5 kHz –49 dB

Distortion (typical): 1.5%

Channel Spacing: 12.5/25 kHz

Frequency Rang e: 136-174 MHz

RF Power:

136-174 MHz: 1-6 Watts

Frequency Stability (typical)

(–30 to +60°C; 25°C ref.): ±0.0002%

Emission (typical conducted): –75 dBc

FM Hum and Noise (typical)

(Companion Receiver): 25 kHz –48 dB

12.5 kHz –42 dB

Distortion (typical): 1.0% (typical)

Modulation Lim it ing : 25 kHz chnls ±5.0 kHz

12.5 kHz chnls ±2.5 kHz

ACPR (typical): 25 kHz –73 dBc

12.5 kHz –63 dBc

Emissions Designators:

20K0F1E, 16K0F3E, 11K0F3E, 8K10F1 D, and 8K10F1E

Dimensions (H x W x D):

Note: 2.44" = width at PTT; 2.34" = width at bottom; 1.83" = depth at speaker; 0.97" = depth at keypad

Without Battery (Radio Only):

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 0.97" (167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 24.56 mm)

With Battery:

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 1.65" (167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 41.97 mm)

Weight: (w/ Antenna):

Less Battery: 14.10 oz (383 gm) With Ultra-High Cap. NiCd: 25.19 oz (693 gm) With Li-Ion: 20.41 oz (583 gm) With Ultra-High Cap. NiMH:23.45 oz (644 gm) With Extended- Cap. NiMH:24.04 oz (682 gm)

Specifications subject to change without notice.

October 14, 2003 6881094C31-C

Portable Radio Model Numbering System xxv

Specifications for UHF Range 1 Radios

All specifications are per Telecommunications Industries Association TIA-603 unless otherwise noted.

GENERAL RECEIVER TRANSMITTER

FCC Designation: AZ489FT4855 Temperature Range:

Operating: –30°C to +60°C Storage: –40°C to +85°C

Power Supply: Nickel-Cadmium Battery (NiCd)

or Nickel-Metal-Hydride Battery (NiMH)

or Lithium-Ion Battery (Li-Ion)

Battery Voltage:

Nominal: 7.5 Vdc Range: 6 to 9 Vdc

Transmit Current Drain (Typical): 2100 mA Receive Current Drain (Rated Audio): 240 mA Standby Current Drain: 80 mA

Recommended B attery:

Smart NiMH: NNTN4435

or Ultra-HIgh-C a pacity Ni Cd : NTN8294 or Extended-Capacity NiMH: NTN8293 or Li-Ion: NTN8610 or Ultra–High -Ca pacity N iCd FM: NTN8295* or Ultra–High -Ca pacity N iMH FM : NTN8299*

Optional FM (Factory Mutual) Battery:

* FM Intrinsically Safe.

Dimensions (H x W x D):

Note: 2.44" = width at PTT; 2.34" = width at bottom; 1.83" = depth at speaker; 0.97" = depth at keypad

Without Battery (Radio Only):

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 0.97"

(167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 24.56 mm)

With Battery:

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 1.65"

(167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 41.97 mm)

Frequency Range: 380-470 MHz

Bandwidth: 90 MHz

Usable Sensitivity (typical)

(12 dB SINAD): 0.25 µV

Intermodulation (typical): –75 dB

Selectivity (typical):

(25/30 kHz Channel): –78 dB (12.5 kHz Channel): –60 dB

Spurious Rejection (typical): –80 dB

Frequency Stability

(–30+60°C; 25°C reference): ±0.0002%

Rated Audio: 500 mW

FM Hum and Noise (typical):

25 kHz –54 dB

12.5 kHz –45 dB

Distortion (typical): 1.0%

Channel Spacing: 12.5/25 kHz

Frequency Range: 380-470 MHz

RF Power:

380-470 MHz: 1-5 Watts

Frequency Stability (typical)

(–30 to +60°C; 25°C ref.): ±0.0002%

Emission (typical conducted): –70 dBc

FM Hum and Noise (typical)

(Compani on Receiver): 25 kHz –45 dB

12.5 kHz –40 dB

Distortion (typical): 1.5% (typical)

Modulation Limiting: 25 kHz chnls ±5.0 kHz

12.5 kHz chnls ±2.5 kHz

ACPR (typical): 25 kHz –77 dBc

12.5 kHz –62 dBc

Emissions Designators:

20K0F1E, 16K0F3E, 11K0F3E, 8K10F1D, and 8K10F1E

Weight: (w/ Antenna):

Less Battery: 14.10 oz (383 gm) With Ultra-High Cap. NiCd: 25.19 oz (693 gm) With Li-Ion: 20.41 oz (583 gm) With Ultra-High Cap. NiMH:23.45 oz (644 gm) With Extended- Cap. NiMH:24.04 oz (682 gm)

Specifications subject to change without notice.

6881094C31-C October 14, 2003

xxvi Portable Radio Model Numbering System

Specifications for 700–800 MHz Radios

All specifications are per Telecommunications Industries Association TIA-603 unless otherwise noted.

GENERAL RECEIVER TRANSMITTER

FCC Designation: AZ489FT5806 Temperature Range:

Operating: –30°C to +60°C Storage: –40°C to +85°C

Power Supply: Nickel-Cadmium Battery (NiCd)

or Nickel-Metal-Hydride Battery (NiMH)

or Lithium-Ion Battery (Li-Ion )

Battery Voltage:

Nominal: 7.5 Vdc Range: 6 to 9 Vdc

Transmit Current Drain (Typical): 1400 mA Receive Current Drain (R at ed Audio ): 240 mA Standby Current Drain: 80 mA

Recommended Battery:

Ultra-HIgh-Capacity Smart NiCd: HNN9031_

or Ultra-HIgh-Capacity NiCd: NTN8294_ or Extended-Capacity NiMH: NTN8293_ or Li-Ion: NTN8610_ or Ultra–High-Capacity NiCd FM: NTN8295_* or Ultra–High-Capacity NiMH FM: NTN8299_*

Optional FM (Factory Mutual) Battery:

* FM Intrinsically Safe: Class I, II, III, Division 1,

Groups C, D,E, F, and G. FM Non-incendive: Class 1, Division 2, Groups A, B, C, and D.

Dimensions (H x W x D):

Note: 2.44" = width at PTT; 2.34" = width at bottom; 1.83" = depth at speaker; 0.97" = depth at keypad

Without Battery (Radio Only):

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 0.97" (167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 24.56 mm)

With Battery:

6.58" x 2.44" x 1.83"/6.58" x 2.34" x 1.65" (167.13 mm x 61.90 mm x 46.42 mm/

167.13 mm x 59.49 mm x 41.97 mm)

Frequency Range:

700 MHz: 764 to 767; 773 to 776 MHz 800 MHz: 851 to 870 MHz

Bandwidth: 106 MHz

Usable Sensitivity (typical)

(12 dB SINAD): 0.20 µV

Intermodulation (typical): –75 dB

Selectivity (typical):

(25/30 kHz Channel): –72 dB (12.5 kHz Channel): –63 dB

Spurious Rejection (typical): –75 dB

Frequency Stability

(–30+60°C; 25°C refere nce): ±0.00015%

Rated Audio: 500 mW

FM Hum and Noise (typical):

25 kHz –48 dB

12.5 kHz –40 dB

Distortion (typical): 1.5%

Channel Spacing: 12.5/25 kHz

Frequency Rang e:

700 MHz: 764 to 767; 773 to 776; 794 to 797;

803 to 806 MHz

800 MHz: 806 to 824; 851 to 870 MHz

RF Power:

764-806 MHz: 2.5 Watts 806-870 MHz: 3 Watts

Frequency Stability (typical)

(–30 to +60°C; 25°C ref.): ±0.00015%

Emission (typical conducted): –75 dBc

FM Hum and Noise (typical)

(Companion Receiver): 25 kHz –45 dB

12.5 kHz –40 dB

Distortion (typical): 1.5% (typical)

Modulation Lim it ing : 25 kHz chnls ±5.0 kHz

12.5 kHz chnls ±2.5 kHz

Emissions Designators:

20K0F1E, 16K0F3E, 11K0F3E, 8K10F1 D, and 8K10F1E

Weight: (w/ Antenna):

Less Battery: 14.10 oz (383 gm) With Ultra-High Cap. NiCd: 25.19 oz (693 gm) With Li-Ion: 20.41 oz (583 gm) With Ultra-High Cap. NiMH:23.45 oz (644 gm) With Extended- Cap. NiMH:24.04 oz (682 gm)

Specifications subject to change without notice.

October 14, 2003 6881094C31-C

Chapter 1 Introduction

1.1 General

This manual includes all the information needed to maintain peak product performance and maximum working time for the ASTRO XTS 5000 radio. This detailed level of service (component level) is typical of the service performed by some service centers, self-maintained customers, and distributors.

Use this manual in conjunction with the ASTRO XTS 5000 VHF/UHF Range 1/700–800 MHz Digital Portable Radios Basic Service Manual (Motorola part number 6881094C28), which can help in troubleshooting a problem to a particular printed circuit (PC) board.

Conduct the basic performance checks outlined in the basic service manual first to verify the need to analyze the radio and to help pinpoint the functional problem area. In addition, you will become familiar with the radio test mode of operation, which is a helpful tool. If any basic receive or transmit parameters fail to be met, the radio should be aligned according to the radio alignment procedure.

Included in other areas of this manual are functional block diagrams, detailed theory of operation, troubleshooting charts and waveforms, schematics, and parts lists. You should become familiar with these sections to aid in determining circuit problems. Also included are component location diagrams to aid in locating individual circuit components and some IC diagrams, which identify some convenient probe points.

“Chapter 3, Theory of Operation,” on page 3-1, contains detailed descriptions of the operations of

many circuits. Once you locate the problem area, review the troubleshooting flowchart for that circuit to fix the problem.

1-2 Introduction: Notations Used in This Manual

1.2 Notations Used in This Manual

Throughout the text in this publication, you will notice the use of warnings, cautions, and notes. These notations are used to emphasize that safety hazards exist, and care must be taken and observed.

NOTE: An operational procedure, practice, or condition that is essential to emphasize.

C a u t i o n

W A R N I N G

D A N G E R

CAUTION indicates a potentially hazardous situation which, if not avoided, might

WARNING indicates a potentially hazardous situation which, if not avoided, could

DANGER indicates an imminently hazardous situation which, if not avoide d, will injury.

result in equipment damage.

result in death or injury.

result in death or

October 14, 2003 6881094C31-C

Chapter 2 Radio Power

This chapter provides a detailed circuit description of the power distribution of an ASTRO XTS 5000 radio.

2.1 General

In the ASTRO XTS 5000 radio, power (B+) is distributed to two boards: the transceiver (RF) board and the VOCON board (see Figure 2-1 on page 2-2 for UHF Range 1 (R1) and 700–800 MHz, and

Figure 2-2 on page 2-2 for VHF). In the case of a secure model radio, B+ is also supplied to the

encryption module . Power for the radio is provided through a battery supplying a nominal 7.5 Vdc directly to the

transceiver. The following battery types and capacities are available:

Table 2-1. Conventional Batteries

Part Number Description

NTN8294 1525 NiCd, Ultra-High Capacity NTN8295 1525 NiCd High-Capacity Factory Mutual (FM) Intrinsically Safe NTN8297 1525 NiCd High-Capacity Factory Mutual (FM) Intrinsically Safe,

Rugged NTN8299 1750 NiMH Ultra-Capacity FM NTN8610 1650 Lithium Ion NTN8923 1800 NiMH Ultra-Capacity NTN9177 Battery Holder, Clamshell, Black NTN9183 Battery Holder, Clamshell, Orange RNN4006 3000 NiMH RNN4007 3000 NiMH FM

Table 2-2. Smart Batteries

Part Number Description

HNN9031 1525 NiCd Smart HNN9032 1525 NiCd Smart FM NNTN4435_R 1800 mAh, NiMH Smart NNTN4436 1750 NiMH Smart FM (VHF use only)

2-2 Radio Power: General

Battery

J1 BATT

RAW B+

(control signal)

7.5 Volts

(Nominal)

Analog Circuits

SW_B+

3VA

3 Volts

RF Board

Fuse

Digital Circuits

V5A

5 Volts

3 Volts

FB+

P201

UNSW_B+

FET

1.55V

1.55 Volts

(VSW_1.55)

VOCON Board

3.8 V (VSW1)

1.875 Volts (VSW2)

Figure 2-1. DC Power Distribution—UHF Range 1 and 700–800 MHz Radios

Battery

J1 BATT

RF Board

Fuse

FB+

P201

UNSW_B+

VOCON Board

VCC5

SW_B+

VCC5

GCAP II

3 Volts

(VREF)

MAEPF-27419-A

5 Volts

3 Volts

(V2)

5 Volts

RAW B+

SW_B+

(control signal)

7.5 Volts

(Nominal)

V3B

3 Volts

Misc. Supply

V5A

5 Volts

V3A

3 Volts

Analog Circuits

V3D

3 Volts

Digital Circuits

FET

1.55V

1.55 Volts

(VSW_1.55)

SW_B+

3.8 V (VSW1)

1.875 Volts (VSW2)

GCAP II

3 Volts

(VREF)

MAEPF-27520-A

3 Volts

(V2)

Figure 2-2. DC Power Distribution—VHF Radios

B+ from the battery is electrically switched to most of the radio, rather than routed through the On/ Off/volume control knob, S1. The electrical switching of B+ supports a keep-alive mode. Under software control, even when the On/Off/volume control knob has been turned to the Off position, power remains on until the MCU completes its power-down, at which time the radio is physically powered down.

October 14, 2003 6881094C31-C

Radio Power: DC Power Routing—Transceiver Board 2-3

2.2 DC Power Routing—Transceiv er Board

NOTE: Refer to Table 8-1, “List of Transceiver Schematics and Board Overlays,” on page 8-1 for a

listing of schematics showing the transceiver board DC power routing components.

Connector J1, the B-plus assembly, connects the battery to the transceiver board. Capacitors C1, C2, and C3 provide protection against momentary breaks at the B-plus connector due to contact bounce when the radio is dropped.

UHF R1 and 700–800 MHz: Components C5, E4, C7, and E1 form a power-line filter for signal RAWB+, which supplies battery voltage to the transmitter PA.

VHF: Component E1 forms a power-line filter for signal RAWB+, which supplies battery voltage to the transmitter PA.

Transistor Q1, controlled by signal SWB+ (SB+ for VHF) from the VOCON board, turns on XB+, which supplies to the 5-V linear regulator and TX_ALC block.

Fuse F901 and filter C1 1, L1, C10 (C14, L1, C13 for VHF) supply fused B-plus to the VOCON board. In turn, the VOCON board supplies VSW1, regulated 3.8 Vdc, from the Global Control Audio and Power (GCAP) switching regulator to the XCVR. Switch Q99 (Q503 for VHF), controlled by SWB+, turns on V38 to the XCVR 3-V linear regulators. The XCVR regulated power supplies are summarized in Table 2-3.

Table 2-3. Transceiver Voltage Regulators

Ref.

Desig.

U1 LP2989 V5A Regulated 5.0 Vdc U2 LP3985 V3D Regulated 3.0 Vdc digital U3 LP3985 V3A UHF R1 and 700–800 MHz: Regulated 3.0 Vdc

U5 LP3985 V3B VHF only: Regulated 3.0 Vdc miscellaneous

Name

Output

Signal Name

Description

analog for the RX FE VHF: Regulated 3.0 Vdc analog for synthesizer

supply

2.3 DC Power Routing—VOCON Board

NOTE: Refer to T able 8-2, “List of VOCON Schematics and Board Overlays,” on page 8-1 for a listing

of schematics showing the VOCON board DC power routing components.

Raw B+, or unswitched B+, (UNSW_B+) is routed to connector P1 on the transceiver board, and then on to P201 on the VOCON board. Here the UNSW B+ is forwarded to the radio’s control top On/Off/volume knob through connector J101 and a flex circuit, as well as to regulator U505 (VCC5).

The On/Off/volume knob controls B+SENSE to Q502, which in turn controls Q501. Transistor Q501 is a solid-state power switch that provides SW B+ to the VOCON board, the audio P A, the GCAP II IC (via GCAP_B+), and back to the transceiver board.

In the case of a secure radio model, SW B+ and UNSW B+ are also supplied to the encryption module through connector J701.

6881094C31-C October 14, 2003

2-4 Radio Power: DC Power Routing—VOCON Board

Transistor Q501 is also under the control of the microcontroller unit (MCU) via Vref from U501. This allows the MCU to follow an orderly power-down sequence when it senses that B+SENSE is off. This sense is provided through MECH_SW_BAR (inverted B+SENSE, see Q508).

The digital circuits in the VOCON board are powered from regulators located in the GCAP II IC (U501), an external 5 Vdc regulator (VCC5, U505), and an external 1.55 Vdc regulator (VSW_1.55V, on NNTN4717 VOCON kit only). The GCAP II IC provides three supplies: VSW1, VSW2, and V2. These regulators are software programmable. T able 2-4 lists the supply voltages and the circuits that use these voltages.

Table 2-4. VOCON Board DC Power Distribution

Supply

Name

UNSW_B+ 9 to 6 Vdc

SW_B+ 9 to 6 Vdc

VCC5 5Vdc Linear

VSW1 3.8 Vdc Switching

Output

Voltage

7.5 Vdc nominal

Supply Type

Battery N/A VCC5 input

Battery N/A VSW1 input (GCAP)

Regulator

regulator software progammable

Unprogrammed Output Voltage

N/A Smart battery circuitry

3.2 Vdc 3-V regulators (RF)

Circuits Supplied

Mechanical switch Power switch (FET) Secure module Real-time clock battery

Audio power amplifier Side connector SW_B+ to transceiver board GCAP IC Secure module USB circuitry

Int. / ext. microphone bias Audio preamplifier Flipper IC Keypad / Display LEDs

VSW2 input V2 input

VSW2 1.8 Vdc Switching

regulator software progammable

V2 3 Vdc*

2.9 Vdc**

VSW_1_55V 1.55 Vdc Linear

Linear regulator software progammable

regulator

2.2 Vdc Patriot core FLASH IC SRAM Display (only on NTN9564 VOCON board)

2.775 Vdc Patriot I/O ring Flipper IC EEPOT Display

16.8 MHz buffer

N/A Patriot core (only on

NNTN4717 VOCON board)

* = NTN9564,NNTN4563 & NNTN4819 VOCON kits ** = NNTN4717 VOCON kit

October 14, 2003 6881094C31-C

Chapter 4 Troubleshooting Procedures

The purpose of this chapter is to aid in troubleshooting problems with the ASTRO XTS 5000 radio. It is intended to be detailed enough to localize the malfunctioning circuit and isolate the defective component. It also contains a listing of service tools recommended for PC board repair at the component level.

Most of th e ICs ar e st atic sensit ive d evic es. Do not at tempt to

C a u t i o n

4.1 Handling Precautions

Complementary metal-oxide semiconductor (CMOS) devices, and other high-technology devices, are used in this family of radios. While the attributes of these devices are many, their characteristics make them susceptible to damage by electrostatic discharge (ESD) or high-voltage charges. Damage can be latent, resulting in failures occurring weeks or months later. Therefore, special precautions must be taken to prevent device damage during disassembly, troubleshooting, and repair. Handling precautions are mandatory for this radio, and are especially important in lowhumidity conditions. DO NOT attempt to disassemble the radio without observing the following handling precautions.

disassemble the radio or troubleshoot a board without first referring to the following Handling Precautions section.

1. Eliminate static generators (plastics, Styrofoam, etc.) in the work area.

2. Remove nylon or double-knit polyester jackets, roll up long sleeves, and remove or tie back loose-hanging neckties.

3. Store and transport all static-sensitive devices in ESD-protective containers.

4. Disconnect all power from the unit before ESD-sensitive components are removed or inserted unless otherwise noted.

5. Use a static-safeguarded workstation, which can be accomplished through the use of an antistatic kit (Motorola part number 01-80386A82). This kit includes a wrist strap, two ground cords, a static-control table mat and a static-control floor mat.

4-2 Troubleshooting Procedures: Recommended Service Tools

4.2 Recommended Service Tools

Table 4-1 lists recommended service tools that can be used for PC board repairs at the component

level. For listings of additonal service tools, service aids, and test equipment that are recommended for all levels of service, refer to the XTS 5000 basic service manual (see “ Related Publicat i ons ” on

page xii).

Table 4-1. Recommended Service Tools

Motorola

Part Number

R1453 Digital-readout solder station Digitally controlled soldering iron RLN4062 Hot-air workstation, 120V Tool for hot-air soldering/desoldering of

0180386A78 Illuminated magnifying glass with

lens attachment 0180302E51 Master lens system 0180386A82 Anti-static grounding kit Used during all radio assembly and

6684253C72 Straight prober 6680384A98 Brush 1010041A86 Solder (RMA type), 63/67, 0.5 mm

diameter, 1 lb. spool 0180303E45 SMD tool kit (included with

R1319A) R1319 ChipMaster (110V) Surface-mount removal and assembly of R1321 ChipMaster (220V)

Description Application

surface-mounted integrated circuits Illumination and magnification of

components

disassembly procedures

surface-mounted integra ted circuits and/or

rework station shields. Includes 5 nozzles. R1364 Digital heated tweezer system Chip component removal R1427 Board preheater Reduces heatsink on multi-level boards 6680309B53 Rework equipment catalog Contains application notes, procedures,

and technical references used to rework

equipment

ChipMaster Options:

6680370B54 0.710” x 0.710” Heat-focus heads for R1319 workstation 6680370B57 0.245” x 0.245” 6680370B58 0.340” x 0.340” 6680371B15 0.460” x 0.560”

October 14, 2003 6881094C31-C

Troubleshooting Procedures: Voltage Measurement and Signal Tracing 4-3

Table 4-1. Recommended Service Tools (Continued)

Motorola

Part Number

ChipMaster Nozzles:

6680333E28 PA nozzle Soldering and unsoldering ICs 6680332E83 PLCC-28* nozzle 6680332E93 PLCC-32 nozzle 6680332E82 PLCC-44* nozzle 6680332E94 PLCC-52 nozzle 6680332E95 PLCC-68* nozzle 6680332E96 PLCC-84 nozzle 6680332E89 QFP-80 nozzle 6680332E90 QFP-100* nozzle 6680332E91 QFP-132* nozzle 6680334E67 QFP-160 nozzle 6680332E86 SOIC-14/SOL-16J nozzle 6680333E46 SOL-18 nozzle

Description Application

6680332E84 SOIC-20 nozzle 6680332E87 SOL-20J nozzle 6680333E45 SOL-24 nozzle 6680332E88 SOL-28J nozzle 6680333E54 TSOP-32 nozzle 6680333E55 TSOP-64 nozzle * Included with ChipMaster packages

4.3 Voltage Measurement and Signal Tracing

It is always a good idea to check the battery voltage under load. This can be done by checking the OPT_B+_VPP pin at the side connector (pin 4). The battery voltage should remain at or above

7.0 Vdc. If the battery voltage is less than 7.0 Vdc, then it should be recharged or replaced as necessary prior to analyzing the radio.

In most instances, the problem circuit may be identified using a multimeter, an RF millivoltmeter, oscilloscope (preferably with 100 MHz bandwidth or more), and a spectrum analyzer.

When checking a transistor or module, either in or out of

C a u t i o n

circuit, do not use an ohmmeter having more than 1.5 Vdc appearing across test leads or use an ohms scale of less than x100.

6881094C31-C October 14, 2003

4-4 Troubleshooting Procedures: Standard Bias Table

4.4 Standard Bias Table

Table 4-2 outlines some standard supply voltages and system clocks which should be present under

normal operation. These should be checked as a first step to any troubleshooting procedure.

Table 4-2. Standard Operating Bias

Signal Name Nominal Value Tolerance VOCON Board Source

13 MHz 13 MHz ±1000 ppm C303 (NTN9564)

C339 (NNTN4563, NNTN4819 &

NNTN4717)

FLIP_32K 32.768 kHz ±400 ppm U302, pin2

(under shield SH102

on NNTN4563, NNTN4819 &

NNTN4717)

SINE32K 32.768 kHz ±400 ppm C313 (NTN9564)

C306 (NNTN4563, NNTN4819 &

NNTN4717)

CKIH 16.8 MHz R452

(under shield SH101 on NNTN4563,

NNTN4819 & NNTN4717 or

test fixture pin 7 on the

board-to-board connector)

16_8MHz 16.8 MHz C452

(under shield SH101

on NNTN4563, NNTN4819 &

NNTN4717) POR 3.0 Vdc ±5% POR test point RESET_OUT 3.0 Vdc ±5% RESET_OUT test point (NTN9564)

D401, pin 3 (NNTN4563, NNTN4819 &

NNTN4717) VSW1 3.85 Vdc ±5% R502 VSW2 1.85 Vdc ±5% R501 FILT_B+ 7.5 Vdc 6.0-9.0 Vdc C523 V2 3.0 Vdc*

2.9 Vdc** GCAP_B+ 7.5 Vdc 6.0-9.0 Vdc R581 UNSW_B+ 7.5 Vdc 6.0-9.0 Vdc B104 SW_B+ 7.5 Vdc 6.0-9.0 Vdc R587 VCC5 5.0 Vdc ±5% R503 VSW_1_55 V 1.55 Vdc ±5% R407 (NNTN4717 VOCON kit only)

±5% R560

* = NTN9564, NNTN4563, & NNTN4819 VOCON kits ** = NNTN4717 VOCON kit

October 14, 2003 6881094C31-C

Troubleshooting Procedures: Power-Up Self-Check Errors 4-5

4.5 Power-Up Self-Check Errors

Each time the radio is turned on, the MCU and DSP perform a series of internal diagnostics. These diagnostics consist of checking such programmable devices as the FLASH ROMs, the EEPROM, and SRAM devices.

Problems detected during the power-up self-check routines are presented as error codes on the radio’s display. For non-display radios, the problem is presented at power up by a single, lowfrequency tone. Table 4-3 lists possible error codes, a description of each error code, and a recommended correc tive action.

Table 4-3. Power-Up Self-Check Error Codes

Error Code

01/02 FLASH ROM codeplug Checksum Non-Fatal Error Reprogram the codeplug 01/12 Security Partition Checksum Non-Fatal Error Send radio to depot 01/20 ABACUS Tune Failure Non-Fatal Error Turn radio off, then on 01/22 Tuning Codeplug Checksum Non-Fatal Error Send radio to depot 01/81 Host ROM Checksum Fatal Error Send radio to depot 01/82 FLASH ROM Codeplug Checksum Fatal Error Reprogram the codeplug 01/88 External RAM Fatal Error — Note: Not a checksum error Send radio to depot 01/90 General Hardware Failure Fatal Error Turn radio off, then on 01/92 Security Partition Checksum Fatal Error Send radio to depot 01/93 FLASHport Authentication Code Failure Send radio to depot 01/98 Internal RAM Fail Fatal Error Send radio to depot 01/A2 Tuning Codeplug Checksum Fatal Error Send radio to depot 02/81 DSP ROM Checksum Fatal Error Send radio to depot 02/88 DSP RAM Fatal Error — Note: Not a checksum error Turn radio off, then on

Description Corrective Action

02/90 General DSP Hardware Failure (DSP s tar tup mes sage not

received correctly) 09/10 Secure Hardware Failure Turn radio off, then on 09/90 Secure Hardware Fatal Error Turn radio off, then on

6881094C31-C October 14, 2003

Turn radio off, then on

4-6 Troubleshooting Procedures: Power-Up Self-Check Diagnostics and Repair (Not for Field Use)

4.6 Power-Up Self-Check Diagnostics and Repair (Not for Field Use)

Table 4-4 lists additional action items that can be used for the diagnosis and resolution of the error

codes listed in Table 4-3 on page 4-5.

Table 4-4. Power-Up Self-Check Diagnostic Actions

Error

Code

01/02 This non-fatal error will likely recov er if the radio ’s power is cycled. In the event tha t this

does not resolve the issue, the radio should be reflashed. As a last resort, the FLASH

ROM U402 should be replaced. 01/12 The radio should be sent to the depot for reflashing of the security codeplug. 01/20 Cycling radio power should resolve this issue. 01/22 The radio should be sent to the depot for reflash of the tuning codeplug followed by

retuning of the radio. 01/81 The radio should be sent to the depot for reflashing of the host code. 01/82 The radio should be sent to the depot for reflashing of the radio codeplug. 01/88 Reflashing of the radio should first be performed. If this fails to resolve the issue, then

replacement of the SRAM U403 is necessary. 01/90 Cycle power to radio. Continued failure indicates a likely IC failure (GCAP, PCIC,

FLIPPER, ABACUS). In this event, radio should be sent to the depot for isolation and

repair of the problem IC. 01/92 The radio should be sent to the depot for reprogramming of the security codeplug. 01/93 The radio should be sent to the depot for reflashing of the host code. 01/98 Send radio to the depot for replacement of the SRAM U403.

Diagnostic Actions

01/A2 The radio should be sent to the depot for reflashing of the tuning codeplug followed by

re-tuning of the radio. 02/81 The radio should be sent to the depot for examination and/or replacement of either the

FLASH U402, or the PATRIOT MCU/DSP U401. 02/88 Cycle power to the radio. If this does not fix the problem, then the radio should be sent

to the depot for reflashing of the DSP code . Conti nued failure requires examination and/

or replac ement of the SRAM U403. 02/90 Cycle power to the radio. If this fails to fix the problem, then the radio should be sent to

the depot for reflashing of the DSP code. Continued failure may require replacement of

U401, the PATRIOT MCU/DSP. 09/10 Cycle power to the radio. If this fails then follow instructions in the secure hardware

failure troubleshooting flowchart. 09/90 Cycle power to the radio. If this fails then follow instructions in the secure hardware

failure troubleshooting flowchart.

October 14, 2003 6881094C31-C

Chapter 5 Troubleshooting Charts

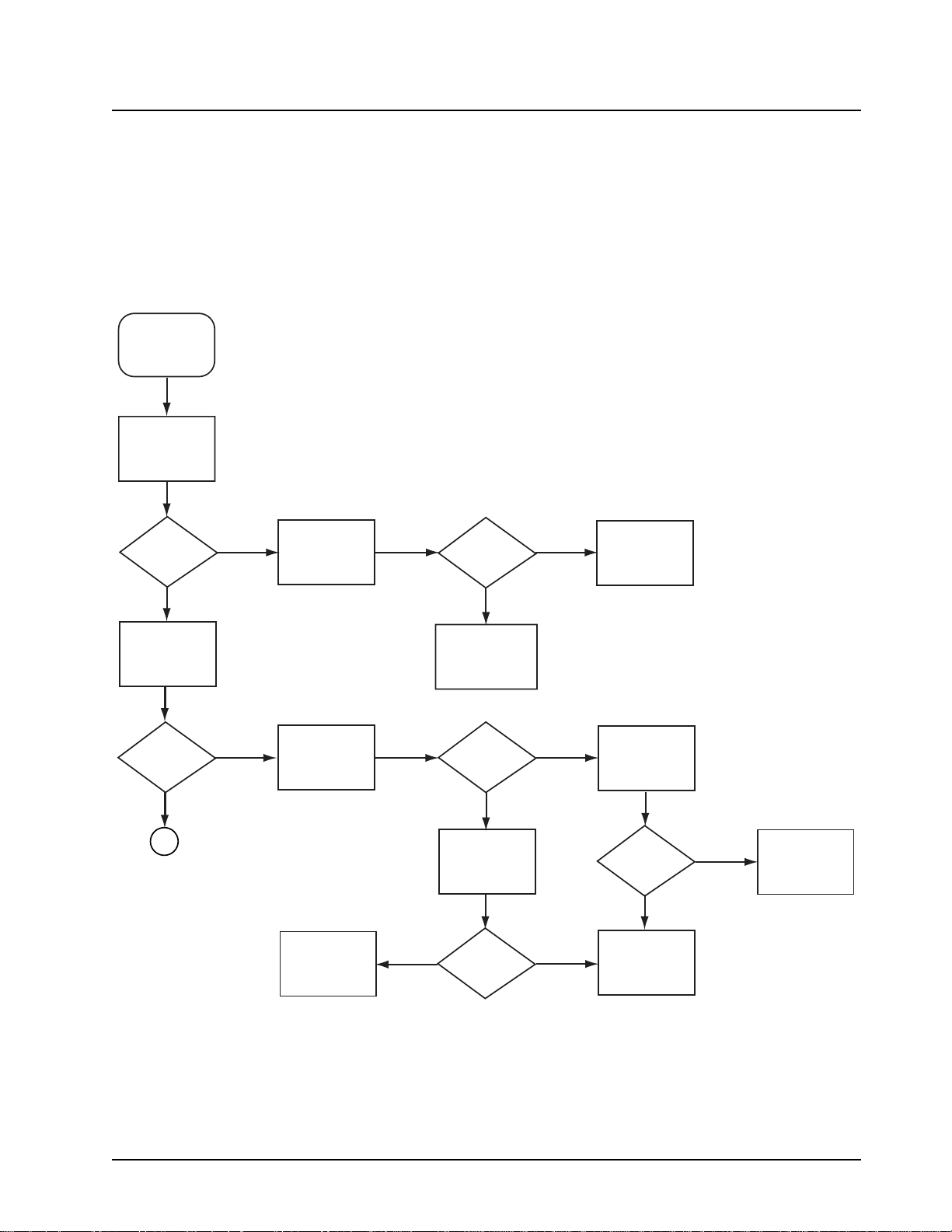

This section contains detailed troubleshooting flowcharts. These charts should be used as a guide in determining the problem areas. They are not a substitute for knowledge of circuit operation and astute troubleshooting techniques. It is advisable to refer to the related detailed circuit descriptions in the theory of operation sections prior to troubleshooting a radio.

5.1 List of Troubleshooting Charts

Most troubleshooting charts (see Table 5-1) end up by pointing to an IC to replace. It is not always noted, but it is good practice to verify supplies and grounds to the affected IC and to trace continuity to the malfunctioning signal and related circuitry before replacing any IC. For

instance, if a clock signal is not available at a destination, continuity from the source IC should be checked before replacing the source IC.

Table 5-1. Troubleshooting Charts List

Chart Title

Main Troubleshooting Flowchart 5-2 Power-Up Failure 5-3 DC Supply Failure 5-5 Display Failure (NNTN4563, NNTN4819, & NNTN4717

VOCON Kits) Display Failure (NTN9564) 5-11 Volume Set Error 5-14 Channel/Zone Select Error 5-15 Button Test 5-16 Top/Side Button Test 5-17 VCO TX/RX Unlock 5-18 VOCON TX Audio 5-19 VOCON RX Audio 5-21 RX RF

Page

Number

5-8

5-23 TX RF (VHF) 5-28 TX RF (UHF R1/700-800 MHz) 5-31 Keyload Failure 5-34 Secure Hardware Failure 5-35

5-2 Troubleshooting Charts: Main Troubleshooting Flowchart

5.2 Main Troubleshooting Flowchart

Start

Go to

TX RF

flowchart

Go to

TX RF

flowchart

Go to

VOCON

RX Audio

flowchart

Good

power-up

Self-Test?

Yes

Is there

TX Power?

Yes

Is TX

Deviation

OK?

Yes

Receive

Audio?

Yes

Error

Message?

Yes

See T ab le 5-2:

Power-up Self-

Check Error

Codes

Yes

Display Model?

Use RSS to

display Error

Messages

Error

Messages on

RSS?

Go to either

Display Failure or

Power-Up Failure

flowchart

Yes

See Button

Test flowchart

October 14, 2003 6881094C31-C

Good

SINAD?

Yes

Buttons

Functional?

Yes

End

MAEPF-27403-A

Troubleshooting Charts: Power-Up Failure 5-3

5.3 Power-Up Failure— Page 1

Radio

Power-Up

Failure

Verify Standard

Bias in

Table 5-1

Isolate and Repair Problem See DC Supply

Failure flowchart

Replace U301

(Flipper) and

place R528

back on board

Yes

Standard

Bias OK?

Yes

Remove

R528 (VOCON)

Fixed?

Signal may appear for a very short period of time (50 ms). Use an oscilloscope with trigger to capture signal.

Place R528

back on board

Probe

32.768 kHz

Clock at R316

Signal

Present?

Yes

VOCON Board

NNTN4563, NNTN4819,

or NNTN4717

kit?

Yes

Remove

Shield

SH101

Verify integrity

of C308 and

C309

MAEPF-27389-C

6881094C31-C October 14, 2003

5-4 Troubleshooting Charts: Power-Up Failure

Power-Up Failure—Page 2

Probe

16.8 MHz

Signal at R452

Signal

greater than

600mV?

Yes

Check

16.8 MHz Signal at

C452

Signal

greater than

600mV?

Yes

Signal may appear for a very short period of time (50ms). Use an oscilloscope with trigger to capture signal.

Investigate

16.8 MHz

Reference

Oscillator

Investigate

Clock Buffer

Components and

Isolate Problem

Note: All components noted on this chart are VOCON components.

This signal may contain harmonics and, therefore, may not appear as a perfect sinewave.

Refer Board to

Service Depot for

Reflash, Patriot,

SRAM, and

FLASH Analysis

Components

OK?

Yes

Replace

Y301

Fixed?

Yes

Replace Problem

Component

Replace

U301

Fixed?

Yes

End

MAEPF-27390-A

October 14, 2003 6881094C31-C

Troubleshooting Charts: DC Supply Failure 5-5

5.4 DC Supply Failure—Page 1

NOTE: Since the failure of a critical voltage supply might cause the radio to automatically power

down, supply voltages should first be probed with a multimeter. If all the board voltages are absent, then the voltage test point should be retested using a rising-edge-triggered oscilloscope. If the voltage is still absent, then another voltage should be tested using the oscilloscope. If that voltage is present, then the original voltage supply in question is defective and requires investigation of associated circuitry.

Problem with

DC Distribution

Network

Check V oltage

at pin 5 of

Q501 (VOCON)

Voltage

= B+?

Yes

Check V oltage

at pin 1 of

Q501

Voltage

= B+?

Yes

Check

Continuity of

Fuse F901

on transceiver

Check V oltage

at pin 3 of

Q502

Replace

Q501

Yes

Fuse OK?

Yes

Check Battery

Connections for

Good Contact

Voltage

= B+?

Yes

Check V oltage

at pin 2 of

Q502

Voltage

= 0V?

NoNo

Replace

Fuse

Replace Front

Cover Housing

Assembly

Fixed?

Replace

Q502

Yes

End

MAEPF-27391-A

6881094C31-C October 14, 2003

5-6 Troubleshooting Charts: DC Supply Failure

DC Supply Failure—Page 2

Check V oltage

at B502

(VOCON)

Voltage

= 3.77V+/-5%?

Yes

Check V oltage

at R501

Voltage

= 1.85V+/-5%?

Yes

Check V oltage

at R560

Voltage

= V2?*

* per Standard Bias Table

Yes

Check R502,

C506, L502,

and D503

Check R763, L703, C717,

and CR700

Components

OK?

Replace Problem

Component

Components

OK?

Replace Problem

Component

Yes

ReFLASH

HOST C

Code

Fixed?

Replace

U501

(GCAP II)

Yes

End

MAEPF-27392-B

October 14, 2003 6881094C31-C

Troubleshooting Charts: DC Supply Failure 5-7

DC Supply Failure—Page 3

Check V oltage

at pin 5 of

U505 (VOCON)

= 5.0V+/-5%?

Check V oltage

Voltage

Yes

at TP5

* per Standard Bias Table

Voltage

= V2?*

Yes

at TP7

* per Standard Bias Table

Voltage

= V2?*

Yes

Is unit VHF?

Yes

No No

Check R503, D501, C509,

C510, and C508

Check 700-800: E6, C15, C16, C17, and D2

VHF: E6, C6,

C8, and D2

Check

700-800: D3, R704,

C19, and C20

VHF: E7, C9, C10,

C11, and D3

Components

OK?

Yes

Replace

700-800: U505

VHF: U1

Components

OK?

Yes

Replace

Components

OK?

Yes

Replace

Replace Problem

Component

NoNo

Replace Problem

Component

Replace

Problem

Component

Check V oltage

at TP6

* per Standard Bias Table

Voltage

= V2?*

Yes

Check V oltage

at TP3

Voltage

= 5.0V+/-5%?

Yes

End

No No

Check

E8, C18, C19,

C20, and D4

Check

700-800: D1, E5,

C12, C13, and C14

VHF: E5, C3, C4,

C5, and D1

Components

OK?

Yes

Replace

Components

OK?

Yes

Replace

Problem

Component

Replace Problem

Component

MAEPF-27393-C

6881094C31-C October 14, 2003

5-8 Troubleshooting Charts: Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits)

5.5 Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits) Page 1

NOTE: The NNTN4563 VOCON board is compatible only with the 7285726C02 display module,

and the NNTN4819 VOCON board is compatible only with the 7285726C03 display module.

No Display

Replace

LCD Display

Problem

Resolved?

Check DC

on J301,

pins 17 and 18

2.775 V<V<3.1 V?

Check integrity

of B101

B101 OK?

Yes

End

Replace

B101

Yes

Verify V2

using

DC Supply Failure

flowchart

MAEPF-27505-B

October 14, 2003 6881094C31-C

Troubleshooting Charts: Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits) 5-9

Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits) Page 2

Check P_S*

at J301, pin 4

V = 0 V?

Yes

Check RESET

at J301, pin 6

V = V2?*

Yes

Check

REG_SEL

at J301, pin 7

V = V2?*

Yes

No Yes

* per Standard Bias Table

No Yes

* per Standard Bias Table

Verify Signal

Path Integrity

and correct

Verify Signal

Path Integrity

and correct

Verify Signal

Path Integrity

and correct

Problem

Resolved?

Problem

Resolved?

Problem

Resolved?

End

YesNo

End

Check CS at

J301, pin 5

V = V2?*

Yes

* per Standard Bias Table

Verify Signal

Path Integrity

and correct

Problem

Resolved?

Yes

End

MAEPF-27506-A

6881094C31-C October 14, 2003

5-10 Troubleshooting Charts: Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits)

Display Failure (NNTN4563, NNTN4819, & NNTN4717 VOCON Kits) Page 3

Use an oscilloscope to check for a low-level (0V) pulse occurrence during power-on initialization period.

Use an oscilloscope to check for either a low-level (0V) pulse or high-level (0-V2) occurrence during power-on initialization period.

Check Active

Low Status on

both RESET

and CS

Low-

Level Pulses

Present?

Yes

Check J301, pins

15 and 16 for

appropriate voltage

levels (0-V2)

Signal

present

at appropriate

level?

Return radio to

service depot for

further analysis

Yes

Replace

Display

MAEPF-27507-A

October 14, 2003 6881094C31-C

Troubleshooting Charts: Display Failure (NTN9564) 5-11

5.6 Display Failure (NTN9564)—Page 1

NOTE: The NTN9564 VOCON board is compatible only with the 7285726C01 display module.

No Display

Replace

LCD Display

Problem

Resolved?

Check DC on

J301, pin 17

1.8<V<1.95V?

Check integrity

of B102

Yes

End

B102 OK?

Yes

V erify VSW2

(1.85V) using

DC Supply Failure

flowchart

6881094C31-C October 14, 2003

Replace

B102

MAEPF-27404-O

5-12 Troubleshooting Charts: Display Failure (NTN9564)

Display Failure (NTN9564)—Page 2

Check P_S*

at J301, pin 4

V = 1.85V?

Yes

Check RESET

at J301, pin 6

V = 1.85V?

Yes

Check

REG_SEL

at J301, pin 7

V = 1.85V?

Yes

No Yes

Verify Signal

Path Integrity

and correct

Verify Signal

Path Integrity

and correct

Verify Signal

Path Integrity

and correct

Problem

Resolved?

Problem

Resolved?

Problem

Resolved?

YesNo

End

Check CS at

J301, pin 5

V = 1.85V?

Yes

Verify Signal

Path Integrity

and correct

Problem

Resolved?

Yes

End

MAEPF-27405-O

October 14, 2003 6881094C31-C

Troubleshooting Charts: Display Failure (NTN9564) 5-13

Display Failure (NTN9564)—Page 3

Use an oscilloscope to check for a low-level (0V) pulse occurrence during power-on initialization period.

Use an oscilloscope to check for either a low-level (0V) pulse or high-level (1.85V) occurrence during power-on initialization period.

Check Active

Low Status on

both RESET

and CS

Low-

Level Pulses

Present?

Yes

Check D0-D7

for appropriate

voltage levels

Signal

present

at appropriate

level?

Yes

Return radio to

service depot for

further analysis

Replace

Display

MAEPF-27406-O

6881094C31-C October 14, 2003

5-14 Troubleshooting Charts: Volume Set Error

5.7 Volume Set Error

Volume

Set Error

Synopsis

Verify operation

of volume knob

using Button Test

flowchart

This chart relates to a failure in the volume set knob. Basic failure modes are as follows:

1) Failure in control top/PTT flex circuit

2) Bad connection

3) Defective volume control potentiometer

4) Defective A/D port in GCAP II

5) Problem in receive audio circuit

Refer to

VOCON RX

Audio flowchart

Yes

Volume

check OK?

Using a voltmeter,

measure voltage at

U507 pin 1, when volume

knob is all the way on.

The value should be V2*

* per Standard Bias Table

Voltage

Functional?

Replace

U507

Measure voltage from

R526 to GND while

moving volume knob

from min to max. Max

volume is 2.50V

Yes

Replace

U501

Replace Front

Cover Housing

Assembly

Volume

pot OK?

Yes

Verify connections

and control top/PTT

flex connections

MAEPF-27401-A

October 14, 2003 6881094C31-C

Troubleshooting Charts: Channel/Zone Select Error 5-15

5.8 Channel/ Zone Sel ect Error

Channel

Select Error

Verify operation

of zone knob

using Button Test

flowchart

By studying the

adjacent table against

the channel numbers

that have errors, one

signal may be determined

to be in error. Verify logic levels at R235,

R236, R239, and R241

for each channel.

Signals

check good at U1

on the controls

flex assy.?

Yes

Channel

Probe Point

RT A3

(R241)

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

Verify codeplug

programming with

RSS. If codeplug checks OK, then

replace U1.

RT A2

(R239)

1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0

RT A1

(R236)

1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0

RT A0

(R235)

1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0

Verify similar operation directly at U1 on controls

flex assembly

checks

good?

Replace Front

Cover Housing

Assembly

Yes

Repair flex or

connections as

needed

MAEPF-27402-O

6881094C31-C October 14, 2003

5-16 Troubleshooting Charts: Button Test

5.9 Button Test

End

Button T est

Place radio in Test Mode.

Press Top Side Button

(Monitor) so display reads

CH TEST . This places the radio in button test mode.

Then, press the orange (Emergency) T op Button to verify codes displayed

as shown in the Button

Table at right

Yes

Keys

correct?

Check signal

path integrity of

button in question

Synopsis

This chart relates to a failure in the button functions Basic Failure modes are as follows:

1) Failure in control top/PTT or keypad flex assembly

2) Bad Connection

3) Defective Switches or pads

4) Defective A/D port in GCAP II

Button T ab le Button PTT Top Button (Emergency) Side Button 1 (Monitor) Side Button 2 Side Button 3 Channel Select (Frequency) Volume Control Knob Zone Select

131/1

129/1

Home Alpha

49/1

128/1

132/1

135/1

130/1

136/1

50/1

2ABC

Code 1/ 0-1

3/ 0-1 96/ 0-1 97/ 0-1 98/ 0-1 4/ 0-15

0/ 0-244

65/ 0-2

133/1

134/1

51/1

3DEF

Navigation

Button

52/1

4GHI

55/1

7PRS

58/1

53/1

5JKL

56/1

8TUV

48/1

54/1

6MNO

57/1

9XYZ

59/1

MAEPF-27399-O

October 14, 2003 6881094C31-C

Troubleshooting Charts: Top/Side Button Test 5-17

5.10 Top/Side Button Test

Top/Side

Button T est

Synopsis

This chart relates to a failure in

Using RSS,

verify problem

button is enabled

for function

Verify operation

using Button Test

Yes

of zone knob

flowchart

Button

check OK?

reading the buttons: Emergency, Side Button 1, Side Button 2, or Side Button 3.

Basic failure modes are as follows:

1) Failure in controls flex circuit

2) Bad connection

3) Defective Switch

4) Defective A/D port in GCAP II

Replace

U501

Buttons

Enabled?

Use RSS to enable

button

Yes

Replace

U504

Problem

fixed?

Using a voltmeter, measure the voltage at U504 pin 3 while depressing the following buttons: Emergency, Side Button 1, Side Button 2, and Side Button 3. The probe points are as follows: Button Emergency Top Side Middle Side Bottom Side None Pressed

Yes

Voltage

0.18V

1.40V

1.70V

2.00V

2.50V

Levels

correct?

End

Verify physical

operation of

buttons

Buttons

OK?

Replace Front

Cover Housing

Assembly

Yes

Verify connections

and control top/PTT

flex circuit and

repair as necessary

MAEPF-27400-O

6881094C31-C October 14, 2003

5-18 Troubleshooting Charts: VCO TX/RX Unlock

5.11 VCO TX/RX Unlock

VCO TX/RX

unlock

Sniff: Using an inductive field probe

"Sniff"

frequency near

VCO shield

as an antenna to measure

frequency. Place the probe

approximately 1/2 inch away

from components to be sniffed.

Frequency

detected?

Yes

Check control

voltage at

TP243

<0.6Vdc

>11.0Vdc or

drifting?

Yes

Check parts

around U202. If

OK, replace U202

spectrum analyzer

5V at TP3?

Yes

Check parts

around U2. If

OK, replace U2

Check if VCO

is locked using

VCO locked?

Yes

Check

VOCON board

Check parts

around U1. If

OK, replace U2

3V at TP5?

Yes

Remove

VCO shield

Is unit

VHF?

No No

Aux.

line 1 (2,4)

is high?

Yes

Field Effect Transistor (FET)

Yes

3 high for TX

or low for RX

Q302 VC01 Q306 VC02 Q309 VC03

drain voltage

Aux. line

(VHF)?

FET 0V?

Yes

Is pin

19 of VCOBIC

low for RX and

4.5 for TX? Yes

Check parts around U302. If OK, replace

Q302

Check parts

around FET. If

OK, replace FET

Remove

VCO buffer

shield (SH302)

Check parts

around Q301. If

OK, replace Q301

Check parts

around U300. If

OK, replace U300

MAEPF-27398-A

Bi-polar T ransistor (BJT)

Q301 VC01 Q303 VC02 Q308 VC03

BJT

emitter voltage

>1.2V?

Yes

Check parts

around BJT. If

OK, replace BJT

October 14, 2003 6881094C31-C

Troubleshooting Charts: VOCON TX Audio 5-19

5.12 VOCON TX Audio—Page 1

Radio has no Transmitter Deviation (VOCON Evaluation)

Inspect

Microphone and

Flex Connector

Connections

OK?

Yes

Connect an

RLN4460A audio

test box (or equivalent)

to the radio side

connector

Inject a 200 mV

rms 1.0 kHz tone

to the test box

Audio In port

Is FM

deviation approx.

3.0 kHz?

Yes

Repair connections

and/or replace flex

and microphone

No Problem

found.

End

Probe V oltage at U509, pin 5

1 kHz Signal

present at approx.

14 mV rms?

Yes

Verify Integrity

of Mic path up

to U509

Problem

with Mic path

components?

Yes

Replace

appropriate

component

MAEPF-27396-O

6881094C31-C October 14, 2003

5-20 Troubleshooting Charts: VOCON TX Audio

VOCON TX Audio—Page 2

Use an oscilloscope to check the SSI audio signals from the GCAP (U703). The following test points are used for data collection: DCLK: 520 kHz Square Wave Clock*

256 kHz Square Wave Clock** TX: Audio Data Words SYNC: 8 kHz Frame Sync Pulse

* on NTN9564, NNTN4563 & NNTN4819 VOCON boards ** on NNTN4717 VOCON board

Clock

and Frame Sync

present?

Yes

Data

present at TX

test point?

Yes

Go to

TX RF

flowchart

Replace

U509

(EEPOT)

Replace U301*

Replace U401**

(Flipper ASIC)

Replace U501

(GCAP II)

1 kHz signal

present at about

14 mV

rms?

* on NTN9564, NNTN4563 & NNTN4819 VOCON boards ** on NNTN4717 VOCON board

Problem

Resolved?

Yes

End

Yes

Replace

U501

(GCAP II)

Problem Solved?

Yes

End

MAEPF-27397-A

October 14, 2003 6881094C31-C

Troubleshooting Charts: VOCON RX Audio 5-21

5.13 VOCON RX Audio—Page 1

Bad SINAD

Bad 20db Quieting

No Recovered Audio

A standard input is an

Inject Standard

Input into Antenna

Connector

Check Preamp

Input Signal at

C533

RF signal with a 1 kHz tone modulated with 3 kHz deviation in a 25 kHz channel.

Signal

Present?

Yes

Check

Distortion of

Signal at C533

THD <3%?

Yes

wavef orm, T r ace 2

Probe R403 for Data, Compare

with RX SAP

Probe R405

for Clock Signal,

Data

Present?

Yes

Replace U501

(GCAP II)

Go to

RX RF

flowchart

* on NTN9564, NNTN4563 & NNTN4819 VOCON boards

** on NNTN4717 VOCON board

NoNo

wavef orm, T r ace 3

Compare with

RX SAP

Yes

Clock

Present?

Yes

Probe R406 for

Frame Sync Signal,

Compare with

RX SAP waveform,

Trace 1

Frame

Sync

Present?

Replace U301* Replace U401**

(FLIPPER)

MAEPF-27394-A

6881094C31-C October 14, 2003

5-22 Troubleshooting Charts: VOCON RX Audio

VOCON RX Audio—Page 2

Check Preamp

Output Signal

at C530

Signal

Present?

Yes

Distortion

>3%?

Preamp Gain

= 2.8 V/V?

Yes

PA Gain

= 11.2 V/V?

Yes

Check Preamp

U502 and its

associated

components

Check Audio PA

U503 and its Components

Make sure that you look at all solder contacts. Check resistors and capacitors associated with this check. If all look fine, then replace U502.

Make sure that you look at all solder contacts. Check resistors and capacitors associated with this check. If all look fine, then replace U503.

Distortion

Yes

>3%?

Check Flex

Connector

MAEPF-27395-O

October 14, 2003 6881094C31-C

Troubleshooting Charts: RX RF 5-23

5.14 RX RF—Page 1

Poor RX sensitivity or no RX audio

Inject a standard FM test signal

into the antenna port. Use CPS to

ensure that attenuator feature is

disabled. Use a spectrum analyzer

and high-impedance RF probe to

measure the IF signal at TP12

(700-800) or TP15 (VHF) on side 2

Frequency OK?

VHF: 44.85 MHz

UHF: 73.35 MHz

700-800: 109.65 MHz

Yes

level about

-38 dBm?

Measure RF

input level

at TP02

Yes

3 kHz FM deviation, 1 kHz rate, -47 dBm

Check

RXLO

RF level

about

-47 dBm? Yes

Measure RF levels at TP02 and TP13 (UHF & 700-800)

or TP401 (VHF),

compute SW_FL loss

SW_FL

loss < 2 dB?

Yes

Inspect coaxial

antenna connector

and cable assembly

Check

SW_FL

Bad antenna connector.

Visual

inspection

OK?

Yes

Remove cable

assembly, measure

insertion loss

Loss

< 0.2 db?

Yes

Replace chassis

(connector is not

serviceable)

Replace bad part

Replace

cable assembly

MAEPF-27470-B

6881094C31-C October 14, 2003

5-24 Troubleshooting Charts: RX RF

RX RF—Page 2

2nd LO, 700-800: 107.4 MHz, VHF: 42.6 MHz, about 356 mVpp

Measure 2nd LO at

TP501 (UHF & 700-800)

or TP18 (VHF) on PCB side 2

2nd LO DC bias

Signal

Present?

Yes

LO Freq.

OK? VHF: 42.6 MHz UHF: 71.1 MHz

700-800:

107.4 MHz

Yes

Measure RXCK, P1-5 RXFS, P1-6

RXDO, P1-12

Observe

0 to 3 Vdc

digital signals

Levels

OK?

Yes

Q501-c

= 5.0 Vdc?

Yes

Q501-e

= 3.7 Vdc?

Yes

Remove SH501

(UHF & 700-800)

or SH502 (VHF), inspect

2nd LO VCO

Visual

examination

OK?

Yes

Replace

Q502

Check V oltage

Regulator U1

Replace

Q501

Repair

Defects

Measure

bit clock rate

(Fbit) at RXCK

RXDO = 24-bit I,

Fbit =

1.2 MHz?

Yes

RXFS = 20 kHz

sync pulse

RXFS

OK?

Yes

24-bit Q, 8-bit

AGC. AGC varies

with RF level

RXDO

OK?

Yes

Go to

VOCON RX

AUDIO flowchart

MAEPF-27471-B

October 14, 2003 6881094C31-C

Troubleshooting Charts: RX RF 5-25

RX RF—P age 3

Measure RF levels at first preselector

filter and compute filter loss.

VHF: TP401, TP9

UHF: TP13, U401-3

700-800: TP13, D401-3

Loss < 3 db?

Yes

Measure RF levels at LNA

and compute LNA gain.

VHF: TP9, TP12

UHF: U401-1, TP402

700-800: D401-3, TP402

Gain

about

+12 dB?

Yes

Measure RF levels at second preselector

filter and compute filter loss.

VHF: TP12, TP451

UHF: TP402, TP403

700-800: TP402, TP403

Check

LNA

TP502

Measure

control voltage

at TP502

Fvco

too low? VHF: < 42.6 MHz UHF: < 71.1 MHz

700-800:

< 107.4 MHz

Yes

TP502

= 5 Vdc?

Yes

Remove Abacus shield and

inspect second LO VCO.

VHF: SH502 UHF: SH501

700-800: SH501

Visual

examination

OK?

(Vdc)

1.40

3.20

VHF

TP18

(MHz)

Fvco

42.6

47.1

TP502

= 0 Vdc?

Repair defects

UHF R1

TP502

(Vdc)

1.7

3.7

Yes

TP501

(MHz)

Fvco

71.1

75.6

700-800 MHz

TP502

TP501

(Vdc)

(MHz)

Fvco

101.0

0.00

107.4

1.85

111.9

4.30

113.0

5.00

Yes

Loss

< 3 dB?

Yes

Measure RF and IF level at mixer

and compute mixer conversion gain.

VHF: TP451, TP15

UHF: TP403, TP404

700-800: TP403, TP404

Mixer

gain about

4 dB?

Yes

Check

mixer

Replace

Varactor D550

Measure IF level at XTAL filter

and compute XTAL filter loss.

VHF: TP15, TP455

UHF: TP404, TP12

700-800: TP404, TP12

Loss

< 3 dB?

Yes

No problem

found

MAEPF-27472-B

6881094C31-C October 14, 2003

5-26 Troubleshooting Charts: RX RF

RX RF—Page 4

Clock

synthesizer

Measure

tuning voltage

(Vt) at R512

Fbit

< 1.2 MHz?

Yes

Vt= 3 Vdc?

Yes

Repair

defects

Vt = 0 Vdc?

Remove SH501,

inspect clock

oscillator circuit at

U500-19, 20

examination

Visual

OK?

Yes

Remove SH501,

inspect

components

Visual

examination

OK?

Yes

Replace

Abacus

U500

Repair

defects

Replace

Varactor D501

MAEPF-27473-O

October 14, 2003 6881094C31-C

Troubleshooting Charts: RX RF 5-27

RX RF—P age 5

Measure prselector filter

tuning voltage dac1 and dac2.

VHF: None, TP29

UHF: TP401, TP405

700-800: TP401, TP405

Yes

Tune the radio across several

channels. Measure dac2,

proportional to frequency.

unit

VHF?

dac1 = dac2?

Yes

Dac

voltages

OK?

Replace

PCIC

Replace

PCIC

Remove IF filter shield. Check IF filter and LC matching networks.

VHF: SH451

UHF: SH403

700-800: SH403

Visual

inspection

OK?

Yes

Replace IF filter.

VHF: FL451 UHF: FL490

700-800: FL403

Band F (MHz) dac2 (Vdc) VHF

UHF 700-800

136 174 380 470 770 869

Repair

defects

1.3

2.4

0.5

2.9

1.5

3.5

Yes

VHF/UHF: Check discrete

preselector filters.

700-800: Replace FL401

or FL402.

MAEPF-27474-B

6881094C31-C October 14, 2003

5-28 Troubleshooting Charts: TX RF (VHF)

5.15 TX RF (VHF)—Page 1

No or low TX power

Measure RF

Place XCVR and VOCON

into the analysis fixture.

Key up. Measure RF

power at antenna port

level

at C147

power OK?

Use a spectrum analyzer

and high-impedance RF

probe. Measure TXRF

at C016

Frequency

OK?

Yes

Level

about

-3 dBm? Yes

Yes

Check coaxial

connector and

cable assembly

Check

FGU

Check

FGU

Level about

0 dBm?

Yes

Measure

drain of

Q104

Is voltage

5 V?

Yes

Remove SH701

and check for

parts off pad

Check bias of Q101,

Q103, and Q106.

Replace bad

transistors

Measure RF level

at Q107 pin 2

Level about

+15 dBm?

Yes

October 14, 2003 6881094C31-C

MAEPF-27635-O

Troubleshooting Charts: TX RF (VHF) 5-29

TX RF (VHF)—Page 2

Measure

RAWB+

at U102-6

RAWB+

about

7.2 Vdc?

Yes

Measure

TX7V at

U102-14

TX7V about

7.2 Vdc?

Yes

Check

continuity

Measure

RAWB+

at Q107-drain

RAWB+

about

7.2 Vdc?

Yes

Measure

gate bias

at L108

V.gate

about 2 to

3 Vdc?

Yes

Check

continuity

Check

continuity

Measure

Vgate at TP111,

normally 4 to

5.5 Vdc

Vgate

> 4 Vdc?

Yes

DC bias is OK,

control is OK,

RFIN is OK, driver

has low gain

Replace U102.

For VHF, check under

SH101. if all parts soldered,

replace U102.

DC bias is OK,

control is OK,

RFIN is OK,

PA has low gain

MAEPF-27420-B

Measure RF

level at

pin 6 of Q107

Level

about

+35 dBm?

Yes

Remove SH101

and check for

parts off pad

unit

VHF?

Replace

Q107

Yes

6881094C31-C October 14, 2003

5-30 Troubleshooting Charts: TX RF (VHF)

TX RF (VHF)—Page 3

TX7V is low.

Measure TXINH

at P1-19, Q101-b

TXINH

< 1 Vdc?

Yes

Measure RXH

at U104-23

and Q103-b

RXH

< 1 Vdc?

Yes

Bad control signal from

VOCON

Vgate at TP111 is low (< 4 Vdc)

Measure INT

at TP104

INT > 5 Vdc?

INT is low.

Measure VLIM

at TP119

VLIM

about 2 to

3 Vdc?

Yes

Replace

Q108

Bad PCIC

Replace U104

RXH

> 5 Vdc?

Yes

Trace dc levels through switching transistors Q101,

Q102, Q103,

and Q106

Replace bad

transistors

Bad PCIC

Replace U104

PCIC is

programmed.

Measure TEMP

at R130

TEMP

< 1.0 Vdc at

25C?

Yes

Measure

RFIN at

TP101

< 0.5 Vdc?

Yes

RFIN is low, INT

is low, bad PCIC,

replace U104

Repair temperature

Low output power,

RFIN is high, check

RF detectors and

sensor circuit (U103, Q109,

R130)

op amp U106.

Repair defects

MAEPF-27476-O

October 14, 2003 6881094C31-C

Troubleshooting Charts: TX RF (UHF R1/700-800 MHz) 5-31

5.16 TX RF (UHF R1/700-800 MHz)—Page 1

No or low TX power

Measure RF level

Place XCVR and VOCON

into the analysis fixture.

Key up. Measure RF

power at antenna port

at PA output,

C103.

power OK?

Use a spectrum analyzer

and high-impedance RF

probe. Measure TXRF

at TP11

Frequency

OK?

Yes

Level about

-3 dBm? Yes

Measure RF level

at driver amp

outlet, C107.

Yes

Check coaxial

connector and

cable assembly

Check

FGU

Check

FGU

Level about

+36 dBm?

Yes

Measure RF levels

at C103 and D701-

cathode. Calculate

switch loss

Loss < 1 db?

Yes

Measure RF levels

at D701-cathode and

TP02. Calculate

harmonic filter loss

Loss < 2 db?

Yes

Check switch

Remove

SH700,

repair defects

Go to

VOCON TX

RF level OK?

Approx. +26 dBm

Yes

AUDIO flowchart

MAEPF-27475-B

6881094C31-C October 14, 2003

5-32 Troubleshooting Charts: TX RF (UHF R1/700-800 MHz)

TX RF (UHF R1/700-800 MHz)—Page 2

Measure

RAWB+

at U102-6

RAWB+

about

7.2 Vdc?

Yes

Measure

TX7V at

U102-14

TX7V about

7.2 Vdc?

Yes

Check

continuity

Measure

RAWB+

at Q107-drain

RAWB+

about

7.2 Vdc?

Yes

Measure

gate bias

at L108

V.gate

about 2 to

3 Vdc?

Yes

Check

continuity

Check

continuity

Measure

Vgate at TP111,

normally 4 to

5.5 Vdc

Vgate

> 4 Vdc?

Yes

DC bias is OK,

control is OK,

RFIN is OK, driver

has low gain

Replace U102.

For VHF, check under

SH101. if all parts soldered,

replace U102.

DC bias is OK,

control is OK,

RFIN is OK,

PA has low gain

MAEPF-27420-B

Measure RF

level at

pin 6 of Q107

Level

about

+35 dBm?

Yes

Remove SH101

and check for

parts off pad

unit

VHF?

Replace

Q107

Yes

October 14, 2003 6881094C31-C

Troubleshooting Charts: TX RF (UHF R1/700-800 MHz) 5-33

TX RF (UHF R1/700-800 MHz)—Page 3

TX7V is low.

Measure TXINH

at P1-19, Q101-b

TXINH

< 1 Vdc?

Yes

Measure RXH

at U104-23

and Q103-b

RXH

< 1 Vdc?

Yes

Bad control

signal from

VOCON

Vgate at TP111

is low (< 4 Vdc)

Measure INT

at TP104

INT > 5 Vdc?

INT is low.

Measure VLIM

at TP119

VLIM

about 2 to

3 Vdc?

Yes

Replace

Q108

Bad PCIC

Replace U104

RXH

> 5 Vdc?

Yes

Trace dc levels

through switching

transistors Q101,

Q102, Q103,

and Q106

Replace bad

transistors

Bad PCIC

Replace U104

PCIC is

programmed.

Measure TEMP

at R130

TEMP

< 1.0 Vdc at

25C?

Yes

Measure

RFIN at

TP101

< 0.5 Vdc?

Yes

RFIN is low, INT

is low, bad PCIC,

replace U104

Repair temperature

Low output power,

RFIN is high, check

RF detectors and

sensor circuit

(U103, Q109,

R130)

op amp U106.

Repair defects

MAEPF-27476-O

6881094C31-C October 14, 2003

5-34 Troubleshooting Charts: Keyload Failure

5.17 Keyload Failure

Keyload Failure

Verify the use of the correct secure kit and key loader: XTS 5000 UCM Kits:

Software Kits: NNTN4006A - DES, DES-XL, DES-OFB NTN9837A - DES, DES-XL, DES-OFB with DVP-XL NTN9838A - DVI-XL NTN9839A - DVP-XL NNTN4197 - AES NNTN4198 - AES with DES, DES-XL, DES-OFB Hardware Kits: NTN9738C NNTN5032A Use KVL - 3000 or later model Keyloader. Use with cable TDN9390.

Obtain correct

KVL and

cable

Correct

equipment?

Yes

With KVL attached to

radio and radio on,

verify display

message "KEYLOAD"

This failure relates only to secureequipped radios and indicates a failure to load key with the KVL indicated by the message "KEYFAIL" and key-fail tone. Typical failure modes would be:

1) Open between universal connector uC which places radio in Keyload mode.

2) Use of wrong KVL or KVL cable for XTS 5000 radio.

3) Failure of secure module.

Synopsis

Verify and repair

connection of UC_CTS,

UC_RS232DIN_USB-,

and UC_OPT_SEL2 signals

from KVL to universal

connector to J101

Good

connection?

Verify operation of

voltage translator

circuit by seeing activity on R315

Translator

circuit OK?

Yes

Replace VOCON

board

Yes

"KEYLOAD"

message

displayed?

Verify connection

of KEYFAIL

from the universal

connector pin 13 to

J101-2 and D301

Repair

connection

Replace

translator

circuit

With KVL attached to radio

Yes

and radio on, initiate a

keyload by pressing PTT on

the keyloader and look for

activity on J701-1

Activity?

Repair

connection

Yes

Verify

connection

across J701

Good

connection?

Yes

Replace

secure

module

MAEPF-27388-B

October 14, 2003 6881094C31-C

Troubleshooting Charts: Secure Hardware Failure 5-35

5.18 Secure Hardware Failure

Fail

09/10 or 09/90

Secure Hardware

Failure

Synopsis

This failure relates only to secure-equipped radios and indicates a power-up self-test failure for the secure module. More specifically this failure indicates a failure in communications between the DSP and secure module. The secure module is not considered field repairable so troubleshooting is limited to verifying a problem with the module and replacing. Typical failure modes would be:

1) Open between secure module and VOCON board at J701.

2) Failure of the SSI bus that the DSP uses to communicate with the secure module.

3) Failure to get proper supplies and grounds to J701.

Repair

opens

Replace module

with known good

one and retest

Verify connections

to secure module

through J701

Connections

Yes

good?

Yes

known good

module

available?

Radio

functions with

known good

module?

Yes

Replace

secure

module

Use ohmmeter to electrically

verify the following signal

connections to source IC: Signal @ J701 Source ENC_SSI_DI R403 ENC_SSI_DO R402 ENC_SSI_CLK R405 RESET_ENC R418

Verify bias of following signals:

Signal @ J701 Nominal Bias

UNSW_B+ 7.5VDC+/-1.0VDC

SW_B+ 7.5VDC+/-1.0VDC

GND GND

source IC or

VOCON board

Replace

respective

Connections

good?

Yes

Verify electrical activity at the following signals

at power up: Signal @ J701 Source ENC_SSI_DI R403 ENC_SSI_CLK R405

Signals

good?

Yes

Repair

connections

Replace

secure

module

MAEPF-27387-O

6881094C31-C October 14, 2003

5-36 Troubleshooting Charts: Secure Hardware Failure

Notes

October 14, 2003 6881094C31-C

Chapter 6 Troubleshooting Waveforms

This chapter contains images of waveforms that might be useful in verifying operation of certain parts of the circuitry. These waveforms are for reference only; the actual data depicted will vary depending on operating conditions.

6.1 List of Waveforms

Table 6-1 lists each waveform and the page on which the waveform can be found.

Table 6-1. List of Waveforms

Waveform Page No.

13 MHz Clock 6-2

16.8 MHz Buffer Input and Output 6-3

32.768 kHz Clock Outputs 6-4 SPI B Data 6-5 Receive Serial Audio Port (SAP) 6-6 Receive Baseband Interface Port (RX BBP) 6-7 Transmit Baseband Interface Port (TX BBP) 6-8

6-2 Troubleshooting Waveforms: 13MHz Clock

6.2 13 MHz Clock

MAEPF-27490-O

13 MHz clock from U301 to U501. Trace 1: Trace recorded at C303 on the NTN9564 board. Similar waveform is visible on C339 on the NNTN4563, NNTN4819, & NNTN4717 VOCON boards.

Figure 6-1. 13MHz Clock Waveform

October 14, 2003 6881094C31-C

Troubleshooting Waveforms: 16.8 MHz Buffer Input and Output 6-3

6.3 16.8 MHz Buffer Input and Output

MAEPF-27491-O

Trace 1: Buffer input at R452. Trace 2: Buffer output at C452. Note: These components are under shield SH101 on the NNTN4563, NNTN4819, & NNTN4717 VOCON boards.

Figure 6-2. 16.8 MHz Buffer Input and Output Waveforms

6881094C31-C October 14, 2003

6-4 Troubleshooting Waveforms: 32.768 kHz Clock Outputs

6.4 32.768 kHz Clock Outputs

MAEPF-27492-O

Trace 1: Output at C313 (to real-time clock of GCAP II IC). Trace 2: Outpu t at U302, pin 2 (to Patriot IC CKIL input ). Note: These components are under shield SH102 on the NNTN4563, NNTN4819, & NNTN4717 VOCON boards.

Figure 6-3. 32.768 kHz Clock Outputs Waveforms

October 14, 2003 6881094C31-C

Troubleshooting Waveforms: SPI B Data 6-5

6.5 SPI B Data

MAEPF-27493-O

Trace 1: GCAP II IC chip enable at R539 (Note active high). Trace 2: SPI data clock at Test Point SCKB. Trace 3: SPI data to GCAP II IC at Test Point MOSIB.

Figure 6-4. SPI B Data Waveforms

6881094C31-C October 14, 2003

6-6 Troubleshooting Waveforms: Receive Serial Audio Port (SAP)

6.6 Receive Serial Audio Port (SAP)

MAEPF-27494-O

Trace 1: 8 kHz frame sync at R406 (each word is 13 bits after failing edge of FSYNC). Trace 2: SAP data at R403 (audio data from GCAP II IC CODEC to Patriot IC DSP). Note: Transmit is identical, except data acquired at R402. Trace 3: 520 kHz bit clock at R405 on the NTN9564, NNTN4563 & NNTN4819 VOCON boards. 256 kHz bit clock at R405 on the NNTN4717 VOCON board.

Figure 6-5. Receive Serial Audio Port (SAP) Waveforms

October 14, 2003 6881094C31-C

Troubleshooting Waveforms: Receive Baseband Interface Port (RX BBP) 6-7

6.7 Receive Baseband Interface Port (RX BBP)

Trace 1: BBP RX frame sync signal at R123. Trace 2: BBP RX clock signal at R124. Trace 3: BBP RX data signal at R121.

Figure 6-6. Receive Baseband Interface Port (RX BBP) Waveforms

6881094C31-C October 14, 2003

6-8 Troubleshooting Waveforms: Transmit Baseband Interface Port (TX BBP)

6.8 Transmit Baseband Interface Port (TX BBP)

Trace 1: BBP TX frame sync signal at R119. Trace 2: BBP TX clock signal at R125. Trace 3: BBP TX data signal at R127.

Figure 6-7. Transmit Baseband Interface Port (TX BBP) Waveforms

October 14, 2003 6881094C31-C

Chapter 7 Troubleshooting Tables

7.1 List of Board and IC Signals

Due to the nature of the schematic-generating program, signal names might be different when they are not directly connected to the same point. The tables in this chapter provide a cross reference to the various pinouts for these signals. chapter.

Table 7-1. List of Tables of Board and IC Signals

Table No. Table Name Page No.

7-2 J101 VOCON Board to Controls Flex Assembly 7-1 7-3 J107 VOCON Board to Keypad Module 7-3 7-4 J701 VOCON Board to Encryption Module 7-3 7-5 U402 FLASH Pinouts 7-5 7-6 U403 SRAM Pinouts 7-7 7-7 U401 Patriot MCU/DSP IC Pinouts 7-9

Table 7-1 lists and provides links to each of the tables in this

7-8 U301 Flipper IC Pinouts 7-18 7-9 U501 GCAP II IC Pinouts 7-20

Table 7-2. J101 VOCON Board to Controls Flex Assembly

J101

Pin No.

1 UC_CTS TP208 10 2 UC_LHDATA_KEYFAIL TP206 13 3 DGND03 TP202 8 4 UC_RS232DIN_USB- R253 12 5 UC_EXT_SPKR_NEG- TP213 6 6 UC_RS232DOUT_USB+ R252 11 7 UC_OPT_SEL2 R218 5 8 UC_SB9600_BUSY TP207 9

Description To/From

Connector

Number

Side

9 UC_EXT_SKPR TP212 2

10 UC_RTS TP209 7

7-2 Troubleshooting Tables: List of Board and IC Signals

Table 7-2. J101 VOCON Board to Controls Flex Assembly (Continued)

J101

Pin No.

11 UC_OPT_SEL1 R217 1 12 UC_OPTB+_VPP R255 4 13 UC_EXT_MIC TP214 3 14 UC_EMERG R233 15 DGND15 TP202 16 DGND16 TP202 17 UC_MONITOR R244 18 DGND18 TP202 19 DGND19 TP202 20 UC_BL_FREQ R206 21 UC_RED_LED R203 22 UC_GREEN_LED R204 23 UC_TG2 R234

Description To/From

Side

Connector

Number

24 UC_RTA1 R236 25 UC_RTA3 R241 26 UC_RTA2 R239 27 UC_RTA0 R235 28 DGND28 TP202 29 DGND29 TP202 30 DGND30 TP202 31 UC_VOLUME R232 32 BSENS_1 L202 33 UNSWB+1 L201 34 UC_TG1 R231 35 V2A L203 36 UC_INT_MICU L208 37 C_INT_SPKR_NEG TP213 38 UC_INT_PTT R216 39 AGND39 L204 40 UC_INT_SPKR L205

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-3

Table 7-3. J107 VOCON Board to Keypad Module

J107

Pin No.

1 KP_COLUMN0 C134 Yes 2 KP_COLUMN1 C133 Yes 3 KP_COLUMN2 C132 Yes 4 KP_GND GROUND Yes 5 KP_GND GROUND Yes 6 KP_BL_EN C124 Yes 7 KP_5V1 C104 Yes 8 KP_5V2 C104 Yes 9 KP_GND GROUND Yes

10 KP_GND GROUND Yes

11 KP_GND GROUND Yes 12 KP_GND GROUND Yes 13 KP_ROW0 C131 Yes

Description To/From

Accessible

VOCON?

14 KP_ROW1 C130 Yes 15 KP_ROW2 C129 Yes 16 KP_ROW3 C128 Yes 17 KP_ROW4 C127 Yes 18 KP_ROW5 C126 Yes 19 KP_ROW6 C125 Yes 20 KP_GND GROUND Yes 21 KP_GND GROUND Yes 22 KP_GND GROUND Yes

Table 7-4. J701 VOCON Board to Encryption Module

J701

Pin No.

1 KEYFAIL_LH_BDMDATA Q303 Pin 2 Yes 2 RS232_DIN_ENC R308 Yes 3 RS232_DIN_UP R308 Yes

Description To/From

Accessible

on VOCON?

4 RTSIN_ENC U301 Pin H7 No

6881094C31-C October 14, 2003

7-4 Troubleshooting Tables: List of Board and IC Signals

Table 7-4. J701 VOCON Board to Encryption Module (Continued)

J701

Pin No.

5 RS232_DOUT_UP R317 Yes 6 RS232_DOUT_ENC R317 Yes 7 SW_B+_ENC C101 Yes 8 Regulated V_ENC No Connect N/A 9 RS232_DTR_IN_ENC No Connect N/A

10 RS232_RI_OUT_EN No Connect N/A

11 USB_MINUS Monitor No Connect N/A 12 CONT_3VDC_OUT_ENC No Connect N/A 13 RS232_DCD_ENC No Connect N/A 14 USB_PLUS Monitor No Connect N/A 15 BOOT_ENC R417 Yes 16 TAMPER GROUND Yes 17 SSI_DO_CODEC_ENC R403 Yes 18 SSI_DI_CODEC_ENC R402 Yes

Description To/From

Accessible

on VOCON?

19 RTA0_ENC R246 Yes 20 RTA1_ENC R247 Yes 21 RTA3_ENC R251 Yes 22 RTA2_ENC R250 Yes 23 TG2_ENC R234 Yes 24 LHDATA_BDMDATA_KEYFAIL D308 Pin 3 Yes 25 GREEN_LED_ENC R204 Yes 26 WAKEUP U401 Pin E1 No 27 TX_INHIBIT R109 Yes 28 UCM_SS U301 Pin G4 No 29 RED_LED_ENC R203 Yes 30 RESET_ENC R418 Yes 31 MONITOR R244 Yes 32 SPARE1_ENC R415 Yes 33 GROUND_ENC GROUND Yes 34 SPARE2_ENC R416 Yes 35 EMERG_ENC R241 Yes

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-5

Table 7-4. J701 VOCON Board to Encryption Module (Continued)

J701

Pin No.

36 UNSW_B+_ENC C102 Yes 37 ENC_SSI_CLK R404 Yes 38 ENC_SSI_FS R406 Yes 39 ENC_SSI_DI R403 Yes 40 ENC_SSI_DOUT R402 Yes

* = Component located under a shield on NNTN4563, NNTN4819, & NNTN4717

Description To/From

Accessible

on VOCON?

Table 7-5. U402 FLASH Pinouts

U402

Pin No.

B4 B_CLK B_CLK** Yes E7 CS0 CS0 Active Low Yes F8 EN_OE No C5 EN_WE No

Description To/From Comment

Accessible

on Vocon?

D6 WRITE PROTECT No C4 ADV ADV** Yes B5 RESET D401, pin 2 1.875 V Yes E8 ADDRESS 1 No D8 ADDRESS 2 No C8 ADDRESS 3 No B8 ADDRESS 4 No A8 ADDRESS 5 No B7 ADDRESS 6 No A7 ADDRESS 7 No C7 ADDRESS 8 No A2 ADDRESS 9 No B2 ADDRESS 10 No C2 ADDRESS 11 No A1 ADDRESS 12 No B1 ADDRESS 13 No C1 ADDRESS 14 No

6881094C31-C October 14, 2003

7-6 Troubleshooting Tables: List of Board and IC Signals

Table 7-5. U402 FLASH Pinouts (Continued)

U402

Pin No.

D2 ADDRESS 15 No D1 ADDRESS 16 No D4 ADDRESS 17 No B6 ADDRESS 18 No A6 ADDRESS 19 No C6 ADDRESS 20 No B3 ADDRESS 21 No C3 ADDRESS 22 No D7 ADDRESS 23 R427* Yes A3 GROUND No F1 GROUND No G2 GROUND No G8 GROUND No E2 DATA 15 No

Description To/From Comment

Accessible

on Vocon?

F2 DATA 14 No F3 DATA 13 No D5 DATA 12 No F4 DATA 11 No F5 DATA 10 No F6 DATA 9 No G7 DATA 8 No G1 DATA 7 R435** Yes E3 DATA 6 R434** Yes G3 DATA 5 R433** Yes E4 DATA 4 R432** Yes G5 DATA 3 R431** Yes E5 DATA 2 R430** Yes E6 DATA 1 R429** Yes F7 DATA 0 R428** Yes A5 VPP D402, pin 3 1.875 V Yes G6 VSW2 C409* 1.875 V Yes

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-7

Table 7-5. U402 FLASH Pinouts (Continued)

U402

Pin No.

E1 VSW2 C409* 1.875 V Yes G4 VSW2 C409* 1.875 V Yes A4 VSW2 C409* 1.875 V Yes

* = Component located under a shield on NNTN4563, NNTN4819, & NNTN4717 ** = No test point/component on NNTN4563, NNTN4819, & NNTN4717 - signal not accessible

Description To/From Comment

Accessible

on Vocon?

Table 7-6. U403 SRAM Pinouts

U403

Pin No.

A2 EN_OE No G5 R_W R_W W = 0 V Yes A1 LB No B2 UB No B5 CS1 CS2 (TP) Active Low Yes

Description To/From Comment

Accessible

on Vocon?

A6 CS2 C411* Active Low Yes A3 ADDRESS 1 Yes A4 ADDRESS 2 Yes A5 ADDRESS 3 Yes B3 ADDRESS 4 Yes B4 ADDRESS 5 Yes C3 ADDRESS 6 Yes C4 ADDRESS 7 Yes D4 ADDRESS 8 No H2 ADDRESS 9 No H3 ADDRESS 10 No H4 ADDRESS 11 No H5 ADDRESS 12 No G3 ADDRESS 13 No G4 ADDRESS 14 No

F3 ADDRESS 15 No

F4 ADDRESS 16 No

6881094C31-C October 14, 2003

7-8 Troubleshooting Tables: List of Board and IC Signals

Table 7-6. U403 SRAM Pinouts (Continued)

U403

Pin No.

E4 ADDRESS 17 No D3 ADDRESS 18 No H1 ADDRESS 19 No D1 GROUND No E6 GROUND No E3 GROUND No H6 NOT USED No G2 NOT USED No G1 DATA 15 No F1 DATA 14 No F2 DATA 13 No E2 DATA 12 No D2 DATA 11 No C2 DATA 10 No

Description To/From Comment

Accessible

on Vocon?

C1 DATA 9 No B1 DATA 8 No G6 DATA 7 R435** No F6 DATA 6 R434** No F5 DATA 5 R433** No E5 DATA 4 R432** No D5 DATA 3 R431** No C6 DATA 2 R430** No C5 DATA 1 R429** No B6 DATA 0 R428** No D6 VSW2 C411* 1.875 V Yes E1 VSW2 C411* 1.875 V Yes

* = Component located under a shield on NNTN4563, NNTN4819, & NNTN4717 ** = No test point/component on NNTN4563, NNTN4819, & NNTN4717 - signal not accessible

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-9

Table 7-7. U401 Patriot MCU/DSP IC Pinouts

U401

Pin No.

H10 EEPOT_INC* C537 Active Low Yes

J14 EXT_SPKR_SEL Q505, pin 5 Yes C14 AUDIO_PA_EN R575 Yes B14 HOST_WAKE No

F6 BATTERY_ID C556 Yes

E5 MECH_SW_BAR Q508, pin 3 Active Low Yes

J6 INT_PTT R216 Active Low Yes J5 GCAP_INT R538 Yes J4 OPT_SEL1_IN U201 pin 1 Yes

J3 UART_INT* No C16 8KHZ_INT R406 8 kHz Pulse Yes G11 OPT_SEL2_IN U202 pin 1 Yes

F1 KP_ROW0 C131 Yes

H4 KP_ROW1 C130 Yes

Description To/From Comment

Accessible

on Vocon?

H6 KP_ROW2 C129 Yes G2 KP_ROW3 C128 Yes

G11 KP_ROW4 C127 Yes

G7 KP_ROW5 C126 Yes H7 KP_ROW6 C125 Yes H1 SPARE1_ENC J701, pin 32 Yes D1 KP_COL0 C134 Yes G5 KP_COL1 C133 Yes

F3 KP_COL2 C132 Yes

G4 ENC_RESET J701, pin 30 Yes

F2 BOOT* J701, pin 15 Yes

E1 WAKEUP J701, pin 26 Ye s H6 SPARE2_ENC J701, pin 34 Yes G3 NOT USED No E7 NOT USED No A8 NOT USED No

F8 MISOA_SEL U406, pin 2 Yes

6881094C31-C October 14, 2003

7-10 Troubleshooting Tables: List of Board and IC Signals

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

E8 NOT USED No G8 NOT USED No C3 NOT USED No D4 LOCK_DET C123 Active Low Yes A2 TG2 R234 Yes B2 RTA3 R241 Yes A3 RTA2 R239 Yes B3 RTA1 R236 Yes B4 RTA0 R235 Yes A7 VSW2 E401* 1.875 V Yes P3 VSW2 E401* 1.875 V Yes P6 VSW2 E401* 1.875 V Yes T9 VSW2 E401* 1.875 V Yes

N10 VSW2 E401* 1.875 V Yes

Description To/From Comment

Accessible

on Vocon?

R16 VSW2 E401* 1.875 V Yes

H9 V2 E402* 3.0 V Yes

G9 V2 E402* 3.0 V Yes E15 V2 E402* 3.0 V Yes A16 V2 E402* 3.0 V Yes K10 V2 E402* 3.0 V Yes C12 V2 E402* 3.0 V Yes

D8 V2 E402* 3.0 V Yes

B7 V2 E402* 3.0 V Yes

A4 V2 E402* 3.0 V Yes A16 V2 E402* 3.0 V Yes

H2 V2 E402* 3.0 V Yes

K3 VSW2 E401* 1.875 V Yes

R8 VSW2 E401* 1.875 V Yes G15 VSW2 E401* 1.875 V Yes C10 VSW2 E401* 1.875 V Yes K12 URXD1_USB_VMI No

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-11

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

L16 URTS1_XRXD No F13 ADTRIG No B16 URXD2 U303, pin 4 Y es D14 BSY_IN_RTS No B12 RX_SSI_DATA R123 Data From

C1 1 TX_SSI_CLK R125 1.536 MHz Yes B10 RED_LED Q201, pin 3 Active High Yes D10 GRE EN_LED Q201, pin 5 Active High Yes B11 TX_SSI_FSYNC R119 48 kHz Yes

J10 CODEC_TX R402 GCAP to DSP

J15 CODEC_DCLK R405 520 kHz

Description To/From Comment

Abacus to

DSP

Tx Audio Data

(NTN9564

NNTN4563

NNTN4819)

256 kHz

(NNTN4717)

Accessible

on Vocon?

Yes

K16 CODEC_FSYNC R406 8 kHz Pulse Yes

D7 SPI_MISOA MISOA SPI A Data In Yes D3 SPI_MISOB MISOB SPI B Data In Yes E6 NOT USED No

F7 NOT USED No D6 EEPROM_SEL* R132 Active Low Yes C5 AD_CS* R133 Active Low Yes A9 NOT USED No B8 NOT USED No B9 NOT USED No

A10 NOT USED No

G6 BT_DISABLE No

D13 NOT USED No S15 BT_WAKE No

F11 RX_SSI_CLK R124 Yes

6881094C31-C October 14, 2003

7-12 Troubleshooting Tables: List of Board and IC Signals

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

B15 OPT_SEL2_OUT R256 Yes

J13 AUDIO_MODE_SEL R257 Yes J16 EEPOT_CS_EXT* U509, pin 1 Yes J12 EEPOT_U_D* U509, pin 2 Yes

H11 EEPOT_CS* U509, pin 10 Yes

A5 GROUND GROUND Yes N6 GROUND GROUND Yes

P8 GROUND GROUND Yes P11 GROUND GROUND Yes M11 GROUND GROUND Yes L15 GROUND GROUND Yes H16 GROUND GROUND Yes F14 GROUND GROUND Yes G14 GROUND GROUND Yes

Description To/From Comment

Accessible

on Vocon?

E13 GROUND GROUND Yes B13 GROUND GROUND Yes K15 GROUND GROUND Yes

D9 GROUND GROUND Yes

C8 GROUND GROUND Yes

B5 GROUND GROUND Yes

C2 GROUND GROUND Yes

C1 GROUND GROUND Yes

H3 GROUND GROUND Yes K15 GROUND GROUND Yes

T8 GROUND GROUND Yes H15 GROUND GROUND Yes

C9 GROUND GROUND Yes

B6 ABACUS_CS* R126 Active Low Yes

E2 UNI_SEL* R131 Active Low Yes

D2 FLPR_CS* Active Low No

E3 GCAP_CE R539 Active High Yes

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-13

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

E4 SCKB SCKB SPI B Clock Yes B1 NOT USED No

F4 NOT USED No

F5 SPI_MOSIB MOSIB SPI Data Out Yes C7 SCKA SCKA SPI A Clock Yes C6 MOSIA MOSIA SPI Data Out Yes

G10 NOT USED No G16 OPT_S EL1_ OU T U201, pin 3 Yes

J1 1 CODEC_RX R403 DSP to GCAP

A12 RX_SSI_FSYNC R123 20 kHz pulse Yes A11 RX_SSI_CLK R124 1.2 MHz Yes

E9 TX_SSI_DATA R127 Data From

C15 BSY_OUT_CTS* No

Description To/From Comment

Rx Audio Data

DSP to A/D

Accessible

on Vocon?

Yes

F12 UTXD2 U303, pin 1* Yes D15 USB_SUSP No E14 DISPLAY_R_W* D403, pin 3 W = 0 V Yes D16 NOT USED No G12 UCTS1_USB_SPEED* No K11 UTXD1_USB_VPO No K14 USB_VMO No K13 USB_TX_EN No

D5 8 KHZ_INT R406 8 kHz Pulse Yes

H14 BL_EN C124 Yes

K4 LV_DETECT POR 3.0 V Yes

F9 NOT USED No

J2 NOT USED No A6 16_8_MHZ C452* 16.8 MHz Yes

6881094C31-C October 14, 2003

7-14 Troubleshooting Tables: List of Board and IC Signals

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

J7 FLIP_32K 32 kHZ

G13 NOT USED No

J11 MOD MOD Bootstrap

A13 NOT USED No

M6 NOT USED No

R1 NOT USED No N3 NOT USED No

M5 NOT USED No

P2 NOT USED No P1 NOT USED No N1 NOT USED No

Description To/From Comment

32.768 kHz Yes

(NTN9564)

U302, pin 2*

(NNTN4563

NNTN4819

NNTN4717)

mode > 2.7 V

Accessible

on Vocon?

Yes

M4 NOT USED No M3 NOT USED No M2 NOT USED No M1 NOT USED No

L4 NOT USED No L3 NOT USED No L1 NOT USED No

L2 NOT USED No K2 NOT USED No T1 NO T USED No R2 NOT USED No T2 NO T USED No K7 NOT USED No N2 NOT USED No

L5 NOT USED No

L6 NOT USED No C4 NOT USED No

October 14, 2003 6881094C31-C

Troubleshooting Tables: List of Board and IC Signals 7-15

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

L13 NOT USED No D11 ONE_WIRE_EN* Active Low No E16 KVL_USB_DET* Active Low No F15 NOT USED No

K5 BAT_BUS_EN* Q507, pin 2 Active Low Yes H8 NOT USED No

F16 RESET RESET_OUT

K6 USB_VPI No H12 BL_FR EQ Q202, pin 5 Active High Yes H13 NOT USED No E10 DSP_DE DSP_DE ONCE/JTAG Yes

Description To/From Comment

Reset = 0 V Yes

(NTN9564) D401, Pin 3 (NNTN4563 NNTN4819, NNTN4717)

Accessible

on Vocon?

F10 MCU_DE MCU_DE ONCE/JTAG Yes D12 TCK TCK ONCE/JTAG Yes C13 TMS TMS ONCE/JTAG Yes E1 1 TRST TRST ONCE/JTAG Yes A14 TDO TDO ONCE/JTAG Yes E12 TDI TDI ONCE/JTAG Yes

M16 NOT USED No

L14 NOT USED No

P15 NOT USED No

L11 NOT USED No

M14 NOT USED No

N16 NOT USED No

L12 NOT USED No

M12 CKO CKO Disabled Yes

N15 NOT USED No

M15 NOT USED No

6881094C31-C October 14, 2003

7-16 Troubleshooting Tables: List of Board and IC Signals

Table 7-7. U401 Patriot MCU/DSP IC Pinouts (Continued)

U401

Pin No.

R12 ADDRESS 0 J101, pin 7 Not accessible

T13 ADDRESS 1 No

M10 ADDRESS 2 No

T12 ADDRESS 3 No P13 ADDRESS 4 No

M9 ADDRESS 5 No P10 ADDRESS 6 No P12 ADDRESS 7 No

N9 ADDRESS 8 No

R10 ADDRESS 9 No

P9 ADDRESS 10 No

L10 ADDRESS 11 No

Description To/From Comment

on NNTN4563,

NNTN4819, &

NNTN4717

Accessible

on Vocon?

Yes

T10 ADDRESS 12 No

R9 ADDRESS 13 No

L9 ADDRESS 14 No

K9 ADDRESS 15 No

J9 ADDRESS 16 No L8 ADDRESS 17 No

M8 ADDRESS 18 No

N8 ADDRESS 19 No K8 ADDRESS 20 No

L7 ADDRESS 21 No T7 ADDRESS 22 No R7 ADDRESS 23 R427* Yes R3 DATA 15 No T3 DATA 14 No N4 DATA 13 No P4 DATA 12 No R4 DATA 11 No
