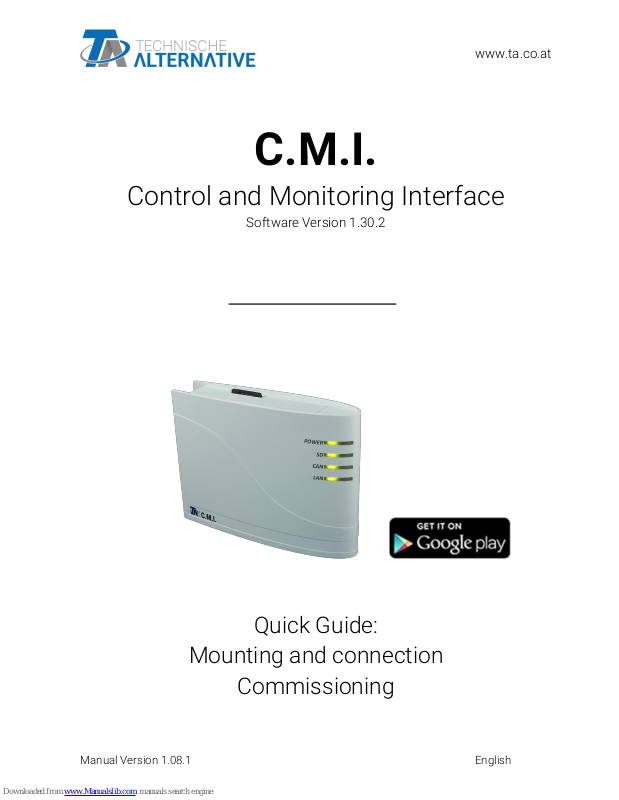

www.ta.co.at
Manual Version 1.08.1 English
C.M.I.
Control and Monitoring Interface
Software Version 1.30.2
Quick Guide:
Mounting and connection
Commissioning
Table of contents
Manual version 1.08.1 EN
1. Delivery scope ............................................................................................................. 4
2. Mounting and connection ............................................................................................ 4
2.1. Connections ..................................................................................................................... 4
2.2. Making the connections .................................................................................................. 5
3. IP-Address .................................................................................................................. 5
3.1 Network with DHCP server (standard) ............................................................................ 5
3.2. Network without DHCP server ........................................................................................ 5
3.3. Fixed IP address ............................................................................................................... 5
4. Access via browser ..................................................................................................... 5
4.1. Access via LAN or port forwarding ................................................................................. 5
4.2. Access via C.M.I. web portal https://cmi.ta.co.at ......................................................... 6
5. Resetting and loading of factory settings .................................................................... 9
UVR1611 compatibility information
In order to be able to access the full range of functions, the controller must have at least
operating system version A3.25.
4
1. Delivery scope
The delivery scope of the device includes the following parts:
1 pc. Control and Monitoring Interface C.M.I.
1 pc. SD card
1 pc. 4-pole plug for the CAN bus
1 pc. 3-pole plug for the DL bus
1 pc. Brief guide
1 pc. 12V power unit (only with model: 01/CMI-NT)
2. Mounting and connection
The C.M.I. can be assembled either with 2 screws on an even surface or with the enclosed
rapid mounting to a TS35 DIN rail according to the EN 50022 Standard.
Dimensions:
2.1. Connections
Connections are labelled and must not be confused.
The following Figure also shows termination on the left (CAN bus).
Power consumption: typically 1.5 W
Reset button on the
rear side
Rapid mounting to a TS35
SD Card
5
2.2. Making the connections
Connections must be made in the following sequence
1. Connection LAN cable
2. Connection CAN bus or DL bus cable
3. Optional: power supply with power unit
(positive pole on the internal conductor, earth outside)
The POWER LED now has to be green permanently.
3. IP-Address
Access requires an IP address.
3.1 Network with DHCP server (standard)
The network settings are determined automatically.
3.2. Network without DHCP server
Direct C.M.I. connection– Windows PC
DHCP must be activated on the PC.PC and C.M.I. automatically gets an IP address this way.
This process can take more than 1 minute.
3.3. Fixed IP address
1. Create a Text file called fix_ip.txt with the required IP address and UTF-8 encoding in
the root directory of the SD card. The content of this file must be only an IP address
(example: 192.168.0.10) and "Enter".
2. Insert the SD card in the C.M.I.
3. During the next start, the C.M.I. adopts this IP address and deletes the txt file on the
SD card.
The network settings must then be configured locally (C.M.I. menu Settings/Ethernet).
The LAN LED now has to flash green or be green permanently.
4. Access via browser
4.1. Access via LAN or port forwarding
1. Browser start
2. Entry in the address field of the browser: cmi (factory setting, only under Windows) or
IP address
Entry "cmi“ Entry IP address (example)
The language in this window depends on the language setting in the PC operating system.
6
3. Authentication: Entry user name and password
The factory-set predefined
user name is admin, the
password also admin.
Confirmation with "OK".
The language in this win-
dow depends on the language setting in the PC
operating system.
4. Now the menu of the C.M.I. appears already.
The additional operation is described in the online help (help.ta.co.at).
4.2. Access via C.M.I. web portal https://cmi.ta.co.at
If you want access via Internet, then the C.M.I can be connected via “„C.M.I. web portal“. The
C.M.I. web portal is a server that was set up by Technische Alternative.
1. Select the address https://cmi.ta.co.at and click “Log in” and “Registration“.
7
2. Completing the registration form and accepting the terms of use
3. After completing registration, an e-mail with an activation link will be sent to the e-mail
address used for registration. This process can take up to 30 minutes.
4. After clicking the link, the start page of the web portal is displayed already.
5. Adding the C.M.I. in the Web portal
Selection of the tab “C.M.I.s“
6. Selection “Add C.M.I.“
8
7. Entry of C.M.I. data
On the rear of the device is the serial number on the rating plate and the key on the
key label. The key must be entered without spaces.
Caution All warranty and guarantee claims become void if the rating plate or key label
is removed!
The "Designation“ helps with the selection of several individual C.M.I.s and is visible in
the list of individual C.M.I.s. If service by the super user (e.g. Technische Alternative)
is to be allowed at all times, the appropriate field will be checked.
9
8. After updating the page, the C.M.I. appears in the list “My C.M.I.s“.
Clicking on the serial number takes you to the C.M.I. menu.
The additional operation is described in the online help (help.ta.co.at).
5. Resetting and loading of factory settings
Briefly pressing the reset key on the rear of the C.M.I. restarts the C.M.I. (reset).
The C.M.I. can also be restarted (reset) by unplugging the CAN bus connection and plugging
it back in.
If the reset button is pressed and released while the red LEDs are still illuminated, resets the
C.M.I. to factory settings.
Caution: Pressing the reset button until the red LEDs stop being illuminated starts a firmware
update with the C.M.I. operation system saved to the SD card. Up to boot sector 1.04, the
current firmware in the "UPDATE" folder of the SD card must be called "CMI.BIN". From boot
sector 1.05 onwards, it must be called "FIRMWARE.cmi". You can identify whether the boot
sector is 1.05 or above by 4 red LEDs, which begin to glow faintly when the device is started.
