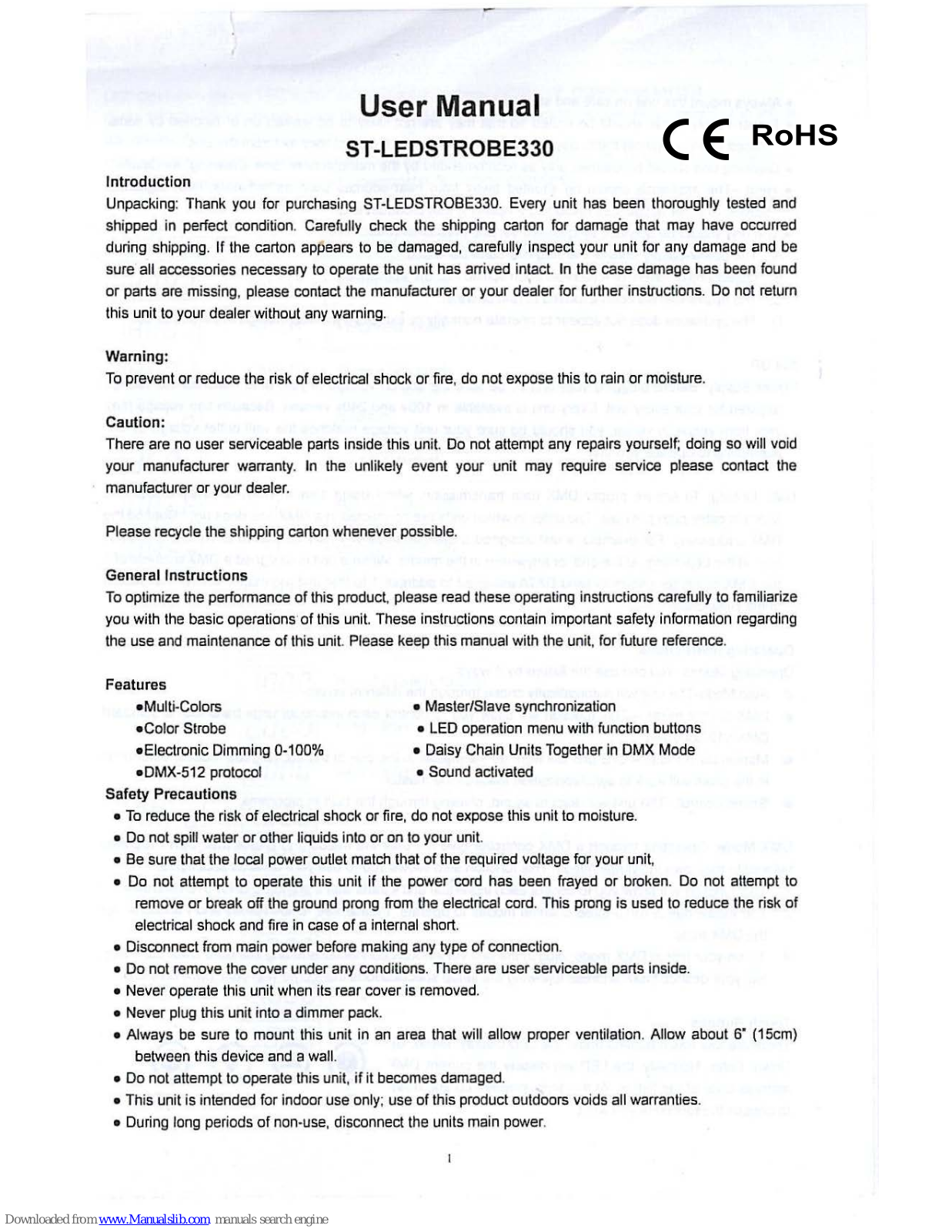

Introduction
User Manual
ST-LEDSTROBE330
Unpacking: Thank you for purchasing ST-LEDSTROBE330. Every unit has been thoroughly tested and
shipped
in
perfect condition. Carefully check the shipping carton for
damag·e
that may have occurred
during shipping.
If
the carton appears to be damaged, carefully inspect your unit for any damage and be
sure all accessories necessary to operate the unit has arrived
intacl
In the case damage has been found
or
parts are missing , please contact the manufacturer
or
your dealer for further instruction
s.
Do not return
this unit to your
dealer without any warning.
Warning:
To
prevent or reduce the risk
of
electrical shock
or
fire,
do
not expose this to rain or moisture.
Caution:
There are no user serviceable parts inside this uni
t.
Do
not attempt any repairs yourself; doing so will void
your manufacturer warranty.
In the unlikely event your unit may require service please contact the
manufacturer
or
your dealer.
Please recycle
the shipping carton whenever possible.
General
Instructions
To optimize the performance
of
this product, please read these operating instructions carefully to familiarize
you with the basic operations
of
this unit. These instructions contain important safety information regarding
the use and maintenance
of
this unit. Please keep this manual with the unit, for future reference.
Features
•Mult
i-Colors
•Co
lor Strobe
•Electronic Dimming 0-100%
•DMX-512 protocol
Safety Precautions
• Master/Slave synchronization
• LED operation menu with function buttons
• Daisy Chain Units Together in OMX Mode
• Sound activated
•
To
reduce the risk
of
electrical shock
or
fire, do not expose this unit
to
moisture.
• Do
not
spill water
or
other liquids into
or
on
to
your unit.
• Be sure that the local power outlet match that
of
the required voltage for your unit,
•
Do
not attempt to operate this unit
if
the power cord has been frayed or broken.
Do
not attempt to
remove
or
break off the ground prong from the electrical cord. This prong
is
used to reduce the risk
of
electrical shock and fire
in
case
of
a internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are user serviceable parts inside.
• Never operate this unit when its rear cover is removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this unit
in
an
area that will allow proper ventilation. Allow about
6'
(15cm)
between this device and a
wall.
•
Do
not attempt to operate this unit,
if
it becomes damaged.
• This unit
is
intended for indoor use only; use of this product outdoors voids all warranties .
• During long periods
of
non-use, disconnect the units main power.
• Always mount this unit
un
safe and stable matter.
• Power-supply cords should
be
routed
so
that they are not likely to
be
walked on
or
pinched by items
placed upon
or
against them, paying particular attention to the point they exit from the unit.
• Cleaning unit should
be
cleaned only as recommended
by
the
manufacturer.
See
'Cleaning" for details.

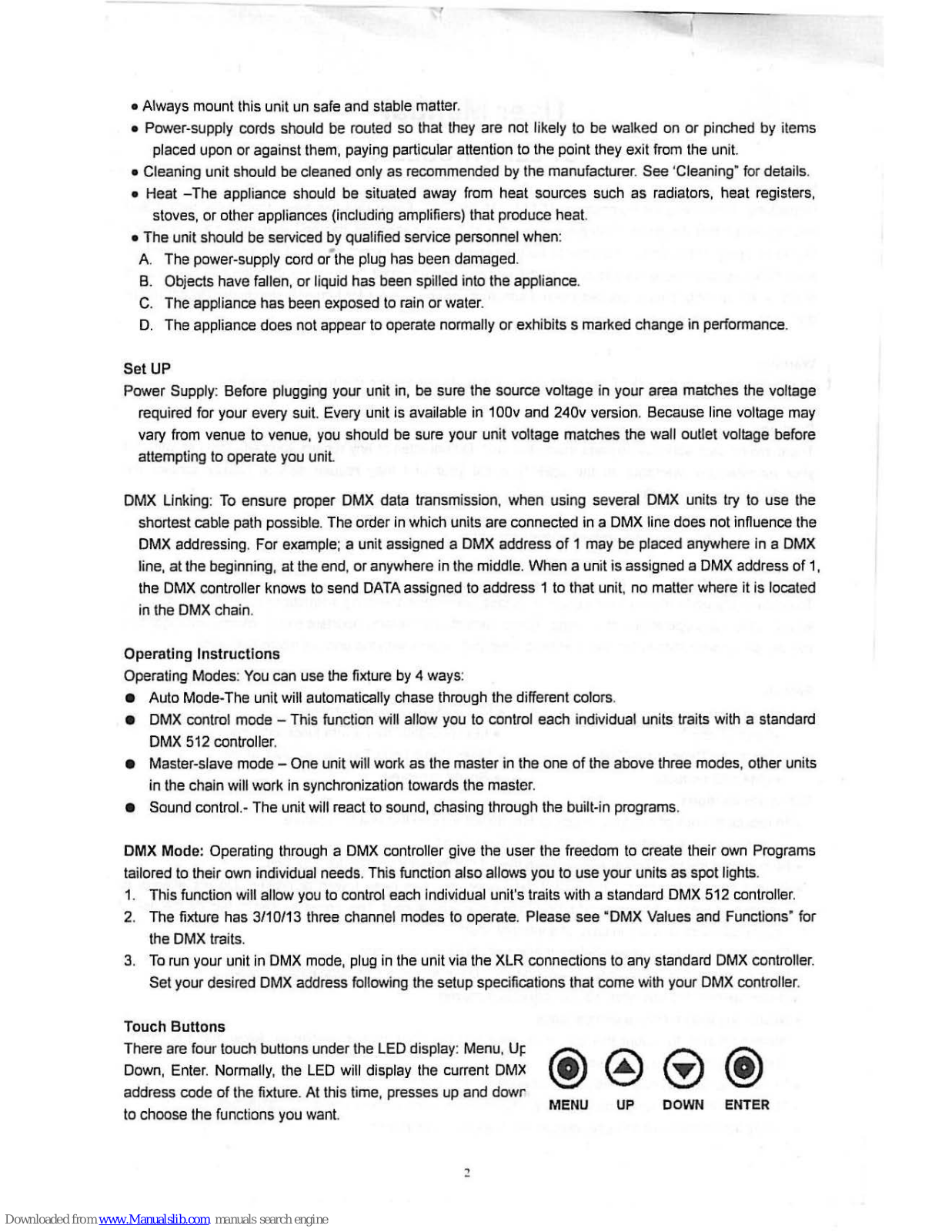

• Heat
-The
appliance should
be
situated away from
heat
sources such as radiators,
heat
registers,
stoves,
or
other appliances (including amplifiers) that produce heat.
•
The
unit should
be
serviced
by
qualified service personnel when:
A. The
power-supply cord
or
the plug has been damaged.
B.
Objects have fallen,
or
liquid has been spilled into the appliance.
C.
The appliance
has
been exposed to rain
or
water.
D.
The appliance does not appear to operate normally
or
exhibits s marked change in performance.
Set
UP
Power Supply:
Before plugging your unit in,
be
sure the source voltage In your area matches the voltage
required for your every suit. Every unit is available in 100v
and
240v version. Because line voltage may
vary from venue to venue, you
should
be
sure your unit voltage matches the wall ouUet voltage before
attempting to operate you
unil
OMX Linking: To ensure proper OMX data transmission, when using several DMX units try to use the
shortest cable path
possible. The order In which units
are
connected in a OMX line does not influence
the
OMX addressing. For example; a unit assigned a OMX address
of
1 may
be
placed anywhere in a DMX
line,
at
the beginning,
at
the end,
or
anywhere in the middle. When a unit
is
assigned a OMX address
of
1,
the
OMX
controller knows to send DATA assigned to address 1 to that unit,
no
matter where
it
is located
in
the
OMX chain.
Operating
Instructions
Operating Modes: You can use the
fix1ure
by 4 ways:
• Auto Mode-The unit will automatically chase through the different colors.
• OMX control mode - This function will allow you to control each individual units traits with a standard
OMX 512 controller.
• Master-slave mode - One unit will work as the master
in
the
one
of
the above three modes, other units
in the chain
will work in synchronization towards the master.
• Sound control.- The unit will react to sound, chasing through the built-in programs.
OMX Mode: Operating through a OMX controller give the user the freedom to create their own Programs
tailored
to their own
ind
ividual needs. This function also allows you to use your units as spot lights.
1. This function
will allow you to control each Individual unit's traits with a standard OMX 512 controller.
2. The fix1ure has
3/10/13 three channel modes to operate. Please see "OMX Values and Functions" for
the
OMX traits.
3. To run your unit in
OMX mode, plug in the unit via the XLR connections to any standard OMX controller.
Set your desired OMX address following the setup specifications that come with your OMX controller.
Touch
Buttons
There are four touch buttons under the LED display: Menu,
U~
Down, Enter. Normally, the LED will display the current
OMX
address code
of
the fixture. At this time, presses up and
dowr
to choose the functions you want.
@@@@
MENU UP
DOWN
ENTER
