Picture Frame
X800
Owner’s
Handbook
IMPORTANT SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a slightly damp cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
Do not install or operate near any heat sources such
as radiators, stoves, or other apparatus that produce
heat.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
This symbol indicates that dangerous voltage constituting
a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
operate normally, or has been dropped.
Warning: To reduce the risk of re or electrical
shock, do not expose this product to rain or moisture. The product must not be exposed to dripping
and splashing and no object lled with liquids
such as a vase of owers should be placed on the
product.
No naked ame sources such as candles should be
placed on the product.
Caution: Changes or modications not expressly
approved by the manufacturer could void the user’s
authority to operate this device.
Caution: Usage of controls or adjustments or performance of procedures other than those specied
herein may result in hazardous exposure.
IMPORTANT
Use this appliance with the supplied AC convertor.
Using non-approved power supplies will void the
warranty.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
Page 2
in accordance with the instructions, may cause
harmful interference to radio communication.
However,this is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by
turning the equipment o and on,the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
The means of disconnection from the mains supply
is via the AC power adapter. This must be readily
accessible and capable of being unplugged at all
times.
CONTENTS
SAFETY INFORMATION ................................................................................................2
INTRODUCTION ...........................................................................................................4
UNPACKING ................................................................................................................4
CONTROLS AND FUNCTIONS ........................................................................................5
REMOTE CONTROL HANDSET .......................................................................................6
GETTING STARTED ......................................................................................................7
CONNECTING THE POWER SUPPLY ............................................................................... 8
SWITCHING ON ...........................................................................................................8
INSERTING MEDIA .......................................................................................................9
NAVIGATING THE FRAME ............................................................................................. 9
VIEWING PICTURES ................................................................................................... 10
NAVIGATING A SLIDESHOW in the OSD MENU ...........................................................11
THUMBNAIL MODE ...................................................................................................11
SYSTEM SETUP .........................................................................................................13
TROUBLESHOOTING .................................................................................................. 15
AFTER USE .................................................................................................REAR COVER
CARE, WARRANTY & SPECIFICATIONS .........................................................REAR COVER
Page 3
IINTRODUCTION
Your Digital Picture Frame (DPF) enables you to view digital
pictures from either a memory card or from a USB drive.
The DPF is compatible with the following card formats: SD™
(Secure Disk), MMC™(Multimedia Card), MS™ (Memory Stick) and
SDHC (Secure Disk High Capacity).
The Frame will also support a USB 2.0 or 1.1 drive.
PICTURE FORMATS
The DPF will play pictures conforming to the .jpg (jpeg) standard.
Other picture formats must be converted to jpgs via photo editing
software (not supplied).
FILES AND FOLDERS
You may have your pictures grouped into Albums (folders) with
several pictures inside each album. The DPF will read the pictures and
play them in sets but you cannot identify or select individual folders.
The DPF will take time to load and display pictures. Lots of high
resolution pictures will slow loading times considerably.
UNPACKING
The carton should contain:
• The Photo Frame
• External Power Adapter
• Remote Control Handset
• Operating Manual
If any items are missing or damaged, contact your nearest TESCO store
for a replacement. Have your receipt ready when you call. Retain the
packaging. If you dispose of it, do so having regard to any recycling
regulations in your area.
Before using the Photo Frame carefully remove any protective
lm covering the screen. Take care not to press on the screen.
Page 4
CONTROLS AND FUNCTIONS
1 2 3 4 6 8 975
5V DC Input Socket1.
USB Socket2.
SD/MMC/MS Card Slot3.
Display Screen4.
Remote Control Sensor5.
Detachable Stand6.
MENU/OPEN OSD Key7.
Navigation Keys*8.
EXIT (Return) key 9.
ON/OFF Switch10.
Stand Attachment11.
Page 5
*NAVIGATION KEYS
Play/Pause; Conrm/Enter; hold to enter main menu1.
Previous/Left button2.
Down button; Rotate photo while playing a slideshow3.
Next / Right button 4.
Up button; Back to preview while playing a slideshow5.
10
11
REMOTE HANDSET
HANDSET KEYS AND FUNCTIONS
1 Press to set the player in and out of Standby.
2
Press to move the cursor upward.
3
Press to move the cursor leftward or select the previous picture.
4 MENU Press to return to the main menu.
5
Press to move the cursor downward.
6
Press to select the previous picture when viewing pictures
Switch to the previous page in thumbnail mode.
7
Press to zoom the picture.
8
Press to select 4:3 or 16:9 aspect ratio for a picture
9 SETUP Press to go to the setup menu.
10 OK Press to conrm a selection
Start or pause playback.
11
Press to move the cursor rightwards or select the next picture.
12 OSD Press to open or exit the OSD bar display.
13
Press to return to the previous menu.
14
Press to select the next picture when viewing pictures
Switch to the next page in thumbnail mode.
15
Press to start the slide show.
Page 6
GETTING STARTED
HANDSET PREPARATION
Remove the protective strip from the batter y compartment to activate
the battery.
If the handset behaves erratically or fails to
operate the battery should be replaced.
1: Press the catch at the side of the battery
compartment. Slide out the battery cage
2: Remove the old battery. Place the new battery in the cage with the polarity as shown.
Close the cage.
There is a risk of re and burns if the battery
is handled improperly. Do not disassemble,
crush, puncture, shor t external contacts, or
dispose of in re or water.
Do not attempt to open or service the battery. Replace only with the
battery designated for this product. Discard used batteries in accordance with recycling regulations in force in your area.
PLACEMENT
Remove the mount from the magnetic clip at the rear of the frame.
Insert it into the attachment hole. Twist the mount clockwise until it
attaches rmly to the frame.
After the mount has been attached, you can set the DPF in the
landscape or portrait orientation.
Place the frame on a rm stable surface where it is unlikely to fall or
get knocked o.
Page 7
CONNECTING POWER
If the DPF is being switched on for the rst
time, or after a default setting reset, you must
rst select a display language.
ON
OFF
Plug the DC power jack of the adapter into the DC socket in the DPF.
Plug the power adapter into the mains point.
Switch on at the mains.
Switch the ON /OFF switch on the frame to ON.
• You can leave the power switch on, and use the
button on the
handset to turn the frame on or set it to Standby mode.
• To turn o the power o, slide the ON/OFF switch to OFF.
Use the (
) or ( ) buttons on the DPF
or the buttons on the handset to make
your selection.
Press the button on the DPF or OK on
the handset to conrm.
In the next screen, Use the (
) or ( )
YES
NO
buttons on the DPF or the buttons on
the handset to select YES or NO.
Press the
button on the DPF or OK on the handset to conrm.

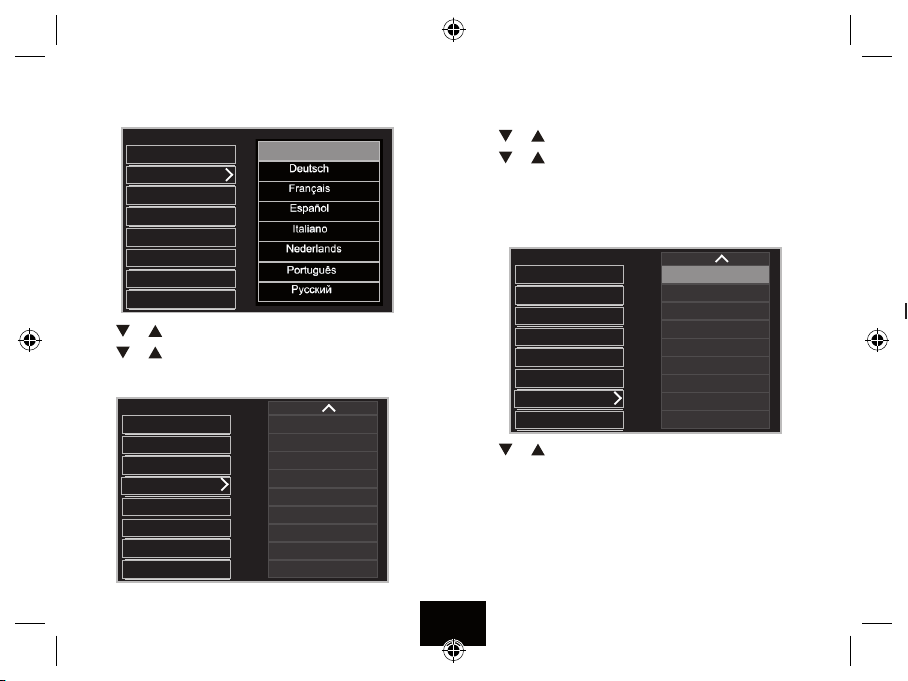

There are 14 languages to choose from. Make your selection and press
button on the DPF or OK on the handset to conrm.
the
The welcome screen will briey display followed by the Main Menu.
Page 8
INSTALLING A USB DEVICE OR MEMORY CARD
To insert a memory card. Position the card with the cropped corner facing
the bottom of the screen and press gently in.
To release a memory card. Grip both sides of the card and gently pull out.
When rst switched on the pictures will display as a Slide Show. Thereafter
the display will depend on the setup you have customised.
• If you switch on the DPF with a USB drive and a memory card inserted in
the frame, the photos on the memory card will be displayed.
You can navigate the frame in three ways.
Via the Rear Panel controls.
Via the Remote handset. This manual concentrates on handset navigation
as it the easiest and has the most comprehensive control functions.
You can also navigate a slide show via the On Screen Menu. See Page 11
VIEWING PHOTOS
In the main menu, you can select a connected memory device to view
photos, and set other parameters.
1 When pictures are being displayed press the MENU button to access the
main menu.
2 Use the
buttons on the handset to select a menu option.
3 Press OK on the handset to conrm the option or enter the menu item.
Page 9
SD Card, etc
USB Drive

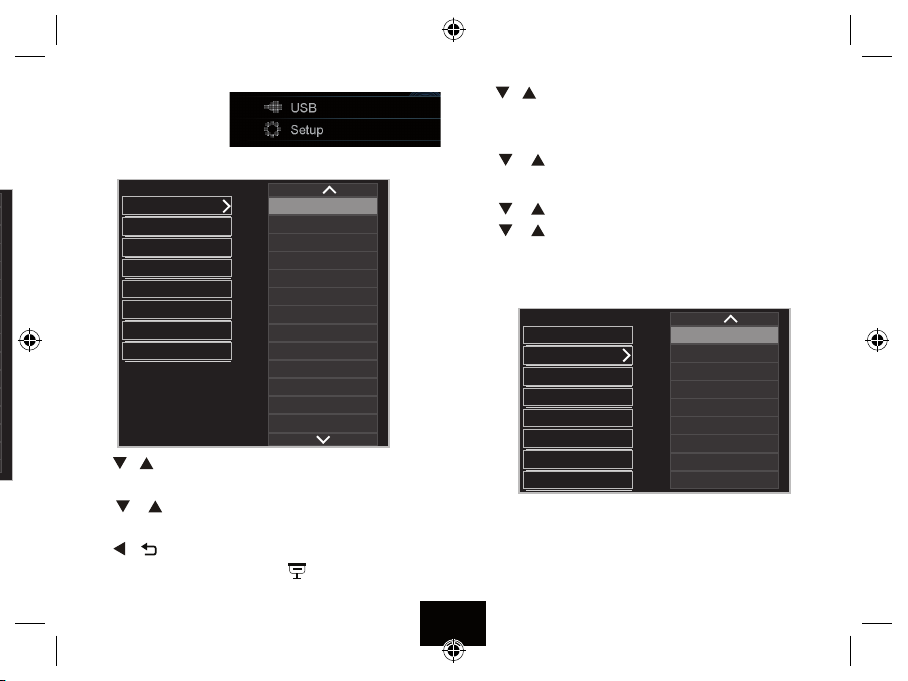

The main menu choices are:
USB View images on the USB drive.
SD/MMC/MS View images on the media card
Setup Set up slideshows and frame parameters.
(If a card or USB drive is not connec ted that icon will not display)
VIEWING PICTURES
Switch the ON /OFF switch on the frame to ON or press the
button
on the handset to bring the frame out of Standby.
If there is a memory device inserted the device will start a slideshow.
When the frame detects a memory devices it displays all the viewable
images. All folder structures are ignored.
VIEWING PICTURES IN SLIDE SHOW MODE
Slide show mode displays all viewable pictures in sequence.
• Tomovetothenextpicture:Press the
• Tomoveonseveralpictures: repeatedly press the
• Tomovetothepreviouspicture:Press the
• Tomovebackseveralpictures: repeatedly press the
key once
key.
key once
key.
PAUSE MODE
• Topausetheslideshow:Press the OK key
• Toadvanceonepictureatatime:Press the
• Togobackonepictureatatime: Press the
key.
key
• Toresumenormalslideshowplay: Press the OK key again.
ZOOM AND PAN
Press the
key to cycle the picture size:
→ x2 → x4 → x8→x16 →Normal...
Entering ZOOM mode automatically pauses the slideshow.
When the Zoom is positive (i.e greater than 1)
• Press the
• Press the
keys to pan the picture to left or right
keys to pan the picture up or down
• Toresumeslideshowplay:cycle Zoom to Normal and press OK.
CHANGING THE ASPECT RATIO
• Press the
key to change the aspect ratio from 4:3 to 16:9.
What does this mean? Most digital cameras take pictures in the ratio
4:3. This is also the ratio of the frame. If a picture is in “widescreen”
mode (16:9), pressing the
key will increase the picture’s height to
t the frame screen, though the sides may be cropped.
You can also use this key to change the ratio the other way. The picture
will be compressed sideways to t the screen though in this case you
may see black bars above and below the picture.
Press the key again to restore normal screen size.
Note: This feature can only be be used when a picture is larger than
the frame. If a picture is fully visible in the frame the key has no eect.
Page 10
NAVIGATING A SLIDESHOW VIA THE OSD MENU
During a slideshow:
Press the OSD key
The OSD menu appears on the screen and slideshow pauses.
Press the
or key on the handset to navigate between the icons
on the OSD menu.
1 To start the slide show from the current picture, highlight
press OK on the handset. The icon will be replaced with
2 To pause the slide show, highlight
and press the OK key on
the handset. The icon will be replaced with .
3 To zoom in the pic ture, highlight
and press the OK key.
When a picture is magnied
• Press the
• Press the
keys on the handset to pan the picture left / right.
keys on the handset to pan the picture up / down.
• Press the OK key again to resume normal slideshow play.
4 To rotate the picture to the left, highlight
5 To rotate the picture to the right, highlight
6 To change the aspect ratio from 4:3 to 16:9, highlight
press OK . Refer to the previous page for information.
7 To split the DPF into four images, highlight
The frame will display four images cycling them as the slide show
progresses.
8 To delete a picture highlight
9 To stop the slideshow and go to the thumbnail display,
and
highlight
Page 11
and press the OK key.
and press OK.
and press OK.
and press OK.
and
and press OK.
THUMBNAIL MODE
You can enter thumbnail mode in two ways:
During a Slideshow: Press the
key.
Accessing Thumbnail Mode from the Main Menu
Switch the ON /OFF switch on the frame to ON. or
Press the key to bring the frame out of standby
Press MENU to display the main menu
Press the
or key on the handset to select a memor y device.
The pictures display in pages of 15 thumbnails. The picture you were
viewing is highlighted. Picture details appear at the bottom. The
number of pages of thumbnails appears at the top right.
To move back or forward one picture: Press the
keys.
To move to the next/previous row of 5 thumbnails:
Press the
keys
To move to the next or previous page of thumbnails:
Press the
/ keys
To view a picture: Select the picture; Press OK or
The slide show starts with the picture selected.
Press OK: Thumbnail Mode will deploy.
You can now browse your pictures and start a slideshow from a
selected picture.
Page 12
SYSTEM SETUP
Access the Main Menu.
Select SETUP: Press OK.
(You can also press the SETUP key on the handset to enter Setup)
Slide Show Time
Transition Effect
Language
Brightness
Contrast
Saturation
Hint Time
Default
3s
3s
15s
1min
15 mins
Press or to select a setup menu. A highlight indicates the menu.
Press OK to enter the menu and display the menu contents.
Press or to select a menu option. The option is highlighted
Press OK to conrm. and returnto the main menu list.
Press or to return without altering the selection.
Press MENU to exit to the main menu or
to start a slide show.
Press or to select the Slide Show Time.
Press OK to enter the menu and display the menu contents.
The Sliding Show Time. alters the time each slide displays on screen.
Press
or to select a Slide Show Time.
Press OK to conrm and return to the Setup Menu.
or to select Transition Eect. Press OK
Press
Press or to select O or Random.
O: the slides change with no eects in between
Random: The slides change with a variety of eects between slides.
Press OK to conrm and return to the Setup Menu.
Slide Show Time
Transition Effect
Language
Brightness
Contrast
Saturation
Hint Time
Default
Page 13
Off
Random
Setting the Language
The language setting aects all the menus and selections in the DPF.
Slide Show Time
Transition Effect
Language
Brightness
Contrast
Saturation
Hint Time
Default
or to select Language. Press OK
Press
Englishxx
Press or to select a language. Press OK to conrm and return.
Setting the Brightness, Contrast and Saturation.
Slide Show Time
Transition Effect
Language
Brightness
Contrast
Saturation
Hint Time
Default
+3
+2
+1
0
-1
-2
-3
These parameters are all set in the same manner. There are seven settings +3,+2,+1, 0, –1, –2, –3. The changes display immediately.
Press
or to select Brightness/Contrast/Saturation. Press OK.
Press
or to select a parameter. Press OK to conrm and return.
The Hint Time
The Hint Time governs the length of time prompts and button displays
remain on-screen during a slideshow.
Slide Show Time
Transition Effect
Language
Brightness
Saturation
or to select Hint Time.
Press
Contrast
Hint Time
Default
0s
5s
10s
20s
Press OK to conrm and return to the Setup Menu.
Page 14
DEFAULT
This setting returns the DPF to factory settings.
YESSlide Show Time
Transition Effect
Language
Brightness
Contrast
Saturation
Hint Time
Default
Press
or to select Default. Press OK.
NO
Press or to toggle YES/NO. Press OK to conifrm
If you select NO: you will be returned to the Setup Screen.
If you select YES: the screen will momentarily blank. The DPF will
then return to the Main Menu.
If you now switch o or set the frame to Standby:
When you next switch on the language selection screen will appear.
Refer to Page 8.
TROUBLESHOOTING
If your DPF seems not to be working as well as you might expect, please
work through this checklist before returning the product to Tesco.
The DPF will not switch on.
Switch o, Check the power supply connections, switch on again.
The DPF will not recognise a memory card.
Re-insert the card. You may need to reformat the card.
The DPF will not play pictures on a card.
The pictures must be in jpg form and smaller than 8000x8000 pixels.
The handset is erratic.
The handset is too far from the frame. There is something bet ween the
handset and the DPF. Replace the battery.
FURTHER INFORMATION
After extended use, the frame may get warm. This is normal and not a
cause for concern.
The best resolution for pictures is 800*600 pixels. Pictures above this
resolution will not display any better and large pictures will slow loading times.
Page 15
Te scoStoresLtd,
DelamareRoad, Cheshunt,Herts, EN8 9SL
Technika Helpline: 0845 456 6767 (Calls cost up to 4p per minute from a B T landline, other providers may vary)
AFTER USE
Though you can leave the frame in Standby indenitely we do not
recommend this for the following reasons:
• The connected AC adaptor cable could be a source of danger.
• You will consume power unnecessarily.
Otherwise, switch the set o via the POWER switch. Unplug the adap-
tor from the mains and then unplug the adaptor from the DPF.
Unplug any memory card or USB stick.
Store the unit and power adaptor in a cool dry place, out of the reach
of children and pets.
CARE AND CLEANING
Care and cleaning operations should be carried out with the unit unplugged from the mains.
Clean plastic parts with a barely damp cloth and then dry carefully.
Do NOT touch the screen with bare ngers, hard or pointed objects.
Clean the screen carefully with a special optical cleaning cloth available
from opticians and photography stores.
SPECIFICATIONS
Power Supply: DC 5V
Power adaptor: DC 5V1.0A/AC100-240V
Picture Format: JPEG, ≤ 8000*8000 pixels (max)
USB Compliance: USB 2.0 (+1.1 or higher)
Memory Card: SD/MMC/MS/SDHC
Weight: 470.6 grams
WARRANTY
Your Technika appliance is covered by a warranty for 12 months from
the date of purchase. If a fault develops during this period, please con-
tact the TESCO electrical help line on 0845 456 6767. Please have your
original purchase receipt with you when you call. This warranty in no
way aects your consumer rights.
UK: Waste electrical products should not be disposed of with
household waste. Separate disposal facilities exist, for your nearest facilities see www.recycle-more.co.uk or in-store for details.
ROI: Produced after 13th August 2005. Waste electrical products
should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
Loading...
