SP 330
Speaker dock for iPhone/iPod
User Guide
1
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a slightly damp cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Do not install or operate near any heat sources such
as radiators, stoves, or other apparatus that produce
heat.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
IMPORTANT
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication. However, this
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
ELECTRICAL INFORMATION
Use this appliance only with the supplied AC Adaptor.
Using non-approved power supplies will void the
warranty.
Mains Supply: The mains operating voltage of the
AC Adaptor is marked on a rating plate on the AC
Adaptor.
The means of disconnecting this appliance from
the mains supply is the AC adaptor. This should be
unobstructed and readily operable at all times.
Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Warning: To reduce the risk of re or electrical shock,
do not expose this product to rain or moisture. The
product must not be exposed to dripping and splashing
and no object lled with liquids such as a vase of
owers should be placed on the product.
No naked ame sources such as candles should be
placed on the product.
Caution: Changes or modications not expressly
approved by the manufacturer could void the user’s
authority to operate this device.
Caution: Usage of controls or adjustments or
performance of procedures other than those specied
herein may result in hazardous exposure.
This symbol indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
IMPORTANT SAFETY INFORMATION
2
INDEX
INDEX
Important safety information .................................. 1
Introduction ............................................................2
Unpacking ...............................................................2
Controls and connections .........................................3
Remote control ........................................................5
Adaptors .................................................................. 6
Getting started ........................................................7
Power control ..........................................................7
Docking and playing an iPod ...................................7
Volume control, selecting a source........................... 8

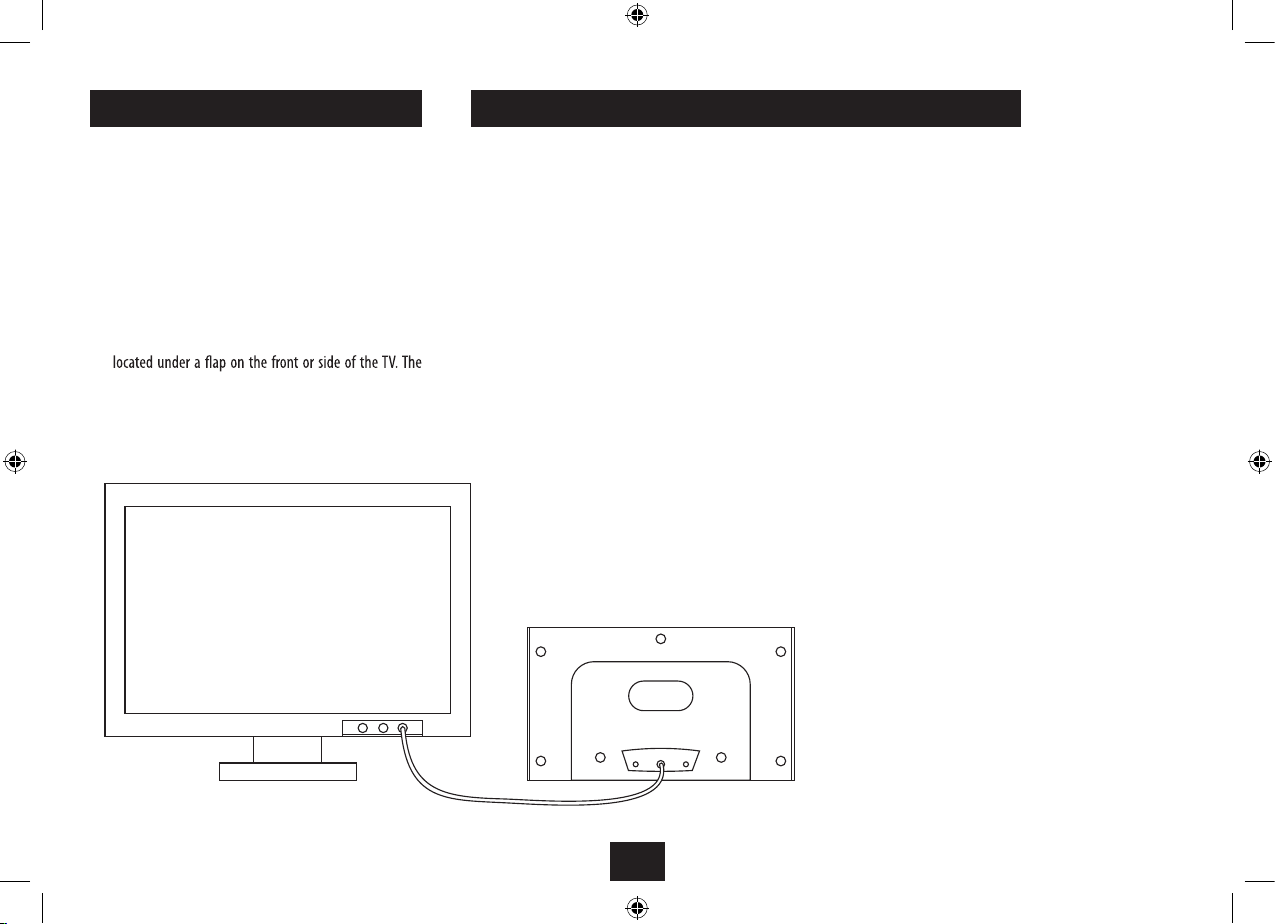

Video connection and playback ...............................9
Tone controls ......................................................... 10
Troubleshooting ....................................................10
Care & Maintenance...............................................10
........................................................10
Warranty ...............................................................10
PRELIMINARIES INTRODUCTION
The SP330 is a stylish, remote controlled iPhone/iPod
docking station with dual reflex speakers and with a video
output to feed video programs from video equipped iPhone/iPod
models to a TV.
UNPACKING
Carefully unpack the unit. If it is damaged, please return it to
your nearest Tesco store for replacement. Remember to take
your purchase receipt with you.
Retain the User Handbook. If you pass the unit on to a third
party make sure you pass on the handbook.
We suggest you retain the packaging. If you dispose of it, do
so having regard to any recycling regulations in your area.
CONTENTS
The carton should contain:
The SP330 docking station•
AC adaptor•
Remote control including battery•
Set of 3 x iPhone/iPod adaptors•
Video out cable (yellow plugs)•
Audio in cable (grey plugs)•
Operating Manual•
If any items are missing or damaged, contact your nearest
TESCO store for a replacement. Have your receipt ready when
you call. Retain the packaging. If you dispose of it, do so
having regard to any recycling regulations in your area.
L
OCATION
Place the unit on dry stable surface away from heat and
damp and where it is unlikely to fall or be knocked over.
3
Standby button
Source select button
Mute button
Volume down button
Volume up button
iPhone/iPod docking connector
iPhone/iPod dock adaptor
CONTROLS AND CONNECTIONS
FRONT VIEW
4
CONTROLS AND CONNECTIONS
BACK VIEW
a Audio In jack
b Video Out jack
c DC In jack
5
REMOTE CONTROL
a Up button
b Source button
c Play/pause button
d Next button
e Enter button
f Down button
g Volume up button
h Increase treble button
i Volume down button
Dispose of used batteries with regard to the recycling
regulations in your area. Do NOT short circuit batteries or
throw them into water, the general rubbish or in a re.
Weak batteries can leak and damage the remote control.
Replace them in good time!
REMOTE CONTROL BATTERIES
BATTERY DISPOSAL
BEFORE FIRST USE
To prepare the remote control for rst use, pull out the safety
strip to activate the battery.
REPLACING THE BATTERY
When replacing the battery in the remote control, refer to the
diagram below.
1. Press the catch across.
2. While holding the catch, open the battery door.
3. Fit the battery observing polarity as shown. When
replacing the battery, use only the same CR2025 type
specied.
1) Decrease treble button
1! Repeat button
1@ Shue button
1# Reset tone button
1$ Decrease bass button
1% Increase bass button
1^ Menu button
1& Previous button
1* Standby button
6
iPhone/iPod ADAPTORS SELECTING AN ADAPTOR
has a docking connector. Early iPod models do not have one
and cannot be docked to your unit. The docking connector is
located on the base of the iPod as shown below.
LIST OF SUPPLIED ADAPTORS
(15)
(16)
(17)
iPhone 3G.
iPod touch(2nd generation).
iPod nano(4nd generation).
Other iPhone/iPod models with dock connectors
Your iPhone/iPod may have been supplied, packed with a
standard dock adaptor. If so, this can be used as the docking
bay on your unit is compatible with adaptors supplied by Apple.
If you don’t have a dock adaptor
If your iPhone/iPod was not supplied with a standard dock
adaptor, you can buy one from Apple on-line. To determine
the exact model of your iPhone/iPod, refer to this web-link http://support.apple.com/kb/Ht1353. You can then browse
the iPhone/iPod accessories page on the Apple website to find
an adaptor for your iPhone/iPod model that can be purchased
on-line.
Once you have located the correct adaptor for your iPhone/iPod,
press it gently into the iPhonr/iPod Docking Bay before
attempting to dock your iPhone/iPod.
FINDING THE CORRECT iPhone/iPod ADAPTOR
Your iPhone/iPod docking system is supplied with a selection
of docking adaptors that are compatible with several models
in the iPhone/iPod range. Refer to the table of iPhone/iPod
models in the next column which lists the adapeor numbers
(marked underneath the adaptor), compatibility and instructions
for obtaining an adaptor for unlisted models.
NOTE: Do not dock an iPhone/iPod without fitting the correct
adapotor, you may damage the iPhone/iPod and your unit.
CONNECTING OTHER iPod
MODELS (INC SHUFFLE)
Docking Connector
iPhone/iPod adaptor
Docking bay
Before docking your iPhone/iPod, you must first fit the correct
iPhone/iPod adaptor to the docking bay. Each iPone/iPod
adaptor matches the shape of a particular iPhone/iPod and
is necessary to ensure that your iPhone/iPod is securely heid
when docked.
If you own an iPod Shuffle, a model without dock connector
or prefer to connect your iPhone/iPod by cable, you can
connect thesound output to the Audio Input jack on the rear
panel.
Headphone socket
Using the 3.5mm stereo jack to jack cable (supplied, •
with grey plugs), connect one end of the cable to the
headphone socket of the iPhone/iPod, and the other
end to the Audio Input jack on the back panel.
•
To listen to your iPhone/iPod, follow the instructions
under ‘External Sources’ on page 8 for playing equipment
connected to the Audio Input jack.
NOTE:- The volume control of the iPhone/iPod must be turned
up when playing through the Audio Input jack.
NOTE:- An iPhone/iPod connected to the Audio Input jack
cannot be operated from the remote control.
To the Audio
Input jack
7
GETTING STARTED
STANDBY CONTROL
To turn the docking station on:
Press the •
button.
The unit will switch on and the buttons on the top panel will
light.
Auto Standby:
The unit will also set to standby automatically, approximately
two minutes after music has finished playing from a docked
iPhone/iPod or a source connected to the Audio Input jack.
Press the •
button.
POWER CONTROL
CONNECTING POWER
Before connecting the power, check that the mains voltage
on the rating plate of the AC adaptor is the same as the
voltage in your area.
Plug the DC cord from the AC adaptor into the DC jack on •
the back of the unit.
Plug the AC adaptor into the wall socket and switch the •
mains power on.
The unit is now ready for use.
NOTE:- The AC adaptor may become warm during operation
- this is normal.
DOCKING AN iPhone/iPod PLAYING FROM AN iPhone/iPod
DOCKING YOUR iPhone/iPod
To dock your iPhone/iPod:
Set the unit to Standby.
Check that the correct iPhone/iPod adaptor is fitted to the
docking bay (see previous page).
•
•
Locate the iPhone/iPod on the Docking Connector and
press it gently home.
•
The iPhone/iPod is now ready to play.
To remove your iPhone/iPod from the dock:
Set the unit to Standby.•
Grip the iPhone/iPod at the sides.•
Lift the iPhone/iPod gently from the dock.•
Playing from a docked iPhone/iPod:
Set the iPhone/iPod to play.•
You can also operate your iPhone/iPod functions from the
control panel or the remote control.
iPhone/iPod playback functions:
Press the button to toggle between Play and Pause
mode at any time.
Press the • or button on the remote control to select
the next or previous track on your iPhone/iPod.
Press the •
button to scroll through the repeat modes
available on the iPhone/iPod.
The display on the iPhone/iPod will show the repeat mode set.
The display on the iPhone/iPod will show if shue mode is set.
Press the •
iPhone/iPod menu functions:
When an iPhone/iPod is docked and playing you can navigate the
menus from the keys on the control panel or remote control.
To move up through the iPhone/iPod menu, press . • Menu.
To scroll up and down options displayed on the iPhone/iPod
menu, press the or button.
•
To select menu items, press the • Enter button on the
remote control.
CHARGING AN iPhone/iPod
When an iPhone/iPod is docked, the iPhone/iPod will begin to
charge automatically.
NOTE:- The iPhone/iPod will charge at all times that the unit is
connected to mains power.
8
The Audio Input jacks on the back panel may be used to
connect sound sources with a Line or Headphone analogue
output to play through your unit. These may include -
iPod models that cannot be docked to the unit•
MP3 players•
CD walkman players•
Tape walkman players•
Personal computers or laptops•
Connecting to the Audio Input jack
Connect the Audio Input cable (supplied, with grey plugs) •
between the headphone or LINE/AUX output of the
personal audio player and the Audio Input jack on the
back panel.
Playing the external source
Press the •
button to select the external source.
Set your personal audio player/computer to PLAY.•
Set the listening volume to the level you want.•
If there is no sound or if the volume level is not loud enough,
you may need to increase the volume setting on your personal
audio player/computer.
EXTERNAL SOURCES ADJUSTING THE VOLUME
To increase the volume:
Press the • + button on the top panel or the
button on
the remote control.
To decrease the volume:
Press the • - button on the top panel or the
button on the
remote control.
SOUND SOURCES
To switch between sound from a docked iPhone/iPod and sound
from an external source:
Press the •
button repeatedly to switch between the
two sources.
CHANGING SOURCE
9
VIDEO CONNECTION
Your docking station includes a video output jack to feed video
signals to a TV from an iPhone/iPod which has video capability.
NOTE:- The TV must have a composite video (CVBS) video
input.
To connect the docking station to a TV:
Connect the video cable (supplied, with yellow plugs) to •
the Video Out jack on the back panel.
Connect the other end of the cable to a Composite video •
(CVBS) input of the TV. A suitable input will often be
video input jack will be coloured yellow.
VIDEO PLAYBACK
Switching on the iPod video output:
Before viewing photo or video programs on your TV you
will need to switch on the iPhone/iPod video output. The
iPhone/iPod video output selector is generally found as follows -
Navigate to the ‘Videos’ or ‘Photos’ menu of the iPhone/iPod.•
Select ‘Settings’.•
Select ‘TV out’.•
Set ‘TV out’ to On.•
The video signal from the iPhone/iPod dock connector will now
be enabled.
Selecting the correct input on your TV:
Set the TV input selector to the AV input that you used •
when connecting the Video cable.
Playing the video:
Using the remote control, navigate to select the video •
you want to watch on the iPhone/iPod display and set it
to play.
The pic ture will play on the TV and the sound will play from
your docking station.
Typical video connection to a TV
10
CARE AND CLEANING
All care and cleaning operations should be carried out with
the unit unplugged from the mains power.
The sur face of the unit can be cleaned with a barely damp
cloth and then dried carefully. Never use abrasives, abrasive
cloths or chemical solvents .
SPECIFICATIONS
Supply Voltage, Current : . 12V
, 2A
AC Adaptor input: ............ 100-240V ~,47-63Hz, 1A
AC Adaptor output: ......... 12 V
, 2A
Net Weight: .....................1.06 kg
Class II construction double insulated.
This product must not be connected to earth.
CARE AND MAINTENANCE
WARRANTY & SPECIFICATIONS
WARRANTY
Your Tesco appliance is covered by a warranty for 12 months
from the date of purchase. If a fault develops during this
period, please contact the TESCO electrical help line on 0845
456 6767. Please have your original purchase receipt with
-
sumer rights.
UK: Waste electrical products/batteries should
not be disposed of with household waste.
Separate disposal facilities exist, for your nearest facilities see www.recycle-more.co.uk or
in-store for details.
ROI: Produced after 13th August 2005. Waste
electrical products/batteries should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
TROUBLESHOOTING
No response from the remote control
The remote control battery may be exhausted. Check by
replacing the battery.
No sound/low volume from an external source:
Check that the volume control is turned up on the external
source.
No picture on the TV when playing videos or photos:
Check that the video connections are correctly made.
Check that the correct AV input is selected on the TV.
Check that the iPhone/iPod video output is enabled.
BASS AND TREBLE
You can change the equalisation of the sound to suit your
taste by adjusting the bass and treble settings.
To adjust the bass sound:
Press the • Bass + button repeatedly to boost the bass
sound. You can boost by up to three steps.
Press the • Bass - button repeatedly to cut the bass sound.
You can cut by up to three steps.
You will hear the change in bass sound as you change the
setting.
To adjust the treble sound:
Press the • Treble + button repeatedly to boost the treble
sound. You can boost by up to three steps.
Press the • Treble - button repeatedly to cut the treble
sound. You can cut by up to three steps.
You will hear the change in treble sound as you change the
setting.
or treble boost or cut):
Press the • By Pass
Tesco Stores Ltd, Delamare Road, Cheshunt, Herts, EN8 9SL
SP330 V0.1
UMA0439B
Loading...
