Technika MC-329I User Manual
MC-329I
CD/radio micro system with dock for iPod
User Guide
1
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a slightly damp cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Do not install or operate near any heat sources such
as radiators, stoves, or other apparatus that produce
heat.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
IMPORTANT
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication. However, this
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
ELECTRICAL INFORMATION
Mains Supply: The mains operating voltage of this unit
is marked on a rating plate on the rear of the unit.
The means of disconnecting this appliance from
the mains supply is the mains plug. This should be
unobstructed and readily operable at all times.
Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Warning: To reduce the risk of re or electrical shock,
do not expose this product to rain or moisture. The
product must not be exposed to dripping and splashing
and no object lled with liquids such as a vase of
owers should be placed on the product.
No naked ame sources such as candles should be
placed on the product.
Caution: Changes or modications not expressly
approved by the manufacturer could void the user’s
authority to operate this device.
Caution: Usage of controls or adjustments or
performance of procedures other than those specied
herein may result in hazardous exposure.
This symbol indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
IMPORTANT SAFETY INFORMATION
WARNING: DANGER OF RADIATION
These labels tell you that the unit contains a laser
component. Opening the CD compartment lid and
defeating the safety interlocks will expose the user to
radiation from the laser beam. Do not stare into the
laser while it is operating.
2
INDEX
INDEX
Important safety information ..................................1
Introduction ............................................................2
Unpacking ...............................................................2
Preparation for use ..................................................3
Controls and connections .........................................4

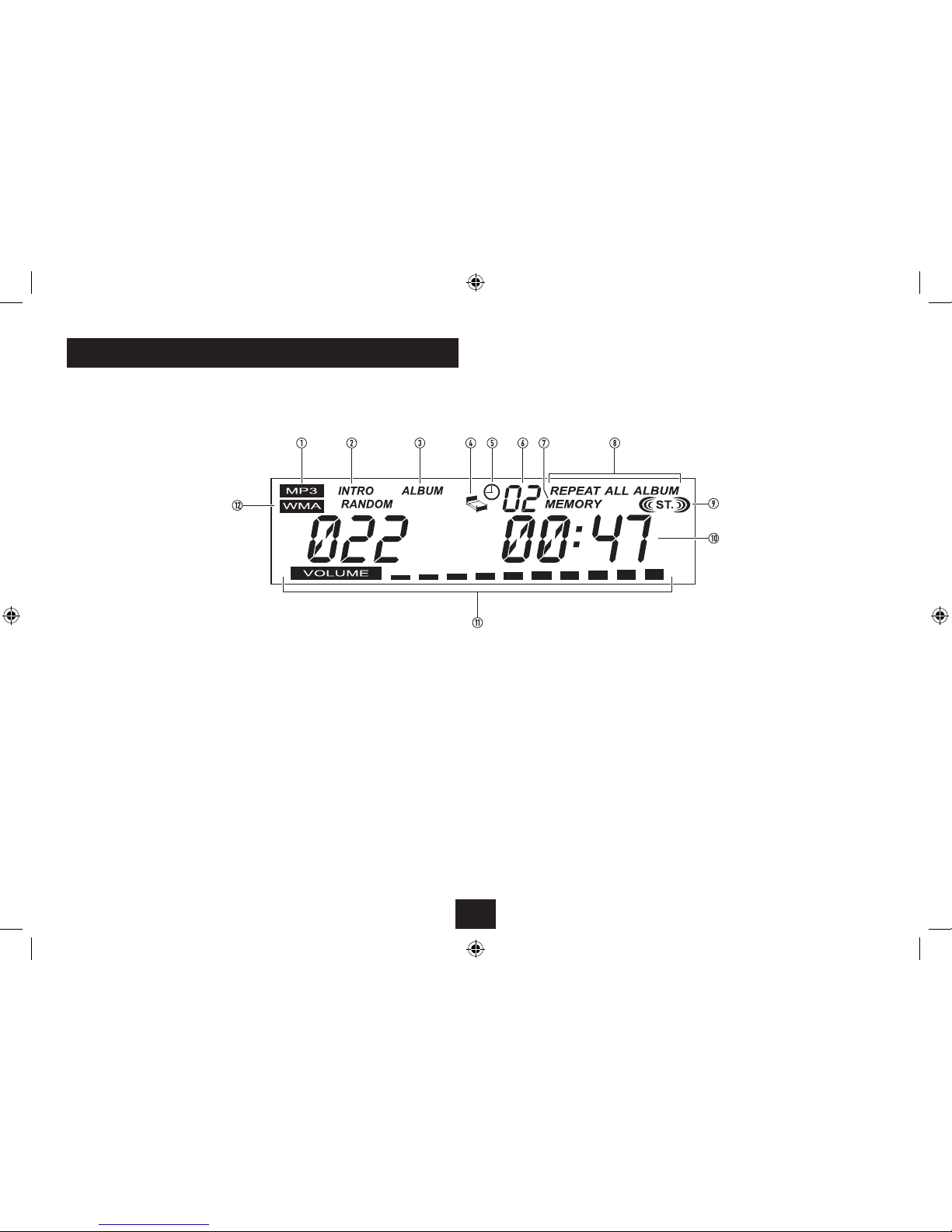

Display ..................................................................... 6
Remote control ........................................................ 7
Connecting power ...................................................8
Setting the clock ...................................................... 8
Selecting a function ................................................. 8
Adjusting the volume ..............................................8
Playing a CD or MP3/WMA disc ................................9
Listening to the radio ............................................11
iPod adaptors ........................................................12
Docking and playing an iPod .................................13
Playing from Flash Dives and Cards ........................14
Line Input ..............................................................15
Timer and Sleep Timer ........................................... 15
EQ .......................................................................... 16
Headphones ..........................................................16
Troubleshooting ....................................................16
Care & Maintenance...............................................16
Specications ........................................................16
Warranty ...............................................................16
PRELIMINARIES INTRODUCTION
The MC-329I is a compact micro system with built-in CD
player, FM radio, iPod dock and connectivity for ash storage
memory. In addition to volume and source selection, the
remote control (supplied) controls transport functions for
the CD player and replay from an iPod or connected ash
memory store.
UNPACKING
Carefully unpack the unit. If it is damaged, please return it to
your nearest Tesco store for replacement. Remember to take
your purchase receipt with you.
Retain the User Handbook. If you pass the unit on to a third
party make sure you pass on the handbook.
We suggest you retain the packaging. If you dispose of it, do
so having regard to any recycling regulations in your area.
CONTENTS
The carton should contain:
The MC-329I microsystem•
Two loudspeakers•
Remote control including battery•
Operating Manual•
If any items are missing or damaged, contact your nearest
TESCO store for a replacement. Have your receipt ready when
you call. Retain the packaging. If you dispose of it, do so
having regard to any recycling regulations in your area.
3
PREPARATION FOR USE
PLACEMENT
Placement on a table or shelf:
Place the unit on a sturdy table or shelf where it cannot get
knocked over and where there is a clear line of sight to the
remote handset.
Make sure that there is a clearance of 10cm (4 inches) around
the unit for ventilation. There should also be a clearance of
32cm above the surface the unit stands on to allow the CD
loading door to open fully.
Optional wall-mounting:
The MC-329I system has back panel xings for optional wallmounting of the speakers and/or the main system.
If you plan to wall-mount the speakers or system, you will
need to x one screw into the wall to hang each speaker and
a further two if wall-mounting the main system.
Before xing the screws, plan the location carefully, ensuring
that mains power is accessible, that there is a clearance of
125mm above the unit to allow the CD door to open fully
and ensuring that the speaker cables will be long enough to
connect to the jacks on the right-hand side of the unit.
Once you have planned the location, you will need to x two
screws into the wall to support the main unit, spaced by
182mm. Check that the screws will be level and that the unit
will be xed at the height you require.
A further two screws will then be necessary, one to wallmount each speaker.
NOTE:- Most walls will require the use of wall-plugs
when mounting the xing screws. If you are in any doubt
concerning the type of xing required or the security of wallmountings, consult a building professional.
Important notes for wall-mounting:
Tesco accepts no liability for damages caused by incorrect •
assembly, installation or improper use.
Ensure that the wall is sucient strength to hold the •
weight of the system.
If there is any doubt regarding the condition or the load •
bearing of the wall, please consult a specialist from the
building trade.
The wall xings used must be suitable for the type of wall •
(materials, thickness, condition), so that the maximum
load bearing of the wall can be guaranteed.
Ensure that no electrical cables, water pipes or gas pipes •
are located within the wall.
Before mounting, check the location of the nearest •
mains socket. Use a spirit level when attaching the wall
bracket.
Wear safety g• oggles when drilling.
Keep small parts out of reach from children.•
LOUDSPEAKERS
Placing the speakers:
Unwrap the speaker wires from the ties securing them.•
Place a speaker on either side of the main unit, preferably •
at the same height, and with at least 150mm between
each speaker and the main unit.
Connecting the speakers:
The speakers are equipped with RCA phono plugs for easy
connection. Referring to the diagram below -
Locate the two speaker connectors on the right side of 1.
the main unit.
Connect the right speaker plug into the upper speaker 2.
connector.
Connect the left speaker plug into the lower speaker 3.
connector.
CONNECTING SPEAKERS
4
a CD loading door
b Display
c Remote control sensor
d iPod docking connector
e Play/Pause/Enter button
CONTROLS AND CONNECTIONS
FRONT VIEW
CONTROL PANEL VIEW
f Next button
g Stop/Menu button
h Previous button
i Next Preset/Folder button
1) Volume up button
1! Previous Preset/Folder button
1@ Volume down button
1# iPod/Mem./C.Adj button
1$ Timer button
1% Function button
1^ Open/Close CD door button
1& Standby light
1* Standby/On button
1( USB drive slot
2) SD/MMC card slot
TOP VIEW
