MC-109
Owner’s
Handbook
Mini DAB audio system with iPod dock
IMPORTANT SAFETY INFORMATION
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
This symbol indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a slightly damp cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
Do not install or operate near any heat sources such as
radiators, stoves, or other apparatus that produce heat.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualied ser vice personnel. Servicing is
required when the apparatus has been damaged in any way,
such as the power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
operate normally, or has been dropped.
Warning: To reduce the risk of re or electrical shock, do not
expose this product to rain or moisture. The product must not
be exposed to dripping and splashing and no object lled
with liquids such as a vase of owers should be placed on
the product.
No naked ame sources such as candles should be placed
on the product.
Caution: Changes or modications not expressly approved
by the manufacturer could void the user’s authority to
operate this device.
Caution: Usage of controls or adjustments or performance
of procedures other than those specied herein may result in
hazardous exposure.
IMPORTANT
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communication. However, this is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
WARNING: DANGER OF RADIATIONapparatus has been exposed to rain or moisture, does not
These labels tell you that the unit contains a laser component.
Opening the CD compartment lid and defeating the safety
interlocks will expose the user to radiation from the laser
beam. Do not stare into the laser while it is operating.
ELECTRICAL INFORMATION
Mains Supply: The mains operating voltage of this unit is
marked on a rating plate on the underside of the unit.
The means of disconnecting this appliance from the mains
supply is the mains plug. This should be unobstructed and
readily operable at all times.
1
INDEX
INDEX
Introduction ............................................................2
Unpacking ...............................................................2
Placement ...............................................................3
Connecting speakers ................................................3
Controls & connections ............................................4
Connections .............................................................5
Remote control ........................................................6
Getting started ........................................................7
Setting the clock ......................................................7
Standby control, Volume ..........................................7
Listening to DAB radio .............................................8
Listening to FM radio ............................................... 8
DAB & FM Display modes ......................................... 9
DAB Scanning, Advanced DAB operation ...............10
Listening to a CD .................................................... 11
Listening to a MP3/WMA disc ................................ 12
Program play .........................................................13
iPod adaptors ........................................................14
Playing an iPod ...................................................... 15
Playing a personal audio player ............................. 15
Timer & Sleep functions ......................................... 16
EQ & Bass boost .....................................................16
Headphones ..........................................................17
System reset ..........................................................17
Care & maintenance ..............................................17
Specications ........................................................17
Introduction
DAB (Digital Audio Broadcasting) technology allows many
more radio stations compared to FM. DAB transmissions do
away with problems of hiss and fade that plague AM and
FM broadcasts and are less likely to be aected by adverse
weather conditions or other sources of interference. In
addition to speech and music DAB transmissions carry high
levels of data - far greater than the limited RDS information
available on FM stations.
Unlike FM, DAB is broadcast on many frequencies. Many
countries in Europe, including the UK use Band III (174-230
MHz); others, France for example, use the L-Band (14521492 MHz). Germany uses both bands.
Your radio can tune Band III. Countries in Europe that use
Band III include: Belgium, Denmark, Holland, Italy, Norway,
Portugal, Spain, Sweden, Switzerland. Your radio will tune
stations in all these countries.
Your radio cannot receive French or German stations
broadcasting in the L-Band though FM ser vices are available
all over Europe.
Being digital, DAB transmissions can have a wider frequency
range and greater dynamics than that available with FM
technology.
FM reception is available on your system for use in those
locations where there is no usable DAB service.
A headphone output is provided for personal listening.
PRELIMINARIES INTRODUCTION
UNPACKING
Carefully unpack the unit. If it is damaged, please return it to
your nearest Tesco store for replacement. Remember to take
your purchase receipt with you.
Retain the User Handbook. If you pass the unit on to a third
party make sure you pass on the handbook.
We suggest you retain the packaging. If you dispose of it, do
so having regard to any recycling regulations in your area.
CONTENTS
The carton should contain:
The MC-109 audio system•
2 x Loudspeakers•
Remote control with 2 x AAA batteries•
8 x iPod dock adaptors•
Operating Manual•
If any items are missing or damaged, contact your nearest
TESCO store for a replacement. Have your receipt ready when
you call. Retain the packaging. If you dispose of it, do so
having regard to any recycling regulations in your area.
2
PREPARATION FOR USE
PLACEMENT
Place the unit on a sturdy table or shelf where it cannot get
knocked over and where there is a clear line of sight to the
remote handset.
Make sure that there is a clearance of 10cm (4 inches) around
the unit for ventilation.
LOUDSPEAKERS
Placing the speakers
Unwrap the speaker wires from the ties securing them to the
back of each speaker.
Place a speaker on either side of the main unit, preferably
at the same height, and with at least 150mm between each
speaker and the main unit.
Connecting the speakers
Locate the block of 4 speaker terminals on the back of 1.
the unit,.
Lift the latches on the left channel speaker terminals as 2.
shown in the drawing.
Feed the wires from the left speaker into the two 3.
terminals, observing the colour code with the blackstriped wire connecting to the bottom black terminal.
Press the latches down to lock the wires in place.4.
Repeat to connect the right speaker to the right channel 5.
speaker terminals.
Check that the bare ends of the wires are not exposed 6.
and cannot touch together.
3
CONTROLS & CONNECTIONS
FRONT & TOP VIEW
1^
1%
a
cb
d
a CD compartment lid
b iPod dock
c Standby button
d Function button
e Enter button
f Volume control knob
g Play/Pause Scan button
h Info button
i Memory/Clock button
1) Stop button
1! Previous button
1@ Next button
e
f
g
h
1# Aux jack
1$ Headphone jack
1% Remote sensor
1^ Display window
i
1$
1#
1)
1!
1@
4
CONNECTIONS
BACK VIEW
c
a Speaker terminals
b DAB/FM aerial
c Power cord
b
a
DISPLAY FEATURES
a Text display for tracks/stations
b Text display for information
c Play symbol
d Timer set symbol
e Sleep symbol
f Disc loaded symbol
g Pause symbol
h Repeat mode symbol
i Repeat folder symbol
1) Repeat All symbol
1! Shue symbol
1@ Aux mode symbol
1# MP3 disc symbol
1$ WMA disc symbol
5

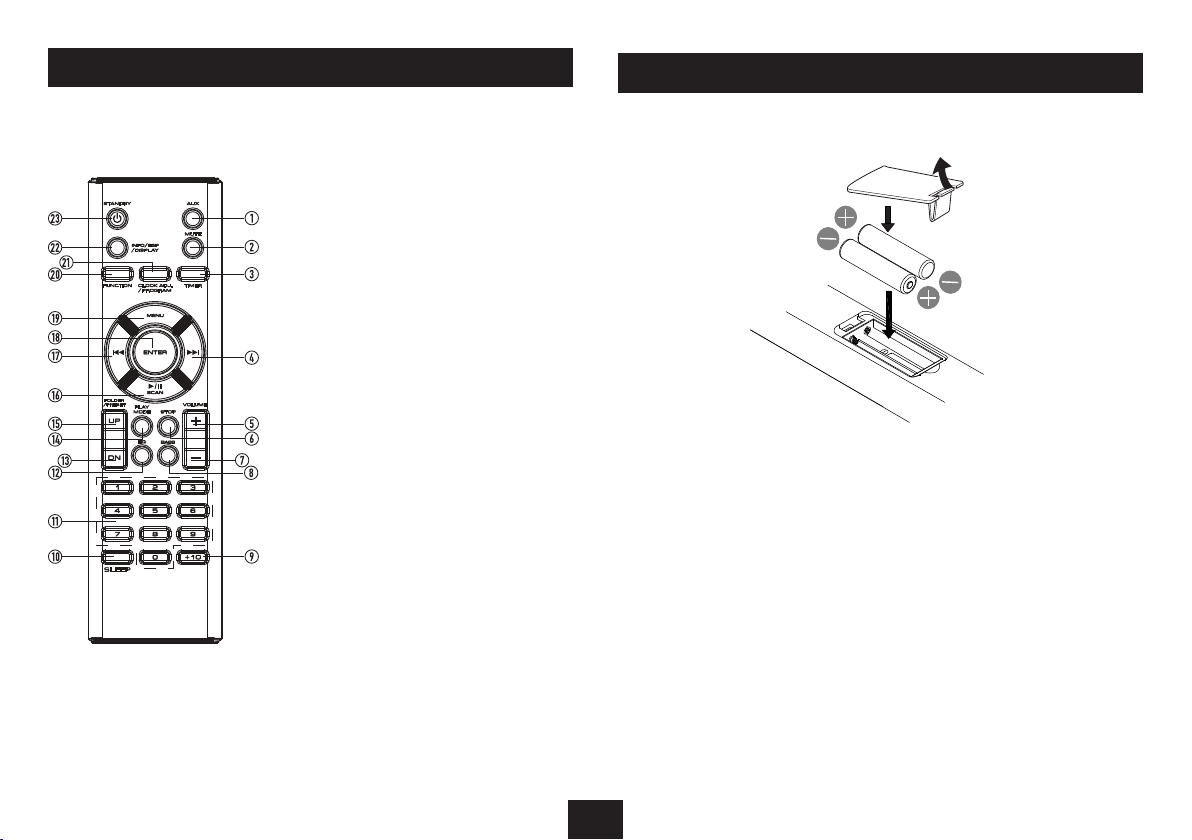

REMOTE CONTROL
a AUX mode select button
b Mute button
c Timer button
d Next button
e Volume up button
f Stop button
g Volume down button
h Bass button
i +10 button
1) Sleep button
1! Numeric keypad
1@ EQ button
1# Folder scroll down button
1$ Play mode button
1% Folder scroll up button
1^ Play/Pause/Scan button
1& Previous button
1* Enter button
1( Menu button
2) Function button
2! Clock set/Program button
2@ Info/ESP/Display button
2# Standby button
REMOTE CONTROL BATTERIES
FITTING OR REPLACING THE REMOTE CONTROL BATTERIES
When replacing the batteries in the remote control, refer to the
diagram above.
1. Press the catch on the battery door across.
2. While holding the catch, open the battery door.
3. Fit two AAA batteries observing polarity as shown. When replacing
the batteries, use only the same AAA type specied.
4. Re-t the battery door and clip it in place.
DISPOSAL OF BATTERIES
Dispose of used batteries with regard to the recycling regulations in
your area. Do NOT short circuit batteries or throw them into water, the
general rubbish or in a re.
Weak batteries can leak and damage the remote control. Replace
them in good time!
6
GETTING STARTED
STANDBY CONTROL SETTING THE CLOCK
REMOVING THE PACKING FROM THE CD PLAYER
Before connecting power to your audio system, the protective
packing should removed from the CD compartment.
To remove the protective packing:
Open the CD compartment by pressing down on the •
OPEN/CLOSE area marked at the front corner of the CD
lid.
The lid will open.
Remove the cardboard protective packing from the CD •
compartment.
Close the CD lid.•
DAB/FM RADIO AERIAL
Before using your radio for DAB or FM reception, unwrap
and fully extend the aerial wire. You may need to adjust the
position of the aerial wire for maximum signal strength.
CONNECTING POWER
Check that the mains voltage marked on the rating plate •
under the unit is the same as the voltage in your area.
Plug the AC power cord into the AC inlet•
Plug the mains plug into the wall socket and switch the •
mains power on.
Automatic clock setting:
The clock time will set automatically when a DAB station is
rst tuned.
In areas where DAB reception is not available, manual clock
setting will be necessary.
To set the clock manually:
With the system set to Standby, press and hold the •
MEMORY/CLOCK button.
The display will show the legend ‘24 HOUR ’ with the digits 24
ashing.
NOTE: The display will not light during clock setting.
Press the • or buttons to select 24 hour or 12 hour
mode for the clock.
Press the • MEMORY/CLOCK button.
The display will show the time currently set with the hours
digits ashing.
Press the • or buttons to set the hours digits to
the correct time.
Press the • MEMORY/CLOCK button.
The display will show the time currently set with the minutes
digits ashing.
Press the • or buttons to set the minutes digits
to the correct time.
Press the • MEMORY/CLOCK button.
The clock settings will be stored.
STANDBY CONTROL
To turn the system on:
Press the • STANDBY button on the front panel or
remote control.
The display will light and the system will set to play the last
function used. If this was radio, the last station played will be
selected.
To turn the system o:
Press the • STANDBY button.
The system and display light will switch o. The clock will
continue to run whilst mains power is connected.
ADJUSTING THE VOLUME
VOLUME CONTROL
To increase the volume:
Turn the • VOLUME knob clockwise or press the VOLUME
+ button on the remote control.
To decrease the volume:
Turn the • VOLUME knob anti-clockwise or press the
VOLUME - button on the remote control.
MUTE
You can use the Mute function to instantly set the volume
to minimum.
To mute the volume:
Press the • MUTE button on the remote control to set
mute at any time.
Press the • MUTE button again to restore the volume to its
previous setting.
7
LISTENING TO DAB RADIO
LISTENING TO FM RADIO
SELECTING DAB RADIO OPERATION
To select DAB radio operation:
Press the • FUNCTION button repeatedly until ‘DAB’ is
displayed.
After a few seconds, the radio will tune to the last-used
station.
INITIAL DAB RADIO SCAN
When DAB radio is used for the rst time:
The system scans all usable stations (full scan) and stores
them alphanumerically -1 Radio, 2 Radio, AA Radio, AB
Radio...
The initial scan will take a few minutes and a progress bar
will be displayed with the number of services found.
Number of services found
After the scan, the clock will be set, the radio will display the
rst station in the sequence and begin playing at the default
system volume of 13.
Note: If no stations are found after the scan, it may be that the
signal in your current location is too weak. If this happens,
switch the radio o and move it to a location with a stronger
signal. Repeat the scan process in the new location.
The stations found will be stored in an alphanumeric list.
TO SELECT ANOTHER STATION
Press the • or button to browse the list of stations
on the display.
When you nd the station name you want to listen to, •
press the ENTER button.
SIGNAL STRENGTH DISPLAY
You can display the signal strength of a DAB multiplex at any
time whilst playing.
To switch the signal strength display on and o:
Press the • ENTER button.
The signal strength will be displayed as a bargraph. The
signal strength display may be used when setting up the
aerial position for maximum signal strength.
To change to the FM band
Press the • FUNCTION button on the front panel or remote
control repeatedly until ‘FM’ is displayed.
To manually tune to FM stations
Press the • or button repeatedly to tune down or
up the band one frequency step at a time.
To auto-tune to FM stations
Press the • /SCAN button to tune to the next station in
the band.
To change the sweep direction, press the • button (to
tune down) or button (to tune up) before pressing
the /SCAN button.
Tuning will stop automatically when the station is reached.
STATION PRESETS
DAB and FM presets
Your radio can store up to 10 of your favourite stations as
presets on both the DAB and FM bands for quick recall.
To store a preset
Tune to the station you want to store as a preset.•
From the remote control, press and • hold the NUMBER
(1-10+) button for the preset location you want to
store.
The display will conrm that the station has been stored in this
preset number.
To recall a preset
Press the • NUMBER (1-10+) button briey to recall a
station stored in this preset number.
The radio will re-tune to the preset station number that you
selected.
8
DAB & FM DISPLAY MODES
DAB DISPLAY MODES
When playing a DAB station you can change the information
on the display by changing the display mode.
To change the display mode:
Press the INFO button repeatedly to c ycle through the
options listed in the chart below.
DLS (SCROLLING TEXT): This is a scrolling message giving
real-time information - song titles, news headlines, etc.
PROGRAMME TYPE: This describes (when available) the style
of the programme being broadcast.
MULTIPLEX NAME (GROUP NAME): is the name of the DAB
Multiplex that is currently tuned.
TIME & DATE: Shows the current time and date. Time and
date are updated by broadcasted information.
CHANNEL AND FREQUENCY: The Channel and Frequency
display shows the multiplex channel number and the
multiplex frequency for the station currently tuned.
BIT RATE: DAB allows broadcasters to vary the BIT RATE (or
the amount by which an audio signal can be compressed)
depending on the type of broadcast. This enables the amount
of stations on a multiplex to be maximised. Speech and News
are often broadcast at a lower Bit Rate; music needs a higher
Bit Rate for good delity.
SIGNAL ERROR RATE: This Signal Error Rate is a measure of
the signal quality. The lower the gure, the better the signal
quality. The Signal Error Rate display is helpful when setting
up the aerial wire. Move the wire to minimise the readiong
on your favourite stations.
FM DISPLAY MODES
Some FM stations broadcast additional ‘RDS’ station
information. When RDS data is present on an FM transmission,
‘RDS’ will be displayed as shown below.
Station name
RDS information
scrolling text etc.
RDS broadcast
When playing an FM station you can change the information
on the display by changing the display mode.
To change the display mode:
Press the INFO button repeatedly to c ycle through the
options listed in the chart below.
RDS (SCROLLING TEXT): This is a scrolling message giving
real-time information - song titles, news headlines, etc.
PROGRAMME TYPE: This describes (when available) the style
of the programme being broadcast.
TIME & DATE: Shows the current time and date. Time and
date are updated by broadcasted information.
FREQUENCY: The Channel and Frequency display shows the
multiplex channel number and the multiplex frequecny for
the station currently tuned.
9
DAB SCANNING
DAB ADVANCED OPERATION
When rst used, your audio system scanned the DAB band
for available stations. The station services found were then
stored in your system’s memory.
You can re-scan the band at any time if you move to a dierent
area or just to refresh the stored list of available stations.
Two types of scan are available, a Quick Scan that scans UK
DAB bands for available services and a Full Scan, that scans
all bands.
TO START A QUICK SCAN
Select the DAB band.•
Press the • /SCAN button briey to star t a quick scan
or hold the button to start a full scan.
The unit will now display the legend ‘ SCANNING’ and a bargraph
to show scan progress. The number of services found during the
scan will be shown at the right side of the display.
After running a Quick or Full scan the radio will re-tune to the
last tuned station, or if this is not available, the rst station
found in alphabetical sequence.
The DAB radio of your audio system includes several advanced
features.
To select the advanced features:
Press the • MENU button on the remote control to open
the advanced operation menu.
To scroll through the menu options below, press the •
or button.
To select a menu option, press the • ENTER button.
MANUAL TUNE
Manual tuning may be used to tune the band by frequency
or multiplex. A station multiplex may then be selec ted and
displayed with a signal strength bargraph to assist with
aligning the aerial for best signal.
To tune manually:
Select Manual Tune from the menu.•
Press the • or buttons to scroll through the
multiplex numbers and frequencies.
To select a multiplex, press the • ENTER button.
The selected multiplex number will be displayed with (if
present) the multiplex name and signal strength.
Press the • or button to re-tune to another
multiplex.
AUTOSCAN LOCAL, AUTOSCAN FULL
You can start a local or full scan by selecting these menu
options. This is an alternative method of starting a scan to
that described in the SCANNING section on this page.
DRC VALUE
DRC is Dynamic Range Compression. Enabling DRC may
improve the sound of DAB radio when listening in a noisy
room. You can set the DRC value with this menu option.
Select DRC from the menu.•
Press the • or button to select the DRC value you
prefer from the options of 0, 1/2 and 1.
Press the • ENTER button to conrm your selection.
SW VERSION
If you choose this option, the radio’s software version is
displayed. This is purely an aid for technicians should your
radio ever need service.
10
LISTENING TO A CD
LOADING DISCS
To select CD/MP3/WMA disc operation:
Press the • FUNCTION button repeatedly until ‘CD’ is
displayed.
Loading a disc:
Press the • OPEN/CLOSE area at the front corner of the
disc lid on top of the unit.
The lid will open slowly.
Gently place a disc on the centre spindle with the label •
side upward.
Close the lid and press the • OPEN/CLOSE area until it
latches shut.
After a few seconds the disc will read and the disc data will be
displayed.
of tracks on
the CD
Unloading a disc:
If the disc is playing, press the • STOP/ button and wait
a few seconds for the disc to stop.
Press the • OPEN/CLOSE area at the front corner of the CD
lid.
The lid will open slowly.
Grip the disc at the sides and lift it out of the disc
compartment.
Total play
time
ESP EnabledTotal number
CD PLAYBACK, PAUSE:
Load the CD.•
Press the • /SCAN button to start the CD playing.
When a CD is playing, pressing the • /SCAN button at
any time will pause playback.
Selecting tracks:
Press the • or button briey to select the
previous or next track from the disc.
NOTE: The rst press of the button will replay the current
track.
Direct access track selection:
Press a number button to select a track number.•
Press the • /SCAN button to skip to your chosen track.
Fast search:
To fast search through a track, press and hold the •
or button.
The player will fast search through the track at high speed in
the chosen direction until the button is released.
You can set repeat mode for CD or iPod listening.
REPEAT AND SHUFFLE FUNCTIONS
You can repeat a single track, the whole disc or select shue
to play the tracks in a random sequence.
To set a repeat or shue mode:
Press the • PLAY MODE button on the remote control to
cycle through the options of ‘Repeat 1’ (repeat current
track), ‘Repeat All’ (Repeat the disc) or Shue (play
tracks in a random sequence).
The Repeat, Repeat All or Shue symbol will be displayed.
ESP SYSTEM
The ESP system is an anti-shock feature for CD playback.
To toggle ESP on or o:
Press the • INFO/ESP/DISPLAY button when playing a
CD.
The ESP legend will be displayed when ESP is switched on.
11
LISTENING TO A MP3/WMA DISC
MP3/WMA DISC PLAYBACK:
Your system can also play MP3 or WMA music compilations
recorded onto a CD-R. The les may all be stored in the ‘root’
directory of the disc or organised in a set of sub-folders.
LOADING DISCS
To select CD/MP3/WMA disc operation:
Press the • FUNCTION button repeatedly until ‘CD’ is
displayed.
Loading a disc:
Press the • OPEN/CLOSE area at the front corner of the
disc lid on top of the unit.
The lid will open slowly.
Gently place a disc on the centre spindle with the label •
side upward.
Close the lid and press the • OPEN/CLOSE area until it
latches shut.
After a few seconds the disc will read and the disc data will be
displayed.
Unloading a disc:
If the disc is playing, press the • STOP/ button and wait
a few seconds for the disc to stop.
Press the • OPEN/CLOSE area at the front corner of the CD
lid.
The lid will open slowly.
Grip the disc at the sides and lift it out of the disc
compartment.
MP3/WMA DISC PLAYBACK, PAUSE:
Load the MP3/WMA disc.•
The number of tracks on the disc (and folders if applicable) will
be displayed.
Total number
of folders on
the disc
Press the • /SCAN button to start the disc playing.
When a disc is playing, pressing the • /SCAN button at
any time will pause the CD.
Selecting tracks:
Press the • or button briey to select the
previous or next track from the disc.
NOTE: The rst press of the button will replay the current
track.
Fast search:
To fast search through a track, press and hold the •
or button.
The player will fast search through the track at high speed in
the chosen direction until the button is released.
If the music les on the disc are organised into folders you can
change between folders.
To change folders (if there are more than 1):
Press the • FOLDER/PRESET UP or DN button on the
remote control to scroll through the folders on the disc.
Total number
of tracks on
the disc
You can then change search for tracks within the folder •
using the or button.
Direct access track and folder selection:
Press a number button to select a track number.•
Press the • /SCAN button to skip to your chosen track.
REPEAT AND SHUFFLE FUNCTIONS
You can repeat a single track, the current folder, the whole disc
or select shue to play the tracks in a random sequence.
To set a repeat or shue mode:
Press the • PLAY MODE button on the remote control to
cycle through the options of ‘Repeat 1’ (repeat current
track), ‘Repeat Folder’ (Repeat all tracks in the current
folder), ‘Repeat All’ (Repeat the disc) or Shue (play
tracks in a random sequence).
The Repeat, Repeat Folder, Repeat All or Shue symbol will be
displayed.
12
PROGRAM PLAY FROM A CD OR MP3/WMA DISC
CD & MP3/WMA DISC PROGRAMMING
When playing a CD or MP3/WMA compilation disc, you can
store a random sequence of up to 64 tracks to play in your
preferred order.
STORING A CD PROGRAM
To store a CD program:
Load the disc you want to play, wait for the disc to read.•
Press the • MEMORY/CLOCK button on the front panel
or the CLOCK ADJ./PROGRAM button on the remote
control.
The Program Entry display will appear, prompting for the rst
track number to program (P-01).
Program
position
Press the • or button to select the track number
for the rst track you want to program.
Press the • MEMORY/CLOCK button on the front panel
or the CLOCK ADJ./PROGRAM button on the remote
control to store this track into the program memory.
The track will be stored and the program counter will increase
to P-02.
Repeat the above two steps to store the next and •
subsequent tracks in your program sequence.
Track
number
Playing the program
When you have nished entering all tracks in your •
program, press the /SCAN button to start the
program playing.
Navigating the programmed tracks:
When the program is playing, the play and pause buttons
work as normal and you can skip between tracks in the
program by pressing the or buttons.
STORING A MP3/WMA PROGRAM
Some MP3/WMA compliation discs will be arranged with all
tracks in the ‘root’ folder of the disc, others will be arranged
within a set of folders. The same sequence is used for both
types of disc.
To store a MP3/WMA program:
Load the disc you want to play, and wait for the disc to •
read.
Press the • MEMORY/CLOCK button on the front panel
or the CLOCK ADJ./PROGRAM button on the remote
control.
The Program Entry display will appear, prompting for the rst
folder and track number to program (P-01).
Program
position
Folder
number
Track
number
Press the • or button to select the folder number
for the rst track you want to program.
NOTE: If all tracks are arranged in the ‘root’ directory of the
disc, only ‘Folder 1’ (F 01) will be selectable at this stage.
Press the • MEMORY/CLOCK button on the front panel
or the CLOCK ADJ./PROGRAM button on the remote
control to select this folder.
Press the • or button to select the track number
within this folder for the rst track you want to
program.
Press the • MEMORY/CLOCK button on the front panel
or the CLOCK ADJ./PROGRAM button on the remote
control to store this track into the program memory.
The track will be stored and the program counter will increase
to P-02.
Repeat the previous four steps to store the next and •
subsequent tracks in your program sequence.
Playing the program
When you have nished entering all tracks in your •
program, press the /SCAN button to start the
program playing.
Navigating the programmed tracks:
When the program is playing, the play and pause buttons
work as normal and you can skip between tracks in the
program by pressing the or buttons.
13
iPod ADAPTORS SELECTING AN ADAPTOR
Before docking your iPod you must rst check if your iPod
has a docking connector. Early iPod models do not have one
and cannot be docked to your unit. The docking connector is
located on the base of the iPod as shown below.
Docking Connector
Before docking your iPod, you must t the correct iPod
adaptor to the docking bay. Each iPod adaptor matches the
shape of a particular iPod and is necessary to ensure that
your iPod is securely held when docked.
iPod adaptor
Docking bay
FINDING THE CORRECT iPod ADAPTOR
Your iPod docking system is supplied with a selection of
docking adaptors that are compatible with several models
in the iPod range. Each adaptor is marked with compatible
model(s).
Refer to the table of iPod models in the next column which
lists the supplied adaptors, and instructions for obtaining an
adaptor for unlisted models.
NOTE: Do not dock an iPod without tting the correct adaptor,
you may damage the iPod and your unit.
LIST OF SUPPLIED ADAPTORS
iPod nano (rst or second generation)•
iPod mini (4GB or 6GB)•
iPod photo, with a colour display (40GB or 60GB)•
iPod video (30GB, 60GB or 80GB)•
iPod Classic (80GB or 160GB)•
iPod photo, with a colour display (20GB or 30GB)•
iPod, with a B&W display and clickwheel with legends •
on wheel (20GB)
iPod, with a B&W display and clickwheel with legends •
on wheel (40GB)
Other iPod models with dock connectors
Your iPod may have been supplied, packed with a standard
dock adaptor. If so, this can be used as the docking bay on
your unit is compatible with adaptors supplied by Apple.
If you don’t have a dock adaptor
If your iPod was not supplied with a standard dock adaptor,
you can buy one from Apple on-line. To determine the exact
model of your iPod, refer to this web-link - http://support.
apple.com/kb/HT1353. You can then browse the iPod
accessories page on the Apple website to nd an adaptor for
your iPod model that can be purchased on-line.
Once you have located the correct adaptor for your iPod, press
it gently into the iPod Docking Bay before attempting to dock
your iPod.
14
CONNECTING OTHER iPod
MODELS (INC SHUFFLE)
To connect your iPod via the AUX jack:
Using a 3.5mm stereo jack cable (not supplied), connect •
one end of the cable to the headphone socket of the iPod,
and the other end to the AUX jack on the front panel.
Headphone jack
To AUX in
To listen to your iPod, follow the instructions on page 15 •
for playing equipment connected to the AUX jack.
NOTE:- The volume control of the iPod must be turned up
when playing through the AUX jack.
NOTE:- An iPod connected to the AUX jack cannot be operated
from the remote control.
DOCKING AN iPod
PLAYING FROM AN iPod
PLAYING VIA THE AUX JACK
DOCKING YOUR iPod
To dock your iPod:
Check that the correct iPod adaptor is tted to the •
docking bay.
Locate the iPod on the Docking Connector and press it •
gently home.
To remove your iPod from the dock:
Grip the iPod at the sides.•
Lift the iPod gently from the dock.•
CHARGING AN iPod
When an iPod is docked and the unit is switched on, the iPod
will begin to charge automatically.
NOTE:- The iPod will stop charging if the unit is set to
Standby.
To play music from your iPod
Press the • FUNCTION button repeatedly until ‘iPod’ is
displayed.
You can now operate your iPod functions from the controls
on the remote control.
Playback functions:
Press the • /SCAN button to toggle the iPod between
Play and Pause mode at any time.
Press the • or button on the front panel or remote
control to select the previous or next track, photo or
video.
iPod menu functions:
You can press the MENU, OK and FOLDER/PRESET UP or DN
buttons on the remote control to navigate the iPod menus.
To move up through the iPod menus, press • MENU.
To scroll up and down menu items, press the • FOLDER/
PRESET UP or DN buttons.
To select menu items, press the • OK button.
From the iPod menu you can select from Music, Photo or
Video playback, then select from tracks, playlists, pic tures
and movies that are stored on your iPod.
iPod repeat modes:
Press the PLAY MODE button on the remote control
repeatedly to cycle through ‘Repeat 1’ ,‘Repeat All’ or ‘Repeat
O’ modes on the iPod (the mode set will display on the iPod
screen).
To play music from an iPod or Personal Audio player
connected to the AUX jack -
Press the • FUNCTION button repeatedly until ‘AUX’ is
displayed.
Set the iPod or Personal Audio player to play.•
Turn the volume level on your Personal Audio player up •
to about half level.
Set the volume on your audio system to the level you •
require. If the volume will not set high enough you may
need to increase the volume setting on the player.
NOTE:- It is not possible to navigate the menu system of an
iPod or other personal audio player with the remote control
of the audio system if it is connected via the AUX jack.
15
SETTING THE TIMER
SLEEP MODE
EQ & BASS BOOST
Your system includes a timer that enables you to set times for
the system to switch on and switch o automatically.
To set the timer:
Press the • TIMER button on the remote control to step
through each stage in timer setting, shown in the
sequence below.
To make changes to a setting, press the • or
button.
Press the • TIMER button to conrm each setting and
move on to set the next.
When timer setting is complete, the timer can be switched
on or o by pressing the TIMER button.
The Timer symbol shows on the display when the timer is
activated.
THE SLEEP FUNCTION
The Sleep function allows you to program your system to
switch itself o after a set period in 10 minute steps from 90
minutes down to 10 minutes.
To activate the Sleep function:
Press the • SLEEP button.
The display will show Sleep 90.
Now press the • SLEEP button repeatedly until your
required sleep time appears on the display.
When sleep mode is set, the sleep symbol will appear on the
display to conrm that sleep mode is set.
Sleep symbol
Your system will continue to play, then will set to Standby
when the sleep time expires.
To check the Sleep time remaining:
Press the • SLEEP button during Sleep mode.
The Sleep time remaining will be shown on the display.
You can change the equalisation of the sound or boost the
level of bass to suit your taste.
To select an EQ response:
Press the • EQ button on the remote control repeatedly to
cycle through the EQ options optimised as shown below.
As each setting is selected, the sound EQ will change.
To select bass boost:
Press the • BASS button on the remote control to toggle
bass boost on or o..
16
HEADPHONES
CARE AND MAINTENANCE
SPECIFICATIONS
There is a headphone output socket on the front panel of the
unit. If headphones are connected to this socket for private
listening, the speakers will cut out automatically.
SYSTEM RESET
DAB is a terrestrial system and frequencies in dierent areas
vary. If you move the radio to another part of the country
performing a Full Scan may not be enough to re program the
radio you may need to reset the radio.
To restore the factory settings:
Set the system to DAB mode.•
Press and • hold the MEMORY/CLOCK button on the front
panel until the display ashes ‘Factory Reset’.
Press the • /SCAN button to conrm factory reset.
The unit will now scan for DAB broadcast stations in your
area.
After reset the settings are returned to the factory defaults
and all the presets are erased.
AFTER USING YOUR SYSTEM
Set to Standby.•
Switch the unit o at the mains and unplug it if you are •
leaving it unattended for a long period (holidays etc).
CARE AND CLEANING
All care and cleaning operations should be carried out with
the unit unplugged from the mains power.
Occasionally wipe the cabinet with a lint free duster. Never
clean the unit with liquids or solvents.
Loudspeaker grilles can be cleaned carefully with a soft
brush.
SPECIFICATIONS
Supply Voltage : ...................230 V~, 50Hz
Power Consumption .............25 W
Net Weight: ..........................4.36 kg
Class II construction double insulated.
This product must not be connected to earth.
WARRANTY
Your Tesco appliance is covered by a warranty for 12 months
from the date of purchase. If a fault develops during this
period, please contact the TESCO electrical help line on 0845
456 6767. Please have your original purchase receipt with
you when you call. This warranty in no way aects your consumer rights.
UK: Waste electrical products /batteries should
not be disposed of with household waste.
Separate disposal facilities exist, for your nearest facilities. See ww w.recycle-more.co.uk or
in-store for details.
ROI: Produced after 13th August 2005. Waste
electrical products/batteries should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
17
Te sco Stores Ltd,
Delamare Road, Cheshunt, Herts, EN8 9SL
Technika Helpline: 0845 456 6767 (Calls cost up to 4p per minute from a BT landline, other providers may vary)
MC-109 V0.2
Loading...
