INTRODUCTION
Thank you for purchasing this Technika Advanced IDTV with DVD Player which has been designed
and manufactured to give you many years of trouble-free service.
You may already be familiar with using a similar product but please take time to read these
instructions which have been written to ensure you get the very best from your purchase.
Throughout the remainder of this user guide the Technika Advanced IDTV with DVD Player will be
referred to as the ‘TV’.
HDMI
HDMI (High Defi nition Multimedia Interface) is the next generation of digital interface. Unlike
conventional connections, it transmits uncompressed digital and audio signals using a single cable.
This TV supports high-defi nition video input via the HDMI socket on the back of the TV.
Safety is Important
To ensure your safety and the safety of others, please read the Safety precautions BEFORE you
operate this product.
Keep this information in a safe place for future reference.
IN THE BOX
You will fi nd the following:
• TV
• User Guide
• Quick Start Guide
• Remote Control
• 2 x AAA Batteries
NOTE: If any of the items listed are damaged or missing, please contact the TESCO electrical help
line on 0845 456 6767.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:3Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:3 07/07/2009 16:41:3807/07/2009 16:41:38
IDTV with DVD Player
4
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY BEFORE USE
Take note of the following safety information which appears on the back of this TV.
CAUTION! TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER OR
SCREWS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit.
Keep these instructions
• Do not use this TV near water.
• Clean only with a slightly damp cloth.
• Do not block any ventilation openings.
• Install in accordance with the supplied Quick Start Guide and this User Guide.
• Do not install or operate near any heat sources such as radiators, stoves, or other apparatus that
produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, and the point
where it exits from the TV.
• Do not allow the power cord to overhang the edge of a table.
• Unplug this TV during lightning storms or when unused for long periods of time.
• To avoid interference, switch this TV off while operating other radio devices in the immediate
vicinity. Refer all servicing to qualifi ed service personnel. Servicing is required when the TV has
been damaged in any way, such as the power cord or plug being damaged, liquid being spilled
on or objects have fallen onto the TV, the TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS TV TO RAIN OR MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING
AND SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON
THE TV.
• No naked fl ame sources such as candles should be placed on the TV.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:4Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:4 07/07/2009 16:41:3807/07/2009 16:41:38
User Guide
5
CAUTION! CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER COULD VOID THE USER’S AUTHORITY TO OPERATE THIS DEVICE.
CAUTION! USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
EXPOSURE.
Important
This TV generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with these instructions, may cause harmful interference to radio communication.
However, this is no guarantee that interference will not occur in a particular installation. If the TV
does cause harmful interference to electrical devices, which can be determined by turning the
TV off and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the external device and the TV.
• Connect the external device into an outlet on a circuit different from that to which the TV is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
ELECTRICAL INFORMATION
Mains Supply
The mains operating voltage is detailed on the rating plate on the rear of the TV.
The mains lead on this equipment may be supplied with a moulded plug incorporating a fuse.
Should the fuse need to be replaced, an ASTA or BSI approved BS1362 fuse must be used of
the same rating. If the fuse cover is detachable never use the plug with the cover removed. If a
replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of
the plug. If there is no alternative to cutting off the mains plug, dispose of it immediately, having
fi rst removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains
supply.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:5Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:5 07/07/2009 16:41:3907/07/2009 16:41:39
IDTV with DVD Player
6
PARTS IDENTIFICATION
1. MENU Accesses the TV menus
2. CH- Selects the next channel down
3. CH+ Selects the next channel up
4. VOL- Decrease the volume
5. VOL+ Increase the volume
6. TV/AV Accesses the Source menu
7. POWER Turns the TV on and into
standby
8. EJECT Disc Insert/Eject
9. I Next
10. I Previous
11. Stop
12. II Pause
13. Play
14. DVD Slot
15. Standby LED
16. Remote Control Sensor
Front View and Side View
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:6Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:6 07/07/2009 16:41:3907/07/2009 16:41:39
User Guide
7
17. HDMI Socket High Defi nition lead connection
18. VGA Socket PC Monitor connection
19. SCART Socket SCART lead connection
20. S-Video In Socket S-Video lead connection
21. Component In Sockets Component Video input connections
22. Common Interface Allows you to insert a Conditional Access Module (CAM)
(CI) Slot and Card (sold separately by the broadcaster e.g. Setanta Sports).
23. Digital Audio Out Socket Digital audio connection
24. Audio Input Socket (PC) Audio input connection when using the TV as a monitor
25. Audio Input Socket Audio input connection when using S-video or component
(S-Video and Component) video inputs
26. Antenna In Aerial connection
27. On / Off Switch Turns the TV on or off
28. Mains Socket Mains AC connection
Rear View and Side View
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:7Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:7 07/07/2009 16:41:4107/07/2009 16:41:41
IDTV with DVD Player
8
1. STANDBY Switches the TV to Standby
or On
2. DISPLAY Programme Information
3. Numeric Buttons
4. -/-- Digital Selector
5.
Swaps between current and
previous channel
6. LANG Selects Audio Languages
7. EPG Electronic Programme Guide
8. Vol + Volume Up
9. CH + Channel Up
10. Vol - Volume Down
11. CH - Channel Down
12.
Navigates Up
13. OK Selects Channel List
14.
Navigates Left
15.
Navigates Right
16.
Navigates Down
17. LCD MENU Selects Main Menu
18. PICTURE Alters the Aspect Ratio
FORMAT
19. PMODE Picture Mode
20. SMODE Sound Mode
21. SOURCE Input Source Selector
22. MUTE Mutes the Sound
23. EXIT Exits Menu Options
24. SLEEP Selects Sleep Timer
25. No Function in this Mode
26. NICAM Selects the Audio Menu
AUDIO
27. FAV Selects Favourite List
28. FAV - Favourite Channel Down
29. TEXT Digital Text / Teletext
30. FAV + Favourite Channel Up
31. SIZE Teletext Size
32. REVEAL Teletext Reveal Answer
33. INDEX Teletext Index
34. SUBPAGE / Selects Individual Sub-Menus
SUBTITLE within the Main Page /
Selects Subtitles
35. Green Digital Text / Teletext Shortcut
36. Yellow Digital Text / Teletext Shortcut
37. Red Digital Text / Teletext Shortcut
38. Blue Digital Text / Teletext Shortcut
Remote Control - TV/Digital TV Controls
When using the remote control, aim it towards the
remote control sensor on the TV. The function of
some buttons will vary depending on the source
being used (e.g. TV or DTV).
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:8Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:8 07/07/2009 16:41:4207/07/2009 16:41:42
User Guide
9
1. STANDBY Switches the TV to Standby
or On
2. EJECT Ejects / Inserts the disc
3. Numeric Buttons
4. 10 + Select two digit titles
and chapters
5.
Selects the Root Menu
6. TITLE Selects the Title Menu
7. D.DISPLAY Display Current Position on
Disc/Chapter/Title
8. Vol + Volume Up
9. No Function in this Mode
10. Vol - Volume Down
11. No Function in this Mode
12.
Navigates Up
13. OK Selects Menu Options
14.
Navigates Right
15.
Navigates Left
16.
Navigates Down
17. LCD MENU Selects Main Menu
18. DVD Setup Selects the DVD Menu Options
19. PMODE Picture Mode
20. SMODE Sound Mode
21. SOURCE Input Source Selector
22. MUTE Mutes the Sound
23. STOP Stops Playback
24. SLEEP Selects Sleep Timer
25. PLAY / Plays and Pauses the DVD
PAUSE
26. NICAM Selects the Audio Menu
AUDIO
27.
Fast Forwards
28. GOTO Select a Specifi c Point on the Disc
29.
Fast Backwards
30. ANGLE Selects Alternative Viewing Angles
31.
I
Skip Forwards
32. ZOOM Zoom In and Out
33.
I
Skip Backwards
34. SUBTITLE Selects Subtitles
35. MENU Selects the Root Menu
36. REPEAT Repeats Chapter / Title / Disc
37. PROGRAM Program Chapter / Title Playback
38. AB Repeat a Chosen Section
Remote Control - DVD Controls
When using the remote control, aim it towards
the remote control sensor on the TV.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:9Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:9 07/07/2009 16:41:4407/07/2009 16:41:44
IDTV with DVD Player
10
REMOTE CONTROL
Installing Batteries in the Remote Control
1. Remove the battery compartment cover at the rear of the remote
control by depressing the retaining clip.
2. Install the supplied AAA batteries as shown, ensuring the polarity
matches that shown in the battery compartment.
3. Replace the battery compartment cover.
Using the Remote Control
To use the remote control point it at the TV and press the required
buttons. You must be within 6 metres and at an angle of less than 30
degrees from the centre of the TV.
NOTE: Sunshine or other strong light sources may interfere with the
signal from the remote control. In this situation turn the TV set
away from the light source.
WARNING! DO NOT LEAVE BATTERIES IN THE REMOTE CONTROL FOR EXTENDED
PERIODS AS THEY CAN LEAK OR CORRODE CAUSING DAMAGE TO THE REMOTE
CONTROL. CHECK THEM PERIODICALLY AND REPLACE THEM AS REQUIRED.
WARNING! DO NOT MIX BATTERY TYPES. WHEN INSERTING BATTERIES, REPLACE
ALL BATTERIES AT THE SAME TIME. DO NOT MIX OLD AND NEW BATTERIES.
WARNING! EXHAUSTED BATTERIES MUST BE TREATED WITH CARE AND DISPOSED
OF ACCORDING TO ANY SAFETY OR RECYCLING REGULATIONS IN FORCE IN YOUR
LOCAL AREA. NEVER DISPOSE OF BATTERIES INTO GENERAL WASTE, OR FIRE.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:10Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:10 07/07/2009 16:41:4507/07/2009 16:41:45
User Guide
11
FITTING THE STAND
Before using the TV for the fi rst time, you
should fi t the stand to the TV.
NOTE: You do not have to fi t the stand if you
are mounting the TV on a wall. See
Wall Mounting on page 13.
1. Place the TV face down on the edge of a
fl at surface, for example a table, taking care
not to damage the TV screen.
2. Fit the stand to the stand column (part
of the TV), ensuring the locating hole is
correctly aligned as shown on the right.
3. Rotate the stand anti-clockwise to lock in
position.
4. Fit the two fi xing screws (supplied) into the
two holes at the base of the stand.
NOTE: Do not overtighten the fi xing screws
as this may damage the stand.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:11Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:11 07/07/2009 16:41:4507/07/2009 16:41:45
IDTV with DVD Player
12
CONNECTING THE TV
WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED
FROM THE MAINS BEFORE MAKING ANY CONNECTIONS!
Connecting the TV Antenna
Connect the TV antenna to the aerial socket with a 75 ohm
co-axial plug. For best results use a high gain TV aerial,
preferably roof or loft mounted.
• To improve picture quality in a poor signal area, purchase
and install a signal amplifi er.
• If the antenna needs to be split for two TVs, use a 2-Way
Signal Splitter (not supplied).
Connecting External Devices
The Quick Start Guide shows the simplest and most effective
way of connecting your TV to ancillary equipment. Alternate
methods are listed below.
NOTE: The TV will connect through the HDMI cable by default. Only use the HDMI cable and one
other option. Connecting more than one option may cause interference.
HDMI lead
You can connect this TV to a compatible device using a HDMI lead. This method will give the best
picture.
Connect the cable from the HDMI equipment to the TV HDMI socket.
SCART lead
You can connect this TV to a compatible device using a SCART lead. The connection uses
component video signals, i.e. the red, green and blue (RGB) content of the video are sent on
separate signals.
VGA cable
You can use your TV as a monitor for your personal computer by using a VGA cable. Sound from
your personal computer may also be played through the TV.
This requires the audio output of the personal computer to be connected to the Audio Input socket
(PC) of the TV.
S-Video lead
You can connect this TV to a compatible device using an S-VIDEO lead.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:12Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:12 07/07/2009 16:41:4607/07/2009 16:41:46
User Guide
13
Component Input (YPbPr cables)
You can connect this TV to a compatible device using YPbPr cables. Connect the red, green and
blue outputs to the matching coloured inputs on the compatible device. An additional audio input
is required.
Wall Mounting
1. The base must fi rst be removed. Place the TV face down.
2. Remove the two screws holding the base in position.
3. Remove and store the base and screws.
4. Use four machine screws to mount the TV on the bracket.
This unit is VESA-compliant and designed to be wall-mounted with a VESA-compliant
100mmx100mm mounting kit. Mount this unit according to the instruction of the wall bracket (not
supplied).
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:13Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:13 07/07/2009 16:41:4607/07/2009 16:41:46
IDTV with DVD Player
14
OPERATING THE TV
NOTE: Throughout this User Guide the buttons referred to will be on the remote control unless
otherwise stated.
Basic Operating Instructions
Switching on for the fi rst time
When the POWER (STANDBY) button on the remote
control is pressed to turn the TV on, the indicator light
on the front of the TV changes from red to green. When
the TV is turned off using the POWER (STANDBY)
button, the TV goes into standby mode and the indicator
light changes to red. The display to the right will appear
on the screen when the TV is turned on for the fi rst time.
1. Press thebuttons to select your country and
language.
2. Press the OK button.
3. The TV will automatically start Auto Tuning the Analogue and then the Digital channels.
NOTE: The TV will take up to 5 minutes to complete this process.
4. All channels will be stored after the Auto search process.
Source Selection
1. Press the SOURCE button to display the source menu.
2. Press the buttons to scroll between inputs and press the OK button.
3. If no source is manually selected, the TV will automatically come out of the source Menu after
10 seconds.
The following sources are available:
• TV/ANALOGUE
• FREEVIEW
• HDMI
• SCART
• COMPONENT
• S-VIDEO
• VGA/PC
• DVD
NOTE: To exit the display at anytime press the SOURCE button.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:14Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:14 07/07/2009 16:41:4707/07/2009 16:41:47
User Guide
15
Volume
1. Press the Vol +/Vol - buttons to increase/decrease the volume. The volume level will be displayed
at the bottom of the screen.
Mute
1. Press the MUTE button to mute the sound. The Mute symbol will be displayed at the bottom left
hand side of the screen.
2. Press the MUTE button again or the Vol +/Vol - buttons to restore the sound. The Mute symbol
will disappear.
Mono/Stereo (TV Analogue mode only)
Press the NICAM button to switch between mono (
) and stereo ( ) sound.
Select the TV channel
1. Press the Numeric button(s) to select the channel you require.
NOTE: In TV Analogue mode, use the -/-- button to select channel numbers above nine. Press the
-/-- button twice to enter two digit channel numbers and three times to enter three digit
numbers.
2. Press the CH +/- buttons to scroll up or down through the channels.
Picture Mode
Press the PMODE button on the remote control for the display options. Choose from the following
settings displayed at the bottom left hand side of the screen:
• STANDARD
• PERSONAL
• MOVIE
• SPORT
• MILD
• GAME
Picture Format
Press the PICTURE FORMAT button to choose from one of the following aspect ratios. The aspect
ratio setting is displayed at the bottom left hand side of the screen:
• Fullscreen
• Zoom (Analogue only)
• Stretch
• Auto
• 4:3 (Analogue only)
• 14:9 (Analogue only)
• 16:9 (Analogue only)
• Subtitle (Analogue only)
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:15Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:15 07/07/2009 16:41:4807/07/2009 16:41:48
IDTV with DVD Player
16
Sound Format
Press the SMODE button on the remote control for the sound options. Choose from the following
settings displayed at the bottom left hand side of the screen:
• Personal
• Voice
• Music
• Theatre
Menu Operations
The on screen menus allow you to adjust and control the TV.
1. To access the on-screen menus, press the LCD MENU button.
2. Press thebuttons to access the different menus and available options.
3. Press the LCD MENU button to exit the menu.
Note: Some options are only available on specifi c sources.
Picture Settings Menu
This menu gives the options for adjusting the appearance of the TV picture. The following options
are available.
PICTURE MODE - Allows you to select preset levels of contrast, brightness and colour. Choose
from the following settings:
• STANDARD
• PERSONAL
• MOVIE
• SPORT
• MILD
• GAME
CONTRAST – Allows you to increase or decrease the
contrast of the picture.
BRIGHTNESS – Allows you to increase or decrease the brightness of the picture.
COLOUR – Allows you to increase or decrease the intensity of the picture colour.
TINT - Allows you to increase or decrease the level of tint of the picture (Only NTSC signal)
SHARPNESS – Allows you to increase or decrease the sharpness of the picture.
COLOUR TEMPERATURE (Only in VGA mode) - Allows you to select a warmer or cooler picture.
DNR (Noise Reduce) - Allows you to adjust the sound quality. Choose from the following settings:
• OFF
• LOW
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:16Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:16 07/07/2009 16:41:4907/07/2009 16:41:49
User Guide
17
• MID
• HIGH
Sound Menu Options
This menu gives options for adjusting the TV sound. The following options are available:
VOLUME – Allows you to adjust the volume level.
SOUND MODE – Allows you to select preset levels of
bass and treble. Choose from the following settings:
• PERSONAL
• VOICE
• MUSIC
• THEATRE
BASS – Allows you to adjust the bass level.
TREBLE – Allows you to adjust the treble level.
BALANCE – Allows you to adjust the audio output between the left speaker and the right speaker.
AVL – Allows you to turn the Auto Volume Level (AVL) function on or off. Turn the AVL function on
to reduce the difference in volume between TV programmes and advertisments.
Tuning Menu Options
This menu gives options for adjusting the TV tuning.
NOTE: The following options are ONLY available with the ‘TV/Analogue‘ or ’Freeview’ source
selected.
Country (TV/Analogue Mode) – Allows you to select
your country.
Auto Tuning – Allows you to auto search and save
channels.
Manual Tuning – Gives options for adjusting the TV
tuning.
Program Edit – Allows you to reorder, lock and delete
channels.
Common Interface (Freeview Mode) – Allows you to
confi gure the Conditional Access Module (CAM) and Smart Card.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:17Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:17 07/07/2009 16:41:4907/07/2009 16:41:49
IDTV with DVD Player
18
Manual Tuning (TV/Analogue Mode)
This menu gives options for manually adjusting the TV tuning.
Program – Allows you to change the TV channel.
Sound System – Allows you to select the TV sound
system. Choose between:
• I
• DK
• L/L’
• B/G
Colour System – Allows you to select the TV colour
system from the following settings;
• PAL
• SECAM
• AUTO
Programme Label – Allows you to:
• Name or edit a channel name.
• To name or edit a channel name: Press thebuttons to input the characters.
AFT – If AFT is set to ON, the TV will automatically track slight changes in the frequency of the
signal. It is recommended that this is left set to ON.
Manual Search – Allows you to manually search for channels by changing the frequency.
Manual Tuning (Freeview Mode)
This menu allows you to manually search for channels. The following options are available.
Channel – Allows you to select the channel you want to
manually tune.
Start Search – Allows you to begin searching.
NOTE: All the other options provide information on
the signal quality and strength along with the
frequency.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:18Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:18 07/07/2009 16:41:5007/07/2009 16:41:50
User Guide
19
Program Edit (TV/Analogue)
1. Press thebutton to move a channel.
2. Press the GREEN button to add or remove a channel from the
favourites list.
3. Press the YELLOW button to skip a channel
NOTE: Once a channel is skipped, you can no longer select the
channel using the CH+ / CH- buttons.
4. Press the BLUE button to lock a channel.
NOTE: Once a channel is locked, you will need to enter the lock
code to view the channel.
Program Edit (Freeview)
1. Press the Green button to add or remove a channel from the
favorites list.
2. Press the Yellow button to delete the channel from the list.
NOTE: Deleting a channel will remove the channel completely
from the TV. The TV must be retuned to restore the
channel.
3. Press the BLUE button to lock a channel.
NOTE: Once a channel is locked, you will need to enter the lock
code
Common Interface Slot (Only in Freeview Mode)
Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to a pay
per view service the provider will issue you with a ‘CAM’ card “smartcard”. The CAM can then be
inserted into the Common Interface Port. See Common
Interface on page 36.
Timer Setting Menu
This menu allows you to adjust the Sleep Timer and the
OSD timer.
Sleep Timer – Allows you to set the sleep timer from the
following settings:
• 0 MIN
• 15 MIN
• 30 MIN
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:19Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:19 07/07/2009 16:41:5207/07/2009 16:41:52
IDTV with DVD Player
20
• 45 MIN
• 60 MIN
• 75 MIN
• 90 MIN
• 105 MIN
• 120 MIN
When the set time is met the TV will turn off automatically.
OSD Timer (On Screen Display Timer) - Allows you to adjust the length of time the On Screen
Menu displays, choose from the following settings:
• 5 SEC
• 10 SEC
• 15 SEC
• 20 SEC
• 25 SEC
• 30 SEC
General Settings Menu
This menu allows you to change the general settings of the TV. The following options are available:.
Language – Allows you to change the onscreen menu
language.
Picture Format – Allows you to choose from the
following the aspect ratios:
• Fullscreen
• Zoom (Analogue only)
• Stretch
• Auto
• 4:3 (Analogue only)
• 14:9 (Analogue only)
• 16:9 (Analogue only)
• Subtitle (Analogue only)
Blue Screen - If set to ON the screen will turn blue if there is no signal for 3 seconds.
System Lock - This menu allows you to prevent use of various aspects of the TV.
First Time Installation - Allows you to reset the TV for fi rst time tuning.
Reset - Allows you to reset the menus to factory settings.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:20Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:20 07/07/2009 16:41:5207/07/2009 16:41:52
User Guide
21
System Lock
This menu allows you to prevent use of various aspects
of the TV. Once the System Lock is enabled, enter the
PIN code (the default PIN code is 0000) and then press
the OK button to access the feature.
System Lock – Allows you to lock the system.
Key Lock – Allows you to lock the keys.
Source Lock – Allows you to lock one or more of the
sources.
Default Source – Allows you to set the default source.
Max Volume – Allows you to set max volume level.
Change Pin Code – Allows you to change the PIN code
that was set.
1. Enter the old pin code (Default is 0000)
2. Enter the new pin code.
3. Enter the new pin code again.
3. Press the OK button, the pin is now changed.
First Time Installation
Allows you to perform a fi rst time installation.
1. Select your country and language by pressing
thebuttons then select OK.
2. Press the OK button to start auto tuning.
Reset
Allows you to reset the menus to the default factory
settings.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:21Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:21 07/07/2009 16:41:5307/07/2009 16:41:53
IDTV with DVD Player
22
PC Menu Operation (VGA)
PC Settings Menu
You can use your TV as a monitor for your personal computer by using a VGA cable. Sound from
your personal computer may also be played through the TV. This requires the audio output of the
personal computer to be connected to the Audio Input Socket (PC) connection on the TV.
1. Select the VGA/PC Source as described on page 14.
NOTE: The PC settings Menu will only be available if the VGA/PC Source is selected and a VGA
Cable is connected to the TV.
Choose from the following settings:
Auto Sync – The TV automatically confi gures itself.
Phase - Allows you to adjust delay time of phase in
order to reduce the noise of the picture.
Clock – Allows you to increase or decrease the clock.
H Position (Horizontal Position) – Allows you to
change the horizontal position of the picture.
V Position (Vertical Position) – Allows you to change
the vertical position of the picture.
Position Reset – Allows you to reset the position of the picture to the factory settings.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:22Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:22 07/07/2009 16:41:5507/07/2009 16:41:55
User Guide
23
USING TELETEXT (TV/Analogue Mode)
Teletext is an information system that displays text on your TV screen. Using the teletext control
buttons you can view pages of information that are listed in the teletext index.
NOTE: No on-screen menus can be displayed in text mode. The contrast, brightness and colour
cannot be changed but the volume control is still available.
NOTE: Make sure the TV channel you are watching transmits teletext.
To Enter Text/Mix Mode
1. Press the TEXT button. The text page will appear, normally the INDEX page.
2. Press the TEXT button again. The text page will show with the picture behind it.
3. Press the TEXT button a third time. The screen will return to the channel you were watching.
To Select a Page of Text
1. Find the number of the page you require on the INDEX page and enter the page number using
the Numeric buttons. The number of the page will appear in the top left hand corner of the
screen. The page counter will search for your page. When it fi nds it, the page will be displayed.
To return to the index page press the INDEX button. To select a Subpage press the SUBPAGE
button.
2. Press the TEXT button to exit Teletext.
Subtitles
1. To display subtitles for the TV programme you are watching, press the TEXT button and go
to page 888. The TV picture will be displayed and provided the programme is broadcast with
subtitles these will appear at the bottom of the screen.
2. Press the TEXT button again to remove subtitles.
To Reveal Information
1. Press the REVEAL button to reveal concealed information (quiz answers etc.).
2. Press the REVEAL button again to conceal the information.
Fast Text
At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.
1. Press the Coloured fast text buttons on the remote control to access these pages.
2. Press the INDEX button to return to the Index page.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:23Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:23 07/07/2009 16:41:5507/07/2009 16:41:55
IDTV with DVD Player
24
Page Hold
If the page of text you have selected contains sub-pages, these will automatically be displayed in
order with a delay to allow you to read the page.
1. Press the FAV HOLD button to stop the next subpage being displayed. The hold symbol will
appear in the top left hand corner of the screen.
2. Press the FAV HOLD button again to continue moving through the sub-pages.
Text Enlargement
1. Press the SIZE button to enlarge the text shown on the teletext screen. Once selected, half a
page will be displayed at a time.
2. Press the SIZE button again to view the second half of the page.
3. Press the SIZE button a third time to return to normal teletext
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:24Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:24 07/07/2009 16:41:5607/07/2009 16:41:56
User Guide
25
OPERATING THE FREEVIEW TV
Using the Freeview for the First Time
Freeview allows you to access a wide range of digital channels. The Freeview channels will have
been auto-tuned when the TV was switched on for the fi rst time.
Menu Operations
Electronic Program Guide
The Electronic Program Guide (EPG) is only available in Freeview mode. It is a 7 day TV guide
and provides information about forthcoming programmes (where supported by the broadcasted
channel). You can view the start and end time of all programs and on all channels.
1. To display the EPG, press the EPG button. An example
of the EPG is shown on the right.
2. Use the buttons to navigate through the
channels and programmes.
3. Use thebutton to step to the next programme.
4. Use thebutton to return to the current programme.
5. Press the OK button to watch the currently selected
programme.
6. Press the GREEN button to scroll down the channel
list four channels at a time.
7. Press the RED button to scroll up the channel list four channels at a time
6. Press the EPG button to exit the EPG.
NOTE: If you currently have a favourites list selected, you will only be able to view the EPG for your
selected favourite channels.
The 7 Day EPG
The 7 Day EPG displays information about events for the next seven days in the form of a list.
To select the 7 day EPG, press the EPG button then the BLUE button once.
1. Use the buttons to navigate through the
channels and events. A brief description of the event
for the highlighted channel appears in the upper
panel of the window with its title and broadcast time.
2. Press the Yellow and Blue buttons to change the day
that is displayed.
3. Press the OK button to view the programme.
4. Press the Red and Green buttons to increase or
decrease the timeline.
5. Press the EPG button to exit the EPG.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:25Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:25 07/07/2009 16:41:5607/07/2009 16:41:56
IDTV with DVD Player
26
Setting Reminders
You can set a reminder for any programme in the next 7 days. Once a reminder is set, the TV will
automatically return to the selected channel.
1. To set a reminder, select a programme using the buttons.
2. Press the OK button to set the reminder. The programme will now be highlighted.
Digital Text
Freeview Digital Text is an information system that displays text on your TV screen.
NOTE: No on-screen menus can be displayed in text mode. The contrast, brightness and colour
cannot be changed but the volume control is still available.
NOTE: Make sure the TV channel you are watching transmits digital text.
Follow the on screen commands. Here is an example of
the BBC digital text service.
1. Press the RED or TEXT buttons to select digital text.
2. To select the page you require press the buttons
and press the OK button to select. Alternatively
you can enter the page number using the Numeric
buttons. Press the OK button to view the page.
3. Press the buttons to navigate the digital text
menus.
4. Use the RED, GREEN, YELLOW and BLUE buttons to
access the subject shortcuts.
5. To exit digital text press the RED or TEXT button.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:26Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:26 07/07/2009 16:41:5707/07/2009 16:41:57
User Guide
27
OPERATING THE DVD PLAYER
Inserting a Disc
1. Place a compatible DVD disc into the disc slot ensuring that the DVD label is facing towards you.
The disc will be loaded automatically. The TV reads the disc and displays the opening menu. If
there is no disc placed in the disc slot in DVD mode, ‘No Disc’ will be displayed in the top left
hand side of the screen.
DVD
When the disc has been inserted, ‘Read’ will be displayed on the TV screen followed by ‘DVD’.
The disc will automatically start to play. The DVD will pause at the start of the disc menu to enable
you to make any selections.
Audio CD
If an audio CD has been inserted, after the screen loading message, the player will automatically
start to play the fi rst audio track on the disc. The elapsed time and track number will be displayed
on the TV screen.
Photo CD
If a JPEG disc has been inserted, after the screen loading message, the root menu for the disc will
be displayed. If the images are stored in folders these will be listed. If the images are stored at
the root level the list of image fi les will be shown and a thumbnail view of the fi rst image will be
displayed.
Compatible Discs
Your DVD player can play discs that are marked with the following logos:
12cm DVD Video Discs.
12cm Compact Disc Recordable Discs.
12cm Compact Disc Re-Writable Discs.
12cm Compact Disc Audio Discs.
12cm Photo Compact Discs.
Kodak Picture Compact Discs.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:27Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:27 07/07/2009 16:41:5807/07/2009 16:41:58
IDTV with DVD Player
28
Region Code
If the region code of the disc being played does not match the region code of this TV then the disc
cannot be played. If you do try to do this a region violation notice will appear on the screen. The
region code for this player is region 2 (refer to the symbols below).
Playing DVDs
When you load a DVD it will start to play automatically, most will stop at the DVD menu on the
disc. This enables you to select from various play options, such as different titles, trailer, and
language options. The options available depend on the particular DVD. Normally you will need to
navigate around the screen using the buttons and then press the OK button to select the
required option.
Play/Pause
1. Press the PLAY/PAUSE button to pause play. ‘PAUSE II‘ will be displayed at the top left hand side
of the screen.
2. To resume normal play press the PLAY/PAUSE button. ‘PLAY ’ will be briefl y displayed at the
top left hand side of the screen.
Stop
1. Press the STOP button to stop play. ‘Pre Stop ’ will be displayed at the top left hand side of
the screen and the DVD video background graphic is displayed.
2. Press the PLAY/PAUSE button to resume play. ‘RESUME’ will be briefl y displayed at the top left
hand side of the screen.
NOTE: Play will commence from the exact position where the DVD was stopped, unless either the
DVD disc has been removed from the player or the Stop button is pressed a second time.
Fast Forward/Reverse
You can fast search the contents of a disc during play.
1. Press either the button, to fast forward through the disc or the button, to fast reverse
through the disc.
2. Each press of the button steps through the four available speeds. These are x2, x4, x8, and
x20 normal play speed. The set speed will be displayed on screen after each press of the button
as ‘2x’, ‘4x’, ‘8x’ or ’20x’ for fast forward and ‘2x’, ‘4x’, ‘8x’ or
’20x’ for fast reverse.
3. Press the PLAY button at any time during fast forward or fast reverse to return to normal
playback speed. ‘PLAY ‘ will briefl y be displayed at the top left hand side of the screen.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:28Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:28 07/07/2009 16:41:5807/07/2009 16:41:58
User Guide
29
Skip to the Next/Previous Chapter
You can skip to the next chapter during play.
1. Press the I button. Play re-starts at the beginning of the next chapter each time this button is
pressed.
2. To skip to the previous chapter, press the I button. Press the I button once to skip back to
the start of the current chapter and repeatedly to skip back to previous chapters.
3. Each time a skip button is pressed, ‘Prev I’ or ‘Next I’ is displayed briefl y on the screen.
Special DVD Functions
NOTE: The functions described in the following sections may not be supported on all DVD discs.
Refer to the DVD packaging for details of supported features and availability of languages
and subtitles etc.
Menu
1. To return to the main menu of the DVD disc while the DVD is playing, press the MENU button.
‘Menu Play’ will briefl y be displayed on the TV screen at the top left hand side of the screen
before the DVD Menu is displayed.
Subtitles
Some DVD discs contain subtitles in several languages.
1. To access the subtitles, press the SUBTITLE button repeatedly to step through the available
subtitle languages until the desired language is found.
The subtitle in the selected language appears shortly after selection.
Audio Languages
Some DVD discs are supplied with audio commentaries / audio tracks in different languages.
1. To access the different audio tracks, press the AUDIO button repeatedly to step through the
available audio languages until the desired language is found.
The audio language selected is heard shortly after selection.
Note: Refer to the DVD disc cover for a list of commentaries/audio language tracks.
Zoom
The Zoom function allows you to magnify or shrink the picture displayed on the screen. You have
six preset zoom factors to choose from: ZOOM2, ZOOM3, ZOOM4, ZOOM½, ZOOM¹/
3
, ZOOM¼.
1. Press the ZOOM button repeatedly to cycle through the available zoom levels until you reach the
level you require. The zoom factor is displayed in the top left hand corner of the screen.
2. When using the zoom function you can move around the picture using the buttons.
3. To cancel the zoom function, repeatedly press the ZOOM button until ‘ZOOM:OFF’ is displayed.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:29Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:29 07/07/2009 16:41:5907/07/2009 16:41:59
IDTV with DVD Player
30
Angle
Some DVD movie scenes are fi lmed using different camera angles and these may be included on
the DVD disc. These can be viewed using the Angle feature.
1. Repeatedly press the ANGLE button to cycle through the available angles. The TV screen will
show ‘n/N’ where n is the currently selected angle and N is the total number of angles included.
The set angle will stay current until changed or the disc is removed.
Search
You can search to a specifi c point in the DVD by either defi ning the title and chapter, or the elapsed
time.
1. Press the GOTO button. The ‘GOTO’ search bar is displayed.
2. Press the buttons to highlight Chapter or Chapter Time.
3. Press the Numeric buttons to enter the Chapter number or Chapter Time.
4. Press the OK button. Playback will continue from the selected point of the DVD.
Repeat
The repeat function allows you to set the TV to automatically replay the current chapter or title.
1. To repeat the current chapter, press the REPEAT button repeatedly until ‘Chapter’ is displayed.
The current chapter will be repeated until the repeat function is cancelled.
2. To repeat the current title press the REPEAT repeatedly until ‘ Title’ is displayed. The current title
will be repeated until the repeat function is cancelled.
3. To repeat the entire disc press the REPEAT button repeatedly until ‘Rep All’ is displayed. The
entire disc will be repeated until the repeat function is cancelled.
4. To cancel the repeat function, repeatedly press the REPEAT button until ‘OFF’ is displayed.
Repeat A-B
The A-B function allows you to specify a section of the DVD to be replayed repeatedly. It will replay
the section until the function is cancelled.
1. When the required start point has been reached, press the A-B button. ‘Repeat A’ will be
displayed on the TV screen.
2. Press the A-B button again when the required end point has been reached. ‘Repeat A-B’ will be
displayed and the selected section will replay continuously until cancelled. ‘Repeat A-B’ remains
on the screen while the section is repeated.
3. To cancel this function, press the A-B button again. ‘A-B Cancel’ is displayed. The DVD
continues to play normally.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:30Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:30 07/07/2009 16:41:5907/07/2009 16:41:59
User Guide
31
Chapter/Title Display
The Chapter/Title display function is used to display the current title number, chapter number and
the current time location. The display box is positioned at the top of the screen.
1. Press the D.DISP button repeatedly to cycle through the Chapter/Title display information. The
available types of information are:
• Title, chapter and total time elapsed
• Audio, subtitle and angle information
• Chapter remaining
• Title elapsed
• Title remaining
Programme
The programme function can be used to play your DVD titles and chapters in a pre-programmed
order. A sequence of up to twenty titles and chapters can be set. A title and chapter can be set
more than once. It is not necessary to programme all slots in the sequence.
1. Press the PROGRAMME button. The Programme window will be displayed as shown below.
2. Press the buttons to select a programme number.
3. Press the Numeric buttons to enter the title number.
4. Press the Numeric buttons to enter the chapter number.
5. Press the button to select the second programme number.
6. Repeat the previous steps to enter the next title and chapter.
7. Repeat for as many programme numbers as required.
8. Once you have programmed all the titles and chapters use the buttons to select PLAY.
Press the OK button Your programmed selection will begin.
9. To cancel the programme, press the PROGRAMME button and select ‘CLEAR’ using the
buttons. Press the OK button.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:31Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:31 07/07/2009 16:41:5907/07/2009 16:41:59
IDTV with DVD Player
32
PLAYING AUDIO CDS
Selecting tracks
1. Press the NUMERIC buttons to enter the track number.
2. Press the I button to select the next track.
3. Press the I button to select the previous track.
Control during playback
The VOL+/VOL-, MUTE, PLAY/PAUSE, STOP, FWD and REV buttons all operate in the same way
as described for DVDs in ‘Playing DVDs’ on page 28.
Repeat
You can repeat one or all of the tracks on the CD.
1. To repeat a single track, press the REPEAT button repeatedly until ‘REP 1’ is displayed in the top
left hand corner of the screen.
2. To repeat the entire CD, press the REPEAT button repeatedly until ‘REP ALL’ is displayed in the
top left hand corner of the screen.
3. To cancel the repeat function, press the REPEAT button repeatedly until ‘OFF’ is displayed in the
top left hand corner of the screen.
Repeat A-B
The repeat A to B function operates in the same way as described for DVDs in “Repeat A-B” on
page 30.
Programme
The Programme function operates in the same way as described for DVDs in Programme on
page 31.
Search
You can search to a specifi c point in the CD by either defi ning the elapsed list time, elapsed chapter
time, or track number. Press the GOTO button, as described on Page 30.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:32Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:32 07/07/2009 16:41:5907/07/2009 16:41:59
User Guide
33
PLAYING PHOTO CDS
You can view photo images using the TV. The images are shown as a slide show where each image
on a disc is displayed for approximately 3 seconds.
1. Switch on and load the photo disc. The TV will display the root menu to enable you to select an
image for the start of the slide show. An example of a root menu display is shown below:
1. Press the buttons to select folders and press the OK button to list the contents.
2. Press the button to select the fi le list.
3. Press the buttons to select a fi le.
3. Press the PLAY/PAUSE button, the slide show starts from the fi le selected.
Image Manipulation
1. Repeatedly press the button to rotate the picture through 90° steps in the clockwise direction.
2. Repeatedly press the button to rotate the picture through 90° in the counter-clockwise
direction.
Zoom Function
You have seven preset zoom factors to choose from. To use the zoom function press the Zoom
button.
1. Press the Zoom buttons to select the available zoom levels until you reach the level you require.
The zoom factor is displayed.
2. When using zoom you can move around the picture using the buttons.
3. To cancel the zoom function, press the Zoom button repeatedly until Zoom off is displayed.
MIXED MEDIA CDS
CDs containing a mixture of fi le types, e.g. photo images, music and video clips, can be read by
your TV.
When the disc is loaded, the root menu is displayed as for photo CDs. Folders and fi les are
displayed in the same way and each fi le will have an icon appropriate to its fi le type.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:33Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:33 07/07/2009 16:42:0007/07/2009 16:42:00
IDTV with DVD Player
34
DVD MENU OPERATION
The DVD menus allow you to adjust and control the TV while playing DVDs, Audio CDs and Photo
CDs.

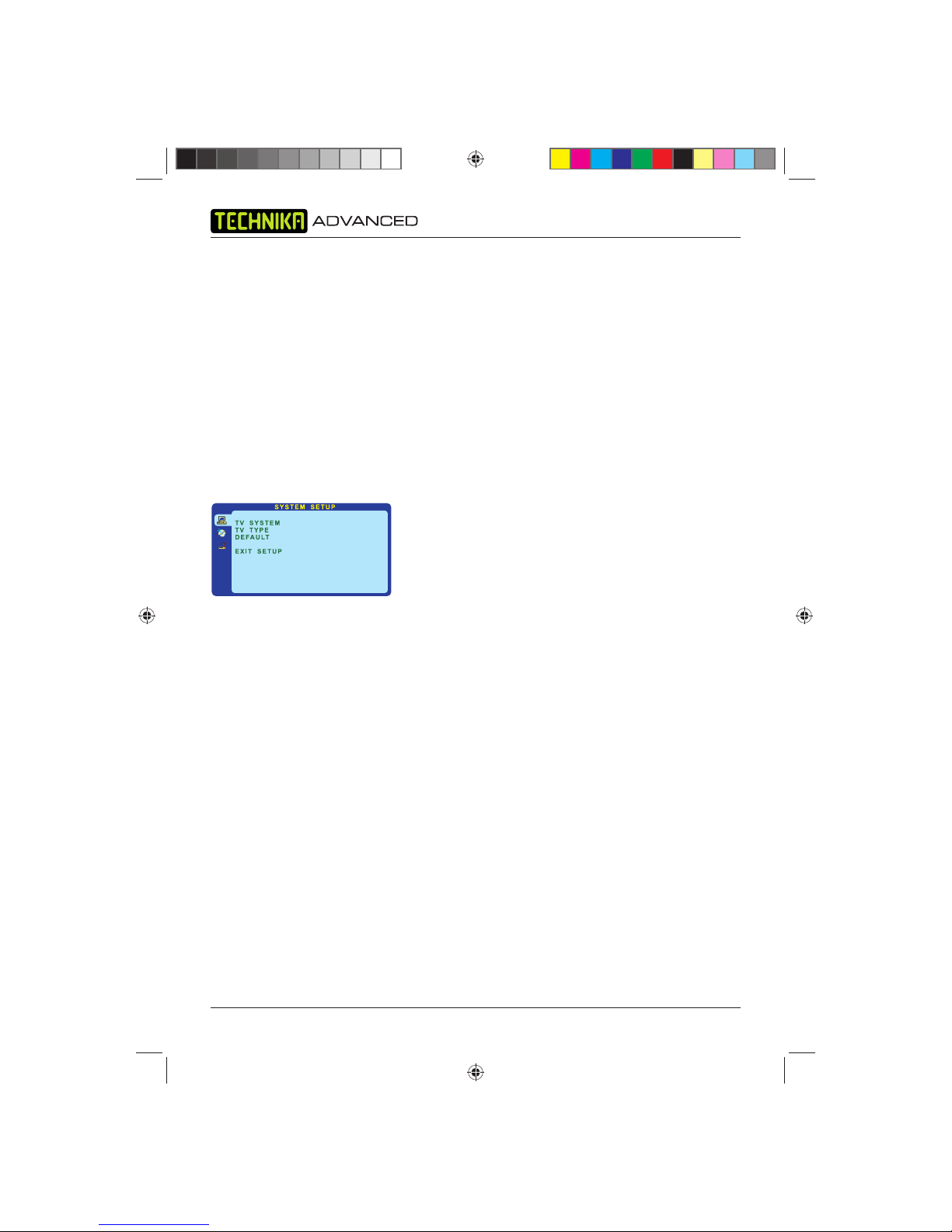

1. To access the DVD menus, press the DVD SETUP button.
2. Press the buttons to access the different menus and available options.
3. Press the OK button to select an option.
4. Press the DVD SETUP button to exit the DVD menus.
System Setup
This menu gives the options for adjusting the TV system and type. The following options are
available:
TV SYSTEM - Allows you to select from one of three TV systems. Choose between:
• NTSC
• PAL
• AUTO
NOTE: It is recommended that the ‘AUTO’ option is selected. The TV will automatically select the
most suitable TV system.
TV TYPE - Allows you to select the most suitable aspect ratio the DVD playing. Choose between:
• 4:3 PS
• 4:3 LB
• 16:9
DEFAULT - Allows you to restore the default factory settings for the DVD menus.
EXIT SETUP - This option allows you to exit the DVD Menus.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:34Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:34 07/07/2009 16:42:0007/07/2009 16:42:00
User Guide
35
Audio Setup
The menu gives the options for adjusting the audio output type for analogue audio connections to
external equipment.
AUDIO OUT - Allows you to select the audio output type when using external devices for the
playback of DVD audio streams. Choose from:
• SPDIF/OFF
• SPDIF/RAW
• SPDIF/PCM
TONE - Allows you to select the tone level for the audio output.
EXIT SETUP - This option allows you to exit the DVD Menus.
Digital Setup
This menu gives the options for adjusting the audio output type for digital audio connections to
external equipment.
DYNAMIC RANGE - Allows you to set the dynamic range. The dynamic range is the difference
between the loudest and quietest sounds. Choose from:
• Full
• 6/8
• 4/8
• 2/8
• Off
DUAL MONO - Allows you to select either mono or stereo audio output.
EXIT SETUP - This option allows you to exit the DVD Menus.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:35Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:35 07/07/2009 16:42:0107/07/2009 16:42:01
IDTV with DVD Player
36
USING YOUR COMMON INTERFACE SLOT
Common Interface
The Common Interface (CI) slot is designed to accept the Conditional Access Module (CAM) and
Smart Card in order to view the pay TV programmes and additional services. Contact your Pay Per
View TV service provider to get more information about the modules and subscription.
Note: Conditional Access Modules and Smart Cards are sold separately.
WARNING! SWITCH OFF YOUR TV BEFORE ANY MODULE IS INSERTED IN THE
COMMON INTERFACE SLOT.
The CI slot is located on the side of your TV. Insert the CAM correctly into the CI slot, then add the
Smart Card to the CAM.
1. Turn on the TV and ensure ‘Freeview’ is selected as the source.
2. If the CAM is detected the TV will display the following
message on the screen:
Common interface Module inserted.
Wait for a few moments until the card is activated.
3. Select the relevant digital channel (e.g. channel 34 for
Setanta broadcast).
4. Detailed information on the Smart Card in use is displayed.
5. Press the OK button to access the card menu. Refer to the module Instruction manual for setting
details.
6. When the module is removed, the following message will appear on the screen:
Common interface module removed.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:36Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:36 07/07/2009 16:42:0107/07/2009 16:42:01
User Guide
37
TROUBLESHOOTING GUIDE
To assist in locating possible faults use the help guide below.
TROUBLESHOOTING
No picture, no sound Check that TV is correctly plugged in.
Check the television is connected to a suitable power source.
Check the electrical supply is turned on.
No Picture Ensure that the TV is powered on.
Check that the cables are fi tted securely.
Ensure the aerial and/or external sources are connected.
Press the SOURCE button to change the source.
Turn the TV on or off.
Try a disc that you know plays.
No sound Press MUTE button and check if Mute mode is set.
Switch to another channel and see if the same problem occurs.
Press V+ button to see if the problem can be solved.
Poor sound Check if sound system is correct. Refer to user’s manual for adjustment.
No picture on some
channels
Check correct channel is selected.
Adjust the antenna.
No colour on some
channels (black &
white)
Check if the same problem exists on other channels.
Ensure the correct picture settings are selected.
Spots on some or all
channels
Check that the antenna is correctly connected.
Check that the antenna is in good condition.
Controls not working Disconnect the TV from power supply, wait 10 seconds, reconnect the TV
to the power supply.
If the problem still exists, contact authorized after-sales service for
technical assistance.
Disc does not play. Check that the disc has been correctly loaded, label facing away from you.
Check that the format of the disc is supported. If it is a DVD, ensure that
it is Region 2.
The DVD picture
quality is poor
Check that the disc surface has not been damaged.
Try cleaning the disc (see page 38).
Check that the cables are fi tted securely.
Some functions do
not work (e.g. Angle,
Search etc.)
Refer to the DVD packaging. Not all functions are available.
No response to
remote control.
Remote control not aimed correctly.
Front panel remote control sensor obstructed.
Remote control batteries inserted incorrectly.
Remote control batteries exhausted.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:37Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:37 07/07/2009 16:42:0207/07/2009 16:42:02
IDTV with DVD Player
38
If none of the suggestions seem to work, try switching your TV off and then on again. If this does
not work, contact either your supplier or a qualifi ed repair technician. Never attempt to repair the
TV yourself.
Contact the TESCO electrical help line on 0845 456 6767.
Note: The TV must only be repaired by a qualifi ed registered service person. Never attempt
to remove the back cover as the TV has dangerous voltages inside that may cause fatality
or fi re.
CARE AND MAINTENANCE
Handling Discs
• To remove a disc from its storage case, press down on the centre of the case and lift the disc out.
• Discs should be returned to their cases after use. This avoids serious scratches that could cause
the laser pickup to skip.
• Hold the disc by the edges, to avoid touching the recorded side of the disc.
• Fingerprints and dust should be carefully wiped from the disc’s surface with a soft cloth.
• Never use chemicals such as record sprays, antistatic sprays, benzene, or thinners to clean the
discs. These chemicals can irreparably damage the disc’s surface.
• Audio discs and DVD discs have no grooves to collect dust and microscopic debris so gently
wiping with a soft cloth should remove most particles.
• Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light
stains should have no effect on reproduction quality.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended periods.
Exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ball point pen on the label side of the disc.
Disposal
UK: Waste electrical products should not be disposed of with household waste. Separate
disposal facilities exist, for your nearest facilities see www.recycle-more.co.uk or in-store
for details.
ROI: Produced after 13th August 2005
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
Warranty
Your TESCO appliance is covered by a warranty for 12 months from the date of purchase. If a fault
develops during this period, please contact the TESCO electrical help line on 0845 456 6767.
Please have your original purchase receipt with you when you call. This warranty in no way affects
your consumer rights.
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:38Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:38 07/07/2009 16:42:0207/07/2009 16:42:02
User Guide
39
SPECIFICATIONS
Specifi cations of the television that you have just purchased may vary from the information in this
table due to technical innovations.
Picture system PAL/SECAM
Audio system B/G, D/K, I, L, L’
Audio output 1.5W+1.5W
External input port COMPONENT,
VGA/PC,
S-VIDEO,
Audio,
SCART,
Antenna,
HDMI,
CI Slot
Coaxial Digital Audio Out
Power requirements AC 100-240V~50/60Hz
Power supply 60W
Standby
Power consumption 1W
Temperature Working: 5° C~35° C,
Storage: -15° C~45° C
Humidity Working: 20%~80%,
Storage: 5%~90%
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:39Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:39 07/07/2009 16:42:0207/07/2009 16:42:02
IDTV with DVD Player
40
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:40Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:40 07/07/2009 16:42:0307/07/2009 16:42:03
UK
TESCO Stores Ltd, Cheshunt, EN8 9SL, UK.
15.4-311 /dcs-8358/Jul09
Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:41Tesco-Tecknika IDTV with DVD Player UK .indd Sec1:41 07/07/2009 16:42:0307/07/2009 16:42:03
Loading...
