Turntable System
Operating Instructions
Model No.
SL-1200MK5
SL-1210MK5
SL-1200MK5
PP
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
RQT7018-1Y
Dear customer
Supplied accessories
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
SL-1200MK5 : Silver model
SL-1210MK5 : Black model
Table of contents
Supplied accessories................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ....................................... 3
Features ......................................................................................... 4
Preparation of the cartridge ........................................................ 4
Controls ......................................................................................... 4

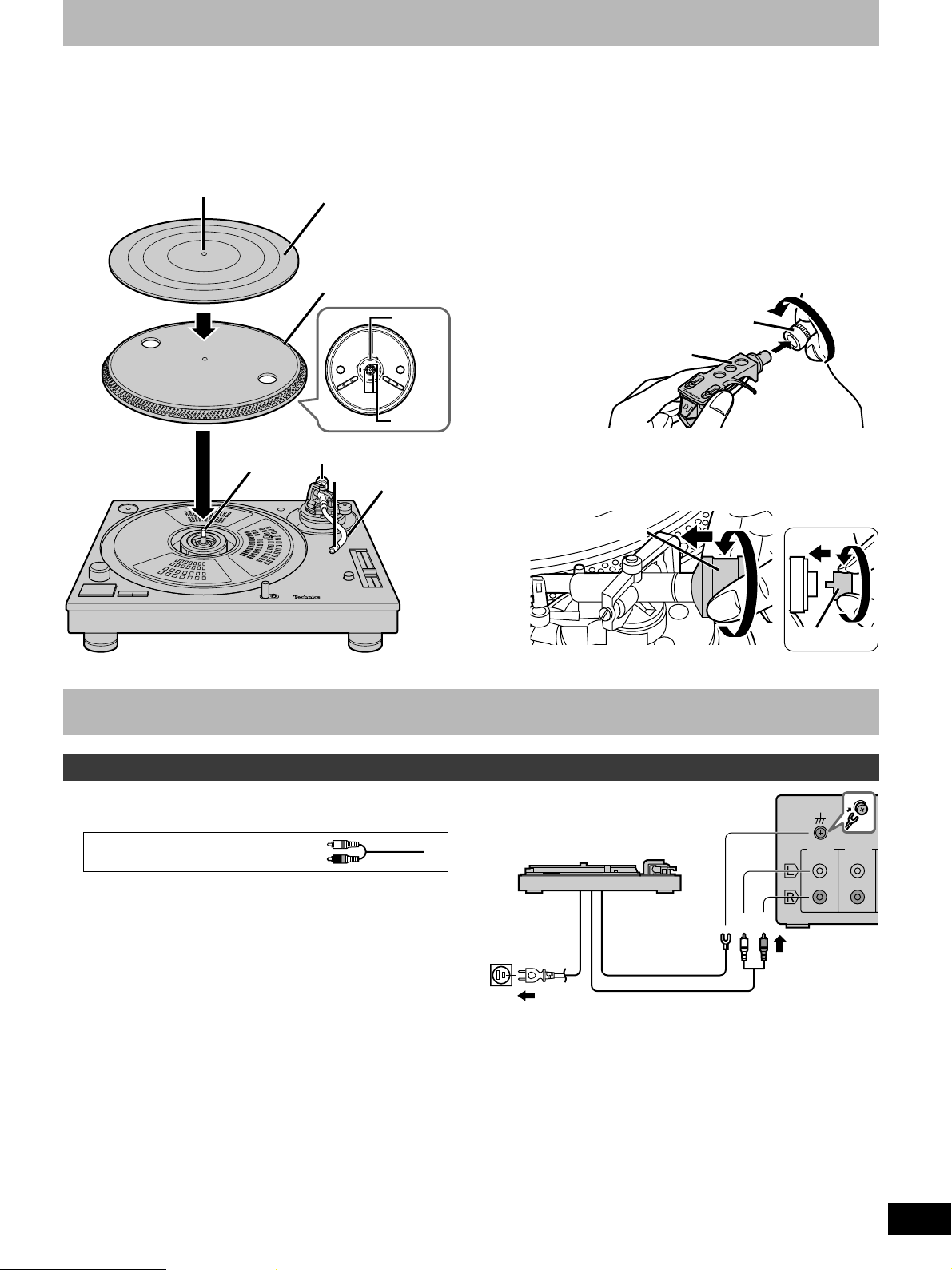

Putting the player together ......................................................... 5
Connections and installation ...................................................... 5
Connecting to an amplifier and AC power supply cord ............. 5
Connecting to an Audio Mixer (not included) ............................ 6
Installation .................................................................................. 6
Preparatory adjustments ............................................................. 6
Horizontal balance and stylus pressure .................................... 6
Anti-skating ................................................................................ 7
Armlift height .............................................................................. 7
Tone arm height ......................................................................... 7
Fit the dust cover ....................................................................... 7
Playing records ............................................................................. 8
Adjustments while using the unit ............................................... 9
Pitch control ............................................................................... 9
Adjusting the turntable brake speed .......................................... 9
Maintenance ................................................................................ 10
Product service ........................................................................... 10
Troubleshooting guide................................................................ 11
Specifications .............................................................................. 11
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when
asking for replacements parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368
or the website (http://www.panasonic.com).
Turntable ................. 1pc.
(SFTE172-01Z1)
Turntable mat .......... 1pc.
(RGS0008)
Disc slip sheet set
(RGS0005Z-1) ................ 1
•Disc slip sheet
•Transparent sheet
Dust cover ............... 1pc.
(RYF0370B-X)
Head shell
(SFPCC31001K) ...... 1pc.
A cartridge is not included.
Balance weight ....... 1pc.
(SFPWG17201K)
Auxiliary weight ...... 1pc.
(SFPWG17202)
EP record adaptor
(SFWE010) ............... 1pc.
Shell weight ............ 1pc.
(SFPZB3501)
Overhang gauge ..... 1pc.
(SFK0135-01)
Screw set for cartridge
........................................ 1
•Nuts(RHN26003)
•
Screws-short(SFCZV8801-1)
•
Screws-long(SFPEV9801-1)
•Washers(SFPEW9601)
Sticker ...................... 1pc.
(RQLC0142-1)
2
RQT7018
TELEPHONE NUMBER
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER
SERIAL NUMBER
SL-1200MK5 / SL-1210MK5
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN
ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
The following mark and symbols are located on the bottom of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and re-
ceiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
3
RQT7018
Features
+8+8
6
4
2
+8
2
4
6
-8-8
A masterpiece amongst turntables with a worldwide reputation.
Highly accurate turntable speed maintained continuously
with a quartz pitch control.
•The pitch can be varied throughout the range maintaining perfect
accuracy.
•Pitch can be instantly reset to the rated speed (33 1/3 or 45 r/min)
with the reset button.
The direct drive produces high torque.
•Wow and flutter below 0.01 %. Starting torque of 1.5 kg-cm en-
abling the turntable to reach 33 1/3 r/min in 0.7 seconds.
•Smooth stops are achieved with a fully electronic braking system.
The braking speed can be adjusted with the brake speed control
knob.
Tone arm with gimbal suspension
•Using the balance weight control measurement units on the tone
arm, you can quickly change stylus pressure settings to the appropriate pressure.
•Stylus skipping can be reduced using horizontal weight control for
scratch play.
•The tone arm can be finely adjusted in a range of 6 millimeters
with the lockable height control.
Anti-vibration design with 3 layer cabinet construction
and large insulating legs.
Pop-up stylus light.
•A light illuminates the stylus.
Preparation of the cartridge
1 Attach a cartridge (not included).
Follow the cartridge’s instructions to correctly attach it to the
head shell.
•Use the included shell weight when using a light cartridge
(3.5 to 6.5 grams).
Screws
Shell
weight
Stylus
Head shell
Lead wire
Terminal
Cartridge
2 Adjust the overhang.
Fit the included overhang gauge to the head shell. Adjust the
overhang and facing of the cartridge and tighten the screws.
•Line the stylus tip up with the end of the gauge.
•The cartridge should be parallel on the shell head.
Controls
No. Name Reference page(s)
EP record adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turntable base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Turntable mat (Or disc slip sheet) . . . . . . . . . . . . . . 5
Turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Center spindle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Strobe mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power switch (power) . . . . . . . . . . . . . . . . . . . . . . . . 8
Strobe light, pilot lamp . . . . . . . . . . . . . . . . . . . . . . . 8
Start-stop button (start-stop) . . . . . . . . . . . . . . . . . . 8
Speed select buttons (33, 45) . . . . . . . . . . . . . . . . . . 8
Shell stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Arm-height control . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Balance weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Stylus pressure control . . . . . . . . . . . . . . . . . . . . . . . 6
Arm lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Anti-skating control . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cue lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arm clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arm rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tone arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pitch indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pitch control (pitch adj.) . . . . . . . . . . . . . . . . . . . . . . 9
Reset button (reset) . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Locking nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Head shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Stylus light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Stylus light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4
RQT7018
Stylus tip
52 mm
Screws
Overhang
gauge
Putting the player together
In order to prevent damage during shipping some of the equipment
has been disassembled.
Put the player together in the following order.
•Do not connect the AC power supply cord until set up is complete.
•Leave the dust cover off until set up and adjustments are com-
plete.
1
Center spindle
Turntable mat
Turntable
3
2
Magnet
Screws
Tone arm
1 Fit the turntable and turntable mat.
Put the turntable on the center spindle and then lay the mat
on top.
•Be very careful when putting the turntable on the main unit.
The magnet on the bottom of the turntable is finely adjusted
and sharp contact can cause it to move and lead to poor
operation. Ensure the magnet remains free from dust and
iron particles.
•Do not adjust the screws attaching the magnet to the turn-
table. The rated performance of the unit cannot be guaranteed if the magnet is moved.
2 Attach the head shell.
Fit the head shell into the tone arm, keep it horizontal and
tighten the locking nut.
Locking nut
Head shell
3 Attach the balance weight to the rear
of the tone arm.
If the cartridge weighs between 10 and 13 grams, attach the
included auxiliary weight to the main balance weight.
Balance weight
Connections and installation
Connecting to an amplifier and AC power supply cord
1. Connect the PHONO earth lead and stereo PHONO
cables to the amplifier PHONO terminals.
Stereo connection cable
•If the earth lead isn’t connected, a hum will be heard from the
AC power source.
•You will not have adequate volume or sound quality if connect-
ing to an amplifier that has no PHONO terminals.
2. Connect the AC power supply cord.
•Connect this cord only after all other connections are complete.
•Confirm the wattage of AC outlets on amplifiers and receivers
before using them for this unit. This unit consumes 13.5 W.
White (L)
Red (R)
To household
AC outlet
2
This unit
Earth lead
Stereo connection cable
Amplifier
(not included)
(L) (R)
Auxiliary weight
SIGNAL GND
TUNER
PHONO
1
1
5
RQT7018
Connections and installation
Connecting to an Audio Mixer (not
included)
•Disconnect all units from the power source before making any con-
nections.
•Reconnect the AC power supply cord after all other connections
are complete.
Unit
Earth lead
Audio mixer
Unit
Installation
•Install the unit on a horizontal surface protected from vibrations.
•Keep this unit as far as possible from speakers.
•Ensure the unit is not exposed to direct sunlight, dust, humidity,
and heat from a heating appliance.
•This unit may pick up interference from a radio if there is one nearby.
Keep radios as far as possible from this unit.
Adjusting the height of the insulators
Place the unit where it is to be used and adjust the height of the legs
to make the unit horizontal.
Preparatory adjustments
Horizontal balance and stylus pressure
1 Release the tone arm.
1. Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.
2. Free the tone arm from the arm rest.
Arm clamp
2 Adjust horizontal balance
1. Push the cue lever down.
2. Turn the anti-skating control to “0”.
3. Turn the balance weight until the arm is approximately horizontal.
Take care at this time not to allow the stylus to touch the unit.
Balanced
Too far forward
Too far back
3 Turn the stylus pressure control to “0”
1. Return the tone arm to the arm rest and fix it
with the arm clamp.
2. Turn the stylus pressure control to “0”.
Hold the balance weight still while doing this.
Balance weight
Turn stylus
Center line
Arm clamp
pressure
control
4 Adjust stylus pressure
Turn the balance weight to adjust to the appropriate pressure for the cartridge you are using.
See the cartridge’s instructions for recommended stylus pressure.
The stylus pressure control will turn at the same time. Stop
when the center line points to the required pressure.
6
RQT7018
Arm clamp
Arm rest
Cue lever
Anti-skating control
Turn
balance
weight
Center line
Preparatory adjustments
Using the balance weight control
Make note of the balance weight setting for your stylus cartridge,
you can quickly change the stylus pressure without having to readjust the horizontal balance of the arm each time you remove and
re-attach the stylus cartridge.
Attach the cartridge to the tone arm you are using.
Turn the balance weight control to the setting you previously
used to balance the weight including cartridge.
Turn the stylus pressure control dial to the setting you previ-
ously used to balance the weight including cartridge.
Balance weight
measurement units
Anti-skating
Adjust the dial to the same value as the stylus pressure
control when playing normal music.
For scratch play
Adjust the control to reduce skipping.
Tone arm height
1. Release the arm lock.
2. Adjust the arm height.
•Adjust the ring using the chart
below as reference so the arm
height matches the indicated
height of the cartridge. Measurements are marked on the
arm height control ring in 0.5
millimeter intervals.
Cartridge height
(H) in millimeters
17
18
19
20
21
22
23
•If you do not know the height of your cartridge, rest the stylus on
a record and adjust the height control until the tone arm and
record are parallel.
Tone arm and record parallel.
Released
Index line
Arm height control ring
1
Locked
Height control
position
0
1
2
3
4
5
6
3
Armlift height
Preparation
1. Put a record on the turntable.
2. Take off the stylus cover and release the arm clamp.
Use a screwdriver to turn the armlift screw.
Make this adjustment only if the cartridge you are using makes it
necessary.
•Turning the screw clockwise lowers the armlift.
•Turning the screw anti-clockwise raises the armlift.
Armlift screw
Armlift
Armlift height (the distance between the record and stylus when the
cue lever is raised) is set to between 8 and 13 millimeters at time of
shipment.
3. Lock the arm after adjusting the height.
Fit the dust cover
Hold the dust cover with both hands and fit it over the
player from directly above.
7
RQT7018
Playing records
start • stop
33
Preparation
1. Put a record on the turntable.
2. Take off the stylus cover and release the arm clamp.
1
3
2
4,5
1 Turn [power] to turn the unit on.
•The pilot lamp comes on.
•
33 1/3 r/min is automatically selected and the indicator lights.
•Press [45] if you are playing a 45 r/min record.
on
off
Pilot lamp
p
o
r
e
w
Indicator
lights
33 45
2 Press [start-stop].
The turntable starts revolving.
3 Press [reset] to light the pitch control
green LED lamp.
The pitch returns to 33 1/3 or 45 r/min.
Green
LED indicator
reset
Use the above indicated
pitch for playing standard
music.
To temporarily stop play
Lift the cue lever.
The stylus lifts off the record.
Refer to page 9 for fine adjustments to the pitch
When using EP records
1. Take the EP record adaptor out
of its holder and fit it over the
center spindle.
2. Press [45] to change the speed.
When play finishes
1. Lift the cue lever and move the tone arm back to the arm rest.
2. Press [start-stop].
The electronic brake gently stops the turntable.
3. Turn [power] to turn the unit off.
4. Clamp the tone arm and put the stylus cover back on.
When the player is to be used for scratch play.
Use the disc slip sheet instead of the turntable mat. This enables
the record to be easily moved during play.
•Top (printed side): Lay the record on this side.
•Bottom: Slippery side.
For a different kind of slip
Put the transparent sheet under
the disc slip sheet.
EP record adaptor
Disc slip sheet
4 Lift the cue lever and move the tone arm
over the record.
Cue lever
5 Lower the cue lever.
The tone arm moves down and play starts.
To light up the stylus
•Press the stylus light switch. The stylus light rises up and illumi-
nates the stylus.
•When the light is not required, press it down. The light also goes
out.
Press the switch firmly. If the switch is lightly pressed, the light may
come on but not rise up.
8
RQT7018
Stylus light
Transparent sheet
Stylus light switch
BRAKE
S
F
Adjustments while using the unit
Pitch control
Fine adjustment to the number of revolutions per minute.
1 Press [reset] to turn off the green LED
light.
Green
LED indicator
Pitch control
reset
2 Slide [pitch adj.] while the turntable is
revolving.
Move the control to the required position.
•The numbers represent approximate percentages.
•Pitch can be adjusted between –8 % and +8 %.
To reset pitch to the preset value
Press [reset].
The green LED indicator lights and the pitch immediately returns to
the set value (33 1/3 or 45 r/min), regardless of any adjustments
made with [pitch adj.].
Press [reset] again and pitch returns to the adjusted value.
Adjusting the turntable brake speed
Brake speed can be adjusted by pressing [start-stop] until the turntable stops.
Use a small screwdriver in the hole on the turntable to adjust the
brake speed.
S: Slow stop
F: Fast stop
To measure pitch
The four rows of strobe mirrors around the edge of the turntable can
assist you in measuring pitch.
+
6.4 % change in pitch when stationary
+
3.3 % change in pitch when stationary
Normal turntable speed when stationary
_
3.3 % change in pitch when stationary
They are lit by the strobo light as they pass and each row appears to
stand still at a different pitch.
on
off
p
o
r
e
w
Read the pitch control slider replacement instructions that comes
with this product carefully when replacing the pitch control slider.
Strobo light
9
RQT7018
Maintenance
Product service
Care of the parts
To clean this unit, wipe with a soft, dry cloth.
•Never use alcohol, paint thinner, or benzine to clean this unit.
•Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Do not wipe the dust cover while playing a record.
This can cause static electricity. This static can cause the tone arm
to be attracted towards the cover.
Thoroughly clean dust off the stylus and record.
•
Use a soft brush to clean the stylus. Brush from the base to the tip.
•Use a good quality record cleaner to keep your records clean.
Head shell
terminals
Wipe the head shell terminals occasionally.
Use a soft cloth. Turn the amplifier off before fitting or removing the
head shell.
•Damage to your speakers can occur if the head shell is moved
while the volume is turned up.
•Leave the stylus cover on while handling the head shell to prevent
damaging the stylus.
Oiling the center spindle.
Apply 2 or 3 drops every 2000 hours of operation. Use SFW0010 oil
(not included).
Oil
1. Damage requiring service —The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or AC adaptor has been
damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts— When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock, or
other hazards.
4. Safety check—After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper
working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1800-211-7262, or e-mail consumerproducts@panasonic.com, or the
website (http://www.panasonic.com).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an
authorized Servicentre closest to you.
Moving the unit
Repackage the unit in the packaging it came in.
If you no longer have the packaging, do the following:
•Return the tone arm to the arm rest and tape it in place.
•Remove the balance weight and head shell from the tone arm and
carefully wrap them.
•Take off the turntable and turntable mat and carefully wrap them.
•Carefully wrap the main unit in a blanket or paper.
10
RQT7018
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in
the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or the
website (http://www.panasonic.com).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an
authorized Servicentre closest to you.
Problem
No power.
There is power but no sound.
Sound is weak.
Left and right sounds are reversed.
Humming heard during play.
Is the AC power supply cord plugged in?
Are connections to the amplifier/receiver’s
PHONO terminals correct?
Are the stereo connection cable connections
to the amplifier or receiver reversed?
Are there other appliances or their AC power
supply cords near the stereo connection
cable?
Is the earth lead connected?
Probable cause(s)
Specifications
Turntable section
Type Quartz direct drive
Drive method Direct drive
Motor Brushless DC motor
Turntable platter Aluminum diecast
Diameter 33.2 cm (13-5/64")
Turntable speeds 33 1/3 r/min, 45 r/min
Variable range pitch ±8 %
Starting torque 1.5 kg·cm (1.3 lb·in)
Build-up characteristics 0.7 s. from standstill to 33 1/3 r/min
Braking system Electronic brake
Wow and flutter 0.01 % WRMS
Rumble –56 dB (IEC 98A Unweighted)
\\
\
\\
This rating refers to turntable assembly alone, excluding effects
of record, cartridge or tonearm, but including platter. Measured
by obtaining signal from built-in frequency generator of motor
assembly.
0.025 % WRMS (JIS C5521)
±0.035 % peak (IEC 98A Weighted)
–78 dB (IEC 98A Weighted)
Manual turntable
Mass 1.7 kg (3.74 lb.)
Suggested remedy
Plug the cord in firmly.
Connect the stereo pin cables to the amplifier’s
PHONO terminals.
Double check all connections.
Separate the appliances and their AC power
supply cords from this unit.
Make sure the earth lead is correctly connected.
Reference
page(s)
5
5
5
5
Tonearm section
Type Universal
Effective length 230 mm (9-1/16")
Arm height adjustment range 0 – 6 mm
Overhang 15 mm (19/32")
Effective mass 12 g (without cartridge)
Offset angle 22°
Friction Less than 7 mg (lateral, vertical)
Tracking error angle
Within 2° 32' (at the outer groove of 30 cm (12") record)
Stylus pressure adjustment range 0 – 4 g
\
Applicable cartridge weight range 3.5 – 13 g
(with auxiliary weight) 9.5 – 13 g
(with shell weight) 3.5 – 6.5 g
Headshell weight 7.5 g
Within 0° 32' (at the inner groove of 30 cm (12") record)
11 – 20.5 g (including headshell)
17 – 20.5 g (including headshell)
11 – 14 g (including headshell)
General
Power supply AC 120 V, 60 Hz
Power consumption 13.5 W
Dimensions (W
Mass 12 kg (26.4 Ib)
××
××
×H
×D) 45.3 × 17.2 × 35.5 cm
××
××
(17-27/32" × 6-25/32" × 13-31/32")
Specifications are subject to change without notice.
Mass and dimensions are approximate.
11
RQT7018
This manual was printed with soy based ink.
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
2003 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario L4W 2T3
www.panasonic.ca
RQT7018-1Y
En
M0203TK1124
Loading...
