Technics

Compact disc changer

SL-PD967/SL-PD867/

SL-P9066

Operating Instructions

The photograph.showsthe SL-PD867 model. DIGITALAUDIO

• Before' connecting, operat|ng or adjusting this product, please

• read these instructions completely.

RQT2327-P

Page 2

Dear Customer

Thank you for purchasing this Technics product.

For optimum performance and safety, please read

these instructions carefully.

These operating instructions are applicable to the SL-PD967, SL- PD867 and SL-P9066 models.

These operating instructions, however, fundamentally explain the operation of SL-PD967 model.

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided below and retain them for future reference.

MODEL NUMBER SERIAL NUMBER

Before use

Precautions ........................................ 4

Front panel controls .............................. 5

Connections ....................................... 6

Operations

Basic operations .................................. 7

Sequential play ........................................ 7

To directly access a desired track ...................... 8

To exchange discs during play .......................... 8

To temporarily stop play ............................... 8

To stop play .......................................... 8

Program play ....................................... 9

Using the remote control transmitter

I$.'11E"JllgI.l"l/-'lI! "JI]:[.'fE;l111K_............................ 10

Random play ....................................... 10

One disc random play ................................. 10

Full random play ...................................... 10

Delete play ......................................... 11

Using the remote control transmitter

Ik']lll ".,ID_I,'lrll,.-!1 -.,IJ]-'[,-Irarnnq ............................ 12

Spiral play .......................................... 12

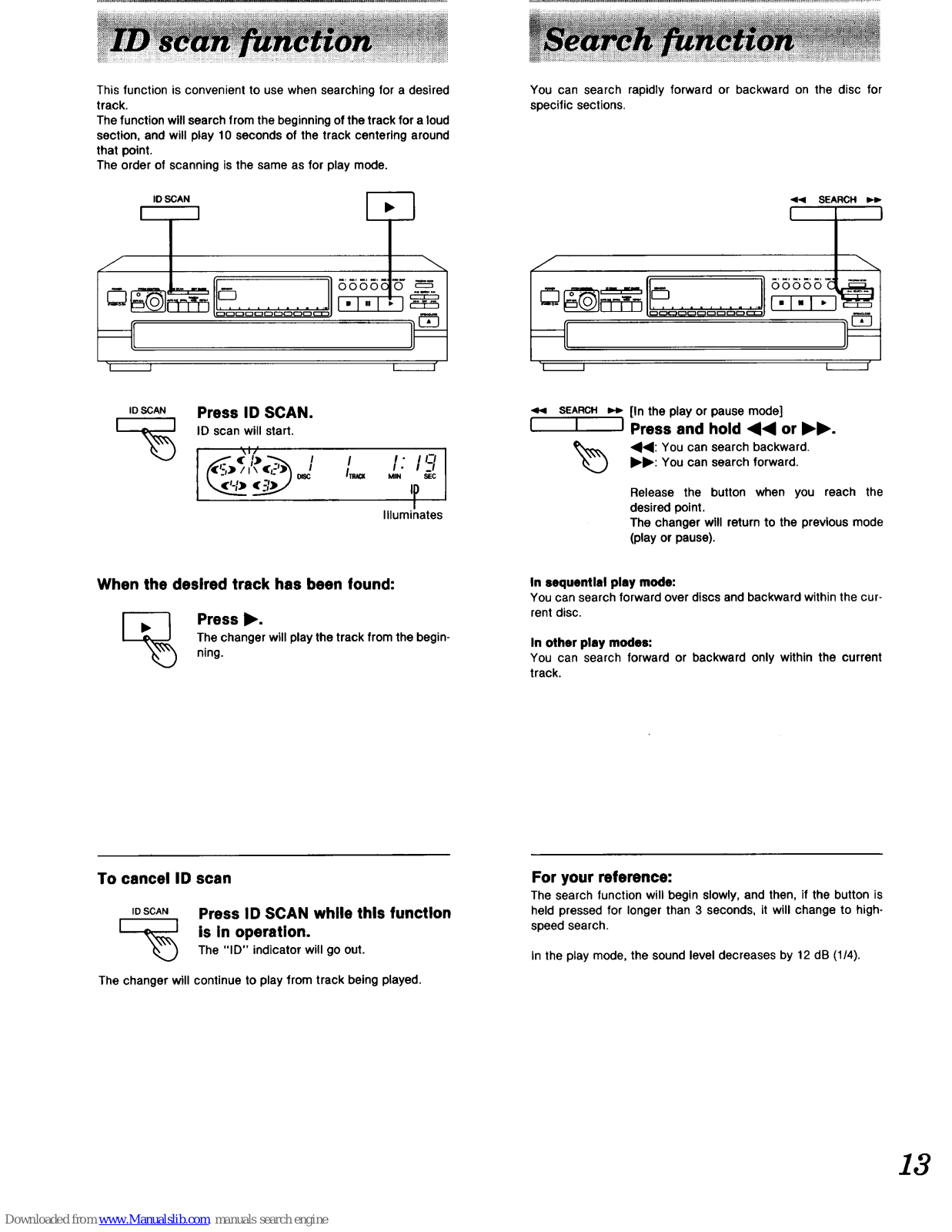

ID scan function ................................... 13

Search function ................................... 13

Skip function ....................................... 14

To skip discs .......................................... 14

To skip tracks ......................................... 14

Repeat function ................................... 15

Time mode selection ............................. 15

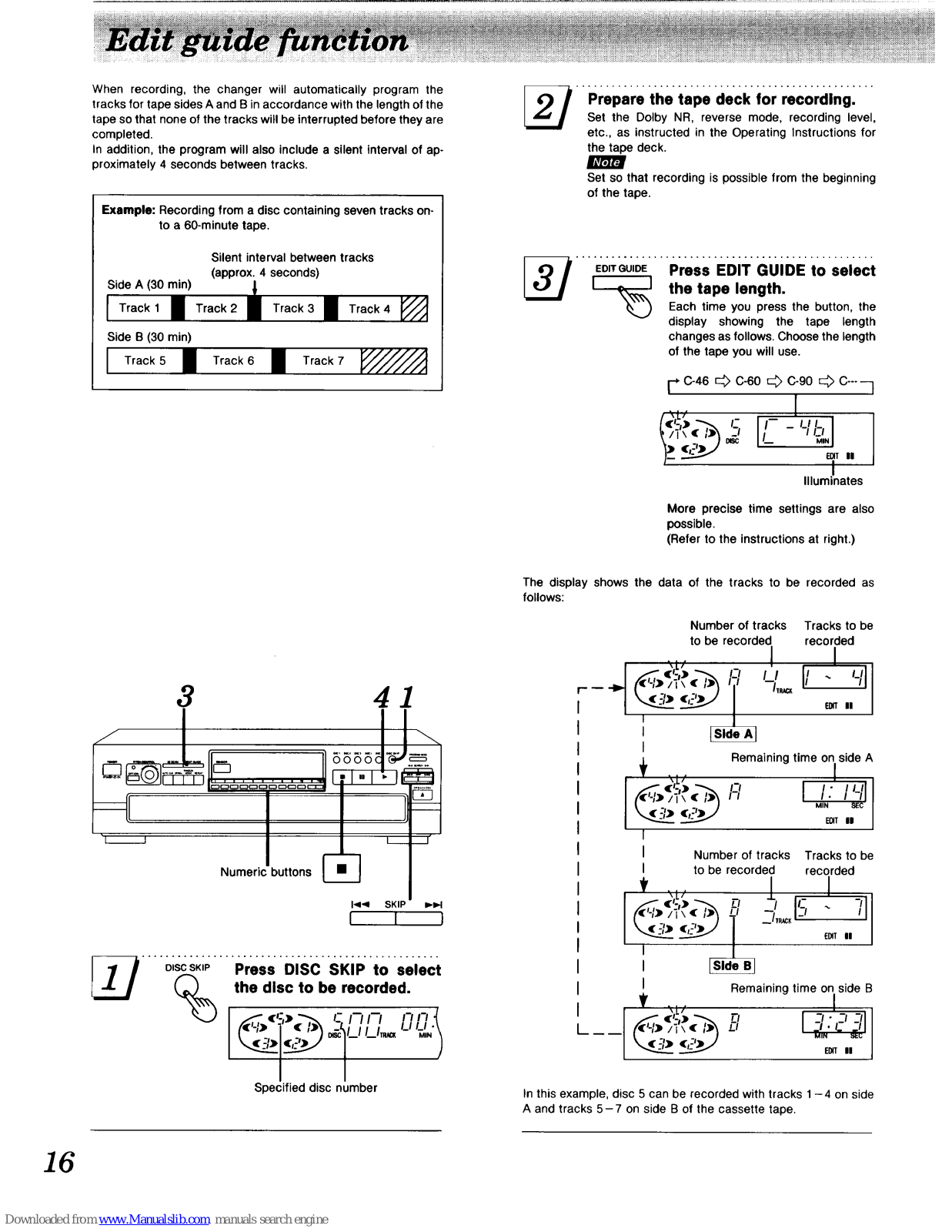

Edit guide function ............................... 16

Pitch control function _ ............ 17

Auto cue function _ ................. 18

Reference

Concerning compact discs ...................... 18

Troubleshooting guide ........................... 19

Product service .................................... 19

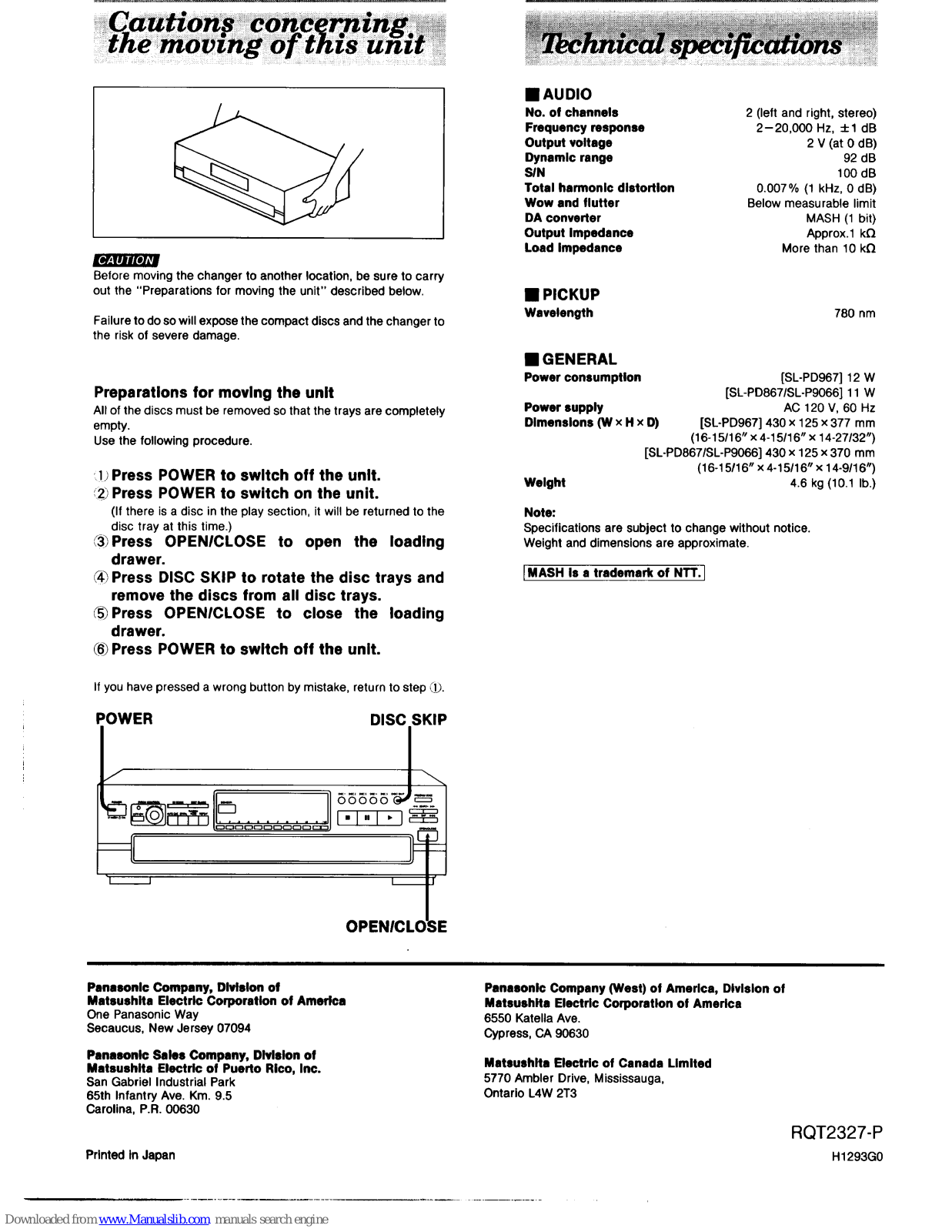

Cautions concerning the moving

of this unit ............................. Back cover

Technical speclflcations ............. Back cover

Page 3

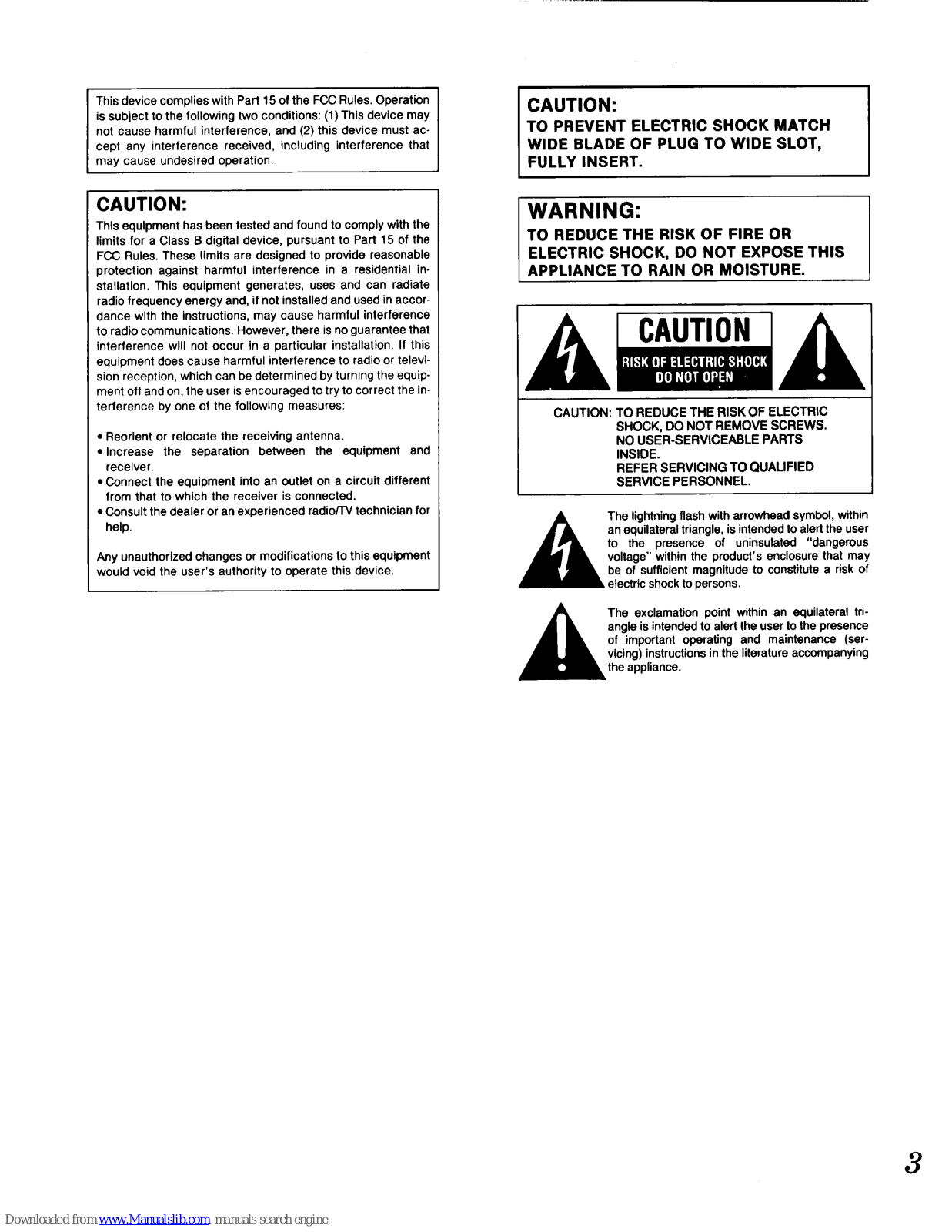

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must ac- cept any interference received, including interference that may cause undesired operation.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential in- stallation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined byturning the equip- ment off and on,the user is encouraged to try to correct the in- terference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Any unauthorized changes or modifications to this equipment

would void the user's authority to operate this device.

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE,

CAUTION

CAUTION: TO REDUCE THE RISKOF ELECTRIC

SHOCK, DO NOT REMOVESCREWS. NO USER-SERVICEABLEPARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral tri-

angle is intended to alert the user to the presence of important operating and maintenance (ser- vicing) instructions in the literature accompanying the appliance.

Page 4

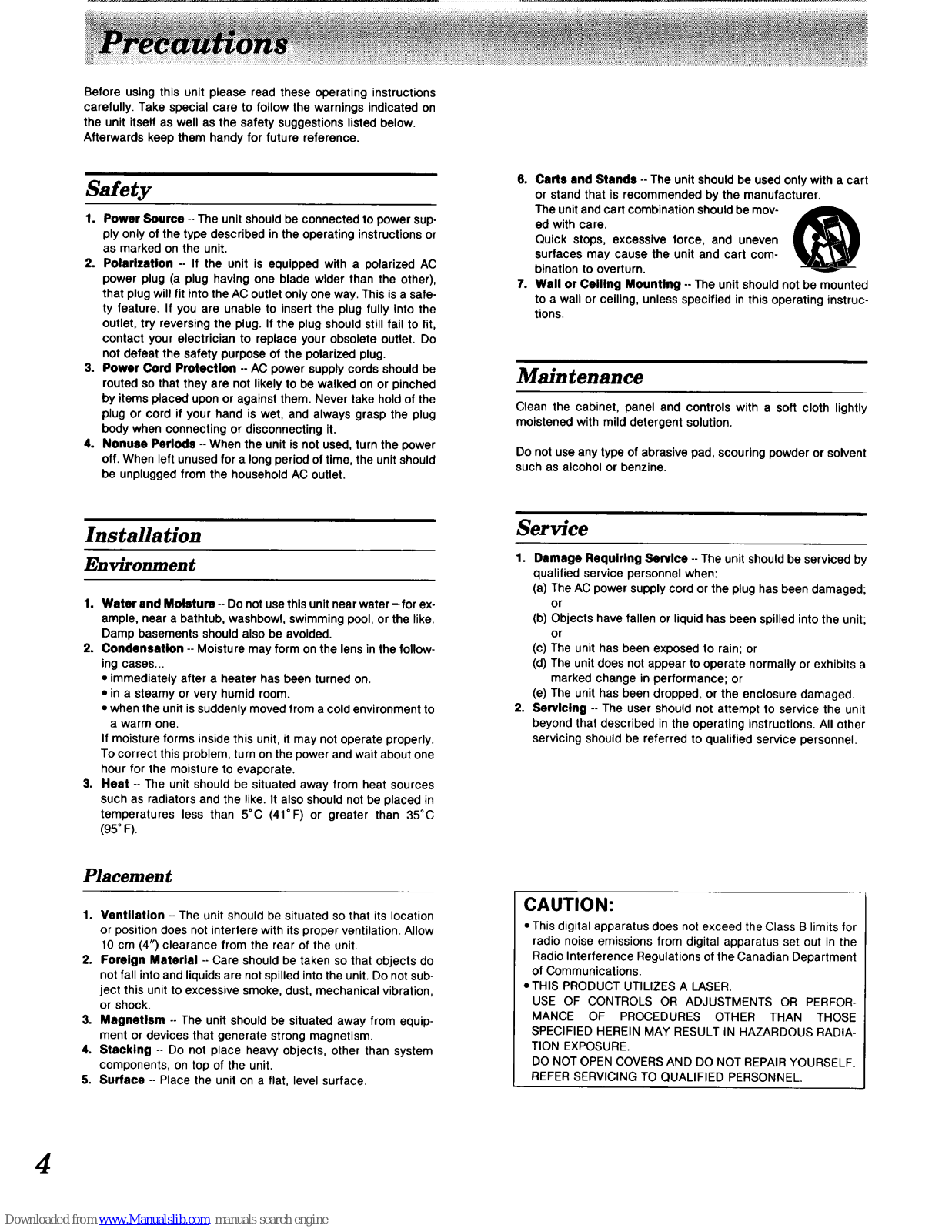

Before using this unit please read these operating instructions carefully. Take special care to follow the warnings indicated on the unit itself as well as the safety suggestions listed below. Afterwards keep them handy for future reference.

Power Source -- The unit should be connected to power sup-

ply only of the type described in the operating instructions or as marked on the unit.

2. Polarization -- If the unit is equipped with a polarized AC

power plug (a plug having one blade wider than the other), that plug will fit into the AC outlet only one way. This is a safe- ty feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

3. Power Cord Protection -- AC power supply cords should be routed so that they are not likely to be walked on or pinched

by items placed upon or against them. Never take hold of the plug or cord if your hand is wet, and always grasp the plug body when connecting or disconnecting it.

4. Nonuse Periods -- When the unit is not used, turn the power

off. When left unused for a long period of time, the unit should be unplugged from the household AC outlet.

Installation

Environment

1. Water and Moisture -- Do not use this unit near water-for ex-

ample, near a bathtub, washbowl, swimming pool, or the like. Damp basements should also be avoided.

2. Condensation -- Moisture may form onthe lens in the follow- ing cases...

• immediately after a heater has been turned on.

• in a steamy or very humid room.

• when the unit is suddenly moved from a cold environment to

a warm one.

If moisture forms inside this unit, it may not operate properly.

To correct this problem, turn on the power and wait about one

hour for the moisture to evaporate.

3. Heat -- The unit should be situated away from heat sources

such as radiators and the like. It also should not be placed in temperatures less than 5°C (41°F) or greater than 350C (95 °F).

Placement

1. Ventilation -- The unit should be situated so that its location

or position does not interfere with its proper ventilation. Allow

10 cm (4") clearance from the rear of the unit.

2. Foreign Material -- Care should be taken so that objects do

not fall into and liquids are not spilled into the unit. Do not sub- ject this unit to excessive smoke, dust, mechanical vibration, or shock.

3. Magnetism -- The unit should be situated away from equip- ment or devices that generate strong magnetism.

4. Stacktng -- Do not place heavy objects, other than system components, on top of the unit.

5. Surface -- Place the unit on a flat, level surface.

6, Carts and Stands -- The unit should be used only with a cart

or stand that is recommended by the manufacturer. The unit and cart combination should be mov-

ed with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart com-

bination to overturn.

7. Wall or Ceiling Mounting -- The unit should not be mounted

to a wall or ceiling, unless specified in this operating instruc- tions.

Maintenance

Clean the cabinet, panel and controls with a soft cloth lightly

moistened with mild detergent solution.

Do not use any type of abrasive pad, scouring powder or solvent

such as alcohol or benzine.

Service

Damage Requiring Service --The unit should be serviced by

qualified service personnel when: (a) The AC power supply cord or the plug has been damaged;

(b) Objects have fallen or liquid has been spilled into the unit;

or (c) The unit has been exposed to rain; or (d) The unit does not appear to operate normally or exhibits a

marked change in performance; or (e) The unit has been dropped, or the enclosure damaged. Servicing -- The user should not attempt to service the unit beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

CAUTION:

• This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFOR- MANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIA- TION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

Page 5

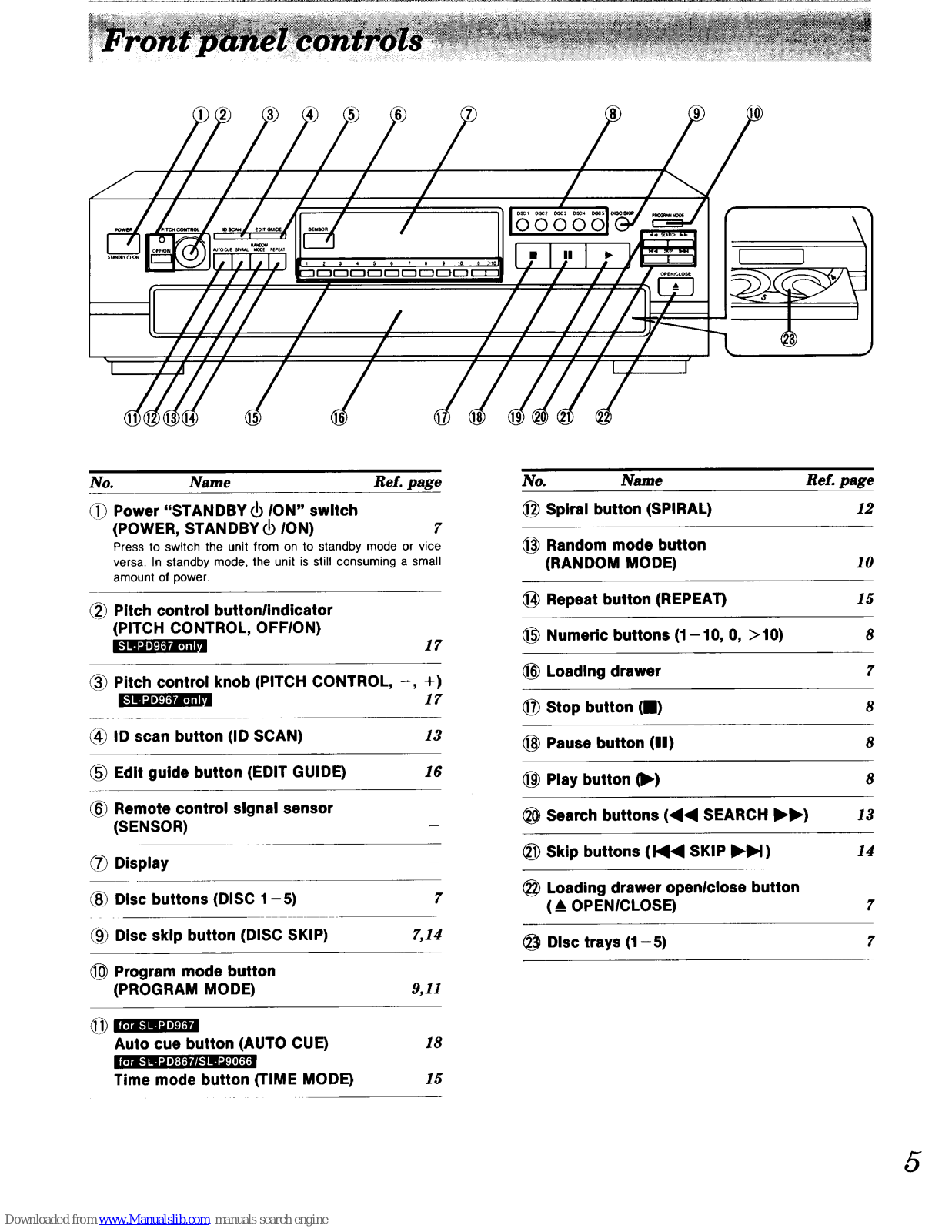

iiii

/ ,

' I/ ' "

No. Name Ref. page

Power "STANDBY _ ION" switch

(POWER, STANDBy_I ION) 7

Press to switch the unit from on to standby mode or vice versa In standby mode, the unit is still consuming a small

amount of power.

Pitch control buttonlindicator

(PITCH CONTROL, OFFION)

b'_l_J_l_ _';I"/_A

Pitch control knob (PITCH CONTROL, -, +)

_.'lIB"Jm]_I."YjI_1_[,_

_4_ID scan button (ID SCAN) 13

_) Edit guide button (EDIT GUIDE) 16

_) Remote control signal sensor

(SENSOR)

Display

_8_ Disc buttons (DISC 1 -5) 7

_9) Disc skip button (DISC SKIP) 7,14

_) Program mode button

(PROGRAM MODE) 9,11

Auto cue button (AUTO CUE)

t;_b'l[]'J I]:I.l'ib.'l[]:l_IIl."l

Time mode button (TIME MODE)

No. Name Re[. page

_) Spiral button (SPIRAL) 12

_) Random mode button

(RANDOM MODE) I0

Repeat button (REPEAT) 15

_) Numeric buttons (1-10, 0, >10) 8

_) Loading drawer 7

Stop button (n) 8

Pause button (11) 8

_) Play button (1_) 8

Search buttons (<1_1 SEARCH I_1_) 13

(_) Skip buttons (1414 SKIP I_b,I) 14

_) Loading drawer openlclose button

( & OPENICLOSE) 7

Disc trays (1- 5) 7

Page 6

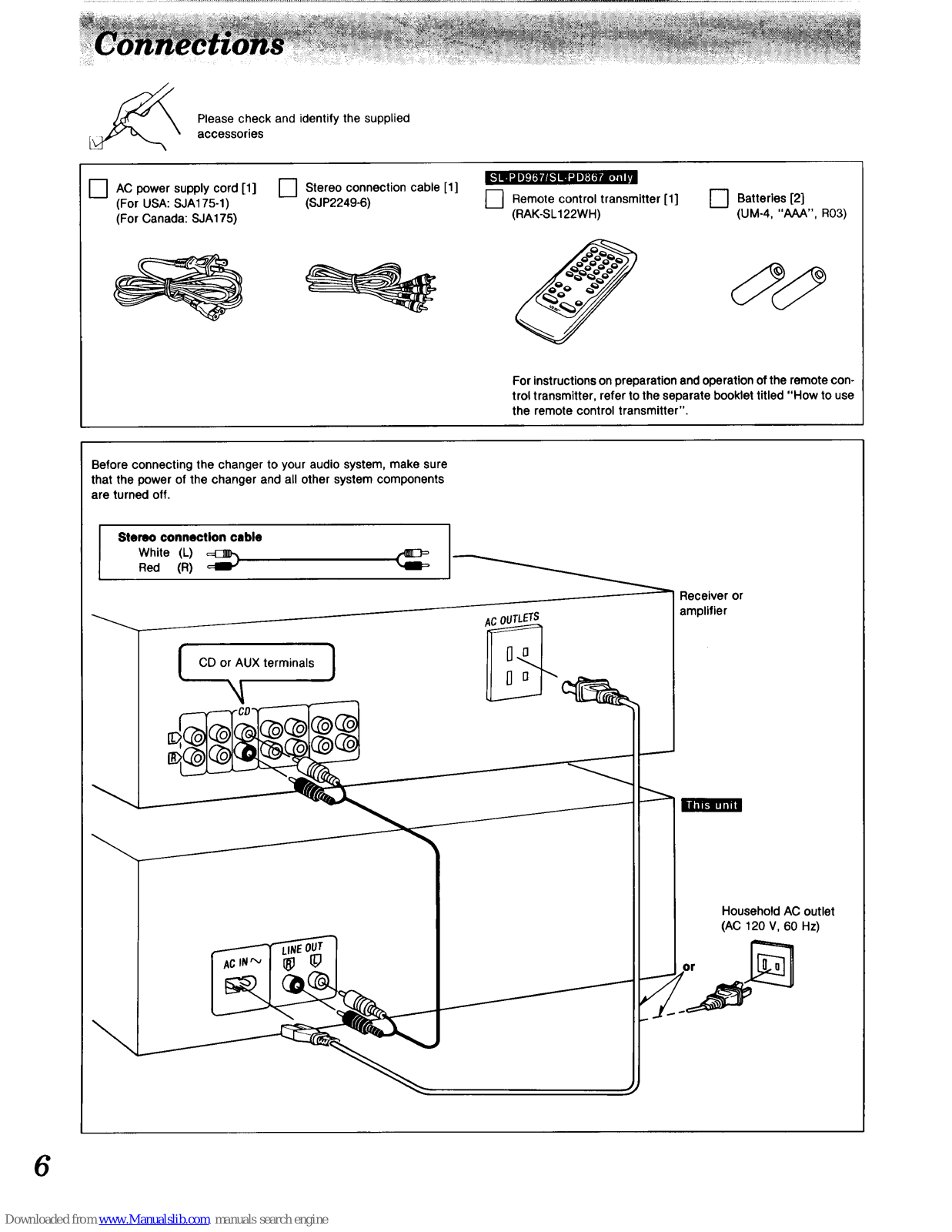

Please check and identify the supplied accessories

b • • :=_mM|]t.ZWI_*IBM|] [W4_ti'tI

D AC power supply [1]

cord (For USA: SJA175-1) (For Canada: SJA175)

[_] Stereo connection cable

[1]

(SJP2249-6)

D Remote control transmitter

[1]

(RAK-SL122WH)

D Batteries [2]

(UM-4, "AAA", R03)

Forinstructionsonpreparationandoperationofthe remotecon-

troltransmitter,refertothe separatebooklettitled"How touse the remotecontroltransmitter".

Before connecting the changer to your audio system, make sure

that the power of the changer and all other system components are turned off.

I Stereo connection cable

White (L) _ (_

Red (R)

CD or AUX terminals

ACOU

Receiver or amplifier

Household AC outlet (AC 120 V, 60 Hz)

Page 7

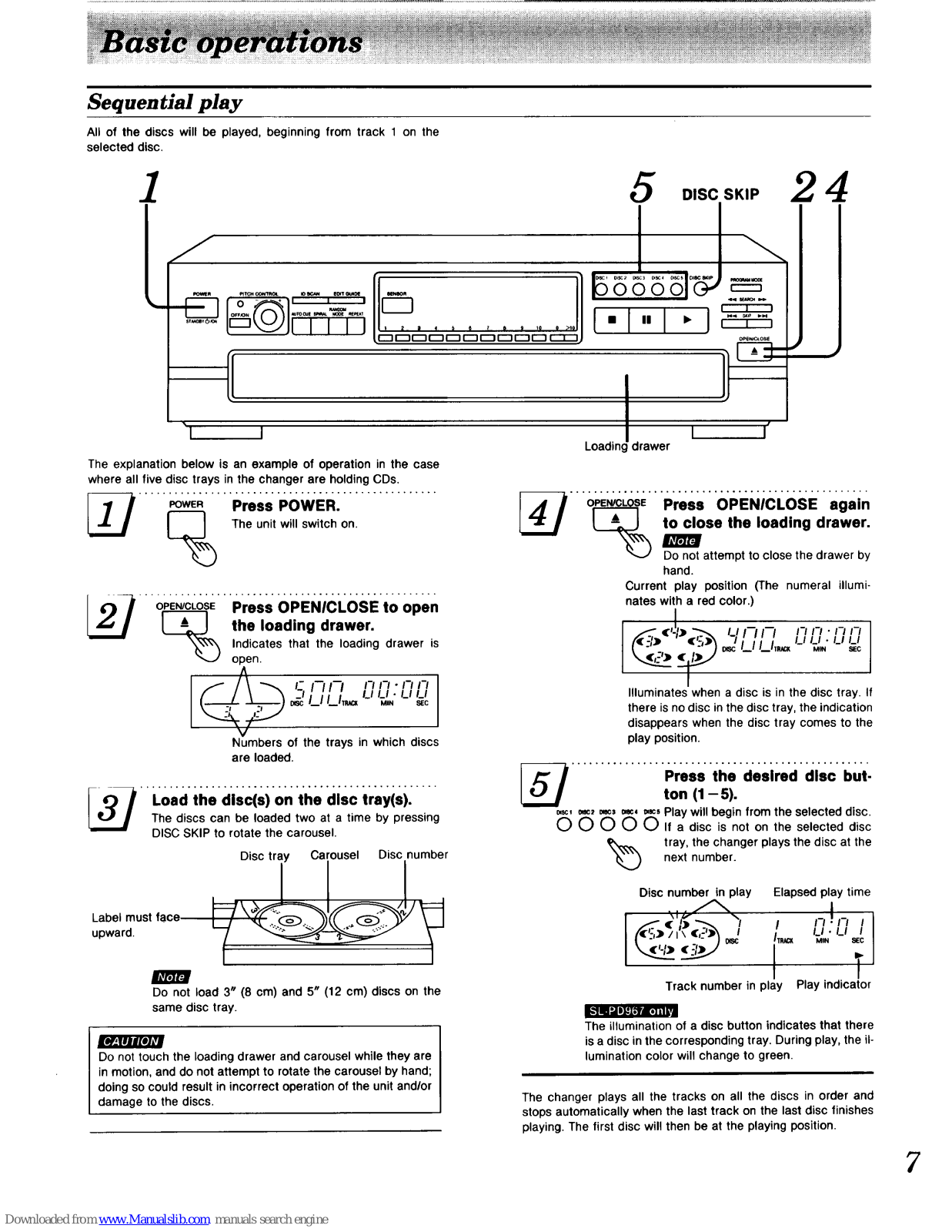

Sequential play

All of the discs will be played, beginning from track 1 on the selected disc.

_1 ° _1' '-- '

[5.........51°

I-. ooo '_

[--i

i.l,.i .J

t----1

r---T-3

"1 I

The explanation below is an example of operation in the case where all five disc trays in the changer are holding CDs.

....._wE......P;;S,,P6_iERI................

The unit will switch on.

L_J the loading drawer

Indicates that the loading drawer is open.

__ I_17 ,-,,-,"'-,'-'

I_1 I_IN" I_1 I_l

I_1L l.,,a SE_

Numbers of the trays in which discs are loaded.

_.] ,'O;;d"i., dis,,iSi'O.'t'.;disc"tr.yiSi:....The discs can be loaded two at a time by pressing

DISC SKIP to rotate the carousel.

Label must face

upward.

Disc tray Carousel Disc number

Do not load 3" (8 cm) and 5" (12 cm) discs on the

same disc tray.

_'NE "JD][.'[."_I_j

b_Ii_MslA v,

Do not touch the loading drawer and carousel while they are

in motion, and do not attempt to rotate the carousel by hand; doing so could result in incorrect operation of the unit andlor damage to the discs.

I I'

Loadinc drawer

"" 0"_;' ' Press'" OI_ENiCLosE ""again

to close the loading drawer.

Do not attempt to ClOSethe drawer by

hand. Current play position (The numeral illumi- nates with a red color.)

_sc/__1/__IT,_ ._. SEC

Illuminates when a disc is in the disc tray. If there is no disc inthe disc tray, the indication disappears when the disc tray comes to the play position.

ton (1- 5).

=_c, _c_ _c_ _ ==s Play will begin from the selected disc. 0 0 0 0 0 If a disc is not on the selected disc

tray, the changer plays the disc at the

next number.

Disc number in play Elapsed play time

.,,.F_ 1/71

i ,(_..."_,__.,-_ ', ,-,.

. (_.) -_ I /

/I \ I I_1

Track number in play Play indicator

The illumination of a disc button indicates that there

isa disc in the corresponding tray, During play, the il- lumination color will change to green.

The changer plays all the tracks on all the discs in order and stops automatically when the last track on the last disc finishes playing. The first disc will then be at the playing position.

Page 8

[_P=I[UKs_

OPENICLOSE

I'_I (_I DISC SKIP

"I............._ I I'

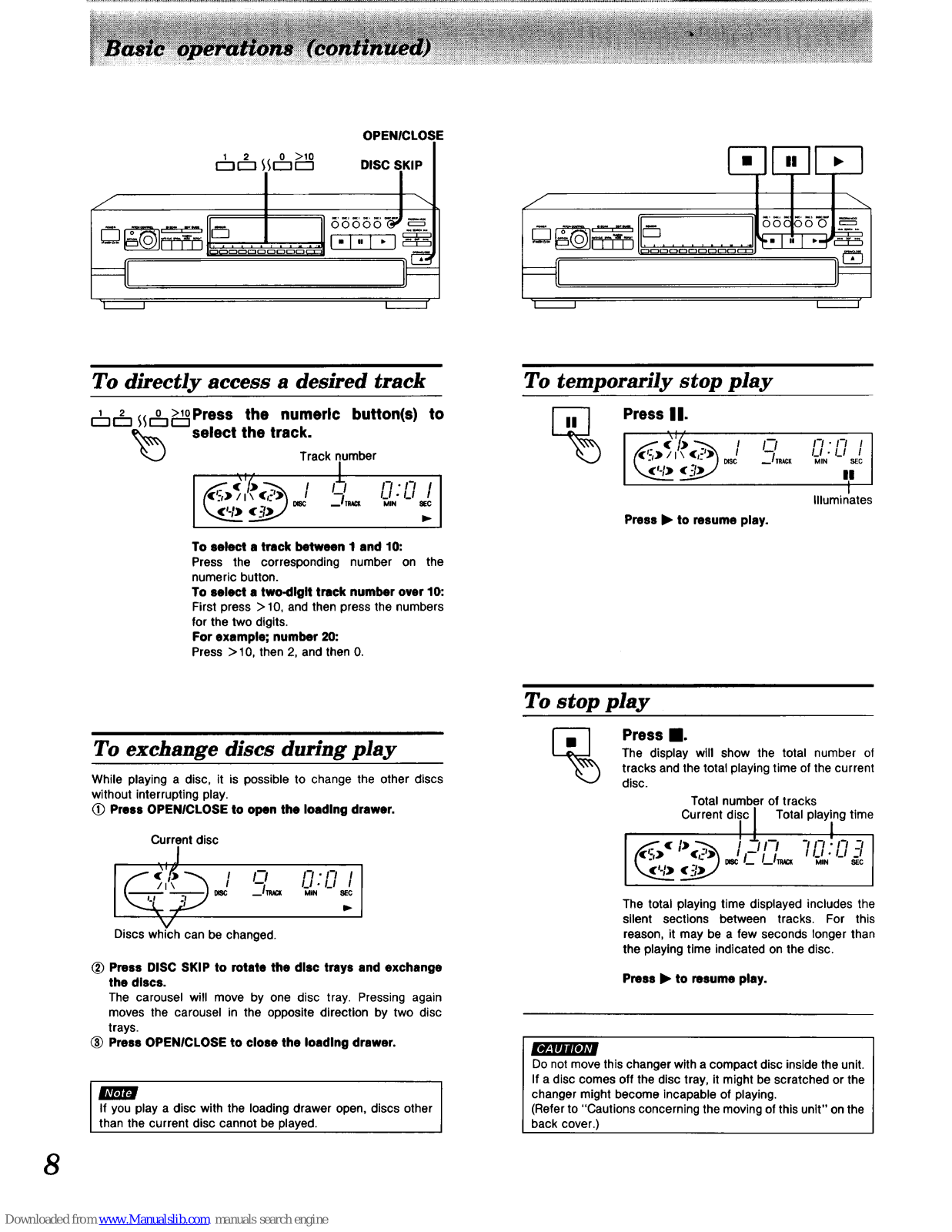

To directly access a desired track

1 2 _._Press the numeric button(s) to

E_r-_

select the track.

Track number

]

I' / lJ-/ m • m i

-- I_I • I_I I

_ oec __IT,xX MIN =

To select a track between 1 and 10: Press the corresponding number on the

numeric button. To select a two-digit track number over 10: First press > 10, and then press the numbers for the two digits. For example; number 20: Press > 10, then 2, and then 0.

To exchange discs during play

While playing a disc, it is possible to change the other discs without interrupting play.

(_ Press OPENICLOSE to open the loading drawer.

Current disc

,,j.

F"_!,;,'_'h' '-'

, __ =so _1_=

Discs which can be changed.

I-I • I-I I

L/• Lt /

MIN 8EC

(_ Press DISC SKIP to rotate the disc trays and exchange

the discs. The carousel will move by one disc tray. Pressing again

moves the carousel in the opposite direction by two disc trays.

Press OPENICLOSE to close the loading drawer.

If you play a disc with the loading drawer open, discs other

than the current disc cannot be played.

......1

I I ii

To temporarily stop play

Press II.

. (,) . I I-I m.m i

/ I \ ¢_sc MIN SEC

_ ..__IZRACK I_l. I_l I

- I.

illuminates

Press • to resume play.

To stop play

Press I.

The display will show the total number of tracks and the total playing time of the current disc.

Total number of tracks

Current diic / Total playlng time

I i (/.__ I1--1 I II_l'l_l-I

((_:_.1( ') I --I I--I -I I-I I-I -I

I" DISC __ I TRACK MIN 6EC

The total playing time displayed includes the

silent sections between tracks. For this reason, it may be a few seconds longer than

the playing time indicated on the disc.

Press • to resume play.

Do not move this changer with a compact disc inside the unit. If a disc comes off the disc tray, it might be scratched or the

changer might become incapable of playing. (Refer to "Cautions concerning the moving of this unit" on the back cover.)

Page 9

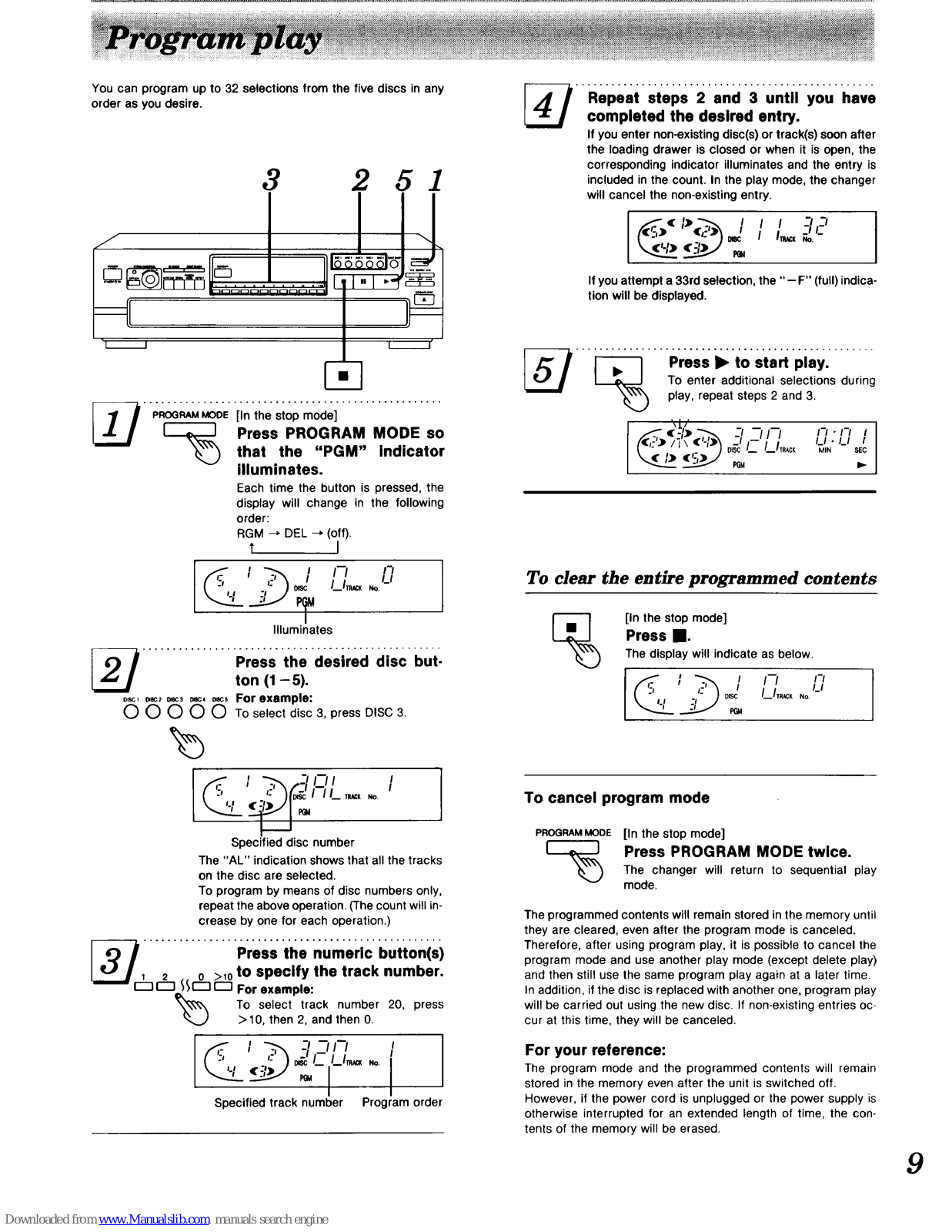

You can program up to 32 selections from the five discs in any order as you desire.

3 251

J I

Ivl,,I .'t'

L_______J

I (

"';_;_;.M'_.';'[i,_'t.e'sio_,',i,o_,_i.................

[_ Press PROGRAM MODE

_'_ that the "PGM" Indicator

illuminates.

Each time the button is pressed, the display will change in the following order: RGM --, DEL --_(off).

................Pressth; aesiiedd_sCb,t:

ton (1 -5).

o,_, _=_ _c3 _c, _, For example: C) C) C) C) C) To select disc 3, press DISC 3.

': )(_T_I II ,,_K .o. I

__-

Specified disc number

The "AL" indication shows that all the tracks on the disc are selected. To program by means of disc numbers only, repeat the above operation. (The count will in-

crease by one for each operation.)

I_ ..............._'r,,_'t";n"m*rici;utto"(si

1 2 0 >10to specify the track number.

r--II_'l _1--I1---1 For example:

To select track number 20, press

> 10, then 2, and then O.

I ,-, / I

_z_l-- I I_u= No.

°-I- ]

Specified track number Program order

_ OP;,istep,2 a,d a0,t, yo. ,,re

completed the desired entry.

If you enter non-existing disc(s) or track(s) soon after the loading drawer is closed or when it is open, the corresponding indicator illuminates and the entry is included in the count. In the play mode, the changer will cancel the non-existing entry.

If you attempt a 33rd selection, the "-F" (full) indica-

tion will be displayed.

..... .......

To enter additional selections during play, repeat steps 2 and 3.

_, '(__" _,:,_, I_,,.I_,,,

To clear the entire programmed contents

{_ [In the stop mode]

Press I1.

The display will indicate as below.

l / /-_ n

D,SC /__1,,_ No.U

F6_

To cancel program mode

PROGRAM MODE

[In the stop mode]

Press PROGRAM MODE twice.

The changer will return to sequential play mode.

The programmed contents will remain stored in the memory until

they are cleared, even after the program mode is canceled. Therefore, after using program play, it is possible to cancel the program mode and use another play mode (except delete play) and then still use the same program play again at a later time.

In addition, if the disc is replaced with another one, program play will be carried out using the new disc. If non-existing entries oc- cur at this time, they will be canceled.

For your reference:

The program mode and the programmed contents will remain stored in the memory even after the unit is switched off.

However, if the power cord is unplugged or the power supply is otherwise interrupted for an extended tength of time, the con- tents of the memory will be erased.

Page 10

Using the remote control

CLEAR RECALL

To confirm the programmed contents

RECALL

Press RECALL.

Each time you press RECALL, the display shows the programmed disc and track number in the sequence you have entered.

DIS'C1-- }' ITR_K No.

Programmed Programmed track order

To clear a single item of the programmed

contents

CLEAR

Press CLEAR.

Each time you press CLEAR, you will cancel last entry in the order you have entered.

To clear an entry in the middle of the program sequence, press RECALL repeatedly until the display shows the selection to be cleared, and then press CLEAR.

All of the tracks will be played one time each in random order.

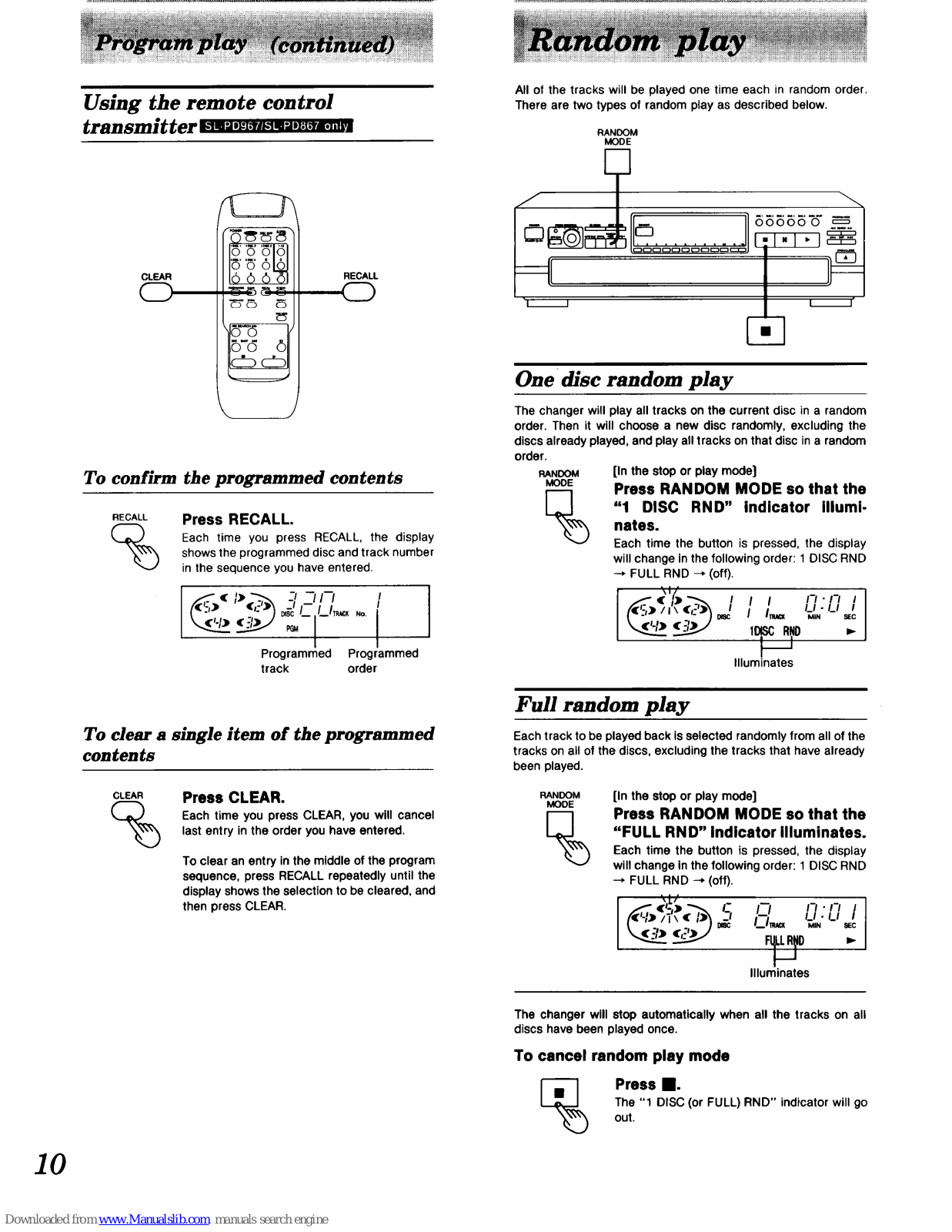

There are two types of random play as described below.

RANDOM

MODE

L_______I

-....

oooooo c___

I I"

One disc random play

The changer will play all tracks on the current disc in a random order. Then it will choose a new disc randomly, excluding the discs already played, and play all tracks on that disc in a random order.

RANDOM

MODE

[In the stop or play mode]

Press RANDOM MODE so that the "1 DISC RND" indicator illumi- nates.

Each time the button is pressed, the display

will change in the following order: 1 DISC RND

--, FULL RND --* (off).

I I

(_) . / I I I-t.l-I I

/'\ o_ I I,.,= I;,_-u=_

_ 1DpC RND _"

r--

Illuminates

Full random play

Each track to be played back is selected randomly from all of the tracks on all of the discs, excluding the tracks that have already been played.

RANDOM

MODE

[In the stop or play mode]

Press RANDOM MODE so that the

"FULL RND" Indicator illuminates.

Each time the button is pressed, the display will change in the following order: 1 DISC RND

--_ FULL RND -_ (off).

,--, ,-,.,-,,

_ FUILLRID *

Illuminates

The changer will stop automatically when al! the tracks on all discs have been played once.

To cancel random play mode

Press II.

The "1 DISC (or FULL) RND" indicator will go out.

Page 11

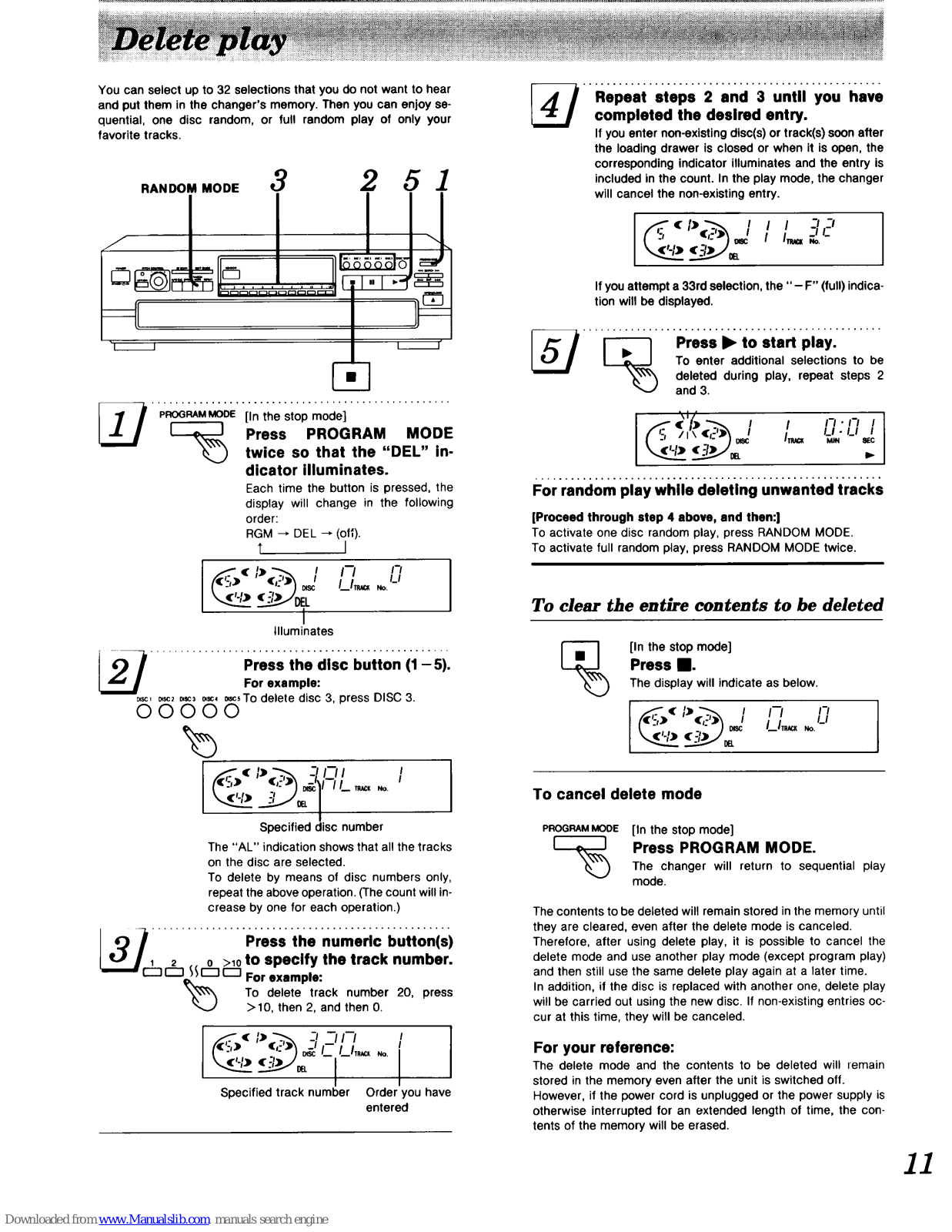

Youcanselectupto32selectionsthatyoudonotwanttohear andputtheminthechanger'smemory. Then you can enjoy se-

quential, one disc random, or full random play of only your favorite tracks.

RANDOM MODE

3 251

r--n

i 1 I I

PROGRAMIMODE[In the stop mode]

Press PROGRAM MODE twice so that the "DEL" in-

dicator illuminates.

Each time the button is pressed, the display will change in the following order: RGM --_ DEL --, (off).

t J

(__._),r;)<,?_ _ i-/ i-i

illuminates

For example:

_sc, _,sc2_sc3_, _To delete disc 3, press DISC 3.

00000

*/:')_ _'IF/ L ,,,..o.

,_J:J_:-',__LJ_I

Specified disc number

The "AL" indication shows that all the tracks

on the disc are selected. To delete by means of disc numbers only,

repeat the above operation. (The count will in-

crease by one for each operation.)

_l__ ................ l;ress the n'meric"b":"o"is)

+ 2 o >10to specify the track number.

r--'l _(_r_lr'--I For example:

To delete track number 20, press

> 10, then 2, and then 0.

Specified track number Order you have

entered

.;P+',;".;or;,=:".,d+uni""yo,""h've

completed the desired entry.

I _ I I -I-I

If you attempt a 33rd selection, the" - F" (full) indica- tion will be displayed.

.... .... .......

To enter additional selections to be

_,_'"_ deleted during play, repeat steps 2

and 3.

F-_, I ' '-'"-'

I_,cx I_1• I_l /

- " _ MIN 8EC

For random play while deleting unwanted tracks

[Proceed through step 4 above, end then:] To activate one disc random play, press RANDOM MODE. To activate full random play, press RANDOM MODE twice.

To clear the entire contents to be deleted

[_ [In the stop mode]

Press II.

The display will indicate as below.

,r/)..,-_) / m ,-,I_1

To cancel delete mode

PROGRAM MODE

[In the stop mode]

Press PROGRAM MODE.

The changer will return to sequential play

mode.

The contents to be deleted will remain stored in the memory until they are cleared, even after the delete mode is canceled.

Therefore, after using delete play, it is possible to cancel the delete mode and use another play mode (except program play) and then still use the same delete play again at a later time. In addition, if the disc is replaced with another one, delete play will be carried out using the new disc. If non-existing entries oc- cur at this time, they will be canceled.

For your reference:

The delete mode and the contents to be deleted will remain stored in the memory even after the unit is switched off. However, if the power cord is unplugged or the power supply is otherwise interrupted for an extended length of time, the con- tents of the memory will be erased.

Page 12

Using the remote control

transmitter L_- =,_.7,J.I =,_,,._-...,i

CLEAR

<22

o .oo.171

o o o1__ 5 6 d_61

t'G 5

RECALL

To con£irm the selections to be deleted

RECALL

Press RECALL.

Each time you press RECALL, the display

shows the selected disc and track number in the sequence you have entered.

I f

":'_) _c I I I1_=_No.

_ I),,:,'_)--/2117

Track to be deleted Order you have

entered

To clear a selection to be deleted

CLEAR

Press CLEAR.

Each time you press CLEAR, you will cancel last entry in the order you have entered.

To clear a selectionin the middle of the se- quence, press RECALLrepeatedly until the displayshowsthe selectiontobe cleared, and then press CLEAR.

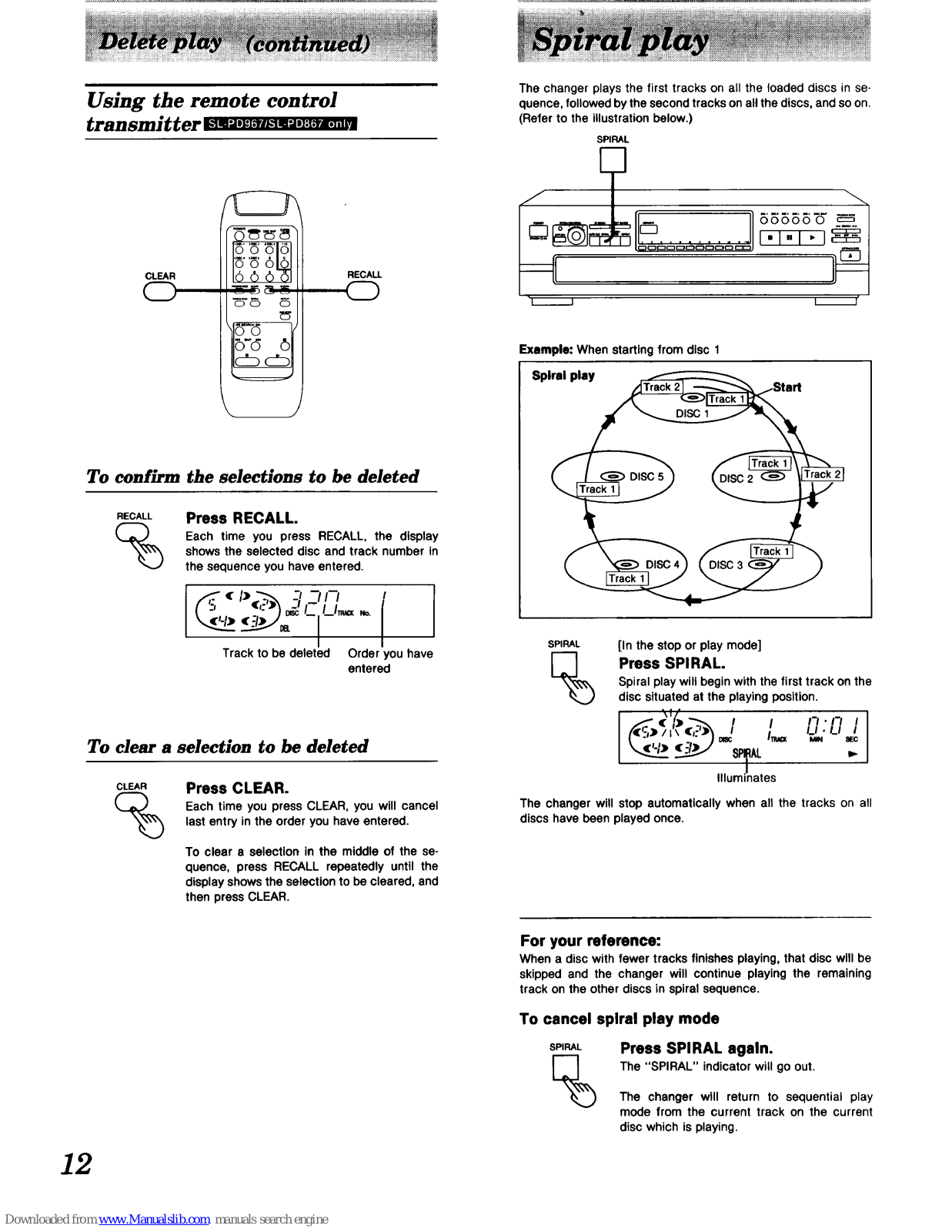

The changer plays the first tracks on all the loaded discs in se-

quence, followed by the second tracks on all the discs, and so on. (Refer to the illustration below.)

SPIRAL

"L....___J L............_'

Example: When starting from disc 1

Spiral play

SPIRAL

[In the stop or play mode]

Press SPIRAL.

Spiral play will begin with the first track on the

disc situated at the playing position.

. , / I 1_-/:I_-/I

D_: #fP_J( MIN _EC

Illuminates

The changer will stop automatically when all the tracks on all discs have been played once.

For your reference:

When a disc with fewer tracks finishes playing, that disc will be skipped and the changer will continue playing the remaining track on the other discs in spiral sequence.

To cancel spiral play mode

SPIRAL

Press SPIRAL again.

The "SPIRAL" indicator will go out.

The changer will return to sequential play mode from the current track on the current

disc which is playing.

Page 13

This function is convenient to use when searching for a desired track.

The function will search from the beginning of the track for a loud section, and will play 10 seconds of the track centering around that point. The order of scanning is the same as for play mode.

lOgAN _

....... I'1"1

r_r

You can search rapidly forward or backward on the disc for specific sections.

I I

•<_1 SEARCH I_D-

I I"

,oscA. Press ID SCAN.

[_ ID scan will start.

I I

f (1).._,. l: i,-,

, ,, ,,:,)? I IIm_ I -,

" OISC MIIN SEC

Illuminates

<_1 SEARCH _ [In the play or pause mode]

I I I Press and hold <1<1 or I_1_.

_1_1: You can search backward.I_1_: You can search forward.

Release the button when you reach the desired point. The changer will return to the previous mode (play or pause).

When the desired track has been found:

[_ Press I_.

The changer will play the track from the begin- ning.

In sequential play mode: You can search forward over discs and backward within the cur-

rent disc.

In other play modes:

You can search forward or backward only within the current track.

To cancel ID scan

,OSCA_ Press ID SCAN while this function

L_ is in operation.

The "ID" indicator will go out.

The changer will continue to play from track being played.

For your reference:

The search function will begin slowly, and then, if the button is

held pressed for longer than 3 seconds, it will change to high- speed search.

In the play mode, the sound level decreases by 12 dB (1/4).

Page 14

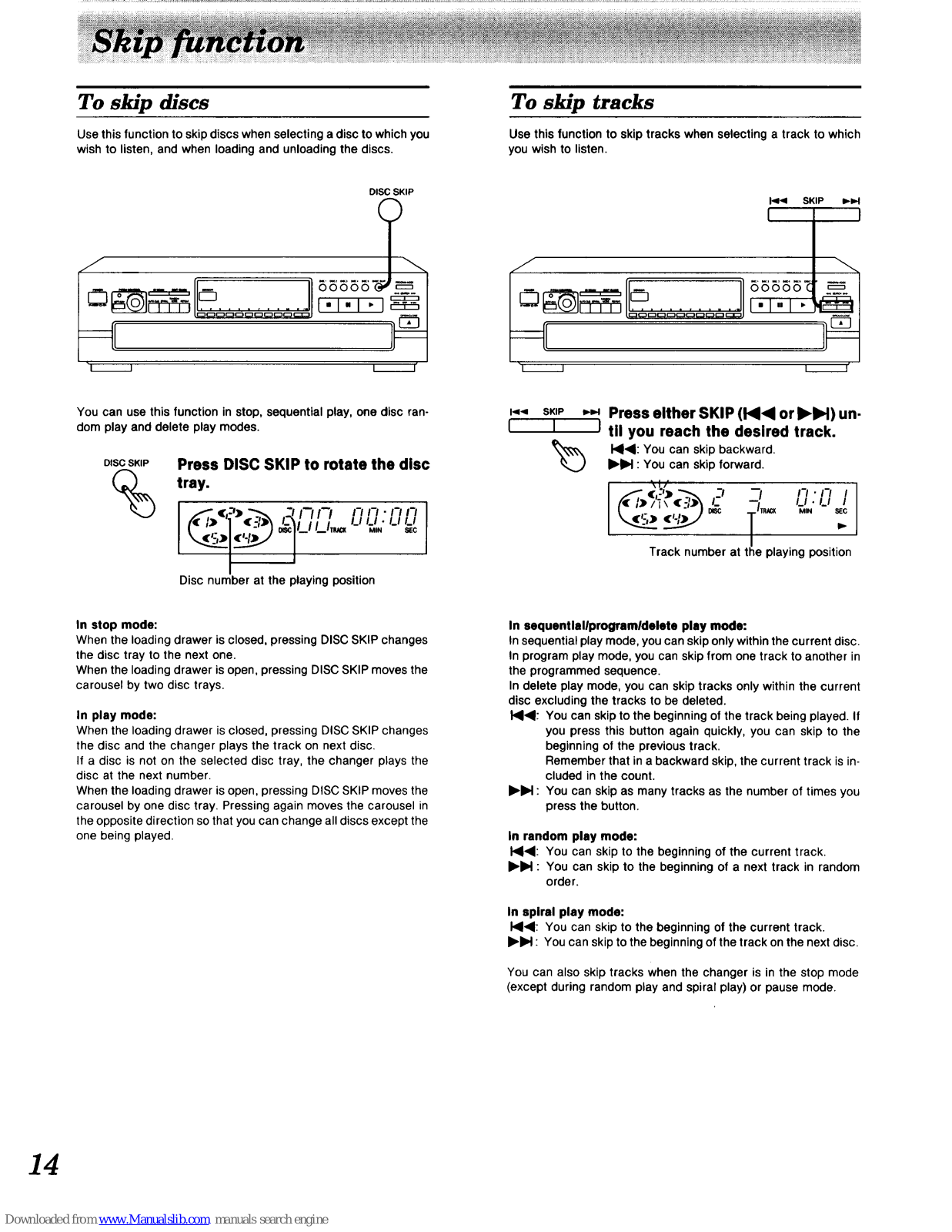

To skip discs To skip tracks

Use this function to skip discs when selecting a disc to which you

wish to listen, and when loading and unloading the discs.

Use this function to skip tracks when selecting a track to which you wish to listen.

DISC SKIP

'1 I L________f

191<1 SKIP I_1_1

You can use this function in stop, sequential play, one disc ran-

dom play and delete play modes.

DISC SKIP

Press DISC SKIP to rotate the disc tray.

I _(_,)€,,) _ .-_I_ FI _-,n- _-__-_

I_1 I_A_N"I_l I_l

,(,:.?) u,,., =c

Disc number at the playing position

,.,., SKIP "" Press either SKiP (141<1or I_IH) un.

I I I til you reach the desired track.

141<1:You can skip backward.

I_1_ : You can skip forward.

i \1/

_,.(,:').-,-_. -' -I n.n

SEC

Track number at the playing position

In stop mode: When the loading drawer is closed, pressing DISC SKIP changes the disc tray to the next one. When the loading drawer is open, pressing DISC SKIP moves the carousel by two disc trays.

In play mode: When the loading drawer is closed, pressing DISC SKIP changes the disc and the changer plays the track on next disc. If a disc is not on the selected disc tray, the changer plays the

disc at the next number. When the loading drawer is open, pressing DISC SKIP moves the carousel by one disc tray. Pressing again moves the carousel in the opposite direction so that you can change all discs except the one being played.

In sequentlallprogramldelete play mode: In sequential play mode, you can skip only within the current disc. In program play mode, you can skip from one track to another in the programmed sequence. In delete play mode, you can skip tracks only within the current disc excluding the tracks to be deleted.

I_1_1: You can skip to the beginning of the track being played. If

you press this button again quickly, you can skip to the beginning of the previous track. Remember that in a backward skip, the current track is in-

cluded in the count.

I_DH : You can skip as many tracks as the number of times you

press the button.

In random play mode:

I_l'q: You can skip to the beginning of the current track.

I_)d : You can skip to the beginning of a next track in random

order.

In spiral play mode:

I<lql: You can skip to the beginning of the current track.

I_)d : You can skip to the beginning of the track on the next disc.

You can also skip tracks when the changer is in the stop mode (except during random play and spiral play) or pause mode.

Page 15

Play will continue endlessly in accordance with the specific play The various time information of the current disc can be mode selected, displayed.

i i

REPEAT

I I

SL-PD967: Only available from the remote control. SL-PgO66:Onlyavailablefrom the main unit.

F_ ,JIP

5 '5"5'6

6' 'B'616 6_6_

_-d 6

,c_ c2_

TIME MODE

I i

TIME MODE

REPEAT [Beforeorduringplay]

Press REPEAT.

((_:,)( ])(_ I I'-I I'-I e'-J,t-l t-I "l-t l-t. It tl # |1_11_1, I_11_1

Illuminates

In sequential play mode:

All tracks ofall discs will be played repeatedly.

In program play mode:

The changer plays only the programmed selections in the pro- grammed sequence repeatedly.

In delete play mode:

The changer plays the discs and tracks excluding the selections

to be deleted repeatedly.

In random play mode: When the changer has played all the tracks on all the loaded discs, it will select a new random sequence and play continuous- ly. The sequence differs each time.

In spiral play mode: The changer plays all tracks of all discs repeatedly in the se- quence of spiral play.

TIME MODE

[In the play or pause mode]

Press TIME MODE.

The information will change (as described below) each time you press the button.

I- --'_(_ Track number and elapsed play time of the

current track

I - ' '-"-'

I 7 ,

-- I_1

_. =so __I_u,CK MIN 8ECI_

(_) Total remaining time on the disc

- (," - I -SI_I" II:_,

/ I \ DISC MIN SEC

- I_

(_ Track number and remaining time of the

current track

, ( 0 "a -I -

(_:,)/,\(F.a_ j

u 2

L -- _ (_) Total elapsed play time on the disc

_, .'lJ /I \ I." O_C MIN 8EC

To cancel repeat mode

REPEAT

Press REPEAT again.

The " _ " indicator will go out.

In ell play modes: When track number 21 or greater is playing, display (_ shows

In programldeletelrendomlaplrel mode: The displayed information will alternate between displays (_ and _) each time the button is pressed.

During operation of the edit guide function: The remaining play time on side A or side B will be shown in

display (_), and the elapsed play time for side A or side B will be

shown in display (_.

When you stop playing and then start play again, the display will

return to display (_.

Page 16

When recording, the changer will automatically program the tracks for tape sides A and B in accordance with the length of the tape so that none of the tracks will be interrupted before they are completed. In addition, the program will also include a silent interval of ap- proximately 4 seconds between tracks.

j r,,ra_!

Example: Recordingfrom a disc containingseventracks on-

to a 60-minutetape.

Silent interval between tracks (approx. 4 seconds)

SideA(30min) i

I Track11 Track2 Track3 I Track4

Side B (30 min)

I Track5 I Track6 I Track7 _/////,_

[_ PrePare the taPe deck ioi reeordingl

Set the Dolby NR, reverse mode, recording level, etc., as instructed in the Operating Instructions for the tape deck.

Set so that recording is possible from the beginning of the tape.

EDITGUIDEPress EDIT GUIDE to select

I _X._.I the tape length.

Each time you press the button, the display showing the tape length

changes as follows. Choose the length of the tape you will use.

C-46 c_ C-60 E_>C-90 c_> C----- I

t_.L/

(':" ""_ _- //-- I

/i \ ( ,')_ - '-/'-

)_£' '_',.

-- " E_T II

Illuminates

More precise time settingsare also possible. (Refer to the instructionsat right.)

3 41

"L___._J

=:_1=3 C::]E3 E3 E3 C3 E3 C:31=3 {=:i

Numeric buttons

I"14 SKIP D,'I_I

I I I

(_ the disc to be recorded.

L'.. (' ,) "_. c. i-I I-I F! F!

(('-I) • I)\ -{,i i i # LI LI .\

Specified disc number

The display shows the data of the tracks to be recorded as follows:

Number of tracks Tracks to be to be recorded recorded

,L, I I

"_t ('-:') 0 _

,__ _,,,,,_,,, ",,,oI/-'/I

i """-,,_- 2 EDIT II

I Number of tracks Tracks to be

I to be recorded recorded

_' \L/

I Remaining time on side B

___{ E, .....,,

In this example, disc 5 can be recorded with tracks 1 -4 on side

A and tracks 5-7 on side B of the cassette tape.

Page 17

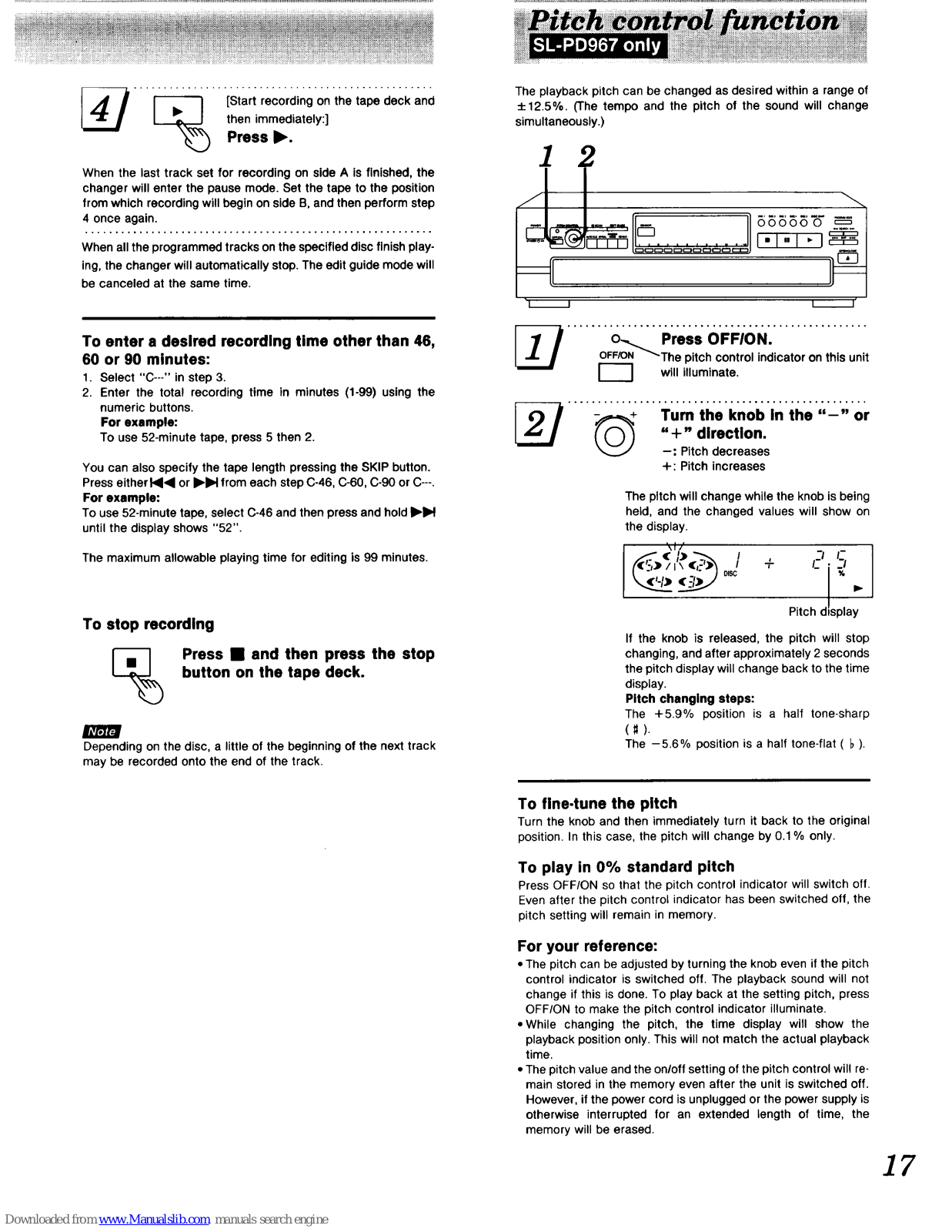

.................................................. The playback pitch can be changed as desired within a range of

[_ [Start recording on the tape deck and + 12.5%. (The tempo and the pitch of the sound will change

then immediately:] simultaneously.)

,re,s,. 1 2

When the last track set for recording on side A is finished, the

changer will enter the pause mode. Set the tape to the position

from which recording will begin on side B, and then perform step

4 once again.

When all the programmed tracks on the specified disc finish play- ing, the changer will automatically stop. The edit guide mode will be canceled at the same time.

"L..........._ L......__..._'

To enter a desired recording time other than 46, 60 or 90 minutes:

1. Select "C---" in step 3.

2. Enter the total recording time in minutes (1-99) using the numeric buttons.

For example:

To use 52-minute tape, press 5 then 2.

You can also specify the tape length pressing the SKIP button.

Press eitherl_l_l or I_1_ from each step C-46, C-60, C-90 or C---. For example:

To use 52-minute tape, select C-46 and then press and hold I_1

until the display shows "52".

The maximum allowable playing time for editing is 99 minutes.

To stop recording

Press • and then press the stop

button on the tape deck.

Depending on the disc, a little of the beginning of the next track may be recorded onto the end of the track.

OFF/ON _'The pitch control indicator on this unit

I_ will illuminate.

_ Turn the knob in the "-" or

-: Pitch decreases +: Pitch increases

The pitch will change while the knob is being

held, and the changed values will show on

the display.

-(I) - _-I t-

_ o,sc spla_"

If the knob is released, the pitch will stop

changing, and after approximately 2 seconds

the pitch display will change back to the time

display.

Pitch changing steps:

The +5.9% position is a half tone-sharp

(_).

The --5.6% position is a half tone-flat ( _ ).

To fine-tune the pitch

Turn the knob and then immediately turn it back to the original

position. In this case, the pitch will change by 0.1% only.

To play in 0% standard pitch

Press OFF/ON so that the pitch control indicator will switch off.

Even after the pitch control indicator has been switched off, the

pitch setting will remain in memory.

For your reference:

• The pitch can be adjusted by turning the knob even if the pitch

control indicator is switched off. The playback sound will not change if this is done. To play back at the setting pitch, press OFFION to make the pitch control indicator illuminate.

• While changing the pitch, the time display will show the playback position only. This will not match the actual playback time.

• The pitch value and the onloff setting of the pitch control will re- main stored in the memory even after the unit is switched off. However, if the power cord is unplugged or the power supply is otherwise interrupted for an extended length of time, the memory will be erased.

Page 18

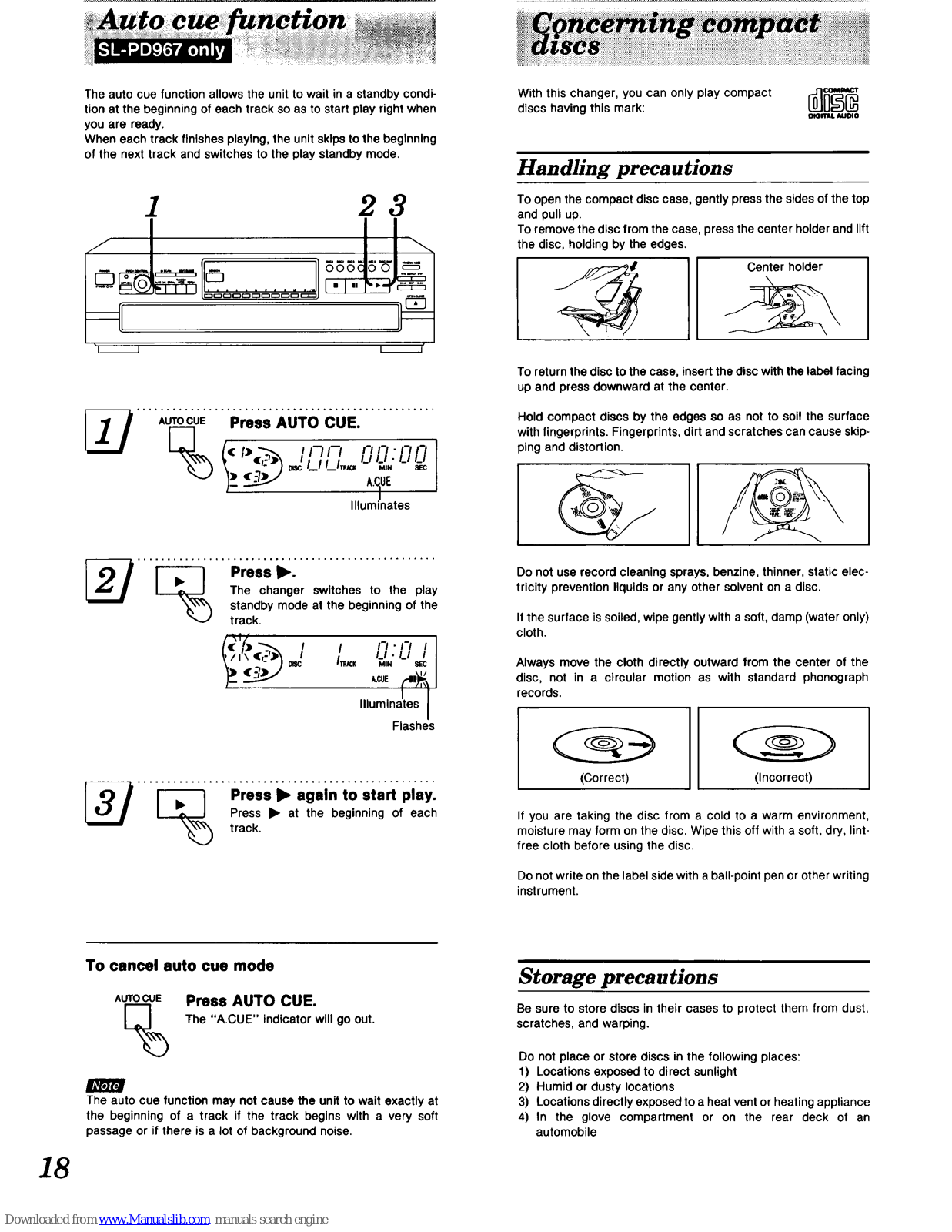

The auto cue function allows the unit to wait in a standby condi- tion at the beginning of each track so as to start play right when you are ready When each track finishes playing, the unit skips to the beginning of the next track and switches to the play standby mode

1 23

"l._J t_._.._J'

.... .... ............

\\\'_ _ (l-'.)_ I _ __ # /_1/_J • /_1/_1 I

I" _ _.,._ _TR/_( MIN SEC

To .....,,r..;;:.......................

The changer switches to the play

_,_\\_ standby mode at the beginning of the

track

/' 'kf_

(" _) -i

I I-I • I-I I I

LI • LI I

ITRA_ MIN _EC

illuminates ]

Flashes

Press I_ again to start play.

Press • at the beginning of each

track

With this changer, you can only play compact discs having this mark:

DIOITAL AUDI 0

Handling precautions

To open the compact disc case, gently press the sides of the top

and pull up To remove the disc from the case, press the center holder and lift the disc, holding by the edges

Center holder

To returnthedisc to the case, insertthe discwiththelabel facing

upand pressdownwardat the center.

Hold compact discs by the edges so as not to soil the surface with fingerprints. Fingerprints, dirt and scratches can cause skip- ping and distortion.

Do notuserecordcleaning sprays,benzine, thinner,staticelec- tricitypreventionliquidsor any other solventon a disc.

If the surface is soiled, wipe gently with a soft, damp (water only) cloth

Always move the cloth directly outward from the center of the

disc, not in a circular motion as with standard phonograph records.

(Correct)

(Incorrect)

If you are taking the disc from a cold to a warm environment, moisture may form on the disc Wipe this off with a soft, dry, lint-

free cloth before using the disc.

Do not write on the label side with a ball-point pen or other writing instrument

To cancel auto cue mode

AUTOCUE

Press AUTO CUE.

The "A CUE" indicator will go out

The auto cue function may not cause the unit to wait exactly at the beginning of a track if the track begins with a very soft passage or if there is a lot of background noise.

Storage precautions

Be sure to store discs in their cases to protect them from dust, scratches, and warping.

Do not place or store discs in the following places:

1) Locations exposed to direct sunlight

2) Humid or dusty locations

3) Locations directly exposed to a heat vent or heating appliance

4) In the glove compartment or on the rear deck of an automobile

Page 19

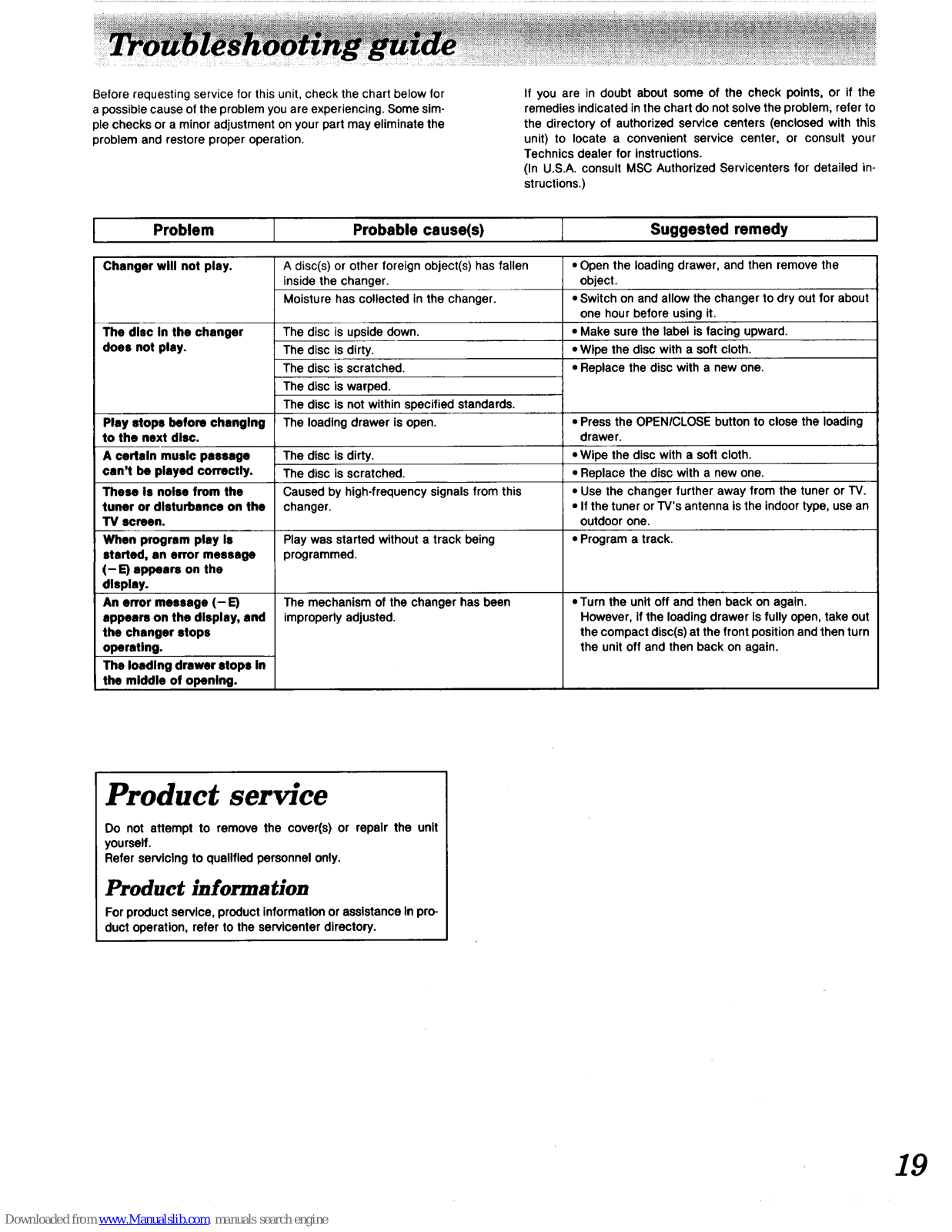

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some sim- ple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the

remedies indicated in the chart do not solve the problem, refer to the directory of authorized service centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions. (In U.S.A. consult MSC Authorized Servicenters for detailed in- structions.)

I Problem Probable cause(s) Suggested remedy i

Changer will not play. A disc(s) or other foreign object(s) has fallen • Open the loading drawer, and then remove the

inside the changer, object. Moisture has collected in the changer. • Switch on and allow the changer to dry out for about

one hour before using it.

The disc In the changer • Make sure the label is facing upward. does not play. • Wipe the disc with a soft cloth.

• Replace the disc with a new one.

Play stops before changing

to the next disc. A certain music passage

can't be played correctly. These is noise from the

tuner or disturbance on the TV screen.

When program play Is started, an error message (-E) appears on the display.

An error message (-E) appears on the display, and the changer stops operstlng.

The loading drawer stops In the middle of opening.

The disc is upside down.

The disc is dirty.

The disc is scratched.

The disc is warped. The disc is not within specified standards. The loading drawer is open.

• Press the OPEN/CLOSE button to close the loading

drawer.

The disc is dirty. • Wipe the disc with a soft cloth.

The disc is scratched. • Replace the disc with a new one.

Caused by high-frequency signals from this • Use the changer further away from the tuner or TV. changer. • If the tuner or TV's antenna is the indoor type, use an

outdoor one.

Play was started without a track being • Program a track. programmed.

The mechanism of the changer has been improperlyadjusted.

• Turnthe unitoff andthen back onagain. However,if the loadingdrawer is fully open,take out the compactdisc(s)atthe front positionandthenturn the unitoff and then back onagain.

Product servT"ee

Do not attempt to remove the cover(s) or repair the unit

yourself.

Referservicingto qualified personnelonly.

Product in£ormation

Forproductservice,productinformationor assistanceinpro- ductoperation,refer to the servicenterdirectory.

Page 20

r_;_,lrlur_rejt_j

Before moving the changer to another location, be sure to carry

out the "Preparations for moving the unit" described below.

Failure to do so will expose the compact discs and the changer to the risk of severe damage.

Preparations for moving the unit

All of the discs must be removed so that the trays are completely empty.

Use the following procedure.

1_ Press POWER to switch off the unit. '2_Press POWER to switch on the unit.

(If there is a disc in the play section, it will be returned to the

disc tray at this time.)

(3)Press OPENICLOSE to open the loading

drawer.

_4_Press DISC SKIP to rotate the disc trays and

remove the discs from all disc trays.

CS_Press OPENICLOSE to close the loading

drawer.

_6_Press POWER to switch off the unit.

IAUDIO

No. of channels Frequency response

Output voltage

Dynamic range SIN Total harmonic distortion Wow and flutter

DA converter Output Impedance Load Impedance

2 (left and right, stereo)

2-20,000 Hz, +1 dB

2 V (at 0 dB)

92 dB

100 dB

0.007% (1 kHz, 0 dB)

Below measurable limit

MASH (1 bit) Approx.1 kQ

More than 10 kQ

• PICKUP

Wavelength

780 nm

• GENERAL

Power consumption [SL-PD967] 12 W

[SL-PD867/SL-P9066] 11 W

Power supply AC 120 V, 60 Hz Dimensions (W x H x D) [SL-PD967] 430 x 125 x 377 mm

(16-15/16" x 4-15116" x 14-27/32")

[SL-PD867/SL-P9066] 430 x 125 x 370 mm

(16-15/16" x 4-15116" x 14-9/16")

Weight 4.6 kg (10,1 Ib,)

Note: Specificationsare subject to changewithoutnotice. Weightand dimensionsare approximate.

IMASH Is a trademark of NTT. I

If you have pressed a wrong button by mistake, return to step _.

POWER DISC SKIP

L______l

Panssonlc Company, Division of Mstsushlta Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094

Penasonlc Sales Company, Division of Matsushlta Electric of Puerto Rico, Inc. San Gabriel Industrial Park 65th Infantry Ave. Km. 9.5

Carolina, P.R. 00630

PrintedInJapan

Panasonlc Company (West) of America, Division of Mstsushita Electric Corporation of America 6550 Katella Ave. Cypress, CA 90630

Matsushlt= Electdc of Canada Limited 5770 Ambler Drive, Mississauga,

Ontario L4W 2T3

RQT2327-P

H1293G0
