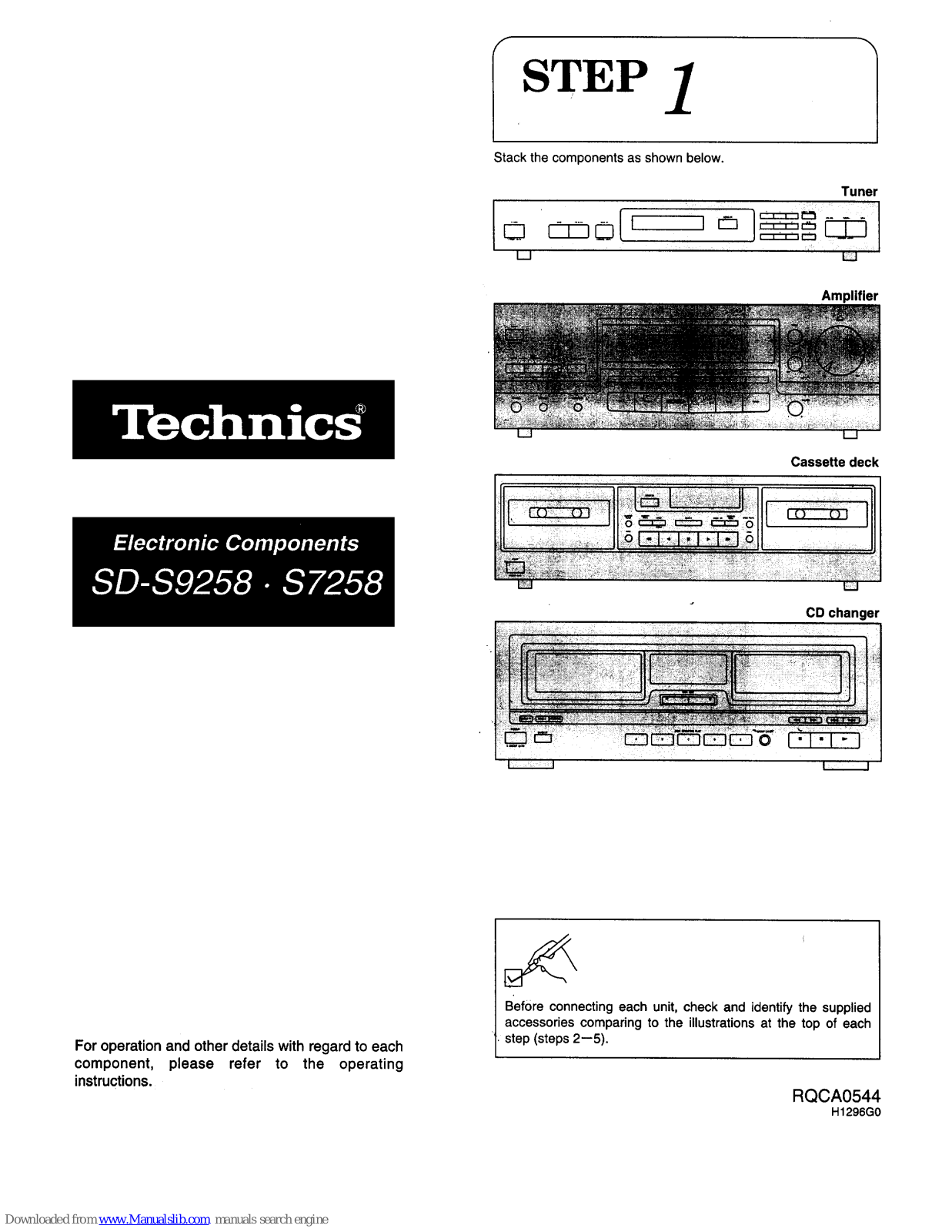

Page 1
ISTEP1
Stack the components as shown below.
1
©
i i
Tuner
Amplifier
Cassette deck
For operation and other details with regard to each
component, please refer to the operating
instructions.
Before connecting each unit, check and identify the supplied
accessories comparing to the illustrations at the top of each
step (steps 2--5).
RQCA0544
H1296G0

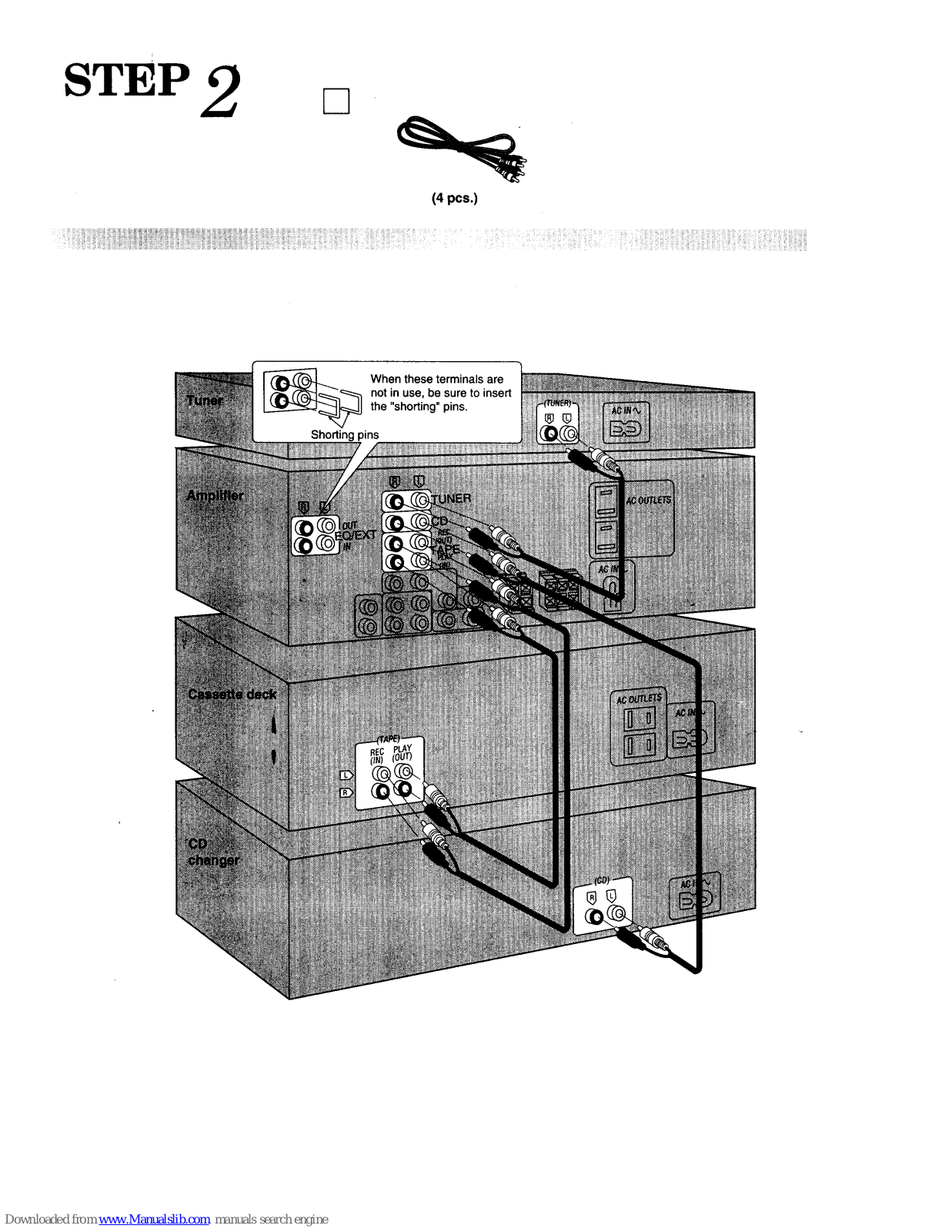

Page 2
STEP 2
D
(4 pcs.)
When these terminals are
not in use, be sure to insert
the "shorting" pins.
Shorting pins

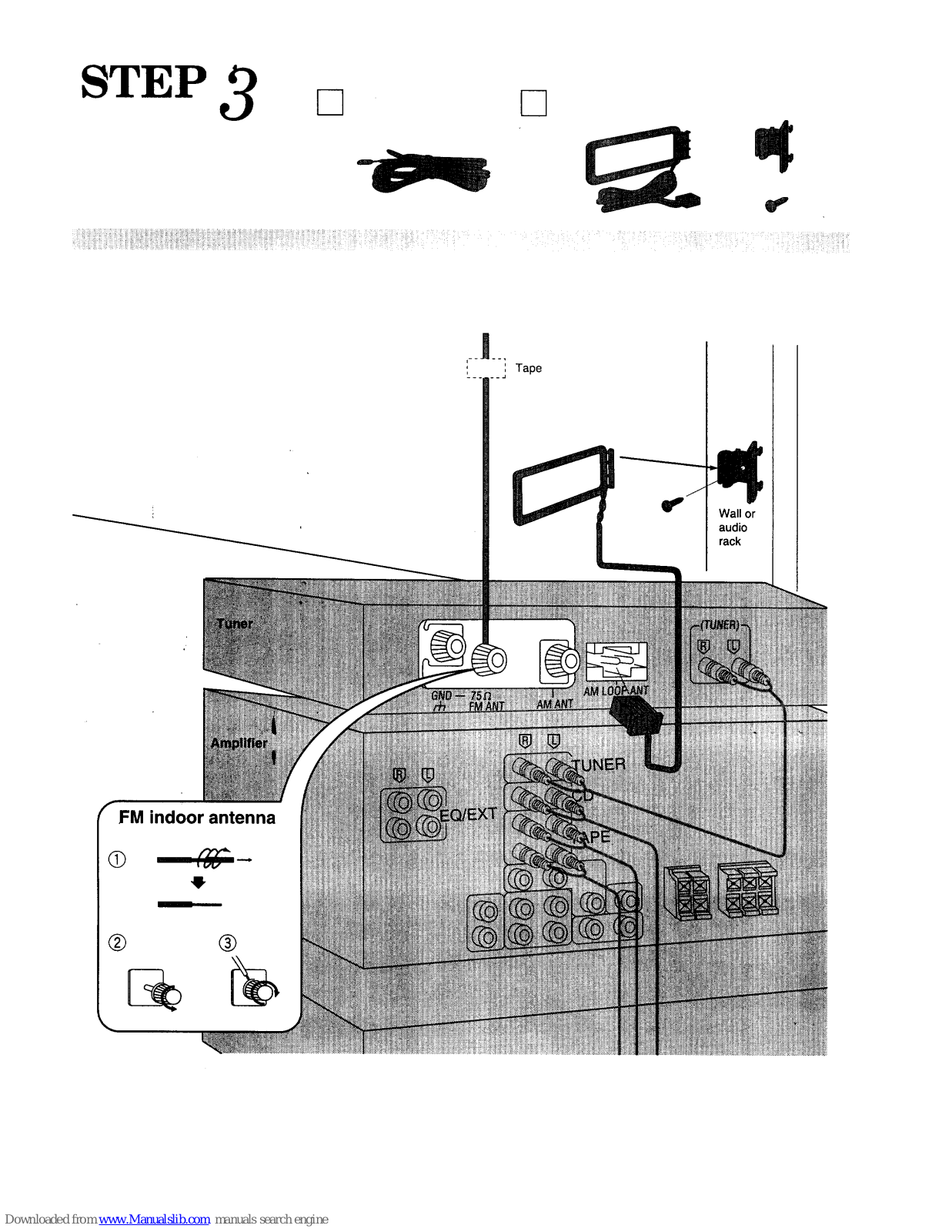

Page 3
STEP 3
D
N
, : Tape
..... J
Wall or
audio
rack
f FM indoor antenna
vv
® ®

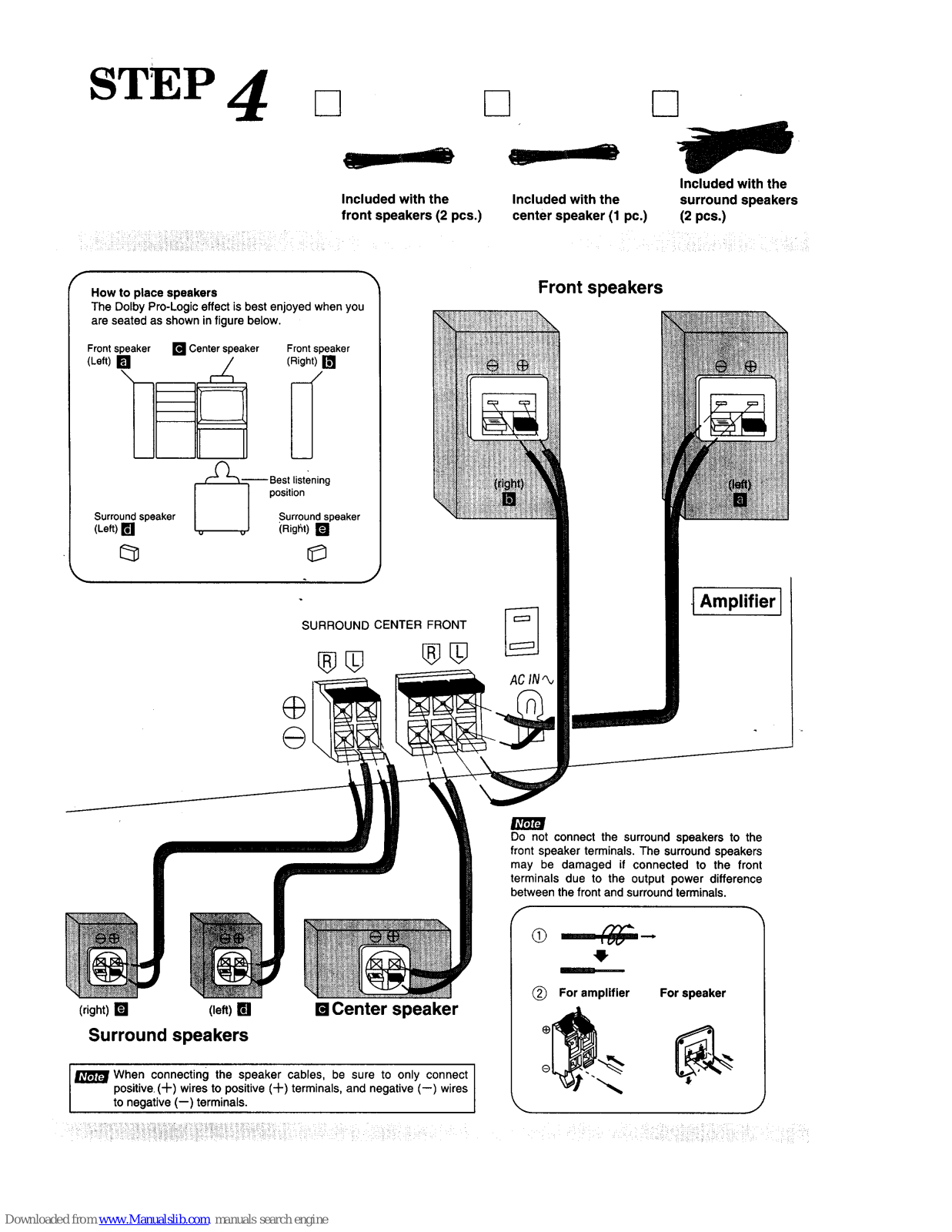

Page 4
STEP 4
D D
Included with the
front speakers (2 pcs.)
F
How to place speakers
The Dolby Pro-Logic effect is best enjoyed when you
are seated as shown in figure below.
Front speaker [] Center speaker Front speaker
(Left) ___ (Right)[ _
r__-- Best listening
I J p°siti°n
Surround speaker I I Surround speaker
(Left) [] I v _,J iRigl_t) []
O
SURROUND CENTER FRONT
Includedwith the
center speaker (1 pc.)
Front speakers
Included with the
surround speakers
(2 pcs.)
f Amplifier J
(right) [] (left) []
Surround speakers
[] Center speaker
When connecting the speaker cables, be sure to only connect
positive. (-I-) wires to positive (Jr-) terminals, and negative (--) wires
to negative (--) terminals.
Do not connect the surround speakers to the
front speaker terminals. The surround speakers
may be damaged if connected to the front
terminals due to the output power difference
between the front and surround terminals.
®
0
(_) For amplifier For speaker

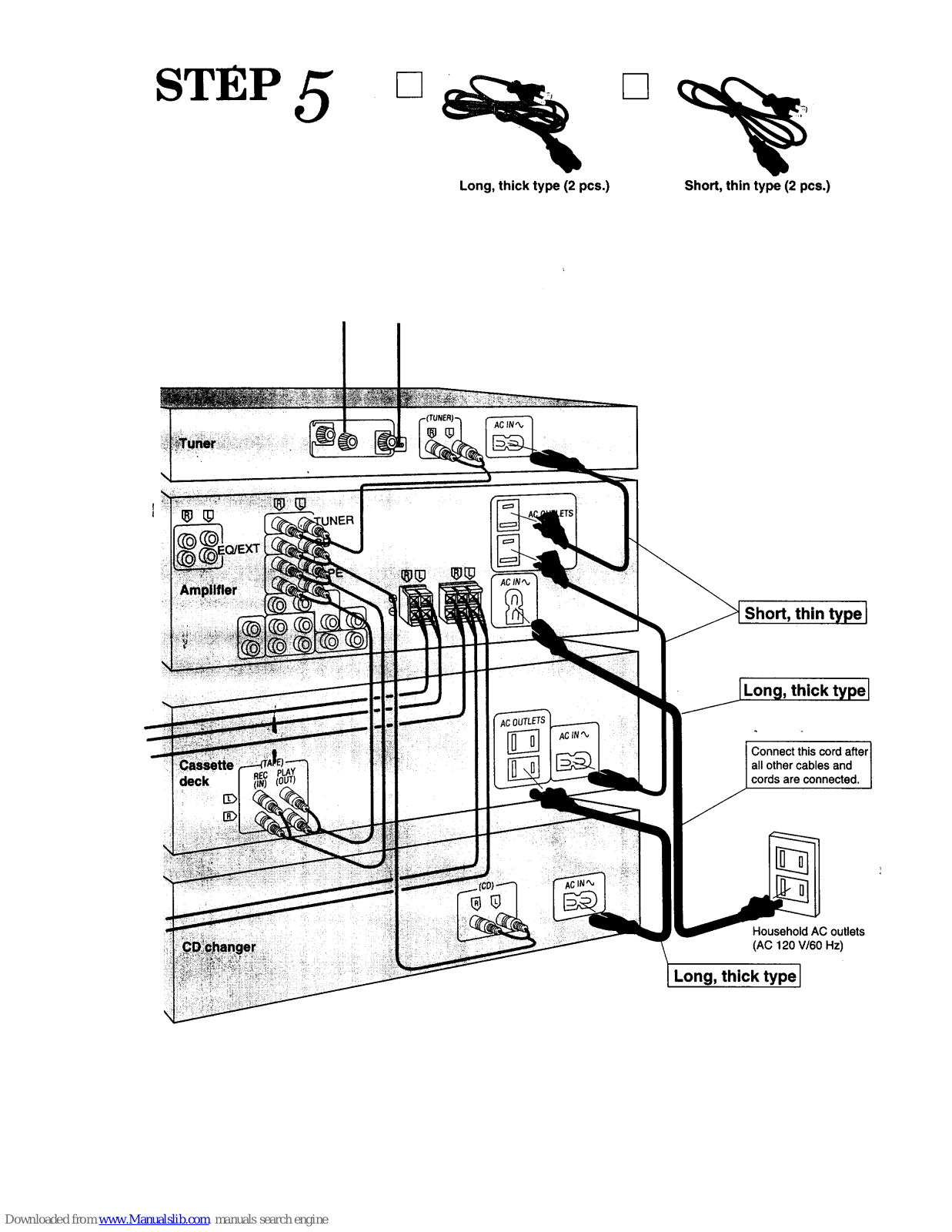

Page 5
STEP 5 D
Long, thick type (2 pcs.)
D
Short, thin type (2 pcs.)
deck
Short, thin type J
Connect this cord after
all other cables and
cords are connected.
Household AC outlets
(AC 120 V/60 Hz)
Long, thick type]

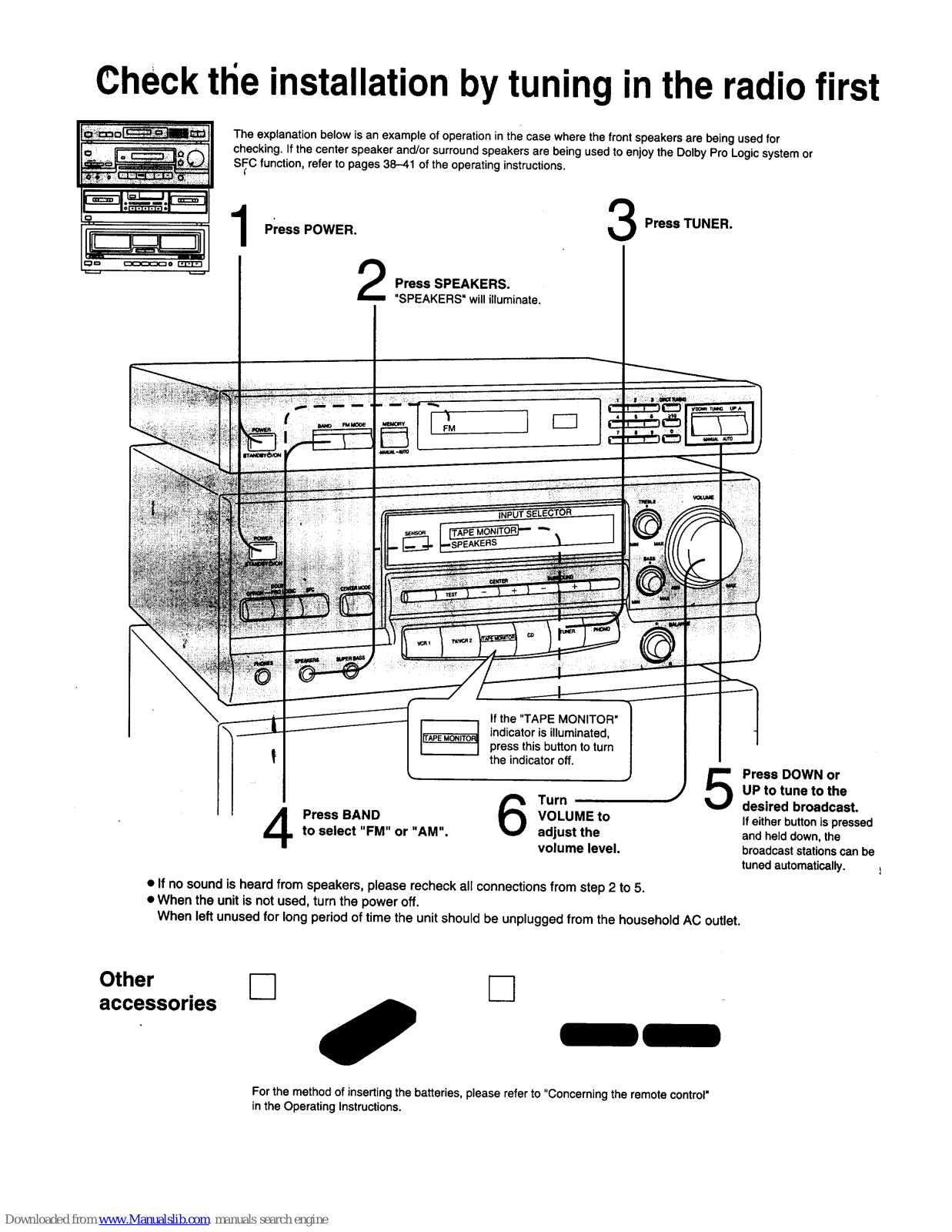

Page 6
Check tl'ieinstallationby tuning in the radiofirst
The explanation below is an example of operation in the case where the front speakers are being used for
checking. If the center speaker and/or surround speakers are being used to enjoy the Dolby Pro Logic system or
SFC function, refer to pages 38-41 of the operating instructions.
1 3
Press POWER.
Press SPEAKERS.
"SPEAKERS" willilluminate.
4
1 [221 j,.s
.
1
If the "TAPE MONITOR"
indicator is illuminated,
press this button to turn
the indicator off.
Press BAND 6
to select "FM" or "AM".
Turn
VOLUME to
adjust the
volume level,
Press TUNER.
J Press DOWN or
UP to tune to the
desired broadcast.
If either button is pressed
and held down, the
broadcast stations can be
tuned automatically.
• If nosoundisheardfrom speakers,please recheck all connections from step 2 to 5.
• Whentheunitis notused,turnthepoweroff.
Whenleftunusedfor longperiodoftimetheunitshouldbe unpluggedfromthehouseholdAC outlet.
Other _ [_
accessories
For the method of inserting the batteries, please refer to "Concerning the remote control"
in the Operating Instructions.
