Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
• All major sections and subsections are listed in the Table Of Contents ( pg. 1).
• Notes appear after most subsections. Be sure to read these as well.
• Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
..... refer to the Index ( pgs. 66 – 72) and familiarize yourself with button locations, etc. before use.
..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of
this product.
You are recommended to carefully read the cautions on pages 73 through 75 before use.
SAFETY PRECAUTIONS
IMPORTANT
Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.
If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:
If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt consult a competent electrician.
(for owners in the U.K.)
Blue to N (Neutral) or Black Brown to L (Live) or Red
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTIONS:
To prevent shock, do not open the cabinet. No user
serviceable parts inside. Refer servicing to qualified personnel.
When you are not using the AC Power Adapter/
Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.
NOTES:
The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.
The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom.
This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/ viewfinder playback are possible anywhere. Use the BAT 600 battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
VMD6 EN(02/39) 28/08/00, 15:452
EN3
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, Editing, DC, etc.) and then leaving it on top of the TV is not recom­mended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
This camcorder is designed exclusively for the digital video cassette and MultiMediaCard. Only cassettes marked
and memory cards marked can be used with this unit.
Before recording an important scene . . .
..... make sure you only use cassettes with the Mini DV mark .
..... make sure you only use memory cards with the mark .
..... remember that this camcorder is not compatible with other digital video formats.
..... remember that this camcorder is intended for private consumer use only. Any commercial use without proper
permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections
between pieces of equipment) are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the mains plug when making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in
any way switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road
safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will
cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the
manufacturers approved stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL
NEVER let anyone especially children push anything into holes, slots or any other opening in the case this
could result in a fatal electrical shock;
NEVER guess or take chances with electrical equipment of any kind it is better to be safe than sorry!
VMD6 EN(02/39) 28/08/00, 15:463
4 EN
PROVIDED ACCESSORIES
•AC Power Adapter/ AC 600
•Cable Adapter •AAA (R03) Battery x 2
•MultiMediaCard (16 MB)
•Lens Cap (Already attached to the camcorder)
•Remote Control Unit TC 200 M
•Shoulder Strap
•Core Filter x 1 (for optional S-Video cable)
•Battery Pack BAT 600
(for remote control unit)
•CD-ROM The CD ROM contains the following 3 software programmes:
JLIP Video Capture
JLIP Video Producer
Picture Navigator
•PC Connection Cable
•DV Cable
•Editing Cable One plug has 3 rings around the pin, and the other has 1 ring around the pin.
VMD6 EN(02/39) 28/08/00, 15:464
•DC Cord
•Audio/Video Cable (ø3.5 mini-plug to RCA plug)
How To Attach The Core Filter
Attach the provided Core Filter to an optional S-Video cable. The Core Filter reduces interference.
EN5
12 3
Stopper
Release the stoppers on both ends of the Core Filter.
Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable once around the outside of the Core Filter as shown in the illustration.
3 cm
Wind once
Close the Core Filter until it clicks shut.
Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
When connecting cables, attach the end with the Core Filter to the camcorder.
AUTOMATIC DEMONSTRATION
Automatic Demonstration takes place when “DEMO. MODE” is set to “ON” (factory-preset).
Available when the Power Switch is set to
or “ ”
and no cassette is in the camcorder.
Performing any operation during the demonstration stops
the demonstration temporarily. If no operation is per­formed for more than 1 minute after that, the demonstra­tion will resume.
“DEMO. MODE remains ON even if the camcorder
power is turned off.
To cancel Automatic Demonstration, set the Power
Switch to
, then press MENU/BRIGHT while the
demo is in progress. This takes you directly to the demo modes Setting Menu (so you will not have to go through the Menu Screen). Rotate MENU/BRIGHT to select OFF and press it. The normal screen appears.
MENU/BRIGHT Wheel
C
E
A
M
R
A
1
R
E
R
E
C
S
O
U
Z
O
O
G
A
I
T
A
L
I
D
D
E
M
MEONNU
T
N
U
R
M
O
D
E
N
D
E
D
M
O M N
U
P
L
Y
M
R
N
U
B
E
M
E
O
.
O
D
VMD6 EN(02/39) 28/08/00, 15:465
6 EN
GETTING ST ARTED
Power
Battery pack BAT 600
POWER indicator
CHARGE indicator
Battery pack
BAT 600
NOTES:
If the protective cap is attached to the battery pack, remove it first.
Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.
Charging times noted above are for a fully discharged battery pack.
Charging time varies according to the ambient temperature and the status of the battery pack.
To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio.
If you connect the camcorders DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops.
Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.
When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.
If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.
DC OUT connector
Fully charging time
approx. 1 hr. 30 min.
To AC outlet
AC Power Adapter/Charger
This camcorders 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.
CHARGING THE BATTERY PACK
Make sure you unplug the camcorders DC cord from
1
the AC Power Adapter/Charger. Plug the AC Adapter/ Chargers power cord into an AC outlet. The POWER indicator lights.
Attach the battery pack with the mark aligned
2
with the corresponding marks on the AC Power Adapter/Charger. The CHARGE Indicator begins blinking to indicate charging has started.
When the CHARGE indicator stops blinking but stays
3
lit, charging is finished. Slide the battery and lift off. Remember to unplug the AC Adapter/Charger’s power cord from the AC outlet.
Lithium-ion is vulnerable in colder temperatures.
VMD6 EN(02/39) 28/08/00, 15:466
About Batteries
DANGER! Do not attempt to take the batteries apart, or
expose them to flame or excessive heat, as it may cause a fire or explosion.
WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.
(If youre using a heating pad, make sure the battery pack does not come in direct contact with it.)
USING THE BATTERY PACK
EN7
BATTERY RELEASE Button
1
3
2
ATTENTION:
Before detaching the power source, make sure that the camcorders power is turned off. Failure to do so can result in a camcorder malfunction.
Tilt the viewfinder upward 1.
1
With the arrow on the battery pack pointing downward, push the battery pack slightly against the
2
battery pack mount 2, then slide down the battery pack until it locks in place 3.
If the battery pack is attached with its mark set in the wrong direction, a malfunction may occur.
To Detach The Battery Pack . . .
....
tilt the viewfinder upward 1 and slide the battery pack up slightly while pressing BATTERY RELEASE to detach it.
Approximate recording time
Battery pack
BAT 600
( ) : when the video light is on.
NOTES:
Recording time is reduced significantly under the following conditions:
Zoom or Record-Standby mode is engaged repeatedly.
The LCD monitor is used repeatedly.
The playback mode is engaged repeatedly.
Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.
LCD monitor on/ Viewfinder off
1 hr.
(35 min.)
LCD monitor off/ Viewfinder on
1 hr. 15 min.
(40 min.)
USING AC POWER
Use the AC Power Adapter/Charger (connect as shown in the illustration).
NOTES:
The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.
For other notes,  pg. 6.
To DC Input connector
VMD6 EN(02/39) 28/08/00, 15:467
DC cord
Power cord
AC Power Adapter/Charger
To AC outlet
To DC OUT connector
8 EN
PAUSE
GETTING ST ARTED
Grip Adjustment
(cont.)
Power Zoom Lever
Recording Start/Stop button
2
Power Switch
Dioptre Adjustment Control
1
Separate the Velcro strip.
1
Pass your right hand through the loop and grasp
2
the grip.
Adjust so that your thumb and fingers can easily
3
operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip.
Viewfinder Adjustment
Set the Power Switch to “ ” or “ ” while
1
pressing down the Lock Button located on the switch.
Turn the Dioptre Adjustment Control until the
2
indications in the viewfinder are clearly focused.
Shoulder Strap Attachment
Make sure the battery pack or DC cord is
1
removed. Following the illustration, thread the strap through the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3 located under the Grip Strap, making sure the strap is not twisted.
VMD6 EN(02/39) 28/08/00, 15:468
3
Tripod Mounting
Align the screw and camera direction stud on
1
the tripod with the cameras mounting socket and stud hole. Then tighten the screw.
Some tripods are not equipped with studs.
CAUTION:
When using a tripod, be sure to open and extend its legs fully to stabilise the camcorder. To prevent damage to the unit caused by falling over, do not use a small­sized tripod.
MENU/BRIGHT Wheel
Power Switch
Power lamp
Display
I
FAD
/
P
E
W
E
R
S
W
C
R
E
O
I
W
I
R
A
4
O
F
F
A
F
A
F
A
L
P
S
H
U
E
T
T
P
O
M
D
N F
R
W
H
E
I
T
D
R
B
L
E
A
C
D
R
E
M
O
S
A
D
L E
E K
IRC
Lock Button
F
F
O
Y
A
L
P
EN9
Date/Time Settings
The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback ( pg. 32).
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select . Press it and
3
DISPLAY MENU appears. Rotate MENU/BRIGHT to select CLOCK ADJ.”.
4
Press it and day is highlighted. Rotate MENU/BRIGHT to input the day. Press it. Repeat to input the month, year, hour and minute. Rotate MENU/BRIGHT to select 1RETURN, and press it twice. The Menu Screen closes.
NOTE:
Even if you select CLOCK ADJ., if the parameter is not highlighted the camcorders internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (day), the clock stops. When you finish setting the minute and press MENU/BRIGHT, the date and time begin operation from the date and time you just set.
P
D
S
I
1
R
R
E
U
T
O
R
N
S
C /
T
D
A
T
E
C
T
I
E
M
K
C
L
C
O
VMD6 EN(02/39) 28/08/00, 15:469
U
L
A
Y
MEN N E
E
N
I
M
E
O
D
E
J.
1
.
A
D
112
.
000
:
0
DISPLAY MENU
10 EN
Erase protection tab*
Make sure the window side is facing out.
OPEN/EJECT SwitchCassette holder
GETTING ST ARTED
(cont.)
Loading/Unloading A Cassette
The camcorder needs to be powered up to load or eject a cassette.
Slide and hold OPEN/EJECT in the direction of the
1
arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.
Do not touch internal components.
Insert or remove a tape and press PUSH HERE to
2
close the cassette holder.
Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
When the batterys charge is low, you may not be able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.
Cassette holder cover
PUSH HERE
*
To Protect Valuable Recordings . . .
.... slide the erase protection tab on the back of
the tape in the direction of SAVE. This prevents the tape from being recorded over. To record on this tape, slide the tab back to REC before loading it.
NOTES:
It takes a few seconds for the cassette holder to open. Do not apply force.
If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the cassette holder still does not open, turn the camcorder off then on again.
If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.
When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.
Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.
Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.
When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 19 for information about recording from the middle of a tape.
Loosen the Grip Strap if it appears to interfere with the cassette holder cover operation ( pg. 8).
Close the cassette holder cover firmly until it locks
3
into place.
Approximate recording time
Tape
30 min. 30 min. 45 min. 60 min. 60 min. 90 min. 80 min. 80 min. 120 min.
Recording mode
SP LP
VMD6 EN(02/39) 28/08/00, 15:4610
Card Cover
MultiMediaCard
Clipped edge
EN11
Loading A MultiMediaCard
Make sure the camcorders power is off.
1
Push the latch upward to open the card cover
2
(MEMORY CARD).
Insert the MultiMediaCard clipped edge first, with the
3
label facing up.
Do not touch the terminal on the reverse side of the label.
To close the card cover, push it until you hear a click.
4
NOTES:
Be sure to use only MultiMediaCards marked .
Some brands of MultiMediaCards are not compatible with this camcorder. Before purchasing a MultiMediaCard, consult its manufacturer or dealer.
To Unload A MultiMediaCard . . .
.... in step 3 push the MultiMediaCard, which then comes
out of the camcorder automatically. Pull it out and close the card cover.
VMD6 EN(02/39) 28/08/00, 15:4611
ATTENTION:
Do not insert/remove the MultiMediaCard while the camcorder is turned on, as this may cause the MultiMediaCard to be corrupted or cause the camcorder to become unable to recognize whether or not the card is installed.
12 EN
Power lamp
Display
C
A
M
1
R
E
T
U
R
R
E
C
M
O
S
O
U
N
D
Z
O
O
M
G
A
I
N
U
T
A
L
L
Y
I
D
N
U
M
D
E
M
O
.
M
MENU/BRIGHT Wheel
Power Switch
Lock Button
F
F
O
Y
A
L
R
A
MEN
U
E N
D
E
S
P
M
O
D
E
L
P
P B
E
R
O
D
E
P
Menu Screen
Sub Menu
GETTING ST ARTED
(cont.)
Recording Mode Setting
Set the tape recording mode depending on your preference.
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. The power lamp lights and the camcorder is turned on.
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select and press it.
3
CAMERA MENU appears. Rotate MENU/BRIGHT to select REC MODE and
4
press it. The Sub Menu appears. Select SP or LP by rotating MENU/BRIGHT and press it. Rotate MENU/BRIGHT to select 1RETURN, and press it twice. The Menu Screen closes.
Audio Dubbing ( pg. 58) is impossible on a tape recorded in the LP mode.
•“LP (Long Play) is more economical, providing
1.5 times the recording time.
NOTES:
If the recording mode is switched during recording, the playback picture will be blurred at the switching point.
It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.
During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.
D
S
C
NU
T
U
1
R
E
R
N
L
I
Q
U
A
T
Y
S
E
LEMCET
SFTIANNEDARD
C
R
E
Menu Screen
Sub Menu
Approximate Number of Storable Images
Picture Quality Mode
FINE STANDARD
MultiMediaCard
16 MB
(provided)
200 400
NOTE:
The number of storable images depends on the selected Picture Quality mode as well as the composition of the subjects in the images.
VMD6 EN(02/39) 28/08/00, 15:4612
Picture Quality Mode Setting
The Picture Quality mode can be selected to best match your needs. Two Picture Quality modes are available: FINE and STANDARD (in order of quality).
Set the Power Switch to “ ” while pressing down the
1
Lock Button located on the switch. The power lamp lights and the camcorder is turned on.
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select and press it.
3
DSC MENU appears. Rotate MENU/BRIGHT to select QUALITY and
4
press it. The Sub Menu appears. Rotate MENU/ BRIGHT to select the desired mode and press it.
Rotate MENU/BRIGHT to select 1RETURN, and press it twice. The Menu Screen closes.
F. AUTO
To turn on the camcorder, set the Power
DSC
Switch to any operation mode except “OFF” while pressing down the Lock Button located on the switch.
Power Switch
Lock Button
F
Power lamp
F
O
Y
A
L
P
EN13
Operation Mode
Choose the appropriate operation mode according to your preference using the Power Switch and VIDEO/DSC Switch.
Power Switch Position
(Manual):
Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.
(Full Auto):
Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.
OFF:
Allows you to switch off the camcorder.
:
Allows you to play back a recording on the tape, to display a still image stored in the MultiMediaCard or to transfer a still image recorded on the tape or in the MultiMediaCard to a computer.
When the Power Switch is set to “ ”, “F. AUTO” appears. When set to “ ” or “ ”, there is no indication.
When the Power Switch is set to “ ” or “ ” and the VIDEO/DSC Switch is set to “ ”, “DSC” appears. When set to “VIDEO”, there is no indication.
VIDEO/DSC Switch Position
VIDEO:
Allows you to record on a tape or play back a tape. If REC SELECT is set to
/
in the DSC Menu Screen, still images are also recorded in the MultiMediaCard.
:
Allows you to record a still image or display a still image stored in the MultiMediaCard.
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
VMD6 EN(02/39) 28/08/00, 15:4713
14 EN
25
BR I GHT
+
Power lamp
Recording Start/Stop Button
Display
Power Switch
Lock Button
F
F
O
Y
A
L
P
During
shooting
Tape remaining time indicator (Approximate)
RECORDING
NOTE:
Basic Recording For Video
You should already have performed the procedures listed below. If not, do so before continuing.
Power ( pg. 6)
Grip Adjustment ( pg. 8)
Viewfinder Adjustment ( pg. 8)
Load A Cassette ( pg. 10)
Recording Mode Setting ( pg. 12)
Press in the tabs on the lens cap to remove it. Press
1
PUSH OPEN, open the LCD monitor and set the VIDEO/DSC Switch to VIDEO”.
Set the Power Switch to “ ” or “ ” while pressing
2
down the Lock Button located on the switch.
Shooting while using the LCD monitor:
the LCD monitor is fully open. Tilt it upward/ downward for best viewability.
Shooting while using the viewfinder:
monitor.
The power lamp lights and the camcorder enters the Record-Standby mode. PAUSE is displayed.
Press the Recording Start/Stop Button. appears
3
while recording is in progress.
Close the LCD
Make sure
min
(Now calculating)
Tally lamp (lights while recording is in progress)
PUSH OPEN Button
90 min
(Blinking) (Blinking) (Blinking)
180°
90°
89 min
1 min0 min
VIDEO/DSC Switch
3 min
2 min
MENU/
BRIGHT Wheel
To Stop Recording . . .
.... press the Recording Start/Stop Button. The camcorder
re-enters the Record-Standby mode.
To Adjust The Brightness Of The Display
.... rotate MENU/BRIGHT until the bright level indicator
on the display moves and the appropriate brightness is reached.
VMD6 EN(02/39) 28/08/00, 15:4714
EN15
NOTES:
When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. If this happens, use the viewfinder instead.
The image will not appear simultaneously in the LCD monitor and the viewfinder .
The cassette holder cannot be opened unless a power supply is attached.
There may be a delay after you open the cassette holder cover until the cassette holder opens. Do not use force.
Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
The time required to calculate and display the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.
TAPE END appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. TAPE END” also appears when a cassette at its end is loaded.
If the Record-Standby mode continues for 5 minutes, the camcorders power shuts off automatically. To turn the camcorder on again, set the Power Switch to OFF, then back to “ ” or “ ”.
When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” ( pg. 19).
During recording, sound is not heard from the speaker.
To turn the tally lamp off during recording,  pg. 22, 23.
To remove the indications from the camcorder’s display during recording,pg. 22, 25.
Self-Recording
JOURNALISTIC SHOOTING
In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward).
VMD6 EN(02/39) 28/08/00, 15:4715
SELF-RECORDING
You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.
16 EN

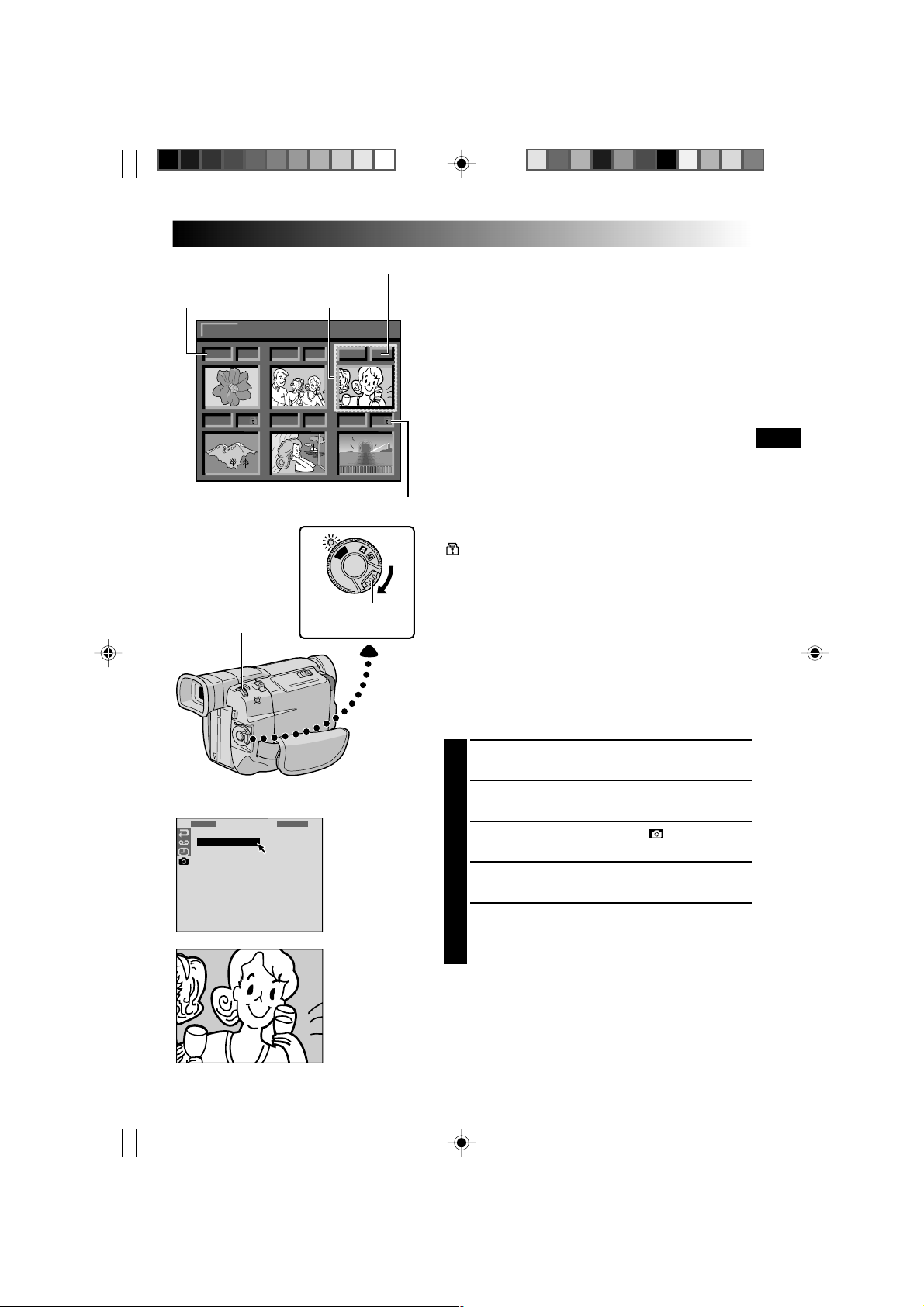

SNAPSHOT Button
MODE Button
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
FULL
FRAME Snapshot mode with frame*
MULTI-4 Multi-Analyser 4
* There is the sound effect of a shutter closing.
Power Switch
Lock Button
Snapshot mode
MULTI-9 Multi-Analyser 9
FULL Snapshot mode with no frame*
PIN-UP Pin-Up mode*
RECORDING
Snapshot (For Video Recording)
This feature lets you record still images that look like photographs onto a tape.
SNAPSHOT MODE SELECTION
F
F
O
Y
A
L
P
1 2
SNAPSHOT RECORDING
1
Motor Drive Mode
Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx. 1 second)
NOTES:
Even if MULTI-4 or MULTI-9 is engaged, Snapshot recording will be performed in the FULL mode during Digital Zoom.
If Snapshot recording is not possible, PHOTO blinks when SNAPSHOT is pressed.
If Programme AE with special effects ( pg. 28) is engaged, certain modes of Programme AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.
If SNAPSHOT is pressed when DIS is set to ON ( pg. 24), the Stabiliser will be disabled.
When REC SELECT is set to / in the Menu Screen ( pg. 25), still images are recorded not only onto the tape but also in the MultiMediaCard. If SNAPSHOT is pressed when a tape is not loaded, still images will not be recorded in the MultiMediaCard.
To dub images recorded on a tape to the MultiMediaCard,  pg. 47.
During tape playback as well, all snapshot modes are available when COPY is set to OFF in the Menu Screen ( pg. 32). However, the shutter sound is not heard.
During Snapshot recording, the image displayed in the viewfinder may be partially missing. However, there is no effect in the recorded image.
When a cable is connected to the AV connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape.
Basic Recording For Video (cont.)
Set the VIDEO/DSC Switch to VIDEO, then set the Power Switch to “ ” or “ ” while pressing down the Lock Button located on the switch.
Choose the appropriate Snapshot mode from the 5 available by repeatedly pressing MODE until the desired snapshot mode indicator appears.
Press SNAPSHOT.
If you press during Record-Standby . . .
.... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.
If you press during Recording . . .
.... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the normal recording resumes.
will appear while the snapshot is being taken.
VMD6 EN(02/39) 28/08/00, 15:4716
RECORDING
STD
10/50
SNAPSHOT Button
MODE Button
Basic Recording For Digital Still Camera (D.S.C.)
Power Switch
Lock Button
F
F
O
Y
A
L
P
Basic Shooting (Snapshot)
You can use your camcorder as a Digital Still Camera for taking snapshots.
NOTE:
You should already have performed the procedures listed below. If not, do so before continuing.
Power ( pg. 6)
Grip Adjustment ( pg. 8)
Viewfinder Adjustment ( pg. 8)
Loading A MultiMediaCard ( pg. 11)
Picture Quality Mode Setting ( pg. 12)
SNAPSHOT MODE SELECTION
Set the VIDEO/DSC Switch to , then set the
1
Power Switch to “ ” or “ ” while pressing down the Lock Button located on the switch.
Choose the appropriate Snapshot mode from the 5
2
available by repeatedly pressing MODE until the desired snapshot mode indicator appears.
The available Snapshot modes are the same as those on pg. 16.
SNAPSHOT RECORDING
Press SNAPSHOT.
1
The image is stored in the MultiMediaCard.
EN17
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
Total number of shots
Displays the approximate total number of shots that can be stored, including those already taken. The number increases or decreases depending on the shots stored, the Picture Quality mode, etc.
Display
Number of shots taken
Displays the number of images that have already been shot.
Card icon
Appears during shooting and blinks when a MultiMediaCard is not loaded.
Shooting icon
Appears and blinks during shooting.
Picture Quality mode
Displays the Picture Quality mode of the stored image. There are 2 modes available: FINE and STD (Standard) (
VMD6 EN(02/39) 28/08/00, 15:4717
pg. 12).
To Delete Unwanted Still Images . . .
.... when unwanted still images are stored in the
MultiMediaCard or its memory is full, refer to Deleting Images ( pg. 38) and delete unwanted still images.
NOTES:
Even if MULTI-4 or MULTI-9 is engaged, Snapshot recording will be performed in the FULL mode during Digital Zoom.
Even if DIS is set to ON ( pg. 24), the Stabiliser will be disabled.
If Snapshot recording is not possible, PHOTO blinks when SNAPSHOT is pressed.
The Motor Drive mode ( pg. 16) is disabled when the VIDEO/DSC Switch is set to .
If Programme AE with special effects ( pg. 28) is engaged, certain modes of Programme AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.
If shooting is not performed for approx. 5 minutes when the Power Switch is set to “ ” or “ ” and power is supplied from the battery pack, the camcorder shuts off automatically to save power. To perform shooting again, set the Power Switch to OFF, then to “ ” or “ ”.
Still images taken are compliant to DCF (Design rules for Camera File systems). They do not have any compatibility with devices which are not compliant to DCF.
18 EN
RECORDING
Basic Recording For Video And D.S.C.
Zoom in (T: Telephoto)
1xW
T
10xW
T
Zoom display
10xW
Approximate zoom ratio
T
Power Zoom Lever
20xW
T
40xW
T
Zoom out (W: Wide angle)
Digital zoom zone
10X (optical) zoom zone
FEATURE:
Zooming
PURPOSE:
To produce the zoom in/out effect, or an instantaneous change in image magnification.
OPERATION:
Zoom In
Slide the Power Zoom Lever towards “T”.
Zoom Out
Slide the Power Zoom Lever towards “W”.
The further you slide the Power Zoom Lever, the
quicker the zoom action.
NOTES:
Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus ( pg. 21), then zoom in or out in Record mode.
Zooming is possible to a maximum of 100X, or it can be switched to 10X magnification using the optical zoom ( pg. 23).
Zoom magnification of over 10X is done through Digital image processing, and is therefore called Digital Zoom.
During Digital zoom, the quality of image may suffer.
Digital zoom cannot be used when digital image processing, such as Picture Wipe/Dissolve ( pg. 26, 27) or Video Echo ( pg. 28), is activated.
Macro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Lever is set all the way to “W”. Also see TELE MACRO in the Menu Screen on page 24.
Power Switch
VMD6 EN(02/39) 28/08/00, 15:4718
EN19
NOTE: Recording From The Middle Of A Tape
Time Code
During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from 00:00:00 (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.
To perform Random Assemble Editing ( pg. 52 – 57), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from 00:00:00. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform Recording From The Middle of A Tape below in the following cases;
When shooting again after playing back a recorded tape.
When power shuts off during shooting.
When a tape is removed and re-inserted during
shooting.
When shooting using a partially recorded tape.
When shooting on a blank portion located
partway through the tape.
When shooting again after shooting a scene then opening/closing the cassette holder cover.
TC
Recording From The Middle Of A Tape
1. Play back a tape to find the spot at which you want to start recording, then engage the Still Playback
mode ( pg. 31).
2. Set the Power Switch to or “ ” while pressing down the Lock Button located on the switch, then
start recording.
NOTES:
The time code cannot be reset.
During fast-forwarding and rewinding, the time code indication does not move smoothly.
The time code is displayed only when TIME CODE is set to ON ( pg. 25, 32).
Display
12:34:24
Frames are not displayed during recording.
Minutes Seconds Frames
(25 frames = 1 second)
When a blank portion is recorded on a tape
Time code 00:00:00
Tape
Shooting start point
Time code 05:43:21
Proper recording
Time code 00:00:00
Tape
Shooting start point
VMD6 EN(02/39) 28/08/00, 15:4719
Time code 05:43:21
Time code 00:00:00
Shooting start pointShooting stop point
Time code 05:44:00
Shooting start pointShooting start point
Newly recorded sceneBlankAlready recorded scene
Latest sceneNew sceneAlready recorded scene
20 EN
RECORDING
Basic Recording For Video And D.S.C. (cont.)
LIGHT OFF/AUTO/ON Switch (Open the LCD monitor to access this switch.)
DANGER
The video light can become
extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.
Do not place the camcorder into the
carrying case immediately after using the video light, since it remains extremely hot for some time.
When operating, keep a distance of
about 30 cm between the video light and people or objects.
Do not use near flammable or explosive
materials.
It is recommended that you consult your
nearest THOMSON dealer for replacing the video light.
FEATURE:
Video Light
PURPOSE:
To brighten the scene when natural lighting is too dim.
OPERATION:
Set LIGHT OFF/AUTO/ON as required: OFF : Turns off the light.
AUTO : Automatically turns on the light when the
ON : Always keeps the light on as long as the
The video light can only be used with the
It is recommended to set the white balance
When not using the video light, turn it off to save
NOTES:
camcorder senses insufficient lighting on the subject.
camcorder is turned on.
camcorders power on.
( pg. 30) to when you use the video light.
battery power.
Even if the battery indicator ( ) does not blink due to low battery charge, the camcorder may turn off automatically when you turn on the video light, or when you start recording with the video light turned on. When LIGHT OFF/AUTO/ON is set to AUTO:
Depending on the lighting conditions, the video light may keep turning on and off. In this case, manually switch the light on or off using LIGHT OFF/AUTO/ON.
While the SHUTTER mode ( pg. 28) is engaged, the light is likely to stay on.
While the “TWILIGHT” mode ( pg. 28) is engaged, the light will not activate.
VMD6 EN(02/39) 28/08/00, 15:4720
RECORDING
Focus detection zone
Advanced Features For Video And D.S.C.
While focusing on a further subject
EN21
While focusing on a nearer subject
FEATURE:
Auto Focus
PURPOSE:
The camcorders Full Range AF system offers continuous shooting ability from close-up (as close as approx. 5 cm to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):
When two subjects overlap in the same scene.
When illumination is low.*
When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour wall,
or a clear, blue sky.*
When a dark object is barely visible in the viewfinder.*
When the scene contains minute patterns or identical patterns that are regularly repeated.
When the scene is affected by sunbeams or light reflecting off the surface of a body of water.
When shooting a scene with a high-contrast background.
* The following low-contrast warnings appear blinking: , , and
NOTES:
If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.
When shooting a subject close to the lens, zoom out first ( pg. 18). If zoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when TELE MACRO” ( pg. 24) is activated.
FEATURE:
Manual Focus
PURPOSE:
To obtain correct focus.
OPERATION:
1)If you are using the viewfinder, you should already have made the necessary viewfinder adjustments
( pg. 8).
2)Set the Power Switch to “ ”, then press FOCUS (3). The manual focus indicator appears.
3)To focus on a farther subject, rotate MENU/BRIGHT towards “+”. “ ” appears and blinks. To focus on a nearer subject, rotate MENU/BRIGHT towards “–. “ ” appears and blinks.
4)Press MENU/BRIGHT. Focus adjustment is complete.
To reset to Auto Focus, press FOCUS (3) twice or set the Power Switch to “ ”. If FOCUS (3) is pressed once, the camcorder will enter the focus adjustment mode again.
NOTES:
Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.
When the focus level cannot be adjusted any further or closer, “ ” or “ ” will blink.
VMD6 EN(02/39) 28/08/00, 15:4821
22 EN
MENU/BRIGHT Wheel
RECORDING
Power Switch
Lock Button
F
F
O
Y
A
L
P
Advanced Features For Video And D.S.C. (cont.)
Using Menus For Detailed Adjustment
This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings ( pg. 23 – 25) .
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select the desired function
3
icon, and press it. The selected function menu appears.
Function menu setting depends on the function.
4
If you have selected “ ”, “ ”, “ ” or “ ” . . .
4
Display
FAD
E
W
I
W
I
R
A
O
F
F
A
F
A
F
A
/
P
E
I
W
R
C
R
E
S
P
H
U
E
S
P
O
M
D
N F
H
W
R
E
D
B
L
R
E
D
O
M
R
E
D
O
L
T
T
I
T
A
C
S
A
L
E
E K
IRC
Menu Screen
.... see pg. 23.
If you have selected “ ”, “ ”, “ ” or “ ” . . .
C
A
M
E
R
A
MEN
D
S
C
NU
1
R
E
T
U
R
N
Q
U
A
L
I
T
Y
R
SFTIANNEDARD
E
C
S
E
LEMCET
1
R
E
R
E
C
S
O
U
Z
O
O
G
A
I
T
A
L
I
D
D
E
M
U
T
U
R
N
M
O
D
E
S
P
N
D
M
O
D
E
L
P
M N
U
P
L
Y
N
U
M
B
E
R
O
.
M
O
D
E
.... go to step 5.
Rotate MENU/BRIGHT to select the desired function
5
and press it. The Sub Menu appears. Then, rotate MENU/BRIGHT to select the parameter, and press it. Selection is complete.
Rotate MENU/BRIGHT to select 1RETURN and
6
press it twice. The Menu Screen closes.
The icon represents END.
M
A
N
U
A
L
ME
E
T
U
S
L
E
D
E
N
D
M
R
R
N
M
A
C
R
O
M
O
D
E
C
U
T
E
S
E
T
Sub Menu
D
I
1
R
E
T
O
N
S
D
A
T
E
T
I
M
E
C
L
O
C
N
O
N
O
FUF
U
L
P
A
Y
S
MEN
N
R
U
E
R
E
N
C
/
T
I
M
E
C
O
D
E
J.
.
K
1
.
A
D
030
:
0
112
1
R
D
I
T
E
W
I
W
I
C
A
END
Normal Screen
VMD6 EN(02/39) 28/08/00, 15:4822
Menu Screen Explanations
EN23
FADER/WIPE P.AE/EFFECT EXPOSURE W .BALANCE
REC MODE
SOUND MODE
ZOOM
CAMERA MENU
GAIN UP
TALLY
ID NUMBER
12 BIT
16 BIT
10X
40X
100X
OFF AGC AUTO
ON OFF
This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 06.
Refer to Fade/Wipe Effects” ( pg. 26, 27). Refer to Programme AE With Special Effects” ( pg. 28). Refer to Exposure Control and Iris Lock” ( pg. 29). Refer to White Balance Adjustment and Manual White Balance Operation
( pg. 30). Allows you to set the recording mode (SP or LP) depending on your prefer-
ence ( pg. 12). Enables video recording of stereo sound on four separate channels, and is
recommended for use when performing audio dubbing ( pg. 58). (Equiva­lent to the 32 kHz mode of previous models)
Enables video recording of stereo sound on two separate channels. (Equiva­lent to the 48 kHz mode of previous models)
When set to 10X while using digital zoom, the zoom magnification will reset to 10X since digital zoom will be disengaged.
Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 40X digital magnification.
Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 100X digital magnification.
Allows you to shoot dark scenes with no picture brightness adjustment. The overall appearance may be grainy, but the image is bright. The shutter speed is automatically adjusted (1/25 1/200 sec.). Shooting a
subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter image than in the AGC mode, but the subjects movements are not smooth or natural. The overall appearance may be grainy. When the shutter speed is automatically adjusted, is displayed.
The tally lamp comes on to signal the start of recording. The tally lamp remains off at all times.
: Factory-preset
NOTES:
The CAMERA MENU settings are effective when the Power Switch is set to both “ ” and “ ”.
REC MODE can be set when the Power Switch is set to “ ” or ” ( pg. 12, 32).
CONTINUED ON NEXT PAGE
VMD6 EN(02/39) 28/08/00, 15:4823
24 EN
RECORDING
Menu Screen Explanations (cont.)
Advanced Features For Video And D.S.C. (cont.)
DEMO. MODE
CAMERA MENU
DIS
TELE MACRO
WIDE MODE
MANUAL MENU
ON
OFF ON
OFF
ON
OFF
OFF
CINEMA
SQUEEZE
Demonstrates certain functions such as Programme AE with special effects, etc., and can be used to confirm how these functions operate. When DEMO. MODE is set to ON and the Menu Screen is closed, demonstration starts. Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.
NOTES:
If a tape is in the camcorder, the demonstration cannot be turned on.
DEMO. MODE remains ON even if the camcorder power is turned off.
If DEMO. MODE remains ON, some functions will not be available.
After viewing demo, set to OFF”. Automatic demonstration will not take place. To compensate for unstable images caused by camera-shake, particularly at
high magnification.
NOTES:
Accurate stabilisation may not be possible if hand shake is excessive, or
under the following conditions:
When shooting subjects with vertical or horizontal stripes.
When shooting dark or dim subjects.
When shooting subjects with excessive backlighting.
When shooting scenes with movement in various directions.
When shooting scenes with low-contrast backgrounds.
Switch off this mode when recording with the camcorder on a tripod.
The indicator blinks or goes out if the Stabiliser cannot be used.
Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to ON”, you can shoot a subject as large as possible at a distance of approx. 60 cm.
Depending on the zoom position, the lens may go out of focus. Records with no change in the screen ratio. For playback on a TV with a
normal screen ratio. Inserts black bands at the top and bottom of the screen. During playback on
wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. appears. When using this mode, refer to your wide-screen TVs instruction manual. During playback/recording on 4:3 TVs/LCD monitor/viewfinder, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie.
The CINEMA mode is effective only when the VIDEO/DSC Switch is set
to VIDEO”.
For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. appears. When using this mode, refer to your wide-screen TV’s instruction manual. During playback/recording on 4:3 TVs/LCD monitor/viewfinder, the image is elongated vertically.
The SQUEEZE mode is effective only when the VIDEO/DSC Switch is set
to VIDEO”.
: Factory-preset
VMD6 EN(02/39) 28/08/00, 15:4824
EN25
WIND CUT
CAM
MANUAL MENU
RESET ON
SCREEN
DATE/ TIME
DISPLAY MENU
TIME CODE
CLOCK ADJ.
QUALITY
REC SELECT
DSC MENU
ON
OFF
CANCEL EXECUTE LCD
LCD/TV
SIMPLE
ON OFF ON
OFF
Allows you to set the current date and time ( pg. 9).
Allows you to set the Picture Quality mode (FINE and STANDARD) depending on your preference ( pg. 12).
Helps cut down on noise created by wind. appears. The quality of the sound will change. This is normal.
Disengages the function which cuts down on noise created by wind.
Does not reset all settings to the factory-preset. Resets all settings to the factory-preset. Keeps the camcorders display (except the date, time and time code) from
appearing on the connected TV screen. Makes the camcorders display appear on screen when the camcorder is
connected to a TV. Keeps the indications (except the tape running indicator, warnings, date, time,
time code, etc.) from appearing in the camcorder. Also keeps the camcorder’s display (except the date, time and time code) from appearing on the con­nected TV screen.
The date/time is always displayed. The date/time does not appear. Time code is displayed on the camcorder and on the connected TV. Frame
numbers are not displayed during recording. Time code is not displayed.
When Snapshot recording is performed with the VIDEO/DSC Switch set to VIDEO, still images are recorded only onto the tape.
/
When Snapshot recording is performed with the VIDEO/DSC Switch set to VIDEO, still images are recorded not only onto the tape but also in the MultiMediaCard.
: Factory-preset
NOTES:
The MANUAL MENU settings are effective only when the Power Switch is set to “ ”.
DISPLAY MENU functions which are set when the Power Switch is set to “ ” are also applied when the Power Switch is set to ” ( pg. 32). CLOCK ADJ. only appears when the Power Switch is set to “ ”.
The DISPLAY MENU settings are effective even when the Power Switch is set to “ ”.
The ON SCREEN setting can also be changed by pressing the DISPLA Y Button on the remote control (provided) ( pg. 41, 44, 53).
VMD6 EN(02/39) 28/08/00, 15:4825
26 EN
RECORDING
Fade/Wipe Effects
These effects let you make pro-style scene transitions. Use them to spice up the transition from one scene to the next. You can also vary transitions from scene to scene.
IMPORTANT:
Some Fade/Wipe Effects cannot be used with certain modes of Programme AE with special effects ( pg. 28). If an unusable Fade/Wipe Effect is selected, its indicator blinks or goes out.
MENU/BRIGHT Wheel
Advanced Features For Video And D.S.C. (cont.)
FADE/WIPE SELECTION ( , , , ,
, , , , , and )
Fade or Wipe works when video recording is started or when you stop recording.
Set the VIDEO/DSC Switch to VIDEO, then set the
1
Power Switch to “ ” while pressing down the Lock Button located on the switch.
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select , then press it.
3
Rotate MENU/BRIGHT to select the desired function,
4
then press it. Selection is complete.
The FADER/WIPE Menu disappears and the effect is reserved. The indicator representing the selected effect appears.
Press the Recording Start/Stop Button to activate the
5
Fade-in/out or Wipe-in/out.
Recording Start/Stop Button
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
To Deactivate The Selected Effect . . .
.... select OFF in step 4.
NOTES:
You can extend the length of a Fade or Wipe by pressing and holding the Recording Start/ Stop Button.
If the power is turned off after a scene is finished recording, the stored point is erased, disabling the Picture Wipe/Dissolve combina­tion. When this happens, the Picture Wipe/ Dissolve indicator blinks. Also note that power shuts off automatically if 5 minutes elapse in the Record-Standby mode.
The sound at the end of the last recorded scene is not stored.
Power Switch
PICTURE WIPE OR DISSOLVE SELECTION ( , , , , , and )
The Picture Wipe or Dissolve works when video recording is started.
Follow steps 1 through 4 above.
1
If you select Picture Wipe/Dissolve during
2
recording . . .
.... press the Recording Start/Stop Button when one
scene is finished. The point at which the scene ended is stored in memory.
If you select Picture Wipe/Dissolve during Record­Standby mode . . .
.... press the Recording Start/Stop Button to start
recording and press it again when one scene is finished. The point at which the scene ended is stored in memory.
If you select Picture Wipe/Dissolve during Record­Standby mode after performing a Picture Wipe/ Dissolve . . .
.... the point at which the scene ended is already
stored in memory.
If you start recording a new scene within 5 minutes of
3
the end of the previous recording (without having turned the camcorders power off), the previous scene wipes out, revealing the new scene.
VMD6 EN(02/39) 28/08/00, 15:4826
Fader And Wipe Menu
Menu Effect
FADER WHITE
EN27
Fade in or out with a white screen.
FADER BLACK
FADER MOSAIC
FADER B.W
WIPE CORNER
WIPE WINDOW
WIPE SLIDE
WIPE DOOR
WIPE SCROLL
WIPE SHUTTER
DISSOLVE
WIPE CORNER
WIPE WINDOW
WIPE SLIDE
WIPE DOOR
WIPE SCROLL
WIPE SHUTTER
RANDOM
Fade in or out with a black screen.
Fade in or out with a full-screen mosaic effect.
Fade in to a colour screen from a black and white screen, or fade out from colour to black and white.
Wipe in on a black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen.
The scene starts in the centre of a black screen and wipes in toward the corners, or comes in from the corners, gradually wiping out to the centre.
Wipe in from right to left, or wipe out from left to right.
Wipe in as the two halves of a black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene.
The scene wipes in from the bottom to the top of a black screen, or wipes out from top to bottom, leaving a black screen.
Wipe in from the centre of a black screen toward the top and bottom, or wipe out from the top and bottom toward the centre leaving a black screen.
The new scene gradually appears as the old one gradually disappears.
The new scene wipes in over the previous one from the upper right corner to the lower left corner.
The next scene gradually wipes in from the centre of the screen toward the corners, covering the previous scene.
The next scene gradually wipes in over the previous one from right to left.
The previous scene wipes out from the centre to the right and left, like a door being pushed open to reveal the next scene.
The new scene wipes in over the last one from the bottom of the screen to the top.
The new scene wipes in over the previous one from the centre toward the top and bottom of the screen.
When this function is activated, the camcorder randomly selects the effect used in scene transition (from , , , , , ,
, , , and ). The Picture Wipe/Dissolve function is not
available.
VMD6 EN(02/39) 28/08/00, 15:4927
28 EN
RECORDING
IMPORTANT:
Some modes of Programme AE with special effects cannot be used with certain Fade/Wipe Effects ( pg. 27). If an unusable mode is selected, its indicator blinks or goes out.
MENU/ BRIGHT Wheel
Power Switch
Display
P.A
/
C
E
E
F
E
4
1/50 1/100 1/250
F
S
O
W
4
x
L
1
S
O
W
0
x
L
E
E
CTHO
V
D
O
I
F
F
O
1/50
R
E
S
T
U
T
H
1/100
R
E
S
T
U
T
H
1/250
R
E
S
T
U
T
H
Menu Screen
Advanced Features For Video And D.S.C. (cont.)
Programme AE With Special Effects
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select , then press it.
3
Rotate MENU/BRIGHT to select the desired mode,
4
then press it. Selection is complete.
The P.AE/EFFECT Menu disappears and the selected mode is activated. The selected mode indicator appears.
To Deactivate The Selected Mode . . .
.... select OFF in step 4.
NOTE:
Programme AE with special effects can be changed during recording or during Record-Standby.
TWILIGHT
Makes evening scenes look more natural. White Balance ( pg. 30) is initially set to
, but can be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually.
SEPIA
Recorded scenes have a brownish tint like old photos. Combine this with the Cinema mode for a classic look.
MONOTONE
Like classic black and white films, your footage is shot in B/W. Used together with the Cinema mode, it enhances the classic film effect.
CLASSIC FILM
Gives recorded scenes a strobe effect.
STROBE
Your recording looks like a series of consecutive snapshots.
VIDEO ECHO
Adds a “ghost” to the subject, giving your recording a fantasy feeling. Zoom magnification of over 10X is not available.
SLOW (Slow Shutter)
Lights dark subjects or areas even brighter than they would be under good natural lighting. Use SLOW only in dark areas.
SLOW 4X
The Shutter Speed is set to 1/12.5th of a second to quadruple the sensitivity.
SLOW 10X
The Shutter Speed is set to 1/5th of a second to provide 10 times the sensitivity.
NOTES:
When using SLOW, the image takes on a strobe-like effect.
If the manual focus indicator blinks when SLOW is used, adjust focus manually and use a tripod.
SHUTTER (V ariable Shutter Speed) 1/50–The shutter speed is fixed at 1/50th of a second.
Black bands that usually appear when shooting a TV screen become narrower. 1/100–The shutter speed is fixed at 1/100th of a second. The flickering that occurs when shooting under a fluorescent light or mercury-vapour lamp is reduced. 1/250, 1/500 –These settings allow fast-moving images to be captured one frame at a time, for vivid, stable slow-motion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions.
VMD6 EN(02/39) 28/08/00, 15:4928
Exposure Control
Manual exposure adjustment is recommended in the following situations:
When shooting using reverse lighting or when the background is too bright.
When shooting on a reflective natural background such as at the beach or when skiing.
When the background is overly dark or the subject light.
Set the Power Switch to “ ” while pressing
1
down the Lock Button located on the switch. Press MENU/BRIGHT. The Menu Screen
2
appears. Rotate MENU/BRIGHT to select , then
3
press it. Rotate MENU/BRIGHT to select MANUAL”,
4
then press it. The Menu Screen disappears. EXP. and the highlight bar on the exposure control indicator are displayed.
Rotate MENU/BRIGHT towards + to brighten
5
the image, or towards “–” to darken the image. (maximum ±6)
Press MENU/BRIGHT. Exposure adjustment is
6
complete. The indication EXP. and the highlight bar on the exposure control indicator go out.
EN29
Iris Lock
Use this function in the following situations:
When shooting a moving subject.
When the distance to the subject changes (so its size in the LCD monitor or the viewfinder changes), such as when the subject is backing away.
When shooting on a reflective natural background such as at the beach or when skiing.
When shooting objects under a spotlight.
When zooming.
When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken or brighten.
Before the following steps, perform steps 1 through 4 of “Exposure Control”.
Adjust zoom so that the subject fills the LCD
5
monitor or the viewfinder, then press and hold MENU/BRIGHT for over 2 seconds. The exposure control indicator and “ ” appear. Press MENU/BRIGHT. “ ” changes to “ ” and the iris is locked. “EXP. goes out.
MENU/BRIGHT Wheel
Power Switch
EX0P.
To Return To Automatic Exposure Control . . .
.... select AUTO in step 4. Or, set the Power
Switch to “ ”.
NOTE:
To Brighten The Subject Quickly . . .
.... press BACKLIGHT. is displayed and the
subject is brightened. If pressed again, disappears and the brightness returns to the previous level.
+3 exposure has the same effect as the
BACKLIGHT Button.
Using BACKLIGHT may cause the light around the
subject to become too bright and the subject to become white.
Backlight compensation is also available when the Power Switch is set to “ ”.
Pressing the BACKLIGHT button has no effect when the exposure is set to MANUAL and the Power Switch is set to “ ”.
VMD6 EN(02/39) 28/08/00, 15:4929
BACKLIGHT Button
Iris lock indicator
To Return To Automatic Iris Control . . .
.... rotate MENU/BRIGHT to display AUTO then
press it in step 4. The exposure control indicator and “ ” disappear. Or, set the Power Switch to “ ”.
To Lock The Exposure Control And The Iris . . .
.... after step 4, adjust the exposure rotating MENU/
BRIGHT. Then lock the iris in step 5. For
automatic locking, rotate MENU/BRIGHT to select AUTO”, then press it in step 4. The iris becomes automatic after about 2 seconds.
Iris
Like the pupil of the human eye, it contracts in well­lit environments to keep too much light from entering, and dilates in dim environments to allow in more light.
30 EN
RECORDING
White Balance Adjustment
A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accu­rately reproduced. The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional colour/tint reproduction.
Set the Power Switch to “ ” while pressing
1
down the Lock Button located on the switch. Press MENU/BRIGHT. The Menu Screen
2
appears. Rotate MENU/BRIGHT to select , then
3
press it. The Menu Screen disappears and W.BAL and the currently selected mode are displayed.
Rotate MENU/BRIGHT to select the desired
4
mode.
AUTO”–White balance is adjusted automati-
MAN.”–White balance is set manually. ”–Outdoors on a sunny day. ”– Outdoors on a cloudy day. ”–A video light or similar type of lighting
cally (factory preset).
is used.
Advanced Features For Video And D.S.C. (cont.)
Manual White Balance Operation
Perform Manual White Balance when shooting under various types of lighting.
Follow steps 1 through 4 of the white balance
1
adjustment, and select MAN.”.
Hold a sheet of plain white paper in front of the
2
subject. Adjust zoom or position yourself so that the white paper fills the screen.
Press MENU/BRIGHT until begins blinking.
3
When the setting is completed, stops blinking.
Press MENU/BRIGHT. Only the Manual White
4
Balance indicator is displayed.
MENU/BRIGHT Wheel
White paper
Press MENU/BRIGHT. Selection is complete.
5
To Return To Automatic White Balance . . .
.... select AUTO in step 4. Or, set the Power
Switch to “ ”.
NOTE:
White balance cannot be used when Sepia or Monotone ( pg. 28) is activated.
VMD6 EN(02/39) 28/08/00, 15:4930
Power Switch
To Change The Tint For Recording . . .
.... in step 2, substitute coloured paper for white.
The white balance is adjusted based on the colour, changing the tint. Red paper = deeper green; blue paper = orange; yellow paper = deeper purple.
NOTES:
In step 2, it may be difficult to focus on the white paper. In such a case, adjust focus manually ( pg. 21).
A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result.
Once you adjust white balance manually, the setting is retained even if the power is turned off or the battery removed.
PLA YBACK
Rewind Button (
Stop Button (5)
VIDEO/DSC Switch (Open the LCD monitor to access this switch)
Power Switch
Basic Playback For Video
2
)
Speaker
Play/Pause Button (
4
/6)
Fast-Forward Button
3
)
(
Power Zoom Lever (VOL.)
F
F
O
Y
A
L
P
Lock Button
EN31
Load a tape ( pg. 10).
1
Set the VIDEO/DSC Switch to VIDEO, then set the Power Switch to while pressing down the
2
Lock Button located on the switch. To start playback, press 4/6.
To stop playback, press 5.
Press 2 to rewind, or 3 to fast-forward the tape
during Stop mode.
To Control The Speaker Volume . . .
....
slide the Power Zoom Lever (VOL.) towards + to turn up the volume, or towards “–” to turn down the volume.
NOTES:
If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to OFF, then to .
The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV ( pg. 40).
You can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.
LCD monitor/viewfinder indications:
When power is supplied from a battery: the battery pack remaining power indicator is displayed. When power is supplied through the DC cord: does not appear.
During Stop mode, none of the indications are displayed.
When a cable is connected to the AV connector, the sound is not heard from the speaker.
Still Playback:
1)Press 4/6 during playback.
2)To resume normal playback, press 4/6 again.
If still playback continues for more than about 3 minutes, the camcorders Stop mode is automatically
Pauses during playback.
engaged. After 5 minutes in the Stop mode, the camcorders power is automatically turned off.
When
4
/6
is pressed, the image may not pause immediately while the camcorder stabilises the still
image.
Shuttle Search:
1)Press 3 for forward or 2 for reverse search during playback.
2)To resume normal playback, press 4/6.
During playback, press and hold 2 or 3. The search continues as long as you hold the button.
Allows high-speed search in either direction.
Once you release it, normal playback resumes.
A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.
Frame-By-Frame Playback: Allows frame-by-frame search.
1)Engage Still Playback.
2)Rotate MENU/BRIGHT towards “+” for forward Frame-By-Frame Playback, or towards “–” for reverse
Frame-By-Frame Playback during Still Playback.
To resume normal playback, press 4/6.
You can also use the provided remote control for Frame-By-Frame Playback ( pg. 50).
Playback Zoom and Playback Special Effects
Available only with the remote control (provided) ( pg. 50, 51).
VMD6 EN(02/39) 28/08/00, 15:4931
32 EN
1
S
1 S R
R
O
2 Y E
E
U
B N C
V T
N
I
C
I U
D
T H M
D R
R O
E N
M
M O D C
O
O
O E
O
D
D
P
M
E
E
Y
ENU
S
S S
T
O O
E
U U
R
N N
E
D D
O
L R
1
O D
T
R N A
I
D E
T
M
I T S E
E
S U C
/
P R R T
C
L N E
I
O
A E
M
D
Y N
E
E
M
EN
O
O
U
N
FF
MENU/BRIGHT Wheel
Power Switch
F
F
O
Y
A
L
P
Lock Button
PLA YBACK
Advanced Features For Video
Using Menus For Detailed Adjustment
The following procedure applies to all except
Comp ( pg. 56, 57).
Set the Power Switch to while pressing down
1
the Lock Button located on the switch. Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select the desired function
3
icon, and press it. The selected function menu appears.
Rotate MENU/BRIGHT to select the desired function,
4
and press it to display the Sub Menu. Rotate MENU/BRIGHT to select the desired
5
parameter and press it. Selection is complete.
Synchro
Recording Start/Stop Button
Display
Menu Screen
* Each setting is linked with DISPLAY MENU”,
which appears when the Power Switch is set to “ ” ( pg. 25). The parameters are the same as in the description on pg. 25.
NOTES:
It is also possible to change the ON SCREEN settings by pressing DISPLAY on the remote control (provided).
REC MODE can be set when the Power Switch is set to or “ ” ( pg. 12,
23).
If ON SCREEN is set to SIMPLE, it keeps the camcorders display (except the date, time and time code) from appearing on the connected TV. It also makes the playback sound mode and tape speed disappear on the camcorder.
Rotate MENU/BRIGHT to select 1RETURN and
6
press it twice to close the Menu Screen.
SOUND MODE 12BIT MODE SYNCHRO REC MODE
pg. 33. pg. 33. pg. 57.
Allows you to set the video recording mode (SP or LP) depending on your preference ( pg. 12). It is recommended you use REC MODE in the VIDEO MENU when
VIDEO MENU
COPY
using this camcorder as a recorder during digital dubbing ( pg. 45).
ON: Enables dubbing of images recorded on a tape to a MultiMediaCard ( pg. 47). OFF: Enables snapshots to be taken during video playback ( pg. 16).
ON SCREEN*
Makes the camcorder’s indications appear/ disappear from the connected TV screen.
DATE/TIME*
Makes the date/time appear/disappear on the
DISPLAY MENU
TIME CODE*
camcorder. Makes the time code
appear/disappear on the camcorder.
VMD6 EN(02/39) 28/08/00, 15:4932
EN33
Playback Sound
During playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. According to the menu access explanation on pg. 32, select SOUND MODE or 12BIT MODE from the Menu Screen and set it to the desired parameter.
SOUND MODE
12BIT MODE
STEREO SOUND L SOUND R SOUND 1 SOUND 2 MIX
Sound is output on both “L” and “R” channels in stereo. Sound from the “L” channel is output in stereo. Sound from the “R” channel is output in stereo. Original sound is output on both “L” and “R” channels in stereo. Dubbed sound is output on both “L” and “R” channels in stereo. Original and dubbed sounds are combined and output in stereo on
both “L” and “R” channels in stereo.
: Factory-preset
NOTES:
The SOUND MODE setting is available for both 12-bit and 16-bit sound. (In previous models functions,12-bit is called 32 kHz and 16-bit is called 48 kHz”.)
The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During playback the sound mode is displayed in the upper left corner.
Display
ON SCREEN setting: For playback sound, tape speed and tape running.
12
BIT/SOUND
1
SP
4
DATE/TIME setting: For date/time.
TIME CODE setting: For time code.
VMD6 EN(02/39) 28/08/00, 15:5033
25. 1127.:030 0
TC
12:34:24
Frames*
Seconds
Minutes
*25 frames = 1 second
34 EN
2
Rewind ( Button
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
)
Power Switch
Fast-Forward ( Button
F
F
O
Y
A
L
P
PLA YBACK
3
)
Normal Playback
Images shot with the camcorder are automatically numbered, then stored in numerical order in the MultiMediaCard. You can view the stored images, one at a time, much like flipping through a photo album.
1 2
3
Basic Playback For D.S.C.
Load a MultiMediaCard ( pg. 11).
Set the VIDEO/DSC Switch to , then set the Power Switch to while pressing down the Lock Button.
A stored image is displayed.
Press 3 to display the next image. Press 2 to display the previous image.
To display the next image
10/ 50
11/ 50
12/ 50
Display
Lock Button
100–0010
100–0011
100–0012
100–0013
NOTES:
Even if you shoot a new image after playing back a low­numbered one, this will not overwrite an existing image, because new images are automatically stored after the last-recorded one.
Images shot in a file size other than VGA with devices that are compatible with DCF (Design rules for Camera File systems) will be displayed as reduced-size thumbnail images. These thumbnail images cannot be transferred to a PC.
Images shot with devices that are not compatible with DCF cannot be viewed with this camcorder; Unsupported Data!will be displayed.
Directory and File names
Displays the directory and file names. Shows that the selected shot is in a directory called 100 and its file name is DVC00013”. Each time shooting takes place, a file name is made using a number which is larger by one than the largest number of the file names which are in use. If the file name reaches DVC09999, a new directory will be made and the file name will start again from DVC00001. In the playback screen, the directory and only the last four digits of the file name are displayed.
13/ 50
Total number of images
To display the previous image
VMD6 EN(02/39) 28/08/00, 15:5034
Displays the total number of stored images.
Image number
Displays the index number of the image file (
pg. 35).
Picture Quality mode
Index number Selected image
EXIT
001 F 002 S
004 F
MENU/BRIGHT Wheel
<
INDEX
005 F
Power Switch
>
003 S
006 F
O
Y
A
L
P
Lock Button
Protect icon
F
F
EN35
INDEX Screen
The images you shot can be displayed together with their index information. Convenient for checking images shot beforehand, the INDEX Screen also shows the Picture Quality mode as well as which images are protected against accidental erasure.
001: Index number
Index numbers are marked from 001. For example, when 10 images are stored (index number: 001 to 010), if three images with index numbers 002, 004 and 006 are deleted from memory, the remaining images are automatically moved up to fill any gaps in the numerical sequence. Therefore, the number of remaining images is 7, and the new index numbers range from 001 to 007.
F/S: Picture Quality mode
Displays the Picture Quality mode of the stored image. There are 2 modes available: FINE and STANDARD (in order of quality) ( pg. 12).
: Protect icon
When an image is protected against its accidental erasure, a padlock mark appears next to the Picture Quality mode indicator, and that image cannot be deleted.
Selected Image
An image is framed in green like this when it is selected. Rotate MENU/BRIGHT to move the green frame to the desired image.
Index Playback
You can view the images stored in memory six at a time. Use this mode when looking for an image you wish to view.
Display
MOEWNU
D
S
C
R
1
E
T
U
R
N
I
N
D
E
X
S
L
I
D
E
STH
P
R
O
T
E
C
D
E
L
E
T
E
F
O
R
M
A
T
VMD6 EN(02/39) 28/08/00, 15:5035
Menu Screen
Playback Screen
Perform step 1 of Normal Playback on pg. 34.
1
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select and press it.
3
DSC MENU appears. Rotate MENU/BRIGHT to select INDEX and press
4
it. The INDEX Screen appears. Rotate MENU/BRIGHT to move the green frame to
5
the desired image and press it. The selected image is displayed on the whole screen, then the screen enters normal playback.
36 EN
MENU/BRIGHT Wheel
Power Switch
F
F
O
Y
A
L
P
Lock Button
PLA YBACK
Advanced Features For D.S.C.
Slide Show
You can run through all the images stored in memory automatically in numerical order.
Set the VIDEO/DSC Switch to , then set the
1
Power Switch to , while pressing down the Lock Button.
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select and press it.
3
DSC MENU appears. Rotate MENU/BRIGHT to select SLIDE SHOW and
4
press it. The Slide Show starts.
To stop the Slide Show, press 5.
5
Stop (5) Button
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
Display
MOEWNU
D
S
C
R
1
E
T
U
R
N
I
N
D
E
X
S
L
I
D
E
STH
P
R
O
T
E
C
D
E
L
E
T
E
F
O
R
M
A
T
Play/Pause ( Button
4
/6)
To start the Slide Show without going through the Menu Screen . . .
.... after step 1, press 4/6. To stop the Slide Show, press
5.
VMD6 EN(02/39) 28/08/00, 15:5036
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
MENU/BRIGHT Wheel
F
F
O
Y
A
L
P
Lock Button
EN37
Protecting Images
The Protect mode helps prevent the accidental erasure of images. When a padlock mark is displayed next to the Picture Quality Mode indication, that image cannot be deleted.
Set the VIDEO/DSC Switch to , then set the
1
Power Switch to while pressing down the Lock Button.
A stored image is displayed. Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate it to select and press it. DSC MENU appears.
Rotate MENU/BRIGHT to select PROTECT and
3
press it. The PROTECT Index Screen appears.
Display
D
S
C
R
1
E
T
U
R
N
I
N
D
E
X
S
L
I
D
E
STH
P
R
O
T
E
C
D
E
L
E
T
E
F
O
R
M
A
T
EXIT
<
PROTECT
001 F 002 S
004 F
Normal playback
EXIT
001 F 002 S
004 F
005 F
<
PROTECT
005 F
MOEWNU
>
003 S
006 F
>
003 S
006 F
Power Switch
Menu Screen
PROTECT Index Screen
Padlock mark
If Protection is removed
TO PROTECT AN IMAGE
Before doing the following, perform steps 1 through 3 above.
Rotate MENU/BRIGHT to move the green frame to
4
the desired image and press it. A “ ” padlock mark appears on the selected image. Repeat this procedure for all images you do not wish to delete by accident.
Rotate MENU/BRIGHT upward to select EXIT and
5
press it. The normal playback screen appears.
NOTE:
When the memory is initialised or corrupted, even protected images are deleted. If you do not want to lose important images, transfer them to a PC and save them.
TO REMOVE PROTECTION
Before doing the following, perform steps 1 through 3 above.
Rotate MENU/BRIGHT to move the green frame to
4
the desired image and press it. The “ ” padlock mark located above the image disappears and the image is no longer protected. Repeat this procedure for all images from which you wish to remove protection.
Rotate MENU/BRIGHT upward to select EXIT and
5
press it. The normal playback screen appears.
Normal playback
VMD6 EN(02/39) 28/08/00, 15:5037
38 EN
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
PLA YBACK
MENU/BRIGHT Wheel
F
F
O
Y
A
L
P
Advanced Features For D.S.C. (cont.)
Deleting Images
Previously shot images can be deleted either one at a time or all at once.
Set the VIDEO/DSC Switch to , then set the Power Switch to while pressing down the
1
Lock Button.
A stored image is displayed.
Press MENU/BRIGHT. The Menu Screen appears. Rotate it to select and press it. DSC MENU
2
appears. Rotate MENU/BRIGHT to select DELETE and press
it. The Sub Menu appears.
3
Lock Button
Power Switch
CEAXNEC
Display
<
DELETE
005 F
D
S
E
L
C
U
TCE
MENU
>
003 S
006 F
DELETE Index Screen
Deletion Confirmation Screen
EXIT
001 FX 002 SX
004 F
CAUTION:
Do not remove the MultiMediaCard or perform any other operation (such as turning off the camcorder) during deletion. Also, be sure to use the provided AC Power Adapter/Charger, as the MultiMediaCard may be corrupted if the battery becomes exhausted during deletion. If the MultiMediaCard becomes corrupted, initialise it. ( pg. 39)
TO SELECT AN IMAGE BY BROWSING IMAGES STORED IN MEMORY
Before doing the following, perform steps 1 through 3 above.
Rotate MENU/BRIGHT to select SELECT and press it. The DELETE Index Screen appears.
4
Rotate MENU/BRIGHT to move the green frame to the desired image that you wish to delete and press it. An
5
“ ” appears above the selected image. Repeat this procedure for all images that you wish to delete. To deselect an image, press MENU/BRIGHT again. The “ ” disappears.
Rotate MENU/BRIGHT upward to select NEXT and press it. The Deletion Confirmation Screen appears.
6
Rotate MENU/BRIGHT to select EXECUTE and press it. The selected images are deleted and the
7
normal playback screen appears.
To cancel deletion, rotate MENU/BRIGHT to select
CANCEL and press it.
TO DELETE ALL IMAGES
Before doing the following, perform steps 1 through 3 above.
Rotate MENU/BRIGHT to select ALL and press it. The Deletion Confirmation Screen appears.
4
Rotate MENU/BRIGHT to select EXECUTE and press it. All the images are deleted and the normal
5
playback screen appears.
To cancel deletion, rotate MENU/BRIGHT to select
CANCEL and press it.
NOTES:
Protected images ( pg. 37) cannot be deleted with the above operation. To delete them, remove protection first.
Once images are deleted, they cannot be restored. Check images before deleting.
VMD6 EN(02/39) 28/08/00, 15:5038
MENU/BRIGHT Wheel
EN39
Initialising A MultiMediaCard
You can initialise a MultiMediaCard anytime.
After initialising, all images and data stored in the MultiMediaCard, including those which have been protected, are cleared.
Set the VIDEO/DSC Switch to , then set the
1
Power Switch to , while pressing down the Lock Button located on the switch.
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
Display
MOEWNU
D
S
C
1
R
E
T
U
R
N
I
N
D
E
X
S
L
I
D
E
STH
P
R
O
T
E
C
D
E
L
E
T
E
F
O
R
M
A
CEAXNECCEUL
T
Lock Button
Power Switch
TE
F
F
O
Y
A
L
P
Menu Screen
Press MENU/BRIGHT. The Menu Screen appears.
2
Rotate MENU/BRIGHT to select and press it.
3
DSC MENU appears. Rotate MENU/BRIGHT to select FORMAT” and
4
press it. The Sub Menu appears. Rotate MENU/BRIGHT to select EXECUTE and
5
press it. The MultiMediaCard is initialised. When initialisation is finished, NO STORED IMAGE appears.
To cancel initialisation, rotate MENU/BRIGHT to
select CANCEL and press it.
CAUTION:
Do not perform any other operation (such as turning off the camcorder) during initialisation. Also, be sure to use the provided AC Power Adapter/Charger, as the MultiMediaCard may be corrupted if the battery becomes exhausted during initialisation. If MultiMediaCard becomes corrupted initialise it.
VMD6 EN(02/39) 28/08/00, 15:5039
40 EN
CONNECTIONS
Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.
A. Connection to a TV or VCR equipped with a SCART connector compatible only with regular video
signal
To AV
White to
Core filter
Audio/Video cable
Connector cover*
* When connecting the cables, open this cover . ** The Audio cable is not required for watching still images when the VIDEO/DSC Switch is set to “ ”.
[mini-plug to RCA plug] (provided)
AUDIO L IN**
Red to AUDIO R IN**
Yellow to VIDEO
To TV or VCR
Cable Adapter (provided)
Set to CVBS
TV
VCR
B. Connection to a TV or VCR equipped with a SCART connector compatible with Y/C signal
-IN
To TV or VCR
Cable Adapter (provided)
Set to Y/C
TV
VCR
Audio/Video cable [mini-plug to RCA plug] (provided)
Core filter
To AV
To S
Core filter
S-Video cable (optional)
Yellow: Not connected
White to AUDIO L IN**
Red to AUDIO R IN**
To
Connector cover*
* When connecting the cables, open this cover . ** The Audio cable is not required for watching still images when the VIDEO/DSC Switch is set to “ ”.
VMD6 EN(40/80) 28/08/00, 16:0640
EN41
C.
Connection to a TV or VCR equipped with an S-VIDEO IN and/or A/V input (RCA type) connectors
* When connecting the cables, open this cover. ** The Audio cable is not required for watching still
images when the VIDEO/DSC Switch is set to .
Audio/Video cable [mini-plug to RCA plug] (provided)
Core filter
To AV
To S
Core filter
Connector cover*
Make sure all units are turned off.
1
Connect the camcorder to a TV or VCR as
2
shown in the illustration ( pg. 40).
If using a VCR . . . go to step 3. If not . . . go to step 4.
Connect the VCR output to the TV input,
3
referring to your VCR’s instruction manual. Turn on the camcorder, the VCR and the TV.
4
Set the VCR to its AUX input mode, and set the
5
TV to its VIDEO mode.
When an S-Video cable is not used.
Yellow to VIDEO IN
S-Video cable (optional)
To choose whether or not the following displays appear on the connected TV . . .
•Date/Time
.... set “DATE/TIME” to “ON” or “OFF” in the
Menu Screen ( pg. 32).
•Time Code
.... set “TIME CODE” to “ON” or “OFF” in the
Menu Screen ( pg. 32).
Playback Sound Mode, T ape Speed And Tape
Running Displays for video playback
OR
Directory/File Names and Image Number/Total Number of Images for D.S.C. Playback
.... set ON SCREEN to LCD or SIMPLE in the
Menu Screen ( pg. 32). Or , press DISPLAY on the remote control (provided).
White to AUDIO L IN**
Red to AUDIO R IN**
To S-VIDEO IN
To TV or VCR
TV
VCR
NOTES:
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack ( pg. 7).
When connecting the cables, make sure to connect the ends with a core filter to the camcorder. The core filter reduces interference.
To monitor the picture and sound from the camcorder without inserting a tape or MultiMediaCard, set the camcorders Power Switch to “ ” or “ ”, then set your TV to the appropriate input mode.
Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.
If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.
Set the video out select switch of the cable adapter as required: Y/C : When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable. CVBS : When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable.
VMD6 EN(40/80) 28/08/00, 16:0741
42 EN
Connector cover*
CONNECTIONS
Power Switch
Advanced Connections
To DV IN/OUT
Core filter
DV cable**
To DV connector
To PC (DIGITAL PHOTO)
PC connection cable (provided)
To RS-232C
PC with DV connector-equipped capture board
* When connecting the cable, open this cover. ** Use the DV cable provided with the capture
board.
VMD6 EN(40/80) 28/08/00, 16:0742
PC
Connection To A Personal Computer
This camcorder can transfer still images to a PC by using the provided software when connected as shown in the illustration. It is also possible to transfer still images to a PC with a DV connector-equipped capture board installed.
Make sure the camcorder and PC are turned off.
1
Connect the camcorder to your PC using the
2
appropriate cable as shown in the illustration. Turn the camcorders Power Switch to while
3
pressing down the Lock Button located on the switch and turn on the PC.
NOTES:
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack ( pg. 7).
Never connect the PC connection cable and the DV cable simultaneously to the camcorder. Connect only the cable you wish to use to the camcorder.
The date/time information cannot be captured into the PC.
Refer to the instruction manuals of the provided Software.
Also refer to the manufacturers instruction manual for the DV connector-equipped capture board.
EN43
VMD6 EN(40/80) 28/08/00, 16:0743
44 EN
Connector cover**
Core filter
Power Switch
To AV
To S
Audio/Video cable [mini-plug to RCA plug] (provided)
Core filter
DUBBING
Dubbing To A VCR
Following the illustration, connect the camcorder and
1
the VCR. Also refer to pg. 40 and 41. Set the VIDEO/DSC Switch to VIDEO, then set the
2
camcorders Power Switch to while pressing down the Lock Button located on the switch, turn on the VCRs power, and insert the appropriate cassettes in the camcorder and the VCR.
Engage the VCRs AUX and Record-Pause modes.
3
Engage the camcorders Play mode to find a spot just
4
before the edit-in point. Once it is reached, press
4
/6 on the camcorder .
Press 4/6 on the camcorder and engage the VCR’s
5
Record mode. Engage the VCRs Record-Pause mode and press
6
4
/6 on the camcorder .
Repeat steps 4 through 6 for additional editing, then
7
stop the VCR and camcorder when finished.
S-Video cable (optional)
To AUDIO, VIDEO* and connectors
“Y/C”/“CVBS” video out select switch
VCR (Recording deck)
* Connect when an S-Video cable is not used. ** When connecting the cables, open this cover.
If your VCR has a SCART connector, use the provided cable adapter.
TV
NOTES:
Before you start dubbing, make sure that the indications do not appear on the connected TV. If they do, they are being recorded onto the new tape.
To choose whether or not the following displays appear on the connected TV . . .
-IN
Date/Time
.... set DATE/TIME to ON” or “OFF” in the Menu
Screen ( pg. 32).
Time Code
.... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 32).
Playback Sound Mode, T ape Speed And Tape Running
Displays
.... set ON SCREEN to LCD or SIMPLE in the
Menu Screen ( pg. 32). Or, press DISPLAY on the remote control.
When connecting the cables, make sure to connect the ends with a core filter to the camcorder. The core filter reduces interference.
Set the video out select switch of the cable adapter as required: Y/C : When connecting to a TV or VCR which accepts
Y/C signals and uses an S-Video cable.
CVBS : When connecting to a TV or VCR which does
not accept Y/C signals and uses an audio/video
cable.
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack ( pg. 7).
You can use Playback Zoom ( pg. 50) or Playback Special Effects ( pg. 51) in step 5.
VMD6 EN(40/80) 28/08/00, 16:0744
Power Switch
Connector cover*
To DV IN/OUT
* When connecting the cable, open this cover.
To DV IN/OUT
Core filter
DV cable
Video unit equipped with DV connector
EN45
Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing)
It is also possible to copy recorded scenes from the camcorder onto another video unit equipped with a DV connector. Since a digital signal is sent, there is little if any image or sound deterioration.
[To use this camcorder as a player]
Make sure all units are turned off. Connect the camcorder to a video unit equipped with a DV input
1
connector using a DV cable as shown in the illustration. Set the VIDEO/DSC Switch to VIDEO, set the
camcorders Power Switch to while pressing
2
down the Lock Button located on the switch, turn on the video units power, and insert the appropriate cassettes in the camcorder and the video unit.
Press 4 to play back the source tape.
3
While watching the playback on the monitor, engage the DV connector-equipped video unit’s record mode from
4
the spot on the source tape you want to begin recording.
NOTES:
It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack ( pg. 7).
If the remote control is used when both the player and recorder are THOMSON video units, both units will perform the same operation. To prevent this from happen­ing, press the buttons on both units.
For Digital Dubbing, this camcorder can be connected only to one device at a time.
If a blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed.
Even though the DV cable is connected correctly, some­times the image may not appear in step 4. If this occurs, turn off the power and make connections again.
If Playback Zoom ( pg. 50), Playback Special Effects ( pg. 51) or Snapshot is attempted during playback, only the original playback image recorded on the tape is output from the DV OUT connector.
To Use This Camcorder As A Recorder . . .
1. Turn the Power Switch to while pressing down the Lock Button located on the switch.
2. Set REC MODE to SP or LP in the Menu Screen ( pg. 32).
3. Connect the DV cable as shown in the illustration and load a cassette to record on.
4. Press the Recording Start/Stop button to engage the Record-Pause mode. DV. IN appears on the screen.
5. Press the Recording Start/Stop button to start recording. DV. IN changes to
6. Press the Recording Start/Stop button again to engage the Record-Pause mode.
NOTES:
Digital Dubbing is performed in the sound mode recorded on the original tape, regardless of the current SOUND MODE setting ( pg. 23).
During Digital Dubbing, no signals are output from the AV output connector.
VMD6 EN(40/80) 28/08/00, 16:0745
DV . IN
”.
DV . IN
returns to DV. IN”.
46 EN
DUBBING
(cont.)
Dubbing Images Stored In A MultiMediaCard To A Tape
Images can be dubbed from a MultiMediaCard to a tape.
Load a MultiMediaCard ( pg. 11) and cassette
1
( pg. 10). To locate the point where you wish to dub a still
2
image, play back the tape. Stop playback at the desired point.
Power Switch
F
F
O
Y
A
L
P
Recording Start/Stop Button
Lock Button
Rewind Button (
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
Display
TPOUSCHOPSYTATROT/TSATPOE
2
)
Fast-Forward Button (
3
P
)
Set the VIDEO/DSC Switch to , then set the
2
3
Power Switch to while pressing down the Lock Button located on the switch.
To select a still image to be dubbed, perform Index
3
4
Playback ( pg. 35) or press 2 or 3 to select the image you wish.
To engage Dub-Standby, press the Recording Start/
5
Stop Button. The message TO COPY TO TAPE PUSH START/STOP appears.
While the message is being displayed, press the
6
Recording Start/Stop Button. The selected still image is recorded on the tape for approx. 5 seconds.
The indicator disappears when dubbing is complete.
NOTE:
If the Recording Start/Stop Button is pressed in step 5 when the tapes erase protection tab is set to SAVE, the message COPYING FAILED is displayed.
R
4E4C4
VMD6 EN(40/80) 28/08/00, 16:0746
MODE Button
SNAPSHOT Button
MENU/ BRIGHT Wheel
M
O
V
I
D
E
1
R
E
T
U
R
N
S
M
O
1
2
S
Y
R
E
E
U
O
D
N
D
M
E
B
O
D
I
T
O
N
C
H
R
D
E
C
M
O
YENOUN
C
O
P
VIDEO/DSC Switch (Open the LCD monitor to access this switch.)
Power Switch
F
F
O
Y
A
L
P
Lock Button
Play/Pause Button (4/6)
EN47
Dubbing Images Recorded On A Tape To A MultiMediaCard
Images can be dubbed from a tape to a MultiMediaCard.
Load a MultiMediaCard ( pg. 1 1) and cassette
1
( pg. 10). Set the VIDEO/DSC Switch to VIDEO, then set the
2
Power Switch to while pressing down the Lock Button.
Press MENU/BRIGHT. The Menu Screen appears.
3
Rotate it to select and press it. VIDEO MENU appears.
Rotate MENU/BRIGHT to select COPY
4
and press it. The Sub Menu appears. Rotate it to select ON and press it. Selection is complete.
Rotate MENU/BRIGHT to select 1RETURN and
5
press it twice. The normal playback screen resumes. To select a video image to be dubbed, start playback
6
by pressing 4/6. At the moment you find the image you wish to dub, press it again to engage Still Playback.
Press MODE to select the Snapshot mode to use for
7
dubbing the image to the MultiMediaCard. T o start dubbing, press SNAPSHOT. The selected
8
image is stored in the MultiMediaCard.
•“ ” blinks during dubbing.
NOTES:
If SNAPSHOT is pressed in step 8 when a MultiMediaCard is not loaded, the message COPYING FAILED is displayed.
If an image recorded on the tape using the WIDE mode ( pg. 24) is dubbed to a MultiMediaCard, the WIDE mode identifying signal is not dubbed with it.
To use Playback Special Effects with a video image you wish to dub, perform up to step 8 using the remote control (provided) ( pg. 51).
Display
SP
6
VMD6 EN(40/80) 28/08/00, 16:0747
48 EN
USING THE REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations
1
3
Tab
(Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. It also makes additional playback functions possible.
Installing The Batteries
The remote control uses two AAA (R03) size batteries. See General Battery Precautions ( pg. 73).
Remove the battery compartment cover while
1
pushing up the tab as illustrated. Insert two AAA (R03) size batteries in the correct
2
direction.
2
Remote sensor
+
+
Transmitted beam effective area
5m
30°
Re-attach the battery compartment cover .
3
When using the remote control, be sure to point it at the remote sensor . The illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.
30°
VMD6 EN(40/80) 28/08/00, 16:0748
EN49
10
2
3
4
5
6
7
8
9
Buttons
1 Infrared beam transmitting window 2 Zoom (T/W) Buttons 3 DISPLAY Button 4 SHIFT Button 5 SLOW Rewind/Forward Buttons
Left/Right Buttons
6 REW Button
7 FADE/WIPE Button 8 EFFECT ON/OFF Button 9 EFFECT Button 0 PAUSE IN Connector ! START/STOP Button @ MBR SET Button # SNAPSHOT Button $ Up Button
INSERT Button*
% Down Button
A. DUB Button
^ PLAY Button
& FF Button
* STOP Button
( PAUSE Button ) R.A.EDIT Buttons
*This function is unavailable with this camcorder.
With the camcorders Power Switch set to the camera position (“ ” or “ ”) .
Transmits the beam signal. Zoom in/out ( pg. 18)
Functions the same as the Recording Start/Stop Button on the camcorder.
Functions the same as SNAPSHOT on the camcorder.
!
@
#
$
%
^
&
*
(
)
Functions
With the camcorders Power Switch set to
Zoom in/out (
— — —
— —
— — — —
— —
— —
— —
pg. 41, 44, 53 pg. 50, 52 pg. 50
pg. 50
Rewind/Reverse Shuttle Search on a tape ( pg. 31)
Displays previous image in a MultiMediaCard (
pg. 54 pg. 51 pg. 51 pg. 53
pg. 52
pg. 50
pg. 50 pg. 58
Starts Playback of a tape (
Starts Slide Show (
Forward/Forward Shuttle Search
on a tape ( pg. 31)
Displays next image in a MultiMediaCard (
Stops the tape (
Stops Slide Show (
Pauses the tape (
pg. 52 – 57
”.
pg. 50)
pg. 34)
pg. 31)
pg. 36)
pg. 34)
pg. 31)
pg. 36)
pg. 50)
VMD6 EN(40/80) 28/08/00, 16:0749
50 EN
Zoom Buttons
Left or SLOW
Rewind Button
Right or SLOW
Forward Button
SHIFT
USING THE REMOTE CONTROL UNIT
Remote sensor
Press TNormal playback
Up Button
Down Button
PLAY PAUSE
STOP
FEATURE:
Slow-Motion Playback
PURPOSE:
To allow slow-speed search in either direction during video playback.
OPERATION:
1)To change from normal to Slow-Motion Playback, press PAUSE (6) to engage Still Playback then press SLOW (9 or 0) more than approx. 2 seconds. After
approx. 1 minute in Slow Rewind or approx. 2 minutes in Slow Forward, normal playback resumes.
To stop Slow-Motion Playback, press PLAY (4).
NOTES:
During Slow-Motion Playback, due to digital image processing, the picture may take on a mosaic effect.
After SLOW image may be displayed for a few seconds, followed by a blue screen for a few seconds. This is not a malfunction.
There may be a small margin between the slow­motion playback start point you chose and the actual start point for Slow-Motion Playback.
During Slow-Motion Playback, there will be disturbances in video and the picture may seem unstable, especially with steady images. This is not a malfunction.
During Slow-Motion Playback, press PAUSE pause playback.
FEATURE:
(9 or 0)
is pressed and held, the still
Frame-By-Frame Playback
(cont.)
(6)
to
PURPOSE:
To allow frame-by-frame search during video playback.
OPERATION:
1)To change from normal to Frame-By-Frame Playback, press PAUSE (6) to engage Still Playback then press SLOW (0) repeatedly for forward or SLOW (9)
repeatedly for reverse. Each time it is pressed, the frame is played back.
FEATURE:
To move image, press while keeping SHIFT held down.
Playback Zoom
(Right)
PURPOSE:
To magnify the recorded image up to 10X at any time during playback.
OPERATION:
1)Press PLAY (4) to find the scene of interest.
2)Press the Zoom Buttons (T/W) on the remote control. Make sure the remote control is pointed at the camcorder's remote sensor. Pressing T zooms in.
3)You can move the image on screen around to find a particular portion of the picture. While holding
down SHIFT, press (Left), (Right), (Up) and (Down).
To end zoom, press and hold W until magnification returns to normal. Or, press STOP (5) and then press
PLAY (4).
NOTES:
Zoom can also be used during slow-motion and still playback.
Due to digital image processing, the quality of the image may suffer.
VMD6 EN(40/80) 28/08/00, 16:0750
P4LOA
YFBACK
F 1 2 3 4 5
EN51
T
E
C
F
F
E
C
L
A
M
O
N
S
E
P
S
T
R
V
I
D
LM
C
S
S
I
N
E
O
T
O
I
A
E
O
B
E
CFHIO
E
O
Remote sensor
PLAYBACK EFFECT Select Menu
FEATURE:
Playback Special Effects
PURPOSE:
To allow you to add creative effects to the video playback image.
OPERATION:
1)To start playback, press PLA Y (
2)Point the remote control at the camcorder's remote
sensor and press EFFECT. The PLA YBACK EFFECT Select Menu appears.
3)Move the highlight bar to the desired effect by pressing EFFECT. The selected function is activated and after 2 seconds the menu disappears.
To deactivate the selected effect, press EFFECT ON/
OFF on the remote control. Pressing it again re-
activates the selected effect.
To change the selected effect, repeat from step 2
above.
NOTES:
When some Playback Special Effects are used, the Multi-Analyser 4 and Multi-Analyser 9 Snapshot modes ( pg. 16) are not available.
The effects that can be used during playback are Classic Film, Monotone, Sepia, Strobe and Video Echo. The effects work the same in playback as they did in recording. Refer to page 28 for more information.
4
).
PLAY
EFFECT
EFFECT ON/OFF
VMD6 EN(40/80) 28/08/00, 16:0751
52 EN
SHIFT
VCR CODE LIST
VCR BRAND NAME
AKAI
BLAUPUNKT
FERGUSON
GRUNDIG
HITACHI
JVC
A B C
MITSUBISHI
NEC
PANASONIC
VCR (Recording deck)
3
1 6
789`
BUTTONS
(A) (B)
6 2 6 4 7 7
1 3
9 7 9 8 3 2
1 4 3 4
6 6 6 3
9 1 9 6 9 3
6 7 6 8
3 7 3 8
1 3 1 7 1 1 9 4 1 8
USING THE REMOTE CONTROL UNIT
Random Assemble Editing [R.A.Edit]
Create edited videos easily using your camcorder as the source player. You can select up to 8 cuts” for automatic editing, in any order you like. R.A.Edit is more easily performed when the MBR (Multi-Brand Remote) is set to operate with your brand of VCR (see VCR CODE LIST), but can also be performed by operating the VCR manually. Before operation, make sure the batteries are installed in the remote control ( pg. 48).
MBR SET
VCR BRAND NAME
PHILIPS
SANYO
SELECO, REX
SHARP
SONY
THOMSON, TELEFUNKEN, SABA, NORDMENDE
TOSHIBA
4
2 5
BUTTONS
(A) (B)
1 9 9 5 1 1 9 4 9 1 9 6 1 2 3 3 7 2
3 6
3 5 9 1
9 6 1 5
1 ` 6 5
6 ` 3 9 3 1
9 1 9 6 9 7 3 2
6 9 6 1
SET REMOTE/VCR CODE
Turn off the power to the VCR and point the
1
remote towards the VCRs infrared sensor. Then, referring to the VCR CODE LIST, press and hold MBR SET, and press button (A) and then (B). The code is automatically set once you release MBR SET, and the VCRs power comes on.
Make sure the VCRs power is on. Then, while
2
holding SHIFT, press the button on the remote for the desired function. The functions the remote can control are PLA Y, STOP, PAUSE, FF, REW and VCR REC STBY (you do not need to press SHIFT for this one).
You are now ready to try Random Assemble Editing.
IMPORTANT
Although the MBR is compatible with THOMSON VCRs and those of many other makers, it may not work with yours or may offer limited functions.
NOTES:
If the VCRs power does not come on in step 1, try another code from the VCR CODE LIST.
Some brands of VCR do not come on automati­cally. In this case, turn the power on manually and try step 2.
If the remote control is not able to control the VCR, use the controls on the VCR.
When the remote controls batteries run out, the VCR brand you have set will be erased. In that case, replace the old battery with a new one to reset the VCR brand.
(cont.)
VMD6 EN(40/80) 28/08/00, 16:0752
Connector cover**
To S
To AV
Core filter
To JLIP/ EDIT
MAKE CONNECTIONS
Also refer to pg. 40 and 41.
A THOMSON VCR equipped with a remote
1
pause connector . . .
... connect the editing cable to the Remote
PAUSE connector.
A THOMSON VCR not equipped with a remote pause connector but equipped with an R.A. EDIT connector . . .
... connect the editing cable to the R.A.EDIT
connector.
A VCR other than above . . .
... connect the editing cable to the remote
controls PAUSE IN connector.
EN53
Core filter
S-Video cable (optional)
To AUDIO, VIDEO*
-IN
and connectors
Y/C/CVBS video out select switch
VCR
TV
* Connect when an S-Video cable is not used. ** When connecting cables, open this cover.
Audio/Video cable [mini-plug to RCA plug] (provided)
Editing cable (provided)
If your VCR has the SCART connector, use the provided cable adapter.
To Remote PAUSE or R.A.EDIT
To PAUSE IN
DISPLAY
ATTENTION FOR EDITING CABLE
Make sure you connect the end with the core filter (plug which has 3 rings around the pin) to the camcorder.
Insert a recorded tape into the camcorder. Set the
2
VIDEO/DSC Switch to VIDEO, then set the Power
Switch to while pressing down the Lock Button located on the switch.
Turn the VCR power on, insert a recordable tape and
3
engage the AUX mode (refer to the VCR’s instructions).
NOTES:
Before Random Assemble Editing, make sure the indications do not appear on the TV monitor. If they do, they will be recorded onto the new tape.
To choose whether or not the following displays appear on the connected TV . . .
Date/Time
.... set DATE/TIME to ON” or “OFF” in the Menu
Screen ( pg. 32).
Time Code
.... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 32).
Playback Sound Mode, T ape Speed And Tape Running
Displays
.... set ON SCREEN to LCD or SIMPLE in the
Menu Screen ( pg. 32). Or , press DISPLAY on the remote control.
When connecting the cables, make sure to connect the end with a core filter to the camcorder. The core filter reduces interference.
Set the video out select switch of the cable adapter as required: Y/C : When connecting to a TV or VCR which accepts
Y/C signals and uses an S-Video cable.
CVBS : When connecting to a TV or VCR which does not
accept Y/C signals and uses an audio/video cable. When editing on a VCR equipped with a DV input connector, a DV cable can be connected instead of an S-Video cable and audio/video cable.
VMD6 EN(40/80) 28/08/00, 16:0753
CONTINUED ON NEXT PAGE
54 EN
Programme
USING THE REMOTE CONTROL UNIT
SELECT SCENES
(cont.)
I
U
T
M
N :
1
——
2 3 4 5 6 7 8
TTIOM
EDIT IN/OUT
NOTES:
When choosing a scene, set Edit-In and Edit-Out points so that there is a relatively large difference between them.
If the search time for an in-point exceeds 5 minutes, the recording decks Record-Standby mode will be cancelled and editing will not take place.
If there are blank portions before or after the Edit-In and Edit-Out points, a blue screen may be included in the edited version.
Since time codes register time only as accurately as seconds, the time code total time may not match the total programme time exactly.
Turning off the camcorder’s power erases all registered Edit-In and Edit-Out points.
If you select Sepia or Monotone mode from Programme AE with special effects, you cannot use the Dissolve or Black & White Fader. In this case the Dissolve or Black & White indicator begins blinking. Once the next Edit-In point is registered, the effect is turned off. T o combine these effects, use Sepia or Monotone during recording, then use the Dissolve or Black & White Fader during Random Assemble Editing.
It is not possible to use Fade/Wipe effects and Programme AE with special effects during Random Assemble Editing using a DV cable.
~
~ ~ ~ ~ ~ ~ ~
E
C—O—D
EO—
T
A
L
FADE/WIPE
EFFECT
ODE
:
—0—
:
0
0
0
Remote sensor
CANCEL
Random Assemble Editing Menu
PLAY
R.A.EDIT ON/OFF
Point the remote control at the camcorders remote sensor. Press PLAY (4) and then press R.A.EDIT ON/
4
OFF on the remote control.
The Random Assemble Editing Menu appears. If using a Fade/Wipe at the beginning of the scene,
press FADE/WIPE on the remote control.
5
Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.
You cannot use a Picture Wipe/Dissolve at the beginning of Programme 1.
At the beginning of the scene, press EDIT IN/OUT on the remote control. The Edit-In position appears in
6
the Random Assemble Editing Menu. At the end of the scene, press EDIT IN/OUT. The
Edit-Out position appears in the Random Assemble
7
Editing Menu. If using a Fade/Wipe at the end of the scene, press
FADE/WIPE.
8
Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.
If you select a Fade/Wipe effect for an Edit-Out point, the effect is automatically applied to the following Edit-In point.
You cannot use a Picture Wipe/Dissolve at the end of the last scene.
When you use Fade/Wipe effects, that time is included in the total time (this does not apply to Picture Wipe/Dissolve).
If using Playback Special Effects, press EFFECT ( pg. 51).
9
Repeat steps 6 through 9 to register additional scenes.
10
To change previously registered points, press
CANCEL on the remote control. The registered points disappear, one at a time, from the most recently registered point.
If you are not using Fade/Wipe or Programme AE with special effects, repeat steps 6 and 7 only.
1
VMD6 EN(40/80) 28/08/00, 16:0754
Recording Start/Stop Button
I
O
U
N
:
1 2 3
———
4 5
6
7 8
TTIOM
~
0
0
2
5
0
2
:
~
0
1
8
7
0
8
:
~
0
3
3
3
0
5
:
~
0
3
0
9
1
3
:
~
1
5
5
5
1
6
:
~
~ ~
E
C
O
D
E
1
T
A
6
L
9
T
M
O
DE
:
0
5
:
3
1
:
5
3
:
1
5
:
2
0
:
3
0
:
3
9
Remote Sensor
Random Assemble Editing Menu
EN55
AUTOMATIC EDITING TO VCR
Rewind the tape in the camcorder to the beginning of
11
the scene you want to edit and press PAUSE (6). Point the remote control towards the VCRs remote
12
sensor and press VCR REC STBY (q6), or manually engage the VCRs Record-Pause mode.
Press the Recording Start/Stop Button on the
13
camcorder. Editing proceeds as programmed, right through to the end of the last registered scene.
Pressing START/STOP on the remote control does not start editing.
When dubbing is complete, the camcorder enters the Pause mode, and the VCR enters its Record­Pause mode.
If you do not register an Edit-Out point, the tape will be dubbed all the way to the end automatically.
If you operate the camcorder during automatic editing, the VCR will enter its Record-Pause mode and automatic editing will stop.
Engage the Stop modes for the camcorder and the
14
VCR. To make the R.A.Edit counter display disappear, press R.A.EDIT ON/OFF on the remote control.
NOTES:
Pressing R.A.EDIT ON/OFF on the remote control clears all settings registered during Random Assemble Editing.
When the editing cable is connected to the remote controls Pause In connector during dubbing, make sure the remote control is pointed at the VCRs sensor, and the path between the two is unobstructed.
Random Assemble Editing may not function properly when using a tape including several duplicated time codes ( pg. 19).
1
FADE/WIPE
EFFECT
EDIT IN/OUT
REW
CANCEL
VMD6 EN(40/80) 28/08/00, 16:0755
STOP PAUSE
R.A.EDIT ON/OFF
VCR REC STBY
56 EN
Programme 1
I
1
——
2 3 4 5 6 7 8
TTIOM
E
L
T
A
(Recording deck)
N :
C—O—D
~ ~ ~ ~ ~ ~ ~ ~
EO—
VCR
USING THE REMOTE CONTROL UNIT
U
T
M
ODE
:
—0—
:
0
0
0
Remote sensor
Random Assemble Editing Menu
TV
(cont.)
For More Accurate Editing
Some VCRs make the transition from Record-Pause to Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you have recorded scenes you did not want. For a cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR.
DIAGNOSING VCR/CAMCORDER TIMING
Play back the tape in the camcorder, then point the
1
remote control at the camcorders remote sensor and press R.A.EDIT ON/OFF. The Random Assemble Editing Menu appears.
Perform Random Assemble Editing on Programme 1
2
only. In order to check VCR and camcorder timing, select the beginning of a scene transition as your Edit­In point.
Play back the dubbed scene.
3
If any images from the scene prior to the transition you chose for your Edit-In point were recorded, that means your VCR moves too quickly from Record-Pause to Record mode.
If the scene you tried to dub starts in progress, the VCR is slow to start recording.
R.A.EDIT ON/OFF
VMD6 EN(40/80) 28/08/00, 16:0856
MENU/BRIGHT Wheel
ADJUSTMENT OF VCR/CAMCORDER TIMING
Point the remote control at the camcorders remote
4
sensor and press R.A.EDIT ON/OFF to make the Random Assemble Editing menu disappear , then press MENU/BRIGHT. The Menu Screen appears.
Rotate MENU/BRIGHT to select and press it.
5
VIDEO MENU appears. Then, rotate it toSYNCHRO and press it. The value for SYNCHRO
is highlighted.
EN57
Display
O
M
ENU
V
I
D
E
1
R
E
T
U
R
N
S
M
O
U
O
D
E
N
D
1
2
M
B
O
D
E
I
T
S
Y
O
N
C
H
R
R
E
D
E
C
M
O
C
O
P
Y
Remote sensor
VCR
(Recording deck)
+
1.0
TV
Based on the diagnostics performed ( pg. 56), you
6
can now advance the VCRs record timing by rotating MENU/BRIGHT towards +. You can also delay the VCRs record timing by rotating MENU/BRIGHT towards “–”. The adjustment range is from –1.3 to +1.3 seconds, in 0.1-second increments. Press MENU/BRIGHT to finish the setting.
Rotate MENU/BRIGHT to select 1RETURN and
7
press it twice. Now perform Random Assemble Editing beginning with step 4 on page 54.
NOTES:
Before performing actual Random Assemble Editing, do a few Random Assemble Editing trial runs to check whether the value you have input is appropriate or not, and make adjustments accordingly.
Depending on the recorder, there may be situations where the timing difference cannot be fully corrected.
R.A.EDIT ON/OFF
VMD6 EN(40/80) 28/08/00, 16:0857
58 EN
Display
PLAY
STOP
USING THE REMOTE CONTROL UNIT
Audio Dubbing
6e
Speaker
Remote sensor
Audio Dub Standby mode
Power Switch
Stereo microphone
A.DUB
PAUSE
The audio track can be customized only when recorded in the 12-bit mode ( pg. 23).
NOTES:
Audio Dubbing is not possible on a tape recorded in
16-bit audio, on a tape recorded in the LP mode or on a blank portion of a tape.
To perform Audio Dubbing while watching on the television, make connections ( pg. 40, 41).
Play back the tape to locate the point where editing
1
will start, then press PAUSE (6). While holding A.DUB (e) on the remote control,
2
press PAUSE (6). 6e” appears. Press PLAY (4), then begin narrating”.
3
Speak into the microphone.
To pause dubbing, press PAUSE (6).
To end Audio Dubbing, press PAUSE (6), then STOP
4
(5).
To hear the dubbed sound during playback . . .
.... set 12BIT MODE to SOUND 2 or MIX in the
Menu Screen ( pg. 32, 33).
NOTES:
Sound is not heard from the speaker during Audio Dubbing.
When editing onto a tape that was recorded at 12-bit, the old and new soundtracks are recorded separately.
If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas.
If feedback or howling occurs during TV playback, move the camcorders microphone away from the TV, or turn down the TVs volume.
If you change from 12-bit to 16-bit in mid-recording and then use the tape for Audio Dubbing, it is not effective from the point where 16-bit recording began.
During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded in 16-bit audio or a blank portion, Audio Dubbing stops ( pg. 72).
(cont.)
VMD6 EN(40/80) 28/08/00, 16:0858
TROUBLESHOOTING
If, after following the steps in the chart below, the problem still exists, please consult your nearest THOMSON dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly . In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and wait a few minutes; and then re-connect it and proceed as usual from the beginning.
EN59
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1.
No power is supplied.
2.
SET DATE/TIME! appears.
3.
Recording cannot be performed.
4.
There is no picture.
5.
Some functions are not available using MENU/
BRIGHT.
6.
The focus does not adjust automatically.
1.
The power is not connected properly.
The battery is dead.
2.
The date/time is not set.
The built-in clock battery
has run out and the previously set date/time has been erased.
3.
For Video Recording
The tapes erase protection tab is set to SAVE”.
The Power Switch is set to or OFF”.
The VIDEO/DSC Switch is set to .
•“TAPE END” appears.
The cassette holder cover is
open.
For D.S.C. Recording
The VIDEO/DSC Switch is set to VIDEO”.
4.
The camcorder is not getting power, or some other malfunction exists.
5.
The Power Switch is set to “ ”.
6.
Focus is set to the Manual mode.
The recording was done in a dark place, or the contrast was low.
The lens is dirty or covered with condensation.
1.
Connect the AC Power Adapter/Charger securely ( pg. 7).
Replace the dead battery with a fully charged one ( pg. 6, 7).
2.
Set the date/time ( pg. 9).
Consult your nearest
THOMSON dealer for replacement.
3.
Set the tapes erase protection tab to REC ( pg. 10).
Set the Power Switch to “ ” or “ ” ( pg. 13).
Set the VIDEO/DSC Switch to VIDEO”.
Replace with new cassette
( pg. 10).
Close the cassette holder cover.
Set the VIDEO/DSC Switch to ”.
4.
Turn the camcorders power off and on again ( pg. 13).
5.
Set the Power Switch to “ ” ( pg. 13).
6.
Set Focus to the Auto mode ( pg. 21).
Clean the lens and check the focus again ( pg. 65).
VMD6 EN(40/80) 28/08/00, 16:0859
CONTINUED ON NEXT PAGE
60 EN
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
7.
The cassette will not load properly.
8.
The MultiMediaCard will not load properly.
9.
Snapshot mode cannot be used.
10.
The colour of Snapshot looks strange.
11.
The image taken using Snapshot is too dark.
12.
Digital Zoom does not work.
13.
Programme AE with special effects and Fade/ Wipe Effects do not work.
14.
The Black & White Fader does not work.
15.
The Dissolve function does not work.
TROUBLESHOOTING
7.
The cassette is in the wrong position.
The batterys charge is low.
8.
The MultiMediaCard is in the wrong position.
9.
The Squeeze mode is selected.
10.
The light source or the subject does not include white. Or there are various different light sources behind the subject.
The Sepia or Monotone mode is activated.
11.
Shooting was performed under backlit conditions.
12.
10X optical zoom is selected.
•“P.AE/EFFECT” is set toVIDEO ECHO in the
Menu Screen.
Picture Wipe or Dissolve are being used in a scene transition.
13.
The Power Switch is set to “ ”.
14.
The Sepia or Monotone mode is activated.
15.
The Sepia, Monotone or Slow Shutter mode of Programme AE with special effects is activated.
•“WIDE MODE” is set toSQUEEZE in the Menu
Screen.
The previously selected mode of Programme AE with special effects was changed after the last selected scene for editing was registered.
(cont.)
7.
Set it in the right position ( pg. 10).
Install a fully charged battery ( pg. 6, 7).
8.
Set it in the right position ( pg. 1 1).
9.
Disengage the Squeeze mode ( pg. 24).
10.
Find a white subject and compose your shot so that it also appears in the frame ( pg. 16, 17).
T urn off Sepia and Mono­tone ( pg. 28).
11.
Press the BACKLIGHT Button ( pg. 29).
12.
Set ZOOM to 40X or100X in the Menu Screen
( pg. 23).
Disengage the VIDEO ECHO mode ( pg. 18,
28).
Wait until the Picture Wipe or Dissolve effects are completed ( pg. 18, 26).
13.
Set the Power Switch to “ ” ( pg. 26, 28).
14.
T urn off Sepia and Mono­tone ( pg. 26, 28).
15.
T urn off Sepia, Monotone or Slow Shutter before adding Dissolve to a scene transition ( pg. 26, 28).
Set WIDE MODE toCINEMA or OFF mode
( pg. 24).
Make sure you have selected the mode of Programme AE with special effects you want before starting editing ( pg. 26, 28).
VMD6 EN(40/80) 28/08/00, 16:0860
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
16.
The Picture Wipe and Dissolve functions do not work.
17.
The picture wipe function does not work.
18.
Scene transition does not go as expected.
19.
The Video Echo mode does not work.
20.
Even when Slow Shutter is not selected, the image looks like it is activated.
21.
There is no strobe when the Classic Film or Strobe mode is activated.
16.
The last selected editing scene is ending.
At the end of the last selected scene for editing, the Power Switch was set to
OFF”.
The power is off.
17.
The Slow Shutter mode is activated.
•“WIDE MODE” is not set toOFF”.
18.
When using Picture Wipe/ Dissolve ( pg. 26), there is a delay of a fraction of a second between the previous record stop-point and the Dissolve start-point. This is normal, but this slight delay becomes especially noticeable when shooting fast-moving subject or during rapid panning.
19.
The Picture Wipe or Dissolve functions are in use.
•“WIDE MODE” is set toSQUEEZE in the Menu
Screen.
A Fade-In or Fade-Out is in progress.
20
When shooting in the dark, the unit becomes highly sensitive to light and the image takes on an effect similar to Slow Shutter.
21.
The Picture Wipe or Dissolve function is in use.
16.
Select Picture Wipe or Dissolve before beginning recording. The effects are then automatically activated ( pg. 26).
Do not turn off the camcorders power after setting Edit-In and Edit-Out points, as they will all be erased ( pg. 26).
The camcorder automati­cally shuts off after 5 minutes have elapsed in the Record­Standby mode. Make sure you continue operations within 5 minutes after engaging Record-Standby mode ( pg. 26).
17.
Disengage the Slow Shutter mode or set WIDE MODE to OFF before preparing to use the Picture Wipe ( pg. 24, 26, 28).
18.
————
19.
Set WIDE MODE toCINEMA or OFF mode
( pg. 24).
Do not try to use the Video Echo mode during a Fade-In or Fade-Out ( pg. 26, 28).
20.
If you want the lighting to look more natural, set GAIN UP to AGC or OFF in the Menu Screen ( pg. 23).
21.
Do not try to use the Classic Film or Strobe mode during a scene transition ( pg. 26, 28).
EN61
VMD6 EN(40/80) 28/08/00, 16:0861
CONTINUED ON NEXT PAGE
62 EN
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
22.
White Balance cannot be activated.
23.
When shooting a subject illuminated by bright light, vertical lines appear.
24.
When the screen is under direct sunlight during shooting, the screen becomes red or black for an instant.
25.
During recording, the date/ time does not appear.
26.
Images stored in the MultiMediaCard cannot be deleted.
27.
The indicators and messages do not appear.
28.
Images on the LCD monitor appear dark or whitish.
29.
The rear of the LCD monitor is hot.
30.
The indicators and the image colour on the LCD monitor are not clear.
TROUBLESHOOTING
22.
The Sepia or Monotone mode is activated.
23.
This is a result of exceed­ingly high contrast, and is not a malfunction.
24.
This is not a malfunction.
25.
•“DATE/TIME” is set toOFF in the Menu Screen.
Self-Recording is performed.
26.
Images stored in the MultiMediaCard are protected.
27.
•“ON SCREEN” is set toSIMPLE or TIME CODE
is set to OFF in the Menu Screen.
28.
In places subject to low temperature, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colours differ from those that are actually recorded. This is not a defect of the camcorder.
When the LCD monitor's fluorescent light reaches the end of its service life, images on the LCD monitor become dark. Consult your nearest THOMSON dealer.
29.
The light used to illuminate the LCD monitor causes it to become hot.
30.
This may occur when the surface or the edge of the LCD monitor is pressed.
(cont.)
22.
T urn off Sepia or Monotone before setting White Balance ( pg. 28, 30).
23.
————
24.
————
25.
Set DATE/TIME to “ON in the Menu Screen ( pg. 25).
During Self-Recording, the date/time does not appear ( pg. 15).
26.
Remove protection from the images stored in the MultiMediaCard and delete them ( pg. 37, 38).
27.
Set ON SCREEN to LCD or LCD/TV and set TIME CODE to ON in the Menu Screen ( pg. 25, 32).
28.
Adjust the brightness and angle of the LCD monitor ( pg. 14, 15).
29.
Close the LCD monitor to turn it off or set the Power Switch to OFF, and let the unit cool down.
30.
————
VMD6 EN(40/80) 28/08/00, 16:0862
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
31.
The LCD monitor or viewfinder indications blink.
32.
Coloured bright spots appear all over the LCD monitor or the viewfinder.
33.
During recording, sound cannot be heard.
34.
Play , Rewind and Fast­Forward functions do not work.
35.
A MultiMediaCard cannot be played back.
36.
The tape is moving, but there is no picture.
37.
The LCD monitor image is distorted.
38.
Images on the LCD monitor are jittery.
39.
Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue.
31.
Certain Fade/Wipe effects, certain modes of Programme AE with special effects, “DIS” and other functions that cannot be used together are selected at the same time.
32.
The LCD monitor and the viewfinder are made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor or the viewfinder. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than
99.99 %)
33.
This is normal.
34.
The Power Switch is not set to ”.
35.
The VIDEO/DSC Switch is set to VIDEO”.
The Power Switch is set to “ ” or “ ”.
36.
Y our TV has AV input terminals, but is not set to its VIDEO mode.
The cassette holder cover is open.
37.
During playback of the unrecorded portion, High­speed Search and still playback, LCD monitor indications appear distorted. This is not a defect.
38.
The speaker volume is too great.
39.
————
31.
Re-read the sections covering Fade/Wipe effects, Programme AE with special effects and DIS ( pg. 24, 26 – 28).
32.
————
33.
34.
Set the Power Switch to
35.
Set the VIDEO/DSC Switch
Set the Power Switch to
36.
Set the TV to the mode
Close the cassette holder
————
” ( pg. 31).
to “ ”. “ ”.
or channel appropriate for video playback ( pg. 40, 41).
cover ( pg. 10).
37.
————
38.
Turn the speaker volume down ( pg. 31).
39.
Clean the video heads with an optional cleaning cassette ( pg. 75).
EN63
VMD6 EN(40/80) 28/08/00, 16:0863
CONTINUED ON NEXT PAGE
64 EN
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
40.
The LCD monitor, the viewfinder and the lens have become dirty (ex. fingerprints).
41.
An unusual mark appears.
42.
An error indication (E01 E06) appears.
43.
The charger indicator on the AC Power Adapter/ Charger does not light.
44.
Picture does not appear on the LCD monitor.
45.
When the image is printed from the printer , a black bar appears at the bottom of the screen.
46.
When the camcorder is connected via the DV connector, the camcorder does not operate.
47.
The MultiMediaCard cannot be removed from the camcorder.
TROUBLESHOOTING
40.
————
41.
42.
43.
44.
45.
46.
47.
————
A malfunction of some kind
has occurred. In this case the camcorders functions become unusable.
The temperature of the battery is extremely high/low.
Charging is difficult in places subject to extremely high/low temperatures.
The lens cap is attached.
The LCD monitor's
brightness setting is too dark.
This is not a malfunction.
The DV cable was plugged/
unplugged with power turned on.
————
(cont.)
40.
Wipe them gently with soft cloth. Wiping strongly can cause damage ( pg. 65).
41.
Check the section of the manual that explains LCD monitor/viewfinder indications ( pg. 68 – 72).
42.
Remove the power supply (battery pack, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains even though you repeat the above two or three times, please consult your nearest THOMSON dealer.
43.
T o protect the battery, it is recommended to charge it in places with a temperature of 10°C to 35°C ( pg. 73).
44.
Remove the lens cap ( pg. 14).
Adjust the brightness of the LCD monitor ( pg. 14).
If the monitor is tilted upward 180 degrees, open the monitor fully ( pg. 15).
45.
By recording with DIS activated ( pg. 24) this can be avoided.
46.
T urn the camcorders power off and on again, then operate it.
47.
Push in the MultiMediaCard a few more times ( pg. 1 1).
VMD6 EN(40/80) 28/08/00, 16:0864
USER MAINTENANCE
After Use
EN65
Cleaning The Camcorder
Turn off the camcorder.
1
Slide and hold OPEN/EJECT in the direction of
2
the arrow, then pull the cassette holder cover open until it locks. The cassette holder opens automatically. Remove the cassette.
Press PUSH HERE to close the cassette holder.
3
Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
Press BATTERY RELEASE and remove the battery
4
pack.
Cassette holder
Remove.
OPEN/EJECT Switch
To clean the exterior, wipe gently with a soft
1
cloth. Put the cloth in diluted mild soap and wring it well to wipe off heavy dirt. Then wipe again with a dry cloth.
Press PUSH OPEN and open the LCD monitor.
2
Wipe gently with a soft cloth. Be careful not to damage the monitor. Close the LCD monitor.
To clean the lens, blow it with a blower brush,
3
then wipe gently with lens cleaning paper. To clean the viewfinder, raise it to the vertical
4
position. Carefully open the cover on the bottom of the viewfinder 1.
Insert a lens blower or soft cloth into the gap at
5
the bottom of the viewfinder and clean the interior of the viewfinder with it 2.
Close the cover . Tilt the viewfinder back to the
6
horizontal position.
NOTES:
Avoid using strong cleaning agents such as benzine or alcohol.
Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.
Mould may form if the lens is left dirty.
When using a cleaner or chemically treated cloth refer to the cautions of each product.
Cassette holder cover
PUSH HERE
BATTERY RELEASE Button
VMD6 EN(40/80) 28/08/00, 16:0865
1
Cover
2
Lens blower
66 EN
INDEX
Controls, Connectors And Indicators
u
i
2
q w e
r
3 4 5 6 7 8
W
Q
p o
y
1
F
F
O
Y
A
L
P
$ %#
T E
VMD6 EN(40/80) 28/08/00, 16:0866
! @9 0
YRU I
&^ * ( )
Controls
1 Monitor Open Button
[PUSH OPEN] ..................................... pg. 14
2 Dioptre Adjustment Control ................... pg. 8
3 Battery Release Button
[BA TTERY RELEASE] .............................. pg. 7
4 •MENU Wheel [+, –, PUSH] ............... pg. 22
LCD Monitor BRIGHT
(Brightness) Control [+, –].................. pg. 14
5 Snapshot Button
[SNAPSHOT]........................... pg. 16, 17, 47
6 •Power Zoom Lever [T/W] .................. pg. 18
Speaker Volume Control [VOL.] ........ pg. 31
7 Snapshot Mode Button
[MODE] ........................................ pg. 16, 17
8 OPEN/EJECT Switch ............................. pg. 10
9 Stop Button [5] ................................... pg. 31
0 Rewind Button [
BACKLIGHT Button .......................... pg. 29
! Play/Pause Button [ @ Fast-Forward Button [
FOCUS Button .................................. pg. 21
# Power Switch
[ , , , OFF] ........................... pg. 13
$ Recording Start/Stop Button.................. pg. 14
% Lock Button ......................................... pg. 13
^ VIDEO/DSC Switch [VIDEO, ] ...... pg. 13
& Video Light Switch
[LIGHT OFF/AUTO/ON]...................... pg. 20
2
] ......................... pg. 31
4
/6]...................... pg. 31
3
] ................. pg. 31
EN67
Connectors
T o connect cables to the following connectors * and (, open the LCD monitor.
* PC (DIGITAL PHOTO) Connector ........ pg. 42
( J Terminal/Edit Connector [JLIP (Joint Level
Interface Protocol)/EDIT] ...................... pg. 53
Connect the editing cable when performing Random Assemble Editing.
Connect to a JLIP-compatible camcorder or VCR to control it from the computer using the provided Software.
) DC Input Connector .............................. pg. 7
The connectors q to e are located beneath a cover.
q Audio/Video Output Connector
[AV] ........................................ pg. 40, 44, 53
w Digital Video Connector
[DV IN/OUT]
(i.link*) .................................... pg. 42, 43, 45
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo is used for products compliant with the i.Link standard.
e S-Video Output Connector [S]... pg. 40, 44, 53
Indicators
r T ally Lamp........................................... pg. 14
t Not applicable
y Power Lamp ........................................ pg. 14
Other Parts
u Remote Sensor .................................. pg. 48
Camera Sensor Be careful not to cover this area, a sensor necessary for shooting is built-in here.
i Viewfinder............................................. pg. 8
o Video Light.......................................... pg. 20
p Stereo Microphone .............................. pg. 58
Q Shoulder Strap Eyelets ............................ pg. 8
W Grip Strap.............................................. pg. 8
E Battery Pack Mount ............................... pg. 7
R LCD Monitor ................................. pg. 14, 15
T Speaker ............................................... pg. 31
Y Stud Hole .............................................. pg. 8
U Tripod Mounting Socket ......................... pg. 8
I MEMORY CARD Cover ....................... pg. 11
VMD6 EN(40/80) 28/08/00, 16:0867
68 EN
INDEX
LCD Monitor/Viewfinder Indications During Video Recording Only
Indications
1 Displays the selected Fade/Wipe effect.
3
R
4
5 E4C
*
4
2 Appears when in the Squeeze or Cinema
mode. (pg. 24)
*
3
Displays the recording mode (SP or LP).
*
4
Displays the tape remaining time. (pg. 14)
*
5
•“REC” appears during recording.
•“PAUSE” appears during Record-
Standby mode. (pg. 14)
1 2 3*4
SP
6 Appears when the wind cut mode is engaged
to cut down on noise created by wind.
U:N2D512
TCS2O3
9 8
BIT
7 6 5
7 Appears while the tape is running. (pg. 14) 8 Displays the sound mode for approx.
*
5 seconds after turning on the camcorder.
9 Displays the Time Code. ( pg. 19, 25)
*Setting “ON SCREEN to SIMPLE in the Menu
Screen removes indications marked with * from the screen ( pg. 25, 32).
LCD Monitor/Viewfinder Indications During D.S.C. Recording Only
( pg. 26, 27)
( pg. 12)
( pg. 25)
( pg. 23)
1 532 4 6
STD
DSC
VMD6 EN(40/80) 28/08/00, 16:0868
10/50
1 Appears when the VIDEO/DSC Switch is set to
and the Power Switch is set to “ ” or “ ”.(pg. 13, 17)
2 Appears and blinks during shooting. (pg. 17) 3 Displays the Picture Quality mode of the stored
image. There are 2 modes available: FINE and STD (Standard). (pg. 12, 17)
4 •Appears during shooting.
Blinks when a MultiMediaCard is not loaded.
( pg. 17)
5 Displays the number of images that have already
been shot. (pg. 17)
6 Displays the total number of shots that can
be stored, including those already taken.
( pg. 17)
EN69
LCD Monitor/Viewfinder Indications During Both Video And D.S.C. Recording
*
F.2AUPTHO
1
4
0
x
2
3
O
T
O
4
5
6
B
R
I
7
*
1
Appears when the power switch is set to “ ”.
2 Appears when backlight compensation is used.
3 Appears when the white balance is adjusted.
4 Appears when the exposure is adjusted.
5 Displays the selected Programme AE with
special effects. (pg. 28)
6 Appears when Digital Image Stabiliser
(DIS) is engaged. ( pg. 24)
7 Appears when the focus is adjusted manually.
( pg. 13)
( pg. 29)
( pg. 30)
( pg. 29)
( pg. 21)
W
GHT
T
1+.
.
000
:
0
112
8 Appears during zooming.
Zoom level indicator (pg. 18)
9 •Approximate zoom ratio: Appears during
zooming. (pg. 18)
: Appears when GAIN UP is set toAUTO and the shutter speed is
automatically adjusted. (pg. 23)
0 Appears when taking a Snapshot.
! Appears when the iris is locked. (pg. 29)
*
@
Displays the brightness of the LCD monitor.
# Displays the date/time. (pg. 9)
0
@
8
9
!
*
#
( pg. 16, 17)
( pg. 14)
*Setting “ON SCREEN to SIMPLE in the Menu Screen removes indications marked with * from the screen
( pg. 25, 32).
VMD6 EN(40/80) 28/08/00, 16:0869
70 EN
INDEX
LCD Monitor/Viewfinder Indications During Video Playback
1 Displays the sound mode. (pg. 32, 33)
1 3
IT
1L2
/
S
O
U
N
D
V
O
L
U
M
E
2
L.P
1
:
TBC
1
:
0
0
6
210
5
112
46
4
.
000
:
0
2 Displays the tape speed. (pg. 12) 3 Appears while a tape is running.
4
: Playback
3
: Fast-Forward/Shuttle search
2
: Rewind/Shuttle search
6 : Pause
6
4
: Forward slow-motion
1
6 : Reverse slow-motion e : Audio Dubbing 6e : Audio Dubbing Pause
4 Displays the date/time. (pg. 32, 33) 5 Displays the time code. (pg. 32, 33) 6 BRIGHT :
VOLUME : Displays the speaker volume.
Displays the brightness of the LCD monitor.
The level indicator moves.
Indications (cont.)
( pg. 14) ( pg. 31)
LCD Monitor/Viewfinder Indications During D.S.C. Playback
1 Displays the index number of the image file.
1 2 3 4
100
10/50
BR I GHT
VMD6 EN(40/80) 28/08/00, 16:0870
+
0001
2 Displays the total number of stored images.
3 Displays the brightness of the LCD monitor.
The level indicator moves.
4 Displays the directory and file names. ( pg. 34)
( pg. 34)
( pg. 34)
( pg. 14)
Warning Indications
Indications Function
Displays the battery remaining power.
Remaining power level: high Remaining power level: exhausted
As the battery power comes close to nil, the battery indicator blinks. When the battery power is exhausted, power turns off automatically.
Appears when no tape is loaded. ( pg. 10)
CHECK T APES ERASE
PROTECTION SWITCH
HEAD CLEANING
REQUIRED USE CLEAN-
ING CASSETTE
CONDENSATION,
OPERATION PAUSED
PLEASE WAIT
TAPE!
TAPE END
DIFFERENT
FORMATTED TAPE
SET DATE/TIME!
LENS CAP
A. DUB ERROR!
A. DUB ERROR!
<CANNOT DUB
ON AN LP RECORDED
<CHECK T APES ERASE
PROTECTION SWITCH>
TAPE>
<CANNOT DUB
ON A 16BIT
RECORDING>
MEMORY IS FULL
Appears when the erase protection tab is set to SAVE” while the Power Switch is set to “ ” or “ ” and the VIDEO/DSC Switch is set to VIDEO.( pg. 10)
Appears if dirt is detected on the heads. Use an optional cleaning cassette.
Appears if condensation occurs. When this indication is displayed, wait more than 1 hour until condensation disappears.
Appears if a tape is not loaded when the Recording Start/Stop Button or SNAPSHOT Button is pressed while the Power Switch is set to “ ” or “ ” and the VIDEO/DSC Switch is set to VIDEO.
Appears when the tape ends during recording or playback. ( pg. 15) Appears if a tape in another format is loaded.
Appears when the date/time is not set. ( pg. 9)
Appears when the built-in clock battery runs out and the
previously set date/time is erased. Consult your nearest THOMSON dealer for replacement.
Appears for 5 seconds after power is turned on if the lens cap is attached. Appears if Audio Dubbing is attempted on a blank portion of a tape.
Appears if Audio Dubbing is attempted on a tape recorded in the LP mode. ( pg. 58)
Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio. ( pg. 58)
Appears if A. DUB (e) on the remote control is pressed when the erase protection tab is set to SAVE”.( pg. 58)
Appears when the MultiMediaCards memory is full and shooting is not possible.
EN71
( pg. 75)
( pg. 58)
VMD6 EN(40/80) 28/08/00, 16:0871
CONTINUED ON NEXT PAGE
72 EN
Indications Function
COPYING FAILED
MEMORY CARD!
PLEASE FORMAT
NO STORED IMAGE
E01 E06
UNIT IN SAFEGUARD
MODE REMOVE AND
REATTACH BATTERY
INDEX
Appears if dubbing of copyguarded signals is attempted while this camcorder is being used as a recorder. ( pg. 45)
Appears in the following cases when dubbing from a tape to a MultiMediaCard:
when no MultiMediaCard is loaded. when the MultiMediaCard's memory is full. when the MultiMediaCard is not formatted. ( pg. 47)
Appears in the following cases when dubbing still images stored in the MultiMediaCards memory to a tape:
when condensation occurs. when no tape is loaded. when the erase protection tab is set to SA VE”. – when a tape in another format is loaded. when the tape ends. ( pg. 46)
Appears if a MultiMediaCard is not loaded when SNAPSHOT is pressed while the Power Switch is set to “ ” or “ ” and the VIDEO/DSC Switch is set to ”.
Appears when there is a problem with a MultiMediaCard and its memory is corrupt, or it has not been initialised. Initialise the MultiMediaCard.
Appears if there are no images stored in the MultiMediaCard when the Power Switch is set to and the VIDEO/DSC Switch is set to ”.
The error indications (E01 E06) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Remove the power supply (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest THOMSON dealer.
Indications (cont.)
( pg. 39)
VMD6 EN(40/80) 28/08/00, 16:0872
CAUTIONS
EN73
Video Light
DANGER
The video light can become extremely
hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result.
Do not place the camcorder into the carrying case
immediately after using the video light, since it remains extremely hot for some time.
When operating, keep a distance of about 30 cm
between the video light and people or objects.
Do not use near flammable or explosive materials.It is recommended that you consult your nearest
THOMSON dealer for replacing the video light.
General Battery Precautions
If the remote control is not functioning even if it is being operated correctly, the batteries are ex­hausted. Replace them with fresh ones.
Use only the following batteries: AAA (R03) size x 2 Please make note of the following rules for battery
use. When misused, the batteries can leak or explode.
1. When replacing batteries, refer to page 48.
2. Do not use any different size of batteries from those
specified.
3. Be sure to install batteries in the correct direction.
4. Do not use rechargeable batteries.
5. Do not expose the batteries to excessive heat as
they can leak or explode.
6. Do not dispose of the batteries in a fire.
7. Remove the batteries from the unit if it is to be
stored for an extended period to avoid battery leakage which can cause malfunctions.
Battery Packs
The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:
1. To avoid hazards . . .
....do not burn.
....do not short-circuit the terminals. When
transporting, make sure the provided battery cap is attached to the battery. If the battery cap
is misplaced, carry the battery in a plastic bag.
....do not modify or disassemble.
....do not expose the battery to temperatures
exceeding 60°C, as this may cause the battery
to overheat, explode or catch fire.
....use only specified chargers.
2. To prevent damage and prolong service life . . .
....do not subject to unnecessary shock.
....charge in an environment where temperatures
are within the tolerances shown in the chart
below. This is a chemical reaction type
batterycooler temperatures impede chemical
reaction, while warmer temperatures can
prevent complete charging.
....store in a cool, dry place. Extended exposure
to high temperatures will increase natural
discharge and shorten service life.
....fully charge and then fully discharge the
battery every 6 months when storing the
battery pack over a long period time.
....remove from charger or powered unit when
not in use, as some machines use current even
when switched off.
NOTES:
It is normal for the battery pack to be warm after charging, or after use.
Temperature Range Specifications
Charging............. 10°C to 35°C
Operation ........... 0°C to 40°C
Storage ............... –10°C to 30°C
Recharging time is based on room temperature of 20°C.
The lower the temperature, the longer recharging takes.
Terminals
VMD6 EN(40/80) 28/08/00, 16:0873
74 EN
CAUTIONS
(cont.)
Cassettes
To properly use and store your cassettes, be sure to read the following cautions:
1. During use . . .
....make sure the cassette bears the Mini DV
mark.
....be aware that recording onto prerecorded
tapes automatically erases the previously recorded video and audio signals.
....make sure the cassette is positioned properly
when inserting.
....do not load and unload the cassette
repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.
....do not open the front tape cover. This exposes
the tape to fingerprints and dust.
2. Store cassettes . . .
....away from heaters or other heat sources.
....out of direct sunlight.
....where they wont be subject to unnecessary
shock or vibration.
....where they wont be exposed to strong
magnetic fields (such as those generated by motors, transformers or magnets).
....vertically, in their original cases.
MultiMediaCards
To properly use and store your MultiMediaCards, be sure to read the following cautions:
1. During use . . .
....make sure the MultiMediaCard bears the
MultiMediaCard mark.
....make sure the MultiMediaCard is positioned
properly when inserting.
2. While the MultiMediaCard is being accessed (during recording, playback, deletion, initialisation, etc.) . . .
....never unload the MultiMediaCard and never
turn off the camcorder.
3. Store MultiMediaCards . . .
....away from heaters or other heat sources.
....out of direct sunlight.
....where they wont be subject to unnecessary
shock or vibration.
....where they wont be exposed to strong
magnetic fields (such as those generated by motors, transformers or magnets).
LCD Monitor
1. To prevent damage to the LCD monitor, DO NOT . . .
....push it strongly or apply any shocks.
....place the camcorder with the LCD monitor on
the bottom.
2. To prolong service life . . .
....avoid rubbing it with coarse cloth.
3. Be aware of the following phenomena for LCD monitor use. These are not malfunctions:
While using the camcorder, the surface around
the LCD monitor and/or the back of the LCD monitor may heat up.
If you leave power on for a long time, the
surface around the LCD monitor becomes hot.
Main Unit
1. For safety, DO NOT . . .
....open the camcorders chassis.
....disassemble or modify the unit.
....short-circuit the terminals of the battery pack.
Keep it away from metallic objects when not in use.
....allow inflammables, water or metallic objects
to enter the unit.
....remove the battery pack or disconnect the
power supply while the power is on.
....leave the battery pack attached when the
camcorder is not in use.
2. Avoid using the unit . . .
....in places subject to excessive humidity or dust.
....in places subject to soot or steam such as near
a cooking stove.
....in places subject to excessive shock or
vibration.
....near a television set.
....near appliances generating strong magnetic or
electric fields (speakers, broadcasting anten-
nas, etc.).
....in places subject to extremely high (over 40°C)
or extremely low (under 0°C) temperatures.
3. DO NOT leave the unit . . .
....in places of over 50°C.
....in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
....in direct sunlight.
....in a closed car in summer.
....near a heater.
VMD6 EN(40/80) 28/08/00, 16:0874
4. To protect the unit, DO NOT . . .
....allow it to become wet.
....drop the unit or strike it against hard objects.
....subject it to shock or excessive vibration
during transportation.
....keep the lens directed at extremely bright
objects for long periods.
....expose the lens to direct sunlight.
....carry it by holding the LCD monitor or the
viewfinder.
....swing it excessively when using the shoulder
strap or the grip.
5. Dirty heads can cause the following problems:
No picture during playback.
Blocks of noise appear during playback.
During recording, the Head Clog Warning
indicator “ ” appears.
In such cases, use an optional cleaning cassette. Insert it and play back. If the cassette is used more than once consecutively, damage to the video heads may result. After the camcorder plays back for about 20 seconds, it stops automatically. Also refer to the cleaning cassettes instructions. If, after using the cleaning cassette, the problems still exist, consult your nearest THOMSON dealer. Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time. In order to maintain a clear picture at all times, periodic check-ups are recommended after using the unit for about 1,000 hours. For periodic check-ups please consult your nearest THOMSON dealer.
EN75
How To Handle A CD-ROM
Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the centre hole using a circular motion.
Do not use conventional disc cleaners or cleaning spray.
Do not bend the CD-ROM or touch its mirror surface.
Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight.
About moisture condensation . . .
You have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.
Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.
Serious malfunctioning
If malfunctioning occurs, stop using the unit immediately and consult your local THOMSON dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from function­ing properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and wait a few minutes and then re-connect it and proceed as usual from the beginning.
VMD6 EN(40/80) 28/08/00, 16:0875
76 EN
A
AC Power Adapter/Charger ..................... pg. 6, 7
Audio Dubbing ........................................ pg. 58
Auto Focus ............................................... pg. 21
Auto Shut off ...................................... pg. 15, 31
B
Backlight Compensation ........................... pg. 29
Battery Low .............................................. pg. 71
Battery Pack ..................................... pg. 6, 7, 73
Brighten The LCD Monitor........................ pg. 14
C
Channels (Left/Right)................................. pg. 33
Charge The Battery Pack ............................. pg. 6
Cinema .................................................... pg. 24
Classic Film .............................................. pg. 28
Clean The Camcorder............................... pg. 65
Connections ...................... pg. 7, 40, 42 – 45, 53
D
Darken The LCD Monitor ......................... pg. 14
Date/Time Display........................ pg. 25, 32, 33
Date/Time Settings...................................... pg. 9
Deleting Images........................................ pg. 38
Demonstration Mode............................ pg. 5, 24
Digital Zoom ...................................... pg. 18, 23
DIS (Digital Image Stabiliser)..................... pg. 24
Dioptre Adjustment .................................... pg. 8
Dubbing........................................... pg. 44 – 47
E
Erase Protection........................................ pg. 10
Exposure Control ...................................... pg. 29
TERMS
F
Fade-In/Out ........................................ pg. 26, 27
Fast-Forward The Tape.............................. pg. 31
Frame-By-Frame Playback .................. pg. 31, 50
G
Gain Up ................................................... pg. 23
Grip Adjustment ......................................... pg. 8
I
Icons ................................................ pg. 22 – 25
Index Playback ......................................... pg. 35
Index Screen ............................................ pg. 35
Initialise A MultiMediaCard ...................... pg. 39
Iris............................................................ pg. 29
Iris Lock ................................................... pg. 29
J
Journalistic Shooting ................................. pg. 15
L
LCD monitor/Viewfinder
Indications ..................................... pg. 68 – 72
Load A Tape ............................................. pg. 10
M
Manual Focus........................................... pg. 21
Menu Screen, CAMERA MENU........... pg. 23, 24
Menu Screen, DISPLAY MENU ........... pg. 25, 32
Menu Screen, DSC MENU.................. pg. 25, 37
Menu Screen, MANUAL MENU.......... pg. 24, 25
Menu Screen, VIDEO MENU .................... pg. 32
Monotone ................................................ pg. 28
Motor Drive Mode.................................... pg. 16
MultiMediaCard ................................. pg. 11, 74
VMD6 EN(40/80) 28/08/00, 16:0976
P
Picture Quality Mode ............................... pg. 12
Picture Wipe/Dissolve......................... pg. 26, 27
Playback Special Effects ............................ pg. 51
Playback Zoom ........................................ pg. 50
Power Switch Position .............................. pg. 13
Programme AE With Special Effects........... pg. 28
Protecting Images ..................................... pg. 37
Provided Accessories .................................. pg. 4
R
Random Assemble Editing................. pg. 52 – 57
Record-Standby ........................................ pg. 14
Recording Mode....................................... pg. 12
Remote Control ........................................ pg. 48
Reset ........................................................ pg. 25
Rewind The Tape...................................... pg. 31
S
Self-Recording .......................................... pg. 15
Sepia........................................................ pg. 28
Set Remote Control/VCR Code .................. pg. 52
Shuttle Search........................................... pg. 31
Shutter Speed ........................................... pg. 28
Slide Show ............................................... pg. 36
Slow-Motion Playback.............................. pg. 50
Slow Shutter ............................................. pg. 28
Snapshot ............................................ pg. 16, 17
Snapshot Mode ........................................ pg. 16
Sound Mode................................. pg. 23, 32, 33
Speaker Volume ....................................... pg. 31
Specifications ..................................... pg. 78, 79
Squeeze ................................................... pg. 24
Still Playback............................................ pg. 31
Strobe ...................................................... pg. 28
EN77
T
Tally ................................................... pg. 14, 23
Tele Macro ............................................... pg. 24
Time Code.............................. pg. 19, 25, 32, 33
Tripod Mounting......................................... pg. 8
Twilight .................................................... pg. 28
U
Unload A Tape ......................................... pg. 10
V
VIDEO/DSC Switch Position ..................... pg. 13
Video Echo............................................... pg. 28
Video Light............................................... pg. 20
W
White Balance.......................................... pg. 30
Wide Mode .............................................. pg. 24
Wind Cut ................................................. pg. 25
Wipe In/Out ....................................... pg. 26, 27
Z
Zooming .................................................. pg. 18
VMD6 EN(40/80) 28/08/00, 16:0977
78 EN
SPECIFICA TIONS
Camcorder
For General
Power supply : DC 6.3 V (Using AC Power Adapter/Charger)
Power consumption
LCD monitor off, viewfinder on : Approx. 4.3 W LCD monitor on, viewfinder off : Approx. 5.3 W Video light : Approx. 3.5 W
Dimensions (W x H x D) : 80 mm x 96 mm x 170 mm Weight : Approx. 580 g
Operating temperature :0°C to 40°C Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C Pickup : 1/4" CCD Lens : F 1.8, f = 3.6 mm to 36 mm, 10:1 power zoom lens Filter diameter : ø37 mm LCD monitor : 2.5" diagonally measured, LCD panel/TFT active matrix system Viewfinder : Electronic viewfinder with 0.24" black/white LCD Speaker : Monaural
For Digital Video Camera
Format : DV format (SD mode) Signal format : PAL standard Recording/Playback format : Video : Digital component recording
Cassette : Mini DV cassette Tape speed : SP: 18.8 mm/s
Maximum recording time : SP: 80 min. (using 80 min. cassette) LP: 120 min.
DC 7.2 V (Using battery pack)
(with the LCD monitor closed and the viewfinder pushed down)
: Audio : PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
LP: 12.5 mm/s
VMD6 EN(40/80) 28/08/00, 16:0978
For Digital Still Camera
Storage media : MultiMediaCard Compression system : JPEG (compatible) File size : VGA: 640 x 480 pixels Picture quality : 2 modes (FINE/STANDARD) Approximate number of storable images
(with an optional MultiMediaCard [8 MB]) FINE : 100 STANDARD : 200 (with the provided MultiMediaCard [16 MB]) FINE : 200 STANDARD : 400
For Connectors
S :Y:1 V (p-p), 75 , analogue output
C : 0.29 V (p-p), 75 , analogue output
AV
Video output :1 V (p-p), 75 , analogue Audio output : 300 mV (rms), 1 k, analogue, stereo
DV
Input/output : 4-pin, IEEE 1394 compliant
PC (DIGITAL PHOTO)
Digital still output : ø2.5 mm, 3-pole
JLIP/EDIT : ø3.5 mm, 4-pole
EN79
AC Power Adapter/Charger AC600
Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz Power consumption : 23 W Output
Charge : DC 7.2 V , 1.2 A
VTR : DC 6.3 V , 1.8 A Dimensions (W x H x D) : 68 mm x 38 mm x 110 mm Weight : Approx. 260 g
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.
VMD6 EN(40/80) 28/08/00, 16:0979
80 EN
NOTES
VMD6 EN(40/80) 28/08/00, 16:0980
THOMSON MULTIMEDIA
46 quai A. Le Gallo 92648 Boulogne Cedex France RCS NANTERRE B 322 019 464
http://www.thomson-multimedia.com
35126120 LYT0665-001A
© Copyright THOMSON multimedia 2000
DAE Communication - 95000 Cergy
35126120-vmd6-GB 1/08/00 14:24 Page Cov2
Loading...
