User’s Guide

PDP2810

Important Information

WARNING

To reduce the risk of fire or electric shock, do not expose this product or AC charger to rain or

moisture.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates important instructions accompanying the product.

To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this product. Other types of batteries may burst causing damage and personal injury.

Sound Pressure Control

Les articles de loi L44.5 et 44.6 du code de la santé publique, modifiés par l’article 2 de la loi du 28 Mai 1996 imposent une puissance acoustique maximale de 100 décibels. Le casque livré ( code 55700910 ) et votre appareil respectent la législation en vigueur.

A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur.

Service

This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service, refer to the warranty in this guide.

Important Information

Product Registration

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed.

Product Information

Keep your sales receipt for proof of purchase to obtain warranty parts and service and attach it here. Record the serial number and model numbers — both numbers are located on the product.

Model No. ___________________________

Serial No. _______________________________

Purchase Date _______________________

Place of purchase ________________________

Table of Contents

Important Information ...........................................................................................................i

Warning ........................................................................................................................ ii

Important Information ......................................................................................................... iii

Before You Begin ................................................................................................................... 6

Unpacking Your Unit .............................................................................................................6

Things to consider before you get started... ....................................................................... 7

Computer System Requirements ................................................................................. 7

Warning ........................................................................................................................ 7

Caution .......................................................................................................................... 7

Caution While Driving .................................................................................................. 7

Back up your data ........................................................................................................ 8

Important Battery Information ................................................................................... 8

Insert the Included CD-ROM into the CD-ROM Drive ......................................................... 9

Installing Software Components ....................................................................................... 10

Install the USB Driver & System Applications (Windows 98SE and Me Only) ......... 10

Install System Applications (Windows 2000 or XP) .................................................. 11

Install MusicMatch Jukebox ....................................................................................... 11

Install MusicMatch Plug-in ......................................................................................... 13

Launch the MusicMatch software ............................................................................. 14

Install Additional Services .......................................................................................... 14

Connecting Lyra Micro Jukebox to the Computer ................................................... 15

Transferring Files to Lyra Micro Jukebox ........................................................................... 15

Transfer Files via MusicMatch Jukebox ..................................................................... 16

Create Pre-defined Playlists and Transferring them to the Jukebox....................... 17

Transfer Files via Windows Explorer (Drag and Drop) ............................................. 17

Disconnecting Your Lyra from the Computer (Windows 2000 or XP) ............................. 18

System Tray Applications .................................................................................................... 19

Profile .......................................................................................................................... 19

Updating System File .................................................................................................. 20

Verify User Playlists..................................................................................................... 20

LyraSync....................................................................................................................... 21

Overview of General Controls ............................................................................................ 23

Display Overview ................................................................................................................24

Menu Navigation ........................................................................................................ 25

Basic Operation ................................................................................................................... 25

Playback Operation .................................................................................................... 26

User Playlist ................................................................................................................. 27

Smart Tagging menu .................................................................................................. 27

Step-by-Step Example ................................................................................................ 28

Navigation Menu ........................................................................................................ 30

Table of Contents

Additional Features .............................................................................................................32

Program Play ............................................................................................................... 32

User Playlist ................................................................................................................. 33

Favourite List .............................................................................................................. 34

Delete List ................................................................................................................... 34

View Playlists............................................................................................................... 35

Pre-defined Playlists ................................................................................................... 36

All Files ........................................................................................................................ 36

Additional Menu .................................................................................................................37

Settings ....................................................................................................................... 37

Shuffle .........................................................................................................................37

Repeat ......................................................................................................................... 38

Adjusting DSP Settings ............................................................................................... 40

Personalizing DSP output .......................................................................................... 41

Instant On ................................................................................................................... 41

Audio Clips .................................................................................................................. 42

System Settings ........................................................................................................... 43

Profiler ........................................................................................................................44

Check for Updates ...............................................................................................................45

Portable Hard Drive Capability ........................................................................................... 45

Tips and Troubleshooting ................................................................................................... 46

FAQ (Frequently Asked Questions) .................................................................................... 47

Specifications & System Requirements .............................................................................. 47

Hardware .................................................................................................................... 47

Hard Disc ..................................................................................................................... 48

Software ...................................................................................................................... 48

PC Hardware Requirements ....................................................................................... 49

Accessories .................................................................................................................. 49

Miscellaneous Specifications ...................................................................................... 49

Before You Begin

Unpacking Your Unit

Your Lyra Micro Jukebox came with everything you need to make music portable — all of the items shown below should have been packed in the box with your Lyra Micro Jukebox.

Lyra Micro Jukebox

rev fwdstop play

onoff

Music Management CD Contains the Lyra Micro Jukebox Applications & MusicMatch Jukebox software

AC/DC adapter charger

Mini USB cable Plug the small end into your Lyra Micro Jukebox , and plug the other end into your computer’s USB port. Go to page 24 for connection details.

Clip Phones

Armband carrying case

Illustrations contained within this publication are for representation only and subject to change.

Before You Begin

Things to consider before you get started...

Computer System Requirements

• Pentium 233MHz or higher (Pentium II 300 MHz or higher recommended) Macintosh iMac G3 or higher

•Windows Mac OS X Version 10.1.5 or higher

• Internet Explorer 4.0 or higher

• Internet access

•4 MB free hard disk space for the software plus 0.5 MB for every minute of CD quality music you store on your hard drive.

• 32MB RAM (64 MB recommended)

• CD-ROM drive capable of digital audio extraction

• USB port (2.0 recommended)

• Installed sound card

• 16-bit color video card

98SE, Me, 2000, or XP

Warning

Use of this product is for your personal use only. Unauthorized recording or duplication of copyrighted material may infringe upon the rights of third parties and may be contrary to copyright laws.

Caution

• Keep product out of direct sunlight. Exposure to direct sunlight or extreme heat (such as inside a parked car) may cause damage or malfunction.

• Do not expose to rain or moisture.

Caution While Driving

Use of headphones while operating an automobile or moving vehicle is not recommended and is unlawful in some states and areas. Be careful and attentive on the road. Stop operation of the unit if you find it disruptive or distracting while driving.

Before You Begin

Back up your data

As with any device that has a hard drive or rotating magnetic media, you should back up the drive regularly. RCA and Thomson are not responsible for lost data.

Important Battery Information

• The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not separately recharge, disassemble, heat above 100C (212F), or incinerate.

• Battery replacement should only be made by trained technicians.

• Do not attempt to open the unit. No user servicable parts inside.

•To reduce risk of injury, charge only rechargeable batteries recommended by the manufacturer for this product. Other types of batteries may burst causing damage and personal injury.

• Keep the unit away from children. Do not disassemble or dispose product in fire.

• Use only the specified chargers which were packaged with the product. Use of another charger may present a risk of fire or explosion.

• Keep charger plugged in to device for at least 30 minutes before attempting to operate device if battery is completely run down and is insufficient to power up device.

Getting Started: Software Setup

The Music Management CD that came with your Lyra Micro Jukebox contains all of the necessary software components you need to make your Lyra Micro Jukebox work properly. These components do the following:

• install USB driver for Windows 98SE/Me users (Refer to pg 10)

• enable you to transfer files from your computer to your Lyra Micro Jukebox

• profile, format and sort the contents, update the system files (Refer to pg 19)

• use the MusicMatch Jukebox software to organize your music collection and transfer the music to your Lyra Micro Jukebox

The MusicMatch Jukebox™ software compresses audio files (from music CDs) to the mp3, mp3PRO or WMA format so you can play them on your Lyra Micro Jukebox. The MusicMatch software also enables you to download files from the internet that are already compressed and then transfer those files to your Lyra Micro Jukebox (or play the music on your computer).

Insert the Included CD-ROM into CD-ROM Drive

Note: Do not connect your Lyra Micro Jukebox to your computer before you have installed the required drivers. (Windows 98SE/Me only)

1. Turn on your computer and place the Music Management CD that came with your Lyra Micro Jukebox into your computer.

IMPORTANT : Don’t connect the USB cable to the PC or Lyra Micro Jukebox before or during the driver installation.

If you’re running Windows 2000 no additional drivers are required. If you’re running Windows 98SE/Me, you CD-ROM in order for the Lyra Micro Jukebox to function properly.

2. If the setup screen does not appear, double click My Computer, double click your CD-ROM drive icon, and double click Install to run the installer.

must install the USB drivers from the

Getting Started: Software Setup

3. Select your Lyra model (PDP2810 (Lyra Micro Jukebox)) on the startup screen and click Install to access installation programs corresponding to your Lyra device.

4. Click on the software component you want to install. See next Section for details.

Installing Software Components

Install the USB Driver and System Applications (Windows 98SE and Me Only)

For Windows 98SE and Me systems, you need to install a USB driver before your computer can recognize your Lyra Micro Jukebox.

1. Click Install USB Driver/System Applications to install the required driver for your Lyra Micro Jukebox.

2. Follow the on-screen instructions to install all necessary files.

3. Click Finish to complete installation and return to the startup screen.

Note: A restart of your system may be required after installation is completed.

Getting Started: Software Setup

Install System Applications (Windows 2000 or XP)

1. Click Install System Application to install applications that will help you better manage your Lyra Micro Jukebox.

2. Follow the on-screen instructions to install all necessary files.

3. Click Finish to complete installation and return to the startup screen.

(Refer to page 19 for further system application details)

Install MusicMatch Jukebox

MusicMatch Jukebox is a music management software used to organize and manage digital audio files and can be used to transfer the music to your Lyra Micro Jukebox.

1. Click Install MusicMatch Jukebox to run the MusicMatch setup program.

Wait while the installation program begins. It may take up to 20 seconds for the installer to start.

Note: It is recommended to uninstall any previous installations of the MusicMatch Jukebox software before proceeding. After the uninstall process has been completed, delete the C:\Program Files\MusicMatch folder from Windows and where C:\Program Files is the path where the software was installed. If you do not wish to uninstall the previous MusicMatch Jukebox software, go to “Install MusicMatch Plug-in” on page 13.

Getting Started: Software Setup

2. The Welcome Screen appears, click Next to continue and show the License Agreement.

3. After you’ve read the license agreement, click Yes to accept (to continue, you must click Yes), or No to decline. If you click Yes, the User Registration Information screen appears.

4. Enter your name, e-mail address, postal code, country, year of birth and sex (male or female). Click Next to continue.

Note: You must enter an e-mail address to proceed. If you do not have an e-mail address, enter yourname@home.com.

5. The Personalize Music Recommendation screen appears. Read the screen to determine if you want to use this feature or not. You can change the settings later. Select Yes or No and click Next to continue.

6. The Installation Options screen appears. Select Express Setup and click Next to continue.

The Installation begins.

Getting Started: Software Setup

7. After installation is complete, click Finish.

8. If necessary, close the main setup screen.

9. Some computers might require you to restart your computer. If this is necessary, a dialog box will appear on the computer screen.

Note: As with any device that has a hard drive, you must back up the drive. RCA and Thomson are not responsible for lost data.

For more information on MusicMatch Jukebox, click Tutorials on the CD or go to www.musicmatch.com.

Install MusicMatch Plug-in

MusicMatch requires a plug-in for your particular device in order to download audio files using MusicMatch Jukebox and transfer the files from your computer to your Lyra Micro Jukebox.

1. Click Install MusicMatch Plug-in.

2. Follow the on-screen instructions to install all necessary files.

3. Click Finish to complete installation and return to startup screen. After the plug-in has been installed, launch the MusicMatch Jukebox software.

Note: if the MusicMatch Jukebox Software is already running, you may need to restart it in order for the newly installed Lyra plug-in to be properly recognized.

Getting Started: Software Setup

Launch the MusicMatch software

The MusicMatch software converts audio files to the mp3, mp3PRO and WMA format so you can play them on your Lyra Jukebox.

1. Remove the Music Management CD from your

The MusicMatch icon found in your computer’s system tray.

computer.

2. Start the MusicMatch Jukebox software (click on the MusicMatch icon in your system tray or on your desktop).

3. The first time you launch MusicMatch, a Getting Started screen appears providing information about MusicMatch and the software.

4. Detailed information, Getting Started tips, and troubleshooting are available through the Help menu and the MusicMatch internet site (accessed from the Help and Site menus). We recommend you familiarize yourself with the MusicMatch Welcome Tips and view the On-line FAQs before using and recording files.

Note: Logging onto the internet while using MusicMatch Jukebox takes advantage of all its features.

Install Additional Services

Click on Install ID3man by Auditude, Get 100 Free mp3 Tracks from eMusic or Try Rhapsody Music services for additional digital music services provided by our partners.

Getting Started: Software Setup

Connecting Lyra Micro Jukebox to the Computer

Connect the Lyra Micro Jukebox to your computer with the mini USB cable provided. Battery charging will commence as soon as the screen below appears. Turn on the unit by pressing the ON/PLAY button. The Lyra Micro Jukebox will appear as a Removal Disk drive letter.

Note: It might take several seconds for the device (the Lyra Micro Jukebox) to be detected, especially in Windows 2000/XP. Click Refresh in My Computer or Explorer to make sure the device has been detected.

Note: The Lyra Micro Jukebox is capable of transferring files at hi-speed mode of USB 2.0. This is up to 40 times faster than USB 1.1. If USB 2.0 port is available on your computer, use it to connect to your Lyra Micro Jukebox. The Lyra Jukebox is still backward compatible with the older USB 1.1 ports. However, you will not be able to take full advantage of the potential speed increase.

LINE OUT

LYRA PERSONAL

LYRA MICRO

JUKEBOX

(TOP VIEW)

DC IN

USB PORT

COMPUTER

Transferring Files to Lyra Micro Jukebox

You can transfer files to your Lyra Micro Jukebox via MusicMatch Jukebox or via Windows Explorer. If your Lyra Jukebox isn’t already connected to your computer, connect the Lyra Jukebox to the computer using the provided USB cable as illustrated above.

Note: Do not disconnect the USB cable during music download. Doing so may corrupt system files or the files being downloaded.

Getting Started: Software Setup

Transfer Files via MusicMatch Jukebox

1. Drag and drop desired tracks from the Music Library to the Playlist display.

2. From the menu area, select Files/Send to Portable

Device to display the Portable Device Manager screen. Under the Attached Portable Devices item, select Lyra Micro Audio Player.

3. Select the playlist item and drag it to the Lyra

Personal Audio Player. The songs in the playlist will now be automatically transferred to your Lyra Micro Jukebox.

Note: If your Lyra Micro Jukebox doesn’t appear in the Portable Device Manager area, click the REFRESH button.

Connected To PC

To Play Audio, Hold Down PLAY Key

When the transfer is finished, the Lyra Micro Jukebox Profiler application automatically runs so it can sort/

profile the newly transferred files.

Caution: Make sure all data are transferred to the Lyra Micro Jukebox before unplugging the USB cable.

If you’re running Windows 2000 you must stop the device before unplugging it. Click

icon (the Unplug or Eject hardware

the icon) from the system tray and select the USB Mass Storage device for the drive letter associated with the Lyra Micro Jukebox, and click STOP. See the Windows Help for details about the Unplug or Eject Hardware topic.

Getting Started: Software Setup

Transfer Files via Windows Explorer (Drag and Drop)

If your Lyra Micro Jukebox isn’t already connected to your computer, connect the Lyra Micro Jukebox to the computer using the provided USB cable.

From Windows Explorer, highlight all the files/folders you want to transfer to your Lyra Micro Jukebox and drag them to the drive letter that is associated with it.

Create Pre-defined Playlists and Transferring them to the Jukebox

Pre-defined playlists are created on your PC using MusicMatch Jukebox. Refer to the MusicMatch Jukebox User Manual for details. Use Windows Explorer to transfer predefined playlists to your Lyra Micro Jukebox. If your Lyra Micro Jukebox isn’t already connected to your computer, connect it using the provided USB cable.

From Windows Explorer, highlight the pre-defined playlists that you have created in MusicMatch Jukebox and drag them to the lyra_playlists directory in the drive letter associated with your Lyra Micro Jukebox.

Note: Only M3U playlists files stored in the Lyra_playlists folder will be recognized by the device. Re-profile the contents of the device after transferring playlists files.

Getting Started: Software Setup

Disconnecting Your Lyra from the Computer (Windows 2000 or XP)

From the System Tray, left click on the icon and select Unplug or eject hardware. The Unplug or Eject Hardware screen appears. Select the drive corresponding to your Lyra Micro player and click Stop.

The Stop a Hardware device screen appears. Select the device to be stopped again for confirmation and click OK.

You can also stop your Lyra Micro Jukebox by right clicking on the icon from the system tray and selecting the drive corresponding to your player.

Getting Started: Software Setup

System Tray Applications

Profile

New files that are transferred to your Lyra Micro Jukebox using Windows Explore (drag and drop) will not appear in the Navigation Menus until you profile the contents. If MusicMatch Jukebox was used to transfer files, profiling will be done automatically.

1. Connect your Lyra Micro Jukebox to the computer using the provided USB cable if it is not already connected.

2. Right click on the Lyra icon in the System tray (bottom right hand corner of the computer screen.

3. Select the Profile Device Content... item to start the profiling and sorting contents.

4. Click Done when profiling is complete.

Getting Started: Software Setup

Updating System File

You can upgrade your Lyra Micro Jukebox or repair system files on your device if it becomes damaged by downloading the latest firmware from http://www.thomson-lyra.com. After you have downloaded the latest firmware, follow the steps below to update your system files.

1. Connect your Lyra Micro Jukebox to the computer using the provided USB cable if it is not already connected.

2. Right click on the Lyra icon in the System tray (bottom right hand corner of the computer screen and select the Update System File... item to start updating your system with the latest firmware.

Possible cause of system file damage:

• System files and/or folders were accidentally deleted from the device,

• you have formatted your Jukebox.

Verify User Playlists

Verify items in the User Playlists under the lyra_playlist system folder exists on the Lyra Micro Jukebox.

1. Connect your Lyra Micro Jukebox to the computer using the provided USB cable if it is not already connected.

2. Right click on the Lyra icon in the System tray (bottom right hand corner of the computer screen and select the Verify User Playlists... item.

Getting Started: Software Setup

LyraSync

Files and folders can be synchronized between your PC and your Lyra Micro Jukebox.

1. Connect your Lyra Micro Jukebox to the computer using the provided USB cable if it is not already connected.

2. Right click on the Lyra icon in the System tray (bottom right hand corner of the computer screen and select LyraSync.

3. The LyraSync Options screen appears.

Getting Started: Software Setup

4. Click Insert to select the paths of files and folders to synchronize between your PC and the Device. Click OK.

5. Select the desired LyraSync direction.

• PC overwrites Device

• Device overwrites PC

• Synchronize PC and Device

6. Click Synchronize to start.

Lyra Micro jukebox

Overview of General Controls

VOL

LOCK

rev fwdstop play

enter

onoff

1. STOP - Stop playback / press and hold to turn unit off .

2. Skip backward- Skip back to last track. Press and hold to search backward within

the same track.

3. Skip forward - Skip to next track. Press and hold to search forward within the same

tracks.

4. PLAY/PAUSE - Press and hold to turn the unit on; in stop mode, press to start

playback and pause during playback.

5. VOLUME - Adjust sound volume.

6. LOCK - press and hold to activate / deactivate key lock function.

7. ENTER/SCROLL KNOB - Scroll up and down to netvigate the menu, press to select

the highlighted item.

8. MENU - Bring up the main menu, each subsequent press will move up one level on

the menu.

9. PHONES - headphones jack.

10. USB port - Attach the small end (Type mini-B) of the mini-USB cable here. Attach

the large end (Type A) to your computer. The Lyra Micro Jukebox will also get power from the USB port when connected.

11. RESET SWTICH - Resets player and forces all settings to default values.

Lyra Micro jukebox

Display Overview

Ain’t No Fun

AC/DC

Back in Black

1. Song title.

2. The lock icon is displayed when the key lock function is activated. This can be

activated by pressing and holding the Lock button until the lock icon is displayed. To unlock, press and hold again until the lock icon is turned off.

3. The battery indicator shows battery level.

- Battery full

- Battery empty

4. The shuffle icon is displayed when random playback is selected.

- indicates shuffle all songs in the folder.

- indicates shuffle all songs in the current play mode repeatedly.

- indicates shuffle all songs in all the folders.

ALL

- indicates shuffle all songs in all the folders repeatedly.

All

5. The repeat icon is displayed when the repeat feature is activated.

- indicates repeat all songs in the current folder.

- indicates repeat one song.

All

- indicates repeat all songs in the current play mode.

Rock 1980 128k 0001/0037

01:33

=Rock

6. EQ setting.

7. Elapsed time of the currently played item.

8. The current position you are at among all other items in the current menu level.

9. Year.

10. Genre.

11. Encoded bitrate.

Lyra Micro jukebox

Basic Operation

The information in this section presumes you’ve successfully transferred files to your Lyra Jukebox, and you’re ready to play some music.

If you need specific set-up information (downloading music, transferring files, installing software), go to page 15.

If you want more detailed information about the Lyra Jukebox’s features, go to page 32.

Understanding how to navigate through the Lyra Jukebox’s menu system, combine with how the buttons operate, will give you information you need for basic functionality.

TOP MENU

Artist

Album Title Genre Year

Menu Navigation

Top Menu is the main menu. The navigation scheme is the same no matter how many menus you access.

rev fwdstop play

onoff

1. Scroll the ENTER button up or down to highlight the desired items on the screen.

2. To enter and view the submenu, press the Enter button.

3. To go back to the previous menu level, press the MENU button.

4. To return to the Top menu quickly at any given time, press and hold the MENU

button.

Lyra Micro jukebox

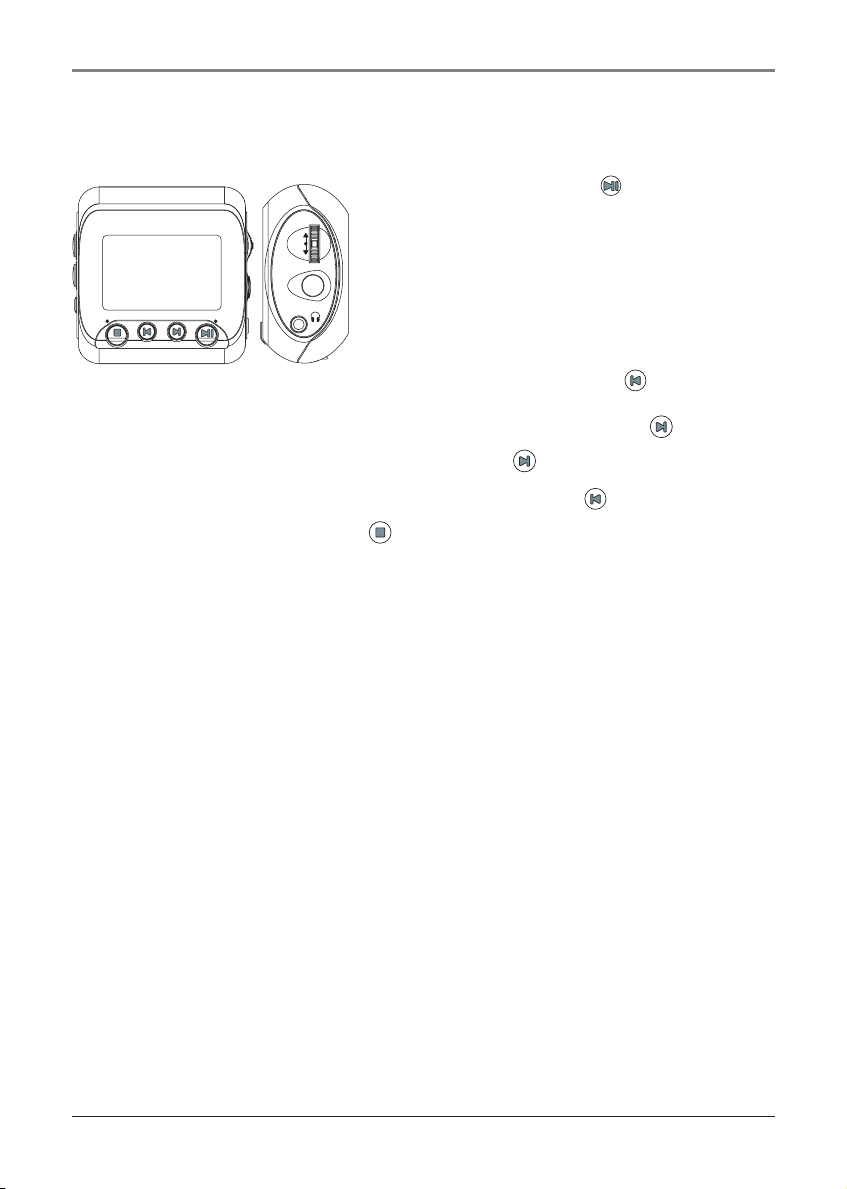

Playback Operation

• Once the item that you want to play is on the screen, press Play/Pause to begin playback. This item can be an artist, an album, a playlist,

enter

rev fwdstop play

onoff

•To scan forward in the track that is playing, press and hold the Next button.

•To go to the next track, press and release the Next button.

•To go to the previous track, press and release the Previous button.

•To stop playback, press the Stop button. The display returns to the previous

menu level.

•To turn up the volume, press the VOLUME + button on the side of the unit. The

volume display bar updates to show the increase in volume level.

or a song. Press again to pause playback. The unit will automatically power off after remaining in pause mode for more than the Power Save interval (Length of this Power Save interval can be modified in the Setting menu).

•To scan backwards in the track that’s playing, press and hold the Previous button.

•To turn down the volume, press the VOLUME - button on the side of the unit. The

volume display bar updates to show the decrease in volume level.

•To add an item to the Playlist, press ENTER to tag it (only in navigation mode),

songs saved in this list can be played and viewed through the Playlist menu. • If you want to add the entire album, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Tag Entire folder”, then press the ENTER button again to confirm.

•To add song to the Favourite List, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Tag Entire folder”, then press the ENTER button again to confirm.

• For navigation while playing music, press the MENU button to return to the last menu you were at.

Lyra Micro jukebox

Smart Tagging menu

• If you want to add the entire album, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Tag group”, then press the ENTER button again to confirm.

•To add song to the Favourite List, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Save to Favourites list”, then press the ENTER button again to confirm.

• Song information screen appears automatically during playback.

• For navigation while playing music, press the MENU button to return to the last menu you were at.

•To clear all of the tagged items, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Clear Tags”, then press the ENTER button again to confirm.

User Playlist *

You can create more than one playlist, and you can even name the playlist at your

wish.

•To save all of the tagged items into your playlist, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Save to User Playlist”:

You can choose to save the songs into playlist which is already created (“Append to”), and all existing playlist will be shown, select one and press the ENTER button again to confirm.

Or you can save the songs into a new playlist, highlight “Save NEW”, you can choose to save to a default playlist name (“Default name”), or input a playlist name yourself. After choosing a playlist name, press the ENTER button again to confirm.

* Please check www.thomson-lyra.com for updates on this feature.

Lyra Micro jukebox

Step-by-Step Example

The following example illustrates (with more detail than the previous information) how you find the song you want to play.

1. These instructions presume you’ve already done the following:

• Installed the MusicMatch Jukebox software and the Lyra mp3/Micro Jukebox profiler application (go to page 9 for detailed instructions).

•Transferred music from your computer to the Lyra Personal Jukebox (page 15 has detailed instructions) and profiled the contents of the Lyra Jukebox through MusicMatch Jukebox or the Profiler software.

Note: The music you’re transferring could be from a CD you put in your computer, the internet, or music you already had loaded onto your computer.

2. If you haven’t already unplugged the Lyra Micro Jukebox from your computer, disconnect the USB cable from the Lyra Micro Jukebox.

Note: You must stop the device before unplugging it. Click the Unplug or Eject hardware icon) from the system tray and select the USB Mass Storage device for the drive letter associated with the Lyra Jukebox, and click STOP. See the Windows Help for details about the Unplug or Eject Hardware topic.

icon (the

3. If you’ve fully charged the battery (the Lyra Micro Jukebox needs to be plugged in for about 3 hours before the battery is fully charged), disconnect the AC adapter from the outlet and then from your Lyra Micro Jukebox.

Note: If the battery isn’t fully charged, keep the Lyra Micro Jukebox plugged in while you listen to the music you’ve transferred from your computer.

Lyra Micro jukebox

4. Connect the clip phones to your Lyra Micro Jukebox (insert the end of the clip phones connector into the phones jack on the side of the Lyra).

How to Use Your Clip Phones (The e.clipz)

The right ear clip phone is labeled R while the left ear clip phone is labeled L.

a. Pull the ear hook away from the ear pad slightly.

You will hear a click sound.

CLICK

b. Slide the ear hook behind the ear with the ear

pad on the front of the ear. Rotate the clip phone so the ear pad fits closely with the ear.

c. Lock the clip phone in place by pushing down

on the top of the ear hook until it locks.

d. For best sound quality, make sure the earpad fits

closely with your ear.

Lyra Micro jukebox

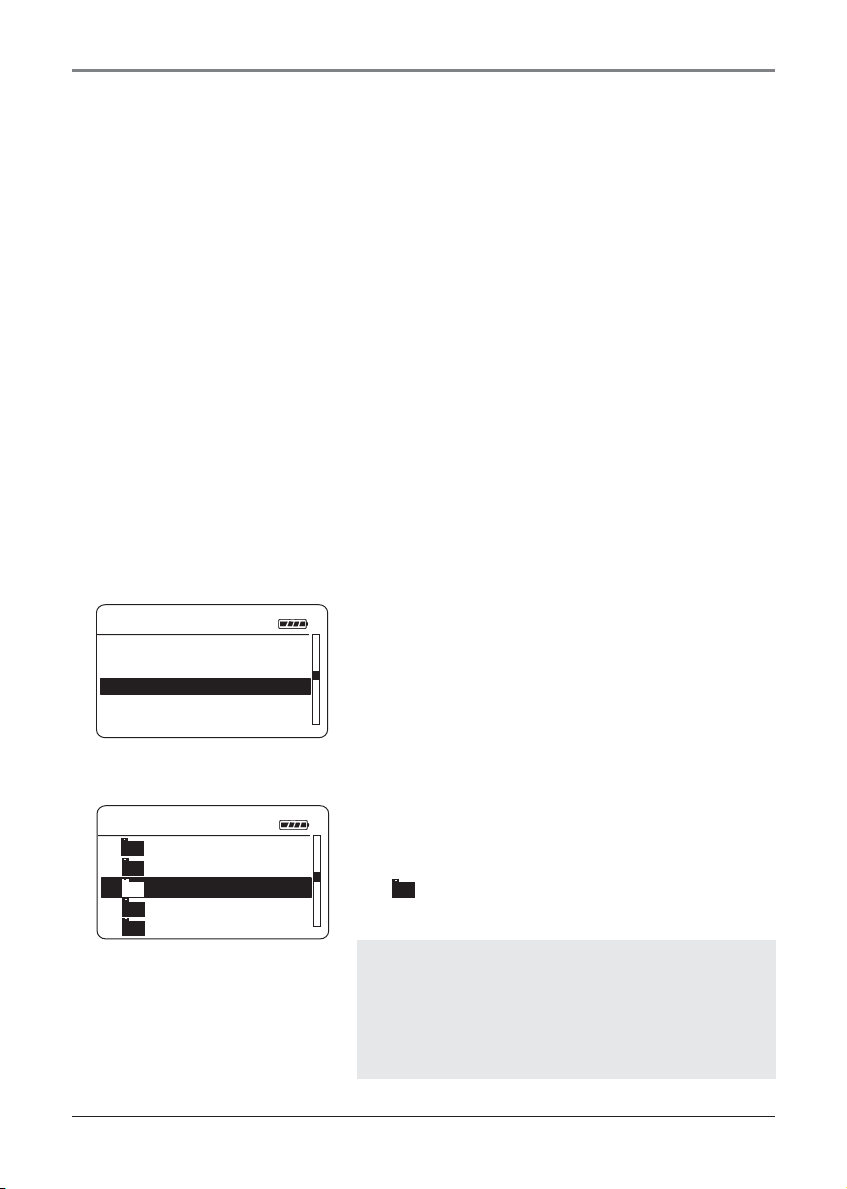

Navigation Menu

The following example illustrates steps to select and play songs in the Artist/Album category.

1. Highlight Artist/Album (press the ENTER

TOP MENU

Artist

Album Title Genre Year

button).

ARTIST

Artist 1

Artist 2 Artist 3 Artist 4

ARTIST 1

Album1

Album 2 Album 3 Album 4

ALBUM 1

All song....

Song 1

Song 2 Song 3

2. Press the Enter button (the Artist menu appears

with the artists stored on your Lyra Jukebox listed in alphabetical order).

•To scroll up and down the Artist menu, slide the Scroll button.

•To return to the main Menu, press the Menu button.

3. To see the albums for the artist highlighted,

press the Enter button (the album titles for that artist appear in alphabetical order).

•To scroll up and down the Artist menu, slide the Scroll button.

•To return to the previous menu (Artist), press the Menu button.

4. To see the songs on the album you’ve

highlighted, press the Enter button (the songs for that album appear).

•To scroll up and down the Album menu,

slide the Scroll button.

•To return to the previous menu (Artist 1),

press the Menu button.

Note: To return to the main Menu at any stage of navigation, press and hold the

Menu button.

Note: To see all songs by ARTIST 1, highlight “ALL

SONGS” and press the Enter button.

Lyra Micro jukebox

ALBUM 1

Song 1

Song 2 Song 3 Song 4

ARTIST 1

All songs...

Album1

Album 2 Album 3

AC/DC

Ain’t No Fun

Back in Black Rock 1980 128k 0001/0037 01:33

=Rock

Highlight the desired song.

•To play the song, press the Play/Pause

button.

•To go to the previous menu, press the

MENU button.

• The song information (Artist name, Album name, Title, Genre & Year) will show on the display during playback.

•To end playback, press the Stop button.

Note: The information provided in the INFO screen depends upon the ID3 tags that have been set up for the song. You may use the ID3 tag editing feature in MusicMatch Jukebox to fix or correct the ID3 tags.

Lyra Micro jukebox

Additional Features

Lyra Micro Jukebox has five System Playlist selections: Program play, Favourites list and User playlist.

Note: Visit http://ww.thomson-lyra.com for updates on these features.

Program Play

You can play all the tagged items in the sequence of tagging.

TOP MENU

Artist

Album Title Genre Year

ARTIST

Artist 1

Artist 2 Artist 3 Artist 4

1. In navigation mode, move the cursor to highlight the item to be selected.

•To scroll up and down the display, scroll the ENTER buttom.

2. • To enter the highlighted folder, press the

Enter button.

•To select the highlighted item, press and

hold the Enter button to bring up smart tagging menu and select “Tag group”.

• After selecting all the items your want, press and hold the ENTER Button to bring up the SmartTagging menu, select “Program Play”, then you can enjoy the music in the sequence of selection.

Lyra Micro jukebox

User Playlist *

You can create a User PlayList using the Lyra Micro Jukebox.

TOP MENU

Artist

Album Title Genre Year

1. In navigation mode, move the cursor to highlight the item to be selected.

•To scroll up and down the display, scroll the ENTER buttom.

•To enter the highlighted folder, press the

Enter button.

• If you want to add the entire album, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Tag Entire folder”, then press the ENTER button again to confirm.

•To add song to the User PlayList, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Save to User Playlist”, then press the ENTER button again to confirm.

• Scroll the ENTER button to select whether to save to a new playlist (“Save NEW”) or to save into an existing playlist (“Append to”).

•To return to the TOP MENU, press and hold the MENU button.

2. To de-select a selected item, scroll the ENTER button to highlight the selected item and press ENTER.

Refer to “View System Playlist” on page 35 to view items in the User playlist.

Lyra Micro jukebox

Favourite List

During playback, you can select and place songs you like into the Favourite playlist.

1. • To add song to the Favourite List, press and hold the ENTER button to bring up the Smart Tagging Menu, scroll the ENTER button to highlight “Save to User Playlist”, then press the ENTER button again to confirm.

2. To de-select a song from the Favourite list, untag the song within Smart Tagging menu.

View Playlists

Lyra Micro jukebox

TOP MENU

Playlists

Audio Files All Files Setting Profiler

1. Scroll the ENTER button to highlight Playlists on

the TOP MENU screen.

2. Press the ENTER button to show all the

predefined system playlists.

3. Scroll the ENTER button to select the desired

playlist to be viewed.

4. Press the ENTER button to view tagged items in

the selected playlist.

Note: All items added will be shown as individual songs.

Lyra Micro jukebox

Pre-defined Playlists

Pre-defined playlists are those playlists created on the PC and transferred to the Lyra Micro Jukebox. Refer to page 14 for details on creating Pre-defined Playlists and transferring them to your Lyra Micro Jukebox.

Follow the steps under “View Playlists” to enter the Playlists menu.

Playlists shown under the dividing line are the predefined playlists

All Files *

Your Lyra Micro Jukebox is a USB mass storage device that can be used to store any files. To see all of the files that are stored on your Lyra Micro Jukebox:

TOP MENU

Playlists

Audio Files

All Files

Setting Profiler

ALL FILES

Folder 1 Folder 1

Folder 3

Folder 4 Folder 5

1. Scroll the ENTER button to highlight All Files on

the TOP MENU screen.

2. Press the Enter button (the All Files menu

appears). Folders are listed first and individual files are listed next.

- indicates the item is a folder.

Note: The folders and files are sorted in the order they were transferred to the Lyra Jukebox (the folder you transferred most recently appears last in the list of folders and the file you transferred most recently would be the last on the list since file names follow folder names.

Additional Menu

Settings

Lyra Micro jukebox

TOP MENU

Playlists

Audio Files All Files

Settings

Profiler

SETTING MENU

Shuffle Off

Repeat Off DSP Flat Contrast 0 Backlight 10sec

1. Scroll the ENTER button to highlight Settings on

the TOP MENU screen.

2. Press the Enter button to view the Settings

Menu.

Shuffle

When Shuffle is On, songs are played in random order.

If shuffle is activated, the songs in the folder where playback begins are played randomly. After all the songs have been played, the unit will randomly select another folder and shuffle all the songs in the newly selected folder.

Shuffle Mode

Off

1. Scroll the ENTER button to highlight Shuffle on

the Settings screen.

2. Press the ENTER button repeatedly to toggle

between Shuffle on and off.

The Shuffle

icon will show on the display.

Lyra Micro jukebox

TOP MENU

Playlists

Audio Files All Files

Setting

Profiler

Shuffle Mode

Off

3. Press the MENU button to return to the main

menu.

4. Scroll the ENTER button to select the folder

where you want Shuffle playback to begin.

Press Play/Pause to begin playback.

All songs/folders in the folder where playback begins will be played randomly.

5. To de-select the Shuffle option, repeat steps 1 and 2 to select Shuffle Off.

Note: Files in the Favourite playlist have a higher probability of being played.

Lyra Micro jukebox

Repeat

Three repeat options are available on the Lyra Micro Jukebox.

• Repeat Off - No repeat option selected.

• Repeat On - Plays songs in the current group/folder repeatedly. The repeat icon

will show on the display.

• Repeat One - Plays the current song repeatedly. The repeat one icon will show on the display.

• Repeat All - Plays all songs in the current play mode repeatedly. The repeat all icon

All

will show on the display.

SETTING MENU

Shuffle Off

Repeat Off

DSP Flat Contrast 0 Backlight 10sec

Repeat Mode

OFF

ON ONE ALL

SETTING MENU

Shuffle Off

Repeat Off

DSP Flat Contrast 0 Backlight 10sec

1. Scroll the ENTER button to highlight Repeat on

the Settings screen.

2. Scroll the ENTER button to adjust the setting

and press again to confirm.

The corresponding repeat icon appears on the display.

3. Press the MENU button to return to the main

menu.

4. Select the item you wish to play and press the

Play/Pause button.

If repeat All is activated, all the songs on the Jukebox will be repeated

If repeat One is activated, the selected song where playback begins will be repeated.

5. To de-select the repeat option, repeat steps 1 and 2 and select Repeat Off.

Lyra Micro jukebox

Adjusting DSP Settings

DSP Settings (Digital Signal Processor settings) adjust the various levels of the audio output for different types of songs. For example, the DSP setting for BASS makes the bass sounds more prominent. You can also personalize the levels via the EQ menu item. The default DSP setting for your Lyra Micro Jukebox is FLAT.

SETTING MENU

Shuffle Off Repeat Off

DSP Flat

Contrast 0 Backlight 10sec

DSP Settings

Flat

Bass

Rock Pop Rap

1. Scroll the ENTER button to highlight DSP on the

Settings screen.

2. Press the Enter button to view the DSP Menu.

(FLAT / BASS / GRAPHIC EQ. / ROCK / POP / RAP / COUNTRY / R&B / HIP-HOP / BLUES / SOUNDTRACK / LATIN / JAZZ / CLASSICAL / METAL / GOSPEL / ALTERNATIVE ROCK / CLASSIC ROCK / DANCE / PUNK / REGGAE / HARD ROCK )

3. Press the MENU button to return to the main

menu.

Smart EQ

Smart EQ allows you to tie a preset DSP mode to a corresponding Genre for enganced listening experience.

Settings

PowerSave OFF SleepTimer OFF

AudioClips OFF

SmartEQ OFF

InstantOn OFF

1. Scroll the ENTER button to highlight SmartEQ

on the Settings screen.

OFF

SmartEQ

2. Press the Enter button to view the SmartEQ

Menu.

3. Scroll the ENTER button to adjust the setting

and press again to confirm.

4. Press the MENU button to return to the main

menu.

Lyra Micro jukebox

Personalizing DSP Output (EQ menu item)

Graphic EQ: enables you to personalize audio output settings.

SETTING MENU

Shuffle Off

Repeat Off

DSP Flat

Contrast 0 Backlight 10sec

DSP Settings

Classical

Raggae Hip-hop

Funk

Graphic EQ

GRAPHIC EQ.

Freq=60Hz +5dB

1. Scroll the ENTER button to highlight DSP on the

Settings screen.

2. Press the Enter button to view the DSP Menu.

3. From the DSP Menu, scroll the ENTER button to

select Graphic EQ.

4. Press the Enter button to show the Graphic EQ

display.

5. Scroll the ENTER button to move among

frequency adjustments (60Hz, 250Hz, 1kHz, 4kHz and 12 kHz).

Use the ENTER button to adjust levels between +12dB and -12dB.

6. Press the MENU button to return to the previous

menu.

Instant On

InstantOn allows the player to be instantly powered up while retaining the information of the last played track. However after 48 hours of zero key activity on the player , the player shall revert to a deep sleep state and the last played information shall no longer be valid.

Settings

PowerSave OFF SleepTimer OFF

AudioClips OFF SmartEQ OFF

InstantOn OFF

InstantOn

OFF

1. Scroll the ENTER button to highlight InstantOn

on the Settings screen.

2. Press the Enter button to view the InstantOn

Menu.

3. Scroll the ENTER button to adjust the setting

and press again to confirm.

4. Press the MENU button to return to the main

menu.

Lyra Micro jukebox

Audio Clips

You can quickly navigate the audio contents of a file when activating Audio Clips function (only in STOP mode).

Settings

PowerSave OFF SleepTimer OFF

AudioClips OFF

SmartEQ OFF InstantOn OFF

AUDIO CLIPS

OFF

ON OFFSET 0sec DURATION 5sec

AUDIO CLIPS

OFFSET 0sec

5sec

10sec 20sec

30sec

AUDIO CLIPS

DURATION 3sec

5sec

7sec 10sec

20sec

1. Scroll the ENTER button to highlight Settings in

the top menu.

2. Press ENTER to view options listed

3. Scroll the ENTER button to highlight AudioClips.

4. Scroll the ENTER button to select between ON /

OFF, and press again to confirm.

5. Scroll the ENTER button to select among

options in setting.

OFFSET (between 0 to 30 sec)

DURATION (between 3 to 20 sec)

6. Scroll the ENTER button to adjust the setting

and press again to confirm.

7. Press the MENU button to return to the main

menu.

System Settings

You can personalize the display settings.

TOP MENU

Playlists

Audio Files All Files

Setting

Profiler

1. Scroll the ENTER button to highlight Settings in

2. Press ENTER to view options listed

3. Scroll the ENTER button to highlight the setting

4. Press the ENTER button to select among options

Lyra Micro jukebox

the top menu.

(Contrast, Backlight, PowerSave or Sleep timer) you want to adjust.

in each setting.

Contrast Adj.

+1 0

-1

-2

Backlight Adj.

OFF

5 seconds

10 seconds 15 seconds 20 seconds

PowerSave Adj.

Disabled

1 minute

2 minutes 3 minutes 5 minutes

Sleep Timer

Disabled

30 minutes

60 minutes 90 minutes

Contrast (between +5 to -5)

Backlight (Off, 5 sec, 10 sec 15sec or 20 sec)

PowerSave (Disabled, 1, 2, 3, 5 min)

Sleep timer (Disabled, 30, 60 or 90 min)

5. Scroll the ENTER button to adjust the setting

and press again to confirm.

6. Press the MENU button to return to the previous

menu.

Lyra Micro jukebox

Profiler

The application will profile and sort supported audio files on your Lyra Micro Jukebox so you can sort and play them properly.

Note: It is best to profile your contents on your PC after each transfer of music files. Profiling on the unit will take longer and may use up battery power.

Note: Approximately 500 songs can be profiled on the Lyra Micro Jukebox. If the number of audio files exceed this limit, use your PC for profiling .

TOP MENU

Playlists

Audio Files All Files Setting

Profiler

1. Scroll the ENTER button to highlight Profiler in

the Top Menu.

2. Press the Enter button to view the Profiler

Menu.

3. Scroll the ENTER button to select YES / NO to

confirm whether you want to re-profile the content or not..

4. Press Enter to start profiling contents on the

Lyra Micro Jukebox.

5. Press the MENU button to return to the previous

menu.

Lyra Micro jukebox

Portable Hard Drive Capability

Since Lyra Micro Jukebox has a 1.5-gigabyte hard drive, you can use it to transport files any files, not just music files. Some possible uses for this feature are as follows:

• Create back-ups/archive files.

• Connect to other computers - at work, for example.

•Transport digital photo albums.

•Transport files from one computer to another computer. For example, instead of putting files at work on a zip or accessing them on your home computer via e-mail or remote access, you can put the files on your Lyra Micro Jukebox.

• Capture internet downloads.

• Share information.

Check for Updates

Visit http://www.thomson-lyra.com for the latest news and firmware upgrades for our Lyra Micro Jukebox. You must update your system after new downloads have been made in order for the new applications to be executed.

Note: * Available upon future upgrade.

Additional Information

Tips and Troubleshooting

Problem: Player repeats same tracks or all tracks.

• Repeat play is turned on. Press the MENU button to change the play mode.

Problem: Audio distorted at high volume.

• Select another DSP setting.

•Turn down the volume.

Problem: The audio tracks on my Lyra keep skipping or popping.

•You’ll need to re-record the audio track – make sure you close all other applications on your PC when you record.

Problem: Player turns itself off.

•Your Lyra Micro Jukebox turns itself off if you leave it in pause mode for an inordinate amount of time.

Problem: Songs aren’t listed in any of the sort modes (Album, Genre, Title, Audio Files).

• The contents of the Lyra Micro Jukebox haven’t been profiled (sorted) since the last file transfer. Select the Profile Device Contents... menu item from the Lyra Micro Jukebox profiler system tray application on your PC to profile (sort) the contents of

the device. The icon in the system tray looks like this .

Problem: Bad or missing file error message displayed on the Lyra Jukebox.

• The Lyra Jukebox system files are corrupted or missing. Select the Update System Files... menu item from the Lyra Jukebox profiler system tray application on your PC

to update the necessary system files.

Problem: Lyra Jukebox Profiler application icon – . – doesn’t appear in the system tray.

•You can restart Windows to auto-launch the application, or you can double-click or run the Lyra Jukebox Profiler executable file that’s in the Profiler sub-folder of the installation directory that was specified during the setup process – (Example Directory: C:\Program Files\Thomson multimedia\Lyra MP3 Jukebox\Profiler\LYRAHDDProfilerTrayApp.exe).

If the problem persists, you might need to reinstall the Lyra Micro Jukebox software.

Problem: Lyra Micro Jukebox does not respond.

• Press RESET button to reset the unit.

Additional Information

FAQ (Frequently Asked Questions)

Question: What is mp3?

mp3 is an abbreviation for MPEG-1, Layer 3 Audio (MPEG = Motion Picture Experts Group). This is a digital sound encoding and compression process that was developed by the Fraunhofer Institut fur Integrierte Schaltungen and Thomson. mp3 is an international standard and is well suited for the transfer of high quality audio files over telephone or ISDN lines, and over the internet.

Specifications & System Requirements

Hardware

• Dimensions: 5.5 cm L, 2.5 cm W, 5.7cm H

• Unit Weight: 90.5 grams

• 1500MB / 1.5 Giga Byte Storage

• Stereo Headphone Jack

• Mini USB Connection Jack

• Battery Operated: Internal rechargeable Lithium ion battery.

Additional Information

Hard Disc

• External Hard Disc Drive: When connected to a computer via USB, the Lyra Micro Jukebox is capable of storing any file type allowing the user a fast, convenient method of storing, retrieving, and transferring files. Including word processing files, presentations, spreadsheets and any other computer files.

• Capacity: 1.5 GB

• Rotational Speed: 4400 RPM

• Connection: USB 2.0 Hign Speed

Software

• Includes Music Management software with the Lyra Jukebox applications and the MusicMatch Jukebox software.

MusicMatch Jukebox software lets the user organize all tracks in a digital music library, create custom playlists through drag and drop interface.

– Encodes mp3 files.

– Auto DJ creates automatic Playlists based on the user’s sorting preferences. Scans the

entire Music Library for specific search results.

– Integrated CD Player.

– Export to WAV

– mp3 Equalizer

Additional Information

PC Hardware Requirements

– 233MHz or higher (Pentium II 300 MHz or higher recommended)

– Windows® 98SE, Me, XP or 2000

– Internet Explorer 4.0 or better with Internet access

– 32 MB RAM (64 MB recommended)

– Free hard disk space (4 MB for the software plus 1 MB for every minute of CD quality

audio that will be stored on the PC).

– CD-ROM drive capable of digital audio extraction

– USB port

– Installed sound card

– 16-bit color video card

Accessories

• CD-ROM Music Management Software

• USB Connection Cable

• AC/DC Adapter

• Clipphone™ Stereo Headphones

Miscellaneous Specifications

• Signal to Noise Ratio (>85dB)

• THD (<0.1%)

1 MusicMatch and MusicMatch Jukebox are registered trademarks of MusicMatch Corp. 2 Warning – This product is not intended for the unauthorized recording or duplication of copyrighted material.

visit us at www.thomson-europe.com or www.thomson-lyra.com

Please do not send any products to the address listed in this manual or on the carton. This will only add delays in service for your product.

THOMSON

46, quai Alphonse Le Gallo

92648 Boulogne Cedex

FRANCE

www.thomson.net

(EN)
