Technicolor - Thomson HP 270 User Manual

VMD270
User manual
CONTENTS
AUTOMATIC DEMONSTRATION
ENGLISH
7
DIGITAL VIDEO CAMERA
VMD270
GETTING STARTED
VIDEO RECORDING & PLAYBACK
VIDEO RECORDING ............. 19 – 21
VIDEO PLAYBACK ............... 22 – 25
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
D.S.C. RECORDING ..............27 – 28
D.S.C. PLAYBACK................ 29 – 37
ADVANCED FEATURES
USING MENUS FOR
DETAILED ADJUSTMENT ......39 – 45
FOR RECORDING ................ 46 – 56
DUBBING ......................... 57 – 60
USING THE REMOTE
CONTROL UNIT ................ 61 – 72
SYSTEM CONNECTIONS ................73
REFERENCES
8 – 17
18 – 25
26 – 37
38 – 73
74 – 97
INSTRUCTIONS
DETAILS ...................................75
TROUBLESHOOTING ............ 76 – 81
USER MAINTENANCE ...................82
INDEX ............................. 83 – 90
CAUTIONS ........................ 91 – 93
TERMS ............................ 94 – 95
SPECIFICATIONS .................96 – 97
EN
2 EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
• All major sections and subsections are listed in the Table Of Contents ( pg. 1).
• Notes appear after most subsections. Be sure to read these as well.
• Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
..... refer to the Index ( pgs. 83 – 90) and familiarise yourself with button locations, etc. before use.
..... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important
information regarding the safe use of this product.
You are recommended to carefully read the cautions on pages 91 through 93 before use.
SAFETY PRECAUTIONS
IMPORTANT
Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover.
If nonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code:
If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt consult a competent electrician.
(for owners in the U.K.)
Blue to N (Neutral) or Black Brown to L (Live) or Red
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTIONS:
To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to qualified personnel.
When you are not using the AC Power
Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.
NOTES:
The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.
The rating plate (serial number plate) of the AC Power Adapter /Charger is on its bottom.
Caution: (applies to Docking Station)
To reduce the risk of fire, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service person.
EN3
CAUTIONS:
This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere.
Use the BPD 270 battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Power Adapter /Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and interconnections
between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your
equipment.
DO be careful with glass panels or doors on equipment. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is
damaged in any way switch off, withdraw the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of
road safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating
will cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the
manufacturers approved stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL
NEVER let anyone especially children push anything into holes, slots or any other opening in the case
this could result in a fatal electrical shock;
NEVER guess or take chances with electrical equipment of any kind it is better to be safe than sorry!
4 EN
SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided strap. Carrying or holding
the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Attaching the camcorder to the Docking Station with cables (S-Video, Editing, etc.) connected, then leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
This camcorder is designed exclusively for the digital video cassette, SD Memory Card and
MultiMediaCard. Only cassettes marked and memory cards marked or
can be used with this unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark .
.... make sure you only use memory cards with the mark
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial
use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
or .
PROVIDED ACCESSORIES
EN5
Docking Station DS270
Remote Control Unit TC120
MultiMediaCard (16 MB)
AC Power Adapter/Charger
ACD270
DC Cord
CD-ROM
Battery Pack
BPD270
AAA (R03) Battery x 2 (for remote control unit)
Editing Cable
Audio/Video Cable3.5 mini-plug to RCA plug)
Core filter
(for optional USB cable)
Strap ( pg. 6 for attachment)
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter.
6 EN
How To Attach The Strap
1 Thread one end of the strap through the
1
eyelet, then pass the other end through the loop.
2 Attach the screw to the tripod mounting
socket. To tighten the screw firmly, use a coin, etc.
3 Adjust the length with the adjuster.
NOTES:
You can use the strap as a shoulder strap by adjusting the length with the adjuster.
Because a loose screw may cause damage to the camcorder, make sure to tighten the screw firmly to the tripod mounting socket when carrying the camcorder.
Use the strap only with this camcorder.
Do not grip the camcorder too firmly when the screw is attached. Doing so may cause damage to the tripod mounting socket.
2
How To Attach The Core Filter (for optional USB cable)
Attach the provided core filter to an optional USB cable. The Core Filter reduces interference.
3
12 3
Stopper
Release the stoppers on both ends of the Core Filter.
When connecting cables, attach the end with the Core Filter to a PC.
Run the cable through the Core Filter, leaving approx. 3 cm of cable between the cable plug and the Core Filter. Wind the cable once around the outside of the Core Filter as shown in the illustration.
Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
3 cm
Wind once
Close the Core Filter until it clicks shut.
AUTOMATIC DEMONSTRATION
Automatic Demonstration takes place when DEMO MODE is set to ON (factory-preset).
Available when the Power Switch is set to
or and no cassette is in the camcorder.
Performing any operation during the demon-
stration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.
“DEMO MODE remains ON even if the
camcorder power is turned off.

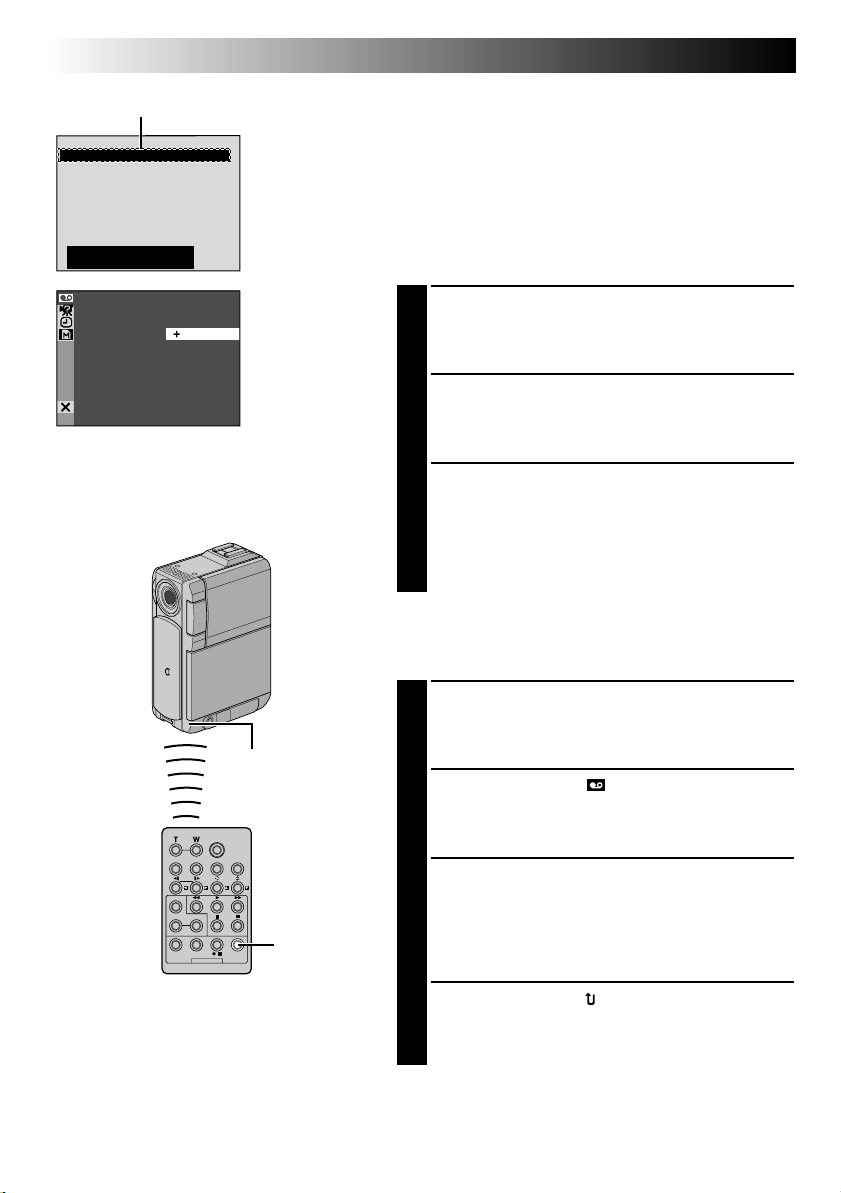

To cancel Automatic Demonstration:
1. Set the Power Switch to while
pressing down the Lock Button located on the switch and press MENU. The Menu Screen appears.
2. Press + or to select SYSTEM and press SET/SELECT. The SYSTEM Menu appears.
3. Press + or to select DEMO MODE and press SET/SELECT. The Sub Menu appears.
4. Press + or – to select OFF and press SET/ SELECT.
5. Press + or – to select RETURN, and
press SET/SELECT twice. The normal screen appears.
NOTE:
If you do not slide the lens cover down, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewfinder.
EN7
MENU Button
+, – ButtonSET/SELECT Button
Power Switch
Lock Button
Sub Menu
MOD EDEMO –ONOFF
8 EN
GETTING STARTED
GETTING STARTED
CONTENTS
Power ...................................................................9 – 10
Viewfinder Adjustment ....................................................11
Tripod Mounting .............................................................11
Date/Time Settings......................................................... 12
Loading/Unloading A Cassette ........................................... 13
Recording Mode Setting ................................................... 14
Loading A Memory Card ................................................... 15
Picture Quality Mode Setting .............................................16
Image Size Mode Setting .................................................. 16
Operation Mode .............................................................17
Battery pack
CHARGE
POWER indicator
BPD270
NOTES:
If the protective cap is attached to the battery pack, remove it first.
If you connect the camcorders DC cord to the AC Power Adapter/Charger during battery charging, power is supplied to the camcorder and charging stops.
When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again.
If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.
indicator
DC OUT connector
Battery pack
Protruding part
To AC outlet
AC Power Adapter/Charger
Charging time
approx. 1 hr. 30 min.
Power
This camcorders 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.
CHARGING THE BATTERY PACK
Make sure you unplug the camcorders DC cord from
1
the AC Power Adapter/Charger. Plug the AC Adapter/ Chargers power cord into an AC outlet. The POWER indicator lights.
Attach the battery pack with the mark aligned
2
with the corresponding marks on the AC Power Adapter/Charger. The CHARGE Indicator begins blinking to indicate charging has started.
When the CHARGE indicator stops blinking but stays
3
lit, charging is finished. Remove the battery by pushing up the protruding part. Remember to unplug the AC Adapter/Chargers power cord from the AC outlet.
EN9
Lithium-ion is vulnerable in colder temperatures.
About Batteries
DANGER! Do not attempt to take the batteries apart, or
expose them to flame or excessive heat, as it may cause a fire or explosion.
WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.
(If youre using a heating pad, make sure the battery pack does not come in direct contact with it.)
For other notes, pg. 75
10 EN
1
Notches
2
BATT. RELEASE Switch
ATTENTION:
Before detaching the power source, make sure that the camcorders power is turned off. Failure to do so can result in a camcorder malfunction.
GETTING STARTED
USING THE BATTERY PACK
Insert the terminal end 1 of the battery pack into the
1
battery pack mount, then firmly push the end 2 of the battery pack in the direction of the arrow until it locks into place as shown in the illustration.
To attach the battery firmly, align its two notches with the tabs on the camcorder.
To Detach The Battery Pack. . .
.... while sliding down BATT. RELEASE, detach it.
Approximate recording time
Battery pack
BPD270
NOTES:
Recording time is reduced significantly under the following conditions:
Zoom or Record-Standby mode is engaged repeatedly.
The LCD monitor is used repeatedly.
The playback mode is engaged repeatedly.
Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.
LCD monitor on/ Viewfinder off
1 hr.
LCD monitor off/ Viewfinder on
1 hr. 10min.
(cont.)
To AC outlet
AC Power Adapter/Charger
To battery pack mount
Power cord
To DC OUT terminal
DC cord
USING AC POWER
Use the AC Power Adapter/Charger (connect as shown in the illustration).
NOTES:
The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V.
For other notes, 墌 pg. 75.
EN11
PAUSE
Power Switch
Lock Button
Dioptre Adjustment Control
Viewfinder Adjustment
Set the Power Switch to or while pressing
1
down the Lock Button located on the switch.
Pull out the viewfinder fully.
2
Turn the Dioptre Adjustment Control until the
3
indications in the viewfinder are clearly focused.
Tripod Mounting
Align the screw on the tripod with the camera’s
1
mounting socket. Then tighten the screw.
Some tripods are not equipped with studs.
CAUTION:
When attaching the camera to a tripod, extend its legs to stabilise the camcorder. It is not advised to use small sized tripods. This may cause damage to the unit by falling over.
12 EN
SET/SELECT Button
Power lamp
Power Switch
Lock Button
MENU Button
+, – Button
GETTING STARTED
(cont.)
Date/Time Settings
The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback ( pg. 43, 44).
Set the Power Switch to while pressing down
1
the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
Press MENU. The Menu Screen appears.
2
Press + or to select DISPLAY, and press SET/
3
SELECT. The DISPLAY Menu appears.
/ W I P E
W. BAL
DSC
END
T I ME CODE
CLOCK
ADJ .
CLOCK ADJ .
Display
FADER
AM AEPROGR AN E
C ACAMER LMANUA MSYSTE AYDISPL
RE NEON S C
IMETDATE /
NRETUR
OF
– – – FFO
LCD/ TV
02
02
F
UAOT
12.:.01 17
30
12.:.01 17
30
DISPLAY Menu
Press + or to select CLOCK ADJ., and press SET/
4
SELECT. Day is highlighted.
Press + or – to input the day, and press SET/SELECT. Repeat to input the month, year, hour and minute. Press + or – to select RETURN, and press SET/ SELECT twice. The Menu Screen closes.
Built-in Clock’s Rechargeable Lithium Battery
To store the date/time in memory, the clock’s rechargeable lithium battery is integrated in the camcorder. While the camcorder is connected to an AC outlet using the AC Power Adapter/Charger, or while the battery pack attached to the camcorder continues to supply power, the clock’s rechargeable lithium battery is always charged. However, if the camcorder is not used for approx. 3 months, the clocks lithium battery will become discharged and the date/time stored in memory will be lost. When this occurs, first connect the camcorder to an AC outlet using the AC Power Adapter/Charger for over 24 hours to charge the clocks rechargeable lithium battery. Then perform the date/time setting before using the camcorder. Note that the camcorder can be used without setting the date/time.
NOTE:
Even if you select CLOCK ADJ., if the parameter is not highlighted the camcorders internal clock continues to operate. Once you move the highlight bar to the first date/time parameter (day), the clock stops. When you finish setting the minute and press SET/SELECT, the date and time begin operation from the date and time you have just set.
Cassette holder cover
Cassette holder
Make sure the window side is facing out.
PUSH HERE
Erase protection tab*
*
To Protect Valuable Recordings . . .
....slide the erase protection tab on the back
of the tape in the direction of “SAVE”. This prevents the tape from being recorded over. To record on this tape, slide the tab back to “REC” before loading it.
Be sure to press only the section labeled PUSH HERE to close the cassette holder; touching other parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage.
OPEN/EJECT Switch
EN13
Loading/Unloading A Cassette
The camcorder needs to be powered up to load or eject a cassette.
Slide down and hold OPEN/EJECT in the direction
1
of the arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.
Do not touch internal components.
Insert or remove a tape and press PUSH HERE to
2
close the cassette holder.
Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
When the batterys charge is low, you may not be able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.
Close the cassette holder cover firmly until it locks
3
into place.
Approximate recording time
Tape
30 min. 30 min. 45 min. 60 min. 60 min. 90 min. 80 min. 80 min. 120 min.
Recording mode
SP LP
NOTES:
It takes a few seconds for the cassette holder to open. Do not apply force.
If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the cassette holder still does not open, turn the camcorder off then on again.
If the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.
When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.
Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.
Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.
When resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 21 for information about recording from the middle of a tape.
14 EN
SET/SELECT Button
Power lamp
Power Switch
MENU Button
+, – Button
GETTING STARTED
Recording Mode Setting
Set the tape recording mode depending on your preference.
Set the Power Switch to while pressing down
1
the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
Press MENU. The Menu Screen appears.
2
(cont.)
Lock Button
Display
REC MODE SP
LP
CAMERA Menu
Sub Menu
Press + or to select CAMERA and press SET/
3
SELECT. The CAMERA Menu appears.
Press + or to select REC MODE and press SET/
4
SELECT. The Sub Menu appears. Select SP or LP
by pressing + or and press SET/SELECT. Press + or to select RETURN, and press SET/SELECT
twice. The Menu Screen closes.
Audio Dubbing (墌 pg. 65) and Insert Editing ( pg. 67) are impossible on a tape recorded in the LP mode.
•“LP (Long Play) is more economical, providing
1.5 times the recording time.
NOTES:
If the recording mode is switched during recording, the playback picture will be blurred at the switching point.
It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.
During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.
Card Cover
Clipped edge
EN15
Loading A Memory Card
Make sure the camcorders power is off.
1
Open the card cover (MEMORY CARD).
2
Insert the memory card firmly clipped edge first.
3
Do not touch the terminal on the reverse side of the label.
Close the card cover.
4
To Unload A Memory Card . . .
.... in step 3 push the memory card, then the memory
card comes out of the camcorder automatically. Pull it out and close the card cover.
NOTES:
Be sure to use only SD Memory Cards marked or MultiMediaCards marked ”.
Some brands of memory cards are not compatible with this camcorder. Before purchasing a memory card, consult its manufacturer or dealer.
Before using a new memory card, it is necessary to FORMAT the card. 墌 pg. 37
Memory card
Label
To Protect Valuable Files (available only for SD Memory Card) . . .
Write protection tab
... slide the write protection tab on the side
of the memory card in the direction of LOCK. This prevents the memory card from being recorded over. To record on this memory card, slide the tab back to the position opposite to “LOCK” before loading it.
ATTENTION:
Do not insert/remove the memory card while the camcorder is turned on, as this may cause the memory card to be corrupted or cause the camcorder to become unable to recognise whether or not the card is installed.
16 EN
SET/SELECT Button
Power Switch
Lock Button
Display
TYQUAL I
SIZE
UXGA
SIZEIMAGE
FINE
STANDARD
GAV
AUTO
VGA
XGA
AUTO
MENU Button
+, – Button
DSC Menu
GETTING STARTED
(cont.)
Picture Quality Mode Setting
The Picture Quality mode can be selected to best match your needs. Two Picture Quality modes are available: FINE and STANDARD (in order of quality).
Set the Power Switch to while pressing down the
1
Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
Press MENU. The Menu Screen appears.
2
Press + or to select DSC and press SET/
3
SELECT. The DSC Menu appears.
Press + or to select QUALITY and press SET/
4
SELECT. The Sub Menu appears. Press + or to select the desired mode and press SET/SELECT. Press + or to select RETURN, and press SET/SELECT
twice. The Menu Screen closes.
Image Size Mode Setting
The Image Size mode can be selected to best match your needs. Two Image Size modes are available: XGA (1024 x 768 pixels) and VGA (640 x 480 pixels) (in order of quality).
Set the Power Switch to while pressing down the
1
Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
NOTES:
The number of storable images depends on the selected picture quality as well as the composition of the subjects in the images and the type of memory card being used.
In the XGA mode, images are shot in 720 x 576 pixels and they are converted and stored in the XGA mode file size (1024 x 768 pixels).
Approximate Number of Storable Images
Image Size/Picture Quality Mode
XGA FINE 24 49 100 20 46 97 195 XGA STANDARD 74 150 305 62 140 295 610 VGA FINE 53 105 215 44 100 210 435 VGA STANDARD 150 310 630 125 290 610 1255
* Optional ** Provided
MultiMediaCard SD Memory Card
8MB*
16MB**
32MB*
Press MENU. The Menu Screen appears.
2
Press + or to select DSC and press SET/
3
SELECT. The DSC Menu appears.
Press + or to select IMAGE SIZE and press SET/
4
SELECT. The Sub Menu appears. Press + or to select the desired mode and press SET/SELECT. Press + or to select RETURN, and press SET/SELECT
twice. The Menu Screen closes.
8MB* 32MB* 64MB*
16MB*
To turn on the camcorder, set the Power Switch to any operation mode except “OFF” while pressing down the Lock Button located on the switch.
VIDEO/MEMORY Switch
Power lamp
Power Switch
Lock Button
When the Power Switch is set to ”, appears. When set to or , there is no indication.
When the Power Switch is set to or and the VIDEO/MEMORY Switch is set to MEMORY, the selected image size (VGA or XGA) is displayed. When set to VIDEO, there is no indication.
VGA
EN17
Operation Mode
Choose the appropriate operation mode according to your preference using the Power Switch and VIDEO/
MEMORY Switch.
Power Switch Position
(Manual):
Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.
(Full Auto):
Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.
OFF:
Allows you to switch off the camcorder.
:
Allows you to play back a recording on the tape.
Allows you to display a still image stored in the
memory card or to transfer a still image stored in the memory card to a computer.
VIDEO/MEMORY Switch Position
VIDEO:
Allows you to record on a tape or play back a tape. If REC SELECT is set to / in the DSC Menu Screen, still images are also recorded in the memory card.
MEMORY:
Allows you to record a still image or display a still image stored in the memory card.
18 EN
VIDEO RECORDING & PLAYBACK
VIDEO RECORDING
&
PLAYBACK
CONTENTS
VIDEO RECORDING ............................................ 19 – 21
Basic Recording ..............................................................19
Journalistic Shooting........................................................20
Interface Shooting .......................................................... 20
Zooming ......................................................................20
Time Code ....................................................................21
Recording From The Middle Of A Tape ..................................21
VIDEO PLAYBACK ..............................................22 – 25
Normal Playback ............................................................22
Still Playback ................................................................ 22
Shuttle Search ...............................................................22
Connections ......................................................... 23 – 24
Blank Search .................................................................25
BR IGHT
25
min
VIDEO RECORDING
Power Lamp
VIDEO/MEMORY Switch
Display
min
(Now calculating)
Tally lamp (Lights while recording is in progress)
Lens Cover (Slide up the lens cover to protect the lens when the camcorder is not in use.)
180°
90 min
(Blinking) (Blinking) (Blinking)
90°
Recording Start/ Stop Button
Power Switch
Lock Button
Tape remaining time indicator (Approximate)
89 min
1 min0 min
Lock Button
MONITOR BRIGHT +/– Button
3 min
2 min
EN19
Basic Recording
NOTE:
You should already have performed the procedures listed below. If not, do so before continuing.
Power (墌 pg. 9)
Viewfinder Adjustment (墌 pg. 11)
Load A Cassette (墌 pg. 13)
Recording Mode Setting (墌 pg. 14)
Slide down the lens cover while pressing down the
1
Lock Button located on the cover.
Set the VIDEO/MEMORY Switch to “VIDEO”, then
2
set the Power Switch to ” or “ ” while pressing down the Lock Button located on the switch.
Shooting while using the LCD monitor:
the viewfinder is pushed back in. Open the LCD monitor fully.
Shooting while using the viewfinder:
LCD monitor is closed and locked. Pull out the viewfinder fully.
Be sure to pull out the viewfinder until you hear a click, otherwise it may be pushed back in during use.
The Power lamp lights and the camcorder enters the Record-Standby mode. PAUSE is displayed.
Press the Recording Start/Stop Button.
3
appears while recording is in progress.
To Stop Recording . . .
.... press the Recording Start/Stop Button. The camcorder
re-enters the Record-Standby mode.
To Adjust The Brightness Of The Display
.... press MONITOR BRIGHT + or – until the bright level
indicator on the display moves and the appropriate brightness is reached.
It is also possible to adjust the brightness of the viewfinder.
NOTES:
The image will not appear simultaneously on the LCD monitor and the viewfinder except during Interface Shooting.
If the Record-Standby mode continues for 5 minutes, the camcorders power shuts off automatically. To turn the camcorder on again, push back and pull out the viewfinder again or close and re-open the LCD monitor.
When a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to Recording From The Middle Of A Tape” (墌 pg. 21).
When sliding down the lens cover, be sure not to touch the lens.
To turn the tally lamp or beep sounds off, 墌 pg. 39, 41.
For other notes, pg. 75
Make sure
Make sure the
20 EN
Self-Recording
VIDEO RECORDING
(cont.)
Journalistic Shooting
In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° down­ward, 180° upward).
Interface Shooting
The person you shoot can view himself/herself in the LCD monitor, and you can even shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward to 180° so that it faces forward. When the LCD monitor is tilted upward to an angle of over approx. 105°, the monitor image is inverted vertically. If the viewfinder is pulled out at that time, it also switches on. Point the lens toward the subject (yourself when self-recording) and start recording. During Interface Shooting, the monitor image and indications do not appear inverted as they would when viewing a mirror.
Zoom in (T: Telephoto)
1xW
T
10xW
T
Zoom out (W: Wide angle)
Zoom display
10xW
Approximate zoom ratio
T
20xW
T
Power Zoom Ring
40xW
T
Digital zoom zone
10X (optical) zoom zone
FEATURE:
Zooming
PURPOSE:
To produce the zoom in/out effect, or an instantaneous change in image magnification.
OPERATION:
Zoom In
Turn the Power Zoom (SHUTTLE SEARCH) Ring anti­clockwise.
Zoom Out
Turn the Power Zoom (SHUTTLE SEARCH) Ring clockwise.
The further you turn the Power Zoom Ring the
quicker the zoom action.
NOTES:
Focusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus (墌 pg. 52), then zoom in or out in Record mode.
Zooming is possible to a maximum of 100X, or it can be switched to 10X magnification using the optical zoom (墌 pg. 40).
Zoom magnification of over 10X is done through Digital image processing, and is therefore called Digital Zoom.
During Digital zoom, the quality of image may suffer.
Digital zoom cannot be used in the following cases:
When digital image processing, such as Picture Wipe/Dissolve (墌 pg. 49, 50) or Video Echo (墌 pg. 48), is activated.
Macro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Ring is turned all the way clockwise. Also see “TELE MACRO in the Menu Screen on page 40.
For other notes, pg. 75
EN21
Time Code
During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. If recording starts from a blank portion, the time code begins counting from 00:00:00 (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.
To perform Random Assemble Editing ( pg. 68 – 72), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from 00:00:00. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform Recording From The Middle of A Tape below in the following cases;
When shooting again after playing back a recorded tape.
When power shuts off during shooting.
When a tape is removed and re-inserted during
shooting.
When shooting using a partially recorded tape.
When shooting on a blank portion located
partway through the tape.
When shooting again after shooting a scene
12:34:24
Display
Frames are not displayed during recording.
Minutes Seconds Frames
(25 frames = 1 second)
then opening/closing the cassette holder cover.
Recording From The Middle Of A Tape
1. Play back a tape or use Blank Search (墌 pg. 25) to find the spot at which you want to start recording,
then engage the Still Playback mode ( pg. 22).
2. Set the Power Switch to or while pressing down the Lock Button located on the switch, then
start recording.
NOTES:
The time code cannot be reset.
During fast-forwarding and rewinding, the time code indication does not move smoothly.
The time code is displayed only when TIME CODE is set to ON (墌 pg. 42, 43).
When a blank portion is recorded on a tape
Time code 00:00:00
Tape
Shooting start point
Time code 05:43:21
Proper recording
Time code 00:00:00
Tape
Shooting start point
Time code 05:43:21
Time code 00:00:00
Shooting start pointShooting stop point
Time code 05:44:00
Shooting start pointShooting start point
Newly recorded sceneBlankAlready recorded scene
Latest sceneNew sceneAlready recorded scene
22 EN
Stop Button (5)
VOL. +/–
Speaker
VIDEO/MEMORY Switch
Play/Pause Button (4/6)
Lock Button
SHUTTLE SEARCH Ring (2/3)
Power Switch
VIDEO PLAYBACK
Normal Playback
Load a tape ( pg. 13).
1
Set the VIDEO/MEMORY Switch to “VIDEO”, then
2
set the Power Switch to “ ” while pressing down the Lock Button located on the switch. To start playback, press 4/6.
•To stop playback, press 5.
•Turn the SHUTTLE SEARCH Ring anti-clockwise
(2) and release to rewind, or clockwise (3) and release to fast-forward the tape during Stop mode.
To Control The Speaker Volume . . .
.... press VOL. + to turn up the volume, or – to turn
down the volume.
NOTES:
If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to OFF, then to ”.
The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV ( pg. 23, 24).
You can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.
LCD monitor/viewfinder indications:
When power is supplied from a battery: the battery pack remaining power indicator is displayed. When power is supplied from an AC outlet: does not appear.
During Stop mode, none of the indications are displayed.
When a cable is connected to the AV connector, the sound is not heard from the speaker.
Still Playback:
1) Press 4/6 during playback.
2) To resume normal playback, press 4/6 again.
If still playback continues for more than about 3 minutes, the camcorders Stop mode is automatically engaged. After 5 minutes in the Stop mode, the camcorders power is automatically turned off.
When
4/6
Shuttle Search:
1) During playback, turn the SHUTTLE SEARCH Ring clockwise (3) and release for forward or anti-
clockwise (2) and release for reverse search.
2) To resume normal playback, press 4/6.
During playback, turn the SHUTTLE SEARCH Ring clockwise (3) or anti-clockwise (2) and hold it. The search continues as long as you hold the ring. Once you release it, normal playback resumes.
A slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.
Pauses during playback.
is pressed, the image may not pause immediately while the camcorder stabilises the still image.
Allows high-speed search in either direction.
Slow-Motion Playback, Frame-By-Frame Playback, Playback Zoom and Playback Special Effects
Available only with the remote control (provided) ( pg. 63, 64).
Connections
EN23
Use the provided Audio/Video cable and optional S-Video cable.
To S-VIDEO OUT
Audio/Video cable
To AV OUT
Docking Station**
* The Audio cable is not required for watching still
images only.
** Refer to Docking Station Attachment ( pg. 24).
[mini-plug to RCA plug] (provided)
S-Video cable (optional)
To TV or VCR
To S-VIDEO IN
White to AUDIO L IN*
Red to AUDIO R IN*
Yellow to VIDEO IN
p
When the S-Video cable is not used.
TV
VCR
24 EN
Make sure all units are turned off.
1
Connect the camcorder to a TV or VCR as
2
shown in the illustration ( pg. 23).
If using a VCR . . . go to step 3. If not . . . go to step 4.
Connect the VCR output to the TV input,
3
referring to your VCRs instruction manual.
Turn on the camcorder, the VCR and the TV.
4
Set the VCR to its AUX input mode, and set the
5
TV to its VIDEO mode.
To choose whether or not the following displays appear on the connected TV . . .
Date/Time
.... set DATE/TIME to AUTO, ON or “OFF
in the Menu Screen ( pg. 43, 44).
Time Code
.... set TIME CODE to ON or OFF in the
Menu Screen ( pg. 43, 44).
Playback Sound Mode, Tape Speed And Tape
Running Displays for video playback Or Type of file, Directory/File Names and Image
Number/Total Number of Images for D.S.C. Playback
.... set ON SCREEN to LCD or LCD/TV in
the Menu Screen ( pg. 43, 44). Or, press DISPLAY on the remote control.
VIDEO PLAYBACK
NOTES:
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack ( pg. 10).
To monitor the picture and sound from the camcorder without inserting a tape or memory card, set the camcorders Power Switch to or , then set your TV to the appropriate input mode.
Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.
If you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.
While the Audio/Video cable is connected to the AV connector, sound cannot be heard from the speaker.
(cont.)
Docking Station Attachment
First align the multi connector and screw on the Docking Station with the camcorders multi connector and tripod mounting socket and tighten the screw. When removing the camcorder, loosen the screw and detach the camcorder.
NOTE:
While the Docking Station is attached to the camcorder, it is not possible to load and unload the memory card. Also, connecting and discon­necting the DV cable are not possible.
Multi connector
Screw
Tripod mouting socket
FOCUS/BLANK Button
Stop Button (5)
Display
BLANK SEARCH
VIDEO/MEMORY Switch
Power Switch
Lock Button
44
EN25
Blank Search
Helps you find where you should start recording in the middle of a tape to avoid time code interruption ( pg. 21).
Load a tape ( pg. 13).
1
Set the VIDEO/MEMORY Switch to VIDEO, then
2
set the Power Switch to while pressing down the Lock Button located on the switch.
Press FOCUS/BLANK.
3
•“BLANK SEARCH appears blinking and the camcorder automatically starts reverse or forward shuttle search, then stops at the spot which is about 3 seconds of tape before the beginning of the detected blank portion.
To cancel Blank Search midway . . .
.... press 5.
NOTES:
In step 3, if the current position is at a blank portion the camcorder searches in the reverse direction, and if the current position is at a recorded portion the camcorder searches in the forward direction.
Blank Search does not work if “HEAD CLEANING REQUIRED. USE CLEANING CASSETTE has appeared with the tape.
If the beginning or end of the tape is reached during Blank Search, the camcorder stops automatically.
A blank portion which is shorter than 5 seconds of tape may not be detected.
The detected blank portion may be located between recorded scenes. Before you start recording, make sure there is no recorded scene after the blank portion.
26 EN
DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK
DIGITAL STILL CAMERA (D.S.C.)
RECORDING
&
PLAYBACK
CONTENTS
D.S.C. RECORDING............................................. 27 – 28
Basic Shooting (Snapshot) ........................................ 27 – 28
D.S.C. PLAYBACK............................................... 29 – 37
Normal Playback (Of Images) ............................................ 29
Auto Playback (Of Images)................................................ 29
Index Screen .................................................................30
Index Playback .............................................................. 31
Jump Playback...............................................................31
Protecting Files ..............................................................32
Deleting Files........................................................ 33 – 34
Setting Print Information (DPOF Setting) ...................... 35 – 36
Initialising A Memory Card ............................................ 37
D.S.C. RECORDING
FINE
10/ 100
VIDEO/MEMORY Switch
Power Switch
Lock Button
SNAPSHOT Button
Display
CAMERA Menu
SNAP MODE –
PIN–UP
FRAME
FULL MUL T I – MUL T I –
4 9
EN27
Basic Shooting (Snapshot)
You can use your camcorder as a Digital Still Camera for taking snapshots.
NOTE:
You should already have performed the procedures listed below. If not, do so before continuing.
Power ( pg. 9)
Viewfinder Adjustment ( pg. 11)
Loading A Memory Card ( pg. 15)
Picture Quality/Image Size Mode Setting ( pg. 16)
SNAPSHOT MODE SELECTION
Slide down the lens cover while pressing down the
1
Lock Button located on the cover. Set the VIDEO/ MEMORY Switch to MEMORY, then set the Power
Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select CAMERA, then press SET/
3
SELECT. The CAMERA Menu appears.
Press + or to select SNAP MODE, then press
4
SET/SELECT.
Press + or to select the desired Snapshot mode,
5
then press SET/SELECT. Press + or to select
RETURN and press SET/SELECT twice. The Menu Screen closes.
SNAPSHOT RECORDING
Press SNAPSHOT. appears while the snapshot
1
Image Size mode
Displays the Image Size mode of the stored image. There are 2 modes available: XGA and VGA ( pg. 16).
Display
VGA
Picture Quality mode
Displays the Picture Quality mode of the stored image. There are 2 modes available: FINE and STD (Standard) ( pg. 16).
Total number of shots
Displays the approximate total number of shots that can be stored, including those already taken. The number increases or decreases depending on the shots stored, the Picture Quality/Image Size mode, etc.
Number of shots taken
Card icon
Appears during shooting and blinks when a memory card is not loaded.
Shooting icon
Appears and blinks during shooting.
Displays the number of images that have already been shot.
is being taken. The image is stored in the memory card.
Regardless of the Power Switch position ( or ), Snapshot recording takes place using the
selected Snapshot mode.
28 EN
PIN-UP Pin-Up mode*
FRAME Snapshot mode with frame*
FULL Snapshot mode with no frame*
MULTI-4 Multi-Analyzer 4
MULTI-9 Multi-Analyzer 9
D.S.C. RECORDING
To Delete Unwanted Still Images . . .
.... when unwanted still images are stored in the
memory card or its memory is full, refer to “Deleting Files ( pg. 33) and delete unwanted still images.
To Remove The Shutter Sound . . .
.... when you do not want to hear the shutter sound, set
BEEP to OFF in the Menu Screen ( pg. 39, 41). The sound is no longer heard from the speaker.
NOTES:
Even if “MULTI-4 or MULTI-9 is engaged, Snapshot recording will be performed in the FULL mode during Digital Zoom or Night-Mode ( pg. 47).
The image is stored in the VGA mode regardless of the image size mode setting ( pg. 16) if MULTI-4 or MULTI-9 is engaged.
If SNAPSHOT is pressed when DIS is set to ON (pg. 40), the Stabiliser will be disabled.
If Snapshot recording is not possible, blinks when SNAPSHOT is pressed.
If Program AE with special effects ( pg. 47) is engaged, certain modes of Program AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.
If shooting is not performed for approx. 5 minutes when the Power Switch is set to or and power is supplied from the battery pack, the camcorder shuts off automatically to save power. To perform shooting again, push back and pull out the viewfinder again or close and re-open the LCD monitor.
The Motor Drive mode ( pg. 51) is disabled when the VIDEO/MEMORY Switch is set to “MEMORY.
When a cable is connected to the AV connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape.
Still images taken are compliant to DCF (Design rules for Camera File systems). They do not have any compatibility with devices which are not compliant to DCF.
In the XGA mode, images are shot in 720 x 576 pixels and they are converted and stored in the XGA mode file size (1024 x 768 pixels).
(cont.)
* There is the sound effect of a shutter
closing.
D.S.C. PLAYBACK
VIDEO/MEMORY Switch
Play/Pause Button (4/6)
Stop Button (5)
SHUTTLE SEARCH Ring (2/3)
Power Switch
Lock Button
EN29
Normal Playback (Of Images)
Images shot with the camcorder are automatically numbered, then stored in numerical order in the memory card. You can view the stored images, one at a time, much like flipping through a photo album.
Load a memory card ( pg. 15).
1
Set the VIDEO/MEMORY Switch to MEMORY,
2
then set the Power Switch to while pressing down the Lock Button. Open the LCD monitor fully or pull out the viewfinder fully.
A stored image is displayed.
Turn the SHUTTLE SEARCH Ring clockwise (3)
3
to display the next image. Turn the SHUTTLE SEARCH Ring anti-clockwise (2) to display the previous image.
[For Normal Playback] To display the next image
To display the previous image
Display
10 / 24
11
/
24
12
/
24
13
/
24
Total number of images
Displays the total number of stored images.
[For Auto Playback]
100
-
0010
10.
10.01
100
-
0011
10.
10.01
-
0012
100
10.
10.01
100
-
0013
10.
10.01
Directory and File names
Displays the directory and file names ( pg. 30).
Auto Playback (Of Images)
You can run through all the images stored in memory automatically.
Perform steps 1 and 2 above.
1
Press 4/6 to start Auto Playback.
2
To end Auto Playback, press 5.
3
NOTES:
Even if you shoot a new image after playing back a low-numbered one, this will not overwrite an existing image, because new images are automatically stored after the last-recorded one.
Images shot in a file size other than VGA/XGA with devices that are compatible with DCF (Design rules for Camera File systems) will be displayed as reduced-size thumbnail images. These thumbnail images cannot be transferred to a PC.
Images shot with devices that are not compatible with DCF cannot be viewed with this camcorder; “Unsup- ported file!will be displayed.
Image number
Displays the index number of the image file (pg. 30).
Date
Displays the date when the image was shot (if “DATE/TIME”is set to “ON” in the Menu Screen  pg. 43 – 44).
30 EN
E - CL I P
3 / 4
File (index) number
D
D . SOUN
1O2
I
EX
PL1O/S
N
Selected sound effect name
Directory and File names
EXIT
100-DVC00003
1 F 2 S
4 F
Index number
5 F
Image Size
100-DVC00003: Directory and File names
Shows that the selected file is in a directory called 100 and its file name is DVC00003. Each time shooting takes place, a file name is made using a number which is larger by one than the largest number of the file names which are in use. If the file name reaches DVC09999, a new directory will be made and the file name will start again from DVC00001. In the playback screen ( pg. 29), the directory and only the last four digits of the file name are displayed. In the Index Screen for sound effects, the name of the selected sound effect is displayed if the name is compatible with ID3TAG ver 1 or 2.
Selected File
A file is framed in green when it is selected. Press + or – to move the green frame to the desired file.
Total number of files
Type of file
Selected file
VGA
VGA
3 S
6 F
Protect icon
D.S.C. PLAYBACK
To view video clips (pg. 60) stored in a memory card . . .
during normal playback of image, press SET/SELECT ( pg. 84
and 85, ! SET/SELECT Button) once to engage the video clip mode. E-CLIP appears. Then pressing 4/6 can allow you to view the video clips in the LCD monitor or viewfinder; video clips cannot be displayed on a connected TV.
You can look for the desired file using Index Screen (below and pg. 31).
To listen to sound effects (pg. 55) stored in a memory card . . .
during normal playback of image, press SET/SELECT ( pg. 84
and 85, ! SET/SELECT Button) twice to engage the sound effect mode. “D.SOUND” appears. Then pressing D.SOUND ( pg. 84 and 85, 9 D.SOUND Button) can allow you to listen to the sound effect.
You can look for the desired file using Index Screen (below and pg. 31).
Quality
Index Screen
The files you stored can be displayed together with their index information. Convenient for checking files stored beforehand, the Index Screen also shows the Picture Quality, Image Size mode, directory and file names as well as which files are protected against accidental erasure. To display the Index Screen, pg. 31.
(cont.)
IMAGE/E-CLIP/SOUND: Type of File
Displays the type of file of the displayed index screen. There are 3 types available: IMAGE for still images, E-CLIP for video clips ( pg. 60), SOUND for sound effects ( pg. 55, 66).
1: Index number
Index numbers are marked from 1. For example, when 10 files are stored (index number: 1 to 10), if three files with index numbers 2, 4 and 6 are deleted from memory, the remaining files are automatically moved up to fill any gaps in the numerical sequence. Therefore, the number of remaining files is 7, and the new index numbers range from 1 to 7.
F/S: Picture Quality
Displays the Picture Quality mode of the stored image. There are 2 modes available: FINE and STANDARD (in order of quality) ( pg. 16). (Appears only when displaying still images.)
VGA/XGA: Image Size
Displays the size of the stored image. There are 2 modes available: VGA and XGA ( pg. 16). (Appears only when displaying still images.)
: Protect icon
When a file is protected against its accidental erasure, a padlock mark appears next to the index number, and that file cannot be deleted.
INDEX Button
+, – Button
EN31
Index Playback
You can view the files (still images, video clips (pg. 60), or sound effects ( pg. 55, 66)) stored in memory six at a time. Use this mode when looking for a file you wish to view or hear.
Perform steps 1 and 2 of Normal Playback on
1
pg. 29.
EXIT
1 2
4
EXIT
1 2
4
EXIT
EXPLOSION
1 2
4
100-DVC00001 VGA
FS
F
5
FF
E-CLIP
100-DVC00001
FS
F
5
FF
SOUND
FS
F
5
FF
3
6
3
6
3
6
S
S
S
FOCUS/BLANK Button
SET/SELECT Button
Index Screen for images
Index Screen for video clips
Index Screen for sound effects
To display the Index Screen . . .
2
for images, go to step 3.for video clips ( pg. 60), press SET/SELECT
once to engage the video clip mode. “E-CLIP” appears. Then go to step 3.
for sound effects ( pg. 55), press SET/SELECT
twice to engage the sound effect mode. D.SOUND appears. Then go to step 3.
Press INDEX. The Index Screen appears.
3
Press + or to move the green frame to the desired
4
file and press SET/SELECT. The file selected in the Index Screen is displayed or played back.
To start playback of the selected video clip, press 4/6. To stop playback midway, press 5.
To start playback of the selected sound effect, press D.SOUND.
Jump Playback
You can call up directly a file you want to play back by specifying its index number.
During normal playback of images, press SET/
1
SELECT repeatedly to select the type of file you want
to play back.
JUMP MENU
10 / 50
S
E
L
S
E
T
C
A
NECCETL
Index number
Display
[
+
/
[
T
S
E
[
A
B
L
]
/NSKE]LECT
]
Jump Screen
Total number of files
Press FOCUS/BLANK. The Jump Screen appears.
2
Press + or to enter the index number of the desired
3
file and press SET/SELECT.
The file for the selected index number is displayed.
To cancel the Jump Playback while the Jump
Screen is being displayed, press FOCUS/BLANK again.
32 EN
SET/SELECT Button
Display
PROTECT
EDELET
DPOF
ATFORM
NRETUR
EXIT PROTECT
1 F 2 S
1F
4F
5 F
2S
5F
4 F 6 F
Normal playback
EXIT PROTECT
VIDEO/MEMORY Switch
Power Switch
MENU Button
+, – Button
MEMORY Menu
3 S
If Protection is removed
3S
6F
Lock Button
PROTECT Index Screen
Padlock mark
D.S.C. PLAYBACK
(cont.)

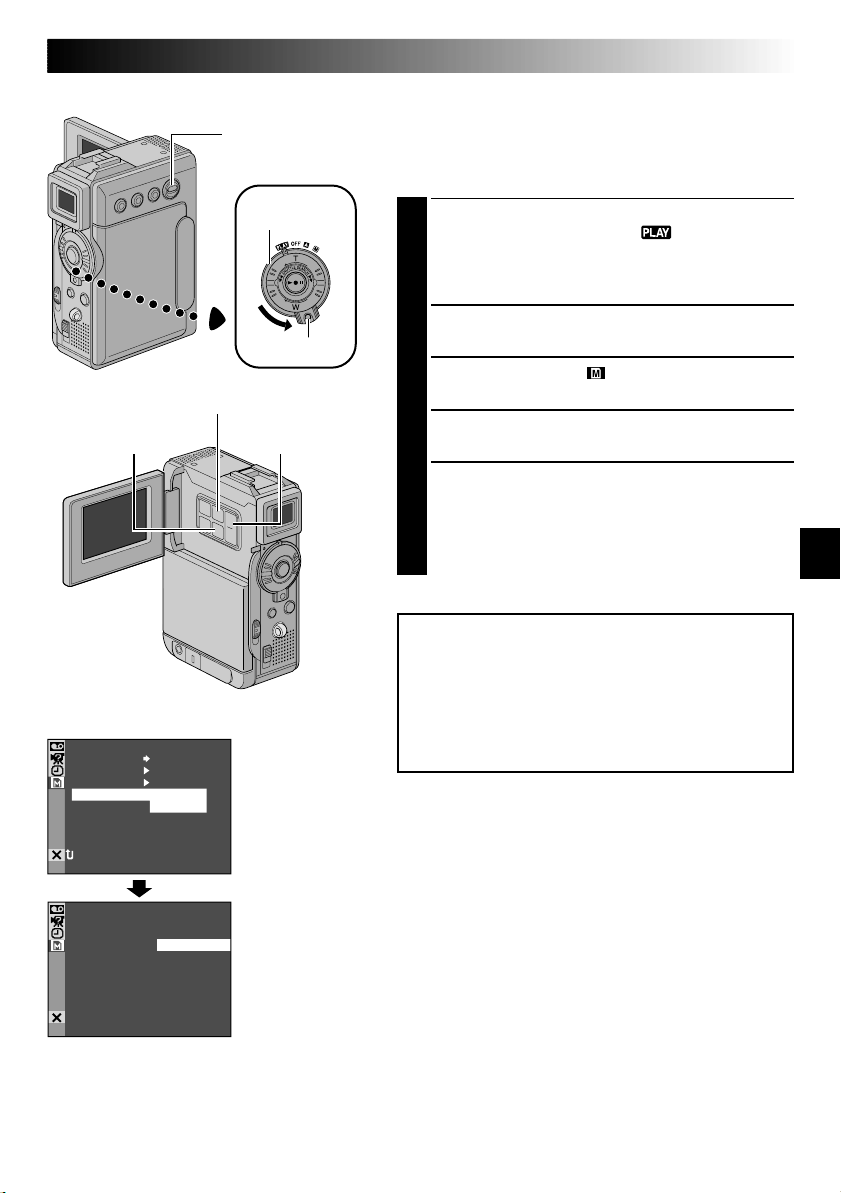

Protecting Files
The Protect mode helps prevent the accidental erasure of files. When a padlock mark is displayed next to the index number, that file cannot be deleted.
Set the VIDEO/MEMORY Switch to “MEMORY”,
1
then set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
A stored image file is displayed.
To protect the image file . . .
go to step 2.
To protect the video clip file. . . .
press SET/SELECT once to engage the video clip
mode. E-CLIP appears. Then go to step 2.
To protect the sound effect file. . . .
press SET/SELECT twice to engage the sound
effect mode. “D.SOUND” appears. Then go to step 2.
Press MENU. The Menu Screen appears. Press + or –
2
to select MEMORY and press SET/SELECT. The MEMORY Menu appears.
Press + or – to select PROTECT and press SET/
3
SELECT. The PROTECT Index Screen appears.
TO PROTECT A FILE
Before doing the following, perform steps 1 through 3 above.
Press + or – to move the green frame to the desired
4
file and press SET/SELECT. A ” padlock mark appears on the selected file. Repeat this procedure for all files you do not wish to delete by accident.
Press + to select EXIT and press SET/SELECT. The
5
normal playback screen appears.
NOTE:
When the memory is initialised or corrupted, even protected files are deleted. If you do not want to lose important files, transfer them to a PC and save them.
TO REMOVE PROTECTION
Before doing the following, perform steps 1 through 3 above.
Press + or – to move the green frame to the desired
4
file and press SET/SELECT. The ” padlock mark located above the file disappears and the file is no longer protected. Repeat this procedure for all files from which you wish to remove protection.
Normal playback
Press + to select EXIT and press SET/SELECT. The
5
normal playback screen appears.
MENU Button
SET/SELECT Button
Display
EXIT
1 F 2 S
4 F 6 F
DELETE
3 S
5 F
VIDEO/MEMORY Switch
Power Switch
Lock Button
+, – Button
DELETE Index Screen
EN33

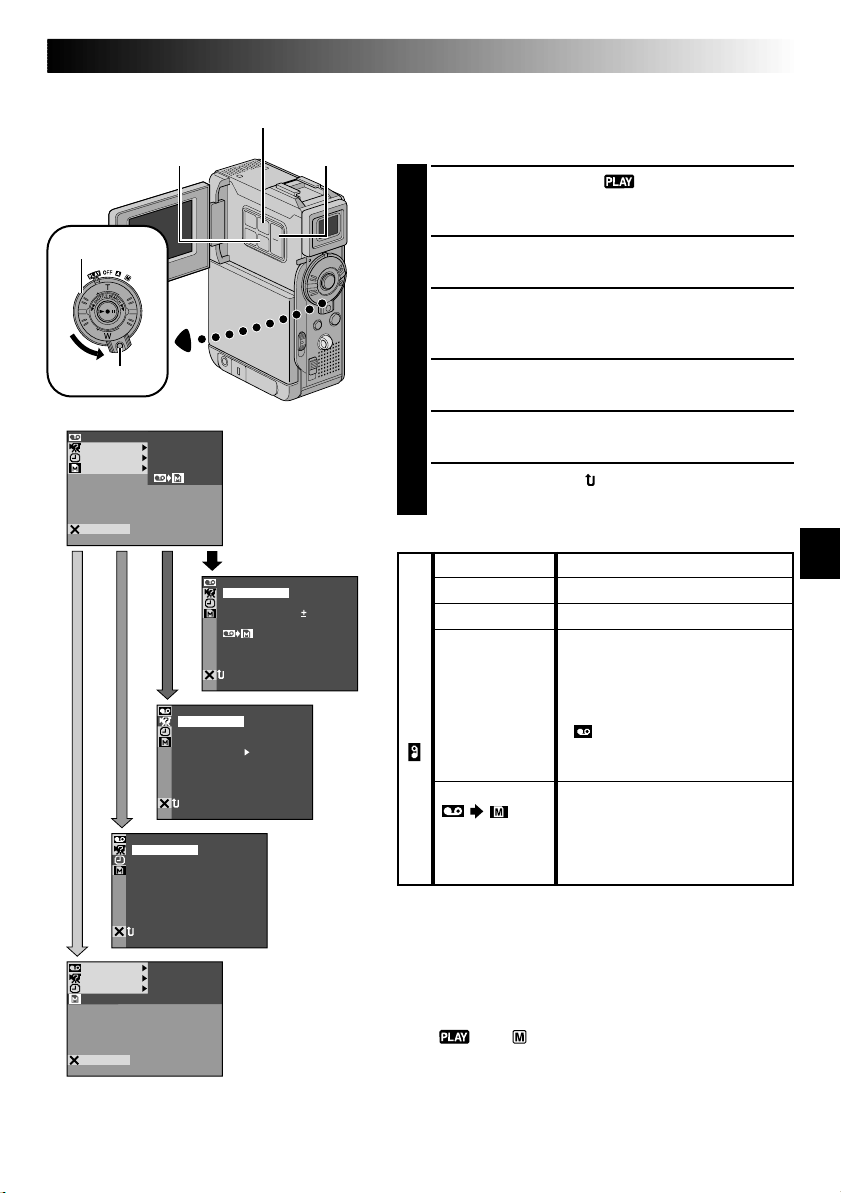

Deleting Files
Previously stored files can be deleted either one at a time or all at once.
Set the VIDEO/MEMORY Switch to “MEMORY”,
1
then set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
A stored image file is displayed.
To delete the image file . . .
go to step 2.
To delete the video clip file. . . .
Press SET/SELECT once to engage the video clip
mode. E-CLIP appears. Then go to step 2.
To delete the sound effect file. . . .
Press SET/SELECT twice to engage the sound
effect mode. “D.SOUND” appears. Then go to step 2.
Press MENU. The Menu Screen appears. Press + or
2
to select MEMORY and press SET/SELECT.
The MEMORY Menu appears.
Press + or – to select DELETE and press SET/
3
SELECT. The Sub Menu appears.
TO SELECT A FILE BY BROWSING FILES STORED IN MEMORY
Before doing the following, perform steps 1 through 3 above.
Press + or – to select SELECT and press SET/
4
SELECT. The DELETE Index Screen appears.
Press + or to move the green frame to the desired
5
file that you wish to delete and press SET/SELECT. An appears above the selected file. Repeat this procedure for all files that you wish to delete. To deselect a file, press SET/SELECT again. The disappears.
SE ECTL
DELE ET
– CANCEL
EXE
CUT E
Deletion Confirmation Screen
Press + to select EXIT and press SET/SELECT. The
6
Deletion Confirmation Screen appears.
Press + or – to select EXECUTE and press SET/
7
SELECT. The selected files are deleted and the
normal playback screen appears.
To cancel deletion, press + or to selectCANCEL and press SET/SELECT.
NOTES:
Protected files ( pg. 32) cannot be deleted with the above operation. To delete them, remove protection first.
Once files are deleted, they cannot be restored. Check files before deleting.
34 EN
SET/SELECT Button
MENU Button
+, – Button
D.S.C. PLAYBACK
TO DELETE THE DISPLAYED FILE
Before doing the following, perform steps 1 through 3 on page 33.
Press + or – to select CURRENT and press SET/
4
SELECT. The Deletion Confirmation Screen appears.
Press + or to select EXECUTE and press SET/
5
SELECT. The currently displayed file is deleted.
If CURRENT FILE IS PROTECTED appears, the file is protected and cannot be deleted ( pg. 32).
To cancel deletion, press + or – to select CAN­CEL and press SET/SELECT.
TO DELETE ALL FILES
Before doing the following, perform steps 1 through 3 on page 33.
Press + or – to select ALL and press SET/SELECT.
4
The Deletion Confirmation Screen appears.
Press + or – to select EXECUTE and press SET/
5
SELECT. All the files are deleted.
To cancel deletion, press + or – to select CANCEL and press SET/SELECT.
(cont.)
CAUTION:
Do not remove the memory card or perform any other operation (such as turning off the camcorder) during deletion. Also, be sure to use the provided AC Power Adapter/Charger, as the memory card may be corrupted if the battery becomes exhausted during deletion. If the memory card becomes corrupted, initialise it. ( pg. 37)
SET/SELECT Button
VIDEO/MEMORY Switch
Power Switch
MENU Button
+, – Button
Lock Button
EN35
Setting Print Information (DPOF Setting)
This camcorder is compatible with the DPOF (Digital Print Order Format) standard in order to support future systems such as automatic printing, which records information about the still images you wish to print (such as the number of prints to make). There are 2 print information settings available: To print all still images (one print for each) explained below and To print by selecting still images and no. of prints” ( pg. 36).
TO PRINT ALL STILL IMAGES (ONE PRINT FOR EACH)
Set the VIDEO/MEMORY Switch to MEMORY,
1
then set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select MEMORY and press SET/
3
SELECT. The MEMORY Menu appears.
Press + or to select DPOF and press SET/SELECT.
4
The Sub Menu appears.
Press + or – to select ALL and press SET/SELECT.
5
Selection is complete. The Confirmation Screen appears.
ALL
Display
DPOF
SELECT
ALL
RESET
DPOF
CANCEL
EXECUTE
DPOF Menu
Confirmation Screen
Press + or to select EXECUTE and press SET/
6
SELECT. The normal playback screen appears.
To cancel selection, press + or – to select CAN­CEL and press SET/SELECT.
To Reset The Setting . . .
.... select RESET in step 5. The setting is reset to 0 for
all still images.
36 EN
VIDEO/MEMORY Switch
D.S.C. PLAYBACK
(cont.)
TO PRINT BY SELECTING STILL IMAGES AND NO. OF PRINTS
Perform steps 1 through 4 on pg. 35.
1
SET/SELECT Button
Display
EXIT
19 00
DPOF
100-DVC00021 VGA
20
MENU Button
Number of prints
00
21
Power Switch
Lock Button
+, – Button
DPOF Index Screen
03
Press + or to select SELECT and press SET/
2
SELECT. Selection is complete. The DPOF Index
Screen appears.
Press + or – to move the green frame to the image
3
you wish to print and press SET/SELECT.
Select the number of prints by pressing + to increase
4
the number, or to decrease the number and press SET/SELECT.
Repeat steps 3 and 4 for the desired number of prints.
The number of prints can be set up to 15.
To correct the number of prints, select the image
again and change the number.
Press + to select EXIT and press SET/SELECT.
5
Selection is complete. The Confirmation Screen appears.
Press + or – to select EXECUTE and press SET/
6
SELECT. The normal playback screen appears.
To cancel selection, press + or – to select CAN­CEL and press SET/SELECT.
To Reset The No. Of Prints . . .
.... select RESET in step 5 on pg. 35. The number of
prints is reset to 0 for all still images.
CAUTION:
While performing the above, never disconnect power, as this may cause the memory to be corrupted.
22
SE ECTL
NOTES:
23
00
DPOF
00
CANCEL
EXECUTE
24
00
Confirmation Screen
If you load a memory card already set as shown above in a printer compatible with DPOF, it will make prints of the selected still images automatically.
To print images recorded on a tape, first dub them to a memory card ( pg. 59).
DELE ET DPOF
ATFORM
SET/SELECT Button
Display
TPROTEC
C EXE
MENU Button
ANCEL
CUTE
VIDEO/MEMORY Switch
Power Switch
Lock Button
+, – Button
MEMORY Menu
EN37
Initialising A Memory Card
You can initialise a memory card anytime.
After initialising, all files and data stored in the memory card, including those which have been protected, are cleared.
Set the VIDEO/MEMORY Switch to MEMORY,
1
then set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select MEMORY and press SET/
3
SELECT. The MEMORY Menu appears.
Press + or to select FORMAT and press SET/
4
SELECT. The Confirmation Screen appears.
Press + or to select EXECUTE and press SET/
5
SELECT. The memory card is initialised. When
initialisation is finished, NO FILES STORED orNO SOUND FILES appears.
To cancel initialisation, press + or to selectCANCEL and press SET/SELECT.
CAUTION:
Do not perform any other operation (such as turning off the camcorder) during initialisation. Also, be sure to use the provided AC Power Adapter/Charger, as the memory card may be corrupted if the battery becomes exhausted during initialisation. If the memory card becomes corrupted initialise it.
FO MATR
ERASE
NRETUR
ALL
EX STI
FO MATR
Confirmation
– C
ANCEL
CUTE
EXE
NGI
FILE
Screen
?S
38 EN
ADVANCED FEATURES
ADVANCED FEATURES
CONTENTS
USING MENUS FOR DETAILED ADJUSTMENT ............ 39 – 45
For Recording Menu ............................................... 39 – 42
For Playback Menu ................................................ 43 – 45
FOR RECORDING ...............................................46 – 56
5-Second Recording .................................................... 46
Program AE With Special Effects ................................ 47 – 48
Fade/Wipe Effects ................................................. 49 – 50
Snapshot (For Video Recording) ..........................................51
Auto Focus/Manual Focus .................................................52
Exposure Control ............................................................53
Iris Lock .......................................................................53
White Balance Adjustment ............................................ 54
Manual White Balance Operation ........................................54
Digital Sound Effects............................................... 55 – 56
DUBBING .........................................................57 – 60
Dubbing To A VCR...........................................................57
Dubbing To Or From A Video Unit Equipped
With A DV Connector (Digital Dubbing)..................................58
Dubbing Still Images Recorded On A Tape To A Memory Card ......59
Dubbing Moving Images Recorded On A Tape To A Memory
Card (E-Mail Clip Recording) ..............................................60
USING THE REMOTE CONTROL UNIT ...................... 61 – 72
Installing The Batteries ....................................................61
Slow-Motion Playback .....................................................63
Frame-By-Frame Playback ................................................ 63
Playback Zoom ..............................................................63
Playback Special Effects.................................................... 64
Audio Dubbing ............................................................... 65
Audio Dubbing Using Digital Sound Effects ............................. 66
Insert Editing.................................................................67
Random Assemble Editing [R.A.Edit] ........................... 68 – 71
For More Accurate Editing ................................................. 72
SYSTEM CONNECTIONS............................................... 73
Connection To A Personal Computer ..................................... 73
USING MENUS FOR DETAILED ADJUSTMENT
For Recording Menu
This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings ( pg. 40 – 42).
Set the Power Switch to while pressing down
1
the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
SET/SELECT Button
Power Switch
MENU Button
+, – Button
2
Press + or to select the desired function icon, and
3
Lock Button
Display
AM A EPROGR AN E
C
W W.BAL
ACAMER LMANUA MSYSTE AYDISPL
DSC
END
OFFFADER/ IPE
Menu Screen
ODEREC M SP
ZOOM
MOD ESNAP
UPGAIN
NRETUR
Sub Menu
DIS ONOFF
12
BTMOD ESOUND
I
40
x
LFUL
AGC
press SET/SELECT. The selected function menu appears.
Function menu setting depends on the function.
4
If you have selected “ WIPE/FADER”, “ PROGRAM AE” or “ W. BALANCE” . . .
see pg. 40.
If you have selected “ CAMERA”, “ MANUAL”, “ SYSTEM”, “ DISPLAY” or “ DSC”. . .
go to step 5.
Press + or – to select the desired function and press
5
SET/SELECT. The Sub Menu appears. Then, press + or to select the parameter, and press SET/SELECT. Selection is complete.
EN39
T I ME COD E
CLOCK
TYQUAL I
IMAGE SIZE
EELREC CTS
NRETUR
BEEP
TALLY DE O CAM ERSET
S
O
RE NEON SC LCD / T V
IMETDATE /
ADJ .
NRETUR
FINE–– VGA
MMODE
I
N
UND
NRETUR
UAOT
– –FFO
02
MEL ODY
NO
NO
MIC
..
12 01 1730:
W. BAL
DSC
END
Normal Screen
FADER/ W I P E AM A EPROGR AN E ACAMER LMANU A MSYSTE AYDISPL
Press + or to select RETURN and press SET/
6
SELECT twice. The Menu Screen closes.
The icon represents END”.
C
40 EN
USING MENUS FOR DETAILED ADJUSTMENT
Menu Screen Explanations
WIPE/FADER PROGRAM AE W.BALANCE
REC MODE
SOUND MODE
ZOOM
CAMERA
SNAP MODE
GAIN UP
DIS
5S
MANUAL
TELE MACRO
12 BIT
16 BIT
10X
40X
100X
OFF AGC AUTO
OFF
ON
OFF 5S
ANIM.
OFF
ON
(cont.)
Refer to Fade/Wipe Effects” ( pg. 49, 50). Refer to Program AE With Special Effects” ( pg. 47, 48). Refer to White Balance Adjustment and Manual White Balance Opera-
tion ( pg. 54). Allows you to set the recording mode (SP or LP) depending on your
preference ( pg. 14). Enables video recording of stereo sound on four separate channels, and is
recommended for use when performing audio dubbing. (Equivalent to the 32 kHz mode of previous models)
Enables video recording of stereo sound on two separate channels. (Equivalent to the 48 kHz mode of previous models)
When set to “10X” while using digital zoom, the zoom magnification will reset to 10X since digital zoom will be disengaged.
Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 40X digital magnification.
Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to a maximum of 100X digital magnification.
Refer to Basic Shooting (Snapshot) ( pg. 27) or Snapshot (For Video Recording) ( pg. 51).
Allows you to shoot dark scenes with no picture brightness adjustment. The overall appearance may be grainy, but the image is bright. The shutter speed is automatically adjusted (1/25 1/200 sec.). Shooting a
subject in low or poor lighting at 1/25 sec. shutter speed provides a brighter image than in the AGC mode, but the subjects movements are not smooth or natural. The overall appearance may be grainy. While the shutter speed is being automatically adjusted, is displayed.
To compensate for unstable images caused by camera-shake, particularly at high magnification.
NOTES:
Accurate stabilisation may not be possible if hand shake is excessive, or under the following conditions:
When shooting subjects with vertical or horizontal stripes.
When shooting dark or dim subjects.
When shooting subjects with excessive backlighting.
When shooting scenes with movement in various directions.
When shooting scenes with low-contrast backgrounds.
Switch off this mode when recording with the camcorder on a tripod.
The indicator blinks or goes out if the Stabiliser cannot be used.
Refer to 5-Second Recording” ( pg. 46).
Allows you to record a few frames only. By using an inanimate object and changing its position between shots, you can record the subject as though it is moving ( pg. 46).
Usually the distance to a subject where the lens is in focus depends on the zoom magnification. Unless there is a distance more than 1 m to the subject, the lens is out of focus at the maximum telephoto setting. When set to ON, you can shoot a subject as large as possible at a distance of approx. 60 cm.
Depending on the zoom position, the lens may go out of focus.
Menu Screen Explanations (cont.)
WIDE MODE
MANUAL
WIND CUT
BEEP
TALLY
DEMO
SYSTEM
MODE
OFF
CINEMA
SQUEEZE
OFF ON
OFF
BEEP
MELODY
OFF ON
OFF ON
Records with no change in the screen ratio. For playback on a TV with a normal screen ratio.
Inserts black bands at the top and bottom of the screen. During playback on wide-screen TVs, the black bands at the top and bottom of the screen are cut and the screen ratio becomes 16:9. appears. When using this mode, refer to your wide-screen TVs instruction manual. During playback/ recording on 4:3 TVs/LCD monitor/viewfinder, black bands are inserted at the top and bottom of the screen and the image appears like a letterboxed 16:9 movie.
•“CINEMA mode is effective only when the VIDEO/MEMORY Switch is
set to “VIDEO”.
For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. appears. When using this mode, refer to your wide-screen TVs instruction manual. During playback/ recording on 4:3 TVs/LCD monitor/viewfinder, the image is elongated vertically.
•“SQUEEZE mode is effective only when the VIDEO/MEMORY Switch is
set to “VIDEO”. Disengages the function which cuts down on noise created by wind. Helps cut down on noise created by wind. appears. The quality of
the sound will change. This is normal. Even though not heard while shooting, shutter sound is recorded on the
tape. The beep sounds when the power is turned on or off, and at the beginning
and end of recording. Also to activate the shutter sound effect ( pg. 27,
51). Instead of a beep, a melody sounds when any operation is performed. It
also activates the shutter sound effect ( pg. 27, 51). The tally lamp remains off at all times. The tally lamp comes on to signal the start of recording. Automatic demonstration will not take place. Demonstrates certain functions such as Program AE with special effects,
etc., and can be used to confirm how these functions operate. When DEMO MODE is set to ON and the Menu Screen is closed, demonstra­tion starts. Performing any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.
NOTES:
If a tape is in the camcorder, the demonstration cannot be turned on.
DEMO MODE remains ON even if the camcorder power is turned
off.
If DEMO MODE remains ON, some functions will not be available.
After viewing demo, set to “OFF”.
EN41
42 EN
USING MENUS FOR DETAILED ADJUSTMENT
(cont.)
CAM RESET
SOUND IN
SYSTEM
ON SCREEN
DATE/ TIME
DISPLAY
TIME CODE
CLOCK ADJ. QUALITY
IMAGE SIZE
DSC
REC SELECT
CANCEL EXECUTE MIC
D.SOUND
LCD
LCD/TV
OFF AUTO
ON OFF ON
/
Does not reset all settings to the factory-preset. Resets all settings to the factory-preset. Enables sound input from camcorders stereo microphone, when Audio
Dubbing ( pg. 65) is executed. MIC appears on the Audio Dubbing screen.
Enables sound effect input recorded on the provided memory card, when Audio Dubbing ( pg. 66) is executed. D. SOUND appears on the Audio Dubbing screen.
Keeps the camcorders display (except the date, time and time code) from appearing on the connected TV screen.
Makes the camcorders display appear on screen when the camcorder is connected to a TV.
The date/time does not appear. Displays the date/time for approx. 5 seconds in the following cases:
When the Power Switch is set from OFF to or ”.
When playback starts. The camcorder displays the date/time when scenes
are recorded.
When the date is changed during playback. The date/time is always displayed. Time code is not displayed. Time code is displayed on the camcorder and on the connected TV. Frame
numbers are not displayed during recording. Allows you to set the current date and time ( pg. 12). Allows you to set the Picture Quality mode (FINE and STANDARD)
depending on your preference ( pg. 16). Allows you to set the Image Size mode (XGA and VGA) depending on your
preference ( pg. 16). When Snapshot recording is performed with the VIDEO/MEMORY Switch
set to “VIDEO”, still images are recorded only onto the tape. When Snapshot recording is performed with the VIDEO/MEMORY Switch
set to “VIDEO”, still images are recorded not only onto the tape but also in the memory card.
: Factory-preset
NOTES:
The CAMERA settings are effective when the Power Switch is set to both and .
The MANUAL settings are effective only when the Power Switch is set to .
SYSTEM and DISPLAY functions which are set when the Power Switch is set to are also applied when the Power Switch is set to ” ( pg. 43). CLOCK ADJ. only appears when the Power Switch is set to ”.
The DISPLAY” settings are effective even when the Power Switch is set to “ ”.
The ON SCREEN setting can also be changed by pressing the DISPLAY Button on the remote control (provided) ( pg. 24, 57, 69).
EN43
SET/SELECT Button
Power Switch
Lock Button
Display
V IDEO SOUND MODE
END
MSYSTE AYDISPL YMEMOR
12 SYNC ROH REC
T I ME CODE
MENU Button
MOD E
BIT
MOD E
COPY
12
BEEP
TALLY DEMO M ODE NO CAM ERSET SOU
ND IN
NRETUR
RE NEON SC LCD/ TV
UAOTIMETDATE /
– –FFO
BIT
– – –
–CIM
MDOESOUND
MDOE
ROSYNCH ODEREC M COPY
NRE TUR
MEL ODY
NO
+, – Button
STEREO
1
SOUND
O.O
SP
OFF
For Playback Menu
The following procedure applies to all except Synchro Comp ( pg. 72).
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select the desired function icon, and
3
press SET/SELECT. The selected function menu appears.
Press + or – to select the desired function, and press
4
SET/SELECT to display the Sub Menu.
Press + or to select the desired parameter and
5
press SET/SELECT. Selection is complete.
Press + or – to select “ RETURN” and press SET/
6
SELECT twice to close the Menu Screen.
Menu Screen Explanations
SOUND MODE 12BIT MODE SYNCHRO
REC MODE
VIDEO
COPY
pg. 45. pg. 45. pg. 72.
Allows you to set the video recording mode (SP or LP) depending on your preference ( pg. 14). It is recommended you use “REC MODE” in the “ VIDEO” when using this camcorder as a recorder during digital dubbing ( pg. 58).
ON: Enables dubbing of images recorded on a tape to a memory card ( pg. 59). OFF: Enables snapshots to be taken during video playback.
VIDEO
END
CONTINUED ON NEXT PAGE
NRETUR
DELE ET DPOF
TCPROTE
ATFORM
MSYSTE AYDISPL
YMEMOR
NOTES:
It is also possible to change the ON SCREEN settings by pressing DISPLAY on the remote control (provided).
REC MODE can be set when the Power Switch is set to or (墌 pg. 14, 40).
44 EN
USING MENUS FOR DETAILED ADJUSTMENT
Menu Screen Explanations (cont.)
SYSTEM
Each setting is linked with DISPLAY or SYSTEM, which appears when the Power Switch is set to ” ( pg. 41, 42). The parameters are the same as in the description on pg. 41, 42.
Display
ON SCREEN setting:
12
B I T /SOUND
1
SP
4
6
For playback sound, tape speed and tape running during video playback.
(cont.)
DISPLAY
pg. 29 – 37
MEMORY
1
/
50
DATE/TIME setting:
TIME CODE setting: For time code.
12:34:24
100-0001
20.
1127.:031
6
For type of file, directory, file name, index number and total number during D.S.C. playback.
For date during D.S.C. playback.
For date/time during video playback.
0
Minutes Seconds Frames*
*25 frames = 1 second
EN45
Playback Sound
During playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. According to the menu access explanation on pg. 43, select SOUND MODE or 12BIT MODE from the Menu Screen and set it to the desired parameter.
SOUND MODE
12BIT MODE
: Factory-preset
STEREO SOUND L SOUND R MIX
SOUND 1 SOUND 2
Sound is output on both “L” and “R” channels in stereo. Sound from the “L” channel is output in stereo. Sound from the “R” channel is output in stereo. Original and dubbed sounds are combined and output in stereo on
both L and R channels in stereo. Original sound is output on bothL and R channels in stereo. Dubbed sound is output on both L and R channels in stereo.
NOTES:
The SOUND MODE setting is available for both 12-bit and 16-bit sound. (In previous models functions,12-bit is called 32 kHz and 16-bit is called 48 kHz”.)
The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During playback the sound mode is displayed in the upper left corner.
46 EN
SET/SELECT Button
VIDEO/MEMORY Switch
MENU Button
Recording Start/ Stop Button
Power Switch
Lock Button
+, – Button
FOR RECORDING
5-Second Recording
Record a vacation or an important event in 5-second clips to keep the action moving. This function is available only for video recording.
Set the VIDEO/MEMORY Switch to VIDEO, then
1
set the Power Switch to while pressing down the Lock Button located on the switch. Pull out the viewfinder fully or open the LCD monitor fully.
Press MENU. The Menu Screen appears.
2
Press + or to select MANUAL, and press SET/
3
SELECT. The MANUAL Menu appears.
Press + or to select 5S, and press SET/SELECT. The
4
Sub Menu appears.
Press + or – to select 5S, and press SET/SELECT.
5
Selection is complete. Press + or – to select RE­TURN, and press SET/SELECT twice to close the Menu Screen.
•“5S appears.
Press the Recording Start/Stop Button. The tally lamp
6
lights and beep sounds to indicate the start of recording, and after 5 seconds the camcorder enters Record-Standby mode.
Even if you press the Recording Start/Stop Button again within 5 seconds after recording starts, Record-Standby mode is not engaged.
Display
5
S
OFF
5
S
ANIM.
SNAPSHOT Button
MANUAL Menu
To exit the 5S mode, select OFF in step 5.
7
To Take A Snapshot In The 5-Second Recording Mode . . .
.... instead of pressing the Recording Start/Stop Button in
step 6, select the desired Snapshot mode in the Menu Screen, then press SNAPSHOT. The camcorder records a 5-second still ( pg. 51). When 5S is set to ANIM. ( pg. 40) this function is not available.
NOTE:
When 5S is set to ANIM. in the Menu Screen the 5-second recording mode is not available. Animation recording of a few frames only is taken instead (墌 pg. 40).
IMPORTANT:
Some modes of Program AE with special effects cannot be used with certain Fade/Wipe Effects (墌 pg. 49, 50). If an unusable mode is selected, its indicator blinks or goes out.
MENU Button
SET/SELECT Button
+, – Button
Program AE With Special Effects
Set the Power Switch to while pressing down
1
the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select PROGRAM AE, then
3
press SET/SELECT. PROGRAM AE Menu appears.
EN47
Power Switch
Lock Button
Display
ERSHUTT SSPORT
SNO
W
GHTT
W
ILI
SEP I A
ONEMONOT
IC FILHOMCLASS
ES TROB
VI ECD
EO
OFF
GIHTSPOTL
1/120
PROGRAM AE Menu
Press + or to select the desired mode ( below
4
and pg. 48), then press SET/SELECT. Selection is complete. Press SET/SELECT again. The Menu Screen closes.
The selected mode indicator appears.
To Deactivate The Selected Mode . . .
...select OFF in step 4.
NOTE:
Program AE with special effects can be changed during recording or during Record-Standby.
NIGHT MODE
Makes dark subjects or areas even brighter than they would be under good natural lighting. Although the recorded image is not grainy, it may look as if it is strobing due to the slow shutter speed. The shutter speed is automatically adjusted to provide up to 30 times sensitivity. “ ” appears beside while the shutter speed is being automatically adjusted.
SLOW (Slow Shutter)
Lights dark subjects or areas even brighter than they would be under good natural lighting. Use SLOW only in dark areas.
SLOW 4X
Slow Shutter raises light sensitivity to allow shooting in dark environments.
SLOW 10X
Slow Shutter raises light sensitivity further to allow shooting in even darker environments.
CONTINUED ON NEXT PAGE
48 EN
FOR RECORDING
(cont.)
SHUTTER (Variable Shutter Speed) 1/50 – The shutter speed is fixed at 1/50th of a
second. Black bands that usually appear when shooting a TV screen become narrower. 1/120 The shutter speed is fixed at 1/120th of a second. The flickering that occurs when shooting under a fluorescent light or mercury-vapour lamp is reduced.
SPORTS (Variable Shutter Speed: 1/250 – 1/4000)
This setting allows fast­moving images to be captured one frame at a time, for vivid, stable
slow-motion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions.
SNOW
Compensates for subjects that may otherwise appear too dark when shooting in extremely bright surroundings such as in the snow.
SPOTLIGHT
Compensates for subjects that may otherwise appear too bright when shooting under extremely strong direct lighting such as spotlights.
TWILIGHT
Makes evening scenes look more natural. White Balance (pg. 54) is automati­cally set to , but can
be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually. The flash does not fire in this mode.
SEPIA
Recorded scenes have a brownish tint like old photos. Combine this with the Cinema mode for a classic look.
MONOTONE
Like classic black and white films, your footage is shot in B/W. Used together with the Cinema mode, it enhances the classic film effect.
CLASSIC FILM
Gives recorded scenes a strobe effect.
STROBE
Your recording looks like a series of consecutive snapshots.
VIDEO ECHO
Adds a ghost to the subject, giving your recording a “fantasy” feeling. Zoom magnifica­tion of over 10X is not available.
NOTES:
For NIGHT MODE:
During Night-Mode, the following functions or settings cannot be activated and its indicator blinks or goes out:
Some modes of Picture Wipe/Dissolve” (墌 pg. 49, 50).
GAIN UP in CAMERA Menu (墌 pg. 40).
DIS in MANUAL Menu (墌 pg. 40).
During Night-Mode, it may be difficult to bring the camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended.
For SLOW (Slow Shutter):
When using SLOW, the image takes on a strobe-like effect.
When using SLOW, it may be difficult to bring the camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended.
For SPOTLIGHT:
SPOTLIGHT has the same effect as –3 with the exposure control (墌 pg. 53).
Fade/Wipe Effects
These effects let you make pro-style scene transitions. Use them to spice up the transition from one scene to the next. You can also vary transitions from scene to scene.
IMPORTANT:
Some Fade/Wipe Effects cannot be used with certain modes of Program AE with special effects (墌 pg. 47, 48). If an unusable Fade/ Wipe Effect is selected, its indicator blinks or goes out.
VIDEO/MEMORY Switch
EN49
FADE/WIPE SELECTION ( , , , ,
, , , , and )
Fade or Wipe works when video recording is started or when you stop recording.
Set the VIDEO/MEMORY Switch to “VIDEO”, then
1
set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select WIPE/FADER, then press
3
SET/SELECT.
Recording Start/ Stop Button
Power Switch
Lock Button
MENU Button
SET/SELECT Button
NOTES:
You can extend the length of a Fade or Wipe by pressing and holding the Recording Start/ Stop Button.
If the power is turned off after a scene is finished recording, the stored point is erased, disabling the Picture Wipe/Dissolve combination. When this happens, the Picture Wipe/Dissolve indicator blinks. Also note that power shuts off automatically if 5 minutes elapse in the Record-Standby mode.
The sound at the end of the last recorded scene is not stored.
+, – Button
Press + or to select the desired function, then press
4
SET/SELECT. Selection is complete. Press SET/ SELECT again.
The WIPE/FADER Menu disappears and the effect is reserved. The indicator representing the selected effect appears.
Press the Recording Start/Stop Button to activate the
5
Fade-in/out or Wipe-in/out.
To Deactivate The Selected Effect . . .
...select OFF in step 4.
PICTURE WIPE OR DISSOLVE SELECTION ( , , , , , and )
The Picture Wipe or Dissolve works when video recording is started.
Follow steps 1 through 4 above.
1
Engage the Record-Standby mode.
2
If you select Picture Wipe/Dissolve during recording . . .
.... press the Recording Start/Stop Button when one
scene is finished. The point at which the scene ended is stored in memory.
If you select Picture Wipe/Dissolve during Record­Standby mode . . .
.... press the Recording Start/Stop Button to start
recording and press it again when one scene is finished. The point at which the scene ended is stored in memory.
If you select Picture Wipe/Dissolve during Record­Standby mode after performing a Picture Wipe/ Dissolve . . .
.... the point at which the scene ended is already
stored in memory.
If you start recording a new scene within 5 minutes of
3
the end of the previous recording (without having turned the camcorders power off), the previous scene wipes out, revealing the new scene.
50 EN
Fader And Wipe Menu
Menu Effect
FADER WHITE
FOR RECORDING
Fade in or out with a white screen.
(cont.)
FADER BLACK
FADER B.W
MOSAIC
WIPE CORNER
WIPE WINDOW
WIPE SLIDE
WIPE DOOR
WIPE SCROLL
WIPE SHUTTER
DISSOLVE
WIPE CORNER
WIPE WINDOW
WIPE SLIDE
WIPE DOOR
WIPE SCROLL
WIPE SHUTTER
Fade in or out with a black screen.
Fade in to a colour screen from a black and white screen, or fade out from colour to black and white.
Fade in or out with a full-screen mosaic effect.
Wipe in on a black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen.
The scene starts in the centre of a black screen and wipes in toward the corners, or comes in from the corners, gradually wiping out to the centre.
Wipe in from right to left, or wipe out from left to right.
Wipe in as the two halves of a black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene.
The scene wipes in from the bottom to the top of a black screen, or wipes out from top to bottom, leaving a black screen.
Wipe in from the centre of a black screen toward the top and bottom, or wipe out from the top and bottom toward the centre leaving a black screen.
The new scene gradually appears as the old one gradually disap­pears.
The new scene wipes in over the previous one from the upper right corner to the lower left corner.
The next scene gradually wipes in from the centre of the screen toward the corners, covering the previous scene.
The next scene gradually wipes in over the previous one from right to left.
The previous scene wipes out from the centre to the right and left, like a door being pushed open to reveal the next scene.
The new scene wipes in over the last one from the bottom of the screen to the top.
The new scene wipes in over the previous one from the centre toward the top and bottom of the screen.
MENU Button
SET/SELECT Button
SNAPSHOT Button
+, – Button
VIDEO/MEMORY Switch
Power Switch
EN51
Snapshot (For Video Recording)
This feature lets you record still images that look like photographs onto a tape.
SNAPSHOT MODE SELECTION
Set the VIDEO/MEMORY Switch to VIDEO, then
1
set the Power Switch to while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select CAMERA, then press SET/
3
SELECT. The CAMERA Menu appears.
Press + or to select SNAP MODE, then press
4
SET/SELECT.
Lock Button
Display
CAMERA Menu
SNAP MODE –
NOTES:
To remove the shutter sound, 墌 BEEP on pg. 39, 41.
Even if MULTI-4 or MULTI-9 is engaged, Snapshot recording will be performed in the FULL mode during Digital Zoom or Night­Mode (墌 pg. 47).
If Snapshot recording is not possible, blinks when SNAPSHOT is pressed.
If Program AE with special effects (墌 pg. 47) is engaged, certain modes of Program AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.
If SNAPSHOT is pressed when DIS is set to ON (墌 pg. 40), the Stabiliser will be disabled.
During playback as well, all snapshot modes are available when COPY is set to OFF in the Menu Screen (墌 pg. 43). However, the shutter sound is not heard.
When a cable is connected to the AV connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape.
PIN– UP
FRAME FULL MUL T I – MUL T I –
4 9
Press + or to select the desired Snapshot mode,
5
then press SET/SELECT. Press + or to select
RETURN and press SET/SELECT twice. The Menu Screen closes.
The available Snapshot modes are as the same as those on page 28.
SNAPSHOT RECORDING
Press SNAPSHOT. appears while the snapshot
1
is being taken.
If you press during Record-Standby . . .
.... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode.
If you press during Recording . . .
.... PHOTO appears and a still image will be
recorded for approx. 6 seconds, then the normal recording resumes.
Regardless of the Power Switch position ( or ), Snapshot recording takes place using the
selected Snapshot mode.
Motor Drive Mode
Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx. 1 second)
The Motor Drive mode is disabled when “REC SELECT is set to / in the Menu Screen ( pg. 42).
52 EN
Focus detection zone
FOR RECORDING
While focusing on a further subject
Manual focus indicator
(cont.)
While focusing on a nearer subject
FEATURE:
Auto Focus
PURPOSE:
The camcorders Full Range AF system offers continuous shooting ability from close-up (as close as approx. 5 cm to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing):
When two subjects overlap in the same scene.
When illumination is low.*
When the subject has no contrast (difference in brightness and darkness), such as a flat, one-colour wall,
or a clear, blue sky.*
When a dark object is barely visible in the viewfinder.*
When the scene contains minute patterns or identical patterns that are regularly repeated.
When the scene is affected by sunbeams or light reflecting off the surface of a body of water.
When shooting a scene with a high-contrast background.
* The following low-contrast warnings appear blinking: , , and
NOTES:
If the lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft cloth if it gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry naturally.
When shooting a subject close to the lens, zoom out first (墌 pg. 20). If zoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when TELE MACRO” (墌 pg. 40) is activated.
FEATURE:
Manual Focus
PURPOSE:
To obtain correct focus.
OPERATION:
1) If you are using the viewfinder, you should already have made the necessary viewfinder adjustments
( pg. 11).
2) Set the Power Switch to “ ” while pressing down the Lock Button located on the switch, then press FOCUS/BLANK ( pg. 84 and 85, $ FOCUS/BLANK Button). The manual focus indicator appears.
3) To focus on a farther subject, press +. “ ” appears and blinks. To focus on a nearer subject, press –. “ ” appears and blinks.
4) Press SET/SELECT. Focus adjustment is complete.
To reset to Auto Focus, press FOCUS/BLANK twice or set the Power Switch to “ ”. If FOCUS/BLANK is pressed once, the camcorder will enter the focus adjustment mode again.
NOTES:
Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on a subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths.
When the focus level cannot be adjusted any further or closer, “ ” or “ ” will blink.
3
Exposure Control
Manual exposure control is recommended in the following situations:
When shooting using reverse lighting or when the background is too bright.
When shooting on a reflective natural background such as at the beach or when skiing.
When the background is overly dark or the subject is bright.
Set the Power Switch to “ ” while pressing down
1
the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press EXPOSURE. The exposure control
2
indicator appear.
Press + to brighten the image, or – to darken
3
the image. (maximum ±6)
Press SET/SELECT. Exposure adjustment is
4
complete.
To Return To Automatic Exposure Control . . .
press EXPOSURE twice or set the Power Switch to . (If EXPOSURE is pressed once, the camcorder will enter the exposure control mode again.)
To Brighten The Subject Quickly . . .
press BACKLIGHT. is displayed and the
subject is brightened. If pressed again, disappears and the brightness returns to the previous level.
+3 exposure has the same effect as the
BACKLIGHT Button.
Using BACKLIGHT Button may cause the light
around the subject to become too bright and the subject to become white.
Backlight compensations is also available when the Power Switch is set to ”.
NOTE:
You cannot use the manual exposure control at the same time with backlight, spotlight (墌 pg. 48) compensation and “SNOW” (墌 pg. 48).
SET/SELECT Button
+, – Button
BACKLIGHT Button
EN53
Iris Lock
Use this function in the following situations:
When shooting a moving subject.
When the distance to the subject changes (so its size in the LCD monitor or the viewfinder changes), such as when the subject is backing away.
When shooting on a reflective natural background such as at the beach or when skiing.
When shooting objects under a spotlight.
When zooming.
When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken or brighten.
Before the following steps, perform steps 1 and 2 of “Exposure Control”.
Adjust zoom so that the subject fills the LCD
3
monitor or the viewfinder, then press and hold SET/SELECT for over 2 seconds. The exposure control indicator and appear. Press SET/SELECT. “ ” changes to and the iris is locked.
Iris lock indicator
To Return To Automatic Iris Control . . .
...press EXPOSURE twice so that the exposure
control indicator and disappear. Or, set the Power Switch to ”.
To Lock The Exposure Control And The Iris . . .
...after step 2 of Exposure Control, adjust the
exposure by pressing + or –. Then lock the iris in step 3 of Iris Lock. For automatic locking, press EXPOSURE twice in step 2. The iris becomes automatic after about 2 seconds.
Iris
Like the pupil of the human eye, it contracts in well­lit environments to keep too much light from entering, and dilates in dim environments to allow in more light.
EXPOSURE Button
Power Switch
54 EN
White Balance Adjustment
A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accurately reproduced. The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional colour/tint reproduction.
Set the Power Switch to while pressing
1
down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press MENU. The Menu Screen appears.
2
Press + or to select W.BALANCE, then
3
press SET/SELECT. The W.BALANCE Menu appears.
FOR RECORDING
(cont.)
Manual White Balance Operation
Perform Manual White Balance when shooting under various types of lighting.
Follow steps 1 through 4 of the white balance
1
adjustment, and select MWB”.
Hold a sheet of plain white paper in front of the
2
subject. Adjust zoom or position yourself so that the white paper fills the screen.
Press SET/SELECT until begins blinking
3
rapidly. When the setting is completed, resumes normal blinking.
Press SET/SELECT twice. The Menu Screen
4
closes and the Manual White Balance indicator
is displayed.
Press + or – to select the desired mode.
4
“AUTO” White balance is adjusted
MWB” White balance is set
FINE” Outdoors on a sunny day. CLOUD” Outdoors on a cloudy day. HALOGEN” – A video light or similar
Press SET/SELECT. Selection is complete. Press
5
SET/SELECT again. The Menu Screen closes
and the selected mode indicator except AUTO appears.
To Return To Automatic White Balance . . .
...select AUTO in step 4. Or, set the Power
Switch to ”.
NOTE:
White balance cannot be used when Sepia or Monotone (墌 pg. 48) is activated.
automatically (factory preset).
manually.
type of lighting is used.
White paper
SET/SELECT Button
Power Switch
NOTES:
In step 2, it may be difficult to focus on the white paper. In such a case, adjust focus manually (墌 pg. 52).
A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result.
Once you adjust white balance manually, the setting is retained even if the power is turned off or the battery removed.
MENU Button
+, – Button
INDEX Button
SET/SELECT Button
MENU Button
+, – Button
D.SOUND Button
VIDEO/MEMORY Switch
Power Switch
Lock Button
Digital Sound Effects
SOUND EFFECT MODE SELECTION
Load the provided memory card ( pg. 15) and a
1
cassette ( pg. 13).
Set the VIDEO/MEMORY Switch to “VIDEO”, then
2
set the Power Switch to or while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
Press INDEX. The sound effects Index Screen
3
appears.
Press + or – to select the desired sound effect.
4
Pressing D.SOUND starts playback of the currently
selected sound effect so you can check it without recording it onto the tape. Press D.SOUND again to stop the sound effect playback.
EN55
Display
EXIT
EXPLOSION
SOUND
FS
1 2
4
5
FF
APPLAUSE
You can download sound data available at our Web Site (see below for URL) and transfer them from your PC to the memory card using an optional USB cable to create more sound effects.
http://www.thomson-music.com
Sound data should be copied into the memory cards DCSD\100JVCGR folder.
The file names should be in numerical sequence starting from DVC00001.mp3.
Also, refer to the instruction manual of the provided software.
Use the optional PC card adapter or floppy adapter to transfer sound data from a PC to the memory card.
3
F
6
S
Index Screen for sound effects
Selected (framed in green)
Sound effect indication
Press SET/SELECT. The selection is complete and the
5
selected sound effect indication is displayed.
56 EN
D.SOUND Button
FOR RECORDING
(cont.)
SOUND EFFECT RECORDING
Press D.SOUND during recording. The “ ” moves
6
and the selected sound effect is recorded onto the tape.
The sound effect cannot be heard from the speaker during recording. Use a headphone set to hear the sound effect.
To cancel recording the sound effect midway . . .
...press D.SOUND again. The camcorder stops record-
ing the sound effect.
NOTES:
Sound effects can also be used for Audio Dubbing (墌 pg. 66).
Sound effects can also be selected during D.S.C. playback mode (墌 pg. 31).
Sound effect recording is available only when the sound effect indication is displayed.
Sound effects created on a PC can be transferred to a memory card by copying them into the memory card’s sound folder with the specified file name. For details, refer to the instruction manual of the provided software. However, some sound (effects) created on a PC cannot be played back with this camcorder.
DUBBING
To S-VIDEO
OUT
S-Video
cable
(optional)
To AV OUT
Docking Station
Audio/Video cable [mini-plug to RCA plug] (provided)
To AUDIO, VIDEO*
-IN connectors
and
Dubbing To A VCR
Following the illustration, connect the camcorder and
1
the VCR. Also refer to pg. 23 and 24.
Set the VIDEO/MEMORY Switch to “VIDEO”, then
2
set the camcorders Power Switch to while pressing down the Lock Button located on the switch, turn on the VCRs power, and insert the appropriate cassettes in the camcorder and the VCR.
Engage the VCRs AUX and Record-Pause modes.
3
Engage the camcorders Play mode to find a spot just
4
before the edit-in point. Once it is reached, press
4
/6 on the camcorder.
Press 4/6 on the camcorder and engage the VCR’s
5
Record mode.
Engage the VCRs Record-Pause mode and press
6
4
/6 on the camcorder.
Repeat steps 4 through 6 for additional editing, then
7
stop the VCR and camcorder when finished.
EN57
Cable Adapter (optional)
If your VCR has a SCART connector, use the optional cable adapter.
VCR
TV
* Connect when an S-Video cable is not used.
NOTES:
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack (墌 pg. 10).
As the camcorder starts to play your footage it will appear on your TV. This will confirm the connections and the AUX channel for dubbing purposes.
Before you start dubbing, make sure that the indica­tions do not appear on the connected TV. If they do, they are being recorded onto the new tape.
To choose whether or not the following displays appear on the connected TV . . .
Date/Time
.... set DATE/TIME to AUTO, ON or OFF in
the Menu Screen ( pg. 43, 44).
Time Code
.... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 43, 44).
Playback Sound Mode, Tape Speed And Tape Running
Displays
.... set ON SCREEN to LCD or LCD/TV in the
Menu Screen ( pg. 43, 44). Or, press DISPLAY on the remote control.
You can use Playback Zoom (墌 pg. 63) or Playback Special Effects (墌 pg. 64) in step 5.
58 EN
Open the connector cover.
To DV
DUBBING
(cont.)
Dubbing To Or From A Video Unit Equipped With A DV Connector (Digital Dubbing)
It is also possible to copy recorded scenes from the camcorder onto another video unit equipped with a DV connector. Since a digital signal is sent, there is little if any image or sound deterioration.
[To use this camcorder as a player]
Make sure all units are turned off. Connect the
1
camcorder to a video unit equipped with a DV input connector using a DV cable as shown in the illustration.
Core filter
To DV IN/OUT
NOTES:
It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack (墌 pg. 10).
If the remote control is used when both the player and recorder are THOMSON video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units.
If a blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed.
Even though the DV cable is connected correctly, sometimes the image may not appear in step 4. If this occurs, turn off the power and make connections again.
If Playback Zoom (墌 pg. 63), Playback Special Effects” (墌 pg. 64) or “Snapshot” is attempted during playback, only the original playback image recorded on the tape is output from the DV connector.
When using a DV cable, be sure it has a core filter attached. The core filter reduces interference.
To Use This Camcorder As A Recorder . . .
1. Set the VIDEO/MEMORY Switch to VIDEO, then set the Power Switch to while pressing
down the Lock Button located on the switch.
2. Set REC MODE to SP or LP in the Menu Screen ( pg. 43).
3. Connect the DV cable as shown in the illustration and load a cassette to record on.
4. Press the START/STOP button on the remote control to engage the Record-Pause mode.
appears on the screen.
5. Press the START/STOP button on the remote control to start recording. rotates.
6. Press the START/STOP button on the remote control again to engage the Record-Pause mode. stops
rotating.
NOTES:
Digital Dubbing is performed in the sound mode recorded on the original tape, regardless of the current SOUND MODE setting (墌 pg. 40).
During Digital Dubbing, no signals are output from the AV output connector.
DV cable (optional)
Video unit equipped with DV connector
Set the VIDEO/MEMORY Switch to VIDEO, set
2
the camcorders Power Switch to while pressing down the Lock Button located on the switch, turn on the video units power, and insert the appropriate cassettes in the camcorder and the video unit.
Press 4/6 to play back the source tape.
3
While watching the playback on the monitor,
4
engage the DV connector-equipped video unit’s record mode from the spot on the source tape you want to begin recording.
DV. IN
Play/Pause Button (4/6)
Power Switch
Lock Button
Display
COPY OF FON–
SET/SELCT Button
SP
6
VIDEO/MEMORY Switch
MENU Button
+, – Button
SNAPSHOT Button
VIDEO Menu
EN59
Dubbing Still Images Recorded On A Tape To A Memory Card
Still images can be dubbed from a tape to a memory card.
Load a memory card ( pg. 15) and cassette
1
( pg. 13).
Select the Snapshot mode in the Menu Screen
2
( pg. 27) to use for dubbing the image to the memory card.
Set the VIDEO/MEMORY Switch to “VIDEO”, then
3
set the Power Switch to while pressing down the Lock Button located on the switch.
Press MENU. The Menu Screen appears. Press + or –
4
to select VIDEO and press SET/SELECT. The VIDEO Menu appears.
Press + or – to select COPY and press
5
SET/SELECT. The Sub Menu appears. Press + or to
select ON and press SET/SELECT. Selection is complete.
Press + or – to select RETURN and press SET/
6
SELECT twice. The normal playback screen resumes.
To select a still image to be dubbed, start playback
7
by pressing 4/6. At the moment you find the image you wish to dub, press it again to engage Still Playback.
To start dubbing, press SNAPSHOT. The selected
8
image is stored in the memory card.
•“ blinks during dubbing.
NOTES:
If SNAPSHOT is pressed in step 8 when a memory card is not loaded, the message COPYING FAILED is displayed.
If an image recorded on the tape using the WIDE mode (墌 pg. 41) is dubbed to a memory card, the WIDE mode identifying signal is not dubbed with it.
To use Playback Special Effects with a video image you wish to dub, perform up to step 8 using the remote control (provided) (墌 pg. 64).
Images are dubbed in VGA file size.
60 EN
E-MAIL CLIP REC Button
SNAPSHOT Button
Display
E
-
MASITLANCDLBIYP
A
- E
IEL
C
R
A D
Y
M
UP SH " SNAPSHOT"
T
L I P
When the SNAPSHOT Button is pressed.
E-MRAEICLORCDLIINP
Storing is complete.
E-MA I L CL I P
COMPLETED
DUBBING
(cont.)
Dubbing Moving Images Recorded On A
VIDEO/MEMORY Switch
Play/Pause Button (4/6)
Power Switch
Lock Button
CARORECORDCLIP TO D
e
G
Tape To A Memory Card (E-Mail Clip Recording)
You can make video clips from recorded video footage and store them in a memory card as files which can be conveniently sent via e-mail.
Load a memory card ( pg. 15) and cassette
1
( pg. 13).
Set the VIDEO/MEMORY Switch to “VIDEO”, then
2
set the Power Switch to while pressing down the Lock Button located on the switch.
Press 4/6 to start video playback, then press E-MAIL
3
CLIP REC to engage the Record-Standby mode.
•“E-MAIL CLIP STANDBY appears and then “E- MAIL CLIP READY appears.
At the moment you find the image you wish to dub,
4
press SNAPSHOT to start dubbing.
•“E-MAIL CLIP RECORDING appears.
The camcorder stops E-Mail Clip Recording
automatically after approx. 20 seconds and
E-MAIL CLIP COMPLETED appears.
Refer to the instruction manual of the provided
software to transfer the video clips to a PC.
To cancel E-Mail Clip Recording . . .
after step 3, press E-MAIL CLIP REC again or press 5
to stop video playback.
To view video clips stored in a memory card . . .
during normal playback of image, press SET/SELECT
once to engage the video clip mode. E-CLIP appears. Then pressing 4/6 can allow you to view the video clips in the LCD monitor or viewfinder; video clips cannot be displayed on a connected TV. ( pg. 30)
You can look for the desired file using Index Screen (墌 pg. 31).
NOTES:
Playback operation cannot be performed during E-Mail Clip Recording.
If you press 5 or SNAPSHOT while E-Mail Clip Recording is in progress, only the portion which is recorded before or SNAPSHOT is pressed will be stored in the memory card.
Also, if the end of the tape is reached during E-Mail Clip Recording, that portion will be automatically stored in the memory card.
If the end of the tape is reached in step 3, the E-Mail Clip Record-Standby mode will be automatically cancelled.
The video clip files stored with this camcorder are compatible with MPEG4. Some MPEG4 files stored with other devices cannot be played back with this camcorder.
The video clip cannot be played back when the write protection tab on the SD Memory Card is set to the LOCK position. PLAYING FAILED CHECK CARDS WRITE PROTECTION SWITCH appears.
Video noise may appear while viewing video clips in the LCD monitor or viewfinder, however, this noise is not present in the actual video clips stored in the memory card.
5
USING THE REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate
1
3
Tab
+
2
+
this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. It also makes additional playback functions possible.
Installing The Batteries
The remote control uses two “AAA (R03)” size batteries. See “General Battery Precautions” ( pg. 91).
Remove the battery compartment cover while
1
pushing up the tab as illustrated.
Insert two “AAA (R03)” size batteries in the
2
correct direction.
Re-attach the battery compartment cover.
3
EN61
Transmitted beam effective area
30°
When using the remote control, be sure to point it at the remote sensor. The illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.
5m
Remote sensor
30°
62 EN
USING THE REMOTE CONTROL UNIT
10
(cont.)
2
4
6 8
Buttons
1 Infrared beam transmitting window 2 Zoom (T/W) Buttons 3 DISPLAY Button 4 SHIFT Button 5 SLOW Rewind/Forward Buttons
Left/Right Buttons
6 REW Button
7 FADE/WIPE Button 8 EFFECT ON/OFF Button 9 EFFECT Button 0 PAUSE IN Connector ! START/STOP Button @ MBR SET Button # SNAPSHOT Button $ Up Button
INSERT Button
% Down Button
A. DUB Button
^ PLAY Button
& FF Button
* STOP Button
( PAUSE Button ) R.A.EDIT Buttons
!
3
@
#
5
$
% 7 9
^
&
*
(
)
Functions
With the camcorder’s Power Switch set to “ ” or “ .
Transmits the beam signal. Zoom in/out ( pg. 20)
— — —
— —
— — — —
Functions the same as the Recording Start/Stop Button on the camcorder.
Functions the same as SNAPSHOT on the camcorder.
— —
— —
— —
With the camcorder’s Power Switch set to “
Zoom in/out ( pg. 63) pg. 24, 57, 69 pg. 63, 68 pg. 63
pg. 63
• Rewind/Reverse Shuttle Search on a tape ( pg. 22)
• Displays previous file in a memory card ( pg. 29)
pg. 70 pg. 64 pg. 64 pg. 69
pg. 68
pg. 63 pg. 67
pg. 63 pg. 65
• Starts Playback of a tape ( pg. 22)
• Starts Auto Playback of a memory card ( pg. 29)
• Forward/Forward Shuttle Search on a tape ( pg. 22)
• Displays next file in a
memory card ( pg. 29)
• Stops the tape ( pg. 22)
• Stops Auto Playback ( pg. 29)
Pauses the tape ( pg. 63) pg. 68 – 72
”.
EN63
Zoom Buttons
SHIFT
Left or SLOW Rewind Button
Right or SLOW Forward Button
Normal
playback
Remote sensor
Up Button
Press T
To move image, press (Right) while keeping SHIFT held down.
Down Button
PLAY PAUSE STOP
FEATURE:
Slow-Motion Playback
PURPOSE:
To allow slow-speed search in either direction during video playback.
OPERATION:
1) To change from normal to Slow-Motion Playback, press SLOW (9 or 0) more than approx. 2 seconds. After
approx. 5 minutes (approx. 20 seconds with a 80­minute cassette) in Slow Rewind or Forward, normal playback resumes.
To stop Slow-Motion Playback, press PLAY (
4
).
NOTES:
You can also engage Slow-Motion Playback from Still Playback by pressing SLOW more than approx. 2 seconds.
During Slow-Motion Playback, due to digital image processing, the picture may take on a mosaic effect.
After SLOW image may be displayed for a few seconds, followed by a blue screen for a few seconds. This is not a malfunc­tion.
There may be a small margin between the slow-motion playback start point you chose and the actual start point for Slow-Motion Playback.
During Slow-Motion Playback, there will be distur­bances in video and the picture may seem unstable, especially with steady images. This is not a malfunc­tion.
During Slow-Motion Playback, press PAUSE pause playback.
FEATURE:
(9 or 0)
is pressed and held, the still
(6)
to
Frame-By-Frame Playback
PURPOSE:
To allow frame-by-frame search during video playback.
OPERATION:
1) To change to Frame-By-Frame Playback, during still playback, press SLOW (0) repeatedly for forward or SLOW (9) repeatedly for reverse. Each time it is
pressed, the frame is played back.
FEATURE:
Playback Zoom
PURPOSE:
To magnify the recorded image up to 10X at any time during playback.
OPERATION:
1) Press PLAY (4) to find the scene of interest.
2) Press the Zoom Buttons (T/W) on the remote control. Make sure the remote control is pointed at the camcorder's remote sensor. Pressing T zooms in.
3) You can move the image on screen around to find a particular portion of the picture. While holding down SHIFT, press (Left), (Right), (Up) and (Down).
To end zoom, press and hold W until magnification returns to normal. Or, press STOP (5) and then press PLAY (
NOTES:
Zoom can also be used during slow-motion and still playback.
Due to digital image processing, the quality of the image may suffer.
4
).
64 EN
PLA
YFBFACK
O
C
1
M
2
S
3
S
4
V
5
USING THE REMOTE CONTROL UNIT
E
F
F
E
C
T
L
A
S
S
I
C
O
N
E
P
T
R
I
D
LM
O
T
O
N
E
I
A
O
B
E
E
O
E
CFHIO
PLAYBACK EFFECT Select Menu
FEATURE:
Playback Special Effects
PURPOSE:
To allow you to add creative effects to the video playback image.
(cont.)
OPERATION:
1) To start playback, press PLAY (4).
2) Point the remote control at the camcorder's remote
sensor and press EFFECT. The PLAYBACK EFFECT Select Menu appears.
3) Move the highlight bar to the desired effect by pressing EFFECT. The selected function is activated and after 2 seconds the menu disappears.
To deactivate the selected effect, press EFFECT ON/
OFF on the remote control. Pressing it again re-
activates the selected effect.
To change the selected effect, repeat from step 2
above.
NOTES:
When some Playback Special Effects are used, the Multi-Analyzer 4 and Multi-Analyzer 9 Snapshot
Remote sensor
modes ( pg. 51) are not available.
The effects that can be used during playback are Classic Film, Monotone, Sepia, Strobe and Video Echo. The effects work the same in playback as they did in recording. Refer to page 48 for more informa­tion.
PLAY
EFFECT
EFFECT ON/OFF
Speaker
PHONE connector
Display
Audio Dub
6e
Standby mode
MIC
Stereo microphone
Remote sensor
EN65
Audio Dubbing
The audio track can be customized only when recorded in the 12-bit mode ( pg. 40).
NOTES:
Audio Dubbing is not possible on a tape recorded in
16-bit audio, on a tape recorded in the LP mode or on a blank portion of a tape.
To perform Audio Dubbing while watching on the television, make connections ( pg. 23).
Play back the tape to locate the point where editing
1
will start, then press PAUSE (6).
While holding A.DUB (e) on the remote control,
2
press PAUSE (6). 6e” appears.
Press PLAY (4), then begin narrating”.
3
Speak into the microphone.
To pause dubbing, press PAUSE (6).
To end Audio Dubbing, press PAUSE (6), then STOP
4
(5).
To hear the dubbed sound during playback . . .
.... set 12BIT MODE to SOUND 2 or MIX in the
Menu Screen ( pg. 43, 45).
NOTES:
Sound is not heard from the speaker during Audio Dubbing. To hear sound, connect optional headphones to the PHONE connector on the Docking Station.
When editing onto a tape that was recorded at 12-bit, the old and new soundtracks are recorded separately.
If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas.
If feedback or howling occurs during TV playback, move the camcorders microphone away from the TV, or turn down the TVs volume.
If you change from 12-bit to 16-bit in mid-recording and then use the tape for Audio Dubbing, it is not effective from the point where 16-bit recording began.
During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded in 16-bit audio or a blank portion, Audio Dubbing stops ( pg. 89).
A.DUB PLAY PAUSE
STOP
66 EN
Display
D.SOUND
APPLAUSE
USING THE REMOTE CONTROL UNIT
Audio Dubbing Using Digital Sound Effects
Audio Dub
6e
Standby mode
Sound effect indication
Load the provided memory card ( pg. 15) and
1
perform step 1 and 2 of page 65.
Press MENU. The Menu Screen appears.
2
Press + or to select SYSTEM and press SET/
3
SELECT. The SYSTEM Menu appears.
(cont.)
INDEX Button
SET/SELECT Button
MENU Button
+, – Button
D.SOUND Button
PLAY
PAUSE
STOP
Press + or to select SOUND IN and press SET/
4
SELECT. The Sub Menu appears. Press + or to
select D.SOUND and press SET/SELECT. Press + or – to select RETURN, and press SET/SELECT twice. The Menu Screen closes and the sound effect indication appears.
Press INDEX to access the sound effects Index
5
Screen. Press + or – to select the desired sound effect and press SET/SELECT.
Press PLAY (4) to begin Audio Dubbing. The
6
selected sound effect is dubbed onto the tape.
The “ ” moves while it is being dubbed.
To stop dubbing the sound effect midway, press
D.SOUND.
Press STOP (5) to end Audio Dubbing.
7
NOTES:
After dubbing, set SOUND IN back to “MIC”.
The dubbed sound effect is recorded on SOUND 2 (pg. 45).
If you press PAUSE (6) to pause dubbing in step 6 the selected sound effect indication remains displayed. To resume dubbing, press PLAY (4).
12:34
Display
6w
Remote sensor
EN67
Insert Editing
You can record a new scene into a previously recorded tape, replacing a section of the original recording with minimal picture distortion at the in and outpoints. The original audio remains unchanged.
NOTES:
Before performing the following steps, make sure that
TIME CODE is set to ON in the Menu Screen (pg. 42, 44).
Insert Editing is not possible on a tape recorded in the LP mode or on a blank portion of a tape.
To perform Insert Editing while watching in the television, make connections ( pg. 23).
Play back the tape, locate the Edit-Out point and
1
press PAUSE (6). Confirm the time code at this point ( pg. 42, 44).
Press REW (2) until the Edit-In point is located,
2
then press PAUSE (6).
Press and hold INSERT (w) on the remote control,
3
then press PAUSE (6). 6w and the Time Code (min.:sec.) appear and the camcorder enters Insert­Pause mode.
Press START/STOP to begin editing.
4
Confirm the insert at the time code you checked
in step 1.
To pause editing, press START/STOP. Press it
again to resume editing.
To end Insert Editing, press START/STOP, then
5
STOP (5).
REW
STOP
START/STOP
INSERT PLAY
PAUSE
NOTES:
Program AE with special effects ( pg. 47, 48) can be used to spice up the scenes being edited during Insert Editing.
During Insert Editing, the date and time information changes.
If you perform Insert Editing onto a blank space on the tape, the audio and video may be disrupted. Make sure you only edit recorded areas.
During Insert Editing, when the tape moves to scenes recorded in the LP mode or a blank portion, Insert Edting stops ( pg. 89).
68 EN
SHIFT
3
1 6
VCR CODE LIST
VCR BRAND NAME
DAEWOO GE
HITACHI
JVC
A B C
LG/ GOLDSTAR
MAGNAVOX
MITSUBISHI
NEC
PHILIPS
USING THE REMOTE CONTROL UNIT
Random Assemble Editing [R.A.Edit]
Create edited videos easily using your camcorder as
VCR (Recording deck)
789`
CODE
1 8 1 1
2
9 9
` 4
9 6 6
6
3
9 1
6
9
3
9 1 1
9 5
1
1
1
7 7
6
6 7 6
8
3 7
8
3 1 9
5
9
1
1
4
9
1
9
6
9
2
1
VCR BRAND NAME
PHILIPS
PANASONIC
RCA
SAMSUNG SANYO
SHARP
SONY
TOSHIBA
ZENITH
MBR SET
4
2 5
CODE
3 3
2
7
1 3
7
1
1
1
4
9
8
1
9 2
4
9
6
6
3
6
`
9
9 4 3 6
5
3
1 5
`
1
6 5
`
6
9
3
1
3
6 9
1
6 1 6
the source player. You can select up to 8 “cuts” for automatic editing, in any order you like. R.A.Edit is more easily performed when the MBR (Multi-Brand Remote) is set to operate with your brand of VCR (see VCR CODE LIST), but can also be performed by operating the VCR manually. Before operation, make sure the batteries are installed in the remote control ( pg. 61).
SET REMOTE/VCR CODE
Turn off the power to the VCR and point the
1
remote towards the VCRs infrared sensor. Then, referring to the VCR CODE LIST, press and hold MBR SET, and enter the brand code. The code is automatically set once you release MBR SET, and the VCRs power comes on.
Make sure the VCRs power is on. Then, while
2
holding SHIFT, press the button on the remote for the desired function. The functions the remote can control are PLAY, STOP, PAUSE, FF, REW and VCR REC STBY (you do not need to press SHIFT for this one).
You are now ready to try Random Assemble Editing.
IMPORTANT
Although the MBR is compatible with THOMSON VCRs and those of many other makers, it may not work with yours or may offer limited functions.
NOTES:
If the VCRs power does not come on in step 1, try another code from the VCR CODE LIST.
Some brands of VCR do not come on automati­cally. In this case, turn the power on manually and try step 2.
If the remote control is not able to control the VCR, use the controls on the VCR.
When the remote controls batteries run out, the VCR brand you have set will be erased. In that case, replace the old battery with a new one to reset the VCR brand.
(cont.)
To EDIT
Editing cable (provided)
PAUSE or R.A.EDIT
To PAUSE
IN
To S-VIDEO
OUT
S-Video
cable
(optional)
To Remote
Audio/Video cable (provided)
DISPLAY
To AV OUT
To AUDIO, VIDEO*
-IN
and connectors
If your VCR has the SCART connector, use the optional cable adapter.
VCR
TV
EN69
MAKE CONNECTIONS
Also refer to pg. 23 and 24.
A THOMSON VCR equipped with a Remote
1
PAUSE connector . . .
... connect the editing cable to the Remote
PAUSE connector.
A THOMSON VCR not equipped with a Remote PAUSE connector but equipped with an R.A. EDIT connector . . .
... connect the editing cable to the R.A.EDIT
connector.
A VCR other than above . . .
... connect the editing cable to the remote
controls PAUSE IN connector.
Insert a recorded tape into the camcorder. Set the
2
VIDEO/MEMORY Switch to VIDEO, then set the
Power Switch to while pressing down the Lock Button located on the switch.
Turn the VCR power on, insert a recordable tape and
3
engage the AUX mode (refer to the VCR’s instructions).
NOTES:
Before Random Assemble Editing, make sure the indications do not appear on the TV monitor. If they do, they will be recorded onto the new tape.
To choose whether or not the following displays appear on the connected TV . . .
Date/Time
.... set DATE/TIME to AUTO, ON or OFF” in the
Menu Screen ( pg. 43, 44).
Time Code
.... set TIME CODE to ON or OFF in the Menu
Screen ( pg. 43, 44).
Playback Sound Mode, Tape Speed And Tape Running
Displays
.... set ON SCREEN to LCD or LCD/TV in the
Menu Screen ( pg. 43, 44). Or, press DISPLAY on the remote control.
When editing on a VCR equipped with a DV input connector, an optional DV cable can be connected instead of an S-Video cable and audio/video cable.
* Connect when an S-Video cable is not used.
CONTINUED ON NEXT PAGE
70 EN
Program
NIOUT
1
––:–– ~
––
2 3 4 5 6 7 8
TOTAL
FADE/WIPE
EDIT IN/OUT
NOTES:
When choosing a scene, set Edit-In and Edit-Out points so that there is a relatively large difference between them.
If the search time for an in-point exceeds 5 minutes, the recording decks Record-Standby mode will be cancelled and editing will not take place.
If there are blank portions before or after the Edit-In and Edit-Out points, a blue screen may be included in the edited version.
Since time codes register time only as accurately as seconds, the time code total time may not match the total program time exactly.
Turning off the camcorder’s power erases all registered Edit-In and Edit-Out points.
If you select Sepia or Monotone mode from Program AE with special effects, you cannot use the Dissolve or Black & White Fader. In this case the Dissolve or Black & White indicator begins blinking. Once the next Edit-In point is registered, the effect is turned off. To combine these effects, use Sepia or Monotone during recording, then use the Dissolve or Black & White Fader during Random Assemble Editing.
It is not possible to use Fade/Wipe effects and Program AE with special effects during Random Assemble Editing using a DV cable.
CODETIME
EFFECT
~ ~ ~ ~ ~ ~ ~
USING THE REMOTE CONTROL UNIT
SELECT SCENES
Point the remote control at the camcorders remote sensor. Press PLAY (4) and then press R.A.EDIT ON/
4
OFF on the remote control.
The Random Assemble Editing Menu appears.
If using a Fade/Wipe at the beginning of the scene, press FADE/WIPE on the remote control.
5
Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.
You cannot use a Picture Wipe/Dissolve at the beginning of Program 1.
At the beginning of the scene, press EDIT IN/OUT on the remote control. The Edit-In position appears in
6
the Random Assemble Editing Menu.
At the end of the scene, press EDIT IN/OUT. The Edit-Out position appears in the Random Assemble
7
Editing Menu.
If using a Fade/Wipe at the end of the scene, press
FADE/WIPE.
8
Cycle through the effects by pressing repeatedly, and stop when the one you want is displayed.
If you select a Fade/Wipe effect for an Edit-Out point, the effect is automatically applied to the following Edit-In point.
You cannot use a Picture Wipe/Dissolve at the end of the last scene.
When you use Fade/Wipe effects, that time is included in the total time (this does not apply to Picture Wipe/Dissolve).
If using Playback Special Effects, press EFFECT ( pg. 64).
9
Repeat steps 6 through 9 to register additional scenes.
10
To change previously registered points, press
CANCEL on the remote control. The registered points disappear, one at a time, from the most recently registered point.
If you are not using Fade/Wipe or Program AE with special effects, repeat steps 6 and 7 only.
1
:
0:000
MOD E
––
CANCEL
Random Assemble Editing Menu
Remote sensor
PLAY
R.A.EDIT ON/OFF
(cont.)
AUTOMATIC EDITING TO VCR
EN71
NIOUTMODE
00:25
1 2 3
––
4 5
6
–– –– ––
7 8
TOTAL
~
02:05 07:18~08:31 03:33~
05:53
13:15
09:30
~
15::55
~
16:29
~
~ ~
6
:
1
CODETIME
9:39
30
––
–– ––
––––
Remote Sensor
Random Assemble Editing Menu
START/STOP
PAUSE R.A.EDIT
ON/OFF VCR REC
STBY
Rewind the tape in the camcorder to the beginning of
11
the scene you want to edit and press PAUSE (6).
Point the remote control towards the VCRs remote
12
sensor and press VCR REC STBY (q6), or manually engage the VCRs Record-Pause mode.
Press START/STOP on the remote control. Editing
13
proceeds as programmed, right through to the end of the last registered scene.
When dubbing is complete, the camcorder enters the Pause mode, and the VCR enters its Record­Pause mode.
If you do not register an Edit-Out point, the tape will be dubbed all the way to the end automatically.
If you operate the camcorder during automatic editing, the VCR will enter its Record-Pause mode and automatic editing will stop.
Engage the Stop modes for the camcorder and the
14
VCR.
1
To make the R.A.Edit counter display disappear, press R.A.EDIT ON/OFF on the remote control.
NOTES:
Pressing R.A.EDIT ON/OFF on the remote control clears all settings registered during Random Assemble Editing.
When the editing cable is connected to the remote controls PAUSE IN connector during dubbing, make sure the remote control is pointed at the VCRs sensor, and the path between the two is unobstructed.
Random Assemble Editing may not function properly when using a tape including several duplicated time codes ( pg. 21).
CONTINUED ON NEXT PAGE
72 EN
Program 1
NIOUT
1
––: –– ~
––
2 3 4 5 6 7 8
CODETIME
TOTAL
USING THE REMOTE CONTROL UNIT
(cont.)
For More Accurate Editing
Random Assemble
MOD E
~ ~ ~ ~ ~ ~ ~
:
––
0:000
ROSYNCH
O.1
Editing Menu
VIDEO Menu
Some VCRs make the transition from Record-Pause to Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you have recorded scenes you did not want. For a cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR.
DIAGNOSING VCR/CAMCORDER TIMING
Play back the tape in the camcorder, then point the
1
remote control at the camcorders remote sensor and press R.A.EDIT ON/OFF. Random Assemble Editing Menu appears.
Perform Random Assemble Editing on Program 1
2
only. In order to check VCR and camcorder timing, select the beginning of a scene transition as your Edit-In point.
Play back the dubbed scene.
3
If any images from the scene prior to the transition you chose for your Edit-In point were recorded, that means your VCR moves too quickly from Record-Pause to Record mode.
If the scene you tried to dub starts in progress, the VCR is slow to start recording.
ADJUSTMENT OF VCR/CAMCORDER TIMING
Remote sensor
R.A.EDIT ON/OFF
NOTES:
Before performing actual Random Assemble Editing, do a few Random Assemble Editing trial runs to check whether the value you have input is appropriate or not, and make adjustments accordingly.
Depending on the recorder, there may be situations where the timing difference cannot be fully corrected.
Point the remote control at the camcorders remote
4
sensor and press R.A.EDIT ON/OFF to make the Random Assemble Editing menu disappear, then press MENU. The Menu Screen appears.
Press + or – to select VIDEO and press SET/
5
SELECT. The VIDEO Menu appears. Then, press + or
– to select “SYNCHRO and press SET/SELECT. The value for “SYNCHRO” is highlighted.
Based on the diagnostics performed, you can now
6
advance the VCRs record timing by pressing +. You can also delay the VCRs record timing by pressing –. The adjustment range is from –1.3 to +1.3 seconds, in 0.1-second increments. Press SET/SELECT to finish the setting.
Press + or – to select RETURN and press SET/
7
SELECT twice.
Now perform Random Assemble Editing beginning with step 4 on page 70.
SYSTEM CONNECTIONS
[A] Using USB cable
EN73
To USB
[B] Using DV cable
To DV
Core filter
Open the connector cover.
Connection To A Personal Computer
[A] Using USB cable
This camcorder can transfer still images to a PC by using the provided software.
[B] Using DV cable
It is also possible to transfer still images to a PC with a DV connector by using software equipped with the PC or commercially available software.
Connect the camcorder to your PC using the
1
appropriate cable as shown in the illustration.
If you are using the USB connection, set the
2
VIDEO/MEMORY switch to MEMORY”.
Only the still images stored in the memory card can be transferred to a PC.
Turn the camcorders Power Switch to
3
while pressing down the Lock Button located on the switch and turn on the PC.
Refer to the instruction manual of the software on how to transfer a still image to the PC.
USB cable (optional)
To USB connector
PC
OR
DV cable (optional)
NOTES:
It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack ( pg. 10).
Never connect the USB cable and the DV cable simultaneously to the camcorder. Connect only the cable you wish to use to the camcorder.
When using a DV cable, be sure to use an optional DV cable depending on the type of DV connector (4 or 6 pins) on the PC, or use the DV cable provided with the capture board.
If the PC connected to the camcorder via the USB cable is not powered, the camcorder does not enter the USB mode.
The date/time information cannot be captured into the PC.
Refer to the instruction manuals of the PC and Software.
The still images can also be transferred to a PC with a DV connector-equipped capture board.
The system may not work properly depending on the PC or capture board you are using.
USB MODE and/or ACCESSING FILE appears on the LCD monitor while the PC is accessing data in the camcorder or the camcorder is transferring a file to the PC.
NEVER disconnect the USB cable while ACCESSING FILE is displayed on the LCD monitor since this can result in product damage.
To DV connector
Core filter
PC with DV connector
74 EN
REFERENCES
REFERENCES
CONTENTS
DETAILS................................................................... 75
TROUBLESHOOTING ...........................................76 – 81
USER MAINTENANCE .................................................. 82
INDEX .............................................................83 – 90
Docking Station..............................................................83
Controls, Connectors And Indicators ............................ 84 – 85
Indications ........................................................... 86 – 90
CAUTIONS........................................................ 91 – 93
TERMS ............................................................ 94 – 95
SPECIFICATIONS ................................................96 – 97
DETAILS
I T E M S N O T E S
EN75
Power
( pg. 9)
VIDEO
RECORDING ( pg. 19, 20)
Perform charging where the temperature is between 10°C and
35°C. 20°C to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete.
Charging times noted above are for a fully discharged battery pack.Charging time varies according to the ambient temperature and
the status of the battery pack.
To avoid interference with reception, do not use the AC Power
Adapter/Charger near a radio.
Since the AC Power Adapter/Charger processes electricity
internally, it becomes warm during use. Be sure to use it only in well-ventilated areas.
When you use the LCD monitor outdoors in direct sunlight, the
LCD monitor may be difficult to see. If this happens, use the viewfinder instead.
The cassette holder cannot be opened unless a power supply is
attached.
There may be a delay after you open the cassette holder cover
until the cassette holder opens. Do not use force.
Once the cassette holder is closed, it recedes automatically. Wait
until it recedes completely before closing the cassette holder cover.
When the Recording Start/Stop button is pressed, it may take a
few seconds before actual recording starts. when the camcorder actually starts recording.
The time required to calculate and display the remaining tape
length, and the accuracy of the calculation, may vary according to the type of tape used.
“TAPE END appears when the tape reaches its end, and the
power goes off automatically if left in this condition for 5 minutes. TAPE END also appears when a cassette at its end is loaded.
During recording, sound is not heard from the speaker. To hear
the sound, connect optional headphones to the PHONE connector on the Docking Station. The sound volume is at the level it was adjusted to during playback ( pg. 22).
During Interface Shooting, the “Tape Running indicator and
warning indications ( shown; they appear reversed in the display as they would when viewing a mirror, but are not reversed in the recording.
The tape remaining indicator does not appear during interface
shooting. However, when the remaining time reaches 2 minutes, the indicator appears showing the remaining time: (blinking) (blinking) (blinking)
pg. 89, 90) are the only ones that are
starts rotating
76 EN
TROUBLESHOOTING
If, after following the steps in the chart below, the problem still exists, please consult your nearest THOMSON dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Charger, etc.) and wait a few minutes; and then re-connect it and proceed as usual from the beginning.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1.
No power is supplied.
2.
SET DATE/TIME! appears.
3.
Recording cannot be performed.
4.
There is no picture.
5.
Some functions are not available using the MENU Button.
6.
The focus does not adjust automatically.
7.
The cassette will not load properly.
8.
The memory card will not load properly.
1.
The power is not connected properly.
The battery is dead.
The LCD monitor is not open
fully or the viewfinder is not pulled out when recording.
2.
The built-in clocks rechargeable lithium battery is discharged.
The previously set date/time is erased.
3.
For Video Recording
The tapes erase protection tab is set to SAVE”.
The Power Switch is set to
or OFF”.
The VIDEO/MEMORY Switch is set to MEMORY”.
•“TAPE END” appears.
The cassette holder cover is
open.
For D.S.C. Recording
The VIDEO/MEMORY Switch is set to VIDEO”.
4.
The camcorder is not getting power, or some other malfunction exists.
5.
The Power Switch is set to ”.
6.
Focus is set to the Manual mode.
The recording was done in a dark place, or the contrast was low.
The lens is dirty or covered with condensation.
7.
The cassette is in the wrong position.
The batterys charge is low.
8.
The memory card is in the wrong position.
1.
Connect the AC Power Adapter/ Charger securely ( pg. 10).
Replace the dead battery with a fully charged one ( pg. 9, 10).
Open the LCD monitor fully or pull out the viewfinder.
2.
Connect the camcorder to an AC outlet using the AC Power Adapter/Charger for over 24 hours to charge the clock’s lithium battery ( pg. 12).
3.
Set the tapes erase protection tab to REC ( pg. 13).
Set the Power Switch to or ” ( pg. 17).
Set the VIDEO/MEMORY toVIDEO”.
Replace with new cassette
( pg. 13).
Close the cassette holder cover.
Set the VIDEO/MEMORY toMEMORY”.
4.
Turn the camcorders power off and on again ( pg. 17).
5.
Set the Power Switch to ( pg. 17).
6.
Set Focus to the Auto mode ( pg. 52).
Clean the lens and check the focus again ( pg. 82).
7.
Set it in the right position ( pg. 13).
Install a fully charged battery ( pg. 9, 10).
8.
Set it in the right position ( pg. 15).
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
9.
In the 5-Second mode, recording ends before 5 seconds have elapsed.
10.
Snapshot mode cannot be used.
11.
The colour of Snapshot looks strange.
12.
The image taken using Snapshot is too dark.
13.
The image taken using Snapshot is too bright.
14.
Digital Zoom does not work.
15.
Program AE with special effects and Fade/Wipe Effects do not work.
16.
The Black & White Fader does not work.
17.
The Dissolve function does not work.
9.
The 5-Second mode is set toANIM. in the Menu Screen.
10.
The Squeeze mode is selected.
11.
The light source or the subject does not include white. Or there are various different light sources behind the subject.
The Sepia or Monotone mode is activated.
12.
Shooting was performed under backlit conditions.
13.
The subject is too bright.
14.
10X optical zoom is selected.
•“PROGRAM AE” is set toVIDEO ECHO in the Menu
Screen.
Picture Wipe or Dissolve are being used in a scene transition.
15.
The Power Switch is set to ”.
16.
The Sepia or Monotone mode is activated.
17.
The Sepia, Monotone or Slow Shutter mode of Program AE with special effects is activated.
•“WIDE MODE” is set toSQUEEZE in the Menu
Screen.
The previously selected mode of Program AE with special effects was changed after the last selected scene for editing was registered.
9.
Select 5S in the Menu
Screen ( pg. 46).
10.
Disengage the Squeeze mode ( pg. 41).
11.
Find a white subject and compose your shot so that it also appears in the frame ( pg. 27, 51).
Turn off Sepia and Monotone ( pg. 47, 48).
12.
Press the BACKLIGHT Button ( pg. 53).
13.
Set PROGRAM AE toSPOTLIGHT in the Menu
Screen ( pg. 47).
14.
Set ZOOM to 40X or100X in the Menu Screen
( pg. 40).
Disengage the VIDEO ECHO mode ( pg. 20, 47,
48).
Wait until the Picture Wipe or Dissolve effects are completed ( pg. 20, 49).
15.
Set the Power Switch to ( pg. 17).
16.
Turn off Sepia and Monotone ( pg. 47, 49).
17.
Turn off Sepia, Monotone or Slow Shutter before adding Dissolve to a scene transition ( pg. 47, 49).
Set WIDE MODE toCINEMA or OFF
mode ( pg. 41).
Make sure you have selected the mode of Program AE with special effects you want before starting editing ( pg. 47, 49).
EN77
CONTINUED ON NEXT PAGE
78 EN
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
18.
The Picture Wipe and Dissolve functions do not work.
19.
The picture wipe function does not work.
20.
Scene transition does not go as expected.
21.
The Video Echo mode does not work.
TROUBLESHOOTING
18.
The last selected editing scene is ending.
At the end of the last selected scene for editing, the Power Switch was set to “OFF”.
The power is off.
19.
The Slow Shutter mode is activated.
•“WIDE MODE” is not set toOFF”.
20.
When using Picture Wipe/ Dissolve ( pg. 49), there is a delay of a fraction of a second between the previous record stop-point and the Dissolve start-point. This is normal, but this slight delay becomes especially noticeable when shooting fast-moving subject or during rapid panning.
21.
The Picture Wipe or Dissolve functions are in use.
•“WIDE MODE” is set toSQUEEZE in the Menu
Screen.
A Fade-In or Fade-Out is in progress.
18.
Select Picture Wipe or Dissolve before beginning recording. The effects are then automatically activated ( pg. 49).
Do not turn off the camcorders power after setting Edit-In and Edit-Out points, as they will all be erased ( pg. 49).
The camcorder automatically shuts off after 5 minutes have elapsed in the Record-Standby mode. Make sure you continue operations within 5 minutes after engaging Record-Standby mode ( pg. 49).
19.
Disengage the Slow Shutter mode or set WIDE MODE to OFF before preparing to use the Picture Wipe ( pg. 41, 47, 49).
20.
————
21.
Set WIDE MODE toCINEMA or OFF
mode ( pg. 41).
Do not try to use the Video Echo mode during a Fade-In or Fade-Out ( pg. 47, 49).
(cont.)
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
22.
Even when Slow Shutter is not selected, the image looks like it is activated.
23.
There is no strobe when the Classic Film or Strobe mode is activated.
24.
White Balance cannot be activated.
25.
When shooting a subject illuminated by bright light, vertical lines appear.
26.
When the screen is under direct sunlight during shooting, the screen becomes red or black for an instant.
27.
During recording, the date/ time does not appear.
28.
Files stored in the memory card cannot be deleted.
29.
The indicators and messages do not appear.
30.
Images on the LCD monitor appear dark or whitish.
31.
The rear of the LCD monitor is hot.
32.
The indicators and the image colour on the LCD monitor are not clear.
22.
When shooting in the dark, the unit becomes highly sensitive to light and the image takes on an effect similar to Slow Shutter.
23.
The Picture Wipe or Dissolve function is in use.
24.
The Sepia or Monotone mode is activated.
25.
This is a result of exceedingly high contrast, and is not a malfunction.
26.
This is not a malfunction.
27.
•“DATE/TIME is set to OFF in the Menu Screen.
28.
Files stored in the memory card are protected.
29.
•“TIME CODE is set to OFF in the Menu Screen.
30.
In places subject to low temperature, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colours differ from those that are actually recorded. This is not a defect of the camcorder.
When the LCD monitor's fluorescent light reaches the end of its service life, images on the LCD monitor become dark. Consult your nearest THOMSON dealer.
31.
The light used to illuminate the LCD monitor causes it to become hot.
32.
This may occur when the surface or the edge of the LCD monitor is pressed.
22.
If you want the lighting to look more natural, set GAIN UP to AGC or OFF in the Menu Screen ( pg. 40).
23.
Do not try to use the Classic Film or Strobe mode during a scene transition ( pg. 47,
49).
24.
Turn off Sepia or Monotone before setting White Balance ( pg. 48, 54).
25.
————
26.
27.
Set DATE/TIME to ON in the Menu Screen ( pg. 42).
28.
Remove protection from the files stored in the memory card and delete them ( pg. 32 – 34).
29.
Set TIME CODE to “ON in the Menu Screen ( pg. 42, 43).
30.
Adjust the brightness and angle of the LCD monitor ( pg. 19, 20).
31.
Close the LCD monitor to turn it off or set the Power Switch to OFF, and let the unit cool down.
32.
————
————
EN79
CONTINUED ON NEXT PAGE
80 EN
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
33.
The LCD monitor or viewfinder indications blink.
34.
Coloured bright spots appear all over the LCD monitor or the viewfinder.
35.
During recording, sound cannot be heard.
36.
Play, Rewind and Fast­Forward functions do not work.
37.
A memory card cannot be played back.
38.
The tape is moving, but there is no picture.
39.
The LCD monitor image is distorted.
40.
Images on the LCD monitor are jittery.
41.
Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue.
TROUBLESHOOTING
33.
Certain Fade/Wipe effects, certain modes of Program AE with special effects, DIS and other functions that cannot be used together are selected at the same time.
34.
The LCD monitor and the viewfinder are made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constantly on the LCD monitor or the viewfinder. These spots are not recorded on the tape. This is not due to any defect of the unit. (Effective dots: more than
99.99 %)
35.
The optional headphones are not connected to the headphones connector.
The sound volume of the headphones connector was not adjusted appropriately. The sound volume at this point is the same as the level it was adjusted to during playback.
36.
The Power Switch is set to “ ” or ”.
VIDEO/MEMORY Switch is set to MEMORY”.
37.
• The Power Switch is set to “ ” or “ ”.
VIDEO/MEMORY Switch is
set to VIDEO”.
38.
Your TV has AV input terminals, but is not set to its VIDEO mode.
The cassette holder cover is open.
39.
During playback of the unrecorded portion, High­speed Search and still playback, LCD monitor indications appear distorted. This is not a defect.
40.
The speaker volume is too great.
41.
————
33.
Re-read the sections covering Fade/Wipe effects, Program
AE with special effects and DIS ( pg. 40, 47 – 50).
34.
————
35.
Connect the optional headphones to the headphone connector ( pg. 83).
Adjust the sound volume during playback ( pg. 22).
36.
Set the Power Switch to ” ( pg. 22).
Set the VIDEO/MEMORY Switch to VIDEO”.
37.
Set the Power Switch to ” ( pg. 29).
Set the VIDEO/MEMORY Switch to MEMORY”.
38.
Set the TV to the mode or channel appropriate for video playback ( pg. 23, 24).
Close the cassette holder cover ( pg. 13).
39.
————
40.
Turn the speaker volume down ( pg. 22).
41.
Clean the video heads with an optional cleaning cassette ( pg. 92).
(cont.)
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
42.
The LCD monitor, the viewfinder and the lens have become dirty (ex. fingerprints).
43.
An unusual mark appears.
44.
An error indication (E01 E06) appears.
45.
The charger indicator on the AC Power Adapter/Charger does not light.
46.
Picture does not appear on the LCD monitor.
47.
When the image is printed from the printer, a black bar appears at the bottom of the screen.
48.
When the camcorder is connected via the DV connector, the camcorder does not operate.
49.
The memory card cannot be removed from the camcorder.
42.
————
43.
44.
45.
46.
47.
48.
————
A malfunction of some kind
has occurred. In this case the camcorders functions become unusable.
The temperature of the battery is extremely high/low.
Charging is difficult in places subject to extremely high/low temperatures.
The viewfinder is pulled out.
The LCD monitor's brightness
setting is too dark.
This is not a malfunction.
The DV cable was plugged/
unplugged with power turned on.
49.
————
42.
Wipe them gently with soft cloth. Wiping strongly can cause damage ( pg. 82).
43.
Check the section of the manual that explains LCD monitor/viewfinder indica­tions ( pg. 86 – 90).
44.
Remove the power supply (battery pack, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains even though you repeat the above two or three times, please consult your nearest THOMSON dealer.
45.
To protect the battery, it is recommended to charge it in places with a temperature of 10°C to 35°C ( pg. 91).
46.
Push the viewfinder back in.
Adjust the brightness of the
LCD monitor ( pg. 19).
If the monitor is tilted upward 180 degrees, open the monitor fully ( pg. 19).
47.
By recording with DIS activated ( pg. 40) this can be avoided.
48.
Turn the camcorders power off and on again, then operate it.
49.
Push in the memory card a few more times ( pg. 15).
EN81
82 EN
2
After Use
USER MAINTENANCE
Cleaning The Camcorder
Turn off the camcorder.
1
Slide down and hold OPEN/EJECT in the
2
direction of the arrow, then pull the cassette holder cover open until it locks. The cassette holder opens automatically. Remove the cassette.
Press PUSH HERE to close the cassette holder.
3
Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
Slide down BATT. RELEASE 1 and remove the
4
battery pack 2 3.
Cassette holder
Remove.
PUSH HERE
OPEN/EJECT Switch
To clean the exterior, wipe gently with a soft
1
cloth. Put the cloth in diluted mild soap and wring it well to wipe off heavy dirt. Then wipe again with a dry cloth.
Open the LCD monitor. Wipe gently with a soft
2
cloth. Be careful not to damage the monitor. Close the LCD monitor.
To clean the lens, blow it with a blower brush,
3
then wipe gently with lens cleaning paper.
Pull out the viewfinder fully.
4
Open the viewfinder cleaning hatch in the
5
direction of the arrow 1. Insert a lens blower or soft cloth into the gap at the side of the viewfinder and clean the interior of the viewfinder with it 2.
•If the gap is narrow, turn the Dioptre Adjust­ment Control to widen the gap.
Close the hatch until it locks in place and push
6
the viewfinder back in.
NOTES:
Avoid using strong cleaning agents such as benzine or alcohol.
Cleaning should be done only after the battery pack has been removed or other power units have been disconnected.
Mould may form if the lens is left dirty.
When using a cleaner or chemically treated cloth refer to the cautions of each product.
Hatch
Lens blower
1
Dioptre Adjustment Control
BATT. RELEASE Switch
INDEX
Docking Station
1 2
3 4 5 6 7
EN83
1 Multi Connector
The Docking Station can be connected with this camcorder through this connector. Never touch it with your hand or hit it with a hard object; if the pins are damaged, the connectors will become unusable due to contact failure.
2 Screw .................................................. pg. 24
3 Headphone Connector [PHONE] ......... pg. 65
No sound is output from the speaker when headphones are connected to this connector.
4 USB (Universal Serial Bus) Connector .. pg. 73
5 Screw Knob ......................................... pg. 24
To attach the camcorder, tighten this clockwise.
6 Edit Connector [EDIT] ..........................墌 pg. 69
Connect the editing cable when performing
Random Assemble Editing ........... pg. 68 – 72
7 S-Video Output Connector
[S-VIDEO OUT] ....................... pg. 23, 57, 69
84 EN
INDEX
Controls, Connectors And Indicators
yt
p
1
0!@
32
e
4 5
8
9
6
7
#
u
i
r
E R
T
W
o
*
$ % ^ &
Q
I
(
Y
U
)q
w
O
Controls
1 E-MAIL CLIP REC Button ...................... pg. 60
2 MENU Button ...................................... pg. 39
3 +, Button ........................................ pg. 39
LCD Monitor Brightness Control
[MONITOR BRIGHT +, –] ................. pg. 19
4 Power Zoom Ring [T/W] ................... pg. 20
SHUTTLE SEARCH Ring
[2/3] ....................................... pg. 22
5 Recording Start/Stop Button ............... pg. 19
Play/Pause Button [4/6] .................. pg. 22
6 Power Switch
[ , , , OFF] ............................ pg. 17
7 Lock Button ......................................... pg. 17
8 Snapshot Button
[SNAPSHOT] ............墌 pg. 27, 28, 51, 59, 60
9 D.SOUND Button ............................. pg. 55
Stop Button [5] ................................. pg. 22
0 INDEX Button ................................ pg. 31, 55
! SET/SELECT Button............................... pg. 39
@ Battery Release Switch
[BATT. RELEASE] .................................. pg. 10
# OPEN/EJECT Switch ............................. pg. 13
$ FOCUS Button .................................. pg. 52
BLANK Button ................................... pg. 25
% VIDEO/MEMORY Switch
[VIDEO, MEMORY] ............................. pg. 17
^ EXPOSURE Button ............................. pg. 53
Speaker Volume Control
[VOL. +] ............................................ pg. 22
& BACKLIGHT Button ........................... pg. 53
Speaker Volume Control
[VOL. ] ............................................ pg. 22
* Dioptre Adjustment Control ................. pg. 11
( Lock Button ......................................... pg. 19
EN85
Connectors
The connector q is located beneath a cover. ) Audio/Video Output Connector
[AV OUT] ................................ pg. 23, 57, 69
q Digital Video Connector
[DV IN/OUT] (i.Link*).................... 墌 pg. 58, 73
* i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo is used for products compliant with the i.Link standard.
w Multi Connector
When attached to the Docking Station, this part is connected.
Indicators
e Power Lamp................................... pg. 17, 19
r Tally Lamp ..................................... pg. 19, 41
Other Parts
t LCD Monitor.................................. pg. 19, 20
y Battery Pack Mount.............................. pg. 10
u Speaker ................................................ pg. 22
i Strap Eyelet ............................................ pg. 6
o Viewfinder ........................................... pg. 11
p Viewfinder Cleaning Hatch .................. pg. 82
Q Cassette Holder Cover ......................... pg. 13
W Stereo Microphone .............................. pg. 65
E Camera Sensor
Be careful not to cover this area, a sensor necessary for shooting is built-in here.
R Lens
It is not possible to attach any lens filter or conversion lens.
T Lens Cover ........................................... pg. 19
Y Grip Belt Eyelet
U Remote Sensor ..................................... pg. 61
I Tripod Mounting Socket ....................... pg. 11
O MEMORY CARD Cover........................ pg. 15
86 EN
INDEX

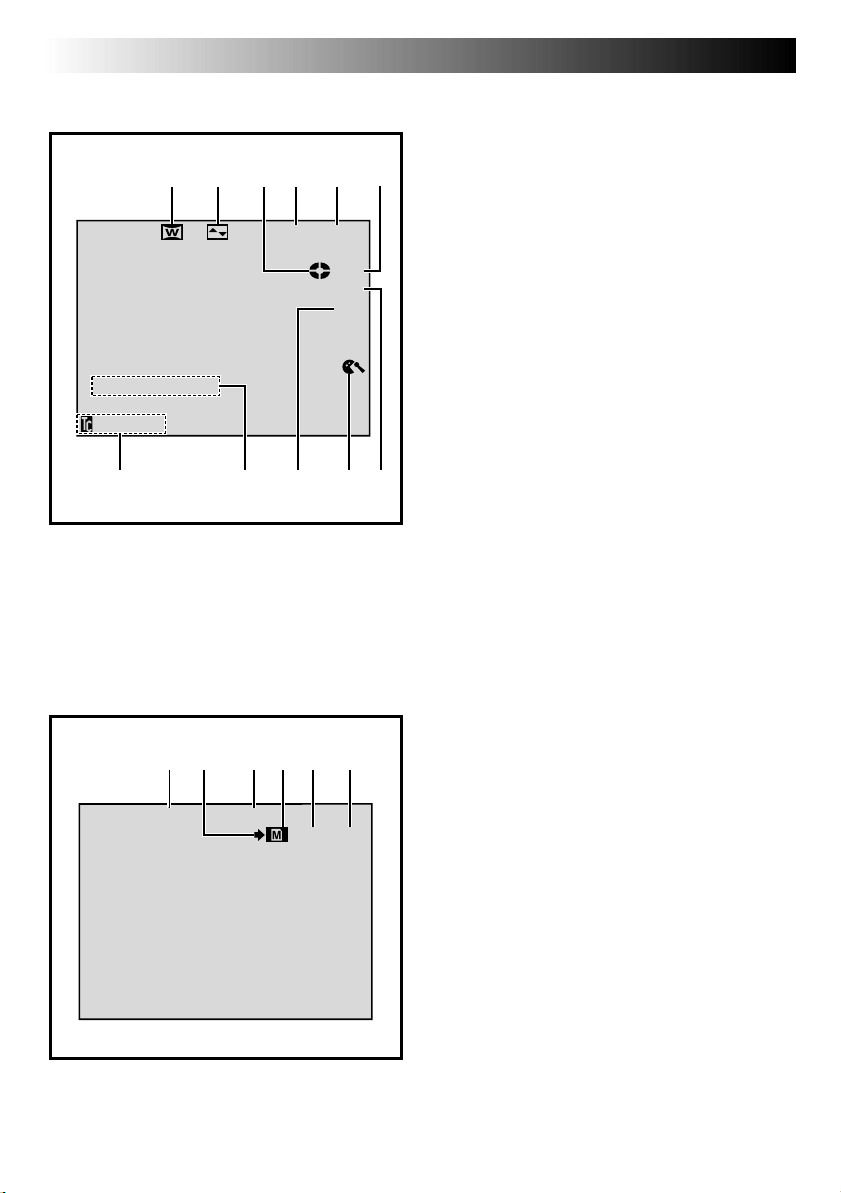

LCD Monitor/Viewfinder Indications During Video Recording Only
Indications
1 Appears when in the Squeeze or Cinema mode.
2 4 56
1
3
50R
PLP
min
2 Displays the selected Fade/Wipe effect.
3 Rotates while the tape is running. ( pg. 19) 4 Displays the recording mode (SP or LP).
E5C
SO2U0N:D5512
BIT
0 7!
S
6w
98
5 Displays the tape remaining time. ( pg. 19) 6 •“REC appears during recording.
•“PAUSE” appears during Record-Standby mode.
7 5S/Anim.: Displays the 5 second recording mode
or Animation recording mode.
8 Appears when the wind cut mode is engaged to
cut down on noise created by wind. ( pg. 41)
9 Appears when the Insert Editing (w) or Insert
Editing Pause (6w) mode is engaged. ( pg. 67)
0 Displays the sound mode for approx. 5 seconds
after turning on the camcorder. ( pg. 40)
! Displays the Time Code. (墌 pg. 21, 42)
LCD Monitor/Viewfinder Indications During D.S.C. Recording Only
( pg. 41)
( pg. 49, 50)
( pg. 14)
( pg. 19)
( pg. 40, 46)
1
VGA
2
3
FINE
4 5 6
10/100
1 Displays the Image Size mode of the stored
image. There are 2 modes available: XGA and VGA (in order of quality) ( pg. 16)
2 Appears and blinks during shooting. ( pg. 27) 3 Displays the Picture Quality mode of the stored
image. There are 2 modes available: FINE and STD (standard) (in order of quality)
( pg. 16)
4 Appears during shooting.
Blinks when a memory card is not loaded.
( pg. 27)
5 Displays the number of images that have
already been shot. ( pg. 27)
6 Displays the total number of shots that can
be stored, including those already taken.
( pg. 27)
EN87

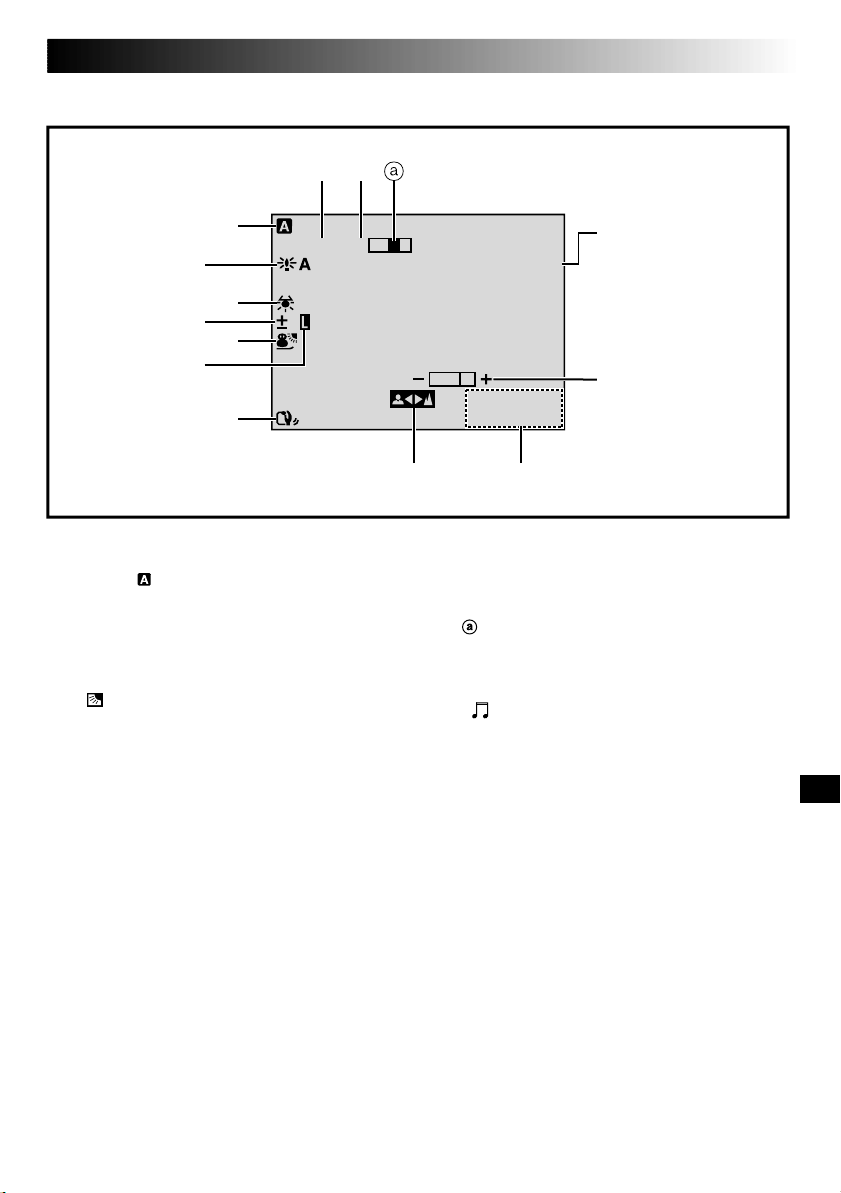

LCD Monitor/Viewfinder Indications During Both Video And D.S.C. Recording
9
8
1
40
xBRW
2
3
4
3
5
6
IGHT
7
1 Appears when the Power Switch
is set to ”.(墌 pg. 17)
2 Appears when “GAIN UP is set to AUTO and
the shutter speed is automatically adjusted.
3 Appears when the white balance is adjusted.
4 : Appears when backlight compensation
is used. ( pg. 53)
±: Appears when the exposure is adjusted.
5 Displays the selected Program AE with special
effects. ( pg. 47, 48)
6 Appears when the iris is locked. ( pg. 53) 7 Appears when Digital Image Stabiliser (DIS) is
engaged. (墌 pg. 40)
( pg. 40)
( pg. 54)
( pg. 53)
T
0
!
1127.
20.
#
8 Approximate zoom ratio: Appears during
zooming. ( pg. 20)
9 Appears during zooming.
0 Appears when taking a Snapshot. ( pg. 27, 51) ! BRIGHT: Displays the brightness of the LCD
monitor or the viewfinder. ( pg. 19)
EXPLOSION: Display the selected Digital Sound Effect. ( pg. 55)
@ Displays the date/time. ( pg. 12) # Appears when the focus is adjusted manually.
031
0
:
@
Zoom level indicator ( pg. 20)
( pg. 52)
88 EN
INDEX
LCD Monitor/Viewfinder Indications During Video Playback
1 Displays the sound mode. ( pg. 43, 45)
1 2 3 54
1L2
B2I0T:/2S
O
U
N
D
1
B
L
A
N
K
SEARCH
V
O
L
U
M
E
1
:
2
5
8
7
20
6
4
S
P
MIC
.
112
.
031
:
0
7
6
2 Displays the Blank Search mode. ( pg. 25)
Displays the selected Digital Sound Effect.
3 Displays the tape speed. ( pg. 14) 4 Appears while a tape is running.
4
: Playback
3
: Fast-Forward/Shuttle search
2
: Rewind/Shuttle search
6 : Pause 64: Forward slow-motion 1
6 : Reverse slow-motion e : Audio Dubbing 6e : Audio Dubbing Pause
5 Displays the sound input for Audio Dubbing.
6 Displays the date/time. ( pg. 43, 44) 7 BRIGHT : Displays the brightness of the
VOLUME : Displays the speaker or headphone
The level indicator moves.
8 Displays the time code. ( pg. 43, 44)
LCD monitor or the viewfinder.
volume. ( pg. 22)
Indications (cont.)
( pg. 31, 55)
( pg. 65, 66)
( pg. 19)
LCD Monitor/Viewfinder Indications During D.S.C. Playback
1 Displays the type of file (IMAGE/E-CLIP/
D. SOUND).
100
2
-
0010
20.
3
2 Displays the directory and file names. (Appears
only when displaying still imges.) ( pg. 29)
3 Displays the date. (Appears only when display-
ing still imges.) ( pg. 29)
4 Displays the brightness of the LCD monitor or
the viewfinder. ( pg. 19)
The level indicator moves.
5 Displays the total number of stored files.
6 Displays the index number of the file. ( pg. 29)
12.01
1
BR I GHT
10 / 24
6 5
4
( pg. 29)
Warning Indications
Indications Function
Displays the battery remaining power. Remaining power level: high Remaining power level: exhausted As the battery power comes close to nil, the battery indicator
blinks. When the battery power is exhausted, power turns off automatically.
Appears when no tape is loaded. ( pg. 13)
CHECK TAPE’S ERASE
PROTECTION TAB
HEAD CLEANING
REQUIRED USE
CLEANING CASSETTE
CONDENSATION
OPERATION PAUSED
PLEASE WAIT
TAPE!
TAPE END
DIFFERENT
FORMATTED TAPE
SET DATE/TIME!
LENS COVER
A. DUB ERROR!
A. DUB ERROR!
<CANNOT DUB
ON A LP RECORDED
TAPE>
<CANNOT DUB
ON A 16BIT
RECORDING>
<CHECK TAPE’S ERASE
PROTECTION TAB>
<MEMORY CARD>
MEMORY IS FULL
INSERT ERROR!
Appears when the erase protection tab is set to “SAVE” while the Power Switch is set to “ ” or “ ” and the VIDEO/MEMORY Switch is set to “VIDEO”. ( pg. 17)
Appears if dirt is detected on the heads during recording. Use an optional cleaning cassette. ( pg. 92)
Appears if condensation occurs. When this indication is displayed, wait more than 1 hour until condensation disappears.
Appears if a tape is not loaded when the Recording Start/Stop Button or SNAPSHOT Button is pressed while the Power Switch is set to “ ” or “ ” and the VIDEO/MEMORY Switch is set to “VIDEO”.
Appears when the tape ends during recording or playback. ( pg. 75) Appears if a tape in another format is loaded.
Appears when the date/time is not set. ( pg. 12)
Appears when the built-in clock (lithium) battery is discharged and the
previously set date/time is erased. ( pg. 12)
Appears after power is turned on if the lens cover is not slid down.
Appears if Audio Dubbing is attempted on a blank portion of a tape.
Appears if Audio Dubbing is attempted on a tape recorded in the LP mode. ( pg. 65)
Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio. ( pg. 65)
Appears if A. DUB (e) on the remote control is pressed when the erase protection tab is set to “SAVE”. ( pg. 65)
Appears if Audio Dubbing using Digital Sound Effects is attempted when a memory card is not loaded. ( pg. 66)
Appears when the memory card’s memory is full and shooting is not possible.
Appears if Insert Editing is attempted on a blank portion of a tape.
EN89
( pg. 19)
( pg. 65)
( pg. 67)
CONTINUED ON NEXT PAGE
90 EN
Indications Function
INSERT ERROR!
<CANNOT EDIT
ON A LP RECORDED
<CHECK TAPE’S ERASE
CHECK CARD'S WRITE
PROTECTION SWITCH
TAPE>
PROTECTION TAB>
COPYING FAILED
MEMORY CARD!
PLEASE
FORMAT
NO FILES STORED
NO SOUND FILES
Unsupported file!
E01 — E06
UNIT IN SAFEGUARD
MODE REMOVE AND
REATTACH BATTERY
CARD ERROR!
INDEX
Appears if Insert Editing is attempted on a tape recorded in the LP mode. ( pg. 67)
Appears if INSERT (w) on the remote control is pressed when the erase protection tab is set to “SAVE”. ( pg. 67)
Appears if dubbing of copyguarded signals is attempted while this camcorder is being used as a recorder.
Appears in the following cases when dubbing from a tape to a memory card (as digital stills or video clips): – when no memory card is loaded. – when the memory card's memory is full. – when the memory card is not formatted. – when a copy-protected SD Memory Card is loaded. ( pg. 59, 60)
Appears if a memory card is not loaded when SNAPSHOT is pressed while the Power Switch is set to “ ” or “ ” and the VIDEO/MEMORY Switch is set to “MEMORY”. ( pg. 27)
Appears when there is a problem with a memory card and its memory is corrupt, or it has not been initialised. Initialise the memory card.
Appears when the Power Switch is set to “ ” and the VIDEO/ Switch is set to “ card.
Appears if there are no video clip files stored in the memory card when the video clip mode is engaged by pressing the SET/SELECT button.
Appears after a memory card is initialised.
Appears if there are no sound files stored in the memory card when the sound effect mode is engaged by pressing the SET/SELECT button or D.SOUND is pressed during video recording.
Appears when a file in a format other than MP3 for digital sound or DCF for image is selected.
The error indications (E01 — E06) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Remove the power supply (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. If the indication remains, consult your nearest THOMSON dealer.
Appears when the camcorder takes more than 60 seconds to recognise the loaded memory card. Remove the memory card once and insert it again. Repeat these procedures until no indication appears. If the indication still appears, the memory card is corrupted.
Appears when you attempt to shoot digital still images while a copy­protected SD Memory Card is loaded.
MEMORY
” if there are no image files stored in the memory
Indications (cont.)
( pg. 37)
MEMORY
CAUTIONS
General Battery Precautions
If the remote control is not functioning even if it is being operated correctly, the batteries are ex­hausted. Replace them with fresh ones.
Use only the following batteries: AAA (R03) size x 2 Please make note of the following rules for battery
use. When misused, the batteries can leak or explode.
1. When replacing batteries, refer to page 61.
2. Do not use any different size of batteries from those
specified.
3. Be sure to install batteries in the correct direction.
4. Do not use rechargeable batteries.
5. Do not expose the batteries to excessive heat as
they can leak or explode.
6. Do not dispose of the batteries in a fire.
7. Remove the batteries from the unit if it is to be
stored for an extended period to avoid battery leakage which can cause malfunctions.
8. Do not recharge the provided batteries.
Battery Packs
The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:
1. To avoid hazards . . .
.... do not burn.
.... do not short-circuit the terminals. When
transporting, make sure the provided battery cap is attached to the battery. If the battery cap is misplaced, carry the battery in a plastic bag.
.... do not modify or disassemble.
.... do not expose the battery to temperatures
exceeding 60°C, as this may cause the battery to overheat, explode or catch fire.
.... use only specified chargers.
Terminals
EN91
2. To prevent damage and prolong service life . . .
.... do not subject to unnecessary shock.
.... charge in an environment where temperatures
are within the tolerances shown in the chart below. This is a chemical reaction type batterycooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging.
.... store in a cool, dry place. Extended exposure
to high temperatures will increase natural discharge and shorten service life.
.... fully charge and then fully discharge the
battery every 6 months when storing the battery pack over a long period time.
.... remove from charger or powered unit when
not in use, as some machines use current even when switched off.
NOTES:
It is normal for the battery pack to be warm after charging, or after use.
Temperature Range Specifications
Charging ............. 10°C to 35°C
Operation ........... 0°C to 40°C
Storage ............... –10°C to 30°C
Recharging time is based on room temperature of 20°C.
The lower the temperature, the longer recharging take
s.
Cassettes
To properly use and store your cassettes, be sure to read the following cautions:
1. During use . . .
.... make sure the cassette bears the Mini DV mark.
.... be aware that recording onto prerecorded
tapes automatically erases the previously recorded video and audio signals.
.... make sure the cassette is positioned properly
when inserting.
.... do not load and unload the cassette
repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage.
.... do not open the front tape cover. This exposes
the tape to fingerprints and dust.
2. Store cassettes . . .
.... away from heaters or other heat sources.
.... out of direct sunlight.
.... where they wont be subject to unnecessary
shock or vibration.
.... where they wont be exposed to strong
magnetic fields (such as those generated by motors, transformers or magnets).
.... vertically, in their original cases.
92 EN
Memory Cards
To properly use and store your memory cards, be sure to read the following cautions:
1. During use . . .
.... make sure the memory card bears the SD or
MultiMediaCard mark.
.... make sure the memory card is positioned
properly when inserting.
2. While the memory card is being accessed (during recording, playback, deletion, initialisation, etc.) . . .
.... never unload the memory card and never turn
off the camcorder.
3. Store memory cards . . .
.... away from heaters or other heat sources.
.... out of direct sunlight.
.... where they wont be subject to unnecessary
shock or vibration.
.... where they wont be exposed to strong
magnetic fields (such as those generated by motors, transformers or magnets).
LCD Monitor
1. To prevent damage to the LCD monitor, DO NOT . . .
.... push it strongly or apply any shocks.
.... place the camcorder with the LCD monitor on
the bottom.
2. To prolong service life . . .
.... avoid rubbing it with coarse cloth.
3. Be aware of the following phenomena for LCD monitor use. These are not malfunctions:
While using the camcorder, the surface around
the LCD monitor and/or the back of the LCD monitor may heat up.
If you leave power on for a long time, the
surface around the LCD monitor becomes hot.
Main Unit
1. For safety, DO NOT . . .
.... open the camcorders chassis.
.... disassemble or modify the unit.
.... short-circuit the terminals of the battery pack.
Keep it away from metallic objects when not in use.
.... allow inflammables, water or metallic objects
to enter the unit.
.... remove the battery pack or disconnect the
power supply while the power is on.
.... leave the battery pack attached when the
camcorder is not in use.
2. Avoid using the unit . . .
.... in places subject to excessive humidity or dust.
.... in places subject to soot or steam such as near
a cooking stove.
CAUTIONS
.... in places subject to excessive shock or vibration.
.... near a television set.
.... near appliances generating strong magnetic or
electric fields (speakers, broadcasting anten­nas, etc.).
.... in places subject to extremely high (over 40°C)
or extremely low (under 0°C) temperatures.
3. DO NOT leave the unit . . .
.... in places of over 50°C.
.... in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
.... in direct sunlight.
.... in a closed car in summer.
.... near a heater.
4. To protect the unit, DO NOT . . .
.... allow it to become wet.
.... drop the unit or strike it against hard objects.
.... subject it to shock or excessive vibration
during transportation.
.... keep the lens directed at extremely bright
objects for long periods.
.... expose the lens to direct sunlight.
.... carry it by holding the LCD monitor or the
viewfinder.
.... swing it excessively when using the hand strap
or the grip.
5. Dirty heads can cause the following problems:
No picture during playback.
Blocks of noise appear during playback.
During recording, the Head Clog Warning
indicator appears.
In such cases, use an optional cleaning cassette. Insert it and play back. If the cassette is used more than once consecutively, damage to the video heads may result. After the camcorder plays back for about 20 seconds, it stops automatically. Also refer to the cleaning cassettes instructions. If, after using the cleaning cassette, the problems still exist, consult your nearest THOMSON dealer. Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time. In order to maintain a clear picture at all times, periodic check-ups are recommended after using the unit for about 1,000 hours. For periodic check-ups please consult your nearest THOMSON dealer.
(cont.)
How To Handle A CD-ROM
Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the centre hole using a circular motion.
Do not use conventional disc cleaners or cleaning spray.
Do not bend the CD-ROM or touch its mirror surface.
Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight.
About moisture condensation . . .
You have observed that pouring a cold liquid into a glass will cause drops of water to form on the glass outer surface. This same phenomenon occurs on the head drum of a camcorder when it is moved from a cool place to a warm place, after heating a cold room, under extremely humid conditions or in a place directly subjected to the cool air from an air conditioner.
Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself.
EN93
Serious malfunctioning
If malfunctioning occurs, stop using the unit immediately and consult your local THOMSON dealer.
The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from function­ing properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Charger, etc.) and wait a few minutes and then re-connect it and proceed as usual from the beginning.
94 EN
A
AC Power Adapter/Charger ................... pg. 9, 10
Animation ................................................ pg. 40
Audio Dubbing ......................................... pg. 65
Auto Date ................................................. pg. 42
Auto Focus ................................................ pg. 52
Auto Playback ........................................... pg. 29
Auto Shut off .......................................墌 pg. 19, 28
B
Backlight Compensation ........................... pg. 53
Battery Low ............................................... pg. 89
Battery Pack .................................... pg. 9, 10, 91
Beep ......................................................... pg. 41
Blank Search ............................................. pg. 25
Brighten The LCD Monitor ........................ pg. 19
Built-in Clock's Lithium Battery ................. pg. 12
C
Channels (Left/Right) ................................. pg. 45
Charge The Battery Pack ............................. pg. 9
Cinema ..................................................... pg. 41
Classic Film .............................................. pg. 48
Clean The Camcorder ............................... pg. 82
Connections ............ 墌 pg. 9, 10, 23, 57, 58, 69, 73
D
Darken The LCD Monitor ......................... pg. 19
Date/Time Display ............................ 墌 pg. 42 – 44
Date/Time Settings .................................... pg. 12
Deleting Files ......................................墌 pg. 33, 34
Demonstration Mode ............................ pg. 7, 41
Digital Sound Effect .................................. pg. 55
Digital Zoom ...................................... 墌 pg. 20, 40
DIS (Digital Image Stabiliser) ..................... pg. 40
DPOF (Digital Print Order Format) ......墌 pg. 35, 36
Dubbing ........................................... pg. 57 – 60
E
E-Mail Clip Recording ............................... pg. 60
Erase Protection .................................. 墌 pg. 13, 15
Exposure Control ...................................... pg. 53
TERMS
F
Fade-In/Out ........................................ pg. 49, 50
Fast-Forward The Tape .............................. pg. 22
5-Second Recording Mode ....................... pg. 46
Frame-By-Frame Playback ........................ pg. 63
G
Gain Up .................................................... pg. 40
I
Icons ................................................. 墌 pg. 40 – 42
Image Size Mode ...................................... pg. 16
Index Playback ......................................... pg. 31
Index Screen ............................................. pg. 30
Initialise A Memory Card .......................... pg. 37
Insert Editing ............................................. pg. 67
Interface Shooting ..................................... pg. 20
Iris ............................................................ pg. 53
Iris Lock .................................................... pg. 53
J
Journalistic Shooting ................................. pg. 20
Jump Playback .......................................... pg. 31
L
LCD monitor/Viewfinder
Indications...................................... pg. 86 – 90
Load A Tape .............................................. pg. 13
M
Manual Focus ........................................... pg. 52
Memory Card ...................................... pg. 15, 92
Menu Screen, CAMERA ............................ pg. 40
Menu Screen, DISPLAY ....................... 墌 pg. 42, 44
Menu Screen, DSC .................................... pg. 42
Menu Screen, MANUAL ..................... 墌 pg. 40, 41
Menu Screen, MEMORY ............. pg. 29 – 37, 44
Menu Screen, SYSTEM ...................... 墌 pg. 41 – 44
Menu Screen, VIDEO ................................ pg. 43
Monotone ................................................. pg. 48
Motor Drive Mode .................................... pg. 51
MultiMediaCard .................................. pg. 15, 92
N
Night-Mode .............................................. pg. 47
P
Picture Quality Mode ................................ pg. 16
Picture Wipe/Dissolve ......................... 墌 pg. 49, 50
Playback Special Effects ............................ pg. 64
Playback Zoom ......................................... pg. 63
Power Switch Position .............................. pg. 17
Program AE With Special Effects ......... 墌 pg. 47, 48
Protecting Files ......................................... pg. 32
Provided Accessories .................................. pg. 5
R
Random Assemble Editing ................. 墌 pg. 68 – 72
Record-Standby ........................................ pg. 19
Recording Mode ....................................... pg. 14
Remote Control ......................................... pg. 61
Reset ......................................................... pg. 42
Rewind The Tape ...................................... pg. 22
S
SD Memory Card ................................ 墌 pg. 15, 92
Self-Recording .......................................... pg. 20
Sepia ......................................................... pg. 48
Set Remote Control/VCR Code .................. pg. 68
Shuttle Search ........................................... pg. 22
Shutter Speed ............................................ pg. 48
Slow-Motion Playback .............................. pg. 63
Slow Shutter .............................................. pg. 47
Snapshot ............................................. 墌 pg. 27, 51
Snapshot Mode ................................... 墌 pg. 27, 51
Snow ........................................................ pg. 48
Sound Mode ................................. pg. 40, 43, 45
Speaker Volume ........................................ pg. 22
Specifications ...................................... 墌 pg. 96, 97
Sports ........................................................ pg. 48
Spotlight ................................................... pg. 48
Squeeze .................................................... pg. 41
Still Playback ............................................ pg. 22
Strobe ....................................................... pg. 48
EN95
T
Tally .................................................... pg. 19, 41
Tele Macro ................................................ pg. 40
Time Code .................................. pg. 21, 42 – 44
Tripod Mounting ....................................... pg. 11
Twilight ..................................................... pg. 48
U
Unload A Tape .......................................... pg. 13
V
VIDEO/MEMORY Switch .......................... pg. 17
Video Echo ............................................... pg. 48
Viewfinder Adjustment.............................. pg. 11
W
White Balance .......................................... pg. 54
Wide Mode ............................................... pg. 41
Wind Cut .................................................. pg. 41
Wipe In/Out ........................................ 墌 pg. 49, 50
Z
Zooming ................................................... pg. 20
96 EN
SPECIFICATIONS
Camcorder
For General
Power supply : DC 6.3 V (Using AC Power Adapter/Charger)
Power consumption
LCD monitor off, viewfinder on : Approx. 4.1 W LCD monitor on, viewfinder off : Approx. 5.0 W
Dimensions (W x H x D) : 43 mm x 115 mm x 80 mm
Weight : Approx. 340 g
Operating temperature :0°C to 40°C Operating humidity : 35% to 80% Storage temperature : –20°C to 50°C Pickup : 1/4" CCD Lens : F 1.8, f = 3.7 mm to 37 mm, 10:1 power zoom lens
LCD monitor : 2" diagonally measured, LCD panel/TFT active matrix system Viewfinder : Electronic viewfinder with 0.44" colour LCD Speaker : Monaural
For Digital Video Camera
Format : DV format (SD mode) Signal format : PAL standard Recording/Playback format : Video: Digital component recording
Cassette : Mini DV cassette Tape speed : SP: 18.8 mm/s
Maximum recording time : SP: 80 min. (using 80 min. cassette) LP: 120 min.
For Digital Still Camera
Storage media : SD Memroy Card/MultiMediaCard Compression system : Still image : JPEG (compatible)
File size : 2 modes (XGA: 1024 x 768 pixels/VGA: 640 x 480 pixels) Picture quality : 2 modes (FINE/STANDARD) Approximate number of storable images
(with the provided MultiMediaCard [16 MB])
FINE : 105 (VGA), 49 (XGA) STANDARD : 310 (VGA), 150 (XGA)
For other memory cards, see pg. 16.
DC 7.2 V (Using battery pack)
(with the LCD monitor closed and the viewfinder pushed back in)
(without battery and cassette) Approx. 410 g (incl. battery and cassette)
(It is not possible to attach any lens filter or conversion lens.)
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
LP: 12.5 mm/s
Moving image : MPEG4 (compatible)
For Connectors
AV
Video output :1 V (p-p), 75 , analogue Audio output : 300 mV (rms), 1 k, analogue, stereo
DV
Input/output : 4-pin, IEEE 1394 compliant
AC Power Adapter/Charger ACD270
Power requirement : AC 110 V to 240 V`, 50 Hz/60 Hz Power consumption : 23 W Output
Charge : DC 7.2 V , 1.2 A
VTR : DC 6.3 V , 1.8 A Dimensions (W x H x D) : 68 mm x 44 mm x 110 mm Weight : Approx. 250 g
Docking Station DS270
For General
Dimensions (W x H x D) : 48.4 mm x 36 mm x 79 mm Weight : Approx. 53 g
EN97
For Connectors
PHONE
Headphone output : ø3.5 mm, stereo USB : TYPE B S-VIDEO OUT : Y: 1 V (p-p), 75 , analogue output
EDIT : ø3.5 mm, 2-pole
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.
C: 0.29 V (p-p), 75 , analogue output
98 EN
You can contact THOMSON by dialling: 0845 601 3093,
(for Great Britain, all calls will be charged at local rate).
HELPLINE THOMSON
from 16 October 2000
www.thomson-europe.com
Model and serial number
THOMSON multimedia
46 quai A. Le Gallo 92648 Boulogne Cedex France RCS NANTERRE B 322 019 464
http://www.thomson-europe.com
35162680 LYT0848-001A
Dealer's address
© Copyright THOMSON multimedia 2001
Loading...
