THOMSON 46, quai Alphonse Le Gallo 92648 Boulogne Cedex FRANCE TOCOM www.thomson.net
DPL5000 Audio Video Receiver User’s Guide
1
Table of Contents
Safety Information
Table of Contents
Getting Started
Unpacking the Receiver . . . . . . . . . . . . .2
Unpacking the Speakers . . . . . . . . . . . . .2
Inserting Batteries into Remote Control .3 Set Up and Maintenance of the
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . .3
Protect your Components from
Overheating . . . . . . . . . . . . . . . . . . . . . . .3
Using Headphones . . . . . . . . . . . . . . . . . .3
Connecting to Audio-Visual
Components . . . . . . . . . . . . . . . . . . . . . .4
Digital Connection . . . . . . . . . . . . . . . . .5
TV Connections . . . . . . . . . . . . . . . . . . . .5
Connecting the Antennas . . . . . . . . . . . .5
Connecting the Speakers . . . . . . . . . . . . .6
Connecting the Subwoofer . . . . . . . . . . .6
Positioning your Speaker . . . . . . . . . . . . .7
Front Speaker Placement . . . . . . . . . . . . .7
Advanced Settings (Main and Center) . . .7
Preferred Surround Placement . . . . . . . .8
Advanced Setting (Surround / Rear) . . . .8
Test Tone / Channel Balance . . . . . . . . . .9
Factory Setting . . . . . . . . . . . . . . . . . . . . .9
Operating your Receiver
Receiver Controls . . . . . . . . . . . . . . . . . .10
Remote Control . . . . . . . . . . . . . . . . . . .11
Display . . . . . . . . . . . . . . . . . . . . . . . . . .12
Switching the Unit On/Off . . . . . . . . . . .13
Selection of Audio/Video Source . . . . . .13
Using the Remote to Control Additional
Components . . . . . . . . . . . . . . . . . . . . . .14
Using the receiver to play a Source . . . .15
Operating the Radio . . . . . . . . . . . . . . .16
Advanced Sound Control
Sound Enhancement Systems . . . . . . . .19
Fine Setting of Components . . . . . . . . .21
Input Signal Setting . . . . . . . . . . . . . .19
Digital Input . . . . . . . . . . . . . . . . . . . .19
Analog Input . . . . . . . . . . . . . . . . . . .19
Fine Setting of the Speakers . . . . . . . . .22
Advanced Setting . . . . . . . . . . . . . . . . .22
Troubleshooting Tips
Troubleshooting Tips . . . . . . . . . . . . . . .24
Receiver/Tuner Operation . . . . . . . . . .24
Remote Control Operation . . . . . . . . .24
General . . . . . . . . . . . . . . . . . . . . . . . .24
Cleaning the Exterior . . . . . . . . . . . . .24
Care and Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .25
Important battery information . . . . . . .25
Safety precautions . . . . . . . . . . . . . . . . .25
Headset safety . . . . . . . . . . . . . . . . . . . .25
Don’t infringe . . . . . . . . . . . . . . . . . . . .25
Equipment Specifications . . . . . . . . . . .25
Safety Information
Rating Information: At bottom / back of the unit this unit comply with the existing requirements
In accordance with the rating plate of the unit, this unit complies with current standards concerning electrical safety and electromagnetic compatibility.
Please respect the environment Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
Have a Blast- Just Not in Your Eardrums Make sure you turn down the volume on the unit before you put on headphones. Increase the volume to the desired level only after headphone are in place.
WARNING: TO PREVENT FIRE
OR ELECTRICAL
SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CA UTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.
THE LIGHTNING FLASH AND ARROW­HEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF "DANGEROUS VOLTAGE" INSIDE THE PRODUCT.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER­SERVICEABLE PARTS IN­SIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
For UK Only
CONNECT THE MAIN LEAD INTO A MAINS POWER SOCKET
POWER SUPPLY 230V. It must not be connected to D.C. mains.
Note; The mains lead of the set is fitted with a molded plug. If the mains socket are not compatible or if for any reason the plug is removed please follow the directions below. The molded plug cannot be rewired and if removed must be disposed of safely.
DO NOT under any circumstances plug the severed plug into any mains socket as this could result in electric shock.
Important: If the plug is removed, rewire the new plug as follow: The wires in the mains plug are coloured in accordance to the following code:
BLUE = NEUTRAL/BROWN = LIVE
If the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: BLUE wire to the terminal coded N (Neutral) or coloured black. BROWN wire to the terminal coded L (Live) or coloured red.
DO NOT make any connection to the terminal in the plug which is marked by the letter E or by the earth symbol or coloured green or green and yellow.
A fused plug must be fitted with a 3A fuse approved by ASTA or BS1362 and fuse covers must be always be securely replaced. If you set does not work, the fuse may be blown.
1
1
1
The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice. The English version serves as the final reference on all products and operational details should any discrepancies arise in other languages.
The product comply with California Proposition 65, details refer to this procedure requirement in Tocom#55971960.
Getting Started
Inserting Batteries into Remote Control
Install batteries as follows:
1. Remove the battery compartment door by applying thumb pressure on battery door and then lift the door out and off the cabinet.
2. Insert 2 “AAA” (R03) batteries into the battery compartment according to the + and - signs in the compartment and replace the compartment door.
3. To use the remote control, point it directly at your receiver.
Set up and Maintenance of the Receiver
Provide spaces for sufficient ventilation as indicated:
• Do not connect to the AC power cords until all connections are completed.
• Do not use your set immediately after transferring it from a cold place to a warm place: there is risk of condensation.
• Do not expose your set to water and excessively high temperatures.
• After having disconnected your set, clean the case with a soft cloth, or with a slightly damp leather chamois. Never use strong solvents.
Protect your Components from Overheating
• Do not block ventilation holes in any component. Arrange the components so that air can circulate freely.
• Do not stack components directly on top of each other.
• Do not place the unit near other components that generate heat such as heating vents.
• Allow adequate ventilation when placing your components in a stand.
• Place an amplifier near the top shelf of the stand so heated air rising from it will not affect other components. If you have a satellite receiver, you should place it on the top shelf.
Using Headphones
To listen privately through your audio system, use the PHONES jack on the receiver. However, make sure you turn down the volume before you put on the headphones. Increase the volume to the desired level after headphones are in place.
Once headphones are connected, “HEADPHONE DOWN MIX 2 CHANNEL” will scroll on display. This feature automatically converts multi-channel speaker outputs to 2 channel stereo for your listening pleasure.
Hearing Comfort & Well-Being
• Do not play your headset at a high volume. Hearing experts advise against continuous extended play.
• If you experience a ringing in your ears, reduce volume or discontinue use.
3
Getting Started
Unpacking the Receiver
You should receive the following items:
2
One receiver unit
One pair of “AAA”
batteries
One pig-tail
antenna wire
One external AM loop
antenna
• one instruction book;
• Thomson Warranty Card;
• one Quick Connection Guide
One Remote Control
one audio cable (two wires) with red and white RCA connectors;
Unpacking The Speakers
• one set of speakers include 1 set of left and right front speakers, 1 center speaker, 1 subwoofer and 1 set of left and right rear speakers.
• 6 speaker wires including:
1 X silver wire with
white/black band for
front left speaker
1 X silver wire with
purple/black band for
subwoofer
1 X silver wire with
green/black band for
center speaker
1 X silver wire with
red/black band for front
right speaker
1 X silver wire with
blue/black band for rear
left speaker
1 X silver wire with
grey/black band for rear
right speaker
one Video cable
ON/ECO
Thomson Warranty Card
SURROUND
SUBWOOFER SOURCE
PRESET
VOLUME
PHONES
+ -
+ -
TUNER
DVD 6CH
ST MONO
RDS
SURROUND
EQUALIZER
SET UP
TUNER -
TAPE CD
SUBWOOFER
SAVE
AUX 1 (VCR)
LEVEL
GUIDE
TUNER +
(SAT CABLE)
PR
PTY
NIGHT
10 cm/4"
10 cm/ 4"
AUX 2
Front View
10 cm/ 4"
10 cm/4"
5 cm/ 2"
Side View
Getting Started
5
Getting Started
Connecting to Audio-Visual Components
4
Digital Connections
Read instructions carefully when connecting components to the receiver.
Digital Input Jacks can accept Dolby Digital (AC-3) or PCM signals when compatible components are connected.
TV Connections
TVs with RF input may need a RF modulator (not included) for inputting audio / video signals.
Connecting the Antennas
The AM and FM antennas connect to the AM and FM terminals on the system’s back panel.
They must be hooked up in order to receive clear reception.
AM Loop Antenna
1. Uncoil the Antenna wire and locate the base end of the AM antenna.
2. Press down on the Antenna tab to open the terminal.
3. Inert the antenna wires into the terminal and release the tabs to secure the wires in place.
FM Antenna
Insert the FM pig-tail antenna into the FM Antenna jack on the back of the unit.
HINT
• For FM reception, extend antenna to its full length.
• For AM reception, rotate the antenna horizontally to get better reception.
If your CD player is equipped with digital optical jacks, use of optical cable is preferred. What you need is just one more digital optical cable (not supplied). Plug it in the digital input jack of the receiver and select OPTICAL 1 or 2 on the receiver setting (see details on pg 20 chapter "Input Signal Setting"). You can enjoy better sound quality brought to you by the optical cable. When optical cable is used, analog cables are still needed for recording to tape / VCR output.
CD Player
6 CH. INPUT
Connect components capable of outputing 6 channal signals (e.g. DVD).
6 CH. EXTERNAL INPUT
DIGITAL CONNECTION
If you have a SAT receiver DVD player or CD player with a digital output, you can make use of an optical digital cable (not supplied) or coaxial digital cable (not supplied) to carry the audio portion of the signal and enjoy Dolby Digital sound quality. One optical or coaxial cable is needed for each SAT receiver, DVD player or CD player. When optical or coaxial cable is used, the analog audio cables are still needed if recording through a tape or VCR is desired. This receiver provides 2 optical and 1 coaxial digital input for the connection of your components. Connect your components (e.g. DVD, SAT or CD) to the appropriate digital inputs and refer to the "Input Signal Setting" section on page 20 to select the corresponding digital input source. Note: Optical and coax cables carry only the audio portion of the signal. A video connection must also be established for a SAT receiver and DVD player. S-video provides the best connection for the video portion of the signal. Composite video (yellow RCA connector) can also be used. It is important that the same type of cable (S-video or composite) that is connected from the Home Theatre to the TV is used to connect the SAT receiver or DVD player to the Home Theatre.
to AUDIO OUT (CD)
RL
to LINE OUT (Tape Deck)
Tape Deck
AUDIO
to LINE IN ( Tape Deck )
TAPE
to VIDEO OUT (VCR)
CD
IN
IN
OUT
SAT IN
to AUDIO OUT (SAT)
to VIDEO OUT (SAT)
VIDEO
L
AUDIO
R
DVD IN
SAT
S-VIDEO
If your video component has a S-Video jack included, you can make use of it to enjoy enhanced video quality by connecting it to the relevant S-Video jack at the rear side of the receiver. One S-video cable is needed for each component. When S-Video cable is used, composite video (yellow RCA connector) cable must also be connected for VCR recording. Note: Before plugging in the optical cable or S-Video cable, make sure to match the shape of the plug and jack, otherwise, you will not be able to plug in completely.
VCR
to AUDIO OUT (VCR)
to AUDIO IN (VCR)
to VIDEO IN (VCR)
IN OUT
VCR
to S-VIDEO OUT (SAT)
to VIDEO OUT (DVD)
TV IN
to AUDIO OUT (DVD)
VIDEO
OUT
TO TV
TV CD
12
DVD SA
T
to S-VIDEO OUT (DVD)
DVD
to VIDEO IN (TV)
to AUDIO OUT (TV)
DIGITAL
COAXIAL
DVD SAT
CD
TV
to S-VIDEO IN (TV)
DVD IN SAT IN
OUT TO TV
DIGITAL INPUTS
Connect components capable of outputing Dolby Digital (e.g. DVD or SAT) or standard PCM (CD) format digital signals. Read section on "Input Signal Setting" under "Advanced Sound Control" (refer to pg 20) carefully to adjust the matching input settings.
S-VIDEO
OPTICAL DIGITAL IN (AUDIO)
Optical Fiber Cable Connect to optical digital output of DVD, CD, SAT or other compatible devices.
SAT / DVD / CD Player / TV
TV CD
12
DVD
DIGITAL
SAT
VIDEO
VIDEO
OUT
TO TV
L
AUDIO
R
TV CD
IN OUT
DVD
VCR
TV IN
SAT
DVD IN
SAT IN
12
DIGITAL
AM
GND
LOOP
CD DVD SAT
DVD IN SAT IN
COAXIAL
SUBWOOFER
COAXIAL DIGITAL IN (AUDIO)
Connect to coaxial digital output of DVD, CD, SAT or other compatible devices.
DVD / CD / SAT
RL
AUDIO
CD IN
IN
TAPE
OUT
4‰
8‰
4‰
FR FL
SUB
SL
SR
CEN
SPEAKERS
PRE OUT
TV
RF cable
RF in RF out
RF modulator
AV in
AV cable
AV out
The diagram shown above may varies from your actual RF modulator, please refer to your RF modulator manual.
COAXIAL
FM
ANTENNA
AM
GND
LOOP
CD DVD SAT
AC ~ 120V 60Hz
S-VIDEO
OUT TO TV
FM
ANTENNA
Getting Started
Positioning your speaker
1 Left, Right (Front Speakers)
They carry primarily music and sound effects
2 Center
In surround mode, the center speaker carries much of the dialogue as well as music and effects. It should be set between the left and right speakers.
3 Surround (Rear Speakers)
Their overall sound balance should be as close as possible to the front speakers. Proper placement is vital to establish an evenly distributed sound field.
4 Subwoofer
A subwoofer is designed to reproduce powerful low bass effects (explosions, the rumble of spaceships, etc.) which dramatically heightens involvement with the action on the screen.
Magnetic shielding
Speakers placed less than two feet from the TV set must be magnetically shielded in order to prevent picture distortion. Front and center speakers provided with this unit are magnetically shielded to protect your TV set.
It is not recommended to place the rear speakers and subwoofer near the TV set.
Front Speaker Placement
Even if you can't duplicate this ideal home theater setup exactly, the suggestions for speaker placement that follow will help you get good results.
Alignment
Align the center speaker evenly with (A), or slightly behind (B), the left and right speakers, but not ahead of them.
Advanced Setting
Angle
Placing the left and right speakers to form a 45-degree angle with your favorite viewing position will duplicate the soundtrack mixer's perspective.
Height
The three speakers should be as close as possible to the same height. This often requires placing the center speaker directly atop (A) or beneath (B) the TV set.
7
Getting Started
Connecting the Speakers
Speakers
There are 6 speakers equipped with the unit (2 front, 1 center, 2 rear, 1 subwoofer). In order to enjoy good surround effects, all six speakers need to be connected to the receiver.
At least two front speakers (left and right) are required. For better sound quality, Center speaker, rear speakers and Subwoofer should also be connected. Adding center and rear speakers will enhance surround effects. Adding a Subwoofer will increase bass response.
If you want to enjoy the full sound range, use the subwoofer with the speakers to maintain adequate bass signal.
Speaker wires
One for each speaker, is needed for connection. Press down on the tab to open the terminal and insert the wire. Release tab to lock wire in the terminal.
Speaker Polarity
When connecting the speakers, make sure the polarities of speaker wires and terminals are matched (“+” speaker wire to “+” on the receiver). If the wires are reversed, the sound will be distorted and will lack bass (“out of phase” effect).
Connecting the Subwoofer
Connect the subwoofer with the speaker wire provided.
6
1
1
2
3
3
A
B
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
4
FRONT SPEAKERS
RED/GREY BA
SI LVER W
IRE W
ND
ITH
REAR SPEAKERS
S
W
SILVER W
G
I L
R
HITE/GREY BAND
V
E
E
Y
R
/G
W
R
I
IRE
E
R
Y
E
B
W
W
A
IT
ITH
N
H
D
SILVER WIRE WITH GREEN/GREY BAND
CENTRE SPEAKER
SILVER W
BLUE/GREY BAND
IRE W
ITH
SILVER WIRE WITH PURPLE/GREY BAND
SUBWOOFER
Antenna and Speaker
Push terminal tab down to insert wire.
NOTE: Make sure the insulation
ends of the Antenna and points.
is completely removed from the
Wire Connection
Release tab to lock wire in the terminal.
speaker wires at all connection
Getting Started
Preferred surround placement
Location
If possible, place surround speakers to either side of the listening area, not behind it.
Height
If space permits, install surrounds 60cm-90cm (2-3 feet) above viewers. This helps to minimize localization effects.
Aiming
Aiming surrounds straight across the room, not down at viewers, helps create a more open, spacious surround sound field.
Advanced Setting Alternative Surround Placement
Rear wall
If rear wall mounting is the only choice, aim the speakers at each other (A), towards the front (B) or even towards the sidewalls (C, D). Experiment with placement until surround sounds seem to envelop you, rather than coming from behind you.
No adjacent walls
Surrounds can go on stands facing each other to approximate the preferred sidewall mounting (A), or to the sides or rear of the viewing area aimed upwards. In the latter case, they can go right on the floor, or preferably, a few feet off the floor such as on end tables (B).
8
Getting Started
9
Test Tone / Channel balance
Channel balance
Your receiver is equipped with a test signal generator for balancing the channels. As the signal "travels" from channel to channel, adjust the level controls until each channel plays at the same loudness level.
To activate and adjust test tone, refer to “Testing Speaker Loudness” under the “Advanced Sound Control” section (Pg 20).
Level adjustment & surround channel level expectation
Even though you adjust the surround channel to be as loud as the others on the test signal, you'll find that on actual program material the surround channel is usually much lower than the front. Don't be tempted to readjust the surround level; program producers use surround mostly for subtle atmospheric and ambience, and only rarely for special effects. A good surround mix doesn't call attention to itself; if it did, it would soon become distracting.
Factory Setting
The unit is preset to the following settings when you first power the receiver up right out of the box: Function = TUNER Volume setting = 25 Bass & treble = 0 dB EQ = FLAT Speaker settings: Center, surr = YES
Subwoofer = STRONG
DRC = OFF
You may restore factory setting with the following procedures:
1. Enter SAT mode.
2. Press PRESET UP, PRESET DOWN, SOURCE to reset the unit.
All preset stations will reset to FM87.5MHz and all receiver settings restore to default settings as described above.
NOTE
The system is equipped with Dolby Digital, and manufactured under License from Dolby Laboratories.
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
Courtesy Dolby Laboratories
NOTE
STRONG SUBWOOFER setting makes the output level of subwoofer speaker to be stronger than normal Dolby setting. Adjust the SUBWOOFER setting by pressing the SUBWOOFER key to achieve the best bass performance.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380,
5,978,762 and other world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved.
WARNING
All preset radio stations and surround sound settings will be lost after factory setting is restored.
Dolby Digital Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories. Copyright 1992-1997 Dolby Laboratories, Inc. All Rights Reserved.
Operating Your Receiver
11
Operating Your Receiver
1. ON/ECO
Turns the unit on and off. When the system is turned on, the unit will go to the mode it was in before powered off.
2. Display
Displays current status of the receiver.
3. SUBWOOFER
Selects among subwoofer sound level. (SOFT SUBWOOFER, BALANCED SUBWOOFER, STRONG SUBWOOFER, POWERFUL SUBWOOFER)
4. SOURCE
Selects sound source. (DVD, VCR, SAT, CD, TAPE, TV and TUNER)
5. SURROUND Buttons
Selects digital sound processor. (DOLBY PLII MOVIE, DOLBY PLII MUSIC. DOLBY PL EMULATION, 3 STEREO, ARENA, JAZZ CLUB, THEATER, STADIUM, DISCO, STEREO)
6. PRESET Buttons
Selects preset station in Tuner mode.
7. VOLUME
Increases and decreases volume level
8. PHONES
Plug your headphones (not supplied) into it for your private enjoyment. Speakers will be off when phones are inserted.
1
2
5
6
Remote Control
Please be sure you have inserted the batteries into the remote control (see relevant section on page 3.) You can test it by pressing any button.
1. ON•OFF
Turns the receiver and other Thomson auxiliary components on and off. (see page 14 “Using the Remote to Control Additional Components”).
2. Source Buttons
Selects various audio/ video sources.
3. + / - (Volume Buttons)
Adjusts the volume level.
4. CH+ / CH- (Channel Buttons)
Selects programmed stations in TUNER mode.
Changes chapter when the source is in DVD. Changes Station or Channel when the source is in TV or Satellite.
5. MUTE
Mutes all audio output.
6. GO BACK / ST•MONO
• Selects between Stereo and Mono sound in Tuner mode.
7. Adjustment Buttons
• Press the Left or Right buttons to select among setting items in setup mode: SLEEP, DIMMER, SPEAKER DISTANCE, SPEAKER SETUP, and audio input source (ANALOG, OPTICAL / COAXIAL).
• Press the Up or Down buttons to adjust the values when the display shows the setup you want to change.
Left / RDS - In Tuner mode, press the Left arrow button to show Radio Data System (RDS) information if available. (Frequency station, Station name, program type, clock and radio text)
Right / PTY - In Tuner mode, press the Right arrow button to activate search by program type (PTY).
8. SURROUND
Selects among surround sound settings: DOLBY PLII MOVIE, DOLBY PLII MUSIC. DOLBY PL EMULATION, 3 STEREO, ARENA, JAZZ CLUB, THEATER, STADIUM, DISCO, STEREO.
ARENA, JAZZ CLUB, THEATER, STADIUM and DISCO
are not
available when Dolby Digital or DTS is displayed.
9. EQUALIZER
Selects among preset equalizer modes in stereo mode. (FLAT, CLASSIC, ROCK, JAZZ and POP); select TREBLE and BASS settings and use UP or DOWN to change value.
10. NIGHT
Selects among Night mode options (DRC OFF, SOFT and ON) which compresses the volume difference between normal voices and sounds such as explosions. (Available only during Dolby digital signal playback)
11. LEVEL
Speaker LEVEL setting and Test tone. Refer to “Advanced Sound Control” on pg. 21 for details.
12. SUBWOOFER
Selects among subwoofer output level (SOFT SUBWOOFER, BALANCED SUBWOOFER, STRONG SUBWOOFER, POWERFUL SUBWOOFER).
13. Number Buttons
Directly access a preset station in Tuner mode. Changes Chapter or Title when the source is in DVD. Changes Station or Channel when the source is in TV or Satellite.
14. SETUP
Enters Setup mode. Use the LEFT and RIGHT buttons to select among setup options, and use UP or DOWN to change value. (SLEEP, DIMMER, FRONT SPK DISTANCE, CENTER SPK DISTANCE, SURROUND SPK DISTANCE, CENTER SPK ON/OFF, SURROUND SPK ON/OFF).
15. Operation Buttons
In TUNER mode:
• Press the TUNER - and TUNER + buttons to tune down or up
the radio frequency.
• Press SAVE to activate the preset station saving and press to
confirm preset station settings.
PLAY, RECORD, STOP and PAUSE buttons are only for easy
control of external devices that are connected to your receiver such as CD, VCR, DVD, TAPE, etc.. The remote control currently operates most Thomson products.
NOTE
The remote control button CLEAR, MENU and GUIDE do not function for this receiver but can
be used to control other Thomson products.
1
4
2
3
5
9
10
6
7
8
3
10
11
8
7
4
Receiver Controls
12
13
14
15
2
NOTE
DISCO, STADIUM, THEATER, JAZZ CLUB and ARENA are not available when Dolby Digital or DTS is displayed.
ON/ECO
SUBWOOFER SOURCE
SURROUND
PHONES
PRESET
VOLUME
Operating Your Receiver
13
Operating Your Receiver
Switching the unit on and off
•To switch on the receiver, press the ON/ECO button on the main unit once, or the button on the remote control.
• Standby: when the receiver is in tuner mode, press the ON/ECO button once to enter standby mode.
On the remote control, press the button twice within 2 seconds if the receiver is not in Tuner source mode to enter standby mode.
To avoid entering standby mode when powering up the unit, do not press the button twice within 2 seconds.
• The receiver draws a small amount of electricity when in standby mode. Unplugging the unit from the wall socket will stop the draw.
Selection of Audio/Video source
When one of the source buttons is pressed, the audio and video input corresponding to the name will be activated. The receiver acts as a switching device between all the sources that are plugged into it.
Example 1:
If you have connected a DVD player to the DVD input (audio & video) on the receiver, press the SOURCE button on the main unit repeatedly until DVD is selected or press DVD•6CH on the remote control to receive the sounds and images transmitted by the DVD.
Example 2:
Based on the example 1, the DVD is playing , if a VCR is connected to the VCR input (audio & video) of the receiver, press the SOURCE button on the main unit repeatedly until VCR is selected or press AUX 1 (VCR) on the remote control. The image and sound from the VCR source will replace the DVD.
12
Display
DVD / VCR / SAT / TUNER / TAPE / CD / TV
•An arrow points to the current source mode.
•Dolby Digital audio input for signal format.
• Dolby Pro Logic II audio output format.
• DTS audio output format.
FM / AM
• Radio band indicator in Tuner mode.
ST
•Tuner stereo signal selected.
OPT 1 2
•Optical digital input selected.
COAX
• Coaxial digital input selected.
TUNED
•Tuner station detected.
• Speaker Icons. L - Front left speaker C - Center speaker R - Front right speaker LS - Left surround (rear) speaker RS - Right surround (rear) speaker LFE - Subwoofer speaker
SLEEP
•Unit in Sleep mode.
MEMORY
• Unit is ready to store a station in selected preset.
RDS
• Radio data system information is received.
KHz / MHz
• Tuner frequency unit.
P
C
R
L
LFE
LS RS
RC
S
RS
ON/ECO
SUBWOOFER SOURCE
SUBWOOFER SOURCE
SURROUND
SURROUND
SOURCESUBWOOFER SURROUND
Operating your Receiver Operating your Receiver
15
You can connect up to 6 audio/video sources to this amplifier:
Source button Corresponding connector (receiver front panel) (receiver back panel)
- DVD DVD IN (audio / video)
- VCR VCR IN/OUT (audio / video)
- SAT SAT IN (audio / video)
- CD CD IN (audio only)
- TAPE TAPE IN/OUT (audio only)
- TV TV IN (audio only)
- TUNER built-in
An arrow points to the source name selected shown on the display.
Example :
If you have connected a DVD player to the DVD input (audio & video) on the receiver, press the SOURCE button on the main unit repeatedly until DVD is selected or press DVD•6CH on the remote control to receive the sounds and images transmitted by the DVD.
Using the Remote to Control Additional Components
You can use your remote to control most of Thomson branded VCRs, satellites, cable boxes or TVs. Press the corresponding source button on the remote control to operate options on other components.
NOTE
1. Your receiver has a built in tuner. Just connect the appropriate antenna to the back of the receiver and you will be able to listen to radio stations. (See details in Tuner section)
2. Other sources can be connected to the above standard source. Example: you can connect a LD into the DVD inputs.
3. Refer to the "Connecting To Audio-Visual Components" section for details on connection.
Volume Punchthrough
By default, the VOL+/VOL- and MUTE buttons will only control the receiver, regardless which mode (TV, VCR, etc) the receiver is in. By programming the volume punchthrough function, you can also control the volume of the TV.
To activate the volume punchthrough function, follow the procedures below:
1. Press and hold the VOL- button.
2. While holding down the VOL- button, press one of the source buttons to select the source where you want to control TV volume at. (DVD, TV, VCR or SAT•CABLE)
3. Continue holding down the VOL- button and press the TV button once.
4. Release all buttons.
You should now be able to control TV volume and mute
at the selected device.
Using the receiver to play a source
After having properly connected a source (DVD, CD, VCR) to the receiver, you can partly control them through the receiver.
Playing a DVD with the receiver
1. Connect a DVD player to the receiver (see connecting your receiver for details).
2. Press ON/ECO on the main unit or press on the remote control to switch on the receiver.
3. Press the SOURCE button repeatedly on the main unit or DVD•6 CH on the remote control to select the DVD source.
4. Switch on the DVD player and start playback.
5. Switch on your TV.
6. Select the appropriate A/V channel on the TV (refer to your TV manual for details) until the image from the DVD player is displayed.
7. Set the Surround Mode if needed (see "Advanced sound control" for details).
Example 1:
To play Dolby Prologic II Movie sound
Press the SURROUND buttons until "Dolby PL II MOVIE" appears on the Display and all of the speaker'’ icons light up.
Example 2:
LD: You may need to select a different Audio Channel on your LD (refer to your LD player manual).
8. Adjust the volume knob accordingly.
NOTE
To play Dolby Digital sound, the source must be connected to the receiver via the optical or coaxial input terminal
14
NOTE
Volume punchthrough can be done in all non-Tuner modes.
NOTE
To receive VCR signal for recording, you must connect analog outputs from DVD/CD/SAT/TV to the analog inputs of the receiver.
HINT
If batteries are removed from the battery compartment of the remote control, the volume and mute control in all source modes will be the receiver volume and mute control except in TV mode
HINT
To return to controlling receiver volume and mute again, follow the steps above but press TUNER instead of TV in step 3.
NOTE
Some DVD players may require you to set the digital output format to get Dolby Digital and DTS signals through digital connection to the receiver.
17
Operating your Receiver

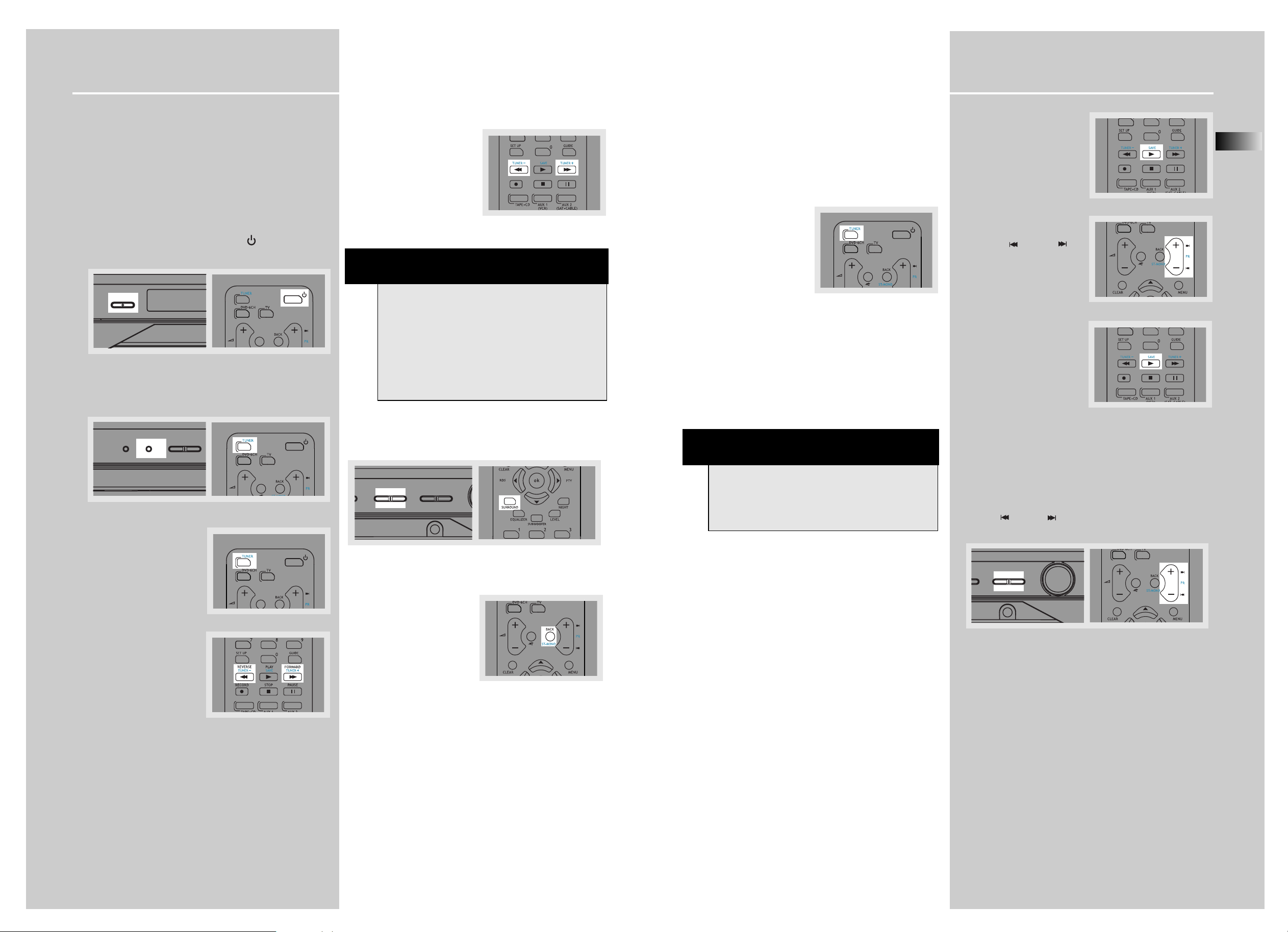

Storing radio stations
The receiver can store up to 40 radio stations in memory. You can enter every single radio station yourself or the receiver can store all available radio stations automatically in an ascending order.
Auto Preset Programming (APP) : (FM only)
1. In Tuner mode, select the FM band by pressing TUNER on the remote control.
2. Press and hold the TUNER button on the remote control for 3 seconds. “MEMORY” will be displayed in red and will blink during the automatic storing process.
Radio frequencies will be scanned and radio stations will be stored automatically. When all available radio stations are stored or if all 40 memory locations are full, the auto preset will stop.
Manual preset
1. Select FM or AM band by pressing TUNER repeatedly.
2. Tune to the radio station to be stored. (see "Manual tuning" on page 16 above for details)
3. Press the SAVE button on the remote control. "MEMORY" will flash and a preset number will be shown on the display.
4. While MEMORY is still flashing on the display, press PR or PR on the remote control to select the desired preset memory location.
5. Press the SAVE button on the remote control to store frequency in selected preset location.
6. Repeat steps 1-5 to store other frequencies.
Retrieving preset stations
1. Press TUNER on the remote control to select tuner mode.
2. Press the PRESET + or - buttons on the main unit or the PR or PR buttons on the remote control to select the preset station.
NOTE
A Weak signal can affect the "Automatic Preset Storing function" efficiency. Adjust the antenna for the best reception, and a more efficient search.
Operating your Receiver
Operating the Radio
The receiver has a built-in tuner that allows for AM/FM radio function.
Manual tuning
1. Connect the FM and AM antenna accordingly (see "Connecting the Antenna" on page 5 section for details)
2. Press ON/ECO on the main unit or on the remote control to switch on the receiver.
3. Press the SOURCE button repeatedly on the main unit until the tuner mode is selected or press TUNER on the remote control.
4. To select between FM and AM band, press the TUNER button repeatedly.
5. Tune to a station by pressing TUNER - or TUNER + repeatedly until the desired station is found.
Automatic Tuning
Press and hold TUNER - or TUNER + for about one
second to activate the automatic SEARCH function. The receiver will automatically tune frequencies until it finds a station.
Select a sound effect if needed by pressing the SURROUND button. (see "Advance sound section" for details).
Selecting Mono or Stereo Sound
Press the ST•MONO button on the remote control to toggle between mono and stereo sound in FM tuner mode (when available).
NOTE
1. If there is interference, move the location of the antenna until the optimal sound is heard. TV and other electronic devices could be the cause of interferences so try to position the antenna away from them.
2. Weak signal can affect the "auto Search function". Adjust the antenna for better reception and for a more efficient search.
16
ON/ECO
SUBWOOFER SOURCE
SURROUND
SURROUND
RCE
PRESET
VOLUME
PHONES
PRESET
VOLUME
PHONES
19
Advanced Sound Control
Sound Enhancement Systems
This receiver is equipped with several built-in sound enhancement systems.
Dolby Digital
The Dolby Digital mode lets you enjoy full digital surround from software processed in the Dolby Digital format. Dolby Digital provides better sound quality and more powerful presence than conventional Dolby Surround.
This unit is equipped with Dolby Digital 5.1-channel so that you can enjoy enhanced full digital surround sound. Being different from Dolby Pro Logic in which only four channels ( Front Left, Front Right, Center and Rear ) are used, the new system provides stereo separation of the rear speakers (Rear-Right, Rear-Left ). These 5 channels, together with the subwoofer channel for bass sounds (counted as 0.1 channel ), constitute as 5.1-Channel ( or 6 Channels ) Input for Dolby Digital that brings you the most sophisticated sound enjoyment.
Dolby Pro Logic II
The Pro Logic II mode uses the built-in circuit to steer the Left, Center, Right and Surround left and right channel audio signals and uses all five speakers to play both stereo and Dolby Pro Logic program source, such as TV and VCR. Dolby Pro Logic II includes Dolby Pro Logic II Movie, Dolby Pro Logic II Music and Dolby Pro Logic Emulation.
You can use this mode with any stereo program source (such as VCR/SAT) to enjoy multi-channel sound experience.
Digital Theater Systems (DTS)
DTS is a digital surround system which delivers six channels of master-quality, 20-bit audio. It offers five full-range channels plus a special low frequency effect (LFE) channel for subwoofer, resulting commonly know 5.1 channels. It can be applied with existing 5.1 speaker configurations.
DTS is available in DVD, SAT/CAB, TV and CD mode. (When digital cable is connected)
Listening
Zone
Operating your Receiver
18
RDS (Radio Data System) for FM Only
The RDS icon shows on display when RDS data are received. The following information may be available on certain stations:
• Frequency station,
• Station name,
• Program type,
• Clock,
• Radio text
Press RDS on the remote control repeatedly to select the type of information you want to display.
Search Station by Program Type
1. Press PTY on the remote control repeatedly to display the desired program type.
2. Press TUNER - or TUNER + on the remote control to begin search.
3. The search will stop when a station broadcasting the program type you have selected is found.
NOTE
NO PTY will be displayed if selected kind of program is not broadcasted
You can search for stations using one of the following program types: NEWS = news AFFAIRS = current affairs INFO = information SPORT = Sport EDUCAT = education DRAMA = series and plays CULTURE = religion or national culture SCIENCE = science and technology VARIED M= miscellaneous POP M = pop music ROCK M = rock music MOR M = middle-of-the-road music, easy listening music LIGHT M = classical music CLASSICS = serious classical OTHER M = not classed WEATHER = weather, medical FINANCE = stock market reports CHILD = children’s programs SOCIAL = sociology, history, geography,
psychology, society RELIGION = any aspect of beliefs, faith & God or Gods PHONE = public forum by phone TRAVEL = feature and programs concerning travelling HOBBY = recreational activities & leisure JAZZ = jazz music COUNTRY = country music NATION = national music OLDIES = oldies music FOLK = folk music DOCUMENT = documentaries
Listening
Zone
Front Left Speaker
Center Speaker
Front Right Speaker
Front Left Speaker
Rear Left Speaker
Center Speaker
Front Right Speaker
Subwoofer
Rear Right Speaker
Rear Left Speaker
Subwoofer
Rear Right Speaker
21
20
Advanced Sound Control
Advanced Sound Control
Dolby 3 Stereo
The 3 Stereo mode will redirect the Surround signals to the front left and right speakers when only the front and center speakers are used.
.
Stereo
The Stereo mode uses the two main channel outputs from the front speakers. Use this mode if you have connected the front speakers only.
DSP (Digital Sound Processor)
These digital sound effects resemble sounds in a real environment such as (ARENA/ JAZZ CLUB / THEATER / STADIUM / DISCO). DSP automatically converts analog audio signals to digital ones which enables you to adjust the sound without degrading the sound quality. Different modes will give you different feels of size and types of listening environment.
Night Mode
By using Dynamic Range Control technology, you can enjoy enhanced Dolby Digital sound quality at night without interrupting your roommates or neighbors. Night Mode will compress the difference between normal voices and sounds such as explosions, while still enjoying a Dolby Digital enable component (DVD, SAT). Night Mode can be activated by pressing the NIGHT button on the remote control. DRC OFF (Default) appears on the display. While DRC OFF (Default) is still on the display, continue to press the NIGHT button to toggle and select the desired night mode. There are three modes (DRC OFF, SOFT, ON) for you to choose the extents of compression.
Dynamic Bass Amplified System (dBas)
With “Dynamic Bass Amplified System” (dBas), the discrete amplifier is located in the receiver so the subwoofer keeps the power needed to reproduce powerful effects. 4 settings are available: SOFT, BALANCED, STRONG and POWERFUL. Press the SUBWOOFER button to toggle the subwoofer (dBas) effects level according to your needs.
6 Channel external input
An external decoder (Dts, Dolby Digital, etc…) or a device with built-in multi-channel decoder and 6 channel output connector (DVD player, TV…) can be connected to the 6CH input. It is therefore possible to play any future 6 Channels coding (SACD, DVD Audio) thanks to this connection. The external decoder device will send the separated audio information to the receiver that will then amplify the signal and send to appropriate speakers.
To activate 6 Channel external input, press SOURCE on the receiver until 6 CH is selected or press dvd/6 channel twice on the remote control
.
Fine Setting of the Components
The receiver can be directly turned on by pressing the
DVD•6CH / SAT•CABLE / TV / TAPE•CD / VCR / TUNER
buttons on the remote control, which also selects the best surround sound mode. The default surround modes for different components are listed in the table below. If you decide to change the surround mode, you can press the SURROUND button repeatedly to toggle among the different surround mode choices and select the one you want. DOLBY PLII MOVIE => DOLBY PLII MUSIC => DOLBY PL EMULATION => 3 STEREO => ARENA => JAZZ CLUB => THEATER => STADIUM => DISCO => STEREO
The receiver will keep the last selection in memory.
Input Signal Setting
The receiver defaults to the most convenient settings for your easiest use (see table).
If your connection is different from the default setting,
1. Select the source
2. Press the SETUP button to show setup options.
3. Press the Left or Right adjustment buttons until ANALOG is displayed.
4. Press the UP or DOWN arrow buttons to select among analog / optical 1 / optical 2 / coaxial to match your connection. Your selection will be stored automatically.
The selected source and input source will be displayed on the display as long as they are active, except for some temporary change of display (e.g. adjusting volume).
Digital Input
Select this setting to play digital signals from a DVD, CD, LD player, SAT or TV.
Analog Input
Select this setting to play analog signals from a cassette deck, VCR or turntable.
Source/ If Digital Input (optical If Analog Input Input or coaxial) is selected is selected
DVD Dolby Digital DOLBY PLII MOVIE VCR N/A DOLBY PLII MOVIE SAT Dolby Digital DOLBY PLII MOVIE CD STEREO STEREO TAPE N/A STEREO TV Dolby Digital DOLBY PLII MOVIE TUNER N/A STEREO
DEFAULT INPUT (as seen on display)
Analog (DVD/ ANL) Analog (VCR/ ANL) Analog (SAT/ ANL) Analog (CD/ ANL) Analog (TAPE/ ANL) Analog (TV / ANL) Built-in Tuner
SOURCE
DVD VCR SAT CD TAPE TV FM/AM
NOTE
Digital input is only available for DVD, SAT, CD and TV
AVAILABLE INPUT
Analog / Optical 1 / Optical 2 / Coaxial Analog / - / ­Analog / Optical 1 / Optical 2 / Coaxial Analog / Optical 1 / Optical 2 / Coaxial Analog / - / ­Analog / Optical 1 / Optical 2 / -
SOURCE
DVD VCR SAT CD TAPE TV
NOTE
If linear PCM source (CD), format will be Dolby Prologic even with Digital Input.
Listening
Zone
NOTE
Night mode is available only with Dolby Digital playback.
T
NOTE
This function will not be available in 6 channel input mode
NOTE
This function will not be available in 6 channel input mode
Front Left Speaker
Center Speaker
Front Right Speaker
SUBWOOFER SOURCE
SURROUND
SUBWOOFER SOURCE
SURROUND
PRESE
PHONES
6 CH. EXTERNAL INPUT
23
22
Advance Sound ControlAdvance Sound Control
Advanced Setting
Factory defaulted Advance setting indication from VFD
The receiver has defaulted the following distances:
Front speakers (FRNT) 4.5 m Center speaker (CNTR) 4.5 m
Rear speaker (SURR) 3 m
Speaker Configurations
You can also change the setup of the speakers. Use a subwoofer to enjoy optimum sound.
Speaker distance: For optimum surround experience
measure the distance between the speaker and your favorite listening position.
1. Press the SETUP button to
show setup options.
2. Press the LEFT or RIGHT
adjustment buttons until the speaker you want to change is displayed.
3. Press the UP or DOWN
arrow buttons to change the speaker settings. Your selection will be stored automatically.
4. Repeat step 2 and 3 to set up the next speaker
5. When set up is done, wait for 5 seconds to automatically save your settings or press any key to save your selection and set up mode.
Displaying Program Formats
When a digital source starts playing, the receiver automatically switches to the proper surround mode and provides setting information via the speaker icons located on the right-hand side of the display.
It is important to note, however, that not all Dolby Digital sources are encoded with the full complement of five channels plus LFE*. Speaker icons show how many and which speaker you have enabled (See “Fine Setting of the Speakers”) and the letters inside the speaker icons show which channel is present in the source information. For example, the diagram shown means you have all five speakers and subwoofer enabled and the digital sources you played have five channels plus LFE complemented.
* LFE stands for Low Frequency Effect. The indication “LFE” appears if the digital source contains LFE information. In this case, the bass signal will be delivered to the subwoofer, offering more dynamic deep bass sound effects. If the letter is flashing, the signal is either too weak or just gone.
Center Speaker selection (CTR) YES / NO Surround Speaker selection (SURR) YES / NO Front Speaker distance (FRNT) 0.9m - 9m Center Speaker distance (CNTR) 0m - 9m Rear Speaker distance (SURR) 0m - 9m
NOTE
By default, the Center and Surround Speakers are set to YES. If you decide not to use them, set the ones you do not intend to use to NO so the sound performance is not affected.
Fine Setting of the Speakers
All the basic settings have already been preset for the speakers included in the box.
Also, to make the surround sound more effective and suit the acoustic conditions in your listening room, you may need to delay the signal coming from some of the speakers. Channel delay compensates for center or surround speakers that are closer to the listening position than the front speakers. You can make use of the SETUP button to adjust the speakers’ relative loudness.
Testing Speaker Loudness
You can listen to the loudness of the individual speakers by doing the following:
1. Press and hold LEVEL on the remote control. A short noise will be heard in the speakers one by one. The speaker having the noise at that moment will be shown in the display.
2. To adjust the volume level of the test tone, turn the VOLUME knob or press the VOL + or VOL - buttons on the remote control to adjust the master volume (if necessary).
Press the UP or DOWN buttons to adjust the individual channel noise level while it is shown in the display.
Adjust Individual Speaker Volume
1. To adjust individual speaker volume level, press the LEVEL button on the remote control.
2. Continue to press the LEVEL button on the remote control to select the channel to be adjusted, then press the UP or DOWN buttons to adjust the level.
You can adjust the master volume level by turning the VOLUME knob or press the VOL + or VOL - buttons on the remote control.
NOTE
This function will not be available in 6 channel input mode
NOTE
This function will not be available in 6 channel input mode
NOTE
This function will not be available in 6 channel input mode
PRESET
VOLUME
PHONES
Front
Lch
L/S
Left
Rear
Left
Center
Front Right
Cch
Rch
R/S
Rear
Right
C
L
LFE
LS RS
R
Care and Maintenance
25
24
Troubleshooting Tips
Disconnect the audio system from the power source before performing any maintenance.
Cleaning
Clean the exterior of the system using a soft dust cloth.
Important battery information
• Remove the batteries to avoid leakage if you do not use your remote control for more than one month.
• Discard leaky batteries immediately as leaking batteries may cause skin burns or other personal injuries.
• Dispose of batteries in the proper manner, according to provincial and local regulations.
• Any battery may leak electrolyte if mixed with a different battery type, if inserted incorrectly, if all batteries are not replaced at the same time, if disposed of in fire, or if an attempt is made to charge a battery not intended to be recharged.
Safety precautions
• Never open the cabinet under any circumstances. Any repairs or internal adjustments should be made only by a trained technician.
• Never operate this product with the cabinet removed.
• Do not touch the player with wet hands. If any liquid enters the player cabinet, take the player to a trained technician for inspection.
• The apparatus shall not be exposed to dripping and splashing.
Headset safety
• Do not play your headset at a high volume. Hearing experts warn against extended high-volume play.
• If you experience a ringing in your ears, reduce volume or discontinue use.
• You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
• Even if your headset is an open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you are unable to hear what is around you.
Don’t infringe
This product should only be used for the purposes for which it is sold, that is, entertainment, violating no copyright law. Any attempts to use this product for which it is not intended is unlawful and therefore not condoned by Thomson.
Equipment Specifications:
AMPLIFIER SECTION:
RMS Output Power: Dolby Digital Mode with 10% Total Harmonic Distortion Rear Channels: 60 Watts each Channel (1KHz, 8 Ohm) Front Channels: 120 Watts each Channel (1KHz, 4 Ohm) Center Channel: 120 Watts (1KHz, 4 Ohm) Subwoofer Channel: 120 Watts (100Hz, 4 Ohm) Total RMS Output Power, Dolby Digital mode : 600 W
DIN Output Power: Dolby Digital Mode with 1% Total Harmonic Distortion Front Channels (L and R ): 48 Watts per Channel (1KHz, 4 Ohm) Rear Channels (L and R): 24 Watts per Channel (1KHz, 8 Ohm) Center Channel: 48 Watts (1KHz, 4 Ohm) Subwoofer Channel: 48 Watts (80Hz, 4 Ohm) Total DIN Output Power, Dolby Digital mode: 550 Watts
Muting Attenuation: 65dB Frequency Response: 20kHz /-3dB, 1kHz ref. Subwoofer Frequency Response: 10 Hz / -3db, 80Hz ref. DIN 1kHz FL / FR STEREO mode : 45W x2 @ 6ohm <10% THD Signal to Noise Ratio: 65dB (Dolby digital mode) Video Signal to Noise Ratio from 40 dB to 60dB
VIDEO SECTION:
Input ( Sensitivity/ Impedance ):1Vp-p/ 75ohm Output (Level/ Impedance): 1Vp-p/ 75 ohm Frequency Response: 10Hz to 6MHz at +/- 3dB
AM TUNER SECTION:
Frequency Response: 2kHz +/-6dB, 1kHz ref. Usable Sensitivity: 3000uV/m @ S/N 20dB Signal to Noise: 38dB IF Rejection: 35dB
FM TUNER SECTION:
Frequency Response: 15kHz +/-3dB, 1kHz ref. Quieting: 24dBu Signal to Noise: 60dB(stereo) / 65dB(mono) IF Rejection: 50dB
Dimensions (H x W x D mm) :
Unit - 60 x 425 x 365 Front and Surround Tower Speakers - 1480 x 220 x 220 Center Speaker - 90 x 140 x 80 Subwoofer - 375 x 140 x 435
Troubleshooting Tips
Receiver/Tuner Operation
ST indicator is off.
• Adjust the antenna.
• Press GO BACK/ST.MONO button to insure you are not outputting in mono.
The signal is Mono. Severe hum or noise.
• The signal is too weak. Connect an external antenna.
• Adjust Antenna
• Reposition Antenna away from any electronics.
There is interference to FM reception.
• Turn off other electrical units (e.g. DVD, CD player) near the receiver.
• Reposition the Antenna.
Remote Control Operation
The remote control does not operate the unit.
• Another source mode is selected on the remote. Press the correct Source Button.
• No batteries installed. (included with your system) Install the batteries before attempting to operate the remote. Be sure to match the + and - ends of each battery to the symbols shown in the remote battery compartment.
• The batteries are weak. Replace all batteries.
• The remote is not pointed at the remote control sensor on the main unit or there is an obstacle between the remote and the main unit.
• The remote control is too far from the main unit, move closer.
Remote loses Programmed codes.
• Weak batteries, replace batteries.
Remote forgets what source was selected.
• Weak batteries, replace batteries.
General
No audio.
• Make sure the speakers are connected.
• Check the input connections.
• Check the power cord connections.
•Make sure the MUTE signal on the front panel is off.
• Make sure the digital setting (optical, coaxial or analog) is correct.
• Check that the headphone is not inserted.
No audio from one channel.
• Check the speaker level setting.
• Check the speaker wire or external source cable connections.
• Check whether the center or surround speaker settings are set to YES.
Noise occurs when the TV is turned on.
• The TV is too close to the audio system.
Specific instruments sound displaced.
• Check the connections between the receiver and the speakers if the sound does not match the video.
• Check if the video and audio cable are correctly inserted.
TAPE OUT and REC OUT do not operate in VCR mode.
• Check to make sure analog input signal is connected from the signal source to the analog input jacks.
•In VCR mode, VCR OUT will be muted.
• In TAPE mode, TAPE OUT will be muted.
Cleaning the Exterior
Disconnect the system from AC power before cleaning the exterior of the system with a soft dust cloth, or with a slightly damp leather chamois. Never use strong solvents.
Loading...
