SpeedTouch™

605/608/608 WL/620

(Wireless) Business DSL Routers

User’s Guide

Release R5.3.1

SpeedTouch™608WL and SpeedTouch™620 only

SpeedTouch™

605/608

608 WL/620

User’s Guide

R5.3.1

Passing on, and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

Thomson Telecom Belgium Prins Boudewijnlaan, 47 B-2650 Edegem Belgium

www.speedtouch.com

Trademarks

The following trademarks are used in this document:

 SpeedTouch™ is a trademark of THOMSON.  Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpora-

tion in the United States and/or other countries.

 UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.  Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other

countries.

 Adobe, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorpo-

rated, registered in the United States and/or other countries.

 Netscape® and Netscape Navigator® are registered trademarks of Netscape Communications Corporation.  Ethernet™ is a trademark of Xerox Corporation.  UPnP™ is a certification mark of the UPnP™ Implementers Corporation.  Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-

ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.

Other products may be trademarks or registered trademarks of their respective manufacturers.

Document Information

Status: v1.0 (May 2005) Reference: E-DOC-CTC-20050429-0104 Short Title: User’s Guide ST605/608/608 WL/620 R5.3.1

Contents

About this User’s Guide .............................................. 1

1 Your SpeedTouch™ ...................................................... 3

1.1 SpeedTouch™ Features .................................................................. 4

1.1.1 Hardware Specifications.................................................................................. 5

1.1.2 Software Features ..........................................................................................6

1.2 SpeedTouch™ LED Behaviour ........................................................ 9

1.3 How to Access your SpeedTouch™.............................................. 11

1.3.1 Access via the Web Interface......................................................................... 12

1.3.2 Access via CLI ............................................................................................. 13

1.3.3 Access via FTP ............................................................................................ 15

1.3.4 Remote Assistance ....................................................................................... 18

2 Local Network Setup ..................................................19

2.1 Wired Ethernet ............................................................................. 20

2.2 Wireless Ethernet ......................................................................... 21

2.2.1 Wireless Basics ............................................................................................ 22

2.2.2 Connecting First-time Wireless Clients............................................................. 24

2.2.3 Wireless Security.......................................................................................... 27

2.2.4 Connecting Additional Wireless Clients............................................................ 29

2.2.5 Extending the Range of Your Wireless Network................................................ 31

E-DOC-CTC-20050429-0104 v1.0

3 Internet Connectivity Dial-In Clients .........................33

3.1 SpeedTouch™ Web Pages ............................................................ 35

3.2 IGD Control Agent ....................................................................... 37

Contents

3.3 MS Windows XP BroadBand Connection ..................................... 39

3.4 Mac OS X PPPoE Dial-in Client .................................................... 43

4 Basic Configuration .................................................... 45

4.1 Navigation .................................................................................... 46

4.1.1 Menu .......................................................................................................... 47

4.1.2 Language Bar............................................................................................... 48

4.1.3 Navigation Bar ............................................................................................. 49

4.1.4 Notification Area .......................................................................................... 50

4.1.5 Tasks.......................................................................................................... 51

4.2 Home ............................................................................................ 52

4.3 SpeedTouch ................................................................................. 53

4.3.1 Information.................................................................................................. 54

4.3.2 SpeedTouch™ Easy Setup .............................................................................. 55

4.3.3 Restart........................................................................................................ 56

4.3.4 Configuration ............................................................................................... 57

4.3.5 Backup & Restore......................................................................................... 58

4.3.6 Reset to Factory Defaults .............................................................................. 59

4.3.7 Event Logs .................................................................................................. 60

4.3.8 Update........................................................................................................ 61

4.4 Broadband Connection................................................................. 62

4.4.1 Connectivity Check....................................................................................... 63

4.4.2 DSL Connection ........................................................................................... 64

4.4.3 Internet Services .......................................................................................... 65

4.4.4 Internet Service Settings ............................................................................... 66

E-DOC-CTC-20050429-0104 v1.0

Contents

4.5 Toolbox ........................................................................................ 67

4.5.1 Remote Assistance ....................................................................................... 68

4.5.2 Game & Application Sharing .......................................................................... 69

4.5.3 Defined Games & Applications ....................................................................... 70

4.5.4 Game or Application Definition....................................................................... 71

4.5.5 New Game or Application.............................................................................. 72

4.5.6 Web Site Filtering ......................................................................................... 73

4.5.7 Web Filtering Activation ................................................................................ 76

4.5.8 Content Level .............................................................................................. 77

4.5.9 New Content Level ....................................................................................... 78

4.5.10 Firewall ....................................................................................................... 80

4.5.11 Intrusion Detection ....................................................................................... 81

4.5.12 Dynamic DNS .............................................................................................. 82

4.5.13 User Management ........................................................................................ 83

4.5.14 Edit User ..................................................................................................... 84

4.5.15 Change Default User..................................................................................... 85

4.5.16 Add User..................................................................................................... 86

4.6 Office Network ............................................................................ 87

4.6.1 Devices....................................................................................................... 88

4.6.2 Device Settings............................................................................................ 89

4.6.3 Assign Public IP ........................................................................................... 90

4.6.4 Wireless Device Settings ............................................................................... 91

4.6.5 Access Point Settings ................................................................................... 92

4.6.6 Configuring WDS.......................................................................................... 95

4.6.7 Interfaces .................................................................................................... 96

4.6.8 Interface Settings ......................................................................................... 97

4.6.9 DHCP Pool................................................................................................... 98

5 Expert Configuration ................................................101

5.1 Home .......................................................................................... 103

E-DOC-CTC-20050429-0104 v1.0

iii

Contents

5.2 SpeedTouch™............................................................................. 104

5.2.1 Easy Setup ................................................................................................ 105

5.2.2 System Information .................................................................................... 106

5.2.3 Connections .............................................................................................. 108

5.2.4 Diagnostics................................................................................................ 109

5.2.5 Syslog ...................................................................................................... 110

5.2.6 System Update .......................................................................................... 112

5.2.7 SpeedTouch™ Services................................................................................ 115

5.2.8 SNTP ........................................................................................................ 118

5.2.9 SLA .......................................................................................................... 119

5.2.10 Add-on...................................................................................................... 122

5.3 IP Router .................................................................................... 123

5.3.1 IP Addresses.............................................................................................. 124

5.3.2 Expressions ............................................................................................... 125

5.3.3 Classification ............................................................................................. 127

5.3.4 IP Routing ................................................................................................. 129

5.3.5 RIP ........................................................................................................... 130

5.3.6 NAT ......................................................................................................... 131

5.3.7 IP QoS ...................................................................................................... 133

5.4 Connections ............................................................................... 135

5.4.1 ATM ......................................................................................................... 136

5.4.2 Routed PPPoE ............................................................................................ 138

5.4.3 Routed PPPoA............................................................................................ 140

5.4.4 Routed PPPoI ............................................................................................. 142

5.4.5 Bridged Ethernet......................................................................................... 144

5.4.6 Routed Ethernet ......................................................................................... 147

5.4.7 Routed IPoA .............................................................................................. 148

5.4.8 PPTP-to-PPP Relay...................................................................................... 149

5.4.9 Virtual LAN................................................................................................ 150

5.5 Local Networking ....................................................................... 151

5.5.1 DHCP........................................................................................................ 152

5.5.2 DNS ......................................................................................................... 157

5.5.3 Managed Switch ........................................................................................ 158

5.5.4 Wireless .................................................................................................... 160

5.6 Firewall ...................................................................................... 167

5.6.1 Policy........................................................................................................ 168

5.6.2 Log........................................................................................................... 171

E-DOC-CTC-20050429-0104 v1.0

Contents

5.7 VPN ............................................................................................ 172

5.7.1 LAN to LAN............................................................................................... 173

5.7.2 VPN Client................................................................................................. 174

5.7.3 VPN Server................................................................................................ 175

5.7.4 Certificates................................................................................................ 176

5.7.5 Advanced.................................................................................................. 177

5.7.6 Debug....................................................................................................... 178

5.8 SIP PBX ...................................................................................... 179

6 Software Keys ...........................................................181

7 Software Upgrade..................................................... 183

7.1 Embedded Update Page ............................................................. 184

7.2 Upgrade Wizard on Setup CD..................................................... 186

7.3 Upgrade via a BOOTP/TFTP Server............................................. 189

8 Troubleshooting........................................................ 191

8.1 General SpeedTouch™ Troubleshooting .................................... 192

8.1.1 Wired Ethernet Troubleshooting.................................................................... 193

8.1.2 Wireless Ethernet Troubleshooting................................................................ 194

8.1.3 Upgrade Troubleshooting............................................................................. 195

8.2 UPnP™ on Windows XP Systems............................................... 197

8.3 Reset to Factory Defaults .......................................................... 199

E-DOC-CTC-20050429-0104 v1.0

Contents

E-DOC-CTC-20050429-0104 v1.0

Used Symbols

About this User’s Guide

A note provides additional information about a topic.

A tip provides an alternative method or shortcut to perform an action.

A caution warns you about potential problems or specific precautions that

need to be taken.

About this User’s Guide

Terminology

Typographical

Conventions

Documentation and

software updates

Generally, the SpeedTouch™605(i), the SpeedTouch™608(i), the SpeedTouch™608(i) WL, and the SpeedTouch™620(i) will be referred to as SpeedTouch™ in this User’s Guide.

In interactive input and output, typed input is displayed in a bold font and commands are displayed

Comments are added in italics.

Example:

=>language list CODE LANGUAGE VERSION FILENAME en* english 4.2.0.1 <system>

THOMSON continuously develops new solutions, but is also committed to improve its existing products.

For more information on THOMSON's latest technological innovations, documents and software releases, visit us at:

like this.

Only one language is available

www.speedtouch.com

E-DOC-CTC-20050429-0104 v1.0

About this User’s Guide

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

1 Your SpeedTouch™

Introduction With the SpeedTouch™605(i) and SpeedTouch™608(i) Business DSL Routers and the

SpeedTouch™608 WL(i) and SpeedTouch™620(i) Wireless Business DSL Routers you can build a secure small (home-)office network, seamlessly connecting wired and wireless devices and surf the Internet at high speed, all combined in one device.

Installation For more information on how to set up your SpeedTouch™, installation and wiring

and how to do a first Internet connection setup, refer to the provided Installation and Setup Guide.

Contents This User’s Guide will assist you in configuring your SpeedTouch™.

Safety instructions Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation

Guide and the Safety Instructions and Regularity Notices.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

1.1 SpeedTouch™ Features

Introduction Your SpeedTouch™ offers you a wide range of outstanding features.

In this section you will find a comprehensive overview of the:

 Hardware Specifications

 Software Features

E-DOC-CTC-20050429-0104 v1.0

1.1.1 Hardware Specifications

Router Integrated multi-mode ADSL modem, supporting:

 ADSL over POTS for a SpeedTouch™ ADSL/POTS variant)

 ADSL over ISDN for a SpeedTouch™ ADSL/ISDN variant)

 ADSL/RE-ADLS2/ADSL2/ADSL2+ for both ADSL over POTS and ADSL over

ISDN

Physical interfaces  WAN:

 One RJ-11 port for ADSL/POTS or ADSL/ISDN connection

 Integrated ISDN Modem S0 interface (in case of a SpeedTouch™608 WL/

 LAN:

 Four RJ-45 ports for managed 10/100Base-T Half-/Full-duplex auto-

 Wireless LAN: IEEE 802.11b/g Wi-Fi compliant access point on the

Chapter 1

Your SpeedTouch™

620)

sensing MDI/MDI-X Ethernet switch

SpeedTouch™608 WL/620

LEDs LED indicators for all interfaces

Reset button One programmable recessed reset button for restoring the factory default settings

Association button One push button for wireless association and registration on the

SpeedTouch™608 WL/620

Wireless performance On the SpeedTouch™608 WL/620:

 Typical indoor coverage: 60m

 Dynamic rate switching

 Manual / Automatic channel selection

 Manual / Automatic selection of pure 802.11g, pure 802.11b or mixed mode

(802.11b/g) network

 Wireless Distribution System (WDS)

 WPA-PSK / WEP data encryption

Memory and CPU  16 MB flash

 32 MB SDRAM

 Memory and processor load counters

Cardbus On SpeedTouch™608 WL/620:

 PCMCIA/CardBus plug-in slot for future extension: IPSec acceleration card,

PSTN back-up card, GPRS back-up card, ..

Power requirement Power supply: 18V AC, 1000mA with patent-pending power-cord lock to avoid

accidental power plug-out

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

ADSL compliance  If POTS in overlay: G. handshake, Full Rate ADSL, G.dmt, G.lite (splitterless

1.1.2 Software Features

ADSL), ADSL2, RE-ADSL and ADSL2+

 If ISDN in overlay: G.handshake, G.dmt, ADSL2, RE-ADSL and ADSL2+

ATM features  Up to 16 simultaneous PVCs, allowing multiple simultaneous destinations

 ATM QoS per PVC: CBR, VBR-rt, VBR-nrt, UBR

 Service monitoring through ITU-T I.620 F4/F5 loopback, alarms (AIS / RDI) and

continuity checks

 ATM PING command (loopback cells) and continuity check generator mode

 RFC 1483 / 2684 multiprotocol encapsulation over AAL5 / ATM: both LLC /

SNAP and VC-based multiplexing supported

Bridging features  Multiport self-learning transparent bridge per IEEE 802.1D for LAN interconnect

 Remote bridge ports are isolated from each other

 Pre-defined bridge filters to WAN (no filter, no CPE-to-WAN broadcast, PPPoE

only) and to LAN (no filter, multicast filter)

Routing features  Multi-port (up to 16 PVCs) router

 Static routing, automatic routes (PPP, LAN)

 IP address multi-homing

 Packet classified routing:

 Label classification of packet streams based on source and destination IP

address, source and destination port, type of service / diffserv bits, protocol, source interface

 Forwarding of packet streams based on the label classification

 Type of service / DSCP marking based on the label classification

 IGMPv1/v2/v3 forwarding

 TCP (RFC793), UDP (RFC768), ICMP (RFC792), IPv4 router (RFC1812)

 Dynamic routing RIPv1 (RFC 1058) and RIPv2 (RFC 1723 / 2453), configurable

per interface

E-DOC-CTC-20050429-0104 v1.0

Networking services  UPnP with NAT traversal capability:

 enables game technologies (Xbox live, Direct X, and many others)

 enables conferencing functions of Microsoft Messenger

 Transparent bridging (IEEE802.1D)

 PPPoE routing/bridging with integrated PPP Relay

 PPPoA routing, PPPoA-to-PPTP relaying

 Hyper-NAT with virtual server mapping (for instance for Web, FTP, Mail

servers) and ALGs (such as NetMeeting, MSN Messenger, VPN passthrough, and others)

 Quality of Service:

 ATM QoS per PVC: CBR, VBR-rt, VBR-nrt, UBR

 IP QoS

 Managed Ethernet Switch with VLAN, DMZ, mirroring

 Service Level Agreement services

 Integrated Dynamic DNS client

Chapter 1

Your SpeedTouch™

Security  PAP (RFC1334), CHAP (RFC1994) for PPP session

 Integrated Stateful Inspection Firewall, Intrusion Detection

 Website Filtering, URL Filtering

 Wireless security on SpeedTouch™608 WL/620:

 64/128bit WEP encryption, WPA-PSK

 Wireless client registration/access control (with physical push button)

 Multi-level SpeedTouch™ access policies, Digest Authentication

 SSH, SSL

 Embedded IPSec Software Module (on SpeedTouch™608/608 WL/620)

 Dedicated support for provider-provisioned PE-based MPLS networks

Configuration  Home Install Wizard, Easy Setup wizard

 Intuitive web-based GUI (HTTP/HTTPs)

 Advanced configuration via telnet/SSH, via the web-based GUI and serial

console - Command Line Interface (CLI)

 Remote management access control

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

Management and

monitoring

VoIP On the SpeedTouch™620 (under Software Module activation key):

 Multi-level user protection, Event logging

 DHCP server, client and relay, DHCP-to-PPP spoofing

 DNS server, client and relay

 Time synchronization:

 SNTPv1, SNTPv2, SNTPv3 and SNTPv4

 integrated Real-Time Clock in case of SpeedTouch™608 WL/620 (for non-

volatile time-of-day)

 Syslog

 SNMPv1 support for:MIB II (RFC1213/2011/2012/2013), traps MIB

(RFC1215), bridge MIB (RFC1286/1493), ATM TC MIB (RFC2514), ATM MIB (RFC1695/2515), ADSL MIB (RFC2662)/SHDSL MIB (RFC3276), Ethernet MIB (RFC1398/1623/1643/1650/2358/2665), Medium Attachment Units MIB (RFC1515/2239/2668), interface MIB (RFC1229/1573/2233/2863), IPSec MIB, RMON MIB (RFC1757), PING & Traceroute MIB (RFC2925)

 Firmware upgradeable via web or via FTP, or via upgrade wizard on Setup CD

 Dual firmware storage (Active/Passive) for fail-proof roll-back

 Embedded SIP PBX functionality including SIP Registrar and Proxy server.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

1.2 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating

the state of the device during normal operation.

DSL

Ethernet

Power

Following table shows the meaning of the different LEDs:

WLAN

Plug-In

ISDN

Internet

Indicator Description

Name Colour State

Power Green On Power on, normal operation

Red On Power on, self-test failed, indicating

device malfunction

Orange On Bootloader active

Off Power off

Ethernet Green Flashing Ethernet activity

On Ethernet connection, no activity

Off No Ethernet connection

WLAN Green Flashing Wireless activity, WPA encryption

On No wireless activity, WPA encryption

Amber Flashing Wireless activity, WEP encryption

On No wireless activity, WEP encryption

Red Flashing Wireless activity, no security

On No wireless activity, no security

E-DOC-CTC-20050429-0104 v1.0

Off WLAN disabled

Plug-in Green Flashing Data passing through the cardbus

On Cardbus is connected, no data

passing through

Off Cardbus is not connected

Chapter 1

Your SpeedTouch™

Indicator Description

Name Colour State

ISDN Green Flashing ISDN activity

On ISDN line connected, no activity

Off No ISDN line

DSL Green Flashing Pending DSL line synchronisation

On DSL line synchronised

Off No DSL line

Internet Green Flashing Internet activity

On Internet connectivity, no activity

Red On Internet connection setup failed

Off No Internet connection

Ethernet LEDs A LED may be provided per Ethernet port to indicate link integrity (or activity).

Depending on the SpeedTouch™ product you are using, a second LED (A) may be provided to indicate the 10/100Base-T selection:

Indicator Description

Name LED Status

A (Optional)

B 10/100Base-T Off 10Base-T Ethernet connection

Integrity

(Activity)

Off No connection on this port

On Ethernet link up

Flashing Data is flowing from/to this port

On 100Base-T Ethernet connection

E-DOC-CTC-20050429-0104 v1.0

1.3 How to Access your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of following ways:

Access Method Can be used to:

Web Configure your SpeedTouch™ via HTTP or

HTTPS.

For more information, see “1.3.1 Access via

the Web Interface” on page 12.

Command Line Interface (CLI) Fine tune your SpeedTouch™ configuration.

For more information, see “1.3.2 Access via

CLI” on page 13.

File Transfer Protocol (FTP) Backup and restore data on your SpeedTouch™.

For more information, see “1.3.3 Access via

FTP” on page 15.

Chapter 1

Your SpeedTouch™

Remote Assistance Allow a remote user to help you configuring

your SpeedTouch™. For more information, see “1.3.4 Remote

Assistance” on page 18.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

1.3.1 Access via the Web Interface

Procedure To access the SpeedTouch™ via the web interface:

1 Open a web browser.

2 In the address bar type your SpeedTouch™’s IP address or DNS host name, by

default that is ‘http://speedtouch.lan’ or ‘192.168.1.254’.

You can access the pages via the http protocol. For remote assistance the secure version, https, in combination with certificates is used; provide your ISP with the https link, user name and password before he can log on to the pages. For more information, see “1.3.4 Remote

Assistance” on page 18.

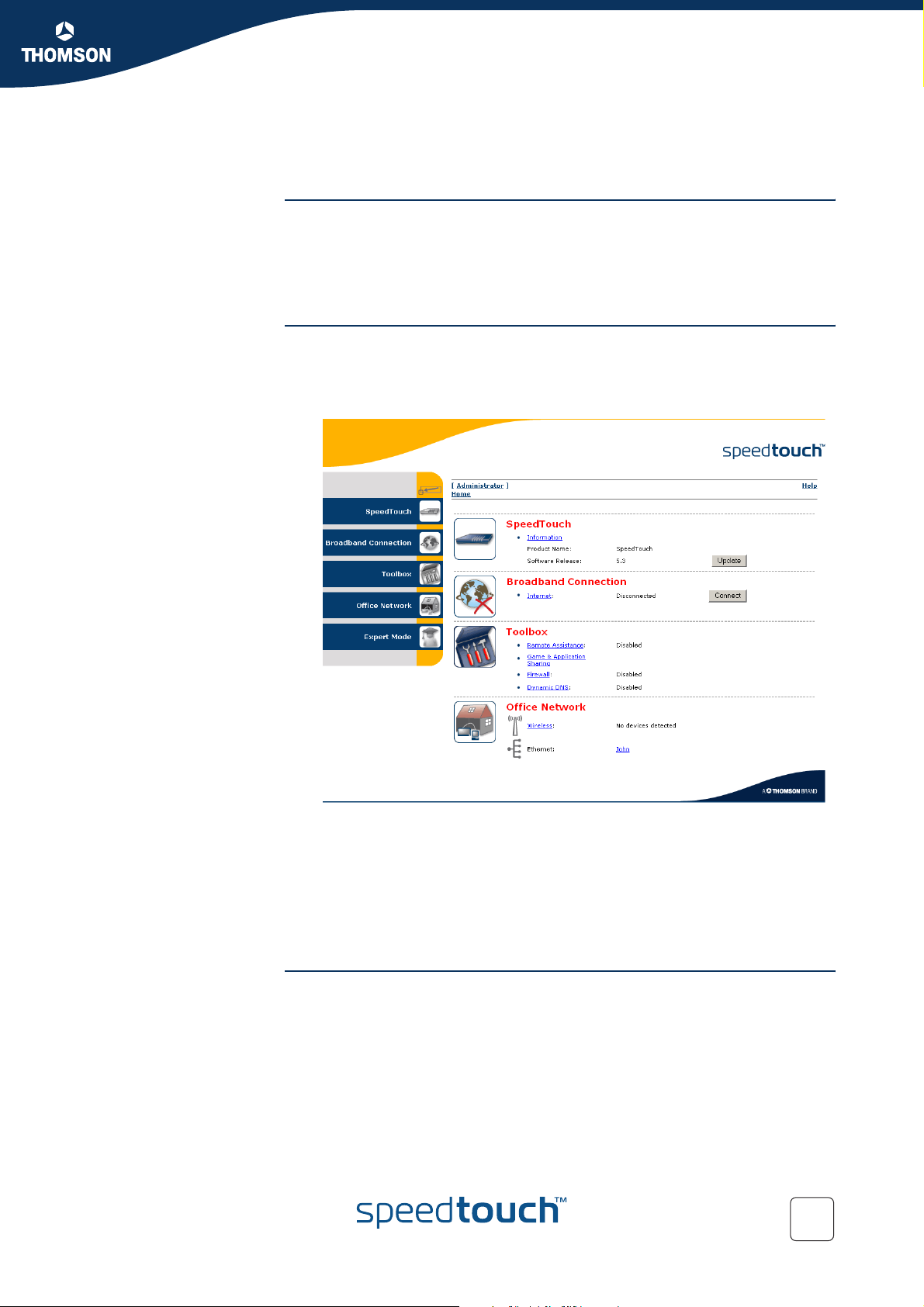

3 As a result the SpeedTouch™ Home page appears, from where you can navigate

to all the configurable aspects of the SpeedTouch™.

For more information on the web pages, see “4 Basic Configuration” on page 45.

E-DOC-CTC-20050429-0104 v1.0

1.3.2 Access via CLI

Chapter 1

Your SpeedTouch™

Command Line

Interface (CLI)

You can access the Command Line Interface (CLI) via:

 The embedded Expert pages. For more information, see “5 Expert

Configuration” on page 101.

 A Telnet session

This requires that TCP/IP connectivity exists between the host from which the Telnet session is opened and the SpeedTouch™. Your SpeedTouch™ and the connected PC must have an IP address in the same subnet.

 The serial ‘Console’ interface

 Quote site commands (over FTP)

For more information, see “ Quote site command” on page 17.

For information on CLI commands, see the SpeedTouch™ CLI Reference Guide.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

Teln e t ses si on Proceed as follows:

1 Open a telnet application.

You can use the Command Prompt window.

In Windows XP for instance:

1 On the Windows task bar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

2 Connect to your SpeedTouch™. .

In the Command Prompt window:

At the prompt, type SpeedTouch™ (default is 192.168.1.254).

3 Enter your SpeedTouch™ security user name and password.

The default user is ‘Administrator’ and the default password is blank.

4 As soon as you’ve opened a session to the CLI, the SpeedTouch™ banner is

displayed, followed by the CLI prompt, as shown in the example below:

telnet followed by the IP address of your

Username : Administrator

-----------------------------------------------------------------------

* ______ SpeedTouch * ___/_____/\ * / /\\ Version 5.3 * _____/__ / \\ * _/ /\_____/___ \ Copyright (c) 1999-2005, * // / \ /\ \ THOMSON * _______//_______/ \ / _\/______ * / /\ \ / // /\ * __/ / \ \ / / / / _\__ * / / / \_______\/ / / / / /\ * /_/______/___________________/ /________/ /___/ \ * \ \ \ ___________ \ \ \ \ \ / * \_\ \ / /\ \ \ \ \___\/ * \ \/ /\ \\ \/ * \_____/ / \ \ \________\/ * /__________/ \ \ / * \ _____ \ /_____\/ * \ / /\ \ /___\/ * /____/\\/ * \ \ /___\/ * \____\/

----------------------------------------------------------------------{Administrator}=>

E-DOC-CTC-20050429-0104 v1.0

1.3.3 Access via FTP

Chapter 1

Your SpeedTouch™

File Transfer Protocol

(FTP)

File system The SpeedTouch™ file system is stored on nonvolatile memory, and contains the

FTP session To open an FTP session:

You can access the file system of the SpeedTouch™ via the File Transfer Protocol (FTP), in order to:

 Restore or backup configuration files, templates or language packs.

 Upgrade your configuration or firmware.

SpeedTouch™ software, service template files and (optionally) default setting files.

1 Open a Command Prompt window.

In Windows XP for instance:

1 On the Windows task bar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

2 At the prompt, type ftp followed by the IP address of your SpeedTouch™

(default is 192.168.1.254).

3 Enter your SpeedTouch™ security user name and password.

The default user is ‘Administrator’ and the default password is blank.

4 The example below shows an FTP session to the SpeedTouch™ file system:

File system structure The structure of the file system is very simple: It consists of a single root directory

called root and two subdirectories called active and dl.

 The root directory contains:

 all the necessary files for the SpeedTouch™ to boot correctly

 the active and the dl directories

 The active directory contains the active software image.

 The dl (download) directory contains the passive software image.

If you made changes to the SpeedTouch™ configuration and saved them, a user.ini configuration settings file is created in the dl subdirectory.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

File system access

rights

Common FTP

commands

On the different directories you have following privileges:

Directory Access rights

root NO read/write

active read-only

dl read/write

Depending on the access rights you have on a directory, you can use one of following commands:

Command... You can use to...

cd access another directory than the one currently open.

Example: ftp>cd dl.

dir list the directory files.

Example: ftp>dir.

bin set the transfer mode to ‘binary’.

hash turn on the hashing option.

put upload files.

Example: ftp>put C:/MyBackupFiles/user.ini.

A configuration file must be uploaded to the dl directory.

get download files.

Example: ftp>get user.ini.

Downloading the configuration file must be done from the dl directory.

delete delete files.

bye quit FTP.

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

FTP fil e tr a ns f er To allow correct file transfers, set the transfer mode to “binary”: At the ftp prompt,

type bin and press Enter.

Turn on the hashing option to see the progression of the file transfer: At the ftp prompt type hash and press Enter.

Example:

/home/doejohn{1}$ftp 192.168.1.254 Connected to 192.168.1.254 220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change. Name (192.168.1.254:doejohn): 331 SpeedTouch™ (00-90-D0-01-02-03) User 'doejohn' OK. Password requir ed. Password : ###### 330 OK ftp> ftp>bin 200 TYPE is now 8-bit binary ftp> ftp>hash 200Hash mark printing on (8192 bytes/hash mark). ftp>cd dl 250 Changed to /dl ftp>put C:\user.ini 200 Connected to 192.168.1.10 port 1271 150 Opening data connection for user.ini

226 File written successfully ftp: 256 bytes sent in 0,000Seconds 256000,000Kbytes/sec. ftp>

Quote site command All the CLI commands can be executed from within an FTP session. Only complete

CLI commands (in other words, the complete command syntax with all the parameters already specified) can be executed.

Example: To execute the CLI command type ‘quote site software cleanup’ and press Enter.

ftp> quote site software cleanup 200200 CLI command "software cleanup" executed ftp>

For more information on CLI commands, see the CLI Reference Guide.

:software cleanup: At the FTP prompt

E-DOC-CTC-20050429-0104 v1.0

Chapter 1

Your SpeedTouch™

Enabling remote access To enable remote assistance:

1.3.4 Remote Assistance

Remote access You can make your SpeedTouch accessible from the Internet with regard to remote

support. This way, you can allow your helpdesk to access your SpeedTouch™ remotely.

1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web

Interface” on page 12.

2 In the menu select Toolbox > Remote Assistance.

3 Click Enable Remote Assistance.

4 Provide the following parameters to your helpdesk:

 URL (the HTTPS link)

 User name

 Password

5 Your ISP is now able to access your SpeedTouch™ via the secure HTTPs link in

combination with the provided certificate (a secure authentication mechanism).

For security reasons, after 20 minutes of inactivity, or on reboot, Remote Assistance will be automatically disabled.

Disabling remote

access

To disable remote assistance:

1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web

Interface” on page 12.

2 In the menu select Toolbox > Remote Assistance.

3 Click Disable Remote Assistance.

E-DOC-CTC-20050429-0104 v1.0

2 Local Network Setup

Introduction The SpeedTouch™ offers you following local networking solutions:

 Wired Ethernet

 Wireless Ethernet

Device settings Once you’ve connected a device, you are able to personalise its settings:

1 Go to the SpeedTouch™ web pages.

2 In the menu select Home Network > Devices.

3 Click the name of your device, or if the device’s settings haven’t been

personalised yet, click the MAC address of the device.

4 On the top right, click Configure.

5 Now you can change the device’s name, lock its IP address and assign

applications and services to the device.

Chapter 2

Local Network Setup

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

2.1 Wired Ethernet

Local network The Ethernet ports on the backpanel allow you to connect the SpeedTouch™ to an

existing 10 or 100 Base-T Ethernet network or one (or more) computer(s) with installed Ethernet card.

Using the SpeedTouch™ Ethernet switch, you can create a local Ethernet network of up to four devices, without needing extra networking devices.

In the SpeedTouch™ package, a yellow full-wired straight-through RJ-45/RJ45 Ethernet cable is included.

Standard wiring

procedure

Use the yellow Ethernet cable provided to wire your computer's Ethernet port to one of the SpeedTouch™'s Ethernet ports.

The Ethernet cable can also be used to wire any Ethernet port of your SpeedTouch™ to an external hub or switch.

Please follow the installation instructions supplied with the external hub or switch for connections and Ethernet cabling.

Ethernet link check LED indicators allow you to check your Ethernet. See “1.2 SpeedTouch™ LED

Behaviour” on page 9 for more information.

Device settings Once you’ve connected a device, you are able to personalise its settings.

For more information, see “ Device settings” on page 19.

Managed Ethernet

switch

Your SpeedTouch™ intelligently switches data between the devices on your LAN, using priority queuing to ensure that higher priority messages are delivered first and in real-time. This feature maximizes your network performance.

The managed Ethernet switch allows you to configure a Virtual Local Area Network (VLAN), group ports or isolate a port, configure secure channel connections, define Quality of Service (QoS), and you can configure port mirroring, allowing monitoring from one port to another.

You can configure the managed Ethernet switch manually using CLI (For more information, see the SpeedTouch™ CLI Reference Guide) or on the expert web pages (see“5.5.3 Managed Switch” on page 158).

E-DOC-CTC-20050429-0104 v1.0

Local Network Setup

2.2 Wireless Ethernet

Introduction The SpeedTouch™ 608 WL/620Wi-Fi® certified IEEE 802.11g compliant wireless

access point allows multiple computers to connect wirelessly to your local network over the SpeedTouch™ Wireless LAN environment. The SpeedTouch™ is backward compatible with IEEE 802.11b, which means 802.11b and 802.11g devices can coexist in the same wireless network.

The Wireless Distribution System (WDS) on your SpeedTouch™ allows you to extend the range of your wireless network. To be able to use WDS, you will need to introduce an additional WDS-enabled access point into your wireless network.

To be able to connect the computers, make sure that a wireless client adapter (WLAN client) is installed on each computer you want to connect via the WLAN.

Chapter 2

Wireless client

requirements

All wireless client adapters compliant to 802.11g and/or 802.11b, will be able to communicate with the SpeedTouch™ and other members of the SpeedTouch™ (W)LAN environment. However, be aware that only 802.11g compliant wireless clients are able to gain full profit of the 54 Mb/s (Max) bandwidth delivered by the SpeedTouch™.

It is highly recommended to use only wireless client adapters that are Wi-Fi™ certified to ensure smooth interoperability with the SpeedTouch™’s WLAN.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Wireless Fidelity The Wi-Fi certification ensures that your SpeedTouch™ will interoperate with any Wi-

2.2.1 Wireless Basics

Introduction In this section some key wireless concepts are explained.

802.11b/g 802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s.

802.11g, a newer IEEE standard also operating at 2,4 GHz, gives you up to 54 Mb/s speed, more security and better performance.

Fi certified 802.11g and 802.11b compliant wireless device.

Access Point The SpeedTouch™ Wireless LAN Access Point (AP) behaves as a networking hub

allowing to wirelessly interconnect several devices to the local (W)LAN and to provide access to the Internet.

Network Name or SSID The WLAN's 'radio' link is a shared medium. As no physical connection exists

between the SpeedTouch™ and wireless clients, a name must be given to allow unique identification of your WLAN radio link. This is done by the Service Set ID (SSID), also referred to as Network Name. Wireless clients must be part of this SSID environment in order to be able to communicate with other clients on the (W)LAN including the SpeedTouch™.

Radio channels The 802.11g standard allows several WLAN networks using different radio channels

to be co-located. The SpeedTouch™ supports multiple radio channels and is able to select the best radio channel at each start-up.

You can choose to set the channels automatically or manually.

The different channels are overlapping. To avoid interference with another access point, make sure that the separation (in terms of frequency) is as high as possible. It’s recommended to keep at least 3 channels between 2 different access points.

The SpeedTouch™ supports all channels allowed for wireless networking. However, depending on local regulations, the number of channels actually allowed to be used may be additionally restricted, as shown in the table below:

Regulatory Domain Allowed Radio Channels

China 1 to 13

Europe 1 to 13

Israel 5 to 8

Japan 1 to 14

Jordan 10 to 13

Thailand 1 to 14

USA 1 to 11

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Antennas Direct the external antenna to allow optimization of the wireless link. If for example

the antenna is erect, wireless links in the horizontal plane are favoured. Please note that the antenna characteristics are influenced by the environment, that is by reflections of the radio signal against walls or ceilings. It is advisable to use the received signal strength as indicated by the wireless client manager to optimize the antenna position for the link to a given client.

Concrete walls will die down the radio signal strength and thus affect the connection.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

2.2.2 Connecting First-time Wireless Clients

Wireless default

settings

Preparing first-time

wireless clients

After every Reset-to-Defaults, the SpeedTouch™ wireless access point configuration is returned to its initial default settings.

These default settings are:

 Security level is low (security disabled) for an easy first use, meaning the data

will not be encrypted. Wireless security settings are described in

“2.2.3 Wireless Security” on page 27.

 The SpeedTouch™ is broadcasting its network name (SSID).

This default network name (SSID) is printed on the identification label located on the bottom of your SpeedTouch™ and is unique for each device. It consists of the concatenation of the word “SpeedTouch” and 6 hexadecimal characters, without any spaces, for example SpeedTouch123456.

 The radio channel number is set to ‘automatically scan for the best radio

channel’.

 Registration is not activated. New stations are allowed automatically. The

Access Control List is open and empty. No wireless client will be denied access to the SpeedTouch™ based on its physical hardware address.

The default wireless settings may differ from the settings listed above depending on your Service Provider’s requirements. If this is the case, refer to the installation/configuration instructions provided by your Service Provider.

Make sure that:

 The SpeedTouch™ is powered on and ready for service.

 The SpeedTouch™ is in its default configuration.

If needed, reset the SpeedTouch™ to its default configuration (See “8.3 Reset

to Factory Defaults” on page 199 for more information).

 A wireless client adapter is installed on your computer.

 The wireless client adapter’s IP configuration is set to dynamically obtain its IP

configuration (DHCP) - this is usually the default. For more information, see the documentation of your wireless client adapter.

Configuring first-time

wireless clients

First-time association

example

The wireless client must be correctly configured for the default network name. As the SpeedTouch™ broadcasts its network name to the wireless clients, you can select the SpeedTouch™ wireless network from a list of available networks. Depending on your wireless client a wireless icon may become green or a message similar to the following may pop up: “Successfully joined Wireless network SpeedTouch123456”.

Some wireless clients do not automatically join a wireless network. If so, follow the instructions for the wireless client software to initiate association.

In the example below is shown how the SpeedTouch™ wireless network is presented towards an MS Windows XP Service Pack 2 system:

E-DOC-CTC-20050429-0104 v1.0

To associate your wireless client to the SpeedTouch™:

1 Click the network icon in the notification area:

2 The Wireless Network Connection window appears:

Chapter 2

Local Network Setup

In the Choose a wireless network list, select the SpeedTouch™ wireless network and click Connect.

3 Following window appears:

Click Connect Anyway.

4 Your computer is now connected to the SpeedTouch™ wireless network.

For other Operating Systems the wireless client will in most cases be configured via dedicated client managers.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Wireless device

settings

Once you’ve connected a device, you are able to personalise its settings.

For more information, see “ Device settings” on page 19.

To add a wireless device to the Access Control List (ACL), select Allowed on

WLAN.

E-DOC-CTC-20050429-0104 v1.0

2.2.3 Wireless Security

Introduction Since the SpeedTouch™ wireless environment is a radio environment, precautions

must be taken to ensure that your wireless network is safe from malicious intruders.

To secure your wireless network, following wireless access point settings can be personalised:

 Your Network Name (SSID)

 ACL setting

 Data encryption

Security settings To personalise the wireless security settings on your SpeedTouch™:

1 Go to the SpeedTouch™ web pages.

2 In the menu select Home Network.

3 Click your WLAN.

4 On the top right, click Configure.

5 On the Wireless Access Point page, you can modify the Security settings.

Chapter 2

Local Network Setup

Network Name (SSID) On the Wireless Access Point page, you can give a new name to your Network

Name (SSID).

Under Security, you can clear Broadcast Network Name (SSID), to prohibit the Network Name from being broadcasted.

Access Control List

(ACL)

The SpeedTouch™ features a managed Access Control List (ACL) and a physical registration mechanism in the form of the Association / Registration button on the

back panel of your SpeedTouch™.

On the Wireless Access Point page, you have following options for the ACL: New

stations are

 Allowed (automatically): All new stations can access the SpeedTouch™.

 Allowed (via registration): Only allowed stations in the ACL have access.You

can add new stations via the Association / Registration button. For more information, see “ Registering clients via association button” on page 30.

 Not allowed: Only allowed stations in the ACL have access.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Data encryption To setup wireless connectivity, you can choose different levels of security:

 Low (Security disabled, the default): No security; the data will not be

encrypted, no authentication process will be used.

 Medium: Use WEP (Wired-Equivalent Privacy) to encrypt the traffic

between the SpeedTouch™ and the clients by sharing a pre-defined 64-bit or a 128-bit Network key for secure communication with legacy 802.11b clients.

The default 64 bits hexadecimal WEP key is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.

 High: Use WPA-PSK (Wi-Fi Protected Access Pre-Shared Key) encryption,

the highest form of security available, but make sure that your wireless client and client manager are compatible with it.

The default WPA-Personal passphrase is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.

The WPA-Personal passphrase must consist of 8 to 63 ASCII characters or 8 to 64 HEX digits.

E-DOC-CTC-20050429-0104 v1.0

2.2.4 Connecting Additional Wireless Clients

Preconditions Make sure that:

 The SpeedTouch™ is powered on and ready for service.

 The SpeedTouch™ has been configured as DHCP server (default).

 The wireless client adapters have been installed on all computers you want to

connect to the WLAN.

Security issues Depending on the personalised wireless settings:

 Make sure to use the same encryption or security level on the client as on your

SpeedTouch™. If for instance WPA-PSK is enabled on the SpeedTouch™, you must also configure the wireless client to use WPA-PSK and configure the same WPA-PSK passphrase.

 In case the Network Name (SSID) is not broadcasted, you must configure the

wireless client for the SpeedTouch™ Network Name. Refer to the documentation of your wireless client for more information.

 Depending on the ACL settings:

 In case New stations are allowed (automatically), your device will be

able to access the SpeedTouch™ WLAN.

 In case New stations are allowed (via registration), you will need to

association button” on page 30.

 In case New stations are not allowed, you will not be able to access the

SpeedTouch™.

Chapter 2

Local Network Setup

Registering wireless

clients

Registering clients via

web pages

In case ‘New stations are allowed (via registration), you can add a wireless client to the ACL via:

 Registering clients via web pages

 Registering clients via association button

You can add a wireless client to the ACL as follows:

1 Go to the SpeedTouch™ web pages.

2 In the menu select Home Network > Devices.

3 Under Pick a task..., click Search for wireless devices.

4 The SpeedTouch™ searches for new wireless stations that use the encryption

key of the SpeedTouch™ Access Point.

5 The SpeedTouch™ takes you to the Home Network. The new station will be

shown next to the name of the SpeedTouch™ WLAN.

6 Click the name of the new station.

7 Click Configure.

8 Select Allowed on WLAN and click Apply.

9 Now the device is added to the ACL and will always be allowed to connect to

the SpeedTouch™.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Registering clients via

association button

You can easily register new wireless network clients as follows:

1 Push the Association button on the SpeedTouch™ back panel for at least two

seconds. The WLAN LED will toggle between green and red.

The ACL will be unlocked for a time frame of one minute. Any new wireless client successfully attempting to connect to the SpeedTouch™ (having the correct wireless settings, that is the network name and, if required, the network key) within the time frame of one minute, will be added to the table. The SpeedTouch™ automatically saves your current configuration at the end of the registration phase.

Some WLAN clients do not automatically join a WLAN. If so, follow the instructions for the WLAN client software to initiate the association.

2 Successfully registered stations are associated to the SpeedTouch™ WLAN.

Depending on your WLAN client adapter, a wireless icon may become green or a message similar to the following may appear: “Successfully joined Wireless network SpeedTouch123456”.

3 The wireless clients will be added to the SpeedTouch™ ACL.

4 After one minute the ACL is locked.

The registration procedure can be repeated as often as needed.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

2.2.5 Extending the Range of Your Wireless Network

WDS The SpeedTouch™ features Wireless Distribution System (WDS) functionality. This

feature allows you to extend the range of your wireless network by introducing one or more WDS-enabled devices into your wireless network.

The Wireless Distribution System (WDS) enables data packets to pass from one wireless access point to another, just as if the access points were ports on a wired Ethernet switch. WDS allows you to extend the range of your SpeedTouch™ by means of one or more wireless repeaters, like for instance a SpeedTouch™180. The following illustration depicts two WDS-enabled devices communicating via WDS:

WDS Link

SpeedTouch™180 SpeedTouch™620

The SpeedTouch™ allows you to add up to four wireless repeaters.

Repeaters extend the coverage area of your wireless LAN, however bear in mind that throughput is reduced for wireless clients that are connected through a repeater.

Preconditions Check on following:

 Your wireless repeater must be WDS enabled.

 Both your SpeedTouch™ and your wireless repeater must use:

 The same WEP key if WEP is enabled.

 The same fixed channel.

The SpeedTouch™ and your wireless repeater do not necessarily need to use the same SSID. Using different SSIDs allows you to force your wireless clients to use either the access point of the SpeedTouch™ or the one of your wireless repeater.

WPA encryption is not supported when using WDS.

E-DOC-CTC-20050429-0104 v1.0

Chapter 2

Local Network Setup

Configuring WDS To configure your WDS on the web pages:

1 Go to the SpeedTouch™ web pages.

2 In the menu select Home Network.

3 Click your WLAN.

4 On the top right, click Configure.

If not already done, set a fixed channel and check whether the security settings (WEP encryption or no encryption) on your SpeedTouch™ are the same as on the repeater.

5 On the Wireless Access Point page, in the Pick a task... list, click Configure

WDS.

6 Select WDS Enabled.

7 In the Pick a task... list, click Scan for wireless access points.

8 A warning will be displayed:.

Click OK.

9 The SpeedTouch™ will scan for access points on the same radio channel.

10 Select your repeater in the List of Accessible Access Points and click Apply.

E-DOC-CTC-20050429-0104 v1.0

Internet Connectivity Dial-In Clients

3 Internet Connectivity Dial-In Clients

Introduction For setting up initial Internet connectivity, using the Home Install Wizard on the

Setup CD or the embedded Easy Setup, refer to the provided Installation and Setup Guide.

Access methods Depending on the configuration of the SpeedTouch™ you may have:

 Direct access:

As soon as the initial configuration has been done, immediate and uninterrupted WAN access is provided.

In case of direct access, the remote organisation might ask for a user name and password on an Internet welcome page.

 Dial-in access:

Access must be explicitly established, that is by “dialling” into a Broadband Remote Access Server (BRAS).

Depending on the SpeedTouch™ configuration, dial-in access is provided via the SpeedTouch™’s Routed PPPoA or Routed PPPoE packet services with embedded PPP client.

Chapter 3

Connection protocols The applied connection protocol model depends on the service profile you selected to

configure the SpeedTouch™ and should correspond with the Service Provider’s requirements. If your ISP provides PPPoE for instance, you should configure PPPoE.

More information on connection protocols can be found in the Internet Connection Configuration Guide.

Dial-in clients There are different ways of dialling in, depending on the operating system on your PC

and your preferences.

Dial-in method: can be used on

following operating

For more information, see:

system:

Embedded PPP dial-in client:

Dial-in client on embedded pages

MS Windows XP IGD Control Agent for UPnP

Host PPP dial-in client for a SpeedTouch™ configured in pure bridging mode:

MS Windows XP Broadband connection

Mac OS X PPPoE dial-in client

MS Windows, Mac, unix, other

MS Windows XP “3.2 IGD Control Agent”

MS Windows XP “3.3 MS Windows XP

Mac OS X “3.4 Mac OS X PPPoE

“3.1 SpeedTouch™ Web Pages”

on page 37

BroadBand Connection”

Dial-in Client”

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Embedded PPP dial-in

clients

Broadband host PPPoE

dial-in clients

The SpeedTouch™’s embedded PPP dial-in client allows you to establish an Internet connection for computers residing on your local network, using only one computer of the network to control the client.

If this computer runs:

 Any Operating System

you can always use the SpeedTouch™ web pages. See “3.1 SpeedTouch™ Web Pages” on page 35 to proceed.

 MS Windows XP

you can use MS Windows XP’s Internet Gateway Device Control Client. See “3.2 IGD Control Agent” on page 37 to proceed.

You can also connect to the Internet using a Broadband PPPoE dial-in application. The PPP over Ethernet connection scenario provides PPP-like dial-in behaviour over the virtual Ethernet segment.

To be able to use a broadband dial-in application on your computer for connecting to the Internet, the SpeedTouch™ needs to be configured for Bridged Ethernet or Routed PPPoE (with PPPoE relay) via the SpeedTouch™ Home Install Wizard on the Setup CD or the embedded Easy Setup.

If this computer runs:

 MS Windows XP

you can use the MS Windows XP broadband dial-in client. See “3.3 MS

Windows XP BroadBand Connection” on page 39 for more information.

 Mac OS X

you can use a Mac OS X broadband dial-in client. See “3.4 Mac OS X PPPoE

Dial-in Client” on page 43 for more information.

- or -

 A broadband PPPoE dial-in client provided by your Service Provider to connect

to the Internet

Upon availability of OS-specific PPPoE dial-in client applications, the latter method is Operating System independent.

For PPPoE session connectivity from a Mac OS 8.6/9.x, an MS Windows 95/98(SE)/ME/2000 or a Linux system, a host PPPoE dial-in application is mandatory.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

3.1 SpeedTouch™ Web Pages

Introduction As the SpeedTouch™ web pages are controllable from any Operating System with an

installed web browser, the method to establish PPP sessions described below you can use on any computer system.

For more information on Internet connection setup, see the provided Installation and Setup Guide.

Starting an Internet

session

Proceed as follows:

1 Open a web browser on your computer and browse to the SpeedTouch™ web

pages (see “1.3.1 Access via the Web Interface” on page 12 for more information):

Monitoring your

Internet connection

E-DOC-CTC-20050429-0104 v1.0

By default the SpeedTouch™ shows you the Home page.

2 Click Connect at the appropriate broadband connection.

You might be requested to enter your user name and password.

As a result SpeedTouch™’s embedded PPP dial-in client establishes the Internet connection.

3 Now you can surf the Internet.

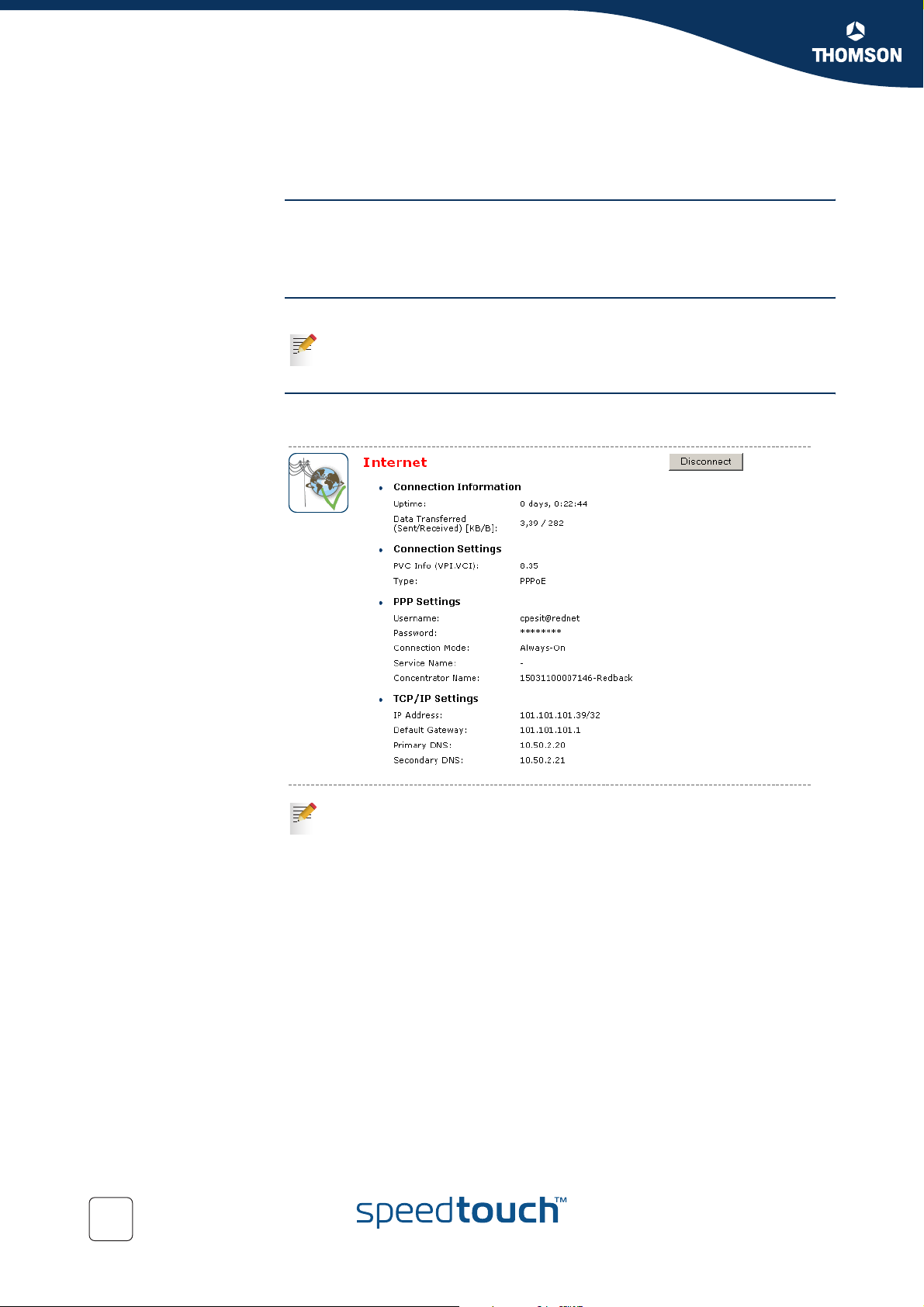

You are able to overview and monitor your Internet connectivity as long as the session is running via:

 The SpeedTouch™ System Information page: see “4.3.1 Information” on

page 54.

 The SpeedTouch™ Diagnostics task: see “4.4.1 Connectivity Check” on

page 63.

Chapter 3

Internet Connectivity Dial-In Clients

Terminating an Internet

session

To close an active PPP connection:

1 Go to the SpeedTouch™ Home page.

2 Click Disconnect at the appropriate broadband connection.

As a result the SpeedTouch™’s embedded PPP dial-in client will close the Internet connection. The Internet Link status will change to Disconnected and your PC is offline.

E-DOC-CTC-20050429-0104 v1.0

Internet Connectivity Dial-In Clients

3.2 IGD Control Agent

Introduction MS Windows XP users can easily establish PPP sessions, thanks to MS Windows

XP’s Internet Gateway Device (IGD) Discovery and Control Client that allows you to control the SpeedTouch™ directly from you PC.

The IGD control client only allows to connect or to disconnect a fully configured connection.

Preconditions Following conditions must be met:

 Following subcomponents of Windows XP’s Networking Services must be

added to your Windows XP system:

 UPnP™ (see “ SpeedTouch™ not detected by UPnP™ or IGD Control Client”

on page 197).

 IGD Discovery and Control Client (see “ Adding IGD Discovery and

Control” on page 198).

 UPnP™ must be enabled on your SpeedTouch™. To enable UPnP, see

“4.5.2 Game & Application Sharing” on page 69.

Chapter 3

Starting an Internet

session

Proceed as follows:

1 In the Windows task bar, click Start.

2 Select (Settings >) Control Panel.

3 The Control Panel window appears. Go to (Network and Internet Connections

>) Network Connections.

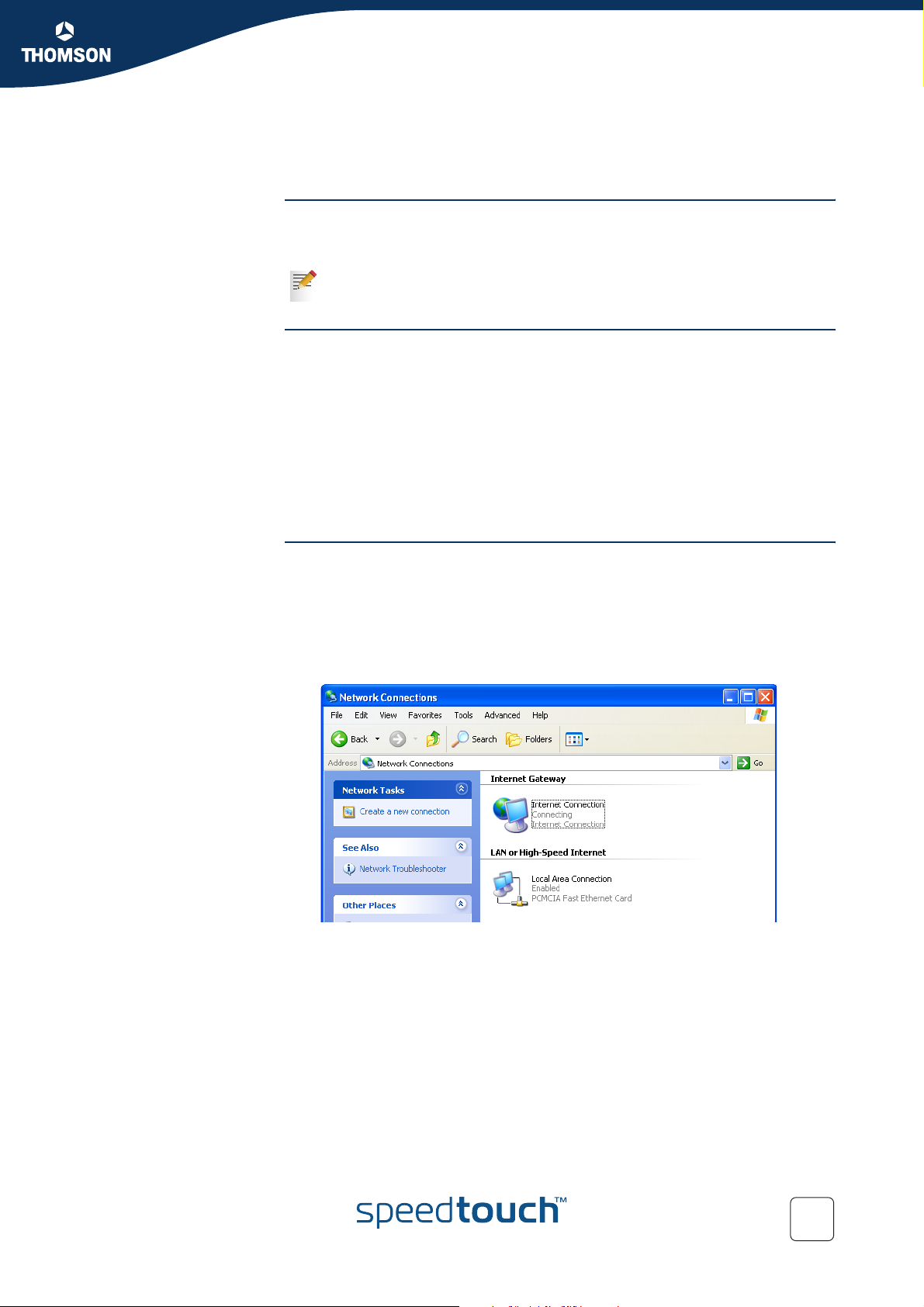

4 The Network Connections window appears:

You will find an Internet Gateway icon, representing the SpeedTouch™ IGD Internet connection ability.

5 Double-click the Internet Connection icon.

As a result the SpeedTouch™’s embedded PPP dial-in client establishes the Internet connection. The Internet Gateway icon displays connected and your PC is online.

6 You can open a web browser and surf the Internet.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Internet connection

status

Terminating an Internet

session

As long as the SpeedTouch™’s embedded PPP dial-in client is connected, you are able to overview the connection status and some counters by double-clicking the Internet Connection icon in your PC’s Network Connections window:

Proceed as follows:

1 In the Windows task bar, click Start.

2 Select (Settings >) Control Panel > (Network and Internet Connections >)

Network Connections.

3 In the Network Connections window, right-click the Internet Connection icon

and select Disconnect to close the session.

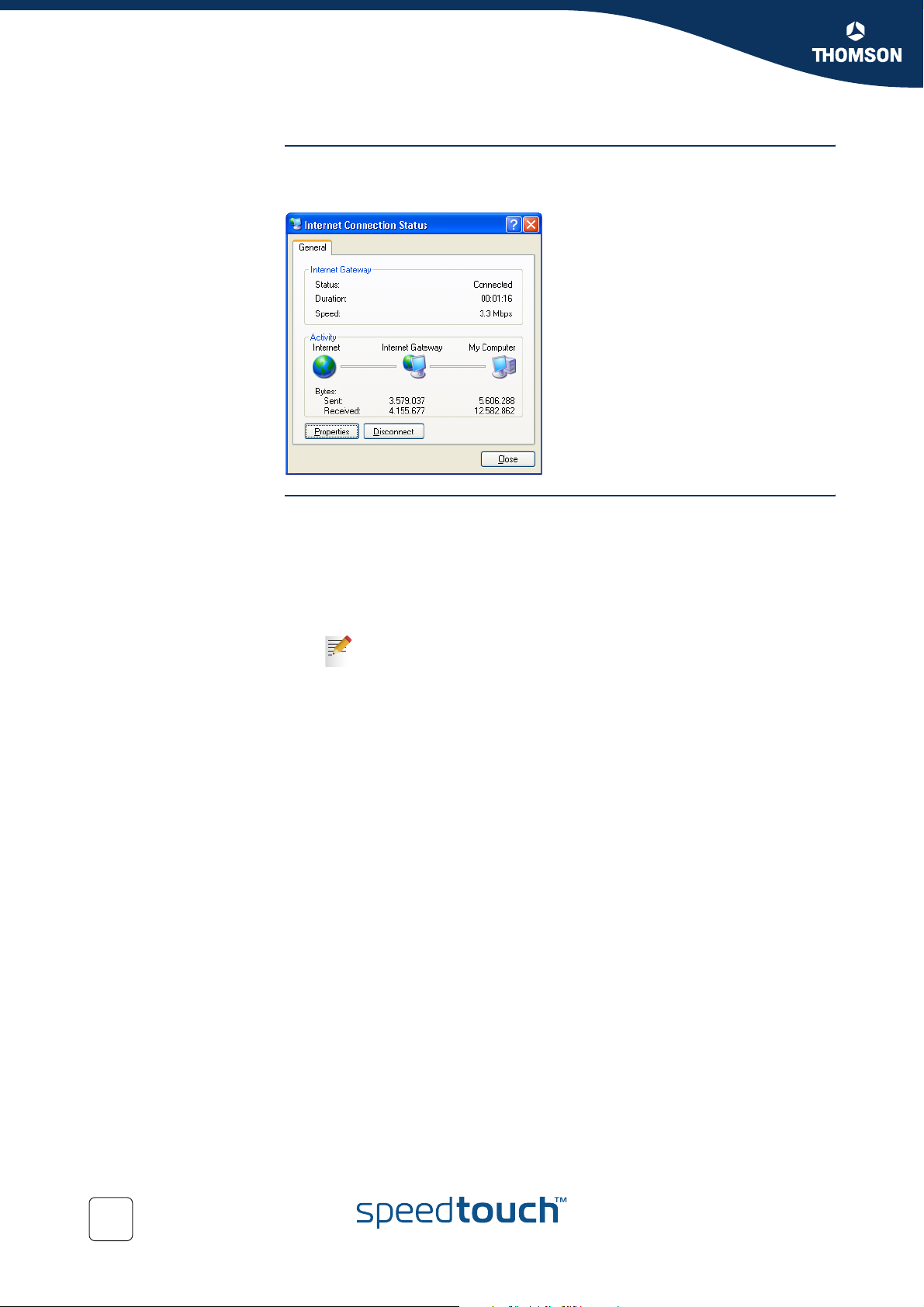

You can also double-click the icon. Then the Internet Connection Status window will appear on which a Disconnect button is available to close the session.

4 As a result the SpeedTouch™’s embedded PPP dial-in client will close the

Internet connection. The Internet Gateway icon displays Disconnected and your computers are off-line.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

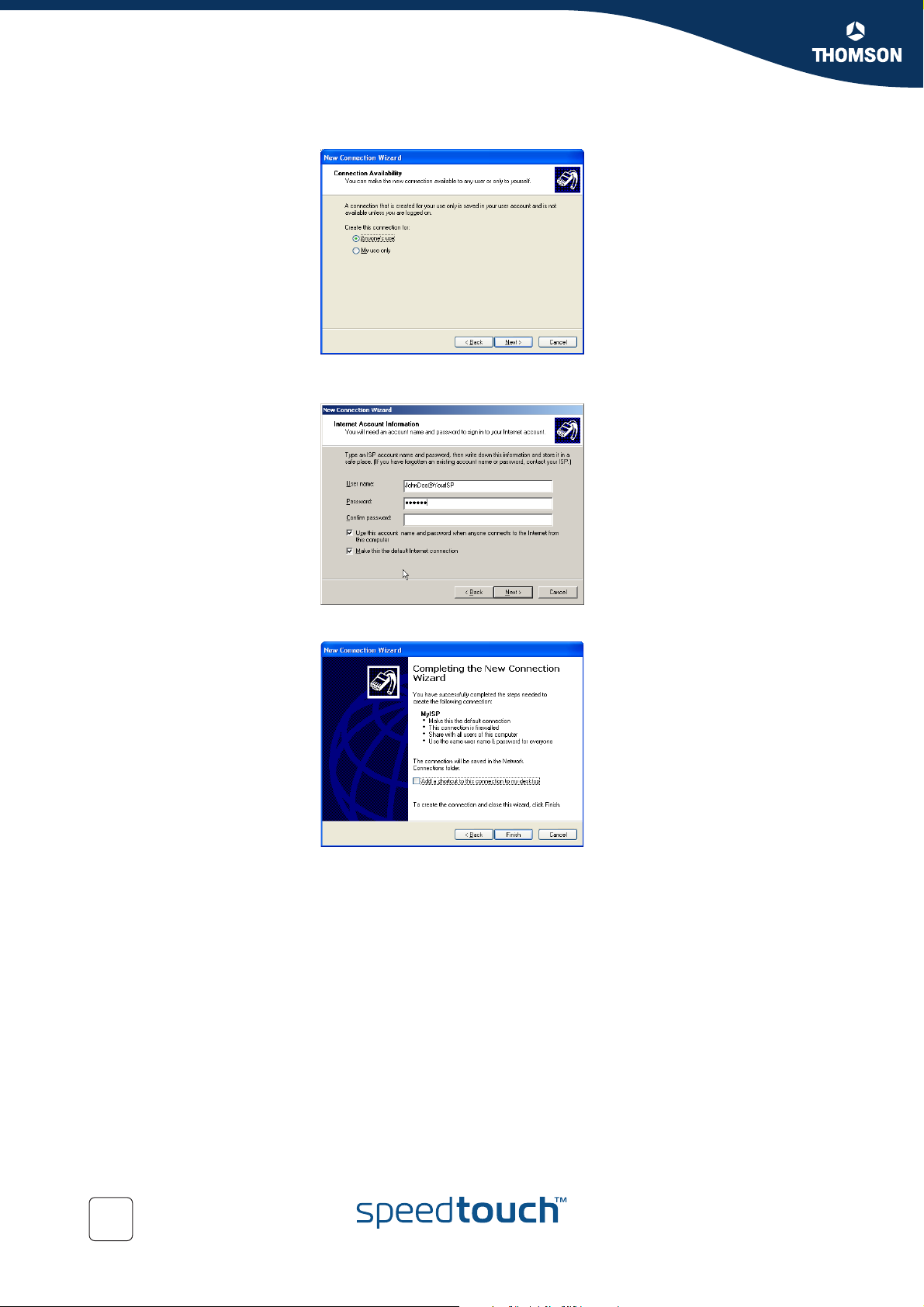

3.3 MS Windows XP BroadBand Connection

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

must be configured for either:

 Bridging, or

 PPPoE Relay

Configuring a

broadband connection

Proceed as follows:

1 On the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears. Go to (Network and Internet Connections

>) Network Connections.

3 In the Network Tasks menu, click Create a new connection.

The New Connection Wizard appears:

Click Next.

4 Select Connect to the Internet and click Next.

5 Select Set up my connection manually and click Next.

6 Select Connect using a broadband connection that requires a user name and

password and click Next.

7 Give a name to the connection you are creating, for example YourISP:

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

8 Select whether the connection will be available to any user or only to yourself:

9 Fill in the Internet account information. This information should be provided by

your service provider:

10 At the end of the configuration the following window appears:

Click Finish to complete the configuration.

The Connect Your IS P window (see below) appears.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Starting a broadband

Internet session

Proceed as follows:

1 On the Start menu, point Connect To and click the name of the connection

you’ve created, for example YourISP.

If you are using the Classic Start menu click Start > Settings > Network (and Dial-up) connections > YourISP.

2 The Connect YourISP window appears:

3 If requested, enter user name and password for your user account at the

Service Provider.

4 Click Connect.

5 As soon as the connection is established, the Connection message box and

Dialup window are minimised into an icon in the notification area:

6 You can open your web browser and surf the Internet.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Terminating a

broadband Internet

session

Proceed as follows:

1 On the Start menu, point Connect To and click the name of the connection

you’ve created, for example YourISP.

If you are using the Classic Start menu go to Start > Settings > Network (and Dial-up) connections > YourISP.

2 The YourISP Status window appears:

3 Click Disconnect.

4 The connection is released. As a result no Internet connectivity exists any

more.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

3.4 Mac OS X PPPoE Dial-in Client

Prerequisites To be able to use the MS Windows XP BroadBand Connection, your SpeedTouch™

must be configured for either:

 Bridging, or

 PPPoE Relay

Configuring a

broadband connection

Proceed as follows:

1 On the Apple menu, click System Preferences.

2 In the System Preferences window, click the Network icon.

3 The Network window appears. Make sure Built-in Ethernet is selected in the

Show list and click the PPPoE tab:

4 Enter the Account Name and Password provided by your Service Provider.

Select Save password in case you want the computer to remember the password for this account name.

Optionally you can enter a name for this connection in the Service Provider field. All other fields may stay empty.

5 Click Apply Now.

E-DOC-CTC-20050429-0104 v1.0

Chapter 3

Internet Connectivity Dial-In Clients

Starting a broadband

Internet session

Terminating a

broadband Internet

session

Proceed as follows:

1 Click the Internet Connect dockling.

If the Internet Connect dockling is not available, go to the Applications folder on the system startup disk and double-click Internet Connect.

2 The following window appears:

Make sure Built-in Ethernet is selected in the Configuration list.

3 If needed, enter user name and password for your user account at the Service

Provider.

4 Click Connect.

5 As soon as the connection is established you can open your web browser and

surf the Internet.

Proceed as follows:

1 Click the Internet Connect dockling.

If the Internet Connect dockling is not available, go to the Applications folder on the system startup disk and double-click Internet Connect.

2 The following window appears:

Make sure Built-in Ethernet is selected in the Configuration list

3 Click Disconnect.

4 The connection is released. As a result no Internet connectivity exists any

more.

E-DOC-CTC-20050429-0104 v1.0

4 Basic Configuration

Introduction The SpeedTouch™ comes with embedded HTML pages, providing an interface to the

software installed on the device. It allows easy setup and management of the SpeedTouch™ via your web browser form any PC connected to the SpeedTouch™.

See “1.3.1 Access via the Web Interface” on page 12 to access the pages.

Basic and Expert Mode The pages are grouped in:

 Basic Mode: offering the main configuration tasks

 Expert Mode: adding advanced features to the basic mode and presenting the

Command Line Interface (CLI) commands in a graphical user interface.

Chapter 4

Basic Configuration

SpeedTouch™

documentation

Consult:

 The SpeedTouch™ Installation and Setup Guide

for more information on setup and installation procedures.

 The SpeedTouch™ Application Notes and Configuration guides

for advanced configuration concepts.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

Navigation components The SpeedTouch™ web interface consists of following components:

4.1 Navigation

 Menu

 Language Bar

 Navigation Bar

 Notification Area

 Tasks

Navigation bar Notification area Language bar

Tasks

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.1.1 Menu

Menu items The menu is located on the left side of the page and consists of the following menu

items:

 SpeedTouch:

Provides basic information on the SpeedTouch™.

 Broadband Connection:

Allows you to view/configure your broadband connections.

 Toolbox:

Allows you to assign games or applications to a device and secure your Internet connection.

 Office Network:

Allows you to manage your local network.

 Expert Configuration Mode:

Allows you to go to Expert Configuration mode for advanced configuration and maintenance of your SpeedTouch™ device.

Collapsing and

expanding the menu

You are able to collapse/expand the menu by clicking the arrow located on the top of the menu.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.1.2 Language Bar

Language bar The language bar is located under the SpeedTouch™ logo and allows you to change

the language of the SpeedTouch™ web interface.

The language bar will only be shown if more than one language is available.

E-DOC-CTC-20050429-0104 v1.0

4.1.3 Navigation Bar

Navigation bar The navigation bar is located on the top of the page and allows you to:

 View the current user name.

Click this name to change your password or switch to another user.

 View the current position on the SpeedTouch™ web interface.

 Get context related Help information.

Display level Depending on the page you are viewing following buttons will be available:

 Overview to view a summary of the current status or configuration.

 Details to view more detailed information on the current status or

configuration.

 Configure to change the current settings.

Chapter 4

Basic Configuration

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.1.4 Notification Area

Notification area The notification area is located under the Navigation Bar and is used to display:

 Error messages indicated by a red traffic light.

 Warnings indicated by an orange traffic light.

 Information indicated by a green traffic light.

If none of these events occur, the notification area will not be shown.

E-DOC-CTC-20050429-0104 v1.0

4.1.5 Tasks

Task s To allow a swift configuration of your SpeedTouch™, some pages may offer you a

number of related tasks. These tasks will guide you to the page where you can perform the selected task.

Chapter 4

Basic Configuration

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.2 Home

SpeedTouch™ home

page

The SpeedTouch™ home page gives you a short overview of all the configurable aspects of the SpeedTouch™:

 SpeedTouch

 Broadband Connection

 Toolbox

 Office Network

E-DOC-CTC-20050429-0104 v1.0

Basic Configuration

4.3 SpeedTouch

The SpeedTouch menu The SpeedTouch menu consists of following items:

 Information

 Configuration

 Event Logs

 Update

The SpeedTouch page The SpeedTouch page gives you some basic information on the SpeedTouch™:

 Product Information

 Configuration

Chapter 4

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.3.1 Information

Information The Information page summarizes important information on your SpeedTouch™. You

may need this information when you contact your helpdesk.

E-DOC-CTC-20050429-0104 v1.0

4.3.2 SpeedTouch™ Easy Setup

Easy Setup Wizard This wizard helps you configure your SpeedTouch™ Internet connection.

To configure the SpeedTouch™ using the SpeedTouch™ Easy Setup wizard:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Set up.

3 The Easy Setup wizard will now guide you through the configuration of your

SpeedTouch™.

Chapter 4

Basic Configuration

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.3.3 Restart

Accessing the Restart

page

Restarting your

SpeedTouch™

Proceed as follows:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Restart.

Proceed as follows:

1 Click Yes, restart my SpeedTouch.

2 The SpeedTouch™ restarts.

3 The SpeedTouch™ returns to the Home page.

E-DOC-CTC-20050429-0104 v1.0

Basic Configuration

4.3.4 Configuration

Overview The Overview page displays the current configuration of your SpeedTouch™.

Details The Details page displays more detailed information on the current configuration of

your SpeedTouch™.

Configure The Configure page allows you to change the current configuration.

Chapter 4

If you want to:

 Reconfigure your SpeedTouch™:

Click Configuration Wizard under Service Configuration. For more information, see “4.3.2 SpeedTouch™ Easy Setup” on page 55.

 Configure the time settings of your SpeedTouch™:

 Select Auto-configuration if you want the SpeedTouch™ to use a time

server to synchronise its clock to a dedicated time server.

 Clear Auto-configuration to manually configure the SpeedTouch™ time

settings.

 Disable/enable web browsing interception or set it to automatic.

If you disable web browsing interception or set it to automatic you will

not be able to use Web Site Filtering.

Click Apply to save your settings.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.3.5 Backup & Restore

Introduction This page allows you to:

 Save your current configuration.

 Restore a previously saved configuration.

Accessing the Backup

& Restore page

Saving your current

configuration

Restoring a previously

saved configuration

Proceed as follows:

1 On the SpeedTouch menu, click Configuration.

2 Click Configure.

3 In the Pick a task... list, click Save or Restore Configuration.

Proceed as follows:

1 Click Backup Configuration Now.

2 Click Save.

3 Choose a location to save your backup file and click Save.

Proceed as follows:

1 Click Browse.

2 Select the configuration file you want to restore and click Open.

3 Click Restore Configuration Now....

4 The SpeedTouch™ loads your configuration and restarts.

5 At the end of the procedure, the SpeedTouch™ returns to the Home page.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.3.6 Reset to Factory Defaults

Introduction This page allows you to reset the SpeedTouch™ to return to the initial configuration

of your SpeedTouch™. All your changes will be deleted.

Accessing the Reset to

Factory Defaults page

Resetting the

SpeedTouch™ to

factory defaults

Proceed as follows:

1 On the left menu, click SpeedTouch.

2 In the Pick a task... list, click Return to Factory Default Settings.

If you want to reset your SpeedTouch™ to factory defaults, click Yes, reset my SpeedTouch.

If you reset your SpeedTouch™ to factory default settings, all active

connections will be disconnected.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.3.7 Event Logs

Event Logging The Event Logs page summarizes the latest events recorded on your SpeedTouch™.

Recorded Events table The Recorded Events table gives you an overview of the latest event logs that have

been recorded since power on. The first column of the table indicates the importance of the event log

Indicator Description

Informational

Warning

Error

The Category list allows you to filter the events shown in the Recorded Events table. For example, by clicking Security you can view all security related events, for example generated by the SpeedTouch™ firewall.

E-DOC-CTC-20050429-0104 v1.0

4.3.8 Update

Chapter 4

Basic Configuration

Updating the

SpeedTouch™ system

software

The Update page allows you to:

 View System Information.

 View information on the current System Firmware.

 Update your SpeedTouch™ from a remote server.

Use this option if you want to have yourSpeedTouch™ check on the internet for new firmware and update if it found one.

 Update from a PC.

Use this option if you want to install on your SpeedTouch™ that is located on the PC.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.4 Broadband Connection

The Broadband

Connection menu

The Broadband

Connection page

The Broadband Connection menu consists of following menu items:

 DSL Connection

 Internet Services

The Broadband Connection page gives you a short status overview of the connections configured on the SpeedTouch™.

Click View more to see more information on the selected broadband connection.

If you configured a dial-up connection, you are able to establish/terminate the connection by clicking Connect/Disconnect.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.4.1 Connectivity Check

Introduction This page enables you to perform a connectivity check on an Internet service of your

SpeedTouch™.

Accessing the

Connectivity Check page

Checking you Internet

Connectivity

Analysing the test

results

Proceed as follows:

1 On the left menu, click Broadband Connection.

2 In the Pick a task... list, click Check connectivity to the Internet.

Proceed as follows:

1 In the Internet Service to Check list, click the Internet service that you want to

check.

2 Click Check Connectivity.

3 The SpeedTouch™ lists the test results in the Test Results list.

If the test is successful, you will get a list of green check marks. Otherwise a red cross will indicate which tests have failed.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.4.2 DSL Connection

Overview Click Overview to view brief information on your DSL connection.

Details Click Details to view a more detailed information on your DSL connection.

E-DOC-CTC-20050429-0104 v1.0

4.4.3 Internet Services

Chapter 4

Basic Configuration

Internet Services

information

The Internet Services page displays information on your Internet Connection(s).

If you configured a dial-up connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

To view more detailed information on a specific connection, click the View more... link of the corresponding connection.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.4.4 Internet Service Settings

Accessing the Internet

Service Settings page

Overview The Overview page gives you basic information on the selected Internet Service.

Details The Details page gives you more detailed information on the selected Internet

Proceed as follows:

1 On the Broadband Connection menu click Internet Services.

2 Click the View more link of the internet service you want to view.

If you configured a connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

Service.

If you configured a dial-up connection you are able to establish/terminate the connection by clicking Connect/Disconnect.

E-DOC-CTC-20050429-0104 v1.0

4.5 Toolbox

The Toolbox menu The Tool box menu consists of following menu items:

 Remote Assistance:

Allows you to make your SpeedTouch™ accessible for remote support.

 Game & Application Sharing:

Allows you to share services and games that you run in your private network towards the internet.

 Web Site Filtering:

Allows you to block/allow access to specific web sites.

 Firewall:

Allows you to configure the security level of the SpeedTouch™ firewall.

 Intrusion Detection:

Allows you to view the intrusions you are protected against.

 Dynamic DNS:

Allows you to assign a DNS host name to your broadband connection(s).

 User Management:

Allows you to manage the users configured on your SpeedTouch™.

Chapter 4

Basic Configuration

The Toolbox page The Too lb ox page gives you an overview of the available services and their current

status. You can click on the names of these services to go to the corresponding web page.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.1 Remote Assistance

Enabling Remote

Assistance

This page allows you to make your SpeedTouch™ accessible for remote support.

You must be connected to the Internet to be able to enable remote

assistance.

To use remote assistance:

1 If needed, type a password in the Password box.

2 Click Enable Remote Assistance.

3 Pass the information listed under:

 URL

 Username

 Password

to your technical support, in order for them to be able to access your SpeedTouch™.

Once the technical support is connected, no other connections are possible.

4 The remote assistance session ends:

 If the technical support disables remote assistance.

 After 20 minutes of inactivity, or after a reboot, remote management.

E-DOC-CTC-20050429-0104 v1.0

Basic Configuration

4.5.2 Game & Application Sharing

Overview The Overview page summarizes the games and applications on a particular host on

your network, for which the SpeedTouch™ accepts connections coming from the Internet.

Configure The Configuration page allows you to:

 Select Use UPnP to enable UPnP on the SpeedTouch™.

Universal Plug and Play is an architecture for transparent peer-to-peer connectivity of PCs, intelligent appliances, and (wireless) devices. It enables seamless operation of a wide range of games and messaging applications.

 Select Use Extended Security to only allow the creation of port maps.

 Assign a game or application to a specific network device.

Chapter 4

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.3 Defined Games & Applications

Accessing the Defined

Games & Applications

page

The Defined Games &

Applications page

Proceed as follows:

1 In the Toolbox menu, click Game & Application Sharing.

2 In the Pick a task... list, click Modify a game or application.

This page gives you an overview of the games and applications defined on your SpeedTouch™. Each game or application can be assigned to a device on your local network.

To:

 View the translation rules of a game or application, click the name of the rule.

 Change the translation rules of a game or application, click the Edit link of the

the game or application.

E-DOC-CTC-20050429-0104 v1.0

4.5.4 Game or Application Definition

Chapter 4

Basic Configuration

Accessing the Game or

Application Definition

page

Overview This page gives you an overview of the port mappings used to allow this service or

Configure Under:

Proceed as follows:

1 In the Toolbox menu, click Game & Application Sharing.

2 In the Pick a task... list, click Modify a game or application.

3 Click the name of the game or application you want to view/change.

game to be initiated from the Internet.

Consult the user’s guide or support pages of your application to know which ports are being used by this application.

A service is made of one or more TCP/UDP port ranges. Each incoming port range can be translated into a different internal (local network) port range. Port ranges can be statically assigned to devices or dynamically assigned using an outgoing trigger.

 Game or Application Name you can:

Change the name of the game or application.

 Game or Application Definition you can:

Change the TCP/UDP port definition for this game or application.

Adding a Port

Translation rule

E-DOC-CTC-20050429-0104 v1.0

Proceed as follows:

1 In the Protocol list, click the protocol the game or application uses.

2 In the Port Range box, type the port range the game or application uses.

3 In the Translate To... box, type the port range to which the SpeedTouch™ has to

translate the ports specified under Port Range.

4 If you want to make a dynamic translation rule you must specify a trigger

protocol and port.

As soon as the SpeedTouch™ receives outgoing traffic on this trigger port, it will activate this translation rule.

5 Click Apply.

Chapter 4

Basic Configuration

4.5.5 New Game or Application

Accessing the Game or

Application Definition

Creating a new game or

application

Proceed as follows:

1 On the Applications page, click Game & Application Sharing.

2 In the Pick a task... list, click Create a new game or application.

Proceed as follows:

1 Type the name of the game or application in the Name box.

2 Click:

 Clone Existing Game or Application if you want to start from the port

mappings of the selected game or application.

 Manual Entry of Port Maps if you want to manually configure the port

mapping for this game or application.

3 The SpeedTouch™ creates the game or application and takes you to the Game

or Application Definition page to configure the port mappings for this game or

application.

4 Enter the necessary port mappings and click Add.

E-DOC-CTC-20050429-0104 v1.0

4.5.6 Web Site Filtering

Web Site Filtering The SpeedTouch™ allows you to block/allow particular web sites:

 Based on the web site’s URL.

As within a web site lots of references can be made to other URLs, it is recommended to use this feature in combination with content based filtering.

 Based on the web site’s content.

 Redirect a web site to another web site.

If your administrator account is configured as default user, make sure to

configure a password for this account or change the default user. Otherwise users on your local network can surf to your SpeedTouch™ to disable your filtering rules.

For more information, see “4.5.13 User Management” on page 83 and

“4.5.15 Change Default User” on page 85.

Chapter 4

Basic Configuration

Overview The Overview page displays:

 The current Address Based Filtering rules.

 The current Content Based Filtering configuration.

To view which content types are blocked/allowed, click Details. For more information, see “4.5.8 Content Level” on page 77.

Address based filtering rules have priority over content based filtering

rules.

Configure The Configure page allows you to:

 Deny access to a specific web site.

 Allow access to a specific web site.

 Redirect a web site.

 Configure content based filtering settings.

Content levels Following content levels are available:

 All:

Allow all categorized web sites.

 Legal:

Allow all except illegal, extreme, spam and spyware web sites.

 Teenagers:

Block illegal, adult, extreme, online ordering/gambling, spam and spyware web sites.

 Children:

Only allow children-save web sites.

 BlockAll:

Block all categorized web sites.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

Deny access to a

specific web site

Allow access to a

specific web site

Use this feature if:

 Allow is selected under Action for Unknown Sites.

 Block is selected under Action for Unknown Sites and you want to make an

exception on an allow rule. For example: you are allowing “provider.com” but you want to deny access to “mail.provider.com”.

 A content category/group is allowed by Content Based Filtering and you want

to make an exception. For example: you are allowing Web Mail content but you want to deny access to “mail.provider.com”.

Proceed as follows:

1 Type the URL of the web site you want to block (for example

“mail.provider.com”) in the Web Site box.

2 In the Action list, click:

 Block if you want to block this web site.

 Redirect if you want to redirect to another page. Type the address of the

redirect page in the Redirect box.

3 Click Add.

Use this feature if:

 Block is selected under Action for Unknown Sites

 Allow is selected under Action for Unknown Sites and you want to make an

exception on a block/redirect rule. For example: you are blocking “bank.com” but you want to allow access to “netbanking.bank.com”.

 A content category/group is blocked by Content Based Filtering and you want

to make an exception. For example: you are blocking Finance / Investment content but you want to allow access to “netbanking.bank.com”.

Proceed as follows:

1 Type the URL of the web site you want to allow (for example

“netbanking.bank.com”) in the Web Site box.

2 Click Allow in the Action list.

3 Click Add.

Redirect a web site Proceed as follows:

1 Type the URL of the web site you want to redirect (for example “cracks.am”) in

the Web Site box.

2 Click Redirect in the Action list.

3 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Redirect box.

4 Click Add.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

Redirecting all web

sites

Configure content

based filtering settings

Proceed as follows:

1 Type “*” in the Web Site box.

2 Click Redirect in the Action list.

3 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Redirect box.

4 Click Add.

5 Type the URL of the web site you want to redirect to (for example

“mycompany.com/internetpolicy.htm”) in the Web Site box.

6 Click Allow in the Action list.

7 Click Add.

Under Content Based Filtering you are able to:

 Enable/disable content based filtering.

 Allow/block uncategorized web sites.

 Select a content level in the Content Level list.

To change a content level definition, click the Edit link of the content level you want to change. For more information, see “4.5.8 Content

Level” on page 77.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

Accessing this page Proceed as follows:

4.5.7 Web Filtering Activation

1 On the Too lbo x menu, click Parental Control.

2 In the Pick a task... list, click Activate Web filtering License.

Web Filtering Activation

page

Standard license

activation

This page allows you to:

 Activate a Web Filtering evaluation license.

 Activate a free 30-days Web Filtering evaluation license.

Proceed as follows:

1 Click Standard.

2 In the License Key box, type the license key provided by your ISP.

3 Click Apply.

E-DOC-CTC-20050429-0104 v1.0

4.5.8 Content Level

Accessing this page Proceed as follows:

1 On the Too lbo x menu, click Parental Control.

2 Click Configure.

3 Click the Edit link of the content level you want to edit.

Overview This page gives you an overview of the different categories and their rules.

Following icons indicate whether the content type is allowed or not:

Icon Description

The category/group is allowed

The category/group is not allowed.

Chapter 4

Basic Configuration

The group is partly allowed.

Configure This page allows you to change:

 The content level name.

 The content level description.

 The content level configuration.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.9 New Content Level

Introduction This page allows you to create a new content level. To access this page:

1 On the Too lbo x menu, click Parental Control.

2 In the upper right corner, click Configure.

3 Under Pick a task..., click Create a new content level.

Procedure To apply a new content level following actions must be performed:

1 Content level creation

2 Content level configuration

3 Content level definition

4 Content level activation

You can create up to 16 content levels.

Content level creation Proceed as follows:

1 In the Name box, type a name for the new content level.

2 In the Description box, type a short text to describe what this security level will

do.

3 Click Next.

Content level configuration

Content level definition Only web sites that match the selected content level will be allowed. Proceed as

Proceed as follows:

1 The Configuration section becomes available.

2 Click:

 Clone Existing Level to start from a previously created content level.

If no levels have been defined before, this option will not be shown.

 Black List to allow all web sites by default.

 White List to block all web sites by default.

3 Click Next.

follows:

1 If you want to:

 Allow a category:

Select the check box next to the category name.

 Allow an entire group:

Select the check box next to the group name.

 Block a category:

Clear the check box next to the category name.

 Block an entire group:

Clear the check box next to the group name.

2 Click Apply.

E-DOC-CTC-20050429-0104 v1.0

Content level activation To activate your new content level:

1 On the Too lbo x menu, click Parental Control.

2 In the upper right corner, click Configure.

3 In the Content Level list, select your new content level.

4 The new content level is now active.

Chapter 4

Basic Configuration

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.10 Firewall

Overview The Overview page summarizes the overall security policy configured on your

SpeedTouch™.

Configure The Configure page allows you to select the security level of the SpeedTouch™.

Select one of following security levels:

 Medium:

Use this Security Level to allow all outgoing connections except Windows protocols (Netbios, RPC, SMB) and block all incoming connections. Game and Application sharing is allowed by the firewall.

 Standard:

Use this Security Level to allow all outgoing connections and block all incoming traffic. Game and Application sharing is allowed by the firewall.

 Low:

Use this Security Level to allow all outgoing connections and block all incoming traffic except Internet Control Management Protocol (ICMP). Game and Application sharing is allowed by the firewall.

 Disabled:

All traffic is allowed to pass through your SpeedTouch™. Game and Application sharing is allowed by the firewall.

 BlockAll:

Use this Security Level to block all traffic from and to the Internet. Game and Application sharing is not allowed by the firewall.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.11 Intrusion Detection

Intrusion Detection Your SpeedTouch™ is protecting your network against malicious intrusions. This page

shows you the intrusions you are protected against.

The Protected Intrusions table shows the number of times the SpeedTouch™ actively protected your network against each intrusion since last statistics reset.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

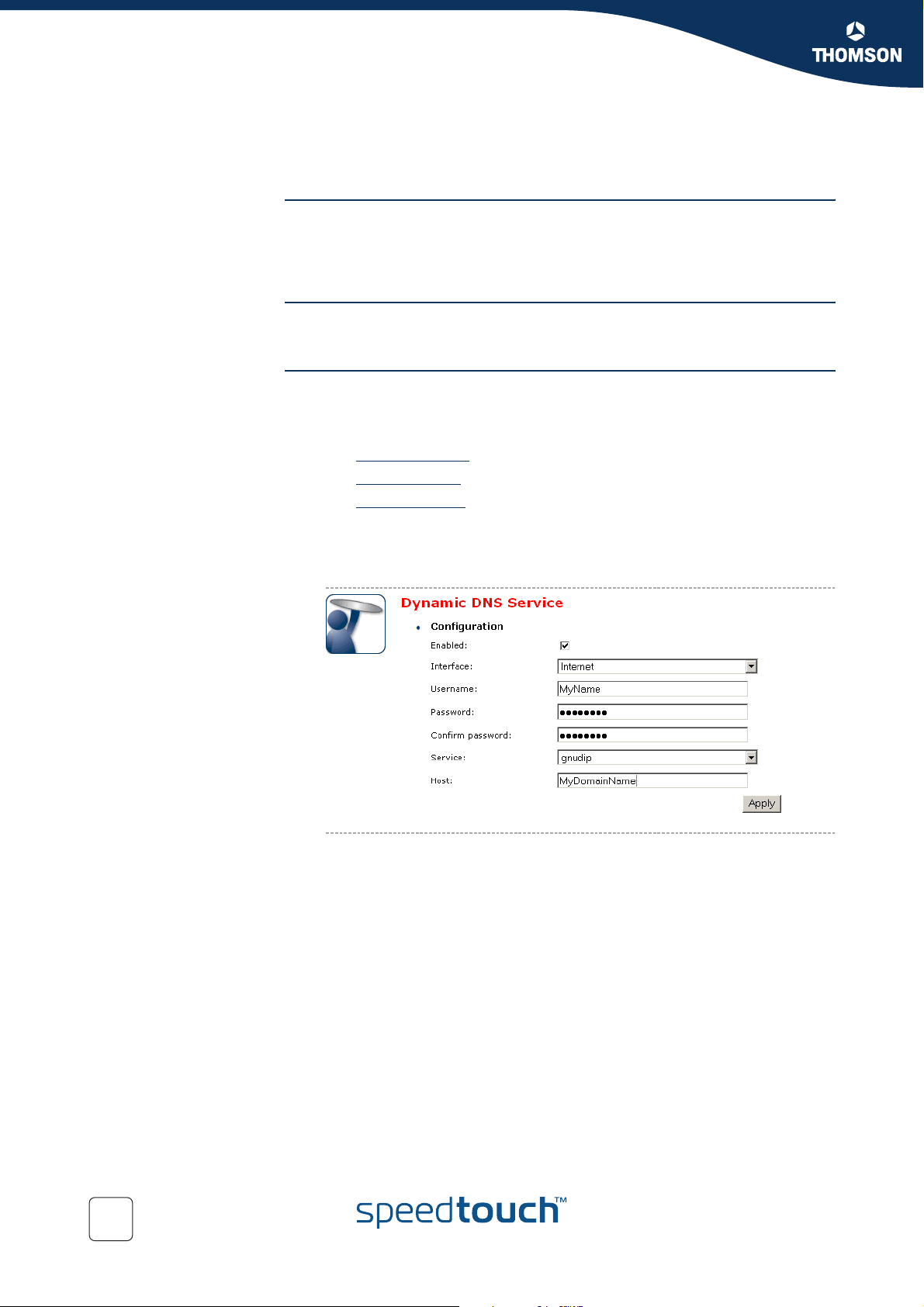

What is Dynamic DNS The Dynamic DNS service allows you to assign a dynamic DNS host name (e.g.

4.5.12 Dynamic DNS

john.dyndns.org) to a broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic DNS server updates its entry to the new IP address.

Overview Click Overview to view the different Dynamic DNS clients with their name,

hostnames, interface and IP address.

Configure The Configure page allows you to assign a Dynamic DNS host name to a broadband

connection:

1 Create an account at the Dynamic DNS service of your choice, for example:

 www.dyndns.org

 www.no-ip.com

 www.dtdns.com

 GnuDIP for Linux

2 On the Dynamic DNS page, click Configure.

3 Select Enabled.

4 If needed, click the broadband connection to which you want to assign the

Dynamic DNS hostname in the Interface list.

5 Type the user name and password of your Dynamic DNS service account in the

corresponding fields.

6 In the Service list, click your Dynamic DNS service.

7 In the Host box, type the host name you want to assign to this interface (for

example myspeedtouch.dyndns.org).

8 Click Apply.

E-DOC-CTC-20050429-0104 v1.0

Basic Configuration

4.5.13 User Management

Overview The Overview page gives you an overview of the currently configured users and their

privileges.

Clicking the name of a user allows you to edit his user account.

Configure The Configure page allows you to:

 Click Add to create a new user account.

 Click Delete to remove a user.

 Click Edit to change a user account.

Chapter 4

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.14 Edit User

Accessing the User Edit

page

Editing a user account The Edit User page allows you to:

Proceed as follows:

1 On the Too lbo x menu, click User Management.

2 Under Local User Data, click on the name of the user you want to edit.

 Click Reset Password to reset the password of the selected user to the user

name. So, if you reset the password of John his password will be “John”.

 Change the administration privileges of the selected user.

You can not change the administration privileges of the account you

are logged on to.

E-DOC-CTC-20050429-0104 v1.0

4.5.15 Change Default User

Chapter 4

Basic Configuration

Changing the default

user

This page allows you to change the default user. If users browse to the SpeedTouch™ web pages, they will be automatically logged in under this account.

To allow users to automatically log on under this account, this default user

account must be configured with a blank password.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.5.16 Add User

Adding users This page allows you to add a new user.

Under User definition you can configure:

 The name of the new user.

The password of the new user will be equal to the user name; for

example if the user name is John Doe, the password will be John Doe. Also when resetting a user, the password will be changed into the user name.

 The administration privileges of the new user

You can only add users with less than or equal administration

privileges as yourself.

E-DOC-CTC-20050429-0104 v1.0

4.6 Office Network

Office Network Menu This menu consists of following items:

 Devices

Allows you the view/configure the devices detected on your local network.

 Interfaces

Allows you to view/configure the interfaces that are available on the SpeedTouch™.

Chapter 4

Basic Configuration

The Office Network

page

Viewing (wireless) client

information

The Office Network gives you an overview of your SpeedTouch™ network.

If you click a on (wireless) client you will be able to:

 View the (wireless) client’s network settings.

 Configure the (wireless) client’s network settings by clicking Configure.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

4.6.1 Devices

Overview The Overview page gives you an overview of the devices that are currently

connected to the SpeedTouch™ network. Click on a device name to get more information on a specific device.

Configure The Configure page gives you an overview of the devices that are currently

connected to the SpeedTouch™ network.

To:

 Get more information on a specific device, click on the name of the device.

See “4.6.2 Device Settings” on page 89 for more information.

 Edit a device from the Detected Device(s) list, click Edit.

 Delete a device from the Detected Device(s) list, click Delete.

Once a device connects to the SpeedTouch™ network, it will remain listed in the Detected Device(s) list until you delete it.

E-DOC-CTC-20050429-0104 v1.0

4.6.2 Device Settings

Chapter 4

Basic Configuration

Accessing the device

settings page

Overview The Overview page displays following information:

Proceed as follows:

1 On the Office Network menu, click Devices.

2 In the Detected Device(s), click the name of the device you want to view.

 Information allows you to view:

 Status shows whether the device is currently connected to the

SpeedTouch™ network.

 Type shows the device type.

 Connected To shows the interface to which the device is currently

connected.

 Addressing allows you to view:

 Physical Address shows the MAC address of the device.

 IP Address Assignment shows whether the device is using a static or

dynamic IP address.

 IP Address shows the current IP address of the device.

 Connection Sharing:

Gives you an overview of the games or services that are currently assigned to this device. Click the name of the game or service to view the used port mappings. For more information, see “4.5.4 Game or Application Definition” on page 71.

Configure The Configure page allows you to:

 Change the device information.

 Allow a game or service running on this device to be initiated from the Internet.

E-DOC-CTC-20050429-0104 v1.0

Chapter 4

Basic Configuration

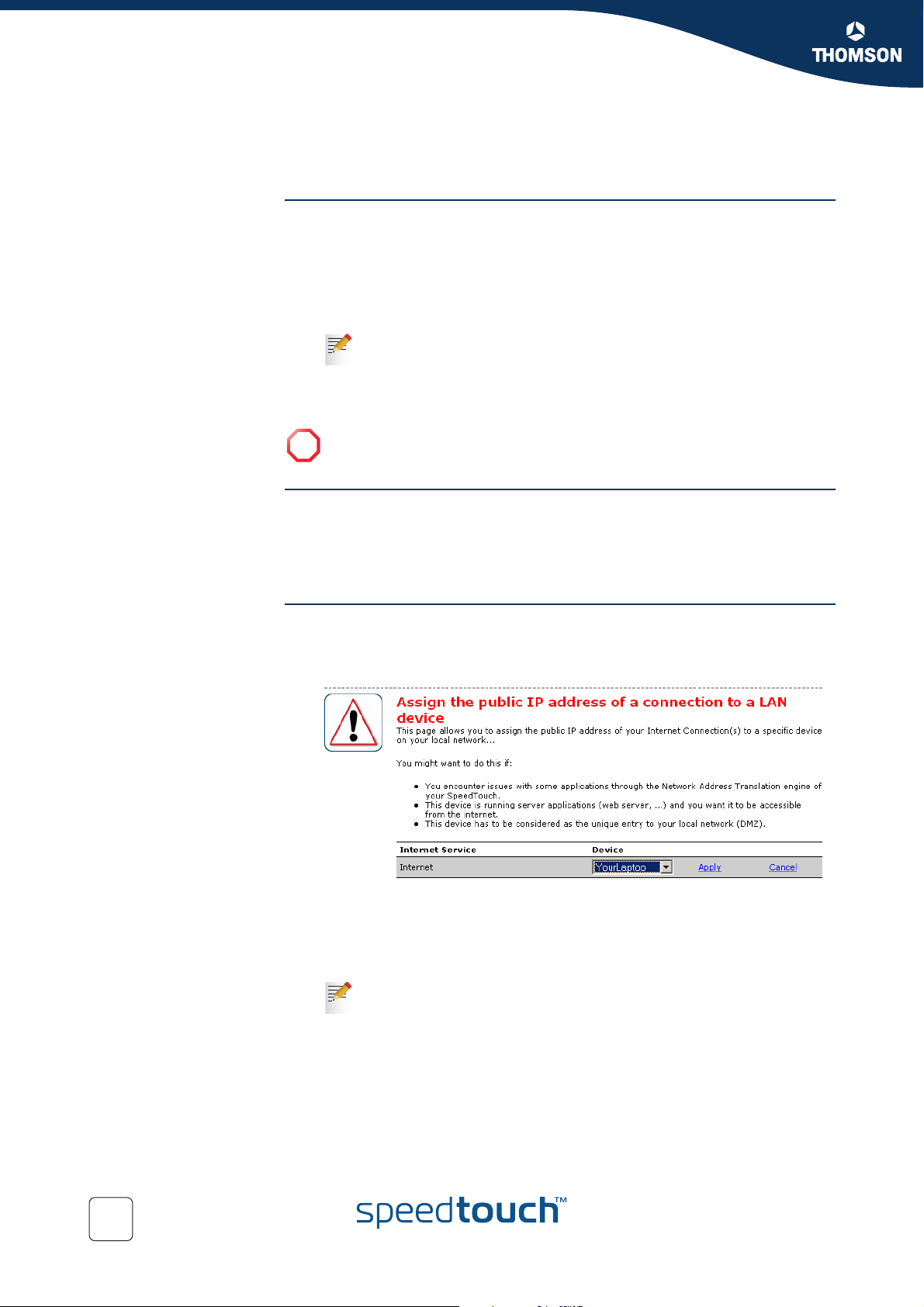

4.6.3 Assign Public IP

Introduction This page allows you to assign the public IP address of your Internet Connection(s) to

a specific device on your local network. You might want to do this if:

 You do not want to use the Network Address Translation engine of your

SpeedTouch™.

 This device is running server applications (web server,...) and you want it to be

accessible from the Internet.

You can also achieve this by creating a port mapping for the specified server, as described in “4.5.2 Game & Application Sharing” on

page 69.

 This device has to be considered as the unique access point to your local

network (DMZ).

It is not recommended to use this feature as this device will loose all

security offered by the SpeedTouch™.

Accessing the Assign

Public IP page

Assigning the public IP

address to a device

Proceed as follows:

1 On the Office Network menu, click Devices.

2 In the Pick a task... list, click Assign the public IP address of a connection to a

device.

Proceed as follows:

1 Click the Edit link of your Internet connection.

2 In the Device list, select the device you want to assign the public address to.

3 Click Apply.

4 The SpeedTouch™ prompts you that you will have to make some adjustments

as a result of the new configuration, click OK.

5 Release and renew the IP address of the device.

For more information, see your operating system’s user guide or help.

6 If needed, reassign server applications to this device.

E-DOC-CTC-20050429-0104 v1.0

Technicolor - Thomson 608, 620, 605, 608 WL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Used Symbols

About this User’s Guide

Terminology

1 Your SpeedTouch™

Introduction With the SpeedTouch™605(i) and SpeedTouch™608(i) Business DSL Routers and the

Installation For more information on how to set up your SpeedTouch™, installation and wiring

Contents This User’s Guide will assist you in configuring your SpeedTouch™.

Safety instructions Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation

1.1 SpeedTouch™ Features

Introduction Your SpeedTouch™ offers you a wide range of outstanding features.

1.1.1 Hardware Specifications

Router Integrated multi-mode ADSL modem, supporting:

Physical interfaces  WAN:

LEDs LED indicators for all interfaces

Reset button One programmable recessed reset button for restoring the factory default settings

Association button One push button for wireless association and registration on the

Wireless performance On the SpeedTouch™608 WL/620:

Memory and CPU  16 MB flash

Cardbus On SpeedTouch™608 WL/620:

Power requirement Power supply: 18V AC, 1000mA with patent-pending power-cord lock to avoid

ADSL compliance  If POTS in overlay: G. handshake, Full Rate ADSL, G.dmt, G.lite (splitterless

1.1.2 Software Features

ATM features  Up to 16 simultaneous PVCs, allowing multiple simultaneous destinations

Bridging features  Multiport self-learning transparent bridge per IEEE 802.1D for LAN interconnect

Routing features  Multi-port (up to 16 PVCs) router

Networking services  UPnP with NAT traversal capability:

Security  PAP (RFC1334), CHAP (RFC1994) for PPP session

Configuration  Home Install Wizard, Easy Setup wizard

VoIP On the SpeedTouch™620 (under Software Module activation key):

1.2 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating

Ethernet LEDs A LED may be provided per Ethernet port to indicate link integrity (or activity).

1.3 How to Access your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of following ways:

1.3.1 Access via the Web Interface

Procedure To access the SpeedTouch™ via the web interface:

1.3.2 Access via CLI

Teln e t ses si on Proceed as follows:

1.3.3 Access via FTP

File system The SpeedTouch™ file system is stored on nonvolatile memory, and contains the

FTP session To open an FTP session:

File system structure The structure of the file system is very simple: It consists of a single root directory

FTP fil e tr a ns f er To allow correct file transfers, set the transfer mode to “binary”: At the ftp prompt,

Quote site command All the CLI commands can be executed from within an FTP session. Only complete

Enabling remote access To enable remote assistance:

1.3.4 Remote Assistance

Remote access You can make your SpeedTouch accessible from the Internet with regard to remote

2 Local Network Setup

Introduction The SpeedTouch™ offers you following local networking solutions:

Device settings Once you’ve connected a device, you are able to personalise its settings:

2.1 Wired Ethernet

Local network The Ethernet ports on the backpanel allow you to connect the SpeedTouch™ to an

Ethernet link check LED indicators allow you to check your Ethernet. See “1.2 SpeedTouch™ LED

Device settings Once you’ve connected a device, you are able to personalise its settings.

2.2 Wireless Ethernet

Introduction The SpeedTouch™ 608 WL/620Wi-Fi® certified IEEE 802.11g compliant wireless

Wireless Fidelity The Wi-Fi certification ensures that your SpeedTouch™ will interoperate with any Wi-

2.2.1 Wireless Basics

Introduction In this section some key wireless concepts are explained.

802.11b/g 802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s.

Access Point The SpeedTouch™ Wireless LAN Access Point (AP) behaves as a networking hub

Network Name or SSID The WLAN's 'radio' link is a shared medium. As no physical connection exists

Radio channels The 802.11g standard allows several WLAN networks using different radio channels

Antennas Direct the external antenna to allow optimization of the wireless link. If for example

2.2.2 Connecting First-time Wireless Clients

2.2.3 Wireless Security

Introduction Since the SpeedTouch™ wireless environment is a radio environment, precautions

Security settings To personalise the wireless security settings on your SpeedTouch™:

Network Name (SSID) On the Wireless Access Point page, you can give a new name to your Network

Data encryption To setup wireless connectivity, you can choose different levels of security:

2.2.4 Connecting Additional Wireless Clients

Preconditions Make sure that:

Security issues Depending on the personalised wireless settings:

 Registering clients via web pages

2.2.5 Extending the Range of Your Wireless Network
