television set

safety precautions

SAFE USE OF THE EQUIPMENT

1. TO TURN ON

10 cm

5 cm

LEAVE ROOM FOR VENTILATION

AVOID HEAT, WATER, DIRECT SUNLIGHT.

Do not place audio loudspeakers near to television. The magnets in the speakers could cause patches of colour to appear on the screen.

10 cm

2. CARE OF THE EQUIPMENT

The screen should be cleaned with liquid glass cleaner.

• Never use abrasive cleaners.

• To clean the front and the cabinet of your equipment use a soft cloth dipped in mild detergent. The use of strong solvents such as white spirits or alcohol based products could damage your equipment.

• Clean the vents on the rear panel of your set regularly.

To ensure your personal safety and the efficient operation of your equipment, please follow the advice given below : Télévision sets need ventilation to avoid overheating which can cause

10 cm

damage to the components. The ventilation slots at the back of the set should not be covered up by curtains, small covers, newspapers, etc… There must be enough room in built-in cabinets to allow for the cooling air to circulate. The set should not be placed directly next to heating.

This appliance is designed for use in dry areas. If occasionally you should whish to operate it outdoors (for example, on the balcony or veranda), you must insure that it is protected against all forms of moisture (dew, rain, splashed water).

A cold set may be switched on in a warm room only after any condensation which may happen to be on the screen has evaporated. Never remove the cabinet back. Have your aerial installed by an authorised dealer or service technician.

In the evenings, after the TV programmes, or in case of a prolonged absence, it is recommended that the appliance be switched off using the main power switch. Even if the ON/OFF switch is in OFF position the television set is not completely separated from the mains. In order to separate it completely from the mains, it has to be disconnected by unplugging the mains plug. Remove the power plug from the wall outlet under the following conditions :

1. During a thunderstorm. It is also recommended that you disconnect the aerial plug.

2. If you find a burning smell or smoke emerging from the set.

Additional information : Your TV set is adequately shielded to prevent emission of X-rays. The acceleration voltage does not exceed the maximum value of 33 kV.

Work by non-qualified technicians, modification of the high voltage setting or the replacement of the tube with a model that does not comply with the manufacturer’s specifications may lead to a considerable increase in X-ray radiation. A set changed in any of the above ways no longer satisfies the initial specifications and should not be put back into service.

GB

3. DEMAGNETISATION

The earth’s magnetic field may have an effect on your television by causing patches of colour to appear on the screen. If this happens :

• Switch off the television with the on-off button ;

• Wait a few minutes and then press again to switch on.

This allows the screen to be demagnetised automatically. If patches of colour are still visible repeat the procedure.

The pages of this publication are printed on recycled paper.

3

A - Z

1

4

C

A

B

D

E

0

ZOOM

SP/LP

-/--

AV

P.

TV

>>

remote control

functions

PROGRAMME Set-up - Preferences Browse - Clock - Lock Tuning - Sound adjustments - AV1 - AV2 - AV3.

SOUND Loudspeakers - Headphone - AV (Audiovisual).

PICTURE Picture - PIP - Format.

TELETEXT / TOPTEXT / FASTEXT

PERSONAL ADJUSTMENTS and scrolling back through the menus.

TO REMOVE THE MENU DISPLAY or to display programme information, the type of sound transmission (MONO, STEREO or DUAL), the programme name and number, the time.

PICTURE FREEZE

ZOOM FUNCTION

TO CALL UP PREVIOUSLY VIEWED PROGRAMME

TO CALL UP ALL PROGRAMMES IN TURN

PR

VOLUME

- Horizontal movement in the menus

- -/+ adjustments of other functions.

Z - A

32

Keys 1 to 0 are used to :

- Select the programmes (from 1 to 99)

56

- Enter the channels numbers

987

- The 0 key is used to call AV inputs 1, 2 and 3.

AV

0

MUTE

STAND-BY

REMOTE CONTROL ILLUMINATION

To operate your television set by remote control, the selector switch TV-VCR must be on TV position

remote control

using

When a red, green or yellow button is pressed for the first time, the contents of the menu are displayed at the top of the screen and the menu of the function selected is displayed at the bottom of the screen.

Moving horizontally along in the menus selects the required function on the contents line if it has not been already selected.

- The selected function is displayed in the same colour as the button pressed (red, green, yellow).

- The line selected in the menus is displayed in characters twice as high and in the same colour.

Press the coloured button repeatedly to move down through the menus selecting different lines.

Make any adjustments.

Changes are saved when you quit the menus, except in the PROGRAMME menu.

connections and commands

For further details,

see page 22.

ON THE FRONT AND AT THE RIGHT SIDE OF THE SET

Connect to AC main supply  220-240 V~50 Hz

On/Standby light:

Green : on

Red : Stand-By

Volume adjustments

On / Off switch

Display

PR +

+

-

STATUS

PR -

INSTAL

VIDEO L AUDIO R

AV3

S-Video and  audio sockets

AT THE BACK OF THE SET

HiFi Amplifier

Surround loudspeakers

Main loudspeakers

AV1

(OUT L)

(OUT R)

Programme

Selection

Aerial

*

Ψ 75

AV 1

Installation-  menu

Video and audio sockets 

S-VHS

Hi-8 mm

S-Video Video Audio

AV 2

AV3

Camcorder

or VHS

8 mm

Headphone socket 

Ø 6,35 mm

AV2

GB

(IN)

(OUT)

AV2

Camcorder

Video recorder

Decoder

Satellite receiver

Video games consoleCDV player

*We recommend that you use an aerial cable with double isolation.

Camcorder

Video recorder

5

television set

L

auto-programming

This set is equiped with an automatic station search system which is used for :

• Searching for all the stations received in your region and storing them in memory

• Automatically searching for the name of the station

• Automatically allocating a programme number.

WELCOME

Turn on the television set main power.

The WELCOME menu is displayed.

If it is not, Press the INSTAL button on the television set control panel.

Briefly press the remote control button number corresponding to

INSTAL

A-Z

1

the number of the language you require for the menus.

A list of countries appears (on two pages).

9

To go to the next or previous pages, press

Briefly press the remote control button corresponding to the country in which you are located. For example : England, press

A-Z

1

The menu which then appears permits the user to :

A-Z

• start an automatic search,

• search for new channels,

• access channel organisation.

You can always leave the menus at any time by pressing

TV

the button.

>>

AUTO-PROGRAMMING

1

2

Z-A

3

To help you, follow the instructions at the

For the first time or after a change of region :

start automatic channel search by pressing the button

A-Z

1

Searching for stations and storing them in the memory depends on the language chosen from the WELCOME menu.

The previously memorised stations are erased. AUTO-PROGRAMMING is completed when the cursor is at

the extreme right. To interrupt the search, press briefly on the key, this displays the channel management menu.

TV

>>

6

WELCOME

BIENVENUE

WILLKOMMEN

BIENVENIDO

BENVENUTO

VÄLKOMMEN

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO SVENSKA NEDERLANDS

 UK : [ 1 ] FRANCE : [ 2 ] GERMANY : [ 3 ] ITALY : [ 4 ]  SPAIN : [ 5 ] PORTUGAL : [ 6 ] SWISS : [ 7 ] AUSTRIA : [ 8 ] Next page : [ 9 ]

 NETHERLANDS : [ 1 ] BELGIUM : [ 2 ] LUXEMBURG : [ 3 ] SWEDEN : [ 4 ] DANMARK : [ 5 ] FINLAND : [ 6 ] NORWAY : [ 7 ] OTHERS : [ 8 ] Previous page : [ 9 ]

WELKOM

Press

key number

Appuyer

sur la touche

Drücken

Sie die Taste

Pulse

tecla numero

Premere

il tasto

Tryck

knapp nummer

Druk op

knop nummer

CHOOSE YOUR COUNTRY :

AERIAL INSTALLATION

Make sure that the aerial cable and decoder (if any)

are connected to this TV set.

[ 1 ] Launch terrestrial installation [ 2 ] Update terrestrial installation [ 3 ] Access to the organiser

bottom of the menu (grey background).

AUTO - PROGRAMMING

Searching for stations

10 stations found

[1] [2] [3] [4] [5] [6] [7]

09

C

09

CHILD

07

television set

auto-programming

Programme Organiser

When the automatic search is completed, the

Programme Organiser menu appears.

Scan through to check that the stations found are correctly numbered and named as you want than:

• IF YES ➡ press briefly

the menu disappears and is replaced by the picture of the programme selected.

• IF NO ➡ you make changes as follows

- The programme number

Select the programme number to be changed. Bring the cursor to the new programme number.

This menu is used to :

• change the programme number,

• change the station number,

• delete a programme.

Programme Organiser

01  02 

PR

TV

>>

03

04 

05 06 07 08 09

PR+, PR- Select the station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station

01 

To exit, press the (TV) key

02  03 04 05

PR

06

07 08 09

You may also use the number buttons 0 to 9.

Confirm the change (green button).

- The station name

Press the blue button briefly. A list of station names per country appears

United Kingdom Nederlands France Belgique Deutschland Luxembourg Italia Sverige España Danmark Portugal Finland Schweiz Norge Österreich

Select the country you require.

If the name appears in the list displayed,

select the name Confirm the selection (green button).

If the name does not appear in the list displayed,

select the "- - - - - -"line

You have 6 characters to enter a station name

To enter a station name, Press the green button briefly and the first character flashes.

Select the first character of the new name. Enter the next character

and repeat the process up to the last character. Confirm your choice (green button). The new name is stored in the memory and the list disappears.

Moving PR 06 CANAL+ to PR 04 +, -, 0..9 Give it another number Green Confirm change

B

D

PR

B

PR

B

PR

B

7

Red Cancel change

Programme Organiser

01  02  03 04 05

06

07 08 09

+, - Next/Previous name page PR+, PR- Select a new name Green Confirm new name Red Cancel new name

 08 09

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station To exit, press the (TV) key

+, - Next/Previous position PR+, PR- Select a character Green Confirm new name Red Cancel new name

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station To exit, press the (TV) key

United Kingdom

BBC 1 BBC 2 I T V CHAN 4 CHAN 5

SKY +

M-GOLD M-CHAN CHILD C N N



C N N

SKYONE DISCOV UKGOLD SKYSPO BRAVO ESPORT S-NEWS M T V EUNEWS

- - - - - - -



- - - - - - -

S-

GB

television set

L

auto-programming

To delete a programme

Select the programme to be deleted.

Press the yellow button.

Confirm your choice (green button). The programme is deleted the following programme is selected.

You may cancel any unconfirmed command (change of programme number or channel name, programme erasure) by pressing the red button .

A

PR

P.

C

B

New channels

To search only for new channels :

Press the INSTAL. button on the televisions set key pad.

Select the country and press the button

2

When search is finished, the Programme Organiser menu appears. Reorganise the programmes. To do this, follow the instructions given on the previous page.

To make menu disappear, press on

TV

>>

installation

01 BBC 1 02 BBC 2 03 04 05 06 07 08

09 CANAL+

 Erase PR 04 CANAL+ Green Confirm erase Red Cancel erase

Turn on the television set by pressing

one of the buttons from 1 to 9.

INSTAL

Par ce menu, vous pouvez :

• Limit the maximum volume.

• Limiter le volume sonore maximum.

• Change the menu language (German, Spanish, French, English, Italian, Swedish, Dutch),

• Modifier la langue des menus (allemand, espagnol, français, anglais, italien, suédois).

• Permanently display the number of the programme being watched,

• Obtenir l'affichage du numéro de programme regardé.

• Store the time reference programme number,

• Mémoriser le numéro de programme de référence horaire.

With this menu you may:

SET-UP

Press the yellow button then the (-) button.

The SET-UP menu is displayed

Maximum Volume Limitation

Select the Max. Volume line (yellow button).

Set the maximum volume with the cursor.

The volume cannot be set to zero when using this function.

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

P.

C

Language GB F D E I S NL Programme Display Off On Time reference PR 01 IR download (-)No Yes(+) PR-- Teletext Fine Tuning Off On



PREFERENCES SET-UP

P.

C

8

TELEFUNKEN

Max. Volume

Language GB F D E I S NL Programme Display Off On Time reference PR 01 IR download (-)No Yes(+) PR-- Teletext Fine Tuning Off On



television set

IR download

( )No

Yes(+) PR

installation

Menu language

Select the Language line (yellow key).

Select

GB : English F : French D : German

I : Italian S : Swedish NL : Dutch

E : Spanish

All the menus will be displayed in the language selected.

Programme number display

Select the Programme Display line (yellow key).

Select : • Off no permanent display.

• On the programme number

is permanently displayed

P.

C

P.

C

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume

Language GB F D E I S NL

Programme Display Off On Time reference PR 01 IR download (-)No Yes(+) PR-- Teletext Fine Tuning Off On

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume Language GB F D E I S NL

Programme Display Off On

Time reference PR 01 IR download (-)No Yes(+) PR-- Teletext Fine Tuning Off On



Time reference

Select the Time reference (yellow key). The television set internal clock must be set. This synchronises automatically when the television set is

turned on to a programme broadcasting Teletext, you can opt to select any one of the 4 channels - BBC1, BBC2, ITV, CH4.

Select the corresponding programme number.

The IR download line has no effect on your TV set.

Teletext Fine Tuning

This adjustment allows writing errors (missing letters) on the teletext pages of French networks (L Standard) to be reduced. To do this,

On must be selected in the Teletext Fine Tuning line.

This adjustment is not active for B, G, D, K, K' and I standards.

PREFERENCES

This menu enables you to save your preferred settings. Press the yellow or pink key repeatedly to return to the Menu contents line.

Press to display the PREFERENCES menu.

Select the line required with the yellow key. Set with the key.

Erase the menu. To return to your preferred settings at any time,

press the pink key.

P.

C

PREFERENCES SET-UP

TELEFUNKEN

Max. Volume Language GB F D E I S NL Programme Display Off On

Time reference

IR download (-)No Yes(+) PR-- Teletext Fine Tuning Off On

PR 01

GB



Teletext Fine Tuning Off On

PREFERENCES SET-UP

or

P.

C

E

P.

C

TV

>>

E

9

TELEFUNKEN

Volume  Brightness Colour Contrast resets to these preferences

PREFERENCES SET-UP

TELEFUNKEN

Volume

 Brightness Colour Contrast resets to these preferences

television set

picture adjustments

You may adjust the picture


settings at any times.

Press the green key.

The PICTURE menu is displayed : PICTURE is selected.

If this is not the case, select the Contents line using the green key and Picture with the key.

B

Select the Brightness line (green key).

Adjust the brightness.

Repeat the same procedure to select and adjust the Colour, and Contrast.

The TINT line only appears if the source is NTSC from an AV1, AV2 or AV3 audio-visual programme.

Digital Mastering

Select the Digital Mastering line (green key).

Select the option required.

When changing channels, Digital Mastering automatically returns to On.

*The quality of an image is judged not only by the correctness of contrast, light, and colour, but also by its sweep frequency, i. e. the number of times per second it is displayed on the screen. The higher the frequency, the stabler the image and the less flickering effect is present.

B

PICTURE PIP FORMAT

TELEFUNKEN

Brightness Colour Contrast Digital Mastering Off On Light Sensor Off On

PICTURE PIP FORMAT

TELEFUNKEN

Brightness

Colour Contrast Digital Mastering Off On Light Sensor Off On

Brightness Colour Contrast Digital Mastering Off On Light Sensor Off On



TELEFUNKEN

Tint

PICTURE PIP FORMAT

B

TELEFUNKEN

Brightness Color Contrast

Digital Mastering Off On

Light Sensor Off On



Light Sensor

This function is used to vary the contrast of the television according to ambient lighting.

Select the Light Sensor line (green key).

Press briefly to make selection : Off : function not active

On : function active

PICTURE PIP FORMAT

TELEFUNKEN

Brightness Colour

B

10

Contrast Digital Mastering Off On

Light Sensor Off On

television set

picture adjustments

PIP (Picture in picture)

Gives you several possibilities

for programmes inlays.

You use this function to :

• inlay in one of the corners of the screen (P I P) :

– images from the input connectors (AV1, AV2, AV3 or RGB),

while viewing a channel ;

– or one of the channels, while viewing a programme from one

of the audiovisual input connectors (AV).

• inlay on the screen in groups of 9, all the channels in memory

(Channel guide).

Press the green button once or several times to select the contents line.

Select P I P. The PIP menu appears.

Image inlay (PIP)

Use the green button to select the PIP line.

Press briefly to select : Off : no picture in picture

Use the green button to select the Source line. As required select :

the AV1, AV2, AV3 or RGB picture, or a channel in memory.

Picture in picture is in 4/3 or 16/9 format depending on the format of the AV image.

On : picture in picture

-/--

B

PICTURE PIP FORMAT

TELEFUNKEN

P I P Off On

Source (-) 03 (+) Channel Guide (+) Change Corner 1 2 3 4

B

AV

0

PR

PICTURE PIP FORMAT

TELEFUNKEN

P I P Off On

Source (-) AV1 (+)

Channel guide (+) Change Corner 1 2 3 4

GB

Inlaid image position

Use the green button to select the Change Corner line.

Select position 1, 2, 3 or 4.

4

3

Press to erase the menu.

1

2

B

PICTURE PIP FORMAT

TELEFUNKEN

P I P Off On Source (-) 03 (+) Channel Guide (+)

TV

>>

11

Change Corner 1 2 3 4

television set

picture adjustments

Picture swap

Press the SP/LP (Swap) button,

to swap the image being viewed and the PIP image.

SP/LP

Scanning all inlaid image programmes

AV

Select an AV image on the screen.

Repeatedly press the PR +/- button on the remote control to scroll through PIP displays of all stored programmes and the other AV programmes.

Press a long time to remove the PIP.

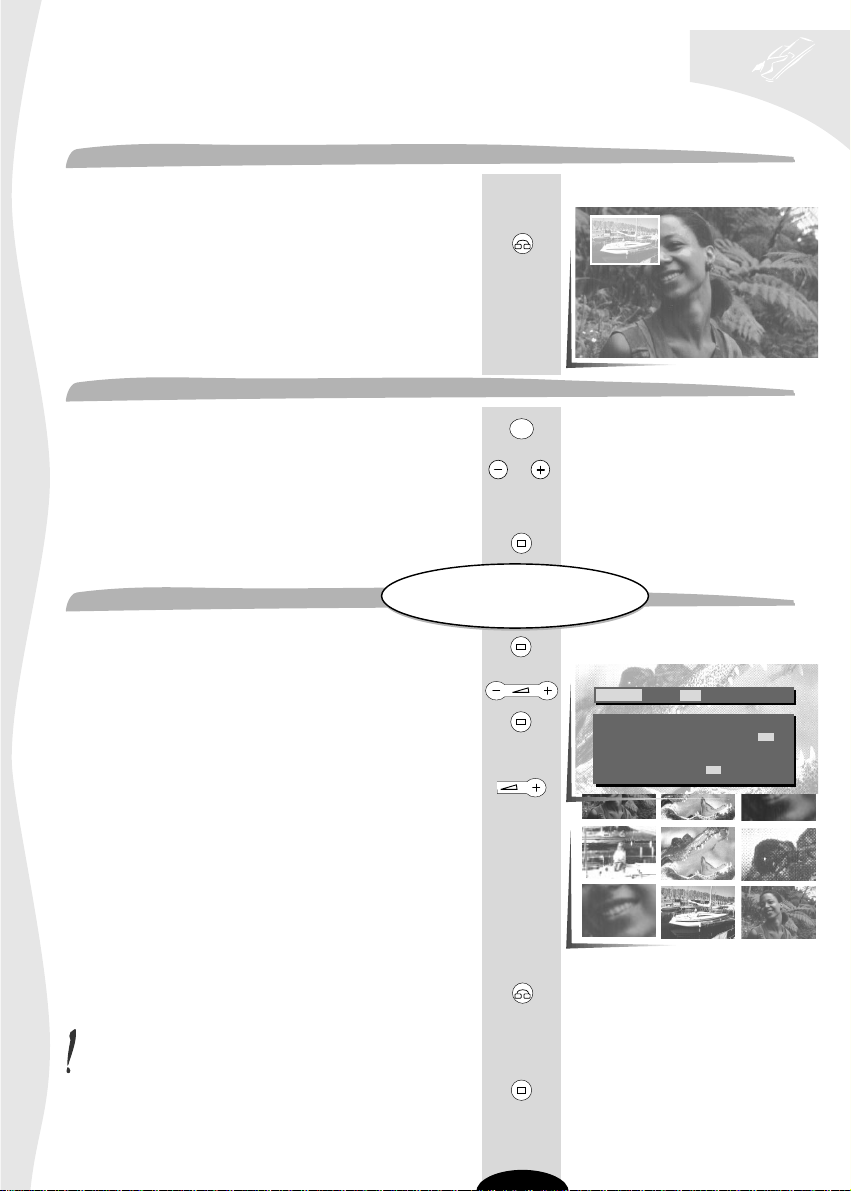

Mosaic

You can display on the screen, in group of

9, all the channels stored in memory.

Press the green button once or several times to select the Contents line.

Select P I P.

Press the green button repeatedly to select Channel Guide.

Press the key. The screen goes grey and the channels become inlaid With the corresponding programmes numbers superimposed.

-/--

0

PR

TV

>>

B

PICTURE PIP FORMAT

TELEFUNKEN

P I P Off On Source (-) 03 (+)

Channel Guide (+)

Change Corner 1 2 3 4

The Channel Guide programmes change every 3 seconds.

When the Channel Guide appears, the sound goes off.

To display the programme you want on screen, press the SP/LP (Swap) button when the image of that programme is animated

Activating the Channel Guide feature cancels any inlays.

To clear the Channel Guide, press the TV button.

SP/LP

TV

>>

12

television set

picture adjustments

FORMAT

Press the green button once To select the Contents line.

Select FORMAT.

The following menu is displayed.

Format

Select the Format line (green key).

Select 4/3 or 16/9 depending on the picture format.

The Subtitles Zoom line appears only when 4/3 is selected The format can also be selected automatically when the

source is one of the two Euro-AV sockets AV1 or AV2. In this case, select AUTO which is only displayed for sources AV1 and AV2. The format is stored in memory for AV1, AV2 and AV3.

Subtitles Zoom

Select the Subtitles Zoom line (green key).

B

PICTURE PIP FORMAT

TELEFUNKEN

Format 4/3 16/9 Subtitles Zoom Off on

PICTURE PIP FORMAT

TELEFUNKEN

Format 4/3 16/9

Subtitles Zoom Off on

PICTURE PIP FORMAT

TELEFUNKEN



Format 4/3 16/9 Auto  

PICTURE PIP FORMAT



GB

You may select Off : programme without subtitles

On : subtitled programmes.

In this case, an additional line (Subtitles position) appears

You may choose between a higher or lower framing, for example, for sub-titled programmes.

Select Subtitles position (green key),

B

then set your picture lift.

Remove the menu from the screen.

TV

>>

13

TELEFUNKEN

Format 4/3 16/9

Subtitles Zoom Off On

PICTURE PIP FORMAT

TELEFUNKEN

Format 4/3 16/9

Subtitles Zoom Off On

Subtitles position Down(-) Up(+)

television set

sound adjustments

LOUDSPEAKERS

Press the red key.

The Sound menu is displayed, LOUDSPEAKERS is selected.

If this is not the case, select the Contents line with the red key and LOUDSPEAKERS with .

A

Select the Sound line (red key).

This varies depending on the sound type received:

SOUND MONO/STEREO/NICAM*

SOUND DUAL (2 languages)

SOUND NICAM 3*

SOUND AV

Select the required sound for the loudspeakers.

AUTO/STEREO position enables you obtain MONO sound for mono broadcasts and STEREO for stereo broadcasts.

A

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

Sound Auto/Stereo Mono Effect Normal Balance

LOUDSPEAKERS HEADPHONES AV

Bass Treble

TELEFUNKEN

Sound Auto/Stereo Mono

Effect Normal Wide Balance Bass Treble

TELEFUNKEN

Sound Auto/stereo Mono 

TELEFUNKEN

Sound Sound 1 Sound 2 

TELEFUNKEN

Wide

Sound Sound 1 Sound 2

TELEFUNKEN

Source Stereo Sound 1 Sound 2

* NICAM is a digital sound transmission system, it enables you to receive

broadcasts in high quality STEREO or DUAL SOUND. Analogue MONO sound is transmitted simultaneously (MONO in NICAM STEREO or SOUND 3 in NICAM 3).

Effect

Select the Effect line (red key).

Select :

Normal = normal sound Wide = stereo-effect sound for mono broadcasts

wide stereo sound for stereo broadcasts.

A

14

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

Sound Auto/Stereo Mono

Effect Normal Wide

Balance Bass Treble



television set

sound adjustments

Balance

Select the Balance line (red key).

A

Balance the sound between the left and right channels.

Repeat the same procedure to select and successively adjust the Bass and Treble.

HEADPHONES

Press briefly

A

The following menu is displayed : HEADPHONES is selected.

If this is not the case, select the Contents line with the red button and HEADPHONES with .

A

Select the Headphones line (red key).

A

You can then adjust the volume for the headphone. This operation also sets the output level of the HIFI jacks (CINCH).

Note : When the transmission is multilingual (DUAL) or an AV programme, the following menu appears. It is possible to select SOUND 1 or SOUND 2 in the headset.

Select the Source line:

A

then select Sound 1

or Sound 2

AV

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

Sound Auto/Stereo Mono Effect Normal Wide

Balance

 Bass Treble

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

 Headphones

TELEFUNKEN



Headphones

TELEFUNKEN

Source Sound 1 Sound 2

Headphones



GB

The sound output on sockets AV1 and AV2 must be adjusted according to the type of headset connected.

Press briefly.

A

The following menu is displayed : AV is selected.

If this is not the case, select the Contents line with the red key and AV with .

Select the AV Device line (red key).

A

Then selected Stereo = stereo VCR

Mono = mono VCR

Selecting stereo permits simultaneous recording of both languages of a bilingual programme on a stereo video recorder : Sound 1 on the left track and Sound 2 on the right track. The sound available at the AV1 and AV2 outputs must be adjusted according to the type of device connected.

Press to remove the menu from the screen.

TV

>>

15

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

AV Device Stereo Mono

LOUDSPEAKERS HEADPHONES AV

TELEFUNKEN

AV Device Stereo Mono

television set

day to day operation

SWITCHING ON / SELECTING PROGRAMMES

Switch on the television set with the mains switch if the standby light is off.

If the standby light is on, select the programme required by the

PR

remote control or the PR-/+ buttons on the front of the set.

AV

For the programmes 1 to 9 : Press the corresponding number briefly.

For programmes 10 to 99 : Hold on to display the tens.

Press briefly to display the units.

A-Z

0

1

-/--

A-Z

1

4

BROWSE

PR 02 BBC 2

PR 1 -

PR 14

This comprises 10 pages of 10 programmes each, giving for each programme number : the station name (if it has been programmed).

The BROWSE menu is displayed.

To select the directory page displayed.

P.

C

P.

C

To select the other pages, press repeatedly. Example : Page 6 (programmes 50 to 59)

Press 5 times

To select a programme from the page displayed, press only the unit digits of the programme selected (example for 53: press 3).

Programme PR 00 corresponds to the last audiovisual programme (AV1, AV2 or AV3).

Press briefly to select BROWSE again.

Press briefly to remove the directory from the screen.

P.

C

TV

>>

Volume

Set the volume as desired.

When the headphones are plugged in, you can adjust the volume of the headphones or loudspeakers :

Select the line you wish to adjust.

A

Sound mute

Pressing once turns the sound off. The sound returns if the button is pressed once more.

AV

BROWSE CLOCK LOCK

TELEFUNKEN

PR 02 BBC 2 00 01 BBC 1

02 BBC 2

03 I T V 04 CHAN 4

+/- Next/Previous page

0..9 Select a programme

05 S-NEWS 06 MOVIES 07 M-GOLD 08 M-CHAN 09 CHILD

BROWSE CLOCK LOCK

TELEFUNKEN

PR 02 BBC 2

00 01 BBC 1

02 BBC 2

03 I T V 04 CHAN 4

+/- Next/Previous page

0..9 Select a programme

TELEFUNKEN

PR 53

50/AV 51  52 

53 

54



+/- Next/Previous page

0..9 Select a programme



05 MOVIES 06 S-NEWS 07 M-GOLD 08 M-CHAN 09 CHILD

55  56 MOVIES 57 58 59



Volume

Headphone Loudspeakers

Mute

16

television set

day to day operation

RETURN TO PREFERRED SETTINGS

Press briefly to return to personal adjustments (PREFERENCES menu)

DISPLAY / ZAPPING

Displays details of the station being watched (programme name and number, time).

Press repeatedly to scroll through the programmes.

PICTURE FREEZE

Press key,

The picture freezes instantly

The transmission continues

The still picture cannot be recorded.

Press briefly to return to the programme being viewed.

LAST PROGRAMME VIEWED

This function is used to switch rapidly between 2 programmes.

Press the key. The previously viewed programme is selected.

ZOOM

Press to enlarge or reduce the picture.

Z

OOM

0 Z

OOM

1 Z

OOM

Z

OOM

0 Z

OOM

1 Z

1 S/T Z

OOM

1 S/T Z

OOM

2

Zoom S/T : image enlarged and moved up for easier reading of subtitles.

E

TV

>>

0

SP/LP

ZOOM

PR

Zoom 1 11 : 35

PR 06 MOVIES

TV

Picture freeze

Last programme viewed

A

B

<< > >>

0

SP/LP

A Z

VCR

CD

1

4

-/--

E

_

_

P.

TV

ZOOM



PR

Z A

32

56

987

AV

0

AV

Stand-By

Display

Zoom

GB

STAND-BY

Press briefly, the Stand-By light turns red to indicate that the set is now in standby.

AUTOMATIC STOP

The set is automatically switched to standby a few minutes after the station being watched stops broadcasting.

17

RC 1360

television set

other functions - extras

CLOCK

Select CLOCK

C

The Sleep-timer line is displayed.

Sleep-timer

Select the Sleep-timer line (yellow key).

Set the time in steps of 15 minutes (up to 4 hours).

Remove the menu from the screen. The set will switched to standby at the end of the timer interval.

You can display the time left before the stop time. Press the TV key briefly

One minute before sleep timer time, the screen displays that sleep timer is imminent.

The standby lamp flashes to indicate the CHILD LOCK state. The television set can only be turned on with the remote

control.

You may cancel sleep timer command. Select the Sleep-timer line.

Press repeatedly to return to : - : - Remove the menu from the screen.

Putting the television set on standby when a sleep timer command is programmed, also cancels this function.

BROWSE CLOCK LOCK

P.

TELEFUNKEN



Sleep-timer (-/+) - : - -

P.

C

TV

>>

TV

>>

P.

C

TV

>>

TELEFUNKEN



Sleep-timer (-/+) - : - -

TELEFUNKEN



Sleep-timer (-/+) 2 : 1 5



Sleep-timer 0 : 0 1

TELEFUNKEN



Sleep-timer (-/+) 1 : 45

TELEFUNKEN



Sleep-timer (-/+) - : - -

Clock (automatic on)

You can programme your television set to switch on automatically to the programme of your choice. The internal TV clock must be set to the correct time.

Press briefly on the key.

Select the CLOCK menu.

Select the Wake-up time line (yellow key).

The first figure flashes.

BROWSE CLOCK LOCK

TV

>>

P.

C

P.

C

18

TELEFUNKEN



Sleep-timer (-/+) - : - -

TELEFUNKEN

Wake-up time

Mode Off Once Daily Programme 01 Current time 05:20

0

0:00

television set

other functions - extra

To set the clock to the right time.

Enter the Wake-up time using 24 hour format.

BROWSE CLOCK LOCK

AV

0

/--

6

4

5

TELEFUNKEN

Wake-up time

Select the Mode line (yellow key).

P.

C

Select Off = the alarm is off

Once = the alarm will only go off once

Daily = the alarm will go off everyday

If a new alarm is programmed, Once is selected automatically.

Select the Programme, line (yellow key). Select the programme for the alarm. Remove the menu from the screen.

Turn the television set on to standby.

P.

C

TV

>>

It will turn on automatically at the time programmed and turn off one hour after.

If the set is switched on before the alarm function is actived, it will not switch to the programme selected for the alarm at the programmed time.

It is possible to programme both the automatic switching off (STANDBY) and switching on (ALARM) of the set. In this case the automatic switching on time must be programmed to take place after the switching off time.

CHILD LOCK

You can prohibit the use of your television set using the keypad. Use of the TV set is prohibited :

- after the sleep timer function ;

- when the set is switched to standby and a sleep timer command is programmed ;

- when the set is turn off at the mains and a sleep timer command is programmed ;

- when a wake-up command is programmed.

- after switching off the TV set by holding down the standby button on the remote control for more than 3 seconds.

The CHILD LOCK function is indicated by the flashing of the indicator lamp.

TELEFUNKEN

Wake-up time 06:45

Mode Off Once Daily

Programme 01 Current time 05:20

TELEFUNKEN

Wake-up time 06:45 Mode Off Once Daily

Programme 01

Current time 05:20



GB

The set can only be switched back on using the remote control.

19

television set

other functions - extra

This function enables you, for example,

be “unlocked“ with a PIN number

LOCK

to prevent your children from watching certain programmes by

“locking“it so that the set cannot be switched on. The set can

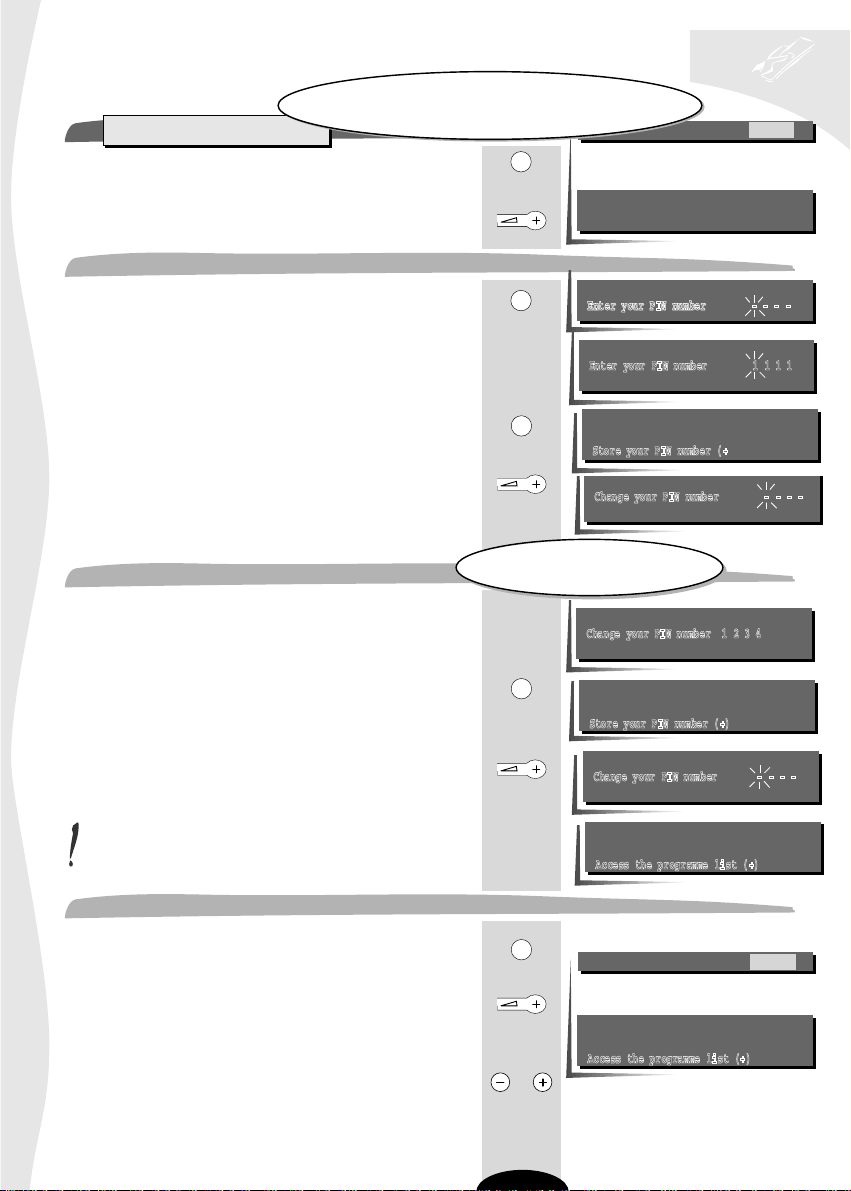

Press the yellow key to select the menu Contents line,

then the volume (+) key to select LOCK. The following menu is displayed.

Enter your PIN number

Press the yellow key briefly to select the line

Enter your PIN number.

Then enter your PIN number figures (example : 1111). The menu displays :

Press the yellow button briefly to select the line

Store your PIN number.

Press the volume (+) key briefly. The code is stored in the memory and the menu displays :

BROWSE CLOCK LOCK

P.

C

TELEFUNKEN

Enter your PIN number - - - -

P.

C

P.

C

TELEFUNKEN

Enter your PIN number - - - -

TELEFUNKEN

Enter your PIN number 1 1 1 1

Store your PIN number (+)

TELEFUNKEN

Enter your PIN number 1 1 1 1

Store your PIN number (+

TELEFUNKEN

Change your PIN number - - - -

Access the programme list (+)

)



Change you PIN number

If your previous code has been divulged.

Enter the your new code numbers (example : 1234).

The previous menu then returns.

Press the yellow button briefly to select the line

Store your PIN number.

C

Press the volume (+) key briefly. The new code is stored in the memory and the menu displays :

When you enter a code for the first time, the figures replace the dashes ; where not, the dashes are replaced by an asterisk.

Access the programme list

Press the yellow key briefly to select the line

Access the programme list (+).

Press the volume (+) key briefly. A page of the directory appears depending on the programme being watched (example : page 1, programme 6 : M6).

Select the programme you wish to Lock or Unlock :

C

TELEFUNKEN

Change your PIN number 1 2 3 4

Store your PIN number (+)

P.

PR

TELEFUNKEN

Change your PIN number 1 2 3 4

Store your PIN number (+)

TELEFUNKEN

Change your PIN number - - - -

Access the programme list (+)

TELEFUNKEN

Change your PIN number

Access the programme list (+)

BROWSE CLOCK LOCK

TELEFUNKEN

Change your PIN number

Access the programme list (+)



* * * *

- - - -

20

television set

other functions - extra

To Lock, briefly press the zoom (+) key

ZOOM

the programme locked turns to red, or

ZOOM

To Unlock, briefly press the zoom (-) key the programme unlocked turns to blue.

To lock or unlock other programmes :

• Select the directory range with the keys

• Select the programme, including the audiovisual programmes

AV1, AV2 or AV3 with keys

PR

ZOOM

• Lock the programme with the key

• Unlock the programme with the key

After locking or unlocking all of the required programmes, erase the menu with the key .

TV

>>

ZOOM

The locked programmes cannot be obtained using the PR –/+ keys on the remote control and the keypad. If they are selected using the remote control number buttons, the following message is displayed on the screen :

• If you do not enter the right code, the message Incorrect PIN

number will appear above the first one.

The programme does not change and after a few seconds, both messages disappear.

• If you enter the right code, the programme selected appears

immediately.

When the code is entered once to unclock a programme, all of the programes which were locked are also unlocked. The lock will be re-activated after the set is turned off.

ACCESS TO THE STATION TUNING MENUS

When there is at least one programme locked, access to the station tuning menus Auto-Programming and Manual Programming is also locked. If you call up one of these menus, the following message appears on the screen.

Briefly press the yellow key to select the line Enter your PIN number if it is not already selected.

P.

C

BROWSE CLOCK LOCK

TELEFUNKEN

PR 06 MOVIES

00 01 BBC 1 02 BBC 2 03 I T V 04 CHAN 4

Select a programme with PR+, PR- Lock/(Unlock) with ZOOM+/(ZOOM-)

To access this programme Enter your PIN number - - - -

Incorrect PIN number

To access this programme Enter your PIN number - - - -

To access this menu Enter your PIN number * * * *

To access this menu Enter you PIN number - - - -

05 S-NEWS

06 MOVIES

07 M-GOLD  08 M-CHAN 09 CHILD

GB

Enter your code number and the menu appears immediately If the code is not correct, the message Incorrect PIN number appears for a few seconds.

If you forget your personal code, see last page of instructions booklet .

21

Incorrect PIN number

To access this menu Enter your PIN number - - - -

television set

connections

VIDEO RECORDER CONNECTIONS

VIA THE AERIAL SOCKET

To tune your TV into your VCR you should refer to Manual Programming (page 28). The channel number (usually 36 or 60) is given in the manual of your VCR. The programme selected for your VCR must be 9, 19 or 29. Whenever you wish to use your VCR, you must select the programme assigned to it.

VIA THE EURO-AV SOCKET 1 (AV1)

Refer to your VCR

manual

This is used to connect :

• Satellite receiver or decoder

• a VHS or 8mm video recoder or camcorder (VIDEO) or a S-VHS or Hi-8mm video recorder or camcorder (S-VIDEO)

• a PC or video games console (RGB).

AV 1

Video recorder and/or Decoder and/or Satellite receiver or Camcorder or PC or video  games console

VIA THE EURO-AV SOCKET 2 (AV2)

Video recorder

This is used to connect :

• a VHS or 8mm (VIDEO), S-VHS or Hi-8mm (S-VIDEO) video

recorder.

AV 2

and/or Satellite receiver

If you have two VCRs connected, the decoder must be connected to the VCR connected to the Euro-AV1 socket.

If you have a satellite receiver, refer to the operating manual in order to find out the type of signal delivered then select VIDEO, S-VIDEO or RGB.

You can also connect it to the decoder socket of the second VCR if the latter is fitted with one.

VIA THE AUDIO/VIDEO/S-VIDEO SOCKETS (AV2)

This is used to connect :

• an S-VHS or Hi-8mm videorecorder (S-VIDEO) (S and AUDIO sockets).

5Ω

S-Video Video Audio

In order to maintain the optimum sound and picture quality of your set, it is recommended not to connect 2 units to the Euro- AV1 socket and the AUDIO/VIDEO/S sockets simultaneously.

AV 2

(IN)

(OUT)

VIA THE AUDIO/VIDEO/S-VIDEO SOCKETS (AV3)

This is used to connect :

a camcorder VHS or 8 mm (VIDEO)(VIDEO and AUDIO sockets)

•

S-VHS or Hi 8 mm (S-VIDEO)(S and AUDIO sockets).

VHS

VIDEO L AUDIO R

S-VHS

22

television set

connections

Your television set selects and automatically

displays in the menu the type of signal

(S-Video or Video) for the equipment connected.

UNITS CONNECTED

EURO EURO AUDIO/VIDEO/ AUDIO/VIDEO/ AV 1 AV 2 S-VIDEO AV 2 SOCKETS S-VIDEO AV 3 SOCKETS

PAY-TV decoder VIDEO VIDEO

Satellite receiver VIDEO VIDEO

Video recorder VHS/S-VHS VIDEO/S-VIDEO VIDEO/S-VIDEO

Camcorder

PC / Games console Select RGB

Automatic selection Automatic selection

AV

Call AV 1

0

-/--

Name

You may give each piece of equipment connected a name. Call up the AV 1, AV 2 or AV 3 menu.

Select the Signal line (yellow key).

Check the type of signal or select as necessary.

Select the Name line. The first dash flashes.

You may enter the name of the channel using 6 characters. Continue to press, the signs, figures and letters are displayed in alphabetical order.

Continue to press : the letters are shown in reverse order. When the required character appears, go to next character.

P.

C

TELEFUNKEN

Signal Video RGB

Name

TELEFUNKEN

Signal S-Video RGB 

Name

VIDEO/S-VIDEO VIDEO/S-VIDEO Call AV 2 Call AV 3

AV

0

-/--

AV 1 AV 2 AV 3

TELEFUNKEN

P.

A-Z

1

Z-A

3

Signal Video RGB

Name

TELEFUNKEN

Signal S-Video RGB 

Name

TELEFUNKEN

Signal Video RGB

Name -

AV

0

-/--

GB

To leave a space look for the blank character (between ? and A).

CALLING UP AUDIOVISUAL PROGRAMMES

Press AV to call AV1, AV2 or AV3 programmes in sequence. In most cases, the television set changes automatically to AV1 or

-/--

AV2, when the VCR connected is in play back mode. When the VCR is stopped, the TV set returns to the station previously watched.

The TV set changes automatically to 16/9 format if the unit connected supplies the control voltage and if you have selected AUTO from the FORMAT menu.

AV

0

23

television set

connections

COPYING VIDEO TAPES

It is necessary to have 2 VCRs with the same specifications : 2 VHS/8 mm or 2 S-VHS/Hi-8 mm.

Connect the playback VCR to the Euro-AV1 socket in playback mode. Connect the recording VCR to the Euro-AV2 socket in recording mode.

During the copying of the tape, you can watch the station you are copying.

PLAY CALL UP RECORD

Euro-AV 1 AV 1

(left side)

Video recorder

Camcorder Video recorder

Camcorder

VHS

or

S-VHS

EQUIPMENT SOCKET PROGRAMME EQUIPMENT SOCKET

Video recorder

Camcorder Audio/Video/S-Video AV 3

MAIN/SURROUND SPEAKERS CONNECTIONS

MAIN SPEAKERS : These replace the speakers in the TV set. The volume of the speakers is adjusted in the same way as for the set.

SURROUND

SPEAKERS

SURROUND SPEAKERS : These must be used in parallel with

the set speakers in order to obtain the surround effect.

MAIN

SPEAKERS

FITTING BATTERIES

or

MAINS SPEAKERS

SURROUND SPEAKERS

Euro-AV 2

Audio/S-Video AV 2 Euro-AV 2 Audio/S-Video AV 2

To open the cover, press as indicated and push in the direction of the arrows.

Insert two LR 06 1.5 V batteries.

Close the batterycompartment cover.

For a cleaner environment, please dispose of used batteries in the containers provided for this purpose.

24

television set

teletext

Your television set is equipped to receive teletext. There are 3 types of teletext :

• Teletexte (France-Europe),

• Fastext (UK, Spain),

• Toptext (Germany)

If you notice writing errors (missing letters) on the teletext pages of French networks (L Standards), check :

• That you have good reception

• That On is selected in the Teletext Fine Tuning line of the SET-UP menu (see page 9).

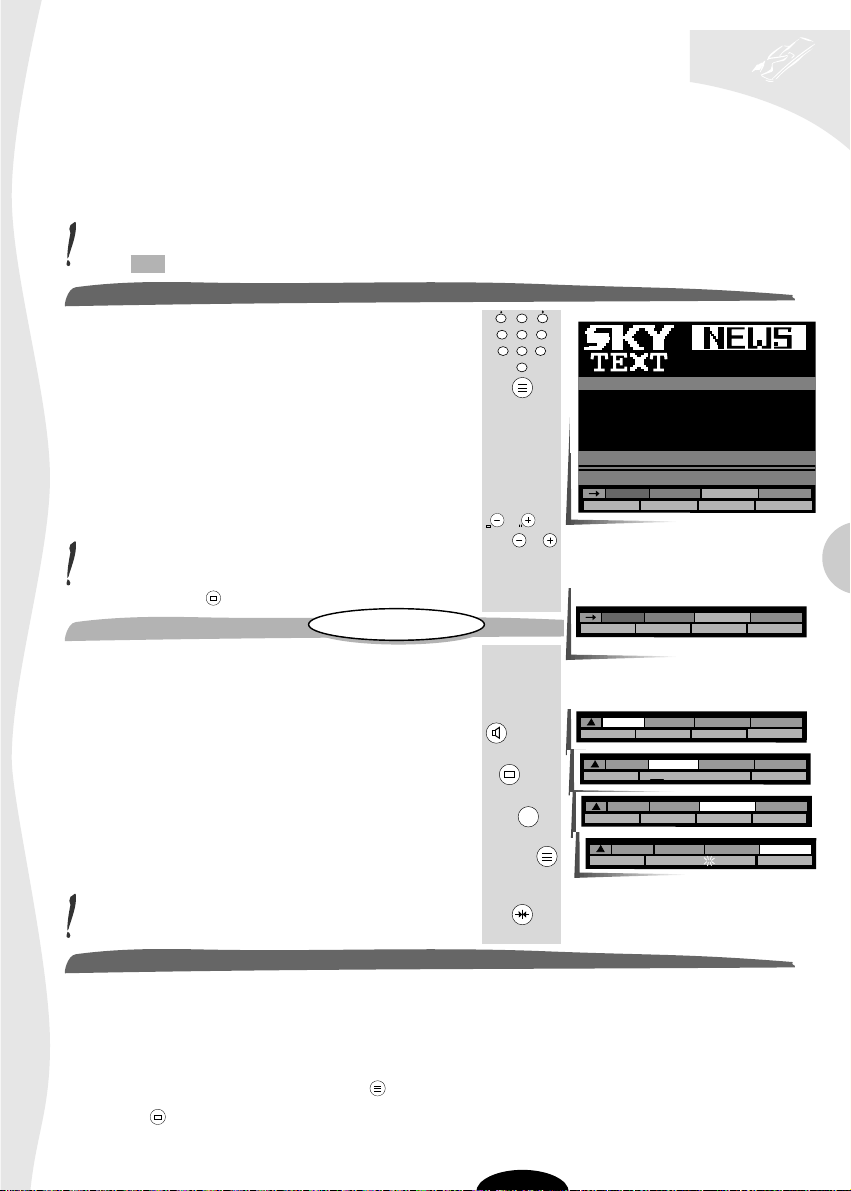

CALLING UP TELETEXT

Select a station on which there is Teletext (for France, TF 1, FR2).

Briefly press the blue key. The contents page (Page 100) appears automatically.

You may enter the page number required (3 figures). Example: page 170, enter 1, 7, 0 (the number is displayed at the top left of the screen). When the page is found, it appears on the screen. You can move through the pages to select them.

While the teletext is displayed, you may adjust or turn off the volume.

To quit Teletext, press .

OPTIONS

TV

>>

See next page.

A Z

1

4

ZOOM

-/--

D

Z A

32

S100 SKYTEXT 100 Tue 18 Oct 1544:10

56

987

AV

0

WHAT'S ON YOUR TV GUIDE......110

TV GUIDE.....110

CABLE........140

RADIO........145

SUSCRIBE.....150

NEWS FLASHES: SPORT 104 FINANCE 239 ON SKYSPORTS: SPORT, FOOTBALL, RACING

HENNESSY GOLD CUP BREAK SkyOne p 365

GUIDE

FAVORITE DISPLAY SUBCODE

<<

>>

PR

GUIDE

FAVORITE DISPLAY SUBCODE

<<

>>

A - Z INDEX ON 199

FINANCE......200

SHARES.......220

LOANS........288

WEATHER......300

110 200

The two menu lines, under the Teletext page, are different, depending on the type of Teletext received (Teletext, Fastext, Toptext) and your selection (see page 26).

GUIDE

You may select different options using the top line of this menu. These are shown in colour.

A

Briefly press the corresponding colour key (red, green, yellow, blue).

The menu bottom line is then activated.

B

P.

C

To select options from the bottom line, press the equivalent colour button.

D

FAVORITE DISPLAY SUBCODE

<<

GUIDE FAVORITE DISPLAY SUBCODE

<<>>100 200 300 400 500 600

GUIDE FAVORITE DISPLAY SUBCODE

HOLD

GUIDE FAVORITE DISPLAY SUBCODE

CLEAR

>>

?

Subpage No

110 200

ZOOM MIX

- - - -

110 200

GB

ALARM ON

To return to the first line of the menu, press the pink key.

E

ALARM

If the teletext transmits an alarm page, you can make it come up at a set time. While entering the number of the alarm page (E. G. TVE : 697, ORF : 784). Then enter the digits to choose the time ( e.g., for 20.45, type 2, 0, 4, 5) and hold down the last digit until the teletext is removed. At the chosen time, the alarm page will appear on the screen.

To erase the alarm page, first press the blue key then the key .

TV

>>

D

25

television set

teletext

When the red and green

rectangles are displayed in these menus, pressing

the red key displays the previous page, pressing

the green key displays te next page.

<<

Key Type Name Functions Menus

MENU Displays Toptext menu (red key).

TOPTEXT

DIRECT Directly displays the priority pages determined by the

PREVIEW Displays TV programme page (red and green keys)

station (red and green keys).

GUIDE Displays subject (yellow key) or field (blue key)

Red

FASTEXT

A

INDEX Calls up Contents page (red key).

GUIDE Selects different heading (red, green, yellow, blue keys)

INDEX Displays Contents page (red key).

GUIDE You may call :

TELETEXT • The first page of the next ten after the page

SUBPAGES

TOPTEXT Select subpages with red or green keys.

Green

FASTEXT FAVORITE Allows you to store up to 6 of your favourite teletext pages.

TELETEXT

B

DISPLAY

>>

• The previous page (red key)

<<

• The next page

200

displayed (yellow key)

110

• The first page of the next hundred after the page

displayed (blue key). Eg : page displayed : 135

-> page called up : 140 or 200

Used to display subpages if any. The number of the subpage displayed is underlined.

To store your favourite pages, select one of the 6 locations using either the red or green keys (the selected location will have its 3-digit number underlined). Then enter the number of the required page. Repeat the process for each favourite page. (There are 6 favourite page locations for each PR number).

The colour of the buttons depends on the option

required.

Option selection.

For games :

Briefly press the green key to see a hidden answer.

TOPTEXT To enlarge the text : yellow key

Yellow

FASTEXT

P.

C

TELETEXT

UPDATE Automatic renewal of the page displayed.

Press once : top half of screen doubled in height. Press twice : bottom half of screen doubled in height. Press three times : return to normal Teletext.

Mix mode :

Briefly press the blue key to overlay the Teletext page on the TV picture.

If you wish to stop page scrolling (eg : 4/7)

Briefly press the red key, the page number replaces «HOLD». Press the red key again to continue scrolling.

Press the yellow key, you can watch your TV programme while waiting for page search to complete.

When the page is found, the message « appears on the screen. Press the blue button to display the page.

PAGE XXX RECEIVED

MENU SUBPAGES DISPLAY SUBCODE

DIRECT

SUBPAGES DISPLAY SUBCODE

Direct page : ÜBERSICHT 2

<<

TV PROG

SUBPAGES DISPLAY SUBCODE

<<

TV INDEX

<<

by

TV PROG : TV HEUTE

GUIDE

SUBPAGE DISPLAY SUBCODE

<<

>>

INDEX SUBPAGES DISPLAY SUBCODE

GUIDE

SUBPAGES DISPLAY SUBCODE

FIN INDEX

INDEX SUBPAGES DISPLAY SUBCODE

GUIDE

SUBPAGES DISPLAY SUBCODE

<<

GUIDE

SUBPAGES DISPLAY SUBCODE

01 02 03 04 05 06 07 08

GUIDE

FAVORITE DISPLAY SUBCODE

231 240 . . . . . . . . . . . .

<<

GUIDE

SUBPAGES DISPLAY SUBCODE

HOLD ? ZOOM

GUIDE

SUBPAGES DISPLAY SUBCODE

HOLD ? ZOOM

GUIDE

SUBPAGES DISPLAY SUBCODE

HOLD ? ZOOM

GUIDE

SUBPAGES DISPLAY SUBCODE

HOLD ? ZOOM

GUIDE

SUBPAGES DISPLAY SUBCODE

HOLD ? ZOOM

GUIDE SUBPAGES UPDATE SUBCODE

Back to TV until new page received

»

TOP-Overview

INDEX PA 100

>>

P 100

11:25:49

ARD

UEBERSICHT 2 DIE AKTUELLE DOLLARKURS WOCHENSCHAU

DIRECT retour THEME CHAPITRE

TV-TIPS

HEADLINES

110

TOP - Menu

NACHRICHTEN FINANZ-INFOS SPORT WETTER LOTTO/SPIELE A-Z/ADRESSEN FERNSEHEN TV HEUTE TV-MORGEN

UEBERSICHT 1 UEBERSICHT 2 DIE AKTUELLE

>>

TV-MORGEN

SHARES

200

>>

MIX

>>

Blue

TOPTEXT SUBCODE Enter the subpage number (eg : 0009).

FASTEXT Press the green key.

TELETEXT The TV picture is displayed and as soon as the subpage is

D

found, it is displayed.

26

GUIDE FAVORITE UPDATE SUBCODE

CLEAR

Subpage No

- - - -

ALARM ON

television set

teletext

HOW TO SELECT

Repeatedly press the pink key to select the possible options under the required colour.

Red key : MENU, DIRECT, PREVIEW, GUIDE (Toptext)

E

A

INDEX, GUIDE (Teletext or Fastext)

Green key : FAVORITE, SUBPAGE

Yellow key : DISPLAY, UPDATE

Blue key : SUBCODE

.

Briefly press the same colour key (red, green, yellow or blue) to select.

B

C

D

A

B

C

To save your choice, briefly press the (+) button.

SUBTITLES

Some programmes are transmitted with subtitles for the hard of hearing. These subtitles are received via Teletext on a special page number. They can be superimposed on the screen by selecting that page in Teletext mode. Find the appropriate page number from the Teletext Index page. Enter the number and once the page has been found, you will see the normal TV programme with the subtitles superimposed on it.

To erase the subtitles, press twice the key .

TV

>>

NEWS FLASH

OVERVIEW FAVORITE DISPLAY SUBCODE

OVERVIEW

STORE (+)

GUIDE INDEX

<<

P.

D

INDEX

HOLD ? ZOOM MIX

CLEAR ALARM ON

TOP-Menu

STORE (+)

GUIDE

TV PROG

DIRECT

FAVORITE DISPLAY SUBCODE

TOP-Menu

FAVORITE DISPLAY SUBCODE

INDEX PAGE 100

STORE (+)

SUBPAGES FAVORITE DISPLAY SUBCODE

INDEX

FAVORITE DISPLAY SUBCODE

MENU

FAVORITE DISPLAY SUBCODE

Sous-Pages - - - -

STORE(+)

UPDATE

>>

GB

The latest news can be superimposed on the television picture. Look up the teletext index to find the page number and enter it. Once the page has been found, you can watch the normal television programme. When the lastest news page is updated it will be superimposed on the picture.

The remote control can be used for sound and picture settings again. If you switch to another station, the «Latest news» function is disabled.

If after having seen these news you wish to remove the display from the screen, press the blue key

followed by the key .

TV

>>

D

27

television set

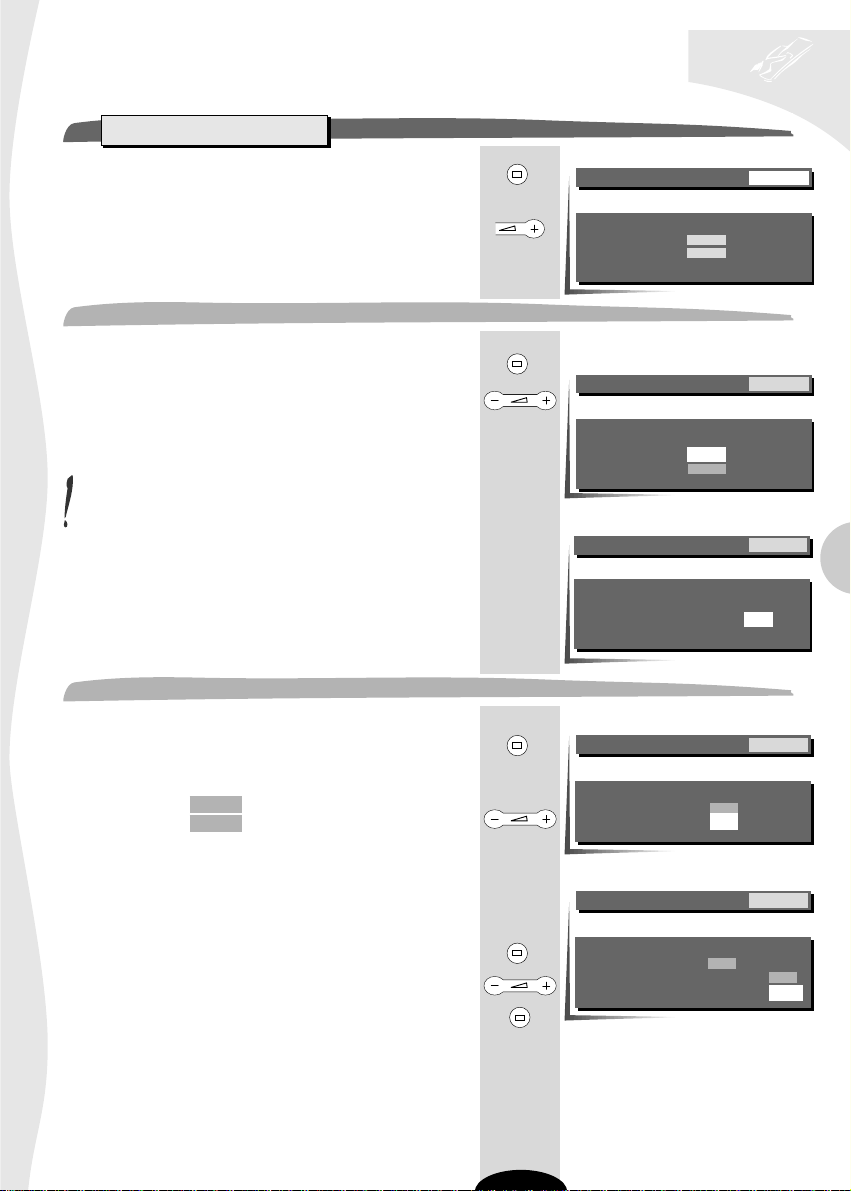

manual programming

You may use this channel adjustment menu if you do not wish to restart

auto programming (where there are only few channels in your area

or if a new channel is transmitting).

PROGRAMME

The following menu is displayed : TUNING is selected

C

If this is not the case, select the contents line using the yellow key and TUNING with the key .

P.

C

If the menu is not in English, refer to the INSTALLATION chapter, page 9.

Norm

Select the Norm (-/+) line (yellow key). Select the broadcasting standard :

PAL/SECAM BG (Euro) : Western Europe (BG) FRANCE : France and Luxembourg (LL’) PAL BG+ : Special standards (Switzerland) SECAM DKK’ : Eastern Europe, Middle Eadt (DKK’) PAL I (UK) : United Kingdom, Ireland (I)

Decoder

This function allows you to access programmes using the PR –/+ keys (zapping). Select Decoder line (yellow key). Select one of the options :

None = no decoder AV1 = Decoder connected to Euro-AV1 socket. AV2 = Decoder connected to Euro-AV2 socket.

Channel/Cable

If you do not know the channel numbers.

Select the Search line (yellow key). Start the search by pressing :

+ : for forward channel search

-

: for backward channel search. The cursor indicates the part of the range in which it is performing the search. The channel numbers are displayed on

• Channel line when received via an aerial

or

• Cable line for cable networks.

Once a station has been received, the picture appears on the screen. If the picture, corresponds to the station required, go to the Programme line, otherwise continue the search, with (+).

If you already know the channel numbers.

Select the line

• Channel for TV channels (aerial) or

• Cable for cable networks.

Enter the channel number (it must have 2 digits) e.g. : for channel 6, enter 0 and then 6.

-/--

TUNING AV1 AV2 AV3

P.

C

P.

C

TELEFUNKEN

Norm (-/+) PAL I (UK) Decoder None AV1 AV2 Search  Channel CH 22 Cable CC -- Programme 03 Fine Tuning Station name I T V Erase (-) Store (+)

TUNING AV1 AV2 AV3

TELEFUNKEN

Norm (-/+) PAL I (UK)

Decoder None AV1 AV2 Search Channel CH 22 Cable CC -- Programme 03 Fine Tuning Station name I T V Erase (-) Store (+)

TELEFUNKEN

Norm (-/+) PAL I (UK)

Decoder None AV1 AV2

Search Channel CH 22 Cable cc -- Programme 03 Fine Tuning Station name I T V Erase (-) Store (+)



TUNING AV1 AV2 AV3

P.

C

P.

C

AV

0

6

28

TELEFUNKEN

Norm (-/+) PAL I (UK) Decoder None AV1 AV2

Search

 Channel CH 22 Cable CC -- Programme 03 Fine Tuning Station name I T V Erase (-) Store (+) Access to the organiser (+)

TELEFUNKEN

Norm (-/+) PAL I (UK) Decoder None AV1 AV2 Search

Channel

Cable CC -- Programme 03 Fine Tuning Station name I T V Erase (-) Store (+) Access to the organiser (+)

CH 22



television set

Channel

manual programming

Programme

Select the Programme line (yellow key).

Enter the station number.

Programme 1 to 9 : Press the corresponding digit briefly (eg: 03, press 3).

Programme 10 to 99 (eg : 52) : Briefly press 5 to display the tens : 5 -

Briefly press 2 to display the units : 5 2

To be used if the picture is not clear or for searching for

Fine Tuning

Select Fine Tuning line (yellow key). + : sharper picture contours or search higher in the range

-

: softer picture contours or search lower in the range.

Station name

Select the Station name line (yellow key). The station name can be written in 6 characters.

Hold down the button : the characters are displayed in ascending order. Hold down the button : the characters are displayed in the

descending order. When the required character appears, press these buttons to go

the next or previous character.

To leave a space look for the blank character (between ? and A) or press briefly

Store / Erase

Press yellow key to select Erase (-) Store (+) line. Briefly press, your channel is stored in the memory.

If you wish to Erase, press

Continue the search for a different station. Search and store all the stations by repeating the above procedure starting from Search, Channel or Cable. Repeat the process for the next programme/station starting from NORM.

Access to the organiser

When all the channels or the new channel have been retrieved, you can access the channels management menu. Select the line Access to the organiser (yellow key)

The menu Programme Organiser appears. Proceed as explained on page 8 to list the channels in the order required by you and to give them a name if this has not already been done.

To return to the TUNING menu press once on the key .

To clear the menus press twice on the key .

TV

>>

TV

>>

TUNING AV1 AV2 AV3

P.

C

Z-A

3

5 2

Optional :

a specific source, for example, a video recorder channel

P.

C

P.

C

A-Z

1

2

AV

0

-/--

P.

C

P.

C

TELEFUNKEN

Norm (-/+) PAL I (UK) Decoder None AV1 AV2 Search Channel CH 22 Cable CC --

Programme

Fine Tuning Station name I T V Erase (-) Store (+) Access to the organiser (+)

Cable CC -- Programme 03

Fine Tuning

Station name I T V Erase (-) Store (+) Access to the organiser (+)

03

CH 22



TUNING AV1 AV2 AV3

TELEFUNKEN

Norm (-/+) PAL I (UK) Decoder None AV1 AV2 Search Channel CH 22 Cable CC -- Programme 03 Fine Tuning

Station name

Erase (-) Store (+) Access to the organiser (+)

Norm (-/+) PAL I (UK) Decoder None AV1 AV2 Search Channel CH 22 Cable CC -- Programme 03 Fine Tuning Station name I T V

Erase (-) Store (+)

Access to the organiser (+)

I T V

TELEFUNKEN

Programme Organiser

01 BBC 1

P.

C

29

02 BBC 2 03 04  05 06 07 08 09

PR+, PR- Select a station +, -, 0..9 Move this programme Blue Change the name Yellow Erase this station To exit, press the (TV) key

GB



Wir empfehlen Ihnen, diesen Abschnitt auszuschneiden, damit er nicht von Kindern gelesen werden kann.

+

WENN SIE SICH NICHT MEHR AN IHRE PIN-NR ERINNERN

Kurzes Drücken der gelben Taste, die Titelzeile des Menüs wird aufgerufen, anschließend mit der Taste (+) SPERRUNG wählen.

Drücken Sie die gelbe Taste, die Zeile Geben Sie Ihre PIN-Nr ein wird aufgerufen. Drücken Sie gleichzeitig die entsprechende Taste und am Fernsehgerät.

Die frühere PIN-Nr ist nun gelöscht und Sie können einen neuen Code eingeben. Nach dem Ändern der PIN-Nummer brauchen die vorher gesprrten Programme nicht nochmals gesprrt werden.

PR +

Vi consigliamo di staccare questo tagliando per evitare che i bambini ne prendano conoscenza.

P.

C

P.

C

SE NON RICORDATE PIÚ IL CODICE SEGRETO

Premere il tasto giallo per selezionare le riga Sommario del menu,, poi il tasto (+) per selezionare BLOCCO PROG.

Premere il tasto giallo per selezionare la riga Inserire il codice segreto. Premere simultaneamente i tasti e del televisore.

Il codice precedente viene cancellato e potete quindi inserire un nuovo codice segreto. Dopo aver cambiato il codice, non è necessario di ribloccare i programmi che erano bloccati.

PR +

Nous vous recommandons de découper cette vignette pour qu’un enfant ne puisse pas en prendre connaissance.

P.

C

P.

C

SI VOUS NE VOUS SOUVENEZ PLUS DE VOTRE CODE PERSONNEL

Appuyez sur la touche jaune pour sélectionner le ligne Sommaire du menu, puis sur la touche (+) pour sélectionner VERROUILLAGE.

Appuyer sur la touche jaune pour sélectionner la ligne Entrer votre numéro de code. Appuyez simultanément sur les touches et du téléviseur.

L’ancien code se trouve alors effacé et vous pouvez en entrer un nouveau. Après le changement de code, il n’est pas nécessaire de reverrouiller les programmes qui étaient verrouillés.

PR +

P.

C

P.

C

✄

We recommend you cut out this sticker to keep it hidden from the children.

IF YOU NO LONGER REMEMBER YOUR PERSONAL CODE

Press the yellow button to select the menu Contents line, then the (+) button to select LOCK.

Press the yellow button to select the line Enter your PIN number. Press simultaneously the and buttons on the TV.

The old code is then erased and you may enter a new one. After changing code, it is not necessary to relock the programs which were already locked.

PR +

Wij raden u aan deze sticker uit te knipper om te voorkomen dat een kind hem in handen krijgt

C

ALS U UW PERSOONLIJKE CODENUMMER NIET MEER WEET

Druk eerst op de gele toest om de regel Overzicht van het menu te selecteren, en dan op de (+) toest om VERGRENDELEN te selecteren.

Druk op de gele toest om de regel Toest uw codenummer in te selecteren. Druk tegelijkertijd de toesten en op de televisie in.

De oude code is nu gewist en u kunt een nieuwe code invoeren. Na het veranderen van de code hoeven de programma’s, die vergrendeld waren, niet opnieuw vergrendeld te worden.

PR +

C

P.

✄

P.

✄

Technicolor - Thomson 5400 DM, 5400DM F, S4400 DM, S5400 DM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

contents

connections and commands

auto-programming

WELCOME

AUTO-PROGRAMMING

To delete a programme

New channels

installation

SET-UP

Maximum Volume Limitation

Menu language

Programme number display

Time reference

Teletext Fine Tuning

PREFERENCES

picture adjustments


Digital Mastering

Light Sensor

PIP (Picture in picture)

Image inlay (PIP)

Inlaid image position

Picture swap

Scanning all inlaid image programmes

Mosaic

FORMAT

Format

Subtitles Zoom

LOUDSPEAKERS

Effect

Balance

HEADPHONES

day to day operation

BROWSE

Volume

Sound mute

DISPLAY / ZAPPING

PICTURE FREEZE

LAST PROGRAMME VIEWED

ZOOM

Stand-By

AUTOMATIC STOP

other functions - extras

CLOCK

Sleep-timer

Clock (automatic on)

CHILD LOCK

LOCK

Enter your PIN number

Change you PIN number

Access the programme list

connections

VIDEO RECORDER CONNECTIONS

VIA THE AERIAL SOCKET

VIA THE EURO-AV SOCKET 1 (AV1)

VIA THE EURO-AV SOCKET 2 (AV2)

VIA THE AUDIO/VIDEO/S-VIDEO SOCKETS (AV3)

UNITS CONNECTED

Name

CALLING UP AUDIOVISUAL PROGRAMMES

COPYING VIDEO TAPES

FITTING BATTERIES

teletext

OPTIONS

ALARM

HOW TO SELECT

SUBTITLES

NEWS FLASH

manual programming

PROGRAMME

Norm

Decoder

Channel/Cable

Programme

Fine Tuning

Station name
