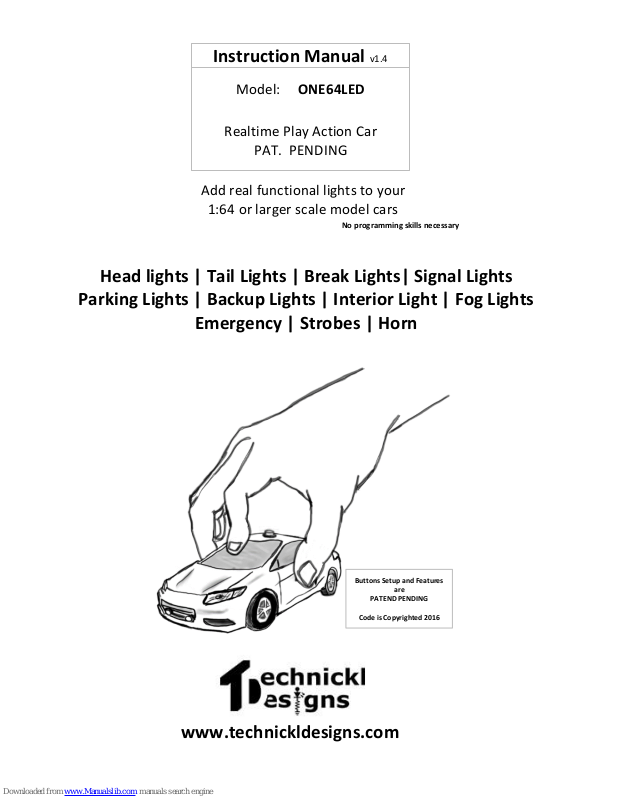

Instruction Manual v1.4
Model: ONE64LED
Realtime Play Action Car
PAT. PENDING
www.technickldesigns.com
Add real functional lights to your
1:64 or larger scale model cars
Head lights | Tail Lights | Break Lights| Signal Lights
Parking Lights | Backup Lights | Interior Light | Fog Lights
Emergency | Strobes | Horn
Buttons Setup and Features
are
PATEND PENDING
Code is Copyrighted 2016
No programming skills necessary
Turning ON the car: When the car is in the "OFF" state: Press the Top button and it will beep twice and blink the signal lights twice.
Different MODEs and Their Functions:
All MODES will have the following functions, except Emergency and Strobe MODEs. Additional functions and notes are listed under
their respective MODEs.
Functions:
Top button pressed less then 1 second: ==> Goes to the next MODE
Top button held for more than 1 second: ==> Goes back to the OFF Lights MODE (Reset)
Left button held down: ==> Blinks left signal lights
Left button pressed twice and held down on the second press: ==> Turns on the backup lights
Right button held down: ==> Blinks right signal lights
Right button pressed twice and held down on the second press, then tap Top button: ==> Turns on the interior lights
Right button pressed twice and held down on the second press, then press Left button: ==>
Sounds the Horn
Left + Right button held down together : ==> Makes the tail lights brighter (Breaks)
Horn button pressed (Used only for single button mounted on steering wheel): ==> Sounds the horn
MODES: The MODES will cycle in the following order and repeat:
OFF lights MODE: ==> No lights will be ON
All function listed above will work.
If there is no activity for 3 minutes, the horn will beep once and the signal lights will flash once.
*** Set it to this MODE when finished playing. This will turn off the car.
The car will still drain battery, but it will drain very little that you don't have to charge it for a while.
Parking lights MODE: ==> Signal lights will stay ON (Parking Lights)
All function listed above will work.
ON lights MODE: ==> Head, Tail and Parking lights will be ON
All function listed above will work.
ON lights MODE with High beam: ==> Head, Tail, High beam and Parking lights will be ON
All function listed above will work.
ON lights MODE with Fog: ==> Head, Tail, Parking lights and Fog lights will be ON
All function listed above will work.
The high beams will turn OFF.
Emergency MODE: ==> Signal lights will blink continuously
No other functions will work in this MODE. Only the two following functions will work:
Top button pressed less then 1 second: ==> Goes to the next MODE
Top button held for more than 1 second: ==> Goes back to the OFF lights MODE (Reset)
Strobe MODE: ==> Head lights and Tail lights will blink left/right atlernately in an X pattern.
No other functions will work in this MODE. Only the two following functions will work:
Top button pressed less then 1 second: ==> Goes to the next MODE
Top button held for more than 1 second: ==> Goes back to the OFF lights MODE (Reset)
Button Functions - MODEl: ONE64LED
www.technickldesigns.com - MODEl: ONE64LED Rev 1.4
1. The 5 pairs of pads on the bottom side of the PCB selects which functions are turned off or on.
2. There is a small trace connecting the upper pads to the lower pads respectively. Resulting in a total of 5 jumpers.
4. Refer to the following table to select the desired function(s) and perform the necessary cut or soldering before installing.
5. If you are going to install all features. Do not cut anything.
= Leave pads shorted together / If cut already, then solder pads together
X = Cut trace between pads / If soldered, remove solder between pads
= Functions are available
= Functions not available
Functions Chart
16 8 4 2 1 OFF Parking Lights High Beam Fog Emergency Strobe
X
X
X X
X
X X
X X
X X X
X
X X
X X
X X X
X X
X X X
X X X
X X X X
X
X X
X X
X X X
X X
X X X
X X X
X X X X
X X
X X X
X X X
X X X X
X X X
X X X X
X X X X
X X X X X
Functions Configuration Chart - MODEl: ONE64LED
www.technickldesigns.com - MODEl: ONE64LED Rev 1.4
Jumper Pads
1. Remember to pre-configure your functions before installing if you are going to cover up the jumpers.
2. Select the functions you desire by cutting or resoldering the upper pad to the lower pad respectively.
3. Please refer to the Functions Configuration Chart on the previous page.
4. Solder the positive (+) leads of the LED to the pads for the functions you are installing and all the negatives (-) to GND. (All GND are connected together)
5. Aux outputs are n/a. They are available per custom programming. Please contact us for more information.
PCB Pin Outs - MODEl: ONE64LED
www.technickldesigns.com - MODEl: ONE64LED Rev 1.4
Cut these
traces or solder across them
again to select or deselect functions of
choice. Refer to Functions configuration
Chart on previous page.
Right Signal Light
Right Head Light
Jumper 16Jumper 8Jumper 4Jumper 2Jumper
1
Hight Beam
Aux 1
Aux 2
Interior Light
Fog Lights
Left Head Light
Button
Horn
Speaker
Backup Lights
Right Break Light
Aux 4
Left Break
Light
Aux 3
Left Signal Light
Button Right
Button Top
Button Left
GND
Connect to (-)Battery
GND
Do the same for the
other two buttons.
Connect to (+) Battery
No Power Switch is required.
Solder all the GND together
and connect them to (-) Battery
Do the same for other LED
2-PIN
Connector
Connect to
(+) Battery
Connect to (-)
Battery GND
