Technica Advanced 32-250 User Manual

Model No 32-250

IDTV

User Guide

FORMAT

VOL

CH

EXIT NICAM

FAV

FAVFAV

SUBPAGE

REVEAL

LANG

HOLD

SUBTITLE

INFO

GUIDE

first.pdf 28. 7. 2009 9:29:07

blank.pdf 22. 7. 2009 12:49:15

1

Important Guarantee Information.

Congratulations on purchasing this television. We hope you have many

years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months

from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently

asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV

to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect

the TV from your home or work address, return it to our service centre,

repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone [phone]

Email: [email protected]

Internet: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

On the web site, you can register your product and guarantee, if you

do it within 7 days of purchase, you will also receive an extra FREE

3 months warranty, making the warranty 15 months from date of purchase.

You must retain all packaging materials as you will need these in the event of

warranty/service support.

If you need to call the helpline, you will need the following information.

Model Number __________________________ (Can be found on rear of TV)

Serial Number __________________________ (Can be found on rear of TV)

Date of purchase __________________________ (Can be found on sales receipt)

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:06

2

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:30

3

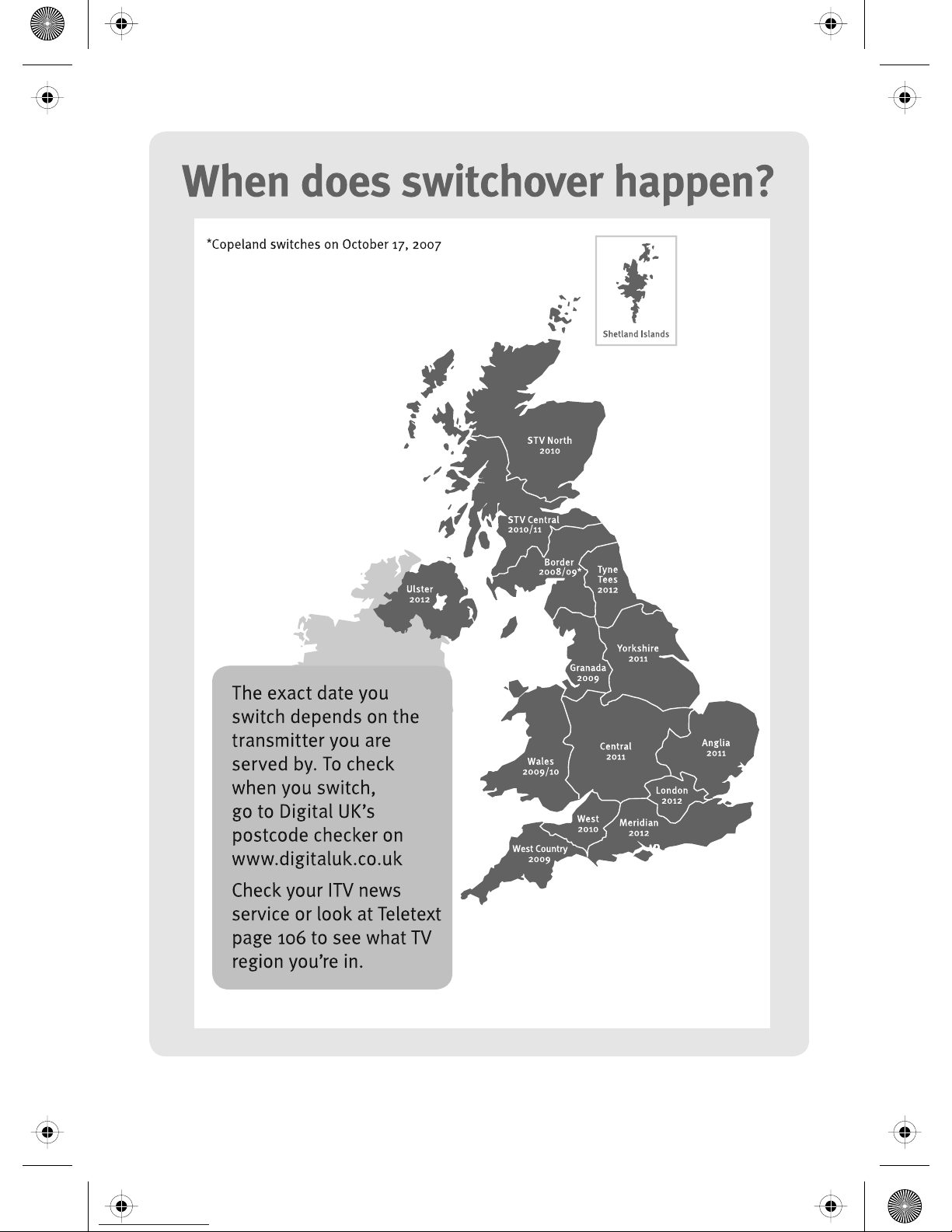

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late
2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply
connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or
whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune
your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the
body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune
every few months to ensure you are receiving the very latest TV and radio channels
that are broadcast.

• In digital/freeview mode, on the remote control press ‘menu’ quickly followed by 8-8-8-8 (so
press the number 8 four times)

• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section
called ‘getting started’ later in this user guide)

• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels
until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial
needs upgrading.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: [phone] (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)
Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do
not contact Digital UK unless your query is regarding the digital switchover.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

UK

English

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:48

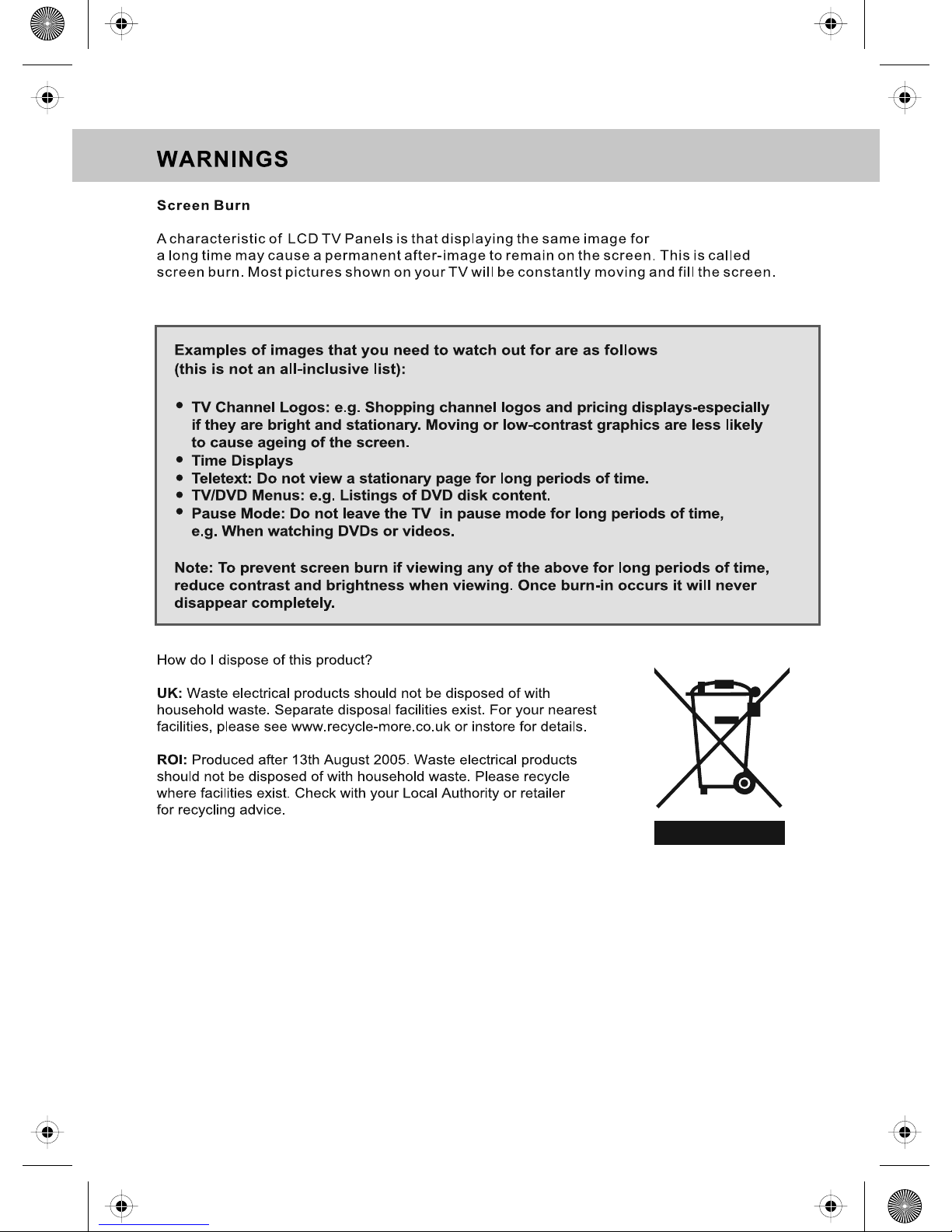

WARNINGS

Caution

This television contains no user serviceable parts. Please refer to the manufacturer
or authorised repair agent in the event of malfunction. Do not remove the back cover
from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose
it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct
the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally
friendly manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use
an alcohol based cleaner

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should
the fuse need to be replaced, ensure that any replacement is of the same amperage
and approved with the BSI mark. ( )

Never try and replace the mains plug unless you have adequate qualifications and are
legally authorised to do so. In the event that a replacement Mains cable is required,
contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may
be subject to strong vibration. Ensure the television is not placed on top of the power
cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic
or radio interference with the television. If interference is apparent, move the device
causing the interference away from the television.

Packaging

Please save the packaging for the television as you will need this in the event
of warranty/service repair or support. We are unable to carry out warranty/service
if you are unable to package it correctly. The safest way to package your item in the
event of warranty/service repair is in its original box/packaging

4

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:48:04

5

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:18:29

6

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:48:42

CONTENTS

SETTING UP YOUR TV

- Digital Switchover Re-Tune 2

- What is included in the box 8

-

Attaching/Detaching the

Stand & Wall mounting 9

- Tuning in TV 10

- Remote control buttons and their
functions 11

- TV buttons and their functions 12

- Inputs and Connections 13

TV MENU OPERATION

- Picture Settings Menu 14 - 15

- Sound Setttings Menu 16

- Tuning Settings Menu 17

- Common Inferface Slot 18

- Timer Settings Menu 18

- Sleep Timer 18

- On Screen Display Timer 18

- General Settings Menu 19

- On Screen Menu Language 19

- Adjusting Picture Format 19

- Blue Screen 19

- System Lock 19

- First Time Installation 20

- Reset Television to Factory Settings 20

CHANNEL SERVICES

- Using TV Guide 20

- Using Digital TV teletext 21

- Using Analogue TV teletext 21

PC OPERATION

- Using with a PC or Laptop 22 - 23

GENERAL INFORMATION

- Using with Sky Digital/Virgin Media 24

- Connecting a Games Console 25

- Frequently Asked Questions 26

- Technical Specifications 27

- Index 28

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: [phone]

Email: [email protected]

If you experience any problems with this Television,

Please contact the helpline.

7

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:19:11

8

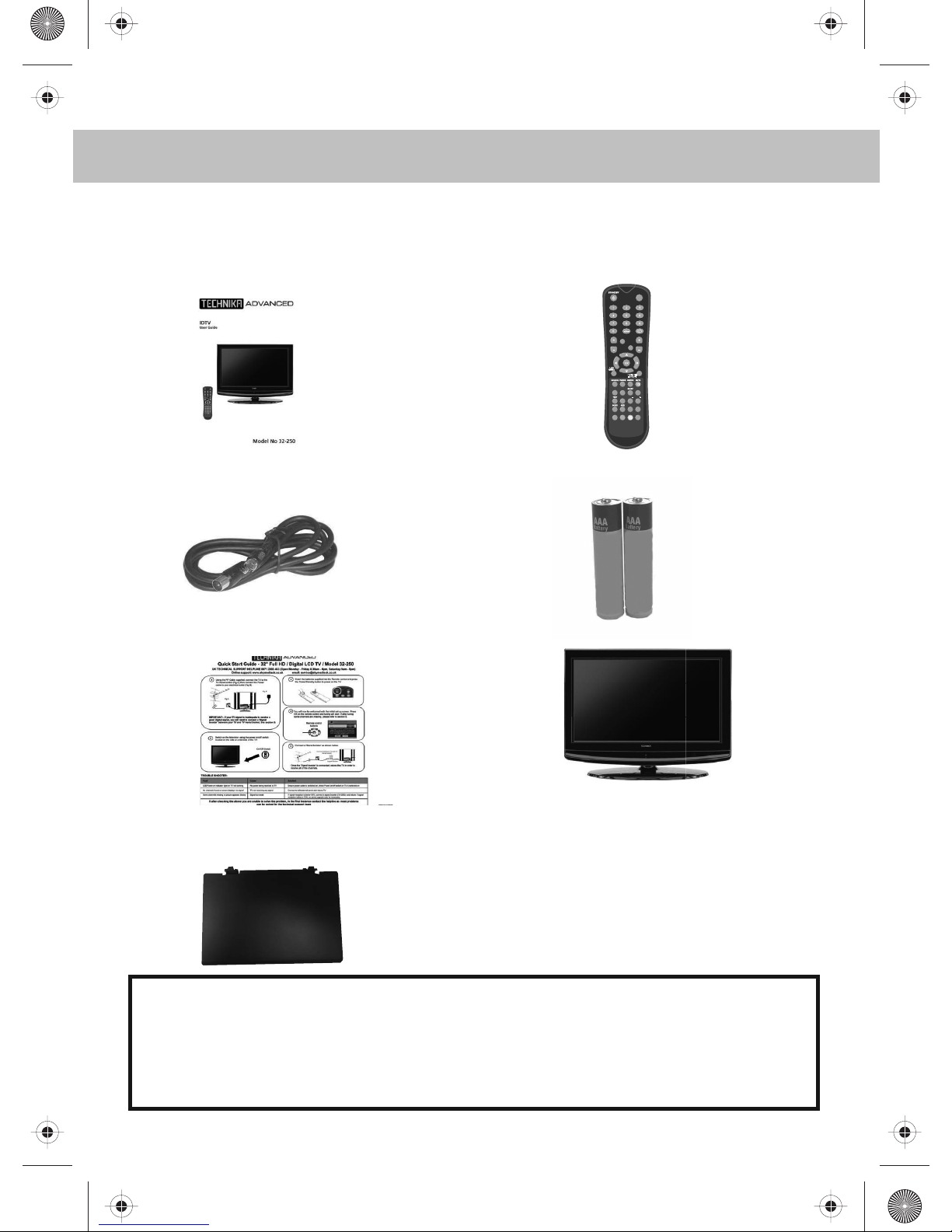

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control

1x - RF cable 2x - AAA batteries

1x - Quick Start Guide 1x - TV

Please save your packaging as you will need this in the event

of warranty/service repair or support. We are unable to carry out

warranty/service if you are unable to package it correctly. The safest way

to package your item in the event of warranty/service repair

is in it’s original box/packaging.

1x - Blank plate (Used when removing
stand in the event of wallmounting)

FORMAT

VOL

CH

EXIT NICAM

FAV

FAVFAV

SUBPAGE

REVEAL

LANG

HOLD

SUBTITLE

INFO

GUIDE

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:30:42

REMOVING THE STAND & WALL MOUNTING

9

Removing the stand

1) Remove the four screws highlighted
below

2) The stand will now come off

IMPORTANT— BEFORE
DRILLING ANY HOLES IN THE
WALL ENSURE YOU ARE NOT
DRILLING WHERE THERE
COULD BE ANY ELECTRIC
WIRES, WATER OR GAS PIPES

This TV requires a universal wall mount
with mounting holes of
400mm(H) x 200mm(V) (VESA – 400x200)

1) The wall mount can now be easily
attached to the mounting holes on rear
of the TV. These holes are indicated
in the picture below

Important – If wallmounting this TV,

only use the screws already

provided in the wallmounting holes.

Using other screws which are longer

could cause irrepable damage to

internal parts.

2) Although there are no live parts exposed when
removing the stand, (in the event of wall
mounting the TV) for aesthetic purposes,
included in the accessory pack is a cover
plate which can be clipped into the underside
of the TV.

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:39:11

INFO

10

GETTING STARTED - INITIAL SET UP

TUNING IN

IMPORTANT — Please ensure the TV has
reached room temperature before
connecting the power for the first time

1) Connect the mains lead to your electrical outlet

2) Connect the RF cable supplied to the
'RF IN' on the rear of the TV and connect

the other end of the cable to your TV Aerial outlet

3) Switch on the television using the rocker switch

located on the rear of the TV

4) Install batteries in the remote control and press

the [STANDBY] button to turn on the TV.

The ‘First Time Installation’ menu should
now appear. If it does not, please press
[LCD-MENU] then 8-8-8-8 and the menu will
appear.

5) Press [OK] on the remote control whilst ‘OK’
is highlighted on screen.

Tuning will now take place.

If the TV finds some, but not all, of the Digital channels, the TV is

functioning correctly but the signal being received is not strong enough.

(The signal strength needs to be above 85% - you can see the signal strength

the TV is receiving when you change channels/ programmes) you will

need to increase the signal reception in order to recieve all of the channels

available. The most economical way to do this is by purchasing

and connecting a 'signal booster' in between the TV and the TV aerial socket.

If this does not solve the problem, you will need to upgrade the TV

aerial to a digital hi-gain compatible aerial

IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL

INFORMATION CAN BE STORED.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

UK

English

If no channels are found the following screen will appear,
please refer to additional information below.

TYPICAL SET-UP

Once you have connected a 'Signal booster' you will need
to retune the TV in order to receive all of the channels.

First Time Installation

Unfortunately the TV did not find any channels

Please check your aerial connection

and refer to the user manual
DoyouwishtoretuneyourTV

Yes Do it next time

No

Signal Booster

Connect between TV and TV

Aerial socket

RF IN

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:54:17

PIC TURE
FOR MAT

VOL

CH

EXIT NICAM

FAV

FAVFAV

SUBPAGE

REVEAL

LANG

HOLD

SUBTITLE

INFO

GUIDE

11

REMOTE CONTROL BUTTONS

STANDBY

Switch on TV when on standby or vice versa

INFO

Digital/analogue mode: To display channel
information

NUMBER BUTTONS

Digital/analogue mode: 0 – 9 to select a
TV channel directly.
The channel will change after 2 seconds.
Teletext mode: To enter a page number

-/--

Analogue mode: To enter a channel of 2 digits
i.e. channel 15

Digital/analogue mode: To return to the previous
channel viewed

VOL+/-

To increase / decrease the sound level

LANG

Digital mode: To change the audio language
(if available)

GUIDE

Digital mode : To open the TV Guide menu

CH +/-

To increase or decrease the channel being
watched

NAVIGATION BUTTONS

Allows you to navigate the on-screen menus
and adjust the system settings to your preference

LCD MENU

To display OSD menu

PICTURE FORMAT

Switch the screen between the different picture
formats

SOURCE

Press to display the source menu

PMODE

Press repeatedly to cycle through the available
picture modes

SMODE

Press repeatedly to cycle through the available
sound modes

MUTE

Press to mute the sound and press again
to restore

HOLD

Teletext mode: press hold on or off for current page
display.

EXIT

Digital mode: Exit the Digital menu.

SLEEP

Press repeatedly to cycle through the sleep options

NICAM

Digital mode: press to select NICAM.

TEXT

Teletext mode: press to enter the teletext mode.

FAV

Digital mode: press to display FAV menu.

FAV-

Digital mode: decrease fav channel.

FAV+

Digital mode: increase fav channel.

INDEX

Teletext mode: request the index page.

SIZE

Teletext mode: change the display size.

REVEAL

Teletext mode: To reveal or hide the hidden words.

SUBTITLE

Digital Mode: To switch the dialogue at the bottom
off the screen

SUBPAGE

Teletext Mode: Displays the subpage if it exists

COLOURED BUTTONS

For navigating as prompted on screen

15min 45min30min

75min60min

90min 105min 120min

Standard MoviePersonal

MildSport

Game

Voice

Theatre

Music

Personal

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:25:40

12

TV BUTTONS & THEIR FUNCTIONS

SIDE PANEL BUTTONS

Volume up and menu right

Volume down and menu left

Program/Channel up and menu up

Program/Channel down and menu down

Displays Menu/OSD

Select the input source

Switch between standby and television on

1

2

3

4

5

6

7

1

2

3

4

5

6

7

TV/ANALOGUE

FREEVIEW

HDMI 1

HDMI 2

SCART 1

SCART 2

COMPONENT

VIDEO

S-VIDEO

VGA/PC

Choosing Mode/Source

To switch between the different connections is very easy.

Using the buttons on the remote control:

1) Press [SOURCE] - The following will appear

2) Press [\/] or [/\] to select the input you require.

3) Press [OK]

Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up / down using CH+/ CH- buttons to the
input/source you require

3) Press Vol+ to change input/source to the one selected.

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:30:53

13

INPUTS & CONNECTIONS

CI Port

A

B

C

D

E

F

G

H

I

J

K

L

M

HDMI 1

HDMI 2

VGA(PC)

VGA (PC) Audio In

YPbPr

L/R (Component) Audio In

CI PORT

S-VIDEO

VIDEO

L/R (Video) Audio In

SCART 1

SCART 2

RF IN

HDMI input

HDMI input

VGA-PC input

Audio input

Component input

Audio input for YPbPr

CI Port input

S-Video input

Video input

Audio input for Video & S-Video

SCART input

SCART input

RF input

A B C D E F G

H I J K L M

REAR CONNECTIONS

L/R Audio Input

L/R

CONNECTING A DVD RECORDER OR VIDEO RECORDER

Source should be set to SCART

CONNECTING A HIGH DEFINITION DEVICE

OPTION A – HDMI OPTION B – COMPONENT & AUDIO CABLES

Source should be set to HDMI Source should be set to YPbPr/COMPONENT

CONNECTING A CAMERA OR CAMCORDER

Source should be set to SCART

SCART Adaptor

Note - SCART to AV Adaptor
– often included with some devices,
alternatively, these can be purchased
from the helpline/website

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:46:50

14

TV MENU OPERATION

To access the OSD menu, press
‘LCD-Menu’ on the remote control.
Use the scroll up/down/right/left to
navigate through the menus.

PICTURE SETTINGS MENU

Lets you adjust picture mode, contrast,
brightness, colour, tint and sharpness
to enhance the viewing experience.

PLEASE NOTE – YOU CAN ONLY MAKE
ADJUSTMENTS TO CONTRAST,
BRIGHTNESS & COLOUR WHEN
PICTURE MODE IS SET TO ‘PERSONAL’.

Selecting Picture Mode Preset

Switch between different preset picture
options

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Picture Mode

3) Press [>] to navigate through
the various options

4) Press [EXIT] to exit

Adjusting Contrast (Only available when
Picture Mode is set to Personal)
Switch the balance between black
and white

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Contrast

3) Press [>] to increase the contrast
or [<] to decrease the contrast

4) Press [EXIT] to exit

Adjusting Brightness (Only available
when Picture Mode is set to Personal)
Increase or decrease the brightness
of the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Brightness

3) Press [>] to increase the brightness
or [<] to decrease the brightness

4) Press [EXIT] to exit

Adjusting Colour (Only available when
Picture Mode is set to Personal)
Increase the colour from black and white
to vivid

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Colour

3) Press [>] to increase the colour
or [<] to decrease the colour

4) Press [EXIT] to exit

Standard Default settings

Personal Lets you manually alter all the settings

Movie Set to enhance when watching a movie

Sport Set to enhance when watching a sport

Mild Set to be lighter in colour and less bright

Game Set to enhance when playing a games console

FORMAT

tesco english manual 32-250 pagePage 1 27. 7. 2009 16:02:39

15

TV MENU OPERATION

PICTURE SETTINGS MENU

Adjusting Tint (only available on some
sources)

Lets you increase or decrease the level
of tint within the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Tint

3) Press [>] to increase the tint
or [<] to decrease the tint

4) Press [EXIT] to exit

Adjusting Sharpness

You can change the sharpness between
the different preset options

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Sharpness

3) Press [>] to navigate through
the various options

4) Press [EXIT] to exit

Adjusting Colour Temperature (only available
on some sources)

There are 3 presets for colour temperature

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Colour Temperature

3) Press [>] to navigate through the
various options

4) Press [EXIT] to exit

Dynamic Noise Reduction

Reduces the interference in the picture.

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight DNR

3) Press [>] to switch between OFF, LOW,
MID & HIGH

4) Press [EXIT] to exit

Normal For standard use

Sharp For pictures with little movement

Sharpest For pictures with nearly no movement

Soft For pictures with large amount of movement

Softest For pictures with lots of movement

Normal Standard setting

Warm Increased red within the picture

Cold Increased blue within the picture

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:04

16

TV MENU OPERATION

SOUND SETTINGS MENU

Adjusting Volume

Lets you adjust the volume
of the television

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings
Menu

3) Press [\/] to highlight Volume

4) Press [>] to increase the volume
or [<] to decrease the volume

5) Press [EXIT] to exit

Selecting Sound Mode Preset

Switch between different preset sound
options

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings
Menu

3) Press [\/] to highlight Sound Mode

4) Press [>] to navigate through
the various options

5) Press [EXIT] to exit

Adjusting Bass

To adjust the amount of bass within the sound

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Bass

4) Press [>] to increase the bass or [<]
to decrease the bass

5) Press [EXIT] to exit

Adjusting Treble

To adjust the amount of treble within the sound

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Treble

4) Press [>] to increase the treble or [<]
to decrease the treble

5) Press [EXIT] to exit

Adjusting Balance

To switch the sound between the left
and right speakers

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Balance

4) Press [>] to increase the balance or [<]
to decrease the balance

5) Press [EXIT] to exit

Voice Emphasises voice over other sounds

Music Emphasises music over voices

Theatre Provides liver and full sound for movies

Personal Selects your personal sound settings

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:24

17

TV MENU OPERATION

TUNING SETTINGS MENU

(Only Freeview & Analogue TV modes)

Adjusting Country

If you are moving country you may wish
to change the Country Settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Country

4) Press [>] to alter the chosen country

5) Press [EXIT] to exit

Auto Tuning

Scan for all channels based on the current settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Auto Tuning

4) Press [>] to enter Auto tuning

5) Press [OK] to start the tuning

6) Press [EXIT] to exit

Manual Tuning

You may wish to manual search if you can’t find a
certain channel or if you wish to connect to a
Satellite/Cable box via RF/Aerial connector

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Manual Tuning

4) Press [>] to enter manual tuning

5) Press [>] to highlight Start Screen

6) Press [>] to start

7) Press [EXIT] to exit

Program Edit / Changing Channel Position
(Only Freeview & Analague TV modes)

You can change the analogue channel
position to suit your requirements.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Program Edit

4) Press [>] to enter the program edit menu
5a) Freeview mode – Press the [Green] button to add the
selected channel to your favorite, press it a second
time to remove. Press the [Yellow] to delete the channel
from the list. WARNING – this will remove the channel
complete from the TV. Press [Blue] to lock a channel (to
do this the Child Lock function must be set “ON”)
5b) Analogue TV mode – Press the [>] to select the change
you wish to move. Move to the new location and press
[OK]

6) Press [EXIT] to exit

Toswap channel press on remote
move tothe desired locationand press

715.Magic

716.Q

718.SMOOTH RADIO

722.Kerrang!

723.talkSPORT

725. Premier Radio

727.Absolute Radio

728.Heart

1.

2.

3.

4.

5.

6.

7.

8.

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:44

18

TV MENU OPERATION

Common Interface Slot
(Only in Freeview Mode)

Pay per view services require a “smartcard” to
be inserted into the TV. If you subscribe to a
pay per view service the provider will issue you
with a ‘CAM’ and a “smartcard”. The CAM can
then be inserted into the COMMON
INTERFACE PORT. To access the card follow
the steps below.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Common Interface

4) Press [>] to enter the menu

5) Press [EXIT] to exit

TIMER SETTINGS MENU

Lets you adjust the OSD timing and
the sleep timer

Sleep Timer

Lets you set the sleep timer so
the television automatically switches off
after a certain amount of time.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Timer Settings
Menu

3) Press [\/] to highlight Sleep Timer

4) Press [>] to increase the time
to the required amount

5) Press [EXIT] to exit

On Screen Display Timer

Lets you adjust the amount of time the On
Screen Menu stays on the screen before
disappearing.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Timer Settings Menu

3) Press [\/] to highlight OSD Timer

4) Press [>] to increase the time and [<] to
reduce the time

5) Press [EXIT] to exit

CAM and smartcard

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:02

19

TV MENU OPERATION

GENERAL SETTINGS MENU

Lets you adjust the language, picture size,
blue screen, add child lock, complete first
time installation and reset the television.

On Screen Menu Language

Lets you change the on screen menu language.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings
Menu

3) Press [\/] to highlight Language

4) Press [>] to change the language

5) Press [EXIT] to exit

Picture Format

Lets you adjust the picture format

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Picture Format

4) Press [>] to change the picture
format

5) Press [EXIT] to exit

Blue Screen

Changes the background when there is
no input between clear and a blue background

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Blue Screen

4) Press [>] to switch between on and off

5) Press [EXIT] to exit

System Lock

This menu allows you to lock certain features of the
television so that they can not be used or viewed. For
example if you don’t want certain channels viewed by
children or if the television is to be used in a hotel and
you want to limit the volume.

You can lock any of the following - TV buttons,
TV source, set default start up source and limit the
maximum volume.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight System Lock

4) Press [>] to enter System Lock menu

5) To enter this menu you will be asked for your pin code
(Default is blank so you just need to press [OK]).

6) To set locks you first need to switch System Lock to
ON, this will un grey the options.

You can now select the following:
Key Lock – Off/On – This stops the buttons on the
television working.
Source Lock – Press [>] to enter then apply On to lock
the source so it can’t be used
Default Source – You can set the default start up source,
so when the television is turned on it goes to this source.
Maximum Volume – You can limit the maximum volume
Change Pin Code – Press [>] to enter, first enter the
current code (default is blank so just press OK), then
enter your new code.

7) Once you happy with the settings press [EXIT] to exit
menu.

Channel Lock – please refer to Program Edit section to
select the channels that you require to lock. Once locked
you can temporarily unlock a channel by entering the pin
code, the lock will be re-applied by switching off the TV
to standby and then back on.

GENERAL SETTINGS MENU

English

Auto

Off

GENERAL SETTINGS MENU

English

Auto

Off

GENERAL SETTINGS MENU

English

Auto

Off

GENERAL SETTINGS MENU

English

Auto

Off

SYSTEM LOCK

System Lock

Key Lock

Source Lock

Default Source

Max Volume

Change PIN Code

Off

On

ATV

99

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:19

TV MENU OPERATION & 7 DAY TV GUIDE

20

7 DAY TV GUIDE

TV Guide is available in Digital TV mode.

It provides information about forthcoming
programmes (where supported by the
broadcasted channel).

You can view the start and end time of all
programs and on all channels for the next
7days.

It is very simple to operate.

1) Press [GUIDE]. The following now and next menu
will appear.

2) Navigate through the now and next menu using
the [>], [<], [V] and [/\] buttons

3) Press the [BLUE] button to enter the 7 day menu.
Reminders can now be added by pressing [OK].

4) Press [EXIT] to exit the 7 day TV Guide.

First Time Installation

Allows you to reset the television for first time
tuning.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight First Time Installation

4) Press [>] and First time install screen will
appear

5) Press [OK] and tuning will commerce.

Reset television to factory settings

You may wish to reset the menus to factory
settings e.g. if you have forgotten a changed
password

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Reset

4) Press [OK] to reset the television

5) Press [EXIT] to exit
Please note – If you have applied the system
lock to reset the television you must press
[LCD-MENU] then 8-8-8-8, to start the first
time installation sequence.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

UK

English

GENERAL SETTINGS MENU

Welsh

Auto

Off

GENERAL SETTINGS MENU

Welsh

Auto

Off

TV Guide

Tues 14/10 09:42

00:01-51:90seucseRlaeR

(News/CA) Nick Knowles presents dramatic
events from the day-to-day work of the
emergency services, The series is out on call
with the dedicated crews, answering 999
calls as they protect the public. [S]

Channels

1. BBC ONE Real Rescues Put your Money Where Y...
Little Red Tractor
This Morning
Freshly Squeezed Shorts

Balamory
The Jeremy Kyle Show
Impressionism: Revenge...

2. BBC TWO

3. ITV 1

4. Channel 4

Current Event Next Event

Navigate

7 Day Guide

EXIT OK

INFO

Quit Watch Help

7 Day TV Guide

Tues 31/5 14:29

Essential Electricals

14:00-14:30

(Undefined) Join us for the pick of bid tv’s quality kitchen appliances,
vacuum cleaners, irons, home telephones and many other essential
electricals.

Navigate

KOEXIT

Quit Change Day Reminder

Thur 31/5 14:00 14:45 15:30

23. bid tv Essential Electric

Closedown
Top 14: SPL Sna NRL on Fox

Quality Products

24. price-drop tv

26. UKTV Style

33. Eurosport UK

34. Setanta SP...

Handbag Heaven

Extreme Makeove

Extreme Makeover: Home Edition

Quality Products Quality Products a

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:42:43

21

DIGITAL TELETEXT & ANALOGUE TELETEXT

BBC i

100

Tuesday 18 Dec

Press SELECT for
Live Crecket

Eng v SL
Radio Concert

News Multiscreen 1001
Sport 300
Weather 400
BBCi INDEX 199

Did Bee Movie Leave you
buzzing? BBC Movies - 540

To exit, press TEXT

BBC

SPORT

BBC ONE

To exit, press TEXT
For full screen TV, press 0

300

11:15 18 Dec

Sport

Sport in Video
Main Headlines

Football

Cricket

Rugby Union

Rugby League

Tennis

Golf

more...

BBC i

HOME SHORTCUTS BACK INDEX

Teletext is a service offered by some
broadcasters.

Teletext Operation

1) Press [TEXT], after a few seconds
teletext page 100 should appear.
Here is an example of BBC1

2) You can now navigate to the page
you require in a number of ways:

a) Press the page you require using
the number buttons i.e. page 302,
by pressing [3][0][2]
b) Press the colour buttons, these will
take you to the page indicated
on screen for each colour

3) To exit Teletext press [TEXT] twice
at any time

Other buttons

[SIZE] this increases or decreases the
size of the text on screen
[INDEX] some pages are more than one
page long this button displays
the number of pages
[REVEAL] if there is an answer or
something hidden this will display it
[SUBPAGE] displays the sub page
if it exists
[HOLD] This stops the pages changing
when there are multiple pages

Digital TV Teletext

With Digital TV (Freeview) there is also
digital teletext available on some channels.
Simply follow the on screen commands. Here is
an example of the BBC digital teletext service.

1) To start digital teletext press the RED button
(BBC channels) or the TEXT buttons (Other
channels)

2) To select the information you require you
can scroll using [\/] or [/\] and press [OK]
alternatively you can key the page number
for example [3][0][0] followed by [OK]

You can then navigate using the colours
buttons (Red, Green, Yellow, Blue), the [/\] [\/]
buttons and numbers.

If you wish to exit at anytime press [EXIT]

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:59

22

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the
computer to the television you must
ensure the computer settings are
correct for the television. You MUST do
this using your old monitor.

WINDOWS XP, WINDOWS VISTA

1) Switch on your computer

2) When finishing booting up right click
your mouse anywhere on the screen

3) Left click your mouse on
Properties/Personalise

4) Left click your mouse on Setting/Display
Settings. Ensure the screen resolution
is set to what is shown in the technical
specifications section toward the rear of
this user guide. To correct the
resolution to that of the television move
the slider.

5) Left click your mouse on Advance/Advance
Settings and left click on Monitor

6) Left click on the drop down for Screen refresh rate
and select 60 Hertz.

7) Click on Apply, then click Yes and the settings will
be saved.

8) Now switch off your computer and connect the
television (as shown below)

9) Re-start your computer and switch the source
to VGA

CONNECTING A LAPTOP

In addition to the above if you are connecting a laptop
to the television you will also need to activate the VGA
connection on the laptop.

This can vary based on the brand of laptop you have.

1) Connect the laptop to the television

2) On the Laptop push buttons

The screen will now switch to the television.

XP Screen VISTA Screen

XP Screen VISTA Screen

XP Screen VISTA Screen

XP Screen VISTA Screen

+

Fn F5

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:41:32

23

PC MENU OPERATION (VGA)

VGA MENU

Auto Configuration of Screen

Lets you automatically configure the
television to be used as a computer monitor

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Auto Sync

4) Then press [>] for the TV to
automatically configure itself

5) Press [EXIT] to exit

Phase

To adjust delay time of phase in order to
reduce the noise of picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Phase

4) Then press [>] or [<] to increase or
decrease the phase

5) Press [EXIT] to exit

Clock

Alter this in order to reduce the noise
within the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Clock

4) Then press [>] or [<] to increase or
decrease the clock

5) Press [EXIT] to exit

Horizontal Position

Changes the horizontal position of the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select H-Position

4) Then press [>] or [<] to move the
picture to left or right

5) Press [EXIT] to exit

Vertical Position

Changes the vertical position of the

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select V-Position

4) Then press [>] or [<] to move the
picture up or down

5) Press [EXIT] to exit

Position Reset

To position of the picture to the factory settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Position Reset

4) Then press [>] or [<] to move the
picture up or down

5) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:28:14

24

USING WITH SKY DIGITAL / VIRGIN MEDIA

You may wish to use your TV with Sky
Digital, Virgin Media or another cable
or Satellite box

There are a number of connection options,
the best being connecting via SCART
cable.

Connecting via SCART

1) Connect the SCART cable from the
Cable/Satellite Box to SCART of the TV

2) Press [SOURCE]

3) Press [\/] or [/\] to select SCART

4) Press [OK]

The channel your Cable/Sattelite box is
displaying will now be shown on the TV.

You may wish to share your Sky Digital
signal around the home by using an RF
connection.

Connecting via RF

1) Connect the RF cable from the RF
output socket of the sky/cable box to
the ‘RF IN’ of the TV.

2) Switch the TV to analogue TV mode

3) Press [LCD-MENU] to enter menu

4) Press [>] twice to select Tuning
Settings Menu

5) Press [\/] to select Manual Tuning

6) Press [>] to enter Auto tuning

7) Press [OK] to start tuning

Once tuning is complete the first channel
will appear. Press [CH+] to move through
the channel until you find the Sky channel.
The channel can then be moved if you
wish, please refer to the Tuning Setting

menu – Program Edit section of the manual.

USING WITH SKY DIGITAL REMOTE CONTROL
(BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal
remote control to operate some of the functions of this
TV. For this you require a ‘code’ that needs to be
programmed into your Sky Digital or universal remote
control.

For codes for universal remote controls, please visit
our website where you will find the very latest
information and codes.

For codes for Sky/Sky+Sky HD, please note that at the
point of manufacture, BSkyB have not launched the
code required for this model of TV. They are due to
launch a new remote control which should include the
necessary code to operate the functions of the TV
during 2010 (called revision 9).

Please check our website for updates, alternatively,
see below some alternative options of remote controls
that are available.

One for All Sky Originals

The One for All remote controls shown above will operate
all of the functions of the Sky box in the same way the
original remote control will, in addition, they will also
operate the functions of this model of TV. The One for All
versions are available to purchase from the
helpline/website. The original Sky remote controls are
shown for comparison purposes

If you require any further information, you can contact us:

www.skymediauk.co.uk
email - [email protected]

Tel - 0871 2000 463

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:11:05

25

CONNECTING A GAMES CONSOLE

Connecting a games console can
sometimes seem very difficult. We have
simplified it to three options depending
on the cables that you have.

Option 1 – Connecting via Scart
to AV adapter

If you are supplied with a cable from the
console which has YELLOW,
RED & WHITE connectors you must
connect via a SCART to AV adapter
(Some console include this)

TV source should be set to SCART.

Option 2 – Connecting via HDMI cable

If you are supplied with a HDMI cable is
the easiest option. A HDMI cable can
output both video and audio and enables
you to enjoy digital-quality video and
audio with minimal loss of picture quality.

TV Source should be set to HDMI.

Option 3 – Connecting via Component
cable

If you are supplied with a cable from the
console which has RED, GREEN, BLUE,
RED & WHITE connectors you must
connect via Component (for picture)
and by phono (for sound).

Inputs (YPbPr)

L/R Audio Input

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:12:04

26

FREQUENTLY ASKED QUESTIONS

If you are still experiencing problems please contact the Helpline

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: [phone]

Email: [email protected]

Visit our web site www.skymediauk.co.uk for further Trouble shooting

and frequently asked questions.

Question:

Solution:

I have tuned in Digital TV but
I am not receiving any or all of the
channels and/or the channels I receive
are breaking up

The sound quality is high pitched?

I have connected the TV to my VCR via
SCART but it is not recording

1) Check you are in an area that can
receive Freeview. Visit
www.freeview.co.uk or call
08701 111 270.

2) Check you are using an aerial that is
able to receive a good digital signal. In
most cases, you will need an outdoor
digital hi-gain/wideband aerial. In areas
that have excellent Freeview coverage,
you may be able to use a loft type aerial
but it is highly likely that you will also
need to connect a booster between the
back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good
enough digital signal, it is not possible to
use a portable/indoor type aerial.
This may change once the analogue
signal is switched off in 2012 and the
Digital signal strength is increased.

Go into the sound settings menu as
shown earlier in the manual and increase
the level of the bass and decrease
the treble

In addition to connecting via SCART, you
should connect the aerial cable from the
wall socket to VCR and another aerial
cable from the VCR to the TV

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:13:48

27

TECHNICAL SPECIFICATION

LCD32-250

"23)sehcnI(eziS

Resolution

1920 x 1080

Contrast Ratio

3000:1

Brightness cd/m

2

450

seYBGRCP

MACES-LAP/annetnAmho57FR

Video

2 x SCART, 1 x S-Video, 1 x Video, 1 x

Component (YPbPr - 1080p)

Sound

1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr, 1

x pair RCA for Video

)80p01otpu(2IMDH

Speaker Output

8x2)SMR(sttaW

Power

Voltage 100-240v 47-63Hz 1.5A 140W (<3W Standby)

D532xH285xW597dnatScnI
D801xH145x

W597dnatScxE

4.01)sgK(teN

6.51)sgK(ssorG

Panel

Dimensions

Weight

Input Signal

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:34:58

28

INDEX

Analogue TV teletext 21
Attaching/Detaching the
Stand & Wall mounting 9
Auto Tuning 17
Balance 16
Bass 16
Blue Screen 19
Brightness 14
System Lock 19
Colour 14
Colour Temperature 15
Common Inferface Slot 18
Connecting to a PC 22
Connecting a Games Console 25
Contrast 14
Country Settings 17
Digital Switchover Re-Tune 7
Digital TV teletext 21
Dynamic Noise Reduction 15
Electronic Program Guide 20
First Time Installation 10
Frequently Asked Questions 26
Horizontal Position 23
Inputs and Connections 13

OPTIONAL ACCESSORIES AND REPLACEMENT PARTS

If you need to order replacement parts for your TV, please visit our web site or call the helpline.

If you wish to wall mount your TV, we have a range of fully tested and compatible wall mounts available
to order from the helpline or via our web site.

If you wish to purchase a Sky or Sky+ remote control that includes the latest software/codes to operate both
your Sky Box as well as this TV, these are available to order from the helpline or web site. Our Sky / Sky+
remote controls operate your Sky or Sky+ box in exactly the same way your current Sky / Sky+ remote does
and our versions also look very similar to the Sky equivalent models, albeit slightly smaller in size, they will
also operate many of your TV’s functions including Power on/off, channel up/down, volume up/down as well
as many other functions.

Manual Tuning 17

On Screen Display Timer 18
On Screen Menu Language 19
Phase 23
Picture Format 19
Picture Mode Preset 14
Position Reset 23
Program Edit / Changing Channel
Position 17
Remote control buttons and their
functions 11
Reset Television 20
Sharpness 15
Sleep Timer 18
Sound Mode Preset 16
Technical Specifications 27
Tint 15
Treble 16
Tuning in TV 10
TV buttons and their functions 12
Using with Sky Digital / Virgin Media 24
Vertical Position (PC) 23
Volume 16
What is included in the box 8

Replacement

remote control

Our Sky/Sky+ Remote controls Wall Mounts

FORMAT

VOL

CH

EXIT NICAM

FAV

FAVFAV

SUBPAGE

REVEAL

LANG

HOLD

SUBTITLE

INFO

GUIDE

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:37:33

blank.pdf 22. 7. 2009 12:49:15

TESCO Stores Ltd, Cheshunt, EN8 9SL, UK.

last.pdf 22. 7. 2009 13:46:37
