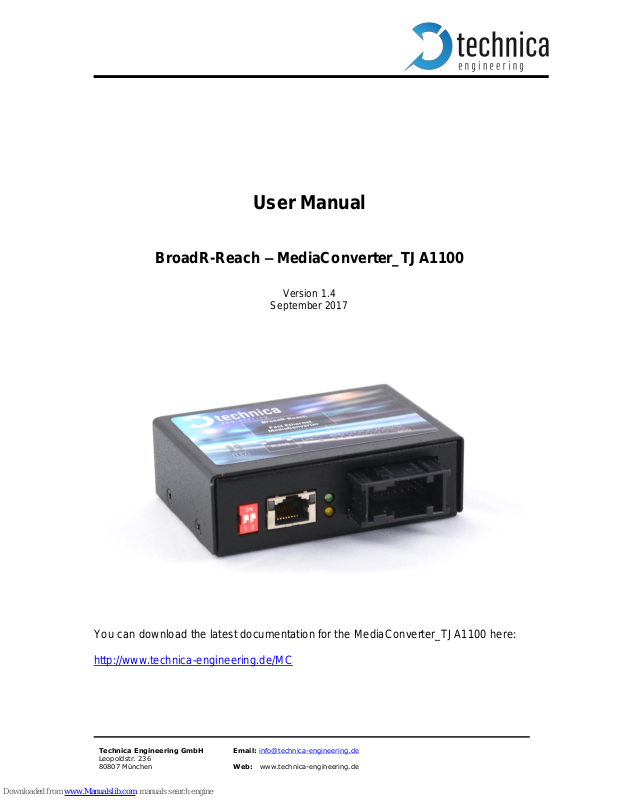

User Manual
BroadR-Reach – MediaConverter_TJA1100
Version 1.4
September 2017
You can download the latest documentation for the MediaConverter_TJA1100 here:
http://www.technica-engineering.de/MC
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
Index
1 Feature List ......................................................................................................... 3
2 Warranty and Safety Information ......................................................................... 4
3 Pinning ................................................................................................................ 5
4 Configuration ....................................................................................................... 6
5 BR Filter .............................................................................................................. 7
6 Frequently Asked Questions – FAQ .................................................................... 8
7 Contact ................................................................................................................ 8
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
1 Feature List
The Technica Engineering BR-MediaConverter_TJA1100 has the following basic features:
1 Port BroadR-Reach Ethernet with NXP TJA1100 Transceiver
100 MBit/s Fullduplex on a single
unshielded twisted pair
1 Port Fast Ethernet
100 BaseTX
✓ Automotive Tyco MQS Connectors for BroadR-Reach and Power Supply
✓ Robust steel case
✓ DIP Switches for easy configuration
Power requirement: 8 to 16 Volt DC (nominal 12 Volt DC)
Power consumption: 2 Watt
Size: 92 x 63 x 30 mm
Wight: 0,2 kg
International Protection: IP 2 0
Operating Temperature: -40 to +80 °Celsius
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
2 Warranty and Safety Information
Before operating the device, read this manual thoroughly and retain it
for your reference.
You can download the latest firmware and documentation for the
MediaConverter here:
http://www.technica-engineering.de/MC
Use the device only as described in this manual.
Use only in dry conditions.
Do not apply power to a damaged device.
Do not open the device. Otherwise warranty will be lost.
This device is designed for engineering purpose only.
Special care has to be taken for operation.
Do not use this device in a series production car.
As this device is likely to be used under rough conditions, warranty is
limited to 1 year.
Manufacturer liability for damage caused by using the device is excluded.
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
3 Pinning
The pinning of the ECU connectors is listed on the label on top of the device.
Connector color: Black
Power supply for the device is supplied by Pin 1 (12 Volt) and Pin 10 (Ground).
Warning: If you apply a voltage higher than 18 Volt, the device will be damaged!
The Tyco Electronics (TE) Micro Quad Lock System (MQS) is used.
Tyco, MQS Abdeckkappe, 2x9 Pol, black Part Number 1-967416-1
alternatively Part Number 1-1355350-1
Tyco, MQS Buchsengehäuse, 2x9 Pol Part Number 965778-1
alternatively Part Number 962108-2
Tyco crimp contact Part Number 928999-1
Note: You can use the official Tyco tool for these crimp contacts. A cheap variant is
the crimp tool for “PSK” contacts.
Warning: The Power “loop through” function is just a short circuit between pins 1-2
and pins 10-11. There is no fuse and no diode. If the current exceeds 0.8 Ampere the
device will be damaged!
Pin
Function
Pin
Function
1
Battery +12 Volt Input
10
Power Ground
2
Battery +12 Volt loop trough
11
Power Ground loop trough
3
n.c.
12
n.c. 4 n.c.
13
n.c. 5 n.c.
14
n.c. 6 n.c.
15
n.c. 7 n.c.
16
n.c. 8 BroadR-Reach Port, Negative
17
n.c. 9 BroadR-Reach Port, Positive
18
n.c.
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
4 Configuration
The MediaConverter is configured by 2 DIP Switches on the front of the device.
DIP Switch 1: ON = BroadR-Reach Port is set to Master.
OFF = Slave
DIP Switch 2: ON = BroadR-Reach Port is set to FullOut.
OFF = HalfOut
Note: In a BroadR-Reach Link one device has to be set to Master, the other has to
be set to Slave Mode.
Note: The MediaConverter should always be set to FullOut. HalfOut was a former
configuration for EMC optimization but will cause an instable link.
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
5 BR Filter
The following BR Filter is used in the MediaConverter_TJA1100 HW Version 1.0:
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Email: info@technica-engineering.de
Web: www.technica-engineering.de
6 Frequently Asked Questions – FAQ
Q: What is the delay time for Ethernet packets through the MediaConverter?
A: The delay time is constant 2.0us. The delay is independent of the Ethernet pack-
et frame size.
Q: What is the maximum Cable Length?
A: The MediaConverter is optimized for automotive use. The maximum line length
for each BroadR-Reach segment is limited to 10 meters!
7 Contact
If you have any questions regarding this product please feel free to contact us:
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Germany
Fax: +49-89-34290265
Info@technica-engineering.de
www.technica-engineering.de
