TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT:
GR9FI50R5IAA
GR9FI50R5IAB
GR9FI42R5IAA
DUAL SPLIT SYSTEM AIR CONDITIONER
0.8180.597.03 09/2012
Model No. Product Code No.
GR9FI50R5IAA 38.7107.098
GR9FI50R5IAB 38.7107.103
GR9FI42R5IAA 38.7107.106
0.8180.531.00 05/2007
IMPORTANT!
Please read before installation
This air conditioning system meets strict safety and operating
standards.
For the installer or service person, it is important to install or
service the system so that it operates safely and efficiently.
For safe installation and trouble-free operation, you must:
• Carefully read this instruction booklet before beginning.
• Follow each installation or repair step exactly as shown.
• Observe all local, state and national electrical codes.
• Pay close attention to all warning and caution notices given in
this manual.
•The unit must be supplied with a dedicated electrical line.
This symbol refers to a hazard or unsafe practice which can result
in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can result
in personal injury or product or property damage.
If necessary, get help
These instructions are all you need for most installation sites and
maintenance conditions.
If you require help for a special problem, contact our sale/service
outlet or your certified dealer for additional instructions.
In case of improper installation
The manufacturer shall in no way be responsible for improper
installation or maintenance service, including failure to follow the
instructions in this document.
SPECIAL PRECAUTIONS
• During installation, connect before the refrigerant system and
then the wiring one; proceed in the reverse orden when removing
the units.
When wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE
PERSONAL INJURY OR DEATH. ONLYA QUALIFIED,
EXPERIENCED ELECTRICIANS SHOULD ATTEMPT
TO WIRE THIS SYSTEM.
• Do not supply power to the unit until all wiring and tubing are
completed or reconnected and checked, to ensure the grounding.
• Highly dangerous electrical voltages are used in this system.
Carefully refer to the wiring diagram and these instructions when
wiring.
Improper connections and inadequate grounding can cause
accidental injury and death.
• Ground the unit following local electrical codes.
• The Yellow/Green wire cannot be used for any connection
different from the ground connection.
• Connect all wiring tightly. Loose wiring may cause overheating
at connection points and a possible fire hazard.
• Do not allow wiring to touch the refrigerant tubing, compressor,
or any moving parts of the fan.
• Do not use multi-core cable when wiring the power supply and
control lines. Use separate cables for each type of line.
When transporting
Be careful when picking up and moving the indoor and outdoor
units. Get a partner to help, and bend your knees when lifting to
reduce strain on your back. Sharp edges or thin aluminium fins on
the air conditioner can cut your fingers.
When installing...
... In a ceiling or wall
Make sure the ceiling/wall is strong enough to hold the unit-weight.
It may be necessary to build a strong wooden or metal frame to
provide added support.
... In a room
Properly insulate any tubing run inside a room to prevent
"sweating", which can cause dripping and water damage to walls
and floors.
... In moist or uneven locations
Use a raised concrete base to provide a solid level foundation for
the outdoor unit.
This prevents damage and abnormal vibrations.
... In area with strong winds
Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.
... In a snowy area (for heat pump-type systems)
Install the outdoor unit on a raised platform that is higher than
drifting snow. Provide snow vents.
When connecting refrigerant tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces of the flare
and union tubes before connecting them; screw by hand and
then tighten the nut with a torque wrench for a leak-free
connection.
• Check carefully for leaks before starting the test run.
NOTE:
Depending on the system type, liquid and gas lines may be either
narrow or wide. Therefore, to avoid confusion, the refrigerant
tubing for your particular model is specified as narrow tube for
liquid, wide tube for gas.
When servicing
• Turn the power OFF at the main power board before opening
the unit to check or repair electrical parts and wiring.
• Keep your fingers and clothing away from any moving parts.
• Clean up the site after the work, remembering to check that no
metal scraps or bits of wiring have been left inside the unit being
serviced.
• Ventilate the room during the installation or testng the refrigeration
system; make sure that, after the installation, no gas leaks are
present, because this could produce toxic gas and dangerous
if in contact with flames or heat-sources.
WARNING
CAUTION
WARNING
2
Page
1. OPERATING RANGE 4
2. SPECIFICATIONS 5
2-1 Unit Specifications
5
2-2 Major Component Specifications
6
2-3 Other Component Specifications
7
3. DIMENSIONAL DATA 8

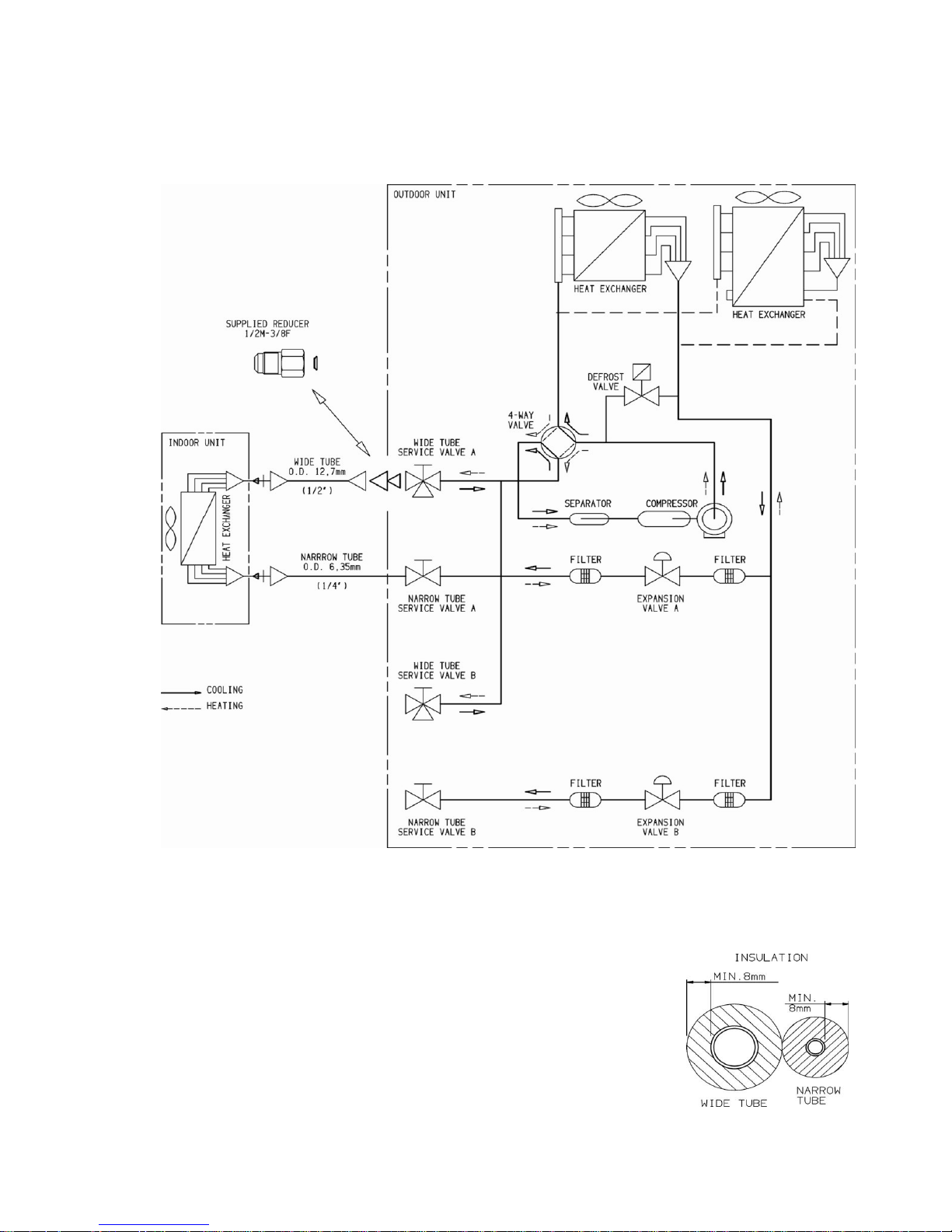

4. REFRIGERANT FLOW DIAGRAM 9
4-1 Dual Split System Refrigerant Flow Diagram
9
4-2 Mono Split System Refrigerant Flow Diagram
10

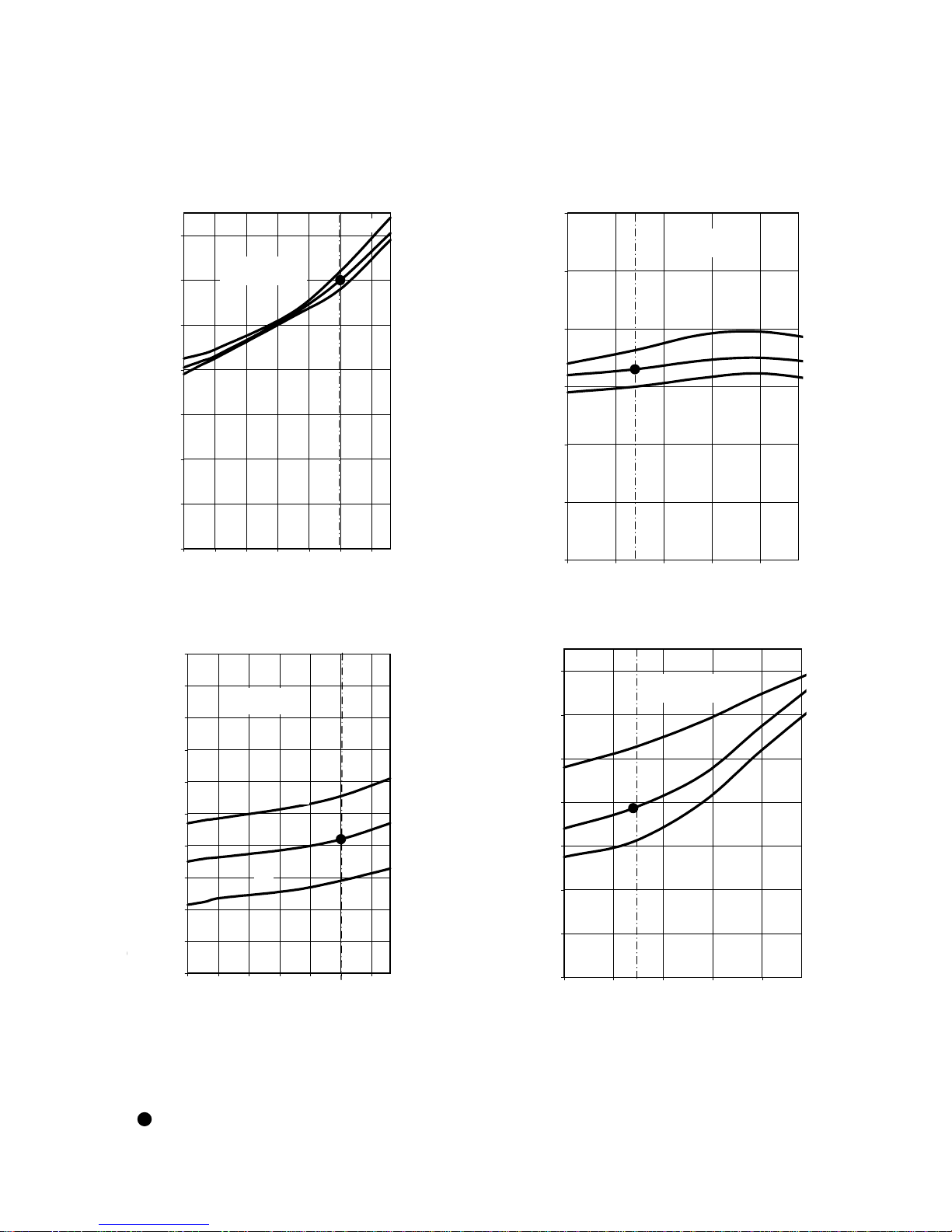

5. PERFORMANCE DATA 11
5-1 Performance Charts
11-12-13
6. ELECTRICAL DATA 14
6-1 Electrical Characteristics
14
6-2 Electric Wiring Diagram
15
6-3 Dual Split System Wiring Diagram
16
6-4 Mono Split System Wiring Diagram
16
7. FUNCTION 17
7-1 Diagnostic
17
Table of Contents
3
1. OPERATING RANGE
GR9FI50R5IAA
GR9FI50R5IAB
Heating
Maximum 27°C D.B.
Temperature Indoor Air Intake Temp.
GR9FI42R5IAA
24°C D.B. / 18°C W.B.
Minimum 5°C D.B. -15°C D.B.
Outdoor Air Intake Temp.
Cooling
Maximum 32°C D.B. / 23°C W.B. 43°C D.B.
Minimum 10°C D.B. / 6°C W.B. -15°C D.B.
4
2. SPECIFICATIONS
2-1 Unit Specifications
Power source
V
oltage ratin
g
Performance *
MTAF(B)IA0R5I x2
Capacity
kW
BTU/h
Air circulation (High)
m³/h
Moisture removal (High)
Liters/h
Electrical Ratin
g
Available voltage range
V
Running amperes
A
Power input
W
Power factor
%
C.O.P.
W/W
Compressor locked rotor amperes
A
Features
Fan speed
Compressor
Refrigerant / Amount charged at ship
m
g
Refrigerant control
Power noise level
Hi dB-A
Refrigerant tubing connections
Max. allowable tubing length at ship
m
m
Refrigerant
Narrow tube mm(in.)
tube diameter
Wide tube mm(in.)
Dimensions & Weight
Unit dimensions
Height mm
Width mm
Depth mm
Package dimensions
Height mm
Width mm
Depth mm
Weight
Net kg
Shipping kg
Shipping volume
m
3
DATA SUBJECT TO CHANGE WITHOUT NOTICE CHANGE WITHOUT NOTICE
Remarks:
Rating Conditions are:
Cooling: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
Heating: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
*
For other INDOOR UNITS' MODELS, please refer to catalogue
630
830
345
710
0,29
990
410
56,4
61,4
0,29
990
410
56,5
61,5
630
830
345
710
Variable ( 200÷800 continuous )
Electronic expansion valve
Flare type
see installation instruction
58
TwinRotary (Hermetic) DCinv.
R410A / 1300
59
R410A / 1300
Rotary (Hermetic) DC inv.
6,35 (1/4)
9,52 (3/8)
3,35 4,29
-- -
TwinRotary (Hermetic) DCinv.
R410A / 1300
58
1360 1210
99 99
17709
1,5 -
600
1,5 -
1552515184 17061
GR9FI50R5IAB
Heating
4,45 5,00
Cooling
--
Cooling Heating
99
1180
Cooling Heating
99
3,22 4,24
5,20
1382
6,10
GR9FI42R5IAA
Cooling Heating
3,27 3,68
220 - 240 V ~ 50 Hz
230 V
4,55 5,19
GR9FI50R5IAA
11158 12557
1,5 -
600
Cooling Heating
4,34 3,73
198 ~ 264
Cooling Heating
6,00 5,30
3,34 4,38
-
980 840
98 98
5
2-2 Major Component Specifications
Compressor
Type
Compressor model
Nominal input (compressor rating conditio
W
Compressor oil…Amount
cc
Coil resistance (Ambient temp. 20°C)
Ω
Overload relay
Safety devices
Type
Operating Temp. Open °C
Close °C
Controller PCB
Part No.
Controls
Control circuit fuse
Expansion PCB
Part No.
Controls
Control circuit fuse
Fan & Fan Motor
Type
Q'ty ……. Ø
Nr. … mm
Fan motor model…Q'ty
No. Of poles…rpm
Nominal output
W
Coil resistance (Ambient temp. 25 °C )
Ω
Ω
Ω
Safety devices
Type
Operating temp. Open °C
Close °C
Heat Exch. Coil
Coil
Rows
Fin pitch
mm
Face area
m
2
External Finish
DATA SUBJECT TO CHANGE WITHOUT NOTICE CHANGE WITHOUT NOTICE
1,5
0,47
2
Propeller
1…. Ø 400
BOM ZW465B57
8 . variable (200÷800)
Microprocessor
6,3x32 - 10A
1,5
20
GR9FI42R5IAA
TwinRotary (Hermetic) DCinv.
SNB110FGYMT
1035
FV50S ……350
20
BRN-BLK:206
WIT-BLK:206
BRN-WHT:206
-
-
-
Acrylic baked-on enamel finish
Aluminium plate fin / Copper tube
1,4
2
0,47
GR9FI50R5IAA GR9FI50R5IAB
-
-
-
SAC DCI ODU
BRN-BLK: 210
YEL-BLK: 210
BRN-YEL: 210
Propeller
1…. Ø 400
1140
FV50S ……350
0,98
TwinRotary (Hermetic) DCinv.
SNB130FGBMT
-
-
FREOLα68ES-T/RB68EP600
0,64
Software Protection
-
-
-
0,98
Rotary (Hermetic) DC inv.
G4B135LUBJH
1324
-
0,37
P35810 P0012
8 ... variable ( 200 ÷ 800 )
-
-
-
3
SAC DCI ESP DUAL
---
---
6
2-3 Other Component Specifications
4-way Valve (20S
)
Coil rating
Coil resistance
Ω (at 20°C)
Electronic Expansion Valve
Coil rating
Coil resistance / phase
Ω (at 20°C)
Defrost Valve
Coil rating
Coil resistance
Ω (at 20°C)
Thermistor (coil sensor
)
Resistance
kΩ
Thermistor (compressor disch. sen.
)
Resistance
kΩ
Thermistor (inlet air sensor
)
Resistance
kΩ
Thermistor (wide tube A sensor
)
Resistance
kΩ
Thermistor (narrow tube A sensor
)
Resistance
kΩ
Thermistor (wide tube B sensor
)
Resistance
kΩ
Thermistor (narrow tube B sensor
)
Resistance
kΩ
Crank case heate
r
Resistance
Ω (at 20°C)
Base heate
r
Resistance
Ω (at 20°C)
DATA SUBJECT TO CHANGE WITHOUT NOTICE CHANGE WITHOUT NOTICE
10 at 25 °C
NTC-THERMISTOR
10 at 25 °C
10 at 25 °C
NTC-THERMISTOR
10 at 25 °C
NTC-THERMISTOR
10 at 25 °C
NTC-THERMISTOR
NTC-THERMISTOR
1440 ± 5%
AC 220/240 V - 50 Hz
1273 ± 10%
NTC-THERMISTOR
CAM-MD12EX(Coil) ZCAM-BD15EX (Valve)
DC 12 V
46 ± 4%
FQ-235-RK (Coil) FDF6A-049-RK (Valve)
GR9FI42R5IAA
AC 220/240 V, 50 Hz
SQ-136(Coil)-SHF-7K-34U(Valve)
STF-..J514.. (coil) - STF-0202G (valve)
GR9FI50R5IAA GR9FI50R5IAB
SQ-136 (Coil)
SHF-4H-23U (Valve)
1760 ± 10%
75W FLEXELEC CSC2
705 ± 10%
10 at 25 °C
NTC-THERMISTOR
10 at 25 °C
30 W RESISTANCE
7

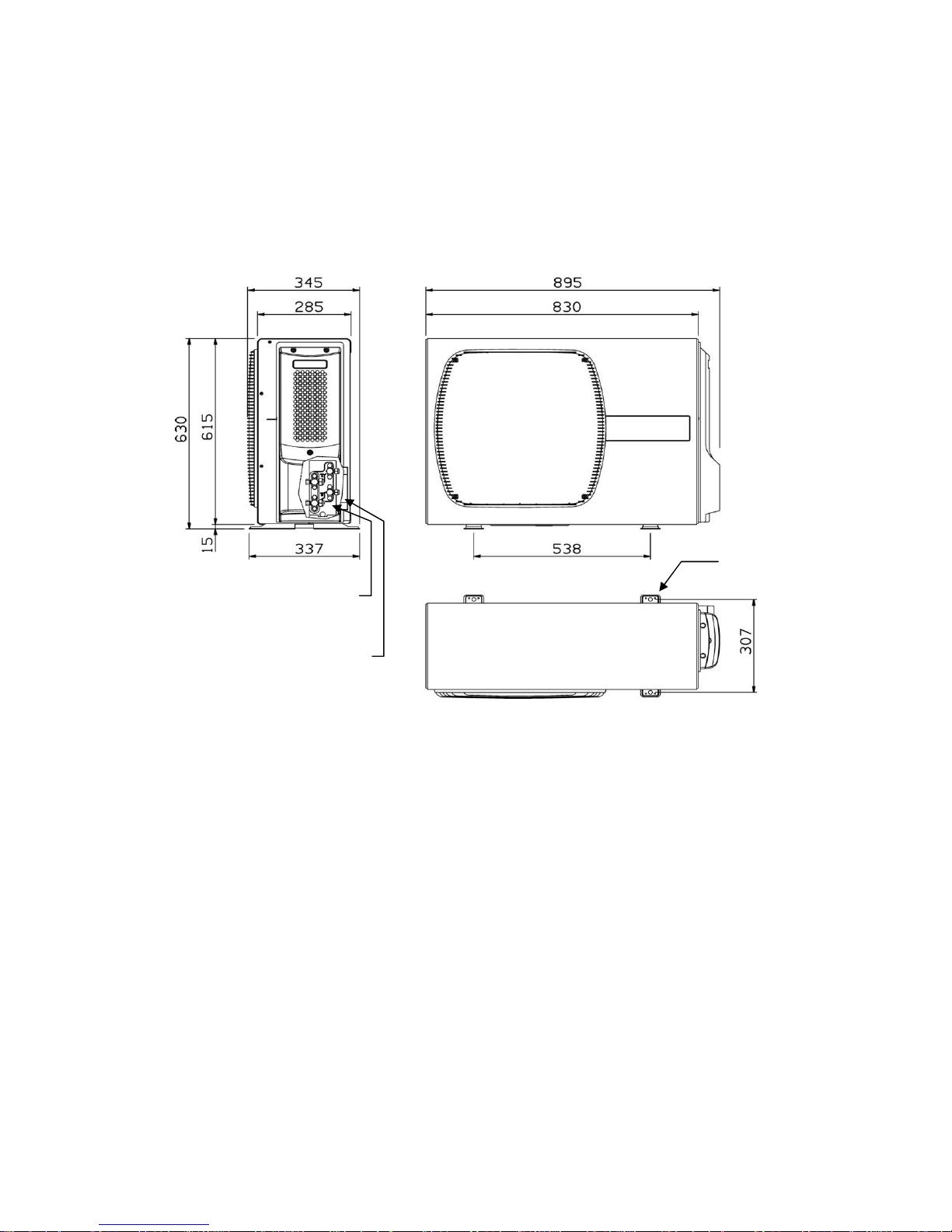

3. DIMENSIONAL DATA
GR9FI50R5IAA
GR9FI50R5IAB
GR9FI42R5IAA
dimension [mm]
WIDE TUBE
2x ø.9,52 (3/8")
NARROW TUBE
2x ø.6,35 (1/4")
4 - Ø12
for anchor bolt
8
4. REFRIGERANT FLOW DIAGRAM
4-1 Dual Split System Refrigerant Flow Diagram
Outdoor Unit: GR9FI50R5IAA Indoor Unit: MTAF(B)IA0R5I x2
GR9FI50R5IAB MTAF(B)IA0R5I x2
GR9FI42R5IAA MTAF(B)IA0R5I x2
Insulation of Refrigerant Tubing
IMPORTANT
Because expansion valve is used in the outdoor unit, both the wide and narrow tubes of this
air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation,
both tubes must be well insulated with a proper insulation material.
The thickness of the insulation should be a min. 8mm.
CAUTION
After a tube has been insulated, never try to bend it into a narrow curve
because it can cause the tube to break or crack.
GR9FI50R5IAA
GR9FI42R5IAA
GR9FI50R5IAB
9
4-2 Mono Split System Refrigerant Flow Diagram
Outdoor Unit: GR9FI50R5IAA Indoor Unit: MPA9FIB0R5IAA x1
GR9FI50R5IAB MPA9FIB0R5IAA x1
Insulation of Refrigerant Tubing
IMPORTANT
Because expansion valve is used in the outdoor unit, both the wide and narrow tubes of this
air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation,
both tubes must be well insulated with a proper insulation material.
The thickness of the insulation should be a min. 8mm.
CAUTION
After a tube has been insulated, never try to bend it into a narrow curve
because it can cause the tube to break or crack.
GR9FI50R5IAA
GR9FI42R5IAA
GR9FI50R5IAB
10
5. PERFORMANCE DATA
5-1 Performance charts
GR9FI50R5IAA
Cooling Characteristics Heating Characteristics
1
0.8180.531.00 05/2007
Note
Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches
extremely high values in heating mode.
Points of Rating condition Data referred to MTAF(B)IA0R5I x2
0,50
0,60
0,70
0,80
0,90
1,00
1,10
1,20
1,30
1,40
1,50
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Low pressure at wide tube service valve MPa
1,5
1,7
1,9
2,1
2,3
2,5
2,7
2,9
0 5 10 15 20
Outdoor inlet air D.B. temperature (°C)
High pressure at wide tube service valve Mpa
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
32
27
19
2,0
3,0
4,0
5,0
6,0
7,0
8,0
0 5 10 15 20
Outdoor inlet D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
25
20
15
Indoor inlet air
D.B.
(°C)
Indoor inlet air
D.B. (°C)
25
20
15
32
27
19
7
7
3
2
27
19
11
GR9FI50R5IAB
Cooling Characteristics Heating Characteristics
1
0.8180.531.00 05/2007
Note
Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches
extremely high values in heating mode.
Points of Rating condition Data referred to MTAF(B)IA0R5I x2
0,50
0,60
0,70
0,80
0,90
1,00
1,10
1,20
1,30
1,40
1,50
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Low pressure at wide tube service valve MPa
1,5
1,7
1,9
2,1
2,3
2,5
2,7
2,9
0 5 10 15 20
Outdoor inlet air D.B. temperature (°C)
High pressure at wide tube service valve Mpa
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
32
27
19
2,0
3,0
4,0
5,0
6,0
7,0
8,0
0 5 10 15 20
Outdoor inlet D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
25
20
15
Indoor inlet air
D.B.
(°C)
Indoor inlet air
D.B. (°C)
25
20
15
32
27
19
7
7
3
2
27
19
12
GR9FI42R5IAA
Cooling Characteristics Heating Characteristics
1
0.8180.531.00 05/2007
Note
Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches
extremely high values in heating mode.
Points of Rating condition Data referred to MTAF(B)IA0R5I x2
0,50
0,60
0,70
0,80
0,90
1,00
1,10
1,20
1,30
1,40
1,50
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Low pressure at wide tube service valve MPa
1,5
1,7
1,9
2,1
2,3
2,5
2,7
2,9
0 5 10 15 20
Outdoor inlet air D.B. temperature (°C)
High pressure at wide tube service valve Mpa
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
32
27
19
2,0
3,0
4,0
5,0
6,0
7,0
8,0
0 5 10 15 20
Outdoor inlet D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
25
20
15
Indoor inlet air
D.B.
(°C)
Indoor inlet air
D.B. (°C)
25
20
15
32
27
19
7
7
32
27
19
13
6. ELECTRICAL DATA
6-1 Electrical characteristics
GR9FI50R5IAA
COOLING
2 Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,26 6,1
Power input kW 0,062 1,382
Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
HEATING
2 Indoor Unit
Performance at
Rating conditions Running Amps. A 0,26 5,2
Power input kW 0,062 1,180
Rating Conditions: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
NOTE: Data referred to 2 indoor unit, MTAF(B)IA0R5I x
2
For other indoor unit models there could be some differences.
GR9FI50R5IAB
COOLING
2 Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,26 6,0
Power input kW 0,062 1,360
Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
HEATING
2 Indoor Unit
Performance at
Rating conditions Running Amps. A 0,26 5,3
Power input kW 0,062 1,210
Rating Conditions: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
NOTE: Data referred to 2 indoor unit, MTAF(B)IA0R5I x
2
For other indoor unit models there could be some differences.
GR9FI42R5IAA
COOLING
2 Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,26 4,34
Power input kW 0,062 0,980
Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
HEATING
2 Indoor Unit
Performance at
Rating conditions Running Amps. A 0,26 3,73
Power input kW 0,062 0,840
Rating Conditions: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
NOTE: Data referred to 2 indoor unit, MTAF(B)IA0R5I x
2
For other indoor unit models there could be some differences.
230 V - 1 Phase - 50 Hz
5,04
1,148
230 V - 1 Phase - 50 Hz
5,74
1,298
Outdoor unit
Complete Unit
Fan Motor + Compressor
4,94
1,118
Outdoor unit
Complete Unit
Fan Motor + Compressor
Outdoor unit
230 V - 1 Phase - 50 Hz
Outdoor unit
230 V - 1 Phase - 50 Hz
Fan Motor + Compressor
5,84
1,320
Complete Unit
Complete Unit
Fan Motor + Compressor
Outdoor unit
Complete Unit
Fan Motor + Compressor
230 V - 1 Phase - 50 Hz
230 V - 1 Phase - 50 Hz
3,47
0,778
4,08
0,918
Outdoor unit
Complete Unit
Fan Motor + Compressor
14
6-2 Electric Wiring Diagram
Outdoor unit: GR9FI50R5IAA
PRODUCED BEFORE DEC.31, 2010
Outdoor unit:
GR9FI50R5IAA
PRODUCED AFTER GEN.1, 2011
GR9FI50R5IAB
GR9FI42R5IAA
15
6-3 Dual Split System Wiring Diagram
Outdoor unit: GR9FI50R5IAA
PRODUCED BEFORE DEC.31, 2010
Indoor unit:
MTAF(B)IA0R5I x2
Outdoor unit: GR9FI50R5IAA
PRODUCED AFTER GEN.1, 2011
GR9FI50R5IAB
GR9FI42R5IAA
Indoor unit: MTAF(B)IA0R5I x
2
6-4 Mono Split System Wiring Diagram
Outdoor unit: GR9FI50R5IAA
PRODUCED BEFORE DEC.31, 2010
Indoor unit:
MPA9FIB0R5IAA
Outdoor unit: GR9FI50R5IAA
PRODUCED AFTER GEN.1, 2011
GR9FI50R5IAB
Indoor unit: MPA9FIB0R5IA
A
16
7. FUNCTION
7-1 Diagnostic
With this feature is possible to have a visual signal that a trouble is occurring.
This mode is always active and the signalling is made through the display board LEDS .
In case of no troubles the LEDS status follows its normal function.
The detected troubles are showed to the user/technician using the 3 or 5 leds of the indoor unit receiver
and the 5 leds on the outdoor pcb. For each fault there are different effects upon the operation of the A/C:
NOTES
The troubles are showed according to a priority list that is in case of more than one trouble present,
is always showed, at first, the one with the highest priority (3 2 1 etc).
Sensor damaged means a situation where sensor is short-circuited or opened.
In case of damaged sensors, the system (CM, FMO, FMI etc), if in OFF state, does not start.
system does not operate. To re-start the system,
power re-setting (off-on) is required
note: before restoring power, adjust the dip-switch
status on idu according to the connection pipes
system does not operate.
as soon as fault is cleared, the system
automatically restart after 3 min.
during this time, the signalling is showed
EFFECTS
17
R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France
Tél. 04.74.00.92.92 - Fax 04.74.00.42.00
R.C.S. Bourg-en-Bresse B 759 200 728
Loading...
