Technibel DSAF97R5IAA, DSAF127R5IAA, DSAF187R5IAA, DSAF247R5IAA Technical Data & Service Manual

TECHNICAL DATA
& SERVICE MANUAL

INDOOR UNIT:

DSAF97R5IA

A

DSAF127R5IA

A

DSAF187R5IA

A

DSAF247R5IA

A

SPLIT SYSTEM AIR CONDITIONER

Model No. Product Code No.

DSAF97R5IAA

DSAF127R5IAA

38.7106.008

38.7106.009

38.7106.010

0.8180.534.0 03/2007

DSAF187R5IAA
DSAF247R5IAA 38.7106.011

IMPORTANT!
Please read before installation

This air conditioning system meets strict safety and operating
standards.
For the installer or service person, it is important to install or
service the system so that it operates safely and efficiently.

For safe installation and trouble-free operation, you must:

• Carefully read this instruction booklet before beginning.

• Follow each installation or repair step exactly as shown.

• Observe all local, state and national electrical codes.

• Pay close attention to all warning and caution notices given in
this manual.

•The unit must be supplied with a dedicated electrical line.

This symbol refers to a hazard or unsafe practice which can result
in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result
in personal injury or product or property damage.

If necessary, get help

These instructions are all you need for most installation sites and
maintenance conditions.
If you require help for a special problem, contact our sale/service
outlet or your certified dealer for additional instructions.

In case of improper installation

The manufacturer shall in no way be responsible for improper
installation or maintenance service, including failure to follow the
instructions in this document.

SPECIAL PRECAUTIONS

• During installation, connect before the refrigerant system and
then the wiring one; proceed in the reverse orden when removing
the units.

When wiring

ELECTRICAL SHOCK CAN CAUSE SEVERE
PERSONAL INJURY OR DEATH. ONLY QUALIFIED,
EXPERIENCED ELECTRICIANS SHOULD ATTEMPT
TO WIRE THIS SYSTEM.

• Do not supply power to the unit until all wiring and tubing are
completed or reconnected and checked, to ensure the grounding.

• Highly dangerous electrical voltages are used in this system.
Carefully refer to the wiring diagram and these instructions when
wiring.
Improper connections and inadequate grounding can cause
accidental injury and death.

• Ground the unit following local electrical codes.

• The Yellow/Green wire cannot be used for any connection
different from the ground connection.

• Connect all wiring tightly. Loose wiring may cause overheating
at connection points and a possible fire hazard.

• Do not allow wiring to touch the refrigerant tubing, compressor,
or any moving parts of the fan.

• Do not use multi-core cable when wiring the power supply and
control lines. Use separate cables for each type of line.

When transporting

Be careful when picking up and moving the indoor and outdoor
units. Get a partner to help, and bend your knees when lifting to
reduce strain on your back. Sharp edges or thin aluminium fins on
the air conditioner can cut your fingers.

When installing...

• Keep all tubing runs as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare
and union tubes before connecting them; screw by hand and
then tighten the nut with a torque wrench for a leak-free
connection.

• Check carefully for leaks before starting the test run.

NOTE:

Depending on the system type, liquid and gas lines may be either
narrow or wide. Therefore, to avoid confusion, the refrigerant
tubing for your particular model is specified as narrow tube for
liquid, wide tube for gas.

When servicing

• Turn the power OFF at the main power board before opening
the unit to check or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the site after the work, remembering to check that no
metal scraps or bits of wiring have been left inside the unit being
serviced.

• Ventilate the room during the installation or test

ing the refrigeration
system; make sure that, after the installation, no gas leaks are
present, because this could produce toxic gas and dangerous
if in contact with flames or heat-sources.

WARNING

CAUTION

WARNING

… In a ceiling

Make sure the ceiling is strong enough to hold the unit-weight.
It may be necessary to build a strong wooden or metal frame to
provide added support.

… In a room

Properly insulate any tubing run inside a room to prevent
"sweating", which can cause dripping and water damage to
walls and floors.

... In moist or uneven locations

Use a raised concrete base to provide a solid level foundation
for the outdoor unit. This prevents damage and abnormal
vibrations.

... In area with strong winds

Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.

... In a snowy area (for heat pump-type systems)

Install the outdoor unit on a raised platform that is higher then
drifting snow. Provide snow vents.

When connecting refrigerant tubing

2

Page

1. SPECIFICATIONS

4

1-1 Unit specifications 4-5-6
1-2 Major Component specifications 7-8-9
1-3 Other Component specifications 10
1-4 Indoor Fan Performance 11

2. DIMENSIONAL DATA

12

3. ELECTRICAL DATA

14

3-1 Electric Wiring Diagrams 14

4. FUNCTION

15

4-1 Operation Functions 15-16
4-2 Protective Functions 17-18
4-3 Drain Pump and Float Switch 19

5. TEST RUN

20

5-1 How to Test Run the Air Conditioner 20

6. TROUBLESHOOTING

21

6-1 Precaution before Performing Inspection or Repair 22
6-2 Method of Self-Diagnostics 22-23
6-3 Checking the Indoor and Outdoor Units 24
6-4 Noise Malfunction and Electromagnetic Interference 25

7. CHECKING ELECTRICAL COMPONENTS

26

7-1 Measurement of Insulation Resistance 26
7-2 Checkin

g

Continuity of Fuse on PCB Ass'

y

27

7-3 Checking Motor Capacitor 27

Table of Contents

3

1. SPECIFICATIONS

1-1 Unit Specifications

DSAF97R5I - DSAF127R5I

Power source

V

oltage ratin

g

Performance

Capacity

A

ir circulation (High/Med./Low

)

m³/h

External static

p

ressure (High

)

Pa (mm W.G.

)

Features

Controls/Temperature controls
Control unit
Timer
Fan speed

Air Filter
Operation sound High/Med./Low dB-A
Refrigerant tubing connections
Refrigerant Narrow tube mm(in.)
tube diameter Wide tube mm(in.)
Refrigerant
Refrigerant tube kit / Air clean filter

Dimensions & Wei

g

ht

Dimensions Unit Height mm

Width mm
Depth mm

Package dimensions Unit Height mm

Width mm
Depth mm
Volume m3

Weight Unit Net kg

Shipping kg

DATA SUBJECT TO CHANGE WITHOUT NOTICE

(*) Power level measured at operating conditions (HIGH speed / 5mmH20 external static pressure) and inside
discharge air duct

34

220 - 240 V ~ 50 Hz

230 V

745

1086

0,3

30

6,35 (1/4)

571
852
365

Microprocessor/ I.C. thermostat

Wireless remote control unit

3 and Auto /1(Hi)

ON/OFF 24 hours & Daily program, 1-hour OFF

266

9,52 (3/8)

Optional / --------------

See catalogue with the requested matching

620/560/470

49(5) at shipment - 69 (7) with booster cable

R410A

Flare type

Washable, Anti-Mold

54/52/49

4

DSAF187R5I

Power source

V

oltage ratin

g

Performance

Capacity
Air circulation (High/Med./Low) m³/h
External static pressure (High) Pa (mm W.G.)

Features

Controls/Temperature controls
Control unit
Timer
Fan speed

Air Filter
Operation sound High/Med./Low dB-A
Refrigerant tubing connections
Refrigerant Narrow tube mm(in.)
tube diameter Wide tube mm(in.)
Refrigerant
Refrigerant tube kit / Air clean filter

Dimensions & Wei

g

ht

Dimensions Unit Height mm

Width mm
Depth mm

Package dimensions Unit Height mm

Width mm
Depth mm
Volume m3

Weight Unit Net kg

Shipping kg

DATA SUBJECT TO CHANGE WITHOUT NOTICE

(*) Power level measured at operating conditions (HIGH speed / 5mmH20 external static pressure) and inside
discharge air duct

Wireless remote control unit

54/47/42

R410A

Optional / --------------

Flare type

ON/OFF 24 hours & Daily program, 1-hour OFF

3 and Auto /1(Hi)

Washable, Anti-Mold

220 - 240 V ~ 50 Hz

230 V

See catalogue with the requested matching

Microprocessor/ I.C. thermostat

49(5) at shipment - 69 (7) with booster cable

35

266
571

1058

865/645/455

6,35 (1/4)
12,7 (1/2)

39

365
745

1292

0,35

5

DSAF247R5I

Power source

V

oltage ratin

g

Performance

Capacity
Air circulation (High/Med./Low) m³/h
External static pressure (High) Pa (mm W.G.)

Features

Controls/Temperature controls
Control unit
Timer
Fan speed

Air Filter
Operation sound High/Med./Low dB-A
Refrigerant tubing connections
Refrigerant Narrow tube mm(in.)
tube diameter Wide tube mm(in.)
Refrigerant
Refrigerant tube kit / Air clean filter

Dimensions & Wei

g

ht

Dimensions Unit Height mm

Width mm
Depth mm

Package dimensions Unit Height mm

Width mm
Depth mm
Volume m3

Weight Unit Net kg

Shipping kg

DATA SUBJECT TO CHANGE WITHOUT NOTICE

(*) Power level measured at operating conditions (HIGH speed / 5mmH20 external static pressure) and inside
discharge air duct

39

365
745

1292

0,35

See catalogue with the requested matching

Microprocessor/ I.C. thermostat

49(5) at shipment - 69 (7) with booster cable

35

266
571

1058

985/760/530

6,35 (1/4)

15,88 (5/8)

220 - 240 V ~ 50 Hz

230 V

Wireless remote control unit

57/49/46

R410A

Optional / --------------

Flare type

ON/OFF 24 hours & Daily program, 1-hour OFF

3 and Auto /1(Hi)

Washable, Anti-Mold

6

1-2 Major Component Specifications

DSAF97R5I - DSAF127R5I

Controller PCB

Part No.

DSAF97R5I

DSAF127R5I

Controls
Control circuit fuse

Remote Control Unit

Fan & Fan Motor

Type
Q'ty ……. Dia. and lenght mm
Fan motor model…Q'ty
No. of poles…rpm (230 V, High / Med / Low)
Running Amps A
Power input W
Coil resistance (Ambient temp. 20 °C )

Ω

Safety devices Type

Operating temp. Open °C

Close

Run capacitor µF

VAC

Heat Exch. Coil

Coil
Rows
Fin pitch mm
face area m2

DATA SUBJECT TO CHANGE WITHOUT NOTICE

BLK-GRY: ÷
GRY-VLT: ÷
VLT-RED: ÷

3

Internal thermal protector

150 ± 5

Automatic

BRN-YEL: ÷

0,126

CB-URV93EH

4… 1060 / 975 / 845

Aluminium plate fin / Copper tube

2

1,6

450

0,36

BLK-BRN: ÷

Microprocessor

250 V - 3,15 A

2…. Ø 160 / L 240

80

BLU-BRN: ÷

Centrifugal fan

K35414 M02041 …1

CB-URV123EH

RCS-4HVPN4EX

7

DSAF187R5I

Controller PCB

Part No.
Controls
Control circuit fuse

Remote Control Unit

Fan & Fan Motor

Type
Q'ty ……. Dia. and lenght mm
Fan motor model…Q'ty
No. of poles…rpm (230 V, High / 2nd / 3rd / Low)
Running Amps A
Power input W
Coil resistance (Ambient temp. 25 °C )

Ω

Safety devices Type

Operating temp. Open °C

Close

Run capacitor µF

VAC

Heat Exch. Coil

Coil
Rows
Fin pitch mm
face area m2

DATA SUBJECT TO CHANGE WITHOUT NOTICE

110

BLU-BRN: 92÷98

CB-URV184EH
Microprocessor

250 V - 3,15 A

RCS-4MHVPNW4EX

Centrifugal fan

2…. Ø 160 / L 240
K35417 M02045 …1
4… 1100 / 850 / 650

0,5

2

450

BRN-BLK: 25÷30

Internal thermal protector

150 ± 5

Automatic

BLK-GRY: 52÷57
GRY-VLT: 42÷47
VLT-RED: 20÷25

BRN-YEL: 102÷107

Aluminium plate fin / Copper tube

3

1,6

0,168

8

DSAF247R5I

Controller PCB

Part No.
Controls
Control circuit fuse

Remote Control Unit

Fan & Fan Motor

Type
Q'ty ……. Dia. and lenght mm
Fan motor model…Q'ty
No. of poles…rpm (230 V, High / 2nd / 3rd / Low)
Running Amps A
Power input W
Coil resistance (Ambient temp. 25 °C )

Ω

Safety devices Type

Operating temp. Open °C

Close

Run capacitor µF

VAC

Heat Exch. Coil

Coil
Rows
Fin pitch mm
face area m2

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Aluminium plate fin / Copper tube

3

1,6

0,168

3

450

BRN-BLK: 25÷30

Internal thermal protector

150 ± 5

Automatic

BLK-GRY: 52÷57
GRY-VLT: 42÷47
VLT-RED: 20÷25

BRN-YEL: 102÷107

2…. Ø 160 / L 240
K35417 M02045 …1
4… 1140 / 910 / 700

0,51

114

BLU-BRN: 92÷98

CB-URV244EH
Microprocessor

250 V - 3,15 A

RCS-4MHVPNW4EX

Centrifugal fan

9

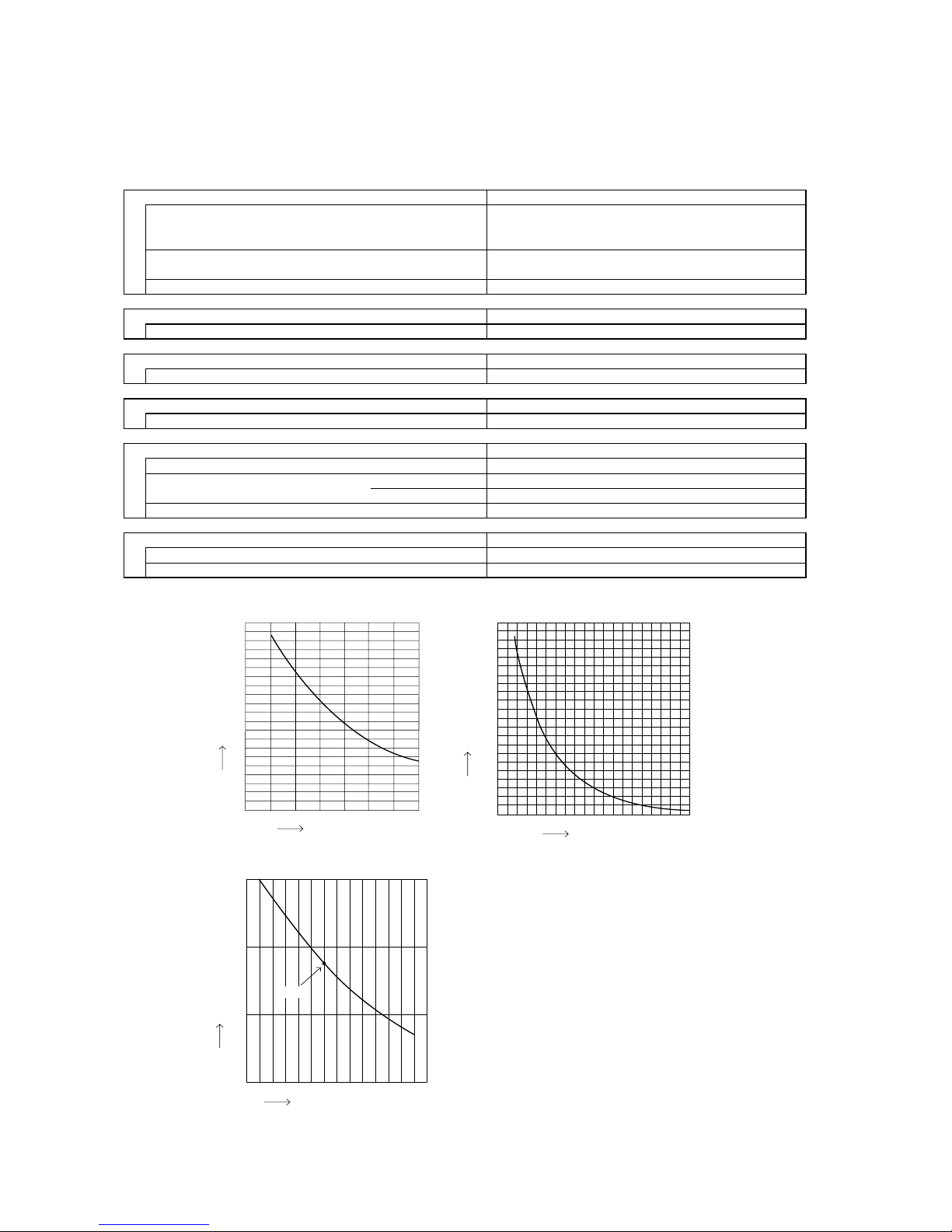

1-3 Other Component Specifications

DSAF97R5I
DSAF127R5I
DSAF187R5I
DSAF247R5I

Trasformer (TR)

Rating Primary

Secondary
Capacity

Coil resistance

Ω

(

at 25°C

)

Thermal cut-off temp.

Thermistor ( Coil sensor TH1)

Resistance

κ

Ω

Thermistor ( Room sensor TH2)

Resistance

κ

Ω

Thermistor ( Humidity sensor TH3)

Resistance

κ

Ω

Drain pump

Model
Rating Voltage

Input

Total head capacity

Safety float switch

Model
Contact rating

0,4 l/min

BI 1300 2725

230 V AC/DC - 0,5 A

PC 309564003

220-240 V - 50 Hz

14 W

Primary (WHT-WHT): 307 ± 10%

Secondary (BRN-BRN): 1.8 ± 10%

ATR-I55

AC 230 V, 50/60 Hz

13.7 V - 0.4 A

5.48 VA

C7-M3-SY

25°C - 60% RH (± 5% RH): 31,0

150°C

DTN-C502H3T-TKS128B

25 °C: 5,0 ± 3%

0 °C: 188,0 ± 4%

DTN-C583G3U-TKS121B

0

0 10203040506070809

0

40

60

80

100

120

140

160

180

200

20

10

1

2

3

4

5

6

7

8

9

10

15 20 25 30 35 40

• Indoor air temp sensor

• Indoor heat exchanger sensor

• Humidity sensor

30 35 40 45 50 55 60 65 70 75 80 8590

1

10

100

1000

25°C

Resistance (kΩ)

Resistance (kΩ)

Resistance (kΩ)

Temperature (°C)

Temperature (°C)

Relative humidity (%)

10

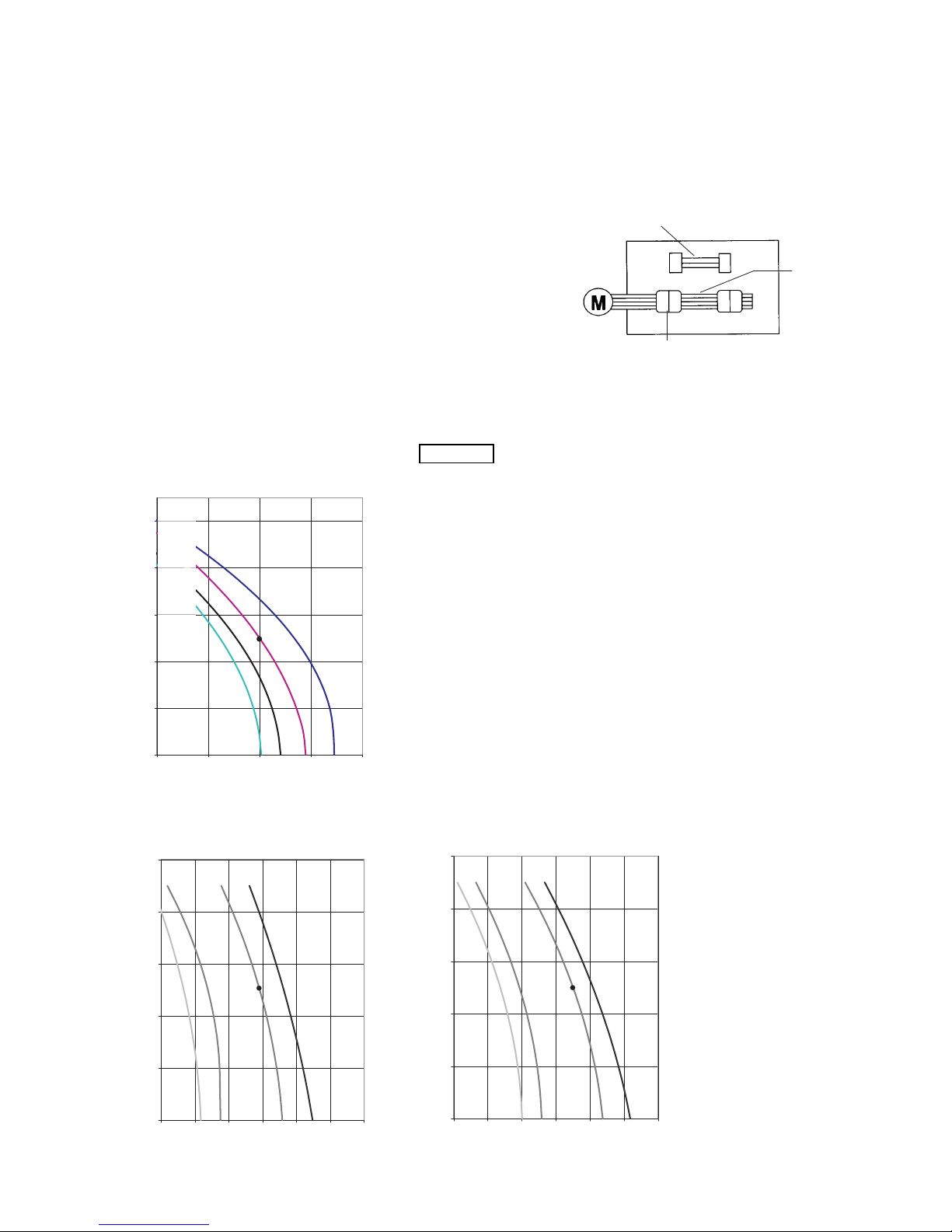

1-4 Indoor Fan Performance

If external static pressure is too great (due to long extension of ducts, for example), the air flow volume may
drop too low at each air outlet. This problem may be solved by increasing the fan speed using the following
procedure:

(1) Remove the screw on the electrical component box
and remove the cover plate.

(2) Disconnect the fan motor sockets in the box.
(3) Replace the adapter cable with the booster cable

(sockets at both ends).
(4) Securely connect the booster cable sockets

between the disconnected fan motor sockets in step 2
as shown in the Figure.

(5) Place the cable neatly in the box and reinstall the cover plate.

NOTE HH: Using the booster cable

DSAF97R5I - DSAF127R5

I

H: At shipment

How to read the diagram

The vertical axis is the external static pressure (mm W.G.) while
the horizontal axis represents the AIR FLOW (m

3

/h).

The characteristic curves for “HH”, “H”, “M” and “L”
fan speed control are shown.

The nameplate values are shown based on the “H” air flow rate.
For the type 9/12000 the flow rate is 620 m

3

/h while the external

static pressure is 5 mm W.G. at H position;
For the type 18000 the flow rate is 865 m

3

/h while the external

static pressure is 5 mm W.G. at H position;
for the type 24000 the flow rate is 985 m

3

/h while the external

static pressure is 5 mm W.G. at H position.

DSAF187R5I DSAF247R5I

Fan motor

Booster cable

(M - H - HH)

Connector motor cable (at the supply)

Adapter cable

(L - M - H)

0

2

4

6

8

10

300 500 700 900 1100 1300 1500

L

M

H

HH

0

2

4

6

8

10

300 500 700 900 1100 1300 1500

H

HH

M

L

EXTERNAL STATIC PRESSURE (mmW.G.)

EXTERNAL STATIC PRESSURE (mmW.G.)

0

2

4

6

8

10

200 400 600 800 1000

H

HH

M

L

m3/h

EXTERNAL STATIC PRESSURE (mmW.G.)

11

2. DIMENSIONAL DATA

DSAF97R5I

Unit: mm

DSAF127R5I

O.D. 9,52mm (3/8)

12

DSAF187R5I

Unit: mm

DSAF247R5I

O.D. 12,7mm (1/2) - 18000 Btu
O.D. 15,88mm (5/8) - 24000 Btu

13

3. ELECTRICAL DATA

3-1 Electric Wiring Diagrams

DSAF97R5I
DSAF127R5I

DSAF187R5I
DSAF247R5I

14

4. FUNCTIONS

4-1 Operation Functions

15

16

4-2 Protective Functions

17

18

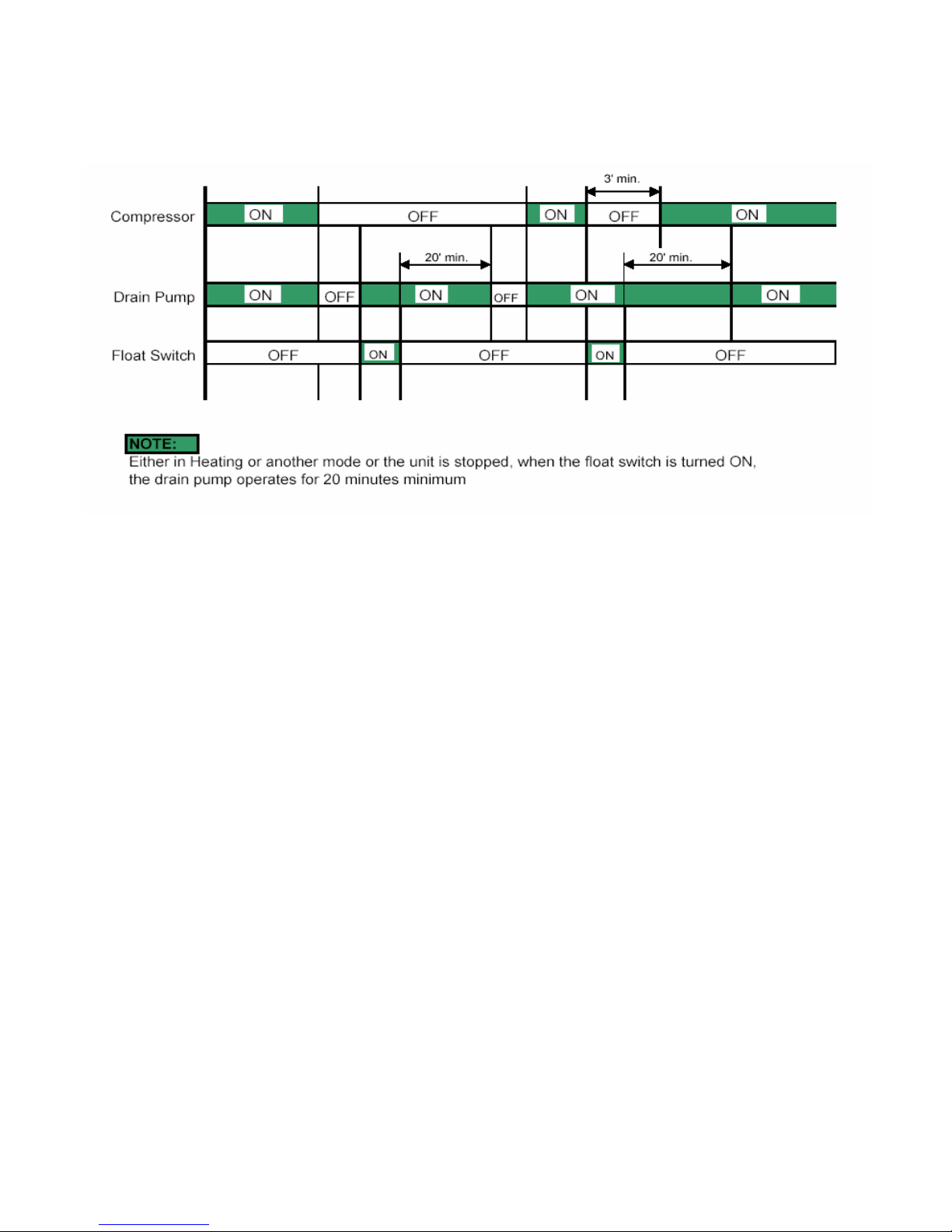

4-3. Drain Pump and Float Switch

5. TEST RUN

5-1 How to Test Run the Air Conditioner

display
area

HIGH POWER

button

1HR. TIMER

button

ON/OFF

operation
button

20

6. TROUBLESHOOTING

6-1 Precaution before Performing Inspection or Repair

6-2 Method of Self-Diagnostics

ON/OFF
button

1HR.
TIMER
button

A

CL
(reset)
button

21

(1) Self-diagnostics lamps

+ Since the indications cover various units, the corresponding parts listed below may not be present in some models.

(2) If the self-diagnostics function fails to operate

TIMER lamp

SERVICE lamp

OPERATION lamp

22

6-3 Checking the Indoor and Outdoor Units

23

6-4 Noise Malfunction and Electromagnetic Interference

24

7. CHECKING ELECTRICAL COMPONENTS

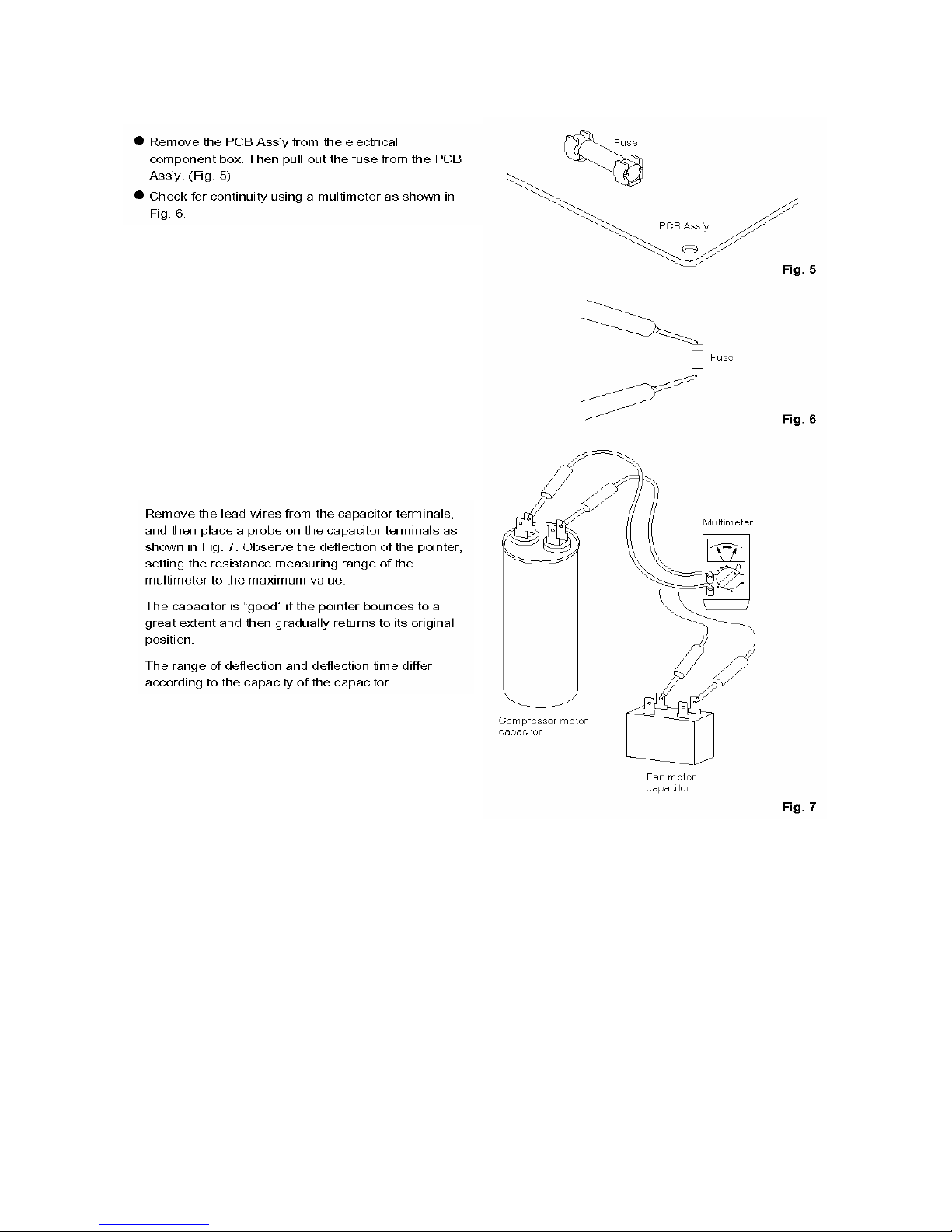

7-1 Measurement of insulation Resistance

25

7-2 Checking Continuity of fuse on PCB Assy

7-3 Checking Motor Capacitor

26

R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France

Tél. [phone] - Fax [phone]

R.C.S. Bourg-en-Bresse B 759 200 728
