Technibel REVE 247CH2O, REVE 237RH2O, ARGO 245SCH2O, ARGO 235HPH2O, REVE 235RH2O Technical Data & Service Manual
...
Cooling only model
Heat pump model
0.8180.518.1 11 / 2007
REVE 247CH2O( I )
REVE 237RH
2O( I )
TECHNICAL DATA & SERVICE MANUAL
Page
A
SPECIFICATIONS
1) Unit specifications 1 3
2) Unit specifications 2 4
3) Major Component specifications 5 / 6
B OPERATING RANG
E
6
C DIMENSIONAL DAT
A
7
D PERFORMANCE CHARTS SC and HP1 8
E PERFORMANCE CHARTS SC and HP2 9
F PERFORMANCE CHARTS heat pump1 10
G PERFORMANCE CHARTS heat pump2 11
H WATER SIDE PRESSURE DROP 12

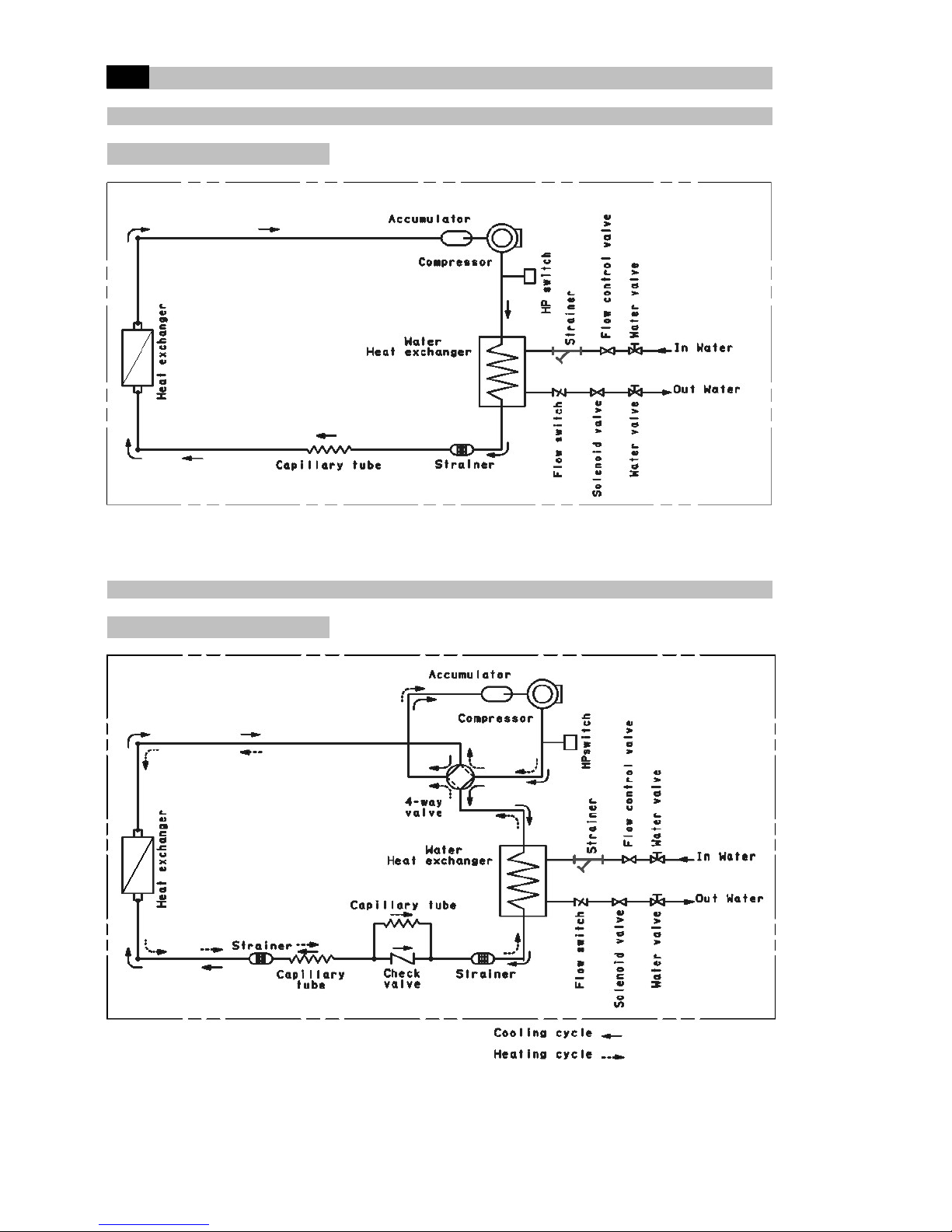

I REFRIGERANT FLOW DIAGRAMS 13
L FUNCTIONS

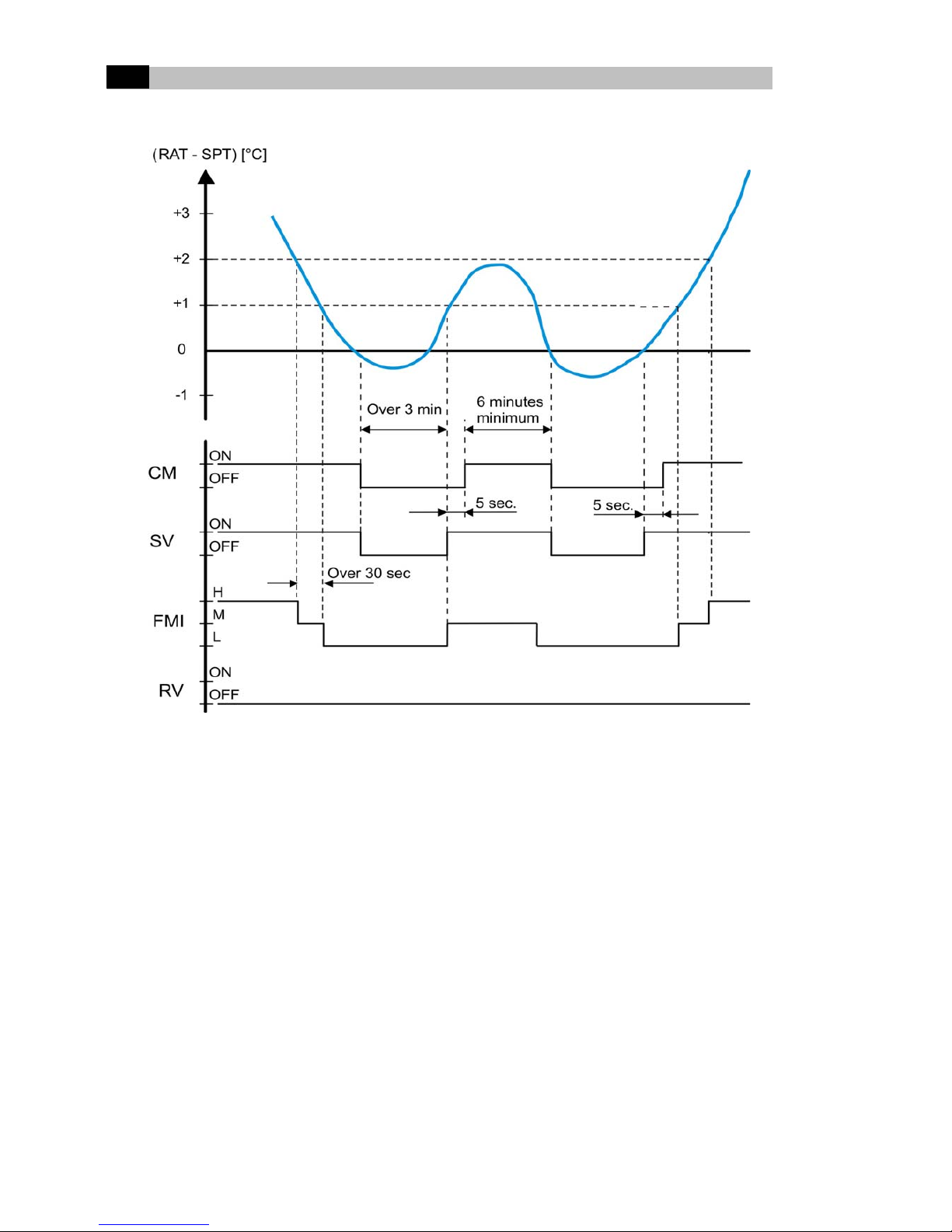

1) Cool Mode Operation 14
2) Heat Mode Operation 15
3) Auto (Cool/Heat) Mode Operation 16
4) Dry Mode Operation 17
5) Fan Mode Operation 17
6) Auto Fan Speed 17
7) Forcede mode 18
8) Protection Operations in Cool and Dry Modes 18
9) Protection Operations in Operation Heat Mode 19
10) I Feel Function 21
11) Night Function 21
12) Diagnostic 22
13) Jumpers 23
14) Contacts for building automation 27
15) Maintenance 27
16) Manual Unit control and Led indicators 25
17) Ws Imput Switch 26
M ELECTRIC WIRING DIAGRAMS 28/29

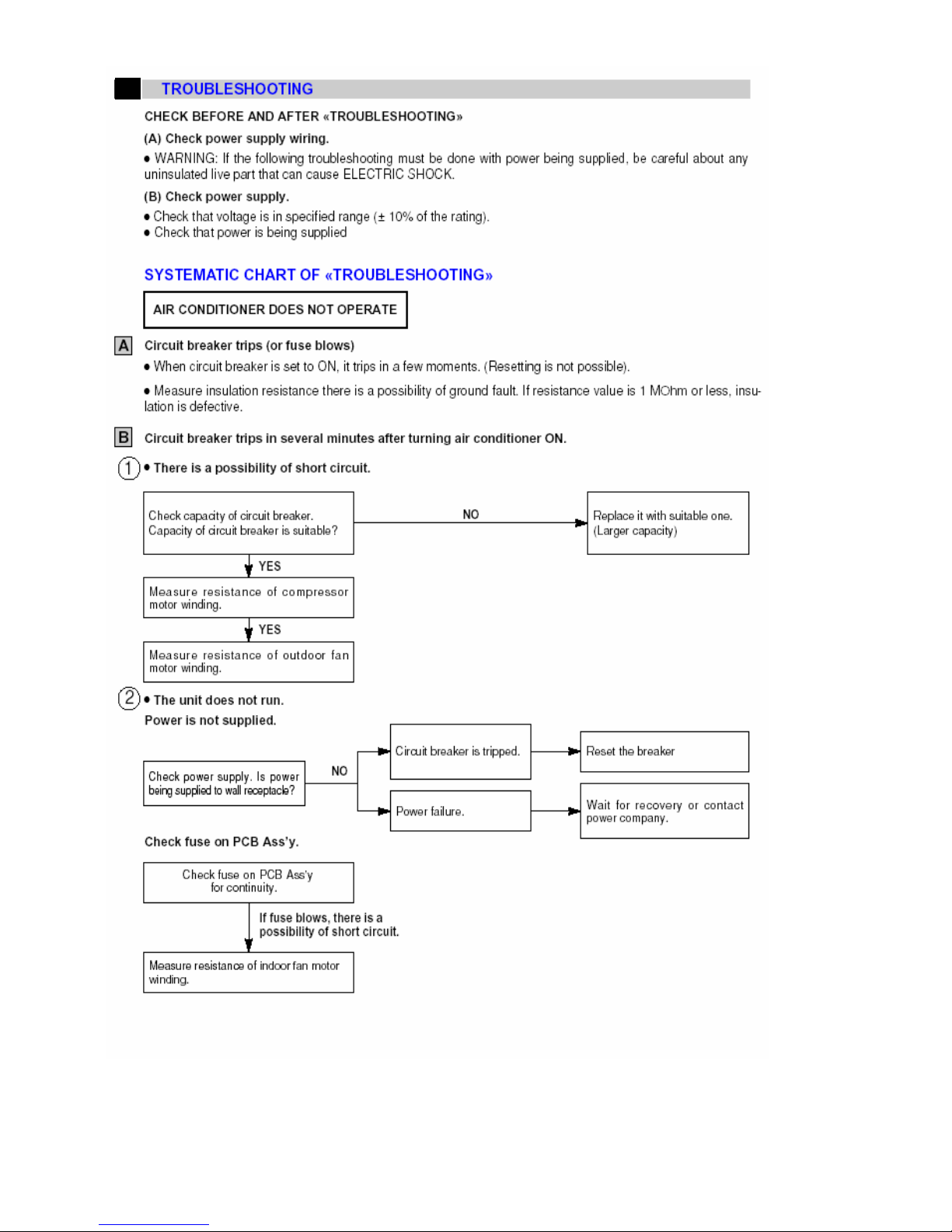

N TROUBLESHOOTING 30
O REFRIGERANT CHARG
E
37
P CHECKING ELECTRICAL COMPONENTS 38
1) Measurement of Insulation Resistance 38
2) Checking Continuity of Fuse on PCS Ass'y 39
3) Checking Motor Capacitor 39
Q BOILER CONNECTION KIT 40
1) Specifications and operating limits 40
2) Performance charts 41
3) Component specifications 42
4) Hydraulic connections and valves 43
Table of contents
2
A
SPECIFICATIONS
1) UNIT SPECIFICATIONS 1
IN CITY WATER IN WATER LOOP
COOLING COOLING
BTU / h 9650 9200
kW 2,83 2,7
BTU / h
kW
Air circulation (high/med/low)
m
3
/ h
Water flow
m
3
/ h
0,165 0,575
Pressure drop kPa 2,0 32,0
Moisture removal (high speed) Cooling l / h
Dry 27°C ( 60% R.U.) liters / 24h
Dry 30°C (80% R.U.) liters / 24h
Voltage rating V
A
vailable voltage range V
Running Ampere (air conditioner) A 2,9 3,0
Running Ampere (hot-water system) A
Power input (air conditioner) W 640 650
Power input (hot-water system) W
Power factor 0,96 0,94
E.E.R. / C.O.P 4,42 4,15
Compressor locked rotor amperes A
Refrig./Stand. Charge at shipment R410A
Water connections diameter
mm
mm
mm
kg
NOTE
Rating conditions cooling :
Hot-water system : ambient temp. 20°C - inlet water temp. 70°C - outlet 60°C.
UNIT MODEL
Power source 220 - 240 V 50 Hz
REVE 247CH2O
PERFORMANCES
Capacity (air
conditioner)
330-300-280
1,2
Capacity (hot-water
system)
7160
2,1
Washable, easy access
30
ELECTRICAL RATINGS
59
Fan speed (air conditioner)
Fan speed (hot-water system)
Airflow direction
(Indoor)
Horizontal
Vertical
Air filter
3 + Auto
3
Auto (manual for hot water system)
Manual
220 - 240
198 - 264
0,10
ON / OFF 24 hours and program
City water : ambient temp. 27°C d.b. / 19°C w.b.- inlet water temp.18°C - outlet 36°C .
27
17
FEATURES
Controls / temperature control Microprocessor / I.C. Thermostat
Control unit Wireless remote control unit
Timer
Compressor Rotary (hermetic)
Refrigerant control Capillary tube
360g
Sound pressure
level
Air conditioner Hi/Me/Lo dB-A 44-42-41
Hot-water system Hi/Me/Lo dB-A 42-39-32
1/2
"
Gas
DIMENSIONS AND WEIGHT
Height 735
Widht 839
Depht 260-280
Water loop : ambient temp. 27°C d.b. / 19°C w.b. - inlet water temp. 30°C - outlet 35°C
Net weight
Data can be changed without notice
46
3
REVE 237RH2O Heat pump model
PERFORMANCE CHARTS SC and HP2
REVE 247CH2O Cooling model
MOISTURE REMOVAL
40
50
60
70
80
90
100
110
120
130
140
12 15 18 21 24
INLET WATER TEMP - °C
MOISTURE REMOVAL - %l/h
Tamb 19°C
Tamb 27°C
Tamb 32°C
CORRECTION FACTOR
80
85
90
95
100
105
110
115
120
125
130
110 210 310 410 510
WATER FLOW RATE - l/h
%
CAPACITY INPUT
EER MOISTURE
E
9
Conditions: Power source 230 V - 1- 50 Hz - Single phas
e
Indoor air velocit
y
High speed
Heating characteristics
Indoor relative humidity 48%
PERFORMANCE CHARTS heat pump1
REVE 237RH2O Heat pump model
capacity
80
85
90
95
100
105
110
115
120
12 15 18 21 24
inlet water temp - °C
capacity - %W
Tamb 15°C
Tamb 20°C
Tamb 25°C
power input
80
85
90
95
100
105
110
115
120
125
12 15 18 21 24
inlet water temp - °C
power input - %W
Tamb 15°C
Tamb 20°C
Tamb 25°C
F
10
2) UNIT SPECIFICATIONS 2
COOLING HEATING COOLING HEATING
BTU / h 10060 10740 10230 12140
kW 2,95 3,15 3,00 3,56
BTU / h
kW
A
ir circulation (high/med/low)
m
3
/ h
Water flow
m
3
/ h
Pressure drop kPa
Moisture removal (high speed Cooling l / h 1,3 -------- 1,3 --------
Dry 27°C ( 60% R.U.) liters / 24h 32 -------- 32 -------Dry 30°C (80% R.U.) liters / 24h 61 -------- 61 --------
Voltage rating V
A
vailable voltage range V
Running Ampere (air conditioner) A 2,9 3,8 3,11 3,9
Running Ampere (hot-water system) A
Power input (air conditioner) W 630 830 680 860
Power input (hot-water system) W
Power factor 0,94 0,95 0,95 0,96
E.E.R. / C.O.P 4,68 3,8 4,41 4,14
Compressor locked rotor amperes A
Refrig./Stand. Charge at shipment R410A
Water connections diameter
mm
mm
mm
kg
NOTE
Rating conditions cooling / heating :
Hot-water system : ambient temp. 20°C - inlet water temp. 70°C - outlet 60°C.
UNIT MODEL
Power source
PERFORMANCES
DIMENSIONS AND WEIGHT
Air conditioner Hi/Me/Lo dB-A
Airflow
direction
Vertical
Capacity (air
conditioner)
Capacity (hotwater system)
ELECTRICAL RATINGS
FEATURES
Fan speed (air conditioner)
Air filter
Horizontal
Height
Widht
Depht
Net weight
Fan speed (hot-water system)
Timer
Control unit
Controls / temperature control
Water loop heating : ambient temp. 20°C d.b. - water temp. 15°C
Compressor
Refrigerant control
3 + Auto
3
1/2
"
Gas
Auto (manual for hot water system)
Sound
pressure level
Hot-water system Hi/Me/Lo dB-A
48
City water cooling : ambient temp. 27°C d.b. / 19°C w.b.- inlet water temp.18°C - outlet 36°C .
City water heating : ambient temp. 20°C d.b. - inlet water temp.18°C - outlet 6°C .
Water loop cooling : ambient temp. 27°C d.b. / 19°C w.b. - inlet water temp. 30°C - outlet 35°C
260-280
42-39-32
Data can be changed without notice
REVE 237RH
2O
220 - 240 V 50 Hz
735
839
17
27
0,10
Microprocessor / I.C. Thermostat
Wireless remote control unit
ON / OFF 24 hours and program
IN CITY WATER IN WATER LOOP
7160
2,1
330-300-280
220 - 240
198 - 264
Capillary tube
Manual
Washable, easy access
Rotary (hermetic)
470g
44-42-41
0,165
2,0
0,575
40,0
4
3) MAJOR COMPONENT SPECIFICATIONS
Controls
Jumper Setting J1….J5 (see Electric waring diagram)
Model
Resistance (at 25° C) kΩ
Resistance (at 25° C) kΩ
Model
Number / Diameter / Lenght mm
No. of pole / rpm (230 V, high)
Nominal input W
Coil resistance (at 25° C) Ω
°C
µF
VAC
Model
W
cc
Coil resistance (at 20° C) Ω
Ω
µF
VAC
°C
°C
Operating amp. (Ambient temp. 25° C)
Open
Close
Operating
temperature
Open
Overload relay (OLR)
Run capacitor (C1)
Close
Compressor oil RB68A or Freol Alpha68M
10 ± 3%
THERMISTOR (ROOM SENSOR) TH2
2,54mm - 3 pcs
PCB
REMOTE CONTROL UNIT
THERMISTOR (COIL SENSOR) TH1 NTC (with brass pipe)
Trip in 6 to 16 sec. at 16A
VLT-ORG: 62÷71
GRY-BRN: 78÷90
2,54mm - 2 pcs
384208021
(Internal bimetallic type)
TMR : blu - STB : yellow - OPR : green
RC-7 (ST) RC-7 (RC)
69 ± 9°C
Microprocessor
UNIT MODEL REVE 247CH
2O REVE 237RH2O
SAC ON-OFF IDU
CONTROLLER (PCB)
Part No.
250VAC - 5A -T
Run capacitor (C2)
Nominal cooling capacity
COMPRESSOR (CM)
Control circuit fuse (F1)
SWITCH INDICATOR ASSY
Led color
Safety device
Setting
440
148 ± 5°C
350
2350
External
30
C-R : 3.863
C-S : 3.309
FAN & FAN MOTOR (FMI)
Cross-flow 1 / Ø100 / 515
4 / 1350
K35406-MO2024
1,5
10 ± 5%
450
Rotary ( Hermetic)
30
Autoreset
5PS102EAA
GRY-WHT: 545÷630
WHT-VLT: 92÷105
150 ± 10K
5
FLAP MOTOR (FLP)
Model
Rating
Coil resistence (Ambient temp. 25°C) Ω
4 WAYS VALVE (20S
)
Model
Coil rating
Coil resistence (Ambient temp. 20°C) Ω
HEAT EXCHANGER COI
L
Coil
Rows
Fin pitch mm
Face area
m
2
PLATE EXCHANGE
R
Model
Plate N°
Gas connections Øi mm
Water connections Øi mm
SOLENOID VALVE
Coil resistance (at 20° C) Ω
Rating °C
Nominal input
FLOW SWITCH
Water flow rate( ON ) l / min
Water flow rate( OFF ) l / min
Reed switch features : V
W
HIGH PRESSURE SWITCH
OPERATING PRESSURE SETTING
bar
Contact rating
OPERATING RANGE
Cooling only model
Heat pump model
250 V - 6A
OFF ON
42 ± 1 33 ± 1,5
Model CH23 IT
68mA
Dry
Maximum
Minimum
Cooling
Temperature
Maximum
Minimum
19° C DB/ 14° C WB
Heating
Temperature
Maximum
Minimum
Maximum
Minimum
Cooling
16° C BS/ 80% R.U.
Dry
Maximum 32° C BS/ 80% R.U.
Minimum 16° C BS/ 80% R.U.
27° C DB
//
Indoor air intake temp.
32° C DB/ 23° C WB
1,6
3
Aluminium plate fin / copper tube
32° C BS/ 80% R.U.
19° C DB/ 14° C WB
32° C DB/ 23° C WB
9,6
14,3
Indoor air intake temp.
Model
DC 12V
WHT-BLU (respectively 4 wires) : 380 ± 7%
AC 220V, 50 Hz, 6W
---
220-230VAC~50Hz
14 20
1132/04A6
1050
2
1,2
250 VAC-200 VDC
30
UNIT MODEL REVE 247CH
2O REVE 237RH2O
S09
MP24GA1
SQ-136---
1440 ± 5%---
0,107
B
6
DIMENSIONAL DATA
C
7
Conditions: Power source 230 V - 1- 50 Hz - Single phas
e
Indoor air velocit
y
High speed
Cooling characteristics
Indoor relative humidity 48%
Capacity (%)
Power input (%)
E.E.R. (%)
REVE 237RH2O Heat pump model
PERFORMANCE CHARTS SC and HP1
REVE 247CH2O Cooling model
COOLING CAPACITY
70
75
80
85
90
95
100
105
110
115
120
12 15 18 21 24
INLET WATER TEMP - °C
CAPACITY - %W
Tamb 19°C
Tamb 27°C
Tamb 32°C
POWER INPUT
70
75
80
85
90
95
100
105
110
115
120
12 15 18 21 24
INLET WATER TEMP - °C
POWER INPUT - %W
Tamb 19°C
Tamb 27°C
Tamb 32°C
EER
60
70
80
90
100
110
120
130
12 15 18 21 24
INLET WATER TEMP - °C
EER - %W/W
Tamb 19°C
Tamb 27°C
Tamb 32°C
D
8
Heating characteristics
Indoor relative humidity 48%
5 / 6
PERFORMANCE CHARTS heat pump2
REVE 237RH2O Heat pump model
cop
80
85
90
95
100
105
110
115
120
12 15 18 21 24
inlet water temp - °C
COP - %W/W
Tamb 15°C
Tamb 20°C
Tamb 25°C
correction factor
90
95
100
105
110
115
120
125
100 200 300 400 500 600
water flow rate -l/h
%
capacity
power input
cop
G
11
REVE 237RH2O Heat pump model
WATER SIDE PRESSURE DROP
REVE 247CH2O Cooling model
WATER SIDE PRESSURE DROP
0
5
10
15
20
25
30
35
40
45
0 100 200 300 400 500 600 700
WATER FLOW RATE(l/h)
PRESSURE DROP (kPa)
0
500
1000
1500
2000
2500
3000
3500
4000
4500
WATER PRESSURE DROP(mm c.a.)
H
12
REFRIGERANT FLOW DIAGRAMS
REFRIGERANT FLOW DIAGRAM AND WATER CONNECTION FOR COOLING MODEL
REFRIGERANT FLOW DIAGRAM AND WATER CONNECTION FOR HEAT PUMP MODEL
REVE 237RH2O
REVE 247CH
2O
I
13
1 Cool Mode Operation
In Cool mode , the operation of Compressor ( CM ) , Solenoid Valve ( SV ) and Indoor Fan ( FMI ) are
determined by the difference between the Room Temperature (RAT) and the Set Point Temperature (SPT)
as in the graph above.
Notes:
a. In this graph, the FMI is operating in the"Auto Fan Speed" setting. If the user has selcted the low,
medium or high fan speed, the FMI will run constantly at that speed only.
b. In addition to the value of ( RAT-SPT ) , the operations of the relays are also controlled by protection
delays.For example,(a) the minimum On/Off time of the ( CM ) is 3min respectively, and (b) the FMI can
change speed only after it has operated at de same speed for 30sec.wen in autofan setting and 1sec.
for H/M/L setting.
FUNCTIONS
GL
14
2 Heat Mode Operation
The Heating mode operation is similar to the Cooling mode operation.The compressor CM,solenoid valve SV and
fan motor indoor FMI are mainly controlled by the value of ( RAT – SPT ).In the graph above, the FMI is operating
in AUTO speed mode. Therefore, the FMI speed changes automatically according to the ( RAT - SPT ).
NOTES
1. After the CM has stopped, the FMI runs for 30s in order to purge heat from the indoor coil.
2. The FMI will not be turned on until the indoor coil temperature is warm enough to prevent the supply of
cool air (see COLD DRAFT PREVENTION feature for details).
The indoor fan can change speed only after it has operated at the same speed for 30 sec if in AUTO and
1 sec for the other settings (High, Med, Low).
15
3 Auto (Cool/Heat) Mode Operation
In Auto Mode, the unit switches automatically between the Auto Cooling and Auto Heating in order to
maintain the room temperature (RAT) at the prescribed set point (SPT).
The switching between the two modes is according to the above graph.
Refer to the sections 1.COOLING MODE and 2.HEATING MODE for system operation details.
16
4 Dry Mode Operation
Reducing the ambient temperature. This is done cycling ON and OFF indoor and outdoor units
according to below.
ROOM DRY LEVEL
TEMP
≥ SPT+2°C LEVEL 0
Operation according to COOLING mode
CM on
< SPT+2°C LEVEL 1 FMO on
≥ SPT-1°C FMI switches between L and off (30 seconds)
RV off
CM switches 9 minutes off and 3 minutes on
< SPT-1°C LEVEL 2 FMO switches 9 minutes off and 3 minutes ON
≥ 15°C FMI switches off and L during CM operation
RV off
CM off
< 15°C DRY OFF ZONE FMO off
FMI off
RV off
SPT = Set Point Temperature
5) Fan Mode Operation
With this mode, the indoor fan is turned on while CM, FMO and RV stay off all the time.
The user can select between 3 speeds: HIGH, MEDIUM and LOW.
6) Auto Fan speed
With this option selected, the indoor fan speed changes automatically according to the difference
between the detected air temperature (RAT sensor) and the set point (SPT):
COOLING MODE
2 ≤ (RAT – SPT):
HIGH speed
1 ≤ (RAT – SPT) < 2:
MEDIUM speed
(RAT – SPT) < 1:
LOW speed
HEATING MODE
2 ≤ (SPT - RAT):
HIGH speed
(SPT - RAT) < 2:
MEDIUM speed
NOTE
SPT = Set Point Temperature
17
7) Forcede mode
means of the OPERATION button on the front panel. The operation modes can be selected
pressing the button in a cyclic way (OFF Ö COOL Ö HEAT Ö OFF…). The settings are:
COOLING mode
SET POINT temperature = 25°C
FAN SPEED = HIGH
HEATING mode
SET POINT temperature = 21°C
FAN SPEED = HIGH
See also paragraph 15 for additional details.
8) Protection operations in Cool and Dry Mode
8.1 Freeze-up
This protection prevents ice formation on the indoor coil heat exchanger. The protection is activated by
the indoor coil temperature (ICT sensor) and only after 6 minutes of compressor operation. This
protection acts in 2 levels:
LEVEL 1
INDOOR FAN SPEED: ANY (as selected from remote controller)
COMPRESSOR: ON
OUTDOOR FAN: cycling (30 seconds ON B 30 seconds OFF).
DRAIN PUMP: operates according to paragraph 17
LEVEL 2
INDOOR FAN SPEED: ANY (as selected from remote controller)
COMPRESSOR: OFF for at least 6 minutes and until ICT ≥ 8°C
OUTDOOR FAN: OFF for at least 6 minutes and until ICT ≥ 8°C
DRAIN PUMP: always ON ( stops when exiting the protection)
The system exit this protection routine when ICT temperature rises above 8°C.
18
9) Protection operations in Heat Mode
9.1 Cold draft
This feature prevents the supply of cold air forcing the indoor fan to a speed which cannot be changed
by the user. As soon as the protection mode is exited speed can be changed manually through the
remote controller. The protection acts in the following
19
9.2 Overheat
This feature prevents the build up of high pressure in the indoor heat exchanger during heating
20
10) I Feel Function
sensor equipped in the wireless remote controller (icon I FEEL shown on the display). This feature
provides a personalised environment since the temperature can be detected where the remote
controller is located. It is possible to de-activate this option pressing the I FEEL button on the
remote controller. In this case the I FEEL icon is no longer displayed and room temperature is
detected trough the sensor included in the indoor unit.
11) Night Function
When this function is active, room temperature changes automatically to compensate for body
temperature variations while sleeping. After 10 hours of operation system switches automatically to
OFF state. This mode of operation is available both in COOLING and HEATING mode.
21
12) Diagnostic
With this feature is possible to have a visual signal that a trouble is occurring.
In case of no troubles the LEDS status follows its normal function.
NOTES
The troubles are showed according a priority list that is in case of more than one
trouble present, is always showed, at first, the one with the highest priority (1 2 3 etc).
Sensor damaged means a situation where sensor is short-circuited or opened.
In case of damaged sensors, the system (CM, FMO, FMI etc), if in OFF state, does not start.
WRONG MODE SELECTED means a situation where the operating mode chosen with remote
controller
does not comply with the one allowed by jumpers settings.
Priority TROUBLE
LD1(stby) LD2(opr) LD3(timer)
1 RAT damaged F O O
2 ICT damaged F F O
3 WRONG MODE F F F
SELECTED
O = LED off
F = LED blinking
LEDS status Effects
System does not operate
22
13) JUMPERS CONFIGURATION
Jumpers are located on the indoor PCB near the MODE button.
Unit is shipped with jumpers set according to the following table:
JUMPER STATUS
JP1 open
JP2 open for H/P models - closed for other versions
JP3 open
JP4 closed
JP5 closed
23
14) CONTACTS FOR BUILDING AUTOMATION
INPUT CONTACT (J4 - green) - AVAILABLE ONLY IF "BOILER CONNECTION KIT" IS NOT
INSTALLED
The status of this input affects system operation according to the following:
Contact OPEN : system does not operate (always OFF) – inputs from wireless remote controller are not
processed
Contact CLOSED: system operates in the normal way according to the inputs coming from wireless
remote controller
OUTPUT CONTACT (J12)
This connector is directly tied to the contact (normally open) of a power relay which activates every time
the following alarm condition occur:
•
RAT damaged
•
ICT damaged
In this case when alarm happens, on poles 1 and 3 of J12 connector, 220 VAC-50Hz are available.
Max electrical load: 1A- 240VA
C
24
15) Maintenance
Address to each unit in order to avoid operation conflicts. Address is set acting on the dip-switches located
on the indoor PCB and on the remote controller. The PCB settings must match the corresponding ones
on the wireless remote controller
How to change address of the air conditioner
Dip switch is located on the indoor PCB near the buzzer.
Set the PCB to the address desidered
UNIT
ADDRES
S
SW1 SW2
1 off off
2 off on
3 on off
4onon
As default switches SW1 and SW2 are in off status (PCB factory state).
How to change address on Remote Control Unit
Dip switch is located on the battery compartment.
1) Pull out the door and remove the batteries.
2) Set the switch SW1 and SW2 according to the indoor PCB settings
(do not act on SW3 and SW4)
3) Insert the batteries and pull on the door
As default switches SW1 and SW2 are in off status (remote controller factory state).
SETTINGS
25
16) Manual Unit Control and Led indicators
The push button switch and the LED indicators on display panel let the user to control the unit
operation without a R/C (Remote Controller). Their operations are provided below.
Push Button Switch :
Use to cycle the operation mode of the A/C unit among COOL, HEAT and
OFF modes, without using the R/C.
Every time this switch is pressed, the next operation mode is selected,
in order:
- Off => Cool mode => Heat mode => Off => … (for heat pump model)
- Off => Cool mode => Off => … (for cooling only model)
- The A/C will start in High fan speed.
The temperature setting is 25°C for cooling and 21°C for heating mode.
WARNING:
the OFF position does not disconnect the power. Use the main power switch to turn off power completely.
Led indicators :
1. Lights up during Timer operation.
1. Lights up when the Air conditioner is connected to power and
ready to receive the Remote Control command.
2. Blinks continuously in case of any thermistor failure.
1. Lights up in Operation mode ( Note: OFF in standby mode).
2. Blinks for 0,5 sec., to announce that a R/C infrared signal has
been received and stored.
3. Blinks continuously in case of any thermistor failure.
4. Blinks continuously in case of FS (Float Switch) trips for high water level.
TIMER+STBY+OPR LAMP 1. Blinks continuously in case of wrong mode selected.
Recovery from Power Failure
OPERATION
BUTTON
LAMP
TIMER LAMP
STANDBY
LAMP
OPERATION
26
17) Ws Imput Switch
The WS switch status (open/closed) rules system operation in two different way.
16.1 WATER FLOW-RATE MODE
This mode is available when the WS_FLG parameter is set to 2 (water flow rate type).
Drain pump is not present. WS status affects system operation only when unit is ON
and according to the following chart:
27
ELECTRIC WIRING DIAGRAMS
1- Cooling only model
LEGENDA
PCB Controller board
SW-IND-ASS
Y
Indicator ass
y
FMI Indoor fan motor
TH1-2-4
Thermistor
RL1 Power relay TP Terminal plate
CM Compressor motor HWC Hot water control
OLR Overload relay TM Water min temperature thermostat
S
V
Solenoid valve EWV Electrically operated water valve
C1-2 Capacitor FLP Flap motor
HT High pressure switch F1 Fuse
F Flow switch
REVE 247CH2O
M
M
28
2- Heat pump model
LEGENDA
PCB Controller
SW-IND-ASS
Y
Indicator ass
y
FMI Indoor fan motor
TH1-2-4
Thermistor
RL1 Power relay TP Terminal plate
CM Compressor motor HWC Hot water control
OLR Overload relay TM Water min temperature thermostat
S
V
Solenoid valve EWV Electrically operated water valve
C1-2 Capacitor FLP Flap motor
HT High pressure switch F1 Fuse
F Flow switch
20S 4-way valve
REVE 237RH2O
29
N
30
C
31
2)
D
32
E
33
Unit still does
not run
Unit still does
not run
34
Only if IFEEL is selected
Temperature difference between suction and discharge
air is large enough (approx. 15°C or more)
Only if IFEEL is selected
install an additional unit
G
F
35
RT
RT
H
36
REFRIGERANT CHARGE
REFRIGERANT CHARGE R410
A
IMPORTANT
When recharging the unit please use the high-pressure service pipe.
Preliminary operation after refrigerant charge
To distribute the oil to all the moving/sliding portions, run the compressor for at least 3
seconds within 15 minutes after refrigerant charge
REVE 247CH
2O
360 g
REVE 237RH2O
470 g
O
37
P
38
39
Capacity at standard conditions
Power input W
Fan speed
Standard conditions:
∆T water K
Water coil only ∆P water kPa
water flow l/h
Valve and tubes ∆P water kPa
including water flow l/h
Max temperature inlet hot water
Max pressure ba
r
10
27
3 ( Hi - Me - Lo )
155 ( 2,6 l/min.)
10
0,7 ( 70 mmH2O)
OPERATING LIMITS
20
2,9 ( 290 mmH2O)
190 ( 3,1 l/min.)
HighFan speed
W 2100
70Inlet water temp. °C
Ambient temp. °C
BOILER CONNECTION KIT
1) SPECIFICATIONS
Power source 230 V ~ 50 Hz
By installer
By installer
Electric water
valve
Controller
Hot water coil
Existing water
connections
Air conditioner
Boiler connection Kit
1/2" Gas Female
diameter
Typical installation
QQ
40
Performance on different conditions
2) PERFORMANCE CHARTS
0
1
2
3
4
5
6
7
8
50 100 150 200 250 300 350
Water flow l/h
Pressure drop kPa
WATER FLOW AND PRESSURE DROP – ( 3 WAY VALVE AND PIPE INCLUDING )
0%
20%
40%
60%
80%
100%
120%
140%
4 6 8 10 12 14 16
∆t = (inlet water temp.) - (outlet water temp.)
Capacity
0
1
2
3
4
5
6
7
8
9
10
Pressure drop kPa
70° C inlet water temp.
60°C
50° C
Capacity ruduction factor : High speed = 1 ; Med. speed = 0,96 ; Low speed = 0,93
41
Type
Controls
Thermostat Setting
Differential
Type
Resistance (at 25° C) kΩ
Type
Controls
Thermostat Setting
Differential
Type
Resistance (at 25° C) kΩ
Electrical rating
setting
Differential
Type
Supply voltage
Power consumpion: Continous
Start-up
Nominal force
Nominal stroke
Full stroke time at 50°C
Type
Body Type
Threaded Male Connection
Close-Off Pressure kPa
Type
Rows
Fin pitch mm
Face area
m
2
Threaded Male Connection
1/2" Gas
100
3-way Forged brass valve VG-5510EC
3-way NO bypass
4,5 mm
Actuator stem extends : 60 sec
Actuator stem retract : 10 min
2,5 W
36 W (150 mA) max
125 N
WATER ELECTRIC VALVE ( EWV )
Electric Thermal Actuator
230VAC ± 15%
VA-7040-23
10(1,6) A - 250Vac
1K
4,7 ±2%
000TSA
STLNGY050
078564-00
Manual
6°C ±1°C ÷ 30°C ±1°C
1K
Control Autoreset
Open : 31°C ±3°C - Close: 42°C±4°C
11K
LIMIT WATER THERMOSTAT ( TM )
as alternative CONTROLLER ( HWC )
THERMISTOR ( ROOM SENSOR ) TH4
77798
6,8 ±2%
Manual
6°C ±1°C ÷ 30°C ±1°C
THERMISTOR ( ROOM SENSOR ) TH4
2,0
0,102
1/2" Gas
3) COMPONENT SPECIFICATIONS ( Boiler connection kit )
Water HEAT EXCHANGER COIL
Coil Aluminium plate fin / Copper tube
1
CONTROLLER ( HWC )
42
4) HYDRAULIC CONNECTIONS AND VALV
E
43
DISEGNO MACCHINA
R.C.S. Bourg-en-Bresse B 759 200 728
R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France
Tél. 04.74.00.92.92 - Fax 04.74.00.42.00
Loading...
