UserManual
MidiSecurityKitPROFullHD
1080PTX‐51
Table of Contents
1 FEATURES AND SPECIFICATIONS .......................................................................................... 7
1.1 Overview ................................................................................................................................................. 7
1.2 Features .................................................................................................................................................. 7
1.3 Specifications ......................................................................................................................................... 8
1.3.1 Midi Security Kit PRO FullHD1080P TX-51 .................... Fehler! Textmarke nicht definiert.
2 OVERVIEW AND CONTROLS .................................................................................................... 8
2.1 Front Panel ........................................................................................................................................... 10
2.1.1 Midi Security Kit PRO FullHD1080P TX-51 .................... Fehler! Textmarke nicht definiert.
2.2 Rear Panel ............................................................................................................................................ 10
2.2.1 Midi Security Kit PRO FullHD1080P TX-51 .................... Fehler! Textmarke nicht definiert.
2.3 Connection Sample ............................................................................................................................. 12
2.3.1 Midi Security Kit PRO FullHD1080P TX-51 .................... Fehler! Textmarke nicht definiert.
2.4 Remote Control .................................................................................................................................... 12
2.5 Mouse Control ...................................................................................................................................... 14
i
3 INSTALLATION AND CONNECTIONS ...................................................................................... 17
3.1 Check Unpacked DVR ........................................................................................................................ 17
3.2 About Front Panel and Rear Panel ................................................................................................... 17
3.3 HDD Installation ................................................................................................................................... 17
3.3.1 Midi Security Kit PRO FullHD1080P TX-51 .................... Fehler! Textmarke nicht definiert.
3.4 Connecting Power Supply .................................................................................................................. 18
3.5 Connecting Video Input and Output Devices .................................................................................. 18
3.5.1 Connecting Video Input ....................................................................................................... 18
3.5.2 Connecting Video Output ..................................................................................................... 19
3.6 Connecting Audio Input & Output, Bidirectional Audio .................................................................. 19
3.6.1 Audio Input ........................................................................................................................... 19
3.6.2 Audio Output ........................................................................................................................ 19
3.7 Alarm Input and Output Connection ................................................................................................. 19
3.7.1 Alarm Output Port ................................................................................................................ 20
3.8 Other Interfaces ................................................................................................................................... 21
4 OVERVIEW OF NAVIGATION AND CONTROLS ..................................................................... 22
4.1 Boot up and Shutdown ....................................................................................................................... 22
4.1.1 Boot up ................................................................................................................................. 22
4.1.2 Shutdown ............................................................................................................................. 22
4.1.3 Auto Resume after Power Failure ....................................................................................... 22
4.1.4 Replace Button Battery ........................................................................................................ 22
4.2 Startup Wizard ..................................................................................................................................... 22
4.3 Manual Record ..................................................................................................................................... 25
4.3.1 Live Viewing ......................................................................................................................... 25
ii
4.4 Right-Click Menu ................................................................................................................................. 28
4.4.1 Window Switch .................................................................................................................... 28

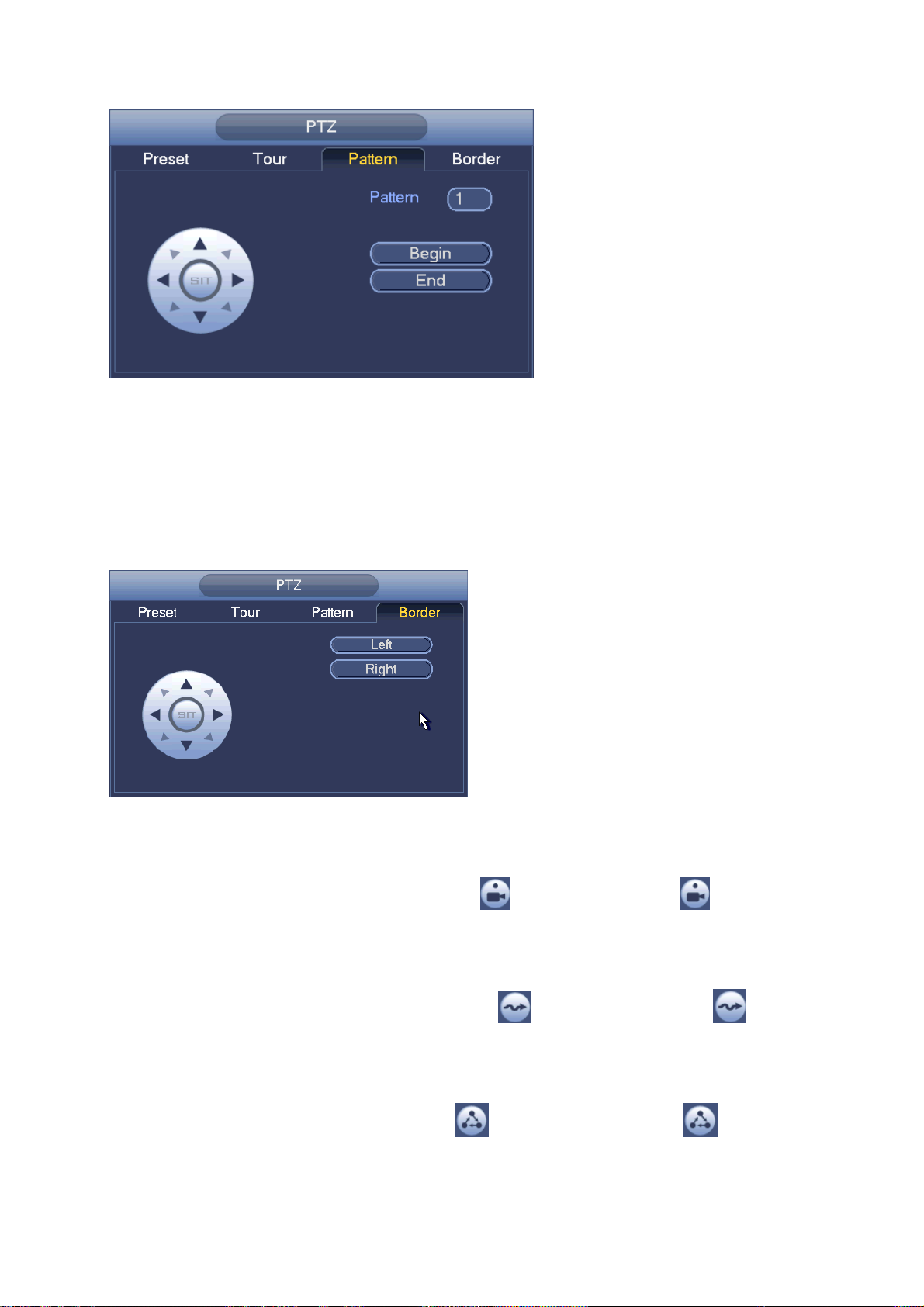

4.4.2 PTZ Control.......................................................................................................................... 28
4.4.3 Color .................................................................................................................................... 33
4.4.4 Search .................................................................................................................................. 35
4.4.5 Manual Record .................................................................................................................... 35
4.5 Navigation Bar ...................................................................................................................................... 35
4.5.1 Main Menu ........................................................................................................................... 35
4.5.2 Output Screen ...................................................................................................................... 35
4.5.3 Favorites .............................................................................................................................. 35
4.5.4 Tour ...................................................................................................................................... 35
4.5.5 PTZ ...................................................................................................................................... 35
4.5.6 Color .................................................................................................................................... 36
4.5.7 Search .................................................................................................................................. 36
4.5.8 Alarm Status ........................................................................................................................ 36
4.5.9 Channel Info ........................................................................................................................ 36
4.5.10 Remote Device .................................................................................................................... 36
4.5.11 Network ................................................................................................................................ 36
4.5.12 HDD Manager ...................................................................................................................... 36
4.5.13 USB Manager ...................................................................................................................... 37
4.6 USB Device Auto Pop-up ................................................................................................................... 37
4.7 Main Menu ............................................................................................................................................ 37
4.8 Operation .............................................................................................................................................. 37
4.8.1 Search .................................................................................................................................. 37

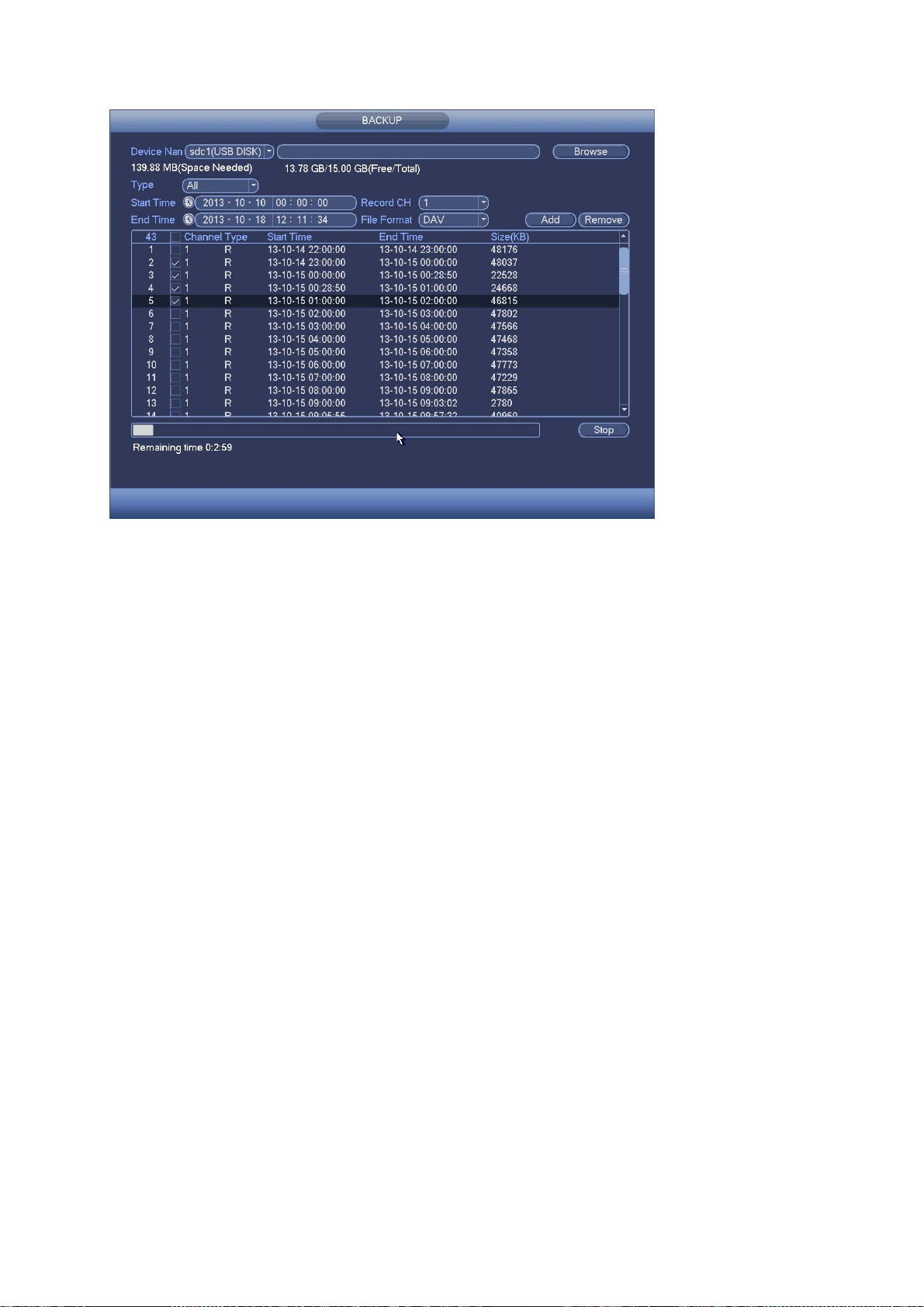

4.8.2 Backup ................................................................................................................................. 44

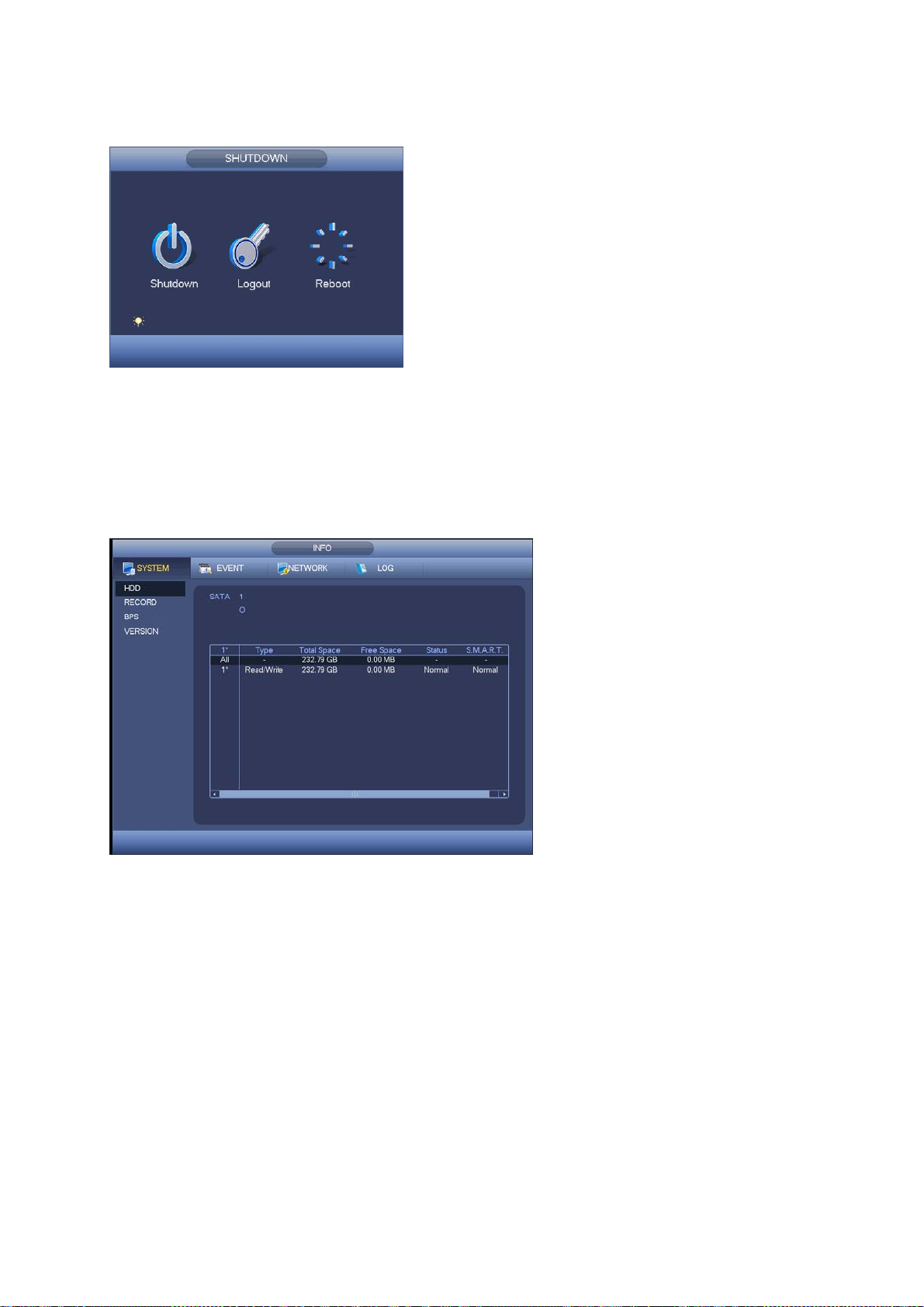

4.8.3 Shut Down ........................................................................................................................... 46
4.9 Information ............................................................................................................................................ 47
4.9.1 System Info .......................................................................................................................... 47
4.9.2 Event .................................................................................................................................... 50
4.9.3 Network ................................................................................................................................ 50
4.9.4 Log ....................................................................................................................................... 52
4.10 Setting ................................................................................................................................................... 53
4.10.1 Camera ................................................................................................................................ 53
4.10.2 Network ................................................................................................................................ 61
4.10.3 Event .................................................................................................................................... 76
iii
4.10.4 Storage ................................................................................................................................ 86
4.10.5 System ................................................................................................................................. 96
5 WEB OPERATION................................................................................................................... 108
5.1 Network Connection .......................................................................................................................... 108
5.2 Login .................................................................................................................................................... 108
5.3 LAN Mode ........................................................................................................................................... 109
5.4 Live ...................................................................................................................................................... 110
5.5 PTZ ...................................................................................................................................................... 111
5.6 Image ................................................................................................................................................... 112
5.6.1 Image ................................................................................................................................. 112
5.7 WAN Login .......................................................................................................................................... 113
5.8 Setup ................................................................................................................................................... 114
5.8.1 Camera .............................................................................................................................. 114
5.8.2 Network .............................................................................................................................. 122
5.8.3 Event .................................................................................................................................. 136
5.8.4 Storage .............................................................................................................................. 143
5.8.5 Setting ................................................................................................................................ 146
5.8.6 Version ............................................................................................................................... 156
5.8.7 Log ..................................................................................................................................... 156
5.8.8 Online User ........................................................................................................................ 157
5.9 Playback .............................................................................................................................................. 157
5.9.1 Search Record ................................................................................................................... 157
5.9.2 File List ............................................................................................................................... 158
5.9.3 Playback ............................................................................................................................ 158
5.9.4 Download ........................................................................................................................... 159
5.9.5 Load more .......................................................................................................................... 159
5.10 Alarm ................................................................................................................................................... 162
iv
5.11 Log out ................................................................................................................................................ 163
5.12 Un-install Web Control ...................................................................................................................... 163
6 PROFESSIONAL SURVEILLANCE SYSTEM ......................................................................... 164
FAQ ......................................................................................................................................... 165
7
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes. The
product must be grounded to reduce the risk of electric shock. We assume no liability or
responsibility for all the fires or electrical shock caused by improper handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Keep upwards. Handle with care.
Do not apply power to the DVR before completing installation.
Do not place objects on the DVR
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are
not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
v
The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc. This series product shall be transported, storage and used in the
specified environments.
6. Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, open the
package and check all the components are included. Contact your local retailer ASAP if
something is broken in your package.
7. Lithium battery
Improper battery use may result in fire, explosion, or personal injury! When replace the battery,
make sure you are using the same model!
This device complies with the requirements of the standards referred to the Directive
R&TTE 1999/5/EC. The Declaration of Conformity you find here: www.technaxx.de/
(in bar at the bottom “Konformitätserklärung”). Before using the device the first time,
read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks). Free Email:
support@technaxx.de
If you drill a hole in the wall, please make sure that power cables, electrical cords
and/or pipelines are not damaged. When using the supplied mounting material, we
do not take the liability for a professional installation. You are entirely responsible to
ensure that the mounting material is suitable for the particular masonry, and that the
installation is done properly. When working at higher altitudes, there is danger of
falling! Therefore, use suitable safeguards.
Security and Disposal Hints for Batteries: Hold children off batteries. When a child
swallowed a battery go to a doctors place or bring the child into a hospital promptly! Look for
the right polarity (+) and (–) of batteries! Always change all batteries. Never use old and new
batteries or batteries of different types together. Never short, open, deform or load up
batteries! Risk of injury! Never throw batteries into fire! Risk of explosion!
Hints for Environment Protection: Packages materials are raw materials
and can be recycled. Do not disposal old devices or batteries into the
domestic waste. Cleaning: Protect the device from contamination and
pollution (use a clean drapery). Avoid using rough, coarse-grained
materials/solvents/other aggressive cleaner. Wipe the cleaned device.
Important Notice: Should battery fluid leak from a battery, wipe the batterycase with a soft cloth dry. Distributor: Technaxx Deutschland GmbH &
Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany
vi
1 FEATURES AND SPECIFICATIONS
1.1 Overview
This series product is an excellent digital monitor product designed for security field. It adopts
embedded Linux OS to maintain reliable operation. It is easy to use and can realize surveillance
function after some simple setups. It has various functions such as record, playback, monitor at
the same time and can guarantee audio video synchronization. This series product has advanced
technology and strong network data transmission function.
This series device adopts embedded design to achieve high security and reliability. It can work in
the local end, and at the same time, when connecting it to the professional surveillance software
(PSS), it can connect to security network to realize strong network and remote monitor function. It
can realize HD monitor without changing current cable layout
This series product can be widely used in various areas such as banking, telecommunication,
electric power, interrogation, transportation, intelligent resident zone, factory, warehouse,
resources, and water conservancy.
1.2 Features
Real-time monitor: It has analog output port, VGA port and HDMI port. You can use monitor
or displayer to realize surveillance function. System supports VGA/HDMI output at the same
time.
Storage function: Special data format to guarantee data security and can avoid vicious data
modification.
Compression format: Support multiple-channel audio and video. An independent hardware
decodes the audio and video signal from each channel to maintain video and audio
synchronization.
Backup function: Support backup operation via USB port (such as flash disk, portable HDD,
burner). Client-end user can download the file to local HDD to backup via network.
Record playback function: Support each channel real-time record independently, and at
the same time it can support search, forward play, network monitor, record search, download
and etc. Support various playback modes: slow play, fast play, backward play and frame by
frame play. Support time title overlay so that you can view event accurate occurred time
Support specified zone enlargement.
Network operation: Support network remote real-time monitor, remote record search and
remote PTZ control.
Alarm activation function: Several relay alarm outputs to realize alarm activation and on-
site light control. The alarm input port and output has the protection circuit to guarantee
device safety.
Communication port: RS485 port can realize alarm input and PTZ control.
RS232 port can connect to keyboard to realize central control, and can also connect to PC COM
to upgrade system and realize maintenance, and matrix control. Standard Ethernet port can
realize network access function.
PTZ control: Support PTZ decoder via RS485. Support various decode protocols to allow
the PTZ to control the speed dome.
Intelligent operation: Mouse operation function, in the menu, support copy and paste setup
function
UpnP: It is to establish the mapping relationship between the LAN and the WAN via the
UPnP protocol.
Slight function differences may be found due to different series.
7
1.3 Specifications
1.3.1 Midi Security Kit PRO FullHD1080P TX-51
Parameters
System Main Processor Industrial embedded micro controller
OS Embedded LINUX
Video
Parameters
Audio
Parameters
Video Encode
Standard
Encode
Resolution
Video Frame
Rate
Video Frame
Rate
Bit Stream Type Video stream/composite stream
Dual-Stream Support
Encode
Standard
Audio Sampling
Rate
H.264
1080P /720P/D1/HD1/2CIF/CIF/QCIF
PAL:1~25f/s；NTSC：1~30f/s
2048Kbps-6144Kbps，
For 1080P: default setup is 4Mbps，max supports 6Mbps
G.711A/G.711U/PCM
8KHz，16Bit
Audio Bit Rate 64Kbps
Video Port Analog Video
Input
Network Video
Input
Video Output
Loop Output N/A
Matrix Output N/A
Audio Port Audio Input N/A
Audio Output N/A
4-channel，BNC port
N/A
1-channel VGA output，
1-channel HDMI output (of the same video source)，
HDMI/ VGA video output at the same time.
8
Parameters
Bidirectional
Talk Input
Record Record Mode Schedule record/manual record/MD record/Alarm record
Record
Playback
Backup Mode HDD, burner, USB device, network backup
Alarm Alarm Input N/A
Alarm Output N/A
HDD HDD Port
One HDD
Space
Coomunication
Port
Network 1 RJ45 port, 100Mbps Ethernet port
Communication N/A
N/A
Max 4-channel playback
1 SATA port，does not support eSATA port
4T
USB 2 USB ports
Others Power DC12V
Power
Consuption
Working
Temperature
Working
Humidity
Dimensions
Weight
Installation
Mode
≤20W（With power adapeter, no HDD）
-10－＋55
10%~90%
SMART 1U case，270mm（W）×205mm（D）×41mm（H）
1.25KG（No HDD）
Desk
9
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series
DVR for the first time, refer to this part first.
2.1 Front Panel
There is no button on the front panel of the Smart Box. There is no need to introduce the
front panel.
2.1.1 Midi Security Kit PRO FullHD1080P TX-51
The front panel is shown as below. See Figure 2-1.
Figure 2-1
Refer to the following sheet for front panel button information.
SN Name Function
1 HDD status indictor light The red light becomes on when HDD is abnormal.
2 Power indicator light
3
Network status indicator
light
The red light becomes on when the power
connection is OK.
The red light becomes on when the network
connection is abnormal.
10
2.2 Rear Panel
2.2.1 Midi Security Kit PRO FullHD1080P TX-51
The rear panel of Midi Security Kit Pro TX-51 is shown as below. See Figure 2-2.
Refer to the following sheet for detailed information.
SN Icon Name Note
Figure 2-2
1
2 VGA VGA video output
3
4 VIDEO IN Video input port Connect to analog camera, video
5
6 HDMI High definition
7
GND Ground end
VGA video output port. Output
port
USB2.0 port Connect to USB storage device,
Power input port
media interface
Network port
analog video signal. Can connect to
the monitor to view ananlog video
output.
mouse, burning DVD-ROM and etc.
input signal.
Input 12V DC.
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
100M Ethernet port
When connect the Ethernet port, use crossover cable to connect the PC and use the
straight cable to connect to the switcher or router.
11
2.3 Connection Sample
2.3.1 Midi Security Kit PRO FullHD1080P TX-51
Refer to the following sheet for detailed information.
Figure2‐8
2.4 Remote Control (for all 3 receivers the same)
The remote control interface is shown as in Figure 2-9.
Note: remote control is not our standard accessory and it is not included in the accessory bag.
Figure 2-9
12
Remote Contol Functions
Serial Number Name Function
1 Power button Click it to boot up or shut down the device.
2 Address Click it to input device number, so that you can control
it.
3 Forward Various forward speeds and normal speed playback.
4 Slow play Multiple slow play speeds or normal playback.
5 Next record In playback mode, playback the next video.
6 Previous record In playback mode, playback the previous video.
7 Play/Pause In pause mode, click this button to realize normal
playback.
In normal playback click this button to pause playback.
In real-time monitor mode, click this button to enter
video search menu.
8 Reverse/pause Reverse playback pause mode, click this button to
realize normal playback.
In reverse playback click this button to pause playback.
9 Cancel Go back to previous menu or cancel current operation
(close upper interface or control)
10 Record Start or stop record manually
In record interface, working with the direction buttons to
select the record channel.
Click this button for at least 1.5 seconds, system can
go to the Manual Record interface.
11 Direction keys Switch current activated control, go to left or right.
In playback mode, click up/down button to switch
playback channel. In 1-window playback mode, click
left/right button to control playback speed. .
Aux function(such as switch the PTZ menu,
enable/disable reuse button)
12 Confirm /menu go to default button
13
key go to the menu
13 Multiple-
window switch
14 Auxiliary key
15 0-9 number key Input password, channel or switch channel.
Switch between multiple-window and one-window.
In 1-ch monitor mode: pop up assistant function：PTZ
control and Video color.
Switch the PTZ control menu in PTZ control interface.
In motion detection interface, working with direction
keys to complete setup.
In text mode, click it to delete character.
Shift is the button to switch the input method.
2.5 Mouse Control (via the remote control)
Left click
mouse
System pops up password input dialogue box if you have not logged in.
In real-time monitor mode, you can go to the main menu.
When you have selected one menu item, left click mouse to view menu
content.
Implement the control operation.
Modify checkbox or motion detection status.
Click combo box to pop up drop down list
14
In input box, you can select input methods. Left click the corresponding
button on the panel you can input numeral/English character
(small/capitalized). Here ← stands for backspace button. ＿ stands for space
button.
In English input mode: _stands for input a backspace icon and ← stands for
deleting the previous character.
In numeral input mode: _ stands for clear and ←
stands for deleting the previous numeral.
When input special sign, you can click corresponding numeral in the front
panel to input. For example, click numeral 1 you can input“/” , or you can click
the numeral in the on-screen keyboard directly.
Double left
click mouse
Implement special control operation such as double click one item in the file
list to playback the video.
In multiple-window mode, double left click one channel to view in full-window.
Double left click current video again to go back to previous multiple-window
mode.
15
Right click
mouse
In real-time monitor mode, pops up shortcut menu: one-window, four-window,
nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search,
record, alarm input, alarm output, main menu.
Among which, Pan/Tilt/Zoom and color setting applies for current selected
channel.
If you are in multiple-window mode, system automatically switches to the
corresponding channel.
Exit current menu without saving the modification.
Press
middle
button
Move
mouse
Drag mouse Select motion detection zone
In numeral input box: Increase or decrease numeral value.
Switch the items in the check box.
Page up or page down
Select current control or move control
Select privacy mask zone.
16
3 Installation and Connections
Note: All the installation and operations here should conform to your local electric
safety rules.
3.1 Check Unpacked DVR
When you receive the DVR from the forwarding agent check whether there is any visible damage.
The protective materials used for the package of the DVR can protect most accidental clashes
during transportation. Then you can open the box to check the accessories.
Check the items in accordance with the list. Finally you can remove the protective film of the DVR.
3.2 About Front Panel and Rear Panel
The model label in the front panel is very important; check according to your purchase order.
The label in the rear panel is very important too. Usually we need you to represent the serial
number when we provide the service after sales.
3.3 HDD Installation
You can refer to the Appendix for recommended HDD brand. Use HDD of 7200rpm or higher.
Follow the instructions below to install hard disk.
All the figurers listed below are for reference only. Slight difference may be found on the
front or rear panel.
3.3.1 Midi Security Kit PRO FullHD1080P TX-51
The series DVR has one SATA HDD.
1. Loosen the screws of the
upper cover and side panel.
2. Fix four screws in the HDD
(Turn just three rounds).
3.Place the HDD in accordance with
the four holes in the bottom.
4. Turn the device upside down
and then turn the screws in
firmly.
5.Fix the HDD firmly.
6. Connect the HDD cable and
power cable.
17
7. Put the cover in accordance
with the clip and then place the
upper cover back.
8. Secure the screws in the
rear panel and the side panel.
Important:
You can connect the HDD data cable and the power cable first and then fix the HDD in the
device.
Pay attention to the front cover. It adopts the vertical sliding design. You need to push the
clip first and then put down.
Important: You can connect the HDD data cable and the power cable first and then fix the
HDD in the device. Pay attention to the front cover. It adopts the vertical sliding design.
You need to push the clip first and then put down.
3.4 Connecting Power Supply
Check input voltage and device power button match or not.
We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral
equipments operation such as cameras.
3.5 Connecting Video Input and Output Devices
3.5.1 Connecting Video Input
The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB
B75Ω.）
，
P
The video signal should comply with your national standards. The input video signal shall have
high SNR, low distortion; low interference, natural color and suitable lightness.
Guarantee the stability and reliability of the camera signal:
The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc. The camera and the DVR should have the same grounding to
ensure the normal operation of the camera.
Guarantee stability and reliability of the transmission line
se high quality, sound shielded BNC. Select suitable BNC model according to the transmission
U
BTTTB
distance. If the distance is too long, you should use twisted pair cable, and you can add video
compensation devices or use optical fiber to ensure video quality. You should keep the video
signal away from the strong electromagnetic interference, especially the high tension current.
P-
18
Keep connection lugs in well contactBTTTB
The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint, lap
welding and oxidation.BTTTB
3.5.2 Connecting Video Output
Video output includes a BNC(PAL/NTSC1.0V
System supports BNC, VGA and HDMI output at the same time.
When you are using pc-type monitor to replace the monitor, pay attention to the following points:
To defer aging, do not allow the pc monitor to run for a long time.
Regular demagnetization will keep device maintain proper status.
Keep it away from strong electromagnetic interference devices.
Using TV as video output device is not a reliable substitution method. You also need to reduce
the working hour and control the interference from power supply and other devices. The low
quality TV may result in device damage.
，75Ω）output ,a VGA output and HDMI output.
P-P
3.6 Connecting Audio Input & Output, Bidirectional Audio
3.6.1 Audio Input
These series products audio input port adopt BNC port. Due to high impedance of audio input,
use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid
interference, dry joint, loose contact and it shall be away from high tension current.
3.6.2 Audio Output
The audio output signal parameter is usually over 200mv 1KΩ (BNC or RCA). It can directly
connect to low impedance earphone, active sound box or amplifier-drive audio output device. If
the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In
this case you can adopt the following measures:
Use better sound pick-up with better directing property.
Reduce the volume of the sound box.
Using more sound-absorbing materials in decoration can reduce voice echo and improve
acoustics environment.
Adjust the layout to reduce happening of the squeaking.
3.7 Alarm Input and Output Connection
Read the followings before connecting.
1. Alarm input
a. Make sure alarm input mode is grounding alarm input.
b. Grounding signal is needed for alarm input.
c. Alarm input needs the low level voltage signal.
d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)
e. When you are connecting two DVRs or you are connecting one DVR and one other device, use
a relay to separate them,
2. Alarm output
19
The alarm output port should not be connected to high power load directly (It shall be less than
1A) to avoid high current which may result in relay damage. Use the co contactor to realize the
connection between the alarm output port and the load.
3. How to connect PTZ decoder
a. Ensure the decoder has the same grounding with DVR, otherwise you may not control the PTZ.
Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding.
b. Avoid high voltage. Ensure proper wiring and some thunder protection measures.
c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end
to reduce reflection and guarantee the signal quality.
d. “485 A, B” of DVR cannot parallel connect with “485 port” of other device.
e. The voltage between of A,B lines of the decoder should be less than 5v.
4. Make sure the front-end device has soundly earthed.
Improper grounding may result in chip damage.
3.7.1 Alarm Output Port
Provide external power to external alarm device.
To avoid overloading, read the following relay parameters sheet carefully.
RS485 A/B cable is for the A/B cable of the PTZ decoder.
T+,T‐,R+,R‐ are four-wire double duplex RS485 port.
T+ T-: output wire,
R+ R-: input wire
Relay Specification
Model:
Material of the
touch
Rating
（ Resistance
Load）
Insulation Between touches with same
JRC-27F
Silver
Rated switch capacity 30VDC 2A, 125VAC 1A
Maximum switch power 125VA 160W
Maximum switch voltage 250VAC, 220VDC
Maximum switch currency 1A
polarity
Between touches with different
polarity
1000VAC 1minute
1000VAC 1minute
Surge voltage
Length of open
time
Between touch and winding 1000VAC 1minute
Between touches with same
polarity
3ms max
1500V (10×160us)
20
Length of close
time
Longevity
Temperature
3ms max
Mechanical 50×106 times (3Hz)
Electrical 200×103 times (0.5Hz)
-40 ~+70
3.8 Other Interfaces
There are still other interfaces on the DVR, such as USB port.
21
4 Overview of Navigation and Controls
4.1 Boot up and Shutdown
4.1.1 Boot up
Before the boot up, make sure:
The rated input voltage matches the device power on-off button. Make sure the power wire
connection is OK. Then click the power on-off button.
Always use the stable current, if necessary UPS is a best alternative measure.
Follow the steps listed below to boot up the device.
Connect the device to the monitor and then connect a mouse.
Connect power cable.
Click the power button at the front or rear panel and then boot up the device. After device
booted up, the system is in multiple-channel display mode by default.
4.1.2 Shutdown
Note
When you see corresponding dialogue box “System is shutting down…” Do not click power
on-off button directly.
Do not unplug the power cable or click power on-off button to shutdown device directly when
device is running (especially when it is recording.)
There are three ways for you to log out.
a) Main menu (RECOMMENDED)
From Main Menu->Shutdown, select shutdown from dropdown list.
Click OK button, you can see device shuts down.
b) From power on-off button on the front panel or remote control
Press the power on-off button on the DVR front panel or remote control for more than 3
seconds to shutdown the device.
c) From power on-off button on the rear panel.
4.1.3 Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after power
failure.
4.1.4 Replace Button Battery
Make sure to use the same battery model if possible.
We recommend replace battery regularly (such as one-year) to guarantee system time
accuracy.
Note:
Before replacement, save the system setup, otherwise, you may lose the data
completely!
4.2 Startup Wizard
After device successfully booted up, it goes to startup wizard.
Click Cancel/Next button, you can see system goes to login interface.
22
Tips: Check the box Startup button here, system goes to startup wizard again when it boots up
the next time.
Cancel the Startup button, system goes to the login interface directly when it boots up the next
time.
Figure4‐1
Click Cancel button or Next Step button, system goes to login interface. See Figure 4-2.
System consists of four accounts:
Username: admin. Password: admin. (administrator, local and network)
Username: 888888. Password: 888888. (administrator, local only)
Username: 666666. Password: 666666(Lower authority user who can only monitor,
playback, backup and etc.)
Username: default. Password: default (hidden user). Hidden user “default” is for system
interior use only and can not be deleted. When there is no login user, hidden user “default”
automatically login. You can set some rights such as monitor for this user so that you can
view some channel view without login.
Figure4‐2
Note:
For security reason, modify password after you first login.
Within 30 minutes, three times login failure will result in system alarm and five times login failure
will result in account lock!
23
Click OK button, you can go to General interface. See Figure 4-3.
For detailed information, refer to chapter 4.10.5.1.
Click Next button, you can go to network interface. See Figure 4-4.
For detailed information, refer to chapter 4.9.3.
Figure 4-3
Figure 4-4
Click Next button, you can go to Schedule interface. See Figure 4-5.
For detailed information, refer to chapter 4.10.4.1.1.
24
Figure 4-5
Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is
complete. See Figure 4-6.
Figure 4-6
4.3 Manual Record
4.3.1 Live Viewing
After you logged in, the system is in live viewing mode. You can see system date, time,
channel name and window No. If you want to change system date and time, you can refer to

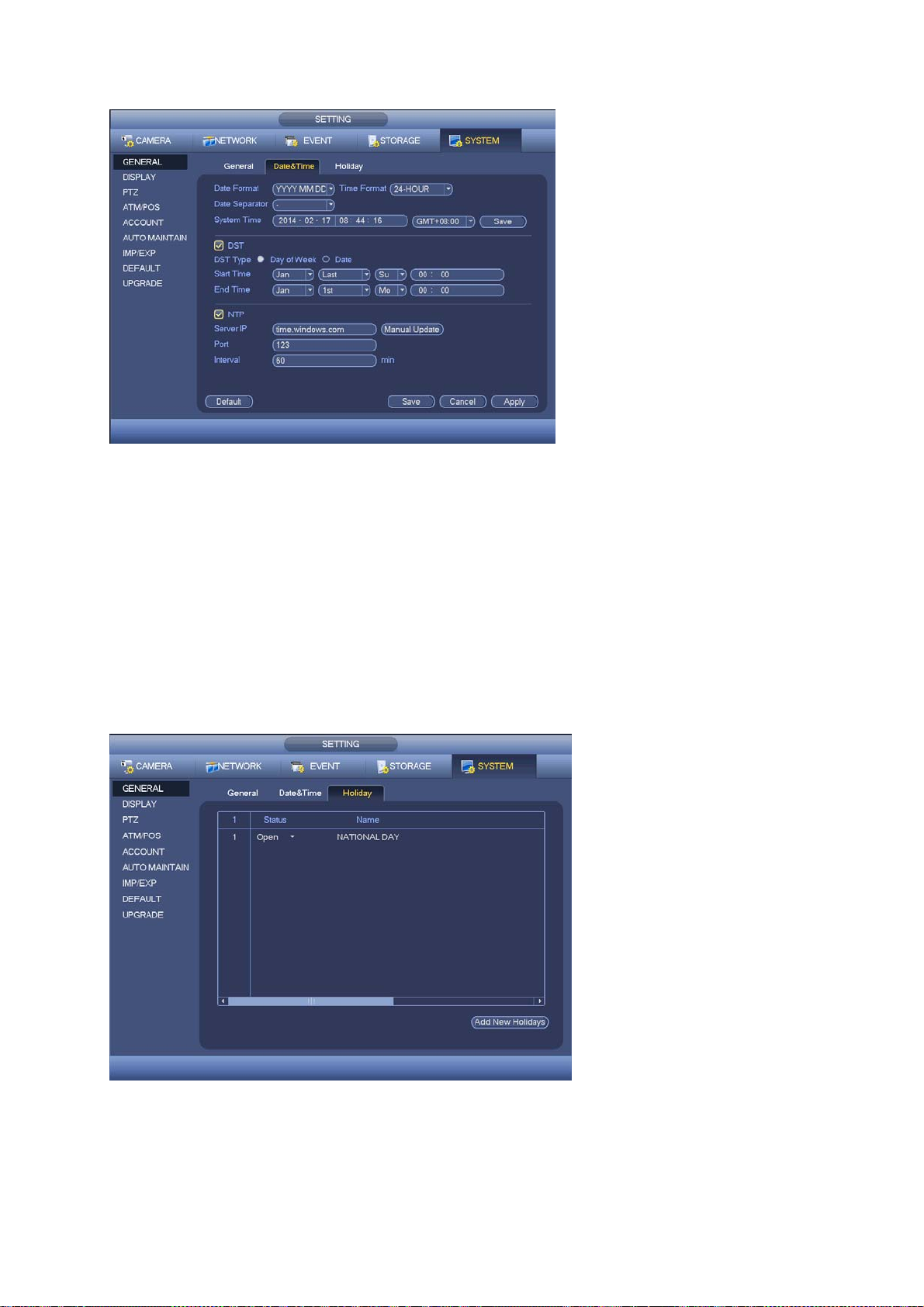

general settings (Main Menu->Setting->System->General). If you want to modify the channel

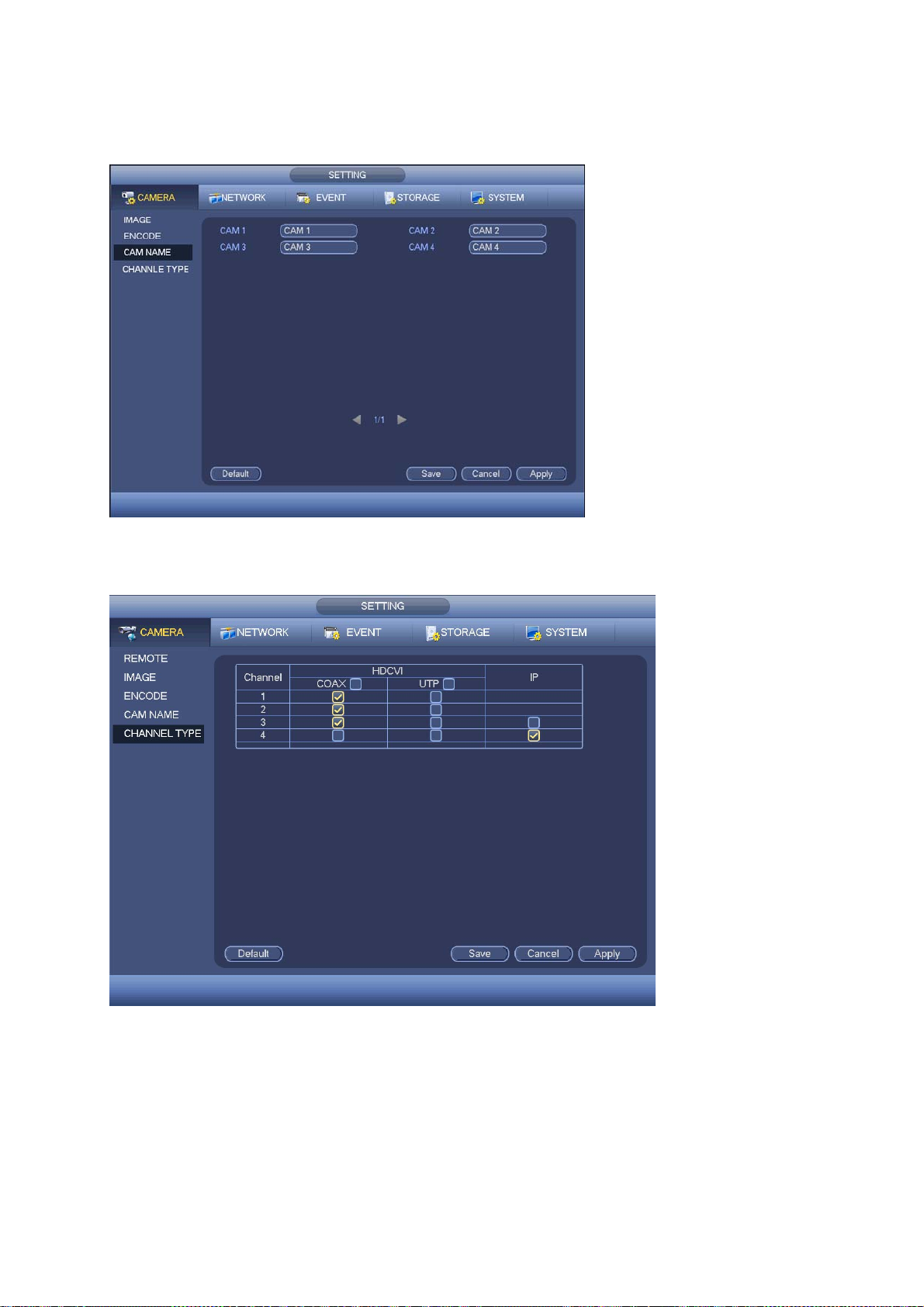

name, refer to the display settings (Main Menu->Camera->CAM name).
1
2
Recording status 3
Motion detection 4
Video loss
Camera lock
25
Tips
Preview drag: If you want to change position of channel 1 and channel 2 when you are
previewing, you can left click mouse in the channel 1 and then drag to channel 2, release
mouse you can switch channel 1 and channel 2 positions.
Use mouse middle button to control window split: You can use mouse middle button to
switch window split amount.
Preview Control
The preview control function has the following features.
Support preview playback.
In the preview desktop, system can playback previous 5-60 minutes record of current
channel. Go to the Main Menu->General to set real-time playback time.
Support drag and play function. You can use your mouse to select any playback start
time.
Support playback, pause and exit function.
Right now, system does not support slow playback and backward playback function.
Support digital zoom function.
Support real-time backup function.
You can follow the contents listed below for the operation instruction.
Preview control interface
Move you mouse to the top centre of the video of current channel, you can see system pops
up the preview control interface. See Figure 4-7 and Figure 4-8. If your mouse stays in this
area for more than 6 seconds and has no operation, the control bar automatically hides.
12345
Figure 4-7 Analog Channel
123467
Figure 4-8 Digital Channel
1) Realtime playback
It is to playback the previous 5-60 minutes record of current channel.
Go to the Main menu->Setting->->System->General to set real-time playback time.
System may pop up a dialogue box if there is no such record in current channel.
2) Digital zoom
It is to zoom in specified zone of current channel. It supports zoom in function of multiple-
channel.
Click button
, the button is shown as .
26
There are two ways for you to zoom in.
Drag the mouse to select a zone, you can view an interface show as Figure 4-9.
Figure 4-9
Put the middle button at the centre of the zone you want to zoom in, and move the
mouse, you can view an interface shown as in Figure 4-10.
Figure 4-10
Right click mouse to cancel zoom and go back to the original interface.
3) Manual record function
It is to backup the video of current channel to the USB device. System can not backup the
video of multiple-channel at the same time.
Click button
the record file on the flash disk.
4) Manual Snapshot
Click
go to the Search interface (chapter 4.8.1) to view.
5) Mute (For analog channel only)
Click to mute. Click again to enable audio function when preview.
Note this function is for one-window mode only or the max-size window of the 8-window mode.
6) Bidirectional talk (For digital channel only)
If the connected front-end device supports bidirectional talk function, you can click this button.
Click button
rest bidirectional talk buttons of digital channel becomes null too.
to snapshot 1-5 times. The snapshot file is saved on the USB device or HDD. You can
, system begins recording. Click it again, system stops recoridng. You can find
to start bidirectional talk function the icon now is shown as . Now the
Click
digital channels become as
7) Remote device (For digital channel only)
Shortcut menu. Click it to go to the remote device interface to add/delete remote device or
view its corresponding information. Refer to chapter 4.10.1.1.1 for detailed information.
again, you can cancel bidirectional talk and the bidirectional talk buttons of other
.
27
4.4 Right-Click Menu
On the preview interface, right click mouse, you can view menu interface shown as in Figure 4-11.
Tips
After you go to the corresponding interface, right click mouse to go back to the upper-level.
Figure 4-11
4.4.1 Window Switch
System supports 1/4-window. You can select from the dropdown list. See Figure 4-12.
Figure 4-12
4.4.2 PTZ Control
The PTZ setup is shown as in See Figure 4-13.
Note the commend name is grey once device does not support this function.
The PTZ operation is only valid in one-window mode.
Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux
function, light and wiper, rotation and etc. Speed is to control PTZ movement speed. The value
ranges from 1 to 8.The speed 8 is faster than speed 1. You can use the remote control to click
the small keyboard to set.
You can click
The PTZ rotation supports 8 directions. If you are using direction buttons on the front panel, there
are only four directions: up/down/left/right.
and of the zoom, focus and iris to zoom in/out, definition and brightness.
28
Figure4‐13
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure
4-14. Make sure your protocol supports this function and you need to use mouse to control.
Click this key, system goes back to the single screen mode. Drag the mouse in the screen to
adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ
automatically. The smaller zone you dragged, the higher the speed.
Figure4‐14
Name Function
key
Zoom
Focus
Iris
In Figure 4-13, click to open the menu, you can set preset, tour, pattern, scan and etc.
See Figure 4-15.
function Shortcut
key
Near
Near
close
│
Function
key
function Shortcut
key
Far
Far ►│
Open
Figure4‐15
Refer to the following sheet for detailed information.
Note the above interface may vary due to different protocols. The button is grey and can not
be selected once the current function is null. Right click mouse or click the ESC button at the
front panel to go back to the Figure 4-13.
29
Icon Function Icon Function
Preset Flip
Tour Reset
Pattern Aux
Scan Aux on-off
button
Rotate Go to menu
4.4.2.1 PTZ Function Setup
Click , you can go to the following interface to set preset, tour, pattern, and scan. See Figure
4-16.
Figure4‐16
Preset Setup
In Figure 4-16, click preset button and use eight direction arrows to adjust camera to the proper
position. The interface is shown as in Figure 4-17.
Click Set button and then input preset number. Click Set button to save current preset.
30
Figure4‐17
Tour Setup
In Figure 4-16, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour. See
Figure 4-18.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove it from
the tour. Note some protocols do not support delete preset function.
Figure 4-18
Pattern Setup
In Figure 4-16, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 4-13 to operate
zoom/focus/iris/direction operation.
In Figure 4-16, click End button.
31
Figure4‐19
Scan Setup
In Figure 4-16, click Scan button.
Use direction buttons to set camera left limit and then click Left button.
Use direction buttons to set camera right limit and then click Right button. Now the scan setup
process is complete.
Figure4‐20
4.4.2.2 Call PTZ Function
Call Preset
In Figure 4-15, input preset value and then click
call.
Call Pattern
In Figure 4-15, input pattern value and then click
stop call.
Call Tour
In Figure 4-15, input tour value and then click
Call Scan
to call a preset. Click again to stop
to call a pattern. Click again to
to call a tour. Click again to stop call.
32
In Figure 4-15, input Scan value and then click to call a tour. Click again to stop
call.
Rotate
In Figure 4-15, click to enable the camera to rotate.
System supports preset, tour, pattern, scan, rotate, light and etc function.
Note:
Preset, tour and pattern all need the value to be the control parameters. You can define it as
you require.
You need to refer to your camera user’s manual for Aux definition. In some cases, it can be
used for special process.
Aux
Click
The aux number is corresponding to the aux on-off button of the decoder. See Figure 4-21.
, system goes to the following interface. The options here are defined by the protocol.
Figure4‐21
4.4.3 Color
Here you can set hue, brightness, contrast, saturation, gain, white level, color mode and etc.
See Figure 4-22.
Figure4‐22
33
Refer to the following sheet for detailed information.
Item Note
Period There are two periods in one day. You can set different
sharpness, brightness, and contrast setup for different periods.
Effective Time Check the box here to enable this function and then set period
time.
The value here is to adjust the edge of the video. The value
ranges from 0 to 100. The larger the value is, the clear the
Sharpness
edge is and vice versa. Note there is noise if the value here is
too high. The default value is 50 and the recommended value
ranges from 40 to 60.
Brightness
Contrast
Saturation
It is to adjust monitor window bright. The value ranges from 0
to 100. The default value is 50.
The larger the number, the bright the video is. When you input
the value here, the bright section and the dark section of the
video will be adjusted accordingly. You can use this function
when the whole video is too dark or too bright. Note the video
may become hazy if the value is too high. The recommended
value ranges from 40 to 60.
It is to adjust monitor window contrast. The value ranges from
0 to 100. The default value is 50.
The larger the number, the higher the contrast is. You can use
this function when the whole video bright is OK but the
contrast is not proper. Note the video may become hazy if the
value is too low. If this value is too high, the dark section may
lack brightness while the bright section may over
exposure .The recommended value ranges from 40 to 60.
It is to adjust monitor window saturation. The value ranges
from 0 to 100. The default value is 50.
The larger the number, the strong the color is. This value has
no effect on the general brightness of the whole video. The
video color may become too strong if the value is too high. For
the grey part of the video, the distortion may occur if the white
balance is not accurate. Note the video may not be attractive
if the value is too low. The recommended value ranges from
40 to 60.
Color mode It includes several modes such as standard, color, bright,
gentle. Select a color mode, the sharpness, brightness,
contrast and etc can automatically switch to corresponding
setup.
EQ Click reset button, device can automatically adjust to the best
display effect.
34
Item Note
Position It is to adjust the image position on the screen.
Customized Click it to set customized color mode.
4.4.4 Search
Refer to chapter 4.8.1 for detailed information.
4.4.5 Manual Record
Refer to chapter 4.10.4.3.1 for detailed information.
4.5 Navigation Bar
You need to go to the Main menu->Setting->System->General to enable navigation bar
function; otherwise you can not see the following interface.
The navigation bar is shown as below. See Figure 4-23.
Figure 4-23
4.5.1 Main Menu
Click button to go to the main menu interface.
4.5.2 Output Screen
Select corresponding window-split mode and output channels.
4.5.3 Favorites
Click , system pops up the favorites schemes. Click one item, you can view saved favorite
channel split mode and channel number. See Figure 4-24.
Note, right now the favorite scheme name after the window split mode.
Figure 4-24
4.5.4 Tour
Click button to enable tour, the icon becomes , you can see the tour is in process.
4.5.5 PTZ
Click , system goes to the PTZ control interface. refer to chapter 4.4.2.
35
4.5.6 Color
Click button , system goes to the color interface. refer to chapter 4.4.3.
4.5.7 Search
Click button , system goes to search interface. Refer to chapter 4.8.1
4.5.8 Alarm Status
Click button , system goes to alarm status interface. It is to view device status and channel
status. Refer to chapter 4.10.3.
4.5.9 Channel Info
Click button , system goes to the channel information setup interface. It is to view information
of the corresponding channel. See Figure 4-25.
Figure4‐25
4.5.10 Remote Device
Click , system goes to an interface for you to view remote device information. Refer to
chapter 4.10.1.1
4.5.11 Network
Click , system goes to the network interface. It is to set network IP address, default gateway
and etc. Refer to chapter 4.10.2.
4.5.12 HDD Manager
Click ， system goes to the HDD manager interface. It is to view and manage HDD
information. Refer to chapter 4.10.4.2.
36
4.5.13 USB Manager
Click ， system goes to the USB Manager interface. It is to view USB information, backup
and update. Refer to chapter 4.8.2, chapter 4.9.4, chapter 4.10.5.7, and chapter 4.10.5.9 for
detailed information.
4.6 USB Device Auto Pop-up
After you inserted the USB device, system can auto detect it and pop up the following dialogue
box. It allows you to conveniently backup file, log, configuration or update system. See Figure
4-26. Refer to chapter 4.8.2, chapter 4.9.4, chapter 4.10.5.7, and chapter 4.10.5.9 for detailed
information.
Figure4‐26
4.7 Main Menu
The main menu interface is shown as below. See Figure 4-27.
Figure4‐27
4.8 Operation
4.8.1 Search

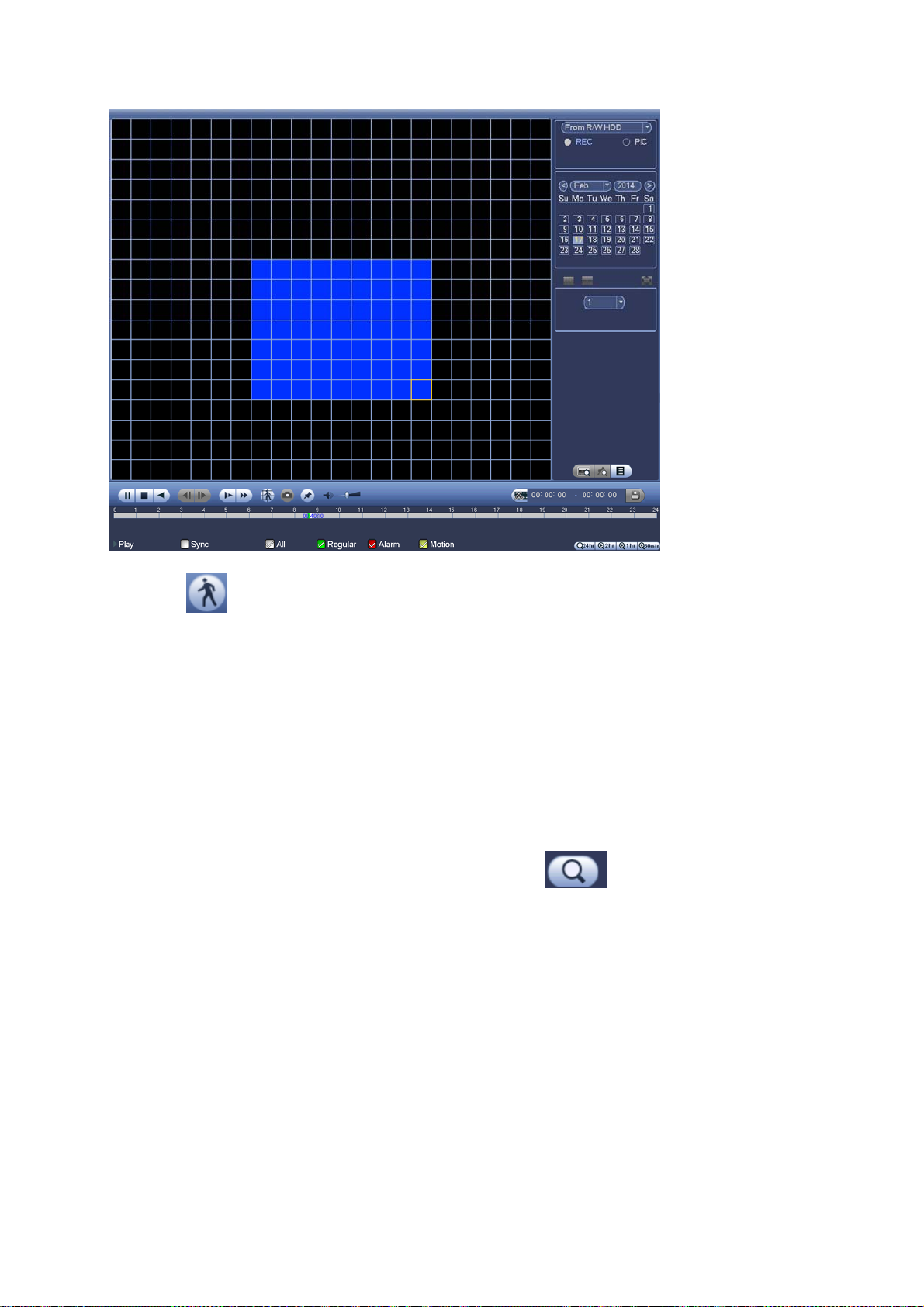

Click search button in the main menu, search interface is shown as below. See Figure 4-28.
Usually there are three file types: R: Regular recording file. A: External alarm recording file.
M: Motion detection recording file
37
Figure 4-28
Refer to the following sheet for more information.
SN Name Function
1
2
3 Calendar
4
Display
window
Search
type
Playback
mode
and
channel
selection
pane.
Here is to display the searched picture or file.
Support 1/4/8-window playback.
Here you can select to search the picture or the recorded file.
You can select to play from the read-write HDD, from peripheral device or from
redundancy HDD.
Before you select to play from the peripheral device, connect the corresponding
peripheral device. You can view all record files of the root directory of the
peripheral device. Click the Browse button; you can select the file you want to play.
Important
Redundancy HDD does not support picture backup function, but it
supports picture playback function. You can select to play from redundancy
HDD if there are pictures on the redundancy HDD.
The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file.
In any play mode, click the date you want to see, you can see the corresponding
record file trace in the time bar.
Playback mode：1/4/9. (It may vary due to different series.)
In 1-window playback mode: you can select 1-16 channels.
In 4-window playback mode: you can select 4 channels according to your
In 9-window playback mode, you can switch between 1-8 and 9-16 channels.
The time bar will change once you modify the playback mode or the channel
option.
requirement.
5
Card
number
search
The card number search interface is shown as below. Here you can view card
number/field setup bar. You cam implement advanced search.
38
6
7
Mark file
list button
File list
switch
button
Click it to go to mark file list interface. You can view all mark information of current
channel by time. Refer to chapter 4.8.1.3 for detailed information. Note only the
product of this icon supports mark function.
Double click it, you can view the picture/record file list of current day.
The file list is to display the first channel of the record file.
The system can display max 128 files in one time. Use the │and │ or the
mouse to view the file. Select one item, and then double click the mouse or click
the ENTER button to playback.
You can input the period in the following interface to begin accurate search.
File type： R—regular record； A—external alarm record ；M—Motion detect
record.
8
Playback
control
pane.
Lock file. Click the file you want to lock and click the button
you locked will not be overwritten.
Search locked file: Click the button to view the locked file.
Return: Click button , system goes back to the calendar and channel setup
interface.
Note:
Play/Pause
There are three ways for you to begin playback.
►/
■ Stop
│/
│
The play button
Double click the valid period of the time bar.
Double click the item in the file list.
In slow play mode, click it to switch between play/pause.
Backward play
In normal play mode, left click the button, the file begins backward play.
Click it again to pause current play.
In backward play mode, click ►/ to restore normal play.
In playback mode, click it to play the next or the previous section. You can
click continuously when you are watching the files from the same channel.
In normal play mode, when you pause current play, you can click │ and
│ to begin frame by frame playback.
to lock. The file
►
In frame by frame playback mode, click ►/ to restore normal playback.
Slow play
In playback mode, click it to realize various slow play modes such as slow
play 1, slow play 2, and etc.
Fast forward
In playback mode, click to realize various fast play modes such as fast
39
play 1,fast play 2 and etc.
Note: The actual play speed has relationship with the software version.
Smart search
The volume of the playback
Click the snapshot button in the full-screen mode, the system can snapshot
1 picture.
System supports custom snap picture saved path. Connect the peripheral
device first, click snap button on the full-screen mode, you can select or
create path. Click Start button, the snapshot picture can be saved to the
specified path.
Mark button.
Note this function is for some series product only. Make sure there is a
mark button in the playback control pane.
9 Time bar
10
11 Backup
12 Clip
Time bar
unit
You can refer to chapter 4.8.1.3 for detailed information.
It is to display the record type and its period in current search criteria.
In 4-window playback mode, there are corresponding four time bars. In other
playback mode, there is only one time bar.
Use the mouse to click one point of the color zone in the time bar, system begins
playback.
The time bar is beginning with 0 o'clock when you are setting the configuration.
The time bar zooms in the period of the current playback time when you are
playing the file.
The green color stands for the regular record file. The red color stands for the
external alarm record file. The yellow stands for the motion detect record file.
●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the
zoom rate. You can accurately set the time in the time bar to playback the record.
The time bar is beginning with 0 o'clock when you are setting the configuration.
The time bar zooms in the period of the current playback time when you are
playing the file.
Select the file(s) you want to backup from the file list. You can check from the
list. Then click the backup button, now you can see the backup menu. System
supports customized path setup. After select or create new folder, click the
Start button to begin the backup operation. The record file(s) will be saved in
the specified folder.
Check the file again you can cancel current selection. System max supports to
display 32 files from one channel.
After you clip on record file, click Backup button you can save it.
For one device, if there is a backup in process, you can not start a new
backup operation.
It is to edit the file.
●Play the file you want to edit and then click this button when you want to edit. You
can see the corresponding slide bars in the time bar of the corresponding channel.
You can adjust the slide bar or input the accurate time to set the file end time.
40
After you set, you can click Clip button again to edit the second period. You can
Click Backup button after clip, you can save current contents in a new file.
You can clip for one channel or multiple-channel. The multiple-channel click
Note:
System max supports 1024 files backup at the same time.
You can not operate clip operation if there is any file has been checked
13
Other Functions
14 Smart search
15
Record
type
Other channel
synchronization
switch to play
when playback
In any play mode, the time bar will change once you modify the search type.
see the slide bar restore its previous position.
operation is similar with the one-channel operation.
in the file list.
When system is playing, you can select a zone in the window to
begin smart search. Click the motion detect button to begin play.
Once the motion detect play has begun, click button again will
terminate current motion detect file play.
There is no motion detect zone by default.
If you select to play other file in the file list, system switches to motion
detect play of other file.
During the motion detect play process, you can not implement
operations such as change time bar, begin backward playback or
frame by frame playback.
Refer to chapter 4.8.1.1 Smart Search for detailed operation.
When playing the file, click the number button, system can switch to the
same period of the corresponding channel to play.
When the system is in full-screen playback mode, left click the mouse
16 Digital zoom
Manually switch
17
channel when
playback
in the screen. Drag your mouse in the screen to select a section and
then left click mouse to realize digital zoom. You can right click mouse
to exit.
During the file playback process, you can switch to other channel via
the dropdown list or rolling the mouse.
This function is null if there is no record file or system is in smart
search process.
4.8.1.1 Smart Search
During the multiple-channel playback mode, double click one channel and then click the
button, system begins smart search. System supports 396(22*18 PAL) and 330(22*15 NTSC)
zones. Left click mouse to select smart search zones. See Figure 4-29.
41
Figure4‐29
Click the , you can go to the smart search playback. Click it again, system stops smart
search playback.
Important
System does not support motion detect zone setup during the full-screen mode.
During the multiple-channel playback, system stops playback of rest channels if you
implement one-channel smart search.
4.8.1.2 Accurate playback by time
Select records from one day, click the list, you can go to the file list interface. You can input time
at the top right corner to search records by time. See image on the left side of the Figure 4-30 For
example, input time 11:00.00 and then click Search button
files after 11:00.00 (The records includes current time.). See image on the right side of the Figure
4-30 Double click a file name to playback.
Note
After you searched files, system implement accurate playback once you click Play for the
first time.
System does not support accurate playback for picture.
System supports synchronization playback and non-synchronous playback. The
synchronization playback supports all channels and non-synchronous playback only
supports accurately playback of current select channel.
, you can view all the record
42
Figure4‐30
4.8.1.3 Mark Playback
Make sure your purchased device support this function. You can use this function only if
you can see the mark playback icon on the Search interface (Figure 4-28).
When you are playback record, you can mark the record when there is important information.
After playback, you can use time or the mark key words to search corresponding record and then
play. It is very easy for you to get the important video information.
Add Mark
When system is playback, click Mark button
, you can go to the following interface. See Figure
4-31. Figure4‐31
Playback Mark
During 1-window playback mode, click mark file list button
mark file list interface. Double click one mark file, you can begin playback from the mark time.
Play before mark time
Here you can set to begin playback from previous N seconds of the mark time.
Note
Usually, system can playbacks previous N seconds record if there is such kind of record file.
Otherwise, system playbacks from the previous X seconds when there is such as kind of record.
Mark Manager
Click the mark manager button
Manager interface. See Figure 4-32. System can manage all the record mark information of
current channel by default. You can view all mark information of current channel by time.
on the Search interface (Figure 4-28); you can go to Mark
in Figure 4-28, you can go to
43
Figure 4-32
Modify
Double click one mark information item, you can see system pops up a dialogue box for you to
change mark information. You can only change mark name here.
Delete
Here you can check the mark information item you want to delete and then click Delete button,
you can remove one mark item. .
Note
After you go to the mark management interface, system needs to pause current playback.
System resume playback after you exit mark management interface.
If the mark file you want to playback has been removed, system begin playbacking from the
first file in the list.
4.8.2 Backup
DVR support CD-RW, DVD burner, USB device backup, network download and eSATA. Here
we introduce USB, eSATA backup. You can refer to Chapter 5 Web Operation for network
download backup operation.

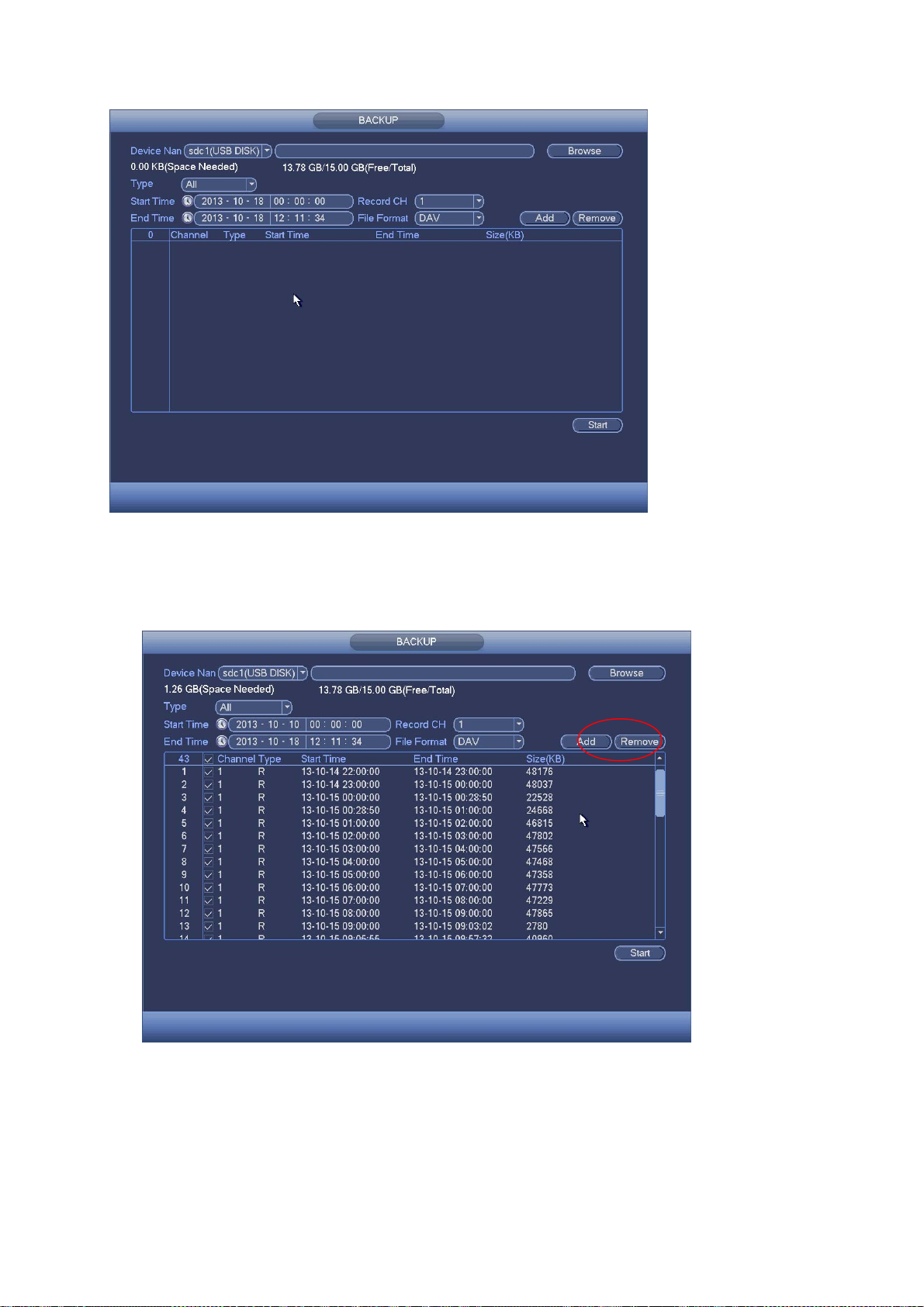

Click backup button, you can see an interface is shown as in Figure 4-33. Here is for you to
view devices information.
You can view backup device name and its total space and free space. The device includes
CD-RW, DVD burner, USB device, flash disk, eSATA backup.
44
Figure4‐33
Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below. System
automatically calculates the capacity needed and remained. See Figure 4-35.
Figure4‐34
System only backup files with a √ before channel name. You can use Fn or cancel button to
delete √ after file serial number.
Click Start button, system begins copy. At the same time, the backup button becomes stop
button. You can view the remaining time and process bar at the left bottom. See Figure 4-35.
45
Figure4‐35
When the system completes backup, you can see a dialogue box prompting successful
backup.
File format: Click the file format; you can see there are two options: DAV/ASF.
The file name format usually is: Channel number+Record type+Time. In the file name, the
YDM format is Y+M+D+H+M+S. File extension name is .dav.
Tips: During backup process, you can click ESC to exit current interface for other operation.
The system will not terminate backup process.
Note: When you click stop button during the burning process, the stop function becomes
activated immediately. For example, if there are ten files, when you click stop system just
backup five files, system only save the previous 5 files in the device (But you can view ten file
names).
4.8.3 Shut Down
In Figure 4-27, select Shut Down, you can go to the following interface. See
Figure4‐36.
There are three options: Shutdown/logout/reboot. See
Figure4‐36.
46
For the user who does not have the shut down right, input corresponding password to shut down.
Figure4‐36
4.9 Information
It is for you to view sysem info, event info, and network info and log info.
4.9.1 System Info
Here is for you to view system information. There are total four items: HDD (hard disk
information), record, BPS (data stream statistics), version. See Figure 4-37.
Figure4‐37
4.9.1.1 HDD Information
Here is to list hard disk type, total space, free space, video start time and status. See Figure 4-38.
SATA: 1 here means system max supports 1 HDD. ○ means current HDD is normal. X
means there is error. - means there is no HDD. If disk is damaged, system shows as
“?”.Remove the broken hard disk before you add a new one.
SN: You can view the HDD amount the device connected to. ﹡ means the second HDD is
current working HDD.
Type: The corresponding HDD properties.
Total space: The HDD total capacity.
Free space: The HDD free capacity.
Status: HDD can work properly or not.
SMART: Display HDD information. See Figure 4-38.
47
Figure4‐38
Double click one HDD information; you can see the HDD SMART information. See Figure 4-39.
Figure4‐39
4.9.1.2 Record Info
It is to view record start time and end time. See Figure 4-40.
Figure4‐40
48
4.9.1.3 BPS
Here is for you to view current video data stream (KB/s), resolution and etc. See
Figure4‐41
Figure4‐41
.
4.9.1.4 Version
Here is for you to view some version information such as version number, built date, serial
number and etc. See Figure 4-42.
Figure4‐42
49
4.9.2 Event
It is to display device status and channel status. See Figure 4-43.
Figure4‐43
4.9.3 Network
4.9.3.1 Online Users
Here is for you to manage online users. See Figure 4-44.
You can disconnect one user or block one user if you have proper system right. Max
disconnection setup is 65535 seconds.
System detects there is any newly added or deleted user in each five seconds and refresh the list
automatically.
Figure4‐44
50
4.9.3.2 Network Load
Network load is shown as in Figure 4-45. Here you can view the follow statistics of the device
network adapter.
Here you can view information of all connected network adapters. The connection status is shown
as offline if connection is disconnected. Click one network adapter, you can view the flow
statistics such as send rate and receive rate at the top panel.
Figure4‐45
4.9.3.3 Network Test
Network test interface is shown as in Figure 4-46.
Destination IP: Input valid IPV4 address or domain name.
Test: Click it to test the connection with the destination IP address. The test results can
display average delay and packet loss rate and you can also view the network status as OK,
bad, no connection and etc.
Network Sniffer backup: Insert USB2.0 device and click the Refresh button, you can view the
device on the following column. You can use the dropdown list to select peripheral device.
Click Browse button to select the snap path. The steps here are same as preview backup
operation.
You can view all connected network adapter names (including Ethernet, PPPoE, WIFI, and 3G),
you can click the button
Note system can not Sniffer several network adapters at the same time.
After Sniffer began, you can exit to implement corresponding network operation such as login
WEB, monitor. Go back to Sniffer interface to click
packets to the specified path. The file is named after “Network adapter name+time”. You can use
software such as Wireshark to open the packets on the PC for the professional engineer to solve
complicated problems.
on the right panel to begin Sniffer. Click the grey stop button to stop.
stop Sniffer. System can save the
51
Figure4‐46
4.9.4 Log
Here is for you to view system log file. System lists the following information. See Figure 4-47.
Log types include system operation, configuration operation, data management, alarm event,
record operation, account manager, log clear, file operation and etc. It optimized reboot log.
There are only three types: normal reboot, abnormal reboot and protection reboot. 0x02、0x03、
0x04 is included in the protection reboot type.
Start time/end time: Select start time and end time, then click search button. You can view
the log files in a list. System max displays 100 logs in one page. It can max save 1024 log
files. Use page up/down button on the interface or the front panel to view more.
Backup: Select a folder you want to save; you can click the backup button to save the log
files. After the backup, you can see there is a folder named Log_time on the backup path.
Double click the folder, you can see the log file
Details: Click the Details button or double click the log item, you can view the detailed
information. See Figure 4-48. Here you can use rolling bar to view information, or you can
use Page up/Page down to view other log information.
Figure4‐47
52
Select an item on the list and then click the Details button or double click the log item, you can
view the detailed information such as log time, log type, log user, IP address and etc. See Figure
4-48.
Figure4‐48
4.10 Setting
It is for you to set camera, network, event, storage, system and etc.
4.10.1 Camera
Here you can set audio/video property, camera property and channel name, channel type.
4.10.1.1 Remote Device (For digital channel only)
Note: You can see this interface after you set IP channel in chapter 4.10.1.3.5. System supports
ONVIF standard protocol.
4.10.1.1.1 Remote Device
In the main menu, from Camera ->Remote, you can go to an interface shown as in Figure 4-49.
Here you can add/delete remote device and view its corresponding information.
IP search: Click it to search IP address. It includes device IP address, port, device name,
manufacturer, type. Use your mouse to click the item name, you can refresh display order.
Click IP address, system displays IP address from small to large. Click IP address again, you
can see icon, system displays IP address from large to small. You can click other items to
view information conveniently.
Add: Click it to connect to the selected device and add it to the Added device list. Support
Batch add.
You can see the corresponding dialogue box if all digital-channel has connected to the
front-end.
System can not add new device if the device you want to add has the same IP and TCP
port as the device in the list.
Show filter: You can use it to display the specified devices from the added device.
Edit: Click button
or double click a device in the list, you can change channel setup.
53
Delete: Select one device in the Added device list and then click to remove.
Status:
Delete；Select a device on the Added device list, click Delete button, system disconnect
device first and then remove its name from the list.
Manual add: Click it to add the IPC manually. The port number is 37777. The default user
name is admin and password is admin.
means connection is OK and means connection failed.
Figure4‐49
Click the Manual Add button; you can go to the following interface. See Figure 4-50.
Channel number：The dropdown list here displays unconnected channel number. You can go to
Figure 4-49 to set remote channel connection.
Note:
This series product supports the IPC from many popular manufactures such as Sony, Hitachi,
Axis, Samsung, Dynacolor, Arecont, Onvif and Dahua.
System default IP address is 192.168.0.0 if you do not input IP address. System will not add
current IP address.
You can not add two or more devices in the Manual Add interface (Figure 4-50). Click OＫ
button, system connects to the corresponding front-end device of current channel on the
interface.
Figure4‐50
54

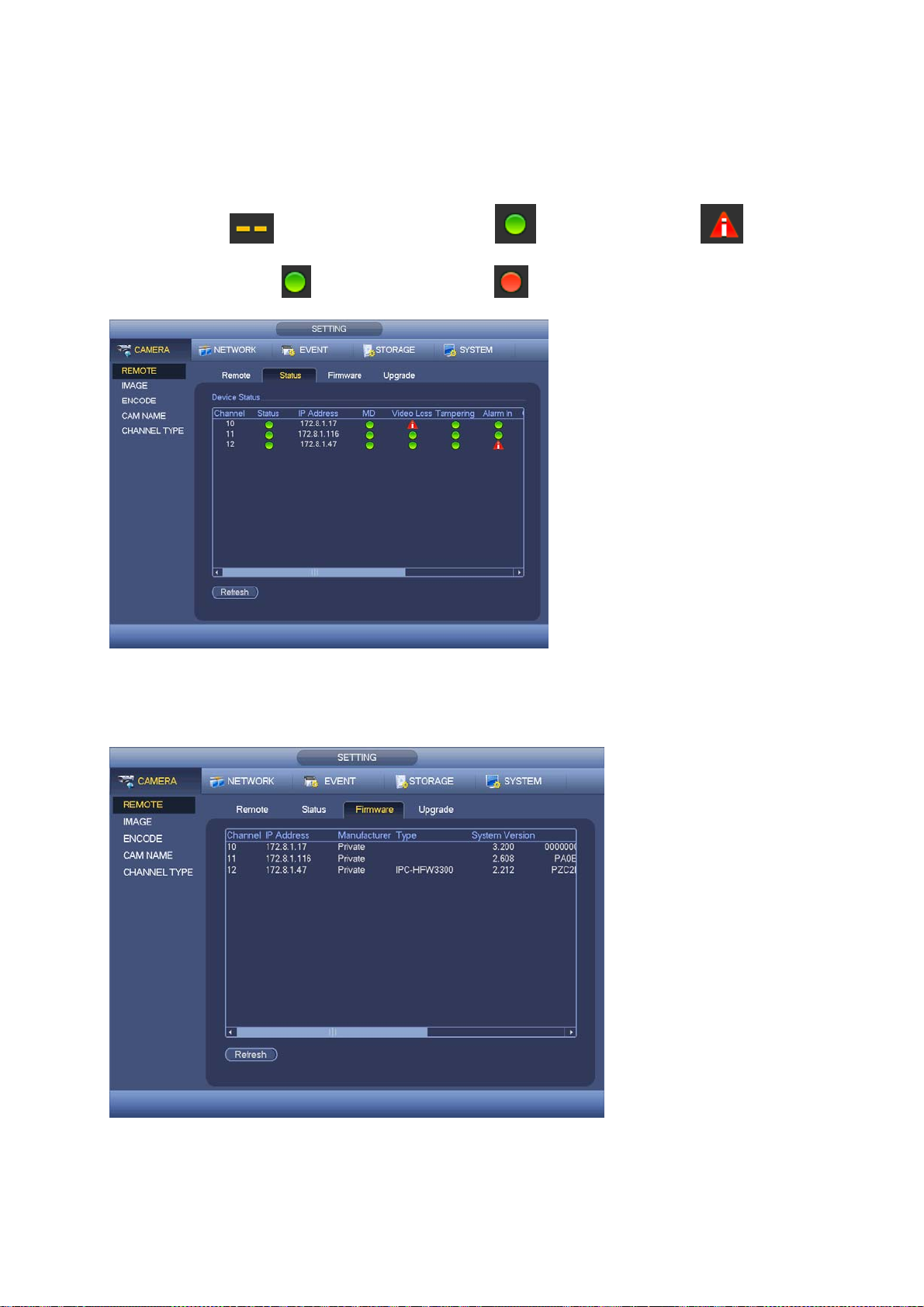

4.10.1.1.2 Channel Status
Here you can view the IPC status of the corresponding channel such as motion detect, video loss,
tampering, alarm and etc. See Figure 4-51.
IPC status :
alarm event from current front-end.
Connection status :
Refresh: Click it to get latest front-end channel status.
: Front-end does not support. : Front-end supports. : There is
: Connection succeeded. : Connection failed.
Figure4‐51
4.10.1.1.3 Firmware
It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio
input, and etc. See Figure 4-52.
Figure4‐52
55
4.10.1.1.4 Remote Upgrade
It is to update the camera. From main menu->setting->camera->remote, the interface is shown as
below. See Figure 4-53. Click Browse button and then select the upgrade file. Then select a
channel (or you can select device type filter to select several devices at the same time.) Click
Start upgrade button to update. You can see the corresponding dialogue once the upgrade is
finish.
Figure4‐53
4.10.1.2 Camera
For analog channel, the camera interface is shown as in Figure 4-54. For digital channel, the
camera interface is shown as in Figure 4-55.
Channel: Select a channel from the dropdown list.
Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The
default value is 50. The larger the number, the strong the color is. This value has no effect
on the general brightness of the whole video. The video color may become too strong if the
value is too high. For the grey part of the video, the distortion may occur if the white balance
is not accurate. Note the video may not be attractive if the value is too low. The
recommended value ranges from 40 to 60.
Brightness: It is to adjust monitor window bright. The value ranges from 0 to 100. The default
value is 50. The larger the number is, the bright the video is. When you input the value here,
the bright section and the dark section of the video will be adjusted accordingly. You can
use this function when the whole video is too dark or too bright. Note the video may become
hazy if the value is too high. The recommended value ranges from 40 to 60.
Contrast: It is to adjust monitor window contrast. The value ranges from 0 to 100. The default
value is 50. The larger the number is, the higher the contrast is. You can use this function
when the whole video bright is OK but the contrast is not proper. Note the video may become
hazy if the value is too low. If this value is too high, the dark section may lack brightness
while the bright section may over exposure .The recommended value ranges from 40 to 60.
Sharpness: The value here is to adjust the edge of the video. The value ranges from 0 to 100.
The larger the value is, the clear the edge is and vice versa. Note there is noise if the value
here is too high. The default value is 50 and the recommended value ranges from 40 to 60.
Mirror: It is to switch video up and bottom limit. This function is disabled by default.
Flip: It is to switch video left and right limit. This function is disabled by default.
BLC:It includes several options: BLC/WDR/HLC/OFF.
BLC: The device auto exposures according to the environments situation so that the darkest
area of the video is cleared
56
WDR: For the WDR scene, this function can lower the high bright section and enhance the
brightness of the low bright section. So that you can view these two sections clearly at the
same time. The value ranges from 1 to 100. When you switch the camera from no-WDR
mode to the WDR mode, system may lose several seconds record video.
HLC: After you enabled HLC function, the device can lower the brightness of the brightest
section according to the HLC control level. It can reduce the area of the halo and lower the
brightness of the whole video.
OFF: It is to disable the BLC function. Note this function is disabled by default.
Profile: It is to set the white balance mode. It has effect on the general hue of the video. This
function is on by default. You can select the different scene mode such as auto, sunny,
cloudy, home, office, night, disable and etc to adjust the video to the best quality.
Auto: The auto white balance is on. System can auto compensate the color temperature to
make sure the vide color is proper.
Sunny: The threshold of the white balance is in the sunny mode.
Night: The threshold of the white balance is in the night mode.
Customized: You can set the gain of the red/blue channel. The value reneges from 0 to 100.
Day/night. It is to set device color and the B/W mode switch. The default setup is auto.
Color: Device outputs the color video.
Auto: Device auto select to output the color or the B/W video according to the device feature
(The general bright of the video or there is IR light or not.)
B/W: The device outputs the black and white video.
Sensor: It is to set when there is peripheral connected IR light.
Image enhancement: It is to enhance video quality. The larger the value is, the clearer the
video is. But the noise may become large too.
2D NR: It is to process the noise of the single image. The video may become soft after
process. The larger the value is, the better the effect is.
3D NR: it is to process the multiple-frame (at least two frames). It is to use the frame
information between the following two frames to reduce noise. The larger the value is, the
better the effect is.
Figure4‐54
57
Figure4‐55
4.10.1.3 Encode
It is to set video bit stream, picture bit stream, video overlay parameter and etc.
4.10.1.3.1 Video
Video setting includes the following items. See Figure 4-56.
Channel: Select the channel you want.
Type: Select from the dropdown list. There are three options: regular/motion detect/alarm.
You can set the various encode parameters for different record types.
Compression: System supports H.264 and MJPEG.
Resolution: System supports various resolutions, you can select from the dropdown list. Note
the option may vary due to different series.
Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video
quality.
Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image
quality.
Video/audio: You can enable or disable the video/audio.
Audio format: Select from the dropdown list. There are three options: G711a/G711u/PCM
Audio source: Select from the dropdown list. There are two options: normal/HDCVI. For
normal mode, the audio signal is from the Audio In port. For HDCVI mode, the audio signal is
from the coaxial cable of the camera.
58
Figure4‐56
4.10.1.3.2 Snapshot
Here you can set snapshot mode, picture size, quality and frequency. See Figure 4-57.
Snapshot mode: There are two modes: regular and trigger. If you set timing mode, you need
to set snapshot frequency. If you set trigger snapshot, you need to set snapshot activation
operation.
Image size: Here you can set snapshot picture size.
Image quality: Here you can set snapshot quality. The value ranges from 1 to 6.
Interval: It is for you to set timing (schedule) snapshot interval.
Figure4‐57
59

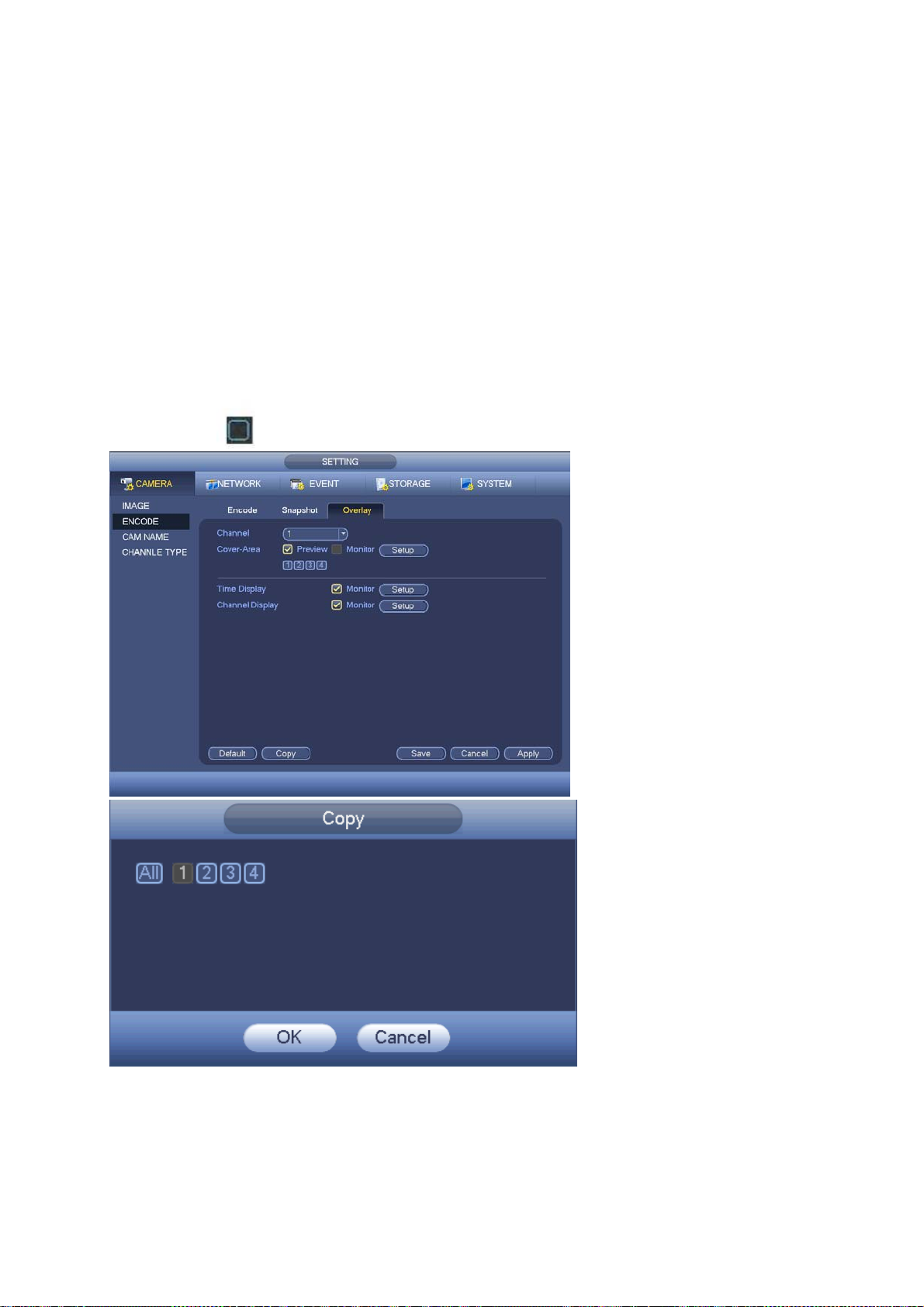

4.10.1.3.3 Overlay
Overlay interface is shown as in Figure 4-58.
Cover area: Here is for you to set cover area. You can drag you mouse to set proper section
size. In one channel video, system max supports 4 zones in one channel.
Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the
privacy mask zone can not be viewed by user when system is in preview status. Monitor
means the privacy mask zone can not be view by the user when system is in monitor status.
Time display: You can select system displays time or not when you playback. Click set
button and then drag the title to the corresponding position in the screen.
Channel display: You can select system displays channel number or not when you playback.
Click set button and then drag the title to the corresponding position in the screen.
Copy：After you complete the setup, you can click Copy button to copy current setup to
other channel(s). You can see an interface is shown as in Figure 4-59. You can see current
channel number is grey. Check the number to select the channel or you can check the box
ALL. Click the OK button in Figure 4-59 and Figure 4-58 respectively to complete the setup.
Highlight icon
to select the corresponding function.
Figure 4-58
Figure4‐59
60
4.10.1.3.4 Channel Name
It is to modify channel name. It max supports 31-character. See Figure 4-60.
Figure4‐60
4.10.1.3.5 Channel Type
It is to set channel type. It supports coaxial/UTP. See Figure 4-61.
Figure4‐61
4.10.2 Network
4.10.2.1 TCP/IP
The interface is shown as in Figure 4-62
IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP
address format and you can access via them.
MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the
LAN. It is read-only.
61
IP address: Here you can use up/down button () or input the corresponding number to
input IP address. Then you can set the corresponding subnet mask the default gateway.
Default gateway: Here you can input the default gateway. Note system needs to check the
validity of all IPv6 addresses. The IP address and the default gateway shall be in the same
IP section. That is to say, the specified length of the subnet prefix shall have the same string.
DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet
mask /Gateway. These values are from DHCP function. If you have not enabled DHCP
function, IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to
view current IP information. Besides, when PPPoE is operating, you can not modify
IP/Subnet mask /Gateway.
MTU: It is to set MTU value of the network adapter. The value ranges from 1280-7200 bytes.
The default setup is 1500 bytes. Note MTU modification may result in network adapter reboot
and network becomes off. That is to say, MTU modification can affect current network
service. System may pop up dialog box for you to confirm setup when you want to change
MTU setup. Click OK button to confirm current reboot, or you can click Cancel button to
terminate current modification. Before the modification, you can check the MTU of the
gateway; the MTU of the DVR shall be the same as or is lower than the MTU of the gateway.
In this way, you can reduce packets and enhance network transmission efficiency.
The following MTU value is for reference only.
1500: Ethernet information packet max value and it is also the default value. It is the
typical setup when there is no PPPoE or VPN. It is the default setup of some router,
switch or the network adapter.
1492: Recommend value for PPPoE.
1468: Recommend value for DHCP.
Preferred DNS server: DNS server IP address.
Alternate DNS server: DNS server alternate address.
Transfer mode: Here you can select the priority between fluency/video qualities.
LAN download: System can process the downloaded data first if you enable this function.
The download speed is 1.5X or 2.0X of the normal speed.
LAN download: System can process the downloaded data first if you enable this function.
The download speed is 1.5X or 2.0X of the normal speed.
After completing all the setups click save button, system goes back to the previous menu.
Figure4‐62
4.10.2.2 Connection
The connection setup interface is shown as in Figure 4-63.
Max connection: system support maximal 128 users. 0 means there is no connection limit.
TCP port: Default value is 37777.
UDP port: Default value is 37778.
HTTP port: Default value is 80.
62
HTTPS port: Default value is 443.
RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the above
four ports. Make sure the port values here do not conflict.
Figure4‐63
4.10.2.3 WIFI
The WIFI interface is shown as below. See Figure 4-64.
Auto reconnecting WIFI: Check the box here, system automatically connects to the previous
WIFI hotspot.
Refresh: You can click it to search the hotspot list again. It can automatically add the
information such as the password if you have set it before.
Disconnect: Here you can click it to turn off the connection.
Connect: Here you can click it to connect to the hotspot. System needs to turn off current
connection and then connect to a new hotspot if there is connection of you selected one.
Figure4‐64
63
WIFI working status: Here you can view current connection status.
Note:
After successful connection, you can see WIFI connection icon at the top right corner of the
preview interface.
When the hotspot verification type is WEP, system displays as AUTO since the device can
not detect its encryption type.
System does not support verification type WPA and WPA2. The display may become
abnormal for the verification type and encryption type.
After device successfully connected to the WIFI, you can view the hotspot name, IP address,
subnet mask, default gateway and etc.
4.10.2.4 3G
3G setup interfaces is shown as below. See Figure 4-65.
Refer to the following contents for the parameter information.
Pane 1: Display 3G signal intensity after you enabled 3G function.
Pane 2: Display 3G module configuration information after you enabled 3G function.
Pane 3: Display 3G module status information after you enabled 3G function.
It is to display current wireless network signal intensity such as EVDO, CDMA1x, WCDMA,
WCDMA, EDGE and etc.
3G module: It is to display current wireless network adapter name.
3G Enable/Disable: Check the box here to enable 3G module.
Network type: There are various network types for different 3G network modules. You can
select according to your requirements.
APN: It is the wireless connection server. It is to set you access the wireless network via
which method.
AUTH: It is the authentication mode. It supports PAP/CHAP.
Dial number: Input 3G network dialup number you got from your ISP.
User name: It is the user name for you to login the 3G network.
Password: It is the password for you to login the 3G network.
Pulse interval: You can set dialup duration. Once you disable the extra stream, the
connection time begins. For example, if you input 5 seconds here, then 3G network
connection period is 5 seconds. The device automatically disconnect when time is up. If
there is no extra stream, 3G network connection is valid all the time. If the alive time is 0,
then the 3G network connection is valid all the time.
Dial: Here you can enable or disable 3G network connection/disconnection manually.
3G wireless network: Here is to display wireless network status, SIM card status, dial status.
If the 3G connection is OK, then you can see the device IP address the wireless network
automatically allocates.
1
2
3
Figure4‐65
64
4.10.2.5 PPPoE
PPPoE interface is shown as in Figure 4-66.
Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).
Click save button, you need to restart to activate your configuration.
After rebooting, DVR will connect to internet automatically. The IP in the PPPoE is the DVR
dynamic value. You can access this IP to visit the unit.
Figure4‐66
4.10.2.6 DDNS Setup
DDNS setup interface is shown as in Figure 4-67.
You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In
other words, this PC is a DNS (domain name server). In network DDNS, select DDNS type and
highlight enable item. Then input your PPPoE name you get from you IPS and server IP (PC with
DDNS). Click save button and then reboot system. Click save button, system prompts for
rebooting to get all setup activated. After rebooting, open IE and input as below:
http：//(DDNS server IP)/(virtual directory name)/webtest.htm
e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.) Now you can open DDNSServer web search
page.
65
Figure4‐67
Note NNDS type includes: CN99 DDNS, NO-IP DDNS, Dahua DDNS, Dyndns DDNS and sysdns
DDNS. All the DDNS can be valid at the same time, you can select as you requirement.
Private DDNS function shall work with special DDNS server and special Professional
Surveillance Software (PSS).
Dahua DDNS and Client-end Introduction
1) Background Introduction
Device IP is not fixed if you use ADSL to login the network. The DDNS function allows you to
access the DVR via the registered domain name. Besides the general DDNS, the Dahua DDNS
works with the device from the manufacturer so that it can add the extension function.
2) Function Introduction
The Dahua DDNS client has the same function as other DDNS client end. It realizes the bonding
of the domain name and the IP address. Right now, current DDNS server is for our own devices
only. You need to refresh the bonding relationship of the domain and the IP regularly. There is no
user name, password or the ID registration on the server. At the same time, each device has a
default domain name (Generated by MAC address) for your option. You can also use customized
valid domain name (has not registered.).
3) Operation
Before you use Dahua DDNS, you need to enable this service and set proper server address,
port value and domain name.
Server address：www.dahuaddns.com
Port number：80
Domain name：There are two modes: Default domain name and customized domain name.
Except default domain name registration, you can also use customized domain name (You can
input your self-defined domain name.) After successful registration, you can use domain name to
login installed of the device IP.
66
User name: It is optional. You can input your commonly used email address.
Important
Do not register frequently. The interval between two registrations shall be more than 60
seconds. Too many registration requests may result in server attack.
System may take back the domain name that is idle for one year. You can get a notification
email before the cancel operation if your email address setup is OK.
4.10.2.7 IP Filter
IP filter interface is shown as in Figure 4-68. You can add IP in the following list. The list supports
max 64 IP addresses. System supports valid address of IPv4 and IPv6. Note system needs to
check the validity of all IPv6 addresses and implement optimization.
After you enabled trusted sites function, only the IP listed below can access current DVR.
If you enable blocked sites function, the following listed IP addresses can not access current DVR.
Enable: Highlight the box here, you can check the trusted site function and blocked sites
function. You can not see these two modes if the Enable button is grey.
Type: You can select trusted site and blacklist from the dropdown list. You can view the IP
address on the following column.
Start address/end address: Select one type from the dropdown list, you can input IP address
in the start address and end address. Now you can click Add IP address or Add IP section to
add.
a) For the newly added IP address, it is in enable status by default. Remove the √ before
the item, and then current item is not in the list.
b) System max supports 64 items.
c) Address column supports IPv4 or IPv6 format. If it is IPv6 address, system can optimize
it. For example, system can optimize aa:0000: 00: 00aa: 00aa: 00aa: 00aa: 00aa as aa::
aa: aa: aa: aa: aa: aa.
d) System automatically removes space if there is any space before or after the newly
added IP address.
e) System only checks start address if you add IP address. System check start address
and end address if you add IP section and the end address shall be larger than the start
address.
f) System may check newly added IP address exists or not. System does not add if input
IP address does not exist.
Delete: Click it to remove specified item.
Edit: Click it to edit start address and end address. See Figure 4-69. System can check the
IP address validity after the edit operation and implement IPv6 optimization.
Default: Click it to restore default setup. In this case, the trusted sites and blocked sites are
both null.
Note:
If you enabled trusted sites, only the IP in the trusted sites list can access the device.
If you enabled blocked sites, the IP in the blocked sites can not access the device.
System supports add MAC address.
67
Figure4‐68
Figure4‐69
4.10.2.8 Email
The email interface is shown as below. See Figure 4-70.
SMTP server: Input your email SMTP server IP here.
Port: Input corresponding port value here.
User name: Input the user name to login the sender email box.
Password: Input the corresponding password here.
Sender: Input sender email box here.
Title: Input email subject here. System support English character and Arabic number. Max
32-digit.
Receiver: Input receiver email address here. System max supports 3 email boxes. System
automatically filters same addresses if you input one receiver repeatedly.
SSL enable: System supports SSL encryption box.
Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.
Health email enable: Check the box here to enable this function. This function allows the
system to send out the test email to check the connection is OK or not.
Interval: Check the above box to enable this function and then set the corresponding interval.
System can send out the email regularly as you set here. Click the Test button, you can see
the corresponding dialogue box to see the email connection is OK or not.
Note system will not send out the email immediately when the alarm occurs. When the alarm,
motion detection or the abnormity event activates the email, system sends out the email
68
according to the interval you specified here. This function is very useful when there are too many
emails activated by the abnormity events, which may result in heavy load for the email server.
Figure4‐70
4.10.2.9 FTP
You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP
service.
Install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U
Administrator. Now you can set user password and FTP folder. Note you need to grant write right
to FTP upload user. See Figure 4-71.
Figure4‐71
You can use a PC or FTP login tool to test setup is right or not. For example, you can login user
ZHY to H140H140H140HTUFTP://10.10.7.7UTH and then test it can modify or delete folder or
not. See Figure 4-72.
69
Figure4‐72
System also supports upload multiple DVRs to one FTP server. You can create multiple folders
under this FTP.
FTP interface is shown as in Figure 4-73.
Highlight the icon
Here you can input FTP server address, port and remote directory. When remote directory is null,
system automatically create folders according to the IP, time and channel. User name and
password is the account information for you to login the FTP. File length is upload file length.
When setup is larger than the actual file length, system will upload the whole file. When setup
here is smaller than the actual file length, system only uploads the set length and auto ignore the
left section. When interval value is 0, system uploads all corresponding files.
After completed channel and weekday setup, you can set two periods for one each channel.
Click the Test button, you can see the corresponding dialogue box to see the FTP connection is
OK or not.
in front of Enable to activate FTP function.
Figure4‐73
70
4.10.2.10 UPnP
The UPNP protocol is to establish a mapping relationship between the LAN and the WAN. Input
the router IP address in the LAN in Figure 4-62. See Figure 4-74.
UPNP on/off ：Turn on or off the UPNP function of the device.
Status: When the UPNP is offline, it shows as “Unknown”. When the UPNP works it shows
“Success”
Router LAN IP: It is the router IP in the LAN.
WAN IP: It is the router IP in the WAN.
Port Mapping list： The port mapping list here is the one to one relationship with the router’s
port mapping setting.
List：
Service name：Defined by user.
Protocol： Protocol type
Internal port：Port that has been mapped in the router.
External port：Port that has been mapped locally.
Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.
Add to the list: Click it to add the mapping relationship.
Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See Figure 4-75.
Important:
When you are setting the router external port, use 1024~5000 port. Do not use well-known
port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, make sure the internal port and external port are the same to
guarantee the proper data transmission.
Figure4‐74
71
Figure4‐75
4.10.2.11 SNMP
SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network
management frame of the network management system. The SNMP widely used in many
environments. It is used in many network device, software and system.
You can set in the following interface. See Figure 4-76.
Figure4‐76
Enable the SNMP function. Use the corresponding software tool (MIB Builder and MG-SOFT MIB
Browser. You still need two MIB file: BASE-SNMP-MIB, DVR-SNMP-MIB) to connect to the
device. You can get the device corresponding configuration information after successfully
connection.
Follow the steps listed below to configure.
In Figure 4-76, check the box to enable the SNMP function. Input the IP address of the PC
than is running the software in the Trap address. You can use default setup for the rest items.
Compile the above mentioned two MIB file via the software MIB Builder.
Run MG-SOFT MIB Browser to load the file from the previous step to the software.
72
Input the device IP you want to manage in the MG-SOFT MIB Browser. Set the
corresponding version for your future reference.
Open the tree list on the MG-SOFT MIB Browser; you can get the device configuration. Here
you can see the device has how many video channels, audio channels, application version
and etc.
Note
Port conflict occurs when SNMP port and Trap port are the same.
4.10.2.12 Multicast
Multicast setup interface is shown as in Figure 4-77.
Figure4‐77
Here you can set a multiple cast group. Refer to the following sheet for detailed information.
IP multiple cast group address
-224.0.0.0-239.255.255.255
-“D” address space
The higher four-bit of the first byte=”1110”
Reserved local multiple cast group address
-224.0.0.0-224.0.0.255
-TTL=1 When sending out telegraph
-For example
224.0.0.1 All systems in the sub-net
224.0.0.2 All routers in the sub-net
224.0.0.4 DVMRP router
224.0.0.5 OSPF router
224.0.0.13 PIMv2 router
73
Administrative scoped addressees
-239.0.0.0-239.255.255.255
-Private address space
Like the single broadcast address of RFC1918
Can not be used in Internet transmission
Used for multiple cast broadcast in limited space.
Except the above mentioned addresses of special meaning, you can use other addresses. For
example:
Multiple cast IP: 235.8.8.36
Multiple cast PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast address and add it to
the multiple cast groups. You can enable real-time monitor function to view the view.
Note multiple cast function applies to special series only.
4.10.2.13 Register
This function allows the device to auto register to the proxy you specified. In this way, you can
use the client-end to access the DVR and etc via the proxy. Here the proxy has a switch function.
In the network service, device supports the server address of IPv4 or domain.
Follow the steps listed below to use this function.
Set proxy server address, port, and sub-device name at the device-end. Enable the auto register
function, the device can auto register to the proxy server.
1) The setup interface is shown as in Figure 4-78.
Important
Do not input network default port such as TCP port number.
Figure4‐78
74
2) The proxy server software developed from the SDK. Open the software and input the global
setup. Make sure the auto connection port here is the same as the port you set in the previous
step.
3) Now you can add device. Do not input default port number such as the TCP port in the
mapping port number. The device ID here shall be the same with the ID you input in Figure 4-78.
Click Add button to complete the setup.
4) Now you can boot up the proxy server. When you see the network status is Y, it means your
registration is OK. You can view the proxy server when the device is online.
Important
The server IP address can also be domain. But you need to register a domain name before you
run proxy device server.
4.10.2.14 Alarm Centre
This interface is reserved for you to develop. See Figure 4-79.
Figure4‐79
4.10.2.15 P2P
The P2P interface is shown as in Figure 4-80.
You can use you cell phone to scan the QR to add the device via the client on the cell phone. For
detailed information, refer to the P2P operation manual included in the resources CD.
Figure4‐80
75
4.10.3 Event
4.10.3.1 Detect
In the main menu, from Setting->Event->Detect, you can see motion detect interface. See
Figure 4-81.There is three detection types: motion detection, video loss, tampering.
The video loss has no detection region and sensitivity setup and tampering has no
detection region setup.
You can see motion detect icon if current channel has enabled motion detect alarm.
You can drag you mouse to set motion detect region. Click OK button to save current
region setup. Right click mouse to exit current interface.
For digital channel, the detect function refers to support detection function of the front-
end and support local activation function. The front-end can get enable/disable status,
sensitivity and region setup. You can get corresponding prompt if front-end can not get
the above information. You can change front-end setup if it can get.
4.10.3.1.1 Motion Detect
After analysis video, system can generate a video loss alarm when the detected moving signal
reached the sensitivity you set here.
Detection menu is shown as below. See Figure 4-81.
Event type: From the dropdown list you can select motion detection type.
Channel: Select a channel from the dropdown list to set motion detect function.
Enable: Check the box here to enable motion detect function.
Region: Click select button, the interface is shown as in Figure 4-82. Here you can set
motion detection zone. There are four zones for you to set. Select a zone first and then left
drag the mouse to select a zone. The corresponding color zone displays different detection
zone. You can click Fn button to switch between the arm mode and disarm mode. In arm
mode, you can click the direction buttons to move the green rectangle to set the motion
detection zone. After you completed the setup, click ENTER button to exit current setup. Do
remember click save button to save current setup. If you click ESC button to exit the region
setup interface system will not save your zone setup.
Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.
Anti-dither: Here you can set anti-dither time. The value ranges from 5 to 600s. The anti-
dither time refers to the alarm signal lasts time. It can be seem as the alarm signal activation
stays such as the buzzer, tour, PTZ activation, snapshot, channel record. The stay time here
does not include the latch time. During the alarm process, the alarm signal can begin an antidither time if system detects the local alarm again. The screen prompt, alarm upload, email
and etc will not be activated. For example, if you set the anti-dither time as 10 second, you
can see the each activation may last 10s if the local alarm is activated. During the process, if
system detects another local alarm signal at the fifth second, the buzzer, tour, PTZ
activation, snapshot, record channel will begin another 10s while the screen prompt, alarm
upload, email will not be activated again. After 10s, if system detects another alarm signal, it
can generate an alarm since the anti-dither time is out.
Period: Click set button, you can see an interface is shown as in Figure 4-84. Here you can
set motion detect period. System only enables motion detect operation in the specified
periods. It is not for video loss or the tampering. There are two ways for you to set periods.
Note system only supports 6 periods in one day.
In Figure 4-84, Select icon
Now the icon is shown as . Click to delete a record type from one period.
In Figure 4-84. Click button after one date or a holiday, you can see an interface shown
as in Figure 4-85. There are four record types: regular, motion detection (MD), Alarm, MD &
alarm.
of several dates, all checked items can be edited together.
76
Alarm output: when an alarm occurs, system enables peripheral alarm devices.
Latch: when motion detection complete, system auto delays detecting for a specified time.
The value ranges from 1-300(Unit: second)
Show message: System can pop up a message to alarm you in the local host screen if you
enabled this function.
Alarm upload: System can upload the alarm signal to the network (including alarm
centre) if you enabled current function.
Send email: System can send out email to alert you when an alarm occurs.
Record channel: System auto activates motion detection channel(s) to record once an alarm
occurs. Make sure you have set MD record in Schedule interface(Main Menu->Setting>Schedule) and schedule record in manual record interface(Main Menu->Advanced->Manual
Record)
PTZ activation: Here you can set PTZ movement when an alarm occurs. Such as go to
preset, tour & pattern when there is an alarm. Click “select” button, you can see an interface
is shown as in Figure 4-83
Record Delay: System can delay the record for specified time after alarm ended. The value
ranges from 10s to 300s.
Tour: Here you can enable tour function when alarm occurs. System one-window tour.
X.
Snapshot: You can enable this function to snapshoot image when a motion detect alarm
occurs.
Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.
Test: Click it to test current motion detect setup (do not need to save). Click Select button
after Region, you can set motion detect area.
Highlight icon to select the corresponding function. After all the setups click save button,
system goes back to the previous menu.
Note:
In motion detection mode, you can not use copy/paste to set channel setup since the video in
each channel may not be the same.
In Figure 4-82, you can left click mouse and then drag it to set a region for motion detection. Click
Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.
Figure4‐81
77
Figure4‐82
Figure4‐83
Figure4‐84
Figure4‐85
78
Motion detect here only has relationship with the sensitivity and region setup. It has no
relationship with other setups.
4.10.3.1.2 Video Loss
In Figure 4-81, select video loss from the type list. You can see the interface is shown as in
Figure 4-86.This function allows you to be informed when video loss phenomenon occurred.
You can enable alarm output channel and then enable show message function.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs.
Refer to chapter 4.10.3.1.1 motion detection for detailed information.
Figure4‐86
4.10.3.1.3 Tampering
When someone viciously masks the lens, or the output video is in one-color due to the
environments light change, the system can alert you to guarantee video continuity.
Tampering interface is shown as in Figure 4-87. You can enable “Alarm output “or “Show
message” function when tampering alarm occurs.
Sensitivity: The value ranges from 1 to 6. It mainly concerns the brightness. The level 6
has the higher sensitivity than level 1. The default setup is 3.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs.
Refer to chapter 4.10.3.1.1 motion detection for detailed information.
79
Note:
In Detect interface, copy/paste function is only valid for the same type, which means you
can not copy a channel setup in video loss mode to tampering mode.
About Default function. Since detection channel and detection type may not be the same,
system can only restore default setup of current detect type. For example, if you click
Default button at the tampering interface, you can only restore default tampering setup. It
is null for other detect types.
System only enables tampering function during the period you set here. It is null for
motion detect or video loss type.
Figure4‐87
4.10.3.2 Alarm
Before operation, make sure you have properly connected alarm devices such as buzzer.
In the main menu, from Setting->Event->Alarm, you can see alarm setup interface.

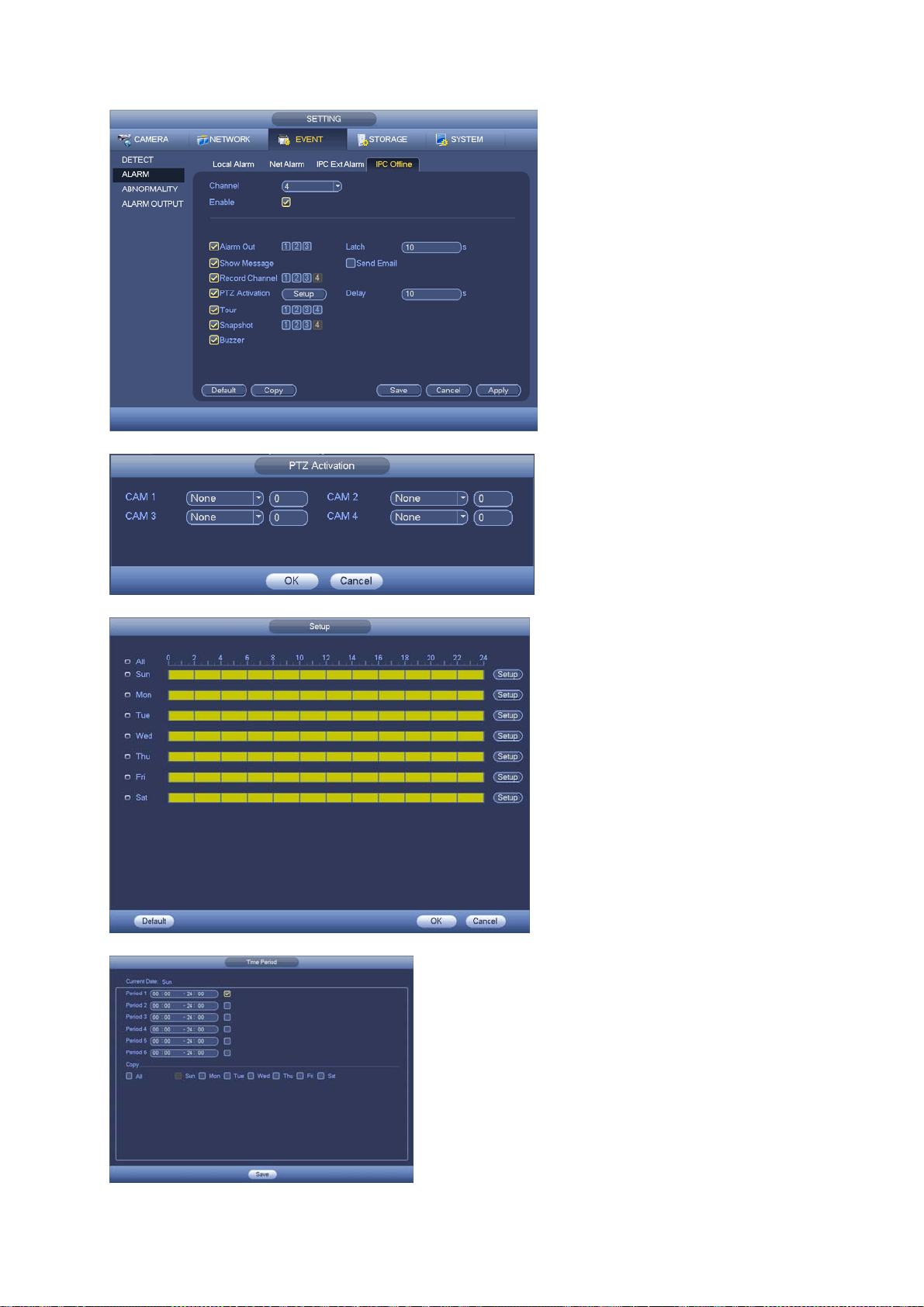

For analog channel, the interface is shown as in Figure 4-88 and Figure 4-89 .
For digital channel, there are four alarm types. See Figure 4-88 to Figure 4-91.
Local alarm: The alarm signal system detects from the alarm input port.
Network alarm: It is the alarm signal from the network.
IPC external alarm: It is the on-off alarm signal from the front-end device and can activate
the local HDVR.
IPC offline alarm: Once you select this item, system can generate an alarm when the front-
end IPC disconnects with the local HDVR. The alarm can activate record, PTZ, snap and etc.
The alarm can last until the IPC and the HDVR connection resumes.
Important
If it is your first time to boot up the device, the disconnection status of the
front-end network camera will not be regarded as offline. After one
successfully connection, all the disconnection events will be regarded as IPC
offline event.
When IPC offline alarm occurs, the record and snapshot function of digital
channel is null.
80
Alarm in: Here is for you to select channel number.
Type: normal open or normal close.
PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset,
tour& pattern when there is an alarm. Click “select” button, you can see an interface is shown
as in Figure 4-92.
Period: Click set button, you can see an interface is shown as in Figure 4-93. There are two
ways for you to set periods. There are max 6 periods in one day. There are four record types:
regular, motion detection (MD), Alarm, MD & alarm.
In Figure 4-93, Select icon
together. Now the icon is shown as
period.
In
Anti-dither: Here you can set anti-dither time. Here you can set anti-dither time. The value
ranges from 5 to 600s. The anti-dither time refers to the alarm signal lasts time. It can be
seem as the alarm signal activation stays such as the buzzer, tour, PTZ activation, snapshot,
channel record. The stay time here does not include the latch time. During the alarm process,
the alarm signal can begin an anti-dither time if system detects the local alarm again. The
screen prompt, alarm upload, email and etc will not be activated. For example, if you set the
anti-dither time as 10 second, you can see the each activation may last 10s if the local alarm
is activated. During the process, if system detects another local alarm signal at the fifth
second, the buzzer, tour, PTZ activation, snapshot, record channel will begin another 10s
while the screen prompt, alarm upload, email will not be activated again. After 10s, if system
detects another alarm signal, it can generate an alarm since the anti-dither time is out.
Show message: System can pop up a message to alarm you in the local host screen if you
enabled this function.
Figure 4-93. Click button after one date or a holiday, you can see an interface
shown as in Figure 4-94. There are four record types: regular, motion detection (MD),
Alarm, MD & alarm.
of several dates, all checked items can be edited
. Click to delete a record type from one
Alarm upload: System can upload the alarm signal to the network (including alarm
centre) if you enabled current function.
Send email: System can send out email to alert you when alarm occurs.
Record channel: you can select proper channel to record alarm video (Multiple choices). At
the same time you need to set alarm record in schedule interface (Main Menu->Setting>Schedule) and select schedule record in manual record interface (Main Menu->Advance>Manual Record).
Latch: Here is for you to set proper delay duration. Value ranges from 10 to 300 seconds.
System automatically delays specified seconds in turning off alarm and activated output after
external alarm cancelled.
Tour: Here you can enable tour function when alarm occurs. System supports 1/8-window
tour. Note the tour setup here has higher priority than the tour setup you set in the Display
interface. Once there two tours are both enabled, system can enable the alarm tour as you
set here when an alarm occurred. If there is no alarm, system implements the tour setup in
the Display interface.
Snapshot: System can snapshoot corresponding channel when an alarm occurs. Note the
activation snapshot has the higher priority than schedule snapshot. If you have enabled
these two types at the same time, system can activate the activation snapshot when alarm
occurs, and otherwise system just operates the schedule snapshot.
Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.
Note, network alarm means the alarm signal from the TCP/IP. You can use NET SDK to
activate network alarm. Comparing with the local alarm, there is no type, anti-dither, alarm
upload function.
Highlight icon
button, system goes back to the previous menu.
to select the corresponding function. After setting all the setups click save
81
Figure 4-88
Figure4‐89
. Figure 4-90
82
Figure4‐91
Figure4‐92
Figure4‐94
Figure4‐93
83
4.10.3.3 Abnormality
There are two types: HDD/Network.
HDD: HDD error, no disk, no space. See Figure 4-95 and Figure 4-96.
Network: Disconnection, IP conflict, MAC conflict. See Figure 4-97.
Alarm output: Select alarm activation output port (multiple choices).
Less than: System can alarm you when the HDD space is less than the threshold you set
here (For HDD no space type only).
Latch: Here you can set corresponding delaying time. The value ranges from 1s-300s.
System automatically delays specified seconds in turning off alarm and activated output after
external alarm cancelled.
Show message: system can pop up the message in the local screen to alert you when
alarm occurs.
Alarm upload: System can upload the alarm signal to the network (including alarm centre)
if you enabled current function. For disconnection event, IP conflict event and MAC
conflict event, this function is null.
Send email: System can send out email to alert you when alarm occurs.
Buzzer: Highlight the icon to enable this function. The buzzer beeps when an alarm occurs.
Figure4‐95
Figure4‐96
84
Figure4‐97
4.10.3.4 Alarm Output
Here is for you to set proper alarm output such as schedule, manual.
Highlight icon
After all the setups click OK button, system goes back to the previous menu. See Figure 4-98.
to select the corresponding alarm output.
Figure 4-98
85
4.10.4 Storage
It is to set HDD management, storage parameters, set record plan and record control.
4.10.4.1 Schedule
It is for you to set record plan and snapshot plan.
4.10.4.1.1 Record
Note: You need to have proper rights to implement the following operations. Make sure the
HDDs have been properly installed.
After the system booted up, it is in default 24-hour regular mode. You can set record type and
time in schedule interface.
In the main menu, from Setting->Storage->Schedule, you can go to schedule menu. See
Figure 4-102.
Note you need to go to main menu->Setting->System->General->Holiday to set holiday
date first, otherwise, there is no holiday setup item.
Channel: Select the channel number first. You can select “all” if you want to set for the whole
channels.
: Click it to delete a record type from one period.
Record Type: Check the box to select corresponding record type. There are four types:
Week day: There are eight options: ranges from Saturday to Sunday and all.
Holiday: It is to set holiday setup. Note you need to go to the General interface (Main Menu-
Pre-record: System can pre-record the video before the event occurs into the file. The value
Redundancy: System supports redundancy backup function. You can highlight Redundancy
Period setup: Click button
Following the steps listed below to draw the period manually.
: Sync connection icon. Select icon of several dates, all checked items can be
edited together. Now the icon is shown as
Regular/MD (motion detect)/Alarm/MD&Alarm.
>System->General) to add holiday first. Otherwise you can not see this item.
ranges from 1 to 30 seconds depending on the bit stream.
button to activate this function. Note, before enable this function, set at least one HDD as
redundant. (Main menu->Setting->Storage->HDD Manager). Note this function is null if
there is only one HDD.
after one date or a holiday, you can see an interface shown
as in Figure 4-103.There are four record types: regular, motion detection (MD), Alarm, MD &
alarm.
Select a channel you want to set. See Figure 4-99.
.
Figure 4-99
Set record type. See Figure 4-100.
Figure 4-100
Draw manually to set record period. There are six periods in one day. See Figure 4-101.
86
Figure 4-101
Highlight icon to select the corresponding function. After completing all the setups click save
button, system goes back to the previous menu. There are color bars for your reference. Green
color stands for regular recording, yellow color stands for motion detection and red color stands
for alarm recording. The white means the MD and alarm record is valid. Once you have set to
record when the MD and alarm occurs, system will not record neither motion detect occurs nor
the alarm occurs.
Figure 4-102
87
Figure 4-103
4.10.4.1.1.1 Quick Setup
Copy function allows you to copy one channel setup to another. After setting in channel 1, click
Copy button, you can go to interface Figure 4-104. You can see current channel name is grey
such as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7. If
you wan to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click
the OK button to save current copy setup. Click the OK button in the Encode interface, the copy
function succeeded.
Figure4‐104
4.10.4.1.1.2 Redundancy
Current series product does not support redundancy function.
Redundancy function allows you to memorize record file in several disks. When there is file
damage occurred in one disk, there is a spare one in the other disk. You can use this function
to maintain data reliability and safety.
In the main menu, from Setting->Storage-> Schedule, you can highlight redundancy
button to enable this function.
In the main menu, from Main menu->Setting->Storage->HDD Manager, you can set one or
more disk(s) as redundant. You can select from the dropdown list. System auto
overwrites old files once hard disk is full.
Note only read/write disk or read-only disk can backup file and support file search function, so
you need to set at least one read-write disk otherwise you can not record video.
88
Note
About redundancy setup:
If current channel is not recording, current setup gets activated when the channel begin
recording the next time.
If current channel is recording now, current setup will get activated right away, the current file
will be packet and form a file, then system begins recording as you have just set.
After all the setups click save button, system goes back to the previous menu.
Playback or search in the redundant disk.
There are two ways for you to playback or search in the redundant disk.
Set redundant disk(s) as read-only disk or read-write disk (Main menu->Setting->Storage-
>HDD Manager)). System needs to reboot to get setup activated. Now you can search or
playback file in redundant disk.
Dismantle the disk and play it in another PC.
4.10.4.1.2 Snapshot
4.10.4.1.2.1 Schedule Snapshot
On the preview interface, right click mouse and then select Manual->Record, or in the main
menu, from Setting->Storage->Record, check the box to enable snapshot function of
corresponding channels. See Figure 4-105.
In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input
snapshot mode as regular, size, quality and frequency. See Figure 4-106.
In main menu, from Setting->Camera->Encode->Schedule interface, enable snapshot
function. See Figure 4-107.
Refer to the following figures for detailed information.
Figure4‐105
89
Figure4‐106
Figure4‐107
4.10.4.1.2.2 Trigger Snapshot
Follow the steps listed below to enable the activation snapshot function. After you enabled
this function, system can snapshot when the corresponding alarm occurred.
In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input
snapshot mode as trigger, size, quality and frequency. See Figure 4-108.
In main menu, from Setting->Event->Detect, enable snapshot function for specified channels
(Figure 4-109).
90
Figure4‐108
Figure 4-109
4.10.4.1.2.3 Priority
Note the activation snapshot has the higher priority than schedule snapshot. If you have
enabled these two types at the same time, system can activate the activation snapshot when
alarm occurs, and otherwise system just operates the schedule snapshot.
4.10.4.1.2.4 Image FTP
In the main menu, from Setting->Network->FTP, you can set FTP server information. Enable
FTP function and then click save button. See Figure 4-110.
Boot up corresponding FTP server.
Enable schedule snapshot (Chapter 4.10.4.1.2.1) or activation snapshot (Chapter
4.10.4.1.2.2) first, now system can upload the image file to the FTP server.
91
Input the corresponding
information here, if you just
upload the image FTP.
Figure4‐110
4.10.4.2 HDD Manager
Here is for you to view and implement hard disk management. See Figure 4-111.
You can see current HDD type, status, capacity and etc. The operation includes format HDD, and
change HDD property (read and write/read-only/redundancy).
Figure4‐111
4.10.4.3 Record
4.10.4.3.1 Record Control
Caution:
You need to have proper rights to implement the following operations. Make sure the HDD
has been properly installed.
There are three ways for you to go to manual record menu.
Right click mouse and then select Manual->Record.
In the main menu, from Setting->Storage->Record.
92
In live viewing mode, click record button in the front panel or record button in the remote
control.
System supports main stream and sub stream. There are three statuses:
schedule/manual/stop. See Figure 4-112. Highlight icon “○” to select corresponding
channel.
Manual: The highest priority. After manual setup, all selected channels will begin ordinary
recording.
Schedule: Channel records as you have set in recording setup (Main Menu->Setting-
>System->>Schedule)
Stop: Current channel stops recording.
All: Check All button after the corresponding status to enable/disable all-channel
schedule/manual record or enable/disable all channels to stop record.
Figure4‐112

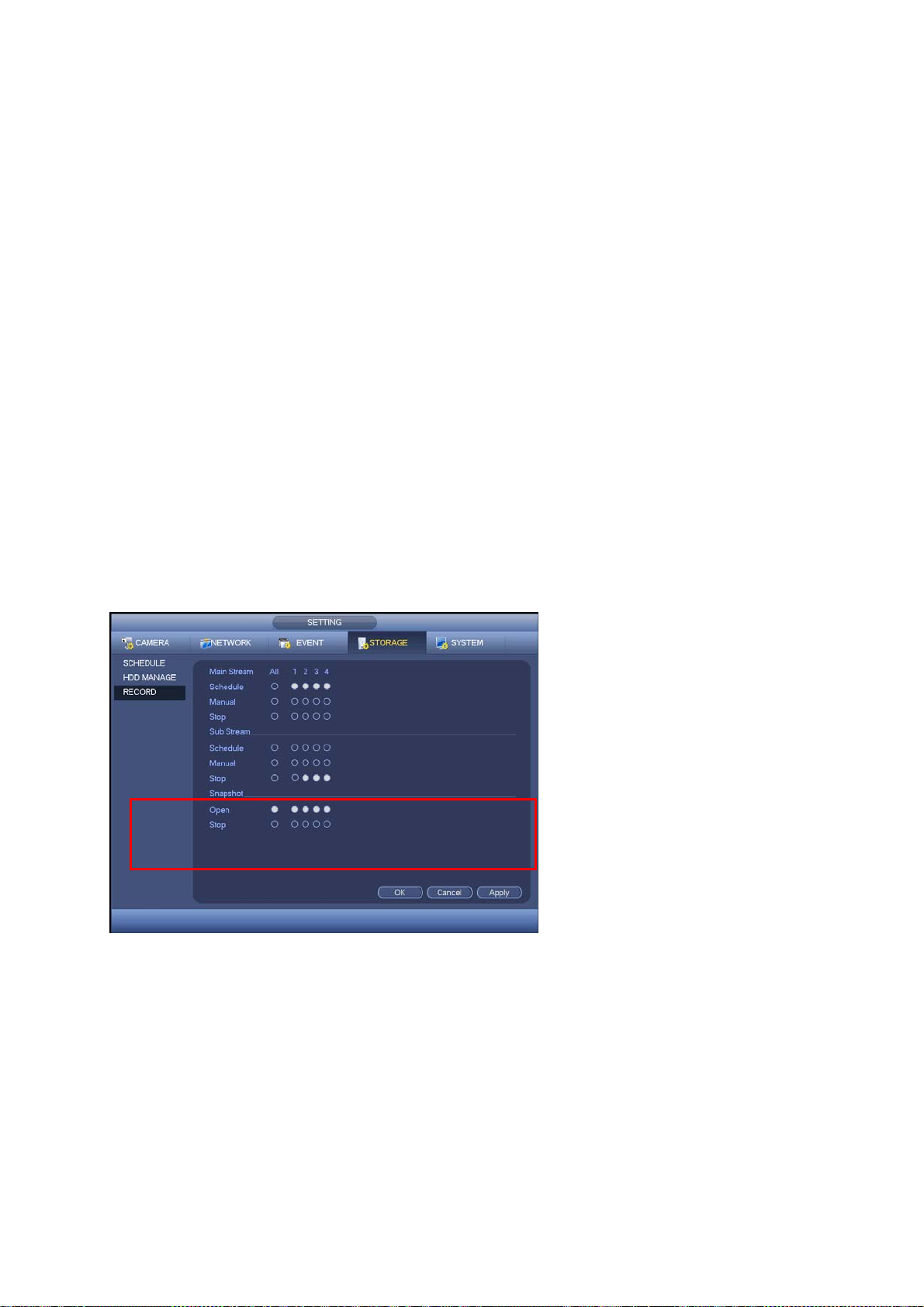

4.10.4.3.2 Snapshot Operation
Check the corresponding box to enable/disable schedule snapshot function. See Figure
4-113.
Figure4‐113
93
Tips
You can check All button after the corresponding status to enable/disable all-channel snapshot
function.
4.10.4.4 HDD Detect
The HDD detect function is to detect HDD current status so that you can clearly understand the
HDD performance and replace the malfunction HDD.
There are two detect types:
Quick detect is to detect via the universal system files. System can quickly complete the
HDD scan. If you want to use this function, make sure the HDD is in use now. If the HDD is
removed from other device, make sure the write-data once was full after it installed on
current device.
Global detect adopts Windows mode to scan. It may take a long time and may affect the
HDD that is recording.
4.10.4.4.1 Manual Detect
The manual detect interface is shown as below. See Figure 4-114.
Select detect type and HDD. Click start detect to begin. You can view the corresponding detect
information. See Figure 4-115.
Figure4‐114
Figure4‐115
94
4.10.4.4.2 Detect Report
After the detect operation, you can go to the detect report to view corresponding information.
The detect report interface is shown as below. See Figure 4-116.
Figure4‐116
Click the item you can see the detailed information such as detect result. See Figure 4-117.
Figure4‐117
95
4.10.5 System
4.10.5.1 General
4.10.5.1.1 Device
General setting includes the following items. See Figure 4-118.
Device ID: Input a corresponding device name here.
Device No: Here you can set device number.
Language: System supports various languages: Chinese (simplified), Chinese (Traditional),
English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight
difference maybe found in various series.)
Video standard: There are two formats: NTSC and PAL.
Vodeo mode: It is to set max decode mode of the analog signal. There are two options:
960H/D1. Note this item is only valid when all channels are analog modes only.
HDD full: Here is for you to select working mode when hard disk is full. There are two options:
stop recording or rewrite. If current working HDD is overwritten or the current HDD is full
while the next HDD is no empty, then system stops recording, If the current HDD is full and
then next HDD is not empty, then system overwrites the previous files.
Pack duration: Here is for you to specify record duration. The value ranges from 1 to 120
minutes. Default value is 60 minutes.
Real-time playback: It is to set playback time you can view in the preview interface. The
value ranges from 5 to 60 minutes.
Auto logout: Here is for you to set auto logout interval once login user remains inactive for a
specified time. Value ranges from 0 to 60 minutes.
Navigation bar: Check the box here, system displays the navigation bar on the interface.
Startup wizard: Once you check the box here, system will go to the startup wizard directly
when the system restarts the next time. Otherwise, it will go to the login interface.
Mouse property: You can set double click speed via dragging the slide bard. You can Click
Default button to restore default setup.
Figure 4-118
4.10.5.1.2 Date and Time
The interface is shown as in Figure 4-119.
Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.
Date separator: There are three denotations to separate date: dot, beeline and solidus.
DST: Here you can set DST time and date. Here you can set start time and end time by
setting corresponding week setup or by setting corresponding date setup.
NTP: It is to set NTP server information.
96
Figure4‐119
4.10.5.1.3 Holiday
Holiday setup interface is shown as in Figure 4-120. Click Add new holiday button, you can input
new holiday information. See Figure 4-121. Here you can set holiday name, repeat mode and
start/end time.
Note
When you enable Holiday settings and schedule setup at the same time, holiday setting has
the priority. If the selected day is a holiday, then system records as you set in holiday setting.
If it is not a holiday, system records as you set in Schedule interface. Note
Note, there is no year setup on the holiday setup. For example, if you set 30th Oct, 2012 as
a holiday, then the date of 30th Oct in each year will be set as a holiday.
Figure4‐120
97
Figure4‐121
4.10.5.2 Display
It is to set display, TV adjust, tour, zero-channel encode, and preview favorites information.
4.10.5.2.1 Display
Display setup interface is shown as below. See Figure 4-122.
Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.
Channel name: Here is for you to modify channel name. System max support 25-digit (The
value may vary due to different series). Note all your modification here only applies to DVR
local end. You need to open web or client end to refresh channel name.
Time display: You can select to display time or not when system is playback.
Channel display: You can select to channel name or not when system is playback.
Resolution: There are four options: 1920×1080, 1280×1024(default),1280×720,1024×768.
Note the system needs to reboot to activate current setup.
Image enhance: Check the box; you can optimize the margin of the preview video.
Preview denoise: It is to reduce the video noise and make it clearer. You can set denoise
level. The higher the level is, the clearer the video is.

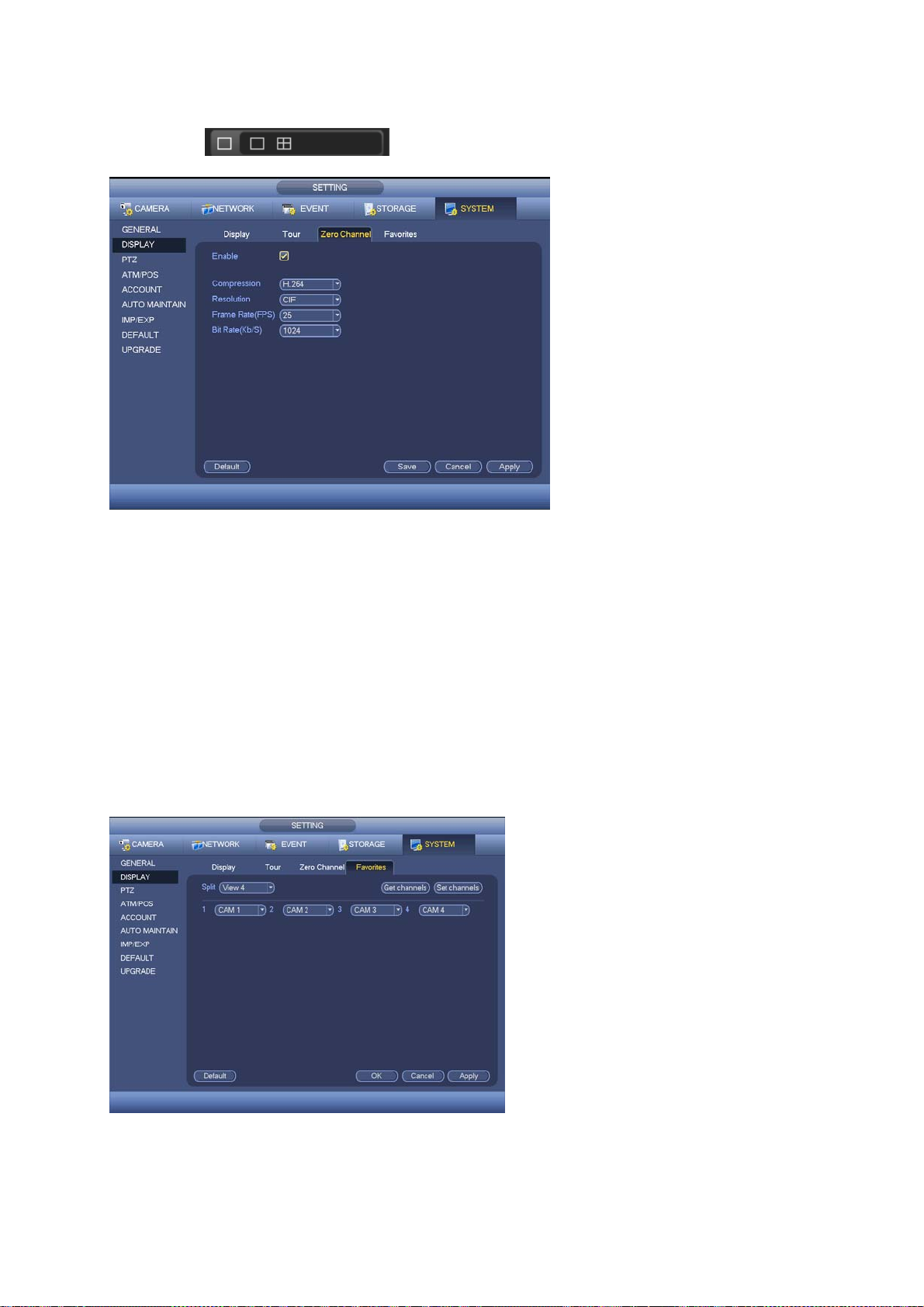

Highlight icon
After completing all the setups click save button, system goes back to the previous menu.
to select the corresponding function.
Figure4‐122
98
4.10.5.2.2 Tour
Here you can activate tour function. Click Setup button, you can see an interface shown as in
Figure 4-123
Enable tour: Highlight box here to enable this function.
Interval: System supports 1/8-window tour. Input proper interval value here. The value
ranges from 5-120 seconds. It is for schedule tour/alarm/motion detect tour.
Split: You can select window split mode from the dropdown list.
Channel group: It is to display all channel groups on current split mode. You can edit and
delete a channel group here. Double click an item in the list; you can edit its channel group
setup. Right now system max supports 32.
Add: Under specified window split mode, click it to add channel group.
Delete: Click it to remove selected channel group.
Move up: Click it to move current selected channel up.
Move down: Click it to move current selected channel down.
Default: Click it to restore default setup.
Tips:
Use mouse or Shift button to switch
tour funciton is enabled and
On the navigation bar, click
4.10.5.2.3 Zero-channel Encoding
Click zero-channel encoding button, you can go to the following interface. See Figure 4-124.Here
you can enable and set zero-channel encoding function so that you can view several video
sources at one channel.
meas tour funciton is disabled.
or to enable/disable tour function.
and button to enable /disable tour. means the
Figure4‐123
Enable: This function is disabled by default. Check the box here to enable this function so
that you can control the zero-channel encoding function at the WEB.
Compression: System default setup is H.264. You can set according to device capability.
Resolution: The resolution value may vary due to different device capabilities. Select from
the dropdown list.
Frame rate: The frame rate value may vary due to different device capabilities. Select from
the dropdown list.
Bit Rate: The bit rate value may vary due to different device capabilities and frame rate
setups. Select from the dropdown list.
Save: Click the Save button to save current setup. If this function is disabled, you can not
operate zero-channel encoding function at the WEB, the video is black or null even you
operate when the function is disabled. After you enabled this function, login the Web and you
99
can select zero-channel encoding mode at the right corner of the
interface
. Select a mode; you can view the local preview video.
Figure4‐124
4.10.5.2.4 Favorites
It is for you to set and save favorites preview setup. You can select different window display
modes and then select corresponding channel(s). Note for one mode, one channel can only be
selected once. See Figure 4-125.
Set channels: Click it you get channel setup information of current preview interface. For
example. If you window split mode is 4 and channel setup includes channel 1/2/3/4, you can
see 4 from the split dropdown list and then see channel 1/2/3/4 at the middle of the interface.
Get channels: Click it to activate current setup. You can see current setup effect on the
screen right now.
Default: it is to restore factory default setup. For example, 1-window mode, it is to display
channel 1 and 4-window mode, it is display channel 1/2/3/4.
Save: Click it to save current setup to Favorites folder. Otherwise, you can not find current
setup in the Favorites.
Figure4‐125
On the navigation bar, you can see the Favorites shortcut menu. You can select from the
dropdown list. Click View 1, you can see the channel(s) you saved on the Favorites folder. See
Figure 4-126.
