Technaxx
®
* User Manual
Family Car Charger TE14
4-port USB passenger car charger (4x max. 2.4A)
The Declaration of Conformity is under the Internet link: www.technaxx.de/
(in bottom bar “Konformitätserklärung”); Before using the device, read the user
manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: support@technaxx.de
Features
Charging up to 4 devices with USB port simultaneously (Smartphones, Tablets, etc.) with 9.6A total power output Intelligent
Smart IC for automatic maximum device current detection 1.8m
cable connects the two chargers together, enough cable length for
comfortable backseat mobile device charging Rear seat clip
mounting for stable fixation Over current protection Compatible
for almost all devices with USB port Easy handling & handy size to
store it in the glove compartment of a vehicle Use existing USB
charging cables of your mobile device for charging
Technical specifications
Front charger: 2x USB port DC 5V/2.4A each
Output power
Rear charger: 2x USB port DC 5V/2.4A each
Input voltage DC 12–24V (cigarette lighter socket)
Weight 129g inclusive the cable of 1.8m length
Front charger: (L) 6.5 x (W) 2.5 x (H) 3.5cm
Dimensions
Rear chager: (L) 5.4 x (W) 2.5 with clip x (H) 8.0cm
Package
Contents
Family Car Charger TE14, Rear seat holder, User
Manual
Product Parts
. 2x USB output ports of the rear
1. LED indicator of the rear charger
unit
2
charger unit
3. USB output ports of car USB
charger for the cigarette lighter
socket
4. LED indicator of back seat USB
charger
5. Rear seat holder clip
(for clip assembly see description
below)
Complete product view:
6. Front charger unit
7. Rear charger unit
8. Cable 1.8m

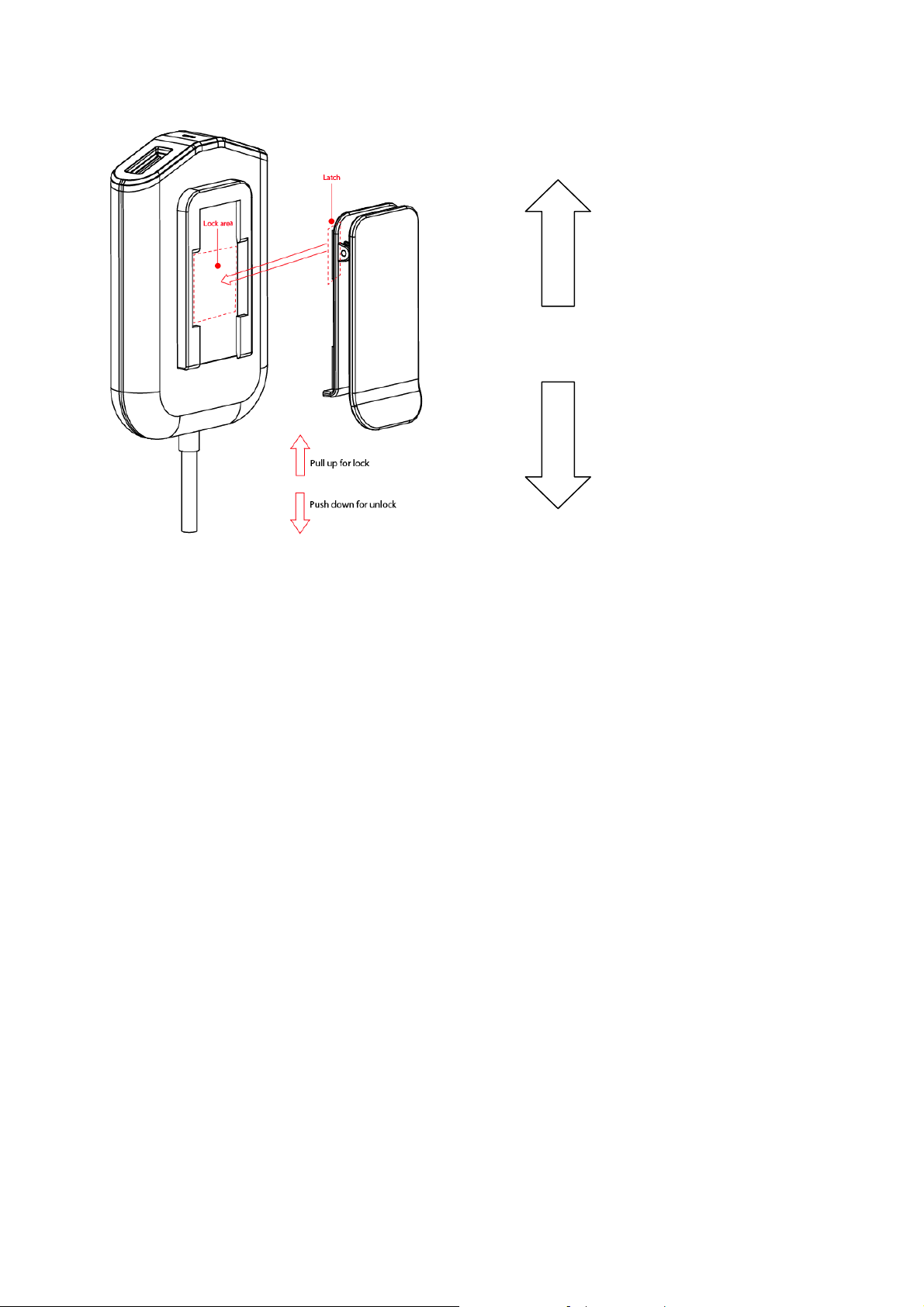

Clip assembly
Push up for lock
Push down for unlock
For attachement place the latch onto the lock area slot on the back
side of the rear charger unit and then pull it up to fix it. A “clic” sound
confirms the fixation.
For detachement push the clip downwards to detach it from the
rear charger unit and change it.
Operating instructions
Connect the front unit of the charger into the cigarette lighter
socket of your car.
Then attach the back seat charger to the preferred positions.
Use any of the USB port to charge your mobile device or
tablet.
NOTE: Each of the four USB ports will support 5V/2.4A maximum
output power for simultaneous charging.
Warnings
Make sure that voltage of device to be charged is lower than 5V.
Otherwise it may destroy the device. Do not remove any cover to
avoid the risk of an electric shock or other damages. Do not
attempt to disassemble the device, it may result in short-circuit or
even damage. Do not drop or shake the device, it may break
internal circuit boards or mechanics. Keep the device in dry and
ventilated environment. Avoid high humidity and high temperature.
Do not install the device near any heat source, such as radiators, or
other equipment that produces heat. Do not expose this unit to
rain or moisture to reduce the risk of fire or electrical shock. The
device should not be exposed to dripping or splashing. Do not place
any objects filled with liquids shall be placed on or near by the
device. Keep the device away from little children.
Hints for Environment Protection: Packages
materials are raw materials and can be
recycled. Do not disposal old devices or
batteries into the domestic waste. Cleaning:
Protect the device from contamination and
pollution (use a clean drapery). Avoid using
rough, coarse-grained materials or solvents or
aggressive cleaner. Wipe the cleaned device
accurately. Distributor: Technaxx Deutschland
GmbH & Co.KG, Kruppstr. 105, 60388
Frankfurt a.M., Germany
Keep this user manual for future reference or product sharing
carefully. Do the same with the original accessories for this product.
In case of warranty, please contact the dealer or the store where you
bought this product. Warranty 2 years
