Contents
Important Notice.............................................3
Safety Instructions..........................................4
Before Using the Player..................................5
Product feature...............................................5
Front view.......................................................7
Minimum System Requirements ...................8
Connect USB..................................................8
Get Started......................................................9
Power ON / Power OFF..................................9
Set Key Lock..................................................9
Music Playback............................................10
Video Playback.............................................14
Photo Mode..................................................16
Text Mode.....................................................18
Record Mode................................................21
Explorer Mode..............................................22
=1=
Game Mode..................................................24
Settings Mode...............................................25
Using the AVI Converter Software...............30
Troubleshooting............................................34
=2=
Important Notice:
Always Keep a Copy of Your Original Data
before you deliver your product for warranty
services .Please backup all data, including all
software programs. You will be responsible
for reinstalling all data. Data recovery is not
included in the warranty service and our
company is not responsible for data that
may be lost or damaged during transit or a
repair.
=3=
Safety Instructions
* Do not expose to extreme temperatures.
* Do not allow any liquid form into the
device.
* Do not apply or subject the player to
excessive pressure.
* Do not expose to direct sunlight or heat
sources.
* Do not try to disassemble and repair the
device yourself.
* Do not expose device to chemicals such as
benzene or thinner.
* Do not store device in dusty or damp area.
* our company will claim no responsibility
for any damage on data loss due to breakdown,
repair or other causes.
=4=
Before Using the Player
Product Features
* Sleek and lightweight design.
* 1.8'' TFT 262K Color LCD display
(128x160).
* Graphic user interface.
* Playback MP3, WMA and WAV audio
format.
* Supports AVI video format (comes with AVI
Converter Software)
* Supports photo browsing in JPEG format.
* Digital voice recording.
* Text viewer in TXT format with bookmark
function.
* Synchronous lyrics display in LRC format.
* Personal data file storage.
* USB 2.0.
=5=
* Built-in rechargeable li-polymer battery.
Audio Playback (Maximum up 8 hours).
Video Playback (Maximum up 4 hours).
* Supports Windows 2000 and Windows XP.
=6=
FRONT VIEW
=7=
Minimum System Requirements
* Intel Pentium processor 200MHz and
above.
* Windows 2000 and Windows XP .
* 32MB of RAM (128MB recommended)
* Up to 100MB of available hard-disk space
* Standard USB Port
USB Connect
* Connect one end of the supplied mini USB
cable to the player.
* Connect the other end of the mini USB
cable to the computer.
* Charging process begins automatically.
You can also charge the player via AC
Power Adapter (Optional)
=8=
Get Started
1.Power ON / Power OFF
Turn Power ON/OFF switch to ON position,
press & hold
In any mode, press & hold
key to power ON.
key to power
OFF.
2.Set Key Lock
Press & hold “VOL+” key and “VOL–“ key
(for 2 seconds) at the same time to set Key
Lock.
Note: All keys on the player will be locked.
In Lock mode, press & hold “VOL+” key and
“VOL–“ key (for 2 seconds) at the same time
again to unlock.
Note: All keys on the player will be unlocked.
=9=
3. Music Playback
3.1 In Main menu, select Music menu and
press “ M ” key to enter Music mode.
Music playback begins automatically. During
Music playback, press “M” key to enter
Music playlist.
Note: If a folder is displayed, press
to return to the previous menu
Press “
file. Press “M” key and Music playback
begins automatically.
” or “ ” key to select a Music
=10=
key
During Music playback, press key to
pause. While in Pause mode, press key
again to resume playback.
NO Function NO Function
1 Song Title & ID3
Display
2 Playback Time 8 Track Duration
3 Playback Mode 9 Battery Indicator
4 Play/Pause Status 10 A-B Repeat
5 Playback Setting 11 Current Track
6 Volume Level 12 Total Track
7 Equalizer / Song
Lyrics Dis play
number
number
3.2 Adjusting Volume
During Music playback, press “VOL+” key or
“VOL–“ key to adjust volume level.
=11=
Note: Press & hold “VOL+“ key or
“VOL–“ key can also make adjustment to
volume level (value settings from 00 to 40).
3.3 Skipping to Previous / Next Music File
During Music playback, Press “
” or “
key to skip to Previous or Next track.
3.4 Deleting a Music File
During Music playback, press “M” key to
enter submenu. Press “
” or “ ” key to
select a folder or a Music file. When a folder
is selected, press “M” key to enter folder.
When a Music file is selected, press “VOL–”
key to delete. Press
key and the delete
interface will be displayed. At the “Delete
File” prompt “YES / NO”, scroll to “YES”
option and press “M”key to confirm deletion.
When the file is deleted, the player returns to
=12=
previous submenu options.
Note: Press & hold “M” key or key to return
to Main menu.
3.5 A-B Repeat
During Music playback, press & hold “M”
key. “A-B Repeat” indicator displays “A”.
Press & hold “M” key again, “A-B” is
displayed. Music will now repeat “A-B”
playback in a loop. To cancel “A-B” repeat
playback, press & hold “M” key to resume.
3.6 Synchronous Song Lyrics Display
When a Music file in the player has a song
lyrics file with same file name, song lyrics
will be displayed automatically during Music
playback.
=13=

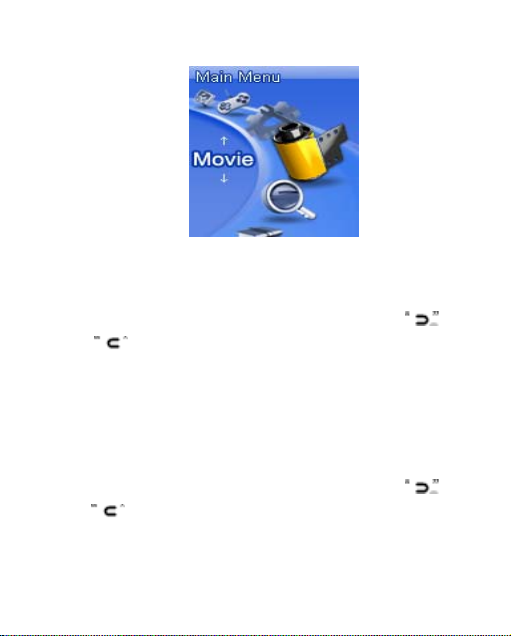

4. Video Playback
4.1 In Main menu, select Video menu and
press “M” key to enter Video mode.
When Video playlist is displayed, press “
or “
folder is selected, press “M”key to enter
folder. When a Video file is selected, press
“M” key and playback begins automatically.
4.2 FW / FF a Video file
During Video playback, press & hold “
or “
” key to select a Video file. When a
” key to FW or FF playback.
=14=
”
”
4.3 Adjusting Volume
During Video playback, press “VOL+” key or
“VOL–“ key to adjust volume level.
Note: Press & hold “VOL+” key or
“VOL–“ key can also make adjustment to
volume level (value settings from 00 to 40).
4.4 Deleting a Video File
In Video submenu, press “ ” or “ ”
key to select a folder or a Video file.
When a folder is selected, press “M” key to
enter folder. When a Video file is selected,
press “VOL–”key to delete. press
key and
the delete interface will be displayed. At the
“Delete File” prompt “YES / NO”, scroll to
“YES” option and press “M”key to confirm
deletion.
When the file is deleted, the player returns to
the submenu options.
Note: Press & hold “M” key to return to Main
menu.
=15=
5. Photo Mode
5.1 In Main menu, select Photo menu and
press “M” key to enter Photo mode.
When Photo playlist is displayed, Press
“
” or “ ” key to select a Photo file.
When a folder is selected, press “M” key to
enter folder.
When a Photo file is selected, press “M” key
and Photo playback begins automatically.
Press “
” or “ ” key to view previous
or next photo file.
=16=
During Photo playback, press “M” key to
return to Photo playlist or press & hold “M”
key to return to Main menu.
5.2 Deleting a Photo File
In Photo playlist, when a photo file is selected,
press “VOL–” key to delete.
press
key and the delete interface will be
displayed. At the “Delete File” prompt,
select “YES” option and press “M” key
to confirm deletion.
=17=
6.Text Mode
6.1 In Main menu, select Text menu and press
“M” key to enter Text mode.
When Text playlist is displayed, press “
or “
” key to select a Text file.
”
When a folder is selected, press “M” key to
enter folder.
When a Text file is selected, press “M” key
and playback begins automatically.
Press “
” or “ ” key to scroll
backward or forward to view text.
=18=
During Text playback, press “M” key to
return to Text playlist or press& hold “M”
key to return to Main menu.
6.2 Deleting a Text File
In Text playlist, when a Text file is selected,
press “VOL–” key to delete.
press
key and the delete interface will be
displayed. At the “Delete File” prompt,
select “YES” option and press “M” key
to confirm deletion.
6.3 To Bookmark a Page
The Text function supports up to 3 bookmark
pages for quick search purpose.
During Text playback, press “
” or “ ”
key to scroll backward or forward to view
Text.
At the desire page to create a bookmark,
=19=
press key and the 3 bookmark will be
displayed.
Press “
” or “ ” key to Scroll
to any of the 3 following bookmarks and press
“M” key to confirm settings.
To View a Bookmark Page
- During Text playback, press “VOL + ” key
to view the 3 bookmarks.
Press “
” or “ ” key to select a
bookmark followed by “M” key and
the bookmark page will be displayed
automatically.
=20=
7.Record Mode
7.1 In Main menu, select Record menu and
press “M” key to enter Record mode.
In Record mode, press
key and record ing
begins automatically.
During recording, press
recording and press
k again to resume.
key to pause
To end recording, press & hold “M” key to
save the recording a return to Main menu.
Note: Recording files (WAV format) can be
playback in Music menu.
=21=
8. Explorer Mode
The Explorer mode displays all the folders
and files stored in the player.
In Main menu, select Explorer menu and
press “M” key to enter
8.1 Explorer mode.
When Explorer playlist is displayed, press
“
” or “ ” key to select a file.
When a folder is selected, press “M” key to
enter folder.
When a file is selected, press “M” key and
playback begins automatically.
Note: During playback, press & hold “M”
key to return to Main menu.
8.2 Deleting a File
In Explorer playlist, selected and press “ VOL
– ” key to delete.
=22=
press key and the delete interface will be
displayed. At the “Delete File” prompt,
select “YES” option and press “M” key
to confirm deletion.
Note: Deletion of folder is NOT supported.
=23=
9 Game Mode
9.1The player comes with a free built-in Brick
Game.
- In Main menu, select Game menu and press
“M” key to enter
Game mode.
9.2 Game Control Keys
T o begin / pause, press
To move to left or right, press “
“
” key.
key.
” or
To rotate the “Falling Brick”, press “VOL-”
key.
Note: In Game mode, press & hold “M” key
to return to Main menu
=24=
10 Settings Mode
There are 7 settings available in the Settings
mode.
In Main menu, select Settings menu and press
“M” key to enter Settings mode.
Press “
” or “ ” key to select the
desired settings in each options
10.1Music Settings
Repeat Mode
Once: To play all the files once.
Repeat 1: To repeat one file.
=25=
Folder Once: To play all the files in the
folder once.
Folder Repeat: To repeat all files in the
folder.
All Once: To repeat all files once.
All Repeat: To repeat all files.
Intro: To play the first 10 seconds of each
music file.
Play Mode
Order: Music playback in sequence.
Shuffle: Music playback randomly.
EQ Select
Normal / 3D / Rock / Pop / Classic/ Bass /
Jazz / User EQ
User EQ Mode (User can customize their
favorite EQ settings)
In the User EQ settings, press “VOL +” or
=26=
“VOL –” key to adjust on each individual
frequency segment. (60Hz、300 Hz、
1KHz、3KHz、6KHz)
Frequency settings are adjusted in -6dB～
+6dB interval.
Press “
” or “ ” key to skip to adjust
the next frequency segment. (activated
segment will be indicated in red color)
Press “
” or “ ” key to skip to
“YES” option and press “M” key to save
changes and exit.
10.2 Record Settings
REC Quality: Recording quality & file size
settings
High Quality: Better recording quality with
larger file size.
General Quality: Normal recording quality
=27=
with smaller file size.
REC Volume: The highest settings +5 will
produce the loudest
recording quality.
+1 / +2 / +3 / +4 / +5
10.3 Display Settings
Blight Time: To set the backlight ON timer
(unit in seconds). This function will be
disabled when the time is set to Always On.
5s/ 10s / 15s / 20s / 30s / Always On
Lum: To set the backlight brightness. (1 is the
brightest setting)
1 / 2 / 3 / 4 / 5
Blight Mode: When set to Power Saver, the
screen will turn OFF according to the Blight
Time settings (Press any key to resume).
Normal / Power Saver
=28=
10.4 System Settings
About: To display information on firmware
version, date and memory status.
Upgrade: For firmware upgrade (if any).
Default Set: To restore the player to original
default settings.
10.5 PowerOff Time Settings
When no key is pressed within the time set,
player will be turned OFF. (This function will
be disabled when time is set to OFF)
-OFF/10 Minutes/15 Minutes/30 Minutes/60
Minutes/120 Minutes
10.6 Languages Settings
To change the desire language settings on the
player.
Simplified Chinese / Traditional Chinese /
English
=29=
Using the AVI Converter Software
This player supports AVI format video files
and can transform other video formats to the
supported AVI format by using the bundled
AVI Converter Software.
The software fully support fast speed video
conversion of multi-video format into high
quality AVI format.
System Requirements to Install AVI Converter
Software
Intel or AMD processor (Intel Pentium 3 and
above, including Intel Celeron series)
Windows 2000 / Windows XP
Installation the AVI Converter Software
Connect the player to PC and execute the
preloaded AVI Converter setup program (EXE
file) bundled in the player to begin.
=30=
Follow the on-screen instructions to complete
the installation.
Upon a successful installation, an AVI
Converter program icon will be created on the
computer desktop.
Double click on the AVIConverter icon to
begin.
1. Click on Add button to select a video file to
convert.
=31=
2. Click on Source File button.
3. Select the Target File Path button to save
the converted video file.
(Keep the rest of the settings as default and
click on Save button, followed by Close
button)
=32=
4. Finally, click on Convert Now button to
start video conversion process.
Conversion is complete when the status
information shows 100% and
OK. Click on Close button to quit.
Finally, transfer (using copy & paste) the
converted video file (AVI format) into the
player and you are now ready for video
playback.
Note: Please use only the bundled AVI
Converter Software in this player for
video conversion. Video files converted
using third party software might
not be able to work properly with this player.
=33=
Troubleshooting
1. No power: Please check if it is power ON
2. No sound from the earphone: 1. Make
sure the volume level is not set to “0”. 2.
Check if the earphone is properly connected
to the player. 3. Check if the music file is
corrupted. Try again with other music files.
3. Error message: “Warning File Format
Error”: Please try the following: Turn the
Power ON/OFF safety switch to OFF.
Connect the player to the PC and remove the
file that is corrupted or non-standard
audio/video file on the player. Disconnect
the player from the computer and try again.
4. What is the common file type that is
causing the “Warning File Format Error” error?
When any file type is not supported by the
=34=
player is detected, the error message will
occur. If this error occurred on a video file, try
to convert the video file by using the AVI
Converter and try again.
5. Cannot transfer music:1. Check if the
USB cable is working properly.2. Make sure
the product drivers has been installed
correctly (if require). 3. Check if the computer
USB port is working properly. Restart the
computer and try again.
=35=
Loading...
