Technalogix TM100 User Manual

TM-100

BROADCAST MODULATOR

OPERATING

MANUAL

Technalogix

1

TABLE OF CONTENTS

1.0 SAFEGUARDS ..................................................................................................................... 2

General Safeguards................................................................................................................2

Safety and First Aid .................................................................................................................3

2.0 WARRANTY........................................................................................................................ 4

3.0 DESCRIPTION AND SPECIFICATIONS.................................................................................... 5

General Description................................................................................................................5

Available Options....................................................................................................................6

Specifications..........................................................................................................................6

Video Conditioning Module.....................................................................................................9

4.0 INSTALLATION .................................................................................................................... 9

Building Recommendations....................................................................................................9

Heating and Cooling Requirements........................................................................................9

Electrical Service Recommendations...................................................................................10

Antenna and Tower Recommendations...............................................................................10

Shelter Security.....................................................................................................................11

Unpacking and Inspection ....................................................................................................12

Location and Function of Controls and Connectors.............................................................13

5.0 OPERATING PROCEDURE.................................................................................................. 15

Preliminary Hook -up.............................................................................................................15

Setup and Operation.............................................................................................................15

Transmitter Hookup ..............................................................................................................18

6.0 BILL OF MATERIALS, SCHEMATICS, AND PCB OVERLAYS ................................................ 20

Agile Logic Board..................................................................................................................20

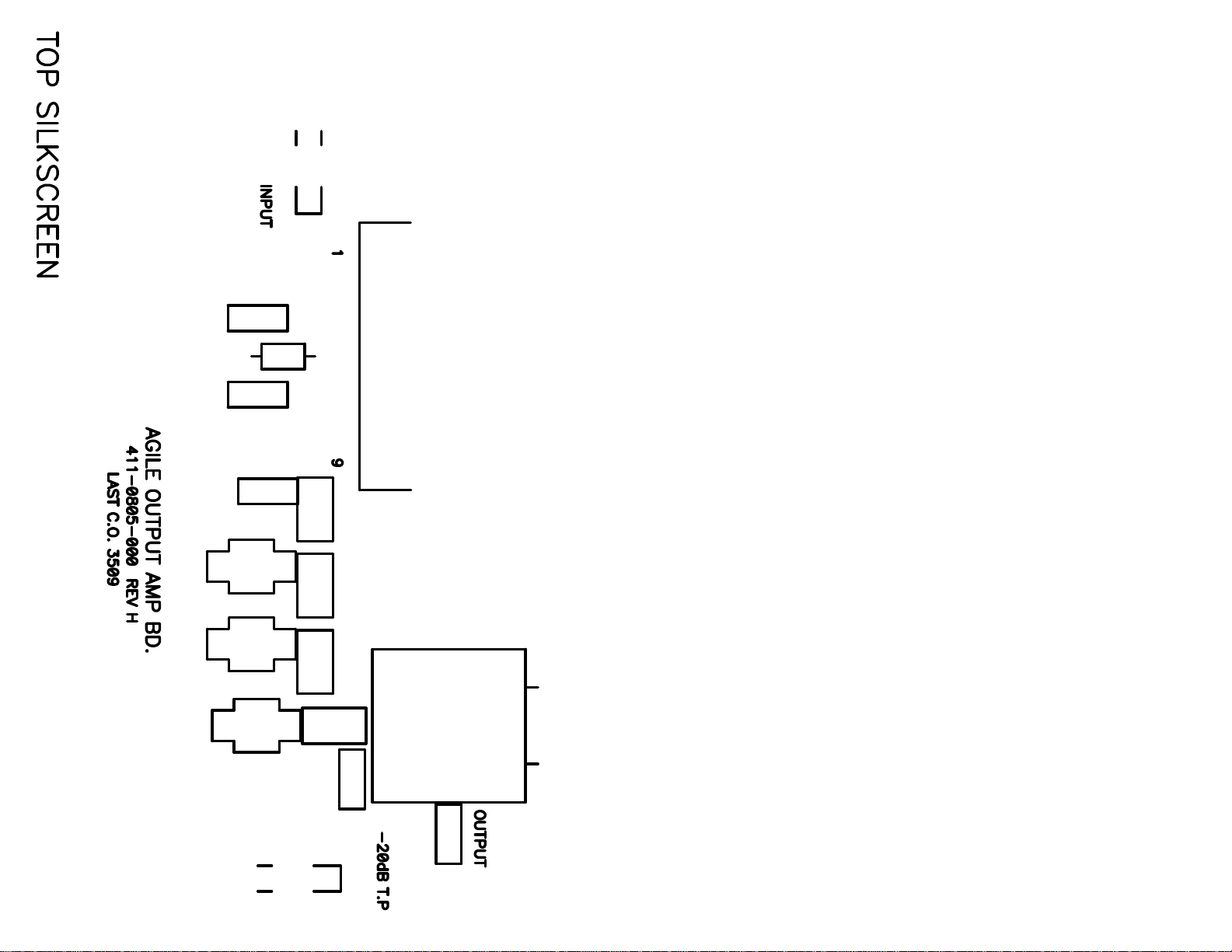

Agile Output Amplifier Board ................................................................................................25

Audio Video Modulator Board ............................................................................................... 28

Digital Up converter Board....................................................................................................37

750 MHz Down Converter Board..........................................................................................43

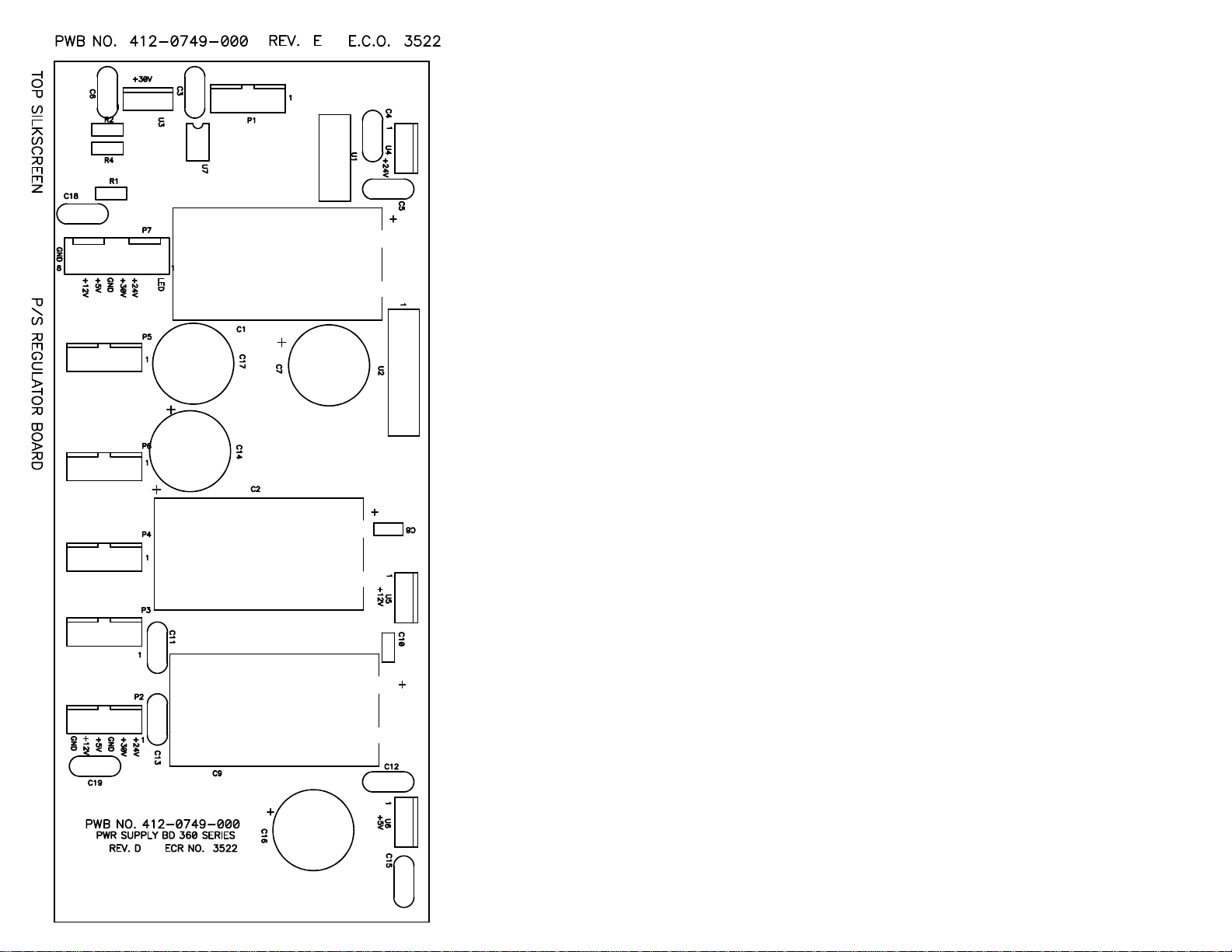

Power Supply Board.............................................................................................................49

Technalogix Ltd. TM-100 Modulator

2

1.0 SAFEGUARDS

General Safeguards

This section is written as a general guide for those having previous knowledge and
experience with these kinds of equipment. It is not intended to contain a complete
statement of all safety precautions, which should be observed by personnel using this or
other electronic equipment.

To reduce the risk of fire or electric shock, do not expose this equipment to rain or
moisture. Do not open the cabinet. Refer servicing to qualified personnel.

1. READ INSTRUCTIONS - All safety, installation, and operating instructions should be
read before the equipment is operated.

2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained
for future reference.

3. FOLLOW INSTRUCTIONS - All safety, installation, and operating instructi ons should
be followed.

4. GROUNDING AND POLARIZATION - The TM-100 Modulator is equipped with a
three prong grounded power plug. Do not remove the ground prong from the plug.
Do not use an AC receptacle where the plug blades cannot be fully inserted.

5. SERVICING - Do not attempt to service this equipment yourself as opening or
removing covers may expose you to dangerous voltage or other hazards and will
void the warranty. Refer all servicing to qualified service personnel.

6. DAMAGE REQUIRING SERVICE - Unplug this equipment and refer servicing to
qualified service personnel under the following conditions:

• if the power cord or plug is damaged.

• if liquid has been spilled or objects have fallen into the equipment.

• if the equipment has been exposed to rain or water.

• if the equipment does not operate normally by following the operating

instructions. Adjust only those controls covered by the operating instructions. An
improper adjustment may result in damage and will often require extensive work
by a qualified technician to restore the equipment to its normal operation.

• if the equipment has been dropped or the cabinet has been damaged.

• if the equipment exhibits a distinct change in performance.

Technalogix Ltd. TM-100 Modulator

3

Safety and First Aid

Personnel engaged in the installation, operation, maintenance, or servicing of electronic
equipment are exposed to the hazard of high voltage. It is imperative that all safety
regulations and precautions are consistently observed. Knowledge of first aid
procedures is recommended. The following information is presented as a reference
only.

• At all times, avoid placing any part of the body in series between ground and circuit
points, whether power is on or off.

• Dangerous voltage may be present in equipment even though power is off. Do not
open the cabinet. Refer servicing to qualified service personnel.

• It is the duty of all personnel to be prepared to give adequate emergency first aid
treatment and thereby prevent avoidable loss of life.

• There are three principle degrees of burns, recognizable as follows:

• a first-degree burn reddens the skin.

• a second-degree burn blisters the skin.

• a third degree burn chars the flesh and frequently places the victim in a state of

shock accompanied by respiratory paralysis.

• Respiratory paralysis can cause death by suffocation within seconds. It is
imperative that the approved methods of artificial respiration are initiated
immediately and continue until the victim’s breathing is normal.

• A muscular spasm of unconsciousness may render the victim unable to break free of
the electric power. If this is the case, turn the power off immediately.

DO NOT TOUCH THE VICTIM OR YOU MAY SHARE THE SAME
PREDICAMENT.

• If the power cannot be turned off immediately, very carefully loop a dry rope, article
of clothing, length of strong cloth or a rolled-up newspaper around the victim and pull
the victim free of the power source. Carefully avoid touching the victim or clothing.

• Once free of the power source, the victim must be placed in a reclining position and
covered with a blanket or newspapers to keep warm. At the first opportunity, enlist
help in summoning a doctor. If a doctor cannot be summoned, transport the victim
to the doctor or a hospital. Be sure the victim is kept well covered and warm while
awaiting professional treatment.

Technalogix Ltd. TM-100 Modulator

4

2.0 W ARRANTY

Technalogix Ltd. products have been completely tested and found to meet
specifications and be in proper operating condition. They are warranted to be
free from defects in materials and workmanship for a period of one year from the
date of shipment.

Technalogix Ltd. will not be liable for damages of whatever nature arising out of
or in connection with the equipment or its use thereof. Technalogix does not
assume responsibility for injury or damage resulting from the practices of
untrained or unqualified personnel in the handling of this equipment.

Technalogix Ltd. warranty does not include:

• misuse, neglect or accident.

• incorrect wiring and /or improper installation.

• unauthorized repairs, modifications or use in violation of instructions issued

by Technalogix.

• incidental or consequential damages as a result of any defect.

• reshipment cost or insurance of the unit or replacement units or parts.

• acts of God.

Technalogix agrees, at our option, to remedy warranted defects or furnish a new
part in exchange for any part of a unit which, under normal installation, use and
service, becomes defective. The user will pay for transportation costs to and from
the repair center.

To claim your rights under this warranty:

• Contact Technalogix and describe the problem in as much detail as possible.

See troubleshooting section in this manual. If a solution cannot be found at
this time, it may be determined that the unit will have to be returned to
Technalogix for repair.

• Package equipment carefully for prepaid shipment to Technalogix. Include a

written description of the problem experienced and a copy of the original
invoice establishing warranty status.

Technalogix reserves the right to make revisions in current production of the
equipment and assumes no obligation to incorporate these changes in earlier
models.

Technalogix Ltd. TM-100 Modulator

5

3.0 DESCRIPTION AND SPECIFICATIONS

General Description

The high output modulator eliminates the need for preamplifiers prior to the
power amplifier system. The modulator processes baseband audio and video
information to provide an IF output consisting of a visual IF carrier at 45.75 MHz,
using amplitude modulation, and an aural IF carrier at 41.25 MHz, using
frequency modulation. An internal upconverter translates the modulator circuitry’s
IF carriers to VHF and UHF television frequencies. All operating controls are
located on the front panel, as described in a later section. An aural loop through
is provided to properly set transmitter power.

Standard Features

• Totally microprocessor controlled with self-diagnostic monitoring.

• Selectable output channels:

§ Standard Broadcast VHF 2 – 13, UHF 14 – 60, T7 – T13

§ HRC channels 1 through 118

§ ±10 kHz offsets

• SAW filtered IF designed for adjacent channel operation.

• + 60 dBmV output using low distortion hybrid amplifiers.

• Synthesized oscillators – crystal referenced phase locked.

• Bar graph modulation and digital LED readout.

• Internal switch selects standard or HRC output.

• Surface mount technology construction.

• RF muted during tuning.

• Optional aural sub-carrier and baseband audio input

• Phase lock loop FM audio.

• BTSC stereo compatible.

• External separate audio/video and composite IF loop-through.

• RS-232 control option (daisy -chain capable)

• Sound carrier level adjustable –10 dB to –20 dB.

• Video delay predistortion network meets FCC 73.687.

• High stability TCXO, ± 250 Hz

• Non -volatile memory retains channel selection after power loss.

• Video Detection turns off carrier in event of loss of video.

Technalogix Ltd. TM-100 Modulator

6

Available Options

• 4.5 MHz sub carrier and baseband audio inputs.

• Dual RS-232 control with daisy chain capabilities that allow for remote

control by PC workstation.

HRC Output Frequency Set:
This Technalogix frequency agile product can be set for HRC frequency output.

This feature is controlled by an internal dip switch assembly, DS-1. The switch is
located near the right front corner (with the panel facing you) between the test
point and the output converter module. DS-1 is clearly marked on the PCB.
Switch #3 placed in the OFF position switches the output frequency to HRC on
all channels. The switch is normally set to ON at the factory.

Specifications

RF Characteristics

Frequency range 7 to 750 MHz
Frequency Response (one channel) ±0.5 dB
Frequency Stability ±250 Hz
RF Output Level +60 dBmV max
Output Impedance 50 Ohms
Harmonics > 60 dB below rated power
Predominant Intermodulation Distortion dBc = decibels below visual carrier

+ 920 kHz > -53 dBc

- 920 kHz > -53 dBc

+ 2.66 MHz > -53 dBc

- 2.66 MHz > -53 dBc
+ 5.42 MHz > -53 dBc
+ 7.16 MHz > -53 dBc

3rd Order Intermodulation Distortion

+ 4.5 MHz > -60 dBc
+ 9.0 MHz > -60 dBc

All others > -60 dBc

Spurious Emissions > -60 dBc

Technalogix Ltd. TM-100 Modulator

7

NTSC Video Characteristics

Input Level to modulator (for 87.5%
modulation)
Differential Phase (at 87.5% modulation) ±2 Degrees
Differential Gain (at 87.5% modulation) 2%
Group Delay < ±40 nS
Video Group Delay Pre-emphasis Conforms to IC/FCC specifications

K-Factor 1.9% for 2T Pulse
Hum and Noise > 60 dB below rated power

Aural Characteristics

Input: 50 Hz – 15 KHz 0 dBm (0.8V)
Impedance 600 ohms, balanced
Frequency Response +/- 1.0 dB
Frequency Tolerance, +/- 500 Hz 4.5 MHz
Frequency Deviation +/- 25 KHz
Harmonic Distortion 1% max
Preemphasis (mono) 75 µs

Internally Defeatable

IF Section

Output Impedance 75 ohms, unbalanced
Video IF level + 37 dBmV, +97 dBµV
Audio IF Level +22 dBmV

Adjustable +82 dBµV

Return Loss > 14 dB
IF Frequency, Video Carrier 45.75 MHz
IF Frequency, Audio Carrier 41.25 MHz
Video Sound Spacing + 4.5 MHz
Vestigial side-band width 0.05 MHz
Second IF Frequency 945.75 MHz

Physical Characteristics

Power Requirements 100-130, 210-230 VAC, 50/60 Hz
Operating Temperature

Weight 12 lbs
Dimensions (modulator only) W-19", D-14 ", H 1.75”, 1U -high

0 - 50°C

1.0 VPP

Technalogix Ltd. TM-100 Modulator

8

Video Conditioning Module

The TM-100 modulator includes a separate circuit board called the Video
Conditioning Module. The baseband video signal passes into the modulator,
through a group delay filter, and onto the video conditioning Module circuit board.
This module accomplishes two processes:

1. Sync Stretch. Allows the user to adjust the sync level to maintain the
proper level. Adjustment is made via potentionmeter VR2 and can be
made through the ventilation holes in the modulator lid without having to
remove the lid. Potentionmeter VR1 adjusts the video modulation level
and must be made by either removing the lid and adjusting VR1 or by the
Video Modulation adjust on the front panel of the modulator. The sync
stretch is powered by +5Vdc brought in to the connector and –5Vdc,
which is generated on board by U1.

2. Video Detect. Turns off the 24Vdc supply to the final amplifier in the TM­100 in the event of missing video input. The power supply for the final
amplifier (+24Vdc) is routed through a relay on the circuit board. In the
event of a missing video signal, the relay contact is opened and the
+24Vdc is disconnected from the final amplifier.

The input and output impedance of the Video Conditioning Module is 75-ohms
and video connections are made via RCA connectors. The video Conditioning
Module can be bypassed, if necessary

Technalogix Ltd. TM-100 Modulator

9

4.0 INSTALLATION

This section contains installation recommendations, unpacking, inspection, and
installation instructions for the Technalogix TM-100 Modulator. Carefully read all
material in this section prior to installation. Also read and review operating
procedures later in this section.

Building Recommendations

The quality of the building is of great importance if you are to expect long life and
continued performance from the modulator. The building must be clean, dry,
temperature controlled and secure. The modulator takes up a single 1-U high
space on a 19” rack. Don’t forget to allow space in the building for any additional
racks to house test equipment, a workbench area, line regulating transformers,
ladders, equipment and parts storage, first aid kit, emergency generator if used,
as well as heating and cooling devices that may be unique to your installation. A
sloping roof will tend to develop leaks less rapidly. The building should be well
roofed with good material. The cooling load will be lowered with reflective or light
colored roofing material.

Heating and Cooling Requirements

The environment’s temperature will contribute greatly to the length of the
modulator’s life. Technalogix recommends that the building’s filtered air intake
must have capacity for all air-flow in the building plus an additional 20%. Keep
the intake below the roofline to avoid intake of solar heated air. Please ensure
that the intake and exhaust areas are on the same side of the building to avoid
pressure differentials during windy conditions. Also, do not position intake near
exhaust’s preheated air. If air conditioning is required to cool the shelter, discuss
the situation with a qualified HVAC technician. Under average conditions, 12,000
BTUs will cool approximately 500 square feet to a comfortable level.

Technalogix Ltd. TM-100 Modulator

10

Electrical Service Recommendations

Technalogix recommends that a qualified, licensed local electrician be consulted
for the required electrical service. We suggest local electricians because:

• The personnel knows the local codes

• The personnel can be on site readily

• You are apt to get better overall support if you give what business you can

to local suppliers

Technalogix recommends that proper AC line conditioning and surge
suppression be provided on the primary AC input to the power amplifier. All
electrical service should be installed with your national electrical code in your
area, any applicable provincial or state codes, and good engineering practice.
Special consideration should be given to lightning protection of all systems in
view of the vulnerability of most transmitter sites to lightning. Lightning arrestors
are recommended in the service entrance. Straight and short grounds are
recommended. The electrical serviced must be well grounded. Do not connect
the unit to an open delta primary power supply, as voltage fluctuations could
harm the unit. Branch your circuits. Do not allow your lights, your workbench
plugs, and your transmitting or translating equipment off of one circuit breaker.
Each transmitter should have its own circuit breaker, so a failure in one does not
shut off the whole installation.

Antenna and Tower Recommendations

Your preliminary engineering workgroup should establish your antenna and tower
requirements, both for receiving and transmitting antennas. Construction of
sturdy, high quality antenna/tower systems will pay off in terms of coverage of
your service area, the overall quality and saleability of your radiated signal, and
reduced maintenance expenses. Technalogix provides complete turnkey antenna
systems if needed. Transmitting antennas can enhance or seriously impair the
transmitter output. It is assumed that one has been selected prior to system
installation, but the best-designed antenna system will function poorly if shortcuts
and compromises are used during installation. Follow the manufacturer’s
instructions exactly, along with any engineering data prepared for the site.

Technalogix Ltd. TM-100 Modulator

11

The selection, routing, and length of coaxial cable is extremely important in the
installation. If there is a 3 dB line loss in the cable between your unit’s output and
the transmitting antenna, a 500 watt unit will only deliver 250 watts to the
antenna. Buy the best cable you can obtain, route it via the shortest way to the
antenna, and keep it straight. Do not form it into sharp bends on its way. Do not
use any more cable fittings for the installation than absolutely necessary. All
cautions here apply equally to all coaxial cables in the system - input and output.
The better known tower manufacturers offer complete technical and safety
documentation with their towers. Be sure that you have this information as it
regards wind loading, guying, etc. Be absolutely safe and certain about this
aspect as human lives may be at stake.

Shelter Security

The FCC requires that the transmitter be secure from entry or control by
unauthorized persons, and that any hazardous voltages or other dangers
(including most tower bases) be protected by locks or fences as necessary to
protect personnel and prevent unauthorized tampering or operation. Security of
the building further implies that it be secure from wildlife. Use sturdy construction
materials, including sheet metal if necessary. Holes around conduit, cable, and
other similar entry points should be stuffed with steel wool and caulked to prevent
entry of wildlife. Other features of security for your shelter may include its location
with respect to the prevailing wind conditions. A location leeward of some natural
topographical feature will prevent wind damage and snowdrifts. Check the soil
runoff conditions that may slow or hasten wind or water erosion and other
concerns that may be unique to your location.

Technalogix Ltd. TM-100 Modulator

12

Unpacking and Inspection

Check the outside of the container. Carefully open the container and remove the
modulator. Retain all packing material that can be reassembled in the event that
the equipment must be returned to the factory.

Exercise care in handling equipment during inspection to prevent
damage due to rough or careless handling.

Visually inspect the enclosure of the modulator for damage that may have
occurred during shipment. Check for evidence of water damage, bent or warped
chassis, loose screws or nuts, or extraneous packing material in connectors.
Inspect all connectors for bent connector pins. If the equipment is damaged, a
claim should be filed with the carrier once the extent of the damage is assessed.
Technalogix cannot stress too strongly the importance of immediate careful
inspection of the equipment and subsequent immediate filing of the necessary
claims against the carrier if necessary. If possible, inspect the equipment in the
presence of the delivery person. If the equipment is damaged, the carrier is your
first area of recourse. If the equipment is damaged and must be returned to the
factory, phone for a return authorization. Claims for loss or damage may not be
withheld from any payment to Technalogix, nor may any payment due be
withheld pending the outcome thereof. Technalogix cannot guarantee the
carrier’s performance.

Technalogix Ltd. TM-100 Modulator

13

Location and Function of Controls and Connectors

The following illustrations depict the location of the installation connectors when
installing the power amplifier with a modulator or processor.

FRONT

BACK

Audio Deviation – Allows user to control extent of audio deviation. Original
factory setting at 25 KHz deviation using standard pre-emphasis curve.

Audio/Video Display Select - Provides a graphical representation of audio
deviation and visual modulation levels on an LED bar graph. The switch selects
between audio deviation or visual modulation.

Video Modulation -- Allows user to control extent of video modulation. Original
factory setting at 87.5% video modulation with 1.0 Volt peak to peak baseband
input video signal.

Frequency Offset Select – Toggles between +10 KHz, 0KHz, and –10 KHz
frequency offset.

Aural Carrier Level - Allows user to set aural carrier level relative to visual carrier
level. Modulator is factory tested at –10 dBc (decibels below visual carrier).

Technalogix Ltd. TM-100 Modulator

14

Output Select – Selects the desired channel of operation. If you require a lower
channel than the one currently displayed, push the toggle switch down. The
channels will change one at a time as many times as you press the switch.
Holding the select switch in the up or down position will “scan” to the desired
channel. It is normal for the frequency lock LED to turn off during and for a few
seconds after, changing channels. The switch must be held up or down initially
for three seconds. This helps to ensure that no accidental channel changes will
occur.

Output Level – Sets visual carrier output level.
RF Out Test Point – Provides a sample of the RF output level which is 20 dB

below the actual value. RF test point is only a relative indicator of the actual RF
output level and may vary. All RF operating measurements should be made at
the RF output of the unit.

RF Output - Modulated Audio/ Video output capable of +60 dBmV levels using
built in low distortion hybrid amplifiers.

RS-232 Ports – Set up for optional RS-232 control option.
Combined IF Input/ Output – 45.75 MHz visual carrier and 41.25 MHz audio

carrier intermediate frequency signal loop.

Audio Input/ Ouput Loop – Available for baseband audio processing.
Video Input/ Output Loop - Available for baseband video processing.
Video In – Connection for 1.0 Volt peak to peak video source.
Balanced Baseband Audio In – Used to connect a 1 Volt peak to peak baseband

audio signal. For balanced input connection, connect 1 audio input lead to the
left terminal on the connector and the other audio input lead to the right terminal.
For an unbalanced input connection, connect one audio input lead to the left
terminal on the connector and the other audio input lead to the centre terminal.
Center terminal is chassis ground.

Technalogix Ltd. TM-100 Modulator

15

5.0 OPERATING PROCEDURE

Preliminary Hook-up

1. Terminate modulator into a 50 ohm load before applying power.

2. Connect the power cord of the Technalogix TM-100 agile modulator to a
proper electrical source as indicated on the back of the unit

3. Observe the front panel. If power is applied and present, the red power
LED will illuminate. Also, all the elements of the displays behind the
display readout window will illuminate momentarily as a display test.

4. Observe the numbers displayed behind the display readout window after
the test. They will indicate:

• Microprocessor software version;

• Internal option dipswitch settings;

• RS-232 unit ID (if so equipped); and

• Last tuned channel.

5. After a moment, the Lock Detect LED will illuminate.

Setup and Operation

A. Output level and channel selection; connecting monitor.

1. Connect a spectrum analyzer, or a field strength meter tuned to the
frequency of the video RF carrier of the desired channel, to the RF
OUTPUT jack on the rear panel of the unit. Alternatively, connect a
spectrum analyzer or a field strength meter to the –20dB TEST POINT on
the front panel of the unit.

2. Select the desired output channel using the CHANNEL SELECT paddle
switch on the front panel.

• Hold the CHANNEL SELECT switch in the up- or down-position
for approximately 3 seconds to activate the channel -select
circuit;

• Toggle the CHANNEL SELECT switch up to select a higher
channel or toggle it down to select a lower channel. The switch
may be held in the up- or down-position for rapid channel
switching.

Technalogix Ltd. TM-100 Modulator

16

3. Observe the output on the spectrum analyzer, or the field strength meter.
If measuring from the rear panel RF OUTPUT jack, adjust the front panel
OUTPUT LEVEL potentiometer for an output level between +55dBmV and
+60dBmV. If measuring from the front panel –20dB TEST POINT, ensure
that the rear panel RF OUTPUT jack is terminated into a 50Ω load, then
adjust the front panel OUTPUT LEVEL potentiometer for an output level
between +35dBmV and +40dBmV.

4. If using a field strength meter, retune the meter to the frequency of the
audio RF Carrier.

5. Still observing the output on the spectrum analyzer, or the field strength
meter (now tuned to the frequency of the audio RF carrier), adjust the front
panel AURAL CARRIER potentiometer for an output level 10-13dB lower
than that at which the video RF Carrier is set.

6. Remove the spectrum analyzer, or field strength meter from the unit. If
available, connect a television/monitor to the front panel –20dB TEST
POINT, apply power to the television/monitor and tune to the selected
output channel of the Technalogix TM-100 modulator.

B. VIDEO input connection and adjustment.

1. Connect a 1.0V

2. Adjust the front panel VIDEO MODULATION control for 87.5%
modulation.

• Set the front panel DISPLAY SELECT switch to VIDEO (down)
position;

• Observe front panel LED bargraph behind front panel display
readout window.

• First RED LED will begin illumination at approximately 87.5%
modulation; or

• Observe TV monitor for good visual image.

video source to the VIDEO IN jack on the rear panel.

P -P

Technalogix Ltd. TM-100 Modulator

17

C. AUDIO input connection and adjustment – BASEBAND AUDIO

1. If your Technalogix TM-100 agile modulator is equipped with a 4.5MHz
sub-carrier input option, ensure that the rear-panel AUDIO SELECT switch
is in the BASEBAND position.

2. Connect a 1V
connector as follows:

• For balanced input connection, connect one audio input lead to

• For unbalanced input connection, connect one audio input lead

• Center terminal is chassis ground.

• Insert the terminal into the connector on the rear panel of the

3. Adjust the front panel AUDIO MODULATION control for 100% modulation.

• Set the front panel DISPLAY SELECT switch to AUDIO (up)

• Observe front panel LED bargraph behind front panel display

• First RED LED will begin illumination at approximately 95%

• Adjust for ±25KHz deviation using a spectrum analyzer; or

• Listen to the audio output from TV monitor and setting the

D. AUDIO input connection and adjustment – 4.5MHz Subcarrier input

1. Set the rear panel AUDIO SELECT switch in the 4.5 position.

2. Connect a modulated 4.5MHz subcarrier signal to the rear panel 4.5MHz
input F-connector jack.

3. Inject a minimum +36dBmV (-12.75dBm) 4.5MHz RF carrier into the unit.

4. Using the setup in Step A.5., measure the audio RF carrier output level at
the rear panel RF OUTPUT jack. Level should be within ±2dB of the
measurement taken in Step A.5.

baseband audio signal to the rear panel baseband audio

P -P

the left terminal on the connector and the other audio input lead
to the right terminal.

to the left terminal on the connector and the other audio input
lead to the center terminal.

TM-100.

position.
readout window.
modulation; or

loudness equal to that of an off-air channel carried on your
system.

Technalogix Ltd. TM-100 Modulator

18

Important
Technalogix power supplies are designed so that under certain power line or

heat buildup conditions, the unit shuts off. An indicator would be no RF output,
but the POWER LED remains on. If this occurs, unplug the power cord and wait
two minutes before re-powering. Upon applying power, you should again have
RF output. If not, or should the unit return to shutdown mode, please contact
Technalogix for assistance. Technalogix highly recommends a 1.75 inch air
circulation space between any rack mounted equipment.

Transmitter Hookup

1. Connect modulated video from TM-100 RF OUT to the Technalogix power

amplifier.

2. Turn down RF level on TM-100 all the way.

3. Ensure that IF OUT is connected to IF IN on the TM-100 modulator using the

loop F to F cable supplied.

4. Connect the transmitting antenna cable to the RF output connector on the

power amplifier. It is recommended that a quality through line wattmeter be
installed in this same line.

5. Verify that all signal and RF cables are connected properly.

6. After following proper installation procedures outlined in the power amplifier

manual, plug the power amplifier’s power cords into an appropriate electrical
outlet.

Output power should be adjusted with a sync and blanking signal only with the aural
carrier removed. This is simply done by disconnecting one end of the audio carrier loop
found on the back panel of the TM-100.

Technalogix Ltd. TM-100 Modulator

19

No output

Unit tuned to output channel different from desired
(this occurs particularly on the units which have
green LED on the front panel to indicate “T”

Ensure selected output channel is

Ensure input signal strength is 1V

Excessive noise

Output level above rated maximum (most often

Measure RF output from rear

Bad/noisy video

Measure Aural Carrier level
and/or adjust AURAL CARRIER

Channels do not

Hold channel change switch in

least three seconds

6.0 PROBLEM T ROUBLESHOOTING GUIDE

The guide below covers some typical symptoms, possible associated causes and
suggested actions to follow before returning the unit for repair. It is not meant to be all­inclusive.
Symptom Possible Cause Suggested Action

Weak output

Spurious signals

change

channels and channels above 99)

Input signal is too weak

IF loop cable on rear of unit loose/disconnected

Unit not plugged in or not getting power

occurs when changing from high-number channel to
low-number channel, especially to the “T” channels)

IF level too high (most often occurs when routing IF
through scrambler or other external device)

Input signal too strong or no input signal at all

Aural carrier interfering with video carrier

Delay feature acti ve

desired channel

peak to peak

Check IF loop cable is securely
attached

Check power cord and power
source, fuse

panel jack and adjust front panel
OUTPUT LEVEL control as
required

Measure normal IF output level
for applied CW/unmodulated
input carrier and ensure same
level is returned to unit after
external processing

Measure video level and pad to
within specified input levels.

LEVEL control on front panel

raised/lowered position for at

Technalogix Ltd. TM-100 Modulator

20

7.0 BILL OF M ATERIALS, SCHEMATICS, AND PCB OVERLAYS

Agile Logic Board Bill of Materials

Last Revision: 09.12.00

Component Reference Quantity

Identification Modifier Package

C1 1 22pF CAP250D
C10 1 0.47uF CAP100RP
C11 1 10 uF CAP100RP
C12 1 22 uF CAP100RP
C13 1 22 uF CAP100RP
C14 1 22 uF CAP100RP
C15 1 22 uF CAP100RP
C16 1 0.01uF CAP250D
C17 1 0.01uF CAP250D
C18 1 47 uF CAP100RP
C19 1 47 uF CAP100RP

C2 1 22pF CAP250D
C20 1 CAP100RP
C21 1 0.01uF CAP250D
C22 1 0.01uF CAP250D
C23 1 0.01uF CAP250D
C24 1 0.01uF CAP250D

C3 1 22 uF CAP100RP

C4 1 10 uF CAP100RP

C5 1 0.47uF CAP100RP

C6 1 0.47uF CAP100RP

C7 1 0.01uF CAP250D

C8 1 0.01uF CAP250D

C9 1 470 uF CAP197R

D1 1 RED T1 LED T1-W/HLD

D2 1 T1 W/HLD LED

D3 1 RED T1 LED T1-W/HLD

DS1 1 8 POS DPS8W

JP1 1 4 POS

HEADER

JP2 1 8 POS

HEADER

JP3 1 JP-DUAL4

JP-DUAL4
JP-DUAL8

Technalogix Ltd. TM-100 Modulator

21

JP4 1 3PIN JP3IL
JP5 1 3PIN JP3IL
JP6 1 3PIN JP3IL
JP7 1 3 POS JP3IL
JP8 1 3 IL JP3IL

L1 1 6 T COIL 60
L2 1 6 T COIL 60
L3 1 6 T COIL 60
L4 1 6 T COIL 60
L5 1 6 T COIL 60

P1 1 4 PIN SMB
P10 1 10 POS DIPIL10
P11 1 4 PIN SMB
P12 1 8 POS CONNIL8

P2 1 RT ANG F FCONN

P3 1 12 POS CONN IL12

P4 1 12 POS CONN IL12

P5 1 ON DISPLAY

BDS
P6 1 12 POS CONN IL12
P7 1 12 POS CONN IL12
P8 1 4 PIN SMB
P9 1 10 PIN CONN10IL

Q1 1 2222 TRANS2222
Q2 1 2907 TO18C

QP1 1 4-2222A DIP14C

R1 1 10 Mohm RES1-8

R10 1 1 kOhm RES1-8
R11 1 5 kOhm POT1
R12 1 10 Kohm RES1-8
R13 1 10 Kohm RES1-8
R14 1 1 kOhm RES1-8
R15 1 6.8 kOhm RES1-8
R16 1 1 kOhm RES1-8
R17 1 500 Ohm POT1
R18 1 10 Kohm RES1-8
R19 1 5.6 kOhm RES1-8

R2 1 4.7 Ohm RES1-8

R20 1 10 Kohm RES1-8
R21 1 91 Ohm RES1-8
R22 1 10 Ohm RES1-8
R23 1 5 kOhm POT1

R3 1 5 kOhm POT1
R4 1 10 Kohm RES1-8

CONN IL19

Technalogix Ltd. TM-100 Modulator

22

R5 1 1 kOhm RES1-8
R6 1 68 kOhm RES1-8
R7 1 68 kOhm RES1-8
R8 1 68 kOhm RES1-8
R9 1 4.7 Ohm RES1-8

RP1 1 10 Kohm DIPIL11
RP2 1 10 Kohm DIPIL11
RP3 1 10 Kohm DIPIL11
RP4 1 150 Ohm DIP IL8

RP5 1 150 Ohm DIP IL8
SW1 1 PADDLE SW1
SW2 1 PADDLE SW1
SW3 1 ROCKER SW1
SW4 1 ROCKER SW1

U1 1 MC74HC165 DIP16C
U2 1 IC34064 REGTO92
U3 1 68705C8 DIP40C
U4 1 74H04 DIP14C
U5 1 74H04 DIP14C
U6 1 MC14499 DIP18C
U7 1 DS232 DIP16C
U8 1 X2402 DIP8C

Y1 1 4MHz XTAL

Technalogix Ltd. TM-100 Modulator

1

A A

S1

S2

S3

B B

C C

OUTPUT CH

INPUT CH

INPUT MODE

5V

RP1

RP3

4
5
2
3
7
6
8
9
1

U7

1
2
3
4
5
6
7
8 9

EEPROM MEMORY STORAGE

U8

P1
P2
P3
P4 P5

D D

E E

FROM P/S

POWER ON LED

+25V

P/S LED

+30V
+12V

-12V

P12

F F

5V

16
15
14
13
12
11
10

P8
P7
P6

C22 C21

C23 C24

2

1

1

6
7
4
5
9

8
12
19

1

2
21
22

4

5

6
13

7
10

8

9

10

11

12

13

14

15

16

17

18

19

1

1

1

12

13

14

3 2

5V

C2

L5

IN

C8

+

+5V

L4

+12V

U3

OUT

COM

3

+

C7

U6

NOT RESET
NOT IRQ

OSC 1

NOT VPR

OSC 2

SW1UP

TCAP
SW1DWN
SW0UP

MUTE1

SW0DWN

PD 5
PA3
PA2
S/L
SHREG
DATAIO
CLK

SBSEL

DSPEN

LED1
VRST

LED0
PLLIEN

SPR4I

PLLOEN

SPR5I

PLLEN

SPR6I

PWR

OFF AIR

GND ISTHR

18
17
16
15
14
13
12
11

12

10

5

3

+5V +5V

3

U4

1

4

5V

R11

Y1

R2

Vdd

37
36

VIN

35
34
33

LD

32

LDI

31

LD0

30

TDO

29

RDI

28
27
26
25
24
23
22
21

L1

+

C9

U9

1
2
3
4
5
6
7
8
910

QP1

3

U5

1

C4 C3

RP2

1

2

1

3

2

4

37

5

36

6

34

9

22

10

21

1

1

+5V

RP5

RP4

13
14

9
8

6
7

2
1

NOTES:
ON M/N UNITS W411808

DISPLAY BD. ONLY

1. CUT THE ETCH
CONNECTING PINS 6&9 ON

TOP OF P5 ON TOP OF
BOARD

2. CUT THE ETCH
CONNECTING PINS 7&11 ON
P5 ON BOTTOM OF BOARD

3. CONNECT PINS 1&6 OF
P5 W/INSULATED WIRE ON
BOTTOM OF BOARD

4. CONNECT PINS 2&7 OF
P5 W/INSULATED WIRE ON
BOTTOM OF BOARD

35

1

1

R18

1
2
3
4
5
6
7
8 9

JP1

P8
P7
P6

5

R19

R20

Q1

C13

+

C14
+

C1

+

JP2

16
15
14
13
12
11
10

P1
P2
P3
P4P5

Q2

C12

+

1

U11

2
3
4
5
6
7
8 9

NORM

R16

16
15
14

4

13

2

12

3

11

4

10

1

JP4

TEST

D4

LOCK LED

RSTX
RSRX

RDI
TDO

TO JP5.2
TO JP5.3

6

+12V

7

8

9

10

MUTE

360 VIDEO MODULATION

JP3

P1

P8

P2

P7

P3

P6

P4P5

360 TEXT
OVERLAY OPTION5K/370

VIDEO OUT

MODULATOR INPUT

P111

R111

C200

+

R14

10k 40%

J2

(370 MOD) T
CHANNEL

(370 MOD) VHF/UHF

(360
MOD)VIDEO
MODULATION

TO JP2 P5-4

P100

360 VIDEO MOD ADJ

361/2 ALR LEVEL
370/370T VIDEO GAIN

C181

+

JPR

TO P6.2 DEDOM INTERFACE

R221

+

C191

90-F

TO P4.2 RSRX
TO P4.1 RSTX

+

C161

-20dB RF MONITOR

(360.361.362

R7 R6

LDO

+

1

1 11

9 8

4

11
5

13

1
9

3
10

9

11

1
2
3
4

OUT LVL

1

OMIT FOR
DEMOD

5V

U1A

U2F

U2E

U2D

U2C

U2B

U1F

U1D

U1C

U1B

R13

R3

1

1

R9

+

C11

R8

LD

LDI

C10+C6+C5

31323

3

1

+12V

2
3
4
5
6
7
8

9
10
11

PLLI EN

12
13
14

PLLO EN

15
16

PLL EN

17
18
19

DATA IO

20

CLK

P5

PWR

SBSEL

LED1
LED0
SPR41

SPR51

SPR61

P10

VIN

VRST

DATA IO

CLK

+5V

N/C

32
31

21

3

U2A

U1E

R121

R4

FP OUTPUT
LEVEL ADJ

(DEMOD)
W/R23
CW/R23

IN PLL EN

5

DATA

6
7

CLOCK
LD

OFF

11

PROCESSOR
INPUT

1

RSTX

1
2

RSRX

4

25 KHz

5

12.5KHz

6

MUTE

7
8

OUT LVL
OUT LVL

9
10

TO UP CONV.

REF

1
2

DATA

LDO

3
4

12.5KHz

5

OUT PLL EN

6

CLOCK

7

25KHz

TO OUTPUT CONV.

3
4
5

11
12

SPARES/DEMOD

+5V

P7

+5V
+5V

INPUT LD
+30V
+12V
(362.SW3

3 W/R17)

P4

TO RP RJ11
+12V

+5V

-12V

P3

+12V
+5V
+24V

-12V
+12V

P6

W/R17

C20

D3

D2

(361/2)

R10

R5

500R/360
100K/361-2

P1

(360/370)

R21

+12V

N/C

R171

VIDEO IN

J1

P9

MONITOR IN

R1

L3

R15

+12V

+5V

12V

JP6

SW4

360 BAR GRAPH
DISPLAY

P200

J101

C5045.6 REAR PANEL
RJ11/RS232 INPUT

+5V

CON

VIDEO TEXT OVERLAY

Technalogix Ltd.
#4, 8021 Edgar Industrial Place

G G

Red Deer, Alberta, Canada T4P 3R3

Agile Logic

Rev ID

C

1

2

3

4

5

6

7

8

Date: 09/11/00 Page: 1 of 1

9

10

23

25

Agile Output Amplifier Bill of Materials

Last Revision: 09.12.00

Component Reference Quantity Identification Modifier Package

C1 1 0.1uF 1206
C2 1 0.1uF 1206
C3 1 2.7 pF 1206
C4 1 3-10pF VCAP CGKG27
C5 1 3-10pF VCAP CGKG27
C6 1 3-10pF VCAP CGKG27
C7 1 2.7 pF 1206
E1 1 E-COAX
E2 1 12 V EPAD
E3 1 E-COAX
E5 1 GND EPAD
I1 1 1206
L1 1 IND400
L2 1 10 nH 1210
L3 1 12 nH 1210
L4 1 12 nH 1210
L5 1 10 nH 1210
P1 1 FCONN-S
U1 1 AMP6342

Technalogix Ltd. TM-100 Modulator

1

24

A A

B B

E2

+24V

2

3

4

5

6

7

C C

C2C1

D D

L1

+

U1

52

E E

F F

INPUT

E1

1 9

C3

L3

C4 C5

L4

C6

L5L2

P1

C7

OUTPUT

R1

-20dB TEST

E3

G G

H H

I I

Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada T4P 3R3

J J

1

2

3

4

5

Agile Output Amplifier Board

Rev ID

H

Date: 09/11/00 Page: 1 of 1

6

7

28

Audio Video Modulator Board Bill of Materials

Last Revision: 09.12.00

Component

Reference

C1 1 0.1uF SMD1206
C10 1 0.1uF SMD1206
C100 1 4.7uF CAP100RP
C101 1 100pF SMD1206
C102 1 47uF CAP100RP
C103 1 0.1uF SMD1206
C104 1 470pF SMD1206
C105 1 0.1uF SMD1206
C106 1 470uF CAP200RP
C107 1 0.1uF SMD1206
C108 1 470uF CAP200RP
C109 1 0.0027uF SMD1206
C11 1 0.1uF SMD1206
C110 1 0.1uF SMD1206
C111 1 NI SMD1206
C112 1 470uF CAP200RP
C113 1 0.1uF SMD1206
C114 1 0.1uF SMD1206
C115 1 0.1uF SMD1206
C116 1 0.1uF SMD1206
C117 1 0.01uF SMD1206
C118 1 18pF SMD1206
C119 1 NI SMD1206
C12 1 0.01uF SMD1206
C120 1 0.1uF SMD1206
C121 1 470uF CAP200RP
C122 1 0.01uF SMD1206
C123 1 470uF CAP200RP
C124 1 10pF SMD1206
C125 1 27pF SMD1206
C126 1 82pF SMD1206
C127 1 0.001uF SMD1206
C128 1 0.01uF SMD1206
C129 1 0.01uF SMD1206
C13 1 0.1uF SMD1206

Quantity Identification Modifier Package

Technalogix Ltd. TM-100 Modulator

29

C130 1 0.1uF SMD1206
C131 1 NI SMD1206
C132 1 0.1uF SMD1206
C133 1 0.01uF SMD1206
C134 1 0.01uF SMD1206
C135 1 0.1uF SMD1206
C136 1 0.1uF SMD1206
C137 1 0.01uF SMD1206
C138 1 0.1uF SMD1206
C139 1 0.01uF SMD1206
C14 1 0.001uF SMD1206
C140 1 0.01uF SMD1206
C141 1 0.01uF SMD1206
C142 1 0.1uF SMD1206
C143 1 12pF SMD1206
C144 1 12pF SMD1206
C145 1 3-10pF CGKG27
C146 1 12pF SMD1206
C147 1 12pF SMD1206
C148 1 0.1uF SMD1206
C149 1 0.01uF SMD1206
C15 1 0.01uF SMD1206
C150 1 0.1uF SMD1206
C151 1 27pF SMD1206
C152 1 56pF SMD1206
C153 1 27pF SMD1206
C154 1 0.01uF SMD1206
C155 1 0.01uF SMD1206
C156 1 0.01uF SMD1206
C16 1 0.1uF SMD1206
C17 1 22pF SMD1206
C18 1 56pF SMD1206
C19 1 10pF SMD1206
C2 1 0.1uF SMD1206
C20 1 0.001uF SMD1206
C21 1 0.47uF SMD1206
C22 1 22pF SMD1206
C23 1 22pF SMD1206
C24 1 4.5-20pF CGKG27
C25 1 0.01uF SMD1206
C26 1 0.001uF SMD1206
C27 1 22pF SMD1206
C28 1 4.7uF CAP100RP
C29 1 100pF SMD1206

Technalogix Ltd. TM-100 Modulator

30

C3 1 4.7uF CAP100RP
C30 1 0.01uF SMD1206
C31 1 0.1uF SMD1206
C32 1 0.001uF SMD1206
C33 1 0.01uF SMD1206
C34 1 68pF SMD1206
C35 1 100pF SMD1206
C36 1 100pF SMD1206
C37 1 68pF SMD1206
C38 1 470uF CAP200RP
C39 1 0.01uF SMD1206
C4 1 0.1uF SMD1206
C40 1 0.01uF SMD1206
C41 1 0.1uF SMD1206
C42 1 0.01uF SMD1206
C43 1 0.01uF SMD1206
C44 1 0.1uF SMD1206
C45 1 470uF 25V CAP200RP
C46 1 1000uF CAP300RP
C5 1 4.7uF CAP100RP
C6 1 0.1uF SMD1206
C7 1 0.001uF SMD1206
C8 1 470uF CAP200RP
C9 1 47pF SMD1206
D1 1 5236 SOT23
D10 1 3800 SOT23
D100 1 2800 SOT23
D101 1 2800 SOT23
D11 1 3800 SOT23
D2 1 2800 SOT23
D3 1 2800 SOT23
D6 1 MMBV105GL SOT23
D7 1 10 V SOT23
D8 1 4.7V SOT23
D9 1 3800 SOT23
F1 1 SIP5L
F100 1 FILTER221

9
F101 1 SF28S
J1 1 NI SMD1206
JP1 1 NI SMD1206
JP2 1 0 SMD1206
JP3 1 NI SMD1206
JP4 1 NI SMD1206

Technalogix Ltd. TM-100 Modulator

31

JP5 1 0 SMD1206
L1 1 10.5 T,26GA COIL
L100 1 12.5T 22GA COIL
L101 1 0.47uH SMD1812
L102 1 0.47uH SMD1812
L103 1 12.5T 22GA COIL-S
L104 1 12.5T 22GA COIL-S
L105 1 0.47uH SMD1812
L106 1 0.47uH SMD1812
L107 1 0.47uH SMD1812
L15 1 0.47uH IND400
L2 1 0.33uH SMD1812
L3 1 0.33uH SMD1812
L4 1 0.33uH SMD1812
L5 1 0.47uH SMD1812
MX100 1 MIXER
P1 1 FCONN-S
P100 1 FCONN-S
P101 1 RTARCA
P102 1 RTARCA
P103 1 FCONN-S
P2 1 CONN10IL
P7 1 CONHDR6
P8 1 CONHDR6
Q1 1 2369 SOT23
Q100 1 2222 SOT23
Q101 1 2907 SOT23
Q102 1 2222 SOT23
Q103 1 2222 SOT23
Q104 1 2907 SOT23
Q105 1 2222 SOT23
Q106 1 2222 SOT23
Q107 1 2222 SOT23
Q108 1 MRF559B2
Q109 1 MRF559B2
Q110 1 MRF559B2
Q2 1 2369 SOT23
R1 1 300kohm SMD1206
R10 1 220kohm SMD1206
R100 1 75ohm R1206A
R101 1 22kohm SMD1206
R102 1 270ohm SMD1206
R103 1 620ohm SMD1206
R104 1 2kohm SMD1206

Technalogix Ltd. TM-100 Modulator

32

R105 1 360ohm SMD1206
R106 1 2kohm SMD1206
R107 1 51ohm SMD1206
R108 1 330ohm SMD1206
R109 1 3.6kohm SMD1206
R11 1 100ohm SMD1206
R110 1 6.8kohm SMD1206
R111 1 680kohm SMD1206
R112 1 1kohm SMD1206
R113 1 910ohm SMD1206
R114 1 22ohm SMD1206
R115 1 330ohm SMD1206
R116 1 1.5kohm SMD1206
R117 1 560ohm SMD1206
R118 1 1kohm SMD1206
R119 1 330ohm SMD1206
R12 1 75kohm SMD1206
R120 1 1kohm POTENTIOMETER ST53YJ
R121 1 560ohm SMD1206
R122 1 1.5kohm SMD1206
R123 1 470kohm SMD1206
R124 1 51ohm SMD1206
R125 1 10kohm POTENTIOMETER ST53YJ
R126 1 1kohm SMD1206
R127 1 1kohm SMD1206
R128 1 NI SMD1206
R129 1 360ohm SMD1206
R13 1 1kohm SMD1206
R130 1 10kohm POTENTIOMETER ST53YJ
R131 1 180ohm SMD1206
R132 1 51ohm SMD1206
R133 1 150ohm SMD1206
R134 1 22ohm SMD1206
R135 1 10kohm SMD1206
R136 1 10kohm SMD1206
R137 1 1.5kohm SMD1206
R138 1 1kohm SMD1206
R139 1 10kohm SMD1206
R14 1 470kohm SMD1206
R140 1 20kohm 1% SMD1206
R141 1 27ohm SMD1206
R142 1 36ohms SMD1206
R143 1 27ohm SMD1206
R144 1 1kohm SMD1206

Technalogix Ltd. TM-100 Modulator

33

R145 1 4.7ohm SMD1206
R146 1 82ohm SMD1206
R147 1 2kohm SMD1206
R148 1 220ohm SMD1206
R149 1 75ohm SMD1206
R15 1 10kohm POTENTIOMETER ST53YJ
R150 1 1kohm SMD1206
R151 1 18ohm SMD1206
R152 1 1kohm SMD1206
R153 1 1kohm SMD1206
R154 1 2kohm SMD1206
R155 1 4.7ohm SMD1206
R156 1 82ohm SMD1206
R157 1 220ohm SMD1206
R158 1 75ohm SMD1206
R159 1 4.7ohm SMD1206
R16 1 100ohm SMD1206
R160 1 91ohm SMD1206
R161 1 4.7ohm SMD1206
R162 1 4.7ohm SMD1206
R163 1 75ohm SMD1206
R164 1 4.7ohm SMD1206
R165 1 1kohm SMD1206
R166 1 2kohm SMD1206
R167 1 4.7ohm SMD1206
R168 1 82ohm SMD1206
R169 1 75ohm SMD1206
R17 1 1kohm SMD1206
R170 1 220ohm SMD1206
R171 1 NI SMD1206
R172 1 NI SMD1206
R18 1 270ohm SMD1206
R19 1 10kohm SMD1206
R2 1 150kohm SMD1206
R20 1 560ohm SMD1206
R21 1 10kohm SMD1206
R22 1 1kohm SMD1206
R23 1 390ohm SMD1206
R24 1 100kohm SMD1206
R25 1 220kohm SMD1206
R26 1 1Mohm SMD1206
R27 1 2kohm SMD1206
R28 1 68ohm RES2010A
R29 1 220ohm 1/2 WATT RES2010A

Technalogix Ltd. TM-100 Modulator

34

R3 1 300kohm SMD1206
R30 1 75ohm SMD1206
R31 1 1kohm SMD1206
R32 1 1kohm SMD1206
R33 1 2kohm SMD1206
R34 1 1kohm SMD1206
R35 1 4.7kohm SMD1206
R36 1 2kohm SMD1206
R37 1 1kohm SMD1206
R38 1 430ohm SMD1206
R39 1 27ohm SMD1206
R4 1 150kohm SMD1206
R40 1 430ohm SMD1206
R5 1 1kohm SMD1206
R7 1 4.7kohm SMD1206
R8 1 10kohm SMD1206
R9 1 10kohm SMD1206
TB1 1 TERBLK
TP100 1 0 SMD1206
TP101 1 0 SMD1206
U1 1 LF353 DIP8SM
U100 1 NE592D DIP8SM
U101 1 2090 DIP16SM
U102 1 LM1881 DIP8SM
U103 1 LM358 DIP8SM
U2 1 145106 145106
U4 1 501 FPT-08-

M01
Y1 1 XTL49
Y100 1 45.75Mhz XTL49

Technalogix Ltd. TM-100 Modulator

1

2

3

4

5

6

7

8

9

10

A A

B B

C C

D D

E E

AUDIO/INPUT

+12V

R5

C47

D1

R4

R15

R125

R105

P1
P2 P3

R113

F100

P13

P14

P15

P16

U101

P1P2P3P4P5P6P7

R104

P4

U1:B
+

5

+

7

6

4

R16

C12

+12V

+

84

1

R124

C117

+12V

+

84

7

C111

R112

P10

P11

P12

C130

P8 P9

C109

+
C108

P101

C4

R2

TB1

C2

R1 R23

P2:9

R17

P2:10

R126

+12V

C129

R107

C106

+

C107

R106

P100 P102

GROUP DELAY

TO LOGIC BOARD P11

P2:6

P2:5

C3

U103:A

2
3

R14

U103:B

6
5

R123

+12V

C110

+12V

R111

P6P7P8

U102

P1P2P3

P4 P5

FROM LOGIC BOARD P8

C5

R8 R9

C6

R7

C7

C10

D101

C116

Q100

+12V

R10

STEREO

R3

C8

+

U1:A

+

3
2

R12

C9

J1

C11

D3

C115

D100

R11

1

8

R13

R18

TP100

Q102

R118

Q101

R110

R109

C100

R101 R102

+

R100

+12V

L15

+
C46

C13

Q103

R119

Q104

R117

+

C102

C101

+

D2

C112
+

R115R114

C113

R116

+12V

R108

R24 R26

8

1

C25

C22

P1
P2

U10

P3

Y1

C23

P4
P5
P6
P7

C24

P8
P9 P10

R25

C21

D6

C14

+12V

R122

R120

C114

R121

+12V

C103

6

5

7

U100

2

4

3

C27

R27

C26

P18
P17

JP1

P16
P15

JP2

P14
P13

JP3

P12
P11

JP4
JP5

+12V

R29

C15

L1

+12V

C105

R103

C104

+12VA

R28

C28

C29

D7

C30

P1
P2

D8

+12V

R20

+
C38

R19

C17

R21

C18

R134

+
C45

Q106

R127

C118

P3
P4 P5

C16

Q3

R22

C123

R135

C124

R136

R133

C119

R128

P8:1

P8:2

P2:8

P2:7

C32

+12V

C31

L100

y100

C19

Q107

R129

R37 R36 R35

C41

C20

R137

R140

R139

R138

Q5

R130

C128

C127

12V

R131

C120

+

C121

P8

U11

P7
P6

Q2

R42

C125

C126

C122

R132

MX2

1

8

2

7

3456

R38 R39

L5

C42

C43

D11

C40

D9

R32

C39

R33

C33

R30

TP1

TP1

R141

C131

R142

P1

R40

+12V

+

R34

D10

R31

R143

C44

L2

C34

C35

12V

C137

R158

C135

R149

C134

R148

R147

C132

Q6

R144

R145

R146

P2:4

L3 L4

C36 C37

C140C141

12V

L101

C136

C133

P2:3 P2:1

L200

+

C156

TP2

C144

C145

L103 L104

C143

R161

R160

R159

C142

L102

Q7

R157

C138

F101

5 1

R151

R152

R150

P7:5

P2:2

VIDEO OUT

L106 L107

C146

C147

R162

R163

R164

R153R154

C155

C154

R166

C148

R165

C139

R156R155

C151 C152

12V

R169

R170

L105

C150

Q4

R167

C149

R168

P103

C153

F F

Technalogix Ltd.
#4, 8021 Edgar Industrial Place

G G

Red Deer, Alberta, Canada T4P 3R3

Audio Video Modulator Board

Rev ID

E

1

2

3

4

5

6

7

8

Date: 09/11/00 Page: 1 of 1

9

10

37

Digital Up converter Bill of Materials

Last Revision: 09.12.00

Component

Reference

C1 1 0.1uF 1206
C101 1 100 Pf 1206
C102 1 0.1uF 1206
C103 1 100uF 25V CAP100RP
C104 1 0.47uF 1812
C105 1 0.1uF 1206
C106 1 0.22uF 1206
C107 1 100 Pf 1206
C108 1 1pF 1206
C109 1 100 Pf 1206
C11 1 0.1uF 1206
C110 1 100 Pf 1206
C111 1 1pF 1206
C112 1 1pF 1206
C113 1 1pF 1206
C114 1 1pF 1206
C115 1 0.47uF 1812
C116 1 0.1uF 1206
C116A 1 100uF 25V CAP100RP
C117 1 0.1uF 1206
C118 1 0.1uF 1206
C119 1 0.1uF 1206
C12 1 0.01uF 1206
C120 1 100 Pf 1206
C126 1 0.1uF 1206
C127 1 0.1uF 1206
C128 1 100 Pf 1206
C129 1 0.1uF 1206
C13 1 0.1uF 1206
C130 1 2.2pF 1206
C131 1 100 Pf 1206
C132 1 0.1uF 1206
C133 1 0.47uF 1206
C134 1 100uF 25V CAP100RP
C135 1 10 Pf 1206
C136 1 10 Pf 1206
C137 1 10 Pf 1206
C138 1 10 Pf 1206

Quantity Identification Modifier Package

Technalogix Ltd. TM-100 Modulator

38

C139 1 10 Pf 1206
C14 1 0.01uF 1206
C140 1 10 Pf 1206
C141 1 NI 1206
C15 1 0.1uF 1206
C2 1 0.01uF 1206
C201 1 NI CGKG27
C204 1 0.1uF 1206
C205 1 0.1uF 1206
C206 1 100 Pf 1206
C207 1 0.1uF 1206
C208 1 2.2pF 1206
C209 1 0.1uF 1206
C21 1 0.1uF 1206
C210 1 0.1uF 1206
C3 1 0.01uF 1206
C300 1 0.1uF 1206
C301 1 100 Pf 1206
C303 1 470 uF 25 V CAP200RP
C4 1 0.01uF 1206
C5 1 0.1uF 1206
D1 1 3800 SOT-23
D100 1 9.1V DIODEZ DO214AC
D101 1 9V 914 SOT-23
D102 1 4.7V SOT-23
D103 1 10 V DIODEZ DO214AC
D2 1 3800 SOT-23
D3 1 3800 SOT-23
F2 1 F-LP-TOKO
F4 1 F-LP-TOKO
FT200 1 FIL-TOKO
J1 1 N/A THRU-HOLE
J10 1 N/A THRU-HOLE
J2 1 N/A THRU-HOLE
J3 1 N/A THRU-HOLE
J4 1 N/A THRU-HOLE
J5 1 N/A THRU-HOLE
J6 1 N/A THRU-HOLE
J7 1 N/A THRU-HOLE
J8 1 N/A THRU-HOLE
J9 1 N/A THRU-HOLE
L1 1 0.47uH 1812
L104 1 10nH 1812
L107 1 0.22uH 1210

Technalogix Ltd. TM-100 Modulator

39

L108 1 0.22uH 1210
L109 1 0.22uH 1210
L5 1 0.47uH 1812
L6 1 0.47uH 1812
M1 1 MIXER -RF2
P1 1 N/A FCONN-S
P2 1 N/A FCONN-S
R1 1 1k Ohm 1206
R101 1 1k Ohm 1206
R102 1 910 Ohm 1206
R103 1 910 Ohm 1206
R104 1 0 1206
R105 1 47 kOhm 1206
R106 1 220 Ohm 1/2 WATT RES2010A
R108 1 43 Ohm 1/2 WATTS RES2010A
R109 1 220 Ohm 1/2 WATT RES2010A
R111 1 33 Ohm 1206
R112 1 180 Ohm 1206
R113 1 180 Ohm 1206
R114 1 220 Ohm 1/2 WATT RES2010A
R115 1 75 Ohm 1206
R116 1 10 Ohm 1206
R117 1 36 Ohm 1206
R118 1 10 Ohm 1206
R119 1 75 Ohm 1206
R120 1 110 Ohm 1 WATT RES2010A
R121 1 4.7 Ohm 1206
R122 1 91 Ohm 1206
R123 1 4.7 Ohm 1206
R14 1 36 Ohm 1206
R15 1 62 Ohm 1206
R16 1 36 Ohm 1206
R17 1 1k Ohm 1206
R18 1 2k Ohm 1206
R19 1 75 Ohm 1206
R2 1 1k Ohm 1206
R20 1 8.2 Ohm 1206
R200 1 300 Ohm 1206
R201 1 18 Ohm 1206
R202 1 300 Ohm 1206
R203 1 100 Ohm 1206
R204 1 110 Ohm 1 WATT RES2010A
R205 1 4.7 Ohm 1206
R206 1 75 Ohm

1206

Technalogix Ltd. TM-100 Modulator

40

R207 1 4.7 Ohm 1206
R21 1 82 Ohm 1206
R22 1 220 Ohm 1206
R23 1 100 Ohm 1206
R24 1 4.7 Ohm 1206
R25 1 100 Ohm 1206
R3 1 2k Ohm 1206
R4 1 4.7k Ohm 1206
R5 1 2k Ohm 1206
R6 1 1k Ohm 1206
U100 1 145200 TSSOP20
U101 1 ERA5 WW107
U102 1 ERA5 WW107
U2 1 RF559B2
U200 1 ERA5 WW107
VC01 1 MINI14SL

Technalogix Ltd. TM-100 Modulator

1

2

3

4

5

6

7

8

9

10

L1

C4

R115

+12V

R14

R16

R15

+12V

R6

R118

R117

R119

A A

+12V

C300 C301

B B

LOCK DETECT TO MPU

C C

250 KHZ REF FROM ON CONVERTER

DATA IN

J4

C139

CLOCK IN

J5

D D

ENABLE IN

J6

12V

R109

D102

L108

C137

C136

+

L109

L107

C134

D101

J2

J3

C140

C138

C135

R101

C104

C141

U100

P1

P20

P2

P19

P3

P18

P4

P17

P5

P16

P6

P15

P7

P14

P8

P13

P9

P12

P10P11

M145200

C110

C131

C132C133

R105

C103

C105

+12V

+

C303

C101C102

+

R102

C106

R103

C21

IF IN

P1

12V

12V

R108

R106

D100

C107

R104

C108

D103

C109

VCD1

C111

C112

C115

L104

C116

U6

C113

C114

R112

C116A

+

R111

C1

R113

C117

R1

D2

D3

D1

C2

C5

R4

R2

R3

+

U101

C119

R5

12V

C120

R114

R116

C118

C3

L5

R1900

C12

R22

C122

L101

L6

C15

R24

R25R23

C130

IF MIXER

C126

L103

C123

L102

C124

C125

U102

1423

MIX 1LO

C129

C128

+

C201

R201

R200

R120

C38

FIL 200

R202

R121R123

R122

C204

R203

R1800

U2

C11

+

1423

R17

R20

C14

R21

L100

C121

+

1423

U200

+12V

C209C207

C206

C210

R204

C208

R205 R207

R206

C205

P2

942 MHZ

IF OUT

E E

F F

Technalogix Ltd.
#4, 8021 Edgar Industrial Place

G G

Red Deer, Alberta, Canada T4P 3R3

Digital Up Converter

Rev ID

A 412-0885-000

1

2

3

4

5

6

7

8

Date: 09/11/00 Page: 1 of 1

9

10

43

750 MHz Down Converter Bill of Materials

Last Revision: 09.13.00

Component

C1 1 27 pF 1206
C10 1 100 pF 1206
C100 1 2.2 pF 1206
C101 1 2.2 pF 1206
C102 1 NI 1206
C11 1 0.1 uF 1206
C12 1 0.47 uF 1812
C13 1 100 uF 25 V CAP100RP
C14 1 NI 1206
C15 1 10 pF 1206
C16 1 10 pF 1206
C17 1 10 pF 1206
C18 1 10 pF 1206
C19 1 10 pF 1206
C2 1 27 pF 1206
C20 1 10 pF 1206
C200 1 NI 1206
C205 1 2.7 pF 1206
C206 1 3-10 pF CGKG27
C207 1 3-10 pF CGKG27
C208 1 3-10 pF CGKG27
C209 1 2.7 pF 1206
C21 1 0.1 uF 1206
C210 1 0.1 uF 1206
C211 1 0.1 uF 1206
C212 1 0.1 uF 1206
C213 1 100 pF 1206
C214 1 1 pF 1206
C215 1 10 pF 1206
C22 1 0.22 uF 1206
C23 1 100 pF 1206
C24 1 1 pF 1206
C25 1 100 pF 1206
C26 1 0.1 uF 1206
C27 1 100 uF 25 V CAP100RP
C28 1 0.1 uF 1206
C29 1 0.1 uF 1206
C3 1 4.5-20 pF CGKG27

Reference

Quantity

Identification Modifier Package

Technalogix Ltd. TM-100 Modulator

44

C30 1 0.1 uF 1206
C301 1 0.1 uF 1206
C302 1 100 pF 1206
C303 1 470 uF 35 WV CAP275RP6

50
C304 1 0.1 uF 1206
C31 1 1206
C33 1 1 pF 1206
C34 1 1 pF 1206
C35 1 1 pF 1206
C36 1 1 pF 1206
C37 1 0.1 uF 1206
C38 1 0.1 uF 1206
C39 1 NI 1206
C4 1 0.47 uF 1812
C40 1 NI 1206
C41 1 NI 1206
C44 1 0.1 uF 1206
C45 1 0.1 uF 1206
C46 1 100 pF 1206
C5 1 100 pF 1206
C6 1 0.1 uF 1206
C7 1 0.47 uF 1812
C8 1 100 uF 25 V CAP100RP
C9 1 100 pF 1206
D1 1 9 V D914 SOT23
D2 1 9.1 V DIODEZ D0214AC
D3 1 9 V SOT23
D4 1 DIODEZ D0214AC
FT100 1 FIL-TOKO
J1 1 THRU-HOLE
J2 1 THRU-HOLE
J3 1 THRU-HOLE
J4 1 THRU-HOLE
J5 1 THRU-HOLE
J6 1 THRU-HOLE
J7 1 THRU-HOLE
J8 1 THRU-HOLE
J9 1 THRU-HOLE
L1 1 0.22 uH 1210
L100 1 10 nH 1210
L2 1 0.22 uH 1210
L200 1 10 nH 1210
L201 1 12 nH 1210

Technalogix Ltd. TM-100 Modulator

45

L202 1 12 nH 1210
L203 1 10 nH 1210
L204 1 10 nH 1210
L3 1 0.22 uH 1210
L4 1 10 nH 1210
M1 1 PULSAR MIXER -RF2
OSC1 1 MA06 MINI14SL
P1 1 FCONN-S
P2 1 FCONN-S
R10 1 180 Ohm 1206
R100 1 33 Ohm 1206
R101 1 51 Ohm 1206
R102 1 4.7 Ohm 1206
R103 1 91 Ohm 1206
R104 1 4.7 Ohm 1206
R11 1 33 Ohm 1206
R12 1 180 Ohm 1206
R13 1 220 Ohm 1/2 WATT RES2010A
R14 1 0 Ohm 1206
R15 1 75 Ohm 1206
R16 1 10 Ohm 1206
R17 1 33 Ohm 1206
R18 1 NI 1206
R19 1 NI 1206
R2 1 10 kOhm 1206
R20 1 4.7 Ohm 1206
R200 1 NI 1206
R201 1 NI 1206
R202 1 0 Ohm 1206
R203 1 NI 1206
R204 1 0 Ohm 1206
R207 1 0 Ohm 1206
R208 1 110 Ohm 1 WATT RES2010A
R209 1 0 Ohm 1206
R21 1 110 Ohm 1 WATT RES2010A
R210 1 NI 1206
R211 1 0 Ohm 1206
R22 1 75 Ohm 1206
R3 1 220 Ohm 1/2 WATT RES2010A
R4 1 47 kOhm 1206
R5 1 RES2010A
R6 1 910 Ohm 1206
R7 1 910 Ohm 1206
R8 1 0 Ohm 1206

Technalogix Ltd. TM-100 Modulator

46

R9 1 43 Ohm 1/2 WATT RES2010A
U1 1 145200 TSSOP20
U2 1 ERA3 WW107
U201 1 ERA5 WW107
U3 1 ERA5 WW107
Y1 1 4000 MHz XTL49

Technalogix Ltd. TM-100 Modulator

1

2

3

4

5

6

7

8

9

10

A A

12V

U16

R101

FILTER

R103

R104R102

C102

P1

C100 C101

L100

R100

B B

C C

D D

E E

12V

LOCK DETECT TO MPU

DI-J3

CLK-J4

EN-J5

R9

D4
ZENER

C16
1uF

C14
1uF

C19
1uF

C11
1uF

D1

R2

C3

RFOUT-J6

C12

1uF

C4

R5

Y1

C2

4.00MHZ

U1

1

20

2

19

3

18

4

17

5

16

6

15

7

14

8

13

9

12

1011

C9

C13
1uF

L1

C17
1uF

L2

C15

1uF

L3

C18
1uF

+

C10

1uF

RF

R200

LO

C39

C1

C8

C21

R4

C200

R201

R20

R18

R19

12V

R3

D3

C7

C5C6

+

R7

R6

C22

D2

9.1V

R1

C23

12V

C24

R202

R8

C43

R203

C27

VCC

OSC

VIN RFOUT

GND

C36

C35

C47C48

R212

U4 U201

C25

L4

C42

R205

R212

R206

C26

C31

C28

R11

R10

C34

C33

U3
ERA

R12

R204

L200

L201

C205

12V

C30

R13

C29

C40

C207

C206

R15

R14

C41

R22

L203L202

C208

C37

R16

U4

R17

ERA5

C209

R207

C45

C46

R21

C210

C38

C215

12V

C213C212

R208

C211

L204

R209

C214

R210

R211

RF OUT

P3

F F

Technalogix Ltd.
#4, 8021 Edger Industrial Place

G G

Red Deer, Alberta, Canada T4P 3R3

750MHz Down Converter

Rev ID

B

1

2

3

4

5

6

7

8

Date: 9/11/2000 Page: 1 of 1

9

10

49

Power Supply Bill of Materials

Last Revision: 09.12.00

Component

Reference

C1 1 4700 35 V CAP400RPHORZ
C10 1 0.1 uF CAP250
C11 1 0.1 uF CAP250
C12 1 0.1 uF CAP250
C13 1 0.1 uF CAP250
C14 1 1000 50 V CAP275RP650
C15 1 0.1 uF CAP250
C16 1 4700 16 VDC CAP275RP650
C17 1 1000 50 V CAP275RP650
C18 1 0.1 uF CAP250
C19 1 0.1 uF CAP250

C2 1 4700 35 V CAP400RPHORZ

C3 1 0.1 uF CAP250

C4 1 0.1 uF CAP250

C5 1 0.1 uF CAP250

C6 1 0.1 uF CAP250

C7 1 2200 35 V CAP275RP650

C8 1 0.1 uF CAP250

C9 1 10000 25 VDC CAP400RPHORZ

P1 1 CONHDR6

P2 1 CONHDR6

P3 1 CONHDR6

P4 1 CONHDR6

P5 1 CONHDR6

P6 1 CONHDR6

P7 1 CONHDR8

R1 1 2 kOhm RES400

R2 1 240 Ohm RES400

R4 1 5.6 kOhm RES400

U1 1 BRIDGE

U2 1 RBRDG-RECT-

U3 1 LM317 T0-220-AB

U4 1 7824 T0-220-AB

U5 1 7812 T0-220-AB

U6 1 7805 T0-220-AB

U7 1 DIP6-2

Quantity Identification Modifier Package

403M

Technalogix Ltd. TM-100 Modulator

1

2

3

4

5

6

7

U4

7824

A A

1

IN

OUT

COM

+

C1C4

2

+24V

3

+

C7C5

B B

3

4

P1

C C

1
2
3
4
5
6

1

U1

2

3

4

1

U2

2

D D

C19

+

C2 C8

P4

P5

P6

1

1

2

2

3

3

4

4

5

5

6

6

U6

7805

1

IN

COM

C12

U5

7812

1

IN

COM

P3

1
2
3
4
5
6

+5V

3

OUT

2

3

OUT

2

P2

1

1

2

2

3

3

4

4

5

5

6

6

+12V

C13C11

+
C16C15

C10+C9

R1

C18

P7

1
2
3

+24V

4

+30V

5

GND

6

+5V

7

+12V

8

GND

3

4

1

U7

2

E E

U3

LM317

1

IN

+

C17 C3

F F

+30V

3

OUT

COM

R2

2

R4

C6+C14

G G

H H

I I

Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada T4P 3R3

J J

1

2

3

4

5

Power Supply Board

Rev ID

D

Date: 09/11/00 Page: 1 of 1

6

7

Thank you

for choosing

Technalogix Ltd.
