P-379
PROCESSOR
P-379 Processor
1
TABLE OF CONTENTS
1.0 SAFEGUARDS ...................................................................................................................3
General Safeguards..............................................................................................................3
Safety and First Aid...............................................................................................................4
2.0
WARRANTY.......................................................................................................................5
3.0
DESCRIPTION AND SPECIFICATIONS...................................................................................6
General Description ..............................................................................................................6
Specifications........................................................................................................................7
Block Diagram.......................................................................................................................9
4.0
INSTALLATION.................................................................................................................10
Building Recommendations ................................................................................................10
Heating and Cooling Requirements....................................................................................10
Electrical Service Recommendations..................................................................................11
Antenna and Tower Recommendations..............................................................................12
Shelter Security...................................................................................................................12
Unpacking and Inspection ...................................................................................................13
Location and Function of Controls and Connectors............................................................14
5.0
OPERATING PROCEDURE ................................................................................................16
Preliminary Hook-up............................................................................................................16
Setup and Operation...........................................................................................................16
Transmitter Hookup.............................................................................................................20
6.0
PROBLEM TROUBLESHOOTING GUIDE .............................................................................21
7.0

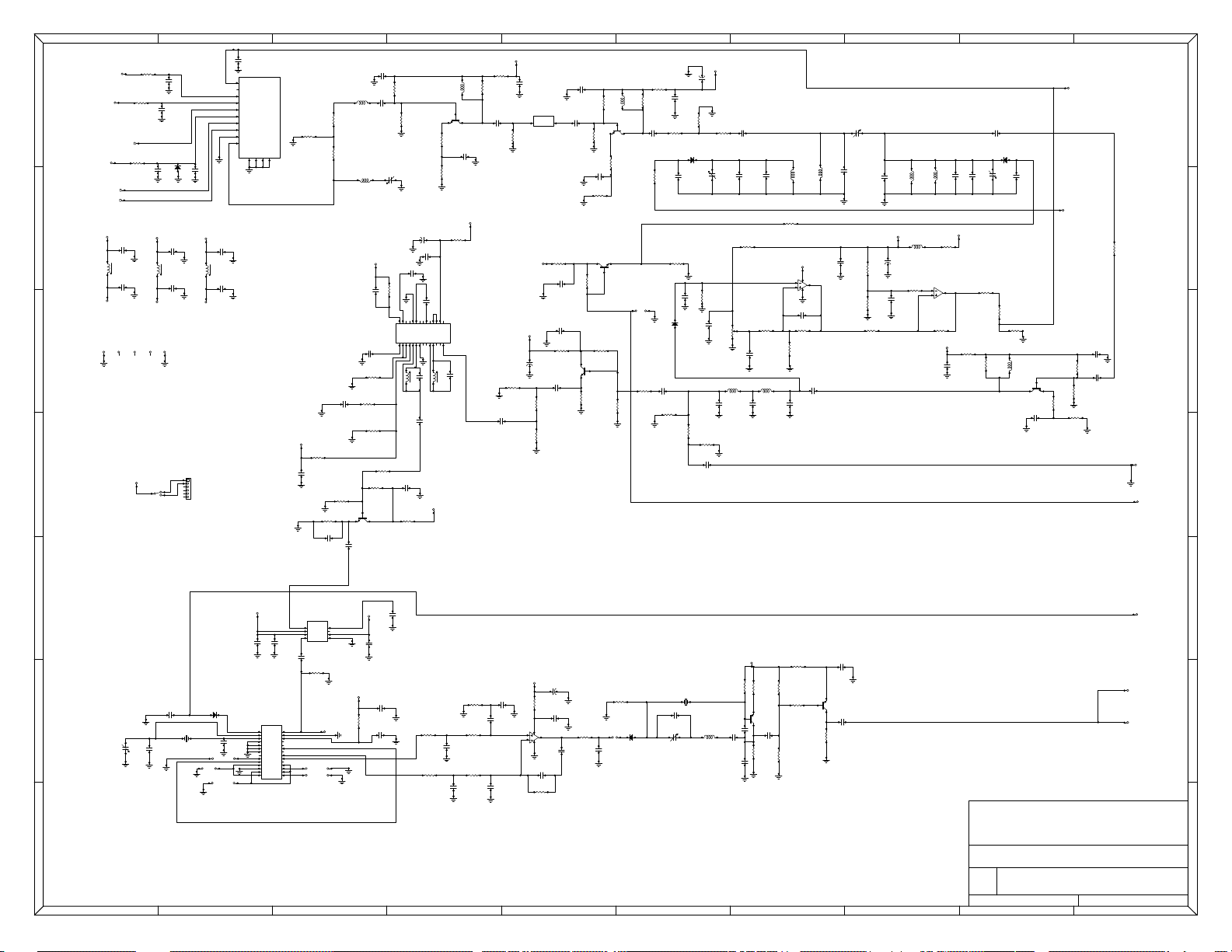

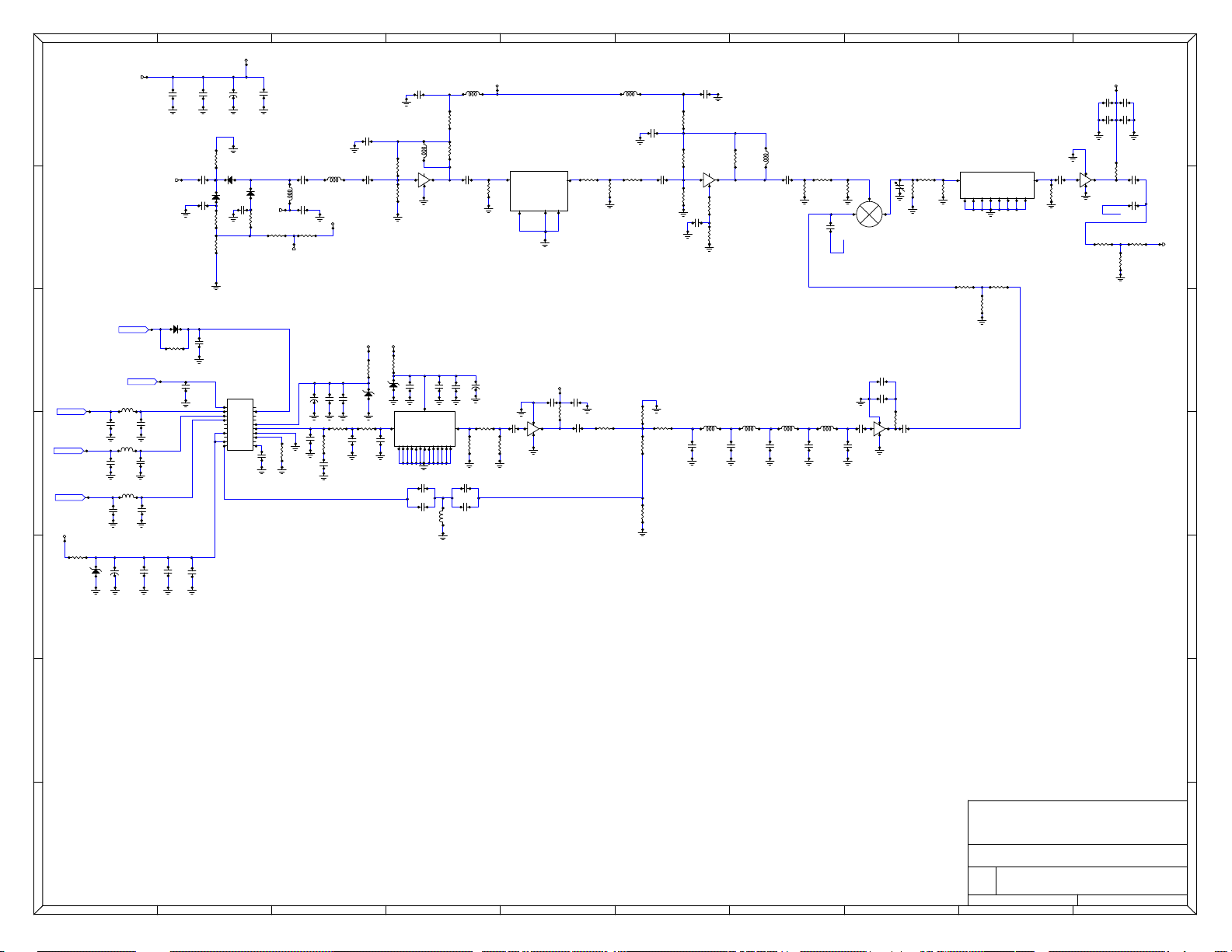

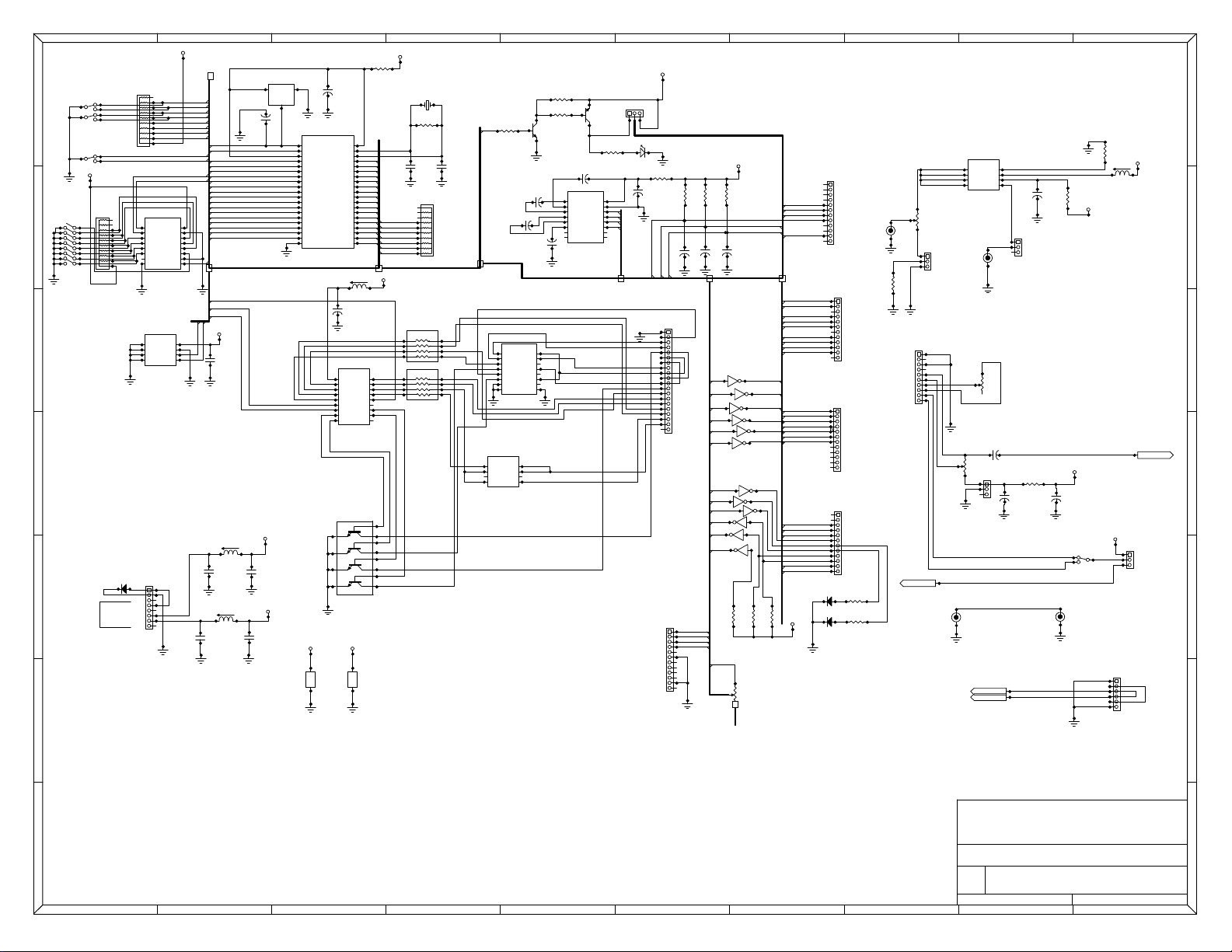

BILL OF MATERIALS, SCHEMATICS, AND PCB OVERLAYS ................................................22
Agile Logic Board Bill of Materials.......................................................................................22
Agile Output Amplifier Bill of Materials................................................................................26
Agile Up converter Bill of Materials.....................................................................................28
750 MHz Down Converter Bill of Materials .........................................................................33
Power Supply Bill of Materials.............................................................................................38
Tuner Processor Board Bill of Materials..............................................................................41
P-379 Processor
2
1.0 SAFEGUARDS
General Safeguards
This section is written as a general guide for those having previous knowledge and experience
with these kinds of equipment. It is not intended to contain a complete statement of all safety
precautions, which should be observed by personnel using this or other electronic equipment.
To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. Do
not open the cabinet. Refer servicing to qualified personnel.
1. READ INSTRUCTIONS - All safety, installation, and operating instructions should be read
before the equipment is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for
future reference.
3. FOLLOW INSTRUCTIONS - All safety, installation, and operating instructions should be
followed.
4. GROUNDING AND POLARIZATION - The P-379 Processor is equipped with a three prong
grounded power plug. Do not remove the ground prong from the plug. Do not use an AC
receptacle where the plug blades cannot be fully inserted.
5. SERVICING - Do not attempt to service this equipment yourself as opening or removing
covers may expose you to dangerous voltage or other hazards and will void the warranty.
Refer all servicing to qualified service personnel.
6. DAMAGE REQUIRING SERVICE - Unplug this equipment and refer servicing to qualified
service personnel under the following conditions:
• If the power cord or plug is damaged.
• If liquid has been spilled or objects have fallen into the equipment.
• If the equipment has been exposed to rain or water.
• If the equipment does not operate normally by following the operating instructions.
Adjust only those controls covered by the operating instructions. An improper
adjustment may result in damage and will often require extensive work by a qualified
technician to restore the equipment to its normal operation.
• If the equipment has been dropped or the cabinet has been damaged.
• If the equipment exhibits a distinct change in performance.
P-379 Processor
3
Safety and First Aid
Personnel engaged in the installation, operation, maintenance, or servicing of electronic
equipment are exposed to the hazard of high voltage. It is imperative that all safety regulations
and precautions are consistently observed. Knowledge of first aid procedures is recommended.
The following information is presented as a reference only.
DANGEROUS VOLTAGES AND CURRENTS MAY BE PRESENT
IN THE EQUIPMENT EVEN THOUGH THE POWER IS OFF.
REFER SERVICING TO QUALIFIED PERSONEL
• At all times, avoid placing any part of the body in series between ground and circuit points,
whether power is on or off.
• It is the duty of all personnel to be prepared to give adequate emergency first aid treatment
and thereby prevent avoidable loss of life.
• There are three principle degrees of burns, recognizable as follows:
• A first-degree burn reddens the skin.
• A second-degree burn blisters the skin.
• A third degree burn chars the flesh and frequently places the victim in a state of shock
accompanied by respiratory paralysis.
• Respiratory paralysis can cause death by suffocation within seconds. It is imperative that
the approved methods of artificial respiration are initiated immediately and continue until the
victim’s breathing is normal.
• A muscular spasm of unconsciousness may render the victim unable to break free of the
electric power. If this is the case, turn the power off immediately.
DO NOT TOUCH THE VICTIM OR YOU MAY SHARE THE SAME
PREDICAMENT.
• If the power cannot be turned off immediately, very carefully loop a dry rope, article of
clothing, length of strong cloth or a rolled-up newspaper around the victim and pull the victim
free of the power source. Carefully avoid touching the victim or clothing.
• Once free of the power source, the victim must be placed in a reclining position and covered
with a blanket or newspapers to keep warm. At the first opportunity, enlist help in
summoning a doctor. If a doctor cannot be summoned, transport the victim to the doctor or
a hospital. Be sure the victim is kept well covered and warm while awaiting professional
treatment.
P-379 Processor
4
2.0 WARRANTY
Technalogix Ltd. products have been completely tested and found to meet specifications
and be in proper operating condition. They are warranted to be free from defects in
materials and workmanship for a period of one year from the date of shipment.
Technalogix Ltd. will not be liable for damages of whatever nature arising out of or in
connection with the equipment or its use thereof. Technalogix does not assume
responsibility for injury or damage resulting from the practices of untrained or unqualified
personnel in the handling of this equipment.
Technalogix Ltd. warranty does not include:
• Misuse, neglect or accident.
• Incorrect wiring and /or improper installation.
• Unauthorized repairs, modifications or use in violation of instructions issued by
Technalogix.
• Incidental or consequential damages as a result of any defect.
• Reshipment cost or insurance of the unit or replacement units or parts.
• Acts of God.
Technalogix agrees, at our option, to remedy warranted defects or furnish a new part in
exchange for any part of a unit which, under normal installation, use and service,
becomes defective. The user will pay for transportation costs to and from the repair
center.
To claim your rights under this warranty:
• Contact Technalogix and describe the problem in as much detail as possible. See
troubleshooting section in this manual. If a solution cannot be found at this time, it
may be determined that the unit will have to be returned to Technalogix for repair.
• Package equipment carefully for prepaid shipment to Technalogix. Include a written
description of the problem experienced and a copy of the original invoice establishing
warranty status.
Technalogix reserves the right to make revisions in current production of the equipment
and assumes no obligation to incorporate these changes in earlier models.
P-379 Processor
5
3.0 DESCRIPTION AND SPECIFICATIONS
General Description
The P-379 contains the latest in television electronics, including synthesized crystalreferenced phase-locked-loop oscillators, microprocessor control, saw-filtered if and
hybrid amplifiers. In addition to these features, the U.S. version contains automatic input
offset programming to remove input offsets inherent to off-air channels (0, ±10KHz),
cable standard channels (0, +12.5KHz, +25KHz) and Cable HRC channels (0.3KHz
master oscillator offset).
Standard Features
• Totally Microprocessor Controlled with Self-Diagnostic Monitoring
• Selectable Input Channels
• Off-Air Channels: 2 through 83 (VHF & UHF)
• Cable Standard Channels: 2 through 181 (54MHz through 1.2GHz)
• Cable HRC Channels: 1 through 181 (54MHz through 1.2GHz)
• Selectable Output Channels
• Cable Standard Channels: T7 through 118 (7MHz through 750MHz)
• Cable HRC Channels: 1 through 181
• Selected Using Internal Switch
• Automatic Input Offset Control
• Detects and Corrects Input Signal Offset Frequency for Heterodyne Processing
before the IF
• SAW-filtered IF - Designed for Adjacent Channel Operation
• +60dBmV Output Using Low-Distortion Hybrid Amplifiers
• Non-volatile Channel Memory
• Synthesized Oscillators
• Crystal Referenced
• Phase Locked
• Digital LED Readout
• RF Muted During Tuning
• Surface Mount Technology (SMT) Construction
Available Options
• “T” Input Channels
• Dual RS232 Control for Daisy Chain Capability
• Defeat able AGC for Manual Gain Control (MGC)
P-379 Processor
6
HRC Output Frequency Set:
This Technalogix frequency agile product can be set for HRC frequency output. This
feature is controlled by an internal dip switch assembly, DS-1. The switch is located near
the right front corner (with the panel facing you) between the test point and the output
converter module. DS-1 is clearly marked on the PCB. Switch #3 placed in the OFF
position switches the output frequency to HRC on all channels. The switch is normally
set to ON at the factory.
Specifications
RF Characteristics
Frequency range 7 to 750 MHz
Frequency Response (one channel) ±0.5 dB
Frequency Tolerance ± 1KHz
Frequency Stability ±250 Hz
RF Output Level +60 dBmV max
Output Impedance 50 Ohms, unbalanced
Harmonics > 60 dB below rated power
Predominant Intermodulation Distortion dBc = decibels below visual
carrier
+ 920 kHz < -53 dBc
- 920 kHz < -53 dBc
+ 2.66 MHz < -53 dBc
- 2.66 MHz < -53 dBc
+ 5.42 MHz < -53 dBc
+ 7.16 MHz < -53 dBc
3rd Order Intermodulation Distortion
+ 4.5 MHz < -60 dBc
+ 9.0 MHz < -60 dBc
All others < -60 dBc
Return Loss > 14 dB
Spurious Emissions < -60 dBc
P-379 Processor
7
NTSC Video Characteristics
System M/N
Input: C3F Neg NTSC
Input impedance 75Ohms, unbalanced
Input frequencies 7 to 800 MHz
Off-air channels 54 to 890 MHz
RF bandwidth 6.0Mhz
Input AGC range -16 to +16 dBmV
Input AGC type Sync Tip Ref.
Recommended input 0-10 dBmV, +60 to +70 dBuV
Noise figure 9dB VHF, 10dB UHF
Adjacent channel rejection 60dB
Image rejection 60dB
Audio carrier adjustment range Flat Response to –10 from
Below the video carrier Input levels
IF Section
Video IF level
Audio IF Level
Return Loss > 14 dB
IF Frequency, Video Carrier 45.75 MHz
IF Frequency, Audio Carrier 41.25 MHz
Video Sound Spacing + 4.5 MHz
Vestigial side-band width 0.75 MHz
Return Loss > 14 dB
Second IF Frequency 945.75 MHz
+ 37 dBmV, +97 dBμV
+22 dBmV, +82 dBμV
Physical Characteristics
Power Requirements 100-130, 210-230 VAC, 50/60 Hz
Operating Temperature 0 - 50°C
Weight 12 lbs
Dimensions (Processor only) W-19", D-14 ", H 1.75”, 1U-high
P-379 Processor
8
Block Diagram
Pre-Amp IN
RF Loop
IF Carrier
Pre-Amp Out RF In
Up converter
Tuner PCB
Display and Control Board
RF Output
Down converter
Output
Amplifier
P-379 Processor
9
4.0 INSTALLATION
This section contains installation recommendations, unpacking, inspection, and
installation instructions for the Technalogix P-379 Processor. Carefully read all material
in this section prior to installation. Also read and review operating procedures later in this
section.
Building Recommendations
The quality of the building is of great importance if you are to expect long life and
continued performance from the processor. The building must be clean, dry, temperature
controlled and secure. The processor takes up a single 1-U high space on a 19” rack.
Don’t forget to allow space in the building for any additional racks to house test
equipment, a workbench area, line regulating transformers, ladders, equipment and
parts storage, first aid kit, emergency generator if used, as well as heating and cooling
devices that may be unique to your installation. A sloping roof will tend to develop leaks
less rapidly. The building should be well roofed with good material. The cooling load will
be lowered with reflective or light colored roofing material.
Heating and Cooling Requirements
The environment’s temperature will contribute greatly to the length of the processor’s
life. Technalogix recommends that the building’s filtered air intake must have capacity for
all air-flow in the building plus an additional 20%. Keep the intake below the roofline to
avoid intake of solar heated air. Please ensure that the intake and exhaust areas are on
the same side of the building to avoid pressure differentials during windy conditions.
Also, do not position intake near exhaust’s preheated air. If air conditioning is required to
cool the shelter, discuss the situation with a qualified HVAC technician. Under average
conditions, 12,000 BTUs will cool approximately 500 square feet to a comfortable level.
P-379 Processor
10
Electrical Service Recommendations
Technalogix recommends that a qualified, licensed local electrician be consulted for the
required electrical service. We suggest local electricians because:
• The personnel knows the local codes
• The personnel can be on site readily
• You are apt to get better overall support if you give what business you can to local
suppliers
Technalogix recommends that proper AC line conditioning and surge suppression be
provided on the primary AC input to the power amplifier. All electrical service should be
installed with your national electrical code in your area, any applicable provincial or state
codes, and good engineering practice. Special consideration should be given to lightning
protection of all systems in view of the vulnerability of most translator sites to lightening.
Lightning arrestors are recommended in the service entrance. Straight and short
grounds are recommended. The electrical serviced must be well grounded. Do not
connect the unit to an open delta primary power supply, as voltage fluctuations could
harm the unit. Branch your circuits. Do not allow your lights, your workbench plugs, and
your translating equipment off of one circuit breaker. Each translator should have its own
circuit breaker, so a failure in one does not shut off the whole installation.
P-379 Processor
11
Antenna and Tower Recommendations
Your preliminary engineering workgroup should establish your antenna and tower
requirements, both for receiving and transmitting antennas. Construction of sturdy, high
quality antenna/tower systems will pay off in terms of coverage of your service area, the
overall quality and saleability of your radiated signal, and reduced maintenance
expenses. Technalogix provides complete turnkey antenna systems if needed. If your
site is serving as a translator, your receiving antenna should be line of sight to the
originating station, both winter and summer. The foliage will change with season.
Transmitting antennas can enhance or seriously impair the translator output. It is
assumed that one has been selected prior to system installation, but the best-designed
antenna system will function poorly if shortcuts and compromises are used during
installation. Follow the manufacturer’s instructions exactly, along with any engineering
data prepared for the site.
The selection, routing, and length of coaxial cable are extremely important in the
installation. If there is a 3 dB line loss in the cable between your unit’s output and the
transmitting antenna, a 500 watt unit will only deliver 250 watts to the antenna. Buy the
best cable you can obtain, route it via the shortest way to the antenna, and keep it
straight. Do not form it into sharp bends on its way. Do not use any more cable fittings
for the installation than absolutely necessary. All cautions here apply equally to all
coaxial cables in the system - input and output. The better known tower manufacturers
offer complete technical and safety documentation with their towers. Be sure that you
have this information as it regards wind loading, guying, etc. Be absolutely safe and
certain about this aspect as human lives may be at stake.
Shelter Security
The FCC requires that the translator be secure from entry or control by unauthorized
persons, and that any hazardous voltages or other dangers (including most tower bases)
be protected by locks or fences as necessary to protect personnel and prevent
unauthorized tampering or operation. Security of the building further implies that it be
secure from wildlife. Use sturdy construction materials, including sheet metal if
necessary. Holes around conduit, cable, and other similar entry points should be stuffed
with steel wool and caulked to prevent entry of wildlife. Other features of security for your
shelter may include its location with respect to the prevailing wind conditions. Location
leeward of some natural topographical feature will prevent wind damage and snowdrifts.
Check the soil runoff conditions that may slow or hasten wind or water erosion and other
concerns that may be unique to your location
.
P-379 Processor
12
Unpacking and Inspection
Check the outside of the container. Carefully open the container and remove the
processor. Retain all packing material that can be reassembled in the event that the
equipment must be returned to the factory.
Exercise care in handling equipment during inspection to prevent
damage due to rough or careless handling.
Visually inspect the enclosure of the processor for damage that may have occurred
during shipment. Check for evidence of water damage, bent or warped chassis, loose
screws or nuts, or extraneous packing material in connectors. Inspect all connectors for
bent connector pins. If the equipment is damaged, a claim should be filed with the carrier
once the extent of the damage is assessed. Technalogix cannot stress too strongly the
importance of immediate careful inspection of the equipment and subsequent immediate
filing of the necessary claims against the carrier if necessary. If possible, inspect the
equipment in the presence of the delivery person. If the equipment is damaged, the
carrier is your first area of recourse. If the equipment is damaged and must be returned
to the factory, phone for a return authorization. Claims for loss or damage may not be
withheld from any payment to Technalogix, nor may any payment due be withheld
pending the outcome thereof. Technalogix cannot guarantee the carrier’s performance.
P-379 Processor
13
Location and Function of Controls and Connectors
The following illustrations depict the location of the installation connectors when
installing the power amplifier with a processor.
FRONT
BACK
Aural Carrier Level - Allows user to set aural carrier level relative to visual carrier level.
Processor is factory tested at –10 dBc (decibels below visual carrier).
Input Source – Allows the user to select between cable HRC, cable standard or off-air.
Input Select – Allows the user to select the desire channel for input signal.
Output Select – Selects the desired channel of operation. If you require a lower channel
than the one currently displayed, push the toggle switch down. The channels will
change one at a time as many times as you press the switch. Holding the select switch
in the up or down position will “scan” to the desired channel. It is normal for the
frequency lock LED to turn off during and for a few seconds after, changing channels.
The switch must be held up or down initially for three seconds. This helps to ensure that
no accidental channel changes will occur.
Output Level – Sets visual carrier output level.
RF Out Test Point – Provides a sample of the RF output level which is 20 dB below the
actual value. RF test point is only a relative indicator of the actual RF output level and
may vary. All RF operating measurements should be made at the RF output of the unit.
RF Output - Modulated Audio/ Video output capable of +60 dBmV levels using built in
low distortion hybrid amplifiers.
P-379 Processor
14
RS-232 Ports – Set up for optional RS-232 control option.
Combined IF Input/ Output – 45.75 MHz visual carrier and 41.25 MHz audio carrier
intermediate frequency signal loop.
RF In – Modulated RF input – Recommended RF input is 0 dBmV to 5 dBmV.
T-Channel Switch – Allows the user to switch the optional T-channel on or off. To use
the T-Channel Input Option, if the unit is so equipped, ensure that that a T-channel input
source is attached to the F-connector marked “T-Channel IN” on the rear panel. Position
the T-Channel switch on the rear panel of the P-379 to the “ON” position.
P-379 Processor
15
5.0 OPERATING PROCEDURE
Preliminary Hook-up
1. Position the Technalogix P-379 agile processor in its installation mount or rack.
2. Locate the antenna lead or cable drop that will provide the input signal for the P379 agile processor.
3. Ensure that the input signal provides an adequate signal. The recommended
input level for best performance from the Technalogix P-379 Processor is 0 to
+10dBmV (+60dBuV to +70dBuV).
Setup and Operation
1. Connect the input-source cable drop or antenna lead to the F connector
On the rear panel of the P-379 marked “RF INPUT”.
NOTE: If you have a P-379T, also connect the T- or return-channel input source
cable to the F-connector on the rear panel of the P-379 marked “T-INPUT”.
2. Connect the output of the P-379 to a 50 Ohms load via an RF cable connected to
the F-connector marked “RF OUTPUT” on the rear panel of the P-379.
3. Connect the Technalogix P-379 to a proper AC electrical source. The correct
electrical input type for the unit is marked on the rear panel, directly under the
entrance of the power cord into the unit.
Exercise care in handling equipment during inspection to prevent
Damage due to rough or careless handling.
Technalogix power supplies are designed so that, under certain power
line or heat buildup conditions, the unit shuts off. An indication is no RF
output, although the POWER LED on the front panel remains illuminated.
If this occurs, unplug the power cord and wait at least two (2) minutes
before reapplying power. Upon reapplying power, you should again have
RF output. If the unit fails to provide RF output again, or should the unit
return to shutdown mode, telephone your distributor for assistance or call
Technalogix direct at 403-347-5400. Remember: Technalogix
recommends a 1.75” air circulation space between each piece of rackmounted equipment.
P-379 Processor
16
4. Input channel selection. Select the desired input source type and channel using
the front panel controls. Because the built-in input offset feature automatically
removes any input offset, no calculations or adjustments are required. The
Technalogix P-379 Agile Processor has a built-in delay in the input- and outputchannel tuning circuits. In order to change channels, hold the channel select
switch in the up- or down-position for at least three seconds. When the circuit is
defeated, channel selection will proceed normally. Channels can be changed
one at a time by raising/lowering the channel select switch one channel at a time;
or channels can be scanned rapidly by raising/lowering the channel select switch
and holding it while the unit rapidly moves through the channels. However, once
the channel select switch is released for more than one second, the delay-tuning
circuit reactivates.
Until an active input channel is selected, the input channel display will flash.
Once the input channel is selected, the input channel display will stop flashing as
long as the input signal level is within the required capture range. If the input
channel display continues to flash after a known, active input channel is selected,
check the level of the input signal to ensure it is at adequate levels for detection
(from –5dBmV to +10dBmV) and not too low or too high.
The FREQUENCY LOCK LED on the front panel display may also blink during
input-channel tuning. This is because, when the unit is being tuned, an RFoutput muting circuit is enabled to ensure that moving RF carriers do not interfere
with any existing channels on the cable system.
T-Channel Input Option. To use the T-Channel Input Option, if the unit is so
equipped, ensure that that a T-channel input source is attached to the Fconnector marked “T-Channel IN” on the rear panel. Position the T-Channel
switch on the rear panel of the P-379 to the “ON” position.
If your P-379 has green LED’s on the front panel, above the channel select
switch, the LED marked “T-channel” will illuminate when a channel in that range
is selected. If your P-379 does not have green LED’s, but does have a threenumber channel display, the selected T-channel will be indicated by a “-“ (minus)
sign preceding the number of the T-channel selected. When in T-channel
operation, only the T-channels will be selected.
P-379 Processor
17
5. Select the desired output channel. Unless otherwise specified, the unit is factory
set for cable standard channel frequencies and the microprocessor automatically
selects the proper FCC offset for the output channels, requiring no calculations or
adjustments.
NOTE: For HRC output channels, see the section in this manual entitled
HRC Output Frequency Set.
During output-channel tuning, the FREQUENCY LOCK LED on the front panel
display may also blink during input-channel tuning. This is because, when the
unit is being tuned, an RF-output muting circuit is enabled to ensure that moving
RF carriers do not interfere with any existing channels on the cable system.
6. Connect a spectrum analyzer (recommended) or a field strength meter to the Fconnector marked “RF OUTPUT” on the rear panel of the P-379 agile processor.
If the unit is already connected to another device, disconnect that device from the
unit.
7. using the front panel control marked “OUTPUT LEVEL,” adjust the RF output of
the unit. The recommended output level is between +55dBmV and +60dBmV
(+115dBuV and +120dBuV).
Setting the RF output level below +55dBmV may adversely affect the parameters
of the modulating signal; setting the RF output level above +60dBmV will
adversely affect the quality of performance of the P-379. Ensure that the RF
output level is checked each time an output channel is selected, particularly
when the selected channel is a return or “T” channel or when the channel
selected is in a different band from the previous channel.
NOTE: Ensure that you do not overdrive the power amplifier. Please see
the power amplifier manual for recommended levels.
P-379 Processor
18
8. While the RF OUTPUT signal is still connected to the spectrum analyzer or field
strength meter, observe the aural carrier level. The difference between the video
carrier level and the audio carrier level – the “Delta AV” or ΔAV – should be the
same as the input source. In other words, if the RF INPUT signal ΔAV is 13dB,
the RF OUTPUT signal ΔAV should be 13dB ±2dB. Minor adjustment of this
ΔAV may be made either at the input signal source (if the input signal is not from
an off-air source) or with the AURAL CARRIER LEVEL control on the front panel
of the P-379. When switching to either of the frequency sources (STD or HRC),
the internal aural carrier attenuator drops automatically from 6dB to 0dB since
the ΔAV for cable signals has normally been preset at the headend. However,
the ΔAV for off-air signals may vary considerably. Normal operation level of the
aural carrier is 10 to 13dB below the video carrier. If adjustment of the AURAL
CARRIER LEVEL control on the front panel of the P-379 will not bring the ΔAV of
an off-air signal into an acceptable range, check the ΔAV of the input signal. If
the ΔAV of the input signal is too small or is negative (the aural carrier is above
the video carrier), it is possible that the AURAL CARRIER LEVEL control of the
P-379 will be unable to compensate. Check the input signal before contacting
Technalogix for return-for-repair information.
P-379 Processor
19
Translator Hookup
1. Connect modulated video from P-379 RF OUT to the Technalogix power amplifier.
2. Turn down RF level on P-379 all the way.
3. Ensure that IF OUT is connected to IF IN on the P-379 processor using the loop F to
F cable supplied.
4. Connect the transmitting antenna cable to the RF output connector on the power
amplifier. It is recommended that a quality through line wattmeter be installed in this
same line.
5. Verify that all signal and RF cables are connected properly.
6. After following proper installation procedures outlined in the power amplifier manual,
plug the power amplifier’s power cords into an appropriate electrical outlet.
Output power should be adjusted with a sync and blanking signal only with the aural
carrier removed. This is simply done by disconnecting one end of the audio carrier loop
found on the back panel of the P-379.
AUTOMATIC MORSE CODE KEYING DEVICE
Translators must be equipped with a device that identifies the call signal of the translator
in Morse code (usually be frequency shifting the aural carrier not less than 5 kHz or
amplitude modulating the aural carrier with a 200 Hertz tone) once each hour. This
feature can be disabled if the parent station for the translator sends the call sign of the
translator in the visual picture or identifies it as part of the aural modulation. The end
user must do this as a regulation of FCC.
P-379 Processor
20
6.0 PROBLEM TROUBLESHOOTING GUIDE
The guide below covers some typical symptoms, possible associated causes and
suggested actions to follow before returning the unit for repair. It is not meant to be allinclusive.
Symptom Possible Cause Suggested Action
No output
Weak output
Unit tuned to input channel in
Input signal is too weak Ensure input signal strength is
IF loop cable on rear of unit
Unit not plugged in or not
Excessive noise
Spurious signals
IF level too high (most often
Input signal too strong or no
Bad/noisy video Aural carrier interfering with
Channels do not change Delay feature active Hold channel change switch in
Unit tuned to output channel
different from desired (this
occurs particularly on the units
which have green LED on the
front panel to indicate “T”
channels and channels above
99)
a different range than desired
loose/disconnected
getting power
Output level above rated
maximum (most often occurs
when changing from highnumber channel to lownumber channel, especially to
the “T” channels)
occurs when routing IF
through scrambler or other
external device)
input signal at all
video carrier
Ensure selected output
channel is desired channel
Check INPUT SOURCE
SELECT switch for proper
source selection
within specified range
Check IF loop cable is
securely attached
Check power cord and power
source, fuse
Measure RF output from rear
panel jack and adjust front
panel OUTPUT LEVEL control
as required
Measure normal IF output
level for applied CW
/unmodulated input carrier and
ensure same level is returned
to unit after external
processing
Measure input RF level and
pad to within specified input
levels; if signal not present,
change to active channel
Measure Aural Carrier level
and/or adjust AURAL
CARRIER LEVEL control on
front panel
raised/lowered position for at
least three seconds
P-379 Processor
21
7.0 BILL OF MATERIALS, SCHEMATICS, AND PCB OVERLAYS
Agile Logic Board Bill of Materials
Last Revision: 09.12.00
Component Reference Quantity Identification Modifier Package
C1 1 22pF CAP250D
C10 1 0.47uF CAP100RP
C11 1 10 uF CAP100RP
C12 1 22 uF CAP100RP
C13 1 22 uF CAP100RP
C14 1 22 uF CAP100RP
C15 1 22 uF CAP100RP
C16 1 0.01uF CAP250D
C17 1 0.01uF CAP250D
C18 1 47 uF CAP100RP
C19 1 47 uF CAP100RP
C2 1 22pF CAP250D
C20 1 CAP100RP
C21 1 0.01uF CAP250D
C22 1 0.01uF CAP250D
C23 1 0.01uF CAP250D
C24 1 0.01uF CAP250D
C3 1 22 uF CAP100RP
C4 1 10 uF CAP100RP
C5 1 0.47uF CAP100RP
C6 1 0.47uF CAP100RP
C7 1 0.01uF CAP250D
C8 1 0.01uF CAP250D
C9 1 470 uF CAP197R
D1 1 RED T1 LED T1-W/HLD
D2 1 T1 W/HLD LED
D3 1 RED T1 LED T1-W/HLD
DS1 1 8 POS DPS8W
JP1 1 4 POS HEADER JP-DUAL4
JP2 1 8 POS HEADER JP-DUAL8
JP3 1 JP-DUAL4
JP4 1 3PIN JP3IL
JP5 1 3PIN JP3IL
JP6 1 3PIN JP3IL
JP7 1 3 POS JP3IL
JP8 1 3 IL JP3IL
L1 1 6 T COIL 60
P-379 Processor
22
L2 1 6 T COIL 60
L3 1 6 T COIL 60
L4 1 6 T COIL 60
L5 1 6 T COIL 60
P1 1 4 PIN SMB
P10 1 10 POS DIPIL10
P11 1 4 PIN SMB
P12 1 8 POS CONNIL8
P2 1 RT ANG F FCONN
P3 1 12 POS CONN IL12
P4 1 12 POS CONN IL12
P5 1 ON DISPLAY
BDS
P6 1 12 POS CONN IL12
P7 1 12 POS CONN IL12
P8 1 4 PIN SMB
P9 1 10 PIN CONN10IL
Q1 1 2222 TRANS2222
Q2 1 2907 TO18C
QP1 1 4-2222A DIP14C
R1 1
R10 1
R11 1
R12 1
R13 1
R14 1
R15 1
R16 1
R17 1
R18 1
R19 1
R2 1
R20 1
R21 1
R22 1
R23 1
R3 1
R4 1
R5 1
R6 1
R7 1
R8 1
R9 1
RP1 1
RP2 1
10 M
1 k
5 k
10 K
10 K
1 k
6.8 k
1 k
500
10 K
5.6 k
4.7
10 K
91
10
5 k
5 k
10 k
1 k
68 k
68 k
68 k
4.7
10 k
10 k
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
RES1-8
RES1-8
POT1
RES1-8
RES1-8
RES1-8
RES1-8
RES1-8
POT1
RES1-8
RES1-8
RES1-8
RES1-8
RES1-8
RES1-8
POT1
POT1
RES1-8
RES1-8
RES1-8
RES1-8
RES1-8
RES1-8
DIPIL11
DIPIL11
CONN IL19
P-379 Processor
23
RP3 1
RP4 1
RP5 1
SW1 1 PADDLE SW1
SW2 1 PADDLE SW1
SW3 1 ROCKER SW1
SW4 1 ROCKER SW1
U1 1 MC74HC165 DIP16C
U2 1 IC34064 REGTO92
U3 1 68705C8 DIP40C
U4 1 74H04 DIP14C
U5 1 74H04 DIP14C
U6 1 MC14499 DIP18C
U7 1 DS232 DIP16C
U8 1 X2402 DIP8C
Y1 1 4MHz XTAL
10 k
150
150
Ωhm
Ωhm
Ωhm
DIPIL11
DIP IL8
DIP IL8
P-379 Processor
24
1
A A
S1
S2
S3
B B
C C
OUTPUT CH
INPUT CH
INPUT MODE
5V
RP1
RP3
4
5
2
3
7
6
8
9
1
U7
1
2
3
4
5
6
7
8 9
EEPROM MEMORY STORAGE
U8
P1
P2
P3
P4 P5
D D
E E
FROM P/S
POWER ON LED
+25V
P/S LED
+30V
+12V
-12V
P12
F F
5V
16
15
14
13
12
11
10
P8
P7
P6
C22 C21
C23 C24
2
1
1
6
7
4
5
9
8
12
19
1
2
21
22
4
5
6
13
7
10
8
9
10
11
12
13
14
15
16
17
18
19
1
1
1
12
13
14
3 2
5V
C2
L5
IN
C8
+
+5V
L4
+12V
U3
OUT
COM
3
+
C7
U6
NOT RESET
NOT IRQ
OSC 1
NOT VPR
OSC 2
SW1UP
TCAP
SW1DWN
SW0UP
MUTE1
SW0DWN
PD 5
PA3
PA2
S/L
SHREG
DATAIO
CLK
SBSEL
DSPEN
LED1
VRST
LED0
PLLIEN
SPR4I
PLLOEN
SPR5I
PLLEN
SPR6I
PWR
OFF AIR
GND ISTHR
18
17
16
15
14
13
12
11
12
10
5
3
+5V +5V
3
U4
1
4
5V
R11
Y1
R2
Vdd
37
36
VIN
35
34
33
LD
32
LDI
31
LD0
30
TDO
29
RDI
28
27
26
25
24
23
22
21
L1
+
C9
U9
1
2
3
4
5
6
7
8
910
QP1
3
U5
1
C4 C3
RP2
1
2
1
3
2
4
37
5
36
6
34
9
22
10
21
1
1
+5V
RP5
RP4
13
14
9
8
6
7
2
1
NOTES:
ON M/N UNITS W411808
DISPLAY BD. ONLY
1. CUT THE ETCH
CONNECTING PINS 6&9 ON
TOP OF P5 ON TOP OF
BOARD
2. CUT THE ETCH
CONNECTING PINS 7&11 ON
P5 ON BOTTOM OF BOARD
3. CONNECT PINS 1&6 OF
P5 W/INSULATED WIRE ON
BOTTOM OF BOARD
4. CONNECT PINS 2&7 OF
P5 W/INSULATED WIRE ON
BOTTOM OF BOARD
35
1
1
R18
1
2
3
4
5
6
7
8 9
JP1
P8
P7
P6
5
R19
R20
Q1
C13
+
C14
+
C1
+
JP2
16
15
14
13
12
11
10
P1
P2
P3
P4P5
Q2
C12
+
1
U11
2
3
4
5
6
7
8 9
NORM
R16
16
15
14
4
13
2
12
3
11
4
10
1
JP4
TEST
D4
LOCK LED
RSTX
RSRX
RDI
TDO
TO JP5.2
TO JP5.3
6
+12V
7
8
9
10
MUTE
360 VIDEO MODULATION
JP3
P1
P8
P2
P7
P3
P6
P4P5
360 TEXT
OVERLAY OPTION5K/370
VIDEO OUT
MODULATOR INPUT
P111
R111
C200
+
R14
10k 40%
J2
(370 MOD) T
CHANNEL
(370 MOD) VHF/UHF
(360
MOD)VIDEO
MODULATION
TO JP2 P5-4
P100
360 VIDEO MOD ADJ
361/2 ALR LEVEL
370/370T VIDEO GAIN
C181
+
JPR
TO P6.2 DEDOM INTERFACE
R221
+
C191
90-F
TO P4.2 RSRX
TO P4.1 RSTX
+
C161
-20dB RF MONITOR
(360.361.362
R7 R6
LDO
+
1
1 11
9 8
4
11
5
13
1
9
3
10
9
11
1
2
3
4
OUT LVL
1
OMIT FOR
DEMOD
5V
U1A
U2F
U2E
U2D
U2C
U2B
U1F
U1D
U1C
U1B
R13
R3
1
1
R9
+
C11
R8
LD
LDI
C10+C6+C5
31323
3
1
+12V
2
3
4
5
6
7
8
9
10
11
PLLI EN
12
13
14
PLLO EN
15
16
PLL EN
17
18
19
DATA IO
20
CLK
P5
PWR
SBSEL
LED1
LED0
SPR41
SPR51
SPR61
P10
VIN
VRST
DATA IO
CLK
+5V
N/C
32
31
21
3
U2A
U1E
R121
R4
FP OUTPUT
LEVEL ADJ
(DEMOD)
W/R23
CW/R23
IN PLL EN
5
DATA
6
7
CLOCK
LD
OFF
11
PROCESSOR
INPUT
1
RSTX
1
2
RSRX
4
25 KHz
5
12.5KHz
6
MUTE
7
8
OUT LVL
OUT LVL
9
10
TO UP CONV.
REF
1
2
DATA
LDO
3
4
12.5KHz
5
OUT PLL EN
6
CLOCK
7
25KHz
TO OUTPUT CONV.
3
4
5
11
12
SPARES/DEMOD
+5V
P7
+5V
+5V
INPUT LD
+30V
+12V
(362.SW3
3 W/R17)
P4
TO RP RJ11
+12V
+5V
-12V
P3
+12V
+5V
+24V
-12V
+12V
P6
W/R17
C20
D3
D2
(361/2)
R10
R5
500R/360
100K/361-2
P1
(360/370)
R21
+12V
N/C
R171
VIDEO IN
J1
P9
MONITOR IN
R1
L3
R15
+12V
+5V
12V
JP6
SW4
360 BAR GRAPH
DISPLAY
P200
J101
C5045.6 REAR PANEL
RJ11/RS232 INPUT
+5V
CON
VIDEO TEXT OVERLAY
Technalogix Ltd.
#4, 8021 Edgar Industrial Place
G G
Red Deer, Alberta, Canada T4P 3R3
Agile Logic
Rev ID
C
1
2
3
4
5
6
7
8
Date: 09/11/00 Page: 1 of 1
9
10
Agile Output Amplifier Bill of Materials
Last Revision: 09.12.00
Component Reference Quantity Identification Modifier Package
C1 1 0.1uF 1206
C2 1 0.1uF 1206
C3 1 2.7 pF 1206
C4 1 3-10pF VCAP CGKG27
C5 1 3-10pF VCAP CGKG27
C6 1 3-10pF VCAP CGKG27
C7 1 2.7 pF 1206
E1 1 E-COAX
E2 1 12 V EPAD
E3 1 E-COAX
E5 1 GND EPAD
I1 1 1206
L1 1 IND400
L2 1 10 nH 1210
L3 1 12 nH 1210
L4 1 12 nH 1210
L5 1 10 nH 1210
P1 1 FCONN-S
U1 1 AMP6342
P-379 Processor
26
1
A A
B B
E2
+24V
2
3
4
5
6
7
C C
C2C1
D D
L1
+
U1
52
E E
F F
INPUT
E1
1 9
C3
L3
C4 C5
L4
C6
L5L2
P1
C7
OUTPUT
R1
-20dB TEST
E3
G G
H H
I I
Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada T4P 3R3
J J
1
2
3
4
5
Agile Output Amplifier Board
Rev ID
H
Date: 09/11/00 Page: 1 of 1
6
7
Agile Up Converter Board Bill of Materials
Last Revision: 09.13.00
Component Reference Quantity Identification Modifier Package
C1 1 (VALUE) 1206
C10 1 (VALUE) 1206
C101 1 (VALUE) 1206
C102 1 (VALUE) 1206
C103 1 CAP100RP
C104 1 (VALUE) 1812
C105 1 (VALUE) 1206
C106 1 (VALUE) 1206
C107 1 (VALUE) 1206
C108 1 (VALUE) 1206
C109 1 (VALUE) 1206
C11 1 (VALUE) 1206
C110 1 (VALUE) 1206
C111 1 (VALUE) 1206
C112 1 (VALUE) 1206
C113 1 (VALUE) 1206
C114 1 (VALUE) 1206
C115 1 (VALUE) 1206
C115 1 (VALUE) 1812
C116 1 (VALUE) 1206
C116A 1 CAP100RP
C117 1 (VALUE) 1206
C118 1 (VALUE) 1206
C119 1 (VALUE) 1206
C12 1 (VALUE) 1206
C120 1 (VALUE) 1206
C121 1 (VALUE) 1206
C122 1 (VALUE) 1206
C123 1 (VALUE) 1206
C124 1 (VALUE) 1206
C125 1 (VALUE) 1206
C126 1 (VALUE) 1206
C127 1 (VALUE) 1206
C128 1 (VALUE) 1206
C129 1 (VALUE) 1206
C13 1 (VALUE) 1206
C130 1 (VALUE) 1206
C131 1 (VALUE) 1206
C132 1 (VALUE) 1206
C133 1 (VALUE) 1812
C134 1 CAP100RP
C135 1 (VALUE) 1206
P-379 Processor
28
C136 1 (VALUE) 1206
C137 1 (VALUE) 1206
C138 1 (VALUE) 1206
C139 1 (VALUE) 1206
C14 1 (VALUE) 1206
C140 1 (VALUE) 1206
C141 1 (VALUE) 1206
C15 1 (VALUE) 1206
C16 1 (VALUE) 1206
C17 1 (VALUE) 1206
C18 1 (VALUE) 1206
C19 1 (VALUE) 1206
C2 1 (VALUE) 1206
C204 1 (VALUE) 1206
C205 1 (VALUE) 1206
C206 1 (VALUE) 1206
C207 1 (VALUE) 1206
C208 1 (VALUE) 1206
C209 1 (VALUE) 1206
C21 1 (VALUE) 1206
C210 1 (VALUE) 1206
C22 1 (VALUE) CGKG27
C3 1 (VALUE) 1206
C300 1 (VALUE) 1206
C301 1 (VALUE) 1206
C303 1 CAP275RP650
C4 1 (VALUE) 1206
C5 1 (VALUE) 1206
C6 1 (VALUE) 1206
C7 1 (VALUE) 1206
C8 1 (VALUE) 1206
C9 1 (VALUE) 1206
D1 1 3800 SOT-23
D100 1 DIODEZ D0214AC
D101 1 9 V SOT-23
D102 1 9 V SOT-23
D103 1 DIODEZ D0214AC
D2 1 3800 SOT-23
D3 1 3800 SOT-23
F1 1 SIP5L
FT200 1 (VALUE) FIL-TOKO
J1 1 THRU-HOLE
J10 1 THRU-HOLE
J2 1 THRU-HOLE
J3 1 THRU-HOLE
J4 1 THRU-HOLE
J5 1 THRU-HOLE
P-379 Processor
29
J6 1 THRU-HOLE
J7 1 THRU-HOLE
J8 1 THRU-HOLE
J9 1 THRU-HOLE
L1 1 (VALUE) 1812
L100 1 (VALUE) 1210
L101 1 (VALUE) 1210
L102 1 (VALUE) 1210
L103 1 (VALUE) 1210
L104 1 (VALUE) 1812
L105 1 (VALUE) 1210
L106 1 (VALUE) 1210
L108 1 (VALUE) 1210
L109 1 (VALUE) 1210
L2 1 (VALUE) 1812
L3 1 (VALUE) 1812
L4 1 (VALUE) 1812
L5 1 (VALUE) 1812
L6 1 (VALUE) 1812
M1 1 (VALUE) MIXER-RF2
OSC1 1 (VALUE) MINI14SL
P1 1 FCON-S
P2 1 FCON-S
Q1 1 (VALUE) MRF559B2
Q2 1 (VALUE) MRF559B2
R1 1 (VALUE) 1206
R10 1 (VALUE) 1206
R101 1 (VALUE) 1206
R102 1 (VALUE) 1206
R103 1 (VALUE) 1206
R104 1 (VALUE) 1206
R105 1 (VALUE) 1206
R106 1 (VALUE) RES2010A
R107 1 (VALUE) RES2010A
R108 1 (VALUE) RES2010A
R109 1 (VALUE) RES2010A
R11 1 (VALUE) 1206
R111 1 (VALUE) 1206
R112 1 (VALUE) 1206
R113 1 (VALUE) 1206
R116 1 (VALUE) 1206
R117 1 (VALUE) 1206
R118 1 (VALUE) 1206
R119 1 (VALUE) 1206
R12 1 (VALUE) 1206
R121 1 (VALUE) 1206
R122 1 (VALUE) 1206
P-379 Processor
30
R123 1 (VALUE) 1206
R13 1 (VALUE) 1206
R14 1 (VALUE) 1206
R15 1 (VALUE) 1206
R16 1 (VALUE) 1206
R17 1 (VALUE) 1206
R18 1 (VALUE) 1206
R19 1 (VALUE) 1206
R2 1 (VALUE) 1206
R20 1 (VALUE) 1206
R203 1 (VALUE) 1206
R204 1 (VALUE) RES2010A
R205 1 (VALUE) 1206
R206 1 (VALUE) 1206
R207 1 (VALUE) 1206
R21 1 (VALUE) 1206
R22 1 (VALUE) 1206
R23 1 (VALUE) 1206
R24 1 (VALUE) 1206
R25 1 (VALUE) 1206
R26 1 (VALUE) 1206
R3 1 (VALUE) 1206
R4 1 (VALUE) 1206
R5 1 (VALUE) 1206
R6 1 (VALUE) 1206
R7 1 (VALUE) 1206
R8 1 (VALUE) 1206
R9 1 (VALUE) 1206
U100 1 TSSOP20
U101 1 WW107
U2 1 WW107
U200 1 WW107
P-379 Processor
31
1
J7
A A
B B
LOCK DETECT TO MPU
J2
C C
J3
DI-J4
CLK-J5
D D
EN-J6
12V
R109
L109
C138 C140
L108
C137
L107
C136
D102
ZENER
+
C134
C138
C135
P1
D101
R101
2
+12V
+
C301C300
R1
C3
D2
R2
R3
C104
C141
C131
C132C133
C2
C1
1uF
D1C1
D3
C3
R4
U5
P1
P20
P2
P19
P3
P18
P4
P17
P5
P16
P6
P15
M
P7
P14
P8
P13
P9
P12
P10P11
C110
R105
3
C7
+12V
C101C102
+
R102
C106
L2
R103
C107
R106
R104
C6
12V
12V
D103
D100
9.1V
1
C108
C229
L1
C4
R6R5
J10
C103
C105
R108
4
C9
L3
U1
R8
+
R7
C115
C109
3
VCD1
C111
C112
L104
+12V
R12
R11
C10
R13
C116A
+
C116
U6
2
R111
R112
R113
C113
C114
C117
U101
+
FILL
C119
5
R15
12V
C120
R114
R116
C118
6
R118
C13
R1900
R1800
C11
U2
+
R17
R20
C14
R21
L100
C122C121
L5L4
C12
R16R14
R115
R117
R119
7
L6
R22
C15
R24
C130
L103
L102
L101
C123
C124
C126
R25R23
C125
U3
IF MIXER
C129
C128
U102
+
8
R201
C201
R202
R200
R120
C38
FILL200
R122
9
U4
R121R123
C204
R203
C206
U200
+
R205 R207
+12V
C209C207
C210
R204
R206
10
C205
C208
IF OUT
P2
E E
F F
Technalogix Ltd.
#4 8021 Edgar Industrial Place
G G
Red Deer, Alberta, Canada T4P 3R3
Agile Up Converter
Rev ID
H
1
2
3
4
5
6
7
8
Date: 08/31/00 Page: 1 of 1
9
10
750 MHz down Converter Board Bill of Materials
Last revised: 09.13.00
Component Reference Quantity Identification Modifier Package
C1 1 (VALUE) 1206
C10 1 (VALUE) 1206
C101 1 (VALUE) 1206
C102 1 (VALUE) 1206
C103 1 CAP100RP
C104 1 (VALUE) 1812
C105 1 (VALUE) 1206
C106 1 (VALUE) 1206
C107 1 (VALUE) 1206
C108 1 (VALUE) 1206
C109 1 (VALUE) 1206
C11 1 (VALUE) 1206
C110 1 (VALUE) 1206
C111 1 (VALUE) 1206
C112 1 (VALUE) 1206
C113 1 (VALUE) 1206
C114 1 (VALUE) 1206
C115 1 (VALUE) 1206
C115 1 (VALUE) 1812
C116 1 (VALUE) 1206
C116A 1 CAP100RP
C117 1 (VALUE) 1206
C118 1 (VALUE) 1206
C119 1 (VALUE) 1206
C12 1 (VALUE) 1206
C120 1 (VALUE) 1206
C121 1 (VALUE) 1206
C122 1 (VALUE) 1206
C123 1 (VALUE) 1206
C124 1 (VALUE) 1206
C125 1 (VALUE) 1206
C126 1 (VALUE) 1206
C127 1 (VALUE) 1206
C128 1 (VALUE) 1206
C129 1 (VALUE) 1206
C13 1 (VALUE) 1206
C130 1 (VALUE) 1206
C131 1 (VALUE) 1206
C132 1 (VALUE) 1206
C133 1 (VALUE) 1812
C134 1 CAP100RP
C135 1 (VALUE) 1206
P-379 Processor
33
C136 1 (VALUE) 1206
C137 1 (VALUE) 1206
C138 1 (VALUE) 1206
C139 1 (VALUE) 1206
C14 1 (VALUE) 1206
C140 1 (VALUE) 1206
C141 1 (VALUE) 1206
C15 1 (VALUE) 1206
C16 1 (VALUE) 1206
C17 1 (VALUE) 1206
C18 1 (VALUE) 1206
C19 1 (VALUE) 1206
C2 1 (VALUE) 1206
C204 1 (VALUE) 1206
C205 1 (VALUE) 1206
C206 1 (VALUE) 1206
C207 1 (VALUE) 1206
C208 1 (VALUE) 1206
C209 1 (VALUE) 1206
C21 1 (VALUE) 1206
C210 1 (VALUE) 1206
C22 1 (VALUE) CGKG27
C3 1 (VALUE) 1206
C300 1 (VALUE) 1206
C301 1 (VALUE) 1206
C303 1 CAP275RP650
C4 1 (VALUE) 1206
C5 1 (VALUE) 1206
C6 1 (VALUE) 1206
C7 1 (VALUE) 1206
C8 1 (VALUE) 1206
C9 1 (VALUE) 1206
D1 1 3800 SOT-23
D100 1 DIODEZ D0214AC
D101 1 9 V SOT-23
D102 1 9 V SOT-23
D103 1 DIODEZ D0214AC
D2 1 3800 SOT-23
D3 1 3800 SOT-23
F1 1 SIP5L
FT200 1 (VALUE) FIL-TOKO
J1 1 THRU-HOLE
J10 1 THRU-HOLE
J2 1 THRU-HOLE
J3 1 THRU-HOLE
J4 1 THRU-HOLE
J5 1 THRU-HOLE
P-379 Processor
34
J6 1 THRU-HOLE
J7 1 THRU-HOLE
J8 1 THRU-HOLE
J9 1 THRU-HOLE
L1 1 (VALUE) 1812
L100 1 (VALUE) 1210
L101 1 (VALUE) 1210
L102 1 (VALUE) 1210
L103 1 (VALUE) 1210
L104 1 (VALUE) 1812
L105 1 (VALUE) 1210
L106 1 (VALUE) 1210
L108 1 (VALUE) 1210
L109 1 (VALUE) 1210
L2 1 (VALUE) 1812
L3 1 (VALUE) 1812
L4 1 (VALUE) 1812
L5 1 (VALUE) 1812
L6 1 (VALUE) 1812
M1 1 (VALUE) MIXER-RF2
OSC1 1 (VALUE) MINI14SL
P1 1 FCON-S
P2 1 FCON-S
Q1 1 (VALUE) MRF559B2
Q2 1 (VALUE) MRF559B2
R1 1 (VALUE) 1206
R10 1 (VALUE) 1206
R101 1 (VALUE) 1206
R102 1 (VALUE) 1206
R103 1 (VALUE) 1206
R104 1 (VALUE) 1206
R105 1 (VALUE) 1206
R106 1 (VALUE) RES2010A
R107 1 (VALUE) RES2010A
R108 1 (VALUE) RES2010A
R109 1 (VALUE) RES2010A
R11 1 (VALUE) 1206
R111 1 (VALUE) 1206
R112 1 (VALUE) 1206
R113 1 (VALUE) 1206
R116 1 (VALUE) 1206
R117 1 (VALUE) 1206
R118 1 (VALUE) 1206
R119 1 (VALUE) 1206
R12 1 (VALUE) 1206
R121 1 (VALUE) 1206
R122 1 (VALUE) 1206
P-379 Processor
35
R123 1 (VALUE) 1206
R13 1 (VALUE) 1206
R14 1 (VALUE) 1206
R15 1 (VALUE) 1206
R16 1 (VALUE) 1206
R17 1 (VALUE) 1206
R18 1 (VALUE) 1206
R19 1 (VALUE) 1206
R2 1 (VALUE) 1206
R20 1 (VALUE) 1206
R203 1 (VALUE) 1206
R204 1 (VALUE) RES2010A
R205 1 (VALUE) 1206
R206 1 (VALUE) 1206
R207 1 (VALUE) 1206
R21 1 (VALUE) 1206
R22 1 (VALUE) 1206
R23 1 (VALUE) 1206
R24 1 (VALUE) 1206
R25 1 (VALUE) 1206
R26 1 (VALUE) 1206
R3 1 (VALUE) 1206
R4 1 (VALUE) 1206
R5 1 (VALUE) 1206
R6 1 (VALUE) 1206
R7 1 (VALUE) 1206
R8 1 (VALUE) 1206
R9 1 (VALUE) 1206
U100 1 TSSOP20
U101 1 WW107
U2 1 WW107
U200 1 WW107
P-379 Processor
36
1
2
3
4
5
6
7
8
9
10
A A
12V
U16
R101
FILTER
R103
R104R102
C102
P1
C100 C101
L100
R100
B B
C C
D D
E E
12V
LOCK DETECT TO MPU
DI-J3
CLK-J4
EN-J5
R9
D4
ZENER
L1
C17
1uF
L2
C15
1uF
L3
C18
1uF
+
C10
1uF
D1
C4
R2
C3
C16
1uF
C14
1uF
C19
1uF
RFOUT-J6
C11
1uF
C13
C12
1uF
1uF
R5
Y1
C2
4.00MHZ
U1
1
20
2
19
3
18
4
17
5
16
6
15
7
14
8
13
9
12
1011
C9
RF
R200
LO
C39
C1
C8
C21
R4
C200
R201
R20
R18
R19
12V
R3
D3
C7
C5C6
+
R7
R6
C22
D2
9.1V
R1
C23
R202
12V
C24
R8
VCC
VIN RFOUT
C43
R203
C27
OSC
GND
C36
C35
C47C48
R212
U4 U201
C25
L4
C42
R205
R212
R206
C26
C31
C28
R11
R10
C34
C33
U3
ERA
R12
R204
L200
L201
C205
12V
C30
R13
C29
C40
C207
C206
R15
R14
C41
R22
L203L202
C208
C37
R16
U4
R17
ERA5
C209
R207
C45
C46
R21
C210
C38
C215
12V
C213C212
R208
C211
L204
R209
C214
R210
R211
RF OUT
P3
F F
Technalogix Ltd.
#4, 8021 Edger Industrial Place
G G
Red Deer, Alberta, Canada T4P 3R3
750MHz Down Converter
Rev ID
B
1
2
3
4
5
6
7
8
Date: 9/11/2000 Page: 1 of 1
9
10
Power Supply Board Bill of Materials
Last Revised: 09.12.00
Component Reference Quan
tity
C1 1 4700 35 V CAP400RPHORZ
C10 1 0.1 uF CAP250
C11 1 0.1 uF CAP250
C12 1 0.1 uF CAP250
C13 1 0.1 uF CAP250
C14 1 1000 50 V CAP275RP650
C15 1 0.1 uF CAP250
C16 1 4700 16 VDC CAP275RP650
C17 1 1000 50 V CAP275RP650
C18 1 0.1 uF CAP250
C19 1 0.1 uF CAP250
C2 1 4700 35 V CAP400RPHORZ
C3 1 0.1 uF CAP250
C4 1 0.1 uF CAP250
C5 1 0.1 uF CAP250
C6 1 0.1 uF CAP250
C7 1 2200 35 V CAP275RP650
C8 1 0.1 uF CAP250
C9 1 10000 25 VDC CAP400RPHORZ
P1 1 CONHDR6
P2 1 CONHDR6
P3 1 CONHDR6
P4 1 CONHDR6
P5 1 CONHDR6
P6 1 CONHDR6
P7 1 CONHDR8
R1 1
R2 1
R4 1
U1 1 BRIDGE
U2 1 RBRDG-RECT-
U3 1 LM317 T0-220-AB
U4 1 7824 T0-220-AB
U5 1 7812 T0-220-AB
U6 1 7805 T0-220-AB
U7 1 DIP6-2
Identification Modifier Package
240
5.6 k
2 k
Ωhm
Ωhm
Ωhm
RES400
RES400
RES400
403M
P-379 Processor
38
1
2
3
4
5
6
7
U4
7824
A A
1
IN
OUT
COM
+
2
C1C4
+24V
3
+
C7C5
B B
3
4
P1
C C
1
2
3
4
5
6
1
U1
2
3
4
1
U2
2
D D
C19
+
C2 C8
P4
P5
P6
1
1
2
2
3
3
4
4
5
5
6
6
U6
7805
1
IN
COM
C12
U5
7812
1
IN
COM
P3
1
2
3
4
5
6
+5V
3
OUT
2
3
OUT
2
P2
1
1
2
2
3
3
4
4
5
5
6
6
+12V
C13C11
+
C16C15
C10+C9
R1
C18
P7
1
2
3
+24V
4
+30V
5
GND
6
+5V
7
+12V
8
GND
3
4
1
U7
2
E E
U3
LM317
1
IN
+
C17 C3
F F
+30V
3
OUT
COM
R2
2
R4
C6+C14
G G
H H
I I
Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada T4P 3R3
J J
1
2
3
4
5
Power Supply Board
Rev ID
D
Date: 09/11/00 Page: 1 of 1
6
7
Tuner Processor Board Bill of Materials
Last Revised: 09.13.00
Component Reference Quantity Identification Modifier Package
C1 1 0.47 uF 1206
C100 1 0.001 uF 1206
C100 1 0.01 uF 1206
C101 1 0.1 uF 1206
C11 1 0.47 uF 1206
C13 1 0.1 uF 1206
C14 1 0.1 uF 1206
C15 1 0.01 uF 1206
C16 1 0.01 uF 1206
C17 1 0.1 uF 1206
C18 1 0.1 uF 1206
C19 1 0.01 uF 1206
C2 1 0.47 uF 1206
C20 1 0.01 uF 1206
C21 1 0.1 uF 1206
C22 1 8.2 pF 1206
C23 1 12 pF 1206
C24 1 3-10 pF CGKG27
C25 1 15 pF 1206
C26 1 10 pF 1206
C27 1 120 pF 1206
C28 1 120 pF 1206
C29 1 4.5-20 pF CGKG27
C3 1 0.47 uF 1206
C30 1 0.001 uF 1206
C36 1 27 pF 1206
C37 1 56 pF 1206
C38 1 27 pF 1206
C39 1 0.1 uF 1206
C4 1 0.01 uF 1206
C40 1 0.01 uF 1206
C41 1 47 uF CAP100RP250
C42 1 0.01 uF 1206
C43 1 0.47 uF 1206
C44 1 0.1 uF 1206
C45 1 10 pF CAP100MPR
C46 1 0.1 uF 1206
C47 1 4.7 pF 1206
C48 1 0.01 uF 1206
C49 1 0.001 uF 1206
C5 1 0.01 uF 1206
C50 1 0.001 uF 1206
P-379 Processor
40
C51 1 0.01 uF 1206
C52 1 47 uF CAP100RP250
C53 1 0.001 uF 1206
C54 1 0.47 uF 1206
C55 1 0.1 uF 1206
C56 1 22 pF 1206
C57 1 47 pF 1206
C58 1 0.01 uF 1206
C59 1 0.1 uF 1206
C6 1 0.01 uF 1206
C60 1 0.1 uF 1206
C61 1 4.7 pF 1206
C62 1 0.01 uF 1206
C63 1 0.1 uF 1206
C64 1 0.1 uF 1206
C65 1 100 pF 1206
C66 1 0.1 uF 1206
C67 1 0.1 uF 1206
C68 1 0.01 uF 1206
C69 1 68 pF 1206
C7 1 0.47 uF 1206
C70 1 33 pF 1206
C71 1 4.5-20 pF CGKG27
C72 1 0.01 uF 1206
C73 1 0.1 uF 1206
C74 1 100 pF 1206
C75 1 0.01 uF 1206
C76 1 0.01 uF 1206
C77 1 0.1 uF 1206
C78 1 0.01 uF 1206
C79 1 0.01 uF 1206
C8 1 0.47 uF 1206
C80 1 100 pF 1206
C81 1 12 pF 1206
C82 1 3-10 pF CGKG27
C83 1 2.2 pF 1206
C84 1 39 pF 1206
C85 1 39 pF 1206
C86 1 0.01 uF 1206
C87 1 0.01 uF 1206
C88 1 0.001 uF 1206
C89 1 470 uF CAP200RP
C9 1 0.47 uF 1206
C90 1 CAP275RP650
C91 1 470 uF CAP200RP
C92 1 0.01 uF 1206
C93 1 0.1 uF 1206
P-379 Processor
41
C94 1 0.01 uF 1206
C95 1 0.01 uF 1206
C96 1 0.01 uF 1206
C97 1 0.1 uF 1206
C98 1 0.1 uF 1206
C99 1 56 pF 1206
D2 1 DIODEZ D0214AC
D3 1 3800 SOT23
D4 1 2800 SOT23
D5 1 914 SOT-23
D6 1 BV109 SOT23
E1 1 E-PIN
E2 1 EPAD
F1 1 SF28S
GND 1 EPAD
JP2 1 1206
JP3 1 1206
JP4 1 1206
JP5 1 1206
JP6 1 1206
L1 1 0.47 uH IND400
L10 1 0.33 uH 1812
L11 1 0.47 uH 1812
L12 1 13.5 T COIL 500
L13 1 8.5 T COIL 500
L14 1 150 uH IND500
L15 1 0.33 uH 1812
L16 1 0.47 uH 1812
L17 1 0.47 uH 1812
L18 1 0.47 uH 1812
L2 1 0.47 uH IND400
L3 1 0.47 uH IND400
L5 1 COIL-S
L6 1 IND400C
L7 1 COIL-S
L9 1 0.33 uH 1812
P1 1 CONHDR6
P2 1 CONHDR8
P3 1 FCONN-S
P4 1 CONHDR6
Q1 1 T317-01B
Q2 1 T317-01B
Q4 1 T317-01B
Q5 1 2369 SOT23
Q6 1 2369 SOT23
Q7 1 2222 SOT-23
Ω Ω Ω Ω Ω
P-379 Processor
42
R1 1
R12 1
R13 1
R14 1
R15 1
R16 1
R17 1
R18 1
R19 1
R2 1
R20 1
R21 1
R22 1
R23 1
R24 1
R25 1
R26 1
R27 1
R28 1
R29 1
R3 1
R30 1
R31 1
R32 1
R33 1
R34 1
R35 1
R36 1
R37 1
R38 1
R39 1
R4 1
R40 1
R41 1
R42 1
R43 1
R44 1
R45 1
R46 1
R47 1
R48 1
R49 1
R5 1
R50 1
4.7
1.5 k
18
680
680
3.9 k
2 k
430
100 k
0
Ωhm
10 k
10 k
12 k
7.5 k
4.7
4.7 k
1 k
10 k
10 M
3.3 k
0
Ωhm
10 M
100
10 k
10 k
4.7
560
220
56
220
4.7
27
51 k
3.3 k
100
33 k
68 k
100
10 k
10 k
4.7
560
39
2 k
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
1/2 WATT RES2010A
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
ST53YJ
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
P-379 Processor
43
R51 1
R52 1
R53 1
R54 1
R55 1
R56 1
R57 1
R58 1
R59 1
R6 1
R60 1
R61 1
R62 1 4.7 Ohm 1206
R63 1 680 Ohm 1206
R64 1 560 kOhm 1206
R65 1 5.6 kOhm 1206
R66 1 100 kOhm 1206
R67 1 4.7 Ohm 1206
R68 1 1 kOhm 1206
R69 1 2 kOhm 1206
R7 1 51 Ohm 1206
R70 1 12 Ohm 1206
R71 1 82 Ohm 1206
R72 1 220 Ohm 1206
R73 1 75 Ohm 1206
R74 1 1 kOhm 1206
R75 1 1 kOhm 1206
R76 1 2 kOhm 1206
R77 1 4.7 Ohm 1206
R78 1 82 Ohm 1206
R79 1 220 Ohm 1206
R8 1 1 kOhm 1206
R80 1 75 Ohm 1206
R81 1 4.7 Ohm 1206
R82 1 4.7 Ohm 1206
R83 1 91 Ohm 1206
R84 1 1 kOhm 1206
R85 1 2 kOhm 1206
R86 1 12 Ohm 1206
R87 1 82 Ohm 1206
R88 1 220 Ohm 1206
R89 1 75 Ohm 1206
R90 1 1.5 kOhm 1206
R91 1 75 Ohm 1206
R92 1 RESTRIMT
R93 1 10 kOhm 1206
4.7
470 k
470 k
680 k
4.7 k
4.7
470 k
470 k
680 k
39
39 k
100 k
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
Ωhm
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
1206
P-379 Processor
44
R94 1 6.8 kOhm 1206
R95 1 1 kOhm 1206
R96 1 2 kOhm 1206
R97 1 0 Ohm 1206
R98 1 18 Ohm 1206
R99 1 51 Ohm 1206
SW1 1 SWSPDT1
TP1 1 EPAD
TP2 1 EPAD
TP3 1 1206
TP4 1 EPAD
TUNER 1 EVN56D45G3 TUNER2
U1 1 SO8
U2 1 LM1823N DIP28
U3 1 FPT-08-M01
U4 1 SO-28L
U5 1 SO8
Y1 1 XTL49
Y2 1 XTL49
P-379 Processor
45
1
R2
+29.7V
R3
A A
B B
C C
D D
+5V
+12V
Data
Enable
+29.7
L1
P1:2
+29.7V IN
P1:6
P1:3 P1:1 P2:1 P2:6
NC
Clock
C4
C1
R4
P1:4
+5V IN
NCNC
FOR T-CH UNIT
+12
T-CH OPTION
+5
SW1
2
C7
C8
C9
C11
D1
C2
+12
C5
L2
C2
P1:5
+12V IN
P6
1
2
3
4
5
6
U1
AGC
BT
+29.7V
+5V
CLOCK
+9V
DATA
ENABLE
GND
IF
GND
GND
GND
GND
C6
L3
C3
3
R7
R5
C59
+12
R44
C60
R46
R49 R48
C99
4
C14
R69
L15
C13
.47
R8R6
R70
C12
L4
2.5-20pF
.47
+12
R40
C55
C58
R41
R42
R43
R45
R47
Q6
C63
C52
+
C51
C54
C53
101112131415
16171819202122232425262728
C57
L13
C61
C62
+12
R71
123456789
U2A
L12
R73
L16
R72
.47
Q1
C16
+12
R39
C56
C50
5
+12
C15
R74
+12
R36
MFV-2
5 1
+5V
+
C89
1uF
R37
R38
U2
C19
C18C17
R11
C35
C48
R34 R33
Q5
C49
R76
R75
Q2
R77
C92
R78
Q3
R10
R35
R32
6
+12
C91
R80
L17
R79
.47
R12
JP1JP1
R31
+
C20
R83
R81
C47
R14
2dB PAD
R82
D3 D2
C30
C29
R9
C46
R30
C43
D4
R26
L10 L9
C38 C37 C36
R13
R15
C39
7
C22C21
L5
L6
C27
C28
R25
R27
C44
R90
3
2
R29
.47
+12
U1A
+
74
1
C45
R28
+37 dBmV
.47
C42
C97
8
C24
C23
C25
+
C41
R23
R22
L8
L7
.47
.47
+12
C40
+12
L11
R24
U1B
R21
5
7
6
R19R20
+12
C95
9
TP1
AGC TEST POINT
C26
C32C31
C34
C33
P22
TO AURAL LEVEL
R18
R17
R16
R89
R88
L18
R84
Q4
R86
C96
R87
10
R91
C94
R85
C93
P3
IF OUTPUT
P2:3
TO OFF-AIR SW
E E
+5
C64 C65
D5
F F
C66
XTAL1
8.000MHZ
C71
C70
JP5JP5
28
27
26
C69
25
24
23
22
JP6JP6
21
20
19
18
17
16
JP4JP4
U3
1
2
3
4 5
C98
R50
U4
1
2
3
4
5
6
7
8
9
10
JP2 JP2
11
12
13
1415
G G
+5
8
7
6
TP2
JP3JP3
C100
C101
+29.7
+5
C68
R51
C67
R57
C78
R52
C80
R59
C79
R58
R53
C73
C72
C90
+
R56
C77
U5
3
6
2
7 4
+
C75
C74
R54
R60
R55
TP3
C76
4.000MHZ
C81
C82
D6
+5
R61
R66
R62
Q7
C85
L14
C86
C83
R63
C84
R64
C87
R67
R65
Q8
C88
R68
Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada T4P 3R3
OSC_OUT
E1
TP4
P2:4
LOCK_DET
Tuner Processor
Rev ID
D
1
2
3
4
5
6
7
8
Date: 09/6/00 Page: 1 of 1
9
10
Thank you
for choosing
Technalogix Ltd.
P-379 Processor
47
Loading...
