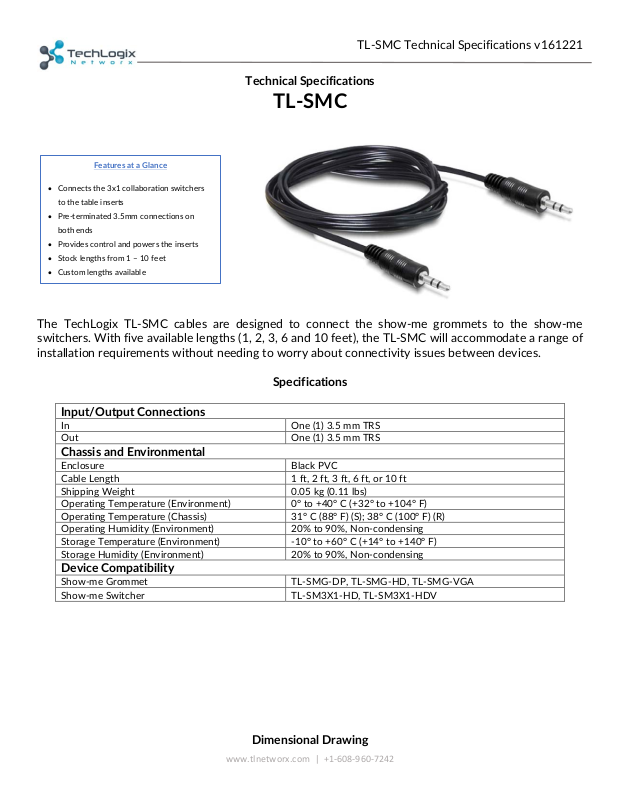

TechLogix Networx TL-SMC-001 Specifications
TL-SMC Technical Specifications v161221
!
www.tlnetworx.com!!|!!+1-608-960-7242!
Technical Specifications
TL-SMC
The TechLogix TL-SMC cables are designed to connect the show-me grommets to the show-me
switchers. With five available lengths (1, 2, 3, 6 and 10 feet), the TL-SMC will accommodate a range of
installation requirements without needing to worry about connectivity issues between devices.
Specifications
Input/Output Connections
In
One (1) 3.5 mm TRS
Out
One (1) 3.5 mm TRS
Chassis and Environmental
Enclosure
Black PVC
Cable Length
1 ft, 2 ft, 3 ft, 6 ft, or 10 ft
Shipping Weight
0.05 kg (0.11 lbs)
Operating Temperature (Environment)
0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis)
31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment)
20% to 90%, Non-condensing
Storage Temperature (Environment)
-10° to +60° C (+14° to +140° F)
Storage Humidity (Environment)
20% to 90%, Non-condensing
Device Compatibility
Show-me Grommet
TL-SMG-DP, TL-SMG-HD, TL-SMG-VGA
Show-me Switcher
TL-SM3X1-HD, TL-SM3X1-HDV
Dimensional Drawing
Features at a Glance
• Connects the 3x1 collaboration switchers
to the table inserts
• Pre-terminated 3.5mm connections on
both ends
• Provides control and powers the inserts
• Stock lengths from 1 – 10 feet
• Custom lengths available
TL-SMC Technical Specifications v161221
!
www.tlnetworx.com!!|!!+1-608-960-7242!
Basic Application Drawing
