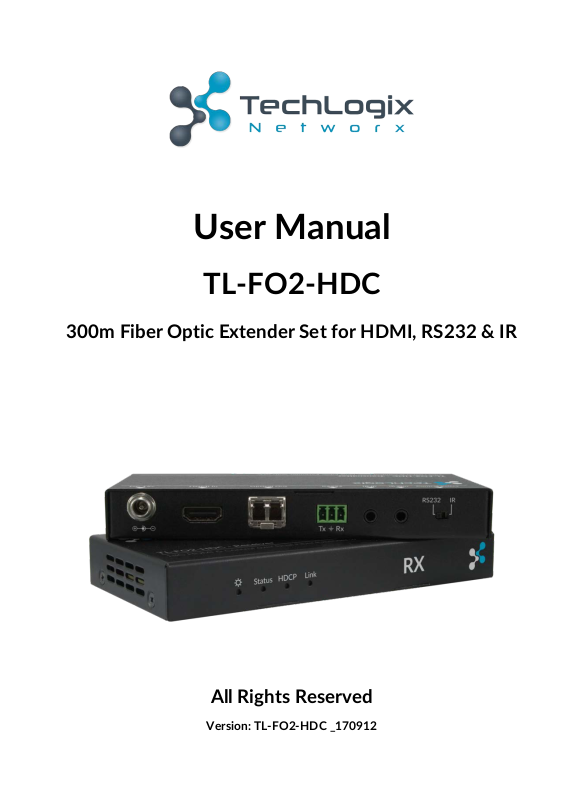

User Manual
TL-FO2-HDC
300m Fiber Optic Extender Set for HDMI, RS232 & IR
All Rights Reserved
Version: TL-FO2-HDC _170912
TL-FO2-HDC User Manual
www.tlnetworx.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only; the actual product may vary.
This manual is only for operation instruction only and not for any maintenance or repair.
Trademarks
Product model and logo are trademarked. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
TL-FO2-HDC User Manual
www.tlnetworx.com
SAFETY PRECAUTIONS
To insure proper operation, please read all instructions carefully before using the device.
Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
l Do not remove the housing of the device, as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with adequate ventilation to avoid damage caused by
overheating.
l Keep the device away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the device immediately.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l If disposing of the unit, do not burn or mix with general household waste. The device
must be disposed of per local regulations for electronic recycling.
www.tlnetworx.com
TL-TP70-HDC User Manual
Table of Contents
1. Introduction ................................................................................................................. 1!
1.1 Introduction to TL-FO2-HDC ............................................................................. 1!
1.2 Features ............................................................................................................. 1!
1.3 Package Contents ............................................................................................... 1!
2. Panel Description ......................................................................................................... 2!
2.1 Transmitter ......................................................................................................... 2!
2.2 Receiver .............................................................................................................. 3!
3. System Connection ...................................................................................................... 5!
4. Specification ................................................................................................................ 6!
5. Panel Drawing .............................................................................................................. 8!
6. Troubleshooting & Maintenance .................................................................................. 9!
7. After-sales Service ..................................................................................................... 10!
1
www.tlnetworx.com
TL-FO2-HDC User Manual
1. Introduction
1.1 Introduction to TL-FO2-HDC
The TechLogix TL-FO2-HDC is an HDMI extender set with HDCP 2.2 compatibility,
which offers the distribution of compressed UHD video, audio, and either RS232 or IR
up to 300m/984ft over fiber optic cable. In addition to 4K/60 video with multichannel
audio, the TL-FO2-HDC supports HDR, RGB, and YCbCr 4:4:4 color spaces. When the
video signal bandwidth exceeds 9 Gpbs, the video scaling processor will dynamically
scale the content for a visually lossless viewing experience. The TL-FO2-HDC features
bi-directional RS232 or IR ports for controlling of AV devices. Sources and displays can
be controlled from either the transmitter or receiver end using either RS232 or IR
signals. The TL-FO2-HDC supports multi-mode duplex fiber up to 300m/1000ft, which
is immune to RF and EM interference.
1.2 Features
• Transmit HDMI and control up to 984 ft. (300m) over multimode fiber optic cabling
• Supports bi-directional IR or RS232 (selectable via dip switch)
• Supports full 18G 4K@60 4:4:4 8 bit HDMI
• Supports multichannel audio including 7.1 DTS Master HD and Dolby TrueHD
• HDMI 2.0, HDCP 2.2 and HDR compatible
• Swappable SFP+ module for longer distance applications
• Requires duplex fiber (two strands) with LC connectors
1.3 Package Contents
Ø 1 x TL-FO2-HDC Transmitter (with 10 Gbit/s MM SFP+ module)
Ø 1 x TL-FO2-HDC Receiver (with 10 Gbit/s MM SFP+ module)
Ø 2 x Power Adapter (DC 12V 0.5A)
Ø 2 x Phoenix Male Connector (3.5mm 3 Pin)
Ø 2 x IR Emitter Cables
Ø 2 x IR Broadband Receiver Cables
Ø 4 x Mounting Brackets
