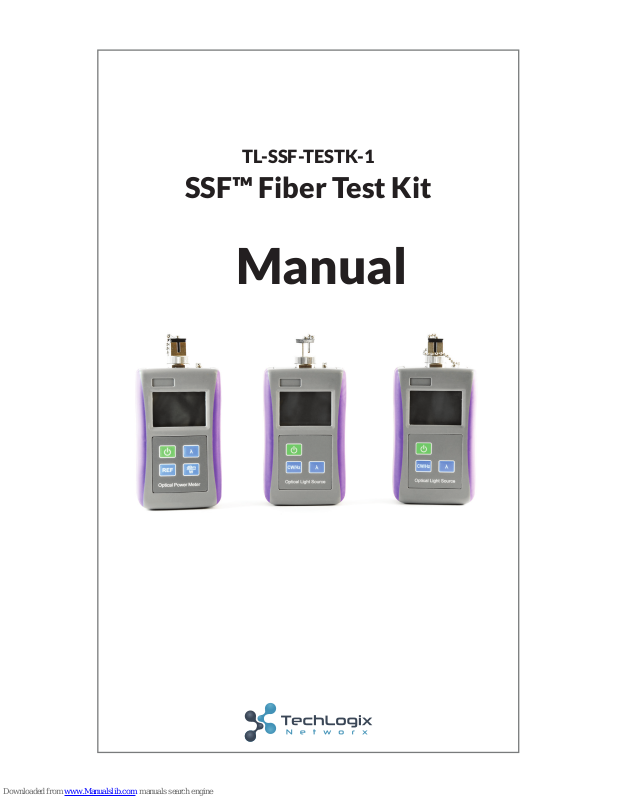

TL-SSF-TESTK-1
SSF™ Fiber Test Kit
Manual
Warning
To avoid risk of eye damage, do not look into the laser
when unit is on. Laser does not operate at visible
wavelength. Light will not be visible when laser is active.
Contents
Handheld Optical Light Source
Overview 5
Functions 7
Maintenance and Troubleshooting 10
Warranty 11
Handheld Optical Power Meter
Overview 12
Specications 14
Functions 15
Maintenance and Troubleshooting 17
Warranty 18
Handheld Optical Light Source
4
Each unit meets the declared specication.
Technical parameters are subject to change without notice.
1. Do not look into the laser beam when unit is on.
2. To prevent damage to the instrument, do not use under high
temperature, high pressure, wet, or other prohibited conditions.
3. Do not attempt to take apart or repair the instrument.
WARNING
Quality Assurance
Note:
SSF™ Single Mode Optical Light Source
SSF™ Multimode Optical Light Source
5
Handheld Optical Light Source
Overview
The SSF™ Single Mode optical light source provides single to tri
wavelength output, including 1310/1550nm wavelengths for single
mode ber.
The SSF™ Multimode optical light source provides single to tri
wavelength output, including 850/1300nm wavelengths for
multimode ber.
Together with the SSF™ power meter, the optical light source
provides an accurate test solution for single mode and/or
multimode optical ber networks.
`
• Single to tri-wavelength combination
• Continuous and modulated signal
• Real time display of battery level and low power indication
• Back light function
• Auto shut-off function
• Alkaline battery operation
Model: SSF™ Single Mode Light Source
Wavelength: 1310/1550nm
Output Power: ≥ -7dBm
Model: SSF™ Multimode Light Source
Wavelength: 850/1300nm
Output Power: ≥ -7dBm
Handheld Optical Light Source
6
Specications
Type SSF™ Single Mode Light Source
Wavelength (nm) 1310 / 1550
Emitter Type FP-LD
Output Power (dBm) ≥-7dBM @1310 / 1550nm
Output Power ±0.04 @ 20°C @ 15 min
Modulation CW/270Hz/1KHz/2KHz @ others
Fiber Type SM
Connector SC
Power Supply AAA 1.5V (3pcs batteries)
Operating Temperature
(°C)
-10 - +50, 0 to 95% RH (no condensation)
Storage Temperature (°C) -25 - +70, 0 to 95% RH (no condensation)
Battery Life (h) 40
Dimension (mm/in) 125x65x29 / 4.92x2.56x1.14
Weight (g/oz) 160 / 3.74
Type SSF™ Multimode Light Source
Wavelength (nm) 850 / 1300
Emitter Type FP-LD
Output Power (dBm) ≥-7dBM @850/ 1300nm
Output Power ±0.04 @ 20°C @ 15 min
Modulation CW/270Hz/1KHz/2KHz @ others
Fiber Type MM
Connector SC
Power Supply AAA 1.5V (3pcs batteries)
Operating Temperature
(°C)
-10 - +50, 0 to 95% RH (no condensation)
Storage Temperature (°C) -25 - +70, 0 to 95% RH (no condensation)
Battery Life (h) 40
Dimension (mm/in) 125x65x29 / 4.92x2.56x1.14
Weight (g/oz) 160 / 3.74
