Installation Guide
TL-SM3C-HDV
Three Input HDMI Share-Me™ Switcher with Extension and Control
www.tlnetworx.com | +1-608-960-7242
All Rights Reserved
Version: 190219
190219 TL-SM3C-HDV Installation Guide
Preface
Read this user manual carefully before using this product. Pictures shown in this manual are for reference only;
the actual product may vary.
This manual is only for operation instructions and not for any maintenance or repair.
Trademarks
Product model and logo are trademarked. Any other trademarks mentioned in this manual are acknowledged as
the properties of the trademark owner. No part of this publication may be copied or reproduced without prior
written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. It has been tested
and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which case the user at their
own expense will be required to take whatever measures may be necessary to correct the interference.
Any changes or modications not expressly approved by the manufacture would void the user’s authority to
operate the equipment.
i
190219 TL-SM3C-HDV Installation Guide
Safety Precautions
• To insure proper operation, please read all instructions carefully before using the device. Save this manual
for further reference.
• Unpack the equipment carefully and save the original box and packing material for possible future shipment.
• Follow basic safety precautions to redce the risk of re, electrical shock and injury to persons.
• Do not dismantle the housing or modify the module. It may result in electrical shock or burn.
• Using supplies or parts not meeting the products’ specications may cause damage, deterioration or
malfunction.
• Refer all servicing to qualied service personnel.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Do not remove the housing of the device, as opening or removing housing may expose you to dangerous
voltage or other hazards.
• Install the device in a place with adequate ventilation to avoid damage caused by overheating.
• Keep the device away from liquids.
• Spillage into the housing may result in re, electrical shock, or equipment damage. If an object or liquid falls
or spills on to the housing, unplug the device immediately.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
• Unplug the power cord when left unused for a long period of time.
• If disposing of the unit, do not burn or mix with general household waste. The device must be disposed of per
local regulations for electronic recycling.
ii
190219 TL-SM3C-HDV Installation Guide
Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Included in Each Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Input/Output Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TL-SM3C-HDV Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TL-SM3C-HDV Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
System Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Usage Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Example System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Web-based Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Logging into the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
AV Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Source Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
VGA Output Res. (Resolution) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
VGA Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
EDID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Display Control - CEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Display Control - RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Display Control - IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RS232 and Telnet Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Switching and Display Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
AV Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Control Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
RS232 Output Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay Timing Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay Timing Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Transmitter Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Receiver Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Web GUI Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
iii
190219 TL-SM3C-HDV Installation Guide
Introduction
Product Overview
The TechLogix Networx TL-SM3C series of Share-Me™ products build upon the core functions of the popular,
easy-to-use functionality of the TL-SM3X1 series Share-Me™ products and add video signal extension plus a
wider breadth of control for the display. With up to 70m (229 ft) of video extension for 1080p content, or 40m
(131 ft) of 4K content, and the ability to power the extender set from the receiver end, the TL-SM3C series of
Share-Me™ products allow for automatic power on/off commands to be transmitted from the unit (as well as
connected table inserts) to the display, thereby providing a complete room connectivity and control solution.
The TL-SM3C-HDV transmitter features two HDMI inputs and one VGA input with video support up to 4K/30
plus multichannel audio, three control inputs for the TL-SMG series Share-Me™ grommet inserts, and auto-switch
mode and manual switch mode. There is also an RS232 with 12V DC support connector to interface with the TLTI-4C or any third-party controller that can operate within 12V DC at 0.5 A.
The TL-SM3C-HDV receiver features an HDMI output with CEC control to adjust volume and power states of
the display. Additional display control capabilities are IR and RS232; relay outputs allow raising and lowering
projector screens with momentary and latching congurations. The TL-SM3C-HDV receiver can de-embed
stereo audio to the 3.5mm stereo analog port and RCA-style digital output port. There is also an Ethernet port to
congure the entire TL-SM3C system.
Features
• Two HDMI inputs
• One VGA with analog audio input
• One HDMI output
• Digital and analog audio de-embedding
• EDID pass-through and built-in EDID
• HDMI video resolution up to 4K@30Hz 4:4:4
• HDCP 2.2 compliant
• 4K over Cat 5e/6 up to 40m
• 1080p over Cat 5e/6 up to 70m
• IR, RS232, CEC control of display
• Relay outputs for projector screens
• Integration with TechLogix table inserts for signal pass-through & remote control
• Micro USB rmware port
• Hot-plug support
Note: Shielded twisted pair cable with shielded connectors are recommended.
1
Included in Each Set
• 1 ea TL-SM3C-HDV Transmitter
• 1 ea TL-SM3C-HDV Receiver
• 2 ea 3.5mm audio cable (2m)
• 1 ea 3-pin to DE-9 RS232 Cable
• 1 ea 4-pin Removable Terminal Block
• 3 ea 3-pin Removable Terminal Blocks
• 1 ea Power Adapter (DC 24V 2.71A) with US EIC Power Cable
• 4 ea Mounting rails (with 8 screws)
• 8 ea Rubber feet
• 1 ea User Manual QR Card
190219 TL-SM3C-HDV Installation Guide
2
Input/Output Overview

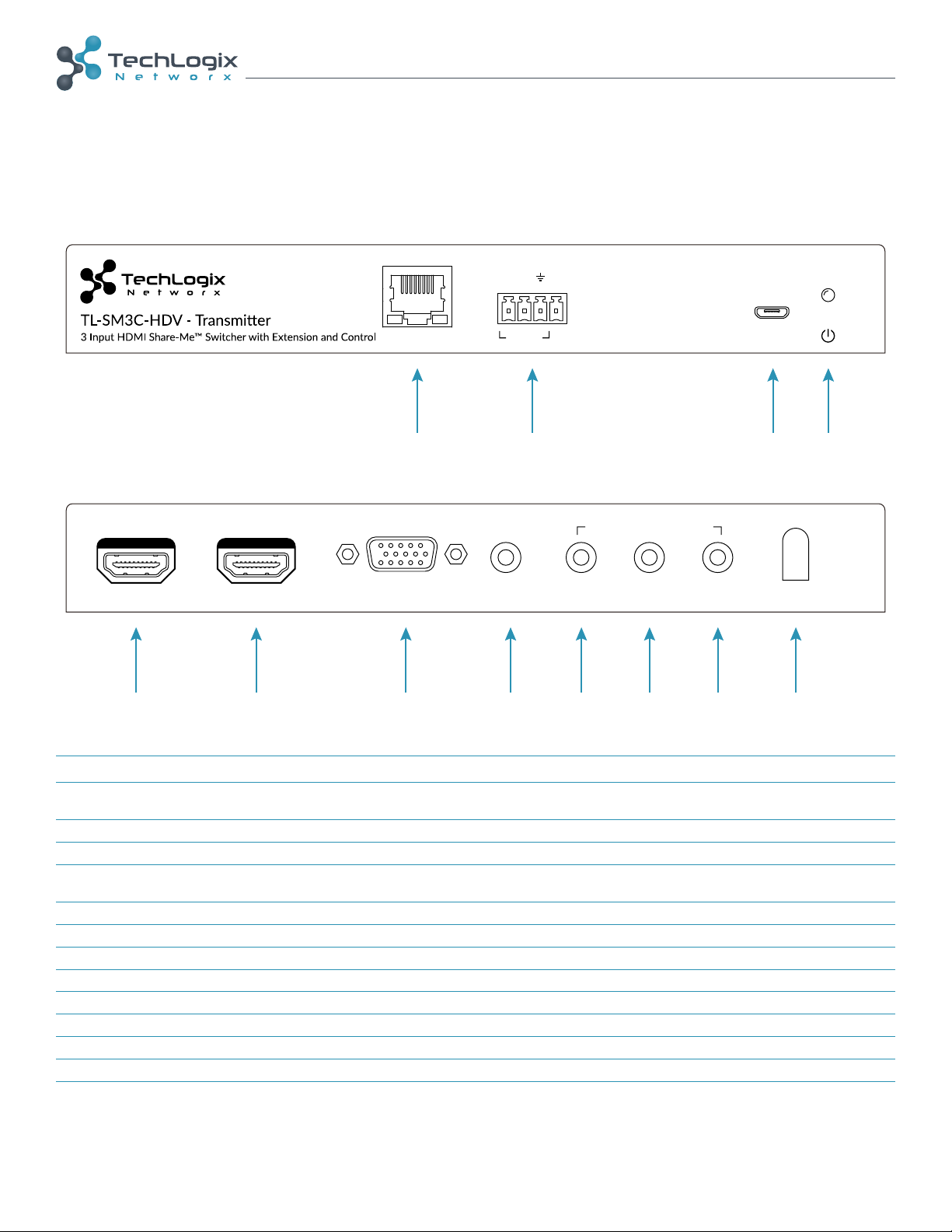

TL-SM3C-HDV Transmitter
190219 TL-SM3C-HDV Installation Guide
Share-Me™ Serial
Tx Rx 12v
TP Out/PoC
RS232
Service
1 2 3 4
Share-Me™ Control Inputs
1 - HDMI In 2 - HDMI In 3 - VGA In Audio In C1 C2
C3
IR Learn
5 6 7 8 9 10 11 12
Number Name Description
1 TP Out/PoC Connect to the TP In port on the receiver via a twisted pair cable. Supports PoC (Power over Cable) from receiver.
2 Share-Me™ Serial RS232 transmit (TX), receive (RX, and ground plus 12V DC power for TL-SMG-4C or third party control system.
3 Service Micro USB type B port for drag and drop rmware updates.
4 Power Indicator Red LED indicates power between the transmitter and receiver. Green LED indicates video transmitting from transmitter to
5 1 - HDMI In Connect to an HDMI source.
6 2 - HDMI In Connect to an HDMI source.
7 3 - VGA In Connect to a VGA source.
8 Audio In Connect to analog audio source.
9 Share-Me™ Control 1 Dry contact closure control port for use with compatible TechLogix table inserts.
10 Share-Me™ Control 2 Dry contact closure control port for use with compatible TechLogix table inserts.
11 Share-Me™ Control 3 Dry contact closure control port for use with compatible TechLogix table inserts.
12 IR Learn IR receiver to capture IR commands for display.
Yellow LED indicates link with receiver. Green LED indicates HDCP status.
receiver.
3

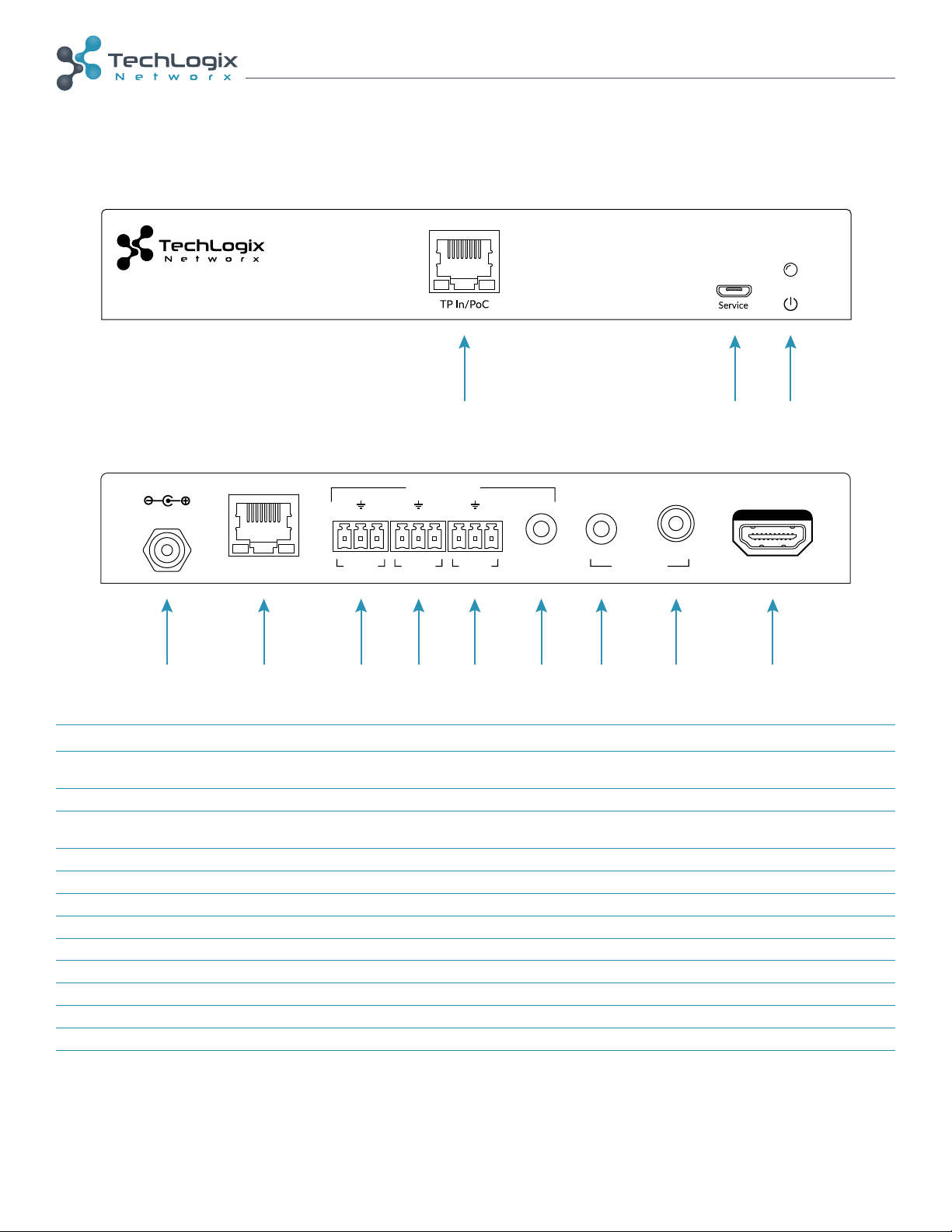

TL-SM3C-HDV Receiver
TL-SM3C-HDV - Receiver
3 Input HDMI Share-Me™ Switcher with Extension and Control
DC 24v
NO NC
190219 TL-SM3C-HDV Installation Guide
A B C
Display Control
NO NC Tx Rx
LAN
Relay 1 Relay 2
RS232
IR Out Audio Out
HDMI / CEC Out
D E F G H I J K L
Letter Name Description
A TP In/PoC Connect to the TP Out port on the receiver via a twisted pair cable. Supports PoC (Power over Cable) from receiver.
B Service Micro USB type B port for drag and drop rmware updates.
C Power Indicator Red LED indicates power between the transmitter and receiver. Green LED indicates video transmitting from transmitter to
D DC 24V 24V DC power port.
E LAN 100 Gbps Ethernet port for web GUI setup and Telnet control
F Relay 1 Latching or momentary with NO and NC connections.
G Relay 2 Latching or momentary with NO and NC connections.
H RS232 RS232 output for display control.
I IR Out IR output for display control.
J Analog Audio Out 3.5 mm TRS analog audio output port.
K Digital Audio Out RCA-style digital audio output port.
L HDMI / CEC Out Connect to an HDMI display. CEC control with compatible display devices.
Yellow LED indicates link with receiver. Green LED indicates HDCP status.
receiver.
4
190219 TL-SM3C-HDV Installation Guide
System Connection
Usage Precautions
• System should be installed in a clean environment that has a proper temperature and humidity.
• All of the power switches, plugs, sockets and power cords should be installed properly.
• All devices should be connected before powering on the devices.
• The twisted pair terminations for the devices should be a straight-thru conforming to the
TIA/EIA T568B standard.
• Use shielded solid core straight-thru Cat5e or greater with TIA/EIA T568B terminations to connect the TP
ports.
• If mounting the unit, the included mounting hardware must be used.
Connection Procedure
1. Verify all components included with the TL-SM3C-HDV are present before installation.
2. If the TL-SM3C-HDV will be permanently mounted to a surface, attach the included mounting rails with the
supplied screws.
3. If the TL-SM3C-HDV will be sitting on a shelf, attach the included rubber feet to the bottom of the unit.
4. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions.
5. If the TL-SM3C-HDV will be controlled via TechLogix table inserts:
a. Separately connect HDMI signal cables between the HDMI sources and HDMI ports of the table inserts
and VGA signal cables between the VGA source and VGA port of the table insert.
b. Separately connect HDMI signal cables between the HDMI sources (or table inserts if used) and the
1 - HDMI In and 2 - HDMI In ports. Connect a VGA signal cable between the VGA source (or table insert
if used) and the 3 - VGA In portof the TL-SM3C-HDV.
c. Separately connect three table inserts to the C1, C2, and C3 ports of the TL-SM3C-HDV.
6. If the TL-SM3C-HDV will be controlled via the TL-SMG-4C, connect the 4-wire power and control cable
included with the table insert into the Share-Me™ Serial port on the transmitter.
7. Connect HDMI signal cables between the HDMI sources (or table inserts if used) and the 1 - HDMI In and
2 - HDMI In ports. Connect a VGA signal cable between the VGA source (or table insert if used) and the 3 -
VGA In port.
8. Connect TP Out/PoC port of Transmitter and TP In/PoC port of Receiver with a single shielded solid core
straight-through Cat 5e or greater cable with TIA/EIA T568B terminations.
9. Connect a display to the HDMI / CEC Out port of Receiver.
10. If using RS232 to control the display, connect the included RS232 cable from the RS232 port of the receiver
to the RS232 input of the display.
11. If using IR to control the display, connect the IR Emitter to the IR Out port of Receiver, and then put it over
the IR receiver port of the display.
12. If using external audio, connect audio amplier device to the appropriate Audio Out port of Receiver.
13. Connect a PC to the TCP/IP port of Receiver for web-based system setup and Ethernet-based Telnet control.
14. Connect the 24V DC 2.71A power adaptor to the power port of Receiver.
Note: Connect TP ports via single shielded solid core straight-through Cat 5e or greater cable with shielded
TIA/EIA T568B terminations at both ends.
5

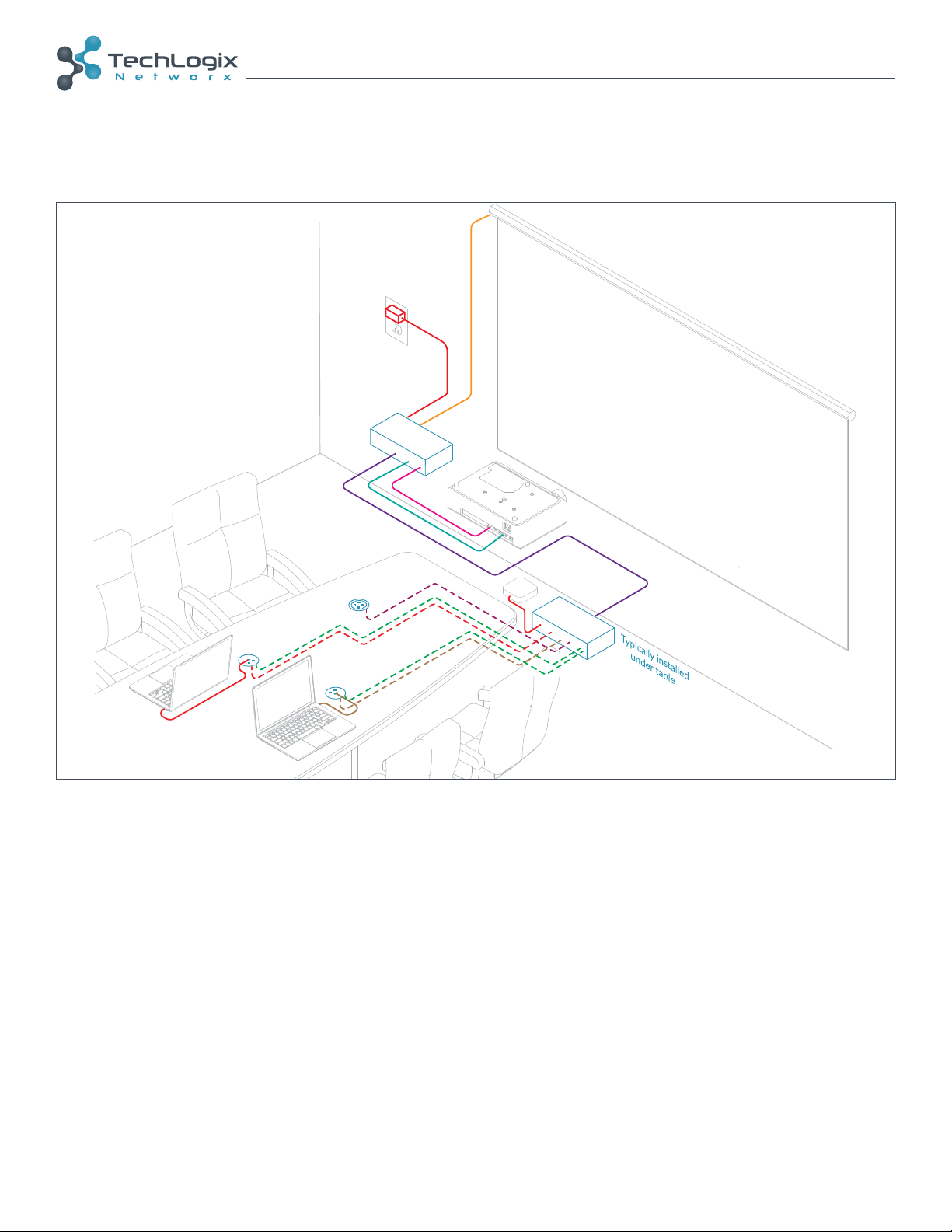

Example System Diagram
TL-SM3C-HDV
RS232
(RX)
HDMI
Power
Relay 1 & 2
Screen
Up, Down
190219 TL-SM3C-HDV Installation Guide
TL-SMG-HD
TL-SMG-4C
HDMI
VGA
Power & Control
Shielded
Apple
TV
TL-SM3C-HDV
(TX)
Cat 6
(Power,
Video, &
Control)
6
190219 TL-SM3C-HDV Installation Guide
Web-based Conguration
All control, video, and network conguration settings are handled in the web-based conguration tool.
Connect the TCP/IP port of the Receiver to Ethernet port of PC with twisted pair, and then modify the PC’s static
IP network segment to be the same as the TL-SM3C-HD’s. For example, the IP address of PC can be modied to
192.168.0.42.
If you need assistance setting a static IP address for Windows or mac OS (OS X), Netgear has a couple support
articles that should help:
Windows
mac OS (OS X)

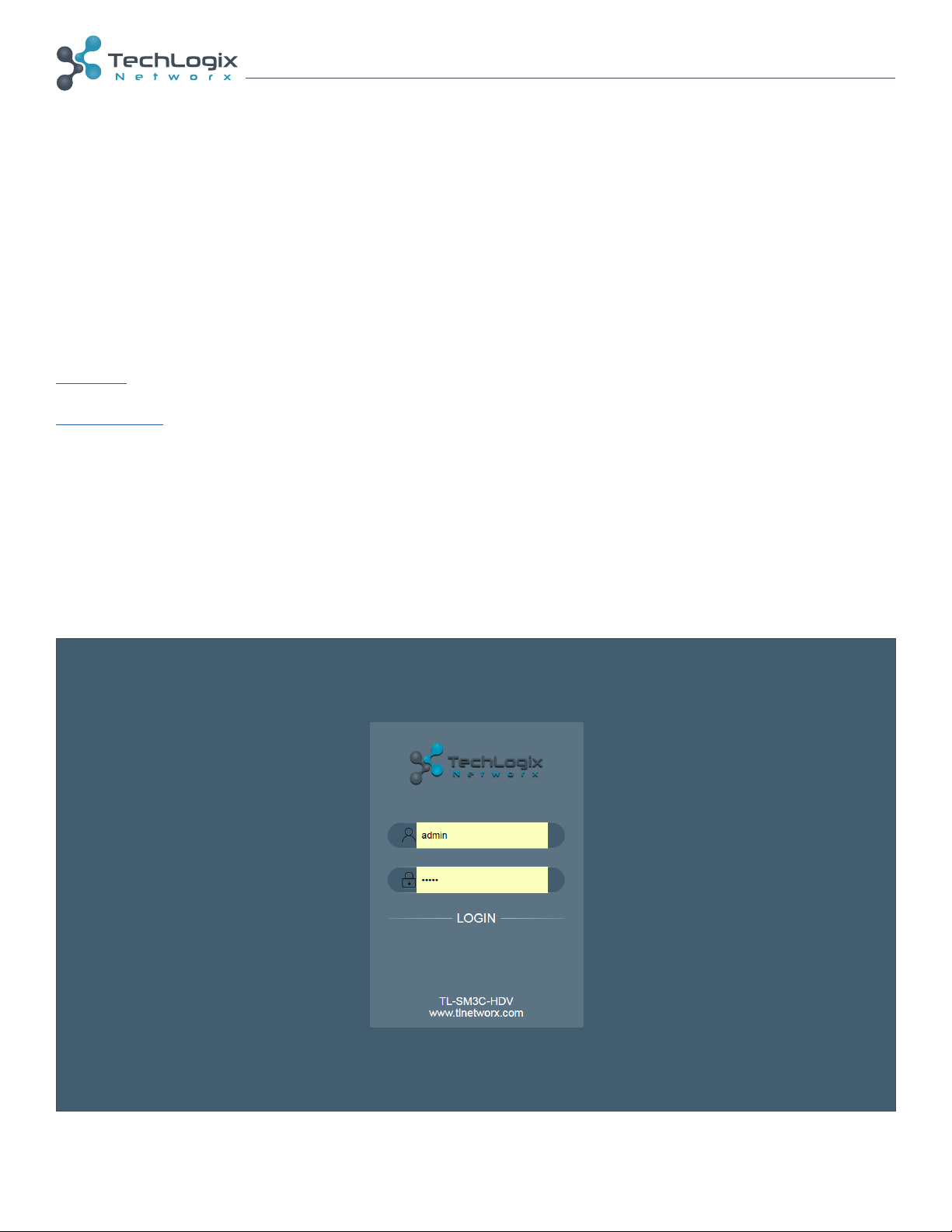

Logging into the Web Interface
Navigate to 192.168.0.178 in your browser, it will enter the login interface shown as below.
There is only one user (admin). The default password is admin, but this can be changed to a more secure password
later. Click the word LOGIN to proceed.
7
190219 TL-SM3C-HDV Installation Guide

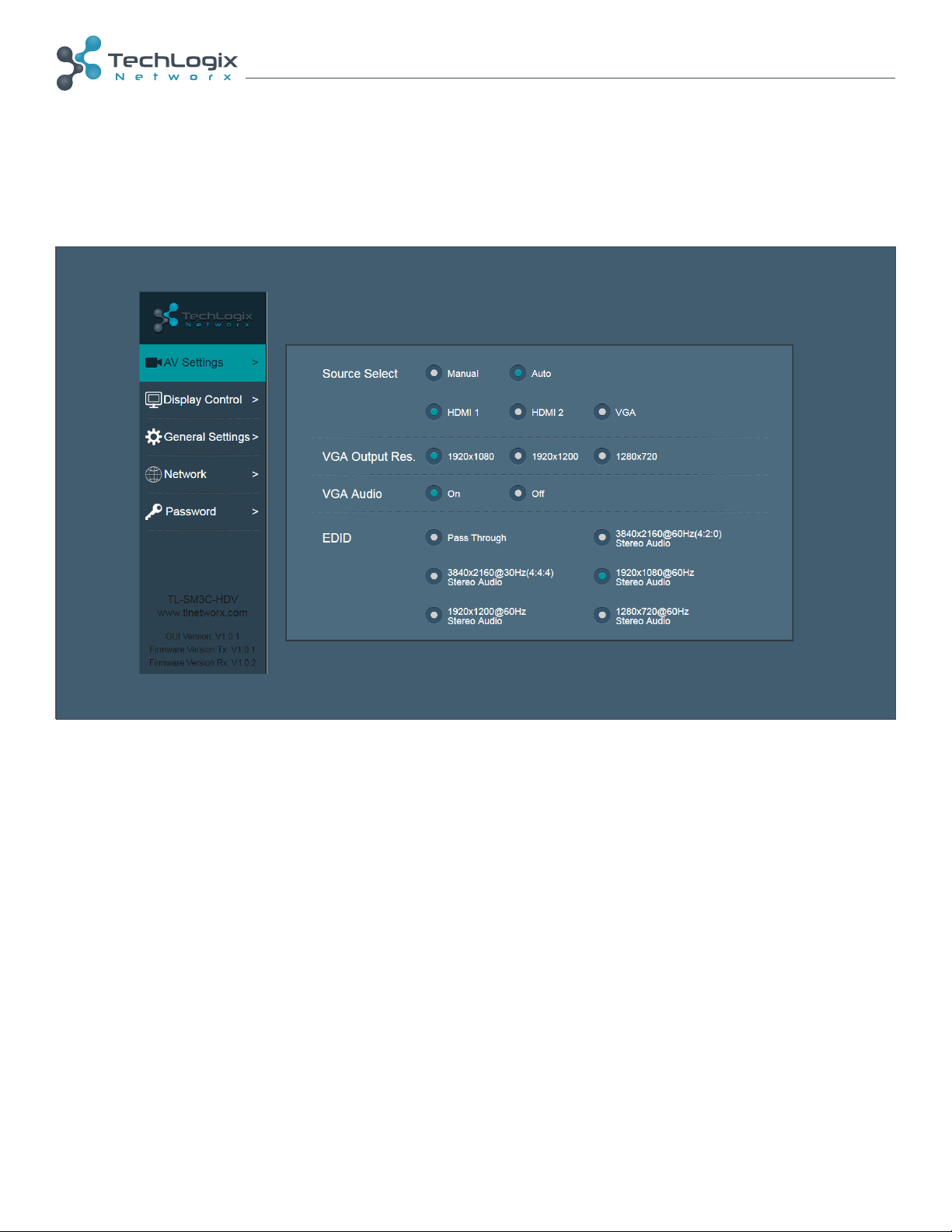

AV Settings
From the AV Settings screen, there are two primary areas: Source Select and EDID.
Source Select
In addition to selecting the active input, there are settings to determine whether to manually switch inputs via the
TechLogix table inserts or third party control or to auto-switch based on active video sensing. The two basic rules
of auto-switching are:
1. When a new signal (or connection) is detected, the TL-SM3C-HDV switches to this new signal automatically.
2. Should an active signal be removed, the TL-SM3C-HDV will detect all input signals with priority from
1 - HDMI In to 3 - VGA In. It will transfer the rst signal detected to the display.
VGA Output Res. (Resolution)
The default scaled output resolution is 1920x1080@60Hz. Other options are 1920x1200@60Hz and
1280x720@60Hz.
8
190219 TL-SM3C-HDV Installation Guide
VGA Audio
This setting enables analog audio input conversion for the VGA input. This setting is On by default.
EDID
The default EDID setting is 1920x1080@60Hz with Stereo Audio. If using the TL-SM3C-HDV with a 4K display, it
is highly recommended to use one of the 3840x2160 presets to ensure signal bandwidth compatibility.

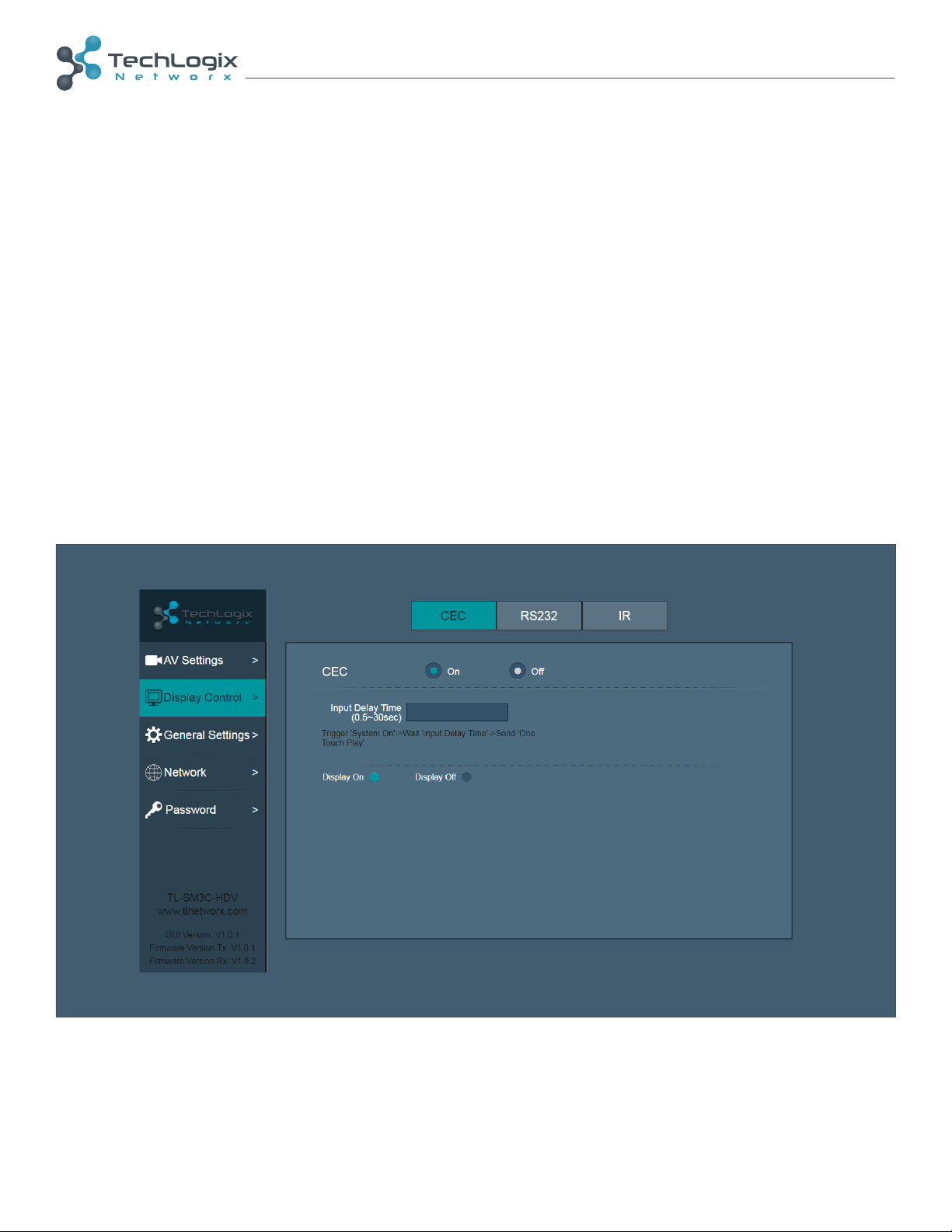

Display Control - CEC
The CEC section of the Display Control conguration denes whether CEC is on or off and the delay time (default
is 5 seconds) between turning the display on and switching to the input connected to the TL-SM3C-HDV receiver
(also known as One Touch Play).
The Display On and Display Off section just shows the state of the display.
9
190219 TL-SM3C-HDV Installation Guide
Display Control - RS232

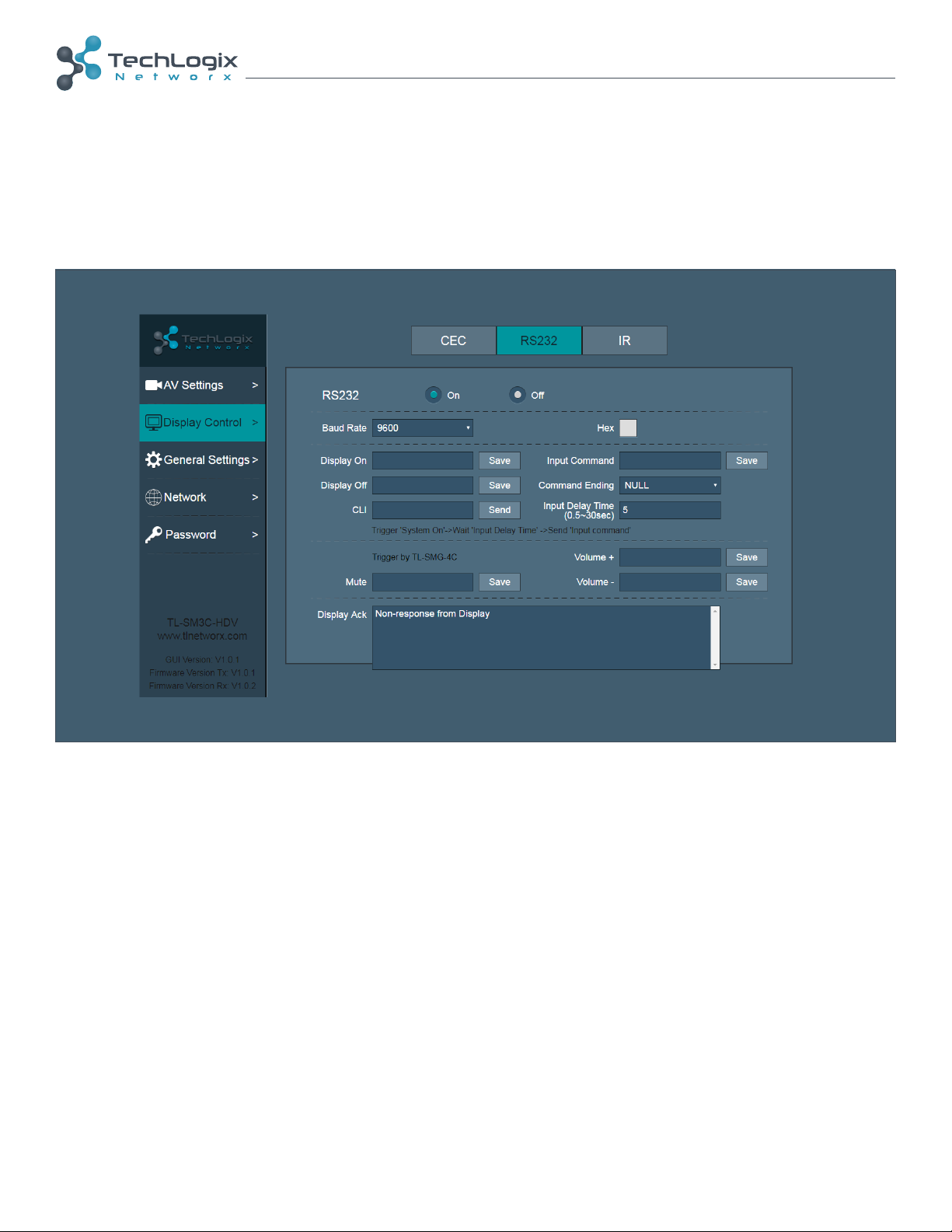

The RS232 section of the Display Control conguration is probably the most complex area of the web-based setup,
but it is still easy to navigate. RS232 control can be turned on or off from this area.
The available baud rates are: 2400, 4800, 9600, 19200, 38400, 57600, and 115200. Click the Hex checkbox if the
display requires hex commands.
Enter the Display On, Display Off, and Input Command in the appropriate elds. Be sure to press the Save button
after each entry.
The Command Ending adds code to the end of each RS232 command that may be required by the display. NULL is
no ending. CR is a carriage return, which is 0D in hex. LF is a line feed, which is 0A in hex. CR+LF is a carriage return
followed by a line feed, which is 0D 0A in hex.
Enter the Input Delay Time, from 0.5 to 30 seconds, needed between turning on the display and switching to the
TL-SM3C-HDV. The default time is 5 seconds.
The CLI (command line interface) eld is solely for testing wiring (TX to TX instead of TX to RX?) and verifying the
RS232 commands work well without needing to wait for the system to automatically turn off the display.
If the TL-SMG-4C will be used with the TL-SM3C-HDV, enter the RS232 commands for Volume + (up), Volume -
(down), and Mute in their respective elds.
10
190219 TL-SM3C-HDV Installation Guide
Display Control - IR

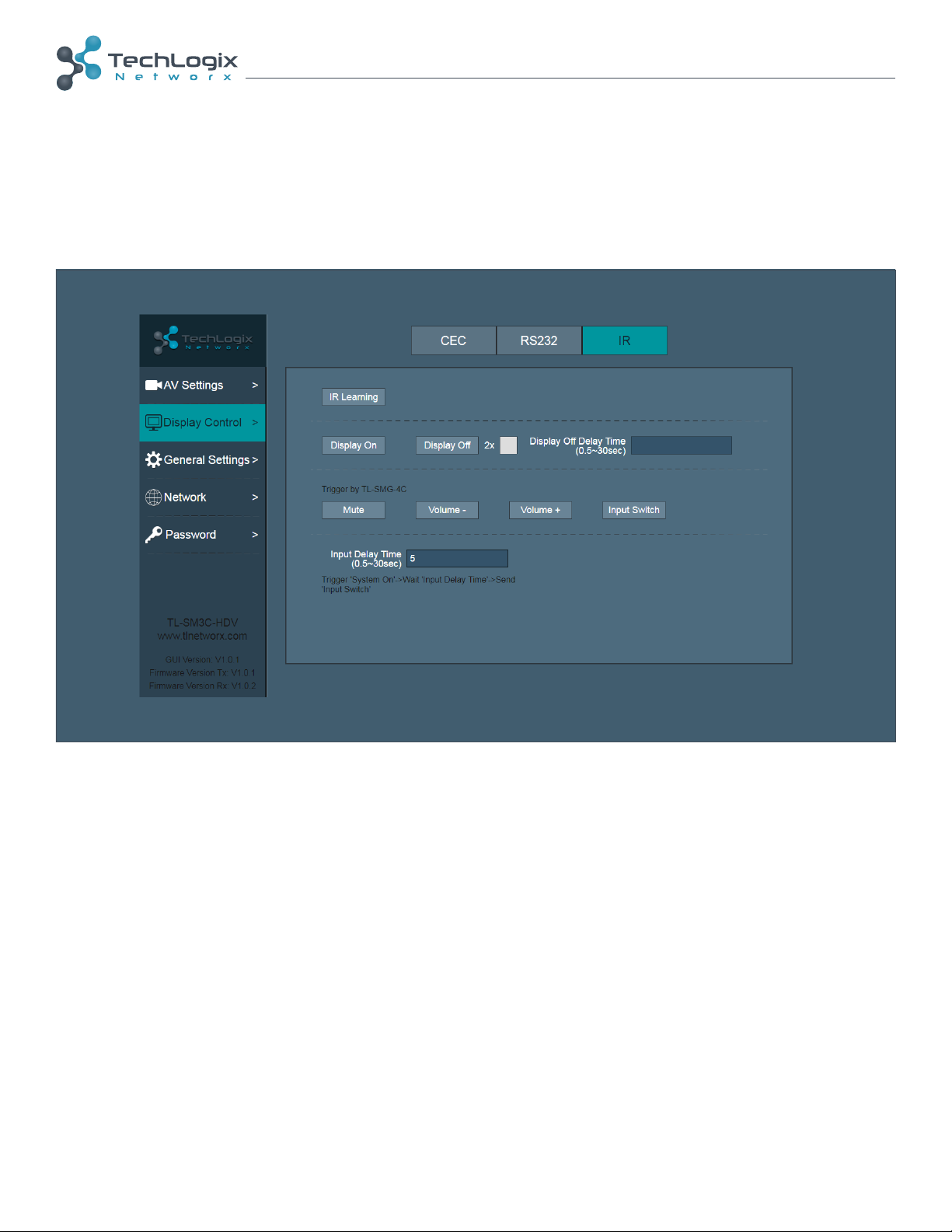

The IR section of the Display Control conguration assists in storing the IR commands from the display’s IR remote.
This procedure requires access to the front panel of the TL-SM3C-HDV transmitter.
Click the IR Learning button to begin the IR learning process.
Click the Display On button, then press the Power On button on the IR remote. Once the IR command is learned,
the Display On button will return to its original state. Repeat the process for the additional commands.
If the display requires two button presses for power off, click the 2x checkbox. The Display Off Delay Time is the
time between the two off commands; the default is 5 seconds.
If the TL-SMG-4C will be used with the TL-SM3C-HDV, repeat the IR learning process for Mute, Volume - (down),
Volume + (up), and Input Switch.
Enter the Input Delay Time, from 0.5 to 30 seconds, needed between turning on the display and switching to the
TL-SM3C-HDV. The default time is 5 seconds.
11
190219 TL-SM3C-HDV Installation Guide
General Settings

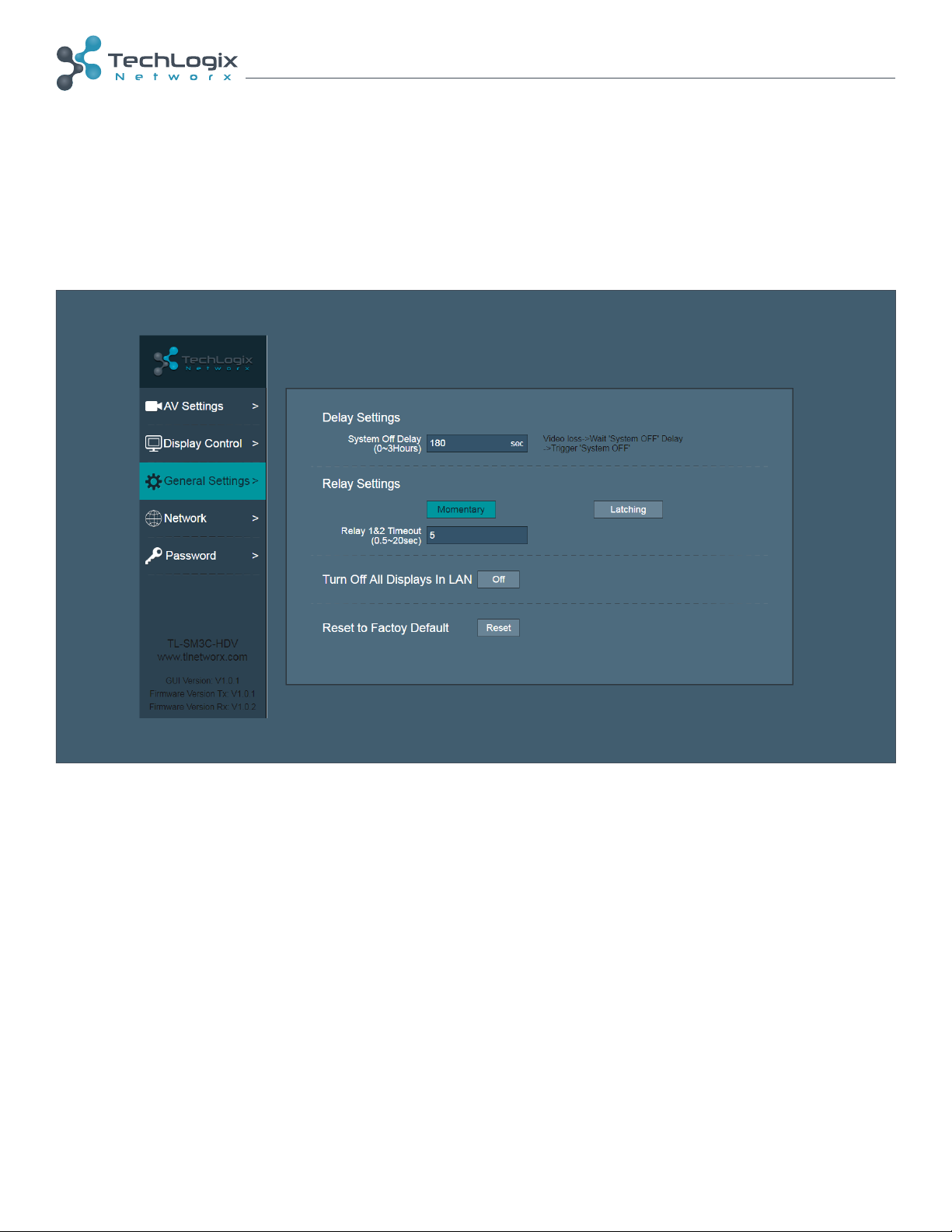

The General Settings conguration page sets the delay time in seconds (0-10800) between no video signal
presence and shutting off the system, denes the operation of the relays and sets the activation time when in
momementary mode, allows turning off all displays on the LAN, and resets the TL-SM3C-HDV to factory default.
12
190219 TL-SM3C-HDV Installation Guide

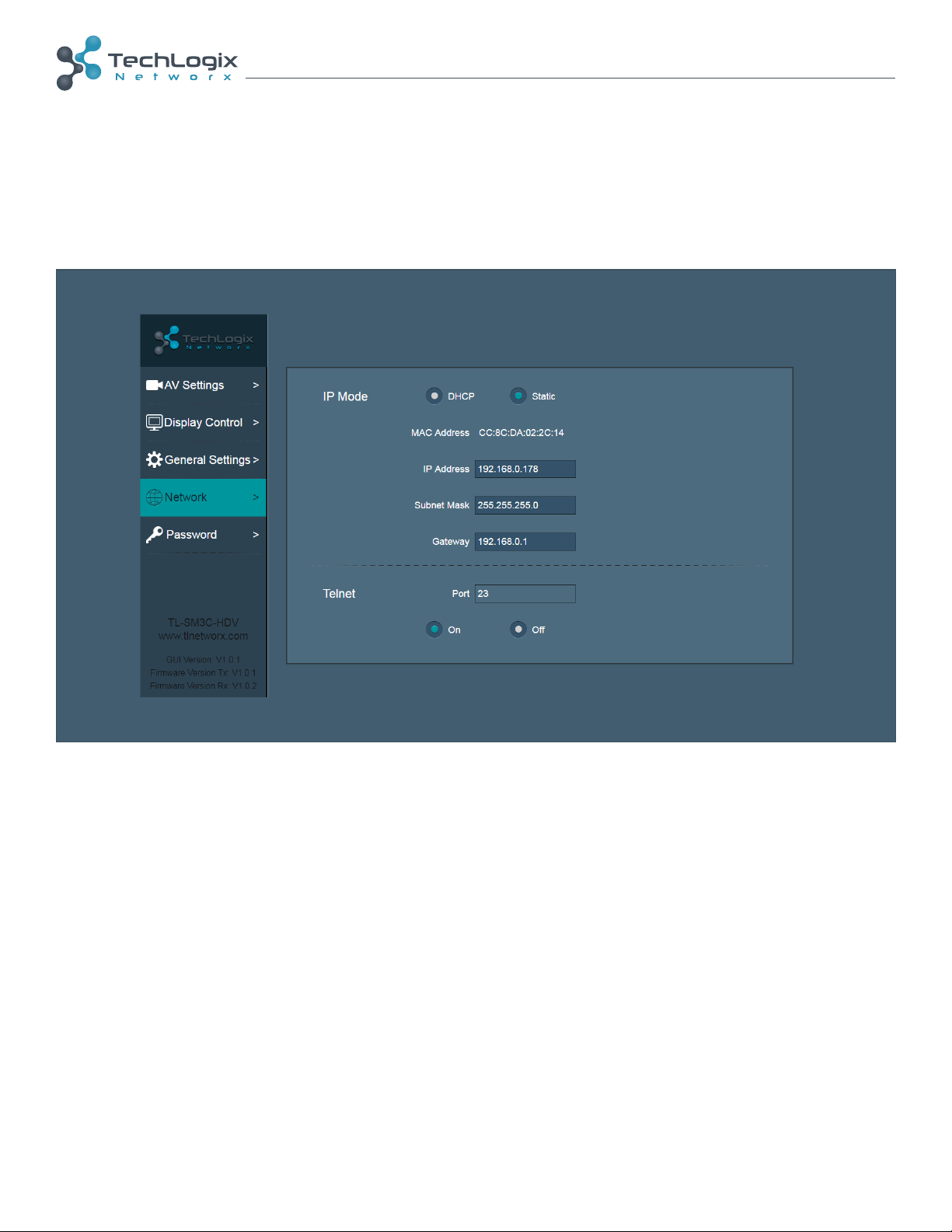

Network
The Network conguration page allows the user to dene whether the TL-SM3C-HDV has a static or dynamic IP
address as well as enabling Telnet communication for control of the switcher.
13
190219 TL-SM3C-HDV Installation Guide

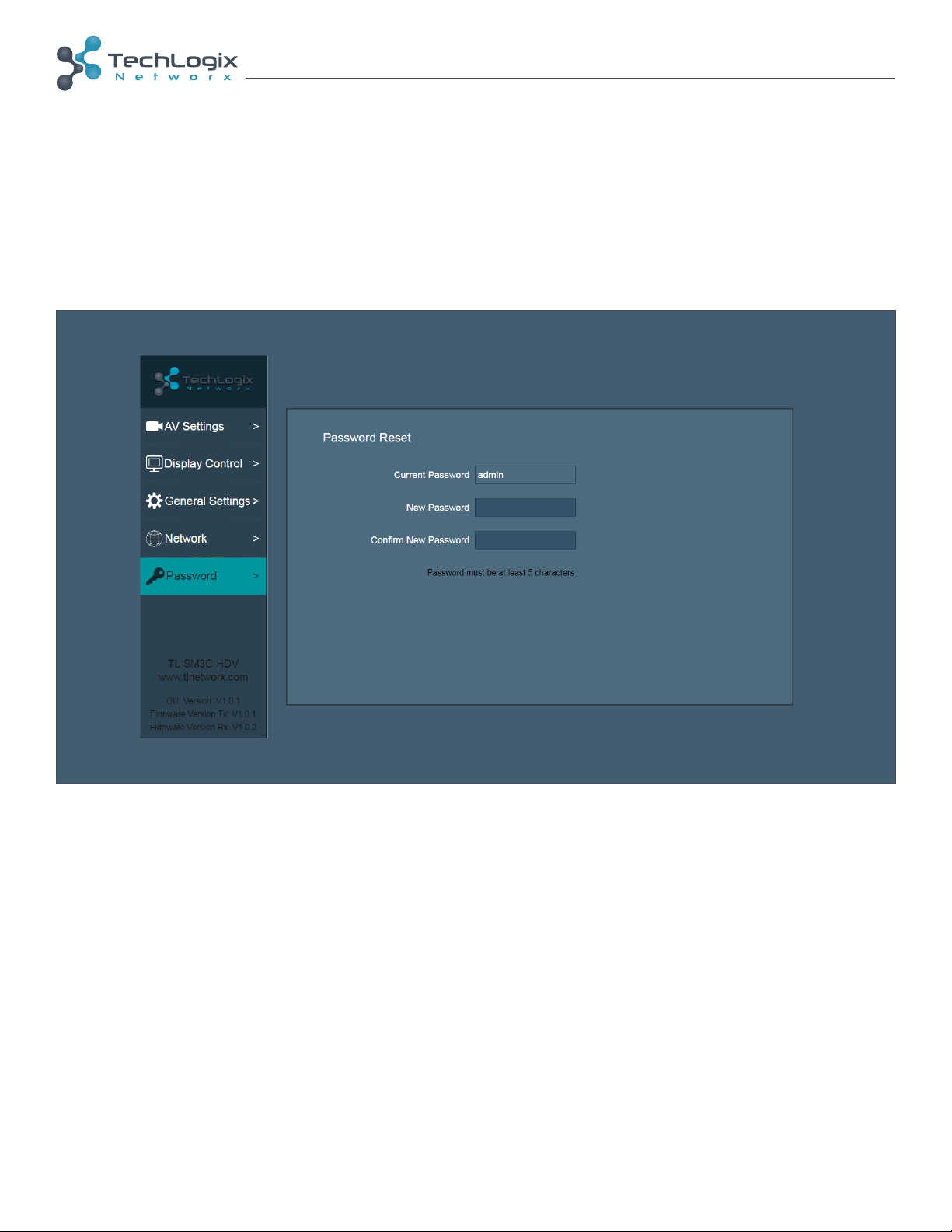

Password
The Password section of the Display Control conguration is the easiest section to work with. Enter a new
password in the New Password eld, then retype it into the Conrm New Password eld.
The password must be at least 5 characters.
14
190219 TL-SM3C-HDV Installation Guide
RS232 and Telnet Commands
Switching and Display Control
Command Function Feedback Example
/HDMIx;
/VGA;
/TVOff;
/TVOn;
/TVVOL+;
/TVVOL-;
/TVMUTE;
Switch to HDMIx. x = 1 or 2
Switch to VGA.
System off
System on
Volume up
Volume down
Mute
#HDMIx.
#VGA.
IR/Rx RS232/CEC TV off
IR/Rx RS232/CEC TV on
IR/Rx RS232/CEC VOL+
IR/Rx RS232/CEC VOLIR/Rx RS232/CEC MUTE
AV Conguration
Command Function Feedback Example
/EDIDIntx;
/EDID?;
Set EDID mode x
0 = EDID pass through
1 = 4K/60Hz/4:2:0 2ch/
2 = 4K/30Hz/4:4:4 2ch/
3 = 1920x1080/60Hz 2ch
4 = 1280x720/60Hz 2ch
5 = 1920x1200/60Hz 2ch
Query EDID mode.
#EDIDIntx. or
#EDIDThrough.
#EDIDIntx. or
#EDIDThrough.
/AUTOSwitch;
/MANUSwitch;
/AVStatus;
/VRes1;
/VRes2;
/VRes3;
/VGAMuteEn;
/VGAMuteDis;
Enable auto switching.
Disable auto switching.
Check switch Status.
Set output resolution of VGA to 1920x1080
Set output resolution of VGA to 1920x1200
Set output resolution of VGA to 1080x720
VGA audio On
VGA audio Off
#AUTO ON.
#MANUAL ON.
#HDMIx.
#VRes1.
#VRes2.
#VRes3.
#VGAMuteEn.
#VGAMuteDis.
Control Conguration
Command Function Feedback Example
/CECON;
/CECOFF;
/CEC?;
/Baudrate xxxx;
/IP:xxx.xxx.xxx.xxx;
/IP?;
Enable CEC.
Disable CEC.
Query CEC status.
Set the RS232 of RX. Values are: 2400, 4800,
9600, 19200, 38400, 57600, 115200
Set IP address
Query IP address
#CECON.
#CECOFF.
#CECOFF. or
#CECON.
#Baudrate xxxx.
#IP:xxx.xxx.xxx.xxx.
#IP:xxx.xxx.xxx.xxx.
15
190219 TL-SM3C-HDV Installation Guide
RS232 Output Conguration
Command Function Feedback Example
/SetVolMute:%s;
/SetVolSub:%s;
/SetVolAdd:%s;
/SetOff:%s;
/SetOn:%s;
/SetInCmd:%s;
Set the RS232 string (%s) for Volume mute
Set the RS232 string (%s) for Volume down
Set the RS232 string (%s) for Volume up
Set the RS232 string (%s) for Display Off
Set the RS232 string (%s) for Display On
Set the RS232 string (%s) for Input Select
#SetVolMute:%s.
#SetVolSub:%s.
#SetVolAdd:%s.
#SetOff:%s.
#SetOn:%s.
#SetInCmd:%s.
Delay Timing Setup
Command Function Feedback Example
/SetRSTime:%d;
/SetCECTime:%d;
/SetIROffTime:%d;
/SetOffTime:%d;
/SetRelayTime:%d;
/SetRelayMode:x;
Set the RS232 input delay (%d) time; 1 = 0.5s
Value range 1-60
Set the CEC input delay (%d) time; 1 = 0.5s
Value range 1-60
Set the 2x IR OFF delay (%d) time; 1 = 0.5s
Value range 1-60
Set the IR input delay (%d) time; 1 = 1s
Value range 0-10800
Set the Relay Timeout (%d) 1 = 0.5s
Default value is 10.
Set Relay mode (Default 1)
1 = Momentary
2 = Latching
#SetRSTime:%d.
#SetCECTime:%d.
#SetIROffTime:%d.
#SetOffTime:%d.
#SetRelayTime:%d.
#SetRelayMode:x.
Delay Timing Setup
Command Function Feedback Example
/*Name;
/^Version;
/FactoryDefault;
16
Query model name
Query rmware version
Restore to default settings
#TL-SM3C-HDV.
#TxV:1.0.1.
#RxV:1.0.2.
#FactoryDefault.
190219 TL-SM3C-HDV Installation Guide
Firmware Updates
When a rmware update is available, it will be hosted on the TechLogix website (www.tlnetworx.com). To perform
the update, all you will need is a USB type A to a micro USB type B cable.
Download the .zip le and extract it to a folder on your computer.
Transmitter Update Procedure
1. Remove all devices and disconnect the TP cable from the TL-SM3C-HDV transmitter. Leave the receiver
powered on.
2. Connect a PC (any operating system) to the Service port using the USB type A to a micro USB type B cable.
3. Reconnect the TP cable to the transmitter.
4. The TL-SM3C-HDV transmitter should show up on the computer as a removable drive. The power LED for
the transmitter should be dark, but the TP Out/PoC LEDs should be active.
5. Drag the TX rmware le over to the new removable drive.
6. After a couple seconds, the removable drive should disconnect from the PC, then reconnect. If the update
was successful, a SUCCESS.TXT le will be the only le on the removable drive.
7. Remove the USB cable from the transmitter.
8. Proceed to the “Receiver Update Procedure” on page 17.
Receiver Update Procedure
1. Remove all devices, disconnect the TP cable from the TL-SM3C-HDV receiver, and remove power from the
receiver.
2. Connect a PC (any operating system) to the Service port using the USB type A to a micro USB type B cable.
3. Reconnect power to the receiver.
4. The TL-SM3C-HDV receiver should show up on the computer as a removable drive. The power LED for the
receiver should be dark.
5. Drag the RX rmware le over to the new removable drive.
6. After a couple seconds, the removable drive should disconnect from the PC, then reconnect. If the update
was successful, a SUCCESS.TXT le will be the only le on the removable drive.
7. Remove the USB cable from the receiver.
8. Remove power from the TL-SM3C-HDV receiver.
9. Reconnect power to the receiver.
10. Proceed to the “Web GUI Update Procedure” on page 18.
17
190219 TL-SM3C-HDV Installation Guide

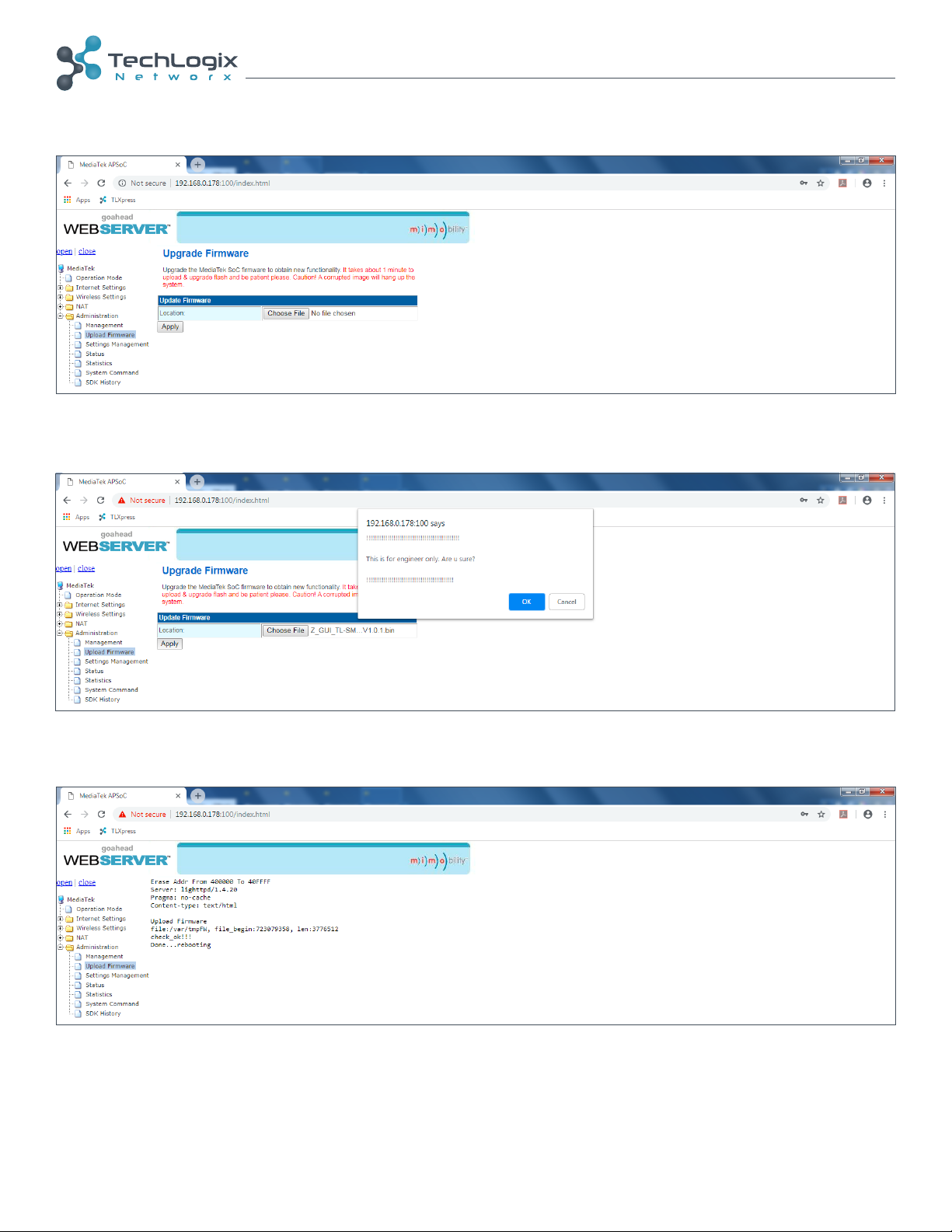

Web GUI Update Procedure

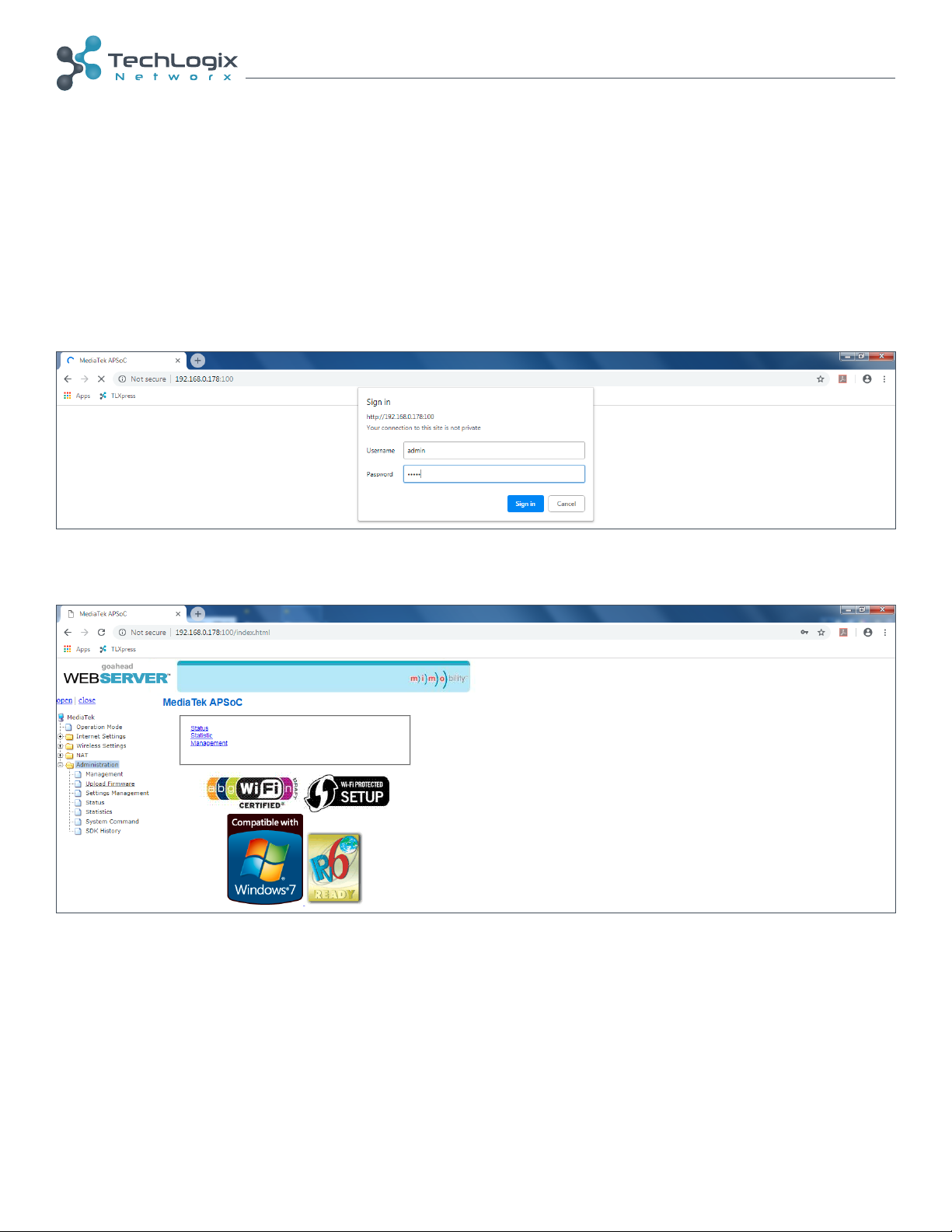

1. Connect the TCP/IP port of the Receiver to Ethernet port of PC with twisted pair, and then modify the PC’s
static IP network segment to be the same as the TL-SM3C-HDV’s. For example, the IP address of PC can be
modied to 192.168.0.42.
2. Navigate to 192.168.0.178:100 in your browser, it will enter the login interface shown as below.
3. There is only one user (admin). The default password is admin, but this may have been changed to a more
secure password in the web GUI. Click the Sign in to proceed.
4. Once logged in, click the Administration folder.
5. Click the Upload Firmware link to be directed to the Upgrade Firmware page.
6. Click the Choose File button.
7. In the Open File window, select the GUI rmware le.
8. Click the Apply button.
18
9. A popup will show conrming the rmware upgrade process.
190219 TL-SM3C-HDV Installation Guide
10. After a minute or so, the rmware upgrade window will clear and show a Done...rebooting message.
11. Close the web browser.
12. Disconnect power from the TL-SM3C-HDV receiver.
13. Reinstall the product per the “Connection Procedure” on page 5.
19
Technical Specications
Transmitter Inputs and Output
190219 TL-SM3C-HDV Installation Guide
Video Inputs 2 HDMI
Video Input Connectors 2 female HDMI
Input Video Signal HDMI, VGA
Audio Input (with VGA) 1 stereo analog audio
Input Audio Signal 1 3.5mm mini jack
Twisted Pair Output 1 8P8C port (Shielded RJ45)
Control Ports 3 Dry Contact (C1~C3)
Control Connectors 3 3.5mm mini jack
1 VGA
1 female VGA (15-pin)
1 FIRMWARE
1 Share-Me™ Serial (TX, RX, Gnd, 12V DC)
1 IR Learn
1 Micro-USB
1 4-pin removable terminal block
1 embedded IR receiver
Receiver Inputs and Outputs
Video Output 1 HDMI
Video Output Connector 1 female HDMI
Output Video Signal HDMI
Audio Outputs 1 3.5mm mini jack
Twisted Pair Input 1 8P8C port (Shielded RJ45)
Control Ports 2 Relay (NO/NC)
Control Connectors 2 3-pin removable terminal block
12V DC Power 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)
1 RCA
1 FIRMWARE
1 RS232 (TX, Gnd, RX)
1 IR Out
1 LAN
1 Micro-USB
1 3-pin removable terminal block
1 3.5mm mini jack
1 8P8C port (Shielded RJ45)
20
Supported Video, Audio, and Control
190219 TL-SM3C-HDV Installation Guide
Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p
Video Compliance HDMI, HDCP 2.2, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Input DDC Signal 5.0 volts p-p (TTL)
Input Video Signal 0.5 to 1.0 volts p-p
Audio Output Impedance <24Ω
Frequency Response 20Hz~20K Hz
Stereo Channel Separation >80dB @1KHz
IR Carrier Frequency Range 33-55kHz at 5 volts
RS232 Baud Rates 2400 to 115,200 baud
Relay Contact Rating 300 mA at 125 VAC, 1 A at 30 VDC
40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr
4:2:2; up to 60 Hz: YCbCr 4:2:0
Extender Signal Characteristics
Maximum Distance 70 m: Deep Color 36/30/24 Bit at 1080p
Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth 10.2 Gbps
40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr
4:2:2; up to 60 Hz: YCbCr 4:2:0
Environmental Characteristics
Operating Temperature (Environment) -10° to +40° C (14° to 104° F)
Operating Temperature (Chassis) 45° C (113° F)
Operating Humidity (Environment) 10% ~ 90%
Storage Temperature (Environment) -15° to +70° C (5° to 158° F)
Storage Humidity (Environment) 0%~55%
Chassis Characteristics
Enclosure Painted steel
Transmitter Dimensions 170mm x 100mm x 25mm (6.69 in x 3.94 in x 0.98 in)
Receiver Dimensions 170mm x 100mm x 25mm (6.69 in x 3.94 in x 0.98 in)
Transmitter Weight 0.28 kg (0.62 lbs)
Receiver Weight 0.34 kg (0.75 lbs)
Power, ESD, and Regulatory
Maximum Power Consumption 4.9W (TX), 6.7W (RX)
Power Supply 100-240v AC Input, 24v 2.71A Output with locking connector (C-UL/UL, CTick, CCC)
ESD Protection 15KV
Regulatory CE, FCC
21
190219 TL-SM3C-HDV Installation Guide
Other
Warranty 3 years
Included Accessories 1 ea Power Supply with US power cable, 2 ea mounting kits, 3 ea 6’ SMC cables, 8 ea rubber bumper
Compatible TechLogix Table Inserts TL-SMG-HD (HDMI)
feet, 3 ea 3-pin terminal blocks, 1 ea 4-pin terminal block, 1 ea IR emitter, 1 ea RS232 cable for
display connection
TL-SMG-DP (DisplayPort)
TL-SMG-VGA (VGA)
TL-TI-HD (HDMI)
TL-TI-DP (DisplayPort)
TL-TI-VGA (VGA)
TL-SMG-PT (Pass-through)
TL-SMG-2B (2 Button Control)
TL-SMG-4C (4 Button Control)
22
Loading...
