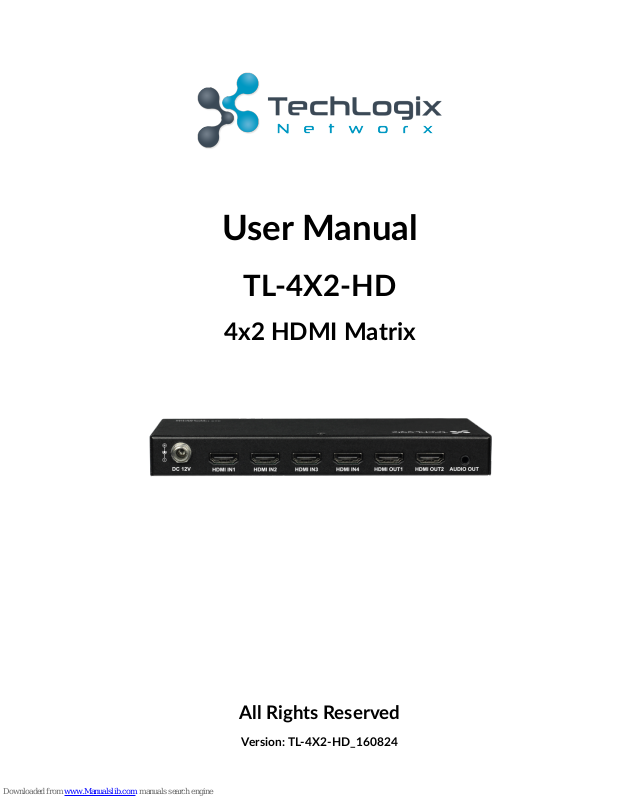

User Manual
TL-4X2-HD
4x2 HDMI Matrix
All Rights Reserved
Versi on: TL-4X2-HD_160824
1
TL-4X2-HD User Manual
www.tlnetworx.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only, slight differences may be evident on the real product.
This manual is only for operation instruction only, not for any maintenance usage.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void the
user’s authority to operate the equipment.
2
TL-4X2-HD User Manual
www.tlnetworx.com
SAFETY PRECAUTIONS
To i ns u re t he b e st experience from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burns.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To p re v e n t f i re o r s h o c k h a za r d , d o not expose the unit to rain, moisture or install this
product near water.
l Do not put any heavy items on the extension cable in case of damage.
l Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with proper ventilation to avoid damage caused by
overheat.
l Keep the module away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
3
TL-4X2-HD User Manual
www.tlnetworx.com
1. Introduction
TL-4X2-HD is a 4 input, 2 output matrix switcher for HDMI. It reliably
distributes four HDMI source signal up to two HDMI displays. The HDCP
compliant matrix supports resolutions up to 4K@30Hz and 1080p@60Hz.
This matrix features two advanced technologies: automatic EDID
management, which provides Copy/Fixed EDID options for different
resolutions output, and HDCP management, which authenticates HDCP
encryption between all devices, ensuring the HDMI source reliably outputs
correct content for display.
It is ideal for applications, such as offices, schools, conferences rooms,
shopping malls, hotels or museums, which require the distribution of an
HDMI source signal to multiple displays.
1.1 Features
l 4K HDMI Matrix 4x2
l Supports HDCP 1.4
l Supports automatic EDID management with Copy/Fixed mode
l 15M HDMI transmission distance @4K
l IR remote control
l Supports CEC TV power control
l Supports stereo audio output
1.2 Package List
ü 1 x TL-4X2-HD
ü 2 x Mounting ears
ü 1 x IR Remote
ü 1 x Power Adapter (DC 12V 1A)
ü 1 x User manual
&
Check whether all the items listed above are included in your package. If not,
contact your dealer.
4
TL-4X2-HD User Manual
www.tlnetworx.com
2. Appearance
Front Panel
No.
Name
Description
1
Output 1 LED
Indicates the input source for HDMI OUT 1
2
Select 1 Button
Press this button to select input source for HDMI OUT 1
3
Output 2 LED
Indicates the input source for HDMI OUT 2
4
Select 2 Button
Press this button to select input source for HDMI OUT 2
5
Power LED
ON: The device is on.
OFF: The device is off.
6
IR Window
Receive IR signal
5
TL-4X2-HD User Manual
www.tlnetworx.com
Rear Panel
No.
Name
Description
1
DC 12V
DC 12V power input
2
HDMI IN 1~4
Connects to HDMI source devices
3
HDMI OUT 1~2
Connects to HDMI display devices
4
Audio OUT
Connects to audio system
&
Pictures shown in this manual are for reference only.
3. System Connection
The figure below illustrates a typical connection that can be utilized with TL-4X2-HD:
6
TL-4X2-HD User Manual
www.tlnetworx.com
Step1. Connect a HDMI source (e.g. a Blu-ray DVD) to IN port of TL-4X2-HD;
Step2. Connect a HDMI display (e.g. a LCD TV) to OUT port of TL-4X2-HD;
Step3. Plug DC 12V 1A power adapter into the power port of TL-4X2-HD.
&
1) System should be installed in a clean environment with proper temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated.
3) All devices should be connected before power on.
4. IR Remote Handset
The included remote control handset can be used to turn on and off a CEC-enabled
display device and to switch four HDMI sources to one display device.
Note:
$ As the internal battery inside the remote control of our device is packaged by
insulation slice, please remove the insulation slice before use
$ Please make sure that the remote is pointed directly at the IR receive window
Select the previous source input
Turn on
a CEC-enabled display device
Select a specific source input
Turn off
a CEC-enabled display device
Select the next source input
7
TL-4X2-HD User Manual
www.tlnetworx.com
5. EDID Management
When an HDMI video source boots up, it normally communicates with the output device
using the EDID communication protocol based on the built in EDID information. The
source device then produces a signal with the optimum resolution that is compatible
with the output device.
The TL-4X2-HD Supports EDID copy priority function
$ When connected to one monitor, EDID of the monitor is copied directly to the
inputs
$ When connected to two monitors, the EDID form the first monitor connected will
be copied to the inputs. If HDMI OUT 1 is inserted first, the EDID of HDMI OUT 1
shall be copied; otherwise, the EDID of HDMI OUT 2 wil be copied
Note: If the unit is powered on and both outputs are connected, the EDID of HDMI OUT
2 wil be copied.
6. Specification
Te c h n ic a l
Input/output
4 x HDMI IN,
2 x HDMI OUT
1 x Audio OUT,
1 x IR Remote
Input/output Signal Type
HDMI 1.4
Input/output Resolution Support
480i, 480p, 576i, 576p, 720p,1080i, 1080p,
1920x1200@60Hz,
3840 x 2160@30Hz,
4096 x 2160@30Hz
Input Video Signal
0.5~1.0 V p-p
Input DDC Signal
5 V p-p
8
TL-4X2-HD User Manual
www.tlnetworx.com
General
Operating Temperature
0°C to 45°C (32°F to 113 °F)
Storage Temperature
-20°C to70°C (-4°F to 158 °F)
Humidity
10% to 90%, non-condensing
Power Supply
12 VDC 1 A
Power Consumption
5 W (Maximum)
ESD Protection
Human-body Model:
±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Device Dimension
182mm × 22 mm × 77 mm
/7.17" x 0.67" x 3.03"
Product Weight
0.34kg
Certification
CE, FCC, RoHS
&
Use high quality HDMI cables to connect the devices to ensure stable
performance.
9
TL-4X2-HD User Manual
www.tlnetworx.com
7. Panel Drawing
8. Troubleshooting & Maintenance
Problems
Causes
Solutions
Color loss or blurry/ double
image on HDMI display
Poor quality HDMI cable
Change HDMI cable.
Power LED is off, not
operating
No power
Power up the unit
Poor contact of power port
Make sure power adapter is
properly seated
No output on the display
Source/ Display is off
Tu rn o n th e source/ display
Poor contact of HDMI
ports
Check the HDMI ports one
by one to make sure they’re
properly seated.
&
If your problem persists after following the above troubleshooting steps, seek
further help from authorized dealer or our technical support.
10
TL-4X2-HD User Manual
www.tlnetworx.com
9. After-sales Service
If problems appear when operating the device, please check this user manual for details.
4) Product Limited Warranty: We warrant that our products will be free from defects in
materials and workmanship for three years. Please see warranty page posted on
www.tlnetworx.com for more info.
5) What the warranty does not cover:
l Warranty expiration.
l Factory applied se rial nu mber ha s been altered or removed from the p ro duct.
l Damage, deterioration or malfunction caused by:
l Normal wear and tear
l Use of supplies or parts not meeting our specifications
l No certificate or invoice as the proof of warranty.
l The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
l Damage caused by force majeure.
l Non-authorized service
l Other causes which does not relate to a product defect
l Delivery, installation or labor charges for installation or setup of the product
6) Te c h n i c al S u p p or t : Email to our after-sales department or make a call, please inform
us the following information about your cases.
l Product version and name.
l Detailed failure situations.
l The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
