Tech Line VD-170 Service Manual

SERVICE MANUAL

DVD PLAYER &

VIDEO CASSETTE RECORDER

VD-170

Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded views
I Parts List

When servicing the deck
mechanism, refer to MK14 Deck
Mechanism Section.

Deck Mechanism Part No.:
N25C0FL

PAL

MAIN SECTION

DVD PLAYER &

VIDEO CASSETTE RECORDER

VD-170

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

How to Initialize the DVD Player & VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

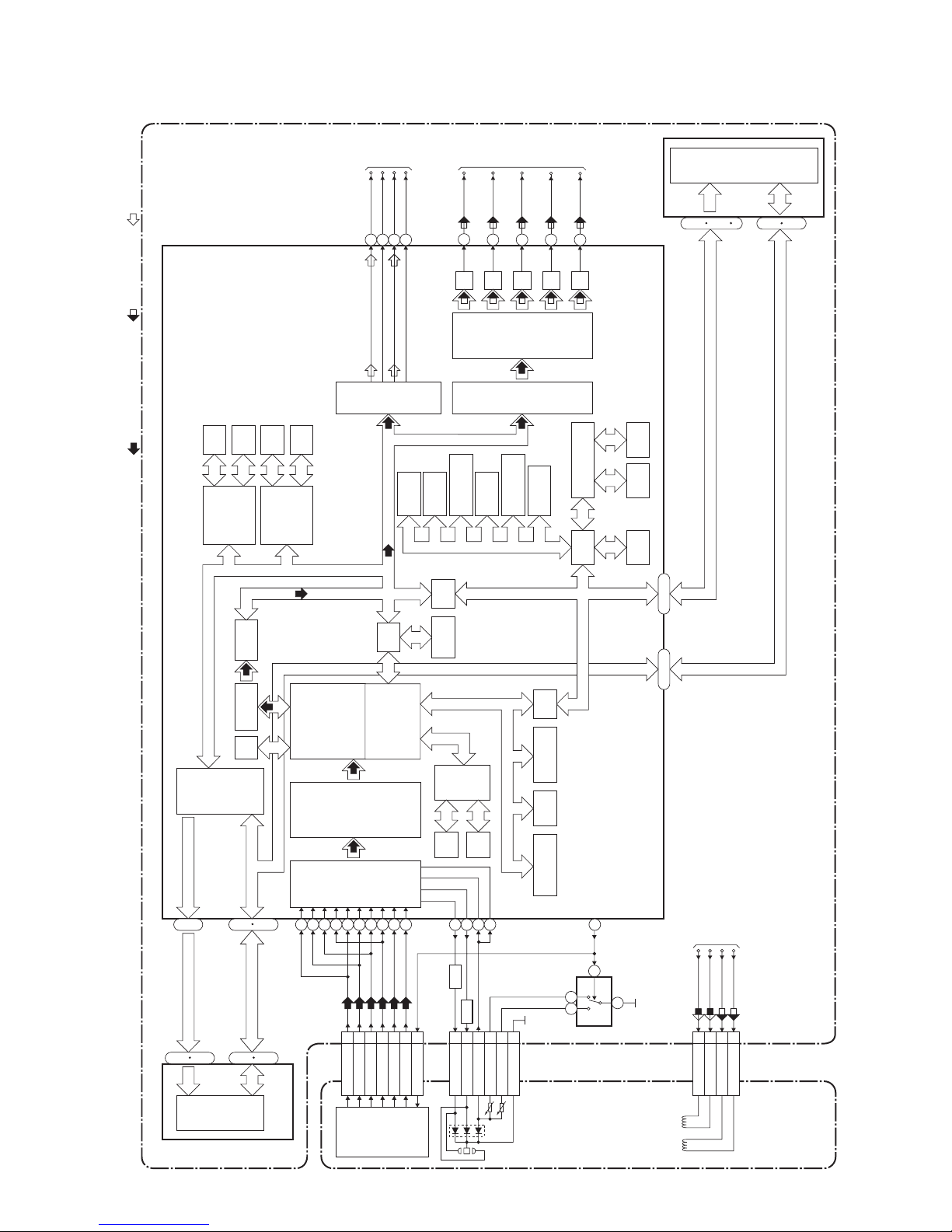

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

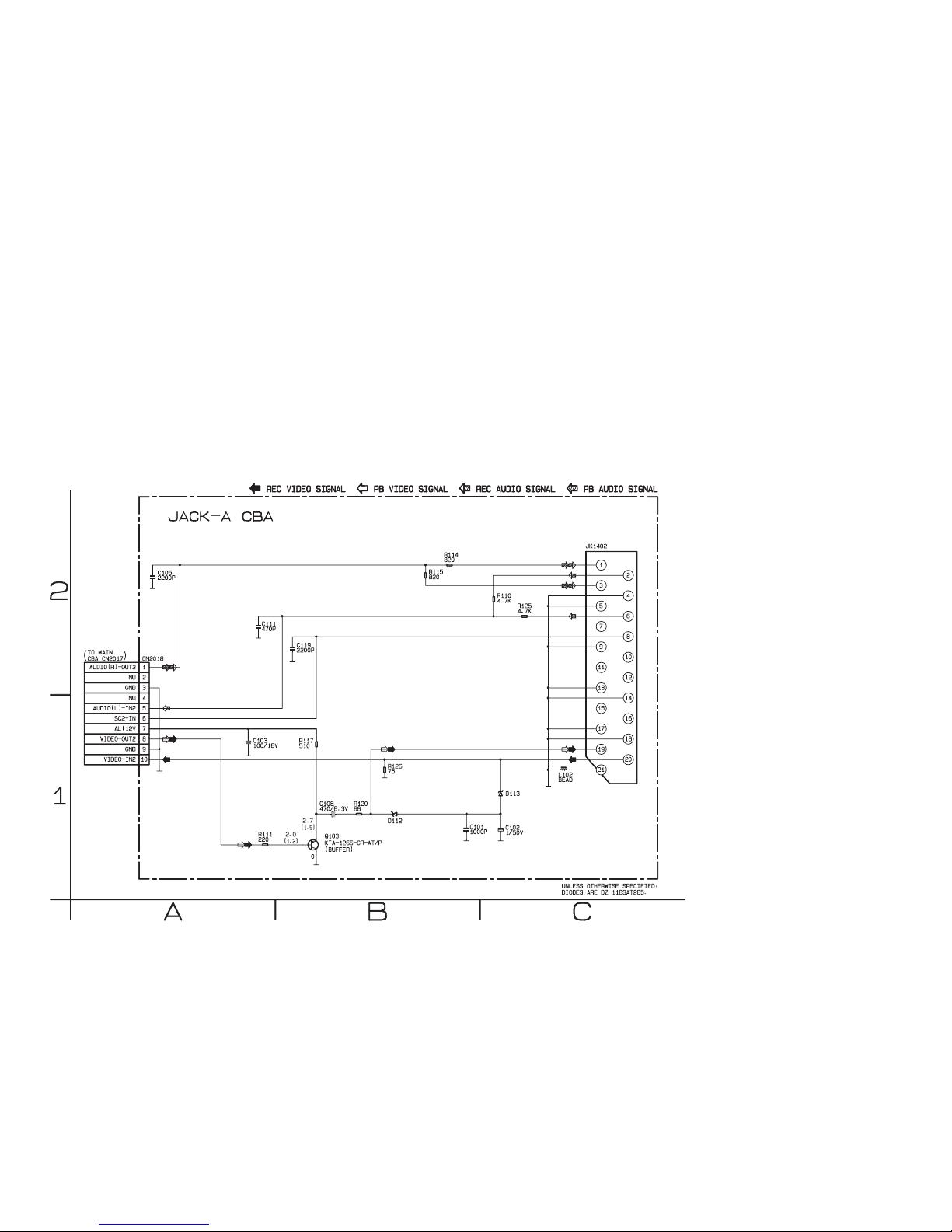

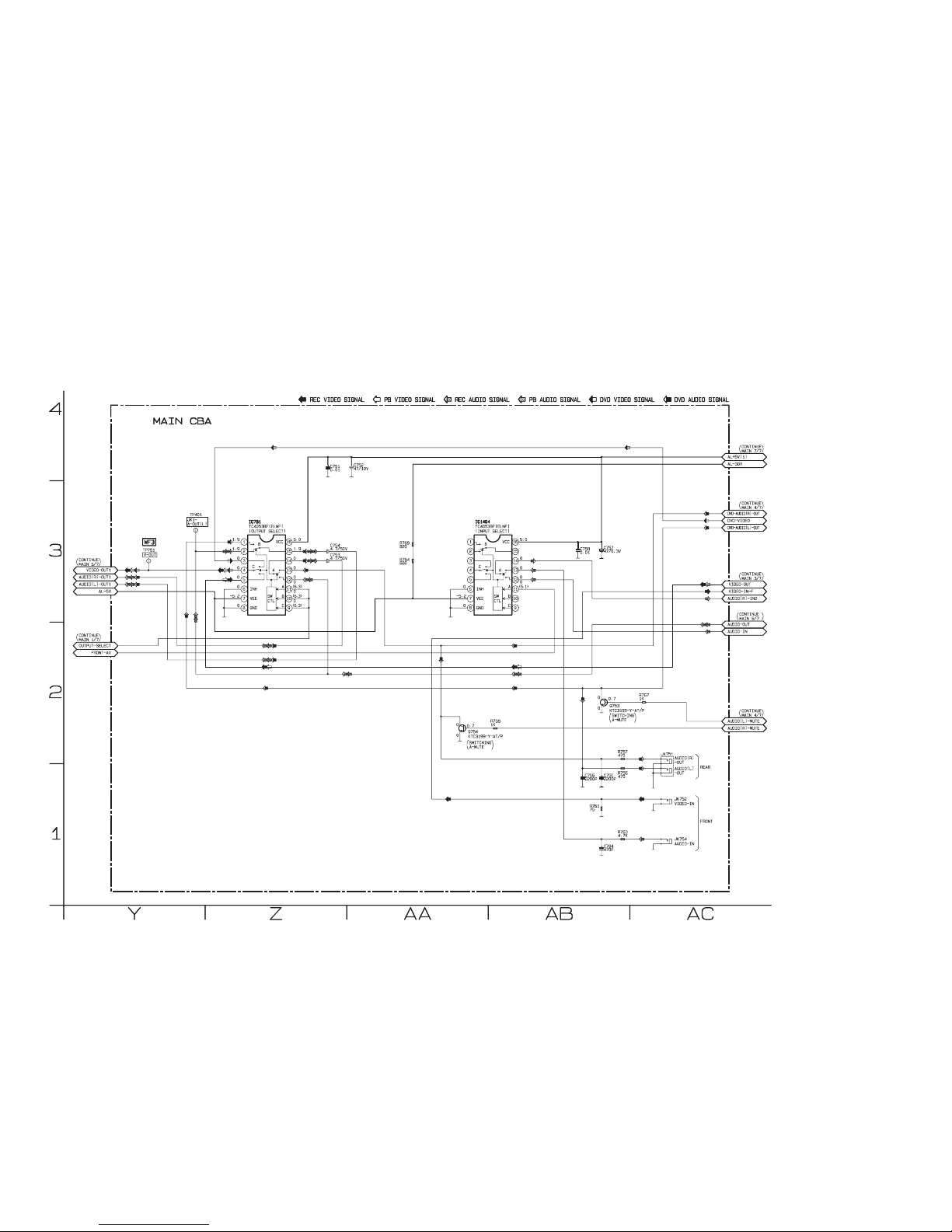

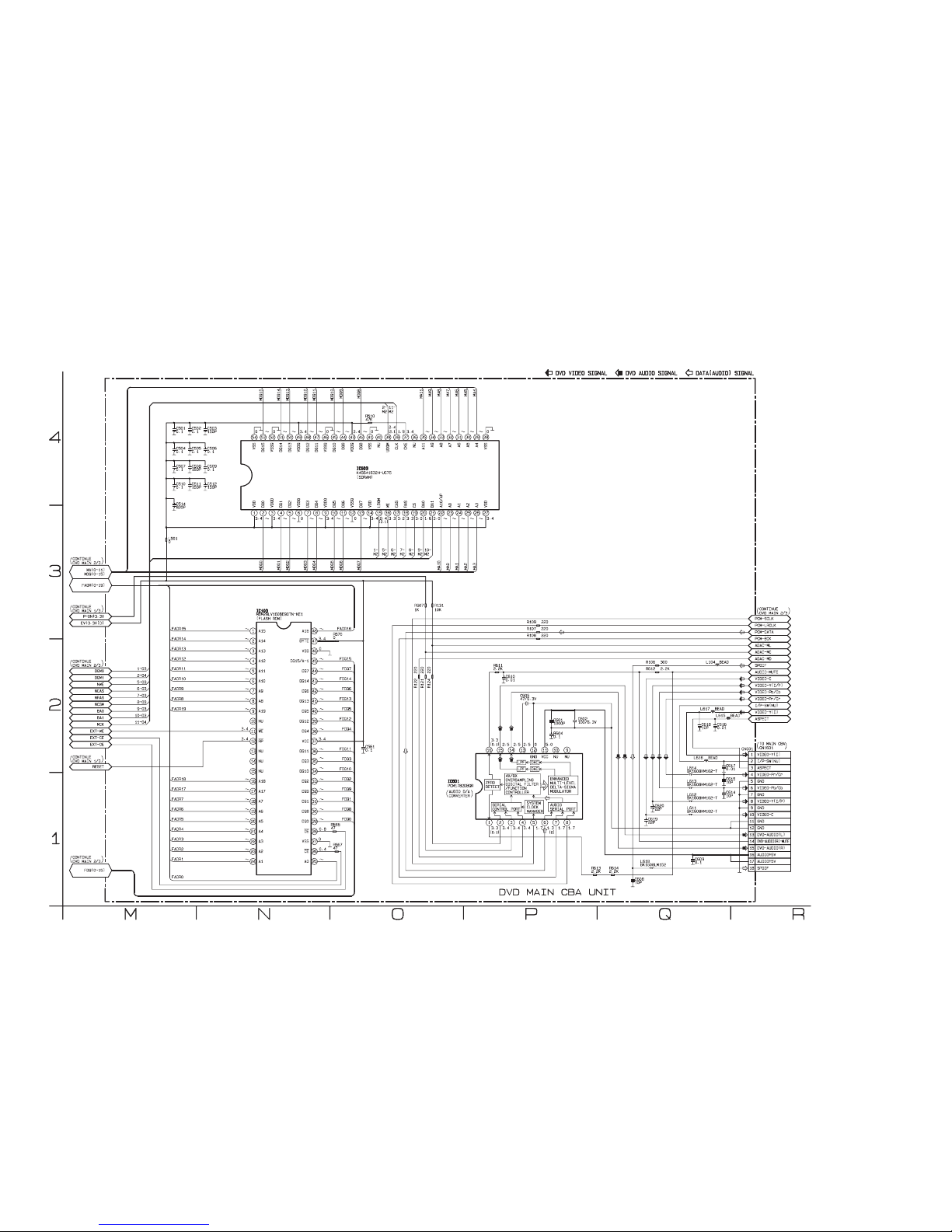

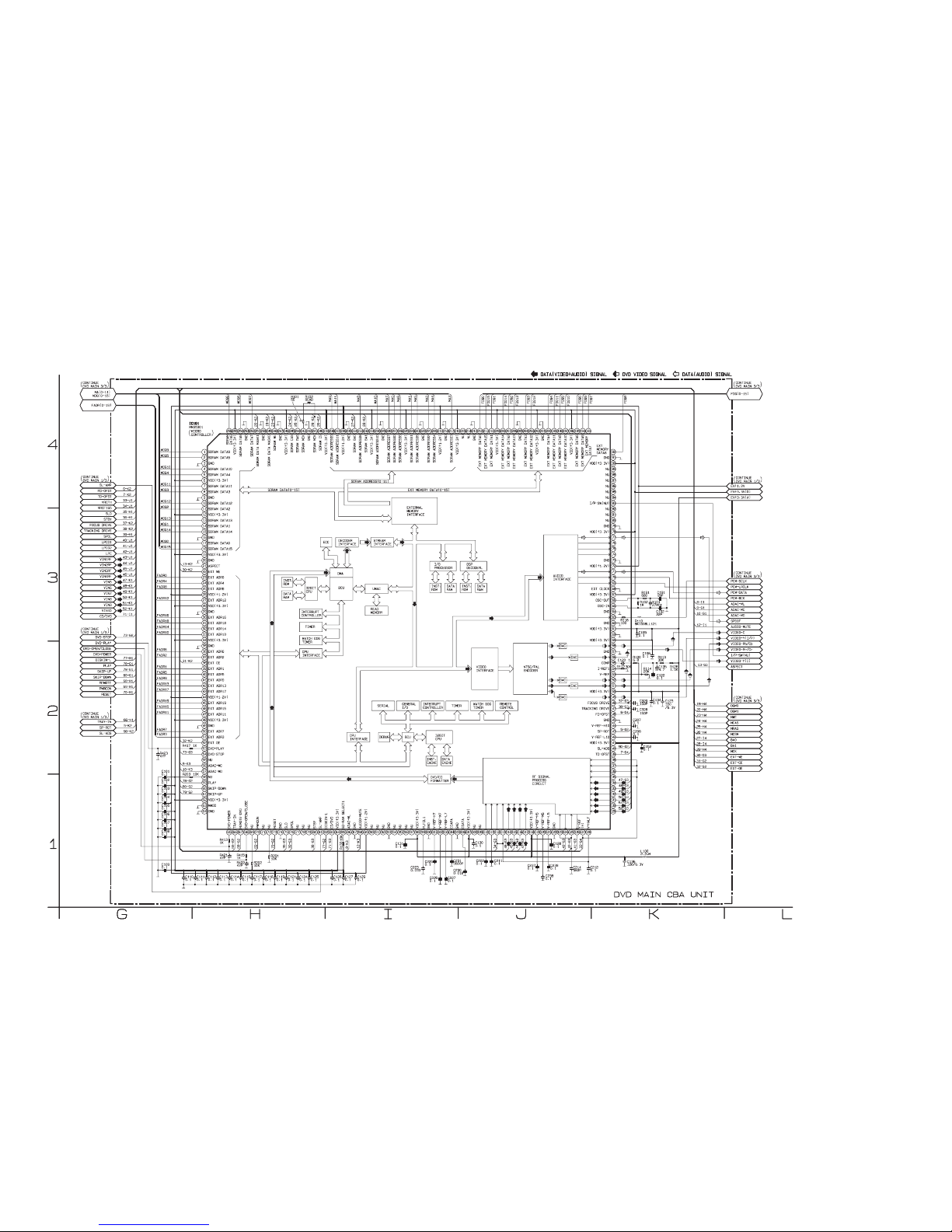

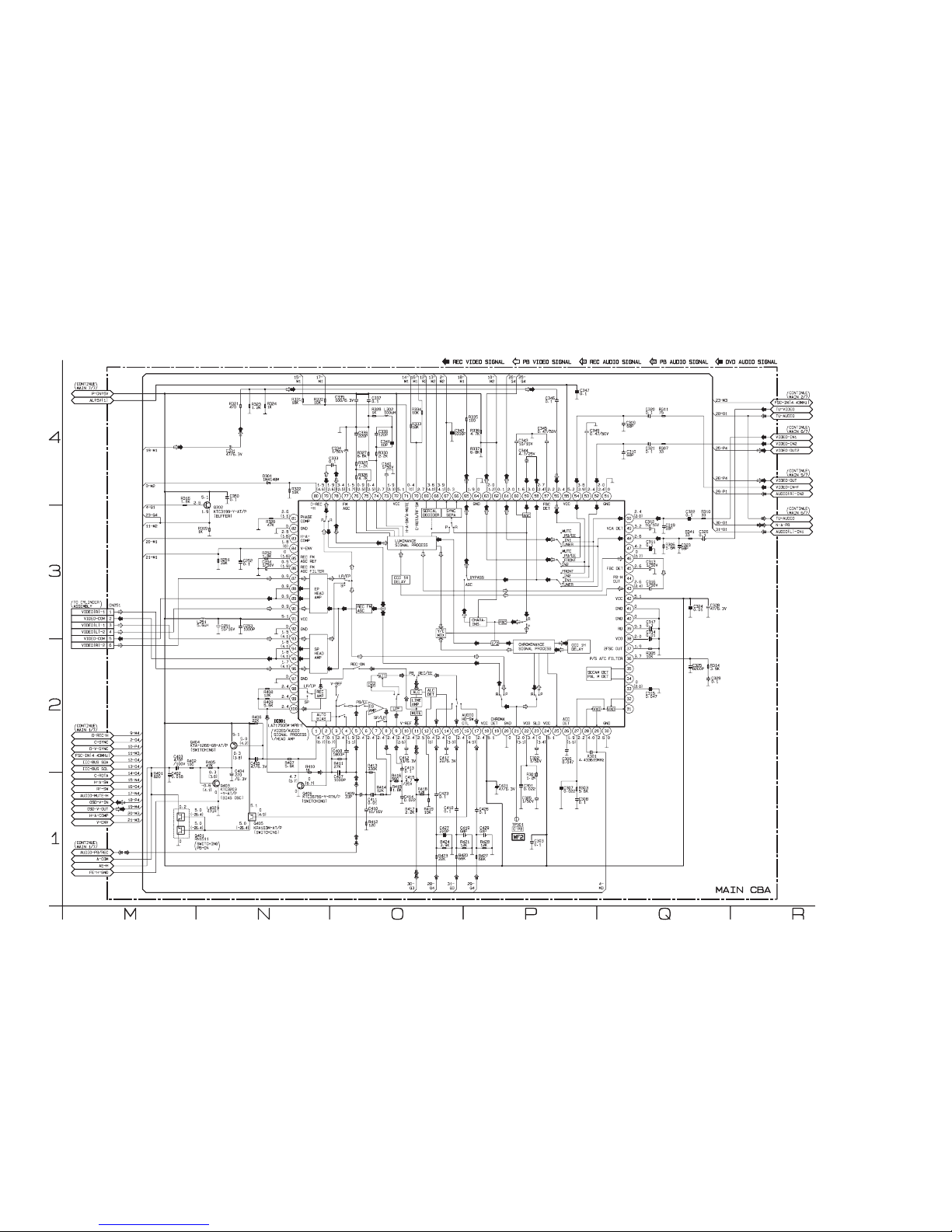

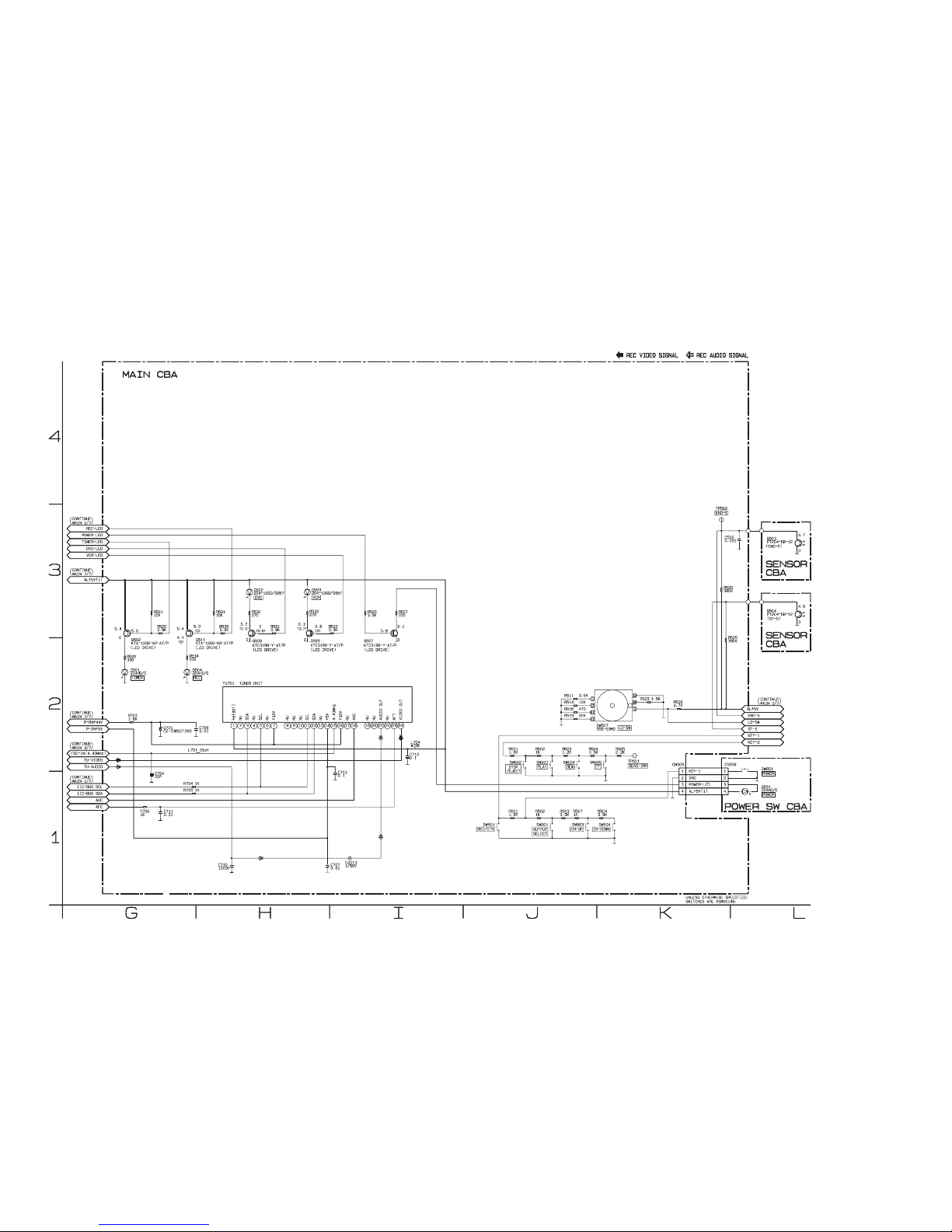

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

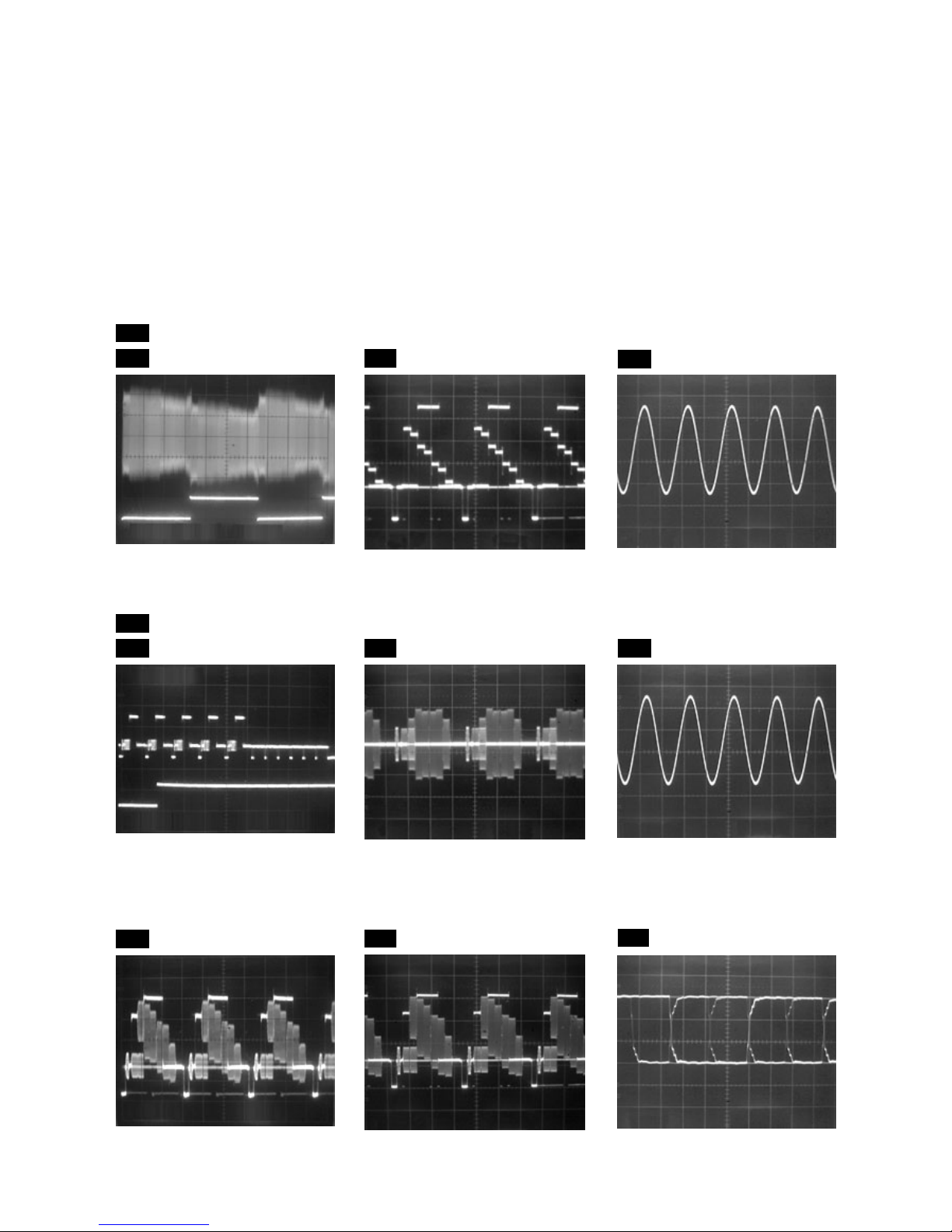

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

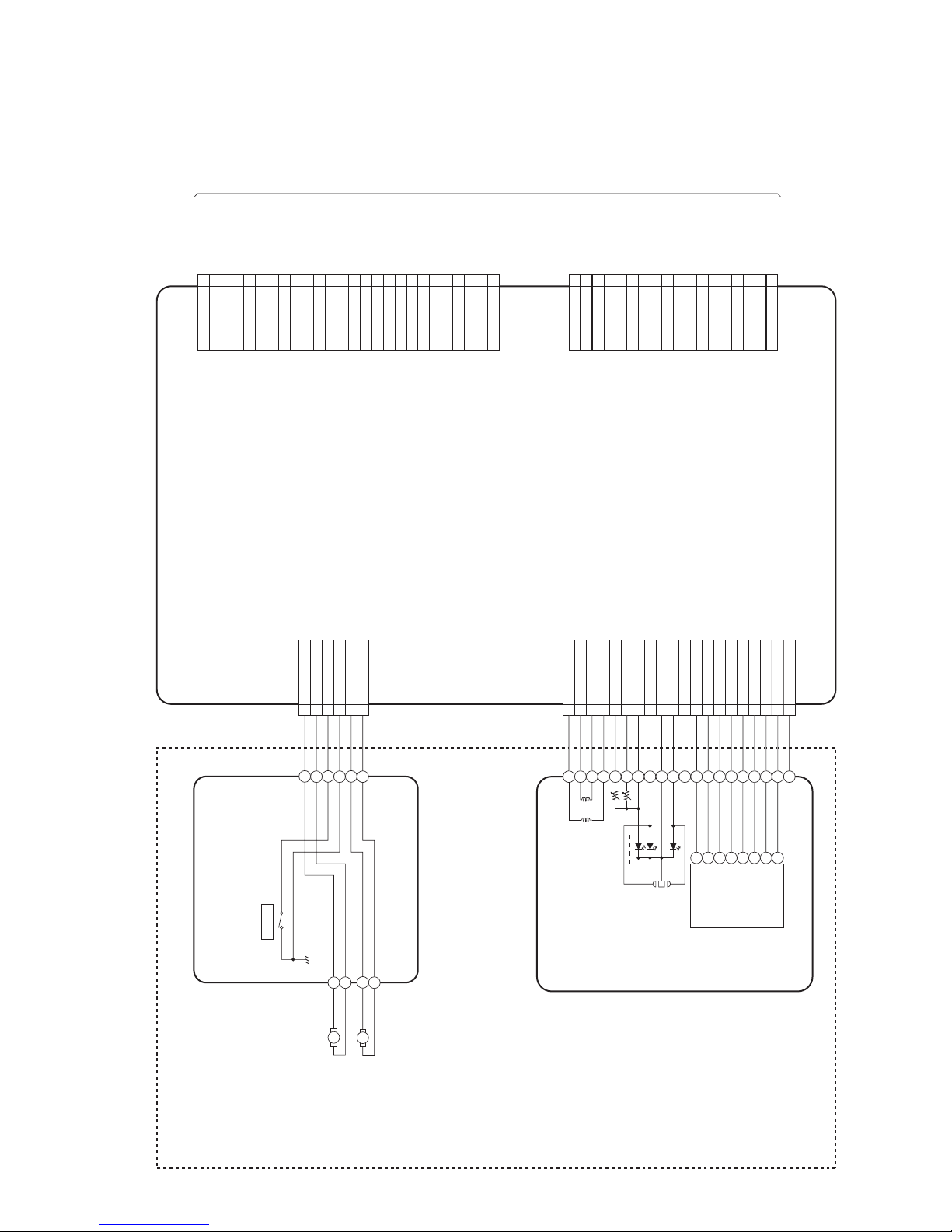

Wiring Diagram < VCR Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Wiring Diagram < DVD Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-2

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s
I Exploded Views
I Parts List

Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 H9910SP

SPECIFICATIONS

< VCR Section >

Note: Nominal specs represent the design specs. All units should be able to approximate these – some will

exceed and some may drop slightly below these specs. Limit specs represent the absolute worst condition that
still might be considered acceptable; In no case should a unit fail to meet limit specs.

Description Unit Minimum Nominal Maximum Remark

1. Video

1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 SP Mode

1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2

1-3. Video S/N Y (R/P) dB 40 45

SP Mode,

W/O Burst

1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode

1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode

1-6. Resolution (PB) Line 230 245 SP Mode

2. Servo

2-1. Jitter Low µsec 0.07 0.12 SP Mode

2-2. Wow & Flutter % 0.3 0.5 SP Mode

3. Normal Audio

3-1. Output (PB) dBV -9 -4 -3 SP Mode

3-2. Output (R/P) dBV -9 -4 -1.5 SP Mode

3-3. S/N (R/P) dB 36 41 SP Mode

3-4. Distortion (R/P) % 1.0 4.0 SP Mode

3-5. Freq. resp (R/P) at 200Hz dB -6 -2 SP Mode

(-20dB ref. 1kHz) at 8kHz dB -8 -2 SP Mode

4. Tuner

4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode

4-2. Video S/N dB 39 44 E-E Mode

4-3. Audio output dB -10 -6 -2 E-E Mode

4-4. Audio S/N dB 40 46 E-E Mode

1-1-2 H9910SP

< DVD Section >

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : 220 - 240 V ~ 50 Hz

3. Ambient temperature : 5

°C ~ 40 °C

ITEM CONDITIONS UNIT NOMINAL LIMIT

1. Video Output 75 Ω load Vpp 1.0 ± 0.1

2. Optical Digital Out dBm -18

3. Audio (PCM)

3-1. Output Level 1 kHz 0 dB, 47k Ω load Vrms 2.0

3-2. S/N 47k Ω load dB 90

3-3. Freq. Response

DVD fs = 48 kHz ± 0.5dB, 47k Ω load Hz 20~22 k

CD fs = 44.1 kHz ± 0.5dB, 47k Ω load Hz 20~20 k

3-4. THD+N

DVD 1 kHz 0dB, 47k Ω load % 0.01

CD 1 kHz 0dB, 47k Ω load % 0.01

1-2-1 E6P_LASER

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Location: Top of DVD mechanism.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

Drive Mechanism
Assembly

Laser Beam Radiation

Laser Pickup

Turntable

CAUTION- CLASS

1M

LASER RADIA

-

-

TION WHEN OPEN. DO NOT VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS

1-3-1 DVD_SFNP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not evi­dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continu­ously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor­tant to implement the following precautions when a set
is being serviced.

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1)Insulation tape

2)PVC tubing

3)Spacers

4)Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre­vent shock hazards.
Replacement procedure

1)Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo­sure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVD_SFNP

Chassis or Secondary Conductor

dd'

Primary Circuit Terminals

AC Voltmeter
(High Impedance)

Exposed Accessible Part

B

One side of
Power Cord Plug Prongs

Z

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts, and wires have been returned to their original
positions. Afterwards, do the following tests and con­firm the specified values to verify compliance with
safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi­nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

≥ 3 mm(d)

≥ 6 mm(d’)

Table 2: Leakage current ratings for selected areas

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

AC Line Voltage Load Z Leakage Current (i)

One side of power cord plug

prongs (B) to:

220 to 240 V

2kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

RF or

Antenna terminals

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

A/V Input, Output

Fig. 1

Fig. 2

1-4-1 DVD_NOTE

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indi­cated as shown.

2. For other ICs, pin 1 and every fifth pin are indicated
as shown.

3. The 1st pin of every male connector is indicated as
shown.

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:.

(1) Prepare the hot-air flat pack-IC desoldering

machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

(2) Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)

Top View

Out

In

Bottom View

Input

5

10

Pin 1

Pin 1

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

1-4-2 DVD_NOTE

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.

With Soldering Iron:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con­tact pads as shown in Fig. S-1-5

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

Flat Pack-IC

Tweezers

Masking
Tape

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip
Soldering Iron

Sharp
Pin

Fig. S-1-4

1-4-3 DVD_NOTE

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

(2) The “I” mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

To Solid
Mounting Point

Soldering Iron

Iron Wire

or

Hot Air Blower

Fig. S-1-5

Fine Tip
Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Presolder

CBA

Flat Pack-IC

Fig. S-1-8

1-4-4 DVD_NOTE

Instructions for Handling
Semi-conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

(1) Be sure to place a conductive sheet or copper plate

with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground­ing band, be careful to avoid contacting semi-con­ductors with your clothing.

CBA

< Incorrect >

CBA

Grounding Band

Conductive Sheet or
Copper Plate

1MΩ

1MΩ

< Correct >

1-5-1 H9700PFS

PREPARATION FOR SERVICING

How to Enter the Service Mode

About Optical Sensors

Caution:

An optical sensor system is used for the Tape Start
and End Sensors on this equipment. Carefully read
and follow the instructions below. Otherwise the unit
may operate erratically.

What to do for preparation

Insert a tape into the Deck Mechanism Assembly and
press the PLAY button. The tape will be loaded into
the Deck Mechanism Assembly. Make sure the power
is on, connect TP501 (S-INH) to GND. This will stop
the function of Tape Start Sensor, Tape End Sensor
and Reel Sensors. (If these TPs are connected before
plugging in the unit, the function of the sensors will
stay valid.) See Fig. 1.

Note: Because the Tape End Sensors are inactive, do
not run a tape all the way to the start or the end of the
tape to avoid tape damage.

Q504

Q503

TP501 S-INH

Fig. 1

1-6-1 H9975DC

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

2. Disassembly Method

Note:

(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5): Refer to “Reference Notes.”

ID/

LOC.

No.

PAR T

REMOVAL

Fig.

No.

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

Note

[1] Top Case D1 8(S-1) -

[2]

Front
Assembly

D2 *3(L-1), *3(L-2)

1
1-1
1-2

[3] Top Bracket D2 3(S-2) -

[4]

DVD
Mechanism
Assembly

D3

4(S-3), *CN401,
*CN601

-

[5]

Partition
Plate

D3 (S-4) -

[6]

Power
Supply CBA

D3 2(S-5), CN501 -

[7]

Loader
Holder

D3 2(S-6) -

[1] Top Case

[2] Front Assembly

[3] Top Bracket

[4] DVD Mechanism Assembly

[8] DVD Main CBA Unit

[5] Partition Plate

[7] Loader Holder

[6] Power Supply CBA

[9] VCR Chassis Unit

[10] Deck Assembly

[11] DVD Open/Close CBA

[13] Main CBA

[12] Power SW CBA

[14] Jack-A CBA

[8]

DVD Main
CBA Unit

D4

2(S-7), *CN201,
*CN301

2
2-1
2-2

3

[9]

VCR
Chassis
Unit

D5

5(S-8), 2(S-9),
2(S-10), (L-3)

-

[10]

Deck
Assembly

D6

Desolder,
2(S-11), (S-12)

4,5

[11]

DVD Open/
Close CBA

D6 Desolder -

[12]

Power SW
CBA

D6 Desolder -

[13] Main CBA D6 ---------- -

[14] Jack-A CBA D6 Desolder, 2(S-13) -

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

ID/

LOC.

No.

PAR T

REMOVAL

Fig.

No.

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

Note

1-6-2 H9975DC

Reference Notes

CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.

1-1. Release three Locking Tabs (L-1).

1-2. Release three Locking Tabs (L-2), then remove

the Front Assembly.

CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.

To avoid damage of pickup follow next procedures.

2-1. Disconnect Connector (CN301). Remove two

Screws (S-7) and lift the DVD Main CBA Unit.
(Fig. D4)

2-2. Short the three short lands of FPC cable with sol-

der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D4)

CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)

4. When reassembling, solder wire jumpers as shown
in Fig. D6.

5. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on Main CBA as shown in
Fig. D6. Then, install the Deck Assembly while
aligning the hole of Cam Gear with the pin of LD­SW, the shaft of Cam Gear with the hole of LD-SW
as shown in Fig. D6.

Fig. D1

(S-1)

(S-1)

(S-1)

(S-1)

[1] Top Case

[2] Front
Assembly

(S-2)

(S-2)

[3] Top Bracket

Fig. D2

(L-1)

(L-1)

(L-2)

1-6-3 H9975DC

(S-3)

(S-5)

(S-4)

(S-6)

CN501

CN401

CN601

(S-3)

(S-3)

[5] Partition Plate

[6] Power
Supply CBA

[7] Loader
Holder

[4] DVD
Mechanism
Assembly

Fig. D3

CN201

CN301

(S-7)

[8] DVD Main
CBA Unit

DVD Mechanism

A

Fig. D4

(S-7)

View for A

Short the three short lands by soldering.
(Either of two places.)

Connector

(S-8)

(S-9)

(S-9)

(S-8)

(S-8)

(L-3)

[9] VCR Chassis Unit

Fig. D5

(S-10)

(S-10)

1-6-4 H9975DC

(S-11)

Lead with blue stripe

Desolder
from bottom

(S-12)

(S-13)

(S-11)

[13] Main CBA

[14] Jack-A CBA

[10] Deck
Assembly

[11] DVD
Open/Close CBA

FE Head

Cylinder
Assembly

ACE Head
Assembly

Fig. D6

From
FE Head

BOTTOM VIEW

Lead connections of Deck Assembly and Main CBA

Desolder

From
Capstan
Motor
Assembly

Printing side

Desolder

From
Cylinder
Assembly

From
ACE Head
Assembly

Lead with
blue stripe

Lead with
blue stripe

Desolder

Lead with
red stripe

[13] Main CBA

SW507
LD-SW

LD-SW

Pin

Hole

Hole

Shaft

Cam Gear

[13] Main CBA

[10] Deck Assembly

Pin

[12] Power
SW CBA

Desolder

Lead with blue stripe

Desolder

Lead with
blue stripe

1-6-5 H9975DC

View for A

Rotate this roulette in
the direction of the arrow

A

DVD Mechanism

HOW TO EJECT MANUALLY

1. Remove the Top Case, Front Assembly and Top Bracket.

2. Remove four Screws (S-3) in Fig. D3. Do not disconnect connectors.

3. While lifting up the DVD Mechanism, rotate the roulette in the direction of the arrow as
shown below.

4. Pull the tray slowly manually.

1-7-1 H9700EA

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: "CBA" is an abbreviation for
"Circuit Board Assembly."

NOTE:

1.Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to do these adjustments only after
all repairs and replacements have been com­pleted. Also, do not attempt these adjustments
unless the proper equipment is available.

2.To perform these alignment / confirmation proce­dures, make sure that the tracking control is set in
the center position: Press either "CHANNEL L5??" or
"CHANNEL K" button on the front panel first, then
the "PLAY" button on the front panel.

Test Equipment Required

1.Oscilloscope: Dual-trace with 10:1 probe,
V-Range: 0.001~50V/Div.,
F-Range: DC~AC-20MHz

2.Alignment Tape (FL6A)

Head Switching Position Adjustment

Purpose:

To determine the Head Switching position during
playback.

Symptom of Misadjustment:

May cause Head Switching noise or vertical jitter
in the picture.

Reference Notes:
Playback the Alignment tape and adjust VR501 so that
the V-sync front edge of the CH1 video output wave­form is at the 6.5H±1H (416µs±64µs) delayed position
from the rising edge of the CH2 head switching pulse
waveform.

Test point Adj.Point Mode Input

TP751(V-OUT)

TP504(RF-SW)

GND

VR501

(Switching Point)

(MAIN CBA)

PLAY

(SP)

-----

Tape

Measurement

Equipment

Spec.

FL6A Oscilloscope

6.5H±1H

(416µs±64µs)

Connections of Measurement Equipment

Oscilloscope

Main CBA

TP751

CH1 CH2
Trig. (+)

GND

TP504

Figure 1

EXT. Syncronize Trigger Point

1.0H

CH1

CH2

Switching Pulse

V-Syn

c

0.5H

6.5H±1H (416µs±64µs)

1-8-1 H9975INT

HOW TO INITIALIZE THE DVD PLAYER & VCR

To put the program back at the factory-default,
initialize the DVD player & VCR as the following
procedure.

< DVD Section >

1. Press [DVD], [1], [2], [3], [4], and [DISPLAY]
buttons on the remote control unit in that order.
Fig. a appears on the screen.

2. Press [CLEAR/C.RESET] button on the remote
control unit.
Fig. b appears on the screen.

When “OK” appears on the screen, the factory
default will be set.

3. To exit this mode, press [STANDBY-ON] button.

MODEL : *******

Version

: *.**

Region

: *

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. a

"

*******

" differ depending on the models.

MODEL : *******

Version

: *.**

Region

: *

EEPROM CLEAR : OK

EXIT: POWEREEPROM CLEAR : CLEAR

"

*******

" differ depending on the models.

Fig. b

1-9-1 H9975FW

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD player into version up mode, press
[DVD], [9], [8], [7], [6], and [SEARCH MODE]
buttons on the remote control unit in that order.
The tray will open automatically.
Fig. a appears on the screen.

The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen. If you
enter the F/W for different models, “Disc Error” will
appear on the screen, then the tray will open
automatically.

The appearance shown in (*1) of Fig. c is
described as follows:

5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum will be shown in (*2) of Fig. e.

At this time, no button is available.

6. Remove the disc on the tray.

7. Unplug the AC cord from the AC outlet. Then plug
it again.

8. Turn the power on by pressing the [STANDBY-ON]
button and the tray will close.

9. Press [DVD], [1], [2], [3], [4], and [DISPLAY]
buttons on the remote control unit in that order.
Fig. g appears on the screen.

10. Press [CLEAR/C.RESET] button on the remote
control unit.
Fig. h appears on the screen.

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.

11. To exit this mode, press [STANDBY-ON] button.

No. Appearance State

1 Reading... Sending files into the memory

2 Erasing... Erasing previous version data

3 Programming... Writing new version data

F/W Version Up Mode Model No : *******

VERSION : *.**

Please insert a DISC

for F/W Version Up.

EXIT: POWER

"

*******

" differ depending on the models.

Fig. a Version Up Mode Screen

VERSION : ************.ab6
Reading...

F/W Version Up Mode Model No : *******

VERSION : *.**

Fig. c Programming Mode Screen

"

*******

" differ depending on the models.

(*1)

VERSION : ************.ab6
Completed

SUM : 7ABC

F/W Version Up Mode

Model No : *******
VERSION : *.**

"

*******

" differ depending on the models.

Fig. e Completed Program Mode Screen

(*2)

MODEL : *******

Version

: *.**

Region

: *

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. g

"

*******

" differ depending on the models.

MODEL : *******

Version

: *.**

Region

: *

EEPROM CLEAR : OK

EXIT: POWEREEPROM CLEAR : CLEAR

"

*******

" differ depending on the models.

Fig. h

1-10-1 H97H4FIS

FUNCTION INDICATOR SYMBOLS

Note:

If a mechanical malfunction occurs, the power is turned off. When the power comes on again after that by
pressing [FUNCTION] button, an error message is displayed on the TV screen for 5 seconds.

TV screen

When reel or capstan mechanism is not functioning
correctly

When tape loading mechanism is not functioning cor­rectly

When cassette loading mechanism is not functioning
correctly

When the drum is not working properly

P-ON Power safety detection

MODE INDICATOR ACTIVE

When reel or capstan mechanism is not
functioning correctly

“A R” is displayed on a TV screen. (Refer to Fig. 1.)

When tape loading mechanism is not func­tioning correctly

“A T” is displayed on a TV screen. (Refer to Fig. 2.)

When cassette loading mechanism is not
functioning correctly

“A C” is displayed on a TV screen. (Refer to Fig. 3.)

When the drum is not working properly

“A D” is displayed on a TV screen. (Refer to Fig. 4.)

P-ON Power safety detection

“A P” is displayed on a TV screen. (Refer to Fig. 5.)

A

R

Fig. 1

A

T

Fig. 2

A

C

Fig. 3

Fig. 4

A

D

A

P

Fig. 5

1-11-1

BLOCK DIAGRAMS <VCR SECTION>

Servo / System Control Block Diagram

H9979BLS

M

LOADING

MOTOR

CAPSTAN MOTOR

CONTROL

HEAD

5 CTL(+)

6 CTL(-)

CN504

ACE HEAD ASSEMBLY

MAIN CBA

KEY- 1

POWER-LED

ST-S

T-REEL

CTL(+)

RESET

REC-SAF-SW

PG-DELAY

CTL(-)

D-V-SYNC

D-REC-H

RF-SW

H-A-SW

C-ROTA

END-S

949510480

34

2

31

7

(DECK ASSEMBLY)

T-REEL

Q515

RESET

Q506

S-REEL79

SW-POINT

AL+5V

VR501

TIMER+5V

S-REEL

PS502

TP502

KEY- 2

8

IIC-BUS SDA

IIC-BUS SDA

IIC-BUS SCL

AUDIO-MUTE-H

AUDIO-MUTE-H

H-A-COMP

V-ENV

P-ON-H

C-POW-SW

P-ON-H

C-POW-SW

P-DOWN-H

67

66

32 P-DOWN-H

OUTPUT-SELECT

SW506

TO VIDEO

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

SDA

SCL

IC502 (MEMORY)

83

IIC-BUS SCL

D-V-SYNC

D-REC-H

RF-SW

H-A-SW

C-ROTA

IIC-BUS SDA

H-A-COMP

V-ENV

DVD-POWER

DVD-POWER

C-SYNC

FRONT-AV

FRONT-AV

C-SYNC

OUTPUT-SELECT

IIC-BUS SCL

LD-SW9

AL+5V

AL+5V

SW507

LD-SW

AL+5V

D555

S-LED

TO POWER

SUPPLY BLOCK

DIAGRAM

TP501

Q507

SENS-INH

IC501

(SERVO/SYSTEM CONTROL)

AUDIO-SW1

AUDIO-SW1

62

AUDIO-SW2

AUDIO-SW2

63

OUTPUT-SELECT

5

6

SENSOR CBA

SENSOR CBA

END-S

ST-S

Q504

Q503

REC-SAFETY

END-S

CTL

97

TP503

CTL

23

CN502

C-FG

C-CONT

D-PFG

C-F/R

90

76

87

78

LM-FWD/REV

81

D-CONT77

AL+20.5V/+12V

AL+12V(2)

P-ON+15V

P-ON+5V

1

AL+20.5V/+12V

2 P-ON+5V

3 C-FG

4

C-F/R5C-CONT6GND7LM-FWD/REV

8

D-CONT9D-PFG10GND11AL+12V(2)12P-ON+15V

582082

6

17

161315

18

33

71

72

21

KEY SWITCH

KEY SWITCH

CYLINDER ASSEMBLY

DRUM

MOTOR

PG

SENSOR

M

M

CAPSTAN

MOTOR

MOTOR

DRIVE

CIRCUIT

REMOCON-IN 14

REMOCON-IN

TO DVD SYSTEM

CONTROL /SERVO

BLOCK DIAGRAM

<DVD SECTION>

Q502

Q508

D504

Q509

Q511

TIMER-LED

25

DVD-LED

29

VCR-LED

30

REC-LED

26

REC

D503

VCR

D502

DVD

D501

TIMER

AL+5V

DVD-8PIN-IN

DVD-8PIN-IN

42

TO DVD VIDEO

/AUDIO BLOCK

DIAGRAM

<DVD SECTION>

11KEY-1

33

POWER-LED

D651

CN508

CN509

AL+5V

POWER SW CBA

POWER

SW651

POWER

1-11-2

Video Block Diagram

H9979BLV

IIC-BUS SDA

IIC-BUS SCL

CYLINDER ASSEMBLY

VIDEO(R)-1

VIDEO-COM

VIDEO(L)-1

CN251

123

(DECK ASSEMBLY)

VIDEO (R)-1

HEAD

SP

HEAD

AMP

EP

HEAD

AMP

REC FMAGC

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

RF-SW

D-REC-H

C-ROTA

D-V-SYNC

H-A-SW

H-A-COMP

V-ENV

LUMINANCE

SIGNAL

PROCESS

CHROMINANCE

SIGNAL

PROCESS

V-ENV

H-A-COMP

H-A-SW

D-V-SYNC

RF-SW/C-ROTA

VIDEO (L)-1

HEAD

VIDEO (L)-2

HEAD

VIDEO (R)-2

HEAD

VIDEO(L)-2

VIDEO-COM

VIDEO(R)-2

456

TU701 (TUNER UNIT)

IC301

VIDEO SIGNAL PROCESS

/HEAD AMP

IC501 (OSD)

REC-VIDEO SIGNAL

SERIAL

DECORDER

485052

56

24

50

52

19

20

JK101

VIDEO-OUT1

VIDEO-IN1

61

63

969594

93

908988

87

CHARA.

INS.

CCD 1H DELAY

SP

BYPASS

MUTE

PB/EE

IN1

TUNER

IN1

TUNER

MUTE

PB/EE

FRONT

IN2

FRONT

IN2

AGC

PR

R

Y

C

P

RPRP

EP

Y. DELAY

Y/C

MIX

+

21

7978

AGC

VXO

OSD

CHARACTER

MIX

FBC

1/2

58 59

65

2928

6968

46 43

84

83

71

62

70

D-REC-H

80

BUFFER

Q104

DVD

VCR

TP751

V-OUT

WF3

TP301

C-PB

WF2

VIDEO OUT

MAIN CBA

54

TP504

RF-SW

WF1

OUTPUT-SELECT

DVD-VIDEO

TO SERVO/SYSTEM

CONTROL BLOCK DIAGRAM

X301

4.43MHz

C-SYNC

C-SYNC

67

IC751

(OUTPUT SELECT)

4

3

5

11109

SW CTL

MODE: SP/RECPB-VIDEO SIGNAL DVD VIDEO SIGNAL

25

PB-H OUT

44

VIDEO-OUT2

8

VIDEO-IN2

8

10 10

JACK-A CBA

19

20

JK1402

VIDEO

-OUT2

VIDEO

-IN2

CN2017

CN2018

BUFFER

Q103

JK752

VIDEO

-IN

TO DVD

VIDEO/AUDIO

BLOCK DIAGRAM

<DVD SECTION>

FRONT

1-11-3

Audio Block Diagram

H9979BLA

REC

AMP

100

3

AUTO

BIAS

2

1

+5V

+5V

Q404

Q406

BIAS

OSC

Q403

Q401

(PB=ON)

Q405

SWITCHING

D-REC-OFF

5

EQ

AMP

98

7

LINE

AMP

REC-ON

AUDIO HD-SW

CONTROL

MUTE

11

6

PB-ON

SP/LP-ON

P

TUNER

IN2

IN1

R

ALC

DET

ALC

IC301

(AUDIO SIGNAL PROCESS)

4

AUDIO-PB/REC

CN504

3 A-COM

1 AE-H

2 AE-H/FE-H

AUDIO

HEAD

AUDIO

ERASE

HEAD

ACE HEAD ASSEMBLY

FE HEAD

2 FE-H

1 FE-H-GND

CN501

MAIN CBA

PB-AUDIO SIGNALREC-AUDIO SIGNAL

Mode : SP/REC

71

AUDIO-MUTE-H

IIC-BUS SCL

IIC-BUS SDA

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

FULL

ERASE

HEAD

68 69

SERIAL

DECODER

(DECK ASSEMBLY)

12

16

INV

ATT

261

3

JK1402

AUDIO(R)-IN2

AUDIO(L)-IN2

AUDIO(R)-OUT2

AUDIO(L)-OUT2

JACK-A CBA

AUDIO(L)-IN2

55

AUDIO(R)-OUT2

11

CN2017CN2018

JK101

AUDIO(R)-OUT1

AUDIO(L)-OUT1

261

3

AUDIO(R)-IN1

AUDIO(L)-IN1

IC751

(OUTPUT SELECT)

12

13

14

15

2

1

11

10

9

SW

CTL

VCR

DVD

VCR

DVD

TO SERVO/ SYSTEM

CONTROL BLOCK

DIAGRAM

OUTPUT-SELECT

DVD AUDIO SIGNAL

REAR

JK751

AUDIO(R)

-OUT

AUDIO(L)

-OUT

SW CTL

13

IC1404

(INPUT SELECT)

12

11

14

17

15

13

FRONT

JK754

AUDIO(R)

-IN

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

FRONT-AV

SW

CTL

IC151 (SWITCHING)

PB/EE

PB/EE

PB/EEPBTUNER

IN2

IN1

IN1

AUDIO-SW-1

AUDIO-SW-2

152

4

1214151110

9

3

13

BUFFER

Q156

BUFFER

Q157

TU701(TUNER UNIT)

AUDIO OUT

21

DVD-AUDIO(R)-OUT

DVD-AUDIO(L)-OUT

TO DVD VIDEO/AUDIO

BLOCK DIAGRAM

<DVD SECTION>

Q753

Q754

AUDIO(L)-MUTE

AUDIO(R)-MUTE

TO DVD VIDEO/AUDIO

BLOCK DIAGRAM

<DVD SECTION>

TP401

JK1-A-

OUT(L)

1-11-4

Power Supply Block Diagram

H9979BLP

AC1001

F1001

T1.6A L 250V

LINE

FILTER

L1003

D001 - D004

BRIDGE

RECTIFIER

2

4

Q1001

Q1003

Q1008

Q1004

7

8

1

23

4

IC1001

ERROR

VOLTAGE DET

T0011

MAIN CBAPOWER SUPPLY CBA

HOT

CIRCUIT

.

BE

CAREFUL

.

20

19

18

17

16

15

14

13

12

11

1 EV+1.2V

2 EV+1.2V

3 EV+3.3V

4 EV+3.3V

5 EV+3.3V

7

DVD-P-ON+5V

8 EV+11V

9 EV+11V

6

DVD-P-ON+3.3V

17 PWRCON

C-POW-SW

P-ON+5V

P-ON-H

P-DOWN-H

P-ON+44V

AL-30V

AL+12V

TIMER+5V

AL+5V

AL+20.5V/+12V

Q053,Q054

SW+44V

Q1053,

Q1054

SW+12V

Q056

SW+5V

Q051,Q052

SW+20.5V

P-ON+15V

DVD P-ON+12V

CL051A CL051B CN051

1 AL+44V13 AL+12V35

AL+5V

5

7

AL+20.5V

7

CL052A CL052B

1 AL-30V

3 AL+2.8V

5 AL+4V

1

3

5

<TO PIN 67 OF IC501>

<TO PIN 32 OF IC501>

<TO PIN 66 OF IC501>

IC1003

+3.3V REG.

IC1002

+1.2V REG.

JUNCTION

CBA

CN051A

135

7

135

7

9

11

13

9

11

13

EV+3.3V

DVD-P-ON+3.3V

EV+5V

DVD-P-ON+5V

Q1055

CL1051

SW+5V

Q1052

SW+3.3V

Q058

Q057

SW+5V

HOT COLD

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

1-11-5

BLOCK DIAGRAMS <DVD SECTION>

H9979BLSD

DVD System Control / Servo Block Diagram

REMOTE

SENSOR

RM2001

REMOCON-IN

MAIN CBA

22

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

<VCR SECTION>

DVD-POWER

CN1051

DVD-PLAY 25

26

DVD-STOP 2627DVD-POWER 2324DVD-OPEN/CLOSE

24

25

Q2002

Q2012

EV+3.3V

EV+3.3V

D2001

DISCIN-L

D2002

PLAY

SW2021 STOP

SW2005 SKIP-UP

SW2006 SKIP-DOWN

SW2022 PLAY

DISCIN-L 20

SKIP-DOWN 19

SKIP-UP 21

PLAY 18

REMOTE-DVD 22

23

212019

EV+3.3V

SW2020

CN2015 CN2016

DVD-OPEN/CLOSE

2

DVD-OPEN/CLOSE

2

DVD OPEN/CLOSE CBA

1

EV+3.3V

1

IC101

61

SKIP-UP

82

DISCIN-L

59

PLAY

60

SKIP-DOWN

CN401

DVD MAIN CBA UNITDRIVE CBA

IC301

(SERVO DRIVE)

CN301

M

SLED

MOTOR

M

SPINDLE

MOTOR

(MICRO CONTROLLER)

+

-

+

-

+

-

+

-

+

-

+

-

+

-

SLED

MOTOR

DRIVE

FOCUS

ACTUATOR

DRIVE

SPINDLE

MOTOR

DRIVE

TRACKING

ACTUATOR

DRIVE

147

TRAY-IN

SLD

75

SPDL

76

TRACKING

DRIVE

148

FOCUS DRIVE

TO DIGITAL SIGNAL

PROCESS BLOCK

DIAGRAM

FS(+)

FS(-)

TS(+)

TS(-)

TO DVD

VIDEO/ AUDIO

BLOCK DIAGRAM

57

ADAC-MD

56 ADAC-MC

86 ADAC-ML

ADAC-MC

ADAC-ML

PCM-SCLK

88

AUDIO-MUTE

ADAC-MD

AUDIO-MUTE

163

PCM-SCLK

TRAY-IN

3SP(+)

4SP(-)

5TRAY-IN

6GND

7SL(-)

8SL(+)

VREF

IC202

(OP AMP)

15

16

14

13

12

11

17

18

23

645

312

25

24

27

26

SL-AMP

143

SP-ROT

EV+3.3V

1

2

6

7

5

3

146

FD-OFST

139

TD-OFST

ASPECT

21

ASPECT

13

12

81

14

66

DVD-PLAY

DVD-STOP

DVD-POWER

DVD-OPEN/CLOSE

535465

68

67

REMOTE-DVD

RESET73

RESET

IC462

1 3

+3.3V

+3.3V

RESET

IC461

2 1

140

SL-ADS

1 NOTE:

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

1-11-6

H9979BLD

Digital Signal Process Block Diagram

DATA(VIDEO/AUDIO) SIGNAL DVD VIDEO SIGNAL

DATA(AUDIO) SIGNAL

C16

D18

A17

B15

E14

F12

DVD-LD 8

CD-LD 10

PD-MONI 7

FS(+) 2

FS(-) 3

TS(+) 1

TS(-) 4

CN201

CN201

CN201

IC201

(SW)

IC101 (MICRO CONTROLLER)

FS

FS(+)

CD/DVD

FS(-)

TS(+)

TS(-)

TS

PICK-UP UNIT

DETECTOR

CD/DVD 19

Q251,Q252

CD DVD

AMP

Q253,Q254

AMP

4

1 3

6

GND(DVD-PD)

6

GND(CD-PD)

5

GND(LD)

9

TO DVD SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

RF

SIGNAL

PROCESS

CIRCUIT

DVD/CD

FORMATTER

AUDIO

I/F

VIDEO

I/F

NTSC/PAL

ENCODER

DMA

BCU

INST.

ROM

32BIT

CPU

DATA

RAM

INTERRUPT

CONTROLLER

WATCH DOG

TIMER

CPU

I/F

TIMER

DECODER

I/F

CPU

I/F

READ

MEMORY

DATA

RAM

DSP

DECODER

I/O

PROCESSOR

INST.

ROM

DATA

RAM

INST.

ROM

SERIAL

D/A

GENERAL

I/O

INTERRUPT

CONTROLLER

TIMER

WATCH DOG

TIMER

REMOTE

CONTROL

32BIT CPU

STREAM

I/F

EXTERNAL

MEMORY

I/F

ECC

UMAC

114

115

116

117

132

131

134

133

129

130

126

124

125

123

83

DEBUG

BCU

INST

RAM

DATA

RAM

D/A

D/A

D/A

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

156

158

VIDEO-Y(I)

VIDEO-C

VIDEO-Pr/Cr

VIDEO-Pb/Cb

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

177

SPDIF

170

PCM-BCK

171

PCM-DATA

169

PCM-LRCLK

152

151

23~51

SDRAM DATA(0-15)

SDRAM ADDRESS(0-10)

217

238

~

1

18

252

256

~~

IC103 (FLASH ROM)

FLASH

ROM

293638

45

~

~

DVD MAIN CBA UNIT

D/A

VIDEO-Y(I/P)

149

FDQ (0-15)

~

1

9

162548

~

192~212

FADR (0-19)

SDRAM DATA(0-15)

IC503 (SDRAM)

SDRAM

SDRAM ADDRESS(0-11)

2

134253

~~

222629

35

~~

Y(I/P)

C

Pr/Cr

Pb/Cb

Y(I)

1-11-7

H9979BLVD

DVD Video / Audio Block Diagram

IC601 (AUDIO DAC)

15

14116

DIGITAL

AUDIO OUT

JK1202

BUFFER

Q1351

IC1201

AUDIO+5V

(AMP)

CN601 CN1601

13 13

DVD-AUDIO(L)

15 15

DVD-AUDIO(R)

14 14

DVD-AUDIO(R)-MUTE

768

432

5

FROM

DVD

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

FROM

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

SERIAL

PORT

SERIAL

CONTROL

4X/8X

OVERSAMPLING

DIGITAL FILTER

/FUNCTION

CONTROLLER

ENPHANCED

MULTI-LEVEL

DELTA-SIGMA

MODULATOR

DAC

LPF+AMP

L-CH

R-CH

LPF+AMP

DAC

ZERO DETECT

SYSTEM CLOCK

7

6

213

DVD -

AUDIO(L)-OUT

AUDIO(L)-MUTE

DVD -

AUDIO(R)-OUT

AUDIO(R)-MUTE

PCM-BCK

SPDIF

PCM-DATA

PCM-LRCLK

ADAC-MD

ADAC-MC

ADAC-ML

PCM-SCLK

MAIN CBADVD MAIN CBA UNIT

DVD AUDIO SIGNALDATA(AUDIO) SIGNAL

18

18

SPDIF

AUDIO-MUTE

Q1204

WF9

5

WF7

WF8

CN601

11VIDEO-Y(I)

10 10VIDEO-C

44VIDEO-Pr/Cr

88VIDEO-Y(I/P)

66

VIDEO-Pb/Cb

VIDEO-Y(I)

VIDEO-C

VIDEO-Pr/Cr

VIDEO-Y(I/P)

33ASPECT

FROM DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

FROM DVD SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

DVD VIDEO SIGNAL

VIDEO-Pb/Cb

ASPECT

TO AUDIO

BLOCK DIAGRAM

<VCR SECTION>

15711

JK101

DVD-R

DVD-B

DVD-G

JK1401

S-VIDEO

OUT

3 4

2

1

YC

DVD-VIDEO

TO VIDEO

BLOCK DIAGRAM

<VCR SECTION>

IC102 (VIDEO DRIVER)

154dB AMP 2dB AMP

LPF DRIVER

10

4dB AMP 2dB AMP

LPF DRIVER

11

4dB AMP 2dB AMP

LPF DRIVER

5

4dB AMP 2dB AMP

LPF DRIVER

6

8dB AMP

DRIVER

4dB AMP 2dB AMP

LPF DRIVER

3

1 7

8

IC1403 (VIDEO DRIVER)

-6dB

Q1502

+5V

CN1601

WF6

1

6

WF4

WF5

DVD-P-ON+3.3V

DVD-8PIN-IN

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

<VCR SECTION>

1-12-1 SCPA1

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these spe­cial safety characteristics are identified in this manual
and its supplements; electrical components having
such features are identified by the mark " ! " in the
schematic diagram and the parts list. Before replacing
any of these components, read the parts list in this
manual carefully. The use of substitute replacement
parts that do not have the same safety characteristics
as specified in the parts list may create shock, fire, or
other hazards.

Notes:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.

2. All resistance values are indicated in ohms
(K=10

3

, M=106).

3. Resistor wattages are 1/4W or 1/6W unless other­wise specified.

4. All capacitance values are indicated in µF
(P=10

-6

µF).

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two dig­its are not shown for each component. In each
block of the diagram, there is a note such as shown
below to indicate these abbreviated two digits.

1-12-2 SCRK05

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES :

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defec­tive before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and REC modes on the schematics are as shown below:

5. How to read converged lines

6. Test Point Information

231

5.0
(2.5)

PLAY mode
STOP mode

5.0

The same voltage for
both PLAY & STOP modes

Indicates that the voltage
is not consistent here.

< DVD Section >

231

5.0
(2.5)
< >

PLAY mode
REC mode
DVD mode

5.0

The same voltage for
both PLAY, REC & DVD
modes

Indicates that the voltage
is not consistent here.

< VCR Section >

Unit: Volts

1-D3

Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

3

2

1

ABCD

1-B1

1-D3

AREA D3

AREA B1

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

1-12-3

H9979SCM1

Main 1/7 Schematic Diagram < VCR Section >

1-12-4

H9979SCM2

Main 2/7 , Sensor & Power SW Schematic Diagram < VCR Section >

1-12-5

H9979SCM3

Main 3/7 Schematic Diagram < VCR Section >

1-12-6

H9979SCM4

Main 4/7 Schematic Diagram < VCR Section >

1-12-7

H9979SCM5

Main 5/7 Schematic Diagram < VCR Section >

1-12-8

H9979SCM6

Main 6/7 Schematic Diagram < VCR Section >

1-12-9

H9979SCM7

Main 7/7 & DVD Open/Close Schematic Diagram < VCR Section >

1-12-10

Power Supply & Junction Schematic Diagram < VCR Section >

H9979SCP

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

1-12-11

H9979SCJ

Jack - A Schematic Diagram < VCR Section >

1-12-12

H9979SCD1

DVD Main 1/3 Schematic Diagram < DVD Section >

1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

1-12-13

H9979SCD2

DVD Main 2/3 Schematic Diagram < DVD Section >

1-12-14

IC101 Voltage Chart

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP P IN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 0 0 97 ----- -----

2 ~ ~ 343.43.4663.43.5983.43.4

3 0 0 35 0 0 673.23.2990.90.8

4 ~ ~36~ ~680 01000 0

5 ~ ~ 37 ~ ~ 69 3.4 3.4 101 2.4 2.4

6 3.4 3.4 38 0.4 0.3 70 3. 4 3.4 102 2. 2 2.2

7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9

8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0. 3

9 0 0 41 ~ ~ 73 3. 4 3.4 105 0 0

10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7

11 ~ ~ 43 ~ ~ 75 1. 7 1.8 107 3.4 3. 4

12 3.4 3.4 44 1.3 1. 3 76 2 .3 1. 8 108 ----- -----

13 ~ ~ 4 5 ~ ~ 77 ----- ----- 109 ----- -----

14 ~ ~ 4 6 ~ ~ 78 ----- ----- 110 1.9 1.9

15 ~ ~ 4 7 ~ ~ 79 ----- ----- 111 1.9 1.9

16 0 0 48 3. 4 3.4 80 3. 4 0.1 112 1.7 1. 7

17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1. 7

18 ~ ~ 50 ~ ~ 82 2. 8 2.8 114 1.7 1. 7

19 3. 4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7

20 0 0 52 0. 8 0.8 84 3. 4 3.4 116 1.7 1. 7

21 ----- ----- 53 0 0 85 0. 1 0.1 117 1.7 1.7

22 3. 5 3.5 54 0 0 86 3. 6 3.4 118 3.4 3. 4

23 ~ ~ 5 5 ----- ----- 87 0 0 119 2. 0 2.0

24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1. 7 1.7

25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1. 5 1.5

26 1.3 1.3 58 3.4 3. 4 90 ----- ----- 122 0 0

27 ~ ~ 5 9 0.6 3.4 91 ----- ----- 123 0. 3 0.1

28 3.4 3.4 60 0 0 92 ----- ----- 124 1.2 0.1

29 0 0 61 0 0 93 0 0 125 0.3 0.1

30 ~ ~

62 3. 4 3.4

94 ----- ----- 126 0.1 0.1

31 ~ ~

63 0 0

95 ----- ----- 127 2.3 2.3

32 ~ ~

64 0 0

96 ----- ----- 128 1.7 1.7

PIN.NO PLAY STOP PI N.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4

130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~

131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~

132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~

133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0

134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~

135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4

136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6

137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~

138 2.3 2.3 170 1.7 1.7 202 3.4 3. 4 234 1.9 2. 3

139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0

140 1.7 1.7 172 1.3 1.3 204 ~ ~ 236 1.3 1.3

141 3.4 3.4 173 0 0 205 0 0 237 ----- -----

142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~

143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3. 4 3.4

144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3. 4 3.3

145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9

146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0

147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9

148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3. 4 3.3

149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4

150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4

151 0.5 0.6 183 3.5 3.5 215 ----- ----- 247 0 0

152 0.5 0.4 184 ----- ----- 216 3. 4 3.4 248 3.3 3.4

153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3. 2 3

154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0

155 2.4 2.4 187 ----- ----- 219 1. 3 1.3 251 3.2 3.0

156 3.4 3.4 188 ----- ----- 220 ~ ~ 252 ~ ~

157 0 0 189 ----- ----- 221 ~ ~ 253 0 0

158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~

159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4

160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~

~ : V oltage is not cons ist ent ----- : Not use d Unit : Volt s

1-12-15

DVD Main 3/3 Schematic Diagram < DVD Section >

H9979SCD3

1-12-16

Main CBA Top View

SW-P

VR501

CTL

TP503

RF-SW

TP504

WF1

S-INH

TP501

V-OUT

TP751

WF3

C-PB

TP301

WF2

BHF300F01011A

BHF300F01011B

Sensor CBA Top View

BH9900F01013A

1-12-17

PIN 13 OF
CN1601

WF5

PIN 10 OF
CN1601

WF4

PIN 8 OF
CN1601

WF8

PIN 15 OF
CN1601

WF6

PIN 6 OF
IC1403

WF9

PIN 18 OF
CN1601

WF7

Main CBA Bottom View

BH9900F01013A

1-12-18

BH9900F01013C

DVD Open/Close

CBA Top View

DVD Open /Close

CBA Bottom View

Jack -A CBA Top View

Jack -A CBA Bottom View

BH9900F01022C

Power SW CBA Top View Power SW CBA Bottom View

BH9900F01013B

1-12-19

Power Supply CBA Top View

BH9900F01022A

Power Supply CBA Bottom View

Junction CBA

Top View

Junction CBA

Bottom View

BH9900F01022B

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

WAVEFORMS

WF3

WF2

WF3

UPPER

WF1

WF1

LOWER

TP751

TP751

TP504

UPPER

LOWER

TP504

TP301

WF4

WF6

Pin 6 of IC1403

WF5

VIDEO-C

WF7

AUDIO-L

1V 0.5ms

WF8

WF9

SPDIF 1V 0.1

µs

Pin 8 of CN1601

Pin 10 of CN1601

Pin 13 of CN1601

Pin 15 of CN1601

Pin 18 of CN1601

NOTE:

Input
VCR: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL)
(WF1~WF3)
DVD: POWER ON (STOP) MODE
(WF4~WF6)
CD: 1kHz PLAY
(WF7~WF9)

AUDIO-R 1V

0.5ms

V-OUT E-E 0.2V 20

µs

V-OUT 10V

50

µs

RF-SW 0.5V

C-PB
RF-SW 0.2V 5m

s

10V

VIDEO-Y 0.2V 20µs

VIDEO-C 0.2V 20µs

VIDEO-CVBS 0.5V 20µs

1-13-1

H9979WF

WIRING DIAGRAM < VCR SECTION >

NU

1

AUDIO(R)-OUT2

2NU3 GND

4

AUDIO(L)-IN25

SC2-IN
6

AL+12V
7

VIDEO-OUT28

VIDEO-IN2 10

1234567

8

10

GND99

CN2017

CN2018

ANT-IN ANT-OUT

123456789

1011121314151617181920

21

JK101

123456789

1011121314151617181920

21

JK1402

ACE HEAD ASSEMBLY

AUDIO HEAD

AUDIO

ERASE HEAD

CONTROL HEAD

M

LOADING

MOTOR

CYLINDER ASSEMBLY

AE-H1AE-H/FE-H2

A-COM3

AUDIO-PB/REC4

CTL(+)5

CTL(-)6

VIDEO-COM5

VIDEO(R)-26

VIDEO(R)-11

VIDEO-COM2

VIDEO(L)-2

3 VIDEO(L)-1

4

FE-H2

FE-H-GND1

CN501

CN504

CN251

FULL

ERASE HEAD

FE HEAD

VIDEO

(R)1

HEAD

VIDEO

(L)1

HEAD

VIDEO

(L)2

HEAD

VIDEO

(R)2

HEAD

(DECK ASSEMBLY)

SENSOR CBA

SENSOR CBA

MAIN CBA

123456789

10111213141516171819202122

2345678

9

10

11121314151617

18

JACK-A CBA

S-VIDEO

OUT

DIGITAL

AUDIO OUT

AUDIO(R)

-OUT

VIDEO

-IN

AUDIO(R)

-IN

TO DVD MAIN

CBA UNIT

CN401

(JW006)

AUDIO(L)

-OUT

REAR

FRONT

TO DVD MAIN

CBA UNIT

CN601

(JW007)

CL1051

CN1601

EV+1.2V

EV+1.2V

EV+3.3V

EV+3.3V

EV+3.3V

DVD-P-ON+3.3V

DVD-P-ON+5V

EV+11V

EV+11V

GND

GND

GND

GND

GND

GND

GND

PWRCON

PLAY

SKIP-DOWN

DISCIN-L

REMOTE-DVD

SKIP-UP

232425

26

DVD-POWER

DVD-OPEN/CLOSE

DVD-STOP

DVD-PLAY

VIDEO-Pr/Cr

I/P-SW(NU)

1

VIDEO-Y(I)

ASPECT

VIDEO-Pb/Cb

GND

GND

VIDEO-Y(I/P)

GND

VIDEO-C

GND

GND

DVD-AUDIO(L)

DVD-AUDIO(R)-MUTE

DVD-AUDIO(R)

AUDIO+5V

AUDIO+5V

SPDIF

TO WIRING

DIAGRAM

<DVD SECTION>

DVD

OPEN/ CLOSE

CBA

EV+3.3V1DVD-OPEN/CLOSE

2

1

2

CN2015CN2016 JW008

CN502

1

AL+20.5V/+12V

2

P-ON+5V3C-FG4C-F/R5C-CONT6GND7LM-FWD/REV

8

D-CONT9D-PFG10GND11AL+12V(2)12P-ON+15V

CN051

CN051ACL051A

CL052A

JW002

JW003

CL051B

CL052B

POWER SUPPLY CBA JUNCTION CBA

1 AL+44V

2 GND

3 AL+12V

4 GND

5 AL+5V5AL+5V

6 GND

7 AL+20.5V

8 GND

9 AL-30V

10 GND

11 AL+2.8V

12 GND

13 AL+4V

14 GND

1AL+44V

2GND

3AL+12V

4GND

6GND

7AL+20.5V

8GND

1AL-30V

2GND

3AL+2.8V

4GND

5AL+4V

6GND

23456

12345

6

7

8

112345678

9

1011121314

JW001

AC CORD

M

DRUM

MOTOR

PG

SENSOR

CAPSTAN

MOTOR

M

CAPSTAN

MOTOR

MOTOR

DRIVE

CIRCUIT

CN509

CN508 JW009

POWER SW CBA

GND

1 KEY-1

2

AL+5V(1)

3 POWER-LED

4

123

4

H9979WI

1-14-1

WIRING DIAGRAM < DVD SECTION >

DVD MECHANISM

DVD MAIN CBA UNIT

TO WIRING

DIAGRAM

<VCR SECTION>

TO MAIN CBA

CL1051

(JW006)

TO MAIN CBA

CN1601

(JW007)

CN301

3

4

TRAY-IN

GND

SL(-)

5

6

SP(-)

7

SP(+)

8 SL(+)

TRAY-IN

DRIVE CBA

M

SLED

MOTOR

M

SPINDLE

MOTOR

GND

VIDEO-Pr/Cr

GND

VIDEO-Pb/Cb

VIDEO-Y(I/P)

GND

VIDEO-C

GND

GND

456

I/P-SW(NU)

ASPECT

2

VIDEO-Y(I) 1

3

789

101112

DVD-AUDIO(R)-MUTE

DVD-AUDIO(L)

AUDIO+5V

DVD-AUDIO(R)

AUDIO+5V

SPDIF

1314151617

18

CN401

CN601

PICK UP UNIT

CN201

123456789

1011121314151617181920

TS(+)

TS(-)

FS(-)

CD-LD

FS(+)

GND(DVD-PD)

GND(CD-PD)

PD-MONI

DVD-LD

VREF

E

GND

B

DVD-P-ON+5V

CD/DVD

DAC

F

GND(LD)

DETECTOR

FSTS

7

91123654

2345678

9

10111213141516171819202122

EV+1.2V

EV+1.2V

EV+3.3V

EV+3.3V

EV+3.3V

DVD-P-ON+3.3V

DVD-P-ON+5V

EV+11V

EV+11V

GND

GND

GND

GND

GND

GND

GND

PWRCON

REMOTE-DVD

232425

26

DVD-POWER

DVD-OPEN/CLOSE

DVD-STOP

27

DVD-PLAY

PLAY

SKIP-DOWN

DISCIN-L

SKIP-UP

H9979WID

1-14-2

1-15-1 H9910PIN

IC PIN FUNCTION DESCRIPTIONS

IC501( SERVO / SYSTEM CONTROL IC )

“H” ≥ 4.5V, “L” ≤ 1.0V

Pin
No.

IN/

OUT

Signal

Name

Function

Active

Level

1IN

SC2-IN

Input Signal from
Pin 8 of SCART2

A/D

2IN

PG-DELAY

Video Head
Switching Pulse
Signal Adjusted
Voltage

A/D

3IN

POW-SAF

P-ON Power
Detection Input
Signal

A/D

4IN

END-S

Tape End Position
Detect Signal

A/D

5IN

AFC

Automatic
Frequency Control
Signal

A/D

6IN

V-ENV

Video Envelope
Comparator Signal

A/D

7IN

KEY-1

Key Scan Input
Signal 1

A/D

8IN

KEY-2

Key Scan Input
Signal 2

A/D

9IN

LD-SW

Deck Mode
Position Detector
Signal

A/D

10 IN

ST-S

Tape Start Position
Detector Signal

A/D

11 -

NU Not Used

-

12 -

NU Not Used

-

13 OUT

D-V- SYNC

Dummy V-sync
Output

H/Hi-z

14 IN

REMOCON

-IN

Remote Control
Sensor

L

15 OUT

C-ROTA

Color Phase Rotary
Changeover SIgnal

H/L

16 OUT

H-A-SW

Video Head Amp
Switching Pulse

H/L

17 IN

H-A-COMP

Head Amp
Comparator Signal

H/L

18 OUT

RF-SW

Video Head
Switching Pulse

H/L

19 -

NU Not Used

-

20 OUT

FRONT-AV

Front AV Output
Signal

H/L

21 OUT

DVD­POWER

DVD Power Control
Signal

H

22 -

NU Not Used

-

23 OUT

POWER­LED

“POWER” LED
Signal Output

H/L

24 -

NU Not Used

-

25

OUT

TIMER­LED

“TIMER” LED
Signal Output

H

26

OUT REC-LED

Recording LED
Control Signal

H

27 -

NU Not Used

-

28 -

NU Not Used

-

29 OUT DVD-LED

“DVD” LED Signal
Output

H/L

30 OUT VCR-LED

“VCR” LED Signal
Output

H/L

31 IN

REC-SAF­SW

Recording Safety
SW Detect (With
Record tab=”L”/
With out Record
tab=”H”)

H/L

32 IN P-DOWN -H

Power Voltage
Down Detector
Signal

H

33 OUT

D-REC-H

Delayed Record
Signal

H

34 IN

RESET

System Reset
Signal (Reset=”L”)

L

35 IN

Xcin Sub Clock

-

36 OUT

Xcout Sub Clock

-

37 -

Vcc Vcc

-

38 IN

Xin Main Clock Input

-

39 OUT

Xout Main Clock Input

-

40 -

GND Vss(GND)

-

41 -

NU Not Used

-

42 IN

DVD-8PIN­IN

SCART 8Pin DVD
Input Control
Signal

H/L

43 IN

CLKSEL Clock Select (GND)

L

44 IN

OSCin

Clock Input for
letter size

-

45 OUT

OSCout

Clock Output for
letter size

-

46 -

NUB Not Used

-

47 IN

LP LP

-

48 IN

FSC-IN
[4.43MHz]

4.43MHz Clock
Input

-

49 -

OSDVss OSDVss

-

50 IN

OSD-V-IN

OSD Video Signal
Input

-

51 -

NU Not Used

-

52 OUT

OSD-V­OUT

OSD Video Signal
Output

-

53 -

OSDVcc OSDVcc

-

54 -

HLF

LPF Connected
Terminal (Slicer)

-

55 -

NU Not Used

-

Pin
No.

IN/

OUT

Signal

Name

Function

Active

Level

1-15-2 H9910PIN

Notes:

Abbreviation for Active Level:

PWM -----Pulse Wide Modulation
A/D--------Analog - Digital Converter

56 -

NU Not Used

-

57 -

NU Not Used

-

58 IN

C-SYNC

Composite
Synchronized
Pulse

PULSE

59 OUT

8POUT-1

Control SCART 1
8Pin Level by
using 8POUT-1 and
8POUT-2

H/L

60 OUT

8POUT-2

Control SCART 1
8Pin Level by
using 8POUT-1 and
8POUT-2

Hi-z/L

61 -

NU Not Used

-

62 OUT

AUDIO­SW1

Audio IN/OUT
Control Signal

H/L

63 OUT

AUDIO­SW2

Audio IN/OUT
Control Signal

H/L

64 -

NU Not Used

-

65 -

NU Not Used

-

66 OUT

C-POW-SW

Capstan Power
Switching Signal

H/L

67 OUT

P-ON-H

Power On Signal at
High

H

68 -

NU Not Used

-

69 -

NU Not Used

-

70 -

NU Not Used

-

71 OUT

IIC-BUS­SCL

IIC BUS Control
Clock

H/L

72

IN/

OUT

IIC-BUS­SDA

IIC BUS Control
Data

H/L

73 -

NU Not Used

-

74 -

NU Not Used

-

75 IN

DVD­POWER­MONITOR

DVD Power Monitor
Signal (P-off=“L”, P­on=“H”)

H/L

76 OUT

C-CONT

Capstan Motor
Control Signal

PWM

77 OUT

D-CONT

Drum Motor
Control Signal

PWM

78 OUT

C-F/R

Capstan Motor
FWD/REV Control
Signal (FWD=“L”/
REV=“H”)

H/L

79 IN

S-REEL

Supply Reel
Rotation Signal

PULSE

80 IN

T- R E E L

Take Up Reel
Rotation Signal

PULSE

81 OUT

LM-FWD/
REV

Loading Motor
Control Signal

H/L/
Hi-z

82 OUT

OUTPUT­SELECT

Output Select H/L

83 OUT

AUDIO­MUTE-H

Audio Mute Control
Signal (Mute = “H”)

H

Pin
No.

IN/

OUT

Signal

Name

Function

Active

Level

84 -

NU Not Used

-

85 -

NU Not Used

-

86 -

NU Not Used

-

87 IN

C-FG

Capstan Motor
Rotation Detection
Pulse

PULSE

88 -

NU Not Used

-

89 -

NU Not Used

-

90

IN

D-PFG

Drum Motor Phase/
Frequency
Generator

PULSE

91 -

AMPVREF
OUT

V-Ref for CTL AMP

-

92 -

AMPVREF
in

V-Ref for CTL AMP

-

93 -

P80/C P80/C Terminal

-

94

IN/

OUT

CTL (-)

Playback/Record
Control Signal (-)

H/L

95

IN/

OUT

CTL (+)

Playback/Record
Control Signal (+)

H/L

96 -

AMPC

CTL AMP
Connected
Te r mi n a l

-

97 -

CTL

To Monitor for CTL
AMP Output

PULSE

98 -

AMPVcc AMPVcc

-

99 -

AVcc

A/D Converter
Power Input/
Standard Voltage
Input

-

100 IN

AGC

IF AGC
Comparator Signal

A/D

Pin
No.

IN/

OUT

Signal

Name

Function

Active

Level

1-16-1 H9979LE

LEAD IDENTIFICATIONS

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
S: Source
G: Gate
D: Drain

E C B

2SA1175(F,H,J)
2SC2785(F,H,J)
BA1F4M-T
BN1F4M-T
BN1L4M-T
KRA103M-AT/P
KRC103M
KRC103M-AT/P
KRC103S-RTK/P
KTA1266(GR)
KTA-1266-GR-AT/P
KTA1267(GR,Y)
KTC3199(BL,GR,Y)
RN2204(TE4 F T)
KTA1267-GR-AT/P
KTA1267Y-AT/P
KTC3199-(BL,GR,Y)-AT/P

E C B

EL817A
EL817B
PS2561A-1(Q,W)

GDS

2SK3566

1 4

8 5

KIA4558P/P
UTC4558
RC4580IP

81

80

31

100

50

30

1

51

LA71750EM-MPB-E
M3776AMCH-AA5GP

16

9

8

CD4053BCSJX
CD4053BNSR
TC4053BF(N)
TC4053BF(EL N F)
CD4052BNSR
CD4052BCSJX
TC4052BF(EL)
TC4052BF(ELNF)

1

MID-32A22F
PT204-6B-12

E

C

5

4

8

1

BR24L02F-WE2
CAT24WC02WI-TE13

B1 E B2

C1 C2

FMG4A T148
RN1511(TE85R)
RN1511(TE85R.F)

FA1F4M-T1B
KRC103S RTK
KTC3875S-Y-RTK/P

C

BE

8

5

4

1

MM1636XWRE

2SA1015-GR(TPE2)
2SA1015-GR(TE2 F T)
2SC1815-BL(TPE2)
2SC1815-GR(TPE2)
2SC1815-BL(TE2 F T)
2SC1815-GR(TE2 F T)
2SC1815-Y(TE2 F T)
2SC1815-Y(TPE2)
2SC2120-Y(TPE2)
2SC2120-Y(TE2 F T)

2SC3266-Y(TPE2 F)
2SC3266-Y(TPE2)
2SA1020-Y(TE6 F M)
2SA1020(Y)
KTA1281(Y)
KTA1281Y-AT/P
KTC3203(Y)
KTC3203-Y-AT/P
KTC3205(Y)
KTC3205-Y-AT/P

16

9

8

1

MM1637XVBE

45

312

PQ1LAX95MSPQ

1: VREF
2: GND
3: VC
4: VIN
5: VOUT

1

2

4

3

1: Anode
2: Cathode
3: Emitter
4: Collector

1-17-1 H9975CEX

EXPLODED VIEWS

Cabinet

2B15

2B2

2L051

2L051

2L051

2B3

2L011

1B1

2L071

2L071

2L071

2L071

2L020

2L022

2B40

2L021

2L021

2L021

1B2

L0-9

L0-9

DVD Main
CBA Unit

Sensor CBA

A5

AC1001

2L053

2L082

2L062

2B33

2B11

2B15

2B15

DVD Open/Close CBA

JW008

JW003

JW006

JW007

JW002

JW001

2L091

2L012

2L054

2B55

B

Main CBA

Jack-A CBA

Power Supply CBA

Junction CBA

2L021

F1001

A

B

A

A3

A7

A1X

2B9

2B5

2L012

2L041

2L041

2L041

2L041

2L041

2L041

A2

2L041

2L041

2B18

2B16

2B46

A22

A22

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

A10

2L020

2B54

2L012

2L020

2L020

2B15

2L054

2B13

JW009

Power SW CBA

These FFC cables are included
in 1B2 (DVD mechanism).

2B21

2B15

1-17-2 H9979PEX

Packing

S1

A14

X4

Unit

S3

S2

S2

S2

S2

X5

S7

Some Ref. Numbers
are not in sequence.

X20A

X20B

X43

X3

X1

20050622 1-18-1 H9979CA

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1X FRONT ASSEMBLY H9979ED 1VM220899

A2 TOP CASE(D5 PAL FTZ) H9700ED 0VM101358

A3 CHASSIS H9900ED 1VM220317

A7 PANEL BOTTOM H9700ED 0VM204530

A10! RATING LABEL(U) H9979ED or ----------

! RATING LABEL(D) H9979ED ----------

A14 LABEL SERIAL NO. HE240ED or ----------

BAR CODE LABEL H9979ED ----------

A22 CHASSIS FOOT H79P9JD 0VM412315

1B1 DECK ASSEMBLY CZD014/VM25C0 N25C0FL

1B2 DVD MECHA E6160(FG LESS) N79F0JVM N79F0JVM

2B2 TOP BRACKET H9700ED 0VM204531

2B3 RODER HOLDER H9600UD 0VM306676

2B5 SHEILD CYLINDER H9700ED 0VM306780

2B9 CUSHION HC460ED 0VM413251

2B16 TAPE HIMELON H9206JD 0VM413956

2B18 FIBER TOP CASE HC460ED 0VM412906

2B21! LASER CAUTION LABEL H9900ED ----------

2B40 PARTITION PLATE H9700ED 0VM306765

2B54 PLATE GROUND(RCA) H9700ED 0VM306867

2B55 PLATE GROUND(21P) H9700ED 0VM416444

2L011 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L012 SCREW S-TIGHT M3X6 BIND HEAD+ GBMS3060

2L020 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L021 SCREW P-TIGHT 3X12 BIND HEAD+ GBMP3120

2L022 P-TIGHT SCREW 3X8 BIND + GBMP3080

2L041 SCREW P-TIGHT 3X6 BIND HEAD+ GBCP3060

2L051 SCREW P-TIGHT M3X6 BIND HEAD+ GBMP3060

2L054 SCREW P-TIGHT M3X6 BIND HEAD+ GBMP3060

2L071 SCREW P-TIGHT M3X10 WASHER HEAD+ GCMP3100

2L091 SCREW P-TIGHT M3X8 BIND HEAD+ GBCP3080

L0-9 P-TIGHT SCREW 3X8 BIND + GBMP3080

PACKING

S1 GIFT BOX CARTON H9979ED 1VM321218

S2 STYROFOAM H9600UD 0VM204474

S3 UNIT BAG E5500UD 0VM411683

S7 21P PAD HC463FD 0VM413384

ACCESSORIES

X1 REMOTE CONTROL UNIT NB142ED NB142ED

X3 RF CORD PAL 1.2M or WPZ0122LG001

RF CABLE CC1001020012010 WPZ0122LW001

X4 ACCESSORY BAG E5795ED 0VM416059

X5 21P CABLE(BYR SUPPLY) H9300ED 0VMN03276

X20A! OWNERS MANUAL H9979ED 1VMN21047

X20B! OWNERS MANUAL(GE) H9979ED 1VMN21046

X43 RETURN SHEET (BYR SUPPLY) HG4F1ED 1VMN20202

20050622 1-19-1 H9979EL

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

DVD MAIN CBA UNIT

MCV CBA

MAIN CBA

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79GMJEP

Ref. No. Description Part No.

MCV CBA
Consists of the following:

1VSA11779

MAIN CBA (MCV-A)
POWER SW CBA (MCV-B)
DVD OPEN/CLOSE CBA (MCV-C)
SENSOR CBA

---------

---------

--------­1VSA11290

Ref. No. Description Part No.

MAIN CBA (MCV-A)
Consists of the following:

---------

CAPACITORS

C056 ELECTROLYTIC CAP. 47µF/25V M or CE1EMASDL470

ELECTROLYTIC CAP. 47µF/25V M CE1EMASTL470
C058 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C059 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101
C062 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C063 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASTL470
C104 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C107 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C112 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C113 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C114 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C116 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C117 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C118 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C121 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C122 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C123 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C124 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C125 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C126 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C127 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C128 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C129 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMAVSL101
C130 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7
C131 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7
C132 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7
C133 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C135 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C136 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101
C151 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C152 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C153 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C154 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C155 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C156 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C159 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C251 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C252 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C253 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C254 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C301 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C302 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C303 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C305 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C306 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C307 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C308 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C309 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680

C310 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C311 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

Ref. No. Description Part No.

20050622 1-19-2 H9979EL

C312 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C313 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL1R0
C314 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C315 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C316 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C317 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C319 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C320 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C321 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C322 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C323 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C324 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C325 CHIP CERAMIC CAP. B K 8200pF/50V CHD1JK30B822
C326 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C328 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C329 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C331 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C333 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C334 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C335 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101

C336 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221
C337 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C339 CHIP CERAMIC CAP. CH J 120pF/50V or CHD1JJ3CH121

CHIP CERAMIC CAP. CG J 120pF/50V CHD1JJ3CG121
C340 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0

C341 CHIP CERAMIC CAP.(1608) CH D 10pF/50V or CHD1JD3CH100

CHIP CERAMIC CAP.(1608) CG D 10pF/50V CHD1JD3CG100

C342 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C343 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C344 ELECTROLYTIC CAP. 4.7µF/25V M NP H7 CP1EMAVSB4R7
C345 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47
C346 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C347 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C349 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMAVSLR47
C350 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104
C402 FILM CAP.(P) 0.018µF/50V J or CMA1JJP00183

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

C403 CERAMIC CAP. B K 470pF/100V CCD2AKS0B471
C404 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C405 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

C407 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C408 CHIP CERAMIC CAP. B K 1800pF/50V CHD1JK30B182

C409 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CHIP CERAMIC CAP. CG J 33pF/50V CHD1JJ3CG330

Ref. No. Description Part No.

C410 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C411 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C412 ELECTROLYTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330
C413 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C414 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C415 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7
C417 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220
C418 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C419 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C421 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C423 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C426 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C427 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C429 CHIP CERAMIC CAP.(1608) CH J 68pF/50V or CHD1JJ3CH680

CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680
C502 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C505 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C506 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMAVSL221

C507 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C508 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C509 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C510 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C511 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP.(1608) CG J 100pF/50V CHD1JJ3CG101
C512 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C514 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CHIP CERAMIC CAP. CG J 330pF/50V CHD1JJ3CG331
C515 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C516 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C517 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V or CHD1JK30B223

CHIP CERAMIC CAP.(1608) B K 0.022µF/25V CHD1EK30B223
C518 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMAVSL220

C519 CHIP CERAMIC CAP. CH J 560pF/50V or CHD1JJ3CH561

CHIP CERAMIC CAP. CG J 560pF/50V CHD1JJ3CG561
C521 ELECTROLYTIC CAP. 22µF/6.3V M H7 CE0KMASSL220
C522 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C524 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C527 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C530 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C531 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472
C533 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C534 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C535 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C538 CHIP CERAMIC CAP. CH J 180pF/50V or CHD1JJ3CH181

CHIP CERAMIC CAP. CG J 180pF/50V CHD1JJ3CG181
C539 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

Ref. No. Description Part No.

20050622 1-19-3 H9979EL

C540 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472

C541 CHIP CERAMIC CAP. CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180

C542 CHIP CERAMIC CAP. CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180

C543 CHIP CERAMIC CAP. CH J 27pF/50V or CHD1JJ3CH270

CHIP CERAMIC CAP. CG J 27pF/50V CHD1JJ3CG270

C544 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C545 CHIP CERAMIC CAP.(1608) CH J 22pF/50V or CHD1JJ3CH220

CHIP CERAMIC CAP. CG J 22pF/50V CHD1JJ3CG220

C546 CHIP CERAMIC CAP. CH J 18pF/50V or CHD1JJ3CH180

CHIP CERAMIC CAP. CG J 18pF/50V CHD1JJ3CG180

C547 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C548 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C549 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C550 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C553 ELECTROLYTIC CAP. 22µF/10V M H7 CE1AMAVSL220
C555 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C703 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C704 CERAMIC CAP.(AX) SL J 39pF/50V CCA1JJTSL390
C705 ELECTROLYTIC CAP. 100µF/6.3V H7 CE0KMAVSL101
C706 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CHIP CERAMIC CAP.(1608) B K 0.047µF/25V CHD1EK30B473
C707 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C709 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C710 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C711 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1J K30B103
C712 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C714 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C751 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C752 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M CE1AMASTL470
C753 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASDL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASTL4R7
C754 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7

C755 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

C756 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C757 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMASSL470
C758 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C784 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471
C1036 CHIP CERAMIC CAP.(1608) B K 1µF/10V CHD1AK30B105
C1039 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1040 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101
C1042 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C1050 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1051 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334

C1056 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1201 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C1202 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100

C1205 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C1206 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CHIP CERAMIC CAP. CG J 220pF/50V CHD1JJ3CG221

C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/50V or CHD1JJ3CH470

CHIP CERAMIC CAP. CG J 47pF/50V CHD1JJ3CG470

C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/50V or CHD1JJ3CH470

Ref. No. Description Part No.

CHIP CERAMIC CAP. CG J 47pF/50V CHD1JJ3CG470

C1221 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100

C1222 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100

C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104
CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104

C1247 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471

C1249 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASTL470

C1353 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104

C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CHIP CERAMIC CAP.(1608) CG J 100pF/50V CHD1JJ3CG101

C1355 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZB0F105

CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C1359 CHIP CERAMIC CAP. CH D 9pF/50V CHD1JD3CH9R0
C1393 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C1394 ELECTROLYTIC CAP. 47µF/6.3V M or CE0KMASDL470

ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASTL470
C1421 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V or CHD1EK30B104

CHIP CERAMIC CAP.(1608) B K 0.1µF/16V CHD1CK30B104
C1441 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1442 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C1523 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C1524 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101
C1535 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1536 ELECTROLYTIC CAP. 22µF/6.3V M or CE0KMASDL220

ELECTROLYTIC CAP. 22µF/6.3V M CE0KMASTL220

C2002 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C2004 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101
C2012 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C2013 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

CONNECTOR

CN051 242 SERIES CONNECTOR 224202114W1 J322C14TG001

DIODES

D051 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D052 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
D054 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

D056 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS

ZENER DIODE MTZJT-7718B QDTB00MTZJ18

D057 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D058 ZENER DIODE MTZJT-774.3C QDTC0MTZJ4R3

D101 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D103 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D106 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D107 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

Ref. No. Description Part No.

20050622 1-19-4 H9979EL

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D108 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D109 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D110 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D111 ZENER DIODE DZ-5.1BSCT265 or NDTC0DZ5R1BS

ZENER DIODE MTZJT-775.1C QDTC0MTZJ5R1

D115 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D118 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D119 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D121 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D301 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D501 LED(RED) 204HD/E NPQZ00204HDE

D502 LED(G REEN) 204-10GD/S957 NPQZ10GDS957

D503 LED(G REEN) 204-10GD/S957 NPQZ10GDS957

D504 LED(RED) 204HD/E NPQZ00204HDE

D510 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D511 ZENER DIODE DZ-7.5BSAT265 or NDTA0DZ7R5BS

ZENER DIODE MTZJT-777.5A QDTA0MTZJ7R5

D512 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D555 LED MIE-534A2 or NPZZM1E534A2

LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q QPQQS1R563ST

D701 ZENER DIODE DZ-33 BSDT265 or NDTD 00DZ33BS

ZENER DIODE MTZJT-7733D QDTD00MTZJ33

D1052 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1053 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1054 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1057 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D2001 LED(GREEN) 204-10GD/S957 NPQZ10GDS957

D2002 LED(GREEN) 204-10GD/S957 NPQZ10GDS957

ICS

IC102 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102

IC151 IC SWITCHING TC4052BF(ELN F) or QSZBA0TTS162

IC SWITCHING CD 4052BNSR or NSZBA0TTY091

IC SWITCHING CD4052BCSJX or NSZBA0TF3079

IC SWITCHING TC4052BF(EL) QSZBA0TTS096

IC301 IC Y/C/A LA71750EM-MPB-E QSZBA0RSY020

IC501 SYSCON IC M3776AMCH-AA5GP QSZAB0RHT064

IC502 IC BR24L02F-WE2 or QSZBA0TRM068

IC CAT24WC02WI-TE13 NSZBA0TBG007

IC751 IC SWITCH TC4053BF(EL N F) or QSZBA0TTS163

IC ANALOG MULTIPLEXER CD4053BNSR or NSZBA0TTY093

IC ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

IC SWITCH TC4053BF(N) QSMBA0STS002

IC1002 VOLTAGE REGULATOR PQ1LAX95MSPQ QSZBA0TSH053

IC1003 VOLTAGE REGULATOR PQ1LAX95MSPQ QSZBA0TSH053

IC1201 IC OP AMP KIA4558P/P or NSZBA0SJY035

IC OP AMP RC4580IP or NSZBA0STY173

IC OP AMP UTC4558 NSZBA0S2H001

IC1403 DRIVER FOR DVD MM1636XWRE QSZBA0TMM108

IC1404 IC SWITCH TC4053BF(EL N F) or QSZBA0TTS163

Ref. No. Description Part No.

IC ANALOG MULTIPLEXER CD4053BNSR or NSZBA0TTY093

IC ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

IC SWITCH TC4053BF(N) QSMBA0STS002

COILS

L053 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

L101 BEAD CORE ASSEMBLY H9900ED 1VSA11421
L122 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K-

841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007
L251 INDUCTOR 5.6µH-K-26T LLAXKATTU5R6
L302 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L402 INDUCTOR 47µH-K-5FT LLARKBSTU470
L501 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

L502 PCB JUMPER D0.6-P5.0 JW5.0T
L503 INDUCTOR 1.8µH-K-26T LLAXKATTU1R8
L701 INDUCTOR 15µH-K-26T LLAXKATTU150

L704 PCB JUMPER D0.6-P5.0 JW5.0T
L1251 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1351 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1521 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K-

841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007
L2001 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

TRANSISTORS

Q051 TRANSISTOR KTA1281Y-AT/P or NQVYKTA1281P

TRANSISTOR 2SA1020-Y(TE6 F M) or QQSY2SA1020F

TRANSISTOR KTA1281(Y) or NQSY0KTA1281

TRANSISTOR 2SA1020(Y) QQSY02SA1020

Q052 TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q053 TRANSISTOR RN2204(TE4 F T) or QQSZ0RN2204F

RES. BUILT-IN TRANSISTOR BN1L4M-T QQSZ00BN1L4M

Q054 TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q056 TRANSISTOR KTC3205-Y-AT/P or NQSYKTC3205P

TRANSISTOR 2SC3266-Y(TPE2 F) or QQSY2SC3266F

TRANSISTOR KTC3205(Y) or NQSY0KTC3205

TRANSISTOR 2SC3266-Y(TPE2) QQSY02SC3266

Q057 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q058 TRANSISTOR KTA1267Y-AT/P or NQSYKTA1267P

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR 2SA1175(J) or QQSJ02SA1175

TRANSISTOR 2SA1175(H) or QQSH02SA1175

TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(Y) or NQSY0KTA1267

TRANSISTOR KTA1267(GR) NQS10KTA1267

Q104 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

Ref. No. Description Part No.

20050622 1-19-5 H9979EL

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q107 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q108 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q156 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S

Q157 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S

Q302 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q401 CHIP TRANSISTOR RN1511(TE85R.F) or QQ2Z0RN1511F

CHIP TRANSISTOR FMG4A T148 or QQ2Z000FMG4A

CHIP TRANSISTOR RN1511(TE85R) QQ2Z00RN1511

Q403 TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q404 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q405 RES. BUILT-IN TRANSISTOR KRA103M-AT/P or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q406 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S

Q502 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q506 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

Q507 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

Ref. No. Description Part No.

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q508 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q509 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q511 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q513 TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR KRC103M or NQSZ0KRC103M

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q514 TRANSISTOR KTC3199-BL-AT/P or NQS5KTC3199P

TRANSISTOR 2SC1815-BL(TE2 F T) or QQS22SC1815F

TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815

Q515 TRANSISTOR KTC3199-BL-AT/P or NQS5KTC3199P

TRANSISTOR 2SC1815-BL(TE2 F T) or QQS22SC1815F

TRANSISTOR KTC3199(BL) or NQS50KTC3199

TRANSISTOR 2SC1815-BL(TPE2) QQS202SC1815

Q753 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q754 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1052 TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q1053 TRANSISTOR KTA1267Y-AT/P or NQSYKTA1267P

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR 2SA1175(J) or QQSJ02SA1175

Ref. No. Description Part No.

20050622 1-19-6 H9979EL

TRANSISTOR 2SA1175(H) or QQSH02SA1175

TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(Y) or NQSY0KTA1267

TRANSISTOR KTA1267(GR) NQS10KTA1267

Q1054 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1055 TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120

Q1204 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q1351 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1352 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1502 TRANSISTOR KRC103S-RTK/P or NQ1ZKRC103SP

CHIP TRANSISTOR KRC103S RTK or NQ1Z0KRC103S

CHIP TRANSISTOR FA1F4M-T1B QQ8Z00FA1F4M

Q1503 CHIP TRANSISTOR KTC3875S-Y-RTK/P NQ1YKTC3875S

Q2002 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q2012 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

Ref. No. Description Part No.

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R050 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R051 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R052 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R053 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R054 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R055 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R056 CHIP RES.(1608) 1/10W J 1 Ω RRXAJR5Z01R0
R058 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R059 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R060 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R061 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R062 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R063 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R064 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R065 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R067 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R070 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R071 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R072 CARBON RES. 1/6W J 0.47 Ω or RCX6JATZ0R47

CARBON RES. 1/4W J 0.47 Ω RCX4JATZ0R47
R105 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R112 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R113 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R116 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R119 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680
R121 CARBON RES. 1/6W J 15k Ω or RCX6JATZ0153

CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R122 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R128 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R129 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R130 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R131 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R132 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R133 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R134 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R135 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R136 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R137 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R138 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R139 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R140 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R141 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R142 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R143 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R144 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R145 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R146 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R147 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R148 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R149 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R150 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R156 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R157 CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R158 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R159 CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R160 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

Ref. No. Description Part No.

20050622 1-19-7 H9979EL

R251 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R252 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R301 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R303 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R305 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R306 CHIP RES.(1608) 1/10W J 5.6M Ω RRXAJR5Z0565
R307 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JATZ0330

R310 CARBON RES. 1/6W J 33 Ω or RCX6JATZ0330

CARBON RES. 1/4W J 33 Ω RCX4JATZ0330
R311 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R314 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R316 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R319 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R320 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R321 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R322 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R323 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R324 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R325 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R326 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R327 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R328 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R330 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R331 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R332 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R333 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R334 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R335 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R336 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R337 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R341 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R401 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R402 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R405 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R406 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R407 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R408 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R409 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R410 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R411 CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273
R412 CHIP RES.(1608) 1/10W J 120 Ω RRXAJR5Z0121
R413 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R414 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R415 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R416 CHIP RES.(1608) 1/10W J 560 Ω RRXAJR5Z0561
R417 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R418 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R419 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R420 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683

R421 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R423 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R424 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R427 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R428 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R501 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R502 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R503 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R504 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R507 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R509 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181
R511 CARBON RES. 1/6W G 3.6k Ω or RCX6GATZ0362

CARBON RES. 1/4W G 3.6k Ω RCX4GATZ0362

R512 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R513 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333
R514 CARBON RES. 1/6W G 10k Ω or RCX6GATZ0103

Ref. No. Description Part No.

CARBON RES. 1/4W G 10k Ω RCX4GATZ0103

R516 CARBON RES. 1/6W G 470 Ω or RCX6GATZ0471

CARBON RES. 1/4W G 470 Ω RCX4GATZ0471
R517 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R519 CARBON RES. 1/6W G 22k Ω or RCX6GATZ0223

CARBON RES. 1/4W G 22k Ω RCX4GATZ0223
R520 CARBON RES. 1/6W J 330 Ω or RCX6JATZ0331

CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R521 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R522 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R523 CARBON RES. 1/6W G 1.5k Ω or RCX6GATZ0152

CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152
R524 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R525 CARBON RES. 1/6W J 390k Ω or RCX6JATZ0394

CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R526 CHIP RES.(1608) 1/10W J 390k Ω RRXAJR5Z0394
R527 CARBON RES. 1/6W J 330 Ω or RCX6JATZ0331

CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R528 CARBON RES. 1/6W G 4.7k Ω or RCX6GATZ0472

CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472
R529 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R530 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R531 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R532 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R533 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R534 CARBON RES. 1/6W J 330 Ω or RCX6JATZ0331

CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R535 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R536 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R537 CHIP RES.(1608) 1/10W J 680 Ω RRXAJR5Z0681
R538 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R539 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R540 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R541 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R542 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R543 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R544 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R545 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R546 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R548 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R549 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R553 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R557 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R558 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R560 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R562 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R567 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393
R568 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R569 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R570 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R572 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R574 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R575 CHIP RES.(1608) 1/10W J 330k Ω RRXAJR5Z0334
R576 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R577 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R578 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R581 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R582 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R583 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R584 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R585 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R586 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R588 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R590 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R601 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R602 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R603 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122

Ref. No. Description Part No.

20050622 1-19-8 H9979EL

R604 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152
R605 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R703 CARBON RES. 1/6W J 1.8k Ω or RCX6JATZ0182

CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R704 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R705 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R706 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R756 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R757 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R761 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R763 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R764 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R767 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R768 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R769 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R902 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R931 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R932 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R933 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R941 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R942 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R943 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1061 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1062 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1065 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1066 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R1067 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1068 CARBON RES. 1/6W J 390 Ω or RCX6JATZ0391

CARBON RES. 1/4W J 390 Ω RCX4JATZ0391
R1085 CHIP RES.(1608) 1/10W F 75 Ω or RRXAFR5H0750

CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5Z0750
R1086 CHIP RES.(1608) 1/10W F 2.0k Ω or RRXAFR5H0202

CHIP RES. 1/10W F 2.0k Ω RRXAFR5Z0202
R1087 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1090 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R1091 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1205 CHIP RES.(1608) 1/10W F 20k Ω or RRXAFR5H2002

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5Z2002
R1206 CHIP RES.(1608) 1/10W F 20k Ω or RRXAFR5H2002

CHIP RES.(1608) 1/10W F 20k Ω RRXAFR5Z2002
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES.(1608) 1/10W F 30k Ω or RRXAFR5H3002

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5Z3002
R1210 CHIP RES.(1608) 1/10W F 30k Ω or RRXAFR5H3002

CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5Z3002
R1211 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1224 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1227 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1229 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1238 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1240 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R1352 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1355 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1356 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1361 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1394 CARBON RES. 1/6W J 100 Ω or RCX6JATZ0101

CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R1396 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R1421 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

Ref. No. Description Part No.

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R1422 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1423 CHIP RES. 1/10W F 160 Ω or RRXAFR5H1600

CHIP RES. 1/10W F 160 Ω RRXAFR5Z1600
R1442 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1501 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1502 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1503 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2001 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2002 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2003 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2005 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2006 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2051 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R2052 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392
R2053 CARBON RES. 1/6W J 180 Ω or RCX6JATZ0181

CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R2054 CARBON RES. 1/6W J 180 Ω or RCX6JATZ0181

CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R2055 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2056 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2080 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2081 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2086 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R2093 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R2094 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

SWITCHES

SW501 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW503 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW504 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW506 LEAF SWITCH MXS01830MVP0 SSC0101MCE03

SW507 ROTARY MODE SWITCH SSS-53MD SSR0106KB003

SW601 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW602 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW603 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW604 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW605 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2005 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2006 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2021 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

SW2022 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

A5 JACK COVER(RCA) H9740ED 0VM306932

Ref. No. Description Part No.

20050622 1-19-9 H9979EL

POWER SW CBA

DVD OPEN/CLOSE CBA

SENSOR CBA

PSV CBA

POWER SUPPLY CBA

2B11 NEW SHIELD ASSEMBLY H9700ED 1VM420438

2B15 BUSH LED(F) H3700UD 0VM409508

2B46 ROHM HOLDER H7770JD 0VM304573

2L062 SCREW B-TIGHT M3X8 BIND HEAD + GBKB3080

2L082 SCREW B-TIGHT M3X8 BIND HEAD + GBKB3080

JK101 RGB CONNECTOR MRC-021V-03 ABS(B11 JXGL210LY006

JK751 RCA JACK 2P MSP-282V-12 NI LF(B1 JXRL020LY121

JK752 RCA JACK(YELLOW) MSP-281V4-B JXRL010LY003

JK754 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005

JK1202 RCA JACK(BLACK) MSP-281V2-B JXRL010LY062

JK1401 S TYPE JACK MDC-050V-2.4 JXEL040LY001

JW006 FFC CABLE 26P FFC/P1.00/260 WX1H9700-006

JW007 FFC CABLE 18P FFC/P1.00/170 WX1H9900-001

RM2001 REMOTE RECEIVER MIM-93M6DKF or USESJRSUNT01

REMOTE RECEIVER PIC-37042LU USESJRSKK033

PS502 PHOTO INTERRUPTER RPI-302C70 QPWZP1302C70

TP301 PCB JUMPER D0.6-P19.0 JW19.0T

TP501 PCB JUMPER D0.6-P5.0 JW5.0T

TP502 PCB JUMPER D0.6-P5.0 JW5.0T

TP503 PCB JUMPER D0.6-P6.0 JW6.0T

TP504 PCB JUMPER D0.6-P15.0 JW15.0T

TU701 TUNER UNIT TMDG9-861A UTUNPLGAL015

VR501 CARBON P.O.T. VZ067TL1 B104 PB(F) VRCB104HH014

X301 XTAL 4.433619MHz or FXC445LLN004

XTAL 1K*044334EE or FXC445LDS002

QUARTZ CRYSTAL 4.433619MHz or FXC445LCHE01

XTAL 4.433619MHz or FXC445LLN001

XTAL 4.433619MHz 1811388

X501 XTAL 12.000MHz or FXD126LDS001

QUARTS CRYSTAL 12.000000MHz FXD126LCHE01

X502 XTAL 32.768kHz (20PPM) or FXC323LQUA01

XTAL 32.768kHz (20PPM) FXC323LDS002

Ref. No. Description Part No.

POWER SW CBA (MCV-B)
Consists of the following:

---------

DIODE

D651 LED(RED) 204HD/E NPQZ00204HDE

SWITCHES

SW651 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

2B13 BUSH LED(E) H1600UD 0VM408832

JW009 FLAT CABLE 4P AWG26#2651/P2.0/80 WX3804S6FF08

Ref. No. Description Part No.

DVD OPEN/CLOSE CBA (MCV-C)
Consists of the following:

---------

SWITCHES

SW2020 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

JW008 JUMPER WIRE 2P AWG26#2651/P2.0/130 WX1H7375-001

Ref. No. Description Part No.

SENSOR CBA
Consists of the following:

1VSA11290

TRANSISTORS

Q503 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

Ref. No. Description Part No.

Q504 PHOTO TRANSISTOR PT204-6B-12 or NPWZT2046B12

PHOTO TRANSISTOR MID-32A22F NPWZ1D32A22F

Ref. No. Description Part No.

PSV CBA

Consists of the following

1VSA11318

POWER SUPPLY CBA (PSV-A)

JUNCTION CBA (PSV-B)

JACK-A CBA (PSV-C)

---------

---------

---------

Ref. No. Description Part No.

POWER SUPPLY CBA (PSV-A)

Consists of the following:

---------

CAPACITORS

C013 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100
C014 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C015 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101
C017 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMASDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102
C018 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C020 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220
C021 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V or CHD1EZ30F104

CHIP CERAMIC CAP. FZ Z 0.1µF/50V CHD1JZ3FZ104
C022 ELECTROLYTIC CAP. 470µF/35V M or CE1GMASDL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMASTL471
C1001! METALLIZED FILM CAP. 0.068µF/250V K or CT2E683DC011

! METALLIZED FILM CAP. 0.068µF/250V K or CT2E683DC014
! METALLIZED FILM CAP. 0.068µF/250V M CT2E683MS037

C1004 ELECTROLYTIC CAP. 100µF/400V M CA2H101S6016

C1005 CERAMIC CAP. SL K 56pF/1KV or CCD3AKPSL560

CERAMIC CAP. SL J 56pF/1KV CCD3AJPSL560

C1006! SAFTY CAP. 2200pF/250V or CCN2EMA0E222

! SAFETY CAP. 2200pF/250V CA2E222MR049
C1007 ELECTROLYTIC CAP. 1000µF/6.3V M or CE0KMASDL102

ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASTL102

C1013 CERAMIC CAP.(AX) X K 3300pF/16V CCA1CKT0X332
C1025 CHIP CERAMIC CAP. B K 0.068µF/50V or CHD1JK30B683

CHIP CERAMIC CAP. B K 0.068µF/25V CHD1EK30B683

C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1032 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTL100
C1033 CERAMIC CAP. YV Z 0.022µF/50V CCD1JZSYV223
C1035 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471
C1106 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASDL101

ELECTROLYTIC CAP. 100µF/35V M CE1GMASTL101
C1107 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTL221
C2014 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103
C2015 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

DIODES

D013 RECTIFIER DIODE BA158 or NDQZ000BA158

RECTIFIER DIODE BA158 NDWZ000BA158

D014 SCHOTTKY BARRIER DIODE SB390 NDQZ000SB390

D016 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D017 ZENER DIODE DZ-18BSAT265 or NDTA00DZ18BS

ZENER DIODE MTZJT-7718A QDTA00MTZJ18

Ref. No. Description Part No.

20050622 1-19-10 H9979EL

D018 RECTIFIER DIODE BA158 or NDQZ000BA158

RECTIFIER DIODE BA158 NDWZ000BA158

D019 RECTIFIER DIODE FR203-B/P NDQZ000FR203

D1001 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1002 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1003 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1004 RECTIFIER DIODE 1N4005 or N DQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005

D1006 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1008 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140

D1011 RECTIFIER DIODE BA159 or NDQZ000BA159

RECTIFIER DIODE BA159 NDWZ000BA159

D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1019 ZENER DIODE DZ-6.8BSBT265 or NDTB0DZ6R8BS

ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

D1022 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1025 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1030 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140

ICS

IC1001! PHOTOCOUPLER EL817A or NPEA000EL817

! PHOTOCOUPLER EL817B or NPEB000EL817

! PHOTOCOUPLER PS2561A-1(Q) or QPEQPS2561A1

! PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1

COILS

L010 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K­841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007
CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007

L013 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K­841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007
CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007

L1001! BEAD CORE ASSEMBLY H9900ED 1VSA11420

L1002 BEAD CORE ASSEMBLY H9900ED 1VSA11420

L1003! LINE FILTER 56MH TLF14CB5630R2 or LLBG00ZTU022

! LINE FILTER 50MH LF-4D-E503 LLBG00ZKQ009

L1004 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

L1005 BEAD CORE ASSEMBLY H9900ED 1VSA11420
L1009 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K­841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007
CHOKE COIL 47µH-K or LLBD00PKV005
CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007

L1011 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K­841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007

Ref. No. Description Part No.

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007
L1012 CHOKE COIL 47µH or LLBD00PKV022

RADIAL TYPE CHOKE COIL CW68-470K-

841040NP or

LLBD00PKV023

CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K or LLBD00PKV005

CHOKE COIL 47µH-K or LLBD00PKT001

FIXED INDUCTORS LGB0810T-470K LLBD00PU6007

TRANSISTORS

Q1001! FET 2SK3566 QFWZ02SK3566

Q1003 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1004 TRANSISTOR KTA1267Y-AT/P or NQSYKTA1267P

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR 2SA1175(J) or QQSJ02SA1175

TRANSISTOR 2SA1175(H) or QQSH02SA1175

TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(Y) or NQSY0KTA1267

TRANSISTOR KTA1267(GR) NQS10KTA1267

Q1008 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC1815-Y(TPE2) or QQSY02SC1815

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R057 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R1002 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R1003 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R1004 METAL OXIDE FILM RES. 2W J 82k Ω or RN02JZLZ0823

METAL OXIDE FILM RES. 2W J 82k Ω or RN02JZQZ0823

METAL OXIDE FILM RES. 2W J 82k Ω RN02JZPZ0823
R1005 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1006 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1007 CARBON RES. 1/4W J 1M Ω RCX4JATZ0105
R1008 CARBON RES. 1/4W G 680 Ω RCX4GATZ0681
R1010 CARBON RES. 1/6W J 8.2k Ω or RCX6JATZ0822

CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R1011 METAL OXIDE FILM RES. 1W J 1.3 Ω or RN01JZLZ01R3

METAL OXIDE FILM RES. 1W J 1.3 Ω or RN01JZQZ01R3

METAL OXIDE FILM RES. 1W J 1.3 Ω RN01JZPZ01R3
R1020 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1021 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1022 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1023 CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5H0222

CHIP RES.(1608) 1/10W F 2.2k Ω RRXAFR5Z0222
R1025 CHIP RES. 1/10W F 5.6k Ω or RRXAFR5H0562

CHIP RES. 1/10W F 5.6k Ω RRXAFR5Z0562
R1029 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1030 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820
R1031 CARBON RES. 1/4W J 82 Ω RCX4JATZ0820
R1032 CARBON RES. 1/4W G 1k Ω RCX4GATZ0102
R1035 CARBON RES. 1/6W J 1k Ω or RCX6JATZ0102

CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1036 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1037 CARBON RES. 1/6W J 10k Ω or RCX6JATZ0103

Ref. No. Description Part No.

20050622 1-19-11 H9979EL

JUNCTION CBA

JACK-A CBA

CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

R1038 CARBON RES. 1/6W J 100k Ω or RCX6JATZ0104

CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

R1039 CARBON RES. 1/6W J 470k Ω or RCX6JATZ0474

CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7ZU001

METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7KE009
METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7DP003

R1126 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333

MISCELLANEOUS

AC1001! AC CORD PE8G2CG9G0AA059 WAE0172LW009

2B33 HEATSINK H9700ED 0VM416271

F1001! FUSE T1.6AL/250V or PAGC20BW3162

! FUSE 50T016H 1.6A/250V PAGH20BHV162

FH1001 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER DFH-001 XH01Z00RP001

FH1002 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER DFH-001 XH01Z00RP001

2L053 SCREW S-TIGHT M3X8 BIND HEAD+ GBMS3080

T0011! PULSE TRANS BCK-28-0552 or LTT00EPXB019

! PULSE TRANS CGS-SW0087A LTT00EPSA177

Ref. No. Description Part No.

JUNCTION CBA (PSV-B)
Consists of the following:

---------

CONNECTOR

CN051A 242 SERIES CON NECTOR TUC-P14X-B1 WHT STJCTUB14TG002

MISCELLANEOUS

JW001 FLAT CABLE 8P AWG26#2651/P2.0/75 WX3808S6FF07

JW002 FLAT CABLE 6P AWG26#2651/P2.0/65 WX3806S6FF06

Ref. No. Description Part No.

JACK-A CBA (PSV-C)
Consists of the following:

---------

CAPACITORS

C101 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C102 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0

C103 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTL101

C105 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C108 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTL471

C111 CHIP CERAMIC CAP.(1608) CH J 470pF/50V or CHD1JJ3CH471

CHIP CERAMIC CAP. CG J 470pF/50V CHD1JJ3CG471

C119 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

DIODES

D112 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

D113 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS

ZENER DIODE MTZJT-7711A QDTA00MTZJ11

COIL

L102 BEAD CORE ASSEMBLY H9900ED 1VSA11421

TRANSISTORS

Q103 TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

RESISTORS

R110 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472

R111 CARBON RES. 1/6W J 220 Ω or RCX6JATZ0221

CARBON RES. 1/4W J 220 Ω RCX4JATZ0221

Ref. No. Description Part No.

R114 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R115 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R117 CARBON RES. 1/4W J 510 Ω RCX4JATZ0511
R120 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680
R125 CARBON RES. 1/6W J 4.7k Ω or RCX6JATZ0472

CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R126 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

MISCELLANEOUS

JK1402 RGB CONNECTOR MRC-021V-03 JXGL210LY003

JW003 FLAT CABLE 10P AWG26#2651/P2.0/190 WX3810S6FF19

Ref. No. Description Part No.

VD-170

H9979ED

2005-07-15
