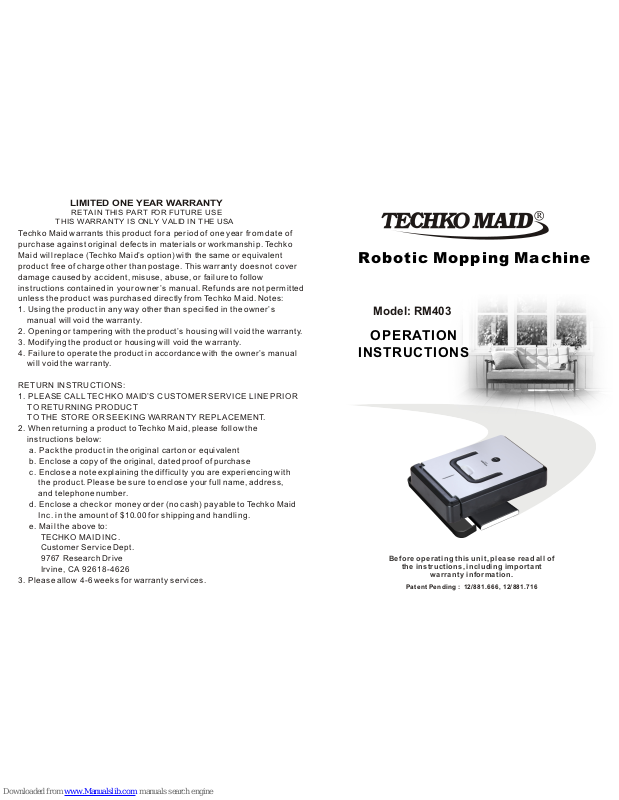

Before operating this unit, please read all of
the instructions, including important
warranty information.
OPERATION
INSTRUCTIONS
Model: RM403
Robotic Mopping Machine
LIMITED ONE YEAR WARRANTY
RETAIN THIS PART FOR FUTURE USE
THIS WARRANTY IS ONLY VALID IN THE USA
Techko Maid warrants this product for a period of one year from date of
purchase against original defects in materials or workmanship. Techko
Maid will replace (Techko Maid’s option) with the same or equivalent
product free of charge other than postage. This warranty does not cover
damage caused by accident, misuse, abuse, or failure to follow
instructions contained in your owner’s manual. Refunds are not permitted
unless the product was purchased directly from Techko Maid. Notes:
1. Using the product in any way other than specified in the owner’s
manual will void the warranty.
2. Opening or tampering with the product’s housing will void the warranty.
3. Modifying the product or housing will void the warranty.
4. Failure to operate the product in accordance with the owner’s manual
will void the warranty.
RETURN INSTRUCTIONS:
1. PLEASE CALL TECHKO MAID’S CUSTOMER SERVICE LINE PRIOR
TO RETURNING PRODUCT
TO THE STORE OR SEEKING WARRANTY REPLACEMENT.
2. When returning a product to Techko Maid, please follow the
instructions below:
a. Pack the product in the original carton or equivalent
b. Enclose a copy of the original, dated proof of purchase
c. Enclose a note explaining the difficulty you are experiencing with
the product. Please be sure to enclose your full name, address,
and telephone number.
d. Enclose a check or money order (no cash) payable to Techko Maid
Inc. in the amount of $10.00 for shipping and handling.
e. Mail the above to:
TECHKO MAID INC.
Customer Service Dept.
9767 Research Drive
Irvine, CA 92618-4626
3. Please allow 4-6 weeks for warranty services.
Patent Pending : 12/881.666, 12/881.716
Robot Mopping Machine
Congratulations on the purchase of your TECHKO MAID RM403 Robot
Mopping machine. We know you will find this to be a helpful tool in your
every day household cleaning.
* Please see operation instructions for more information.
* Retain the safety and operating instructions for future reference.
INSTRUCTIONS
Before using the RM403 Robot Mopping machine for the first time, you
will need to charge the battery completely overnight for best results.
CAUTION!
Before using your Robot Mopping machine, be sure to observe the
following precautions:
1. RM403 is for indoor use only.
2. Since the RM403 contains various electronic parts, when cleaning it,
DO NOT submerge in water. You may clean the unit with a damp cloth
only.
3. The Robot Mopping machine is not a toy. Do not allow anyone to sit or
stand on the unit. Small children and pets should always be supervised
when the machine is cleaning.
4. Always follow the warnings and instructions outlined in this manual,
and on the packaging.
5. Do not use this device to clean anything that may be burning or
smoking.
6. Do not use this device to clean certain spills such as bleach, paint, or
other harmful or flammable chemicals.
7. Do not attempt to repair or adjust any electrical or mechanical
functions on this device. Tampering with these functions may create a
hazardous condition, and will void your warranty.
www.techkomaid.com
1
www.techkomaid.com
6
2. Random Pattern: When blocked,
the unit will reverse and change
movement direction (Fig. 2 shows
angle changes)
3. Spiral Pattern (Fig. 3)
Fig. 2
Fig. 3
4. Along Wall Pattern (Fig. 4)
Fig. 4
Fig. 5
5. Z Pattern (Fig. 5)
Customer Service :
1-888-8TECHKO (1-888-883-2456)
Website: www.techkomaid.com
Mfg. By
9767 Research Drive
Irvine, CA 92618-4626
MADE IN CHINA
O
n/
O
ff
R
M
403
On
/O
ff
R
M
4
0
3
O
n/
O
ff
R
M
4
0
3
O
n
/O
ff
R
M
4
0
3
8. Use only the electrical adapter provided by Techko Maid. Using
another source may lead to product destruction, electrical shock or
fires. Do not operate the unit with a damaged power supply cord.
9. Before using this machine, make sure to pick up objects such as
clothing, toys, papers, pull cords for blinds or curtains, power
cords and fragile objects that could get knocked over.
10. Always remove the battery before long-term storage or
transportation.
11. Do not use common household cleaners, lubricants, or alcohol on
or near the mopping machine. Do not use flammable, petroleumbased or aerosol cleaners on or near this product. Some agents
may combust causing serious injury.
FEATURES:
* Automatically mops floors with a one touch button operation
* Excellent for mopping sealed wood floors, linoleum, tile and
marble floors
* Wet and Dry mopping capability
* Compact design enables it to work under sofas, beds, and
other hard-to-reach areas
* Touch sensitive bumpers won’t damage furniture or
baseboards
* Fall prevention sensors
* Auto shut off when lifted or stuck
* Straight walk, wall following, spiral and Z patterned motions
provide maximum room coverage
* Uses standard, convenient, and easy to change mopping
sheets
* Rechargeable batteries and AC Adapter included
www.techkomaid.com
2
www.techkomaid.com
5
Simply press the On/Off button, a short musical tone will sound and
the RM403 will begin to start cleaning.
As the RM403 encounters chair legs, furniture and other obstacles,
it cleans around them and then continues its cleaning pattern. It will
periodically return to areas it skipped and continue on.
The RM403 detects stairs and will maneuver away from drop off
and get back to its cleaning area.
The RM403 will automatically perform various movement patterns
during its cleaning
process and change to different movement
patterns
when needed
to ensure complete room
coverage:
Movement Patterns:
1. Straight Pattern ( Fig.1 shows straight line
movement)
Fig. 1
O
n/
O
ff
R
M
4
0
3
For safety, this appliance in not intended for use by persons (including children)
with reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless supervised or instructed by a responsible party.
Not intended for use by children.
www.techkomaid.com
4
* IMPORTANT - Before using the RV188 unit for the first time, you
need to charge the battery completely overnight for best results.
(8 hours +)
* Charge using a standard USA AC outlet only.
* Only use the included charger to charge the RV188.
* Only use the rechargeable battery packs provided or approved
by the manufacturer.
* Do not use a charger with a damaged cord or plug.
* Do not handle or charge the RV188 when hands are wet.
* Always disconnect the RV188 from the charger before cleaning
the unit itself.
BATTERY AND CHARGING
* IMPORTANT - Before using the RM403 unit for the first time, you
need to charge the battery completely overnight for best results.
(8 hours +)
* Charge using a standard USA AC outlet only.
* Only use the included charger to charge the RM403.
* Only use the rechargeable battery packs provided or approved
by the manufacturer.
* Do not use a charger with a damaged cord or plug.
* Do not handle or charge the RM403 when hands are wet.
* Always disconnect the RM403 from the charger before cleaning
the unit itself.
Charger
CHARGING
1. Insert the plug into the power socket (see Fig.1).
2. Insert the other end of the plug into the socket located at the back of
the machine(see Fig.2). The LED indicator light will begin to flash.
3. The charging time is 6-8 hours.
Fig. 1
Fig. 2
OPERATION & DIAGRAMS
To begin using your RM403, you must apply either a standard wet sheet
for mopping or a standard dry sheet for sweeping, on to the mopping pad.
Wrap the sheet evenly around the mopping pad and secure it by attaching
the mopping pad cover on to it. Insert the whole mopping pad on to the
unit. You are ready to go !
On/Off
R
M
4
0
3
COMPONENT ILLUSTRATION
LED Power Light
Handle
On/Off Button
Unit
Bumper
Mopping Pad
Cliff-Avoidance
Wheel
Mopping Pad Inserts
Battery Compartment
Wheel
www.techkomaid.com
3
1.Remove the Robot and all parts from outer carton.
On/Off
RM403
Unit
Mopping Pad
AC Adapter
Battery Pack
Dry Cleaning Cloths
INSTALLATION:
Mopping Pad Cover
2. Please check your accessories:
* 1 RM403 Unit
* 1 Mopping Pad
* 1 Mopping Pad Cover
* 1 AC Adapter
* 1 Battery Pack
* 2 Dry Cleaning Cloths
